Users Manual



AdvantechCo.,Ltd

UltraRuggedMobileComputer

UserManual

Modelno.:PWS‐8101MSeries

(RalinkRT2561T)

Advantech Co., Ltd

IntegratedBasebandandMACSolution

IEEE802.11b/gWLAN

2008/3/29

Advantech Co., Ltd



Contents:



Contents:............................................................................................................................ 2

Introduction ...................................................................................................................... 3

InstalltheWLANcard .................................................................................................... 4

InstallPWS‐8101MSeries(RalinkRT2561T)Driver ................................................... 5

FederalCommunicationsCommission(FCC)Requirements ................................... 7



Advantech Co., Ltd



Introduction

TheWirelessLANConfigurationUtilityisapowerfulapplicationthathelpsyouto

configurethisWLANcardandmonitorthestatisticsofthecommunicationstatus.

Unlikethestandardmethodofconfiguringthecardviatheoperatingsystemutili‐

ties,thisapplicationpermitsthedynamicmodificationoftheconfigurationparame‐

terswhilethecardisoperating.Italsooffersmoreconfigurationoptions.



WeoffertheWirelessLANConfigurationUtilityforWindows®98SE/Me/2000/XP.

Mini‐PCIWLANequipmenthasbeentestedandfoundtocomplywithlimitsfora

ClassBdigitaldevice,pursuanttoPart15oftheFCCrules.Theselimitsarede‐

signedtoprovidereasonableprotectionagainstharmfulinterferenceinresidential

installations.

Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergy,andifnot

installedandusedinaccordancewiththeinstructions,maycauseharmfulinterfer‐

encetoradiocommunications.



Advantech Co., Ltd



InstalltheWLANcard

z ReleasethescrewfromPC/NB

z Findoutthepre‐wiredcable

z ConnectthecablewithMini‐PCI(“Main”connector)

z AlignandfirmlyplugtheMini‐PCIcardintotheslot.

z Re‐placethecovertoDeviceSecurethescrewwithacrossscrewdriver.



Advantech Co., Ltd



InstallPWS‐8101MSeries(RalinkRT2561T)Driver



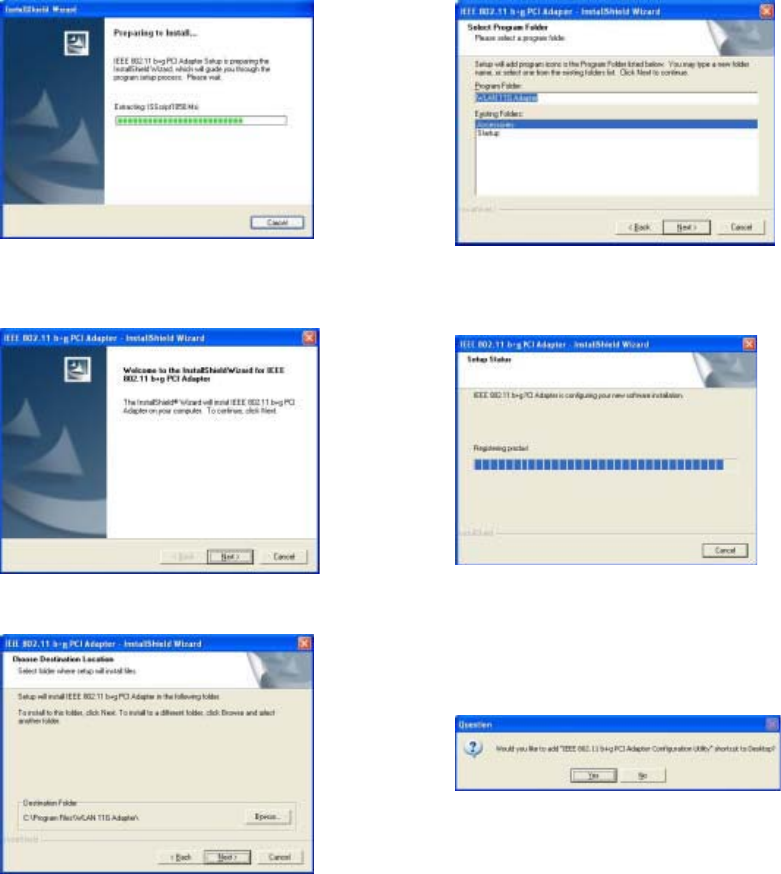

Theprogramwillautomaticallypro‐

ceedwithinstalling.



Press“Next”tocontinue



Press“Browser”tochangethefolder

wheresetupwillinstallfilesorpress

“Next”tocontinue.



Selectorcreateaprogramfolderand

press“Next”tocontinue.



Theprogramwillautomaticallypro‐

ceedwithinstalling.



Press“Yes”tocontinue.



Advantech Co., Ltd



Press“Continue”tocontinuethe

process.



InserttheWirelessCardtoslotofNB

andchoose“Installthesoftware

automatically(Recommended)”and

press“Next”.



Press“Finish”tocompletetheinstal‐

lation



Advantech Co., Ltd

Federal Communications Commission (FCC) Requirements

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB

digitaldevice,pursuanttopart15oftheFCCrules.Theselimitsaredesignedto

providereasonableprotectionagainstharmfulinterferenceinaresidentialinstalla‐

tion.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,if

notinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinter‐

ferencetoradiocommunications.However,thereisnoguaranteethatinterference

willnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulin‐

terferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe

equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyone

ormoreofthefollowingmeasures:

‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



INFORMATION:

ThisTransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyother

antennaortransmitter.

Anychangesormodifications(includingtheantennas)madetothisdevicethatare

notexpresslyapprovedbythemanufacturermayvoidtheuser’sauthoritytooper‐

atetheequipment.



EndProductLabeling

Thistransmittermoduleisauthorizedonlyforuseindeviceswheretheantenna

maybeinstalledsuchthat20cmmaybemaintainedbetweentheantennaandusers.

Thefinalendproductmustbelabeledinvisibleareawiththefollowing:

Advantech Co., Ltd

“ContainsTXFCCID:M82‐PWS‐8101M”



EndProductManualInformation

Theusermanualforendusersmustincludethefollowinginformationinapromi‐

nentlocation“IMPORTANTNOTE:TocomplywithFCCRFexposurecompliance

requirements,theantennausedforthistransmittermustbeinstalledtoprovidea

separationdistanceofatleast20cmfromallpersonsandmustnotbeco‐locatedor

operatinginconjunctionwithanyotherantennaortransmitter.”



Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefol‐

lowingtwoconditions

(1)Thisdevicemaynotcauseharmfulinterferenceand

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethat

maycauseundesiredoperation



IMPORTANTNOTE:

Intheeventthattheseconditionscannotbemet(forexamplecertainlaptopcon‐

figurationsorco‐locationwithanothertransmitter),thentheFCCauthorizationisno

longerconsideredvalidandtheFCCIDcannotbeusedonthefinalproduct.In

thesecircumstances,theOEMintegratorwillberesponsibleforre‐evaluatingthe

endproduct(includingthetransmitter)andobtainingaseparateFCCauthorization.



ThisdeviceisintendedonlyforOEMintegratorsunderthefollowingconditions:

Theantennamustbeinstalledsuchthat20cmismaintainedbetweentheantenna

andusers.Aslongasaconditionaboveismet,furthertransmittertestwillnotbe

required.However,theOEMintegratorisstillresponsiblefortestingtheir

end‐productforanyadditionalcompliancerequirementsrequiredwiththismodule

installed(forexample,digitaldeviceemissions,PCperipheralrequirements,etc.).
