Aearo 0808B E-A-R-TONE WiLAT Audiometric Earphone System (WBU) User Manual Exhibit 8

Aearo Company E-A-R-TONE WiLAT Audiometric Earphone System (WBU) Exhibit 8

Exhibit 8

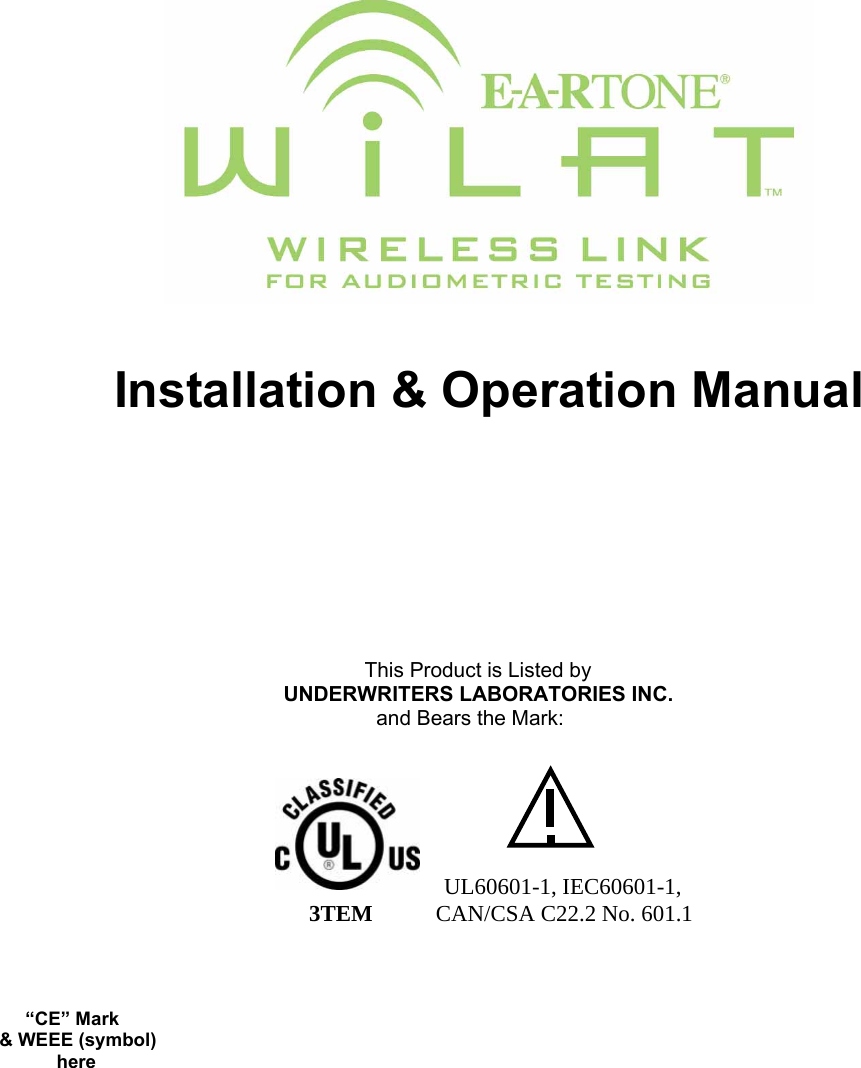

Installation & Operation Manual This Product is Listed by UNDERWRITERS LABORATORIES INC. and Bears the Mark: UL60601-1, IEC60601-1, 3TEM CAN/CSA C22.2 No. 601.1 “CE” Mark & WEEE (symbol) here

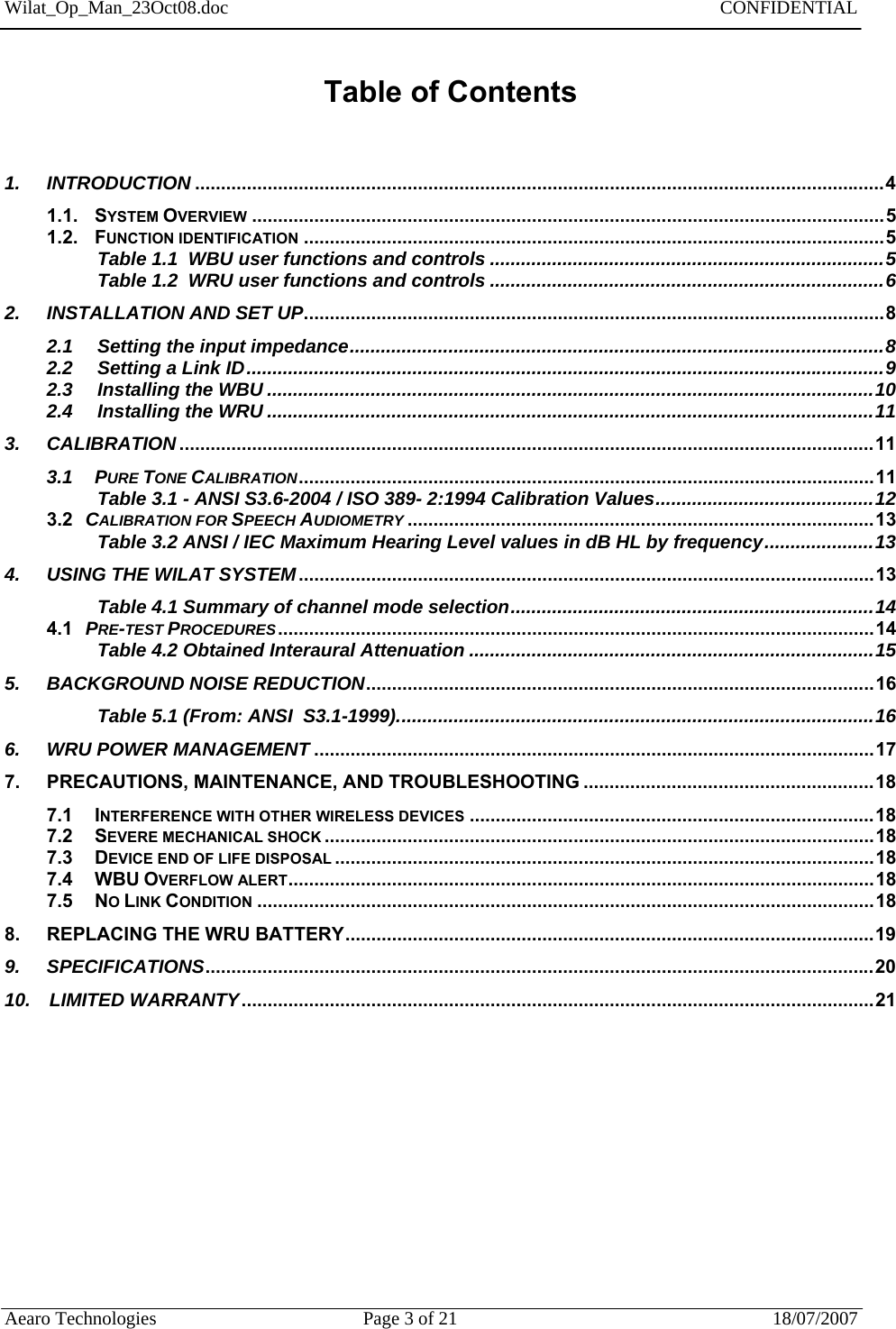

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 3 of 21 18/07/2007 Table of Contents 1. INTRODUCTION .....................................................................................................................................4 1.1. SYSTEM OVERVIEW ..........................................................................................................................5 1.2. FUNCTION IDENTIFICATION ................................................................................................................5 Table 1.1 WBU user functions and controls ............................................................................5 Table 1.2 WRU user functions and controls ............................................................................6 2. INSTALLATION AND SET UP................................................................................................................8 2.1 Setting the input impedance.......................................................................................................8 2.2 Setting a Link ID...........................................................................................................................9 2.3 Installing the WBU .....................................................................................................................10 2.4 Installing the WRU .....................................................................................................................11 3. CALIBRATION ......................................................................................................................................11 3.1 PURE TONE CALIBRATION...............................................................................................................11 Table 3.1 - ANSI S3.6-2004 / ISO 389- 2:1994 Calibration Values..........................................12 3.2 CALIBRATION FOR SPEECH AUDIOMETRY ..........................................................................................13 Table 3.2 ANSI / IEC Maximum Hearing Level values in dB HL by frequency.....................13 4. USING THE WILAT SYSTEM...............................................................................................................13 Table 4.1 Summary of channel mode selection......................................................................14 4.1 PRE-TEST PROCEDURES...................................................................................................................14 Table 4.2 Obtained Interaural Attenuation ..............................................................................15 5. BACKGROUND NOISE REDUCTION..................................................................................................16 Table 5.1 (From: ANSI S3.1-1999)............................................................................................16 6. WRU POWER MANAGEMENT ............................................................................................................17 7. PRECAUTIONS, MAINTENANCE, AND TROUBLESHOOTING ........................................................18 7.1 INTERFERENCE WITH OTHER WIRELESS DEVICES ..............................................................................18 7.2 SEVERE MECHANICAL SHOCK ..........................................................................................................18 7.3 DEVICE END OF LIFE DISPOSAL ........................................................................................................18 7.4 WBU OVERFLOW ALERT.................................................................................................................18 7.5 NO LINK CONDITION .......................................................................................................................18 8. REPLACING THE WRU BATTERY......................................................................................................19 9. SPECIFICATIONS.................................................................................................................................20 10. LIMITED WARRANTY..........................................................................................................................21

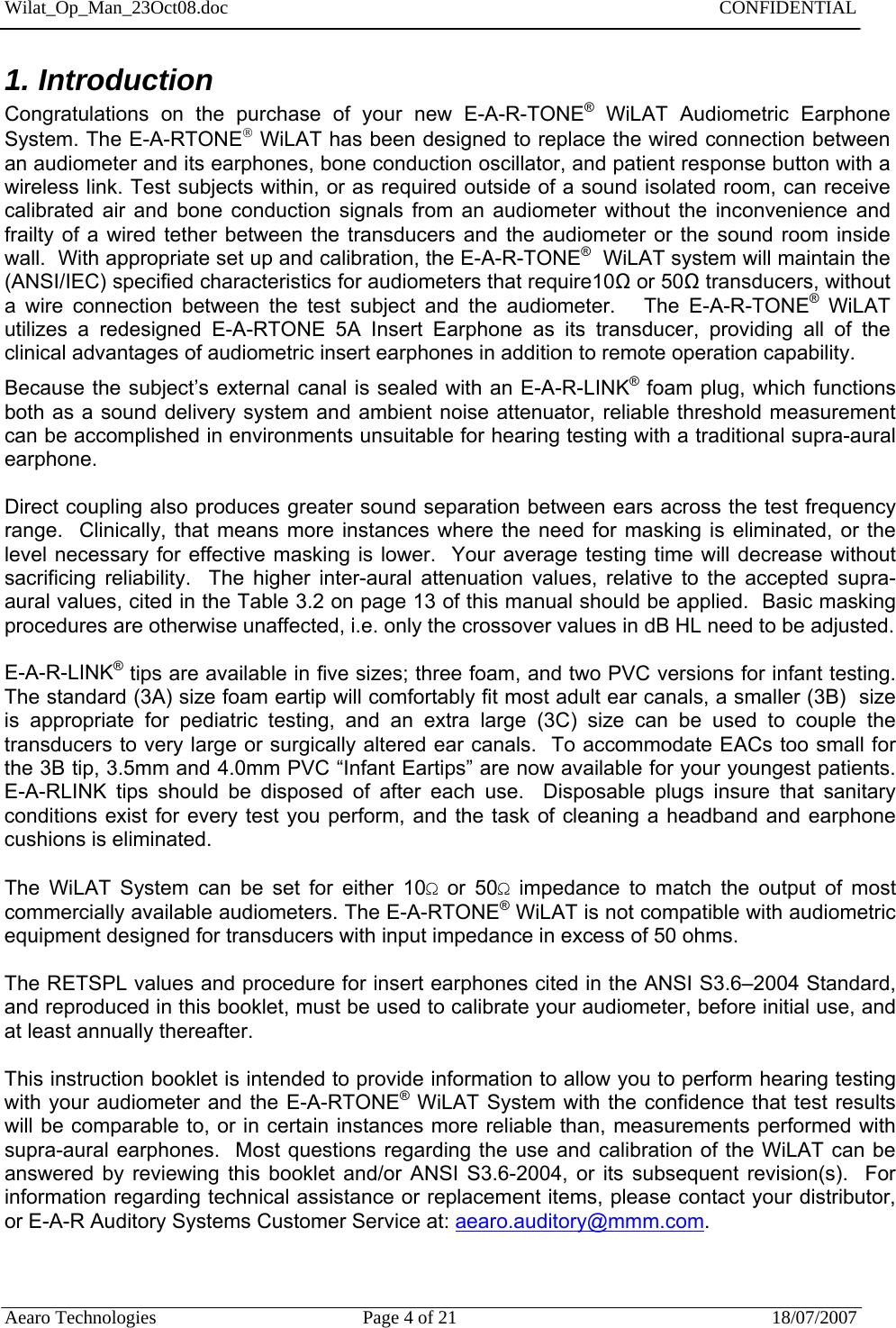

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 4 of 21 18/07/2007 1. Introduction Congratulations on the purchase of your new E-A-R-TONE® WiLAT Audiometric Earphone System. The E-A-RTONE WiLAT has been designed to replace the wired connection between an audiometer and its earphones, bone conduction oscillator, and patient response button with a wireless link. Test subjects within, or as required outside of a sound isolated room, can receive calibrated air and bone conduction signals from an audiometer without the inconvenience and frailty of a wired tether between the transducers and the audiometer or the sound room inside wall. With appropriate set up and calibration, the E-A-R-TONE® WiLAT system will maintain the (ANSI/IEC) specified characteristics for audiometers that require10Ω or 50Ω transducers, without a wire connection between the test subject and the audiometer. The E-A-R-TONE® WiLAT utilizes a redesigned E-A-RTONE 5A Insert Earphone as its transducer, providing all of the clinical advantages of audiometric insert earphones in addition to remote operation capability. Because the subject’s external canal is sealed with an E-A-R-LINK® foam plug, which functions both as a sound delivery system and ambient noise attenuator, reliable threshold measurement can be accomplished in environments unsuitable for hearing testing with a traditional supra-aural earphone. Direct coupling also produces greater sound separation between ears across the test frequency range. Clinically, that means more instances where the need for masking is eliminated, or the level necessary for effective masking is lower. Your average testing time will decrease without sacrificing reliability. The higher inter-aural attenuation values, relative to the accepted supra-aural values, cited in the Table 3.2 on page 13 of this manual should be applied. Basic masking procedures are otherwise unaffected, i.e. only the crossover values in dB HL need to be adjusted. E-A-R-LINK® tips are available in five sizes; three foam, and two PVC versions for infant testing. The standard (3A) size foam eartip will comfortably fit most adult ear canals, a smaller (3B) size is appropriate for pediatric testing, and an extra large (3C) size can be used to couple the transducers to very large or surgically altered ear canals. To accommodate EACs too small for the 3B tip, 3.5mm and 4.0mm PVC “Infant Eartips” are now available for your youngest patients. E-A-RLINK tips should be disposed of after each use. Disposable plugs insure that sanitary conditions exist for every test you perform, and the task of cleaning a headband and earphone cushions is eliminated. The WiLAT System can be set for either 10Ω or 50Ω impedance to match the output of most commercially available audiometers. The E-A-RTONE® WiLAT is not compatible with audiometric equipment designed for transducers with input impedance in excess of 50 ohms. The RETSPL values and procedure for insert earphones cited in the ANSI S3.6–2004 Standard, and reproduced in this booklet, must be used to calibrate your audiometer, before initial use, and at least annually thereafter. This instruction booklet is intended to provide information to allow you to perform hearing testing with your audiometer and the E-A-RTONE® WiLAT System with the confidence that test results will be comparable to, or in certain instances more reliable than, measurements performed with supra-aural earphones. Most questions regarding the use and calibration of the WiLAT can be answered by reviewing this booklet and/or ANSI S3.6-2004, or its subsequent revision(s). For information regarding technical assistance or replacement items, please contact your distributor, or E-A-R Auditory Systems Customer Service at: aearo.auditory@mmm.com.

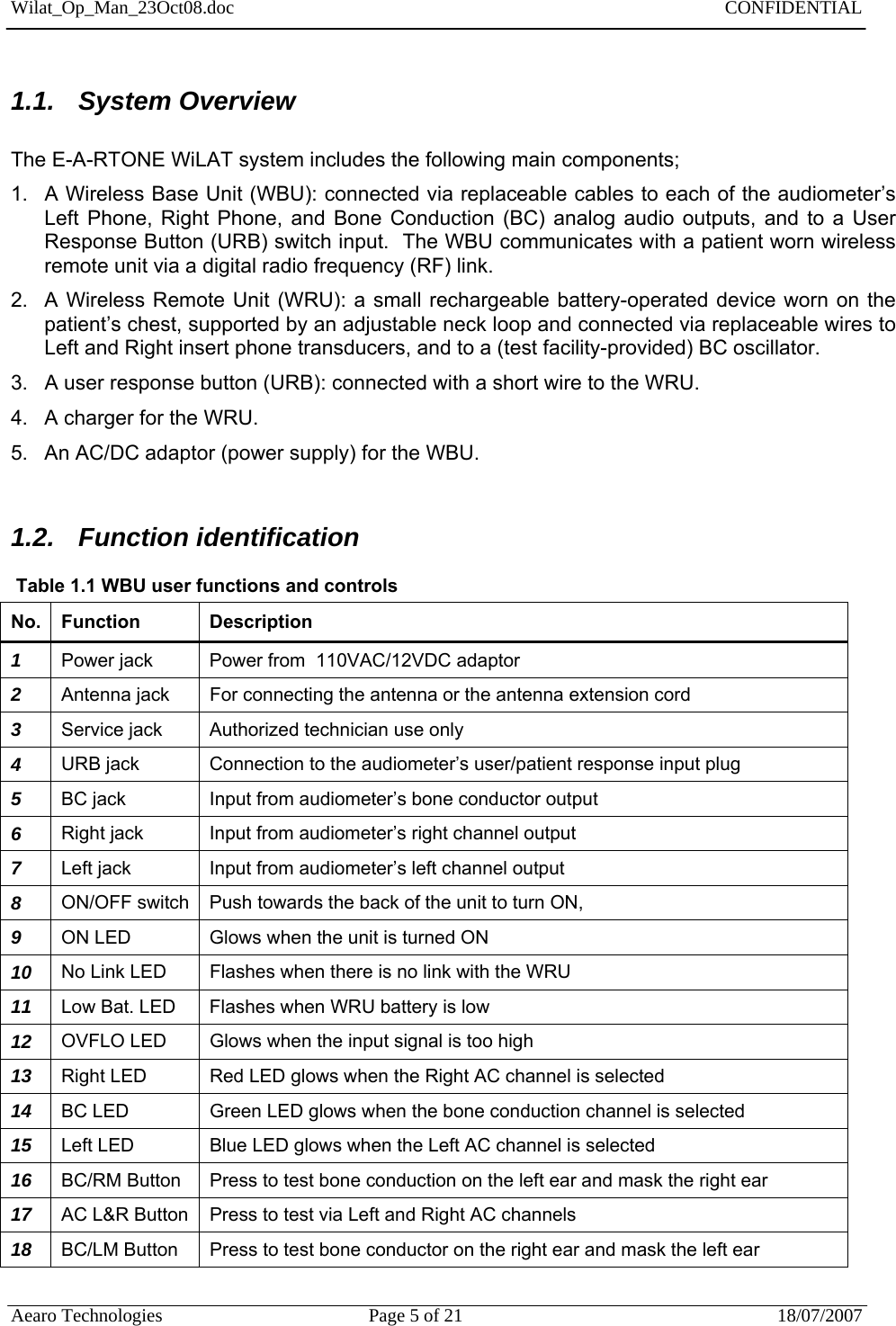

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 5 of 21 18/07/2007 1.1. System Overview The E-A-RTONE WiLAT system includes the following main components; 1. A Wireless Base Unit (WBU): connected via replaceable cables to each of the audiometer’s Left Phone, Right Phone, and Bone Conduction (BC) analog audio outputs, and to a User Response Button (URB) switch input. The WBU communicates with a patient worn wireless remote unit via a digital radio frequency (RF) link. 2. A Wireless Remote Unit (WRU): a small rechargeable battery-operated device worn on the patient’s chest, supported by an adjustable neck loop and connected via replaceable wires to Left and Right insert phone transducers, and to a (test facility-provided) BC oscillator. 3. A user response button (URB): connected with a short wire to the WRU. 4. A charger for the WRU. 5. An AC/DC adaptor (power supply) for the WBU. 1.2. Function identification Table 1.1 WBU user functions and controls No. Function Description 1 Power jack Power from 110VAC/12VDC adaptor 2 Antenna jack For connecting the antenna or the antenna extension cord 3 Service jack Authorized technician use only 4 URB jack Connection to the audiometer’s user/patient response input plug 5 BC jack Input from audiometer’s bone conductor output 6 Right jack Input from audiometer’s right channel output 7 Left jack Input from audiometer’s left channel output 8 ON/OFF switch Push towards the back of the unit to turn ON, 9 ON LED Glows when the unit is turned ON 10 No Link LED Flashes when there is no link with the WRU 11 Low Bat. LED Flashes when WRU battery is low 12 OVFLO LED Glows when the input signal is too high 13 Right LED Red LED glows when the Right AC channel is selected 14 BC LED Green LED glows when the bone conduction channel is selected 15 Left LED Blue LED glows when the Left AC channel is selected 16 BC/RM Button Press to test bone conduction on the left ear and mask the right ear 17 AC L&R Button Press to test via Left and Right AC channels 18 BC/LM Button Press to test bone conductor on the right ear and mask the left ear

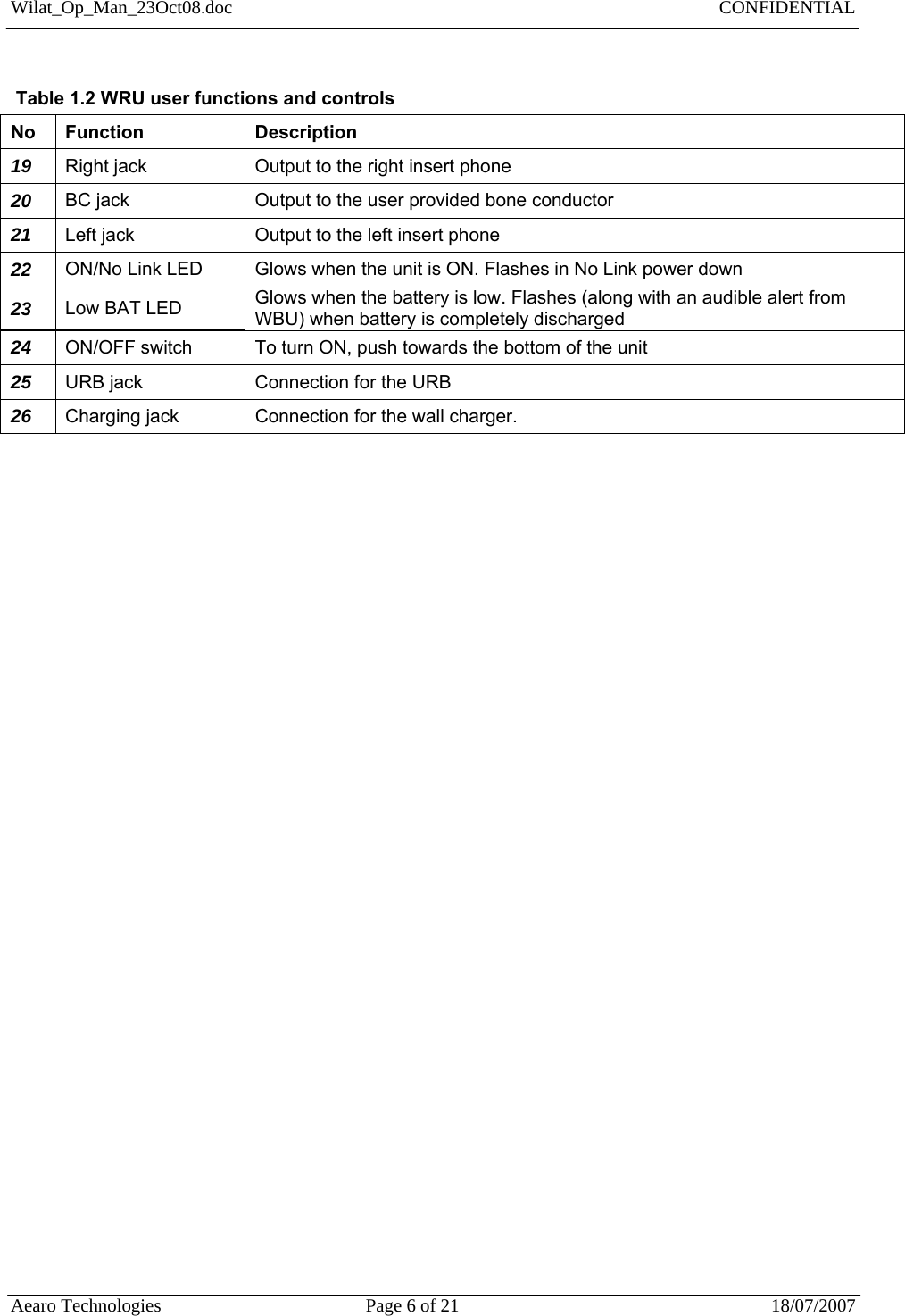

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 6 of 21 18/07/2007 Table 1.2 WRU user functions and controls No Function Description 19 Right jack Output to the right insert phone 20 BC jack Output to the user provided bone conductor 21 Left jack Output to the left insert phone 22 ON/No Link LED Glows when the unit is ON. Flashes in No Link power down 23 Low BAT LED Glows when the battery is low. Flashes (along with an audible alert from WBU) when battery is completely discharged 24 ON/OFF switch To turn ON, push towards the bottom of the unit 25 URB jack Connection for the URB 26 Charging jack Connection for the wall charger.

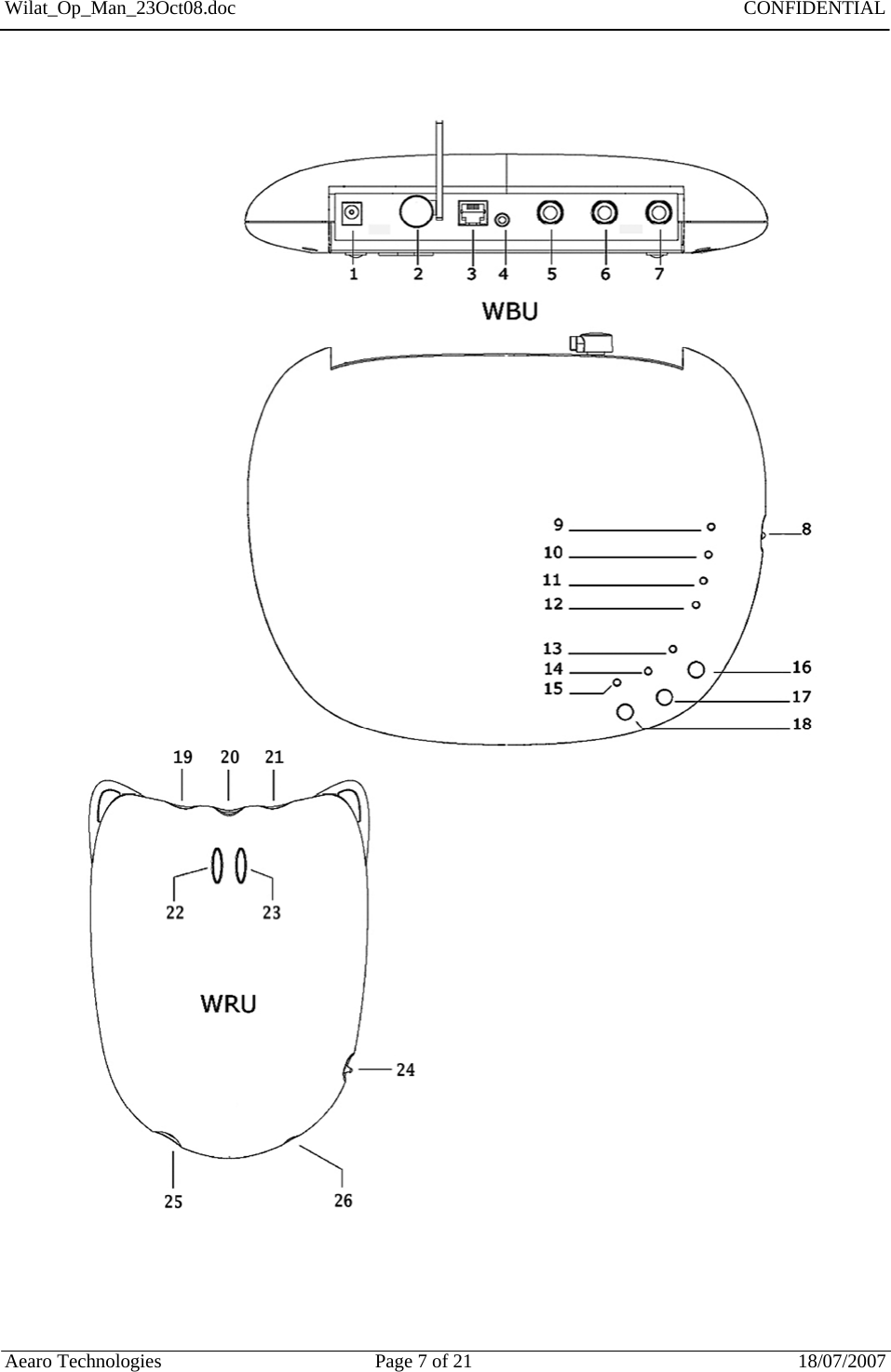

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 7 of 21 18/07/2007

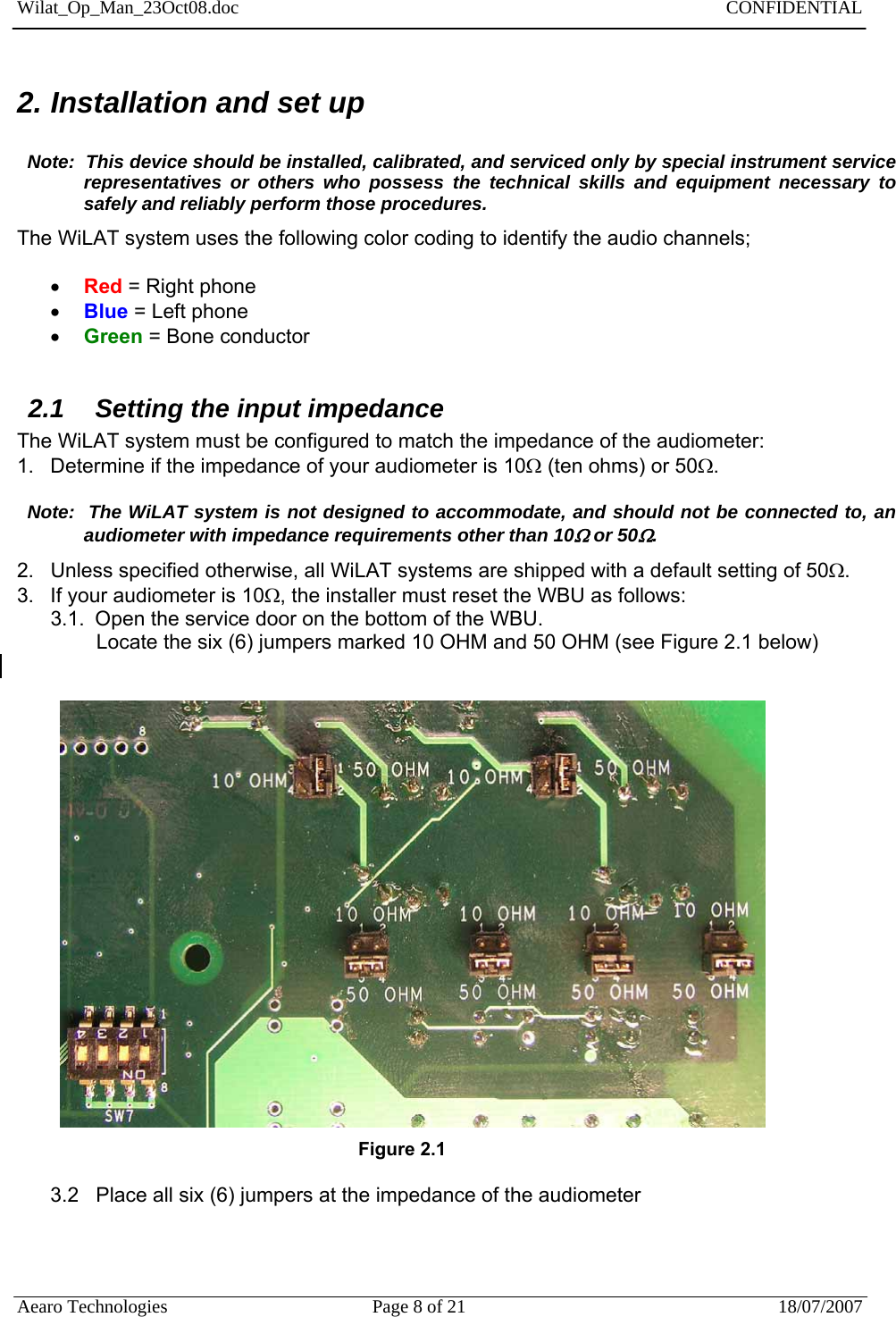

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 8 of 21 18/07/2007 2. Installation and set up Note: This device should be installed, calibrated, and serviced only by special instrument service representatives or others who possess the technical skills and equipment necessary to safely and reliably perform those procedures. The WiLAT system uses the following color coding to identify the audio channels;  Red = Right phone  Blue = Left phone  Green = Bone conductor 2.1 Setting the input impedance The WiLAT system must be configured to match the impedance of the audiometer: 1. Determine if the impedance of your audiometer is 10 (ten ohms) or 50. Note: The WiLAT system is not designed to accommodate, and should not be connected to, an audiometer with impedance requirements other than 10 or 50. 2. Unless specified otherwise, all WiLAT systems are shipped with a default setting of 50. 3. If your audiometer is 10, the installer must reset the WBU as follows: 3.1. Open the service door on the bottom of the WBU. Locate the six (6) jumpers marked 10 OHM and 50 OHM (see Figure 2.1 below) Figure 2.1 3.2 Place all six (6) jumpers at the impedance of the audiometer

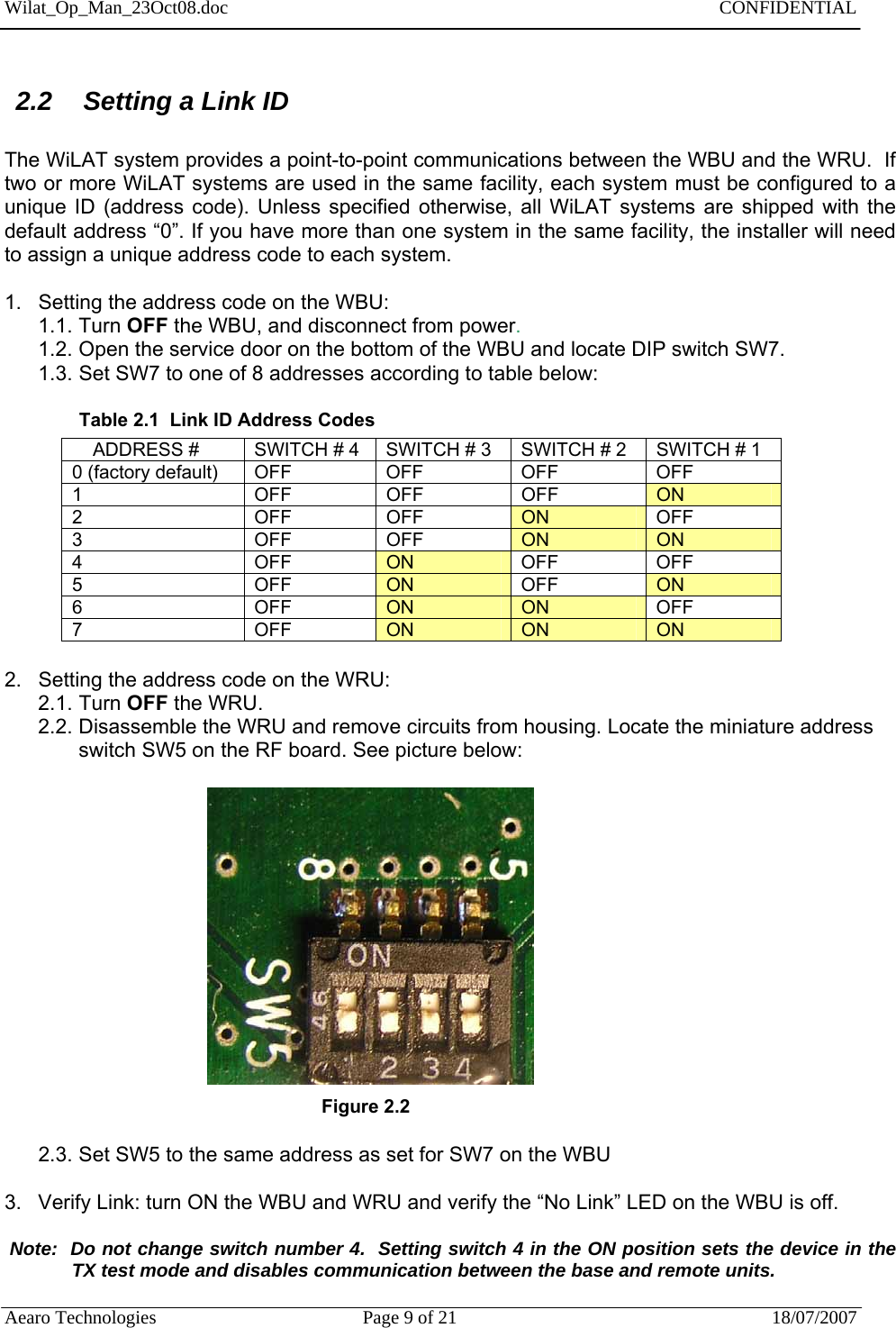

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 9 of 21 18/07/2007 2.2 Setting a Link ID The WiLAT system provides a point-to-point communications between the WBU and the WRU. If two or more WiLAT systems are used in the same facility, each system must be configured to a unique ID (address code). Unless specified otherwise, all WiLAT systems are shipped with the default address “0”. If you have more than one system in the same facility, the installer will need to assign a unique address code to each system. 1. Setting the address code on the WBU: 1.1. Turn OFF the WBU, and disconnect from power. 1.2. Open the service door on the bottom of the WBU and locate DIP switch SW7. 1.3. Set SW7 to one of 8 addresses according to table below: Table 2.1 Link ID Address Codes ADDRESS # SWITCH # 4 SWITCH # 3 SWITCH # 2 SWITCH # 1 0 (factory default) OFF OFF OFF OFF 1 OFF OFF OFF ON 2 OFF OFF ON OFF 3 OFF OFF ON ON 4 OFF ON OFF OFF 5 OFF ON OFF ON 6 OFF ON ON OFF 7 OFF ON ON ON 2. Setting the address code on the WRU: 2.1. Turn OFF the WRU. 2.2. Disassemble the WRU and remove circuits from housing. Locate the miniature address switch SW5 on the RF board. See picture below: Figure 2.2 2.3. Set SW5 to the same address as set for SW7 on the WBU 3. Verify Link: turn ON the WBU and WRU and verify the “No Link” LED on the WBU is off. Note: Do not change switch number 4. Setting switch 4 in the ON position sets the device in the TX test mode and disables communication between the base and remote units.

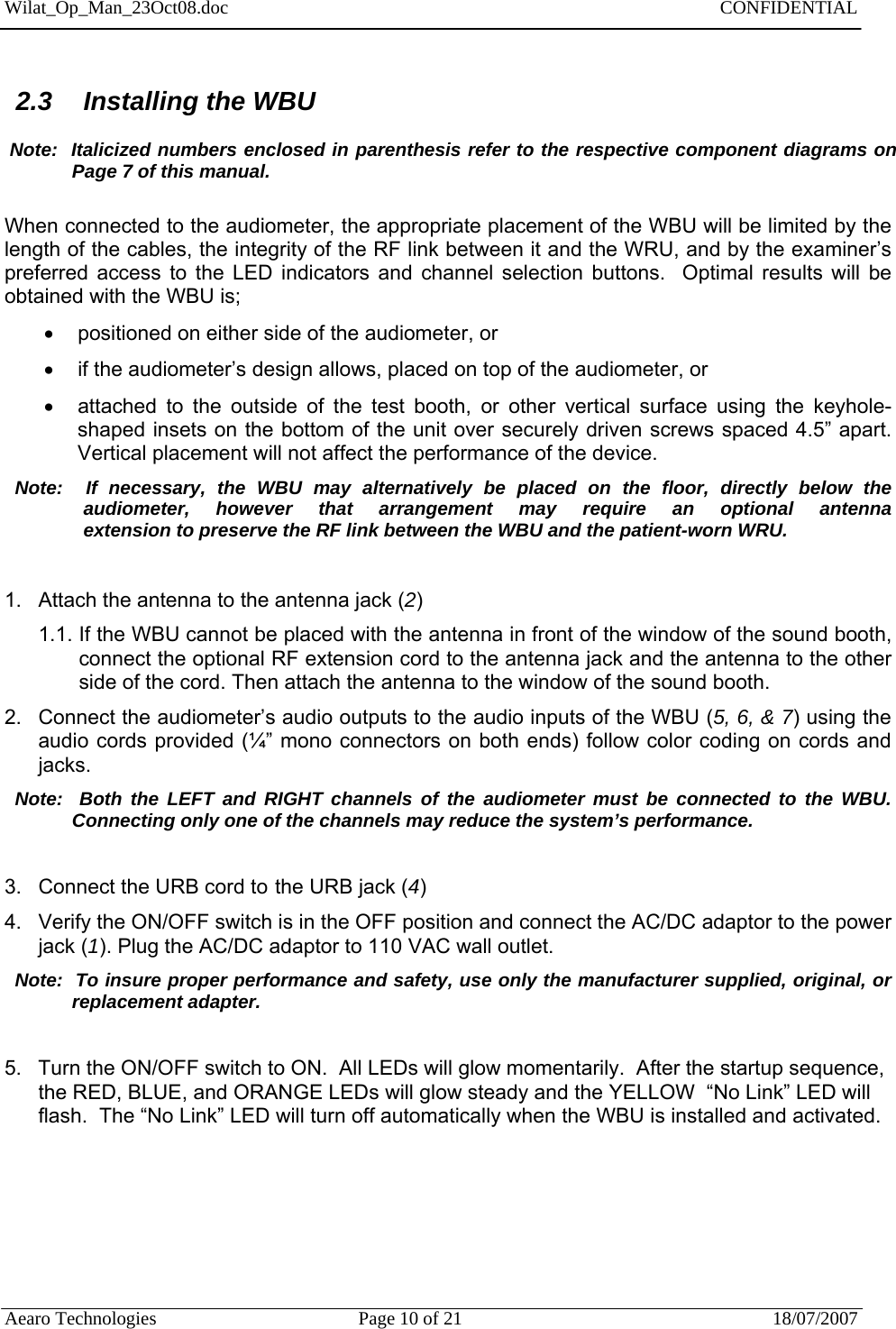

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 10 of 21 18/07/2007 2.3 Installing the WBU Note: Italicized numbers enclosed in parenthesis refer to the respective component diagrams on Page 7 of this manual. When connected to the audiometer, the appropriate placement of the WBU will be limited by the length of the cables, the integrity of the RF link between it and the WRU, and by the examiner’s preferred access to the LED indicators and channel selection buttons. Optimal results will be obtained with the WBU is;  positioned on either side of the audiometer, or  if the audiometer’s design allows, placed on top of the audiometer, or  attached to the outside of the test booth, or other vertical surface using the keyhole-shaped insets on the bottom of the unit over securely driven screws spaced 4.5” apart. Vertical placement will not affect the performance of the device. Note: If necessary, the WBU may alternatively be placed on the floor, directly below the audiometer, however that arrangement may require an optional antenna extension to preserve the RF link between the WBU and the patient-worn WRU. 1. Attach the antenna to the antenna jack (2) 1.1. If the WBU cannot be placed with the antenna in front of the window of the sound booth, connect the optional RF extension cord to the antenna jack and the antenna to the other side of the cord. Then attach the antenna to the window of the sound booth. 2. Connect the audiometer’s audio outputs to the audio inputs of the WBU (5, 6, & 7) using the audio cords provided (¼” mono connectors on both ends) follow color coding on cords and jacks. Note: Both the LEFT and RIGHT channels of the audiometer must be connected to the WBU. Connecting only one of the channels may reduce the system’s performance. 3. Connect the URB cord to the URB jack (4) 4. Verify the ON/OFF switch is in the OFF position and connect the AC/DC adaptor to the power jack (1). Plug the AC/DC adaptor to 110 VAC wall outlet. Note: To insure proper performance and safety, use only the manufacturer supplied, original, or replacement adapter. 5. Turn the ON/OFF switch to ON. All LEDs will glow momentarily. After the startup sequence, the RED, BLUE, and ORANGE LEDs will glow steady and the YELLOW “No Link” LED will flash. The “No Link” LED will turn off automatically when the WBU is installed and activated.

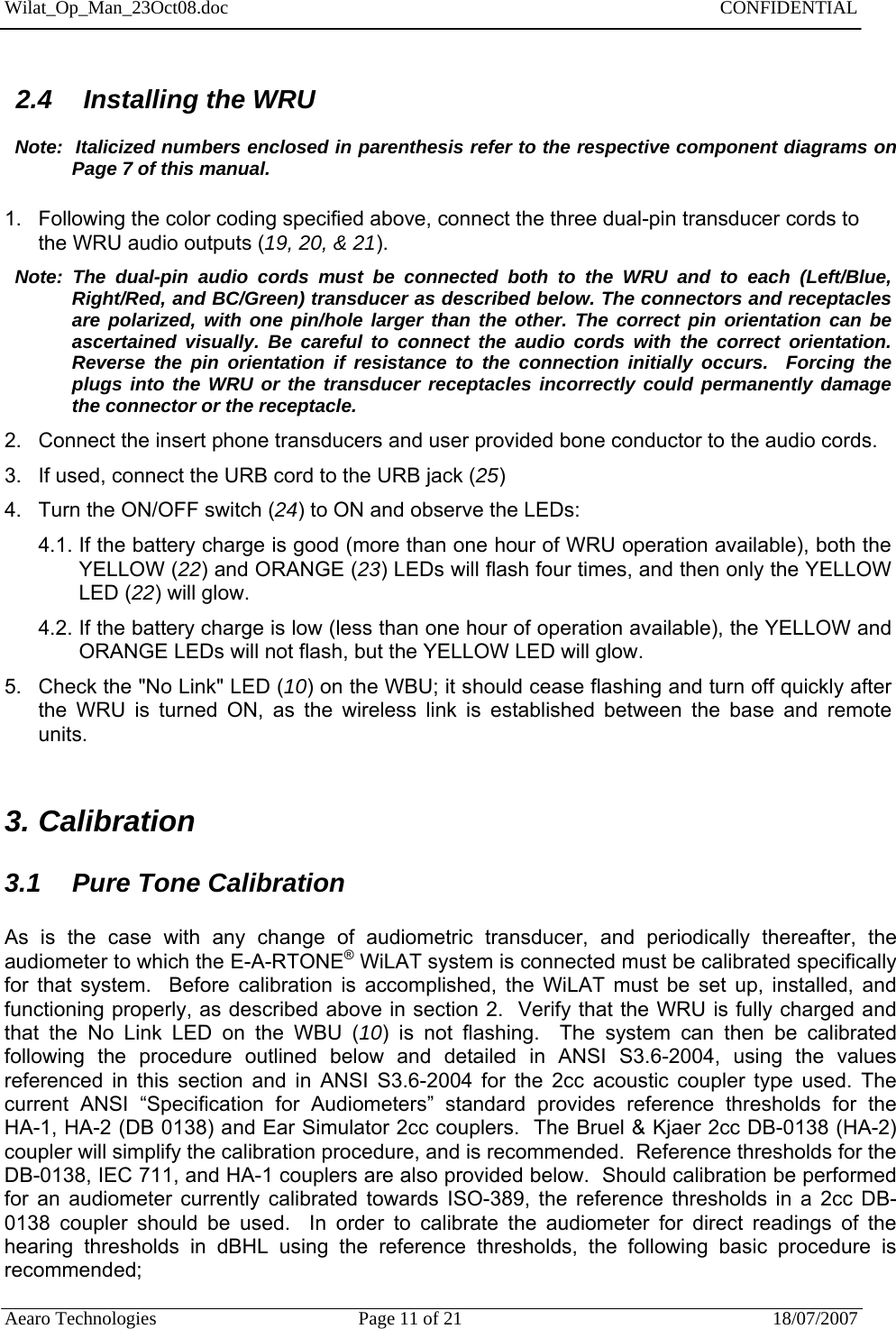

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 11 of 21 18/07/2007 2.4 Installing the WRU Note: Italicized numbers enclosed in parenthesis refer to the respective component diagrams on Page 7 of this manual. 1. Following the color coding specified above, connect the three dual-pin transducer cords to the WRU audio outputs (19, 20, & 21). Note: The dual-pin audio cords must be connected both to the WRU and to each (Left/Blue, Right/Red, and BC/Green) transducer as described below. The connectors and receptacles are polarized, with one pin/hole larger than the other. The correct pin orientation can be ascertained visually. Be careful to connect the audio cords with the correct orientation. Reverse the pin orientation if resistance to the connection initially occurs. Forcing the plugs into the WRU or the transducer receptacles incorrectly could permanently damage the connector or the receptacle. 2. Connect the insert phone transducers and user provided bone conductor to the audio cords. 3. If used, connect the URB cord to the URB jack (25) 4. Turn the ON/OFF switch (24) to ON and observe the LEDs: 4.1. If the battery charge is good (more than one hour of WRU operation available), both the YELLOW (22) and ORANGE (23) LEDs will flash four times, and then only the YELLOW LED (22) will glow. 4.2. If the battery charge is low (less than one hour of operation available), the YELLOW and ORANGE LEDs will not flash, but the YELLOW LED will glow. 5. Check the "No Link" LED (10) on the WBU; it should cease flashing and turn off quickly after the WRU is turned ON, as the wireless link is established between the base and remote units. 3. Calibration 3.1 Pure Tone Calibration As is the case with any change of audiometric transducer, and periodically thereafter, the audiometer to which the E-A-RTONE® WiLAT system is connected must be calibrated specifically for that system. Before calibration is accomplished, the WiLAT must be set up, installed, and functioning properly, as described above in section 2. Verify that the WRU is fully charged and that the No Link LED on the WBU (10) is not flashing. The system can then be calibrated following the procedure outlined below and detailed in ANSI S3.6-2004, using the values referenced in this section and in ANSI S3.6-2004 for the 2cc acoustic coupler type used. The current ANSI “Specification for Audiometers” standard provides reference thresholds for the HA-1, HA-2 (DB 0138) and Ear Simulator 2cc couplers. The Bruel & Kjaer 2cc DB-0138 (HA-2) coupler will simplify the calibration procedure, and is recommended. Reference thresholds for the DB-0138, IEC 711, and HA-1 couplers are also provided below. Should calibration be performed for an audiometer currently calibrated towards ISO-389, the reference thresholds in a 2cc DB-0138 coupler should be used. In order to calibrate the audiometer for direct readings of the hearing thresholds in dBHL using the reference thresholds, the following basic procedure is recommended;

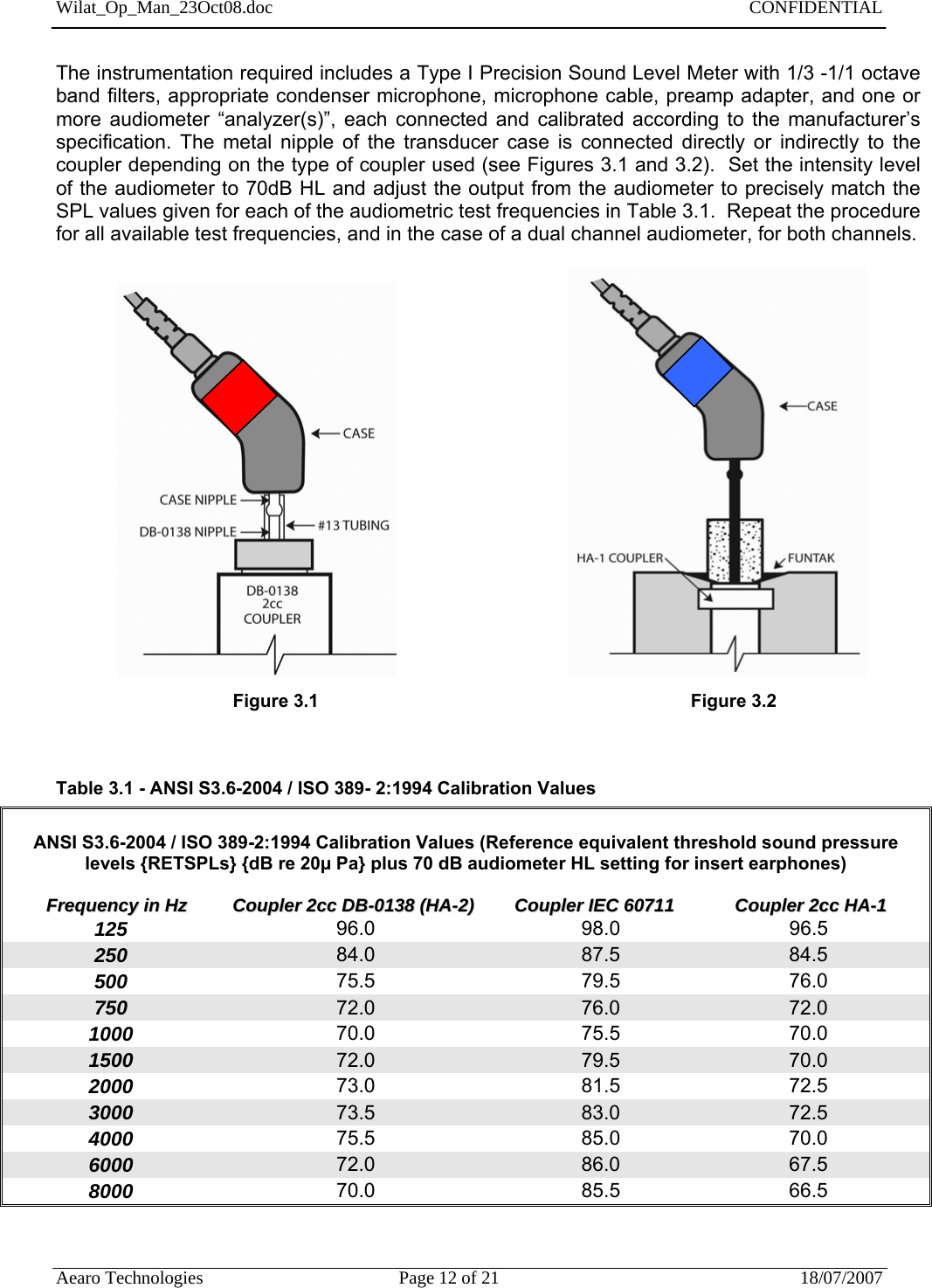

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 12 of 21 18/07/2007 The instrumentation required includes a Type I Precision Sound Level Meter with 1/3 -1/1 octave band filters, appropriate condenser microphone, microphone cable, preamp adapter, and one or more audiometer “analyzer(s)”, each connected and calibrated according to the manufacturer’s specification. The metal nipple of the transducer case is connected directly or indirectly to the coupler depending on the type of coupler used (see Figures 3.1 and 3.2). Set the intensity level of the audiometer to 70dB HL and adjust the output from the audiometer to precisely match the SPL values given for each of the audiometric test frequencies in Table 3.1. Repeat the procedure for all available test frequencies, and in the case of a dual channel audiometer, for both channels. Figure 3.1 Figure 3.2 Table 3.1 - ANSI S3.6-2004 / ISO 389- 2:1994 Calibration Values ANSI S3.6-2004 / ISO 389-2:1994 Calibration Values (Reference equivalent threshold sound pressure levels {RETSPLs} {dB re 20µ Pa} plus 70 dB audiometer HL setting for insert earphones) FFrreeqquueennccyy iinn HHzz CCoouupplleerr 22cccc DDBB--00113388 ((HHAA--22)) CCoouupplleerr IIEECC 6600771111 CCoouupplleerr 22cccc HHAA--11 125 96.0 98.0 96.5 250 84.0 87.5 84.5 500 75.5 79.5 76.0 750 72.0 76.0 72.0 1000 70.0 75.5 70.0 1500 72.0 79.5 70.0 2000 73.0 81.5 72.5 3000 73.5 83.0 72.5 4000 75.5 85.0 70.0 6000 72.0 86.0 67.5 8000 70.0 85.5 66.5

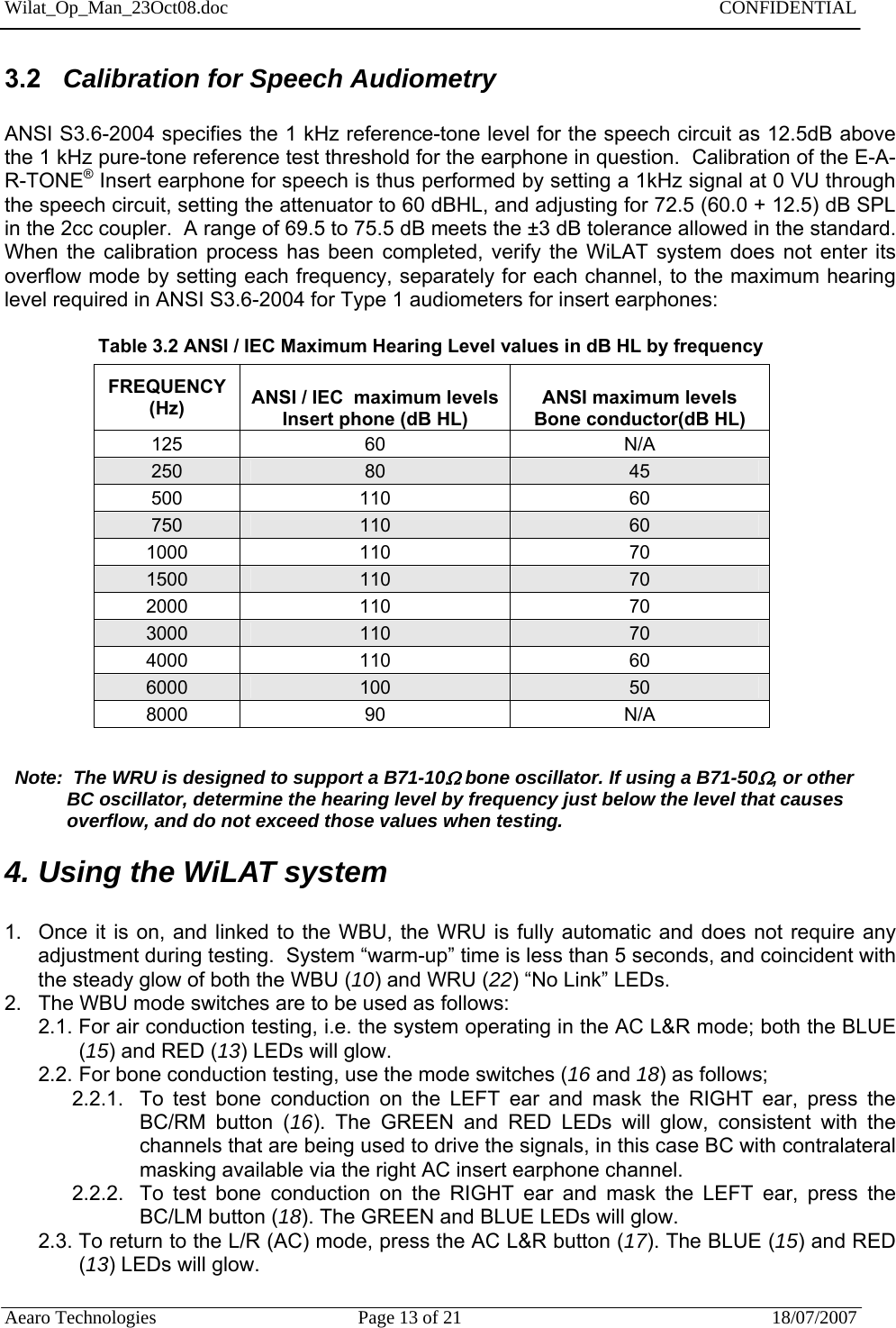

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 13 of 21 18/07/2007 3.2 Calibration for Speech Audiometry ANSI S3.6-2004 specifies the 1 kHz reference-tone level for the speech circuit as 12.5dB above the 1 kHz pure-tone reference test threshold for the earphone in question. Calibration of the E-A-R-TONE® Insert earphone for speech is thus performed by setting a 1kHz signal at 0 VU through the speech circuit, setting the attenuator to 60 dBHL, and adjusting for 72.5 (60.0 + 12.5) dB SPL in the 2cc coupler. A range of 69.5 to 75.5 dB meets the ±3 dB tolerance allowed in the standard. When the calibration process has been completed, verify the WiLAT system does not enter its overflow mode by setting each frequency, separately for each channel, to the maximum hearing level required in ANSI S3.6-2004 for Type 1 audiometers for insert earphones: Table 3.2 ANSI / IEC Maximum Hearing Level values in dB HL by frequency FREQUENCY (Hz) ANSI / IEC maximum levels Insert phone (dB HL) ANSI maximum levels Bone conductor(dB HL) 125 60 N/A 250 80 45 500 110 60 750 110 60 1000 110 70 1500 110 70 2000 110 70 3000 110 70 4000 110 60 6000 100 50 8000 90 N/A Note: The WRU is designed to support a B71-10 bone oscillator. If using a B71-50, or other BC oscillator, determine the hearing level by frequency just below the level that causes overflow, and do not exceed those values when testing. 4. Using the WiLAT system 1. Once it is on, and linked to the WBU, the WRU is fully automatic and does not require any adjustment during testing. System “warm-up” time is less than 5 seconds, and coincident with the steady glow of both the WBU (10) and WRU (22) “No Link” LEDs. 2. The WBU mode switches are to be used as follows: 2.1. For air conduction testing, i.e. the system operating in the AC L&R mode; both the BLUE (15) and RED (13) LEDs will glow. 2.2. For bone conduction testing, use the mode switches (16 and 18) as follows; 2.2.1. To test bone conduction on the LEFT ear and mask the RIGHT ear, press the BC/RM button (16). The GREEN and RED LEDs will glow, consistent with the channels that are being used to drive the signals, in this case BC with contralateral masking available via the right AC insert earphone channel. 2.2.2. To test bone conduction on the RIGHT ear and mask the LEFT ear, press the BC/LM button (18). The GREEN and BLUE LEDs will glow. 2.3. To return to the L/R (AC) mode, press the AC L&R button (17). The BLUE (15) and RED (13) LEDs will glow.

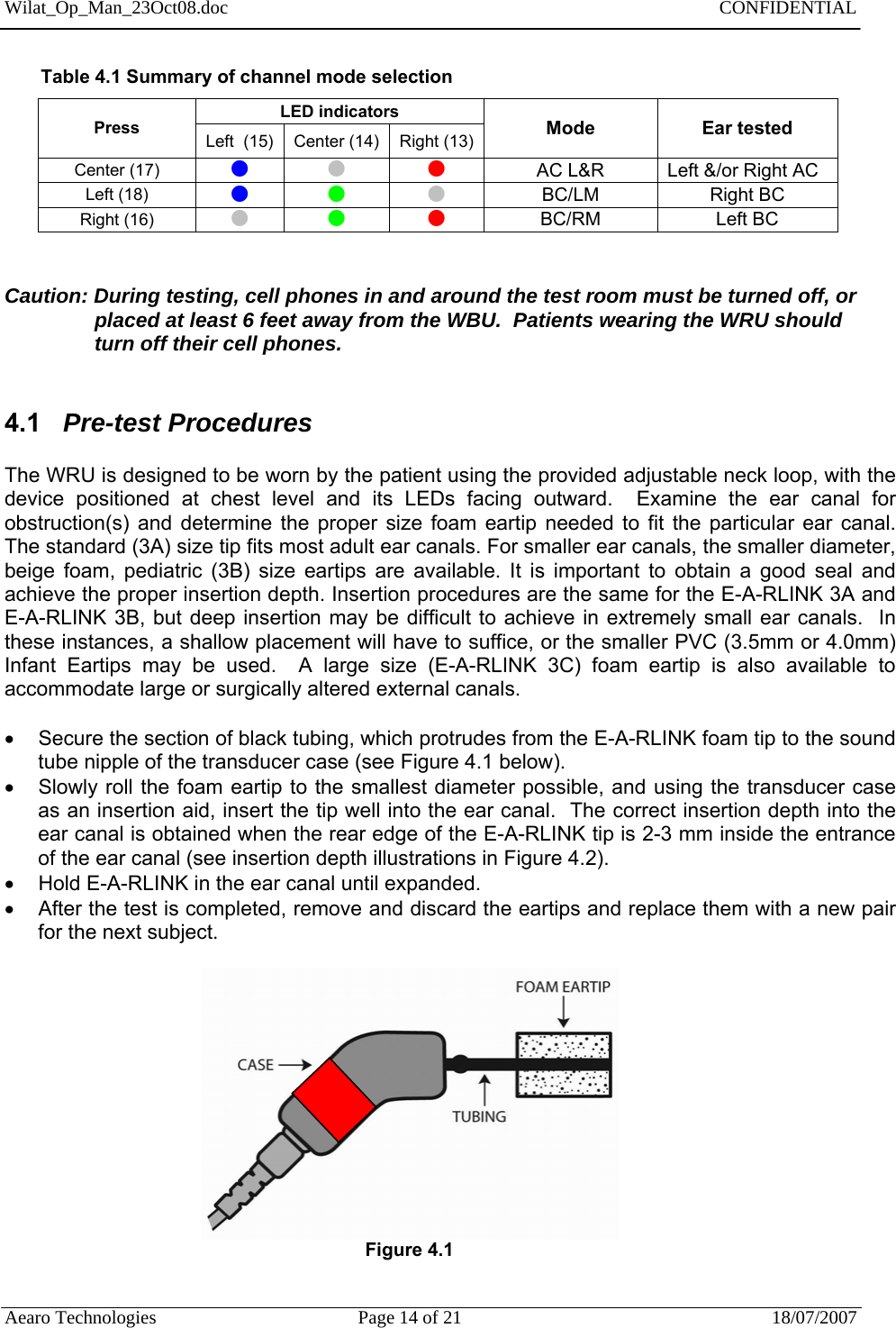

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 14 of 21 18/07/2007 Table 4.1 Summary of channel mode selection LED indicators Press Left (15) Center (14) Right (13) Mode Ear tested Center (17) z z z AC L&R Left &/or Right AC Left (18) z z z BC/LM Right BC Right (16) z z z BC/RM Left BC Caution: During testing, cell phones in and around the test room must be turned off, or placed at least 6 feet away from the WBU. Patients wearing the WRU should turn off their cell phones. 4.1 Pre-test Procedures The WRU is designed to be worn by the patient using the provided adjustable neck loop, with the device positioned at chest level and its LEDs facing outward. Examine the ear canal for obstruction(s) and determine the proper size foam eartip needed to fit the particular ear canal. The standard (3A) size tip fits most adult ear canals. For smaller ear canals, the smaller diameter, beige foam, pediatric (3B) size eartips are available. It is important to obtain a good seal and achieve the proper insertion depth. Insertion procedures are the same for the E-A-RLINK 3A and E-A-RLINK 3B, but deep insertion may be difficult to achieve in extremely small ear canals. In these instances, a shallow placement will have to suffice, or the smaller PVC (3.5mm or 4.0mm) Infant Eartips may be used. A large size (E-A-RLINK 3C) foam eartip is also available to accommodate large or surgically altered external canals.  Secure the section of black tubing, which protrudes from the E-A-RLINK foam tip to the sound tube nipple of the transducer case (see Figure 4.1 below).  Slowly roll the foam eartip to the smallest diameter possible, and using the transducer case as an insertion aid, insert the tip well into the ear canal. The correct insertion depth into the ear canal is obtained when the rear edge of the E-A-RLINK tip is 2-3 mm inside the entrance of the ear canal (see insertion depth illustrations in Figure 4.2).  Hold E-A-RLINK in the ear canal until expanded.  After the test is completed, remove and discard the eartips and replace them with a new pair for the next subject. Figure 4.1

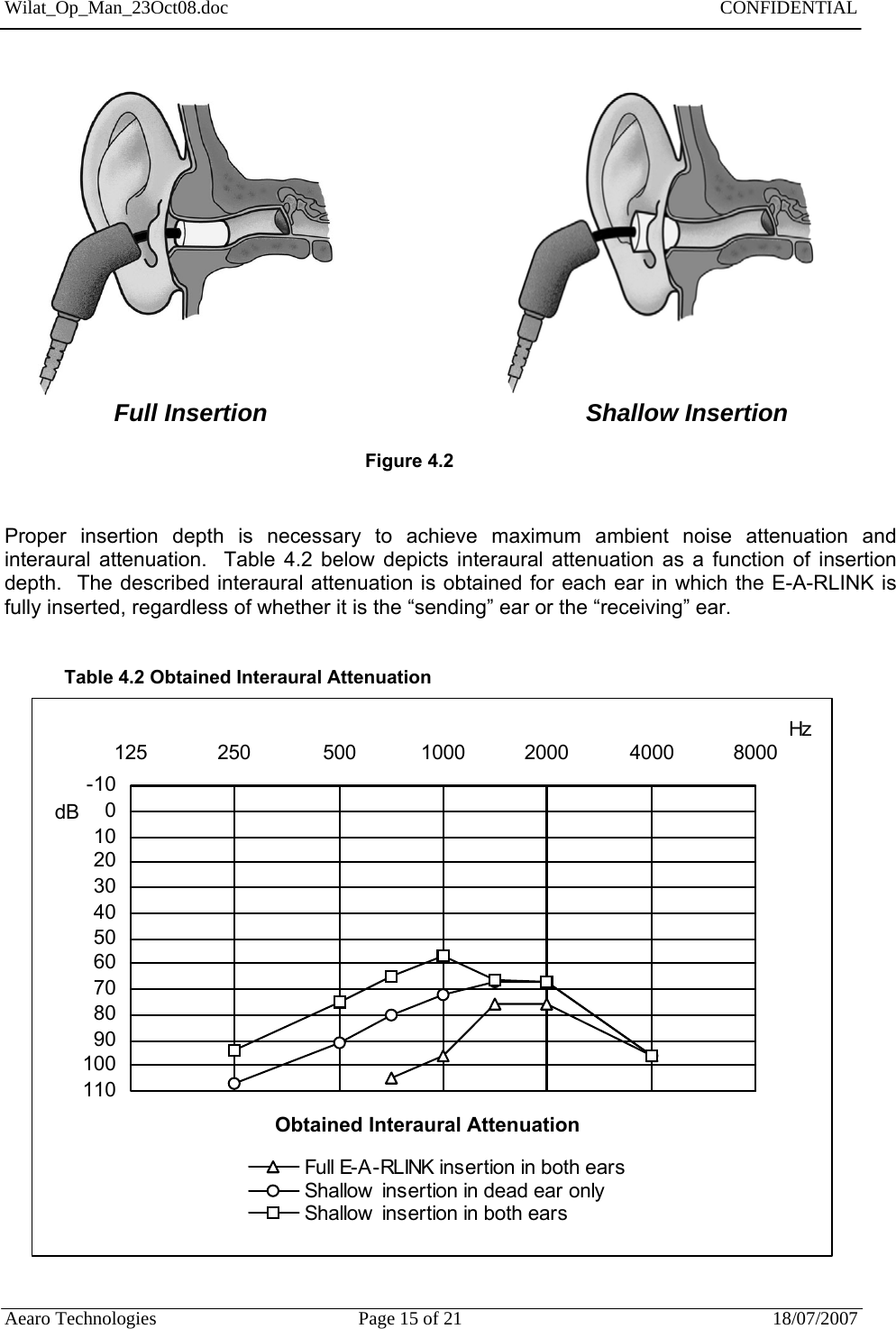

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 15 of 21 18/07/2007 -100102030405060708090100110125 250 500 1000 2000 4000 8000HzdBFull E-A-RLINK insertion in both earsShallow insertion in dead ear onlyShallow insertion in both earsObtained Interaural Attenuation Full Insertion Shallow Insertion Figure 4.2 Proper insertion depth is necessary to achieve maximum ambient noise attenuation and interaural attenuation. Table 4.2 below depicts interaural attenuation as a function of insertion depth. The described interaural attenuation is obtained for each ear in which the E-A-RLINK is fully inserted, regardless of whether it is the “sending” ear or the “receiving” ear. Table 4.2 Obtained Interaural Attenuation
Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 16 of 21 18/07/2007 5. Background Noise Reduction A major benefit of the E-A-RTONE Insert Earphone in combination with the E-A-RLINK disposable foam eartips is the reduction of background noise that may adversely affect threshold determination. When E-A-RLINK eartips are appropriately selected and fitted to the test subject, the expected noise attenuation will typically exceed 30 dB in the frequency region 125-8000 Hz. This additional attenuation will improve test reliability in environments where the ambient noise levels exceed those listed in Table 5.1 below for the supra-aural earphone. Typically 0 dB HL threshold responses can be obtained in environments where the ambient noise level does not exceed 45 dB(A). Table 5.1 (from: ANSI S3.1-1999) - Ears covered: octave band MPANLs using a supra-aural or insert earphone for three test frequency ranges; in dB re: 20Pa to nearest 0.5 dB. Supra-aural Earphone Insert Earphone Octave Band Intervals 125 to 8,000 Hz 250 to 8,000 Hz 500 to 8,000 Hz 125 to 8,000 Hz 250 to 8,000 Hz 500 to 8,000 Hz 125 35.0 39.0 49.0 59.0 67.0 78.0 250 25.0 25.0 35.0 53.0 53.0 64.0 500 21.0 21.0 21.0 50.0 50.0 50.0 1000 26.0 26.0 26.0 47.0 47.0 47.0 2000 34.0 34.0 34.0 49.0 49.0 49.0 4000 37.0 37.0 37.0 50.0 50.0 50.0 8000 37.0 37.0 37.0 56.0 56.0 56.0 The ears covered MPANLs shown in the above table were derived using mean earphone attenuation values. To decrease the chance that individual listeners for whom less than average attenuation is obtained will experience threshold shift, the MPANLs can be lowered by reducing the amount of earphone attenuation. An appropriate reduction would be equal to the mean attenuation minus one standard deviation. The net effect would be that the MPANLs would be lower (more stringent) for ears-covered testing. This reduction would cover about 84% of all subjects. The standard deviations for Insert Earphones for 125 to 8000 Hz are between three (3) and six (6) decibels. Refer to ANSI S3.1 – 1999, Table A.2 for specific standard deviation values by frequency.

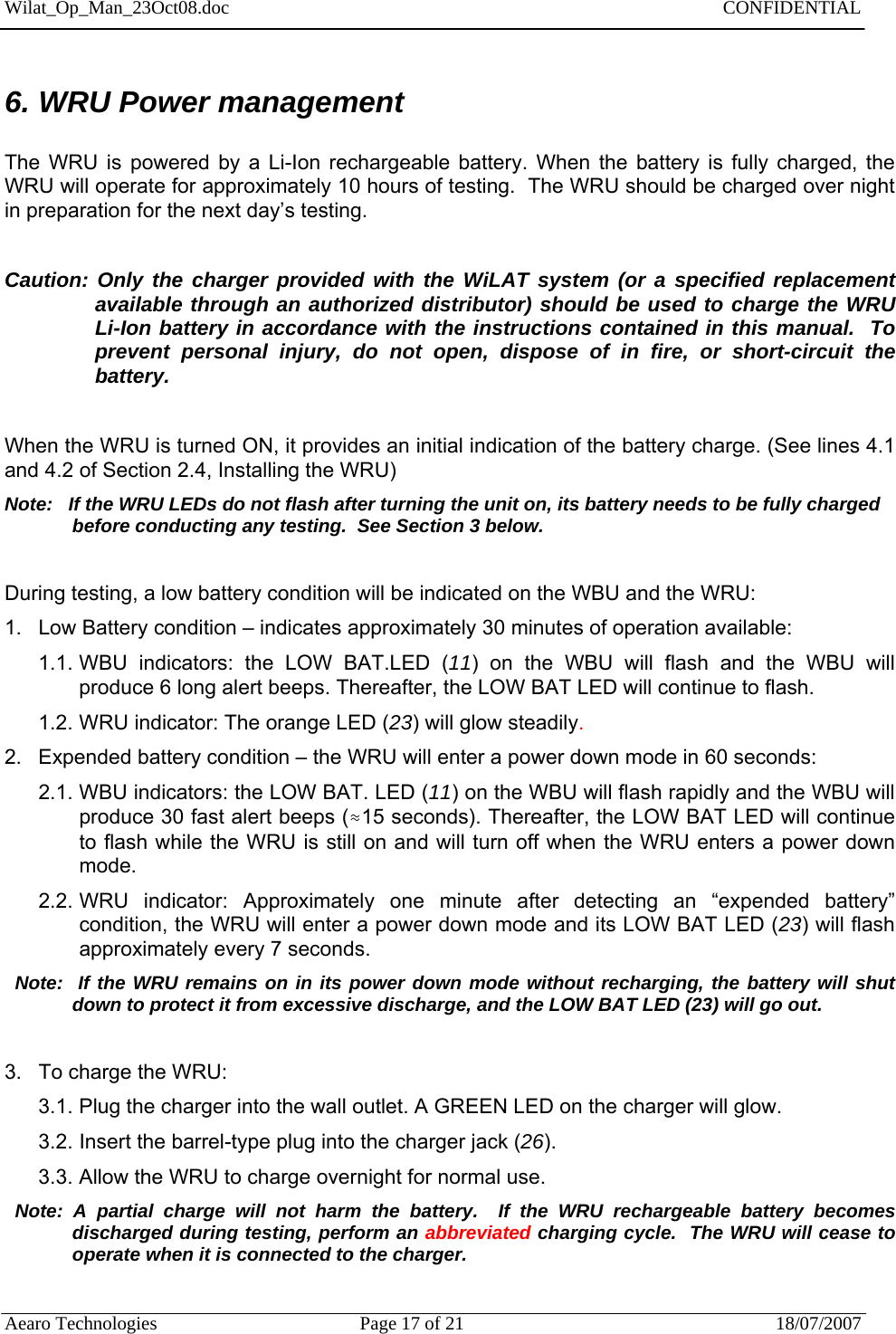

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 17 of 21 18/07/2007 6. WRU Power management The WRU is powered by a Li-Ion rechargeable battery. When the battery is fully charged, the WRU will operate for approximately 10 hours of testing. The WRU should be charged over night in preparation for the next day’s testing. Caution: Only the charger provided with the WiLAT system (or a specified replacement available through an authorized distributor) should be used to charge the WRU Li-Ion battery in accordance with the instructions contained in this manual. To prevent personal injury, do not open, dispose of in fire, or short-circuit the battery. When the WRU is turned ON, it provides an initial indication of the battery charge. (See lines 4.1 and 4.2 of Section 2.4, Installing the WRU) Note: If the WRU LEDs do not flash after turning the unit on, its battery needs to be fully charged before conducting any testing. See Section 3 below. During testing, a low battery condition will be indicated on the WBU and the WRU: 1. Low Battery condition – indicates approximately 30 minutes of operation available: 1.1. WBU indicators: the LOW BAT.LED (11) on the WBU will flash and the WBU will produce 6 long alert beeps. Thereafter, the LOW BAT LED will continue to flash. 1.2. WRU indicator: The orange LED (23) will glow steadily. 2. Expended battery condition – the WRU will enter a power down mode in 60 seconds: 2.1. WBU indicators: the LOW BAT. LED (11) on the WBU will flash rapidly and the WBU will produce 30 fast alert beeps (≈15 seconds). Thereafter, the LOW BAT LED will continue to flash while the WRU is still on and will turn off when the WRU enters a power down mode. 2.2. WRU indicator: Approximately one minute after detecting an “expended battery” condition, the WRU will enter a power down mode and its LOW BAT LED (23) will flash approximately every 7 seconds. Note: If the WRU remains on in its power down mode without recharging, the battery will shut down to protect it from excessive discharge, and the LOW BAT LED (23) will go out. 3. To charge the WRU: 3.1. Plug the charger into the wall outlet. A GREEN LED on the charger will glow. 3.2. Insert the barrel-type plug into the charger jack (26). 3.3. Allow the WRU to charge overnight for normal use. Note: A partial charge will not harm the battery. If the WRU rechargeable battery becomes discharged during testing, perform an abbreviated charging cycle. The WRU will cease to operate when it is connected to the charger.

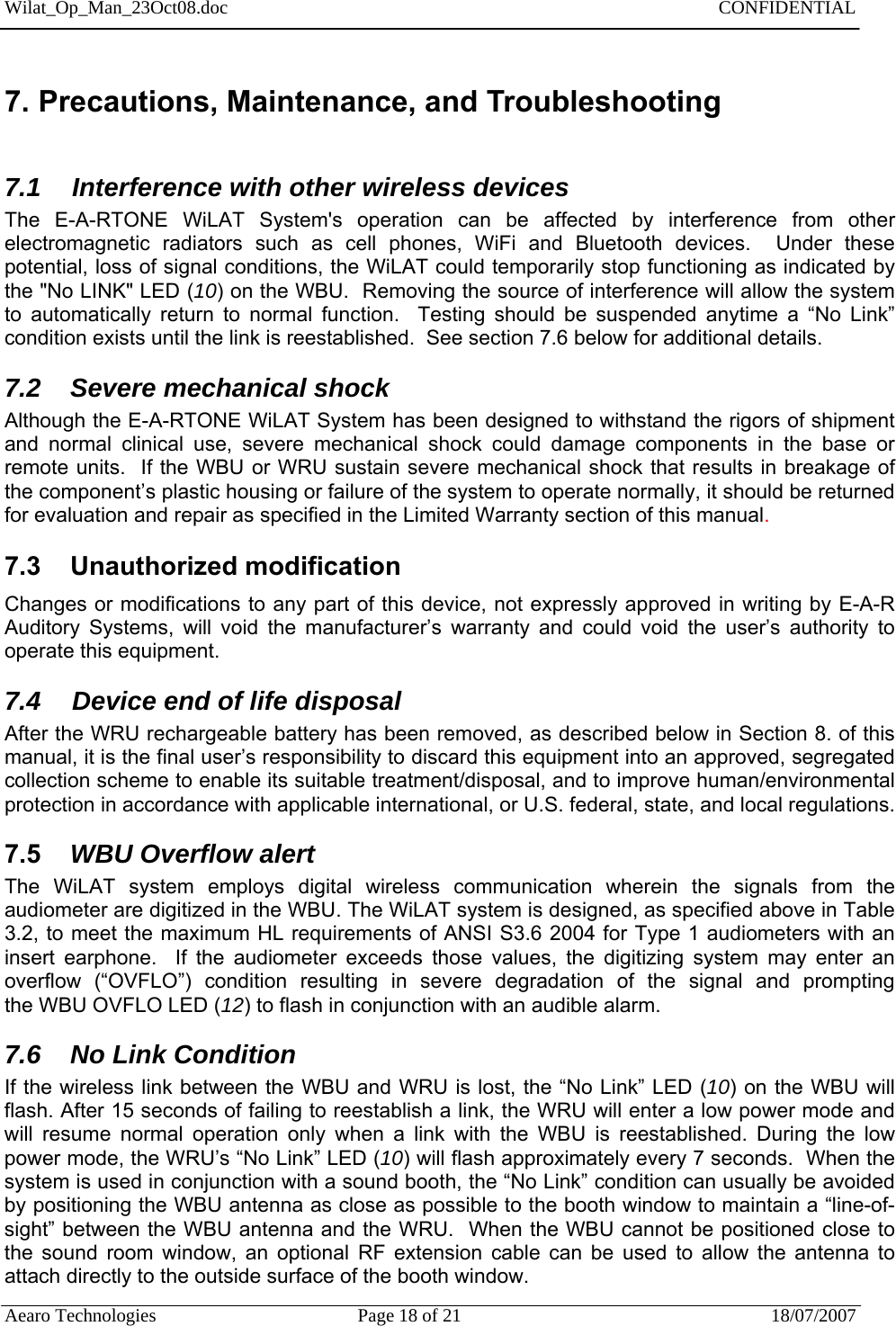

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 18 of 21 18/07/2007 7. Precautions, Maintenance, and Troubleshooting 7.1 Interference with other wireless devices The E-A-RTONE WiLAT System's operation can be affected by interference from other electromagnetic radiators such as cell phones, WiFi and Bluetooth devices. Under these potential, loss of signal conditions, the WiLAT could temporarily stop functioning as indicated by the "No LINK" LED (10) on the WBU. Removing the source of interference will allow the system to automatically return to normal function. Testing should be suspended anytime a “No Link” condition exists until the link is reestablished. See section 7.6 below for additional details. 7.2 Severe mechanical shock Although the E-A-RTONE WiLAT System has been designed to withstand the rigors of shipment and normal clinical use, severe mechanical shock could damage components in the base or remote units. If the WBU or WRU sustain severe mechanical shock that results in breakage of the component’s plastic housing or failure of the system to operate normally, it should be returned for evaluation and repair as specified in the Limited Warranty section of this manual. 7.3 Unauthorized modification Changes or modifications to any part of this device, not expressly approved in writing by E-A-R Auditory Systems, will void the manufacturer’s warranty and could void the user’s authority to operate this equipment. 7.4 Device end of life disposal After the WRU rechargeable battery has been removed, as described below in Section 8. of this manual, it is the final user’s responsibility to discard this equipment into an approved, segregated collection scheme to enable its suitable treatment/disposal, and to improve human/environmental protection in accordance with applicable international, or U.S. federal, state, and local regulations. 7.5 WBU Overflow alert The WiLAT system employs digital wireless communication wherein the signals from the audiometer are digitized in the WBU. The WiLAT system is designed, as specified above in Table 3.2, to meet the maximum HL requirements of ANSI S3.6 2004 for Type 1 audiometers with an insert earphone. If the audiometer exceeds those values, the digitizing system may enter an overflow (“OVFLO”) condition resulting in severe degradation of the signal and promptingthe WBU OVFLO LED (12) to flash in conjunction with an audible alarm. 7.6 No Link Condition If the wireless link between the WBU and WRU is lost, the “No Link” LED (10) on the WBU will flash. After 15 seconds of failing to reestablish a link, the WRU will enter a low power mode and will resume normal operation only when a link with the WBU is reestablished. During the low power mode, the WRU’s “No Link” LED (10) will flash approximately every 7 seconds. When the system is used in conjunction with a sound booth, the “No Link” condition can usually be avoided by positioning the WBU antenna as close as possible to the booth window to maintain a “line-of-sight” between the WBU antenna and the WRU. When the WBU cannot be positioned close to the sound room window, an optional RF extension cable can be used to allow the antenna to attach directly to the outside surface of the booth window.

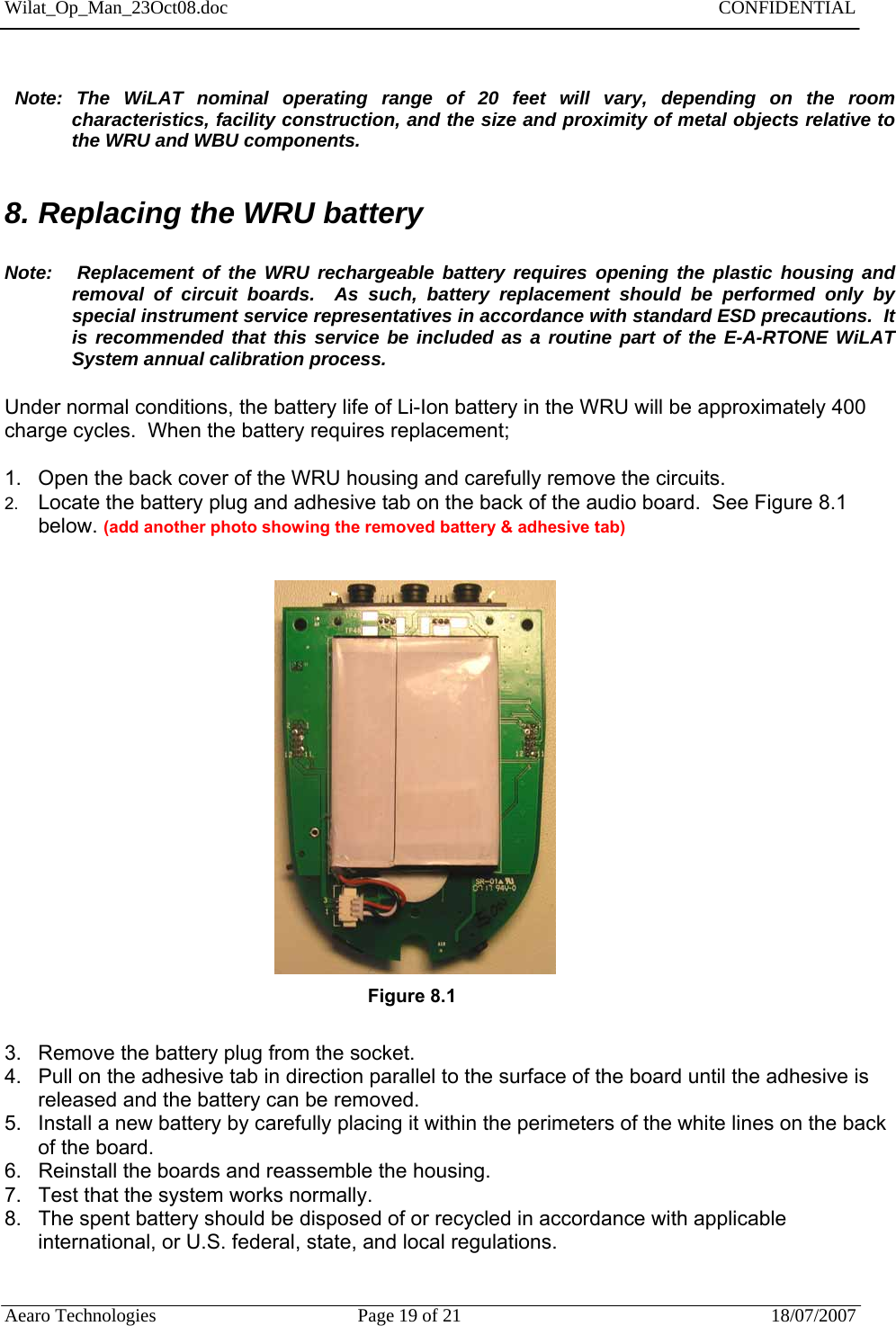

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 19 of 21 18/07/2007 Note: The WiLAT nominal operating range of 20 feet will vary, depending on the room characteristics, facility construction, and the size and proximity of metal objects relative to the WRU and WBU components. 8. Replacing the WRU battery Note: Replacement of the WRU rechargeable battery requires opening the plastic housing and removal of circuit boards. As such, battery replacement should be performed only by special instrument service representatives in accordance with standard ESD precautions. It is recommended that this service be included as a routine part of the E-A-RTONE WiLAT System annual calibration process. Under normal conditions, the battery life of Li-Ion battery in the WRU will be approximately 400 charge cycles. When the battery requires replacement; 1. Open the back cover of the WRU housing and carefully remove the circuits. 2. Locate the battery plug and adhesive tab on the back of the audio board. See Figure 8.1 below. (add another photo showing the removed battery & adhesive tab) Figure 8.1 3. Remove the battery plug from the socket. 4. Pull on the adhesive tab in direction parallel to the surface of the board until the adhesive is released and the battery can be removed. 5. Install a new battery by carefully placing it within the perimeters of the white lines on the back of the board. 6. Reinstall the boards and reassemble the housing. 7. Test that the system works normally. 8. The spent battery should be disposed of or recycled in accordance with applicable international, or U.S. federal, state, and local regulations.

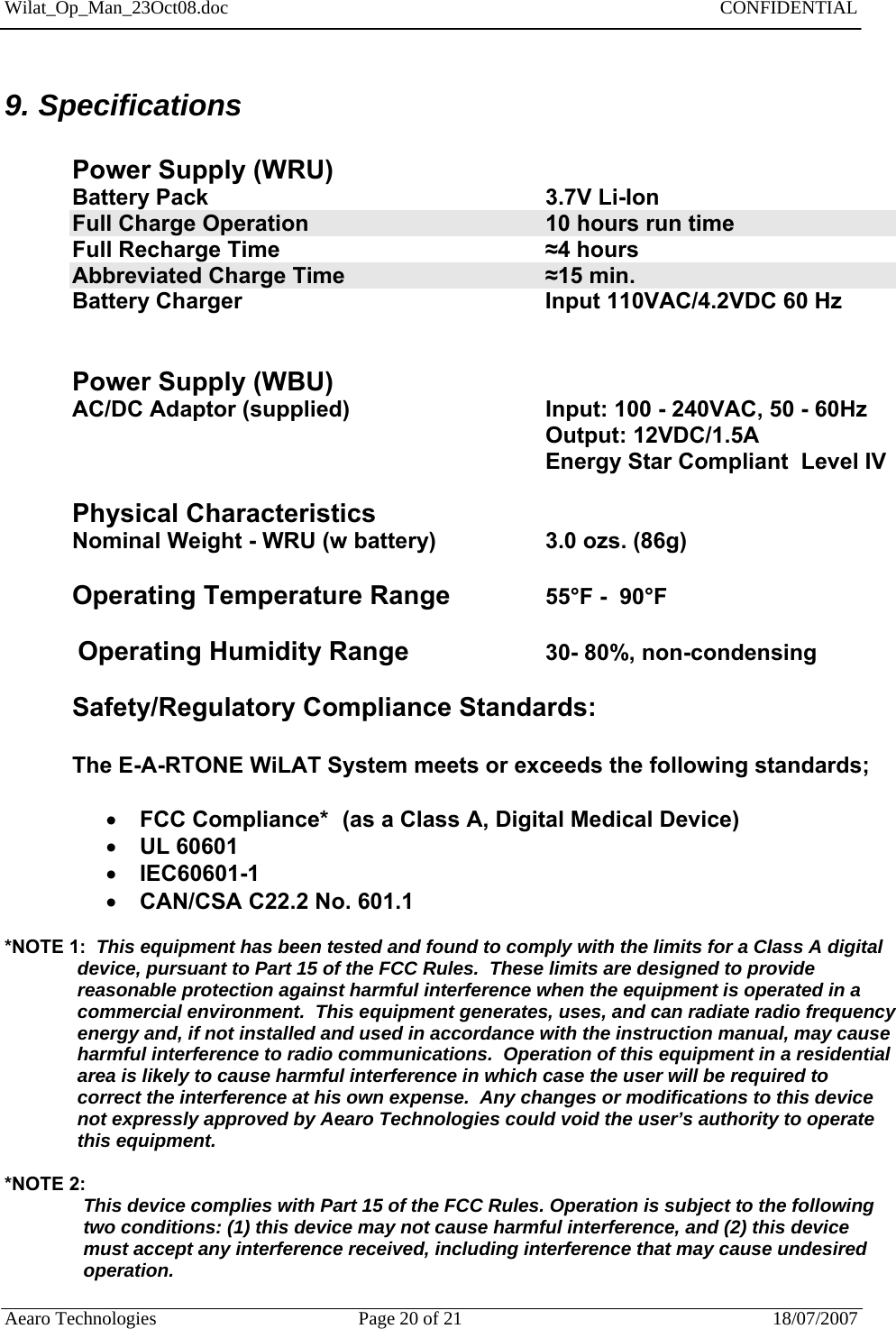

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 20 of 21 18/07/2007 9. Specifications Power Supply (WRU) Battery Pack 3.7V Li-Ion Full Charge Operation 10 hours run time Full Recharge Time ≈4 hours Abbreviated Charge Time ≈15 min. Battery Charger Input 110VAC/4.2VDC 60 Hz Power Supply (WBU) AC/DC Adaptor (supplied) Input: 100 - 240VAC, 50 - 60Hz Output: 12VDC/1.5A Energy Star Compliant Level IV Physical Characteristics Nominal Weight - WRU (w battery) 3.0 ozs. (86g) Operating Temperature Range 55°F - 90°F Operating Humidity Range 30- 80%, non-condensing Safety/Regulatory Compliance Standards: The E-A-RTONE WiLAT System meets or exceeds the following standards;  FCC Compliance* (as a Class A, Digital Medical Device)  UL 60601  IEC60601-1  CAN/CSA C22.2 No. 601.1 *NOTE 1: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Any changes or modifications to this device not expressly approved by Aearo Technologies could void the user’s authority to operate this equipment. *NOTE 2: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

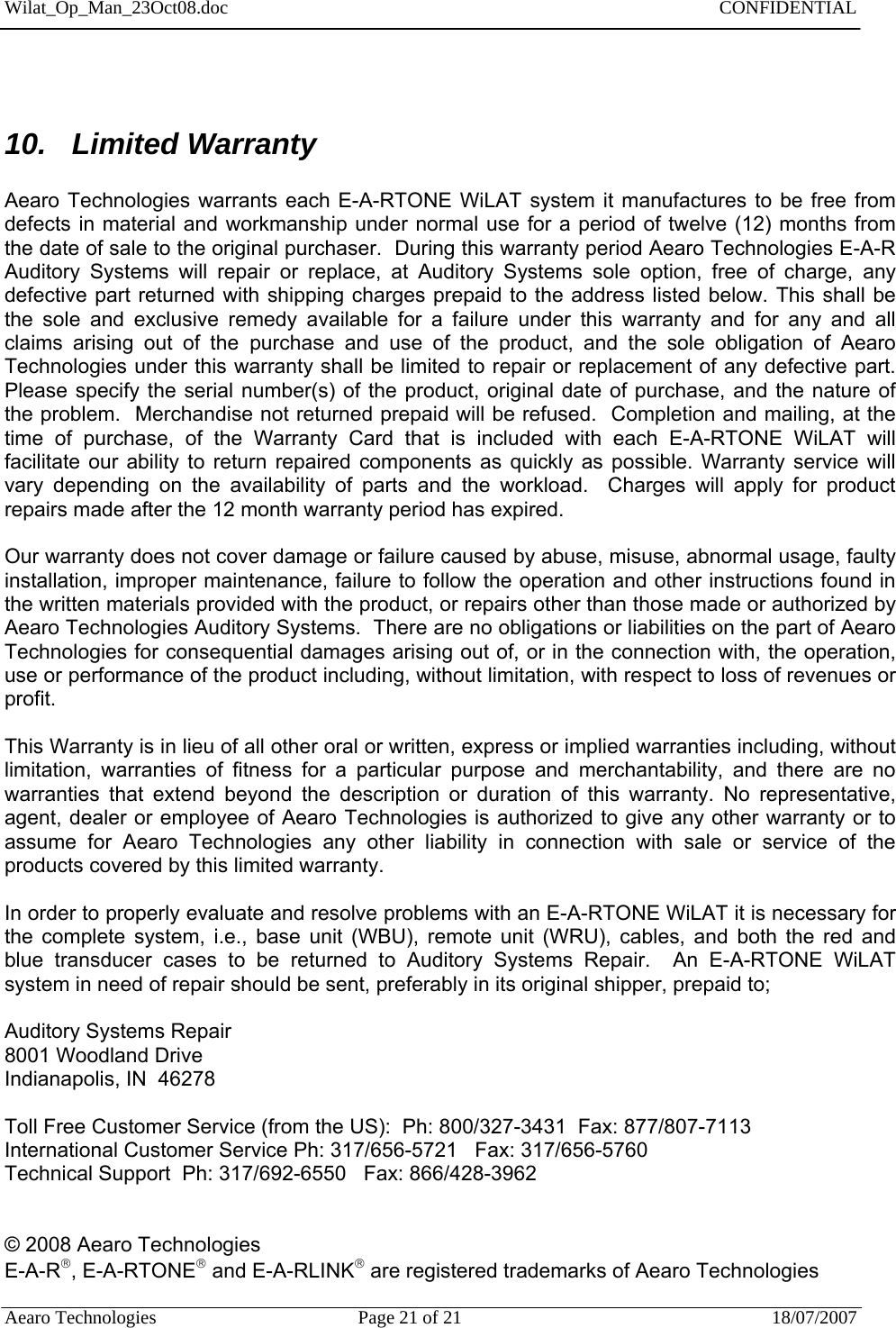

Wilat_Op_Man_23Oct08.doc CONFIDENTIAL Aearo Technologies Page 21 of 21 18/07/2007 10. Limited Warranty Aearo Technologies warrants each E-A-RTONE WiLAT system it manufactures to be free from defects in material and workmanship under normal use for a period of twelve (12) months from the date of sale to the original purchaser. During this warranty period Aearo Technologies E-A-R Auditory Systems will repair or replace, at Auditory Systems sole option, free of charge, any defective part returned with shipping charges prepaid to the address listed below. This shall be the sole and exclusive remedy available for a failure under this warranty and for any and all claims arising out of the purchase and use of the product, and the sole obligation of Aearo Technologies under this warranty shall be limited to repair or replacement of any defective part. Please specify the serial number(s) of the product, original date of purchase, and the nature of the problem. Merchandise not returned prepaid will be refused. Completion and mailing, at the time of purchase, of the Warranty Card that is included with each E-A-RTONE WiLAT will facilitate our ability to return repaired components as quickly as possible. Warranty service will vary depending on the availability of parts and the workload. Charges will apply for product repairs made after the 12 month warranty period has expired. Our warranty does not cover damage or failure caused by abuse, misuse, abnormal usage, faulty installation, improper maintenance, failure to follow the operation and other instructions found in the written materials provided with the product, or repairs other than those made or authorized by Aearo Technologies Auditory Systems. There are no obligations or liabilities on the part of Aearo Technologies for consequential damages arising out of, or in the connection with, the operation, use or performance of the product including, without limitation, with respect to loss of revenues or profit. This Warranty is in lieu of all other oral or written, express or implied warranties including, without limitation, warranties of fitness for a particular purpose and merchantability, and there are no warranties that extend beyond the description or duration of this warranty. No representative, agent, dealer or employee of Aearo Technologies is authorized to give any other warranty or to assume for Aearo Technologies any other liability in connection with sale or service of the products covered by this limited warranty. In order to properly evaluate and resolve problems with an E-A-RTONE WiLAT it is necessary for the complete system, i.e., base unit (WBU), remote unit (WRU), cables, and both the red and blue transducer cases to be returned to Auditory Systems Repair. An E-A-RTONE WiLAT system in need of repair should be sent, preferably in its original shipper, prepaid to; Auditory Systems Repair 8001 Woodland Drive Indianapolis, IN 46278 Toll Free Customer Service (from the US): Ph: 800/327-3431 Fax: 877/807-7113 International Customer Service Ph: 317/656-5721 Fax: 317/656-5760 Technical Support Ph: 317/692-6550 Fax: 866/428-3962 © 2008 Aearo Technologies E-A-R, E-A-RTONE and E-A-RLINK are registered trademarks of Aearo Technologies
