ÖKO-LAVAMAT 88830 update

The Environmentally-Friendly Washing

Machine

User Information

Dear customer,

Please read this user information carefully.

In particular, pay attention to the section ”Safety” on the first pages.

Keep this user information in a safe place for later reference. Pass it on

to any subsequent owners of the unit.

1Points which are necessary for your safety or which are important for

the unit's functional capability are highlighted by a warning triangle

and/or signal words (Warning!, Caution!, Attention!). Always remem-

ber.

01. This symbol guides you step by step in operating the unit.

2. ...

3After this symbol you will find detailed information on operation and

practical use of the unit.

2The clover leaf indicates tips and information on the economical and

environmentally-responsible use of the unit.

This user information contains information on remedying any faults

which may occur, see the section ”What to do if ...”.

If these instructions are not sufficient, our After-Sales Service is at your

disposal at any time:

ELGROEP & AEG SERVICE

Bergensesteenweg 719

1502 Lembeek

Tel.: 02/3630444

Here you will receive an answer to any question concerning the fea-

tures and use of your unit. Of course, we are also pleased to receive any

requests, suggestions and criticism. Our aim is to further improve our

products and services for the benefit of our customers.

In the event of technical problems, our factory customer service in your

area is at your disposal at all times. Also refer to the section ”Service”.

Printed on recycled paper.

Those who think ecologically act ecologically ...

Contents

CONTENTS

Instructions for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Environment Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Unit Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Drawer for Washing Powder and Care Agent . . . . . . . . . . . . . . . . . . . . . . . 9

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Program Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Additional Program Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Consumption Values and Time Requirements . . . . . . . . . . . . . . . . . . . . . 13

Running Time Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

What Does ”Update” Mean? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Water Protection Aqua Control + Aqua Alarm . . . . . . . . . . . . . . . . . . . . 15

Before the First Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Prepare the Washing Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Sort and Prepare the Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Washing Types and Care Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Washing Detergents and Care Agents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Which washing detergnet and care agent? . . . . . . . . . . . . . . . . . . . . . . 18

How much washing detergent and care agent? . . . . . . . . . . . . . . . . . . . 18

Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Run a Washing Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Brief Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Setting the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Change the spin speed/Select rinse hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Set the delay timer/soaking duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Opening and closing the filling door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Add the Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Add Washing Detergent and/Care Agent. . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Start the washing program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Completion of the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

The washing cycle is finished/Remove the washing. . . . . . . . . . . . . . . . . . . 26

Contents

Program Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Separate Conditioning/Starching/Impregnating . . . . . . . . . . . . . . . . . . . . 29

Separate Spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Washing Detergent Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Washing Drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Filling Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Cleaning the drain pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Remedying Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

If the washing result is not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Carry Out an Emergency Emptying Operation . . . . . . . . . . . . . . . . . . . . . . . 38

Emergency Unlocking of the Filling Door . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Additional Rinse (RINSE+) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Solution Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Additional Rinse and Solution Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Program Saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Child Safety Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Setting up and connection instructions . . . . . . . . . . . . . . . . . 44

Safety Instructions for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Setting Up the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Transporting the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Remove the Transport Safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Prepare the Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Setting Up on a Concrete Pedestal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Setting Up on a Vibrating floor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Compensate for Floor Unevenness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Contents

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Permissible Water Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Water Inflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Delivery Heads over 1m . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Instructions for use

INSTRUCTIONS FOR USE

1Safety

The safety of AEG electrical appliances conforms to the recognised

technical regulations and the legislation covering the safety of appli-

ances. However, as manufacturers, we still regard it as our responsibility

to inform you of the following safety information.

Before Putting into Operation for the First Time

•Refer to the ”Installation and Connection Instructions” later in this

user information.

•When the unit is delivered in winter months with minus tempera-

tures: Store the washing machine for 24 hours at room temperature

before putting it into operation.

Correct Use

•The washing machine is only designed for normal domestic washing.

If the unit is used for purposes other than that for which it is

designed, the manufacturer can accept no liability for any resulting

damages.

•For safety reasons, conversions or modifications to the washing

machine are not permissible.

•Use only detergents which are suitable for washing machines. Follow

the washing detergent manufacturer's instructions.

•The washing must not contain any flammable solvents. Also remem-

ber this when washing pre-cleaned washing.

•Do not use the washing machine for chemical cleaning.

•Dyes/dye removers may only be used in washing machines if the

manufacturer expressly allows these products. We cannot be held lia-

ble for any resulting damage.

•Use only water from the water mains. Use rainwater or service water

only if it meets the requirements outlined in DIN1986 and DIN1988.

•Frost damage is not covered by the warranty! If the washing machine

is in a room which is at risk from frost, an emergency emptying oper-

ation must be carried out when there is a frost risk (see the section

”Carry Out Emergency Emptying”).

Instructions for use

Child Safety

•Packaging components (e.g. films, polystyrene) can be hazardous to

children. Risk of suffocation! Keep packaging away from children.

•Children often cannot recognise the hazards associated with handling

electrical appliances. Therefore, ensure the necessary supervision dur-

ing operation and do not allow children to play with the washing

machine – there is a risk that children can get trapped inside.

•Ensure that children or small animals cannot climb into the washing

machine's drum.

•When disposing of the washing machine: Pull out the mains plug,

destroy the door lock, cut off the electrical supply lead and throw

away the plug and the left-over cable. This means that children at

play cannot shut themselves inside and in so doing be in danger.

General Safety

•Repairs to the washing machine may only be carried out by skilled

persons. Incorrect repairs can cause significant hazards. If repairs are

necessary, consult our Customer Service or your specialist dealer.

•Never put the washing machine into operation if the mains cable is

damaged or if the control panel, work top or base area are damaged

in such a way that the inside of the unit is open and accessible.

•Switch off the washing machine before carrying out cleaning, care

and maintenance work. Also pull the mains plug out of the socket or,

–if it is permanently connected, – switch off the LS switch in the

fuse box or completely unscrew the screw-in fuse.

•Never pull the cable to remove the plug from the socket. Always pull

the plug itself.

•Multiple connectors, couplings and extension cables must not be

used. There is a fire risk with overheating!

•Do not spray down the washing machine with a water jet. Electric

shock risk!

•The glass in the filling door becomes hot in the case of washing pro-

grams with high temperatures. Do not touch!

•Allow the washing solution to cool down before emergency emptying

of the unit, before cleaning or before emergency opening of the fill-

ing door.

•Small animals can chew the power cables and water hoses. Risk of

electric shock and danger of water damage! Keep small animals away

from the washing machine.

Instructions for use

2Disposal

Dispose the packing material!

Dispose of your washing machine's packaging correctly. All the packag-

ing materials used are harmless to the environment and can be recy-

cled.

•Plastic parts are marked with standard international abbreviations:

•Cardboard packaging is manufactured from recycled paper and

should be deposited in the waste paper collection for recycling.

Dispose the old appliance!

When you finally put your appliance out of operation,

please bring it to your nearest recycling centre or to your dealer.

2Environment Tips

•The pre-wash cycle is not required for averagely dirty washing. This

saves washing powder/liquid, water and time (and does not harm the

environment).

•The washing machine is especially economical when you fully utilise

the stated filling quantities.

•For small amounts of washing, use only half to two thirds the recom-

mended amount of washing powder/liquid.

•Suitable pretreatment enables stains and small amounts of dirt to be

removed. You can then wash at a lower temperature.

•Use the energy-saving program to wash garments which are lightly to

moderately dirty.

•There is often no need for conditioner. Try it once! If you use a dryer,

your washing will become soft and velvety even without conditioner.

•In the case of medium to high water hardness, (hardness range II or

higher, see ”Washing and Care Agents”), you should use water sof-

tener.

The washing powder/liquid can then always be metered for hardness

range I (= soft).

>PE< for polyethylene, e.g. sheet wrapping material

>PS< for polystyrene, e.g. padding material (always CFC-free)

>POM< for polyoxymethylene, e.g. plastic clips

Instructions for use

Unit Description

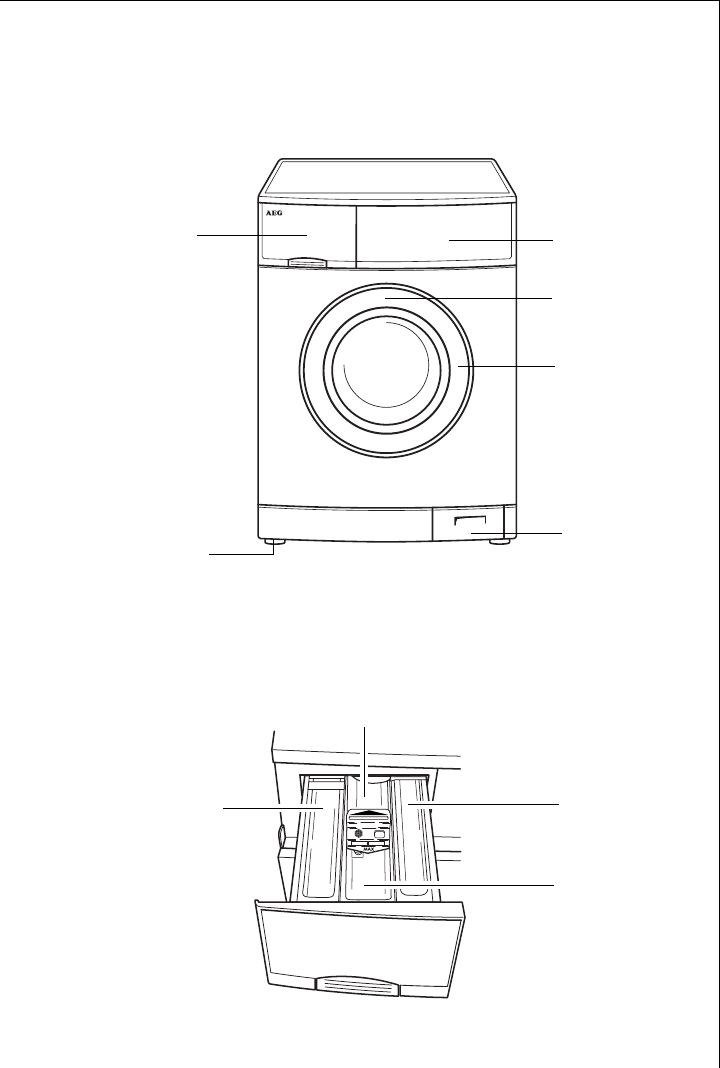

Front View

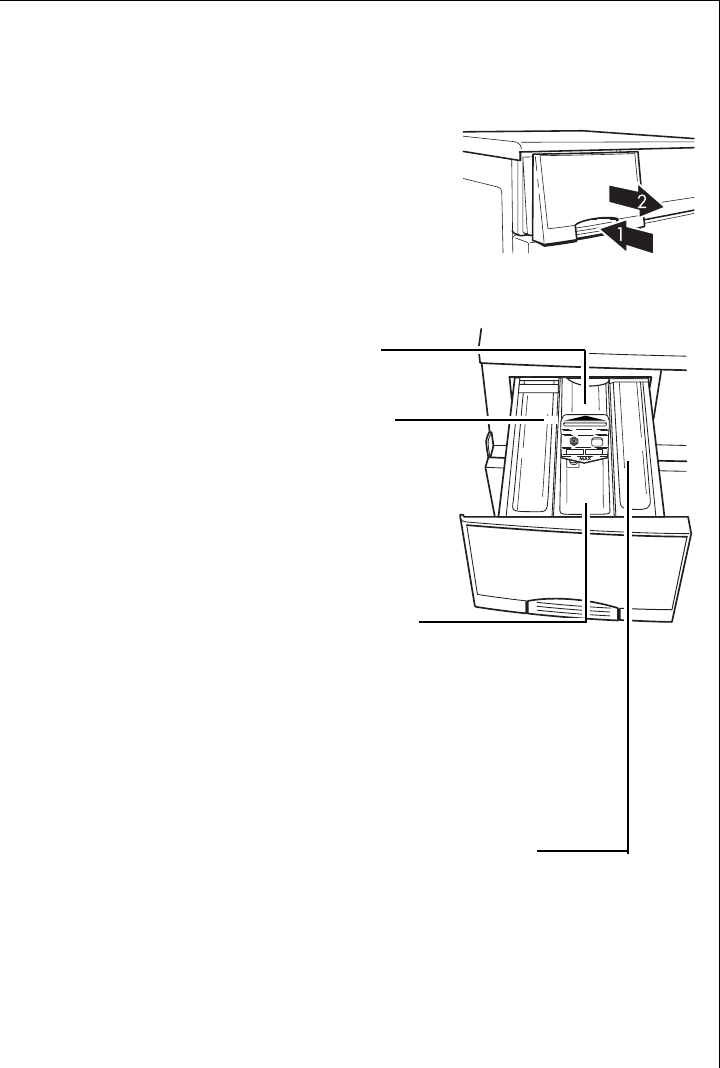

Drawer for Washing Powder and Care Agent

Drawer for

washing

powder and

care agent

Filling door

Screw feet

(height-adjustable);

rear left:

Automatic

adjustment foot

Control panel

Flap in front of

solution pump

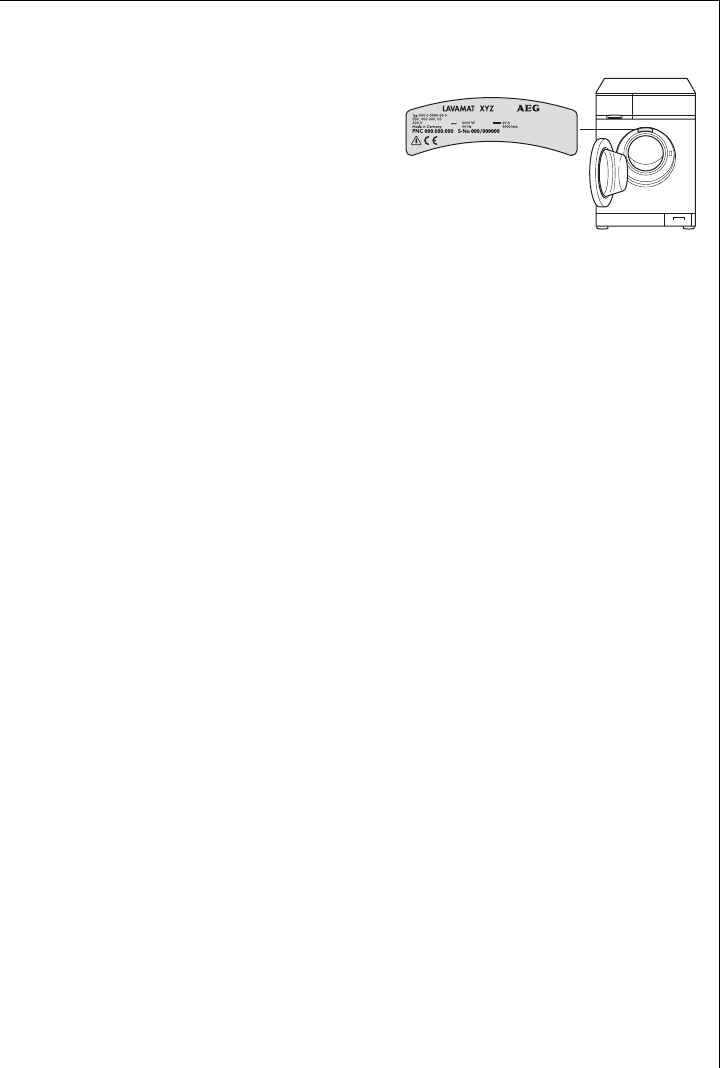

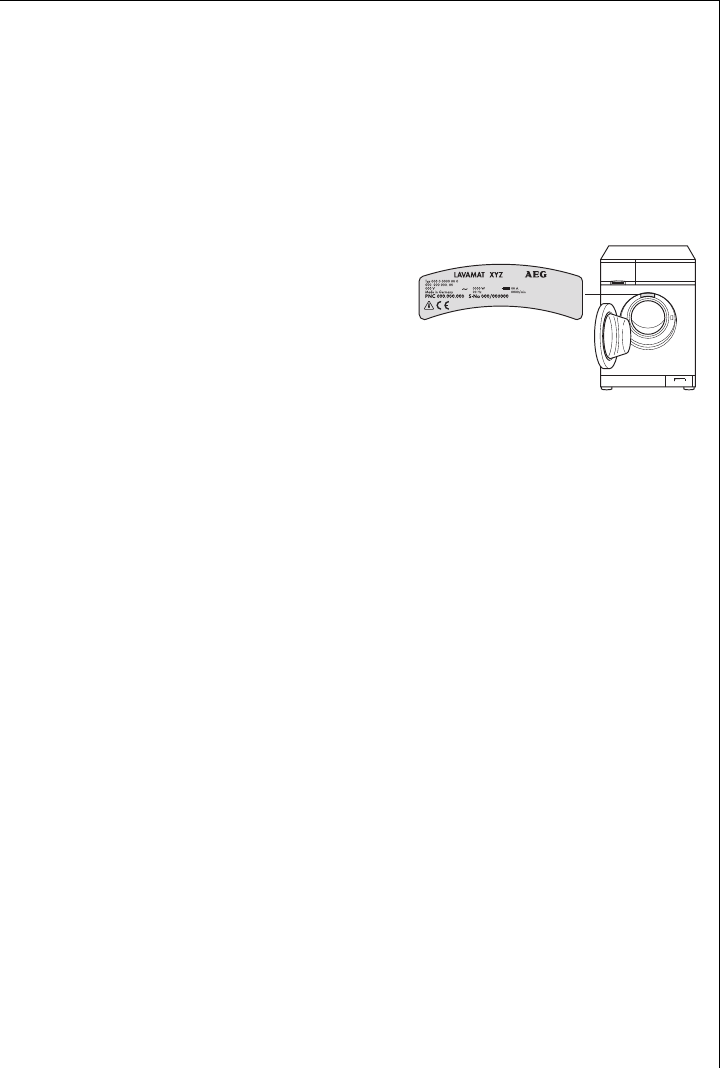

Rating plate

(behind filling

door)

Pre-wash

detergent/

soaking agent

or water-softener

Main detergent

(powder) and

water-softener

if required

In-wash stain treatment

Liquid care agent

(conditioner,

finisher, starch)

Instructions for use

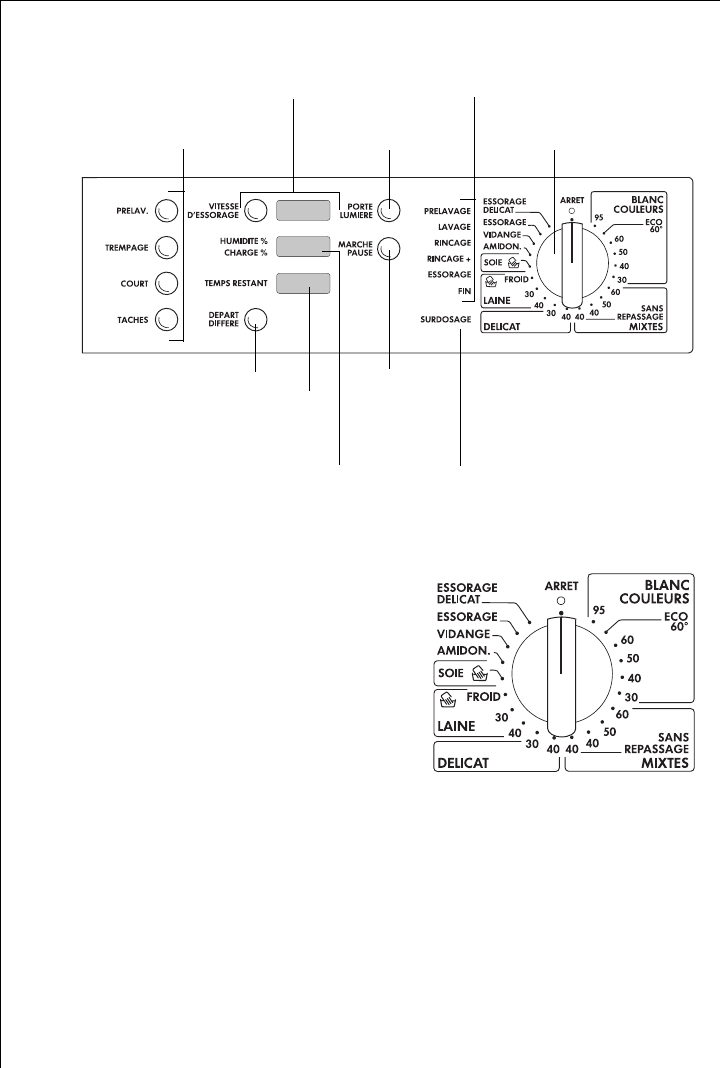

Control panel

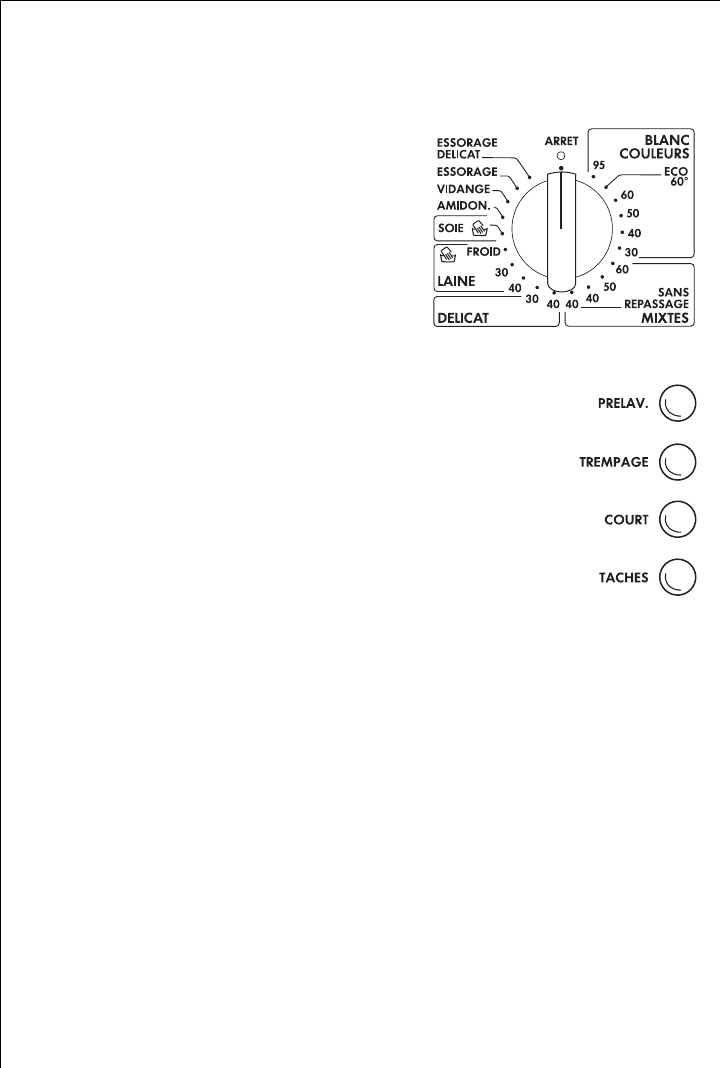

Program Selector

The program selector determines

the type of washing cycle (e.g.

water level, drum movement,

number of rinses, spin speed)

according to the type of gar-

ments being washed, and also the

washing solution.

OFF (ARRET)

Switches off the washing

machine. All other positions are

"switched on".

COTTONS/LINEN (BLANC/COULEURS)

Main washing cycle Cottons/Linen at 30 °C to 95 °C.

2ENERGY SAVING position (ECO): Energy-saving program at approx.

67 °C for lightly to normally dirty cottons, extended washing time

(cannot be combined with QUICK WASH/COURT and STAIN/TACHES).

SPIN CYCLE SPEED

button with display

Delay Timer Button

Additional program

buttons

OVER DOSING display

Program

sequence display

Button DOOR/LIGHT

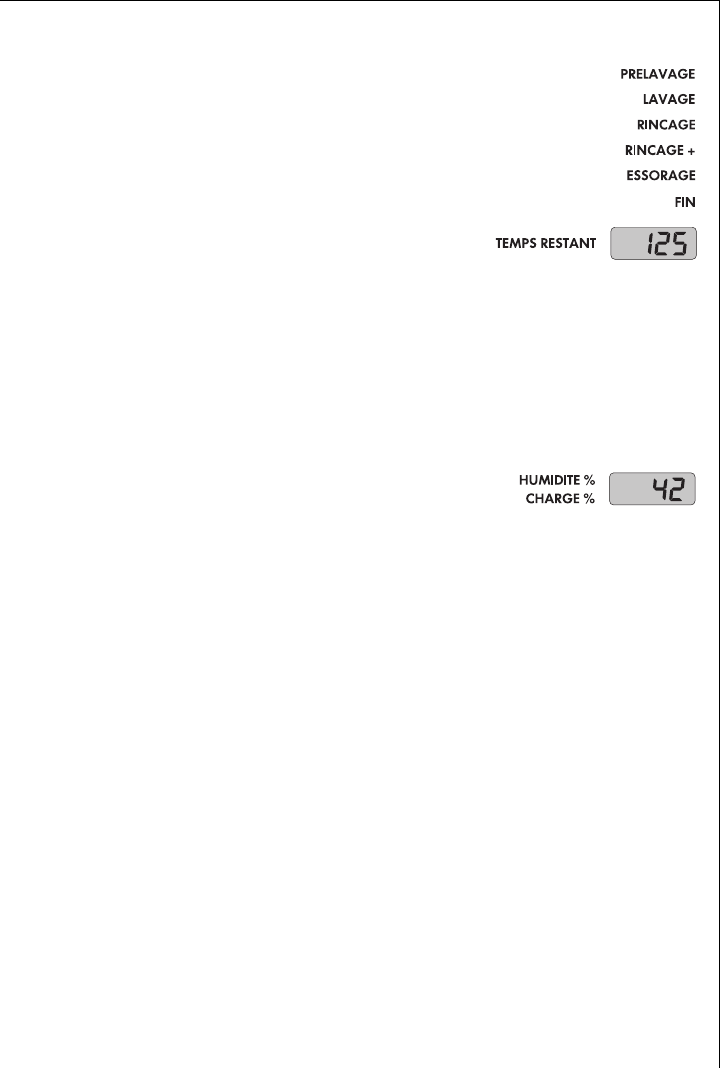

Multi-display

Program selector

Button

START/PAUSE

Display RISIDUAL MOISTURE%/LOADING%

Instructions for use

EASY-CARES (MIXTES)

Main washing cycle for easy-care textiles (mixed fabrics) at 40 °C to

60 °C.

EASY IRON position (SANS REPASSAGE): Main washing cycle at 40 °C

for easy-care textiles which, with the aid of this program, only have to

be either gently ironed or not ironed at all.

DELICATES (DELICAT)

Main washing cycle for delicates at 30 °C or 40 °C.

WOOL (LAINE)/ P (Handwash Program)

Main washing cycle (cold to 40 °C) for machine washable woollens and

hand washable wool fabrics with the ï(handwash) care code.

SILK (SOIE)/ P (Handwash Program)

Main washing cycle at 30 °C for hand and machine washable silk.

3As silk is a very delicate fabric we recommend washing only one gar-

ment at a time, if possible, and never together with other rough fabrics.

For extremely delicate silks an even gentler wash can be achieved with

the QUICK WASH (COURT) button.

STARCHING (AMIDON.)

Separate starching, separate conditioning and separate proofing of

damp washing (1 rinse, wash in liquid treatment agent from condi-

tioner chamber æ, spin cycle).

If required, a separate rinsing cycle can be carried out – just leave the

conditioner chamber empty.

PUMP OUT (VIDANGE)

Pumping off the water after a rinse hold (without spin).

3Rinse hold means: The washing remains lying in the last rinsing water. It

is not spun.

SPIN (ESSORAGE)

Pumping off the water after a rinse hold and spin, or separate spin of

hand-washed cottons /linen.

SHORT SPIN (ESSOR. DELICATE)

Pumping off the water after a rinse hold and short spin or separate

short spin of sensitive textiles (easy-care washing, delicates, woollens).

Instructions for use

Additional Program Buttons

The additional program buttons are for adapting

the washing program to the dirtiness of the wash-

ing. Additional programs are not required for

washing which is not excessively dirty.

Various functions can be combined with each

other, depending on the program.

PRE WASH (PRELAV.)

Cold pre wash before the main washing cycle

which follows on automatically; with intermediate

spin for COTTONS/LINEN (BLANC/COULEURS),

without intermediate spin for EASY-CARES (MIXTES)

and DELICATES (DELICAT).

SOAKING (TREMPAGE)

Approx. 1 hour at 30 °C or 40 °C, depending on the set program.

Can be extended by max. 19 hours with the button DELAY TIMER

(DEPART DIFFERE). This is followed by the main washing cycle.

QUICK WASH (COURT)

Shorter washing cycle for slightly dirty washing.

STAIN (TACHES)

For treating very dirty washing or stained washing. (In-wash stain

treatment is added during the program on a time-optimized basis.)

3With the WOOLLENS (LAINE)/P program (handwash), it is not possible

to select the additional programs (any pressed buttons have no effect).

Instructions for use

Consumption Values and Time Requirements

The values for selected programs in the following tables were deter-

mined under normal conditions. However, there is a helpful orientation

aid for domestic operation.

Program Selector/

Temperature

Filling Quantity

in kg

Water

in litres

Energy

in kWh

Time in

Minutes

COTTONS/LINEN 95

(BLANC/COULEURS) 539 1,65 137

COTTONS/LINEN 601)

(BLANC/COULEURS)

1) Note: Program setting for a test in accordance with EN 60 456. The consumption

values can deviate from the stated values depending on the water pressure,

water hardness, inlet temperature, room temperature, type and quantity of

washing, the washing powder/liquid used, fluctuations in the mains voltage and

selected additional functions.

539 0,89 125

COTTONS/LINEN 40

(BLANC/COULEURS) 544 0,55 122

EASY-CARES 40

(MIXTES) 2.5 45 0,42 102

DELICATES 30

(DELICAT) 2.5 49 0,40 68

WOOLLENS (LAINE)/

P (Handwash) 30 242 0,20 37

Instructions for use

Running Time Display

3The running times of the washing programs

depend on the usual washing practice and

the ambient conditions at the installation

location.

The washing type and quantity, the type of washing powder, the water

temperature and the room temperature etc. can influence the duration

of the washing program.

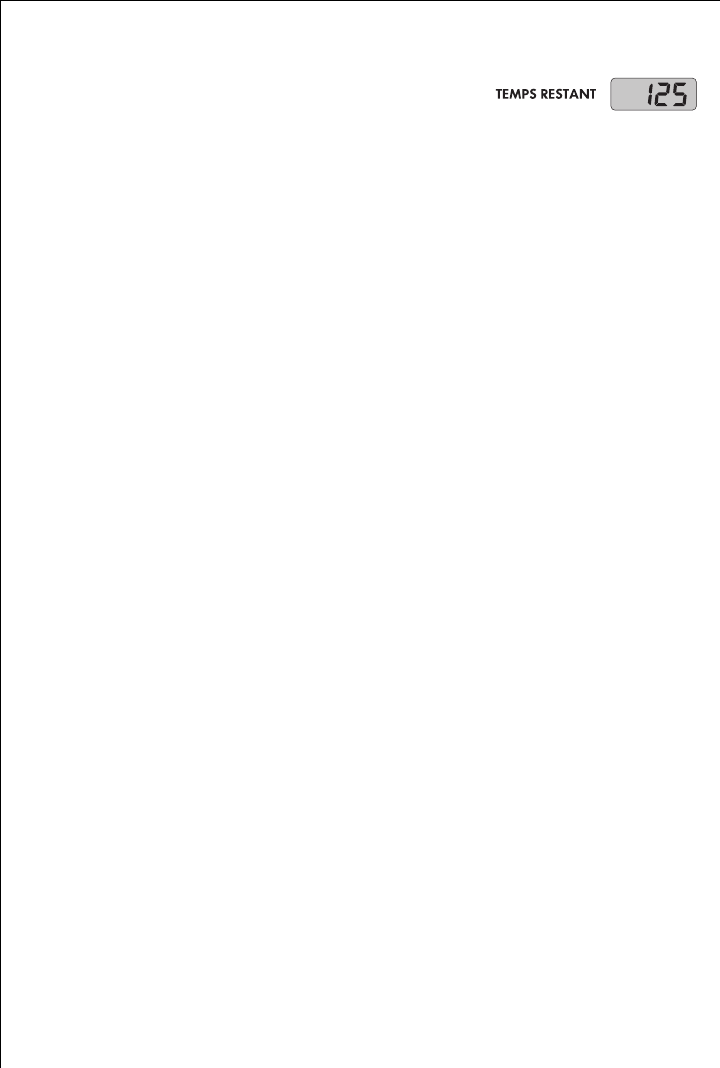

The washing machine saves from each program the running times of

the last wash cycles and calculates from them the average running time

for a washing cycle. This average running time is shown by the multi

display during the next wash.

After several washes, the running time shown in the multi display is

thereby adapted to the usual washing practice and the ambient

conditions at the installation location.

Instructions for use

What Does ”Update” Mean?

The washing programs of your washing machine are controlled by soft-

ware.

New types of textiles or new washing powders/liquids could, in the

future, require new washing programs. The software can be adapted to

these in most cases.

For further information on the ”Update”, consult the Customer Service.

You can also ask the Customer Service about the costs of an ”Update”.

Water Protection Aqua Control +

Aqua Alarm

In the event of damage to the supply hose, the system blocks the fur-

ther supply of water to the unit directly st the water tap.

If water escapes elsewhere, the drainage pump automatically pumps

off – even if the unit is switched off. The washing machine merely has

to be connected to the electricity mains. When the water protection

system responds, a warning signal sounds at the same time.

Instructions for use

Before the First Wash

0Carry out a washing operation without washing (COTTONS/BLANC

95 °C, with half the quantity of washing powder/liquid).

This removes residues left over from production on the drum and

solution container.

Prepare the Washing Cycle

Sort and Prepare the Washing

•Sort the washing according to care codes and type (see ”Washing

Types and Care Codes”).

•Empty pockets.

•Remove metal parts (paper clips, safety pins etc.).

•To prevent washing damage and washing snags: Close zip fasteners,

button closed bed covers and pillow cases, and tie together ribbons,

e.g. on aprons.

•Use clothing made of double-layer fabric (sleeping bag, anorak etc.).

•On knitted, coloured textiles and on wool and textiles with fitted

decorations: Turn inside out.

•Wash small and sensitive items (baby socks, stockings, tights, bras

etc.) in a washing net, a cushion with a zip fastener or in larger socks.

•Treat curtains with particular care. Remove small metal rollers or

small, burred rollers or tie them in a net or in a bag. We cannot

accept any liability for damage.

•Do not wash coloureds and whites together in one washing cycle.

Otherwise, whites will discolour or turn grey.

•New coloureds often contain surplus dye. It is best to wash such

items separately the first time.

•Mix small and large items of washing! This speeds up theeffect of

washing and the washing is more favourably distributed during spin-

ning.

•Loosen up the washing before loading it into the washing machine.

•Put the washing into the drum folded out.

•Pay attention to the care instructions ”Wash separately” and ”Wash

separately several times”!

Instructions for use

Washing Types and Care Codes

The care codes help you choose the correct washing program. The

washing should be sorted according to type and care code. The temper-

atures stated in the care codes are all maximum values.

Cottons ç

Textiles made of cotton and linen with this care code are insensitive to

mechanical stress and high temperatures. The program COTTONS/LINEN

(BLANC/COULEURS) is suitable for this type of washing.

Linen èë

Textiles made of cotton and linen with this care code are insensitive to

mechanical stresses. The program COTTONS/LINEN (BLANC/COULEURS)

is suitable for this type of washing.

Easy-Care Garmentsêí

Textiles such as finished cottons, cotton mixtures, viscose and synthet-

ics with this care code require mechanically more mild treatment. The

program EASY-CARES/EASY IRON (MIXTES/SANS REPASSAGE) is

suitable for this type of washing.

Delicates ì

Textiles such as layered fibres, microfibres, viscose, synthetics and cur-

tains with this care code require very gentle treatment. The program

DELICATES (DELICAT) is suitable for this type of washing.

Wool, Silk and Extremely Delicate Washing 9ìï

Textiles such as wool, wool blends and silk with this care code are par-

ticularly sensitive to mechanical stresses. The WOOL (LAINE)/P (Hand-

wash) and SILK (SOIE)/P (Handwash) programs are suitable for this

type of fabric.

Attention! Textiles with the care codeñ (Do not wash!) must not be

washed in the washing machine!

Instructions for use

Washing Detergents and Care Agents

Which washing detergnet and care agent?

Use only washing detergents and care agents which are suitable for use

in washing machines. Always follow the manufacturer's instructions.

How much washing detergent and care agent?

The amount to be used depends on:

•the dirtiness of the washing

•the hardness category of the mains water supply

•the filling quantity

2If the detergent manufacturer gives no details of the dosing quantities

for minimum loads, add one third less for half loads and, in the case of

very small loads and for EASY IRON (SANS REPASSAGE), only half the

amount of detergent recommended for a full load.

Refer to the detergent/care manufacturer's instructions on use and

dosage.

Water Softener

For medium to high water hardness (hardness category II or higher) you

should use water softener. Pay attention to the manufacturer's instruc-

tions. Always then meter detergent for hardness category I (= soft). The

responsible water works can provide information on the local water

hardness.

2Since the water softener is added before the main washing detergent,

(water pre-softening), eighty percent of the softener quantity stated on

the package is sufficient.

Water Hardness Details

Hardness Category

Water Hardness °dH

(degrees German

hardness)

Water Hardness in mmol / l

(millimol per litre)

I – soft 0 - 7 up to 1.3

II – medium hard 7 - 14 1.3 - 2.5

III – hard 14 - 21 2.5 - 3.8

IV – very hard over 21 over 3.8

Instructions for use

Run a Washing Cycle

Brief Instructions

A washing cycle is run in the following steps:

01. Set the correct washing program:

–Set the program and temperature with the program selector

–Set any additional program(s)

2. Change the spin speed if necessary/select RINSE HOLD (SANS

ESSORAGE).

3. Set DELAY TIMER (DEPART DIFFERE) if necessary.

4. Open the filling door and fill with washing.

5. Close the filling door.

6. Add washing detergent/care agent.

7. Start the washing program.

After the Washing Program Ends:

Attention! If the washing cycle ended with Rinse Hold, before opening

the filling door carry out PUMP (VIDANGE), SPIN (ESSORAGE) or SHORT

SPIN (ESSORAGE DELICAT).

8. Open the filling door and remove the washing.

9. Switch off the washing machine: Set the program selector to OFF

(ARRET).

Instructions for use

Setting the Washing Program

3See "Program Tables“ for a suitable program, correct temperature and

possible additional programs to suit the type of washing.

01. Set the program selector to the

required washing program with the

required temperature. The selected

program ist illuminated.

The anticipated duration of the

selected program appears in the

multi-display in minutes.

2. If necessary select additional program(s):

The selected additional program is illuminated.

–To change the selection press another button.

–To delete the selection press the button again.

Instructions for use

Change the spin speed/Select rinse hold

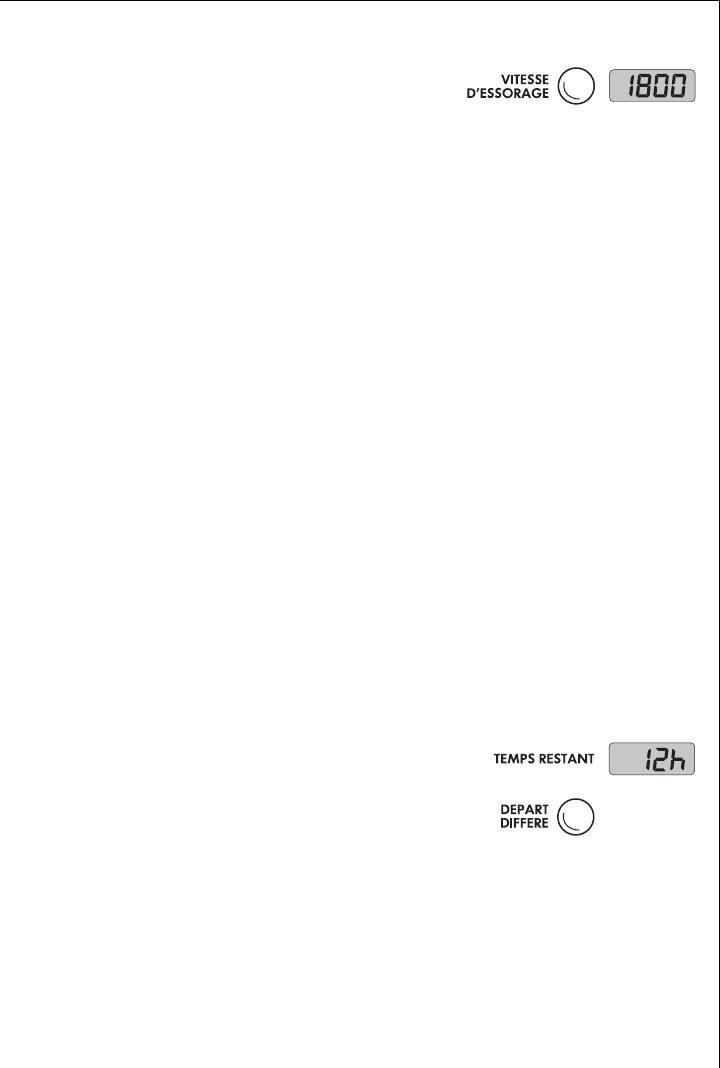

0If necessary, select the spin speed for the

final spin.

Press the button SPIN SPEED (VITESSE

D´ESSORAGE) as often as is necessary

until the required spin speed appears in the display.

•1800, 1400, 1200, 1000, 800, 600 or 400 revolutions per minute are

possible.

•With the display "0“ the washing remains in the last rinse, it is not

spun (Rinse hold.

3If you do not change the spin speed, the final spin is automatically

adapted depending on the washing program:

The speed of the intermediate spin depends on the selected program

and cannot be changed.

Set the delay timer/soaking duration

Delay timer

The button DELAY TIMER (DEPART DIFFERE) allows the start of a wash-

ing program to be delayed by 1 or up to a maximum of 19 hours.

0Press the DELAY TIMER (DEPART DIFFERE)

button as often as is necessary until the

required stard delay appears, for exam-

ple,12h for a delay of the program start

by 12 hours.

If 19h is displayed and you press again,

the run time of the washing program set appears (display in minutes,

e. g.125). In this state, the delay timer is not set.

–COTTONS/LINEN (BLANC/COULEURS) 1800 revolutions per minute

–EASY-CARES/EASY IRON

(MIXTES/SANS REPASSAGE)

1200 revolutions per minute

–DELICATES (LINGE DELICAT) 1200 revolutions per minute

–WOOLLENS (LAINE)/P (Handwash) 1200 revolutions per minute

–SILK (SOIE)/P (Handwash) 1200 revolutions per minute

Instructions for use

Soaking duration

If you keep button SOAKING (TREMPAGE) depressed and at the same

time actuate the TIMER DELAY button (DEPART DIFFERE) you can

extend the soaking duration from 1 up to a maximum of 19 hours.

3Without a preselected time the soaking duration is approx. 1 hour.

Opening and closing the filling door

0Open: Press button DOOR/LIGHT (PORTE/LUMIERE). The

filling door springs open.

0Close: Press the filling door firmly closed.

The DOOR/LIGHT (PORTE/LUMIERE) illumination shows whether the fill-

ing door can be opened while the appliance is switched on :

3The washing drum is illuminated when the filling door is open. The illu-

mination goes out automatically after approx. 3 minutes.

Add the Washing

3For the maximum filling quantities, refer to the ”Program Tables”.

For information on the correct preparation of the washing,

see ”Sort and Prepare the Washing”.

01. Sort and prepare the washing according to type.

2. Open the filling door: Press the button DOOR/LIGHT (PORTE/LUMIERE).

The door springs open.

3. Fill with washing.

Attention! When closing the door, make sure no items of washing get

stuck! This could damage textiles and the unit.

4. Close the filling door securely.

–green: The door can be opened (not when the program saving func-

tion is activated, for details see the section Program Saving“)

–off: Door cannot be opened temporarily

–red: Door is open

Instructions for use

Add Washing Detergent and/Care Agent.

3Refer to the information on washing detergents and care agents, see

section ”Washing Detergents and Care Agents”.

01. Open the washing detergent drawer:

grip inside the flap on the drawer at the

bottom (1) and pull out the drawer as

far as it will go (2).

2. Fill with washing detergent/

care agent

3. Push the drawer fully in.

3If using Liquid Detergent/Tabs:

Add liquid detergent/tabs in the amount recommended by the washing

detergent industry. Follow the instructions on the detergent package.

Compartment for in-wash stain

treatment

Compartment for main washing

powder

(If you use water softener and need the

right compartment for the pre-wash /

soaking agent, add the water softener

to the main washing detergent in the

left compartment.)

Compartment for liquid care agent

(Conditioner, finisher, starch)

Attention! Fill the compartment up to the MAX mark.

If necessary, dilute viscous agent up to the MAX mark,

and dissolve powder starch.

Note: It is normal for a small amount of water to

be left in the compartment for liquid conditioner;

this will not affect the wash results.

Compartment for pre-wash agent/soaking agent

only for additonal programs PRE WASH (PRELAV.)

and SOAKING (TREMPAGE)

or for water softener

Instructions for use

Start the washing program

01. Check that the water valve is open.

2. Start the washing program:

Press button START/PAUSE (MARCHE/PAUSE).

The washing program is started or it starts after

the set time expires.

3If DOOR/LIGHT (PORTE/LUMIERE) flashes red when the button START/

PAUSE (MARCHE/PAUSE) is pressed the filling door is not closed prop-

erly. Press the filling door shut firmly and press button START/PAUSE

(MARCHE/PAUSE) again.

If the delay timer is set:

The preset delay timer is counting, the remaining time until the

program starts is shown in the multi-display (always in whole hours).

During this time you can load washing or change / abort the time

preselection.

•Load washing: Press the START/PAUSE (MARCHE/PAUSE) button, the

filling door can be opened. Then close the door and press button

START/PAUSE (MARCHE/PAUSE) again.

•Change or abort time preselection: Press the DELAY TIMER (DEPART

DIFFERE) button as often as is necessary until the required time is

displayed; when the program run time is displayed (display in

minutes, e.g. 125) the washing program starts without delay.

3While the time preselection counts the washing machine switches to

the stand-by mode. Only RUN TIME (TEMPS RESTANT) is illuminated,

the multi-display shows the remaining time until the program start.

All other displays on the control panel are switched off in order to save

energy. Pressing any arbitrary button cancels the stand-by mode.

Instructions for use

Completion of the Washing Program

Program sequence display

Prior to the start the program steps to be executed are

displayed by the program sequence display. The current

program step is displayed during the washing program.

Multi-display

The expected remaining run time (in min-

utes) until the completion of the program is

shown in the multidisplay.

3With the automatic program adaption by the control of the washing

machine (quantity and type of washing, balance error recognition, spe-

cial rinsing etc.) counting of the remaining run time can be stopped or

corrected.

Display RESIDUAL MOISTURE%/LOADING%

(HUMIDITE%/CHARGE%)

The following appears alternately at the display:

•The expected residual moisture of the washing

at the end of the program.

This value depends on the set spin speed.

•Load the washing drum (in steps of 10 percent.)

This value is displayed only in COTTONS/LINEN (BLANC/COULEURS)

programs and EASY-CARES/EASY IRON (MIXTES/FACILE A REPASSER).

The washing machine can recognise the load only fifteen minutes

after a program start.

As soon as a value for the load is pending the display alternates

between residual moisture and load.

Overloading of the drum is displayed in values higher than

100 percent (e. g.120).

3Due to the differences in the fabrics and in the filling quantity the

washing reaches for EASY CARE/EASY IRON (MIXTES/FACILE A

REPASSER) and DELICATES (DELICAT) a lower value for residual damp-

ness than with COTTONS/LINENS (BLANC/COULEURS).

Change the Spin Speed

The spin speed can still be changed or the rinse hold (display 0) be set

during the washing program.

Other settings cannot be changed.

Instructions for use

Abort program

0Turn the program selector to OFF (ARRET) to abort the washing

program.

3The washing program can be interrupted at any time by pressing the

START/PAUSE (MARCHE/PAUSE) button and then continued by pressing

it again.

The washing cycle is finished/Remove the washing.

END (FIN) is lit at the program sequence display when a washing

program is finished.

3The washing machine switches itself into the stand-by mode if no

button is pressed or the program selector is not turned within approx.

3 minutes after the end of the program. Only END (FIN) is illuminated.

All other displays on the control panel are switched off in order to save

energy. Pressing any arbitrary button cancels the stand-by mode.

•A crease protection phase of approx. 30 minutes follows at the end of

the program if program EASY IRON (SANS REPASSAGE) had been

selected. The multidisplay also shows the remaining time and the

display END (FIN) is illuminated. You can open the filling door and

take the washing out at any time during the crease protection phase.

•START/PAUSE (MARCHE/PAUSE) flashes if spin speed 0 (rinse hold )

was selected.

01. After a rinse hold it is first of all necessary to pump off the water:

–Either press START/PAUSE (MARCHE/PAUSE) button (the washing will

be spun according to the just finished program; with the SPIN SPEED

(VITESSE D´ESSORAGE) button the spin speed can be changed even

during the spin-drying process), or

–turn program selector to PUMP (VIDANGE) and then press START/

PAUSE (MARCHE/PAUSE) button (the water is pumped off without a

spin), or

–Turn the program selector to SPIN (ESSORAGE) or to SHORT SPIN

(ESSORAGE DELICAT) and press START/PAUSE (MARCHE/PAUSE)

button (the washing is spin-dried normally or with a short spin).

END (FIN) is illuminated at the end of this program step.

2. Open the filling door.

As soon as DOOR/LIGHT (PORTE/LUMIERE) is illuminated in green the

door can be opened (not if program saving is active, see "Program Sav-

ing").

3. Remove the washing.

Instructions for use

4. Turn the program selector to OFF (ARRET).

5. After washing, pull out the washing detergent drawer slightly so that it

can dry out. Only lean the door against the washing machine so that

the latter can air out.

3Too much detergent was used in the just finished

program if OVER-DOSED (SURDOSAGE) is illuminated.

Observe the dosing recommendations of the detergent

manufacturer as well as the filling quantity for the

next wash.

Attention! If the washing machine is not used for a long time:

Close the water tap and disconnect the washing machine from the

electricity mains. (Aqua Control water protection with Aqua Alarm

does not operate if the power supply is interrupted.)

Instructions for use

Program Tables

Washing

Not all possible settings are listed below - only the ones most com-

monly used in everyday operation and the most appropriate ones.

Type of

Washing,

Care Codes

Max.

Filling Quantity

(dry weight)1)

1) A 10-litre bucket holds approx. 2.5kg of dry washing (cottons).

Program Selector

Temperature

Possible Additional

Programs

Cottons

ç5kg

COTTONS/LINEN

(BLANC/COULEURS)

PRE WASH (PRELAV.)

SOAKING (TREMPAGE)

QUICK WASH (COURT)

STAIN (TACHES)

Energy-Saving

Program:

Cottons ç5kg

COTTONS/LINEN

(BLANC/COULEURS)

ENERGY-SAVING

(ECO)

PRE WASH (PRELAV.)

SOAKING (TREMPAGE)

Linen

èë 5kg

COTTONS/LINEN

(BLANC/COULEURS)

30 to 60

PRE WASH (PRELAV.)

SOAKING (TREMPAGE)

QUICK WASH (COURT)

STAIN (TACHES)

Easy-Cares

êí

2.5kg

EASY-CARES

(MIXTES)

40 to 60 PRE WASH (PRELAV.)

SOAKING (TREMPAGE)

QUICK WASH (COURT)

STAIN (TACHES)

1kg

EASY IRON2)

(SANS REPASSAGE)

2) Only if a filling quantity of 1kg is observed are creases in the washing largely

avoided.

5 to 7 easy-care men's shirts are equivalent to about 1kg of dry washing.

Delicates

2,5kg

(or 15-20m2

curtains)

DELICATES

(DELICAT)

30, 40

PRE WASH (PRELAV.)

SOAKING (TREMPAGE)

QUICK WASH (COURT)

STAIN (TACHES)

Woollens/

Handwash

9ìï 2kg

WOOLLENS (LAINE)

COLD (FROID) to 40

Silk/Handwash

ï1kg P/SILK (SOIE)

30 QUICK WASH (COURT)

Instructions for use

Separate Conditioning/Starching/Impregnating

Separate Spin

Type of Washing Max. Filling Quantity

(dry weight) Program Selector

Cottons/Linen 5kg STARCHING (AMIDON.)

Type of Washing Max. Filling Quantity

(dry weight) Program Selector

Cottons/Linen 5kg SPIN (ESSORAGE)

Easy-Cares 2.5kg

SHORT SPIN

(ESSORAGE DELICAT)

Delicates 2.5kg

Woollens/Handwash 2kg

Silk/Handwash 1kg

Instructions for use

Cleaning and Care

Control Panel

Attention! For cleaning panels and control parts, do not use furniture

polish or any aggressive cleaning agents.

0Wipe off control panels with a damp cloth. Use warm water to do this.

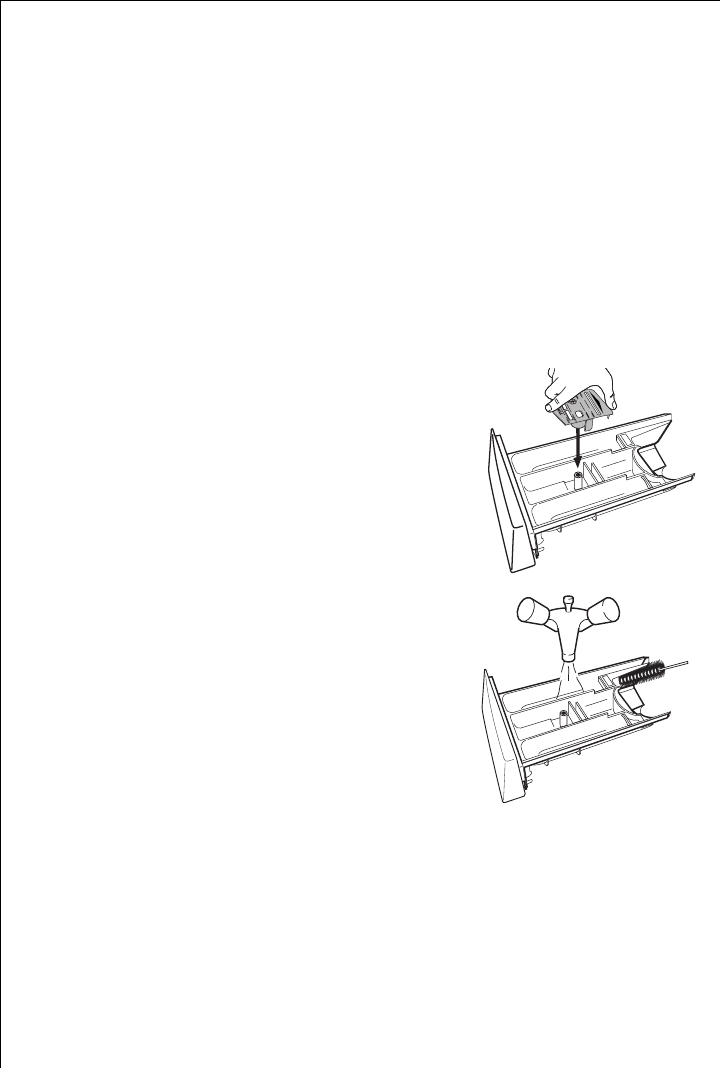

Washing Detergent Drawer

The washing detergent drawer should be cleaned from time to time.

01. Pull out the washing detergent drawer as far as it will go.

2. Remove the washing detergent drawer with a firm pull.

3. Remove the softener insert from

the middle compartment.

4. Clean the softener insert under

running water.

5. Clean the compartments from the

rear with warm water.

It is best to use a bottle brush.

6. Push on the softener insert as far

as it will go so that it is secure.

Instructions for use

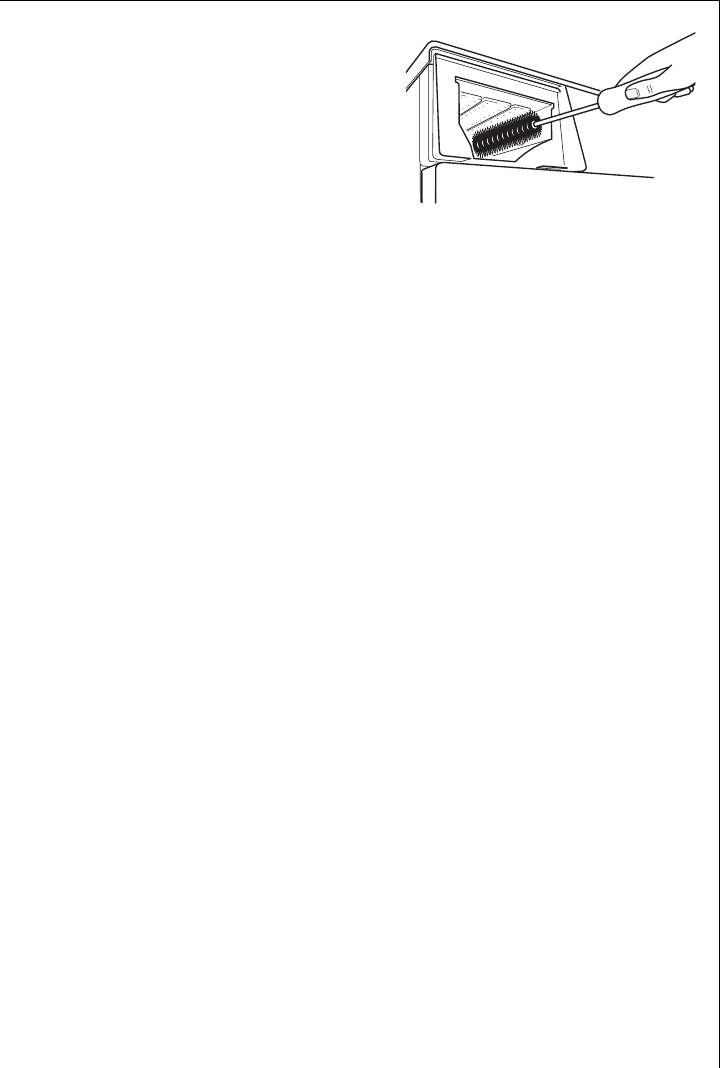

7. Use a brush to clean the entire

rinsing-in part of the washing

machine, especially the nozzles on

the top side of the rinsing-in

chamber.

8. Insert the washing detergent

drawer into the guide rails and

push it in.

Washing Drum

The washing drum is made of high-quality stainless steel. Rust deposits

on the drum can occur due to foreign bodies in the washing which can

cause rust.

Attention! Do not clean the stainless steel drum with acidic antiliming

agents, scouring agents containing chlorine or iron or steel wool. Our

Customer Service Department has suitable agents available.

0Remove any rust deposits on the drum using a stainless steel cleaning

agent.

Filling Door

0Check regularly whether there are deposits or foreign bodies in the

rubber sleeve behind the filling door and, if so, remove them.

Instructions for use

Cleaning the drain pump

Paper clips, nails and so on can sometimes get into the washing

machine with the washing and remain in the drain pump casing. Fluff

and strands of fabric can gather on these items and block the drain

pump.

Therefore the drain pump should be cleaned at least once a year.

1Warning! Switch off the washing machine and pull out the mains plug

before cleaning the drain pump!

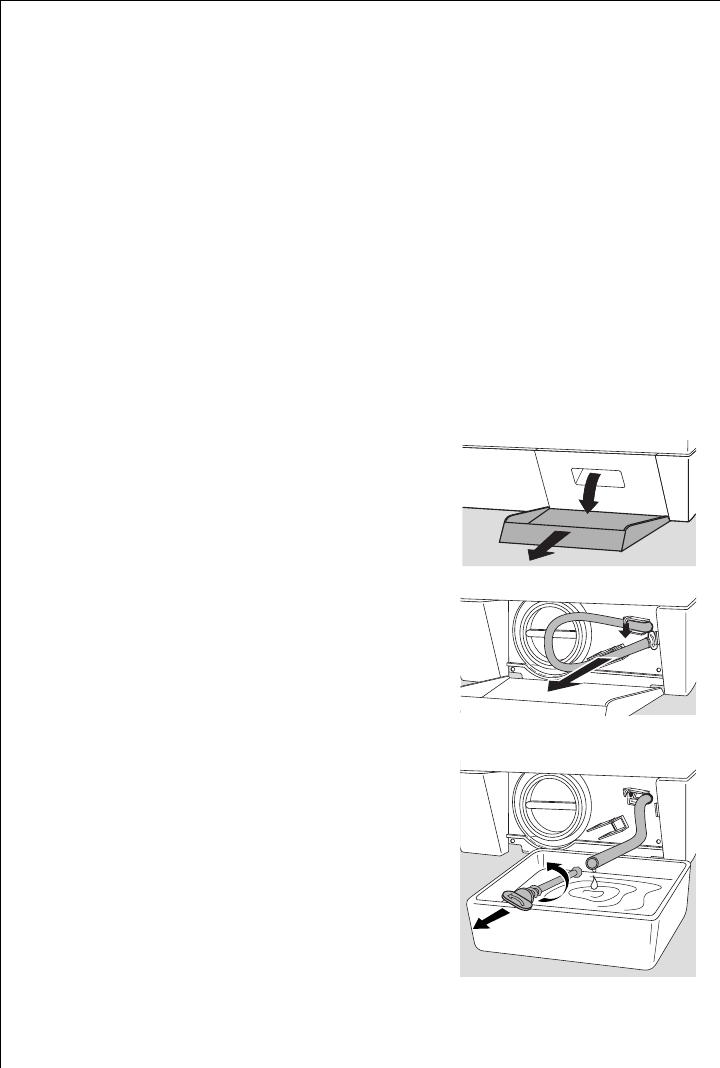

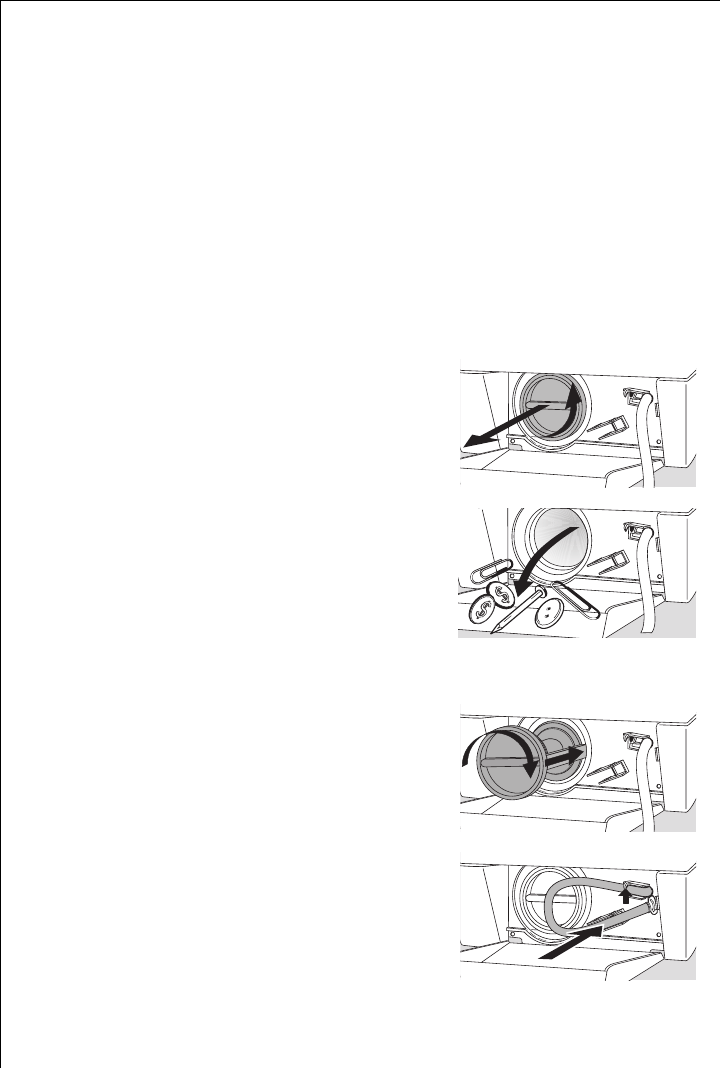

01. First carry out an emergency emptying (see section ”Carry Out Emer-

gency Emptying”).

2. Place a towel on the floor in front of the cover of the solution pump.

Residual water can run out.

3. Unscrew the drain pump cover anti-

clockwise and pull it out.

4. Remove any foregin bodies from the

pump housing.

5. Replace the cover. Insert the webs on

the cover laterally into the guide slots

and screw the cover firmly into place

clockwise.

6. Close the emergency emptying hose and

place it in the holder.

7. Close the flap.

Instructions for use

What to do if ...

Remedying Faults

In the event of a fault, try to solve the problem yourself with the aid of

the information provided here. If you call Customer Service to deal

with one of the faults listed here or to remedy an operating fault, the

customer service technician's visit will not be free of charge, even dur-

ing the warranty period.

•It the fault code C1 or C2 appears in the

multi-display, you may be able to remedy

the fault yourself (see the fault table

below). After remedying the fault, press the button START/PAUSE

(MARCHE/PAUSE). If the fault code is displayed again, please inform

the Customer Service.

•In the case of all other displayed faults (C and number or letter),

please inform the Customer Service and state the fault code.

Problem Possible Cause Remedy

The washing machine

does not work.

The mains plug is not

plugged in. Plug in the mains plug.

The fuse of the building's

wiring is not in order. Replace the fuse.

The filling door is not

correctly closed.

Close the filling door; The

lock must engage audibly.

The START/PAUSE

(MARCHE/PAUSE) button

was not pressed long

enough.

Press the START/PAUSE

(MARCHE/PAUSE) button

until the program starts.

The filling door cannot

be closed.

The child safety feature is

set.

Cancel the child safety

feature (see Section "Child

Safety Feature“).

Water is not running.

Error code (1

appears.

Water valve closed. Open the water valve.

Filter in screw connection of

the intake hose blocked.

Close the water valve.

Unscrew the hose from the

tap, remove the sieve and

clean under running water.

Water valve. is blocked with

limescale or is faulty.

Check water valve. and have

it repaired if necessary.

Instructions for use

The washing machine

vibrates during opera-

tion or it is on an une-

ven surface.

The transport packaging has

not been removed.

Remove transport packaging

according to the installation

and connection instructions.

The height-adjustable screw

feet are not correctly set.

Adjust in accordance with

the installation and connec-

tion instructions.

There is not much washing in

the drum (e.g. only one

dressing gown).

This does not impair the

function.

The water could not be com-

pletely pumped off before

spinning because

the drainage hose is bent or

the solution pump is blocked.

Check the laying of the

drainage hose and eliminate

the bend if necessary, or

clean the solution pump and,

if required, remove foreign

bodies from the pump

housing.

The washing solution

of the main wash

froths up a lot.

Probably too much detergent

was used.

Meter the detergent exactly

in accordance with the man-

ufacturer's information.

Water is flowing out

from beneath the

washing machine .

The screw connection on the

intake hose is leaky.

Tighten the intake hose

screw connection.

The drainage hose is leaky. Check the drainage hose and

replace it if necessary.

The washing solution pump

cover is not correctly closed. Close cover correctly.

Washing in caught in the

filling door.

Abort the program, remove

washing from the door and

start a new program.

The emergency drain hose is

not properly shut off or it is

not water-tight.

Shut the emergency drain

hose off properly (see section

"Performing an Emergency

Drain"). Call your after-sales

service if the emergency

drain hose is not water-tight.

Problem Possible Cause Remedy

Instructions for use

The drain pump for the

washing machine runs

constantly - even when

the appliance is

switched off.

The Aqua Control anti-flood

system has been activated.

Turn off the tap, then

remove the plug from the

mains and inform Customer

Service.

Conditioner was not

washed in, compart-

ment æ for care

agents is filled with

water.

Softener insert in the com-

partment for care agent ist

not correctly attached or is

blocked.

Clean the detergent drawer

and firmly attach the soft-

ener insert.

Washing heavily

creased.

Probably too mush washing

put in.

Pay attention to the maxi-

mum filling quantity (see

Program tables). Select the

program EASY IRON (SANS

REPASSAGE) for easy-care

fabrics.

Washing not well spun.

Residual water still vis-

ible in the drum.

Error code (2 appears.

Drainage hose bent. Remove the bend.

The maximum pump height

(discharge height 1m from

the positioned surface of the

appliance) is exceeded.

Contact your customer serv-

ice. For pumping heights

over lm he can offer you a

conversion kit as a special

accessory.

Solution pump blocked.

Switch off the unit and pull

out the mains plug. Clean

the solution pump.

If a siphon is connected:

Siphon blocked. Clean the siphon.

The filling door cannot

be opened with the

unit switched on.

The door is locked for safety

reasons (the DOOR (PORTE)

display is not illuminated).

Wait until DOOR (PORTE) is

illuminated in green.

The program saving function

is set.

Cancel the program saving

function (see "Program Sav-

ing").

The washing machine is in

the stand-by mode.

Press DOOR (PORTE) button

again.

Problem Possible Cause Remedy

Instructions for use

Remnants of detergent

are building up in the

detergent drawer.

Water valve not fully opened. Open the water valve fully.

Filter in the screw connec-

tion of the intake hose on

the water valve or on the

unit is blocked.

Close the water valve.

Unscrew the intake hose

from the water tap and from

the unit. Clean the filter.

The rinsing water is

murky.

The cause is probably a

detergent with a high silicate

content.

No negative influence on the

rinsing result, possibly use

liquid detergent.

No illumination when

pressing an additional

program.

The selected additional pro-

gram cannot be combined

with the set program.

Make another selection.

Only the END (FIN)

control panel label is

illuminated.

The washing machine is in

the stand-by mode. Press any button.

Only the RUN TIME

(TEMPS RESTANT) con-

trol panel is illumi-

nated, a number

between 1 and 19 is

shown in the RUN TIME

(TEMPS RESTANT) dis-

play .

The start time preselection is

counting, the washing

machine is in the stand-by

mode.

If you press any button the

machine will leave the

stand-by mode.

The program sequence

indicator flashes con-

stantly.

Program saving switched on;

the program selector was

accidentally readjusted dur-

ing the washing cycle.

Turn the program selector

back to the original position

(see "Program Saving“).

Problem Possible Cause Remedy

Instructions for use

If the washing result is not satisfactory

If the washing is grey and limescale forms in the drum

•Not enough washing detergent added.

•The right washing detergent was not used.

•Special types of stain were not pretreated.

•Program or temperature incorrectly set.

•If binary wahing detergents were used, the individual components

were not added in the correct ratio.

If there are still grey stains on the washing

•Washing contaminated with creams, grease or oils was washing with

too little detergent.

•Washing at too low temperature.

•A frequent cause is that conditioner – particularly concentrated

form, ended up on the washing. Wash out such stains as quickly as

possible and carefully use the right conditioner.

If foam is still visible after the final rinse

•Modern washing detergents can still produce foam, even in the final

rinse. The washing is still sufficiently rinsed.

If there are white residues on the washing

•These are the insoluble components of modern detergents.

They are not the result of an insufficient rinsing effect.

Shake or brush off the washing. Perhaps in future you should turn

the washing before washing it. Check the choice of detergent and use

a liquid detergent if necessary.

Instructions for use

Carry Out an Emergency Emptying Operation

•When the washing machine no longer pumps off the washing solu-

tion, an emergency emptying operation must be carried out.

•When the washing machine is in a room where there is a frost risk, an

emergency emptying operation must be carried out when there is a

frost risk.

Also: Unscrew the intake hose from the water tap and lay it on the

floor. Empty the drainage hose.

1Warning! Switch off the washing machine before carrying out an

emergency emptying operation and pull out the mains plug.

Caution! The washing solution running out of the emergency emptying

hose can be hot. Risk of scalding! Allow the washing solution to cool

down before carrying out emergency emptying.

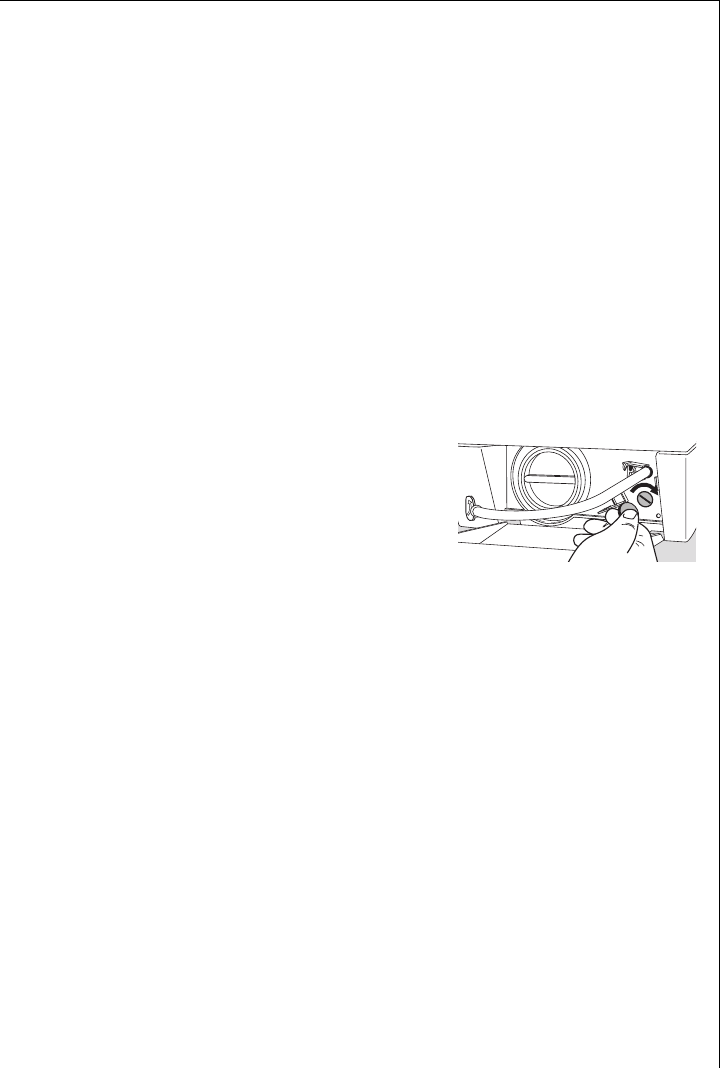

01. Provide a flat collecting vessel to catch the washing solution as it runs

out.

2. Open the flap downwards in the right

part of the base panel and pull it off.

3. Remove the emergency emptying hose

from the holder.

4. Place the collecting vessel underneath.

5. Release and pull out the plug of the

emergency emptying hose by turning it

anticlockwise.

The washing solution drains off.

Depending on the amount of solution, it

may be necessary to empty the collect-

ing vessel several times. To do this, tem-

porarily close the emergency emptying

hose again with the plug.

Instructions for use

When all the washing solution has drained off:

6. Firmly push the plug into the emergency emptying hose and turn it

tight clockwise.

7. Put the emergency emptying hose back into the holder.

8. Insert the flap into the base panel and close.

Emergency Unlocking of the Filling Door

When the filling door can no longer be opened, it can be opened with

the aid of the emergency unlocking facility.

1Warning! Switch off the washing machine before operating the emer-

gency unlocking and remove the plug from the mains!

01. If you can see water in the viewing window of the filling door, first

carry out an emergency emptying operation (see Section ”Carry out an

emergency emptying operation”).

2. Open the flap downwards in the right

part of the base panel.

3. Turn the rotary knob clockwise with the

aid of a coin. The filling door springs

open.

Additional Rinse (RINSE+)

The washing machine is set for extremely economical water consump-

tion. However, for persons who suffer from allergies, it can be helpful

to rinse with more water.

3When this function is set, an additional rinse is performed with the

programs COTTONS/LINEN (BLANC/COULEURS), EASY-CARES/EASY IRON

(MIXTES/SANS REPASSAGE) and DELICATES (DELICAT).

No additional rinse is set when the unit is delivered.

Set Additional Rinse:

01. Turn the program selector to SHORT SPIN (ESSORAGE DELICAT).

2. Keep the button SOAKING (TREMPAGE) for at least 5 seconds.

After the button has been pressed for 5 seconds, RINSE+ (RINCAGE+)

flashes on the program sequence display for 5 seconds.

Instructions for use

3. While RINSE+ (RINCAGE+) is flashing, release the button SOAKING

(TREMPAGE).

After the flashing stops, the additional rinse is set. It is set until it is

canceled again.

When the additional rinse is set, the indicator RINSE+ (RINCAGE+)

lights up on the program sequence disply before the program start and

during the additional rinse.

4. If you want to check whether the additional rinse is set:

–Turn the program selector to SHORT SPIN (ESSORAGE DELICAT).

–Briefly press the button SOAKING (TREMPAGE).

The additional rinse is set if RINSE+ (RINCAGE+) flashes on the pro-

gram sequence display.

Cancel Additional Rinse:

01. Turn the program selector to SHORT SPIN (ESSORAGE DELICAT).

2. Keep the button SOAKING (TREMPAGE) pressed for at least 5 seconds.

As soon as the button is pressed, RINSE+ (RINCAGE+) flashes on the

program sequence display. After 5 seconds, RINSE+ (RINCAGE+) stops

flashing and lights up constantly for a further 5 seconds.

3. While RINSE+ (RINCAGE+) lights up constantly, release the button

SOAKING (TREMPAGE).

After RINSE+ (RINCAGE+) has stopped lighting up, the additional rinse

is cancelled.

3An additional rinse increases water consumption and the program run

time.

Solution Cooling

It may be necessary to cool down the washing solution before pumping

off in order to avoid thermal damage to plastic drainage pipes.

3The washing solution is cooled down at the end of the main washing

cycle before pumping off (by incoming cold water).

(This setting is only effective for COTTONS/LINEN (BLANC/COULEURS) at

temperatures of over 40 °C.)

No solution cooling is set when the unit is delivered.

Instructions for use

Set the Solution Cooling:

01. Turn the program selector to SHORT SPIN (ESSORAGE DELICAT).

2. Keep the button PRE WASH (PRELAV.) pressed for at least 5 seconds.

After the button has been pressed for 5 seconds, MAIN WASH (LAVAGE)

flashes on the program sequence display for 5 seconds.

3. While MAIN WASH (LAVAGE) is flashing, release the button PRE WASH

(PRELAV.).

After the flashing has stopped, the solution cooling is set. It is set until

it is cancelled again.

4. If you want to check whether the solution cooling is set:

–Turn the program selector to SHORT SPIN (ESSORAGE DELICAT).

–Briefly press the button PRE WASH (PRELAV.).

If MAIN WASH (LAVAGE) flashes on the program sequence display, the

solution cooling is set.

Cancel the Solution Cooling:

01. Turn the program selector to SHORT SPIN (ESSORAGE DELICAT).

2. Keep the button PRE WASH (PRELAV.) pressed for at least 5 seconds.

As soon as the button is pressed, MAIN WASH (LAVAGE) flashes on the

program sequence display. After 5 seconds, MAIN WASH (LAVAGE)

stops flashing and lights up constantly for 5 seconds.

3. While MAIN WASH (LAVAGE) lights up constantly, release the button

PRE WASH (PRELAV.). After MAIN WASH (LAVAGE) has stopped lighting

up, the solution cooling is cancelled.

3The solution cooling increases water consumption and the program run

time.

Additional Rinse and Solution Cooling

You can combine the additional rinse and the solution cooling. Setting

as under ”Additional Rinse” and ”Solution Cooling”.

Instructions for use

Program Saving

To protect a program setting against unwanted changes (e. g. turning

the program selector, pressing auxiliary buttons etc.), you can set the

program saving function. This prevents damage to your washing.

3Setting and cancelling the program saving function is possible at any

time during a program.

Setting the Program Saving Function:

01. Set the required washing program.

2. To start the program, press the START/PAUSE (MARCHE/ PAUSE) button.

3. Simultaneously keep the PRE WASH (PRELAV.) button and the SOAKING

(TREMPAGE) button pressed for 5 seconds. The program sequence dis-

play flashes for 5 seconds; The program saving function is set.

3You cannot make any other settings as long as the program saving

function is set. The door cannot be opened with the DOOR/LIGHT

PORTE/LUMIERE) button. Even after the washing cycle has ended, you

must first cancel the program saving function before you can open the

door.

If an attempt is made during the washing cycle to change the selected

setting by pressing a button, the program sequence display flashes for

5 seconds.

If an attempt is made to change the selected setting by turning the

program selector, the program sequence display flashes until the origi-

nal position of the program selector is restored. The washing cycle is

not influenced in either case.

3The program selector must be in its original position before you can

cancel the program saving function.

Canceling the Program Saving Function:

0Simultaneously keep the PRE WASH (PRELAV.) button and the SOAKING

(TREMPAGE) button pressed for 5 seconds. The program sequence dis-

play flashes for 5 seconds, then it lights up constantly for 5 seconds.

The program saving function is cancelled.

Instructions for use

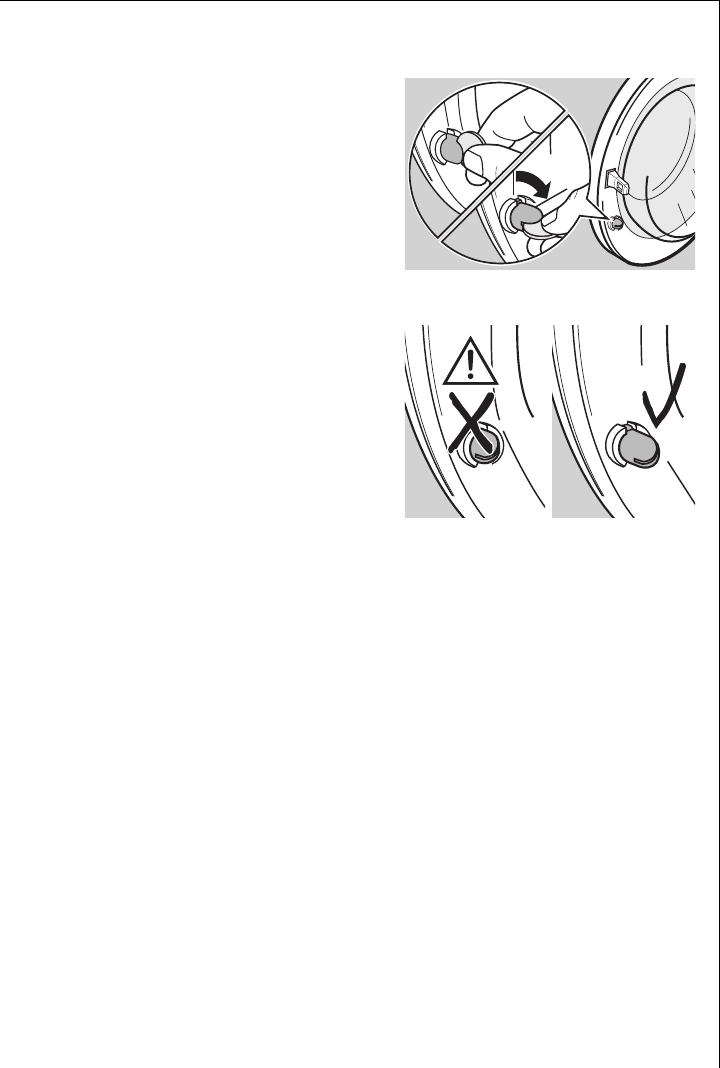

Child Safety Feature

When the child safety feature is

used, the filling door can no

longer be closed and no more

washing programs can be started.

Setting the Child Safety

Feature:

0Use a coin to turn the rotary knob

(on the inside of the filling door)

clockwise as far as it will go.

1Warning! The rotary knob must

not be pressed in following adjust-

ment, otherwise the child safety

feature is not active. The rotary

knob must project as shown in the

diagram.

Cancelling the Child Safety

Feature:

0Turn the rotary knob anticlockwise

as far as it will go.

Setting up and connection instructions

SETTING UP AND CONNECTION

INSTRUCTIONS

Safety Instructions for Installation

•Do not tilt the washing machine onto its front or onto its right side

(looking from the front). Electrical components could get wet!

•Check the washing machine for transport damage. Never connect a

damaged unit. Consult your supplier in the event of damage.

•Ensure that all parts of the transport safeguard have been removed

and that the splash guard is fitted to the unit, see ”Removing the

Transport Safeguard”. Otherwise, damage to the unit or to adjacent

furniture could occur during spinning.

•Always insert the plug into a correctly installed PE socket.

•In the case of permanent installation: A permanent installation may

only be made by an authorised specialist.

•Before putting the unit into operation, ensure that the rated voltage

and current type shown on the unit's rating plate are the same as the

mains voltage and current type at the installation location. The

required electrical fuse is also shown on the rating plate.

•The mains cable may only be replaced by the Customer Service or by

an authorised specialist.

Setting up and connection instructions

Setting Up the Unit

3Washing machines with curved panels are not suitable for substruc-

tures.

Transporting the Unit

•Do not place the washing machine on its front side or on its right side

(looking from the front). Otherwise the electrical components can get

wet.

•Never transport the unit without using the transport safeguard. Do

not remove the transport safeguard until you reach the installation

site. Transporting the unit without the transport safeguard can result

in damage to the unit.

•Never lift the unit by the open filling door or by its base.

When transporting the unit with a sack trolley:

•Attach the sack trolley only at the side. The scoop of the sack trolley

must not be longer than 24cm, otherwise the float switch can be

destroyed.

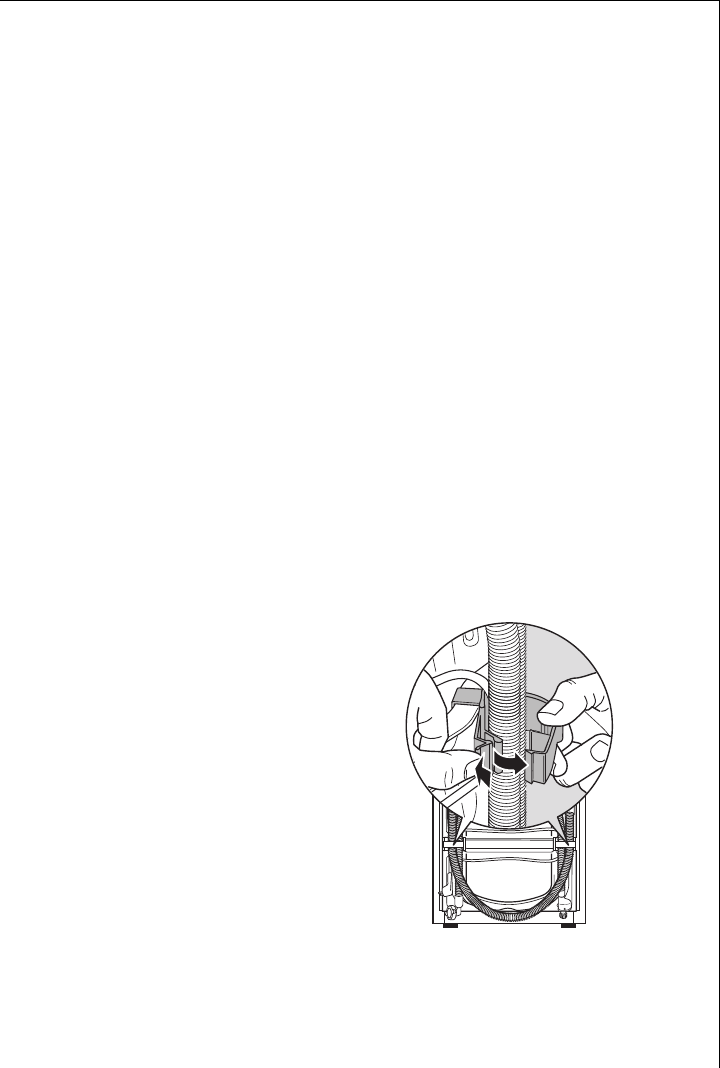

Remove the Transport Safeguard

Attention! It is essential to

remove the transport safeguard

before putting the unit into oper-

ation! Keep all parts of the trans-

port safeguard in a safe place for

possible later transport (moving

house).

01. Open both hose holders on the

rear of the unit and remove the

hoses and the mains cable.

Setting up and connection instructions

2. Firmly pull both hose holders off

the unit.

3The special button E and the plug

caps D (2 ea.) and G (1 ea.) are

supplied with the unit.

3. Unscrew the two screws A using

the special button E.

4. Unscrew the four screws B using

the special button E.

5. Remove the transport rail C.

6. Screw the four screws B back in.

7. Close off the two large holes with

the plug caps D.

Attention! Push in the plug caps

so firmly that they engage in the

rear panel (this protects the inside

of the unit against splash water).

8. Remove the screw F, including the

sleeve, compression spring and

washer, with the special button E.

9. Close off the hole with the plug

cap G.

Attention! Push in the plug cap

so firmly that it engages in the

rear panel (this protects the inside

of the unit against splash water).

Setting up and connection instructions

Prepare the Installation Location

•The installation surface must be clean, dry and free of floor wax resi-

due and other lubricating coatings so that the unit does not slide

away. Do not use any lubricants as sliding aids.

•It is not recommended to set up the washing machine on deep-pile

carpets or on floor coverings with soft foam underlays, as this would

mean that the stability of the unit would not be guaranteed.

•Use ordinary rubber mats as underlays in locations with small-format

tiles.

•Never use wood, card or similar underlays to compensate for minor

floor unevenness. Always use the adjustable screw-type feet of the

machine.

•If, for reasons of space, it is not possible to avoid setting up the unit

next to a gas cooker or coal stove: Insert a thermally-insulating panel

between the washing machine and the cooker (85 x 57cm). This panel

must have an aluminium foil on the side against the cooker.

•The washing machine must not be set up in a room where there

is a danger of frost. Frost damage!

•The intake and drainage hoses must not be bent or pinched.

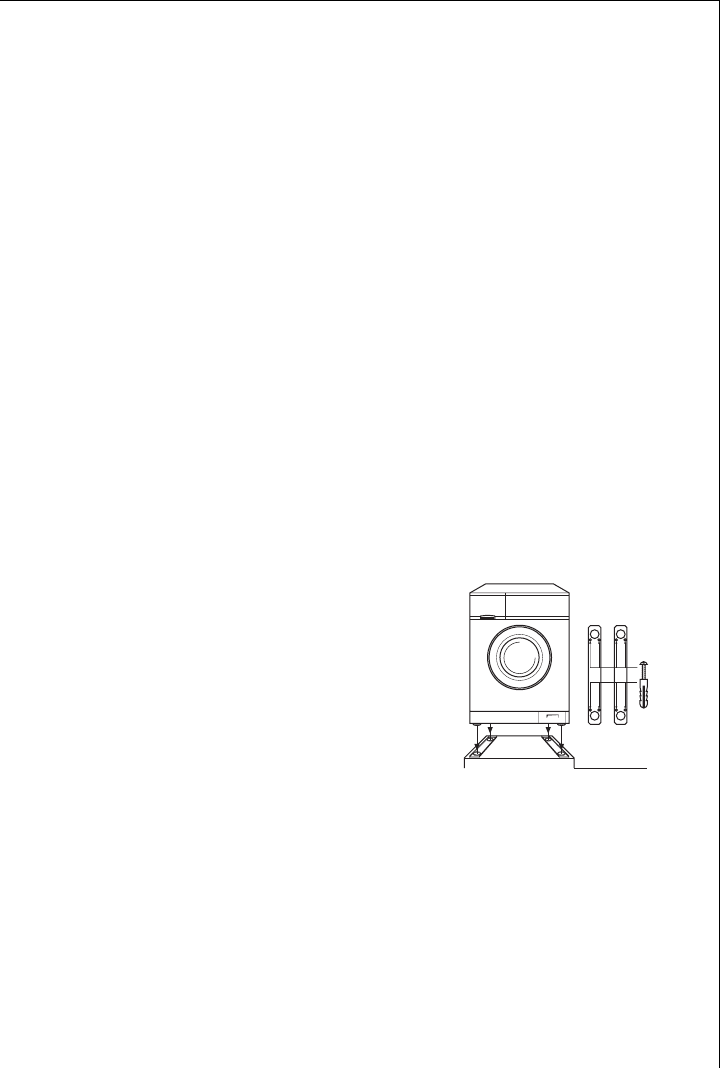

Setting Up on a Concrete Pedestal

When setting up the washing machine on

a concrete pedestal, it is essential for

safety reasons to fit stand plates in which

the washing machine is then adjusted.

The stand plates are available from the

Customer Service under spare part

number 645 425 058.

Setting Up on a Vibrating floor

In the case of vibrating floors, especially wooden beam floors with flex-

ible boards, securely screw a water-resistant wooden panel at least

15mm thick onto at least 2 of the floor beams. If possible, set up the

unit in a corner of the room where the wooden floor is best firmly

installed and is therefore least likely to be susceptible to vibrations.

Setting up and connection instructions

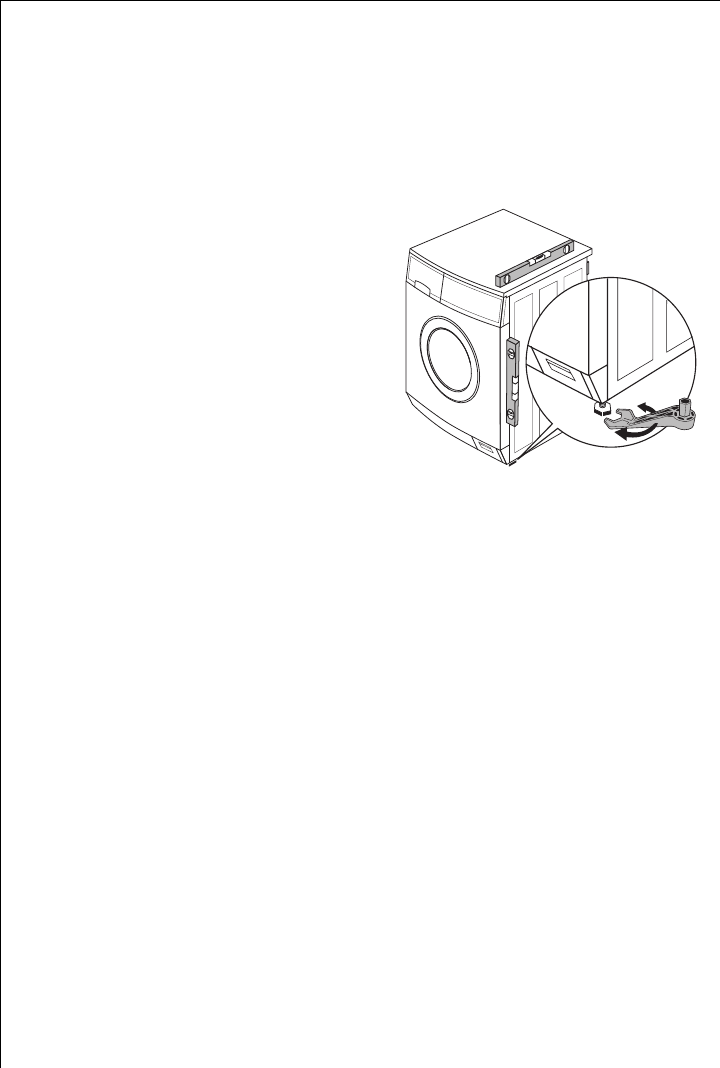

Compensate for Floor Unevenness

3Automatic Adjustment Foot: Your washing machine's rear left foot is

of a spring leg design. This guarantees good stability of the unit, even

at high spinning speeds.

If the washing machine still does not stand firmly enough during spin-

ning, proceed as follows:

01. Adjust the three adjustment feet

to the setpoint 10mm. To do this,

use the supplied special button to

remove the transport safeguard.

If the automatic adjustment foot

still does not reach the floor:

2. Manually extend the automatic

adjustment foot (rear left) by the

necessary amount.

3. If necessary, check the setting

with a spirit level.

Attention! Never use wood, card

or similar underlays to compen-

sate for minor floor unevenness. Always use the adjustable screw-type

feet of the machine.

Setting up and connection instructions

Electrical Connection

Refer to the rating plate for details

of the mains voltage, current type

and the necessary fuses. The rating

plate is located at the top behind

the filling door.

;This unit conforms to the following

EU directives:

–the ”Low Voltage Directive" 73/23/EU with changes

–the ”EMC Directive" 89/336/EWG with changes

Water Connection

3The washing machine has safety features which prevent contamination

of the drinking water and which conform to the legal regulations of

the water authorities (e.g. for Germany: DVGW regulations). Other pro-

tection measures in the installation are therefore not necessary.

Attention!

–Units for connection to cold water must not be connected to hot

water!

–Use only new sets of hoses for connection!

Permissible Water Pressure

The water pressure must be at least 1bar (= 10N/cm2 = 0.1MPa), maxi-

mum 10bar (= 100N/cm2 = 1MPa).

•In the case of more than 10bar: Connect a pressure-reducing valve

upstream.

•In the case of less than 1bar: Unscrew the intake hose on the unit

side on the inlet solenoid valve and remove the flow regulator (to do

this, remove the filter with pointed pliers and remove the rubber

washer behind). Replace the filter.

Setting up and connection instructions

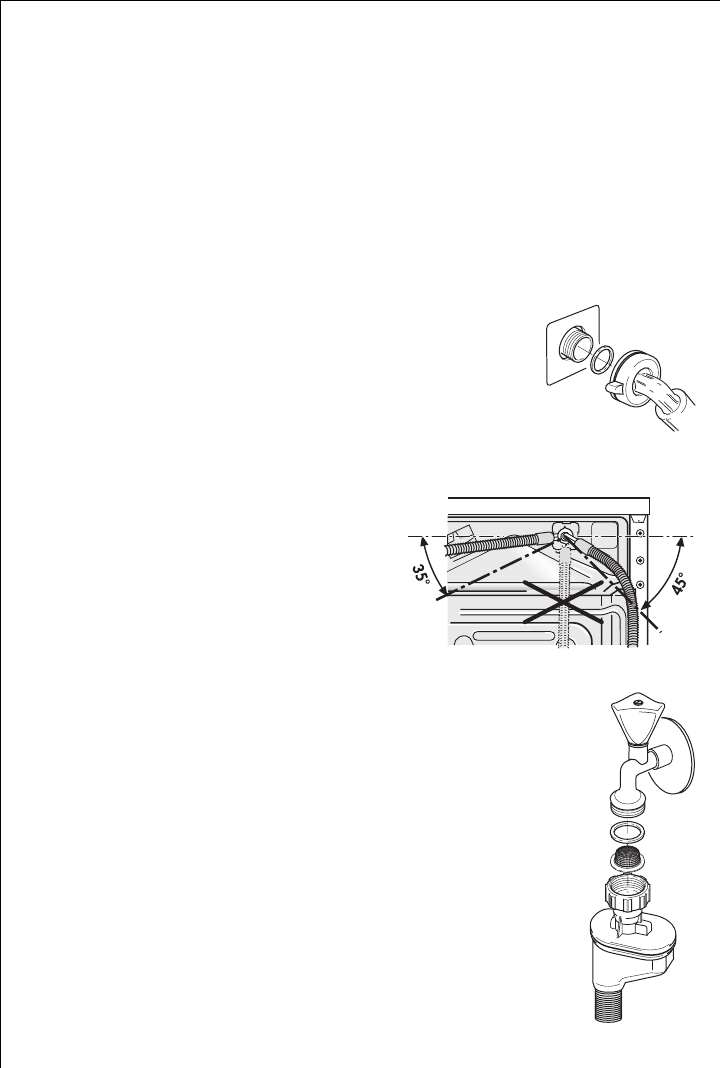

Water Inflow

A pressure hose 1.5m in length is supplied.

If a longer inflow hose is required, only a VDE-approved, complete set

of hoses with fitted hose screw connections offered by our Customer

Service is permissible.

–Sets of hoses in lengths of 2.2m, 3.5m and 5m are available for

washing machines without Aqua-Control.

–Sets of hoses in lengths of 2.0m, 2.9m and 3.9m are available for

washing machines with Aqua-Control.

Attention! Never cut into pieces in order to extend the hoses!

3Sealing rings are supplied either in the plastic

nuts of the hose screw connection or in the

enclosed pack. Do not use other seals!

01. Connect the hose with the angled connection to

the machine.

Attention!

–Do not lay the supply hose

vertically downwards. Rather,

turn it to the right or left as

shown in the diagram.

–Only tighten the screw

connection manually.

2. Connect the hose with the

straight connection to a water tap with a screw

thread of R 3/4 (inches).

Attention! Only tighten the screw connection

manually.

3. By slowly opening the water tap before putting

the washing machine into operation, check

whether the connection is free of leaks.

Setting up and connection instructions

Water Drainage

The drainage hose can either be connected to a siphon or hung in a

wash basin or bath tub.

Only original hoses may be used for extension purposes (max. 3m on

the floor and then up to 80cm high). The Customer Service stocks hoses

in lengths of 2.7 and 4m.

Attention! It is absolutely essential to install the drainage hose free of

pinches.

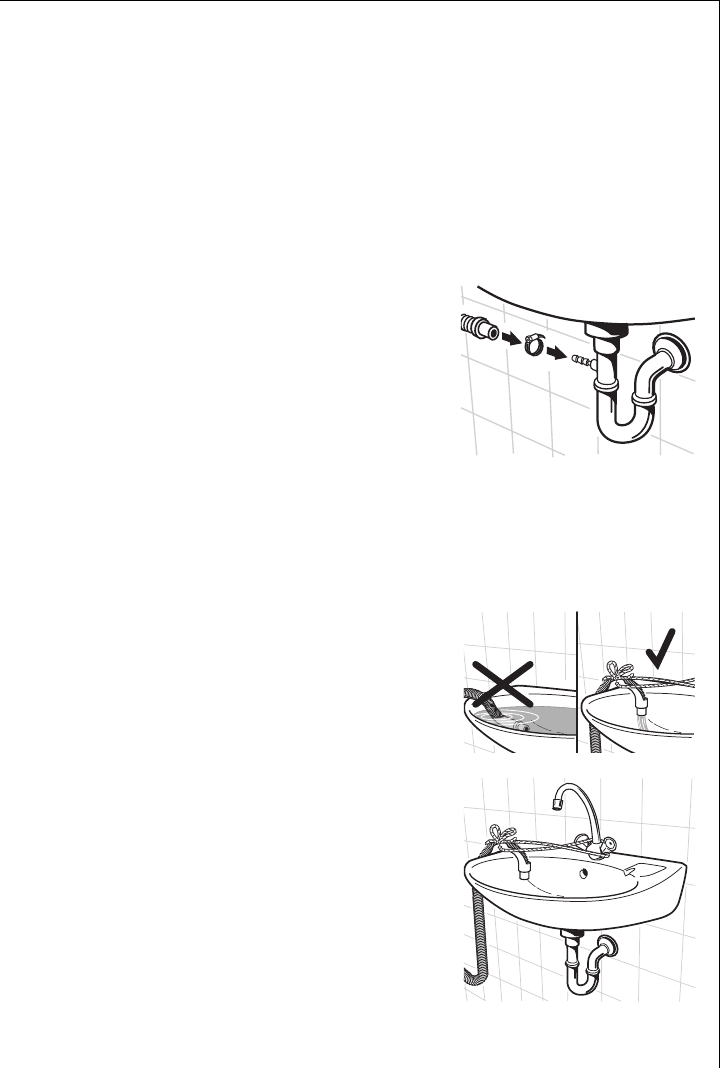

Water Drainage into a Siphon

The grommet on the end of the hose fits

all commonly used siphon types.

0Secure the grommet/siphon connecting

point with a hose clamp.

Draining the water into a basin

Attention!

–Small basins are not suitable for

draining the water into them.

Water could overflow!

–It is not permitted to submerge the

end of the drainage hose into the

pumped-off water. Water could be

sucked up into the hose!

–When hooked into a wash-basin or a

bath tub the drainage hose must be

protected from slipping out of place

by the supplied slip-on elbow. Other-

wise the repelling power of the drain-

ing water can press the hose out of the

sink.

0Fix the elbow to the water tap or to the

wall with string.

Setting up and connection instructions

Delivery Heads over 1m

To pump off the washing / rinsing agent, every washing machine has a

pump which transports liquids via the drainage hose up to a height of

1m, calculated from the machine's floor.

For delivery heads over 1m, consult the Customer Service.

Technical Data

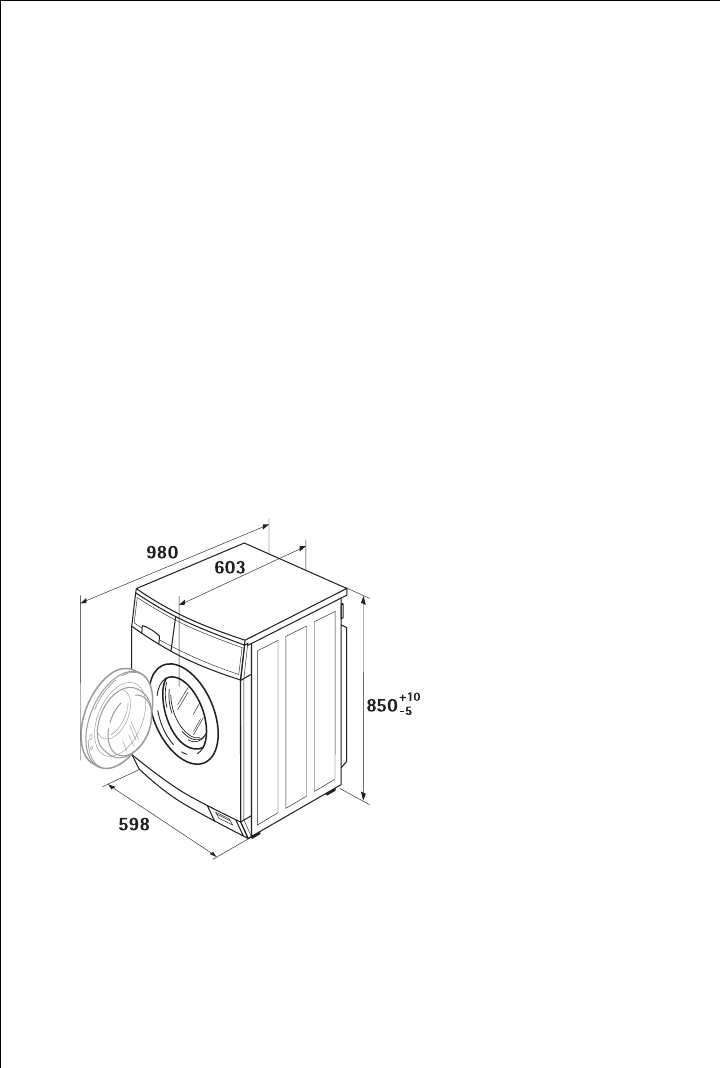

Dimensions

(Measurements in mm)

Height adjustment Approx. +10/-5mm

Filling quantity

(program-dependent)

max. 5kg

Use Domestic

Drum speed, spin see rating plate

Water pressure 1-10bar

(=10–100N/cm2 = 0.1–1.0MPa)

Index

INDEX

Abort program . . . . . . . . . . . . . . . . . . . . . . . 26

Aqua Control . . . . . . . . . . . . . . . . . 15, 27, 35

Automatic adjustment foot . . . . . . . . . .9, 48

Care agent . . . . . . . . . . . . . . . . .9, 18, 19, 23

Child safety feature . . . . . . . . . . . . . . .33, 43

Conditioner . . . . . . . . . . . . . . . . .8, 9, 23, 29

Conditioning . . . . . . . . . . . . . . . . . . . . . . . . 11

Cottons . . . . . . . . . . . . . . . . . . .10, 17, 28, 29

Curtains . . . . . . . . . . . . . . . . . . . . . . . . .16, 28

Customer service . . . . . . . . . . .15, 31, 33, 55

Delay timer . . . . . . . .10, 12, 21, 22, 24, 36

Delicates . . . . . . . . . . . . . . . . . . . . . 11, 17, 28

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Easy iron . . . . . . . . . . . . . . 11, 17, 26, 28, 35

Easy-cares . . . . . . . . . . . . . . . . . . . 11, 17, 28

Emergency emptying . . . . . . . . . . . . . . . . . 38

Emergency unlocking . . . . . . . . . . . . . . . . . 39

Energy saving . . . . . . . . . . . . . . . . . . . .10, 28

Filling quantity . . . . . . . . . . . . . . . . . . .13, 28

Frost hazard . . . . . . . . . . . . . . . . . . . . . . .6, 38

Handwash . . . . . . . . . . . . . . . . . . . . . . .11, 28

Handwash Program . . . . . . . . . . . . . . . . . . 11

In-wash stain treatment . . . . . . . . . . . .9, 23

Linen . . . . . . . . . . . . . . . . . . . . .10, 17, 28, 29

Moisture%/Loading% . . . . . . . . . . . . . . . . . 25

Multidisplay . . . . . . . . . . . 10, 24, 25, 33, 55

Open the door . . . . . . . . . 22, 26, 35, 39, 42

Over-dosed . . . . . . . . . . . . . . . . . . . . . . . . . 27

Pre wash . . . . . . . . . . . . . . . . . .12, 20, 23, 28

Pre-wash detergent . . . . . . . . . . . . . . . .9, 23

Program saving . . . . . . . . . . . . . . . 22, 26, 42

Program sequence display . . . . . . . . . . . . . .25

Pump off water . . . . . . . . . . . . . . . . . . 11, 26

Pump out . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Quick wash . . . . . . . . . . . . . . . . . . .12, 20, 28

Rating plate . . . . . . . . . . . . . . . . . . .9, 49, 55

Rinse + . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Rinse hold . . . . . . . . . . . . . . . . . . . .11, 21, 26

Running time . . . . . . . . . . . . . . . . . . . . . . . .14

Silk . . . . . . . . . . . . . . . . . . . . . . . . . .11, 17, 28

Soaking . . . . . . . . . . . . . . .12, 20, 21, 23, 28

Soaking agent . . . . . . . . . . . . . . . . . . . . 9, 23

Solution cooling . . . . . . . . . . . . . . . . . . . . . .40

Solution pump . . . . . . . . . . . . . . . . . . . . 9, 32

Spin . . . . . . . . . . . . . . . . . .11, 21, 22, 25, 29

Stain . . . . . . . . . . . . . . . . . .8, 12, 20, 28, 37

Stand-by mode . . . . . . . . . . . . . . . .24, 35, 36

Starching . . . . . . . . . . . . . . . . . . . . . . . . 11, 29

Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 6, 33

Washing

coloured . . . . . . . . . . . . . . . . . . . . . . . . . .16

extremely delicate . . . . . . . . . . . . . . . . . .17

sensitive . . . . . . . . . . . . . . . . . . . . . . . . . .16

slightly dirty . . . . . . . . . . . . . . . . . . . . 8, 12

Washing powder . . . . . . . . . . . 9, 18, 19, 23

Washing powder drawer . . . . . . . . . . . . 9, 23

Water

hardness . . . . . . . . . . . . . . . . . . . . . . . 8, 18

softener . . . . . . . . . . . . . . . . . . 8, 9, 18, 23

Wool . . . . . . . . . . . . . . . . . . . . . . . .11, 17, 28

hand washable . . . . . . . . . . . . . . . . . 11, 28

Service

SERVICE

In the section ”What to do if ...” there is a list of some faults which you

can remedy yourself. Look there first if a fault occurs. If you find no

information there, please consult your Customer Service Centre.

Always prepare in advance for the discussion. By doing so you will sim-

plify the diagnosis and the decision on whether customer service is

necessary.

Note the PNC-number and the

S-number. Both can be found on the

rating plate on the inside of the door

on your washing machine.

Answer as precisely as possible:

•What form does the fault take?

•Under what circumstances does the fault occur?

•Does the multidisplay show an error message?

When do you incur costs even during the warranty period?

–if you could have dealt with the fault yourself with the aid of the

Faults Table (see the section ”What to do if ...”) ,

–if several trips by the customer service technician are necessary

because he had not received all the necessary information before his

visit and must now e.g. fetch spare parts. These multiple trips can be

avoided if you prepare your phone call as described above.

PNC .....................................................

S-No. .....................................................

AEG Hausgeräte GmbH

Postfach 1036

D-90327 Nürnberg

http://www.aeg.hausgeraete.de

822 942 393 -01- 0601-04

Aeg Ko Lavamat 88830 Users Manual ÖKO LAVAMAT_88830_Blende_frz.bk

88830 to the manual d931c507-3305-4dc4-9bcd-3abfaa7fb165

Navigation menu

Versions of this User Manual:

Views

Navigation
