LAVAMAT L 14840

User Manual Washer-dryer

132962861.qxd 29/05/2008 11.34 Pagina 1

Dear Customer

Thank you for choosing one of our high-quality products.

With this appliance you will experience the perfect combination of functional

design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best

performance and control - indeed we are setting the highest standards of

excellence.

In addition to this you find environmental and energy saving aspects as an

integral part of our products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we

recommend you to keep it in a safe place. And please pass it to any future owner

of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this manual:

Important information concerning your personal safety and information on how to

avoid damaging the appliance

General information and tips

Environmental information

132962861.qxd 29/05/2008 11.34 Pagina 2

Contents

Instruction booklet 6

Safety information 6

Product Description 9

Detergent dispenser drawer 9

Control panel 10

Display 11

First use 13

Personalization 13

Acoustic signal 13

Child safety lock 13

Daily use - Washing 14

Load the laundry 14

Measure out the detergent and the fabric softener 14

Select the required programme by turning the programme selector dial 14

Select the SPIN speed or RINSE HOLD option 15

Programme option button 15

Select the STAIN option 16

Select the TIME option 16

Select an additional rinse 16

Select the START/PAUSE 16

Select the DELAY START 17

Altering an option or a running programme 17

Interrupting a programme 17

Cancelling a programme 18

Opening the door after the programme has started 18

At the end of the programme 18

Contents

132962861.qxd 29/05/2008 11.34 Pagina 3

4Contents

Drying only 19

Select the drying programme by turning the programme selector dial 19

Select the automatic drying 19

Select the timed drying 19

At the end of the programme 19

Automatic washing and drying 20

Washing programmes 21

Programme information 23

Automatic drying programmes 24

Drying Time 24

Preparing the wash cycle 25

Sorting the laundry 25

Temperatures 25

Before loading the laundry 25

Maximum loads 25

Laundry weights 26

Removing stains 26

Detergents and additives 27

Quantity of detergent to be used 27

Degrees of water hardness 28

Preparing the drying cycle 28

Laundry not suitable for drying 28

Drying symbols label 29

Drying cycle duration 29

Additional drying 29

Care and cleaning 30

Descaling 30

After each wash 30

132962861.qxd 29/05/2008 11.34 Pagina 4

Maintenance wash 30

External cleaning 30

Detergent dispenser drawer 30

Washing drum 31

Door seal 31

Drain pump 31

Water inlet filter 33

Frost precautions 34

Emergency emptying out 34

What to do if... 35

Technical Data 38

Consumption value 39

Installation 40

Unpacking 40

Positioning and levelling 42

Water inlet 42

Water drainage 43

In the interest of the environnement 45

Electrical connection 45

Permanent connection 46

Enviroment concerns 47

Packaging materials 47

Old machine 47

Ecological hints 47

Contents 5

132962861.qxd 29/05/2008 11.34 Pagina 5

6Safety information

Instruction booklet

Safety information

Prior to using for the first time

• The safety of AEG/ELECTROLUX appliances complies with the industry

standards and with legal requirements on the safety of appliances. However,

as manufacturers, we feel it is our duty to provide the following safety notes.

You MUST read them carefully before installing or using the appliance.

• It is most important that this instruction book should be retained with the

appliance for future reference. Should the appliance be sold or transferred to

another owner, or should you move house and leave the appliance, always

ensure that the book is supplied with the appliance in order that the new

owner can get to know the functioning of the appliance and the relevant

warnings.

• You MUST read them carefully before installing or using the appliance.

• Before first starting up, check the machine for any damage incurred during

transport. Never connect up a damaged machine. If parts are damaged,

contact your supplier.

• If the appliance is delivered in the winter months when there are minus

temperatures: Store the washer-dryer at room temperature for 24 hours

before using for the first time.

General safety

• It is dangerous to alter the specifications or attempt to modify this product in

any way.

• During high temperature washing and drying programmes the door glass may

get hot. Do not touch it!

• Make sure that small pets do not climb into the drum. To avoid this, please

check into the drum before using.

• Any objects such as coins, safety pins, nails, screws, stones or any other hard,

sharp material can cause extensive damage and must not be placed into the

machine.

• Only use the advised quantities of fabric softener and detergent. Damage to

the fabric can ensue if you over-fill. Refer to the manufacturer’s

recommendations of quantities.

• Wash small items such as socks, laces, washable belts etc in a washing bag or

pillow case as it is possible for such items to slip down between the tub and

the inner drum.

• Do not use your washer-dryer to wash and dry articles with whalebones,

132962861.qxd 29/05/2008 11.34 Pagina 6

material without hems or torn material.

• Always unplug the appliance and turn off the water supply after use, clean

and maintenance.

• Under no circumstances should you attempt to repair the machine yourself.

Repairs carried out by inexperienced persons may cause injury or serious

malfunctioning. Contact your local Service Centre. Always insist on genuine

spare parts.

Installation

• When unpacking the appliance, check that it is not damaged. If in doubt, do

not use it and contact the Service Centre.

• All packing and transit bolts must be removed before use. Serious damage can

occur to the product and to property if this is not adhered to. See relevant

section in the user manual.

• After having installed the appliance, check that it is not pressing or standing

on its electrical supply cable, inlet hose and drain hose.

• If the machine is situated on a carpeted floor, please adjust the feet in order

to allow air to circulate freely

• Always be sure, that there is no water leakage from hoses and their

connections after the installation.

• If the appliance is installed in a location subject to frost, please read the

dangers of freezing chapter.

• Any plumbing work required to install this appliance should be carried out by

a qualified plumber or competent person.

• Any electrical work required to install this appliance should be carried out by

a qualified electrician or competent person.

Use

• This appliance is designed for domestic use. It must not be used for purposes

other than those for which it was designed.

• Only wash and dry fabrics which are designed to be machine washed. Follow

the instructions on each garment label.

• Do not overload the appliance. See the relevant section in the user manual.

• Before washing, ensure that all pockets are empty and buttons and zips are

fastened. Avoid washing frayed or torn articles and treat stains such as paint,

ink, rust, and grass before washing. Underwired bras must NOT be machine

washed.

• Garments which have been in contact with volatile petroleum products should

not be machine washed. If volatile cleaning fluids are used, care should be

taken to ensure that the fluid is removed from the garment before placing in

the machine.

Safety information

132962861.qxd 29/05/2008 11.34 Pagina 7

• As some duvets and eiderdowns should be washed/dried in large commercial

machines because of their bulk, please check with the manufacturer of the

item before washing in a domestic machine.

• The users should always check that they have not left their gas lighters

(disposable or otherwise) in their clothing.

• Never dry items that have had contact with chemicals such as dry cleaning

fluid.These are of a volatile nature and could cause an explosion.

Only dry items which have been washed in water or require airing.

• Plastic detergent dispensers should not remain in the drum during the drying

cycle, as the plastic used is not designed to withstand the heat. If you wish to

wash-through-to-dry you should use the conventional detergent dispenser

drawer.

• Never pull the power supply cable to remove the plug from the socket; always

take hold of the plug itself.

• Never use the washer-dryer if the power supply cable, the control panel, the

working surface or the base are damaged so that the inside of the washer-

dryer is accessible.

Child Safety

• This appliance is not intended for use by persons (including children) with

reduced physical sensory or mental capabilities or lack of experience and

knowledge unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

• This washer-dryer is not intended for use by young children or infirm persons

without supervision.

• Young children should be supervised to ensure that they do not play with the

appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to

children - danger of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s reach.

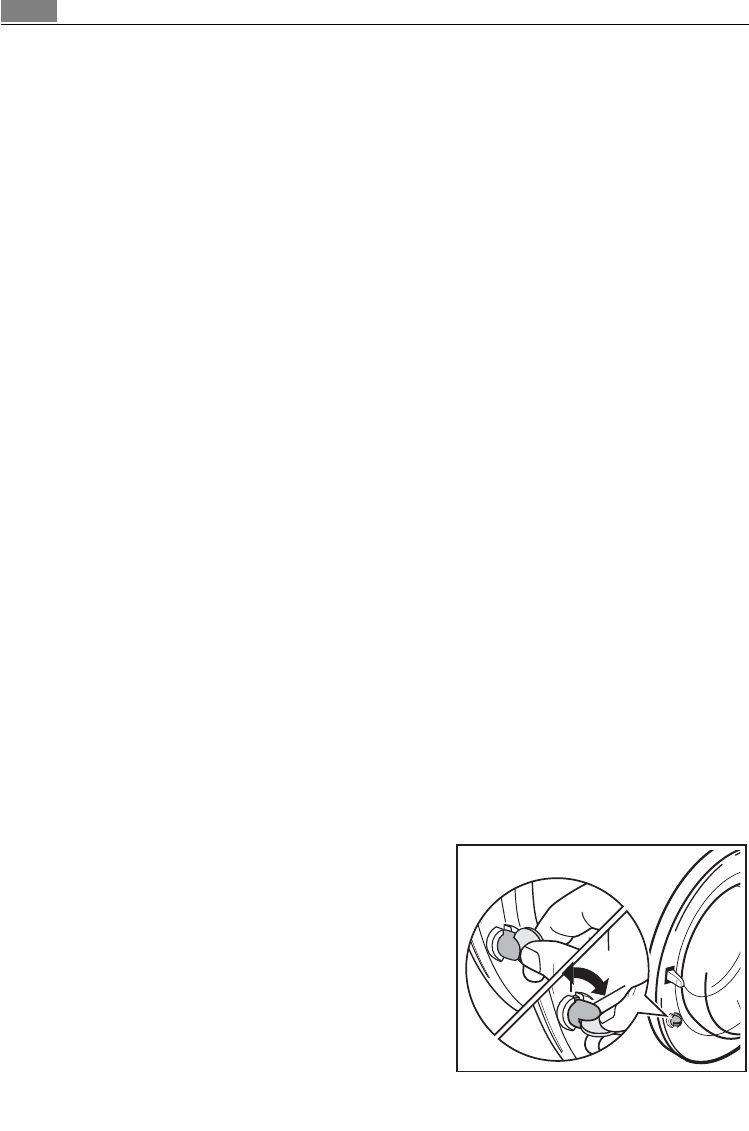

• Make sure that children or pets do not

climb into the drum. To avoid that they

could remain closed inside the drum, the

machine incorporates special feature.

To activate this device, rotate the button

(without pressing it) inside the door

clockwise until the groove is horizontal.

If necessary use a coin. To disable this

device and restore the possibility of

closing the door, rotate the button anti-

clockwise until the groove is vertical.

8Safety information

132962861.qxd 29/05/2008 11.34 Pagina 8

Product description

Your new appliance meets all modern requirements for effective treatment of

laundry with low water, energy and detergent consumption.

The ECO valve system allows total use of detergent and reduces water

consumption so saving energy.

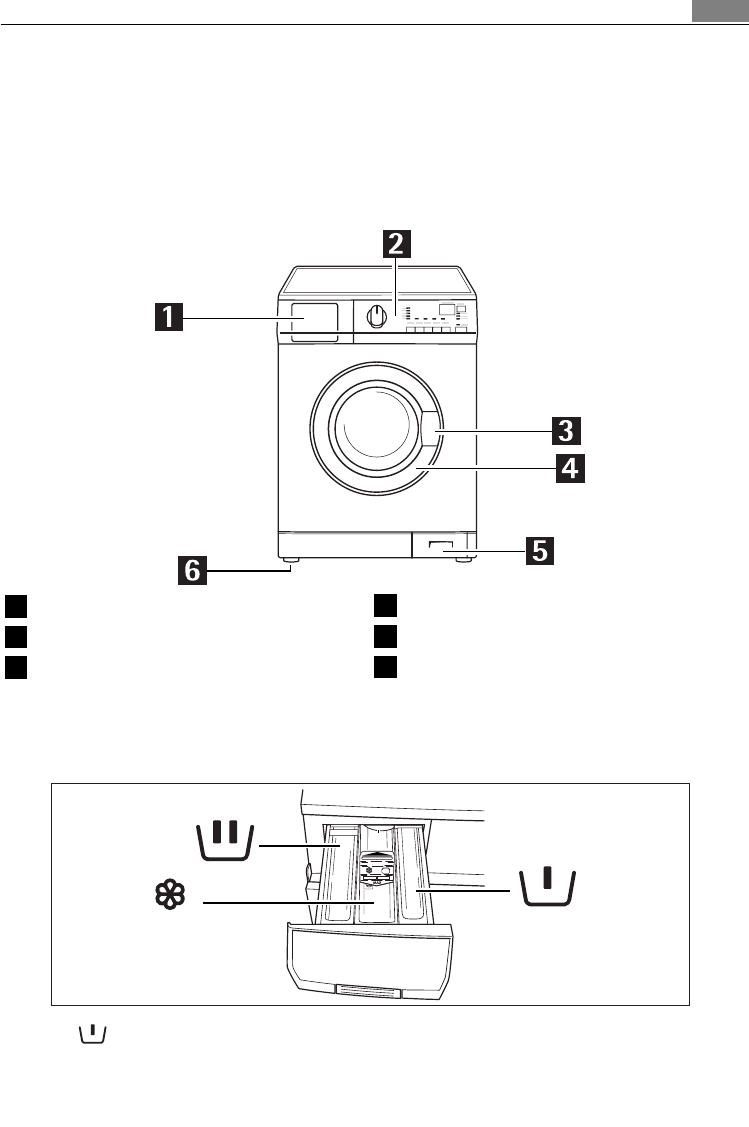

Detergent dispenser drawer

Compartment for detergent or stain remover used for prewash or

STAIN-Action phase. The prewash detergent is added at the beginning

of the wash programme. The stain remover is added during the STAIN-

Action phase.

Rating plate

Drain pump

Adjustable feet

Detergent dispenser drawer

Control panel

Door opening handle

132962861.qxd 29/05/2008 11.34 Pagina 9

Compartment for powder or liquid detergent used for main wash.

Compartment for liquid additives (fabric softener, starch).

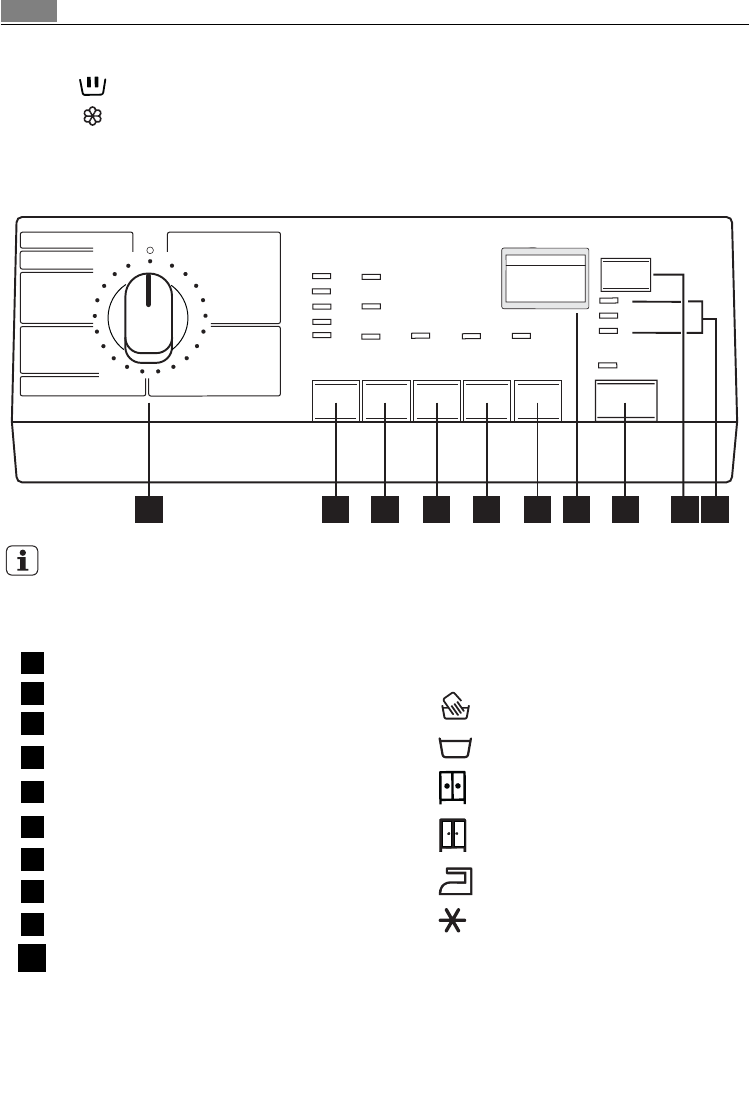

Control panel

The control panel is illustrated above. It shows the programme selector dial as well

as the different buttons, the pilot lights and the display. These are represented by

relevant numbers which are explained in the table below.

Programme selector dial

SPIN reduction button

AUTODRY button

DRYING TIME button

STAIN button

TIME button

Display

START/PAUSE button

DELAY START button

Indicator pilot lights

1 2 3 4 5 6 7 8 9 10

Control panel

Symbols key:

= Hand wash

= Rinse hold

= Extra dry

= Store dry

= Iron dry

= Cold

132962861.qxd 29/05/2008 11.34 Pagina 10

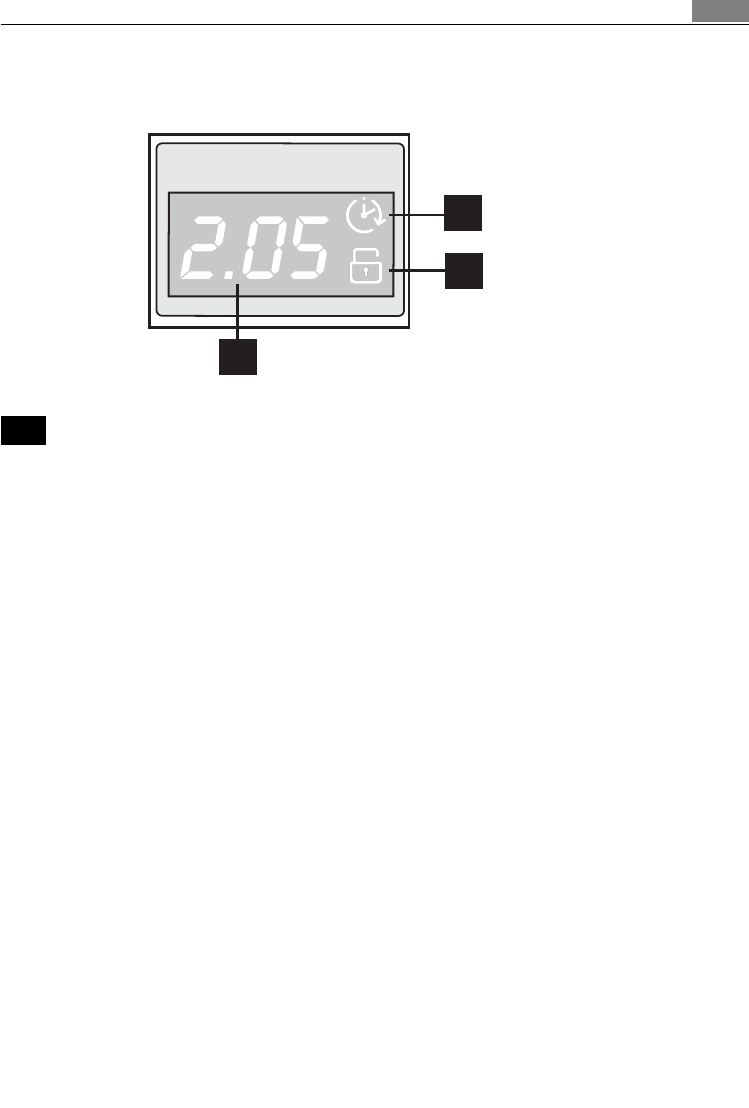

Display (7)

Duration of selected programme:

After selecting a programme, the duration is displayed in hours and minutes (for

example 2.05). The duration is calculated automatically on the basis of the

maximum recommended load for each type of fabric. After the programme has

started, the time remaining is updated every minute.

Selected drying time

After selecting a drying programme, the drying time is displayed in minutes

and/or hours (see paragraph «Drying only»).

After the programme has started the time remaining is updated every minute.

Alarm codes

In the event of operating problems, some alarm codes can be displayed, for

example E20 (see chapter «What to do if...»).

End of programme

When the programme has finished a blinking zero 0is displayed, the

FUNCTIONING pilot light (10.1) and the pilot light of button 8go out and the

door can be opened.

Incorrect option selection

If an option which is not compatible with the set wash programme is selected,

the message Err is displayed for a few seconds and the yellow pilot light of

button 8light starts blinking.

7.1

7.3

7.2

Display

7.1

132962861.qxd 29/05/2008 11.34 Pagina 11

Delay Start (7.2)

The selected delay (20 hours max) set by means of the relevant button appears

on the display for about 3 seconds, then the duration of the previously selected

programme is displayed.

The symbol 7.2 will appear on the display. The delay time value decreases by one

unit every hour. When only 1 hour remains, the time decreases every minute.

Child safety lock (7.3)

If your laundry is not removed during 10 minutes after the programme is

finished, the backlight of the display switches off and the energy saving system

will be enabled.

Only the pilot light of the button 8 is blinking to indicate that the appliance has

to be switched off.

By pressing any buttons the appliance will come out from the energy saving

status and you could set another washing programme or swich off the appliance.

Indicator pilot lights (10)

When selecting a washing programme, the WASHING pilot light (10.1) illuminates.

When selecting a drying programme the DRY pilot light (10.2) illuminates and

stays on during the drying phase.

When the appliance is performing additional rinses the EXTRA RINSE pilot light

(10.3) is on. To add an additional rinse, please see chapter «Select an additional

rinse».

Display

7.2

7.3

132962861.qxd 29/05/2008 11.34 Pagina 12

Use

First Use

Ensure that the electrical and water connections comply with the installation

instructions.

Remove the polystyrene block and any material from the drum.

Pour 2 litres of water into the main wash compartment of the detergent

drawer in order to activate the ECO valve. Then run a cotton cycle at 90° or 95°C,

without any laundry in the machine, to remove any manufacturing residue from

the drum and tub. Pour 1/2 a measure of detergent into the main wash

compartment and start the machine.

Personalization

Acoustic signals

The machine is provided with the acoustic device, which sounds in the following

cases:

●at the end of the cycle

●in the event of operating problems

By pressing the 3and 4buttons simultaneously for about 6 seconds, the

acoustic signal is deactivated (except for the events of operating problems).

By pressing the same buttons again, the acoustic signal is reactivated.

Child safety lock

This device permits you to leave the appliance unsupervised without having the

worry that children might be injured by or cause damage to the appliance.

This function remains able also when the washer-dryer is not working.

There are two different ways to set this option:

●before pressing button 8: it will be impossible to start the machine.

●after pressing button 8it will be impossible to change any other programme

or option.

To enable (disable) this option press simoultaneously for about 6 seconds 4and

5buttons until the 7.3 symbol appears (disappears) on (from) the display.

132962861.qxd 29/05/2008 11.34 Pagina 13

14 Use

Daily Use

Load the laundry

1. Open the door by carefully pulling the door

handle outwards. Place the laundry in the

drum, one item at a time, shaking them out as

much as possible.

2. Close firmly the door. You must hear a click

during closing.

Attention! Do not embed the laundry

between the door and the rubber joint.

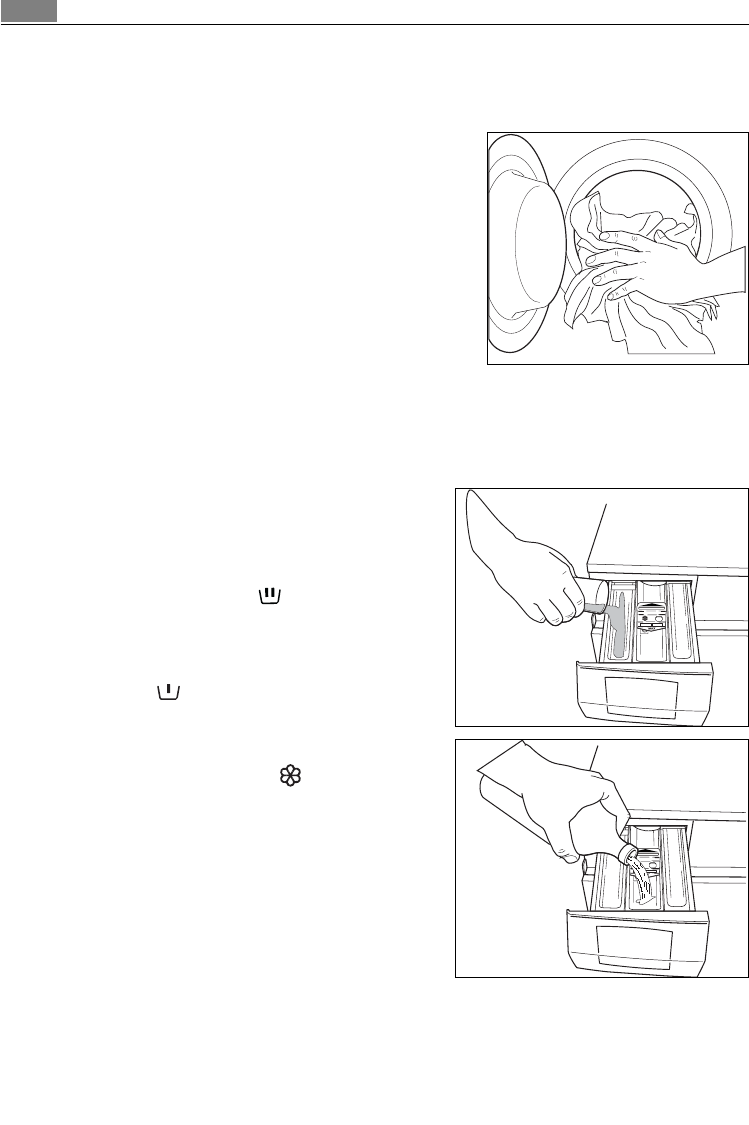

Measure out the detergent and the fabric softener

Your new appliance was designed to reduce water, energy and detergent

consumption.

1. Pull out the dispenser drawer until it

stops. Measure out the amount of

detergent required, pour it into the main

wash compartment and, if you wish

to carry out the prewash phase or

STAIN action, pour the detergent or the

stain remover into the compartment

marked .

2. If required, pour fabric softener into the

compartment marked (the amount

used must not exceed the MAX mark in

the drawer). Close the drawer gently.

WASHING

Select the required programme by

turning the programme selector dial

(1)

You can choose the right programme for any type of laundry following the

descriptions on the washing programme tables (see «Washing Programmes»).

Turn the programme selector dial to the required programme. The programme

selector determines the type of washing cycle (e.g. water level, drum movement,

132962861.qxd 29/05/2008 11.34 Pagina 14

number of rinses) and the washing temperature according to the type of laundry.

The pilot light of button 8starts blinking and the display shows the duration of

the selected programme.

The selector dial can be turned either clockwise or anticlockwise. Position O

corresponds to Reset programme/Switching OFF of the machine.

At the end of the programme the selector dial must be turned to

position O, to switch the machine off.

For the description of each washing programmes of the selector dial, consult the

chapter «Washing programmes».

Attention!

If you turn the programme selector dial to another programme when the

machine is working, the yellow pilot light of button 8will blink 3 times and the

message Err is displayed on the display to indicate a wrong selection. The

machine will not perform the new selected programme.

Select the SPIN speed or RINSE HOLD option by pressing button 2

When the required programme has been selected, your appliance automatically

proposes the maximum spin speed provided for that programme.

Press this button repeatedly to change the spin speed, if you want your laundry

to be spun at a speed different from the one proposed by the washer-dryer.

RINSE HOLD: by selecting this option the water of the last rinse is not emptied

out to prevent the fabrics from creasing. At the end of the programme, a blinking

«0» is displayed, the light of the Rinse Hold option is on, the pilot lights 10.1 and

the pilot light of button 8go off and the door is locked to indicate that the

water must be emptied out.

RINSE HOLD is not selectable with a NON -STOP programme (see Drying section).

To empty out the water, please read chapter «At the end of the

programme».

Programme option buttons

Depending on the programme, different functions can be combined. These must

be selected after choosing the desired programme and before pressing button 8.

When these buttons are pressed, the corresponding pilot lights come on. When

they are pressed again, the pilot lights go out.

If an incorrect option is selected, the yellow pilot light of the button 8flashes for 3

times and the Err message appears on the display for some seconds.

For the compatibility between this option and washing programmes consult the

chapter «Washing programmes».

Use

132962861.qxd 29/05/2008 11.34 Pagina 15

16 Use

STAIN option by pressing button 5

Select this option to treat heavily soiled or stained laundry with stain remover

(extended main wash with time optimised stain action phase).

This option is not available with a temperature lower than 40°C.

Attention! If you wish to perform a programme with the stain option, pour

stain remover into compartment . STAIN option is not selectable with a

prewash phase.

Select the TIME option by pressing button 6

This option allows you to modify the washing time, automatically proposed by

the washer-dryer.

DAILY: by pressing this button once, the corresponding pilot light illuminates and

the washing duration will be reduced to wash daily soiled laundry.

SUPER QUICK: by pressing this button twice, the corresponding pilot light

remains lit, the washing duration will be reduced to wash lightly soiled laundry

or items that have been used or worn for a short time. On the display will be

visualized the decreased washing time.

Select an additional rinse (EXTRA RINSE)

This appliance is designed for saving water. However, for people with a very

delicate skin (allergic to detergents) it may be necessary to rinse the laundry

using an extra quantity of water (extra rinse).

If you wish to activate this option permanently for every washing cycle, depress

simoultaneously 2and 3for some seconds: the pilot light 10.3 illuminates.

This function stays permanently on. To remove it press the same buttons again

until the pilot light 10.3 goes off.

Select the START/PAUSE by pressing button 8

To start the selected programme, press this button, the corresponding red pilot

light stops blinking. The pilot light 10.1 or 10.2 is on to indicate that the

appliance is operating.

To interrupt a programme which is running, press button 8: the corresponding

red pilot light starts blinking.

To restart the programme from the point at which it was interrupted, press

button 88again. If you have chosen a delayed start, the machine will begin the

countdown. If an incorrect option is selected, the yellow pilot light of the button

8blinks for 3 times the message Err is displayed for a few seconds.

132962861.qxd 29/05/2008 11.34 Pagina 16

Select the DELAY START by pressing button 9

Before you start the programme, if you wish to delay the start, press button

9repeatedly, to select the desired delay. The corresponding symbol will appear

on the display.

The washing programme can be delayed from 30 min - 60 min - 90 min, 2 hours

and then by 1 hour up to a maximum of 20 hours by pressing this button.

The selected delay time value will appear on the display for a few seconds, then

the duration of the programme will appear again.

You must select this option after you have set the programme and before you

press button 8. You can modify or cancel the delay time at any moment, before

you press this button.

If you wish to add laundry in the machine during the delay time, press button 8

to set the machine to pause. After a few minutes the door can be opened. Add

the laundry, close the door and press button 8again.

SELECTING THE DELAYED START:

●Select the programme and the required options;

●Select the delay start;

●Press button 8: the machine starts its hourly countdown. The programme will

start after the selected delay has expired.

CANCELLING THE DELAYED START AFTER HAVING STARTED THE PROGRAMME

●set the washing machine to PAUSE by pressing button 8;

●press button 9once until the symbol 0’ is displayed;

●press button 8again to start the programme.

Important!

The Delay start cannot be selected with DRAIN programme.

Altering an option or a running programme

It is possible to change some option before the programme carries it out. Before

you make any change, you must pause the machine by pressing the button 8.

Changing a running programme is possible only by resetting it. Turn the

programme selector dial to Oand then to the new programme position. Start

the new programme by depressing button 8again. The washing water in the tub

will be not emptied out.

Interrupting a programme

Press button 8to interrupt a programme which is running, the corresponding

light starts blinking. Press this button again to restart the programme.

Use

132962861.qxd 29/05/2008 11.34 Pagina 17

18 Use

Cancelling a programme

Turn the selector dial to Oto cancel a programme which is running. Now you

can select a new programme.

Opening the door after the programme has started

First set the machine to pause by pressing button 8. After a few minutes the

door can be opened.

If the door remains locked, this means that the machine is already heating or

that the water level is too high.

If you cannot open the door but you need to open it you have to switch the

machine off by turning the selector dial to O. After a few minutes the door can

be opened (pay attention to the water level and temperature!). After

closing the door, it is necessary to select the programme and options again and

to press button 8.

At the end of the programme

The machine stops automatically, the pilot light of button 8, the pilot light 10.1

or 10.2 go off and a blinking 0will appear on the display. Some acoustic signals

sound. The door can be opened.

If a programme or an option that ends with water still in the tub has been

selected, the light of the Rinse Hold option is lit and the the door remains locked

to indicate that the water must be emptied out before opening the door.

Obey the instructions below to empty out the water:

●turn the programme selector dial to O

●select the DRAIN or SPIN programme

●reduce the spin speed if needed, by pressing the relevant button

●press button 8

●when the programme has finished the display shows a blinking 0. The door can

now be opened.

Turn the programme selector dial to Oto switch the machine off. Remove the

laundry from the drum and carefully check that the drum is empty. If you do not

intend to carry out another wash, close the water tap. Leave the door open to

prevent the formation of mildew and unpleasant smells.

132962861.qxd 29/05/2008 11.34 Pagina 18

Use

DRYING only

The recommended loads size is 3 kg for cottons and linen, and 2 kg for

synthetics (Easy Cares).

Note!Only with the timed drying, it is possible also to dry up to 4 kg of

cotton items (see the drying time table).The water tap must be open and

the drain hose must be positioned in the sink or connected to the drain pipe.

Select the drying programme by turning the programme selector

dial (1)

Turn the programme selector dial to the required programme for Cottons or

Synthetics in the Drying sector. The pilot light 10.2 illuminates.

Select the automatic drying by pressing button 3

With this button you can select the degree of dryness by an electronic drying.

The machine adapts automatically the duration of the drying cycle to the

selected degree of dryness. The light corresponding to the selected degree

illuminates. The display shows the drying cycle duration, calculated by the

appliance. The pilot light of button 8starts blinking. Press then button 8to start

the programme. After the programme has started, the time remaining is updated

every minute.

Select the timed drying by pressing button 4

With this button is possible to select the duration of the drying cycle according

to the type of fabric (cotton or synthetic). Press button 4, until the time you

want appears on the display. For Cottons you can select a drying time from 10

minutes to 250 minutes ((4.10)).. For Synthetics you can select a drying time from

10 minutes to 130 minutes ((2.10)).. Every time you press this button the drying

time increases by 5 mins. Press then button 8to start the programme. The

selected drying time on the display decreases by one unit every minute.

Note!

The programme time will automatically increase by up to 2 minutes, this is quite

normal.

Note!The different type of cottons (towelling, sheets, shirts, and so on) or

eventual laundry rolling up during spinning phase may cause a not uniform

dryness. So, in the exceptional case that at the end of the cycle the laundry

remains slightly wet, we suggest you to stretch the items rolled up out, to

redistribute evenly the laundry in the drum and to select an additional drying

cycle of 20-30 minutes.

132962861.qxd 29/05/2008 11.34 Pagina 19

At the end of the programme

At the end of the drying programme, some acoustic signals sound. A blinking «0»

appears on the display an the pilot light 10.2 and the light of the button 8go

off. At this point, begins an anti-crease phase which lasts about 10 minutes.

During this time the door is locked.

Note!

If you whish to open the door before or during the anti-crease phase or to inter-

rupt it, press any button or turn the programme selector dial to any programme

position (except «O»), in a few minutes the door can be opened. Turn the selec-

tor dial to the «O» position to switch the machine off. Remove the laundry.

Automatic washing and drying (NON-STOP programme)

For NON-STOP programmes, the recommended load size is 3 kg for cotton and 2

kg for synthetics (Easy Cares).

Note! Only with the timed drying, it is possible also to dry up to 4 kg of

cotton items (see the drying time table).Do not use a dosing device/ball

when carrying out a washing and drying programme.

Select the washing and the drying programme by turning the

programme selector dial (1) and buttons 3and 4

Switch the machine on by turning the selector dial to the selected washing

programme/temperature and press the buttons corresponding to the required

options. When selecting an «autodrying programme» the pilot lights 10.1 and

10.2 illuminate. If you press button 3, the display shows the entire duration of

the washing and the selected drying cycle. If you press button 4 the DRYING

TIME value appears on the display for a few seconds, then the entire duration of

the washing and drying cycle appears again.

If possible, do not select a spin speed lower than that proposed by the appliance

to avoid a too long drying time so saving energy.

In any case the reduction of the spin speed is only possible after

selecting drying. The lowest values you can select are the following: with

automatic drying 900 r.p.m. for cottons and synthetics; with timed drying 900

r.p.m. for cottons and 700 r.p.m. for synthetics Select the drying time or dryness

degree suitable to your laundry and start the programme by pressing button 8.

At the end of the programme, follow the instructions given in the

corresponding previous chapter.

Use

132962861.qxd 29/05/2008 11.34 Pagina 20

Washing programmes

Programme/

Temperature TTyyppee ooff llaauunnddrryyOptions Description of the

programme

COTTON / LINEN

95° - 60°

White cotton

(normally soiled cotton

items)

SPIN REDUCTION/

RINSE HOLD

TIME (**), STAIN,

EXTRA RINSE

Main wash, Rinses

Long spin at maximum

speed

Max Load: Kg 6

**Reduced Load: Kg 3

COTTON COLOUR

60° - 40° - 30°

White and coloured

cotton (normally soiled

cotton items)

SPIN REDUCTION/

RINSE HOLD

TIME (**), STAIN (*),

EXTRA RINSE

Main wash, Rinses

Long spin at maximum

speed

Max Load: Kg 6

**Reduced Load: Kg 3

EASY-CARES

(Synthetics)

60° - 50° -

40° - 30°

Synthetic or mixed

fabrics

SPIN REDUCTION/

RINSE HOLD

TIME (**), STAIN (*),

EXTRA RINSE

Main wash

Rinses

Short spin

Max Load Kg 3

**Reduced Load: Kg 1.5

EASY IRON PLUS

40°

Synthetic or mixed

fabrics to be ironed

SPIN REDUCTION/

RINSE HOLD

EXTRA RINSE

Main wash

Rinses

Short spin

Max Load Kg 1

40 ECO

40°

White and coloured

cotton or mixed

fabrics normally soiled

SPIN REDUCTION/

RINSE HOLD, STAIN,

EXTRA RINSE

Main wash, Rinses

Long spin at maximum

speed

Max Load: Kg 6

* Stain option can be selected only at the temperature of 40°C or higher.

** If you select the SUPER QUICK option by pressing the button 6we recommend you

to reduce the maximum load as indicated in the table above. Full loading possible

however with somewaht reduced cleaning results.

COTTON +

PREWASHING

95° - 60° - 40°

White and cotton

colour (heavily soiled

cotton items)

SPIN REDUCTION/

RINSE HOLD

TIME (**),

EXTRA RINSE

Prewash, Main wash,

Rinses

Long spin at maximum

speed

Max Load Kg 6

**Reduced Load: Kg 3

132962861.qxd 29/05/2008 11.34 Pagina 21

22 Washing programmes

Washing programmes

Programme/

Temperature TTyyppee ooff llaauunnddrryyOptions Description of the

programme

DELICATE

RINSES

Separate rinse cycle for

hand washed items

SPIN REDUCTION/

RINSE HOLD

EXTRA RINSE

Rinses

Short spin

Max Load Kg 6

SPIN Separate spin for

cottons SPIN REDUCTION

Drain and long spin at

maximum speed

Max Load Kg 6

DRAIN For emptying out the

water

Drain

Max Load Kg 6

WOOL PLUS

30° - Cold

Garments bearing the

«Pure new wool, non-

shrink, machine

washable» or

«Handwash» label

SPIN REDUCTION/

RINSE HOLD

Main wash

Rinses

Short spin

Max Load Kg 2

SUPERQUICK

30°

For slightly soiled

fabrics, except wool SPIN REDUCTION

Main wash

Rinses

Short spin

Max Load Kg 2

DELICATES

40° - 30°

Delicate fabrics: for

example curtains

SPIN REDUCTION/

RINSE HOLD

TIME (**), STAIN(*),

EXTRA RINSE

Main wash

Rinses

Short spin

Max Load Kg 3

** Red. Load Kg 1.5

ECONOMY

60°

White and fast

coloured cotton -

economy, lightly-

normally soiled items

SPIN REDUCTION/

RINSE HOLD

STAIN, EXTRA RINSE

Main wash

Rinses

Long spin at maximum

speed

Max Load Kg 6

O/OFF

For cancelling the pro-

gramme which is run-

ning or to switch the

machine off

132962861.qxd 29/05/2008 11.34 Pagina 22

WOOL/ SILK

HANDWASH

Washing programme for machine washable wool as well

as for hand washable woollens and delicate fabrics with

the «hand washing» care symbol .

ECONOMY

This programme can be selected for slightly or normally

soiled cotton items. The temperature will decrease and the

washing time will be extended. This allows to obtain a

good washing efficiency by saving energy.

SUPERQUICK

Special program at 30°C, duration - approx. 30 minutes,

ideal for laundry to be refreshed: e.g. a sport jacket worn

only once or slightly soiled or new garments.

SPIN

Separate spin for hand washed cotton items and after

programmes with the RINSE HOLD option. Before selecting

this programme the selector dial must be turned to O.

You can choose the speed by pressing the relevant button

to adapt it to the fabrics to be spun.

DELICATE RINSES

With this programme it is possible to rinse and spin

garments which have been washed by hand. The machine

performs 3 rinses, followed by a final short spin. The spin

speed can be reduced by relevant button.

DRAIN

For emptying out the water of the last rinse in

programmes with the RINSE HOLD option. Before selecting

this programme the selector dial must be turned to O.

Washing programmes

Programme information

40 ECO

Special programme for white and coloured cotton suitable

for different washing temperatures. This programme can be

used for laundry, which should be washed at 40°C or 60°C

separately. So, you can put into the drum the maximum

load capacity in order to save energy and water. You will

obtain the same good washing result as a normal

programme at 60°C.

EASY IRON PLUS

Selecting this programme the laundry is gently washed

and spun to avoid any creasing. In this way ironing is

easier. Furthermore the machine will perform additional

rinses.

132962861.qxd 29/05/2008 11.34 Pagina 23

24 Drying programmes and drying time

Automatic drying programmes

In compliance with EC directive EN 50229 the cotton reference programme for the

data entered in the Energy Label must be tested dividing the maximum washing load by

two equal parts and drying with TIMED DRYING each of them.

Degree of drying Type of fabric Max load Spin Speed

Suggested

drying time

in mins

Suitable for items

to put away with-

out ironing

Suitable

for ironing

Cotton and linen

(bathrobes, bath towels,

etc)

3 kg 1200 85 - 95

1400 80 - 90

1.5 kg 1200 45 - 55

1400 40 - 50

Synthetics (Easy Cares)

and mixed fabrics

2 kg 900 65 - 75

1 kg 900 30 - 40

Cotton and linen

(sheets, tablecloths, shirts,

etc.)

Extra dry

Ideal for towelling materials

Cotton and linen

(bathrobes, bath towels, etc) 3 kg

Cotton and linen

(bathrobes, bath towels, etc) 3 kg

Synthetics (Easy Cares) and mixed

fabrics (jumpers, blouses, underwear,

household linen)

2 kg

Degree of drying Type of fabric Max Load

Store dry

Suitable for items to put away

without ironing

Iron dry

Suitable for ironing

Cotton and linen (sheets, tablecloths,

shirts, etc.) 3 kg

Drying time

4 kg 1200 150 - 170

1400 140 - 160

3kg

1.5 kg

1200 70 -80

1400 65 - 75

4kg 1200 120 - 140

1400 110 - 130

1400 35 - 45

40 - 501200

132962861.qxd 29/05/2008 11.34 Pagina 24

Preparing the wash cycle

Sorting out the laundry

Follow the wash code symbols on each garment label and the manufacturer’s

washing instructions. Sort the laundry as follows: whites, coloureds, synthetics,

delicates, woollens.

Temperatures

Before loading the laundry

Never wash whites and coloureds together. Whites may lose their “whiteness” in

the wash.

New coloured items may run in the first wash; they should therefore be washed

separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips,

safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or

long tapes.

Remove persistent stains before washing.

Rub particularly soiled areas with a special detergent or detergent paste.

Treat curtains with special care. Remove hooks or tie them up in a bag or net.

Maximum loads

Recommended loads are indicated in the washing programme charts.

General rules:

Cotton, linen: drum full but not too tightly packed;

Synthetics: drum no more than half full;

Delicate fabrics and woollens: drum no more than one third full.

Preparing the wash cycle

95° or 90° for normally soiled white cottons and linen (e.g. tea cloths,

towels, tablecloths, sheets...).

60°/50°

for normally soiled, colour fast garments (e.g. shirts, night

dresses, pyjamas....) in linen, cotton or synthetic fibres and

for lightly soiled white cotton (e.g. underwear).

40°-30°- Cold

for delicate items (e.g. net curtains), mixed laundry

including synthetic fibres and woollens bearing the label

«pure new wool, machine washable, non-shrink».

132962861.qxd 29/05/2008 11.34 Pagina 25

Washing a maximum load makes the most efficient use of water and energy.

For heavily soiled laundry, reduce the load size.

Washing a maximum load makes the most efficient use of water and energy. For

heavily soiled laundry, reduce the load size.

Laundry weights

The following weights are indicative:

Removing stains

Stubborn stains may not be removed by just water and detergent. It is therefore

advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in

water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft

cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft

surface and dab the stain with the fingertips and a cotton cloth.

Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be

careful with rust stains which are not recent since the cellulose structure will

already have been damaged and the fabric tends to hole.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Ball point pen and glue: moisten with acetone (*), lay the garment on a soft

cloth and dab the stain.

26 Preparing the wash cycle

1200 g

bathrobe

100 gnapkin

700 gquilt cover

500 gsheet

200 gpillow case

250 gtablecloth

200 gtowelling towel

100 gtea cloth

200 gnight dress

100 gladies’ briefs

600 gman’s work shirt

200 gman’s shirt

500 gman’s pyjamas

100 gblouse

100 gmen’s underpants

132962861.qxd 29/05/2008 11.34 Pagina 26

Lipstick: moisten with acetone as above, then treat stains with methylated

spirits. Treat any residual marks with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid,

then rinse. Treat any residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric first with acetone (*), then

with acetic acid; treat any residual marks on white fabrics with bleach and then

rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub

with detergent paste.

(*) do not use acetone on artificial silk.

Detergents and additives

Good washing results also depend on the choice of detergent and use of the

correct quantities to avoid waste and protect the environment.

Although biodegradable, detergents contain substances which, in large

quantities, can upset the delicate balance of nature.

The choice of detergent will depend on the type of fabric (delicates, woollens,

cottons, etc.), the colour, washing temperature and degree of soiling.

All commonly available washer-dryer detergents may be used in this appliance:

• powder detergents for all types of fabric,

• powder detergents for delicate fabrics (60°C max) and woollens,

• liquid detergents, preferably for low temperature wash programmes (60°C

max) for all types of fabric, or special for woollens only.

The detergent and any additives must be placed in the appropriate

compartments of the dispenser drawer before starting the wash programme.

If using concentrated powder or liquid detergents, a programme without

prewash must be selected.

The washer-dryer incorporates a recirculation system which allows an optimal

use of the concentrated detergent.

Pour liquid detergent into the dispenser drawer compartment marked just

before starting the programme.

Any fabric softener or starching additives must be poured into the compartment

marked before starting the wash programme.

Follow the product manufacturers’ recommendations on quantities to use and do

not exceed the «MAX» mark in the detergent dispenser drawer.

Quantity of detergent to be used

The type and quantity of detergent will depend on the type of fabric, load size,

Preparing the wash cycle

132962861.qxd 29/05/2008 11.34 Pagina 27

degree of soiling and hardness of the water used.

Follow the product manufacturers’ instructions on quantities to use.

Use less detergent if:

• you are washing a small load,

• the laundry is lightly soiled,

• large amounts of foam form during washing. For the stain treatment before

the washing cycl, follow the product manufacturers’ instructions on

detergent quantities. If you use any specific product to remove the stains, you

must start the cycle of washing immediately .

Degrees of water hardness

Water hardness is classified in so-called “degrees” of hardness. Information on

hardness of the water in your area can be obtained from the relevant water

supply company, or from your local authority.

Note: A water softener must be added when water has a medium-high degree

of hardness (from degree of hardness II). Follow the manufacturer’s instructions.

The quantity of detergent can then always be adjusted to degree of hardness I (=

soft).

Preparing the drying cycle

As a dryer, the machine works on the condensation principle.

Therefore, the water tap must be open and the drain hose must drain

water into a sink or into the drain pipe, even during the drying cycle.

Attention!

Before starting the drying programme, reduce the loads of washed laundry, in

order to obtain good performances.

Laundry not suitable for drying

•Particularly delicate items such as synthetic curtains, woollen and silk, garments

with metal inserts, nylon stockings, bulky garments such as anoraks, bedcovers,

quilts, sleeping bags and duvets must not be machine dried.

28 iPreparing the drying cycle

Level

Characteristic

soft

Degrees of water hardness

GGeerrmmaann

°°ddHH

FFrreenncchh

°°TT..HH..

0-7 0-15

2medium 8-14 16-25

3hard 15-21 26-37

4very hard > 21 > 37

132962861.qxd 29/05/2008 11.35 Pagina 28

•Avoid drying dark clothes with light coloured fluffy items such as towels as these

can attract the fluff.

•Remove the laundry when the appliance has finished drying.

•To avoid a static charge when drying is completed, use either a fabric softener

when you are washing the laundry or a fabric conditioner specifically for tum-

ble dryers.

•Garments padded with foam-rubber or materials similar to foam-rubber must

not be machine dried; they represent a fire hazard.

•Also, fabrics containing residues of setting lotions or hair sprays, nail solvents or

similar solutions must not be machine dried in order to avoid the formation of

harmful vapours.

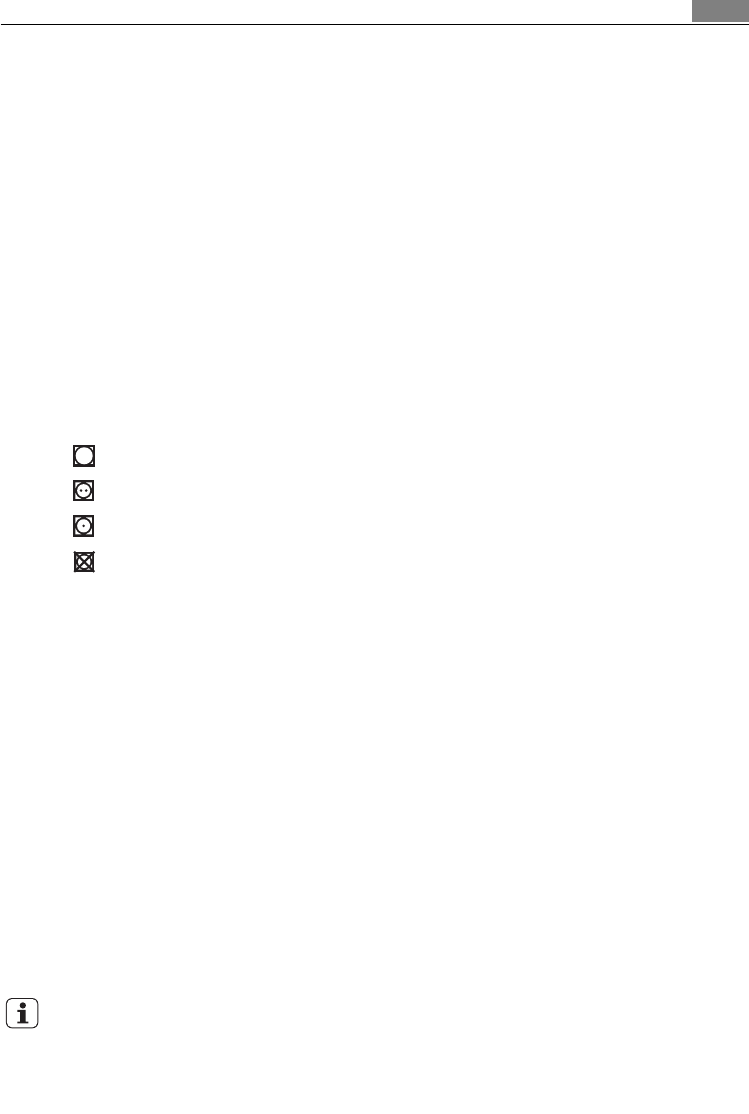

Gargment’s labels

For drying, follow the indications given on the manufacturer’s labels:

May be tumble dried

Drying at high temperature

Drying at reduced temperature

Do not tumble dry.

Drying cycle duration

The drying time may vary depending on:

• speed of the final spin

• dryness degree required (extra dry, iron dry, store dry)

• type of laundry

• wheight of the load size

The average drying time for a timed drying are indicated in the «Drying program-

mes» chapter. The experience will help you to dry your laundry in a more suitable

way, according to the different fabrics. Take note of the duration drying time of the

already performed cycles.

Additional drying

If the laundry is till dump at the end of the drying programme, select again a short

drying.

Attention! Do not over dry the laundry in order to avoid creasing of

fabrics or garment’s shrinking .

132962861.qxd 29/05/2008 11.35 Pagina 29

Care and cleaning

You must DISCONNECT the appliance from the electricity supply, before you can

carry out any cleaning or maintenance work.

Descaling

The water we use normally contains lime. It is a good idea to periodically use a

water softening powder in the machine. Do this separately from any laundry

washing, and according to the softening powder manufacturer's instructions.

This will help to prevent the formation of lime deposits.

After each wash

Leave the door open for a while. This helps to prevent mould and stagnant smells

forming inside the appliance. Keeping the door open after a wash will also help

to preserve the door seal.

Maintenance wash

With the use of low temperature washes it is possible to get a build up of

residues inside the drum.

We recommend that a maintenance wash be performed on a regular basis.

To run a maintenance wash:

• The drum should be empty of laundry.

• Select the hottest cotton wash programme.

• Use a normal measure of detergent, must be a powder with biological

properties.

External cleaning

Clean the exterior cabinet of the appliance with soap and water only, and then

dry thoroughly.

Important! Do not use methylated spirits, solvents or similar products to clean

the cabinet.

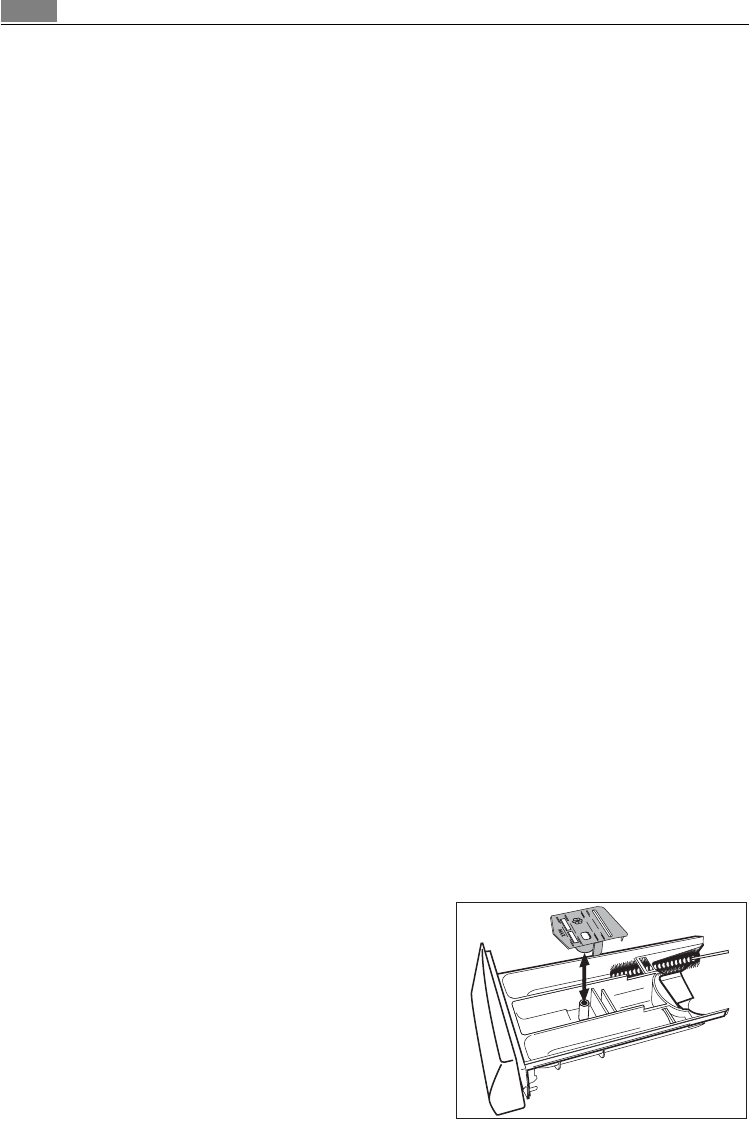

Detergent dispenser drawer

The detergent dispenser drawer should be

cleaned regularly.

1. Remove the detergent dispenser drawer

by pulling it firmly.

30 Care and cleaning

132962861.qxd 29/05/2008 11.35 Pagina 30

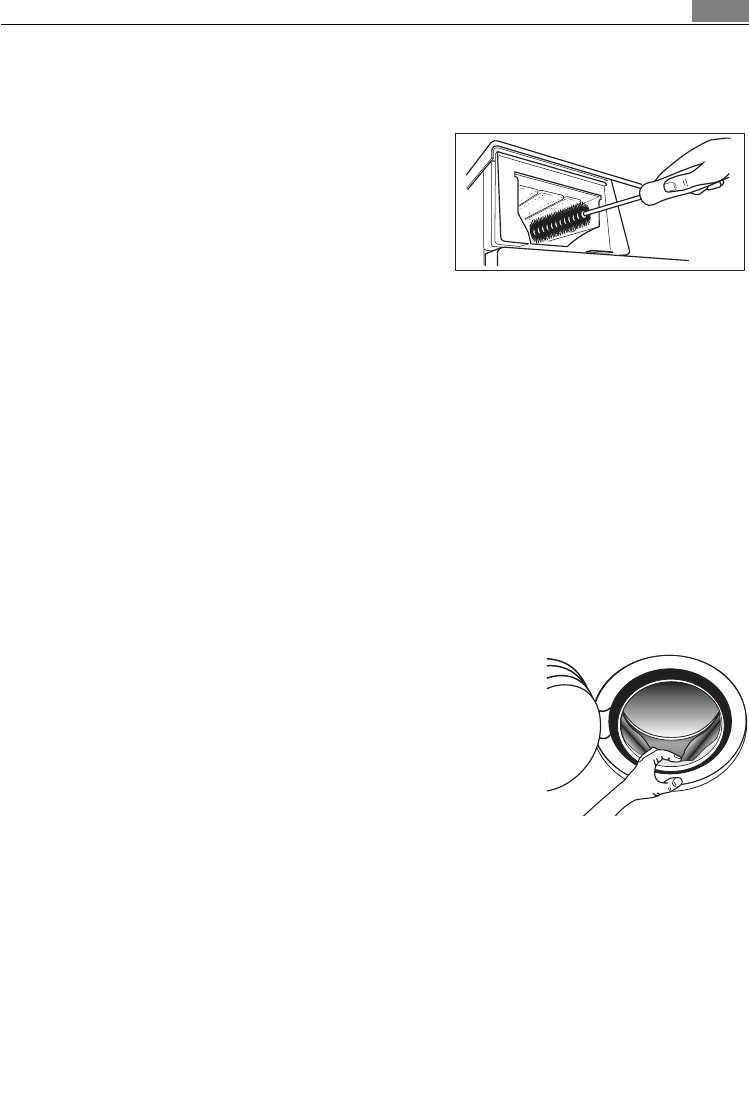

Care and cleaning

2. Remove the conditioner insert from the middle compartment.

3. Clean all parts with water.

4. Put the conditioner insert in as far as it

will go, so that it is firmly in place.

5. Clean all parts of the washing ma-

chine, especially the nozzles in the top

of the washing-in chamber, with a

brush.

6. Insert the detergent dispenser drawer in the guide rails and push it in.

Washing drum

Rust deposits in the drum may occur due to rusting foreign bodies in the

washing or tap water containing iron.

Important! Do not clean the drum with acidic descaling agents, scouring agents

containing chlorine or iron or steel wool.

1. Remove any rust deposits on the drum with a cleaning agent for stainless

steel.

2. Run a washing cycle without any washing to clean off any cleaning agent

residues. Programme: COTTONS/LINEN 90° or 95°C, press button 8, add

approx. 1/4 measuring cup of detergent.

Door seal

Check from time to time the door seal and eliminate

eventual possible objects that could be trapped in the

fold.

Drain pump

The pump should be inspected regularly and particularly if

• the machine does not empty and/or spin

• the machine makes an unusual noise during draining due to objects such as

safety pins, coins etc. blocking the pump.

Proceed as follows:

1. Disconnect the appliance.

2. If necessary wait until the water has cooled down.

3. Open the pump door.

132962861.qxd 29/05/2008 11.35 Pagina 31

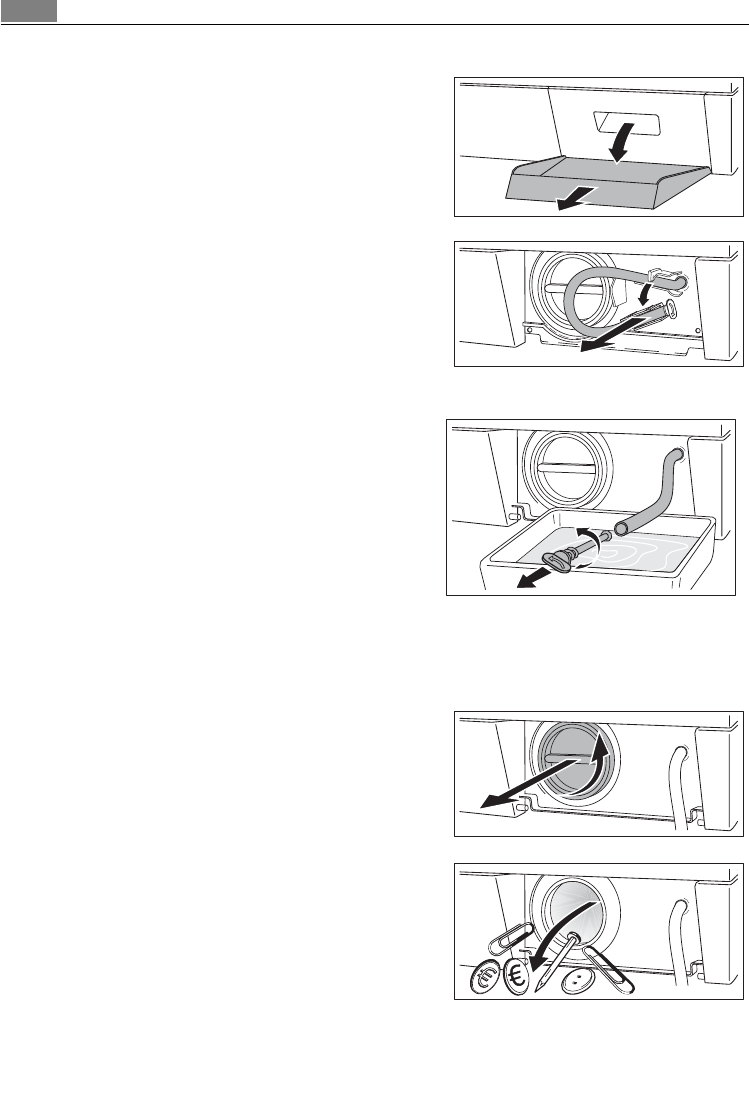

4. Place a container close to the pump to

collect any spillage.

5. Release the emergency emptying hose,

place it in the container and remove

its cap.

6. When no more water comes out, unscrew the pump and remove it. Always

keep a rag nearby to dry up spillage of water when removing the pump.

32 Care and cleaning

132962861.qxd 29/05/2008 11.35 Pagina 32

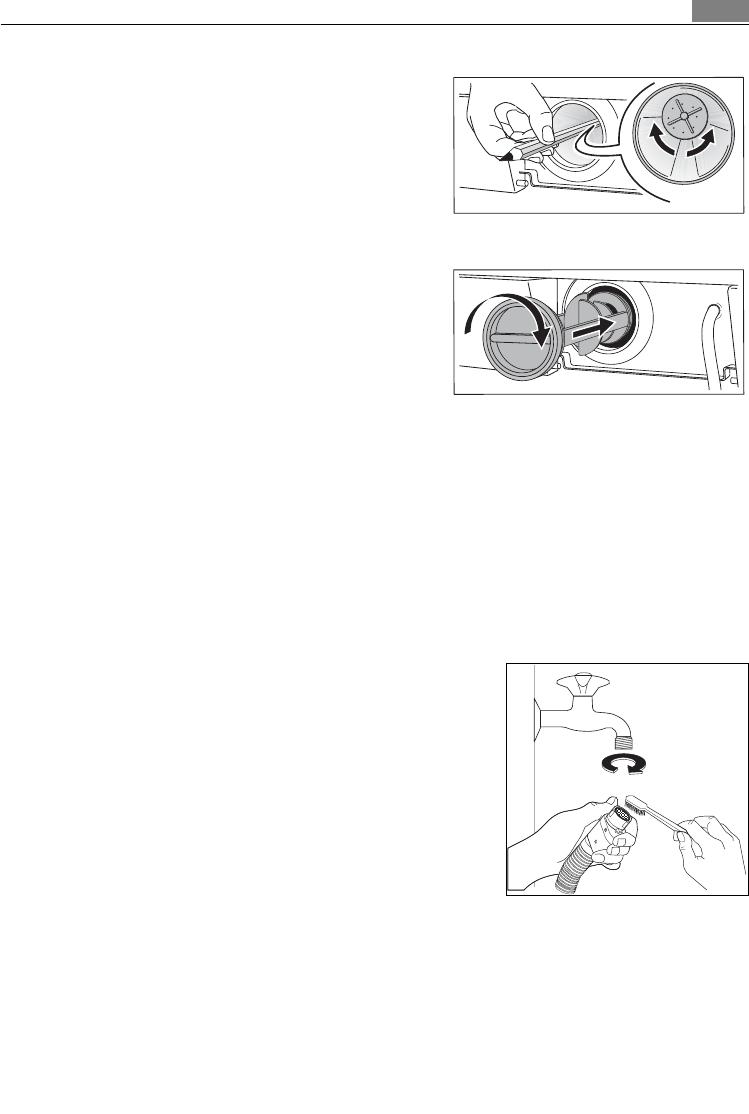

Care and cleaning

7. Remove any objects from the pump

impeller by rotating it.

8. Put the cap back on the emergency

emptying hose and place the latter

back in its seat.

9. Screw the pump fully in.

10. Close the pump door.

Warning!

When the appliance is in use and depending on the programme selected there

can be hot water in the pump. Never remove the pump cover during a wash

cycle, always wait until the appliance has finished the cycle, and is empty. When

replacing the cover, ensure it is securely retightened so as to stop leaks and

young children being able to remove it.

Water inlet filter

If you notice that the machine is taking longer to

fill, check that the filter in the water inlet hose is

not blocked.

1. Turn off the water tap.

2. Unscrew the hose from the tap.

3. Clean the filter in the hose with a stiff brush.

4. Screw the hose back onto the tap.

132962861.qxd 29/05/2008 11.35 Pagina 33

Frost precautions

If the machine is installed in a place where the temperature could drop below

0°C, proceed as follows:

1. Close the water tap and unscrew the water inlet hose from the tap.

2. Place the end of the emergency emptying hose and that of the inlet hose in a

bowl placed on the floor and let water drain out.

3. Screw the water inlet hose back on and reposition the emergency emptying

hose after having put the cap on again.

By doing this, any water remaining in the machine is removed, avoiding ice

forming and consequently damage to the appliance.

When you use the machine again, make sure that the ambient temperature is

above 0°C.

Important! Every time you drain the water through the emergency emptying

hose you must pour 2 litres of water into the main wash compartment of the

detergent drawer and then run the drain programme. This will activate the ECO

VALVE device avoiding that part of the detergent remains unused at next

washing.

Emergency emptying out

If the water is not discharged, proceed as follows to empty out the machine:

1. pull out the plug from the power socket;

2. close the water tap;

3. if necessary, wait until the water has cooled down;

4. open the pump door;

5. place a bowl on the floor and place the end of the emergency emptying hose

into the bowl. Remove its cap. The water should drain by gravity into the

bowl. When the bowl is full, put the cap back on the hose. Empty the bowl.

Repeat the procedure until water stops flowing out;

6. clean the pump if necessary as previously described;

7. replace the emergency emptying hose in its seat after having plugged it;

8. screw the pump again and close the door.

34 Care and cleaning

132962861.qxd 29/05/2008 11.35 Pagina 34

What to do if...

Certain problems are due to lack of simple maintenance or oversights, which can

be solved easily without calling out an engineer. Before contacting your local

Service Centre, please carry out the checks listed below.

During machine operation it is possible that the yellow pilot light of button 8

blinks, one of the following alarm codes appears on the display and at the same

some acoustic signals sound every 20 seconds to indicate that the machine is

not working:

• E10 :problem with the water supply

• E20 : problem with the water draining

• E40 : door open.

Once the problem has been eliminated, press button 88to restart the programme.

If after all checks, the problem persists, contact your local Service Centre.

Problem Possible cause/Solution

The washer-dryer does not start:

The door has not been closed. E40

• Close firmly the door.

The plug is not properly inserted in the power socket.

• Insert the plug into the power socket.

There is no power at the socket.

• Please check your domestic electrical installation.

The main fuse or the fuse in the plug has blown.

• Replace the fuse.

The selector dial is not correctly positioned and the

button 8has not been depressed.

• Please turn the selector dial and press button 8

again.

The delay start has been selected.

• If the laundry is to be washed immediately, cancel

the delay start.

The Child safety lock has been activated.

• Deactivated this device.

The machine does not fill:

The water tap is closed. E10

• Open the water tap.

The inlet hose is squashed or kinked. E10

• Check the inlet hose connection.

The filter in the inlet hose is blocked. E10

• Clean the water inlet hose filter.

The door is not properly closed. E40

• Close firmly the door.

132962861.qxd 29/05/2008 11.35 Pagina 35

36 What to do if...

Unsatisfactory washing results:

Too little detergent or unsuitable detergent has been

used.

• Increase the detergent quantity or use another one.

Stubborn stains have not been treated prior to

washing.

• Use commercial products to treat the stubborn

stains.

The correct temperature was not selected.

• Check if you have selected the correct temperature.

Excessive laundry load.

• Reduce the laundry load.

Problem Possible cause/Solution

The machine fills then empties

immediately:

The end of the drain hose is too low.

• Refer to relevant paragraph in «water drainage»

section.

The machine does not empty

and/or does not spin:

The drain hose is squashed or kinked. E20

• Check the drain hose connection.

The drain filter is clogged. E20

• Clean the drain filter.

An option/programme that ends with the water still

in the tub or eliminates all the spinning phases has

been selected.

• Select the draining or the spinning programme.

The laundry is not evenly distributed in the drum.

• Redistribute the laundry.

There is water on the floor:

Too much detergent or unsuitable detergent (creates

too much foam) has been used.

• Reduce the detergent quantity or use another one.

Check whether there are any leaks from one of the

inlet hose fittings. It is not always easy to see this as

the water runs down the hose; check to see if it is

damp.

• Check the water inlet hose connection.

The drain hose is damaged.

• Replace it with a new one.

The cap on the emergency emptying hose has not

been replaced or the filter has not been properly

screwed in after cleaning action.

• Refit the cap on the emergency emptying hose or

screw the filter fully in.

132962861.qxd 29/05/2008 11.35 Pagina 36

What to do if...

The machine does not dry or does

not dry properly

The drying time or the dryness degree has not been

selected .

• Select the drying time or the dryness degree

The water tap is not turned on (E10)

• Open the water tap.

The drain filter is clogged (E20)

• Clean the drain filter.

The machine is overloaded.

• Introduce into the drum less laundry.

The selected drying programme, time or dryness

degree was not suitable for the laundry

• Select the suitable drying programme, time or

dryness degree for the laundry.

Problem Cause possible/Solution

The door will not open:

The programme is still running.

• Wait the end of washing cycle.

The door lock has not been released.

• Wait until «0» appears on the display.

There is water in the drum.

• Select drain or spin programme to empty out the

water.

The machine vibrates or is noisy:

The transit bolts and packing have not been removed.

• Check the correct installation of the appliance.

The support feet have not been adjusted

• Check the correct levelling of the appliance.

The laundry is not evenly distributed in the drum.

• Redistribute the laundry.

Maybe there is very little laundry in the drum.

• Load more laundry.

Spinning starts late or the machine

does not spin:

The electronic unbalance detection device has cut in

because the laundry is not evenly distributed in the

drum. The laundry is redistributed by reverse rotation

of the drum. This may happen several times before

the unbalance disappears and normal spinning can

resume. If, after some minutes, the laundry is still not

evenly distributed in the drum, the machine will not

spin.

• Redistribute the laundry.

No water is visible in the drum:

Machines based on modern technology operate very

economically using very little water without affecting

performance.

132962861.qxd 29/05/2008 11.35 Pagina 37

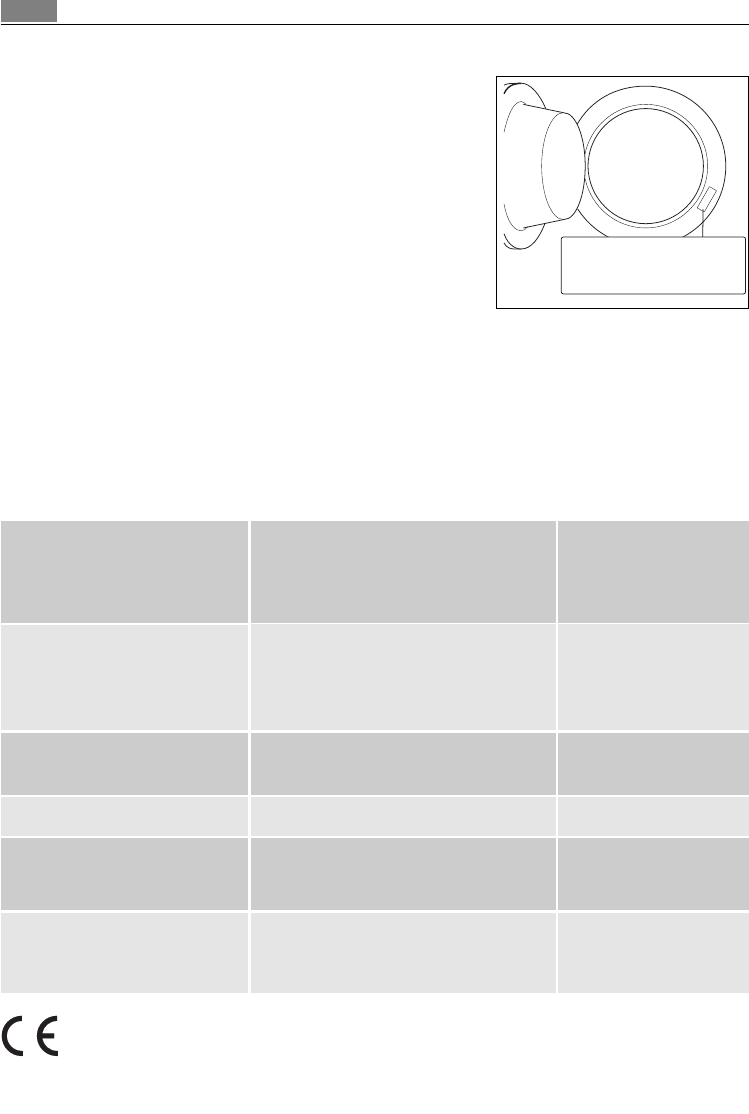

38 Technical data

Technical Data

Dimensions

Width

Height

Depth

(door included)

60 cm

85 cm

63 cm

Electrical connection

Water supply pressure Minimum

Maximum

0,05 MPa

0,80MPa

Maximum Load Cottons 6 kg

Spin Speed Maximum 1400 rpm

Maximum Dry Load

Cotton

Cotton Big capacity

Synthetics

3kg

4kg

2kg

Power supply voltage/frequency

Total power absorbed

Minimum fuse protection

230-240 V/50 Hz

2050 W

10 A

If you are unable to identify or solve the problem,

contact our service centre. Before telephoning,

make a note of the model, serial number and

purchase date of your machine: the Service Centre

will require this information.

Mod. ..........

Prod. No. ...........

Ser. No. .........

Mod. ..........

Prod. No. ...........

Ser. No. .........

P0042 BD

132962861.qxd 29/05/2008 11.35 Pagina 38

Consumption value

The consumption data shown on this chart is to be considered purely indicative,

as it may vary depending on the quantity and type of laundry, on the inlet water

temperature and on the ambient temperature.

(*) «Economy 60°C» with a load of 6 kg is the reference programme for the data

entered in the energy label, in compliance with EEC 92/75 standards.

Programme Water consumption

(lltres)

Energy consumption

(KWh)

Programme duration

(Minutes)

White Cottons 95° 61 2.0

For the duration of the

programmes, please refer

to the display on the

control panel.

Cottons 60° 58 1.3

(*)Cotton ECONOMY 60° 46 1.02

Cottons 40° 58 0.7

Synthetics (Easy Cares) 60° 54 1.0

Delicates 40° 54 0.5

Wool ( Handwash) 30° 53 0.25

132962861.qxd 29/05/2008 11.35 Pagina 39

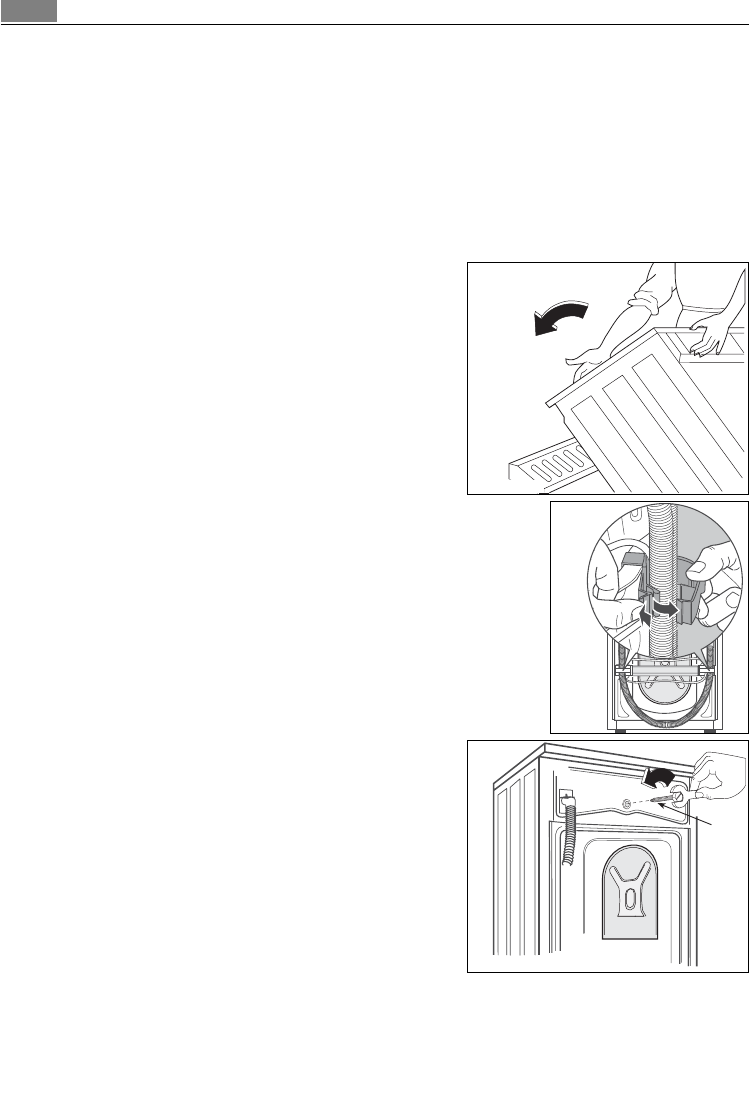

40 Installation

Installation

Unpacking

All transit bolts and packing must be removed before using the appliance.

You are advised to keep all transit devices so that they can be refitted if the

machine ever has to be transported again.

1. After removing all the packaging, carefully

lay machine on it’s back to remove the

polystyrene base from the bottom.

2. Remove the power supply cable and the

draining hose from the hose holders on the rear of

the appliance.

3. With a suitable spanner unscrew and remove the

central rear bolt A.

HEC0008

HEC00022

HEC0001

132962861.qxd 29/05/2008 11.35 Pagina 40

4. Unscrew and remove the two large rear bolts B

and the six smaller bolts C.

5. Remove the bracket Dand tighten up the six

smaller bolts C. Slide out the relevant plastic

spacer E.

6. Open the porthole, take out the inlet hose from the

drum and remove the polystyrene block fitted on the

door seal.

7. Fill the smaller upper hole and the two large ones

with the corresponding plastic plug caps supplied in

the bag containing the instruction booklet.

8. Connect the water inlet hose as described under the

paragraph «Water inlet».

All the different plug caps are supplied with the

appliance in the plastic bag containing the instruction

booklet.

HEC0003

HEC0023

HEC0010

HEC0005

Installation

132962861.qxd 29/05/2008 11.35 Pagina 41

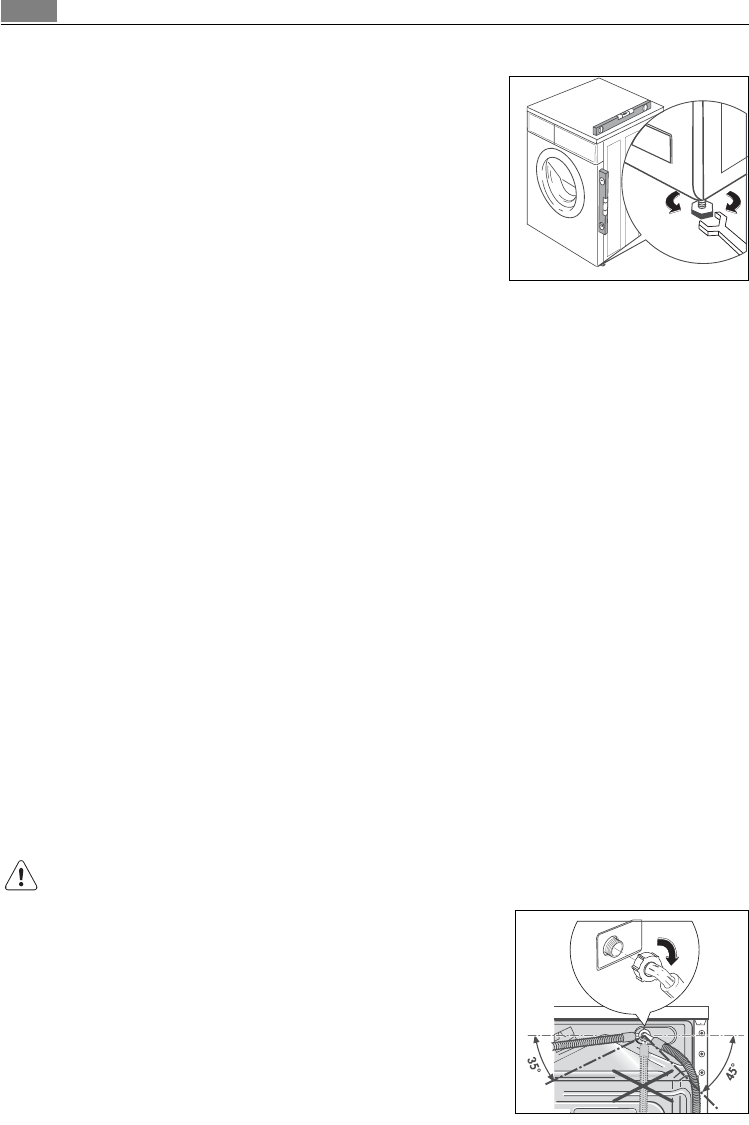

42 Installation

Positioning and levelling

Install the machine on a flat hard floor.

Make sure that air circulation around the machine is

not impeded by carpets, rugs etc.

Before placing it on small tiles, apply a rubber

coating.

Never try to correct any unevenness in the floor by

putting pieces of wood, cardboard or similar

materials under the machine.

If it is impossible to avoid positioning the machine next to a gas cooker or coal-

burning stove, an insulating panel covered with aluminium foil on the side facing

the cooker or stove, must be inserted between the two appliances.

The machine must not be installed in rooms where the temperature can drop

below 0.

The water inlet hose and the drain hose must not be kinked.

Please ensure that when the appliance is installed, it is easily accessible for the

engineer in the event of a breakdown.

Carefully level by screwing the adjustable feet in or out. Never place cardboard,

wood or similar materials under the machine to compensate for any unevenness

in the floor.

Water inlet

An inlet hose is supplied and can be found inside the machine drum.

Do not use the hose from your previous machine to connect to the

water supply.

This appliance must be connected to a cold water supply.

1. Open the porthole and extract the inlet hose.

2. Connect the hose with the angled connection to the machine.

Do not place the inlet hose downwards. Angle the hose to the left or

right depending on the position of your water

tap.

HEC007S

HEC0006

132962861.qxd 29/05/2008 11.35 Pagina 42

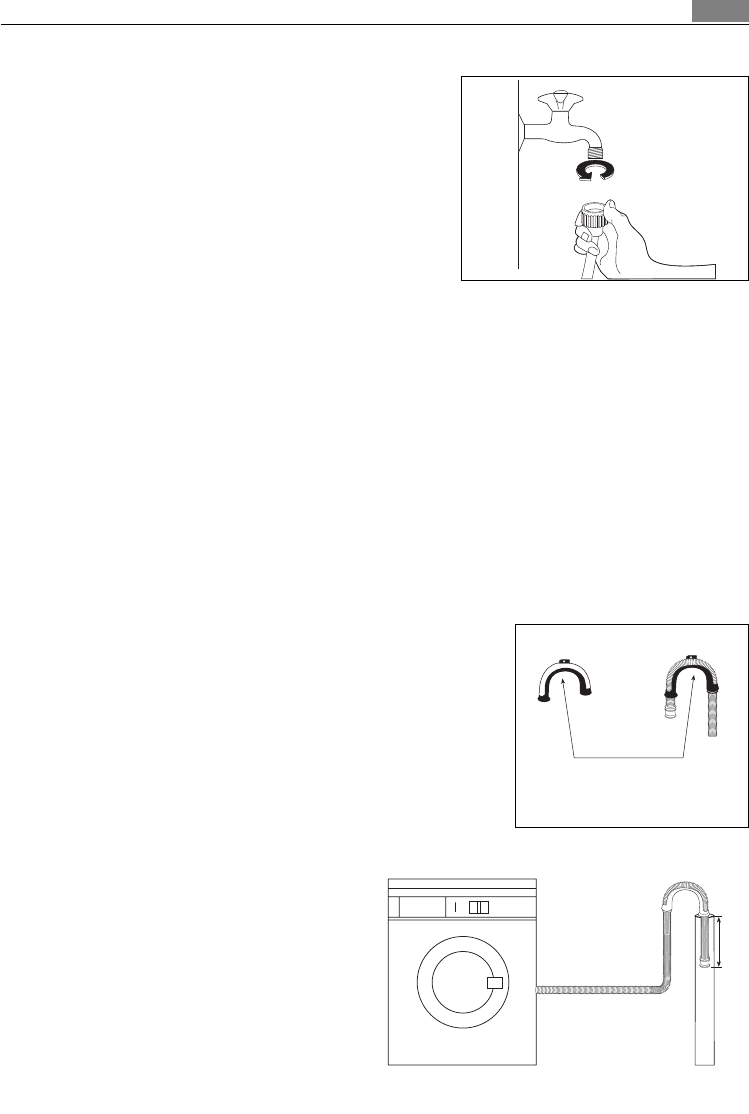

3. Set the hose correctly by loosening the ring

nut.

After positioning the inlet hose, be sure to

tighten the ring nut again to prevent leaks.

4. Connect the hose to a tap with a 3/4”

thread. Always use the hose supplied with

the appliance.

Installation should comply with local water

authority and building regulations requirements. A minimum water pressure of

0.05 MPa is required for safe operation of the appliance.

If you cannot make the cold water connection direct from the rising mains, you

may be able to operate the appliance from your cold water storage system. There

should be a minimum distance of between the appliance’s inlet and the bottom of

the water storage tank.

The inlet hose must not be lengthened. If it is too short and you do not wish to

move the tap, you will have to purchase a new, longer hose specially designed for

this type of use.

Water drainage

This appliance is designed to be permanently plumbed into your home's drainage

system using one of the following methods.

1. Into a drainage standpipe.

Firstly form a hook in the end of the drain hose using

the “U” piece” supplied.

Place the drain hose into your

standpipe, which should have an

internal diameter of approximately

38mm thus ensuring there is an air

break between the drain hose and

standpipe.

P1199

U piece

supplied

Installation

30 cm (12")

38 mm (1.5)

standpipe

diameter

132962861.qxd 29/05/2008 11.35 Pagina 43

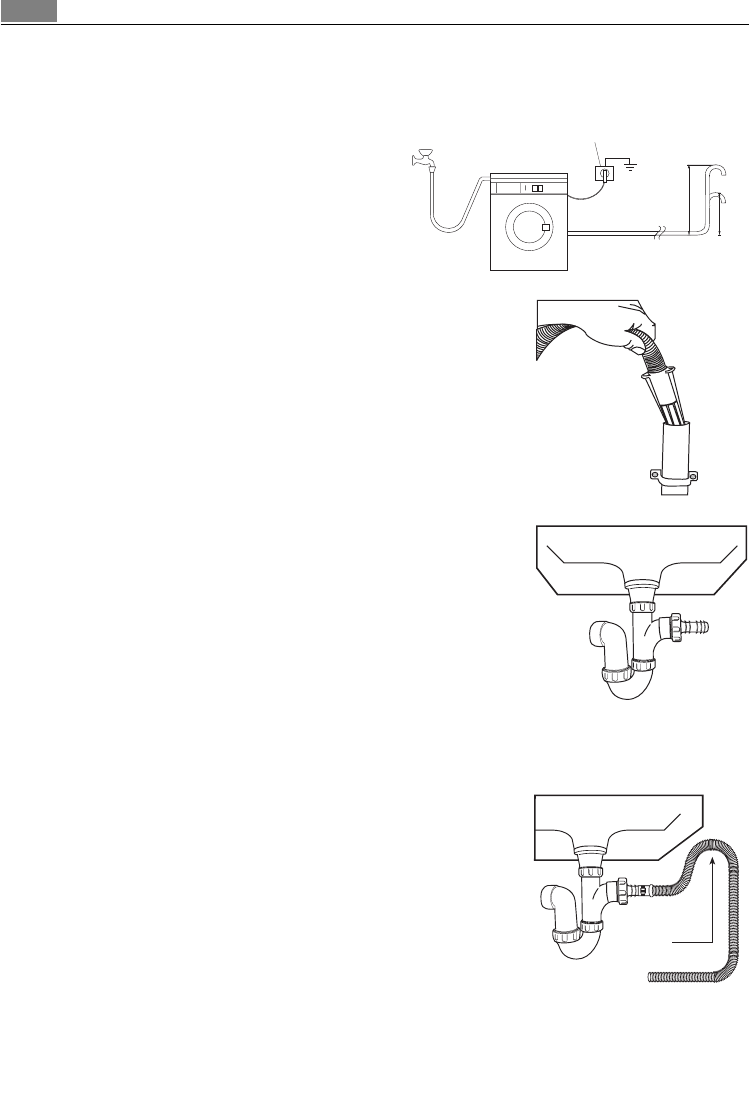

When discharging into a standpipe

ensure that the top of the standpipe is

no more than 90 cm (35.4'') and no less

than 60 cm (23.6'') above floor level.

The drain hose may be extended to a

maximum of 4 metres. An additional

drain hose and joining piece is available

from your local Service Force Centre.

The joining piece must have an internal

diameter of 18 mm.

If your drain hose looks like this (see the relevant

pcture) you do not require the “U” piece”. Just push

the hose firmly into the standpipe.

2. Onto a sink outlet spigot.

If the outlet spigot has not been used before, remove

any blanking plug that may be in place.

Push the drain hose onto the spigot and secure with a

clip if required, ensure a loop is formed in the drain

hose (see diagram) to prevent waste from the sink

entering the washing machine.

The drain hose may be extended to a maximum of 4

metres. An additional drain hose and joining piece is available from your local

Service Force Centre. The joining piece must have an internal diameter of 18 mm.

If you intend the drain hose from the machine to

empty into a sink, make sure that the sink is empty and

the plug hole is not blocked. Use the plastic “U -Piece”

supplied.

44 Installation

3 pin

Max. 90 cm.

(35.4")

Min.60 cm.

(23.6")

Loop

132962861.qxd 29/05/2008 11.35 Pagina 44

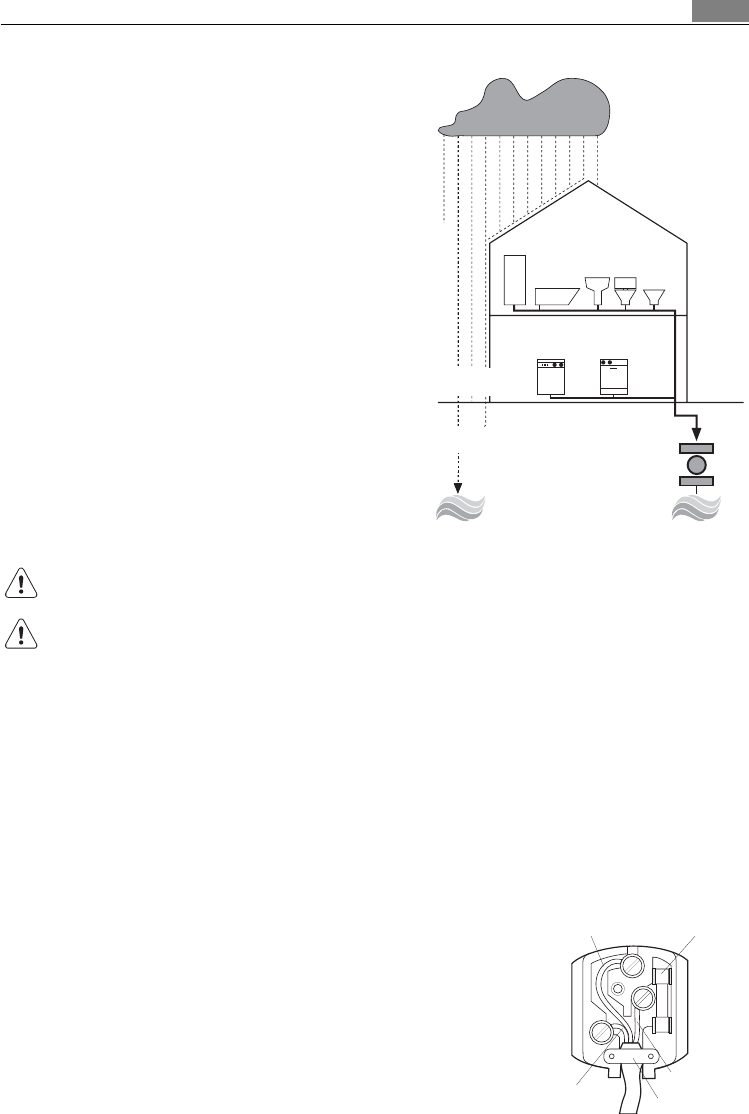

In the interest of the environment

Washing machines and dishwashers

should be connected to the FOUL

drainage system, the water will then

be taken to a sewage works for treat-

ment before being discharged safely

into a river.

It is essential that these appliances are

not connected to the surface water

drainage system as this water is dis-

charged directly into a river or stream

and may cause pollution.

If you require any further advice please

contact your local water authority.

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED.

The manufacturer does not accept any responsibility for damage or

injury through failure to comply with the above safety precaution.

If the plug that is fitted to your appliance is not suitable for your socket outlet, it

must be cut off and the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to prevent the hazard of shocks in case

it should be plugged into a 13 Amp socket in another part of your home.

Important

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

Installation

SHOWER

BATH

SINK TOILET

BIDET

WASHING

MACHINE DISHWASHER

RAINWATER

'RUN-OFF'

SURFACE WATER

DRAINS & SEWERS

UNTREATED

DISCHARGE

RIVER

FOUL DRAIN

FOUL SEWERS

SEWAGE

TREATMENT

WORKS

RIVER

TREATED

DISCHARGE

RAINWATER

'RUN-OFF'

SURFACE WATER

DRAINS & SEWERS

GREEN &YELLOW 13AMP FUSE

CORD CLAMP

BLUE

AMP

BROWN

132962861.qxd 29/05/2008 11.35 Pagina 45

If you fit your own plug, the colours of the wires in the mains lead of your appli-

ance may not correspond with the markings identifying the terminals in your plug,

proceed as follows:

Connect the green and yellow (earth) wire to the terminal in the plug which is

marked with the letter «E» or the earth symbol or coloured green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is marked with

the letter «N» or coloured black.

Connect the brown (live) wire to the terminal in the plug which is marked with the

letter «L» or coloured red.

The plug moulded on to the lead incorporates a fuse. For replacement, use a 13

Amp BS1363/AAfuse. Only ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indi-

cated by the coloured insert at the base of the plug.

A replacement cover/carrier must be obtained from your local AEG/ELECTROLUX

Service Centre.

The power supply cable must be easily accessible after installing the

machine.

Should the appliance power supply cable need to be replaced, this MUST

be carried out by a Service Centre.

Permanent connection

In the case of a permanent connection it is necessary that you install a double pole

switch between the appliance and the electricity supply (mains), with a minimum

gap of 3 mm between the switch contacts and of a type suitable for the required

load in compliance with the current electrical regulations.

The switch must not break the yellow and green earth cable at any point.

This operation must be performed by a qualified electrician.

46 Installation

132962861.qxd 29/05/2008 11.35 Pagina 46

Enviroment concerns

Packaging materials

The materials marked with the symbol are recyclable.

>PE<=polyethylene

>PS<=polystyrene

>PP<=polypropylene

This means that they can be recycled by disposing of them properly in

appropriate collection containers.

Old machine

Use authorised disposal sites for your old appliance. Help to keep your country

tidy!

The symbol on the product or on its packaging indicates that this product

may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic

equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this

product. For more detailed information about recycling of this product, please

contact your local city office, your household waste disposal service or the shop

where you purchased the product.

Ecological hints

To save water, energy and to help protect the environment, we recommend that

you follow these tips:

•Normally soiled laundry may be washed without prewashing in order to save

detergent, water and time (the environment is protected too!).

•The machine works more economically if it is fully loaded.

•With adequate pre-treatment, stains and limited soiling can be removed; the

laundry can then be washed at a lower temperature.

•Measure out detergent according to the water hardness, the degree of soiling

and the quantity of laundry being washed.

Environment concerns

132962861.qxd 29/05/2008 11.35 Pagina 47

www.electrolux.com

132 962 861-01-222008 Subject to change without notice

www.aeg-electrolux.uk

132962861.qxd 29/05/2008 11.35 Pagina 48

Aeg Lavamat L 14840 Users Manual 132962861

L 14840 to the manual 30437199-4502-424c-aedc-3bc1b75c9f3e

Navigation menu

Versions of this User Manual:

Views

Navigation
