User manual
USER GUIDE
aegex10 USER GUIDE
USER GUIDE
1
REGULATORY STATEMENTS
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful inter-
ference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modications not expressly approved by the party responsi-
ble for compliance could void the user’s authority to operate this equipment.
This device complies with FCC and Industry Canada RF radiation exposure
limits set forth for general population (uncontrolled exposure). This device
must not be collocated or operating in conjunction with any other antenna
or transmitter.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Hereby, Aegex Techologies LLC declares that all CE Marked Aegex products incorporating Radio and Telecoms Terminal Equipment functionally
are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
FCC & IC STATEMENTS
CE STATEMENT
USER GUIDE

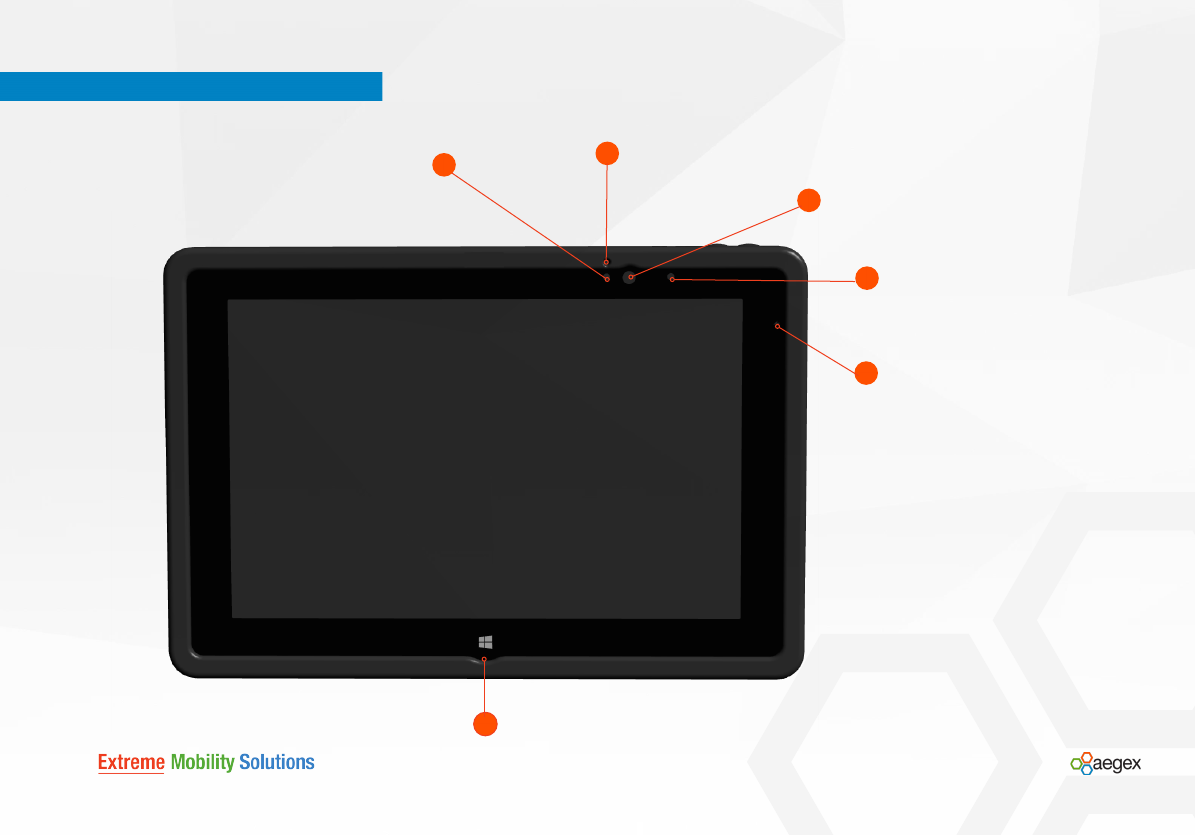

FRONT
12
3
4
5
6
Ambient Light Sensor
Recognizes the ambient light and adjusts
the display brightness if enabled in the
operating system
Front Microphone Outlet
Front Camera
2MP camera for video conferencing
Camera Indicator LED
Lights up if camera is activated and
during device boot and shutdown
Charging Indicator LED
OFF not connected to charger
ORANGE charging
Windows Button
Touch it to return to the start menu
2
USER GUIDE
Volume Keys
Push the left button (-) to reduce the volume,
use the right button (+) to increase the volume
TOP SIDE
On / Off Button
Push it once to start the tablet; push it again
to enable the sleep mode. Push and hold it to
shut down the device. You will be instructed on
screen to slide to shut down your device.
7
8
3
USER GUIDE
Docking Connector 9
Securing Kensington Locks
Charging Pads 11
MicroSDXC Card Slot
13
MicroUSB Interface For charging only
14
USB 2.0 Port
15
CTIA Audio Jack
combined microphone &
speaker connector
16
10
RIGHT AND BOTTOM SIDE
4
Stereo Speakers (on the sides) 12
USER GUIDE
REAR VIEW
NFC Antenna Position
Can be used to read NFC & RFID tags
with appropriate software
16
Rear Microphone Outlet 17
Camera Flash LED 18
Rear Camera
8MP camera for high resolution images & video
19
Battery Lid
20
5
USER GUIDE
REPLACING BATTERY / ADDING SIM CARD

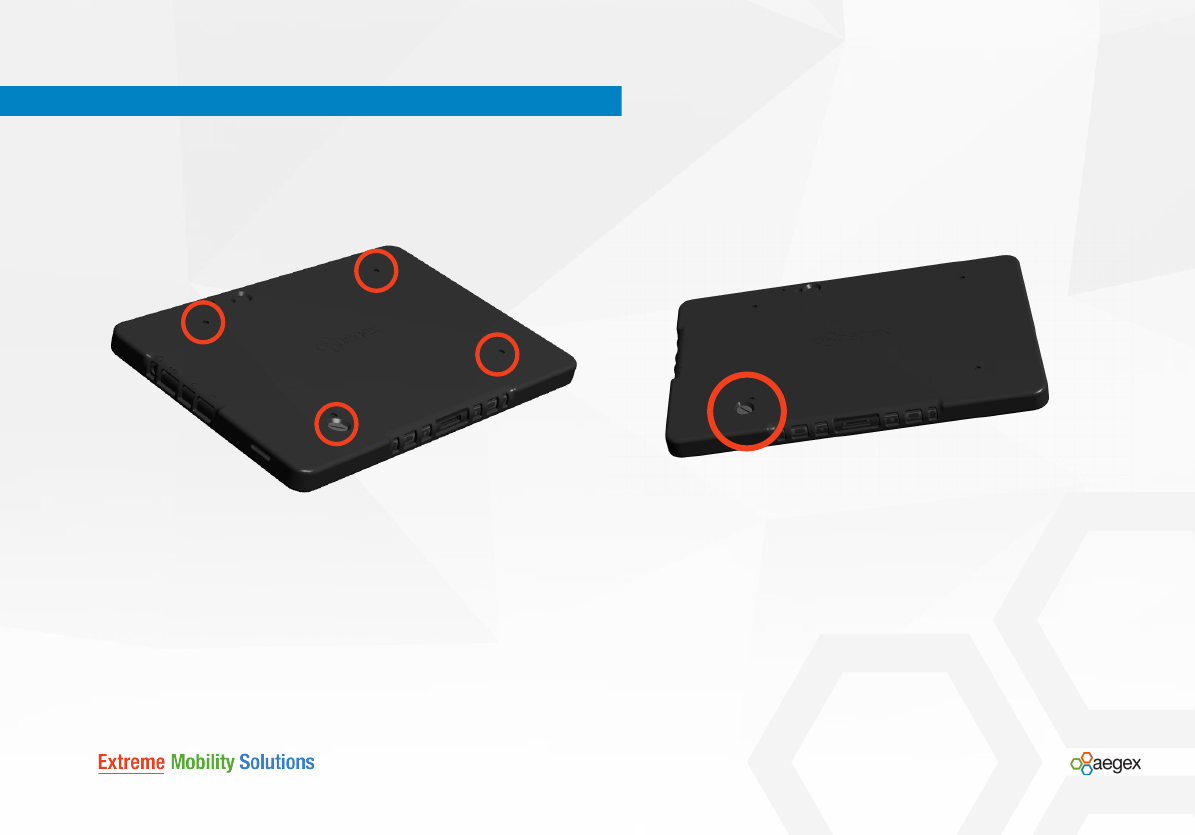

1. Remove the 4 hex screws from the
corners of the battery cover using the
provided hex tool.
TO REPLACE THE BATTERY:
6
2. Take off the battery cover by pulling on the
lid carefully – specically on the corner
with the slant.
USER GUIDE
3. Release locking by pulling on the battery
holder hook (A) towards the bottom of
the device then pull the battery up (B).
Repeat process for other battery
holder hook.
REPLACING BATTERY / ADDING SIM CARD
4. Enter the Micro SIM card into the slot in
the center of the right side. Make
sure you have the Micro SIM card in
the correct direction (chip facing down).
7
(B)
1.RELEASE LOCKING
(A)
2. LIFT UP1.RELEASE LOCKING2. LIFT UP
(B)
(A)
USER GUIDE

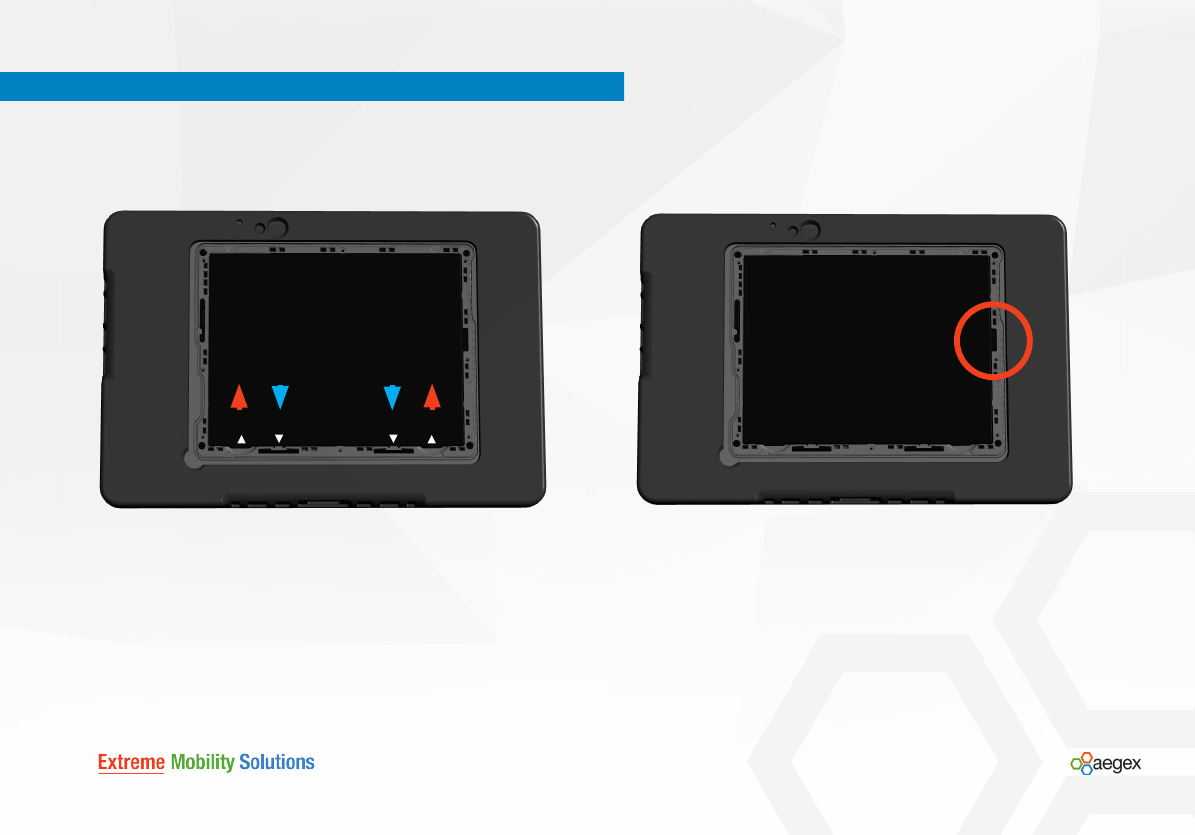

2. Replace battery cover by pushing down on the lid carefully by
following the steps illustrated in the image below:
A) Align the battery door to the back housing
B) Engage the battery cover snaps by:
i. Snapping in the middle top snaps rst
ii. Pressing down the battery cover edge by using two hands
a) Moving out symmetrically from the top center
to the top left and right corners
b) Then from top to bottom on both side edges
c) And then from the bottom corners in to the
bottom middle symmetrically
d) Finish at the bottom middle snaps
C) Verify that the battery cover is ush with the rear housing on
all edges, and that there is no bulge or gap
REPLACING BATTERY / ADDING SIM CARD

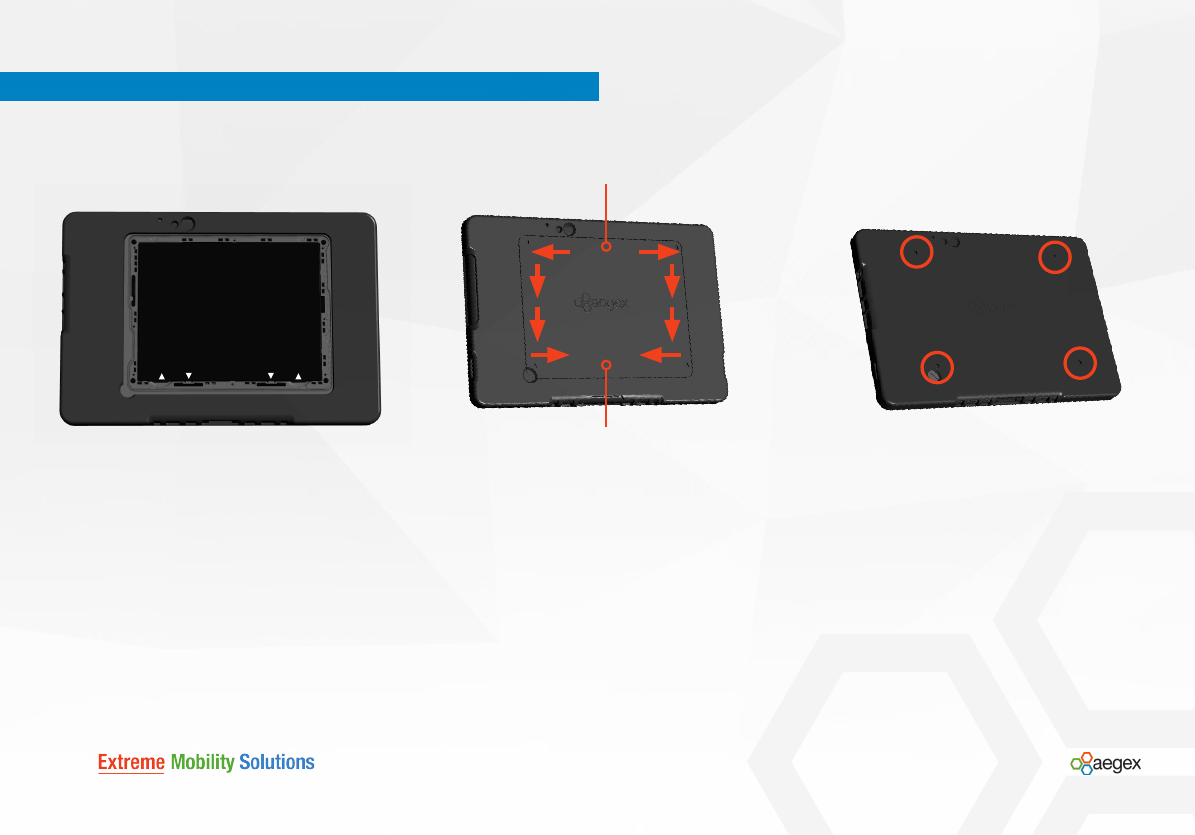

When putting the battery back in place:
8
1. Make sure the battery securely clicks in
place on both sides.
Start
End
3. Then replace the 4 corner hex screws
of the battery cover using the provided
hex tool. The recommended torque for
the screw is 10-12Ncm.
1.RELEASE LOCKING 2. LIFT UP1.RELEASE LOCKING2. LIFT UP
USER GUIDE
USING THE TABLET FOR THE FIRST TIME
Connect power supply for the rst time by opening
the right hand door and connecting the micro
USB and make sure battery is fully charged
before disconnecting.
Press the power button
Follow the instructions in the operating system
to complete the setup
1
2
3
9
USER GUIDE
In Hazardous Locations
Your device is suitable for use in various hazardous environments
depending on model number and certication string.
Do not connect or disconnect USB, charger, headset or docking station in a hazardous
environment.
Ne pas brancher ou débrancher USB , chargeur, ecouteur ou une station d’accueil dans
un environnement dangereux
DO NOT REMOVE OR REPLACE THE BATTERY PACK WHILE IN A KNOWN
HAZARDOUS LOCATION
AVERTISSEMENT - RISQUE D’EXPLOSION - AFIN D’EVITER TOUT RISQUE
D’EXPLOSION, S’ASSURER QUE L’EMPLACEMENT EST DESIGNE NON DANEREUX
AVANT DE CHANGER LA BATTERIE
BATTERIES MUST ONLY BE CHARGED IN AN AREA KNOWN TO BE
NON-HAZARDOUS
Les PILES DOIVENT seulement être rechargées dans une région pas
dangereuse
IN HAZARDOUS LOCATIONS / TROUBLESHOOTING
Troubleshooting
In case device freezes and you need to do a hard
reset, press and hold the power button for approx.
14 seconds. Device will be turned off now.
10
Antenna Positions
Your device meets guidelines for exposure to radio
waves (SAR, Specic Absorption Rate) when kept
in a minimum distance of 2.5cm to your body. It is
recommended to learn the antenna positions (for
3G or LTE devices only) as mentioned below and
not to touch or bring your body closer than 2.5 cm
to these antenna areas.
Warning Statements
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Pour éviter tout dommage possible à l’ouïe, n’écoutez pas aux niveaux de volume élevé
pendant de longues périodes
WLAN 802.11 a/n bands are allowed for indoor use only.
USER GUIDE
• Do not drop, bend or twist your tablet. This can break tablet display glass, internal circuit
boards or mechanics. If the glass breaks, do not touch the glass parts of the device or attempt
to remove the broken glass from the device. Stop using the device until qualied service
personnel replace the glass.
• Do not try to disassemble your tablet. This may damage the device.
• Do not connect USB, charger, headset or docking station in a hazardous environment.
• Operate your device in a place where temperature is between -10°C and +50°C.
• Charge your device with the supplied charger in a place where temperature is
between 0°C and+40°C.
• Store your device in a place where temperature is between -20°C and +60°C.
• Protect your device from water and moisture intake. Keep connector doors closed when not
in use to prevent water and moisture intake.
• Listen to a headset at a moderate level, and do not place the device loudspeaker outlets near
your ear when the loudspeakers are in use.
• Use only soft, clean and dry lint-free cloth to clean your device.
• Keep the unit and accessories away from small children.
• Switch off your device before boarding an aircraft.
• Your device meets guidelines for exposure to radio waves (SAR, Specic Absorption Rate)
when kept in a minimum distance of 2.5cm to your body.
• Use only charger delivered with your tablet.
• Power rating: 3.8V 3.0A
• Do not disconnect charger by pulling the cord.
• Do not use damaged power cords or plugs.
• Do not use Nano-to-Micro SIM card adapters.
• Save energy: You can save energy by doing following.
• Close unused applications and data connections.
• Decrease screen brightness and sound volume.
• Deactivate unnecessary sounds like touch panel sound.
• Disconnect your charger from main outlet when charger is not needed.
• Do not keep unnecessary accessories connected in your device.
• Recycle. Return your used electronic units to dedicated collection points. Please note that
your tablet has a battery - this cannot to be disposed of to normal household waste and
battery requires separate recycling.
• Battery Safety
Your rechargeable lithium ion polymer battery operates on 3.8V and 8700mAh capacity
(Manufactured by Sunwoda AMME3203).
• DO NOT REMOVE OR REPLACE THE BATTERY PACK WHILE IN A KNOWN
HAZARDOUS LOCATION.
AVERTISSEMENT - RISQUE D’EXPLOSION - AFIN D’EVITER TOUT
RISQUE D’EXPLOSION, S’ASSURER QUE L’EMPLACEMENT EST DESIGNE
NON DANEREUX AVANT DE CHANGER LA BATTERIE
• Batteries have life cycles. If the time that the battery powers equipment becomes
much shorter than usual, the battery life might be at the end.
• Fully charge the battery at least every 6 months.
• Keep the device away from heat (battery temperature not to exceed 60°C).
•Donotthrowbatteryintoareasitmayexplode.
• Do not soak the battery with liquid like water, tea, coffee etc.
• Do not hit, bend, deform or drop the battery.
• Do not pierce battery with a sharp object such as a needle, etc.
•Thebatteryshouldnothaveliquidfromelectrolyteowing,butincasetheelectrolyte
come into contact with eyes, don’t rub your eyes. Wash your eyes well with clean water
and go to see a doctor immediately. In case the electrolyte come into contact with your
skin, wash it well with clean water.
• Do not externally short-circuit the battery. If externally short-circuited, the battery
may be heated, ignited or broken.
• Only use the correct battery type for this device. There is a risk of damage if you are
to place the battery with an incorrect type.
• Dispose of battery needs to be done according to instructions above.
IMPORTANT PRODUCT AND SAFETY INFORMATION
