Users Manual

Aeon Labs Smart Energy Switch
(Z-Wave Appliance Module w/ Energy Monitor)
Introduction:
The Aeon Labs Smart Energy Switch is a Z-Wave
appliance switch which can report wattage
energy usage or kWh energy usage to a Z-Wave
gateway. It can also be controlled by other Z-
Wave devices to turn on/off to save electricity
when appropriate.
It also is a repeater in the Z-Wave network. Acting
as a bridge for communication, it will forward Z-
Wave command messages to their destinations if
the originating controller is out of range from the
destination node.
With an unobtrusive small form factor, the Aeon
Labs Smart Energy Switch will not block other
nearby AC outlets. It is available in both matte
white and matte black colors.
By taking advantage of the Z-Wave mesh
network, commands can be routed to their
destination via intermediary “listening” Z-Wave
products. Products that are Z-Wave certified can
be used and communicate with other Z-Wave
certified devices.
Z-Wave Network Instructions:
The Aeon Labs Smart Energy Switch must be
paired (included) into a Z-Wave network before it
can receive Z-Wave commands to turn on/off
and report its energy usage. The smart energy
switch can only communicate to devices within
it’s own z-wave network.
Note: The LED on the Smart Energy Switch will blink
if it is currently not paired into a Z-Wave network.

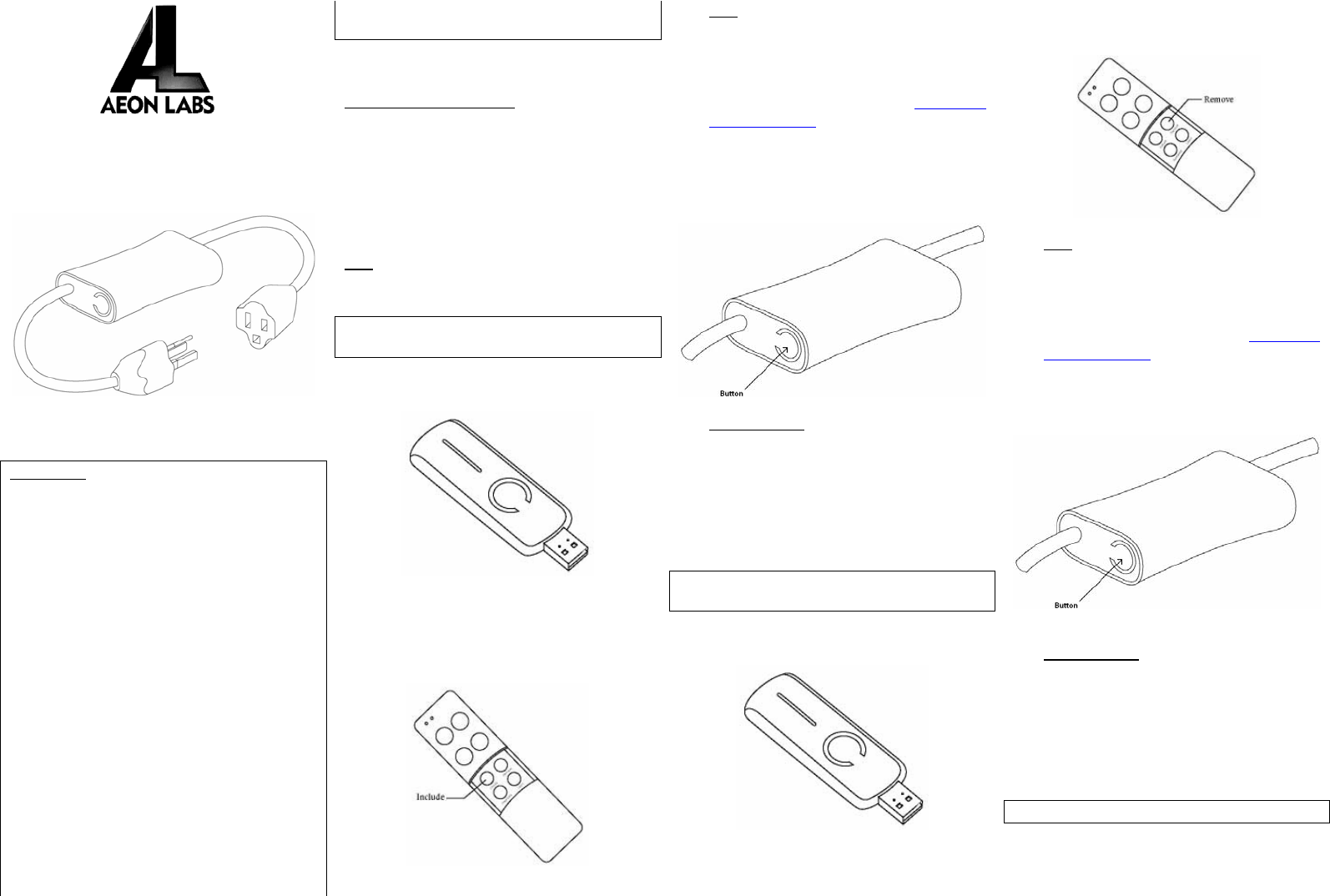

Adding/Including/Pairing the Smart Energy
Switch into a Z-Wave Network
1. Press the button on the Aeon Labs Z-Stick to
begin the Z-Wave inclusion process.
OR
Press the button labeled “Include” on the
Aeon Labs Minimote to begin the Z-Wave
inclusion process.
Note: To include the Aeon Labs Smart Energy
Switch with other controllers, please consult
the operation manual for these controllers on
how to include Z-Wave products into an
existing network. For instructions on select
partner gateways, visit www.aeon-
labs.com/support.
2. While the Smart Energy Switch is plugged into
the outlet, press the button located between
the LED.
Troubleshooting: If the Aeon Labs Smart
Energy Switch was not successfully included
into any Z-Wave network, the LED will be
blinking. If the Aeon Labs Smart Energy
Switch was successfully included to a Z-Wave
network, the LED will either be on or off
(depending on if the switch is on or off).
Removing/Resetting the Smart Energy Switch
from your Z-Wave Network
1. Hold the button on the Aeon Labs Z-Stick to
begin the Z-Wave removal process.
OR
Press the button labeled “Remove” on the
Aeon Labs Minimote Stick to begin the Z-
Wave removal process.
Note: To include the Aeon Labs Smart Energy
Switch with other controllers, please consult
the operation manual for these controllers on
how to include Z-Wave products into an
existing network. For instructions on select
partner gateways, visit www.aeon-
labs.com/support.
2. While the Smart Energy Switch is plugged into
the outlet, press the button located between
the LED.
Troubleshooting: If the Aeon Labs Smart
Energy Switch was removed from the Z-Wave
network, the LED will be blinking. If the Aeon
Labs Smart Energy Switch was not
successfully removed from the Z-Wave
network, the LED will either be on or off
(depending on if the switch is on or off).
Turning On/Off the Smart Energy Switch
Use any of the below methods to allow power
through or cut power from the Smart Energy
Switch.
o Through the usage of Z-Wave
commands built into Z-Wave certified
controllers and gateways. (The specific
Z-Wave commands supporting this
function are the Basic Command Class
and Binary Switch Command Class.)
Please consult the operation manual for
these controllers for specific instructions
on controlling the Smart Energy Switch.
o Pressing the button on the Smart Energy
Switch will toggle power flow (on/off)
through the Smart Energy Switch.
Monitoring Energy Consumption
The Aeon Labs Smart Energy Switch can report
wattage energy usage or kWh energy usage to a
Z-Wave gateway or controller when requested. If
this function is supported by the
gateway/controller, the energy consumption will
be displayed in the user interface of the
gateway/controller. (The specific Z-Wave
commands supporting energy monitoring are the
Meter Command Class and Multilevel Sensor
Command Class.) Please consult the operation
manual for these gateways/controllers for specific
instructions on monitoring the Smart Energy Switch.
Technical Specifications
o USA: 120V 60Hz input, 1875W or 15A max
output
o EU: 250V 50Hz input, 4000W or 16A max output
o AU: 240V 50Hz input, 2400W or 10A max
output
Warranty
Aeon Labs warrants to the original purchaser of
Products that for the Warranty Period (as defined
below), the Products will be free from material
defects in materials and workmanship. The
foregoing warranty is subject to the proper
installation, operation and maintenance of the
Products in accordance with installation
instructions and the operating manual supplied to
Customer. Warranty claims must be made by
Customer in writing within thirty (30) days of the
manifestation of a problem. Aeon Labs' sole
obligation under the foregoing warranty is, at
Aeon Labs' option, to repair, replace or correct
any such defect that was present at the time of
delivery, or to remove the Products and to refund
the purchase price to Customer.
The "Warranty Period" begins on the date the
Products is delivered and continues for 12 months.
Any repairs under this warranty must be
conducted by an authorized Aeon Labs service
representative and under Aeon Labs’ RMA policy.
Any repairs conducted by unauthorized persons
shall void this warranty.
Excluded from the warranty are problems due to
accidents, acts of God, civil or military authority,
civil disturbance, war, strikes, fires, other
catastrophes, misuse, misapplication, storage
damage, negligence, electrical power problems,
or modification to the Products or its components.
Aeon Labs does not authorize any person or party
to assume or create for it any other obligation or
liability in connection with the Products except as
set forth herein.
Aeon Labs will pass on to Customer all
manufacturers’ Material warranties to the extent
that they are transferable, but will not
independently warrant any Material.
Customer must prepay shipping and
transportation charges for returned Products, and
insure the shipment or accept the risk of loss or
damage during such shipment and transportation.
Aeon Labs will ship the repaired or replacement
products to Customer freight prepaid.
Customer shall indemnify, defend, and hold Aeon
Labs and Aeon Labs’ affiliates, shareholders,
directors, officers, employees, contractors, agents
and other representatives harmless from all
demands, claims, actions, causes of action,
proceedings, suits, assessments, losses, damages,
liabilities, settlements, judgments, fines, penalties,
interest, costs and expenses (including fees and
disbursements of counsel) of every kind (i) based
upon personal injury or death or injury to property
to the extent any of the foregoing is proximately
caused either by a defective product (including
strict liability in tort) or by the negligent or willful
acts or omissions of Customer or its officers,
employees, subcontractors or agents, and/or (ii)
arising from or relating to any actual or alleged
infringement or misappropriation of any patent,
trademark, mask work, copyright, trade secret or
any actual or alleged violation of any other
intellectual property rights arising from or in
connection with the products, except to the
extent that such infringement exists as a result of
Aeon Labs‘ manufacturing processes.
IN NO EVENT SHALL AEON LABS BE LIABLE FOR ANY
INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL OR
CONSEQUENTIAL DAMAGES, OR DAMAGES FOR
LOSS OF PROFITS, REVENUE, OR USE INCURRED BY
CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN
ACTION IN CONTRACT, OR TORT, OR OTHERWISE
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. AEON LABS’ LIABILITY AND
CUSTOMER’S EXCLUSIVE REMEDY FOR ANY CAUSE
OF ACTION ARISING IN CONNECTION WITH THIS
AGREEMENT OR THE SALE OR USE OF THE
PRODUCTS, WHETHER BASED ON NEGLIGENCE,
STRICT LIABILITY, BREACH OF WARRANTY, BREACH
OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS
EXPRESSLY LIMITED TO, AT AEON LABS’ OPTION,
REPLACEMENT OF, OR REPAYMENT OF THE
PURCHASE PRICE FOR THAT PORTION OF
PRODUCTS WITH RESPECT TO WHICH DAMAGES
ARE CLAIMED. ALL CLAIMS OF ANY KIND ARISING
IN CONNECTION WITH THIS AGREEMENT OR THE
SALE OR USE OF PRODUCTS SHALL BE DEEMED
WAIVED UNLESS MADE IN WRITING WITHIN THIRTY
(30) DAYS FROM AEON LABS’S DELIVERY, OR THE
DATE FIXED FOR DELIVERY IN THE EVENT OF
NONDELIVERY.
THE INDEMNITY AND WARRANTY IN ABOVE ARE
EXCLUSIVE AND IN LIEU OF ALL OTHER INDEMNITIES
OR WARRANTIES, WHETHER EXPRESS OR IMPLIED,
INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE.
FCC NOTE:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference
received, including interference that may cause
undesired operation.
