Aeon Labs FT096 Smart Switch 6,Switch 6,Plug User Manual
Aeon Labs LLC. Smart Switch 6,Switch 6,Plug
User Manual
View the expanded manual:
http://aeotec.com/support
Smart Switch 6
Aeotec by Aeon Labs Smart Switch.
Aeotec Smart Switch is a low-cost Z-Wave Switch plug-
in module specically used to enable Z-Wave command
and control (on/off) of any plug-in tool. It can report
immediate wattage consumption or kWh energy usage
over a period of time. In the event of power failure, non-
volatile memory retains all programmed information
relating to the unit’s operating status.
Its surface has a Smart RGB LED, which can be used
for indicating the output load status or strength of the
wireless signal. You can congure its indication colour
according to your favour.
The Smart Switch 6 is also a security Z-wave device and
supports Over The Air (OTA) feature for the products
rmware upgrade.
®

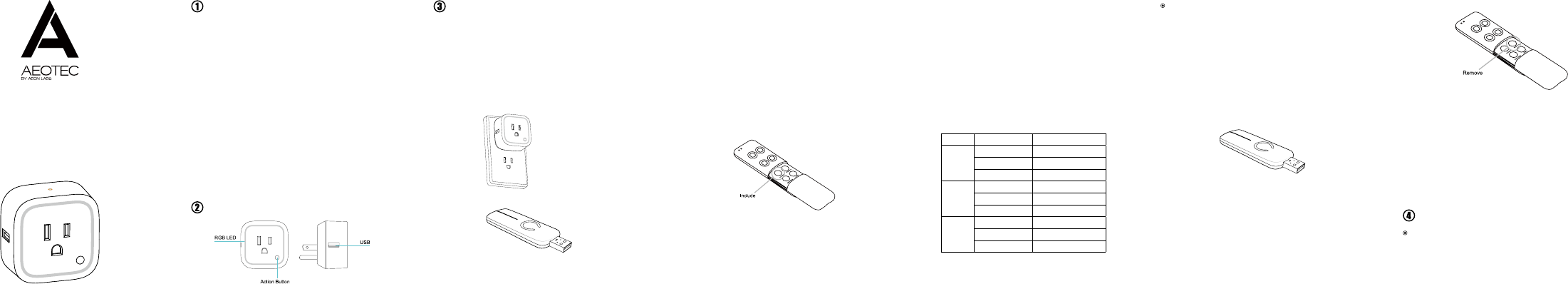

Familiarize yourself with your Smart Switch.
Getting your Smart Switch up and running is as simple
as plugging it into a wall socket and linking it to your
Z-Wave network. The following instructions tell you how
to link your Smart Switch to your Z-Wave network via
Aeotec by Aeon Labs’ Z-Stick or Minimote controller.
If you are using other products as your main Z-Wave
controller, such as a Z-Wave gateway, please refer to
the part of their respective manual that tells you how add
new devices to your network.
If you’re using a Z-Stick:
Quick start. 2.
3.
4.
5.
6.
7.
1. Decide on where you want your Smart Switch to be
placed and plug it in to a wall outlet. Its purple LED
will begin to blink.
If you’re using a Minimote:
1.
2.
3.
4.
5.
6.
Decide on where you want your Smart Switch to be
placed and plug it in to a wall socket. Its purple LED
will begin to blink.
Take your Minimote to your Smart Switch.
Press the Include button on your Minimote.
Press the Action Button on your Smart Switch.
If Smart Switch has been successfully linked to your
Z-Wave network, its RGB LED will no longer blink.
If the linking was unsuccessful and the purple LED
continues to blink repeat the instructions from step 3.
Press any button on your Minimote to take it out of
installation mode.
With your Smart Switch now working as a part of your
smart home, you’ll be able to configure it from your
home control software. Please refer to your software’s
user guide for precise instructions on conguring Smart
Switch to your needs.
The colour of RGB LED will change according to the
output load power level when it is in Energy mode:
Version LED indication Output (W)
US Green [0W, 800W)
Yellow [800W, 1500W)
Red [1500W, ∞)
AU Green [0W, 1000W)
Yellow [1000W, 2000W)
Red [2000W, ∞)
EU Green [0W, 1500W)
Yellow [1500W, 3000W)
Red [3000W, ∞)
You can also configure the brightness of RGB LED
when the RGB Bulb is in Energy mode, Momentary
Indicate mode, or Night Light mode.
Your Smart Switch can be removed from your Z-Wave
network at any time. You’ll need to use your Z-Wave
network’s main controller to do this and the following
instructions will tell you how to do this using a Aeotec
by Aeon Labs’ Z-Stick or Minimote controller. If you are
using other products as your main Z-Wave controller,
please refer to the part of their respective manuals that
tells you how remove devices from your network.
Removing your Smart Switch from a Z-Wave
network.
If you’re using a Z-Stick:
1.
2.
3.
4.
5.
6.
If your Z-Stick is plugged into a gateway or a
computer, unplug it.
Take your Z-Stick to your Smart Switch.
Press the Action Button on your Z-Stick.
Press the Action Button on your Smart Switch.
If your Smart Switch has been successfully removed
from your network, its RGB LED will blink. If the
removal was unsuccessful, the RGB LED will not
blink.
Press the Action Button on the Z-Stick to take it out of
removal mode
If you’re using a Minimote:
1.
2.
3.
4.
5.
Take your Minimote to your Smart Switch.
Press the Remove Button on your Minimote.
Press the Action Button on your Smart Switch.
If your Smart Switch has been successfully removed
from your network, its RGB LED will blink. If the
removal was unsuccessful, the RGB LED will not
blink.
Press any button on your Minimote to take it out of
removal mode.
If your Z-Stick is plugged into a gateway or a
computer, unplug it.
Take your Z-Stick to your Smart Switch.
Press the Action Button on your Z-Stick.
Press the Action Button on your Smart Switch.
If Smart Switch has been successfully linked to your
Z-Wave network, its RGB LED will no longer blink.
If the linking was unsuccessful and the purple LED
continues to blink repeat the instructions from step 4.
Press the Action Button on the Z-Stick to take it out of
installation mode and then return it to your gateway
or computer.
Changing LED mode.
You can change the mode of how the LED acts through
configuring the Smart Switch. There are 3 different
modes: Energy mode, Momentary indicate mode, and
Night light mode.
Advanced functions.
Reset your Smart Switch.
At some stage, if your primary controller is missing or
inoperable, you may wish to reset all of your Smart
Switch’s settings to their factory defaults. To do this,
press and hold the Action Button for 20 seconds and
then release it. Your Smart Switch will now be reset to
its original settings, and the RGB LED will be solid for 2
seconds and then start slow blinking as a conrmation.
Model number: ZW096
Max standby power: 0.5W.
USB output: DC 5V±0.3, 1000mA.
Operating temperature: -10 to 45 .
Relative humidity: 8% to 80%.
Operating distance: Up to 500feet/150metres outdoors.
AC input:
Technical specications.
C C
Version Input Working band
AU 230V 50Hz, Max: 10A 921.42MHz
BR 220V 60Hz, Max: 10A 921.42MHz
CN 220V 50Hz, Max: 10A 868.42MHz
EU 230V 50Hz, Max: 16A 868.42MHz
IL 230V 50Hz, Max: 16A 868.42MHz
IN 230V 50Hz, Max: 6A 865.22MHz
UK 230V 50Hz, Max: 13A 868.42MHz
US 120V 60Hz, Max: 15A 908.42MHz
6Warranty.
Aeon Labs warrants to the original purchaser of Products
that for the Warranty Period (as defined below), the
Products will be free from material defects in materials
and workmanship. The foregoing warranty is subject to
the proper installation, operation and maintenance of the
Products in accordance with installation instructions and
The "Warranty Period" begins on the date the Products
is delivered and continues for 12 months.
Any repairs under this warranty must be conducted by
an authorized Aeon Labs service representative and
under Aeon Labs' RMA policy. Any repairs conducted by
unauthorized persons shall void this warranty.
Excluded from the warranty are problems due to
accidents, acts of God, civil or military authority, civil
disturbance, war, strikes, fires, other catastrophes,
misuse, misapplication, storage damage, negligence,
electrical power problems, or modification to the
Products or its components.
Aeon Labs does not authorize any person or party to
assume or create for it any other obligation or liability in
connection with the Products except as set forth herein.
Aeon Labs will pass on to Customer all manufacturers’
Material warranties to the extent that they are
transferable, but will not independently warrant any
Material.
Customer must prepay shipping and transportation
charges for returned Products, and insure the shipment
Customer shall indemnify, defend, and hold Aeon
Labs and Aeon Labs' affiliates, shareholders,
directors, officers, employees, contractors, agents
and other representatives harmless from all demands,
claims, actions, causes of action, proceedings, suits,
assessments, losses, damages, liabilities, settlements,
judgments, nes, penalties, interest, costs and expenses
(including fees and disbursements of counsel) of
every kind (i) based upon personal injury or death or
injury to property to the extent any of the foregoing
is proximately caused either by a defective product
(including strict liability in tort) or by the negligent or
willful acts or omissions of Customer or its officers,
employees, subcontractors or agents, and/or (ii) arising
from or relating to any actual or alleged infringement or
misappropriation of any patent, trademark, mask work,
copyright, trade secret or any actual or alleged violation
of any other intellectual property rights arising from or
in connection with the products, except to the extent
that such infringement exists as a result of Aeon Labs'
manufacturing processes.
IN NO EVENT SHALL AEON LABS BE LIABLE FOR
ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL OR
CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF
FCC NOTICE (for USA)
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY
RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received,
including interference that may cause undesired
operation. This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1
2
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Contact your local government for information
regarding the collection systems available.
Warning
Certications (regional):
Z-Wave and Z-Wave Plus are registered trademarks of
Sigma Designs and its subsidiaries in the United States and
other countries
Version:501009600001-AA www.aeotec.com
Energy mode will allow the LED to follow the state of
the Smart Switch, when the switch is on, the LED will be
on, and while the switch is off, the LED will remain off.
Momentary indicate mode will momentarily turn the LED
on for 5 seconds then turn off after every state change
in the switch. Night light mode will allow the LED to be
turned on and off during your selected time of day you
have congured for it.
Parameter 81 [1 byte dec] can be set to:
(0) Energy Mode
(1) Momentary Indicate Mode
(2) Night Light Mode
the operating manual supplied to Customer. Warranty
claims must be made by Customer in writing within thirty
(30) days of the manifestation of a problem. Aeon Labs'
sole obligation under the foregoing warranty is, at Aeon
Labs' option, to repair, replace or correct any such defect
that was present at the time of delivery, or to remove the
Products and to refund the purchase price to Customer.
or accept the risk of loss or damage during such
shipment and transportation. Aeon Labs will ship the
repaired or replacement products to Customer freight
prepaid.
PROFITS, REVENUE, OR USE INCURRED BY CUSTOMER OR
ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT,
OR TORT, OR OTHERWISE EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. AEON LABS' LIABILITY
AND CUSTOMER'S EXCLUSIVE REMEDY FOR ANY CAUSE OF
ACTION ARISING IN CONNECTION WITH THIS AGREEMENT
OR THE SALE OR USE OF THE PRODUCTS, WHETHER
BASED ON NEGLIGENCE, STRICT LIABILITY, BREACH OF
WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE
PRINCIPLES, IS EXPRESSLY LIMITED TO, AT AEON LABS'
OPTION, REPLACEMENT OF, OR REPAYMENT OF THE
PURCHASE PRICE FOR THAT PORTION OF PRODUCTS
WITH RESPECT TO WHICH DAMAGES ARE CLAIMED. ALL
CLAIMS OF ANY KIND ARISING IN CONNECTION WITH THIS
AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL
BE DEEMED WAIVED UNLESS MADE IN WRITING WITHIN
THIRTY (30) DAYS FROM AEON LABS'S DELIVERY, OR THE
DATE FIXED FOR DELIVERY IN THE EVENT OF NONDELIVERY.
THE INDEMNITY AND WARRANTY IN ABOVE ARE EXCLUSIVE
AND IN LIEU OF ALL OTHER INDEMNITIES OR WARRANTIES,
WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY
LOCATIONS. DO NOT IMMERSE IN WATER. NOT FOR USE
WHERE DIRECTLY EXPOSED TO WATER.
Consul the dealer or an experienced radio/TV
technician for help.
