Aeon Labs ZW056 Doorbell Gen5 User Manual

Aeon Labs LLC. Doorbell Gen5

User Manual

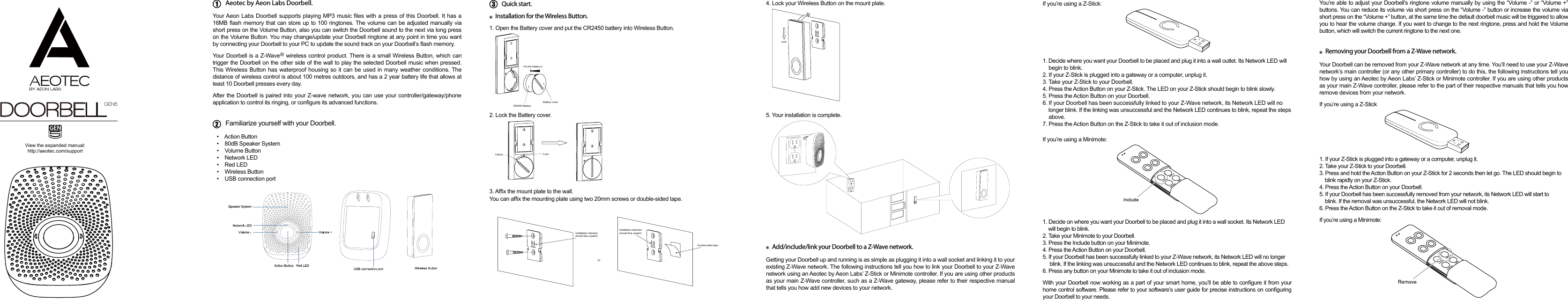

View the expanded manual:http://aeotec.com/supportAeotec by Aeon Labs Doorbell.Your Aeon Labs Doorbell supports playing MP3 music les with a press of this Doorbell. It has a 16MB ash memory that can store up to 100 ringtones. The volume can be adjusted manually via short press on the Volume Button, also you can switch the Doorbell sound to the next via long press on the Volume Button. You may change/update your Doorbell ringtone at any point in time you want by connecting your Doorbell to your PC to update the sound track on your Doorbell’s ash memory.Your Doorbell is a Z-Wave wireless control product. There is a small Wireless Button, which can trigger the Doorbell on the other side of the wall to play the selected Doorbell music when pressed. This Wireless Button has waterproof housing so it can be used in many weather conditions. The distance of wireless control is about 100 metres outdoors, and has a 2 year battery life that allows at least 10 Doorbell presses every day.After the Doorbell is paired into your Z-wave network, you can use your controller/gateway/phone application to control its ringing, or congure its advanced functions.®Getting your Doorbell up and running is as simple as plugging it into a wall socket and linking it to your existing Z-Wave network. The following instructions tell you how to link your Doorbell to your Z-Wave network using an Aeotec by Aeon Labs’ Z-Stick or Minimote controller. If you are using other products as your main Z-Wave controller, such as a Z-Wave gateway, please refer to their respective manual that tells you how add new devices to your network.Your Doorbell can be removed from your Z-Wave network at any time. You’ll need to use your Z-Wave network’s main controller (or any other primary controller) to do this, the following instructions tell you how by using an Aeotec by Aeon Labs’ Z-Stick or Minimote controller. If you are using other products as your main Z-Wave controller, please refer to the part of their respective manuals that tells you how remove devices from your network.If you’re using a Z-Stick• Action Button• 80dB Speaker System• Volume Button• Network LED• Red LED• Wireless Button• USB connection portFamiliarize yourself with your Doorbell.Quick start.1. Decide where you want your Doorbell to be placed and plug it into a wall outlet. Its Network LED will begin to blink.2. If your Z-Stick is plugged into a gateway or a computer, unplug it.3. Take your Z-Stick to your Doorbell.4. Press the Action Button on your Z-Stick. The LED on your Z-Stick should begin to blink slowly.5. Press the Action Button on your Doorbell.6. If your Doorbell has been successfully linked to your Z-Wave network, its Network LED will no longer blink. If the linking was unsuccessful and the Network LED continues to blink, repeat the steps above.7. Press the Action Button on the Z-Stick to take it out of inclusion mode.1. If your Z-Stick is plugged into a gateway or a computer, unplug it.2. Take your Z-Stick to your Doorbell.3. Press and hold the Action Button on your Z-Stick for 2 seconds then let go. The LED should begin to blink rapidly on your Z-Stick.4. Press the Action Button on your Doorbell.5. If your Doorbell has been successfully removed from your network, its Network LED will start to blink. If the removal was unsuccessful, the Network LED will not blink.6. Press the Action Button on the Z-Stick to take it out of removal mode.If you’re using a Minimote:1. Decide on where you want your Doorbell to be placed and plug it into a wall socket. Its Network LED will begin to blink.2. Take your Minimote to your Doorbell.3. Press the Include button on your Minimote.4. Press the Action Button on your Doorbell.5. If your Doorbell has been successfully linked to your Z-Wave network, its Network LED will no longer blink. If the linking was unsuccessful and the Network LED continues to blink, repeat the above steps.6. Press any button on your Minimote to take it out of inclusion mode.If you’re using a Minimote:Removing your Doorbell from a Z-Wave network.Installation for the Wireless Button.Add/include/link your Doorbell to a Z-Wave network.1. Open the Battery cover and put the CR2450 battery into Wireless Button.2. Lock the Battery cover.4. Lock your Wireless Button on the mount plate.5. Your installation is complete.3. Afx the mount plate to the wall.You can afx the mounting plate using two 20mm screws or double-sided tape.DOORBELL GEN5With your Doorbell now working as a part of your smart home, you’ll be able to congure it from your home control software. Please refer to your software’s user guide for precise instructions on conguring your Doorbell to your needs.Put the battery inCR2450 BatteryBattery coverLockUnlockLockYou’re able to adjust your Doorbell’s ringtone volume manually by using the “Volume -“ or “Volume +” buttons. You can reduce its volume via short press on the “Volume -” button or increase the volume via short press on the “Volume +” button, at the same time the default doorbell music will be triggered to allow you to hear the volume change. If you want to change to the next ringtone, press and hold the Volume button, which will switch the current ringtone to the next one.Installation directionshould face upwardDouble-sided tapeInstallation directionshould face upwardOrIf you’re using a Z-Stick:

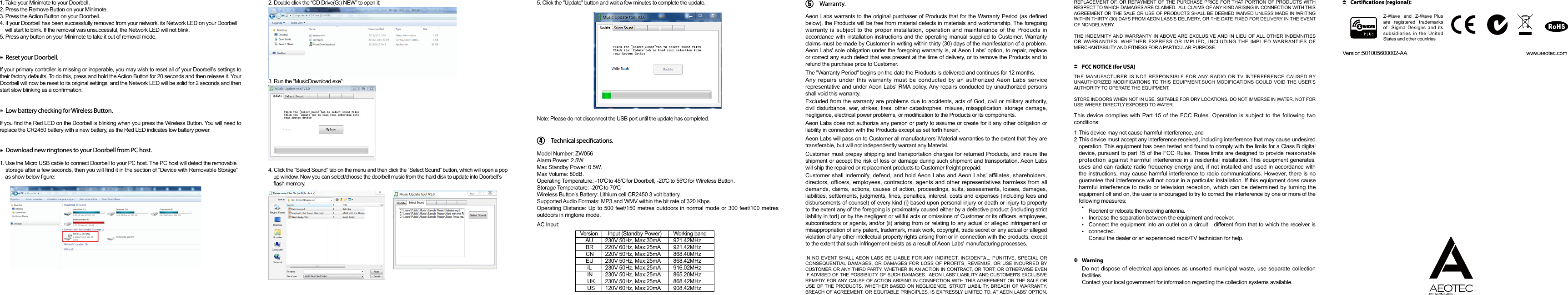

5. Click the "Update" button and wait a few minutes to complete the update.Note: Please do not disconnect the USB port until the update has completed.Technical specications. Model Number: ZW056Alarm Power: 2.5W.Max Standby Power: 0.5W.Max Volume: 80dB.Operating Temperature: -10 to 45 for Doorbell, -20 to 55 for Wireless Button.Storage Temperature: -20 to 70 .Wireless Button’s Battery: Lithium cell CR2450 3 volt battery.Supported Audio Formats: MP3 and WMV within the bit rate of 320 Kbps.Operating Distance: Up to 500 feet/150 metres outdoors in normal mode or 300 feet/100 metres outdoors in ringtone mode.AC Input: Version Input (Standby Power) Working band AU 230V 50Hz, Max:30mA 921.42MHz BR 220V 60Hz, Max:25mA 921.42MHz CN 220V 50Hz, Max:25mA 868.40MHz EU 230V 50Hz, Max:25mA 868.42MHz IL 230V 50Hz, Max:25mA 916.02MHz IN 230V 50Hz, Max:25mA 865.20MHz UK 230V 50Hz, Max:25mA 868.42MHz US 120V 60Hz, Max:20mA 908.42MHzCC CC C CWarranty.Aeon Labs warrants to the original purchaser of Products that for the Warranty Period (as dened below), the Products will be free from material defects in materials and workmanship. The foregoing warranty is subject to the proper installation, operation and maintenance of the Products in accordance with installation instructions and the operating manual supplied to Customer. Warranty claims must be made by Customer in writing within thirty (30) days of the manifestation of a problem. Aeon Labs' sole obligation under the foregoing warranty is, at Aeon Labs' option, to repair, replace or correct any such defect that was present at the time of delivery, or to remove the Products and to refund the purchase price to Customer. The "Warranty Period" begins on the date the Products is delivered and continues for 12 months. Any repairs under this warranty must be conducted by an authorized Aeon Labs service representative and under Aeon Labs' RMA policy. Any repairs conducted by unauthorized persons shall void this warranty.Excluded from the warranty are problems due to accidents, acts of God, civil or military authority, civil disturbance, war, strikes, fires, other catastrophes, misuse, misapplication, storage damage, negligence, electrical power problems, or modication to the Products or its components. Aeon Labs does not authorize any person or party to assume or create for it any other obligation or liability in connection with the Products except as set forth herein. Aeon Labs will pass on to Customer all manufacturers’ Material warranties to the extent that they are transferable, but will not independently warrant any Material.Customer must prepay shipping and transportation charges for returned Products, and insure the shipment or accept the risk of loss or damage during such shipment and transportation. Aeon Labs will ship the repaired or replacement products to Customer freight prepaid.Customer shall indemnify, defend, and hold Aeon Labs and Aeon Labs' affiliates, shareholders, directors, officers, employees, contractors, agents and other representatives harmless from all demands, claims, actions, causes of action, proceedings, suits, assessments, losses, damages, liabilities, settlements, judgments, nes, penalties, interest, costs and expenses (including fees and disbursements of counsel) of every kind (i) based upon personal injury or death or injury to property to the extent any of the foregoing is proximately caused either by a defective product (including strict liability in tort) or by the negligent or willful acts or omissions of Customer or its ofcers, employees, subcontractors or agents, and/or (ii) arising from or relating to any actual or alleged infringement or misappropriation of any patent, trademark, mask work, copyright, trade secret or any actual or alleged violation of any other intellectual property rights arising from or in connection with the products, except to the extent that such infringement exists as a result of Aeon Labs' manufacturing processes. IN NO EVENT SHALL AEON LABS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, OR USE INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT, OR TORT, OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AEON LABS' LIABILITY AND CUSTOMER'S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED ON NEGLIGENCE, STRICT LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS EXPRESSLY LIMITED TO, AT AEON LABS' OPTION, FCC NOTICE (for USA)This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY LOCATIONS. DO NOT IMMERSE IN WATER. NOT FOR USE WHERE DIRECTLY EXPOSED TO WATER.This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 12Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consul the dealer or an experienced radio/TV technician for help.Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.Contact your local government for information regarding the collection systems available.WarningCertications (regional):Z-Wave and Z-Wave Plus are registered trademarks of Sigma Designs and its subsidiaries in the United States and other countriesVersion:501005600002-AA www.aeotec.comREPLACEMENT OF, OR REPAYMENT OF THE PURCHASE PRICE FOR THAT PORTION OF PRODUCTS WITH RESPECT TO WHICH DAMAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED WAIVED UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM AEON LABS'S DELIVERY, OR THE DATE FIXED FOR DELIVERY IN THE EVENT OF NONDELIVERY. THE INDEMNITY AND WARRANTY IN ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER INDEMNITIES OR WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.2. Double click the “CD Drive(G:) NEW” to open it:3. Run the “MusicDownload.exe”:4. Click the “Select Sound” tab on the menu and then click the “Select Sound” button, which will open a pop up window. Now you can select/choose the doorbell music from the hard disk to update into Doorbell’s ash memory.Reset your Doorbell.Low battery checking for Wireless Button.Download new ringtones to your Doorbell from PC host.1. Take your Minimote to your Doorbell.2. Press the Remove Button on your Minimote.3. Press the Action Button on your Doorbell.4. If your Doorbell has been successfully removed from your network, its Network LED on your Doorbell will start to blink. If the removal was unsuccessful, the Network LED will not blink.5. Press any button on your Minimote to take it out of removal mode.If your primary controller is missing or inoperable, you may wish to reset all of your Doorbell’s settings to their factory defaults. To do this, press and hold the Action Button for 20 seconds and then release it. Your Doorbell will now be reset to its original settings, and the Network LED will be solid for 2 seconds and then start slow blinking as a conrmation.If you nd the Red LED on the Doorbell is blinking when you press the Wireless Button. You will need to replace the CR2450 battery with a new battery, as the Red LED indicates low battery power. 1. Use the Micro USB cable to connect Doorbell to your PC host. The PC host will detect the removable storage after a few seconds, then you will nd it in the section of “Device with Removable Storage” as show below gure:
