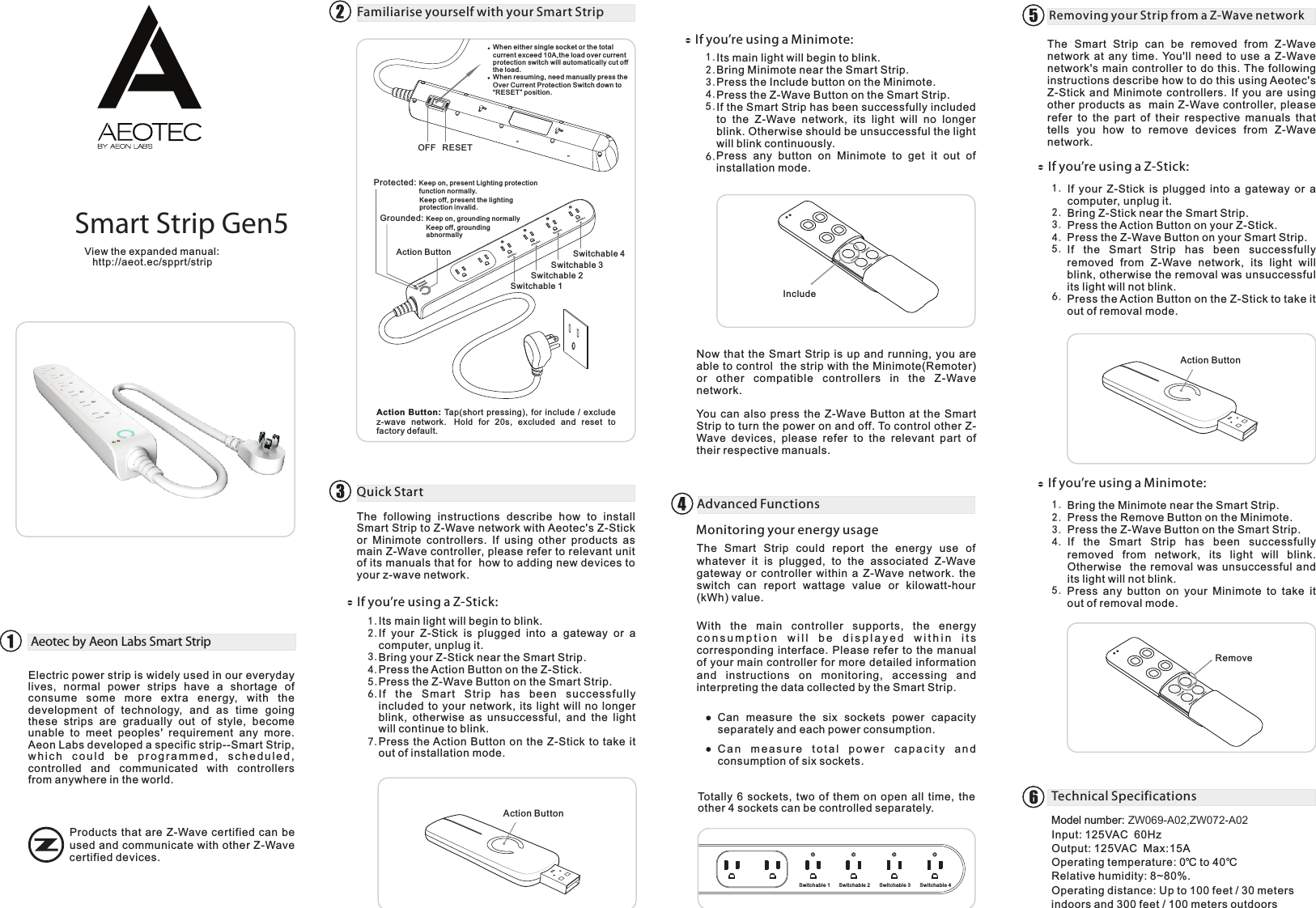

Smart Strip Gen5http://aeot.ec/spprt/stripView the expanded manual:Electric power strip is widely used in our everyday lives, normal power strips have a shortage of consume some more extra energy, with the development of technology, and as time going these strips are gradually out of style, become unable to meet peoples' requirement any more. Aeon Labs developed a specific strip--Smart Strip, w h i c h c o u l d b e p r o g r a m m e d , s c h e d u l e d , controlled and communicated with controllers from anywhere in the world.Aeotec by Aeon Labs Smart StripFamiliarise yourself with your Smart StripProducts that are Z-Wave certified can be used and communicate with other Z-Wave certified devices.Quick StartThe following instructions describe how to install Smart Strip to Z-Wave network with Aeotec's Z-Stick or Minimote controllers. If using other products as main Z-Wave controller, please refer to relevant unit of its manuals that for how to adding new devices to your z-wave network.Action ButtonAction ButtonIf you’re using a Z-Stick:Its main light will begin to blink.If your Z-Stick is plugged into a gateway or a computer, unplug it.Bring your Z-Stick near the Smart Strip.Press the Action Button on the Z-Stick.Press the Z-Wave Button on the Smart Strip.If th e Smart Stri p has been succe s sfully included to your network, its light will no longer blink, otherwise as unsuccessful, and the light will continue to blink.Press the Action Button on the Z-Stick to take it out of installation mode.1 .2 .3 .4 .5 .6 .7 .If you’re using a Minimote:Its main light will begin to blink.Bring Minimote near the Smart Strip.Press the Include button on the Minimote.Press the Z-Wave Button on the Smart Strip.If the Smart Strip has been successfully included to the Z-Wave network, its light will no longer blink. Otherwise should be unsuccessful the light will blink continuously.Press any button on Minimote to get it out of installation mode.1 .2 .3 .4 .5 .6 .IncludeThe Smart Strip can be removed from Z-Wave network at any time. You'll need to use a Z-Wave network's main controller to do this. The following instructions describe how to do this using Aeotec's Z-Stick and Minimote controllers. If you are using other products as main Z-Wave controller, please refer to the part of their respective manuals that tells you how to remove devices from Z-Wave network. Advanced FunctionsMonitoring your energy usageThe Smart Strip could report the energy use of whatever it is plugged, to the associated Z-Wave gateway or controller within a Z-Wave network. the switch can report wattage value or kilowatt-hour (kWh) value.With the main controller supports, the energy c o n s u m p t i o n w i l l b e d i s p l a y e d w i t h i n i t s corresponding interface. Please refer to the manual of your main controller for more detailed information and instructions on monitoring, accessing and interpreting the data collected by the Smart Strip.If you’re using a Z-Stick:If your Z-Stick is plugged into a gateway or a computer, unplug it.Bring Z-Stick near the Smart Strip.Press the Action Button on your Z-Stick.Press the Z-Wave Button on your Smart Strip.If the Smart Strip has been successfully removed from Z-Wave network, its light will blink, otherwise the removal was unsuccessful its light will not blink.Press the Action Button on the Z-Stick to take it out of removal mode.1 .2 .3 .4 .5 .6 .If you’re using a Minimote:Bring the Minimote near the Smart Strip.Press the Remove Button on the Minimote.Press the Z-Wave Button on the Smart Strip.If the Smart Strip has been successfully removed from network, its light will blink. Otherwise the removal was unsuccessful and its light will not blink.Press any button on your Minimote to take it out of removal mode.1 .2 .3 .4 .5 .RemoveNow that the Smart Strip is up and running, you are able to control the strip with the Minimote(Remoter) or other compatible controllers in the Z-Wave network.You can also press the Z-Wave Button at the Smart Strip to turn the power on and off. To control other Z-Wave devices, please refer to the relevant part of their respective manuals.Removing your Strip from a Z-Wave networkSwit chabl e 1Switchable 1Swit chabl e 2 Swit chabl e 3 Swit chabl e 4Switchable 2Switchable 3Switchable 4Protected:OFF RESETWhen either single socket or the total current exceed 10A,the load over current protection switch will automatically cut off the load.When resuming, need manually press the Over Current Protection Switch down to “RESET” position. Can measure the six sockets power capacity separately and each power consumption.C a n m e a s u r e t o t a l p o w e r c a p a c i t y a n d consumption of six sockets.Keep on, present Lighting protection function normally.Keep off, present the lighting protection invalid.Grounded: Keep on, grounding normallyKeep off, grounding abnormallyAction ButtonAct ion But ton: Tap(short pressing), for include / exclude z-wave network. Hold for 20s, excluded and reset to factory default.Totally 6 sockets, two of them on open all time, the other 4 sockets can be controlled separately.Switchable 1 Switchable 2 Switchable 3 Switchable 46Technical SpecificationsModel number: ZW069-A02,ZW072-A02Input: 125VAC 60HzOutput: 125VAC Max:15AOperating temperature: 0℃ to 40℃Relative humidity: 8~80%.Operating distance: Up to 100 feet / 30 meters indoors and 300 feet / 100 meters outdoors

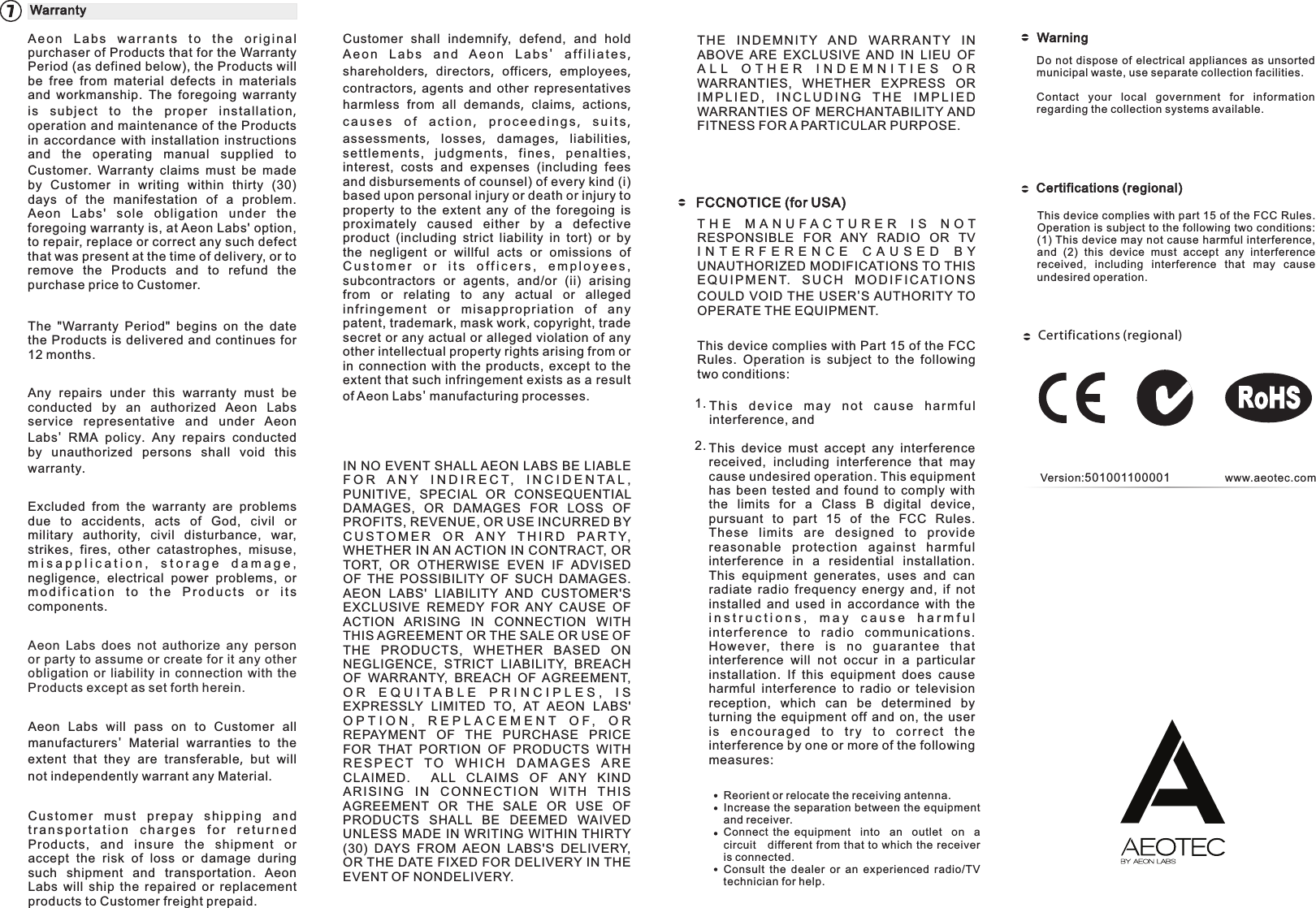

www.aeotec.comCertifications (regional)Version:501001100001A e o n L a b s w a r r a n t s to t h e o r i g i n a l purchaser of Products that for the Warranty Period (as defined below), the Products will be free from material defects in materials and workmanship. The foregoing warranty is su bje ct to t he pr oper in sta llati on, operation and maintenance of the Products in accordance with installation instructions and the operating manual supplied to Customer. Warranty claims must be made by Customer in writing within thirty (30) days of the manifestation of a problem. Aeon Labs' sole obligation under the foregoing warranty is, at Aeon Labs' option, to repair, replace or correct any such defect that was present at the time of delivery, or to remove the Products and to refund the purchase price to Customer. The "Warranty Period" begins on the date the Products is delivered and continues for 12 months. Any repairs under this warranty must be conducted by an authorized Aeon Labs service representative and under Aeon Labs' RMA policy. Any repairs conducted by unauthorized persons shall void this warranty.Excluded from the warranty are problems due to accidents, acts of God, civil or military authority, civil disturbance, war, strikes, fires, other catastrophes, misuse, misapplication, storage damage, negligence, electrical power problems, or m o d i f i c a t i o n t o t h e P r o d u c t s o r i t s components. Aeon Labs does not authorize any person or party to assume or create for it any other obligation or liability in connection with the Products except as set forth herein. Aeon Labs will pass on to Customer all manufacturers' Material warranties to the extent that they are transferable, but will not independently warrant any Material.Cu s t o mer mu s t p re p a y s h ip p i n g and t r a n s p o r t a t i o n c h a r g e s f o r r e t u r n e d Products, and insure the shipment or accept the risk of loss or damage during such shipment and transportation. Aeon Labs will ship the repaired or replacement products to Customer freight prepaid.Customer shall indemnify, defend, and hold Aeon Labs and Aeon Labs' affiliates, shareholders, directors, officers, employees, contractors, agents and other representatives harmless from all demands, claims, actions, c a u s e s o f a c t i o n , p r o c e e d i n g s , s u i t s , assessments, losses, damages, liabilities, settlem ent s, judg men ts, fin es, penalties , interest, costs and expenses (including fees and disbursements of counsel) of every kind (i) based upon personal injury or death or injury to property to the extent any of the foregoing is proximately caused either by a defective product (including strict liability in tort) or by the negligent or willful acts or omissions of C u s t o m e r o r i t s o f f i c e r s , e m p l o y e e s , subcontractors or agents, and/or (ii) arising from or relating to any actual or alleged infringement or misappropriation of any patent, trademark, mask work, copyright, trade secret or any actual or alleged violation of any other intellectual property rights arising from or in connection with the products, except to the extent that such infringement exists as a result of Aeon Labs' manufacturing processes.IN NO EVENT SHALL AEON LABS BE LIABLE F O R A N Y I N D I R E C T, I N C I D E N T A L , PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, OR USE INCURRED BY C U S T O M E R O R A N Y T H I R D PA R T Y, WHETHER IN AN ACTION IN CONTRACT, OR TORT, OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AEON LABS' LIABILITY AND CUSTOMER'S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED ON NEGLIGENCE, STRICT LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, O R E Q U I T A B L E P R I N C I P L E S , I S EXPRESSLY LIMITED TO, AT AEON LABS' O P T I O N , R E P L A C E M E N T O F , O R REPAYMENT OF THE PURCHASE PRICE FOR THAT PORTION OF PRODUCTS WITH R E S P E C T TO W H I C H D A M A G E S A R E CLAIMED. ALL CLAIMS OF ANY KIND AR I S I N G I N CON N E C T ION WI T H THI S AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED WAIVED UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM AEON LABS'S DELIVERY, OR THE DATE FIXED FOR DELIVERY IN THE EVENT OF NONDELIVERY. TH E I N DE M N IT Y A ND WA R RA N T Y IN ABOVE ARE EXCLUSIVE AND IN LIEU OF A L L O T H E R I N D E M N I T I E S O R WARRANTIES, WHETHER EXPRESS OR I M P L I E D , I N C L U D I N G T H E I M P L I E D WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.T H E M A N U F A C T U R E R I S N O T RESPONSIBLE FOR ANY RADIO OR TV I N T E R F E R E N C E C A U S E D B YUNAUTHORIZED MODIFICATIONS TO THIS E Q U I P M E N T. S U C H M O D I F I C AT I O N S COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:Th i s d e v i ce ma y no t c a u se ha r m f u l interference, and This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the i n s t r u c t i o n s , m a y c a u s e h a r m f u l interference to radio communications. Howe ver, ther e is no gua rantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is en c o ur a g e d to tr y t o c orr e c t th e interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.1.2.WarrantyWarningFCCNOTICE (for USA)Certifications (regional)Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.Contact your local government for information regarding the collection systems available.
