Aeon Labs ZW120 Door/Window Sensor Gen5 User Manual

Aeon Labs LLC. Door/Window Sensor Gen5 Users Manual

Users Manual

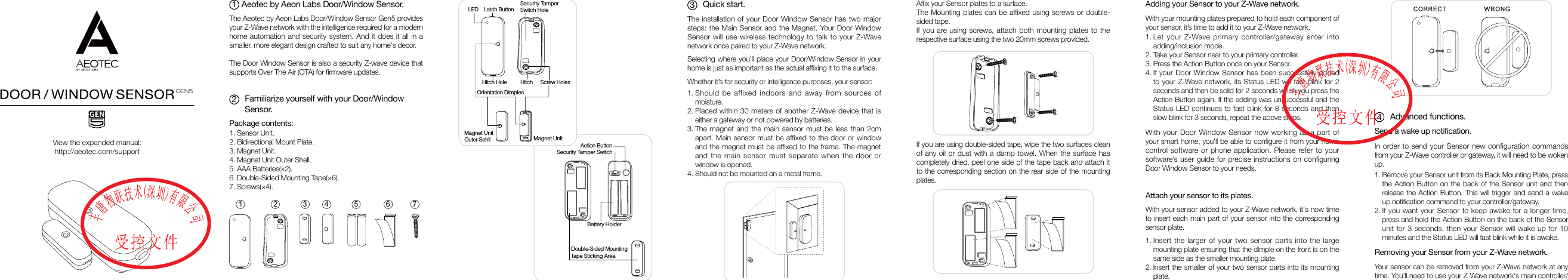

View the expanded manual:http://aeotec.com/supportAeotec by Aeon Labs Door/Window Sensor.13The Aeotec by Aeon Labs Door/Window Sensor Gen5 provides your Z-Wave network with the intelligence required for a modern home automation and security system. And it does it all in a smaller, more elegant design crafted to suit any home's decor.The Door Window Sensor is also a security Z-wave device that supports Over The Air (OTA) for rmware updates.The installation of your Door Window Sensor has two major steps: the Main Sensor and the Magnet. Your Door Window Sensor will use wireless technology to talk to your Z-Wave network once paired to your Z-Wave network.Selecting where you'll place your Door/Window Sensor in your home is just as important as the actual afxing it to the surface.Whether it’s for security or intelligence purposes, your sensor:With your mounting plates prepared to hold each component of your sensor, it’s time to add it to your Z-Wave network.With your sensor added to your Z-Wave network, it's now time to insert each main part of your sensor into the corresponding sensor plate.1.2.3.4.Should be affixed indoors and away from sources of moisture.Placed within 30 meters of another Z-Wave device that is either a gateway or not powered by batteries.The magnet and the main sensor must be less than 2cm apart. Main sensor must be afxed to the door or window and the magnet must be afxed to the frame. The magnet and the main sensor must separate when the door or window is opened.Should not be mounted on a metal frame.Afx your Sensor plates to a surface.The Mounting plates can be affixed using screws or double-sided tape. If you are using screws, attach both mounting plates to the respective surface using the two 20mm screws provided. If you are using double-sided tape, wipe the two surfaces clean of any oil or dust with a damp towel. When the surface has completely dried, peel one side of the tape back and attach it to the corresponding section on the rear side of the mounting plates.Familiarize yourself with your Door/Window Sensor.Quick start.With your Door Window Sensor now working as a part of your smart home, you’ll be able to congure it from your home control software or phone application. Please refer to your software’s user guide for precise instructions on configuring Door Window Sensor to your needs.LED Latch ButtonScrew HolesHitchHitch HoleOrientation DimplesMagnet UnitAction ButtonSecurity Tamper SwitchBattery HolderDouble-Sided MountingTape Sticking AreaMagnet UnitOuter SehllSecurity TamperSwitch Hole Adding your Sensor to your Z-Wave network.Attach your sensor to its plates.Package contents:1. Sensor Unit.2. Bidirectional Mount Plate.3. Magnet Unit.4. Magnet Unit Outer Shell.5. AAA Batteries(×2).6. Double-Sided Mounting Tape(×6).7. Screws(×4).1 2 3 6 75421.2.3.4.1.2.Let your Z-Wave primary controller/gateway enter into adding/inclusion mode.Take your Sensor near to your primary controller.Press the Action Button once on your Sensor.If your Door Window Sensor has been successfully added to your Z-Wave network, its Status LED will fast blink for 2 seconds and then be solid for 2 seconds when you press the Action Button again. If the adding was unsuccessful and the Status LED continues to fast blink for 8 seconds and then slow blink for 3 seconds, repeat the above steps.Insert the larger of your two sensor parts into the large mounting plate ensuring that the dlmple on the front is on the same side as the smaller mounting plate.lnsert the smaller of your two sensor parts into its mounting plate.GEN51.2.Remove your Sensor unit from its Back Mounting Plate, press the Action Button on the back of the Sensor unit and then release the Action Button. This will trigger and send a wake up notication command to your controller/gateway.If you want your Sensor to keep awake for a longer time, press and hold the Action Button on the back of the Sensor unit for 3 seconds, then your Sensor will wake up for 10 minutes and the Status LED will fast blink while it is awake.4In order to send your Sensor new configuration commands from your Z-Wave controller or gateway, it will need to be woken up.Your sensor can be removed from your Z-Wave network at any time. You'll need to use your Z-Wave network's main controller/Send a wake up notification.Removing your Sensor from your Z-Wave network.Advanced functions.

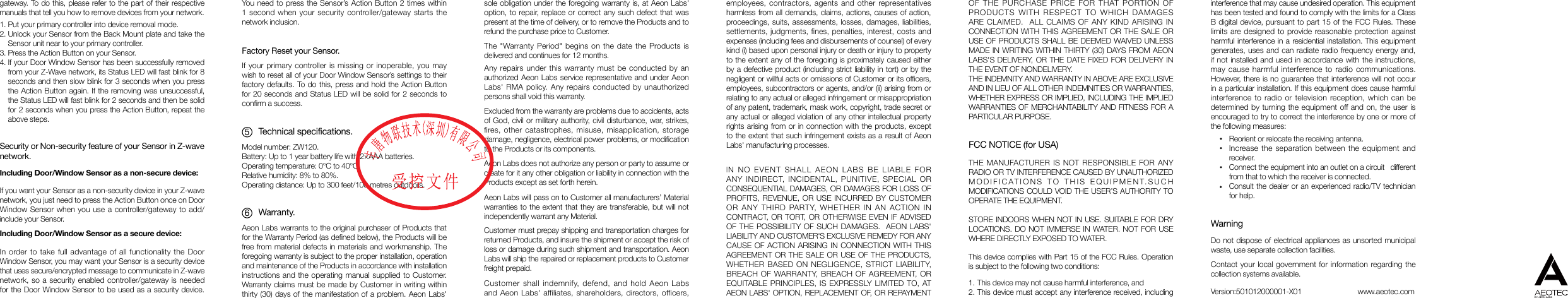

1.2.3.4.Put your primary controller into device removal mode.Unlock your Sensor from the Back Mount plate and take the Sensor unit near to your primary controller.Press the Action Button on your Sensor.If your Door Window Sensor has been successfully removed from your Z-Wave network, its Status LED will fast blink for 8 seconds and then slow blink for 3 seconds when you press the Action Button again. If the removing was unsuccessful, the Status LED will fast blink for 2 seconds and then be solid for 2 seconds when you press the Action Button, repeat the above steps.If you want your Sensor as a non-security device in your Z-wave network, you just need to press the Action Button once on Door Window Sensor when you use a controller/gateway to add/include your Sensor.Security or Non-security feature of your Sensor in Z-wave network.Factory Reset your Sensor.Including Door/Window Sensor as a non-secure device:Model number: ZW120.Battery: Up to 1 year battery life with 2×AAA batteries.Operating temperature: 0°C to 40°C.Relative humidity: 8% to 80%.Operating distance: Up to 300 feet/100 metres outdoors.Technical specifications. 5In order to take full advantage of all functionality the Door Window Sensor, you may want your Sensor is a security device that uses secure/encrypted message to communicate in Z-wave network, so a security enabled controller/gateway is needed for the Door Window Sensor to be used as a security device. Including Door/Window Sensor as a secure device:Warranty.Aeon Labs warrants to the original purchaser of Products that for the Warranty Period (as dened below), the Products will be free from material defects in materials and workmanship. The foregoing warranty is subject to the proper installation, operation and maintenance of the Products in accordance with installation instructions and the operating manual supplied to Customer. Warranty claims must be made by Customer in writing within thirty (30) days of the manifestation of a problem. Aeon Labs' The "Warranty Period" begins on the date the Products is delivered and continues for 12 months. Any repairs under this warranty must be conducted by an authorized Aeon Labs service representative and under Aeon Labs' RMA policy. Any repairs conducted by unauthorized persons shall void this warranty.Aeon Labs does not authorize any person or party to assume or create for it any other obligation or liability in connection with the Products except as set forth herein. Aeon Labs will pass on to Customer all manufacturers’ Material warranties to the extent that they are transferable, but will not independently warrant any Material.Customer must prepay shipping and transportation charges for returned Products, and insure the shipment or accept the risk of loss or damage during such shipment and transportation. Aeon Labs will ship the repaired or replacement products to Customer freight prepaid.Customer shall indemnify, defend, and hold Aeon Labs and Aeon Labs' affiliates, shareholders, directors, officers, Excluded from the warranty are problems due to accidents, acts of God, civil or military authority, civil disturbance, war, strikes, fires, other catastrophes, misuse, misapplication, storage damage, negligence, electrical power problems, or modication to the Products or its components. 6IN NO EVENT SHALL AEON LABS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, OR USE INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT, OR TORT, OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AEON LABS' LIABILITY AND CUSTOMER'S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED ON NEGLIGENCE, STRICT LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS EXPRESSLY LIMITED TO, AT AEON LABS' OPTION, REPLACEMENT OF, OR REPAYMENT FCC NOTICE (for USA)This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY LOCATIONS. DO NOT IMMERSE IN WATER. NOT FOR USE WHERE DIRECTLY EXPOSED TO WATER.This device may not cause harmful interference, and This device must accept any interference received, including 1.2.Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.WarningVersion:501012000001-X01 www.aeotec.comContact your local government for information regarding the collection systems available.OF THE PURCHASE PRICE FOR THAT PORTION OF PRODUCTS WITH RESPECT TO WHICH DAMAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED WAIVED UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM AEON LABS'S DELIVERY, OR THE DATE FIXED FOR DELIVERY IN THE EVENT OF NONDELIVERY. THE INDEMNITY AND WARRANTY IN ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER INDEMNITIES OR WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: gateway. To do this, please refer to the part of their respective manuals that tell you how to remove devices from your network.You need to press the Sensor’s Action Button 2 times within 1 second when your security controller/gateway starts the network inclusion.If your primary controller is missing or inoperable, you may wish to reset all of your Door Window Sensor’s settings to their factory defaults. To do this, press and hold the Action Button for 20 seconds and Status LED will be solid for 2 seconds to conrm a success.sole obligation under the foregoing warranty is, at Aeon Labs' option, to repair, replace or correct any such defect that was present at the time of delivery, or to remove the Products and to refund the purchase price to Customer. employees, contractors, agents and other representatives harmless from all demands, claims, actions, causes of action, proceedings, suits, assessments, losses, damages, liabilities, settlements, judgments, fines, penalties, interest, costs and expenses (including fees and disbursements of counsel) of every kind (i) based upon personal injury or death or injury to property to the extent any of the foregoing is proximately caused either by a defective product (including strict liability in tort) or by the negligent or willful acts or omissions of Customer or its ofcers, employees, subcontractors or agents, and/or (ii) arising from or relating to any actual or alleged infringement or misappropriation of any patent, trademark, mask work, copyright, trade secret or any actual or alleged violation of any other intellectual property rights arising from or in connection with the products, except to the extent that such infringement exists as a result of Aeon Labs' manufacturing processes.
