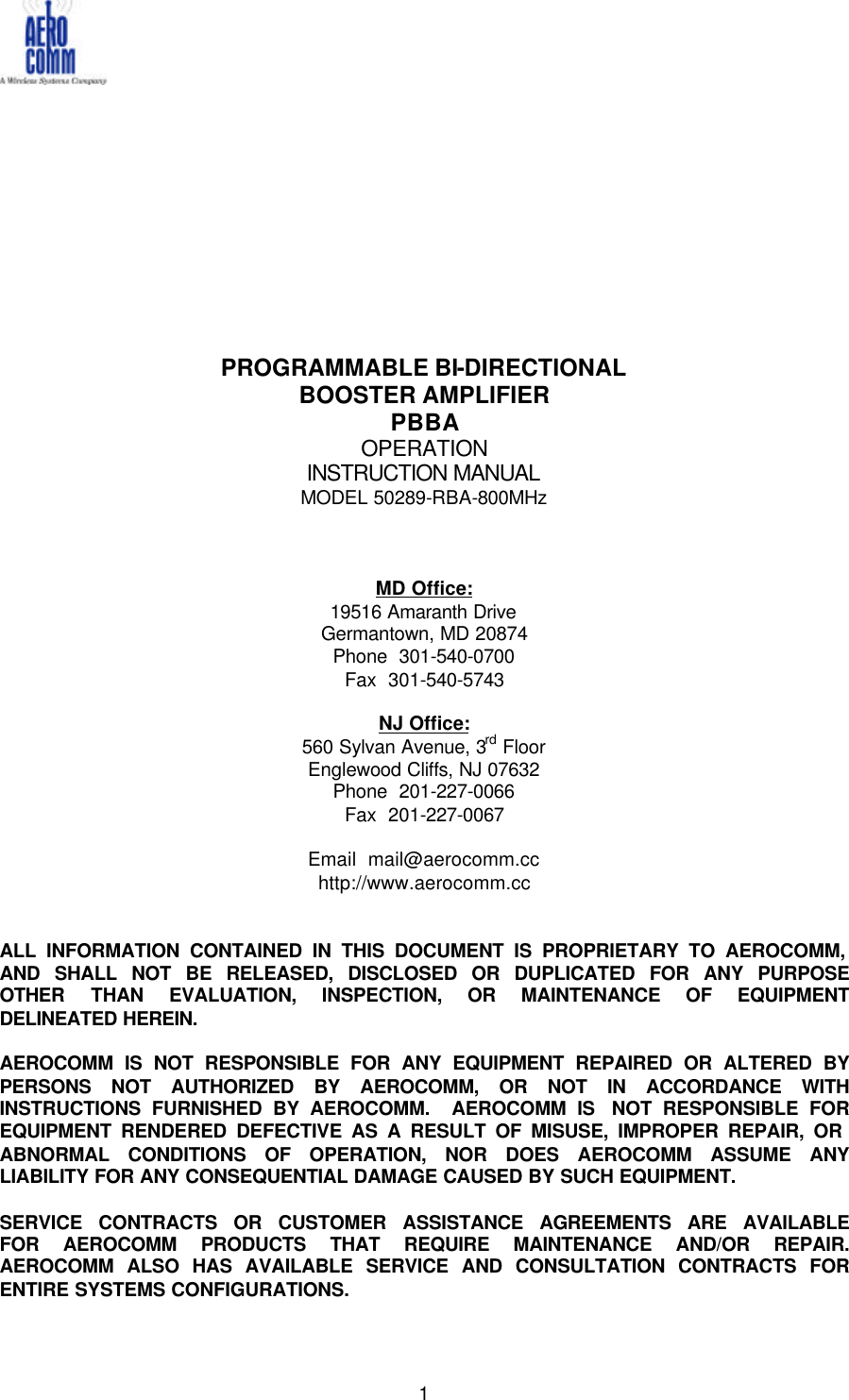

1 PROGRAMMABLE BI-DIRECTIONAL BOOSTER AMPLIFIER PBBA OPERATION INSTRUCTION MANUAL MODEL 50289-RBA-800MHz MD Office: 19516 Amaranth Drive Germantown, MD 20874 Phone 301-540-0700 Fax 301-540-5743 NJ Office: 560 Sylvan Avenue, 3rd Floor Englewood Cliffs, NJ 07632 Phone 201-227-0066 Fax 201-227-0067 Email mail@aerocomm.cc http://www.aerocomm.cc ALL INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO AEROCOMM, AND SHALL NOT BE RELEASED, DISCLOSED OR DUPLICATED FOR ANY PURPOSE OTHER THAN EVALUATION, INSPECTION, OR MAINTENANCE OF EQUIPMENT DELINEATED HEREIN. AEROCOMM IS NOT RESPONSIBLE FOR ANY EQUIPMENT REPAIRED OR ALTERED BY PERSONS NOT AUTHORIZED BY AEROCOMM, OR NOT IN ACCORDANCE WITH INSTRUCTIONS FURNISHED BY AEROCOMM. AEROCOMM IS NOT RESPONSIBLE FOR EQUIPMENT RENDERED DEFECTIVE AS A RESULT OF MISUSE, IMPROPER REPAIR, OR ABNORMAL CONDITIONS OF OPERATION, NOR DOES AEROCOMM ASSUME ANY LIABILITY FOR ANY CONSEQUENTIAL DAMAGE CAUSED BY SUCH EQUIPMENT. SERVICE CONTRACTS OR CUSTOMER ASSISTANCE AGREEMENTS ARE AVAILABLE FOR AEROCOMM PRODUCTS THAT REQUIRE MAINTENANCE AND/OR REPAIR. AEROCOMM ALSO HAS AVAILABLE SERVICE AND CONSULTATION CONTRACTS FOR ENTIRE SYSTEMS CONFIGURATIONS.

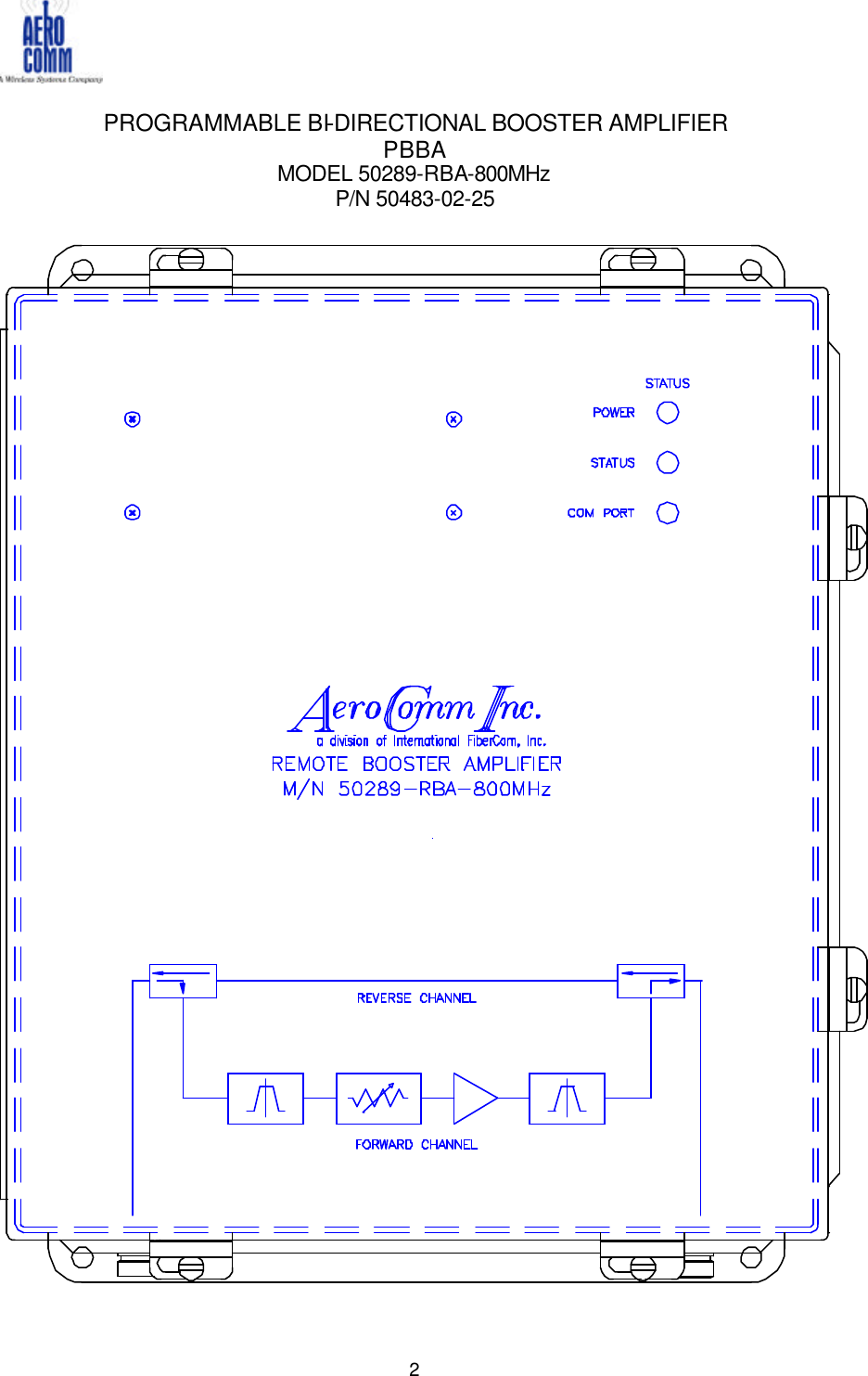

2 PROGRAMMABLE BI-DIRECTIONAL BOOSTER AMPLIFIER PBBA MODEL 50289-RBA-800MHz P/N 50483-02-25

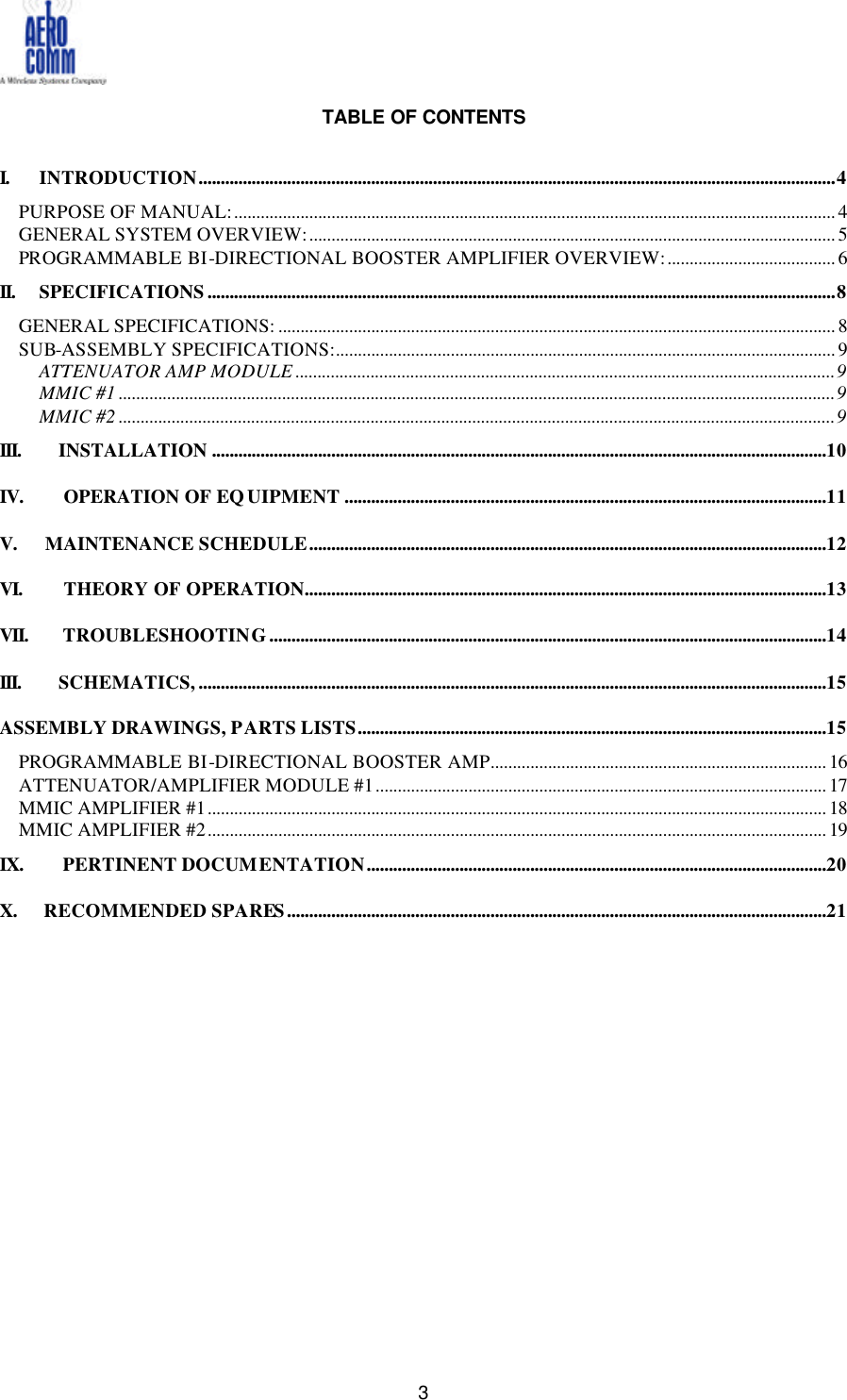

3 TABLE OF CONTENTS I. INTRODUCTION................................................................................................................................................4 PURPOSE OF MANUAL:........................................................................................................................................ 4 GENERAL SYSTEM OVERVIEW:....................................................................................................................... 5 PROGRAMMABLE BI-DIRECTIONAL BOOSTER AMPLIFIER OVERVIEW:...................................... 6 II. SPECIFICATIONS..............................................................................................................................................8 GENERAL SPECIFICATIONS: .............................................................................................................................. 8 SUB-ASSEMBLY SPECIFICATIONS:................................................................................................................. 9 ATTENUATOR AMP MODULE ..........................................................................................................................9 MMIC #1 ..................................................................................................................................................................9 MMIC #2 ..................................................................................................................................................................9 III. INSTALLATION ...........................................................................................................................................10 IV. OPERATION OF EQUIPMENT .............................................................................................................11 V. MAINTENANCE SCHEDULE.....................................................................................................................12 VI. THEORY OF OPERATION......................................................................................................................13 VII. TROUBLESHOOTING..............................................................................................................................14 III. SCHEMATICS,..............................................................................................................................................15 ASSEMBLY DRAWINGS, PARTS LISTS..........................................................................................................15 PROGRAMMABLE BI-DIRECTIONAL BOOSTER AMP............................................................................ 16 ATTENUATOR/AMPLIFIER MODULE #1...................................................................................................... 17 MMIC AMPLIFIER #1............................................................................................................................................ 18 MMIC AMPLIFIER #2............................................................................................................................................ 19 IX. PERTINENT DOCUMENTATION........................................................................................................20 X. RECOMMENDED SPARES ..........................................................................................................................21

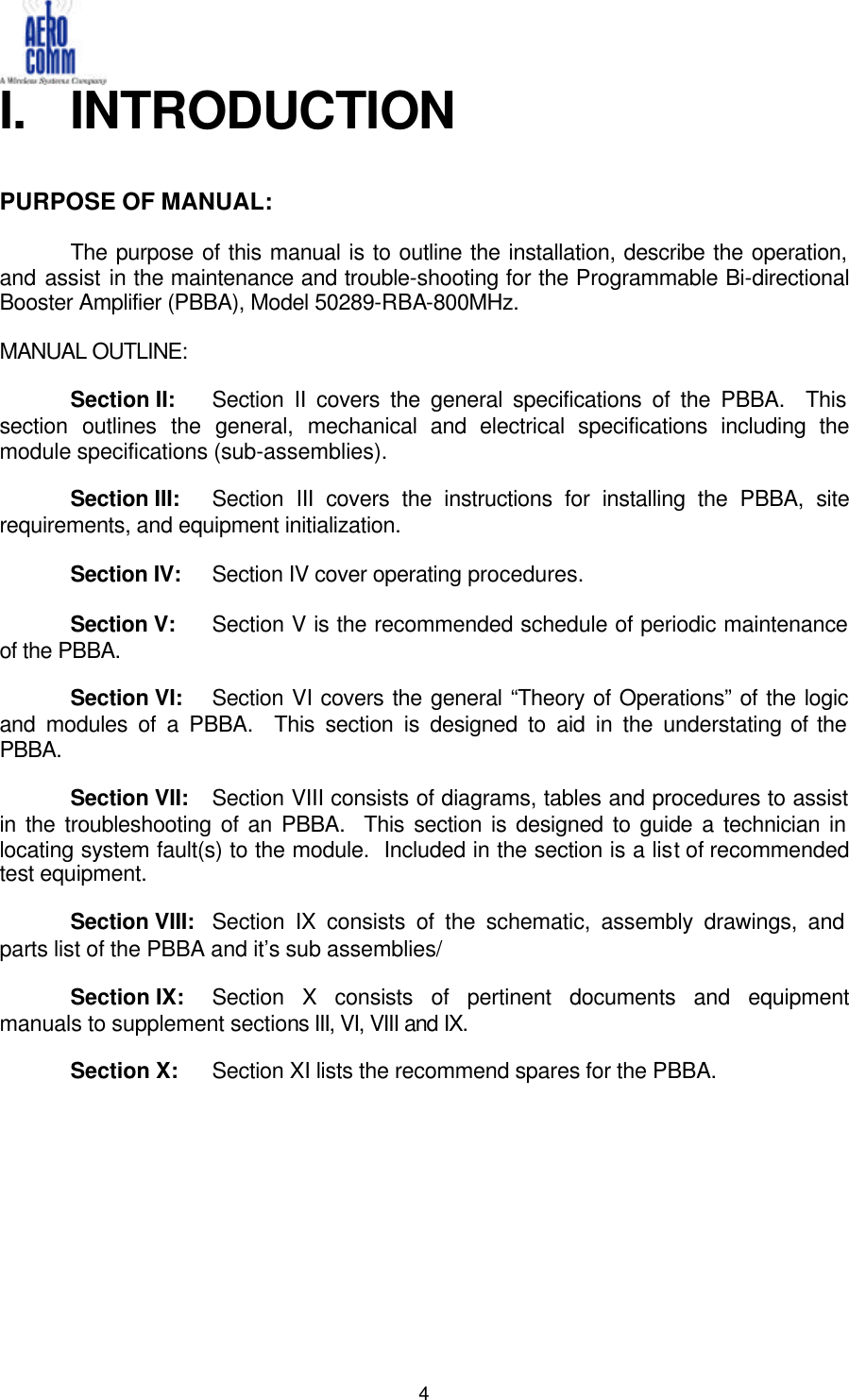

4 I. INTRODUCTION PURPOSE OF MANUAL: The purpose of this manual is to outline the installation, describe the operation, and assist in the maintenance and trouble-shooting for the Programmable Bi-directional Booster Amplifier (PBBA), Model 50289-RBA-800MHz. MANUAL OUTLINE: Section II: Section II covers the general specifications of the PBBA. This section outlines the general, mechanical and electrical specifications including the module specifications (sub-assemblies). Section III: Section III covers the instructions for installing the PBBA, site requirements, and equipment initialization. Section IV: Section IV cover operating procedures. Section V: Section V is the recommended schedule of periodic maintenance of the PBBA. Section VI: Section VI covers the general “Theory of Operations” of the logic and modules of a PBBA. This section is designed to aid in the understating of the PBBA. Section VII: Section VIII consists of diagrams, tables and procedures to assist in the troubleshooting of an PBBA. This section is designed to guide a technician in locating system fault(s) to the module. Included in the section is a list of recommended test equipment. Section VIII: Section IX consists of the schematic, assembly drawings, and parts list of the PBBA and it’s sub assemblies/ Section IX: Section X consists of pertinent documents and equipment manuals to supplement sections III, VI, VIII and IX. Section X: Section XI lists the recommend spares for the PBBA.

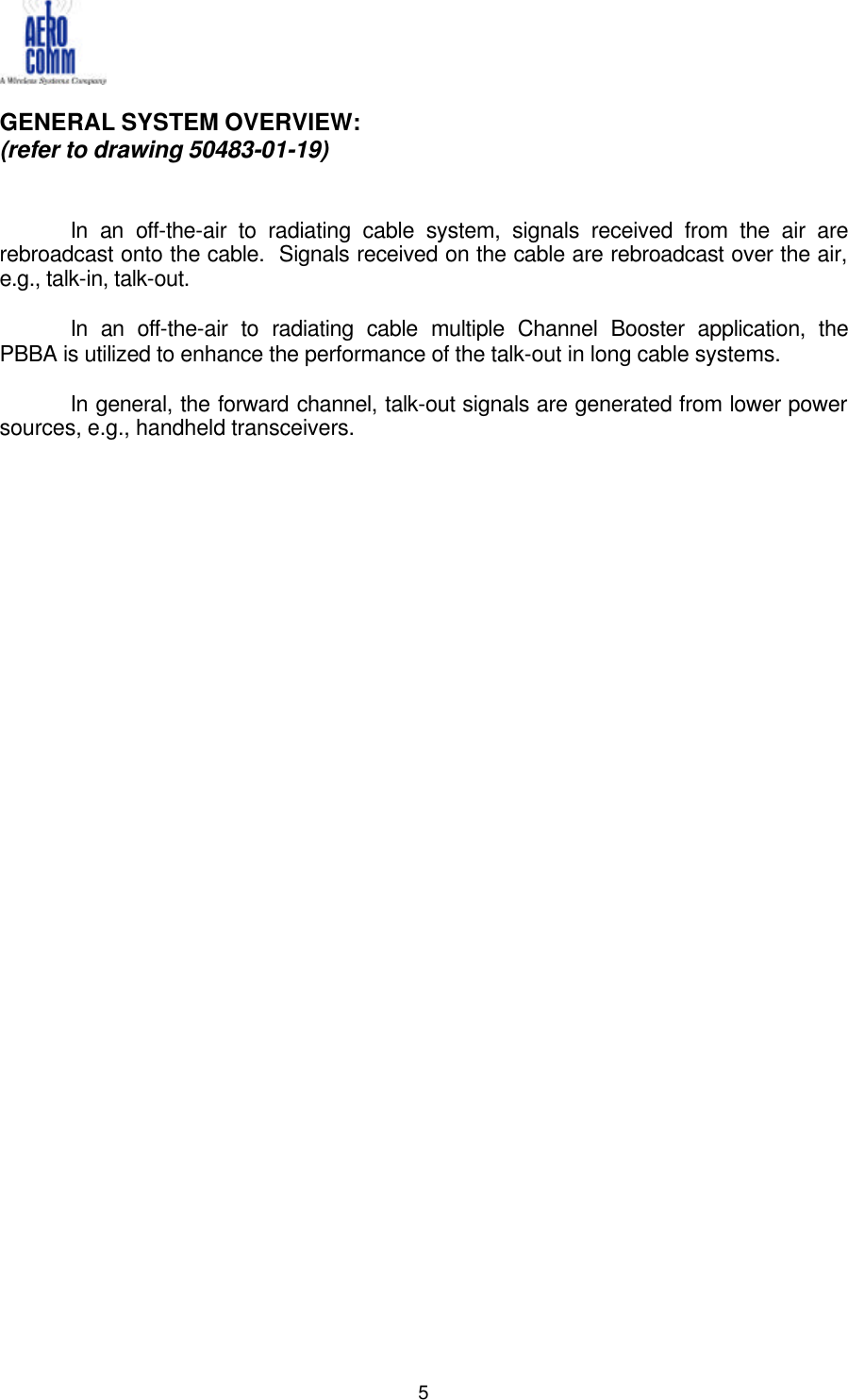

5 GENERAL SYSTEM OVERVIEW: (refer to drawing 50483-01-19) In an off-the-air to radiating cable system, signals received from the air are rebroadcast onto the cable. Signals received on the cable are rebroadcast over the air, e.g., talk-in, talk-out. In an off-the-air to radiating cable multiple Channel Booster application, the PBBA is utilized to enhance the performance of the talk-out in long cable systems. In general, the forward channel, talk-out signals are generated from lower power sources, e.g., handheld transceivers.

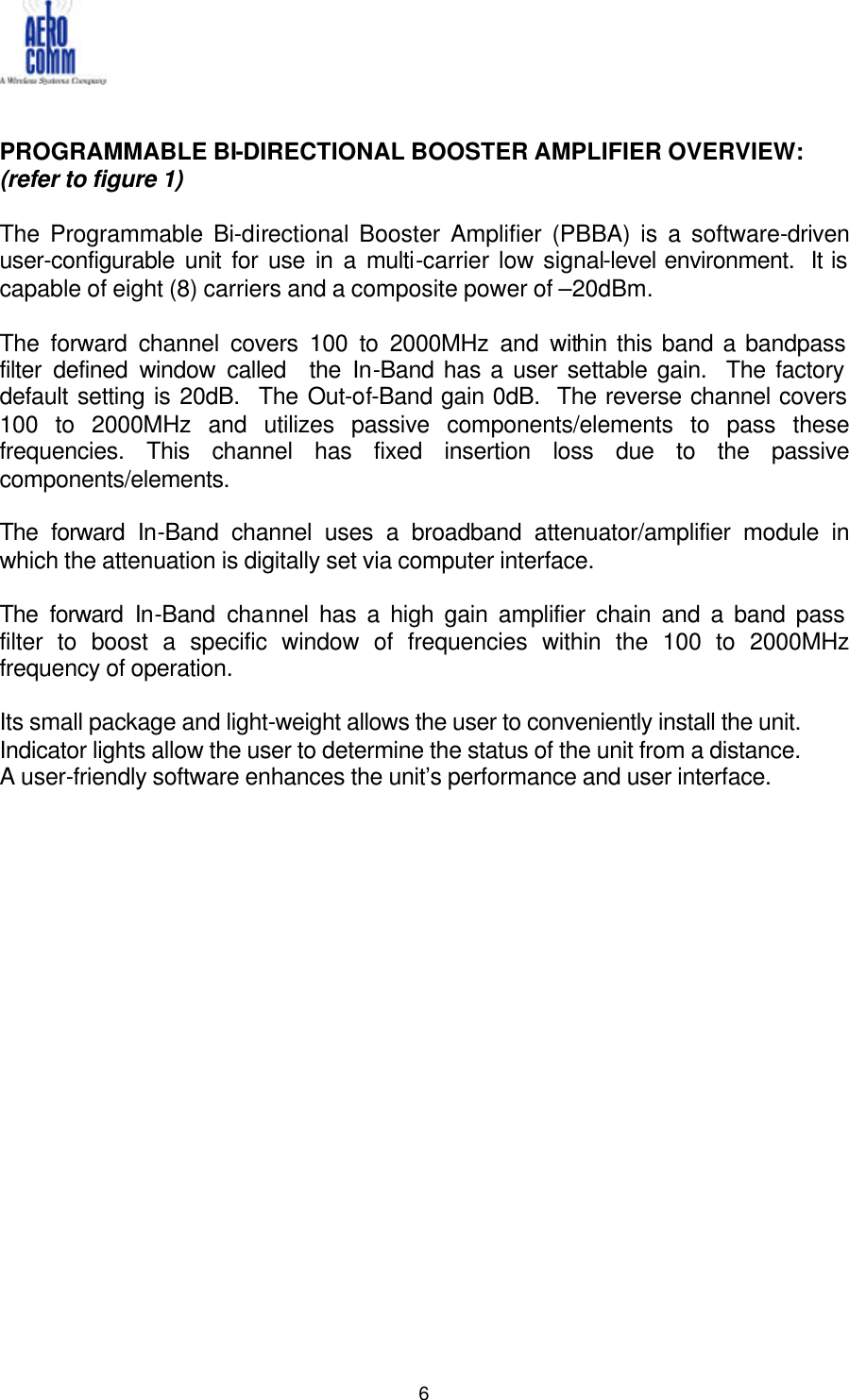

6 PROGRAMMABLE BI-DIRECTIONAL BOOSTER AMPLIFIER OVERVIEW: (refer to figure 1) The Programmable Bi-directional Booster Amplifier (PBBA) is a software-driven user-configurable unit for use in a multi-carrier low signal-level environment. It is capable of eight (8) carriers and a composite power of –20dBm. The forward channel covers 100 to 2000MHz and within this band a bandpass filter defined window called the In-Band has a user settable gain. The factory default setting is 20dB. The Out-of-Band gain 0dB. The reverse channel covers 100 to 2000MHz and utilizes passive components/elements to pass these frequencies. This channel has fixed insertion loss due to the passive components/elements. The forward In-Band channel uses a broadband attenuator/amplifier module in which the attenuation is digitally set via computer interface. The forward In-Band channel has a high gain amplifier chain and a band pass filter to boost a specific window of frequencies within the 100 to 2000MHz frequency of operation. Its small package and light-weight allows the user to conveniently install the unit. Indicator lights allow the user to determine the status of the unit from a distance. A user-friendly software enhances the unit’s performance and user interface.

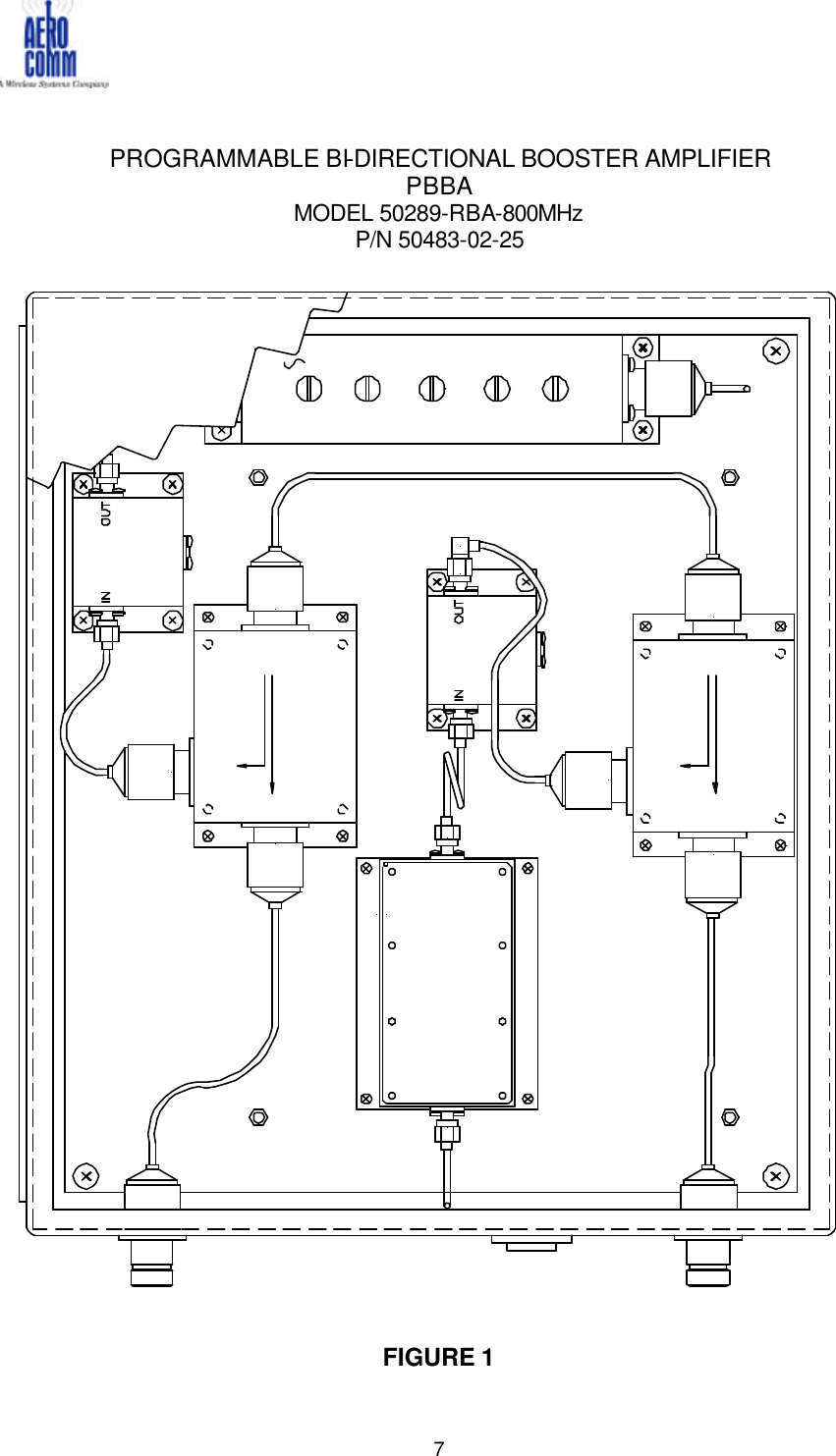

7 PROGRAMMABLE BI-DIRECTIONAL BOOSTER AMPLIFIER PBBA MODEL 50289-RBA-800MHz P/N 50483-02-25 FIGURE 1

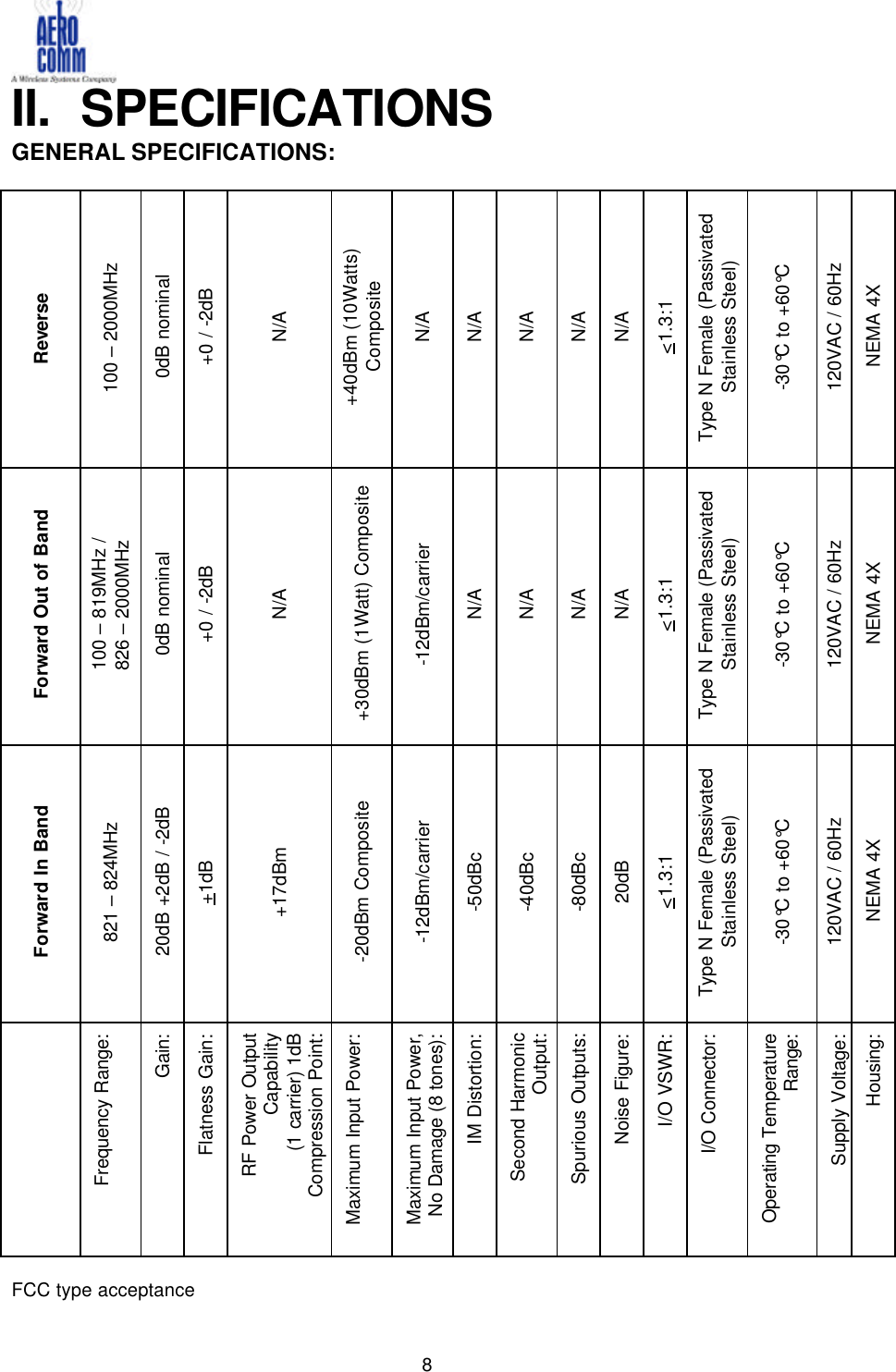

8 II. SPECIFICATIONS GENERAL SPECIFICATIONS: Reverse 100 – 2000MHz 0dB nominal +0 / -2dB N/A +40dBm (10Watts) Composite N/A N/A N/A N/A N/A <1.3:1 Type N Female (Passivated Stainless Steel) -30°C to +60°C 120VAC / 60Hz NEMA 4X Forward Out of Band 100 – 819MHz / 826 – 2000MHz 0dB nominal +0 / -2dB N/A +30dBm (1Watt) Composite -12dBm/carrier N/A N/A N/A N/A <1.3:1 Type N Female (Passivated Stainless Steel) -30°C to +60°C 120VAC / 60Hz NEMA 4X Forward In Band 821 – 824MHz 20dB +2dB / -2dB +1dB +17dBm -20dBm Composite -12dBm/carrier -50dBc -40dBc -80dBc 20dB <1.3:1 Type N Female (Passivated Stainless Steel) -30°C to +60°C 120VAC / 60Hz NEMA 4X Frequency Range: Gain: Flatness Gain: RF Power Output Capability (1 carrier) 1dB Compression Point: Maximum Input Power: Maximum Input Power, No Damage (8 tones): IM Distortion: Second Harmonic Output: Spurious Outputs: Noise Figure: I/O VSWR: I/O Connector: Operating Temperature Range: Supply Voltage: Housing: FCC type acceptance
9 SUB-ASSEMBLY SPECIFICATIONS: ATTENUATOR AMP MODULE P/N 50483-02-26-01 MODEL # SPECIFICATIONS Frequency Range: 100 – 2000 MHz Attenuation: 0dB min, -15dB max Gain @ 0dB attenuation: 18dB min, 20 dB max Flatness: +1dB Power: 12VDC @ 19mADC I/O Connection: SMA female Zin/Zout: 50 ohm MMIC #1 P/N 50483-02-27 MODEL # SPECIFICATIONS Frequency Range: 819 – 826 MHz Gain: 10dB typical Gain Flatness: <+1dB Power: 12VDC @ 85mA I/O Connection: SMA female Zin/Zout: 50 ohm MMIC #2 P/N 50483-02-30 MODEL # SPECIFICATIONS Frequency Range: 819 – 826 MHz Attenuation: 20dB typical Gain Flatness: +1dB Power: 12VDC @ 120mA I/O Connection: SMA female Zin/Zout: 50 ohm

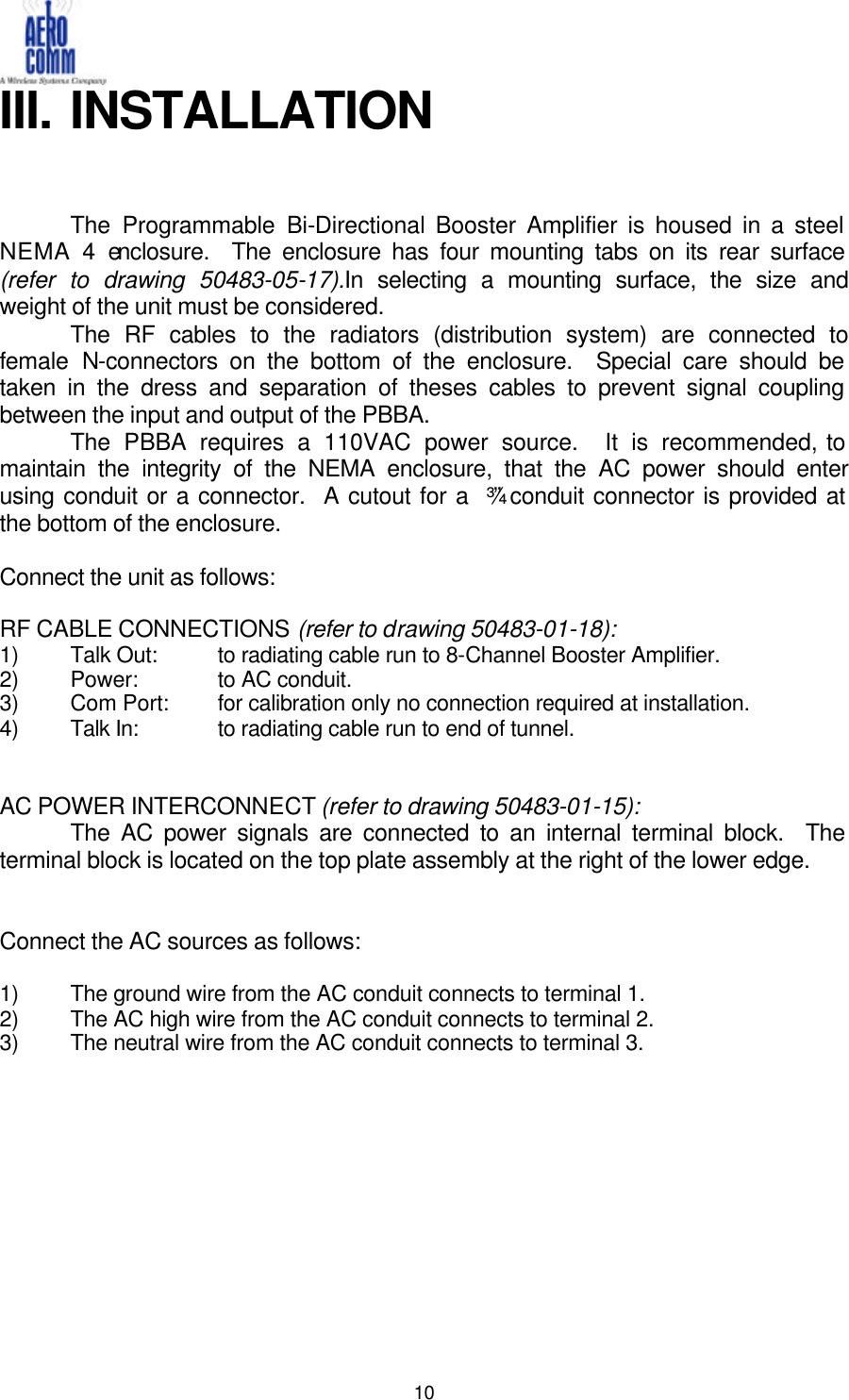

10III. INSTALLATION The Programmable Bi-Directional Booster Amplifier is housed in a steel NEMA 4 enclosure. The enclosure has four mounting tabs on its rear surface (refer to drawing 50483-05-17).In selecting a mounting surface, the size and weight of the unit must be considered. The RF cables to the radiators (distribution system) are connected to female N-connectors on the bottom of the enclosure. Special care should be taken in the dress and separation of theses cables to prevent signal coupling between the input and output of the PBBA. The PBBA requires a 110VAC power source. It is recommended, to maintain the integrity of the NEMA enclosure, that the AC power should enter using conduit or a connector. A cutout for a ¾” conduit connector is provided at the bottom of the enclosure. Connect the unit as follows: RF CABLE CONNECTIONS (refer to drawing 50483-01-18): 1) Talk Out: to radiating cable run to 8-Channel Booster Amplifier. 2) Power: to AC conduit. 3) Com Port: for calibration only no connection required at installation. 4) Talk In: to radiating cable run to end of tunnel. AC POWER INTERCONNECT (refer to drawing 50483-01-15): The AC power signals are connected to an internal terminal block. The terminal block is located on the top plate assembly at the right of the lower edge. Connect the AC sources as follows: 1) The ground wire from the AC conduit connects to terminal 1. 2) The AC high wire from the AC conduit connects to terminal 2. 3) The neutral wire from the AC conduit connects to terminal 3.

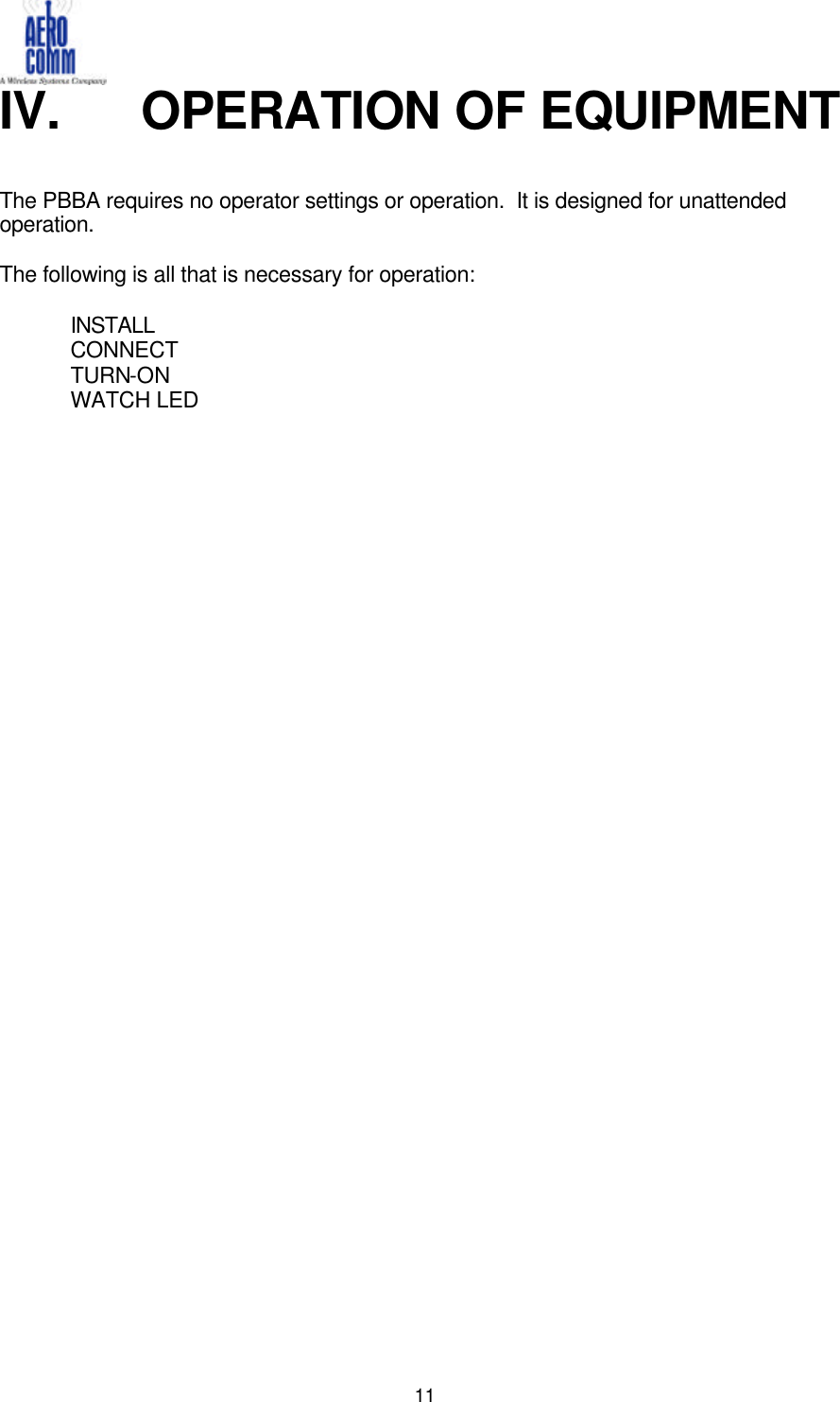

11IV. OPERATION OF EQUIPMENT The PBBA requires no operator settings or operation. It is designed for unattended operation. The following is all that is necessary for operation: INSTALL CONNECT TURN-ON WATCH LED

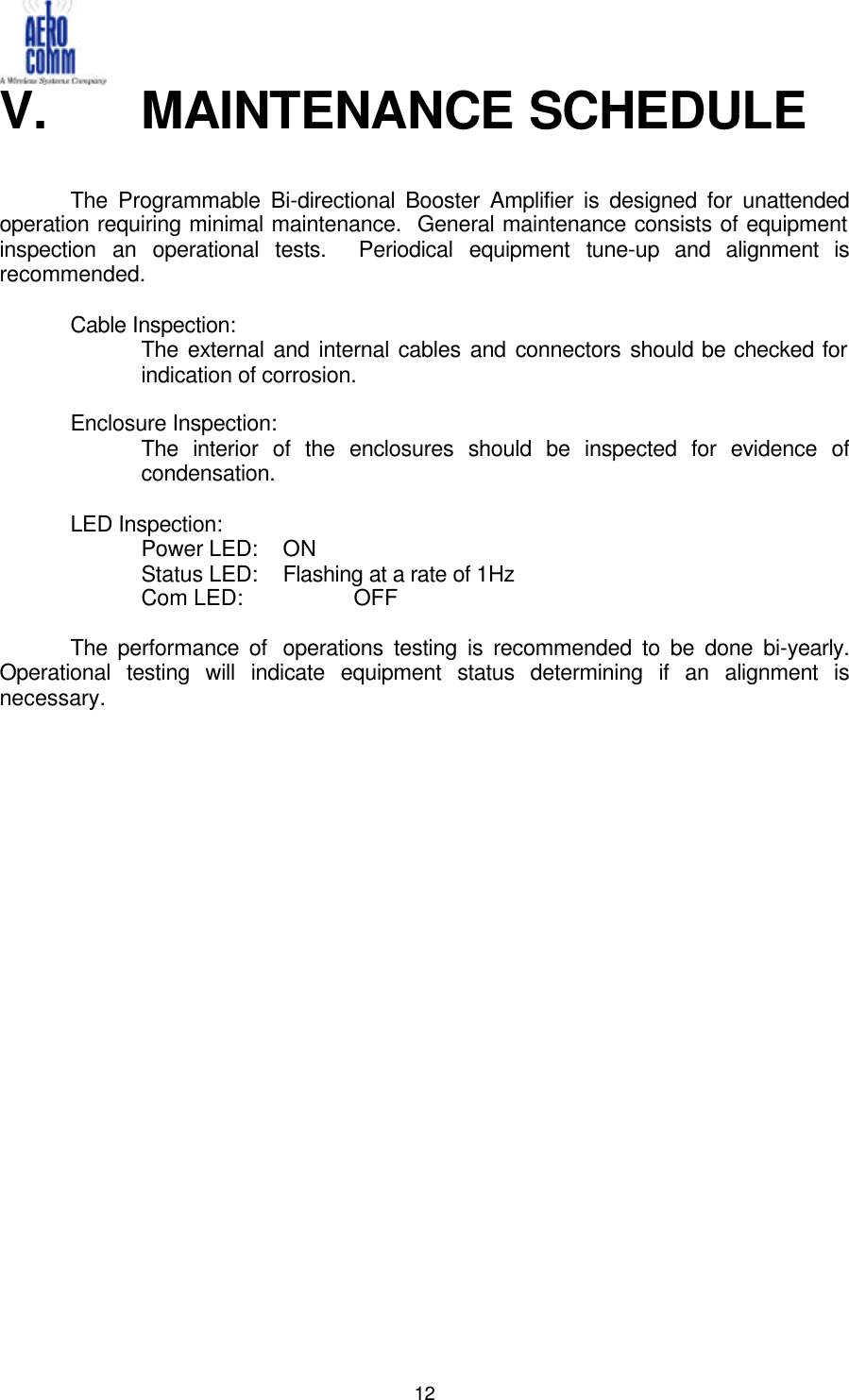

12V. MAINTENANCE SCHEDULE The Programmable Bi-directional Booster Amplifier is designed for unattended operation requiring minimal maintenance. General maintenance consists of equipment inspection an operational tests. Periodical equipment tune-up and alignment is recommended. Cable Inspection: The external and internal cables and connectors should be checked for indication of corrosion. Enclosure Inspection: The interior of the enclosures should be inspected for evidence of condensation. LED Inspection: Power LED: ON Status LED: Flashing at a rate of 1Hz Com LED: OFF The performance of operations testing is recommended to be done bi-yearly. Operational testing will indicate equipment status determining if an alignment is necessary.

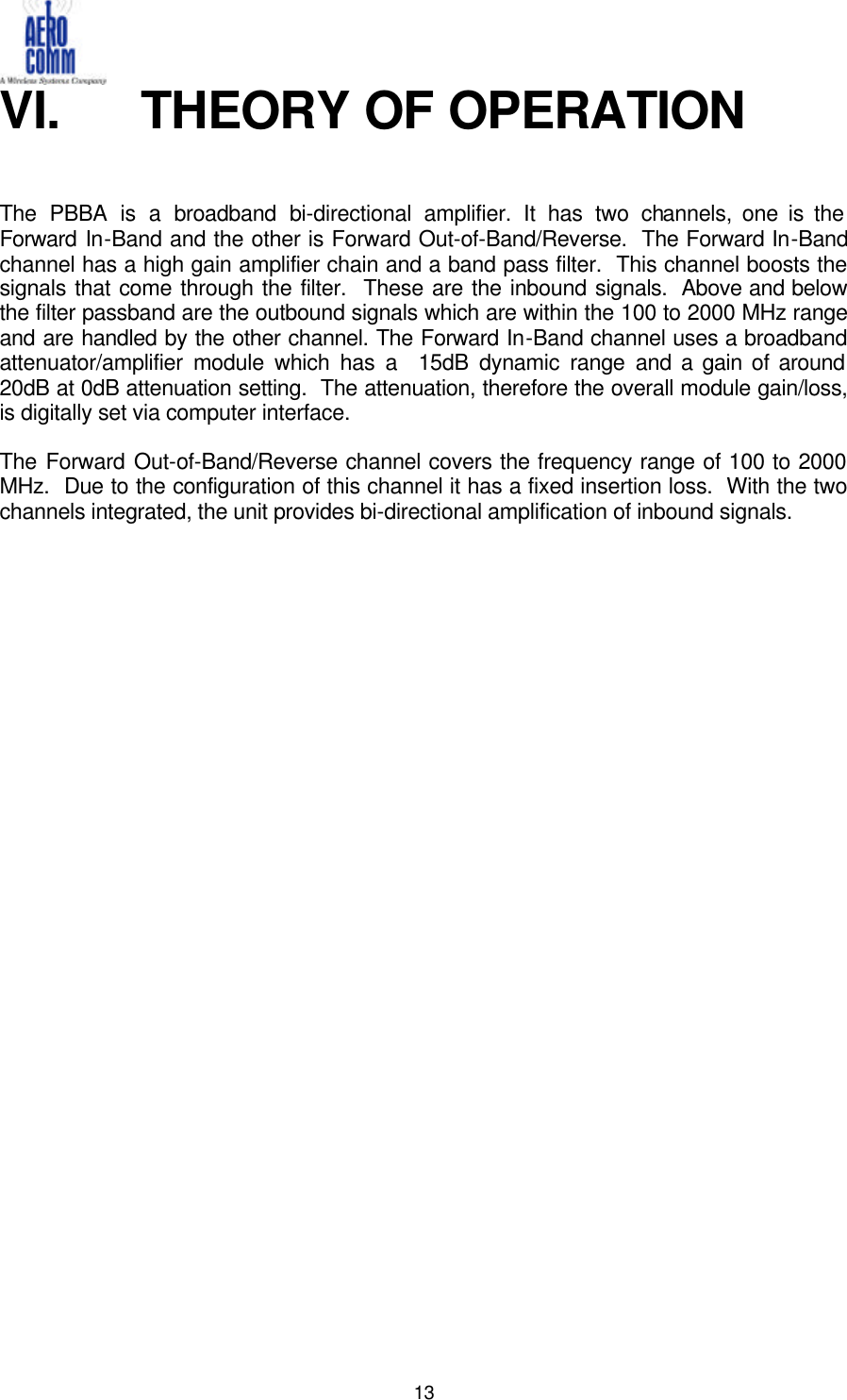

13VI. THEORY OF OPERATION The PBBA is a broadband bi-directional amplifier. It has two channels, one is the Forward In-Band and the other is Forward Out-of-Band/Reverse. The Forward In-Band channel has a high gain amplifier chain and a band pass filter. This channel boosts the signals that come through the filter. These are the inbound signals. Above and below the filter passband are the outbound signals which are within the 100 to 2000 MHz range and are handled by the other channel. The Forward In-Band channel uses a broadband attenuator/amplifier module which has a 15dB dynamic range and a gain of around 20dB at 0dB attenuation setting. The attenuation, therefore the overall module gain/loss, is digitally set via computer interface. The Forward Out-of-Band/Reverse channel covers the frequency range of 100 to 2000 MHz. Due to the configuration of this channel it has a fixed insertion loss. With the two channels integrated, the unit provides bi-directional amplification of inbound signals.

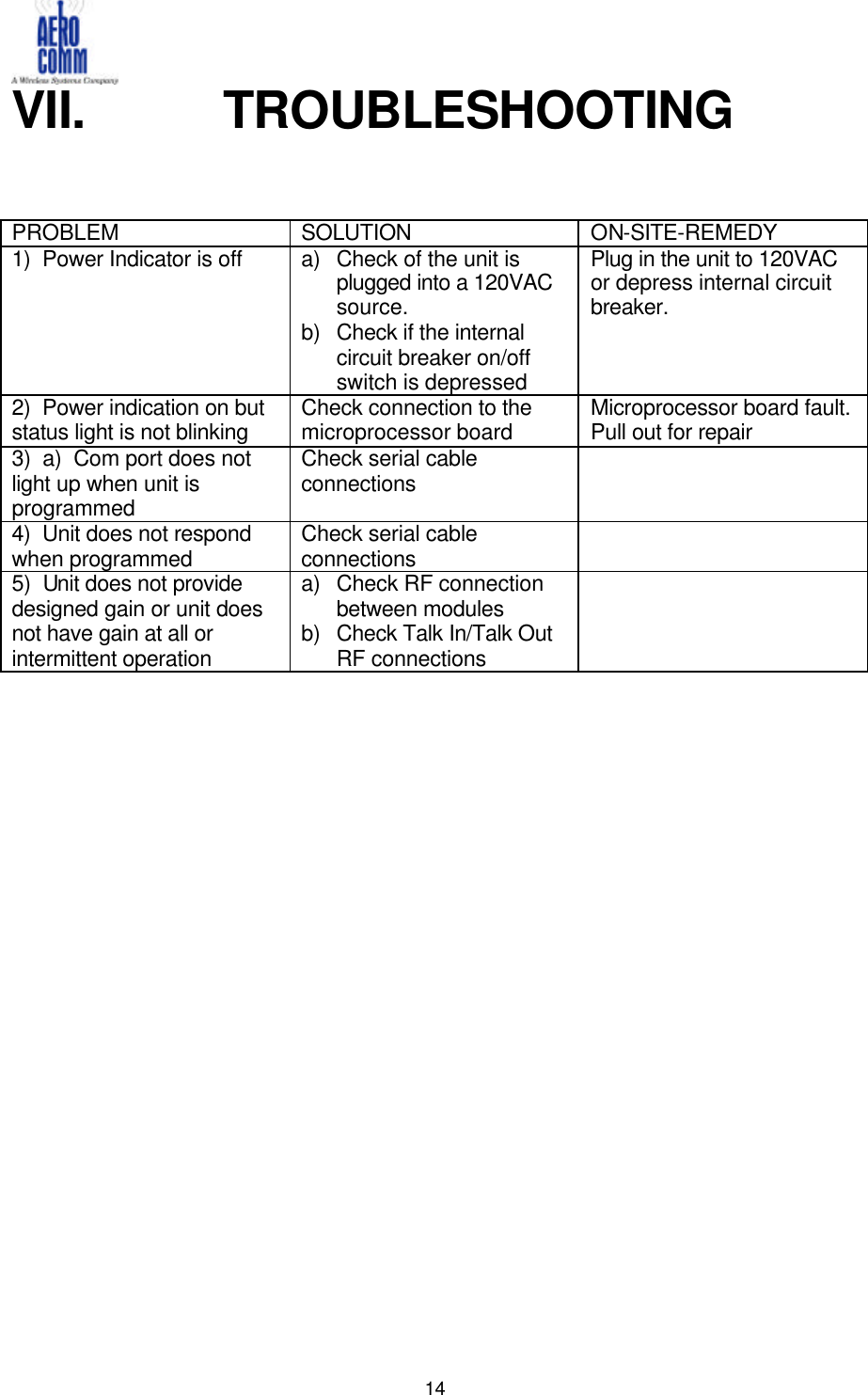

14VII. TROUBLESHOOTING PROBLEM SOLUTION ON-SITE-REMEDY 1) Power Indicator is off a) Check of the unit is plugged into a 120VAC source. b) Check if the internal circuit breaker on/off switch is depressed Plug in the unit to 120VAC or depress internal circuit breaker. 2) Power indication on but status light is not blinking Check connection to the microprocessor board Microprocessor board fault. Pull out for repair 3) a) Com port does not light up when unit is programmed Check serial cable connections 4) Unit does not respond when programmed Check serial cable connections 5) Unit does not provide designed gain or unit does not have gain at all or intermittent operation a) Check RF connection between modules b) Check Talk In/Talk Out RF connections

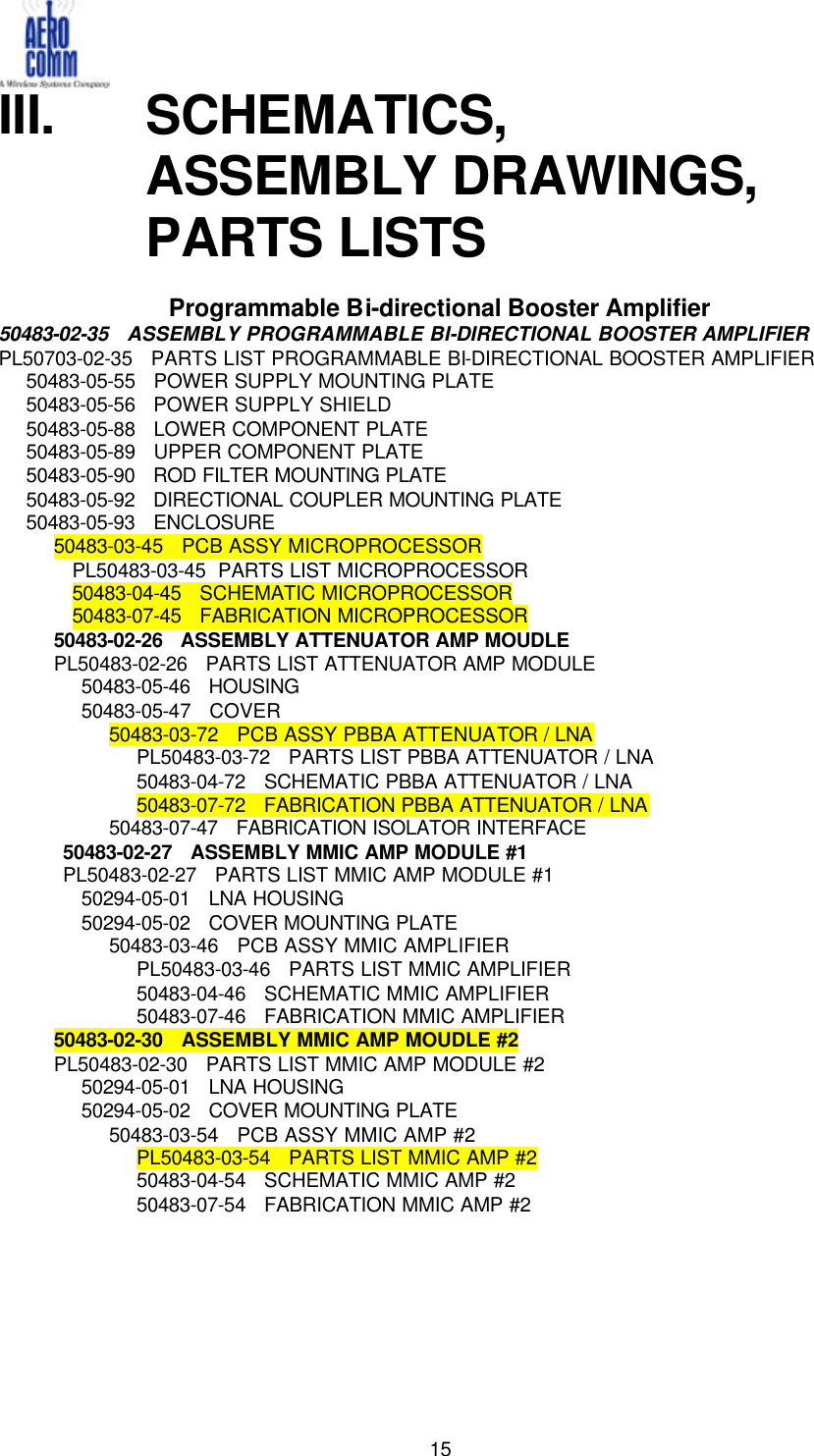

15III. SCHEMATICS, ASSEMBLY DRAWINGS, PARTS LISTS Programmable Bi-directional Booster Amplifier 50483-02-35 ASSEMBLY PROGRAMMABLE BI-DIRECTIONAL BOOSTER AMPLIFIER PL50703-02-35 PARTS LIST PROGRAMMABLE BI-DIRECTIONAL BOOSTER AMPLIFIER 50483-05-55 POWER SUPPLY MOUNTING PLATE 50483-05-56 POWER SUPPLY SHIELD 50483-05-88 LOWER COMPONENT PLATE 50483-05-89 UPPER COMPONENT PLATE 50483-05-90 ROD FILTER MOUNTING PLATE 50483-05-92 DIRECTIONAL COUPLER MOUNTING PLATE 50483-05-93 ENCLOSURE 50483-03-45 PCB ASSY MICROPROCESSOR PL50483-03-45 PARTS LIST MICROPROCESSOR 50483-04-45 SCHEMATIC MICROPROCESSOR 50483-07-45 FABRICATION MICROPROCESSOR 50483-02-26 ASSEMBLY ATTENUATOR AMP MOUDLE PL50483-02-26 PARTS LIST ATTENUATOR AMP MODULE 50483-05-46 HOUSING 50483-05-47 COVER 50483-03-72 PCB ASSY PBBA ATTENUATOR / LNA PL50483-03-72 PARTS LIST PBBA ATTENUATOR / LNA 50483-04-72 SCHEMATIC PBBA ATTENUATOR / LNA 50483-07-72 FABRICATION PBBA ATTENUATOR / LNA 50483-07-47 FABRICATION ISOLATOR INTERFACE 50483-02-27 ASSEMBLY MMIC AMP MODULE #1 PL50483-02-27 PARTS LIST MMIC AMP MODULE #1 50294-05-01 LNA HOUSING 50294-05-02 COVER MOUNTING PLATE 50483-03-46 PCB ASSY MMIC AMPLIFIER PL50483-03-46 PARTS LIST MMIC AMPLIFIER 50483-04-46 SCHEMATIC MMIC AMPLIFIER 50483-07-46 FABRICATION MMIC AMPLIFIER 50483-02-30 ASSEMBLY MMIC AMP MOUDLE #2 PL50483-02-30 PARTS LIST MMIC AMP MODULE #2 50294-05-01 LNA HOUSING 50294-05-02 COVER MOUNTING PLATE 50483-03-54 PCB ASSY MMIC AMP #2 PL50483-03-54 PARTS LIST MMIC AMP #2 50483-04-54 SCHEMATIC MMIC AMP #2 50483-07-54 FABRICATION MMIC AMP #2
16 PROGRAMMABLE BI-DIRECTIONAL BOOSTER AMP
17 ATTENUATOR/AMPLIFIER MODULE
18 MMIC AMPLIFIER #1
19 MMIC AMPLIFIER #2

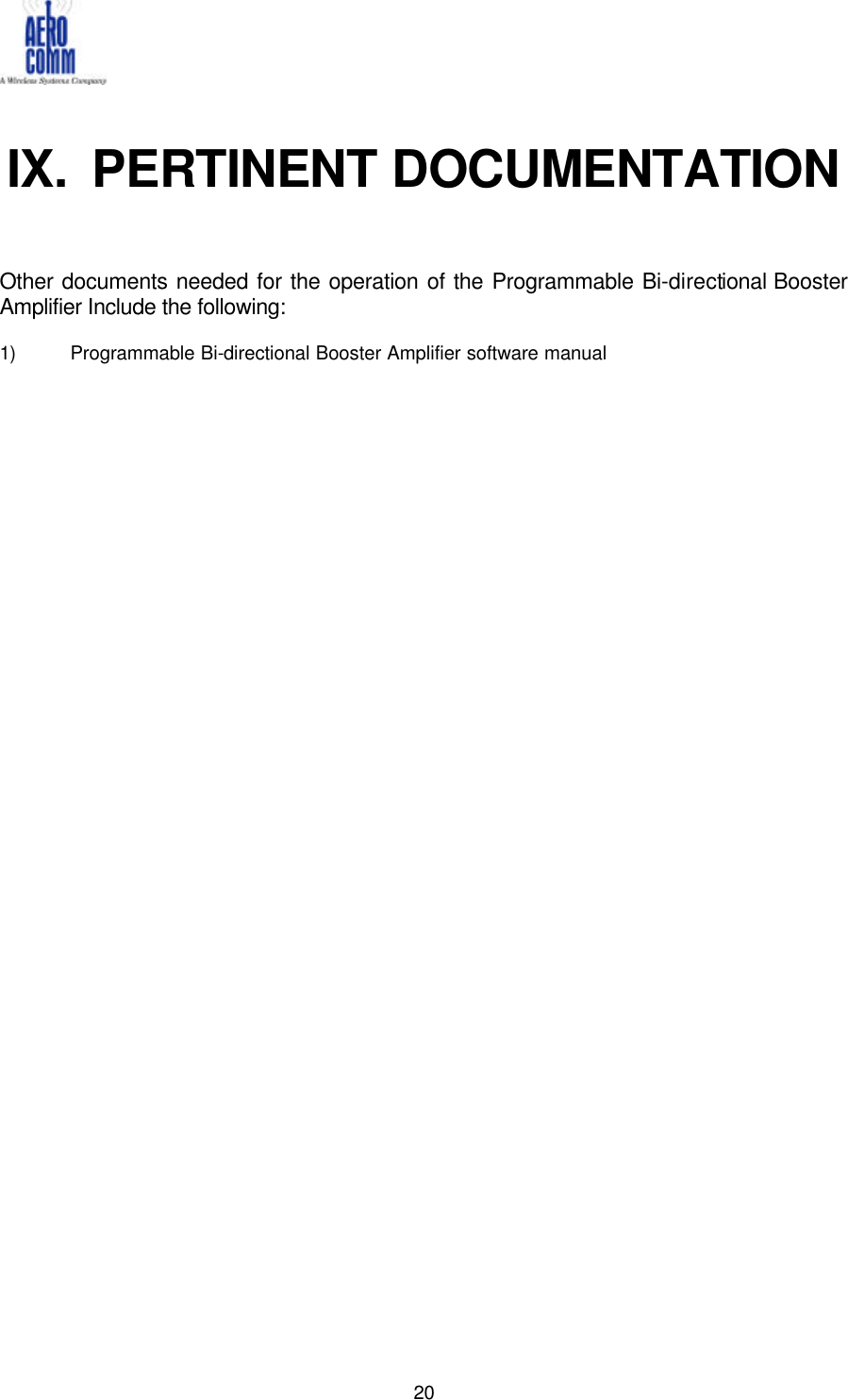

20 IX. PERTINENT DOCUMENTATION Other documents needed for the operation of the Programmable Bi-directional Booster Amplifier Include the following: 1) Programmable Bi-directional Booster Amplifier software manual

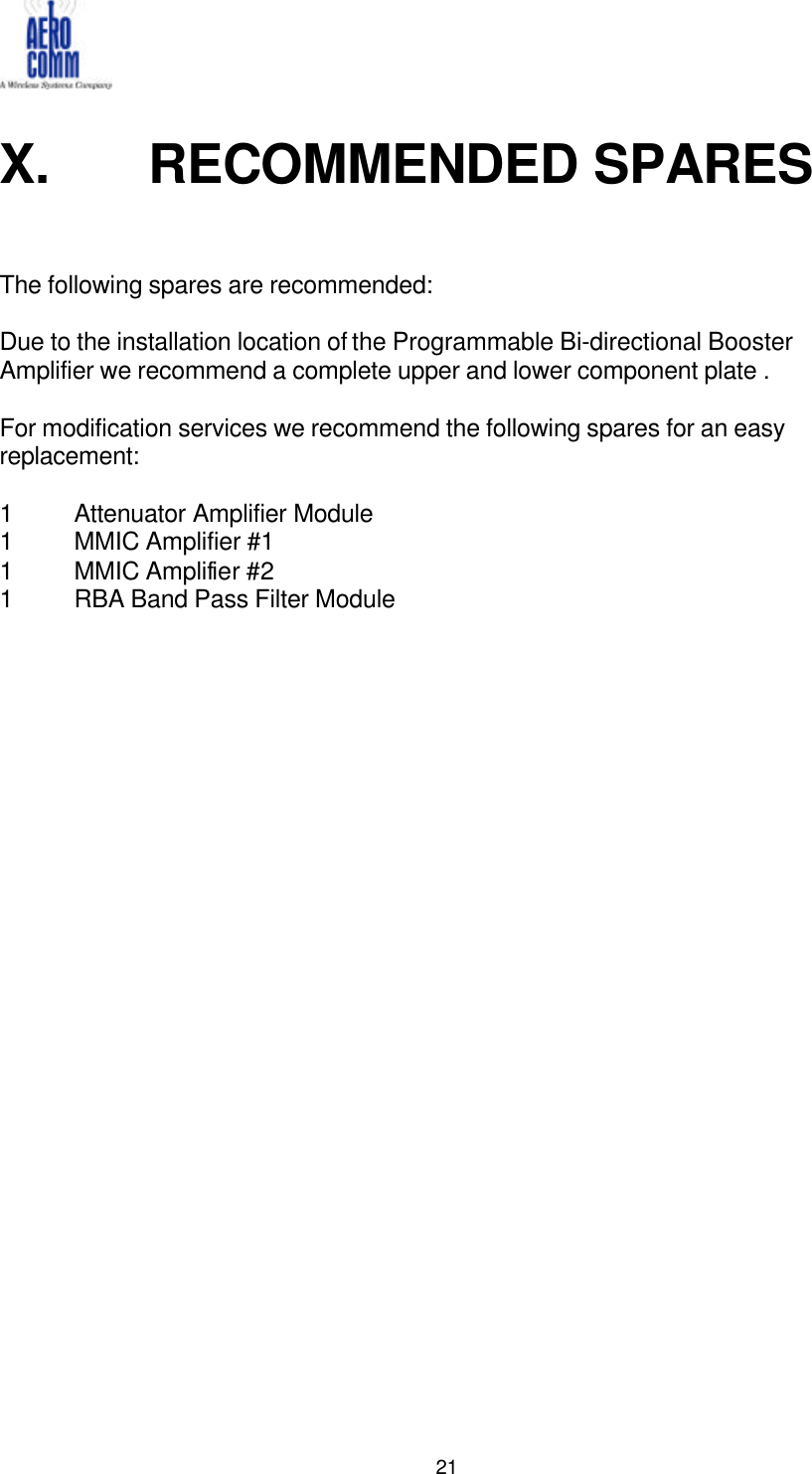

21 X. RECOMMENDED SPARES The following spares are recommended: Due to the installation location of the Programmable Bi-directional Booster Amplifier we recommend a complete upper and lower component plate . For modification services we recommend the following spares for an easy replacement: 1 Attenuator Amplifier Module 1 MMIC Amplifier #1 1 MMIC Amplifier #2 1 RBA Band Pass Filter Module
