Introduction
The AeroScout EX3300 Exciters series are key components of the AeroScout Hand
Hygiene Solution. The EX3300 Exciters provide robust and sophisticated RFID
detection capabilities, using the same AeroScout tags that can also be accurately
located in real time by the AeroScout system.
The EX3300 Exciters are specialty designed to be embedded in Hand Hygiene
dispenser. When a dispenser with an embedded EX3300 Exciter is activated, the
Exciters trigger AeroScout’s tags that are located near the Exciter and the tags in turn
transmit a message to AeroScout Location Receivers or compatible Access Points in
range. This provides instant acknowledgment that a tagged staff member has used
the dispenser. The AeroScout Visibility System can detect, record and report the rate
of usage of the dispensers per user and provides a revolutionary way for health care
facilities to monitor the hand hygiene policy compliance of staff members.

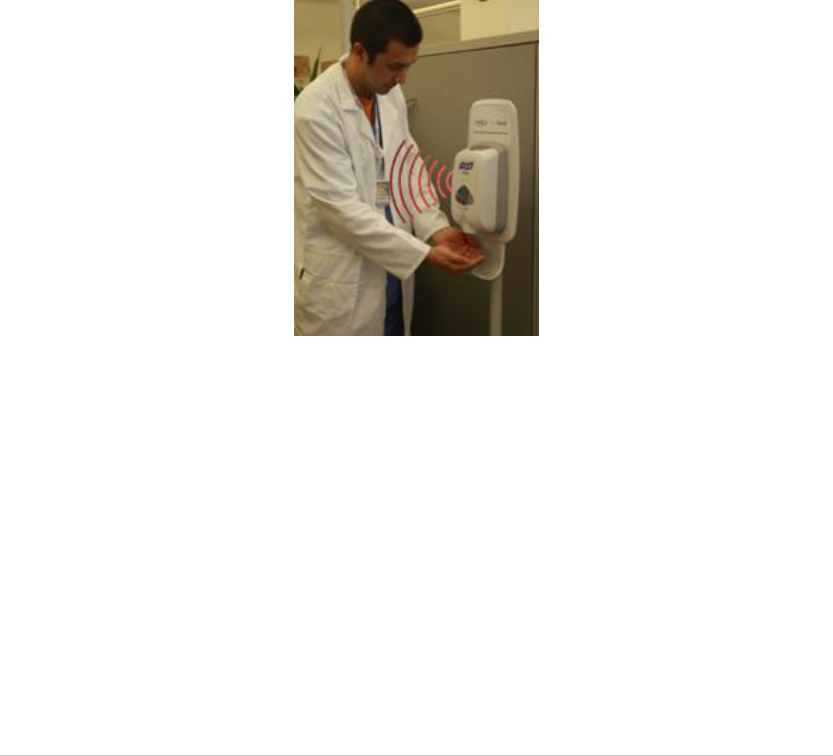

Figure 1: Embedded EX3300 triggering a staff tag
![](/img.php?id=1712132&img=bg7.png)
EX3300 Features
Hand Hygiene Dispenser Integration
EX3300 Exciters are specially designed to be embedded in GOJO and Ecolab hand
hygiene dispensers. The embedded exciter reacts to a dispenser activation and
triggers all tags in range to transmit a message to a nearby access point.
RFID detection of AeroScout Tags
Triggering the tags to transmit as they enter a defined area, EX3300s reach up to a 6
meter (19.6ft) range, enough to cover typical door or gate areas.
Note
The exciters’ effective range, based on specific environment and
placement, may be less than the configured range. The effective range
should be taken into consideration when planning and designing the
deployment.
Tag behavior modification:
The EX3300 can wirelessly active and deactivate tags. Tag battery life can be
extended further by switching the tags off when they leave a defined tracking area
through a gate or doorway.
It is also possible to configure the Exciter to change of tag transmission rate
temporarily or indefinitely to accommodate different usage patterns in various
physical spaces.
Message Programming functions
The EX3300 has the ability to store messages on the tag for later transmission.
Message transmission can later be triggered by other EX3300s, enabling
sophisticated process control functions.
EX3300 can trigger a tag to:
Transmit up to 15 bytes of data sent to it by the EX5100;
Transmit one of 15 pre-stored messages;
Transmit and store up to 15 bytes of data sent to it by the EX5100.
![](/img.php?id=1712132&img=bg8.png)

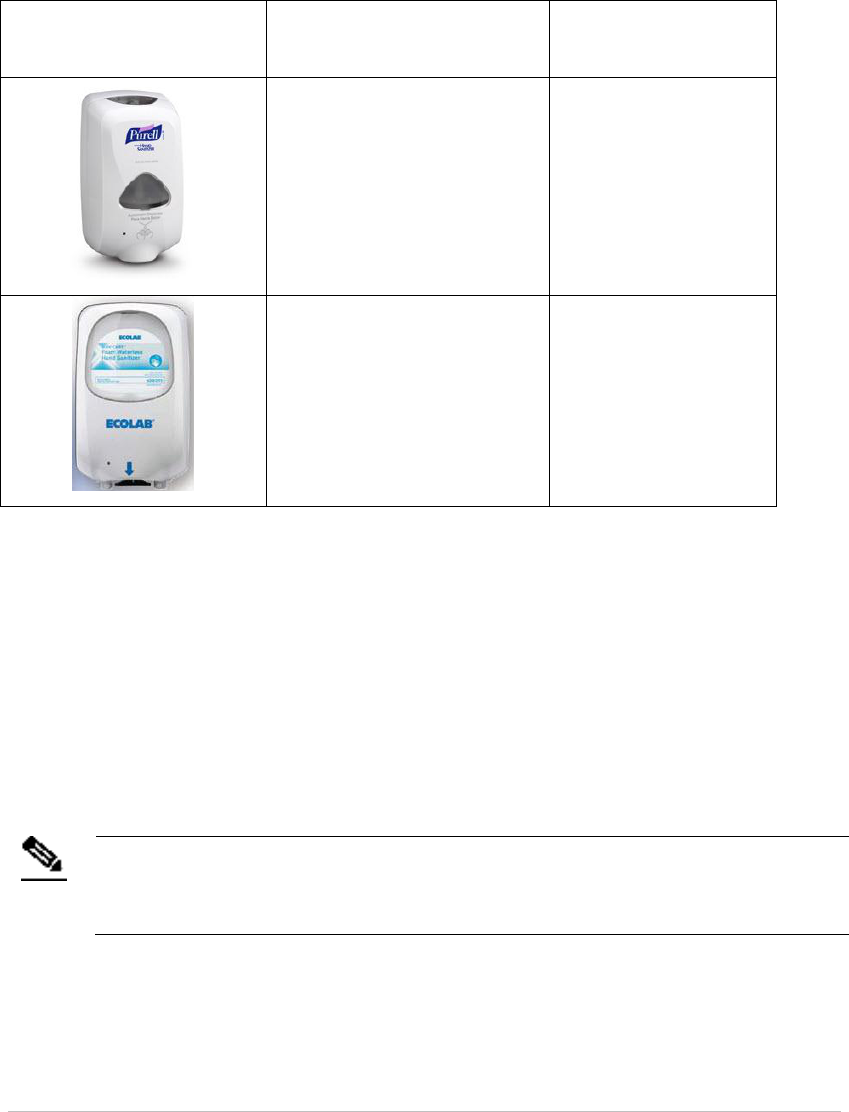

EX3300 Models
The AeroScout EX3300 is an offline exciter designed to integrate with the following
dispenser models:
Order Number
TFX Touch Free
Dispensers
EX-3300-PRL
PURELL TFX Touch Free
Dispenser
EX-3300-ELB
EcoLab Touch-Free
Dispenser
Mounting the Exciter
Follow these steps to install an EX3300 in a Hand Hygiene dispenser:
1. Open the dispenser by
2.
Note
The EX-3300 Exciter may not be inserted into any host units other than
the ECOLAB Hand Sanitizer Dispenser or the GOJO Hand Sanitizer
Dispenser.
the EX-3300 Exciter may not be inserted into any host units other than the ECOLAB
Hand Sanitizer Dispenser or the GOJO Hand Sanitizer Dispenser.
![](/img.php?id=1712132&img=bg9.png)
Adding the Exciters to the AeroScout Engine
Follow these steps:
1. Do one of the following:
In a Cisco-based configuration, add the Exciters via WCS.
If you are using AeroScout Standalone Engine, add the Exciter via System
Manager.
2. Access System Manager and perform the following steps for each one of the
Hand Hygiene Exciters:
a. In the Configuration menu select Advanced Mode.
b. Access the Exciter properties by double-clicking the Exciter's icon.
c. In the Exciter Modules window click on Internal LF Exciter and select the
Settings tab.
d. In HW ID, enter the Exciter ID. See Figure 2.
Note
If the ID is already taken by another Exciter, and the Exciter is
reachable (not offline), the system automatically switches IDs between
the two Exciters. If the Exciter is unreachable, change the ID manually.
e. Click OK.
![](/img.php?id=1712132&img=bga.png)
Figure 2: Entering an Exciter ID in System Manager
f. Make sure all dispenser Exciters appear offline on the map
Advanced Configuration
Advanced configuration an EX3300 Exciter is done via the AeroScout Exciter
Manager. The Exciter Manager enables configuring the Exciter's Maximum
Transmission Range, Exciter ID, and IP address.
The EX3300 Exciters are equipped with a customized serial cable used to configure
the Exciter via the Exciter manager.
For more instructions on configuration the EX3300, please refer to the AeroScout
Exciter Manager User Guide.
![](/img.php?id=1712132&img=bgb.png)

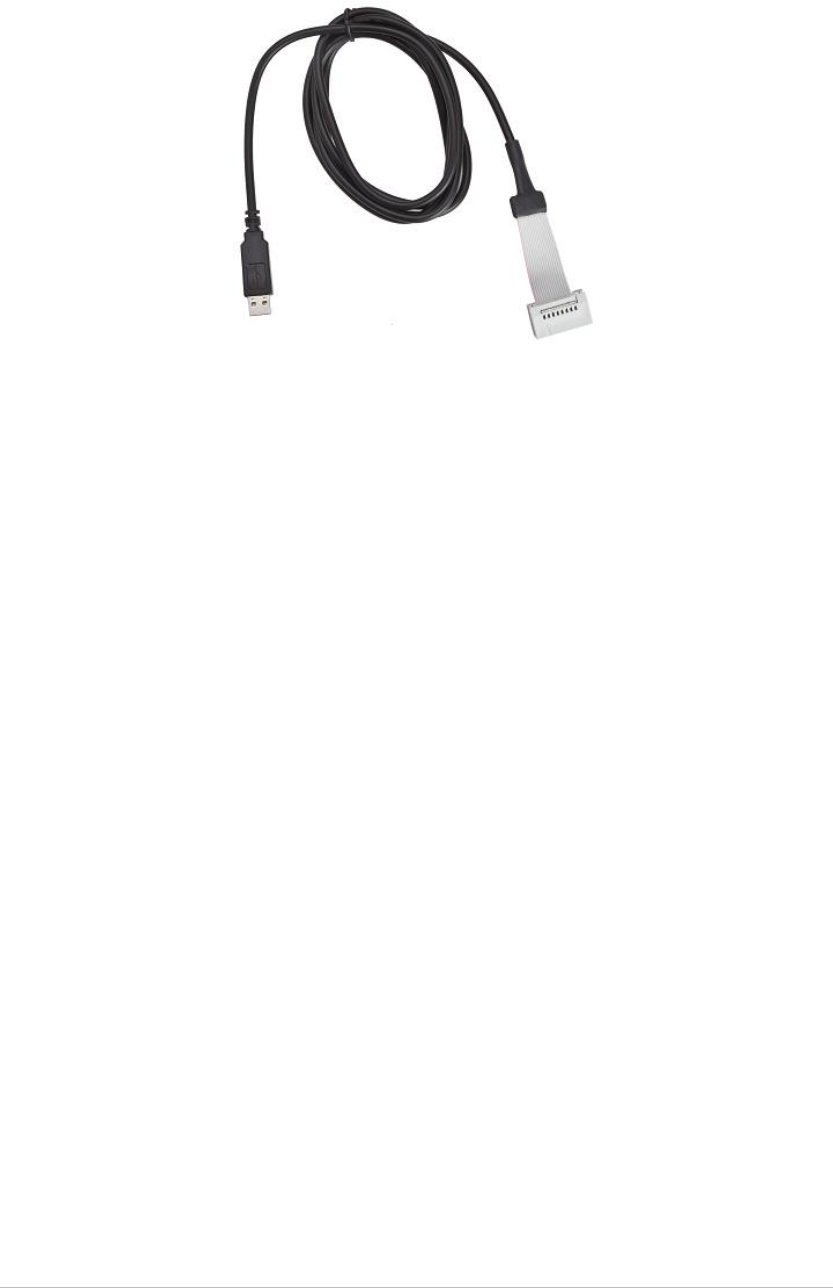

Figure 3: Customized EX3300 Serial Cable
![](/img.php?id=1712132&img=bgc.png)
EX3300 Family SKUs
Product Name
SKU
Description
EX3300
Integrated Exciter
EX-3300
Includes Exciter board (no housing) for embedding into
devices. Doesn't include the integration connector on the
board.
EX3300
Integrated Exciter
with Connector
EX-3300-CN
Includes Exciter board (no housing) for embedding into
devices. The integration connector is assembled on the
board
EX3300PRL Hand
Hygiene Exciter
EX-3300-PRL
EX3300 Integrated Exciter for Purell TFX SmartLink
Dispenser. Exciter is shipped embedded inside a
complete dispenser. Should be ordered only in the case
of deployments that require new dispensers. (e.g.
facilities without dispensers or those that are replacing
manual dispensers)
EX3300PRV Hand
Hygiene Exciter
EX-3300-
PRV
EX3300 Integrated Exciter for Provon TFX SmartLink
Dispenser. Exciter is shipped embedded inside a
complete dispenser. Should be ordered only in the case
of deployments that require new dispensers. (e.g.
facilities without dispensers or those that are replacing
manual dispensers)
EX3300PRS Hand
Hygiene Exciter
EX-3300-
PRS
EX3300 Integrated Exciter for Purell Surgical Scrub TFX
SmartLink Dispenser. Exciter is shipped embedded
inside a complete dispenser. Should be ordered only in
the case of deployments that require new dispensers.
(e.g. facilities without dispensers or those that are
replacing manual dispensers)
EX3300ELB Hand
Hygiene Exciter
EX-3300-
ELB
EX3300 Integrated Exciter for EcoLab Touch-Free
Dispenser. Exciter is shipped embedded inside the
dispenser.
EX3300PRL Hand
Hygiene Exciter
for Dispenser
Retrofit
EX-3300-
PRL-RT
EX3300 Integrated Exciter for Purell TFX SmartLink
Dispenser. Exciter is shipped with a pump house to
retrofit an existing dispenser.
EX3300PRV Hand
Hygiene Exciter
for Dispenser
Retrofit
EX-3300-
PRV-RT
EX3300 Integrated Exciter for Provon TFX SmartLink
Dispenser. Exciter is shipped with a pump house to
retrofit an existing dispenser.
EX3300PRS Hand
Hygiene Exciter
for Dispenser
Retrofit
EX-3300-
PRS-RT
EX3300 Integrated Exciter for Purell Surgical Scrub TFX
SmartLink Dispenser. Exciter is shipped with a pump
house to retrofit an existing dispenser.
![](/img.php?id=1712132&img=bgd.png)
EX3300 Specifications
Physical and Mechanical (with the housing)
Dimensions: 74 x 50 x 44 mm (2.9in x 1.97in x 1.8in)
Weight: 32g (1.13oz)
Coverage
Adjustable coverage range up to 2m (6.6ft) by intervals of 0.25m (0.83ft)
LF Channel
125kHz
Field intensity limits: 37.3dBµA/m at 10m (ETSI)
Propagation limits: 21.8dBµV/m at 300m (FCC)
Modulation: ASK
Power
Input voltage:
GOJO 4.5V
Ecolab 6V
Maximum power consumption: 2W
Environmental
Operating temperature: 0 to 50 °C (32°F to 122°F)
Humidity: 0 to 95%, non-condensing
Certifications
EMC Certifications
o US standard: FCC part 15
o European standard: ETSI 300.328, 300.330, ETSI 301.489
o Canada: RSS 210
o EMC standard for healthcare: IEC 6100 / EN 60601
o Japan : ARIB per demand
![](/img.php?id=1712132&img=bge.png)
o Australia : C-tick per demand
o Korea : MIC per demand
Safety Certifications
o US – cTUVus: UL 60950
o Europe – CE mark: EN 60950
WARNING: Insertion of an EX-3300 Exciter into any host other than the
ECOLAB Hand Sanitizer Dispenser or the GOJO Hand Sanitizer Dispenser
invalidates the FCC ID authorization and Industry Canada certification of
the EX-3300 Exciter.
![](/img.php?id=1712132&img=bgf.png)
WARNING: This device complies with Part 15 of the FCC Rules and RSS-210 of Industry and
Science Canada. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
FCC STATEMENT:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
d) Consult the dealer or an experienced radio/TV technician.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
a) This device may not cause harmful interference
b) This device must accept any interference received, including interference that may
cause undesired operation.
FCC Warning
Modifications not expressly approved by the manufacturer could void the user authority
to operate the equipment under FCC Rules.
![](/img.php?id=1712132&img=bg10.png)
About AeroScout
AeroScout is the market leader in Unified Asset Visibility solutions. Clients improve operational
efficiency and quality using AeroScout products that leverage standard Wi-Fi networks to track and
manage the location, condition and status of mobile assets and people. AeroScout’s global customer
base consists of leading hospital, manufacturing and logistics organizations, including many of the
Fortune 500. The company originally invented the first Wi-Fi-based Active RFID tag, and today is
widely recognized as leading the market in number of deployments and tags shipped. Headquartered
in Redwood City, Calif., AeroScout has offices in Europe, Asia, the Middle East, Latin America and
Australia. For more information, please visit www.aeroscout.com.
AeroScout (Headquarters)
1300 Island Drive
Suite 202
Redwood City, CA 94065
Tel: +1 (650) 596-2994
Fax: +1 (650) 596-2969
E-mail: info@aeroscout.com
Europe, Middle East, Africa Office
Tel : +32 2 709 29 49
Fax : +32 15 30 80 99
E-mail: emea@aeroscout.com
Japan Office
Tel: +81 3 3556 9003
Fax: + 81 3 5875 3723
E-mail: info@aeroscout.co.jp
Latin America Office
Tel : +52 55 5001 5769
E-mail: latam@aeroscout.com
Asia-Pacific Sales
Tel : +1 650 596 2994
E-mail: apac@aeroscout.com
Australia and New Zealand Sales
Tel : +61 3 9038 8690
E-mail: anz@aeroscout.com
