Introduction
The T3100 integration tag has been especially designed for technology
partners who wish to embed the power of the AeroScout location
technology into their own products.
T3100 is the most advanced Wi-Fi based Active RFID tag on the market,
manufactured by a market leader and the original creators of the Wi-Fi-
based Active RFID technology. It provides accurate location, improved
asset tracking and expanded communication capabilities for a more diverse
solution offering.
Utilizing the core of the AeroScout T3 tag, the latest model in the
AeroScout line of tags, the advantages are already recognized by industries
such as healthcare, manufacturing and logistics. Tracking high-value assets
and people in real time, in any environment – from tight indoor locations to
open outdoor areas – gives enterprises proven positive results and ROI.
T2 Tag Features
Compact Board Design
The T3100 is a PCB that functions in the same way as the AeroScout T3 tag
does. it is the smallest and most feature-rich model in the AeroScout Tag
family, and thanks to its compact design it can be easily embedded into
product enclosures.
Single Streamlined Power Source
The T3100 is powered by the product’s own power source, which
eliminates complicated dual power maintenance.
6 | T2 Tag Features
Call button interface
The tag includes a call button interface for physical interfaces that can
transmit specific data loads coming from the integrated product. In
addition, the tag includes another I/O which can be customized for external
control for multiple purposes
Serial interface for telemetry
A serial interface connector is integrated for connecting with a host unit for
telemetry transmission, or for extracting one of 15 x 15 byte stored
messages in the tag’s memory.
Indoor-Outdoor Reliability
Both RSSI (Received Signal Strength Indication) and TDOA (Time
Difference of Arrival) location is available, with the ability for both to
function seamlessly and accurately in any environment. This means that the
same tag can track and manage assets in real time across a variety of
industries and needs, from aerospace manufacturers tracking parts in an
aircraft hangar, to hospitals locating patients across an indoor/outdoor
campus, to automotive distributors tracking cars in large parking lots.
Simple Board Management
The T3100 can be programmed via a wireless interface and in batches of up
to 50 units at a time, using Tag Activator. The Tag Manager software allows
for easy and efficient tag configuration, activation, deactivation and
programming.
Compatibility and Non-Interference
AeroScout T3 Tags are 802.11-compatible, and feature the lowest impact on
the Wi-Fi network of any tag on the market. The Tag’s channel sensing
techniques avoid interference with over-the-air Wi-Fi data. The use of the
2.4GHz frequency band at low power levels ensures no interference with
other wireless equipment and virtually no measurable impact on network
traffic. AeroScout Tags have received EMI certification, making them safe
for use with sensitive equipment such as medical devices in a hospital.
Choke-Point Detection Capabilities
Using the AeroScout Exciter, distinct tag presence can be automatically
detected and behavior can be modified as the tag passes through a choke
point, such as a doorway or gate. This includes turning tags on/off, or
changing tag transmission rates. In addition, choke points enable precise
real-time alerts, through the AeroScout MobileView software.
Motion Sensor
The motion sensor intelligently conserves battery life and offers enhanced
tracking, by enabling separate transmission intervals for tags when they are
stationary or in motion.
Connectors and Electrical Interfaces | 7
LED indicator
Optional external LED interface for regular AeroScout tag indications.
Connectors and Electrical Interfaces

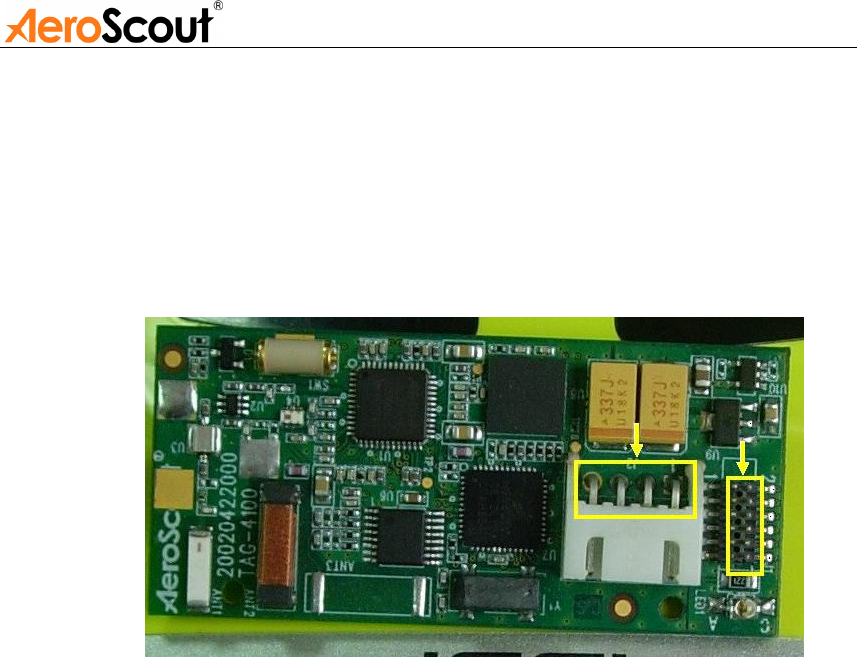

The T3100 is equipped with a 4-pin and a 12-pin connector.

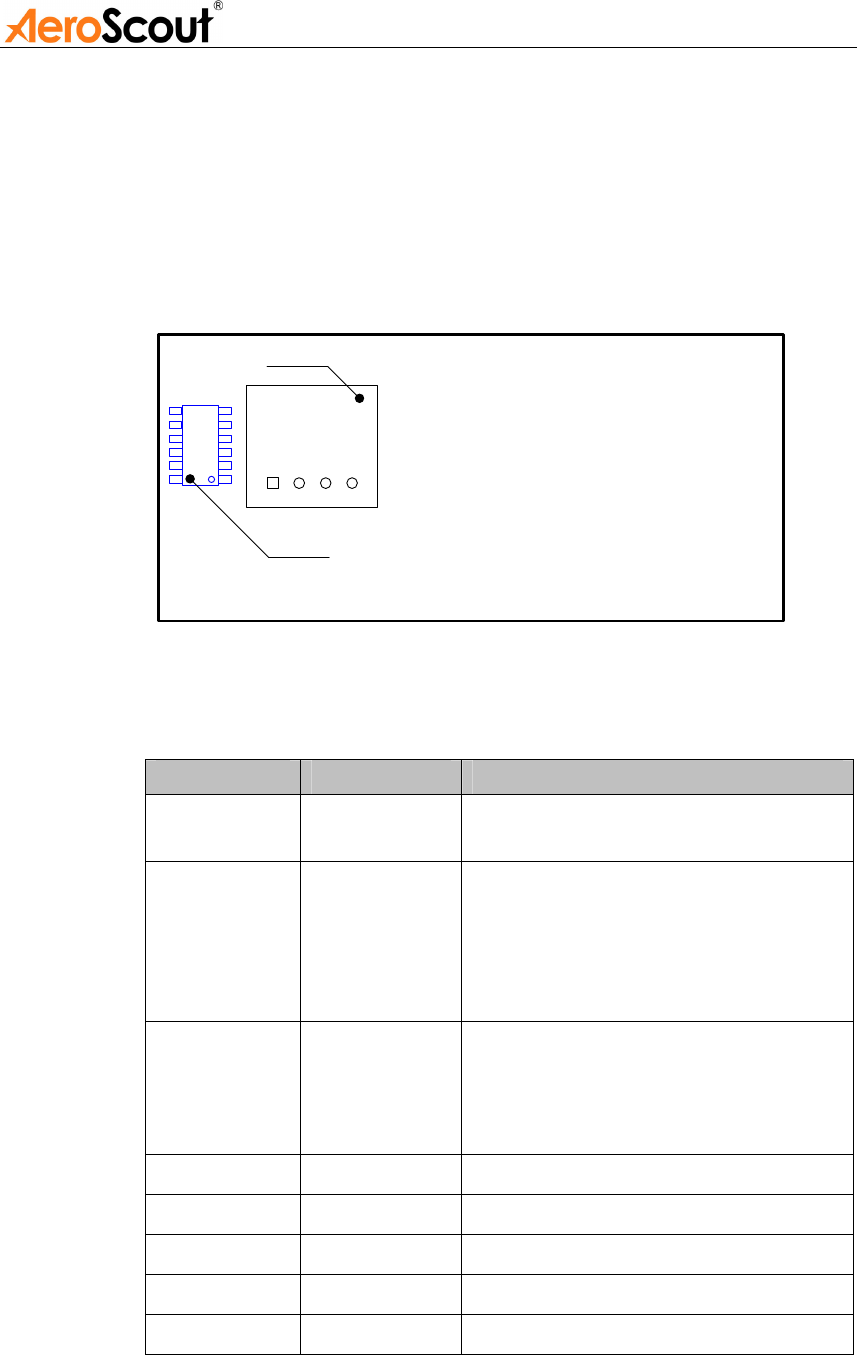

PIN1 PIN4
PIN1PIN2
PIN11PIN12
J1
J2
12-pin connector (J1)
The 12-pin serial connector can be used for telemetry transmissions.
The following table describes the pins.
Pin Number Pin name Pin Description
1 +5VBAT +5VDC External Battery Voltage
Input
2 TxD1
RS-232 Serial Communication
Transmitted Data.
Used for sending telemetry data from a
host to the tag.
Voltage levels 0 to 3.6V
3 RxD1
RS-232 Serial Communication
Received Data.
Used for reading data from the tag
Voltage levels 0 to 3.6V
4 Reserved
5 GND System Ground
6 Reserved
7 Reserved
8 Reserved
8 | Tag Management
Pin Number Pin name Pin Description
9 /PROGEN
When held low, the micro-controller
enters the RS-232 serial communication
mode. Voltage levels 0 to 3.6V
10 Reserved
11 Reserved
12 Reserved
4-pin connector (J2)
The pins are designed for VCC (5V), ground and call button. A fourth
interface can be customized on request.
The following table describes the pins.
Pin Number Pin name Pin Description
1 +5VBAT +5VDC External Battery Voltage Input
2 IO1
Interruptible General purposes I/O.
Used as an AeroScout tag call button.
Voltage levels 0 to 3.6V
3 IO2
Interruptible General purposes I/O.
Can be customized to control external
devices.
Voltage levels 0 to 3.6V
4 GND System Ground
Tag Management
The AeroScout T3100 tag can be configured, programmed and activated via
a wireless interface. This is done with the help of the AeroScout Tag
Manager application and the AeroScout Tag Activator.
In addition, Tag Manager is used to activate and deactivate tags and to
program stored messages on the tags.
The Tag Manager functions can also be activated via APIs that enable easy
integration with third-party applications.
Please refer to AeroScout Tag Manager User Guide and AeroScout Tag Manager
API User Guide.
Tag Specifications | 9
Tag Specifications
PERFORMANCE
Outdoor range: Up to 200m (600 feet)
Indoor range: Up to 60m (180 feet)
PHYSICAL AND MECHANICAL
Dims: 27mm width x 59mm height PCB thickness 1.6 mm (board only)
RADIO
802.11b/g radio compliant (2.4 GHz)
RFID low frequency receiver (125kHz)
Transmission power: up to +19dBm, ~81mW
Clear channel sensing avoids interference with wireless networks
PROGRAMMABILITY
Transmission interval programmable, 128 msec to 3.5 hours
Channel programmable
Wireless tag programming
Infrared compatibility for firmware upgrade
ENVIRONMENTAL SPECIFICATIONS
Temperature: -40°C to +85°C
POWER
Input: 5VDC
Average Consumption: 50µA when transmitting as 5-minute intervals.
Peak Current Consumption: 70mA
CERTIFICATION
Radio: FCC Part 15, sub-part C class B, sub-part B (US), EN 300-328, EN
300-330, EN 301-489 (visit website for updated certification and regional
specific information).
Recommended
Collaboration with AeroScout personnel for integration processes is
recommended to ensure optimal RF performance and prevent interference.
For technical support regarding interfacing the board for telemetry, contact
AeroScout.
Ordering Information
For ordering and pricing information, please contact AeroScout at
info@aeroscout.com.
| 11
Safety and Warnings
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
d) Consult the dealer or an experienced radio/TV technician.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
a) This device may not cause harmful interference
b) This device must accept any interference received, including interference that may
cause undesired operation.
FCC Warning
Modifications not expressly approved by the manufacturer could void the user authority
to operate the equipment under FCC Rules.
Warranty
Hardware. AeroScout Inc. ("AeroScout"), warrants that commencing from the date of
delivery to Customer, and continuing for a period of ninety (90) days the Hardware will
be free from defects in material and workmanship under normal use. The date of
shipment of a Product by AeroScout is set forth on the packaging material in which the
Product is shipped. This limited warranty extends only to the original user of the
Product. Customer's sole and exclusive remedy and the entire liability of AeroScout and
its suppliers under this limited warranty will be, at AeroScout’s or its service center's
option, shipment of a replacement within the period or a refund of the purchase price if
the Hardware is returned to the party supplying it to Customer, if different than
AeroScout, freight and insurance prepaid. AeroScout replacement parts used in
Hardware repair may be new or equivalent to new. AeroScout’s obligations hereunder
are conditioned upon the return of affected articles in accordance with AeroScout’s
then-current Return Material Authorization (RMA) procedures.
Restrictions. This warranty does not apply if the Product (a) has been altered, except
by AeroScout, (b) has not been installed, operated, repaired, or maintained in
accordance with instructions supplied by AeroScout, (c) has been subjected to
abnormal physical or electrical stress, misuse, negligence, or accident; or (d) is sold for
beta, evaluation, testing, or demonstration purposes for which AeroScout does not
receive a payment of purchase price or license fee.
12 |
DISCLAIMER OF WARRANTY. EXCEPT AS SPECIFIED IN THIS WARRANTY, ALL
EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS, AND WARRANTIES
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OR CONDITION OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONINFRINGEMENT,
SATISFACTORY QUALITY OR ARISING FROM A COURSE OF DEALING, LAW, USAGE, OR
TRADE PRACTICE, ARE HEREBY EXCLUDED TO THE EXTENT ALLOWED BY APPLICABLE
LAW. TO THE EXTENT AN IMPLIED WARRANTY CANNOT BE EXCLUDED, SUCH
WARRANTY IS LIMITED IN DURATION TO THE WARRANTY PERIOD. BECAUSE SOME
STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS,
WHICH VARY FROM JURISDICTION TO JURISDICTION.
This disclaimer and exclusion shall apply even if the express warranty set forth above
fails of its essential purpose.
