Introduction
The AeroScout T6 GPS Tag is a key component of the AeroScout Visibility System.
The AeroScout T6 GPS Tag is a first of its kind solution that combines GPS and Wi-Fi
to improve operations in large, outdoor environments. The tag is a battery-powered,
wireless device that uses GPS to determine location and standard Wi-Fi to transport
asset location and other valuable information to the customer’s 802.11b/g-compatible
Wi-Fi network. The T6 GPS Tag provides an ideal solution for organizations that
need accurate location information for asset management in outdoor areas with
minimal or basic Wi-Fi coverage. The tags help customers improve productivity and
operational efficiency, while leveraging Wi-Fi infrastructure to keep total costs low.

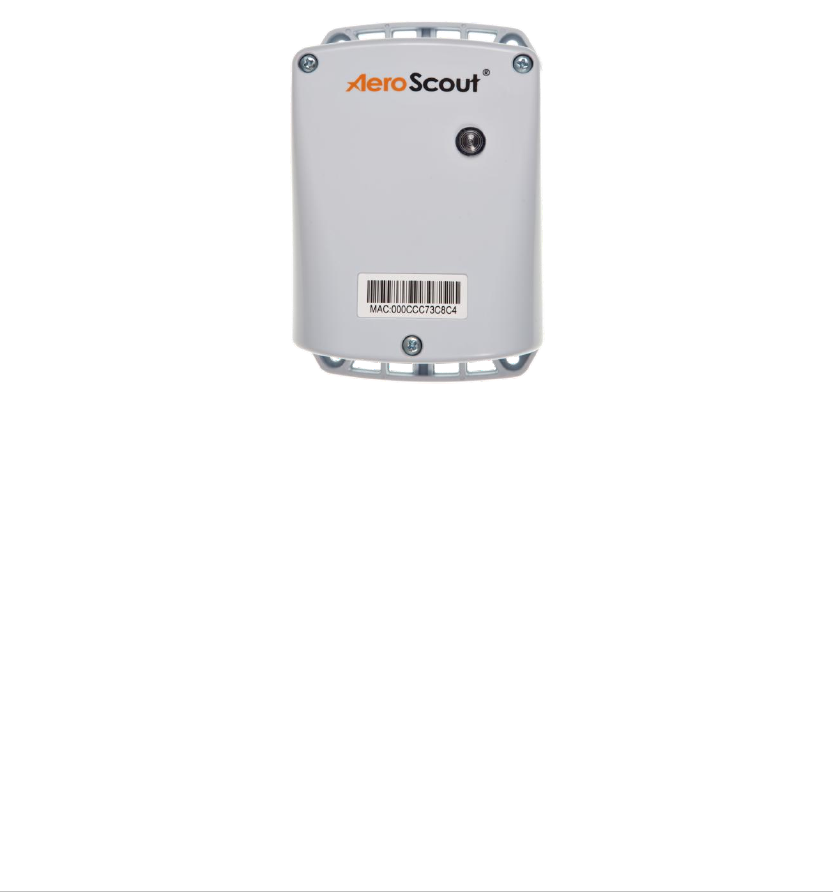

Figure 1: AeroScout T6 Tag
T6 Tag Features
GPS Location
The innovative tag combines GPS and Wi-Fi to enable accurate asset management.
Equipped with a built-in GPS receiver and attached to outdoor assets, the tag can
deliver location reports based on GPS signals.
Bidirectional Communication
Other than the standard AeroScout unidirectional beacons transmitted by the tag
periodically, the T6 Tag are capable of bidirectional Wi-Fi communication with full
network association and authentication. The tag can operate with up to 5 different
network SSIDs in secure or non-secure mode.
AeroScout T6 GPS Tag
6
Over the Air Firmware and Configuration Upgrade
The T6 Tag is capable of associating with the Wi-Fi network at pre-configured
intervals and receiving automatically firmware upgrades and configuration updates.
Visual Indications
The tag includes a Bi-color LED. The LED indication can be activated from the
network to provide acknowledgement for various events such as entering a zone.
Flexible Mounting and Usage Options
The tag can be mounted on flat hard surfaces using screws or on cylindrical forms
(such as poles) using tie-wraps.
Motion Sensing
T6 Tags are shipped with on-board motion sensors that report when it starts to move
and whether it is in motion or not. The motion sensor can be used to define tag
behavior when in motion or when it is stationary.
Long Battery Life
A powerful, replaceable battery provides power for a period of up to 3 years
(depending on the tag’s transmission interval, operating temperature, and the
number of times a day it associates with the network). The tag periodically provides
a report on the battery level so that when the battery level runs low, it can be
replaced efficiently with minimum down time. Replacing the battery is simple. The
AeroScout T6 Tag can also be easily deactivated in order to conserve battery power.
Tag Management
The T6 Tag can be programmed via a wireless interface using the AeroScout Tag
Activator. Together with the AeroScout Tag Manager software it allows for easy and
efficient tag configuration, activation or deactivation and programming. T6 Tags are
supported by Tag Manager, version 4.2 and above.
Tag Programmability and Storage
The T6 Tag can store up to 15 messages of 15 bytes each. These messages can either
be pre-programmed via the Tag Manager or programmed on the fly by an
AeroScout Exciter when a tag is in proximity to it. These messages can also be
transmitted in addition to the standard location messages (the tags can be either
configured to transmit one of the messages or triggered by an AeroScout Exciter to
transmit a specific message).
Active RFID Functionality
Using the AeroScout Exciter, the tag sends out specific location reports upon arrival
at chokepoints or gateways. The tag behavior can also be automatically modified
while passing through a chokepoint such as a doorway or gate. This includes
AeroScout T6 GPS Tag
7
activating/deactivating tags or changing the tags’ transmission rate to accommodate
different usage patterns.
Compatibility and Non-interference
AeroScout Tags are 802.11b compatible. The tag’s clear channel sensing techniques
avoid interference with Wi-Fi networks. The use of the unlicensed 2.4GHz frequency
band at low power levels ensures no interference with other wireless equipment,
making AeroScout Tags safe for use with such sensitive equipment as medical
devices in a hospital.
Rugged Performance
AeroScout Tags are designed to function in harsh work environments and weather
conditions. The tag enclosure is water-resistant (IP-67) and designed to withstand
significant physical shocks.
Intrinsic Safe option
AeroScout offers an intrinsically safe (IS), explosion proof version of the T6 GPS Tag,
which is specifically built to deliver high-value asset tracking, while meeting strict
international regulatory certifications ensuring safety in hazardous environments.
External Power Input
An external power input option is available for the T6 IS GPS Tags. When connected
to an external power source the Tag will not consume power from the battery. Once
the external power source is disconnected the Tag will automatically revert to the
battery power source.
AeroScout T6 GPS Tag
8

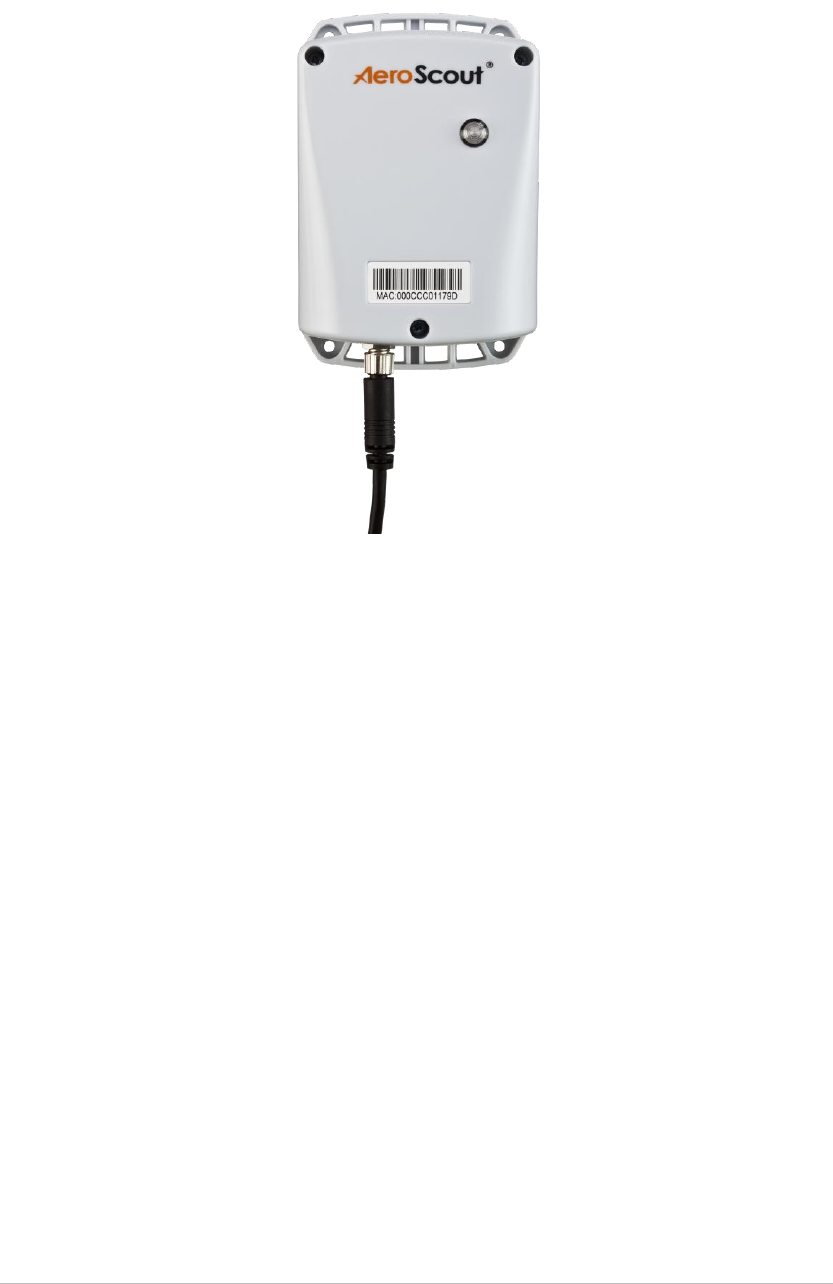

Figure 2: T6 IS Tag with external power input
AeroScout T6 GPS Tag
9
Tag Mounting
The AeroScout T6 Tag is enclosed in a compact case and offers a variety of mounting
options described in this section. To receive the satellite signals the tag should be
mounted vertically.
Double Flange
The tag enclosure includes two flanges on the two narrow sides of the device.
The flanges can be used to thread two straps through them.

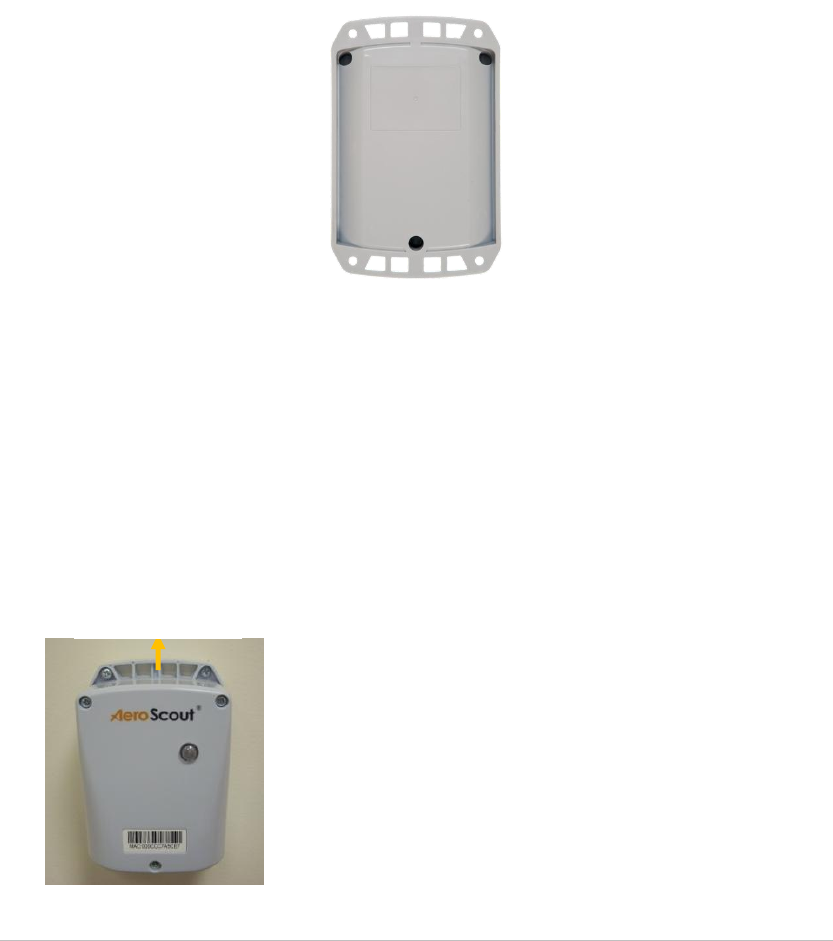

Figure 3. AeroScout T6 Tag (back view)

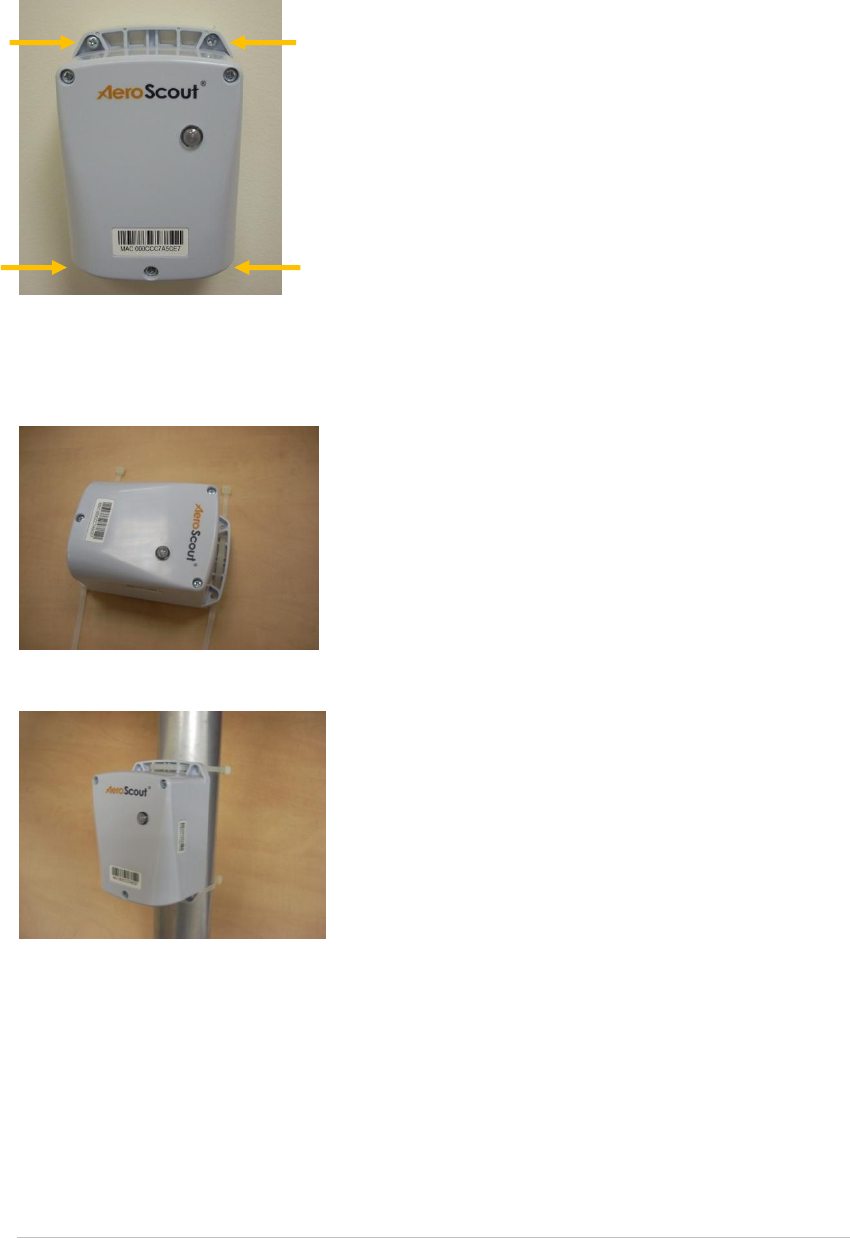

In addition, the holes on the two sides of each flange (four holes in all) can be used to
firmly secure the tags on a flat surface, using two or four screws (when using two
screws, consider fixing them through the holes on the opposite sides).
Fixing the Tag to a Surface Using Screws
1. Position the tag on the asset in a vertical position allows reception of maximal
satellite signal.
This side up
AeroScout T6 GPS Tag
10
2. Attach the tag to the asset, using four screws.
Attaching the tag to a Pole
Thread the straps through the two pairs of strapping holes on the tag’s flanges.
Position the tag vertically and attach it to the pole.
AeroScout T6 GPS Tag
11
Tag Management
Managing tags Using AeroScout Tag Manager
The AeroScout T6 Tag can be configured, programmed and activated via a wireless
interface. This is done with the help of the AeroScout Tag Manager Version 4.2 and
the AeroScout Tag Activator.
In addition, Tag Manager is used to activate and deactivate tags and to program
stored messages and the GPS receiver.
The Tag Manager functions can also be activated via APIs that enable easy
integration with third-party applications.
Please refer to AeroScout Tag Manager User Guide.
Automatic Tag Management through the Wi-Fi Network
The AeroScout T6 Tag’s configuration can be managed automatically through the
Wi-Fi network. This is possible thanks to the tag’s bidirectional communication
abilities.
This is done by creating a configuration file using the AeroScout Tag Manager and
saving it, exporting the configuration, and then loading the file into the AeroScout
Bidirectional Tag Controller application. This application automatically updates the
configuration to all the tags found in the site, through the Wi-Fi network. Tags get
the update when they associate with the network. Typically, tags associate with the
network once or twice a day.
Please refer to AeroScout Bidirectional Tag Controller User Guide.

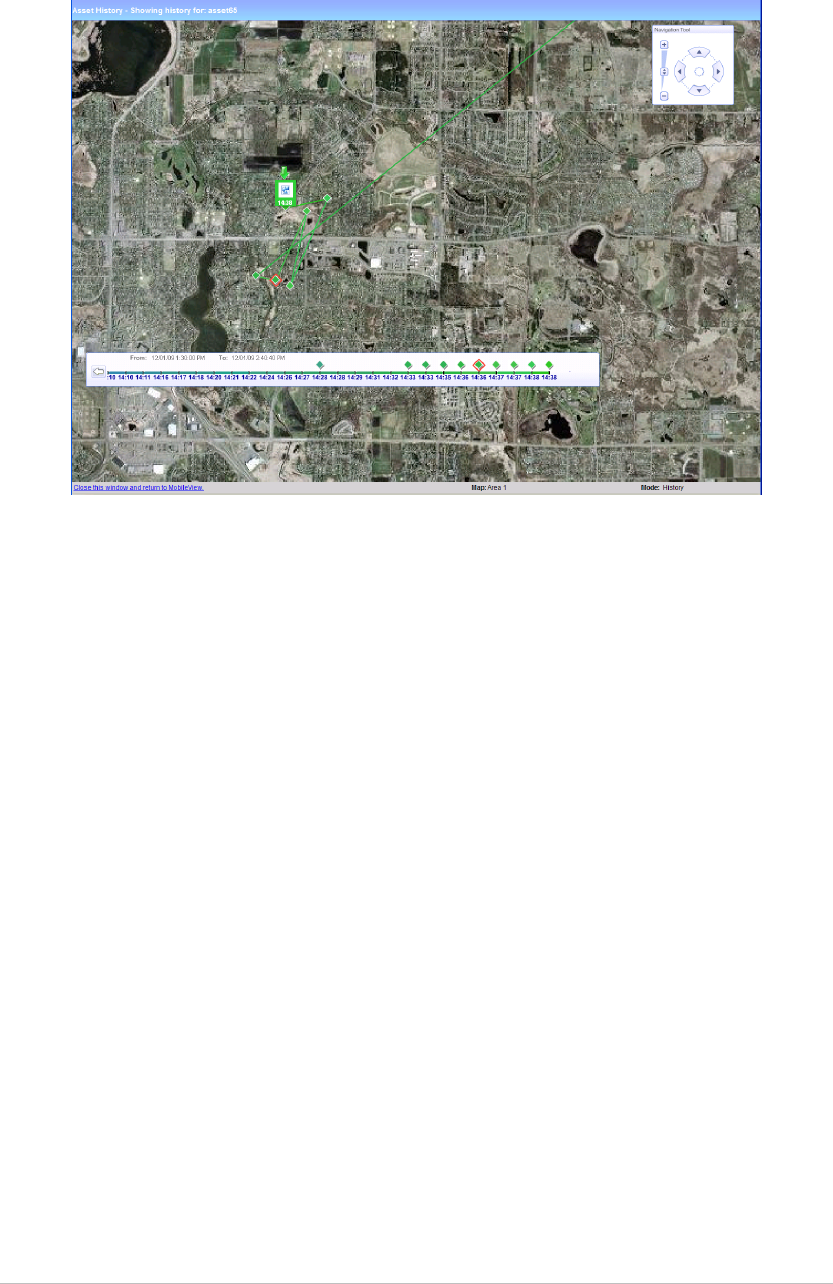

Tag Management via MobileView
MobileView delivers a simple yet powerful means of tracking the location and status
of assets with a full range of visualization, reporting management and automated
alerting options. It also provides the ability to deliver valuable location data to a
variety of third-party applications.
MobileView consolidates asset visibility data from a variety of resources, including
the T6 GPS Tag which enables real-time asset tracking and triggers events and alerts.
AeroScout T6 GPS Tag
12
For information about the deployment and configuration of GPS Gateway for T6
Tags, please refer to MobileView Installation and Deployment Guide
Tag Maintenance
Upgrading the Firmware
The AeroScout T6 Tag’s firmware too can be upgraded automatically through the
Wi-Fi network.
This is done by sending the upgrade to all tags found in the site, through the
AeroScout Bidirectional Tag Controller application. In this case too, tags receive the
update when they associate with the network.
Replacing the Internal Batteries
The AeroScout Tag uses a battery pack consisting of two 3.6V Lithium-Thionyl
Chloride (Li-SOCl2) batteries, with 38 AH capacity. The life expectancy of the
batteries depends on the tag’s configuration. For example, shorter transmission
intervals and a higher number of network associations per day consume more
energy.
AeroScout T6 GPS Tag
13

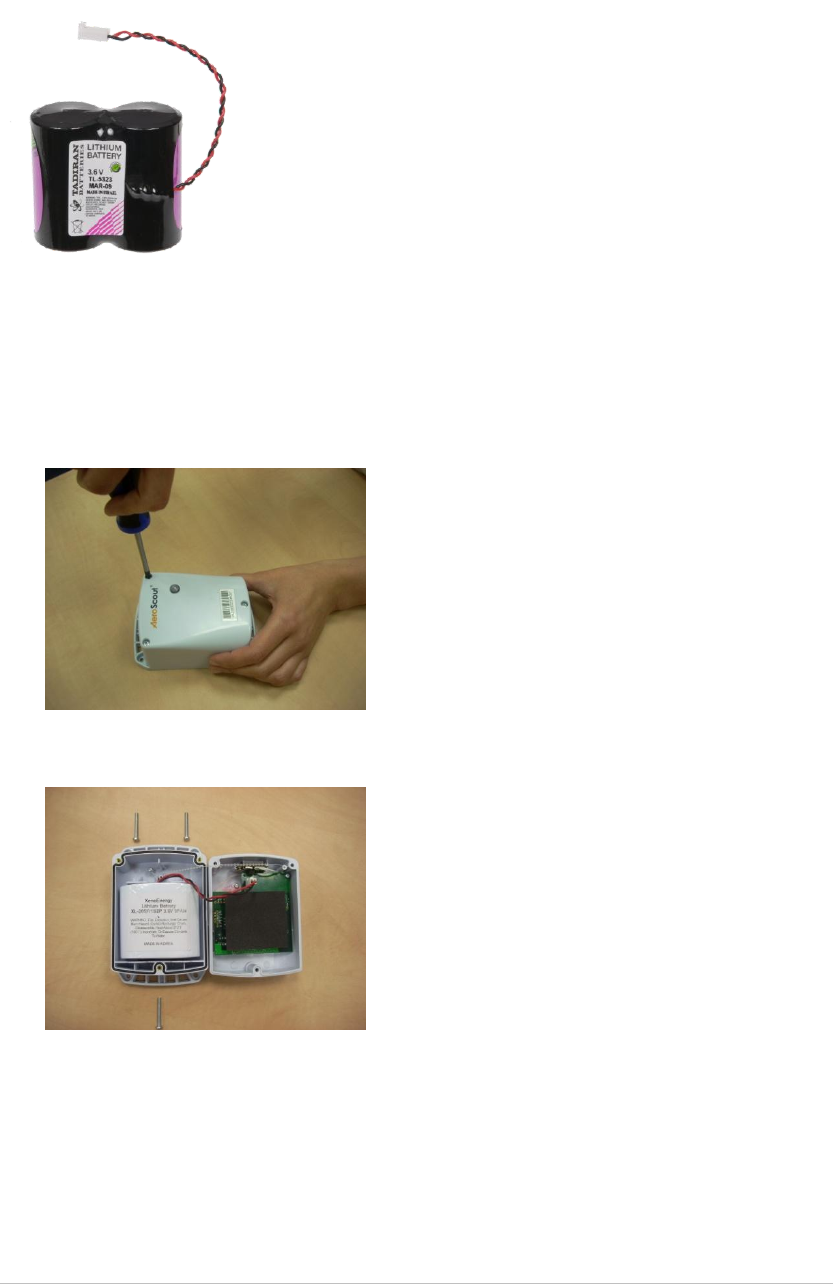

Figure 4. T6 Tag battery

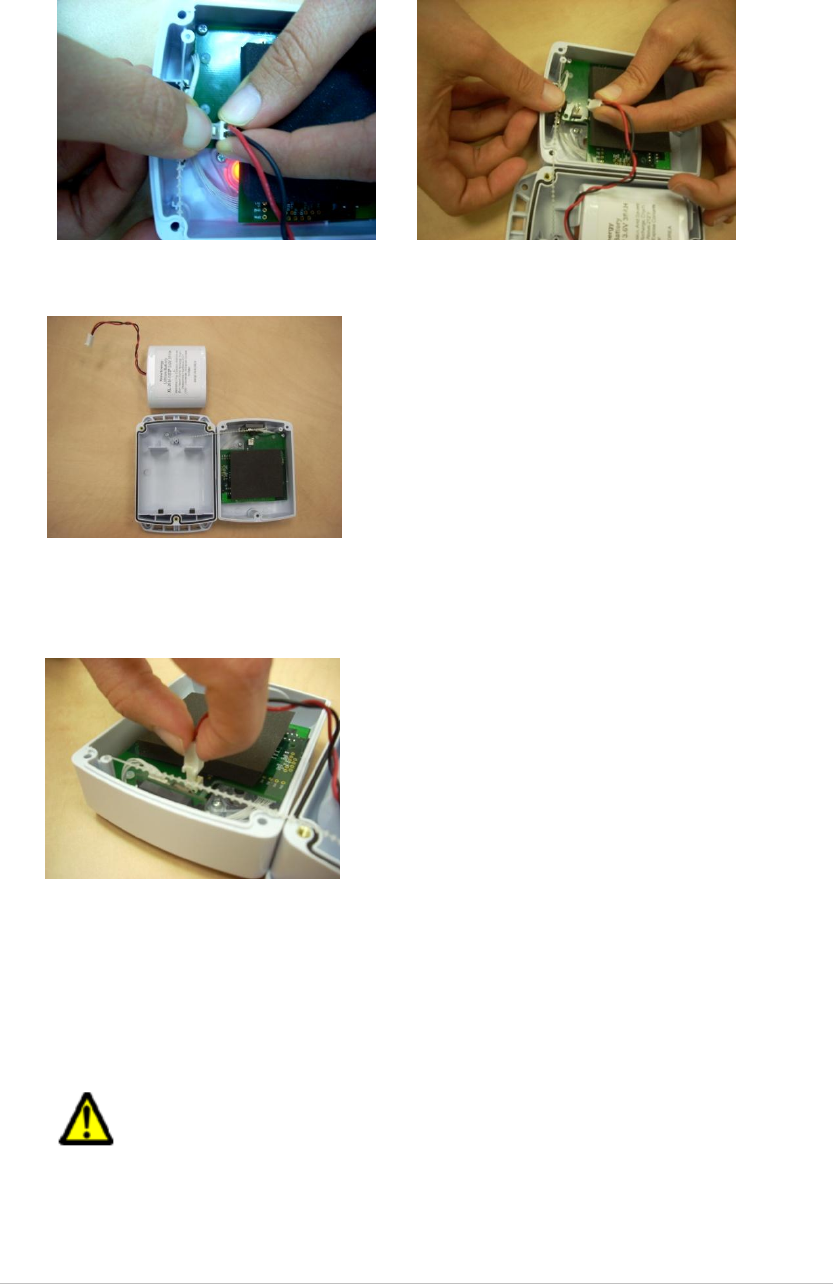

To replace a battery:
1. Deactivate the tag using Tag Activator and Tag Manager (recommended).
2. Remove the three screws on the tag’s cover.
3. Remove the tag cover.
4. Gently separate the socket cord connected to the batteries from the PIN header
placed on the tag PCB. In order to release the socket properly, you need to shift
the prong aside and pull the socket cord out.
AeroScout T6 GPS Tag
14
5. Remove the old battery pack from the tag’s housing.
6. Place the new battery pack in its place and connect the socket cord to the PIN
header connection on the tag. Notice the socket direction before connecting it to
the PIN Header.
7. Put the tag cover back.
8. Fasten the screws.
Make sure that the sealing rubber around the battery compartment has not
moved during battery installation. If it did, gently put it back in place using a
sharp device.
WARNING: Use only batteries listed in Table 1 or batteries that have
been approved by AeroScout. There is a danger of fatal tag damage if
the battery is replaced incorrectly or by another battery type. Dispose
used batteries according to the instructions.
AeroScout T6 GPS Tag
15
9. Activate the tag.
10. Dispose of the old lithium battery properly.
WARNING: Local regulations vary. Federal regulations allow up to
100 kg./month of lithium manganese dioxide batteries to be disposed
in common landfill. All leads (the terminals) should be taped to
prevent short circuit. The user is responsible for safe disposal.
Table 1lists of the approved battery types for the T6 Tag:
Manufacturer
Battery Part Number
XENO
XL-205F/1S2P
Table 1 – T6 Tag Approved Battery Types
Tag Battery Life
In order to ensure the longest battery life from the tag, the GPS receiver is activated
intermittently.
The battery life of the T6 GPS Tag is depended on the chosen operation mode in Tag
Manager. The battery life is also dependant on the transmission intervals in motion
and stationary. The below table describes the calculated battery life per use case:
GPS Operation Mode
Application
Expected
Battery Life
Outdoor Storage
For assets which move
infrequently (in motion
between 5-10% of the
time) such as crates,
airplane parts and other
long term storage items.
Up to 2.3 Years
Trailer and Containers
For assets in motion 10-
20% of the time and are
located in yards such as
trailers and mobile
containers.
Up to 1.4 Years
Ground Support
Equipment
For assets in motion
between 30-50% of the
time such as Airport
dollies and other ground
support equipment in
large logistics areas.
Up to 1 Year
Table 2 – Battery Life per GPS Operation Mode
AeroScout T6 GPS Tag
16
Note
The calculations above are true for an operating temperature of 20ºC/68
Fahrenheit and for a 3-channel transmission in unidirectional mode. The
calculations do not take into consideration additional factors such as Exciter
activations of tag and bidirectional transmission.
Except for the parameters stated above, the battery life also depends on parameters
such as the time it takes the GPS to get a position fix between intervals. This is a
changing non-configurable parameter.
T6 Tag Models
Use the following information to determine the correct part number of the tag
depending on the required hardware:
Mark
Meaning
TAG-6000
T6 GPS Tag
TGH-6000
Empty T6 Tag housing with AeroScout logo
TAG-6000-BP-X1
T6 Intrinsically Safe GPS Tag
TAG-6000-XP-X1
T6 Intrinsically Safe GPS Tag with external power
connection
Table 2 – Regular T6 Tag Models
Tag Accessory Models
Mounting Accessories
Comments
Model
Tie wraps– up to 2’’
diameter
TAC-060
Tie wraps– up to 5’’
diameter
TAC-061
Tag Management
Tag Management Suite
Includes Tag Activator,
Tag Manager Software
and 110/220V to 12V
adaptor
US Suite
Includes 110/220v to 12v
adapter (US)
BWH-1000-02-
TA-U
Europe Suite
Includes 110/220v to 12v
adapter (Europe)
BWH-1000-02-
TA-E
Japan Suite
Includes 110/220v to 12v
adapter (Japan)
BWH-1000-02-
TA-J
AeroScout T6 GPS Tag
17
Battery
T6 Tag battery 25-Pack
TAC-630
T6 Tag battery 50-Pack
TAC-631
Table 3 – Tag Accessory Models
AeroScout T6 GPS Tag
18
Tag Specifications
Wi-Fi RADIO
Compliant with 802.11b/g networks (2.4 GHz)
Transmission power: up to +19dBm, ~81mW
GPS RECEIVER
SIRF Single chip receiver GSC3E/LP
Tracking sensitivity: -158dbm
PHYSICAL AND MECHANICAL
Dimensions: 100mm x 80mm x 55mm (3.9” x 3.1” x 2.2”)
FUNCTIONALITY
GPS coordinates are periodically sent over the Wi-Fi channel in pre-programmed
intervals.
Transmission interval is configurable.
Built-in motion sensor enables more frequent transmissions when in motion and
less frequent when not in motion.
ENVIRONMENTAL SPECIFICATIONS
Temperature: -30°C to +75°C (-22°F to +167°F)
ELECTRICAL
2 x D lithium 3.6V battery pack (replaceable)
Battery life: up to 3 years (dependent on usage scenario and other factors)
Optional external 12V DC input/ 1 Ampere for the Intrinsic safe tag.
AeroScout T6 GPS Tag
19
CERTIFICATIONS
Radio:
FCC Part 15, sub-part C class B, sub-part B
EN 300-328, EN 301-489
Safety:
o CE, cTUVus (EN60950)
Intrinsic Safe Tags:
Intrinsically-safe operation in Class I, Division 1, Groups A, B, C, and D
Hazardous (Classified) locations.
ensure temperature classification T4 at Ta = 50°C and T3C at Ta = 70°C
AeroScout T6 GPS Tag
20
Safety and Warnings
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
d) Consult the dealer or an experienced radio/TV technician.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
a) This device may not cause harmful interference
b) This device must accept any interference received, including interference that may cause undesired
operation.
FCC Warning
Modifications not expressly approved by the manufacturer could void the user authority to operate
the equipment under FCC Rules.
WARNING: This device complies with Part 15 of the FCC Rules and RSS-210 of Industry and
Science Canada. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
AeroScout T6 GPS Tag
21
Limited Warranty
Hardware. AeroScout Inc. ("AeroScout") warrants that commencing from the date of delivery to Customer and
continuing for a period of one (1) year thereafter (the “Warranty Period”), the Hardware will be free from defects in
material and workmanship under normal use subject to terms hereof. The date of shipment of a Product by
AeroScout is set forth on the packaging material in which the Product is shipped. This limited warranty extends only
to the original user of the Product. Customer's sole and exclusive remedy and the entire liability of AeroScout and its
suppliers under this limited warranty will be, at AeroScout’s or its service center's option, shipment of a replacement
within the period or a refund of the purchase price if the Hardware is returned to the party supplying it to Customer, if
different than AeroScout, freight and insurance prepaid. AeroScout replacement parts used in Hardware repair may
be new or equivalent to new. AeroScout’s obligations hereunder are conditioned upon the return of affected articles
in accordance with AeroScout’s then-current Return Material Authorization (RMA) procedures.
Restrictions: This warranty does not apply if the Product (a) has been altered, except by AeroScout, (b) has not
been installed, operated, repaired, or maintained in accordance with instructions supplied by AeroScout, (c) has
been subjected to abnormal physical or electrical stress, misuse, negligence, or accident; or (d) is provided for beta,
evaluation, testing, or demonstration purposes for which AeroScout does not receive a payment of purchase price or
license fee.
Exclusions:
This warranty shall have no coverage of the following:
Batteries (other than DOA -Dead On Arrival)
Plastics (including defects in appearance, cosmetics, decorative or structural items including framing and
non-operative parts).
Tag Calibration
Expenses related to removing or reinstalling the Product
Defects or damage that result from the use of Non-AeroScout certified Products, Accessories, Software or other
peripheral equipment are excluded from coverage.
Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification
in any way by someone other than AeroScout, or its partners, are excluded from coverage.
Extended Warranty:
AeroScout offers an extended warranty. The initial year of the extended warranty must be purchased at the time of
the product purchase or before the original warranty expires. The extended warranty may be renewed again for a
maximum of two additional years (on top of the initial warranty period). Warranty extensions must be purchased
prior to the existing warranty expiration and will not be available after the original/extended warranty expires.
DISCLAIMER OF WARRANTY. EXCEPT AS SPECIFIED IN THIS WARRANTY, ALL EXPRESS OR IMPLIED
CONDITIONS, REPRESENTATIONS, AND WARRANTIES INCLUDING, WITHOUT LIMITATION, ANY IMPLIED
WARRANTY OR CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
NONINFRINGEMENT, SATISFACTORY QUALITY OR ARISING FROM A COURSE OF DEALING, LAW, USAGE,
OR TRADE PRACTICE, ARE HEREBY EXCLUDED TO THE EXTENT ALLOWED BY APPLICABLE LAW. TO THE
EXTENT AN IMPLIED WARRANTY CANNOT BE EXCLUDED, SUCH WARRANTY IS LIMITED IN DURATION TO
THE WARRANTY PERIOD. BECAUSE SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH
VARY FROM JURISDICTION TO JURISDICTION.
This disclaimer and exclusion shall apply even if the express warranty set forth above fails of its essential purpose.
Under no circumstances shall AeroScout’s liability under this limited warranty exceed the actual cash value of the
Product at the time Consumer returns the Product for repair, determined by the price paid by Consumer for the
Product less a reasonable amount for usage.
Please use the following link to submit your tickets using AeroScout’s support portal:
http://support.aeroscoutindustrial.com
About AeroScout
AeroScout is the market leader in Unified Asset Visibility solutions. Clients improve operational
efficiency and quality using AeroScout products that leverage standard Wi-Fi networks to track and
manage the location, condition and status of mobile assets and people. AeroScout’s global customer
base consists of leading hospital, manufacturing and logistics organizations, including many of the
Fortune 500. The company originally invented the first Wi-Fi-based Active RFID tag, and today is
widely recognized as leading the market in number of deployments and tags shipped. Headquartered
in Redwood City, Calif., AeroScout has offices in Europe, Asia, the Middle East, Latin America and
Australia. For more information, please visit www.aeroscoutindustrial.com.
AeroScout (Headquarters)
1300 Island Drive
Suite 202
Redwood City, CA 94065
Tel: +1 (650) 596-2994
Fax: +1 (650) 596-2969
E-mail: industrial@aeroscout.com
Europe, Middle East, Africa Office
Tel : +32 2 709 29 49
Fax : +32 15 30 80 99
E-mail: emea@aeroscout.com
Japan Office
Tel: +81 3 3556 9003
Fax: + 81 3 5875 3723
E-mail: info@aeroscout.co.jp
Latin America Office
Tel : +52 55 5001 5769
E-mail: latam@aeroscout.com
Asia-Pacific Sales
Tel : +1 650 596 2994
E-mail: apac@aeroscout.com
Australia and New Zealand Sales
Tel : +61 3 9038 8690
E-mail: anz@aeroscout.com
