USERS MANUAL

AeroScout T7 Tag
User Guide
T7-UG-251011-01
Disclaimer
The information and know-how included in this document are the exclusive property of AeroScout Inc.
and are intended for the use of the addressee or the user alone. The addressees shall not forward to
another their right of using the information, know-how or document forwarded herewith, in whole or
in part in all matters relating or stemming from or involved therein, whether for consideration or
without consideration, and shall not permit any third party to utilize the information, know-how or the
documents forwarded herewith or copies or duplicates thereof, unless at the company’s consent in
advance and in writing. Any distribution, advertisement, copying or duplication in any form
whatsoever is absolutely prohibited. The Company reserves the right to sue the addressee, user
and/or any one on their behalves, as well as third parties, in respect to breaching its rights pertaining
to the intellectual rights in particular and its rights of whatever kind or type in the information, know-
how or the documents forwarded by them herewith in general, whether by act or by omission.
This document is confidential and proprietary to AeroScout Inc. and is not to be distributed to any
persons other than licensed AeroScout Visibility System users or other persons appointed in writing
by AeroScout Inc.
Trademark Acknowledgements
AeroScout™ is a trademark of AeroScout, Inc. Other brand products and service names are
trademarks or registered trademarks of their respective holders. Below is a partial listing of other
trademarks or registered trademarks referenced herein:
Cisco™ is a trademark of Cisco Systems, Inc.
Sun, Sun Microsystems, the Sun Logo, Java, JRE and all other Sun trademarks, logos, product names,
service names, program names and slogans that are referred to or displayed in this document are
trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other
countries.
This product includes software developed by the Apache Software Foundation
(http://www.apache.org/).
This product includes code licensed from RSA Data Security
Esper is a trademark of EsperTech, Inc.
Jboss is a trademark of Red Hat Middleware, LLC.
Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be
trademarks of their respective owners.
MS SQL Server 2005 and MS SQL Server 2008 are registered trademarks of Microsoft Corporation in
the United States and/or other countries.
JasperSoft, the JasperSoft Logo, JasperReports, the JasperReports logo, JasperIntelligence,
JasperDecisions, JasperAnalysis, Scope Center, Scope Designer, and JasperServer are trademarks or
registered trademarks of JasperSoft, Inc. in the United States and other countries.
Images of PLUM A+™, PLUM A+™ 3, LIFECARE PCA™, and SYMBIQ™ infusion systems are provided
with permission of Hospira, Inc. All rights reserved.
Copyright 2011 AeroScout Inc. All rights reserved.
AeroScout T2 Tag User Guide
Table of Contents 3
Table of Contents
Introduction ......................................................................................................................... 6
T7 Tag Features ................................................................................................................... 6
Tag Mounting ...................................................................................................................... 9
Tag Management ................................................................................................................ 9
Tag Maintenance ................................................................................................................ 9
T7 Tag Models ..................................................................................................................... 9
Tag Management Suits .................................................................................................... 10
Specifications ..................................................................................................................... 12
Safety and Warnings ........................................................................................................ 14
Limited Warranty ............................................................................................................. 15
AeroScout T2 Tag User Guide
Table of Contents 4
Table of Figures
Figure 1: T7a Tag .................................................................................................................... 6
Figure 2:Umbilical Tag with the Clamp .............................................................................. 9
AeroScout T2 Tag User Guide
Document History 5
REVISION HISTORY
Revision
Date
Comments
Author
1
25 October 2011
New Document
Refael Blanca
AeroScout T2 Tag User Guide
Introduction 6
Introduction
The AeroScout T7a Tag is a key component of the AeroScout Infant Security System,
an effective and reliable Wi-Fi-based solution to guard against the threat of infant
abduction from hospitals. The T7a Tag is a small form factor Wi-Fi RFID device that
is designed to attach to infant's umbilical stub and to help prevent infant abductions
by alerting when the infant is carried close to an exit door. In addition, with the T7a
Tag infants can be accurately located in real-time and in any environment from
tight indoor locations such as hospital floors to open outdoor spaces such as parking
lots.
Each infant wears a small form factor T7a which is attached to its umbilical cord
clamp. The MyChild system computer console displays floor plans of the facility,
showing monitored areas and protected exits. Should an attempt to leave the
monitored area with a protected child occur without authorization, the MiChild
system will immediately set off an alarm, activate magnetic door locks and hold
selected elevators.
T7a Tag messages are received and processed by standard Wi-Fi access points as
well as AeroScout Location Receivers, keeping infrastructure costs low and
installation simple. As with all AeroScout tags, location determination is performed
through a unique beaconing method that keeps network impact low and ensures
scalability and long battery life.

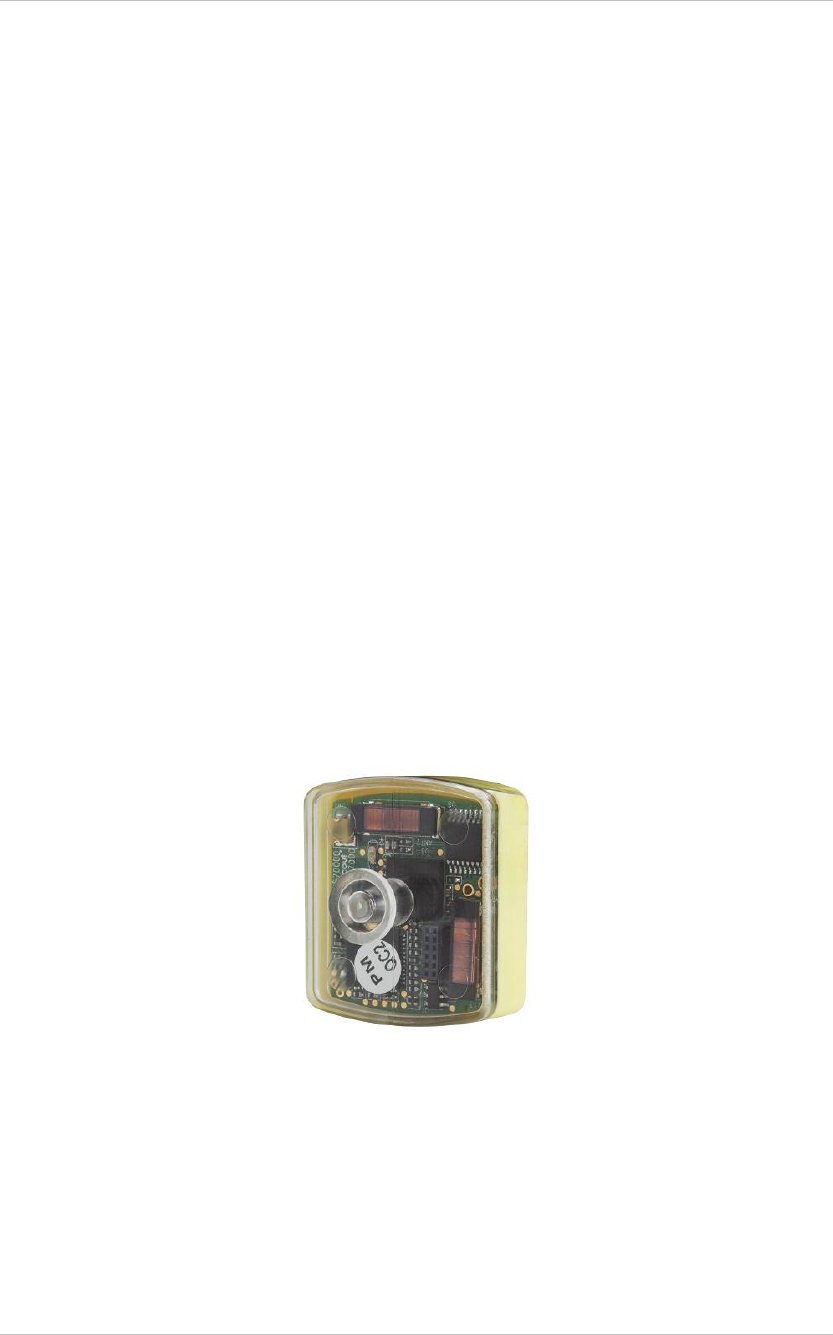

Figure 1: T7a Tag
T7 Tag Features
Wi-Fi Compatibility
T7a Tags use any standard Wi-Fi network infrastructure, keeping costs low and
making deployments simple and fast. AeroScout tags are 802.11b compatible. The
AeroScout T2 Tag User Guide
T7 Tag Features 7
tag’s clear channel sensing techniques avoid interference with Wi-Fi networks. The
use of the unlicensed 2.4GHz frequency band at low power levels ensures no
interference with other wireless equipment, making AeroScout tags safe for use with
such sensitive equipment as medical devices in a hospital.
Smart and Simple Activation
To prevent battery drainage and extend battery life as much as possible, tags leave
the factory in Dormant mode. Using AeroScout Exciters, T7a Tags are activated
automatically when entering the Labor & Delivery unit. As result battery life can be
extended and the tags provide instant notification and protection prior to the
enrollment. T7a Tag can also be easily deactivated in order to conserve battery
power.
Power Management
The T7a Tag's rechargeable battery can provide power for an operating period of up
to 30 days before a recharge is needed. The tag periodically provides a report on the
battery level so that when the battery level runs low, it can be recharged efficiently
with minimum down time. AeroScout tags also include a smart mechanism that
records the tag activity and forms a profile of the tag's behavior. Based on those
statistics, the system constantly delivers the updated battery's capacity level the
estimated battery life expectancy.
Battery Life Prediction and Analysis
AeroScout Tags are configured with counters that retain the number of times a tag
undergoes different events such as the number of transmissions or the number of LF
triggers, thus forming a profile of the tag's behavior. Based on those statistics, the
system constantly delivers updated estimates of the battery life expectancy and the
tag's behavior can be analyzed.
Battery Stretch
AeroScout Tags are designed to stretch the battery life when it reaches low level in
order to prevent the tag from dying before the battery is replaced. When a tag's
battery reaches Low level, the tag will temporarily modify its configurations to
transmit in intervals of one second between each channel and one second between
repetitions. The original configurations will be restored once the battery is replaced
with a new one. It is recommended to change the batteries as soon as they reach Low
level.
Motion Sensing
AeroScout T7a Tags contain on-board motion sensors. The motion sensor can be
configured to trigger alerts. It also enables different transmission intervals for tags
AeroScout T2 Tag User Guide
T7 Tag Features 8
when they are stationary or in motion which reduces unnecessary network traffic
and conserves battery life.
Tag Management
The T7 Tag can be programmed via a wireless interface using the AeroScout Tag
Activator. Together with the AeroScout Tag Manager software it allows for easy and
efficient Tag configuration, activation or deactivation and programming.
Tag Programmability and Storage
The T7 Tag can store up to 15 messages of 15 bytes each. These messages can either
be pre-programmed via the Tag Manager or programmed on the fly by an
AeroScout Exciter when a tag is in proximity to it. These messages can also be
transmitted in addition to the standard location messages (the tags can be either
configured to transmit one of the messages or triggered by an AeroScout Exciter to
transmit a specific message).
Active RFID Functionality
Using the AeroScout Exciter, the tag sends out specific location reports upon arrival
at chokepoints or gateways. The tag behavior can also be automatically modified
while passing through a chokepoint such as a doorway or gate. This includes
activating/deactivating tags or changing the tags’ transmission rate to accommodate
different usage patterns.
Compatibility and Non-interference
AeroScout Tags are 802.11b compatible. The tag’s clear channel sensing techniques
avoid interference with Wi-Fi networks. The use of the unlicensed 2.4GHz frequency
band at low power levels ensures no interference with other wireless equipment,
making AeroScout tags safe for use with such sensitive equipment as medical
devices in a hospital.
Rugged Performance
AeroScout Tags are designed to function in harsh work environments and weather
conditions. The T7 Tag enclosure is water-resistant (IP-67) and designed to
withstand significant physical shocks.
AeroScout T2 Tag User Guide
Tag Mounting 9
Tag Mounting
The AeroScout T7a Tag is enclosed in a compact case and designed to attach to
infant's umbilical stub.

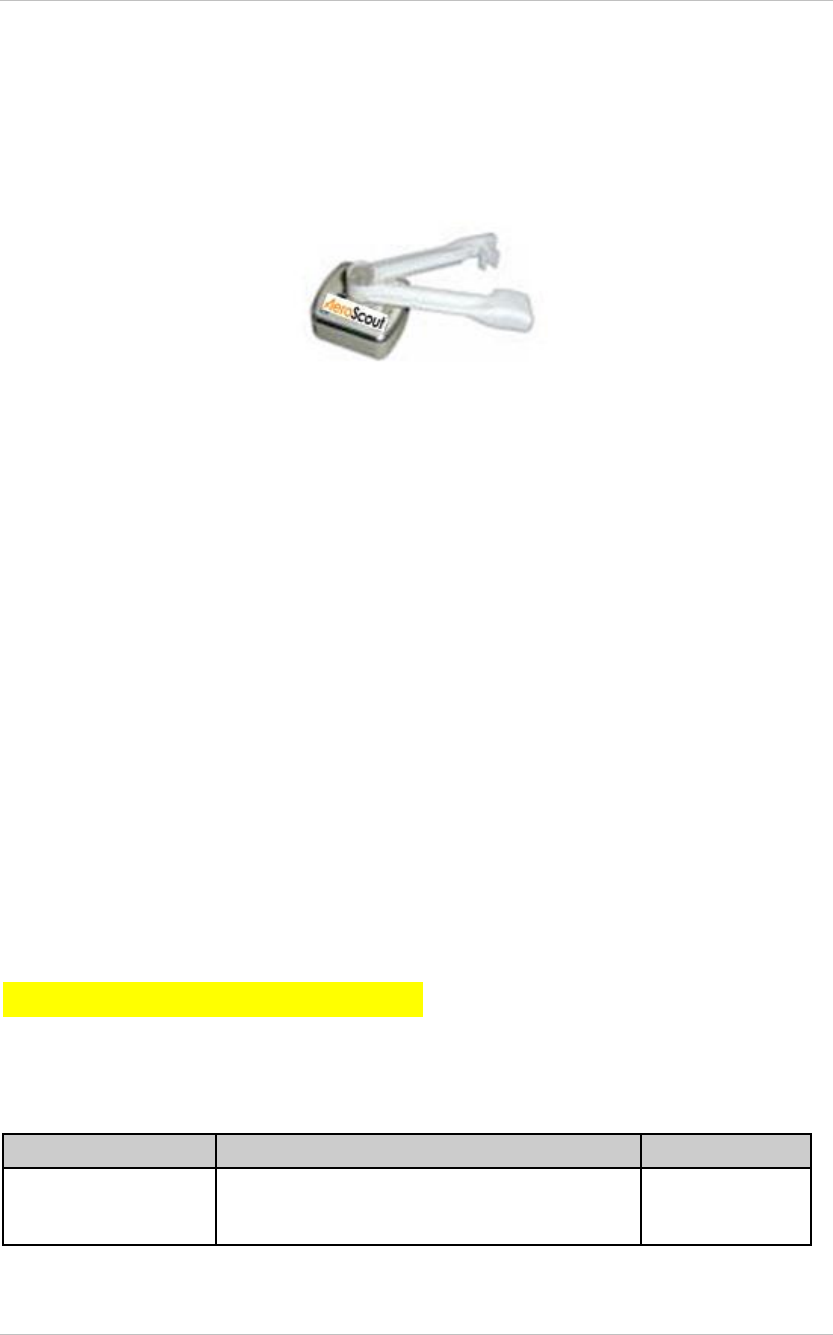

Figure 2:Umbilical Tag with the Clamp
Tag Management
The AeroScout T7 Tag can be configured, programmed and activated via a wireless
interface. This is done with the help of the AeroScout Tag Manager application and
the AeroScout Tag Activator.
In addition, Tag Manager is used to activate and deactivate tags and to program
stored messages on the tags.
The Tag Manager functions can also be activated via APIs that enable easy
integration with third-party applications.
Please refer to AeroScout Tag Manager User Guide and AeroScout Tag Manager API User
Guide.
Tag Maintenance
Recharging the Internal Battery
T7 Tag Models
AeroScout T7 Tag
Comments
Infant Security T7a
Tag
Small form factor Tag to be attached on
an infant's umbilical cord using a clamp
AeroScout T2 Tag User Guide
Tag Management Suits 10
AeroScout T7 Tag
Comments
T7c Tag
Tamper evident cut-strap tag for patients
(not for infants). Replaceable battery.
Includes LF receiver. Does not include
ultrasound receiver and call button.
T7c Tag with Call
Button
Tamper evident cut-strap tag for patients
(not for infants). Replaceable battery.
Includes LF receiver and call button.
Does not include ultrasound receiver
T7c Wi-Fi
Ultrasound Tag
Tamper evident cut-strap tag for patients
(not for infants). Replaceable battery.
Includes LF receiver and Ultrasound
receiver. Does not include call button.
T7c Wi-Fi
Ultrasound Tag
with Call Button
Tamper evident cut-strap tag for patients
(not for infants). Replaceable battery.
Includes LF receiver, Ultrasound receiver
and call button.
Infant Security T7d
Tag
Wi-Fi Tag with mounting flanges for a
standard infant strap to be attached to
the infant's ankle, only for cases where
tag cannot be attached to the umbilical
cord clamp. Tag does not include a
tamper evident mechanism/alert.
Table 1 Regular T7 Tag Models
Tag Management Suits
Tag Management
Tag Management Suite
Includes Tag Activator, Tag
Manager Software and
110/220V to 12V adaptor
US Suite
Includes 110/220v to 12v
adapter (US)
BWH-1000-02-TA-U
Europe Suite
Includes 110/220v to 12v
adapter (Europe)
BWH-1000-02-TA-E
Japan Suite
Includes 110/220v to 12v
adapter (Japan)
BWH-1000-02-TA-J
AeroScout T2 Tag User Guide
Tag Management Suits 11
Tag Management
UK Suite
Includes 110/220v to 12v
adapter (UK)
BWH-1000-02-TA-UK
Table 2 Tag Management Models
AeroScout T2 Tag User Guide
Specifications 12
Specifications
Tag Specifications
Performance
Outdoor range: Up to 200m (650 feet)
Indoor range: Up to 80m (260 feet)
Physical and Mechanical
Dimensions: 2.87cm x 2.5cm x 1.26cm (1.13in x 1.0in x 0.47in)
Weight: .5g (oz)
Radio
802.11b radio (2.4GHz)
Low frequency receiver for chokepoint detection (125kHz)
Transmission power: up to +19dBm ( ~81mW)
Patented clear channel sensing avoids interference with wireless networks
and VoIP systems
Environmental Specifications
Operating temperature: 0 to 50 °C
Storage temperature: -40 to 85 °C
Humidity: 0 to 95%, condensing
Water and dust resistant (IP-67)
Electrical
Lithium polymer battery (rechargeable)
Battery: 4.2V
Certification
Radio
o US standard: FCC part 15
o European standard: ETSI 300.328, 300.330, ETSI 301.489
AeroScout T2 Tag User Guide
Specifications 13
o Canada: RSS 210, upon customer request
o EMC standard for healthcare: IEC 6100 / EN 60601
o Japan : ARIB - Upon customer request
o Australia : C-tick upon customer request
o Korea : MIC upon customer request
Safety Certifications
o US cTUVus: UL 60950
o Europe CE mark: EN 60950
AeroScout T2 Tag User Guide
Safety and Warnings 14
Safety and Warnings
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
d) Consult the dealer or an experienced radio/TV technician.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
a) This device may not cause harmful interference
b) This device must accept any interference received, including interference that may cause undesired
operation.
FCC Warning
Modifications not expressly approved by the manufacturer could void the user authority to operate
the equipment under FCC Rules.
WARNING: This device complies with Part 15 of the FCC Rules and RSS-210 of Industry and
Science Canada. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
AeroScout T2 Tag User Guide
Limited Warranty 15
Limited Warranty
Hardware. AeroScout Inc. ("AeroScout") warrants that commencing from the date of delivery to Customer and
continuing for a period of one (1) year thereafter (the “Warranty Period”), the Hardware will be free from defects in
material and workmanship under normal use subject to terms hereof. The date of shipment of a Product by
AeroScout is set forth on the packaging material in which the Product is shipped. This limited warranty extends only
to the original user of the Product. Customer's sole and exclusive remedy and the entire liability of AeroScout and its
suppliers under this limited warranty will be, at AeroScout’s or its service center's option, shipment of a replacement
within the period or a refund of the purchase price if the Hardware is returned to the party supplying it to Customer, if
different than AeroScout, freight and insurance prepaid. AeroScout replacement parts used in Hardware repair may
be new or equivalent to new. AeroScout’s obligations hereunder are conditioned upon the return of affected articles
in accordance with AeroScout’s then-current Return Material Authorization (RMA) procedures.
Restrictions: This warranty does not apply if the Product (a) has been altered, except by AeroScout, (b) has not
been installed, operated, repaired, or maintained in accordance with instructions supplied by AeroScout, (c) has
been subjected to abnormal physical or electrical stress, misuse, negligence, or accident; or (d) is provided for beta,
evaluation, testing, or demonstration purposes for which AeroScout does not receive a payment of purchase price or
license fee.
Exclusions:
This warranty shall have no coverage of the following:
Batteries (other than DOA -Dead On Arrival)
Plastics (including defects in appearance, cosmetics, decorative or structural items including framing and
non-operative parts).
Tag Calibration
Expenses related to removing or reinstalling the Product
Defects or damage that result from the use of Non-AeroScout certified Products, Accessories, Software or other
peripheral equipment are excluded from coverage.
Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification
in any way by someone other than AeroScout, or its partners, are excluded from coverage.
Extended Warranty:
AeroScout offers an extended warranty. The initial year of the extended warranty must be purchased at the time of
the product purchase or before the original warranty expires. The extended warranty may be renewed again for a
maximum of two additional years (on top of the initial warranty period). Warranty extensions must be purchased
prior to the existing warranty expiration and will not be available after the original/extended warranty expires.
DISCLAIMER OF WARRANTY. EXCEPT AS SPECIFIED IN THIS WARRANTY, ALL EXPRESS OR IMPLIED
CONDITIONS, REPRESENTATIONS, AND WARRANTIES INCLUDING, WITHOUT LIMITATION, ANY IMPLIED
WARRANTY OR CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
NONINFRINGEMENT, SATISFACTORY QUALITY OR ARISING FROM A COURSE OF DEALING, LAW, USAGE,
OR TRADE PRACTICE, ARE HEREBY EXCLUDED TO THE EXTENT ALLOWED BY APPLICABLE LAW. TO THE
EXTENT AN IMPLIED WARRANTY CANNOT BE EXCLUDED, SUCH WARRANTY IS LIMITED IN DURATION TO
THE WARRANTY PERIOD. BECAUSE SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH
VARY FROM JURISDICTION TO JURISDICTION.
This disclaimer and exclusion shall apply even if the express warranty set forth above fails of its essential purpose.
Under no circumstances shall AeroScout’s liability under this limited warranty exceed the actual cash value of the
Product at the time Consumer returns the Product for repair, determined by the price paid by Consumer for the
Product less a reasonable amount for usage.
Please use the following link to submit your tickets using AeroScout’s support portal:
http://support.aeroscout.com
About AeroScout
AeroScout is the market leader in Unified Asset Visibility solutions. Clients improve operational
efficiency and quality using AeroScout products that leverage standard Wi-Fi networks to track and
manage the location, condition and status of mobile assets and people. AeroScout’s global customer
base consists of leading hospital, manufacturing and logistics organizations, including many of the
Fortune 500. The company originally invented the first Wi-Fi-based Active RFID tag, and today is
widely recognized as leading the market in number of deployments and tags shipped. Headquartered
in Redwood City, Calif., AeroScout has offices in Europe, Asia, the Middle East, Latin America and
Australia. For more information, please visit www.aeroscout.com.
AeroScout (Headquarters)
1300 Island Drive
Suite 202
Redwood City, CA 94065
Tel: +1 (650) 596-2994
Fax: +1 (650) 596-2969
E-mail: info@aeroscout.com
Europe, Middle East, Africa Office
Tel : +32 2 709 29 49
Fax : +32 15 30 80 99
E-mail: emea@aeroscout.com
Japan Office
Tel: +81 3 3556 9003
Fax: + 81 3 5875 3723
E-mail: info@aeroscout.co.jp
Latin America Office
Tel : +52 55 5001 5769
E-mail: latam@aeroscout.com
Asia-Pacific Sales
Tel : +1 650 596 2994
E-mail: apac@aeroscout.com
Australia and New Zealand Sales
Tel : +61 3 9038 8690
E-mail: anz@aeroscout.com

Navigation menu
