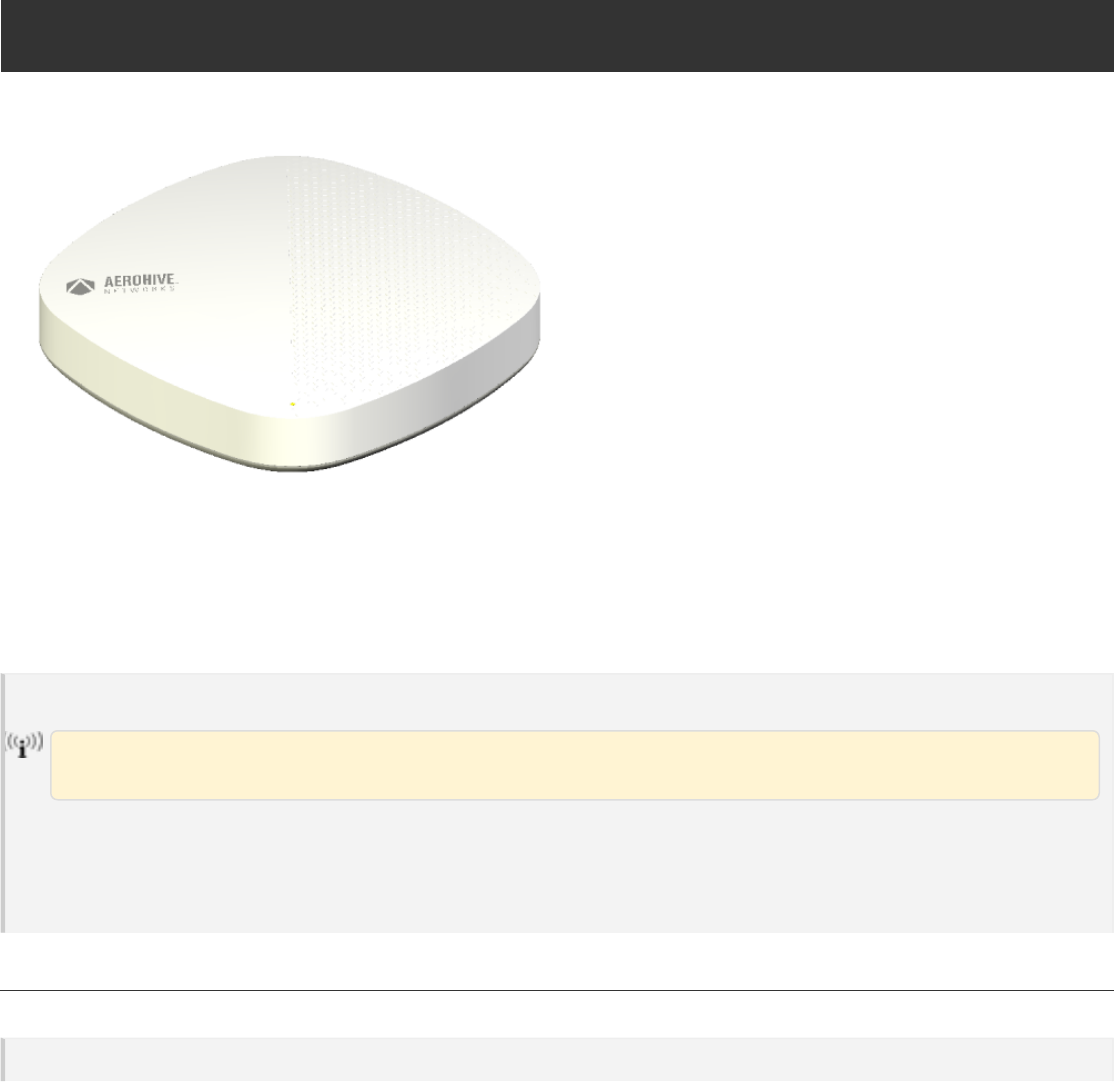

AP630 Hardware User Guide
Read about and view specifications and compliance information for the AP630 in this topic. Install the AP630 using this topic.
The AP630 is a high-performance, dual-band concurrent access point with one 11ax 4x4 2.4 G and one 11ax 4x4 5 G radio. The AP630 is designed for
indoor high-density environments that require HD video streaming and large file transfers. Equipped with two 10/100/100 Mb Ethernet ports, a Con-
sole port, and powered by PoE; this device supports IEEE 802.11ax OFDMA (Orthogonal Frequency-Division Multiple Access).
For regulatory and compliance information, see "Regulatory Compliance Statements".
Important! Change the Country Code
If youraccess point is configured for the World Regulatory Domain, it is important to set the country code to the country in which the APwill be
deployed to meet regulatory requirements and for optimal wireless operation. To do this, follow these steps:
The country code selection is for World models only and is not available to FCC, CAN, and other country-specific models. Per FCC reg-
ulations, all Wi-Fi products marketed in the United States must be set to U.S. channels only.
1. Power on the AP and allow it to find and connect to HiveManager. Once the APis connected it appears in the table of devices on the >
Devices page.
2. Select the check box next to the AP, and then choose Assign Country Code from the Actions drop-down list. In the dialog box that
appears, select the appropriate country from the drop-down list, and then click Save.
3. Upload your changes to the device.
Safety Guidelines
Safety Guidelines
The information in this section applies to AP630 devices.
The following safety icons are used in these guidelines to identify the type of precaution:
AP630 Hardware User Guide
Page 1
![](/img.php?id=3935110&img=bg2.png)
This icon indicates a general caution. Failure to comply with a caution notification can result in damage to equipment.
This icon indicates an electrical caution. Failure to comply with an electrical notification can result in serious injury or
death, and extensive damage to equipment.
This icon indicates a laser caution. Failure to comply with a laser caution can result in serious injury.
The following table lists the safety precautions you should follow when installing your AP630 devices.
Aerohive devices must be installed by a professional installer who is certified to install these types of devices and to
ensure that they are properly grounded and meet applicable local and national electrical codes.
These devices are intended for indoor use only.
Do not install the device in an environment where the operating ambient temperature might exceed the recom-
mended ranges.
For products available in the USA/Canada market, for the 2.4 GHz band, only channels 1-11 can be operated. Selec-
tion of other channels is not possible.
Changes or modifications made to this device that are not expressly approved by the party responsible for com-
pliance could void the user's authority to operate the equipment.
Use only attachments and accessories specified by Aerohive.
These devices are not intended for use by persons (including children) with reduced physical, sensory, or mental cap-
abilities, or with lack of experience of knowledge unless they are given supervision or instruction concerning use of the
devices by a person who is responsible for their safety. Children should be supervised to ensure that they do not play
with the devices.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when elec-
tronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow ESD-pre-
vention procedures when handling electronic components and equipment.
During operation, the surfaces ofthe AP630 can become hot. Use caution when handling.
To meet federal radiation exposure requirements, these devices should be installed at a minimum distance of 11" (28
cm) from people or animals.
Install the AP
The following sections describe how to mount your AP on a dropped ceiling track or to a wall.
Shipping Carton Contents
The AP630 access point shipping carton contains the following items:
lAP630 chassis
lAP630 mounting bracket
lRead Me card
Youcan mount the AP630 on a flat surface or wall, or on the rails of a standarddropped ceiling grid. . There is also an accessory mounting bracket
that allows you to install the device in Armstrong-style dropped ceilings.
The following sections describe how to install yourAP630 devices and connect them to the network.
AP630 Hardware User Guide
Page 2
![](/img.php?id=3935110&img=bg3.png)

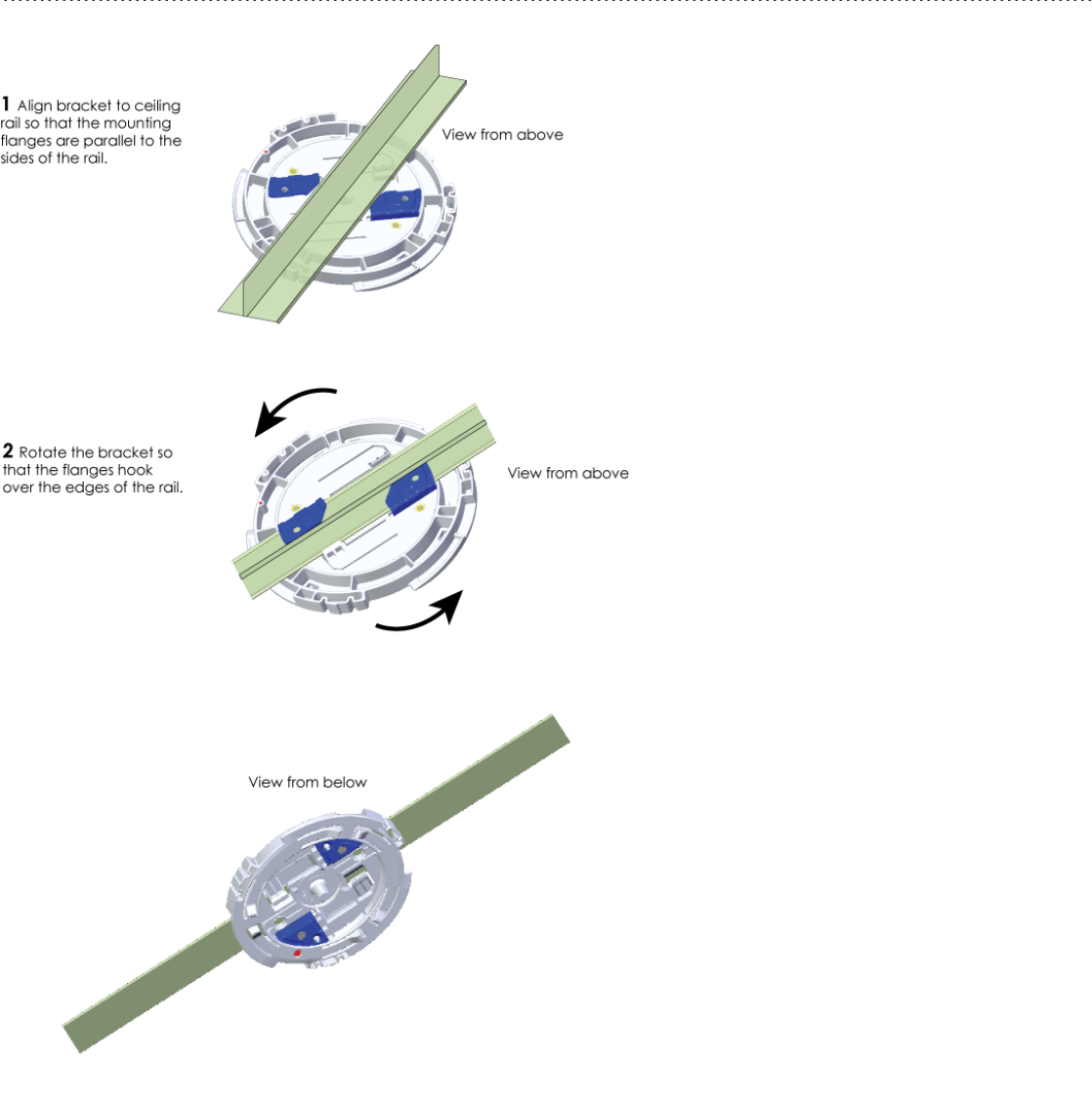

Use the following illustration to install the mounting bracket to a dropped ceiling rail.
Install the APon a Ceiling Track
The AP630 ships with a mounting bracket that lets you easily install it on the rail of a standard dropped ceiling grid.
AP630 Hardware User Guide
Page 3
Once the bracket is secure, you can install the AP by aligning the red dot on the bracket with the red dot on the AP. Keeping the dots aligned, raise
the APup until the bracket fits into the circular depression in the bottom of the AP. When the APis firmly seated, rotate it clockwise (??) until it clicks
in to place as shown here.
![](/img.php?id=3935110&img=bg4.png)
Mount the APon a Wall
Youcan use the bracket to mount your AP on a vertical surface. Use the following procedures and illustration:
1. Drill two holes in the wall that are xx" (cm") from center to center.
2. Install wall mount screws (provided? - what size?)
AP630 Hardware User Guide
Page 5
3. Attach the bracket to the wall using the holes in the mounting flanges as shown.
![](/img.php?id=3935110&img=bg5.png)
Hardware Components

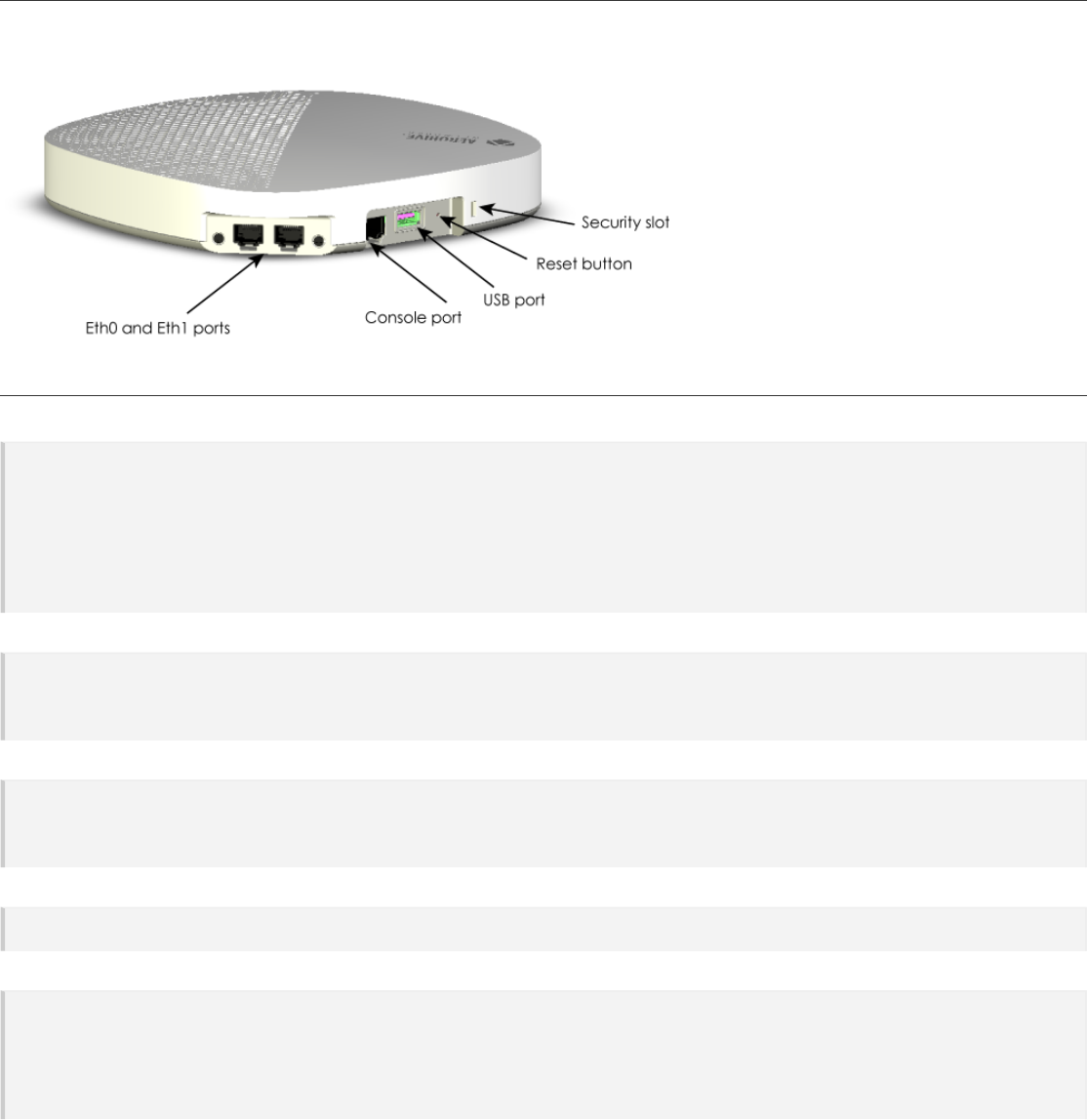

Youcan see the hardware components of the AP630 in the illustration below and readabout them in the sections that follow.
Component Descriptions
Status Light
The round status light on the top corner of the device conveys operational states for system power, firmware updates, Ethernet and wireless inter-
face activity, and major alarms. The AP630 has a round status light on the top right corner of the chassis. At setup, this light cycles through the fol-
lowing sequence:
lDark: There is no power to the device.
lAmber (flashing): The device is performing a firmware upgrade. Do not power off the device during this process.
lAmber (steady): The device has not established a successful CAPWAP connection, or is booting or shutting down.
lWhite (steady): The device has successfully established a CAPWAP connection and is operating normally.
Ethernet Ports
The AP630 has two RJ45 Ethernet ports (Eth0 and Eth1) that automatically negotiate half- and full-duplex connections with the connecting
device. The ports are autosensing and adjust to straight-through and crossover standard Cat2, Cat5, Cat5e, or Cat6 Ethernet cables auto-
matically. The APreceives power through an Ethernet connection to the ETH0 port from PSE (power sourcing equipment) that is compatible with
the 802.3at and 802.3at standards.
Console Port
The AP630 has one RJ45 Console port. Use this port to make a serial connection between your management system and the AP. The man-
agement station from which you connect to the device must have a VT100 emulation program, such as Tera Term Pro © (a free terminal emu-
lator) or Hilgraeve HyperTerminal ® (provided with Windows ® operating systems from XPforward). The serial connection settings are: 9600 bits per
second, 8 data bits, no parity, 1 stop bit, no flow control.
USBPort
The AP630 has a USB port that you can use to connect USB-based beacons (iBeacon, for example) and IoT (Internet of Things) devices. To access
the port, remove the screw that secures the protective cover.
Reset Button
Use the Reset button to reset the device or restore the factory default settings. Insert a paper clip or similar tool into the Reset pinhole and press
the button. To reboot the device, press the button for 5 seconds. To return the configuration to the factory default settings, press it for at least 10
seconds. After releasing the button, the indicator light goes dark, and then glows steady amber while the firmware loads and the system per-
forms a self-test. After the software finishes loading and the AP has connected to HiveManager, the status indicator glows steady white.
To disable the reset button from resetting the configuration, enter this command:
no reset-button reset-config-enable
AP630 Hardware User Guide
Page 6
When this command is enabled, pressing the button for 5 seconds will still reboot the AP, but pressing it for more than 10 seconds will not reset its
configuration.
![](/img.php?id=3935110&img=bg6.png)
Hardware Specifications
The following sections list radio, device, power, and environmental specifications for the AP630.
Radio Specifications
802.11a
l5.150-5.850 GHz operating frequency
lOrthogonal Frequency Division Multiplexing (OFDM)
modulation
lRates (Mbps): 54, 48, 36, 24, 12, 9, 6 with auto fallback
802.11b
l2.4-2.48 GHz operating frequency
lDirect-Sequence Spread-Spectrum (DSSS) modulation
lRates (Mbps): 11, 5.5, 2.1 with auto fallback
802.11g
l2.4-2.48 GHz operating frequency
lOrthogonal Frequency Division Multiplexing (OFDM)
modulation
lRates (Mbps): 54, 48, 36, 24, 12, 9, 6 with auto fallback
802.11n
l2.4-2.48 and 5.150-5.850 GHz operating frequency
l802.11n modulation
lRates: MCS0 - MCS7
l4x4 MIMO radio
lHT20/HT40 support
lA-MPDU and A-MSDU frame aggregation
802.11ac
l802.11ac modulation (256-QAM)
l2.4 - 2.48 GHz MCS0-9, NSS=1-4
l5.150-5.850 GHz operating frequency
lRates: MCS0 - MCS9, NSS = 1-4
l4x4 MIMO radio
lVHT20/VHT40/VHT80 support
802.11ax
l5.150-5.850 GHz operating frequency
l802.11ax modulation (1024-QAM)
lRates: MCS0 - MCS11, NSS = 1-4
lOFDMA support
l4x4 MU-MIMO
l
HE20/HE40/HE80
support
Transmit Power and Sensitivity Specifications
Output power may be limited by regulatory requirements.
AP630 Hardware User Guide
Page 7
![](/img.php?id=3935110&img=bg7.png)
Tolerance +2/-2 dB @25°C
Mode Data Rate Power Unit
11b 1,2,5.5,11 18 dBm
11g 54 Mbps 15 dBm
48 Mbps 16 dBm
36 Mbps 17 dBm
6 Mbps 18 dBm
HE20 MCS 0,1,2 18 dBm
MCS 3 17 dBm
MCS 4, 5 16 dBm
MCS 6,7 15 dBm
MCS 8,9 14 dBm
MCS 10,11 12 dBm
2.4 G Sensitivity
11b 1 Mbps -99 dB
11 Mbps -90 dB
11g 6 Mpbs -96 dB
36 Mpbs -84 dB
48 Mbps -80 dB
54 Mbps -78 dB
HE20 MCS 0 -95 dB
MCS 1 -91 dB
MCS 2 -89 dB
MCS 3 -86 dB
MCS 4 -83 dB
MCS 5 -79 dB
MCS 6 -77 dB
MCS 7 -76 dB
MCS 8 -72 dB
MCS 9 -70 dB
MCS 10 -67 dB
MCS 11 -64 dB
AP630 Hardware User Guide
Page 8
2.4 G:
![](/img.php?id=3935110&img=bg8.png)
Mode
Data
Rate
Power
Unit
11a
54
Mbps
18
dBm
48
Mbps
18
dBm
36
Mbps
19
dBm
6
Mbps
20
dBm
HE20
MCS
0,1,2
20
dBm
MCS
3,4
19
dBm
MCS
5,6
18
dBm
MCS
7,8
17
dBm
MCS
9
16
dBm
MCS
10
15
dBm
MCS
11
14
dBm
HE40
MCS
0,1,2
19
dBm
MCS
3,4,5
18
dBm
MCS
6,7,8
17
dBm
MCS
9
16
dBm
MCS
10
15
dBm
MCS
11
14
dBm
HE80
MCS
0,1,2
19
dBm
MCS
3,4,5
18
dBm
MCS
6,7,8
17
dBm
MCS
9
16
dBm
MCS
10
15
dBm
MCS
11
14
dBm
HE160
MCS
0,1,2
19
dBm
MCS
3,4,5
18
dBm
MCS
6,7,8
17
dBm
MCS
9
16
dBm
MCS
10
15
dBm
MCS
11
14
dBm
5
G
Sensitivity
11a
6
Mbps
-94
db
36
Mbps
-83
db
48
Mbps
-79
db
54
Mbps
-77
db
HE20
MCS
0
-94
db
MCS
1
-91
db
MCS
2
-88
db
MCS
3
-86
db
AP630 Hardware User Guide
Page 9
5 G:
Tolerance +2/-2 dB @25°C
![](/img.php?id=3935110&img=bg9.png)
Mode
Data
Rate
Power
Unit
MCS
4
-82
db
MCS
5
-78
db
MCS
6
-77
db
MCS
7
-75
db
MCS
8
-71
db
MCS
9
-69
db
MCS
10
-66
db
MCS
11
-63
db
HE40
MCS
0
-92
db
MCS
1
-88
db
MCS
2
-86
db
MCS
3
-83
db
MCS
4
-80
db
MCS
5
-76
db
MCS
6
-74
db
MCS
7
-73
db
MCS
8
-69
db
MCS
9
-67
db
MCS
10
-63
db
MCS
11
-60
db
HE80
MCS
0
-88
db
MCS
1
-85
db
MCS
2
-83
db
MCS
3
-80
db
MCS
4
-77
db
MCS
5
-73
db
MCS
6
-71
db
MCS
7
-69
db
MCS
8
-66
db
MCS
9
-64
db
MCS
10
-60
db
MCS
11
-57
db
HE160
MCS
0
-85
db
MCS
1
-82
db
MCS
2
-80
db
MCS
3
-77
db
MCS
4
-74
db
MCS
5
-70
db
AP630 Hardware User Guide
Page 10
![](/img.php?id=3935110&img=bga.png)
Mode
Data
Rate
Power
Unit
MCS
6
-68
db
MCS
7
-66
db
MCS
8
-63
db
MCS
9
-61
db
MCS
10
-57
db
MCS
11
-54
db
Device Specifications
lChassis dimensions: 8.1” W 8.1” H 1.46” D (205 mm x 205 mm x 37 mm)
lWeight: 0.53 pounds (240 grams)
lFour dual-band internal WiFi antennas and one BLE internal antenna
lEth0 Ethernet port: autosensing 10/100/1000Base-T/TXMbps, with 802.3at-compliant PoE
lEth1 Ethernet port: autosensing 10/100/1000Base-T/TXMbps
Power Specifications
lPoE input voltage range: 37-57 V
lTypical PoE power consumption is 22 W
lRJ45 power input pins: Wires 4, 5, 7, 8 or 1, 2, 3, and 6
Environmental Specifications
lOperating temperature: 32° to 104° F (0° to 40° C)
lStorage temperature: -40° to 185° F (-40° to 85° C)
lRelative Humidity: 5 to 95% RH (noncondensing)
Regulatory Compliance Statements
The regulatory compliance statements in this section apply to Aerohive AP630 devices.
Japan Indoor Use
For Japan, the AP630 is restricted for indoor use in the 5150-5350 MHz band only.
Japan Equipment VCCI-B Statement
Compliance Statement - Europe
EU Declaration of Conformity
View this information online at www.aerohive.com/support/regulatory-compliance
Aerohive Networks, Inc. declares that this device complies with the essential requirements of the Radio Eqiupment Directive 2014/53/EC.
lBulgarian [български]: [Aerohive] С настоящото [Aerohive] декларира, че този тип радиосъоръжение [AP630] е в съответствие
с Директива 2014/53/ЕС.
lCroatian [hrvatski]: [Aerohive] ovime izjavljuje da je radijska oprema tipa [AP630] u skladu s Direktivom 2014/53/EU.
lCzech [Česky]: [Aerohive] Tímto [jméno výrobce] prohlašuje, že typ rádiového zařízení [AP630] je v souladu se směrnicí 2014/53/EU.
AP630 Hardware User Guide
Page 11
![](/img.php?id=3935110&img=bgb.png)
lDanish [Dansk]: Hermed erklærer [Aerohive], at radioudstyrstypen [AP630] er i overensstemmelse med direktiv 2014/53/EU.
lDutch [Nederland]Hierbij verklaar ik, [Aerohive], dat het type radioapparatuur [AP630] conform is met Richtlijn 2014/53/EU.
lEnglish: Hereby, [Aerohive], declares that this [Atom AP30] is in compliance with the essential requirements and other relevant provisions of
Directive 2014/53/EC.
lEstonian [Eesti]: Käesolevaga deklareerib [Aerohive], et käesolev raadioseadme tüüp [AP630] vastab direktiivi 2014/53/EL nõuetele.
lFinnish [Suomi]: [Aerohive] vakuuttaa, että radiolaitetyyppi [AP630] on direktiivin 2014/53/EU mukainen..
lFrench [Français]: Le soussigné, [Aerohive], déclare que l'équipement radioélectrique du type [AP630] est conforme à la directive
2014/53/UE.
lGerman [Deutsch]: Hiermit erklärt [Aerohive], dass der Funkanlagentyp [AP630] der Richtlinie 2014/53/EU entspricht.
lGreek [Ελληνική]: ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [Aerohive] ΔΗΛΩΝΕΙ ΟΤΙ [AP630] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/EC.
lHungarian [Magyar]: [Aerohive] igazolja, hogy a [AP630] típusú rádióberendezés megfelel a 2014/53/EU irányelvnek.
lItalian [Italiano]: Il fabbricante, [Aerohive], dichiara che il tipo di apparecchiatura radio [AP630] è conforme alla direttiva 2014/53/UE.
lLatvian [Latviski]: Ar šo [Aerohives] deklarē, ka radioiekārta [AP630] atbilst Direktīvai 2014/53/ES.
lLithuanian [Lietuvių]: Aš, [Aerohive], patvirtinu, kad radijo įrenginių tipas [AP630s] atitinka Direktyvą 2014/53/ES.
lMaltese [Malti]: B'dan, [Aerohive], niddikjara li dan it-tip ta' tagħmir tar-radju [AP630] huwa konformi mad-Direttiva 2014/53/UE.
lPolish [Polski]: [Aerohive] niniejszym oświadcza, że typ urządzenia radiowego [AP630] jest zgodny z dyrektywą 2014/53/UE.
lPortuguese [Português]: O(a) abaixo assinado(a) [Aerohive] declara que o presente tipo de equipamento de rádio [AP630] está em con-
formidade com a Diretiva 2014/53/UE.
lRomanian [Romania]: Prin prezenta, [Aerohive] declară că tipul de echipamente radio [AP630] este în conformitate cu Directiva
2014/53/UE.
lSlovak [Slovensky]: [Aerohive] týmto vyhlasuje, že rádiové zariadenie typu [AP630] je v súlade so smernicou 2014/53/EÚ.
lSlovenian [Slovenija]: [Aerohive] potrjuje, da je tip radijske opreme [AP630] skladen z Direktivo 2014/53/EU.
lSpanish [Español]: Por la presente, [Aerohive] declara que el tipo de equipo radioeléctrico [AP630] es conforme con la Directiva
2014/53/UE.
lSwedish [Sverige]: Härmed försäkrar [Aerohive] att denna typ av radioutrustning [AP630] överensstämmer med direktiv 2014/53/EU.
USA and Canada Radio Frequency Bands
a. USA
l802.11b/g/n/ac: 2.4 GHz band: 2400-2483 MHz
l802.11a/n/ac/ax: 5 GHz band: 5150-5250 MHz, 5725-5850 MHz
lBLE: 2402-2480 MHz
b. Canada
l802.11b/g/n/ac: 2.4 GHz band: 2400-2483 MHz
l802.11a/n/ac/ax: 5 GHz band: 5150-5250 MHz, 5725-5850 MHz
lBLE: 2402-2480 MHz
EURadio Frequency and Power Levels
This product supports the following radio frequencies and power levels in the EUversion:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Bulgarian [български]: Този продукт поддържа следните радиочестоти и нива на мощност във версията на ЕС:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Croatian [hrvatski]: Ovaj proizvod podržava sljedeće radijske frekvencije i razinu snage u verziji EU:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
AP630 Hardware User Guide
Page 12
![](/img.php?id=3935110&img=bgc.png)
Česky [Czech]: [Tento produkt podporuje následující rádiové frekvence a úrovně výkonu ve verzi EU:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Danish [Dansk]: Dette produkt understøtter følgende radiofrekvenser og strømniveauer i EU-versionen:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Dutch [Nederland]: Dit product ondersteunt de volgende radiofrequenties en vermogensniveaus in de EU-versie:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
English: This product supports the following radio frequencies and power levels in the EU version:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Estonian [Eesti]: See toode toetab järgmisi raadiosagedusi ja võimsuse taseme ELis versioon:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Finnish [Suomi]: Tämä tuote tukee seuraavia radiotaajuuksia ja tehoja EU-versiossa:
l802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
l802.11 a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5720 MHz EIRP<30 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
French [Français]: Ce produit prend en charge les fréquences radio et les niveaux de puissance suivants dans la version EU:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
German [Deutsch]: Dieses Produkt unterstützt die folgenden Funkfrequenzen und Leistungsstufen in der EU-Version:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Greek [Ελληνική] Αυτό το προϊόν υποστηρίζει τις ακόλουθες ραδιοσυχνότητες και επίπεδα ισχύος στην έκδοση της ΕΕ:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Hungarian [Magyar]: Ez a termék a következő rádiófrekvenciákat és teljesítményszinteket támogatja az EU verziójában :
l802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
l802.11 a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5720 MHz EIRP<30 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Italian [Italiano]: Questo prodotto supporta le seguenti frequenze radio e livelli di potenza nella versione UE:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
AP630 Hardware User Guide
Page 13
![](/img.php?id=3935110&img=bgd.png)
Latvian [Latviski]: Šis produkts atbalsta šādus radio frekvences un jaudas līmeni ES versiju:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Lithuanian [Lietuvių]: Šis produktas palaiko šiuos radijo dažnius ir galios lygį ES versija:
l802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
l802.11 a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5720 MHz EIRP<30 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Maltese [Malti]: Dan il-prodott jappoġġja l-frekwenzi tar-radju li ġejjin u l-livelli ta 'enerġija fil-verżjoni UE:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Pollish [Polski]: Ten produkt obsługuje następujące częstotliwości radiowe i poziomy mocy w wersji unijnej:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Portuguese [Português]: Este produto suporta as seguintes frequências de rádio e níveis de potência na versão UE:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax : 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Romanian [Romania]: This product supports the following radio frequencies and power levels in the EU version
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Slovak [Slovensky]:Tento produkt podporuje nasledujúce rádiové frekvencie a úrovne napájania vo verzii EÚ:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Slovenian [Slovenija]: Ta izdelek podpira te radijske frekvence in ravni moči v različici EU:
l802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
l802.11 a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5720 MHz EIRP<30 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Spanish [Español]: Este producto admite las siguientes frecuencias de radio y niveles de potencia en la versión de la UE:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Swedish [Sverige]: Denna produkt stöder följande radiofrekvenser och effektnivåer i EU-versionen:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5725 MHz EIRP<30 dBm, 5725-5850 MHz<14 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
UK: This product supports the following radio frequencies and power levels in the EUversion:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483.5 MHz EIRP<20 dBm
l802.11a/ac/n/ax: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5730 MHz EIRP<30 dBm, 5730-5850 MHz<23dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
AP630 Hardware User Guide
Page 14
![](/img.php?id=3935110&img=bge.png)
To meet radiation exposure requirements, these devices should be installed at a minimum distance of 11" (28 cm) from people or animals.
Restrictions:5150-5250 MHz for indoor use only.
Bulgarian [български]: За да отговарят на изискванията за излагане на радиация, тези устройства трябва да бъдат инсталирани на
минимално разстояние от 28 см от хората или животните.
Ограничения: 5150-5250 MHz само за вътрешна употреба.
Croatian [hrvatski]: Da bi zadovoljili zahtjeve izloženosti zračenju, ti uređaji trebaju biti instalirani na minimalnoj udaljenosti od 28 cm od ljudi ili život-
inja.
Ograničenja: 5150-5250 MHz samo za unutarnju uporabu.
Czech [Česky]: Aby byly splněny požadavky na ozáření, měly by být tato zařízení instalována v minimální vzdálenosti 28 cm odlidí nebo zvířat.
Omezení: 5150-5250 MHz pouze pro vnitřní použití.
Danish [Dansk]: For at opfylde kravene til strålingseksponering skal disse enheder installeres i mindst 11" (28 cm) afstand fra mennesker eller dyr.
Restriktioner: 5150-5250 MHz kun til indendørs brug.
Dutch [Nederland]: Om aan stralingsblootstelling te voldoen, dienen deze apparaten op een minimumafstand van 11" (28 cm) van mensen of
dieren te worden geïnstalleerd.
Beperkingen: 5150-5250 MHz alleen voor gebruik binnenshuis.
English: To meet radiation exposure requirements, these devices should be installed at a minimum distance of 11" (28 cm) from people or animals.
Restrictions: 5150-5250 MHz for indoor use only.
Estonian [Eesti]: Et rahuldada kiirituse nõuetele, need seadmed tuleb paigaldada minimaalselt 11" (28 cm) inimestelt või loomadelt.
Piirangud: 5150-5250 MHz sisetingimustele.
Finnish [Suomi]: Säteilytysvaatimusten täyttämiseksi nämä laitteet on asennettava vähintään 11" (28 cm) etäisyydelle ihmisistä tai eläimistä.
Rajoitukset: 5150-5250 MHz vain sisäkäyttöön.
French [Français]: Pour répondre aux exigences d'exposition aux rayonnements, ces appareils devraient être installés à une distance minimale
de 11" (28 cm) des personnes ou des animaux.
Restrictions: 5150-5250 MHz pour usage intérieur seulement.
German [Deutsch]: Um die Anforderungen an die Strahlenbelastung zu erfüllen, sollten diese Geräte in einem Abstand von 11" (28 cm) von Per-
sonen oder Tieren installiert werden.
Einschränkungen: 5150-5250 MHz nur für den Innenbereich.
Greek [Ελληνική]: Για την κάλυψη των απαιτήσεων έκθεσης σε ακτινοβολία, οι συσκευές αυτές πρέπει να τοποθετούνται σε απόσταση τουλάχιστον
28 cm από ανθρώπους ή ζώα.
Περιορισμοί: 5150-5250 MHz μόνο για εσωτερική χρήση.
Hungarian [Magyar]: A sugárterhelési követelmények teljesítése érdekében ezeket az eszközöket legalább 11" (28 cm) távolságra kell felszerelni
az emberek vagy az állatoktól.
Korlátozások: 5150-5250 MHz csak beltéri használatra.
Italian [Italiano]: Per soddisfare i requisiti di esposizione alle radiazioni, questi dispositivi devono essere installati ad una distanza minima di 28 cm da
persone o animali.
Restrizioni: 5150-5250 MHz solo per uso interno.
Latvian [Latviski]: Lai apmierinātustarojuma iedarbības prasībām, šīs ierīces ir uzstādītas pie minimālo attālumu 11" (28 cm) no cilvēkiem vai
dzīvniekiem.
Ierobežojumi: 5150-5250 MHz izmantot tikai telpās.
Lithuanian [Lietuvių]: Siekiant patenkinti SPINDULIAVIMĄ reikalavimus, šie įtaisai turi būti įrengiami ne arčiau kaip 11" (28 cm) nuo žmonių ar gyvūnų.
Apribojimai: 5150-5250 MHz naudoti tik patalpose.
Maltese [Malti]: Biex jilħqu l-ħtiġiet ta 'espożizzjoni tar-radjazzjoni, dawn il-mezzi għandhom jiġu installati f'distanza minima ta' 11" (28 ċm) minn
nies jew annimali.
Restrizzjonijiet: MHz 5150-5250 għall-użu fuq ġewwa biss.
Polish [Polski]: Aby spełnić wymagania dotyczące narażenia na promieniowanie, urządzenia te powinny być instalowane w odległości min-
imum 11" (28 cm) od ludzi lub zwierząt.
Ograniczenia: 5150-5250 MHz tylko do użytku wewnętrznego.
Portuguese [Português]: Para atender aos requisitos de exposição à radiação, esses dispositivos devem ser instalados a uma distância mínima de
28 cm (11") de pessoas ou animais.
Restrições: 5150-5250 MHz para uso interno apenas.
AP630 Hardware User Guide
Page 15
EURadiation Warning Statement
![](/img.php?id=3935110&img=bgf.png)
Romanian [Romania]: Pentru a îndeplini cerințele de expunere la radiații, aceste dispozitive ar trebui instalate la o distanță minimăde 28 cm de la
oameni sau animale.
Restricții: 5150-5250 MHz numai pentru uz intern.
Slovak [Slovensky]: Ak chcete splniť požiadavky na vystavenie žiareniu, mali by byť tieto zariadenia inštalované v minimálnej vzdialenosti od ľudí
alebo zvierat od minimálnej vzdialenosti 28 cm.
Obmedzenia: 5150-5250 MHz iba pre vnútorné použitie.
Slovenian [Slovenija]: Da bi zadovoljili zahteve izpostavljenosti sevanja, morajo biti te naprave nameščene na razdalji najmanj 11" (28 cm) iz ljudi
ali živali.
Omejitve: 5150-5250 MHz samo za uporabo v zaprtih prostorih.
Spanish [Español]: Para cumplir con los requisitos de exposición a la radiación, estos dispositivos deben instalarse a una distancia mínima de 11"
(28 cm) de personas o animales.
Restricciones: 5150-5250 MHz sólo para uso en interiores.
Swedish [Sverige]: För att uppfylla kraven på strålningsexponering bör dessa enheter installeras på minst 11" (28 cm) från människor eller djur.
Restriktioner: 5150-5250 MHz endast för inomhusbruk.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio ortelevision reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct
the interference by one of the following measures:
lReorient or relocate the antenna ofthe receiving devices.
lIncrease the separation between this equipment and receiving equipment.
lConnect this equipment into an outlet on a circuit different from that to which the receiving equipment is connected.
lConsult the dealer or an experienced radio or TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance of 11" (28 cm) between the radiator and people or animals.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA.
Brazil Statement
Este equipamento não tem direito à proteção contra inteferência prejudicial e não pode causar interferência em sistemas devidamente autor-
izados.
Mexico Statement
La operación de este equipo está sujeta a las siguientes dos condiciones
(1) es posible que este equipo o dispositivo no cause interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.
The operation of this equipment is subject to the following two conditions:
(1) it is possible that this equipment or device does not cause disruptive interference and
(2) this equipment or device must accept any interference, including interference that may cause undesired operation).
Industry Canada Statement:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
lThis device may not cause interference, and
lThis device must accept any interference, including interference that may cause undesired operation of the device.
AP630 Hardware User Guide
Page 16
![](/img.php?id=3935110&img=bg10.png)
ll'appareil ne doit pas produire de brouillage, et
ll'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonc-
tionnement.
Caution:
(i)
the
device
for
operation
in
the
band
5150-5250
MHz
is
only
for
indoor
use
to
reduce
the
potential
for
harmful
interference
to
co-channel
mobile
satellite
systems;
Avertissement:
(i)
les
dispositifs
fonctionnant
dans
la
bande
5150-5250
MHz
sont
réservés
uniquement
pour
une
utilisation
à
l’intérieur
afin
de
réduire
les
risques
de
brouillage
préjudiciable
aux
systèmes
de
satellites
mobiles
utilisant
les
mêmes
canaux;
Dynamic
Frequency
Selection
(DFS):
Dynamic
Frequency
Selection
(DFS)
for
devices
operating
in
the
bands
5250-
5350
MHz,
5470-5600
MHz
and
5650-5725
MHz.
Sélection
dynamique
de
fréquences
(DFS):
Sélection
dynamique
de
fréquences
(DFS)
pour
les
dispositifs
fonctionnant
dans
les
bandes
5250-5350
MHz,
5470-5600
MHz
et
5650-5725
MHz.
Radiation
Exposure
Statement:
This
equipment
complies
with
IC
radiation
exposure
limits
set
forth
for
an
uncontrolled
environment.
This
equipment
should
be
installed
and
oper-
ated
with
minimum
distance
28
cm
between
the
radiator
and
people
or
animals.
Déclaration
d'exposition
aux
radiations:
Cet
équipement
est
conforme
aux
limites
d'exposition
aux
rayonnements
IC
établies
pour
un
environnement
non
contrôlé.
Cet
équipementdoit
être
installé
et
utilisé
avec
un
minimum
de
28
cm
de
distance
entre
la
source
de
rayonnement
et
des
personnes
ou
des
animaux.
Taiwan
Compliance
Information
AerohiveAP630
第十二條→經型式認證合格之低功率射頻電機
,非經許可
,公 司
,商 號 或 使 用 者 均 不 得 擅 自 變 更 頻 率
、加大功率或變更原設計之特性及功能
。
第十四條→低 功 率射頻電機之使用不得影響飛航安全及干擾合法通信
;經發現有干擾現象時
,應 立即停用
,並 改 善 至 無 干 擾 時 方 得 繼 續 使 用
。
前項合法通信
,指依電信法規定作業之無線電通信
。低 功 率射頻電機須忍受合法通信或工業
、科學及醫療用電波輻射性電機設備之干擾
。
在5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備,限於室內使用。
無線資訊傳設備的製造廠商應確保頻率穩 定 性 ,如 依 製 造 廠 商 使 用 手 冊 上 所 述 正 常 操 作 ,發 射 的 信 號 應 維 持 於 操 作 頻 帶 中 。
Taiwan MPE Warning
電磁波曝露量MPE標準值(MPE) 1mW/cm2,送測產品實值為0.734 mW/cm2
Aerohive Documentation Portal |Aerohive Blogs |HiveCare Community Forum
Copyright © Aerohive Networks, Inc.
AP630 Hardware User Guide
Page 17
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
