AP650 and AP650X Hardware User Guide
Read about and view specifications and compliance information for the AP650 and AP650X in this topic. Install the AP650 and AP650X using this
topic.

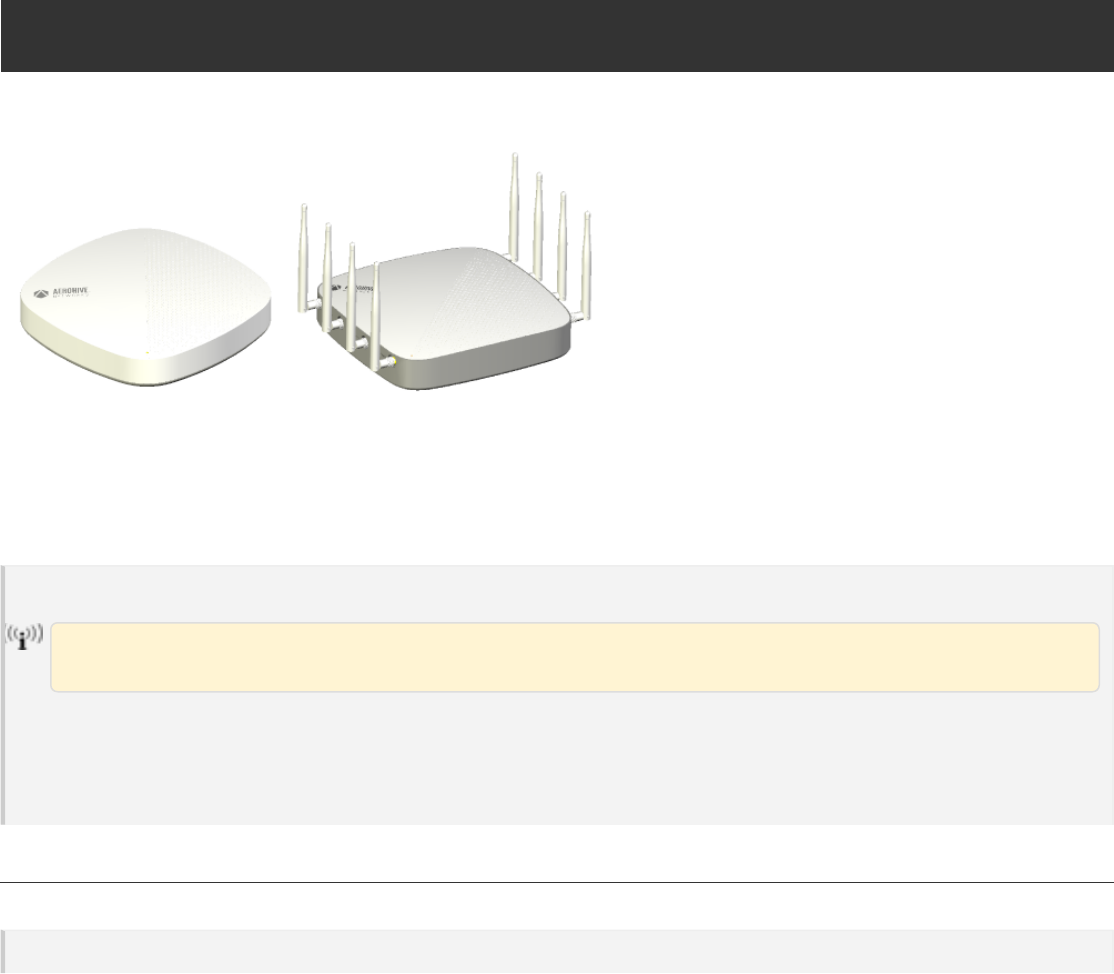

The AP650 and AP650X are high-performance, dual-band concurrent access points with one 11ax 4x4 2.4 G and one 11ax 4x4 5 G radio. The AP650
is designed for indoor high-density environments that require HD video streaming and large file transfers. These devices support IEEE 802.11ax Ortho-
gonal Frequency-Division Multiple Access(OFDMA) multi-user access.
For regulatory and compliance information, see "Regulatory Compliance Statements".
Important! Change the Country Code
If youraccess point is configured for the WorldRegulatory Domain, it is important to set the country code to the country in which the APwill be
deployed to meet regulatory requirements and for optimal wireless operation. To do this, follow these steps:
The country code selection is for World models only and is not available to FCC, CAN, and other country-specific models. Per FCC reg-
ulations, all Wi-Fi products marketed in the United States must be set to U.S. channels only.
1. Power on the AP and allow it to find and connect to HiveManager. Once the APis connected it appears in the table of devices on the >
Devices page.
2. Select the check box next to the AP, and then choose Assign Country Code from the Actions drop-down list. In the dialog box that
appears, select the appropriate country from the drop-down list, and then click Save.
3. Upload your changes to the device.
Safety Guidelines
Safety Guidelines
The safety information in this section applies to AP650 and AP650Xdevices.
The following safety icons are used in these guidelines to identify the type of precaution:
AP650 and AP650X Hardware User Guide
Page 1
This icon indicates a general caution. Failure to comply with a caution notification can result in damage to equipment.
This icon indicates an electrical caution. Failure to comply with an electrical notification can result in serious injury or
death, and extensive damage to equipment.
This icon indicates a laser caution. Failure to comply with a laser caution can result in serious injury.
The following table lists the safety precautions you should follow when installing your AP650 devices.
Aerohive devices must be installedby a professional installer who is certified to install these types of devices and to
ensure that they are properly grounded and meet applicable local and national electrical codes.
These devices are intendedfor indoor use only.
Do not install the device in an environment where the operating ambient temperature might exceed the recom-
mended ranges.
For products available in the USA/Canada market, for the 2.4 GHz band, only channels 1-11 can be operated. Selec-
tion of other channels is not possible.
Changes or modifications made to this device that are not expressly approved by the party responsible for com-
pliance could void the user's authority to operate the equipment.
Use only attachments and accessories specified by Aerohive.
These devices are not intended for use by persons (including children) with reduced physical, sensory, or mental cap-
abilities, or with lack of experience of knowledge unless they are given supervision or instruction concerning use of the
devices by a person who is responsible for their safety. Children should be supervised to ensure that they do not play
with the devices.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when elec-
tronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow ESD-pre-
vention procedures when handling electronic components and equipment.
During operation, the surfaces of the AP650 can become hot. Use caution when handling.
To meet federal radiation exposure requirements, these devices should be installed at aminimum distance
of 10" (25 cm) from people or animals.
Install the AP650 and AP650X
You can mount the AP650 and AP650X on a flat surface or wall, or on the rails of a standard dropped ceiling grid. For square mounts, use the
hardware on the back of the chassis. For diagonal mounts, use the mounting bracket that ships with the device.
The following sections describe how to install your AP650 or AP650X devices and connect them to the network.
Shipping Carton Contents
The AP650 and AP650X shipping carton contains the following items:
lAP650 or AP650X chassis
lMounting bracket
lRead Me card
Install the APon a Dropped Ceiling Rail
AP650 and AP650X Hardware User Guide
Page 2
Instructions to go here
Connect the AP to the Network
Follow these steps to connect your AP650 to PoE (power over Ethernet) power and to the network.
1. Plug the AP into a standard wall socket.
2. Connect an Ethernet cable to the RJ45 port.
Hardware Components

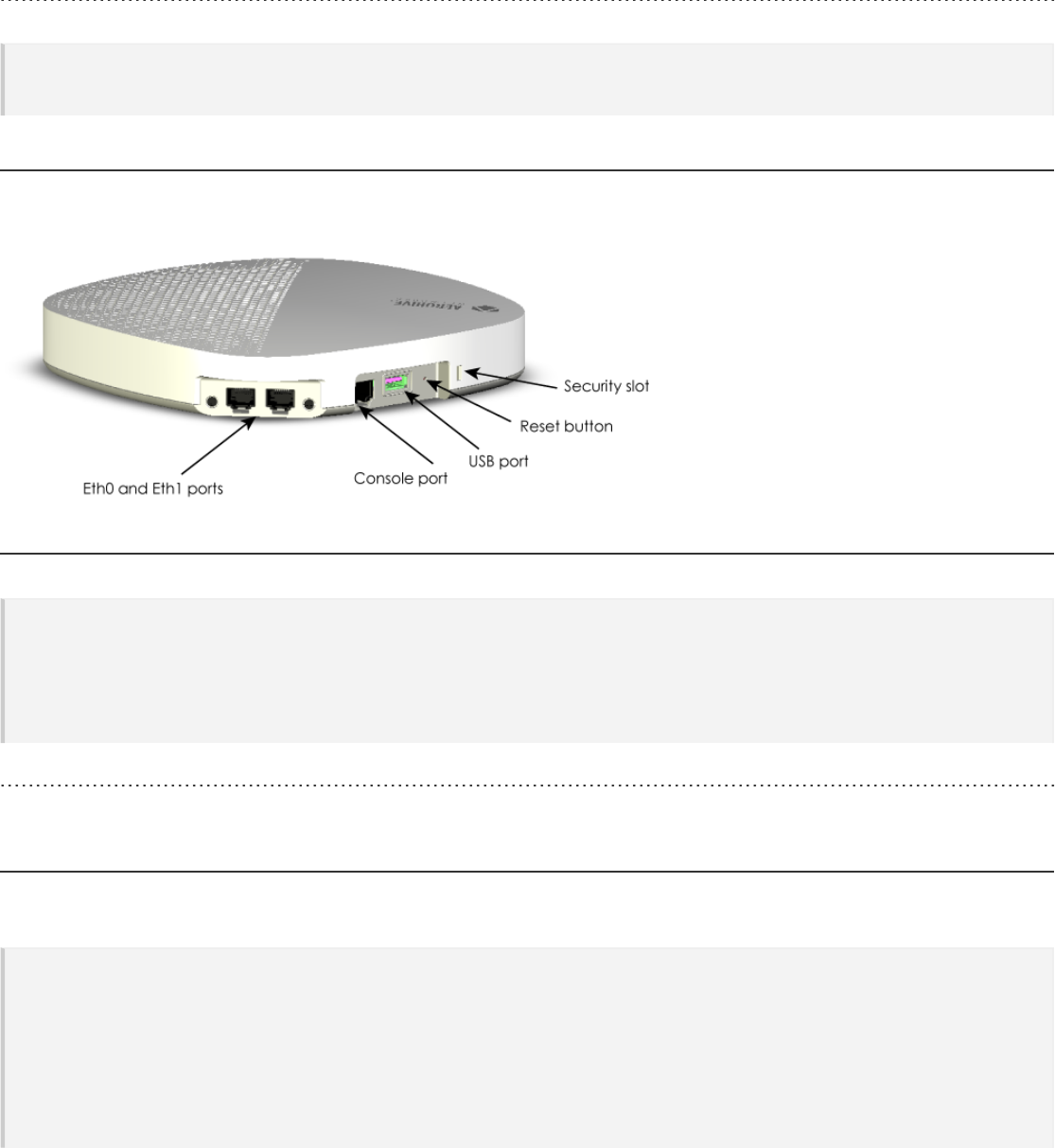

Youcan see the hardware components of the AP650 in the illustration below and readabout them in the sections that follow.
Component Descriptions
Status Light
The status light conveys operational states for system power, firmware updates, Ethernet and wireless interface activity, and major alarms. The
AP650 has arectangular status light on the top right corner ofthe chassis. At setup, this light cycles through the following sequence:
lSteady Amber: The device is initializing.
lFast-blinking White: The device is looking for a mesh neighbor from which to obtain a password.
lSlow-blinking Amber: The device is establishing a mesh connection
lSteady White: The device has successfully established a CAPWAP connection and is operating normally.
Ethernet Port
Description of the Ethernet port here.
Hardware Specifications
The following sections list radio, device, power, and environmental specifications for the AP650 and AP650X.
Radio Specifications
802.11a
l5.150-5.250, 5.725-5.850 operating frequency
lOrthogonal Frequency Division Multiplexing (OFDM)
modulation
lRates (Mbps): 54, 48, 36, 24, 12, 9, 6 with auto fallback
802.11b
l2.4-2.48 GHz operating frequency
lDirect-Sequence Spread-Spectrum (DSSS) modulation
lRates (Mbps): 11, 5.5, 2.1 with auto fallback
AP650 and AP650X Hardware User Guide
Page 3
802.11g
l2.4-2.48 GHz operating frequency
lOrthogonal Frequency Division Multiplexing (OFDM) modulation
lRates (Mbps): 54, 48, 36, 24, 12, 9, 6 with auto fallback
802.11n
l2.4-2.48 and 5.150-5.250, 5.725-5.850 GHz operating frequency
l802.11n modulation
lRates: MCS0 - MCS7
l4x4 MIMO radio
lHT20/HT40 support
lA-MPDU and A-MSDU frame aggregation
802.11ac
l802.11ac modulation (256-QAM)
l2.4 - 2.48 GHz MCS0-9, NSS=1-4
l5.150-5.250, 5.725-5.850 GHz operating frequency
lRates: MCS0 - MCS9, NSS = 1-4
l4x4 MIMO radio
lVHT20/VHT40/VHT80 support
802.11ax
l 2.4-2.48GHz, 5.150-5.250, 5.725-5.850 GHz
operating
frequency
l802.11ax modulation (1024-QAM)
lRates: MCS0 - MCS11, NSS = 1-4
lOFDMA support
l4x4 MU-MIMO
l HE20/HE40/HE80/HE160
support
Transmit Power and Sensitivity Specifications
Output power may be limited by regulatory requirements.
AP650 and AP650X Hardware User Guide
Page 4
Mode
Data
Rate
Power
Unit
11b
1,2,5.5,11
18
dBm
11g
54
Mbps
15
dBm
48
Mbps
16
dBm
36
Mbps
17
dBm
6
Mbps
18
dBm
HE20
MCS
0,1,2
18
dBm
MCS
3
17
dBm
MCS
4,
5
16
dBm
MCS
6,7
15
dBm
MCS
8,9
14
dBm
MCS
10,11
12
dBm
2.4
G
Sensitivity
11b
1
Mbps
-99
dB
11
Mbps
-90
dB
11g
6
Mpbs
-96
dB
36
Mpbs
-84
dB
48
Mbps
-80
dB
54
Mbps
-78
dB
HE20
MCS
0
-95
dB
MCS
1
-91
dB
MCS
2
-89
dB
MCS
3
-86
dB
MCS
4
-83
dB
MCS
5
-79
dB
MCS
6
-77
dB
MCS
7
-76
dB
MCS
8
-72
dB
MCS
9
-70
dB
MCS
10
-67
dB
MCS
11
-64
dB
AP650 and AP650X Hardware User Guide
Page 5
2.4 G:
Tolerance +2/-2 dB @25°C
Mode
Data
Rate
Power
Unit
11a
54
Mbps
18
dBm
48
Mbps
18
dBm
36
Mbps
19
dBm
6
Mbps
20
dBm
HE20
MCS
0,1,2
20
dBm
MCS
3,4
19
dBm
MCS
5,6
18
dBm
MCS
7,8
17
dBm
MCS
9
16
dBm
MCS
10
15
dBm
MCS
11
14
dBm
HE40
MCS
0,1,2
19
dBm
MCS
3,4,5
18
dBm
MCS
6,7,8
17
dBm
MCS
9
16
dBm
MCS
10
15
dBm
MCS
11
14
dBm
HE80
MCS
0,1,2
19
dBm
MCS
3,4,5
18
dBm
MCS
6,7,8
17
dBm
MCS
9
16
dBm
MCS
10
15
dBm
MCS
11
14
dBm
HE160
MCS
0,1,2
19
dBm
MCS
3,4,5
18
dBm
MCS
6,7,8
17
dBm
MCS
9
16
dBm
MCS
10
15
dBm
MCS
11
14
dBm
5
G
Sensitivity
11a
6
Mbps
-94
db
36
Mbps
-83
db
48
Mbps
-79
db
54
Mbps
-77
db
HE20
MCS
0
-94
db
MCS
1
-91
db
MCS
2
-88
db
MCS
3
-86
db
AP650 and AP650X Hardware User Guide
Page 6
5 G:
Tolerance +2/-2 dB @25°C
Mode
Data
Rate
Power
Unit
MCS
4
-82
db
MCS
5
-78
db
MCS
6
-77
db
MCS
7
-75
db
MCS
8
-71
db
MCS
9
-69
db
MCS
10
-66
db
MCS
11
-63
db
HE40
MCS
0
-92
db
MCS
1
-88
db
MCS
2
-86
db
MCS
3
-83
db
MCS
4
-80
db
MCS
5
-76
db
MCS
6
-74
db
MCS
7
-73
db
MCS
8
-69
db
MCS
9
-67
db
MCS
10
-63
db
MCS
11
-60
db
HE80
MCS
0
-88
db
MCS
1
-85
db
MCS
2
-83
db
MCS
3
-80
db
MCS
4
-77
db
MCS
5
-73
db
MCS
6
-71
db
MCS
7
-69
db
MCS
8
-66
db
MCS
9
-64
db
MCS
10
-60
db
MCS
11
-57
db
HE160
MCS
0
-85
db
MCS
1
-82
db
MCS
2
-80
db
MCS
3
-77
db
MCS
4
-74
db
MCS
5
-70
db
AP650 and AP650X Hardware User Guide
Page 7
Mode
Data
Rate
Power
Unit
MCS
6
-68
db
MCS
7
-66
db
MCS
8
-63
db
MCS
9
-61
db
MCS
10
-57
db
MCS
11
-54
db
Device Specifications
Chassis dimensions: 8.1” W 8.1” H 1.46” D (205 mm x 205 mm x 37 mm)
Weight: 0.53 pounds (240 grams)
Antennas:
lAP650 option 1: 4 internal omni directional 2.4GHz dual band antennas, and 4 internal omnidirectional 5GHz antennas
lAP650 option 2: 8 internal omni directional 5GHz antennas
lAP650X: 4 external omni directional 2.4GHz dual band antennas, and 4 external omnidirectional 5GHz antennas
lAP650/AP650X: 1 internal BLE antenna
Power Specifications
lPoE input voltage range: 37-57 V
lTypical PoE power consumption is 11 W
lRJ45 power input pins: Wires 4, 5, 7, 8 or 1, 2, 3, and 6
Environmental Specifications
lOperating temperature: 32° to 104° F (0° to 40° C)
lStorage temperature: -40° to 185° F (-40° to 85° C)
lRelative Humidity: 5 to 95% RH (noncondensing)
Regulatory Compliance Statements
The regulatory compliance statements in this section apply to Aerohive AP650 devices.
Japan Indoor Use
For Japan, the AP650 is restricted for indoor use in the 5150-5350 MHz band only.
Japan Equipment VCCI-B Statement
Compliance Statement - Europe
EU Declaration of Conformity
View this information online at www.aerohive.com/support/regulatory-compliance
Aerohive Networks, Inc. declares that this device complies with the essential requirements of the Radio Eqiupment Directive 2014/53/EC.
lBulgarian [български]: [Aerohive] С настоящото [Aerohive] декларира, че този тип радиосъоръжение [AP650] е в съответствие с
Директива 2014/53/ЕС.
lCroatian [hrvatski]: [Aerohive] ovime izjavljuje da je radijska oprema tipa [AP650] u skladu s Direktivom 2014/53/EU.
AP650 and AP650X Hardware User Guide
Page 8
lCzech [Česky]: [Aerohive] Tímto [jméno výrobce] prohlašuje, že typ rádiového zařízení [AP650] je v souladu se směrnicí 2014/53/EU.
lDanish [Dansk]: Hermed erklærer [Aerohive], at radioudstyrstypen [AP650] er i overensstemmelse med direktiv 2014/53/EU.
lDutch [Nederland]Hierbij verklaar ik, [Aerohive], dat het type radioapparatuur [AP650] conform is met Richtlijn 2014/53/EU.
lEnglish: Hereby, [Aerohive], declares that this [ AP650] is in compliance with the essential requirements and other relevant provisions of Dir-
ective 2014/53/EC.
lEstonian [Eesti]: Käesolevagadeklareerib[Aerohive], et käesolev raadioseadme tüüp [AP650] vastab direktiivi 2014/53/EL nõuetele.
lFinnish [Suomi]: [Aerohive] vakuuttaa, että radiolaitetyyppi [AP650] on direktiivin 2014/53/EU mukainen..
lFrench [Français]: Le soussigné, [Aerohive], déclare que l'équipement radioélectrique du type [AP650] est conforme à la directive
2014/53/UE.
lGerman [Deutsch]: Hiermit erklärt [Aerohive], dass der Funkanlagentyp [AP650] der Richtlinie 2014/53/EU entspricht.
lGreek [Ελληνική]: ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [Aerohive] ΔΗΛΩΝΕΙ ΟΤΙ [ AP650] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣΟΥΣΙΩΔΕΙΣΑΠΑΙΤΗΣΕΙΣΚΑΙΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/EC.
lHungarian [Magyar]: [Aerohive] igazolja, hogy a [AP650] típusúrádióberendezés megfelel a2014/53/EU irányelvnek.
lItalian [Italiano]: Il fabbricante, [Aerohive], dichiarache il tipo di apparecchiatura radio [AP650] è conforme alla direttiva 2014/53/UE.
lLatvian [Latviski]: Ar šo [Aerohives] deklarē, ka radioiekārta [AP650] atbilst Direktīvai 2014/53/ES.
lLithuanian [Lietuvių]: Aš, [Aerohive], patvirtinu, kad radijo įrenginių tipas [AP650s] atitinka Direktyvą 2014/53/ES.
lMaltese [Malti]: B'dan, [Aerohive], niddikjara li dan it-tip ta' tagħmir tar-radju [AP650] huwa konformi mad-Direttiva 2014/53/UE.
lPolish [Polski]: [Aerohive] niniejszym oświadcza, że typ urządzenia radiowego [AP650] jest zgodny z dyrektywą 2014/53/UE.
lPortuguese [Português]: O(a) abaixo assinado(a) [Aerohive] declaraque o presente tipo de equipamento de rádio [AP650] está em con-
formidade com a Diretiva 2014/53/UE.
lRomanian [Romania]: Prin prezenta, [Aerohive] declară că tipul de echipamente radio [AP650] este în conformitate cu Directiva
2014/53/UE.
lSlovak [Slovensky]: [Aerohive] týmto vyhlasuje, že rádiové zariadenie typu[AP650] je v súlade so smernicou2014/53/EÚ.
lSlovenian [Slovenija]: [Aerohive] potrjuje, da je tip radijske opreme [AP650] skladen z Direktivo 2014/53/EU.
lSpanish [Español]: Por la presente, [Aerohive] declara que el tipo de equipo radioeléctrico [AP650] es conforme con la Directiva
2014/53/UE.
lSwedish [Sverige]: Härmed försäkrar [Aerohive] att denna typ av radioutrustning [AP650] överensstämmer med direktiv 2014/53/EU.
USA and Canada Radio Frequency Bands
a. USA
l802.11b/g/n/ac: 2.4 GHz band: 2400-2483 MHz
l802.11a/n/ac/ax: 5 GHz band: 5150-5250 MHz 5725-5850 MHz
lBLE: 2402-2480 MHz
b. Canada
l802.11b/g/n/ac: 2.4 GHz band: 2400-2483 MHz
l802.11a/n/ac/ax: 5 GHz band: 5150-5250 MHz 5725-5850 MHz
lBLE: 2402-2480 MHz
EURadio Frequency and Power Levels
This product supports the following radio frequencies and power levels in the EUversion:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Bulgarian [български]: Този продукт поддържа следните радиочестоти и нива на мощност във версията на ЕС:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
AP650 and AP650X Hardware User Guide
Page 9
Croatian [hrvatski]: Ovaj proizvod podržava sljedeće radijske frekvencije i razinu snage u verziji EU:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Česky [Czech]: [Tento produkt podporuje následující rádiové frekvence a úrovně výkonu ve verzi EU:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Danish [Dansk]: Dette produkt understøtter følgende radiofrekvenser og strømniveauer i EU-versionen:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Dutch [Nederland]: Dit product ondersteunt de volgende radiofrequenties en vermogensniveaus in de EU-versie:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
English: This product supports the following radio frequencies and power levels in the EU version:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Estonian [Eesti]: See toode toetab järgmisi raadiosagedusi ja võimsuse taseme ELis versioon:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Finnish [Suomi]: Tämä tuote tukee seuraavia radiotaajuuksia ja tehoja EU-versiossa:
l802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
l802.11 a/ac/n: 5 GHz band: 5150-5350 MHz EIRP<23 dBm, 5500-5720 MHz EIRP<30 dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
French [Français]: Ce produit prend en charge les fréquences radio et les niveaux de puissance suivants dans la version EU:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
German [Deutsch]: Dieses Produkt unterstützt die folgenden Funkfrequenzen und Leistungsstufen in der EU-Version:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Greek [Ελληνική] Αυτό το προϊόν υποστηρίζει τις ακόλουθες ραδιοσυχνότητες και επίπεδα ισχύος στην έκδοση της ΕΕ:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Hungarian [Magyar]: Ez a termék a következő rádiófrekvenciákat és teljesítményszinteket támogatja az EU verziójában :
l802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
l 802.11
a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Italian [Italiano]: Questo prodotto supporta le seguenti frequenze radio e livelli di potenza nella versione UE:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
AP650 and AP650X Hardware User Guide
Page 10
l
Latvian [Latviski]: Šis produkts atbalsta šādus radio frekvences un jaudas līmeni ES versiju:
l802.11b/g/n/ac 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Lithuanian [Lietuvių]: Šis produktas palaiko šiuos radijo dažnius ir galios lygį ES versija:
l802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
l 802.11
a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
lBLE: 2402-2480 MHz EIRP<10 dBm
Maltese [Malti]: Dan il-prodott jappoġġja l-frekwenzi tar-radju li ġejjin u l-livelli ta 'enerġija fil-verżjoni UE:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Pollish [Polski]: Ten produkt obsługuje następujące częstotliwości radiowe i poziomy mocy w wersji unijnej:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Portuguese [Português]: Este produto suporta as seguintes frequências de rádio e níveis de potência na versão UE:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Romanian [Romania]: This product supports the following radio frequencies and power levels in the EU version
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Slovak [Slovensky]:Tento produkt podporuje nasledujúce rádiové frekvencie a úrovne napájania vo verzii EÚ:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Slovenian [Slovenija]: Ta izdelek podpira te radijske frekvence in ravni moči v različici EU:
l802.11b/g/n/ac, 2.4 GHz band: 2412-2472 MHz EIRP<20 dBm
l 802.11
a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Spanish [Español]: Este producto admite las siguientes frecuencias de radio y niveles de potencia en la versión de la UE:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
Swedish [Sverige]: Denna produkt stöder följande radiofrekvenser och effektnivåer i EU-versionen:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,
5725-5850
MHz<14
dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
UK: This product supports the following radio frequencies and power levels in the EUversion:
l802.11b/g/n/ac, 2.4 GHz band: 2400-2483.5 MHz EIRP<20 dBm
l 802.11a/ac/n:
5
GHz
band:
5150-5350
MHz
EIRP<23
dBm,5730-5850
MHz<23dBm
lBLE: 2402-2480 MHz EIRP<10 dBm
AP650 and AP650X Hardware User Guide
Page 11
To
meet
radiation
exposure
requirements,
these
devices
should
be
installed
at
a
minimum
distance
of
12"
(30
cm)
from
people
or
animals.
Restrictions:5150-5250
MHz
for
indoor
use
only.
Bulgarian
[български]:
За
да
отговарят
на
изискванията
за
излагане
на
радиация,
тези
устройства
трябва
да
бъдат
инсталирани
на
минимално
разстояние
от
25
см
от
хората
или
животните.
Ограничения:
5150-5250
MHz
само
за
вътрешна
употреба.
Croatian
[hrvatski]:
Da
bi
zadovoljili
zahtjeve
izloženosti
zračenju,
ti
uređaji
trebaju
biti
instalirani
na
minimalnoj
udaljenosti
od
30
cm
od
ljudi
ili
život-inja.
Ograničenja:
5150-5250
MHz
samo
za
unutarnju
uporabu.
Czech
[Česky]:
Aby
byly
splněny
požadavky
na
ozáření,
měly
by
být
tato
zařízení
instalována
v
minimální
vzdálenosti
30
cm
od
lidí
nebo
zvířat.
Omezení:
5150-5250
MHz
pouze
pro
vnitřní
použití.
Danish
[Dansk]:
For
at
opfylde
kravene
til
strålingseksponering
skal
disse
enheder
installeres
i
mindst
12"
(30
cm)
afstand
fra
mennesker
eller
dyr.
Restriktioner:
5150-5250
MHz
kun
til
indendørs
brug.
Dutch
[Nederland]:
Om
aan
stralingsblootstelling
te
voldoen,
dienen
deze
apparaten
op
een
minimumafstand
van
12"
(30
cm)
van
mensen
of
dieren
te
worden
geïnstalleerd.
Beperkingen:
5150-5250
MHz
alleen
voor
gebruik
binnenshuis.
English:
To
meet
radiation
exposure
requirements,
these
devices
should
be
installed
at
a
minimum
distance
of
12"
(30
cm)
from
people
or
animals.
Restrictions:
5150-5250
MHz
for
indoor
use
only.
Estonian
[Eesti]:
Et
rahuldada
kiirituse
nõuetele,
need
seadmed
tuleb
paigaldada
minimaalselt
12"
(30
cm)
inimestelt
või
loomadelt.
Piirangud:
5150-5250
MHz
sisetingimustele.
Finnish
[Suomi]:
Säteilytysvaatimusten
täyttämiseksi
nämä
laitteet
on
asennettava
vähintään
12"
(30
cm)
etäisyydelle
ihmisistä
tai
eläimistä.
Rajoitukset:
5150-5250
MHz
vain
sisäkäyttöön.
French
[Français]:
Pour
répondre
aux
exigences
d'exposition
aux
rayonnements,
ces
appareils
devraient
être
installés
à
une
distance
minimale
de
10"
(25cm)
des
personnes
ou
des
animaux.
Restrictions:
5150-5250
MHz
pour
usage
intérieur
seulement.
German
[Deutsch]:
Um
die
Anforderungen
an
die
Strahlenbelastung
zu
erfüllen,
sollten
diese
Geräte
in
einem
Abstand
von
12"
(30
cm)
von
Per-
sonen
oder
Tieren
installiert
werden.
Einschränkungen:
5150-5250
MHz
nur
für
den
Innenbereich.
Greek
[Ελληνική]:
Για
την
κάλυψη
των
απαιτήσεων
έκθεσης
σε
ακτινοβολία,
οι
συσκευές
αυτές
πρέπει
να
τοποθετούνται
σε
απόσταση
τουλάχιστον
25
cm
από
ανθρώπους
ή
ζώα.
Περιορισμοί:
5150-5250
MHz
μόνο
για
εσωτερική
χρήση.
Hungarian
[Magyar]:
A
sugárterhelési
követelmények
teljesítése
érdekében
ezeket
az
eszközöket
legalább
12"
(30
cm)
távolságra
kell
felszerelni
az
emberek
vagy
az
állatoktól.
Korlátozások:
5150-5250
MHz
csak
beltéri
használatra.
Italian
[Italiano]:
Per
soddisfare
i
requisiti
di
esposizione
alle
radiazioni,
questi
dispositivi
devono
essere
installati
ad
una
distanza
minima
di
25
cm
da
persone
o
animali.
Restrizioni:
5150-5250
MHz
solo
per
uso
interno.
Latvian
[Latviski]:
Lai
apmierinātu
starojuma
iedarbības
prasībām,
šīs
ierīces
ir
uzstādītas
pie
minimālo
attālumu
12"
(30
cm)
no
cilvēkiem
vai
dzīvniekiem.
Ierobežojumi:
5150-5250
MHz
izmantot
tikai
telpās.
Lithuanian
[Lietuvių]:
Siekiant
patenkinti
SPINDULIAVIMĄ
reikalavimus,
šie
įtaisai
turi
būti
įrengiami
ne
arčiau
kaip
12"
(30
cm)
nuo
žmonių
ar
gyvūnų.
Apribojimai:
5150-5250
MHz
naudoti
tik
patalpose.
Maltese
[Malti]:
Biex
jilħqu
l-ħtiġiet
ta
'espożizzjoni
tar-radjazzjoni,
dawn
il-mezzi
għandhom
jiġu
installati
f'distanza
minima
ta'
12"
(30
ċm)
minn
nies
jew
annimali.
Restrizzjonijiet:
MHz
5150-5250
għall-użu
fuq
ġewwa
biss.
Polish
[Polski]:
Aby
spełnić
wymagania
dotyczące
narażenia
na
promieniowanie,
urządzenia
te
powinny
być
instalowane
w
odległości
min-
imum
12"
(30
cm)
od
ludzi
lub
zwierząt.
Ograniczenia:
5150-5250
MHz
tylko
do
użytku
wewnętrznego.
AP650 and AP650X Hardware User Guide
Page 12
EURadiation Warning Statement
Portuguese
[Português]:
Para
atender
aos
requisitos
de
exposição
à
radiação,
esses
dispositivos
devem
ser
instalados
a
uma
distância
mínimade
30
cm
(12")
de
pessoas
ou
animais.
Restrições:
5150-5250
MHz
para
uso
interno
apenas.
Romanian
[Romania]:
Pentru
a
îndeplini
cerințele
de
expunere
la
radiații,
aceste
dispozitive
ar
trebui
instalate
la
o
distanță
minimă
de 30
cm
de
la
oameni
sau
animale.
Restricții:
5150-5250
MHz
numai
pentru
uz
intern.
Slovak
[Slovensky]:
Ak
chcete
splniť
požiadavky
na
vystavenie
žiareniu,
mali
by
byť
tieto
zariadenia
inštalované
v
minimálnej
vzdialenosti
od
ľudí
alebo
zvierat
od
minimálnej
vzdialenosti
30
cm.
Obmedzenia:
5150-5250
MHz
iba
pre
vnútorné
použitie.
Slovenian
[Slovenija]:
Da
bi
zadovoljili
zahteve
izpostavljenosti
sevanja,
morajo
biti
te
naprave
nameščene
na
razdalji
najmanj
12"
(30
cm)
iz
ljudi
ali
živali.
Omejitve:
5150-5250
MHz
samo
za
uporabo
v
zaprtih
prostorih.
Spanish
[Español]:
Para
cumplir
con
los
requisitos
de
exposición
a
la
radiación,
estos
dispositivos
deben
instalarse
a
una
distancia
mínima
de
12"
(30
cm)
de
personas
o
animales.
Restricciones:
5150-5250
MHz
sólo
para
uso
en
interiores.
Swedish
[Sverige]:
För
att
uppfylla
kraven
på
strålningsexponering
bör
dessa
enheter
installeras
på
minst
12"
(30
cm)
från
människor
eller
djur.
Restriktioner:
5150-5250
MHz
endast
för
inomhusbruk.
Federal
Communication
Commission
Interference
Statement
This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
digital
device,
pursuant
to
Part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
in
a
residential
installation.
This
equipment
generates,
uses
and
can
radiate
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may
cause
harmful
interference
to
radio
com-
munications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause
harmful
inter-
ference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
of
the
following
measures:
lReorient or relocate the antenna of the receiving devices.
lIncrease the separation between this equipment and receiving equipment.
lConnect this equipment into an outlet on a circuit different from that to which the receiving equipment is connected.
lConsult the dealer or an experienced radio or TV technician for help.
FCC
Caution:
Any
changes
or
modifications
not
expressly
approved
by
the
party
responsible
for
compliance
could
void
the
user's
authority
to
operate
this
equipment.
This
device
complies
with
Part
15
of
the
FCC
Rules.
Operation
is
subject
to
the
following
two
conditions:
(1)
This
device
may
not
cause
harmful
interference,
and
(2)
this
device
must
accept
any
interference
received,
including
interference
that
may
cause
undesired
operation.
IMPORTANT
NOTE:
Radiation
Exposure
Statement:
This
equipment
complies
with
FCC
radiation
exposure
limits
set
forth
for
an
uncontrolled
environment.
This
equipment
should
be
installed
and
operated
with
minimum
distance
of
12"
(30
cm)
between
the
radiator
and
people
or
animals.
This
transmitter
must
not
be
co-located
or
operating
in
conjunction
with
any
other
antenna
or
transmitter.
Country
Code
selection
feature
to
be
disabled
for
products
marketed
to
the
US/CANADA.
Brazil
Statement
Este
equipamento
não
tem
direito
à
proteção
contra
inteferência
prejudicial
e
não
pode
causar
interferência
em
sistemas
devidamente
autor-
izados.
Mexico
Statement
La
operación
de
este
equipo
está
sujeta
a
las
siguientes
dos
condiciones
(1)
es
posible
que
este
equipo
o
dispositivo
no
cause
interferencia
perjudicial
y
(2)
este
equipo
o
dispositivo
debe
aceptar
cualquier
interferencia,
incluyendo
la
que
pueda
causar
su
operación
no
deseada.
The
operation
of
this
equipment
is
subject
to
the
following
two
conditions:
(1)
it
is
possible
that
this
equipment
or
device
does
not
cause
disruptive
interference
and
(2)
this
equipment
or
device
must
accept
any
interference,
including
interference
that
may
cause
undesired
operation).
Industry
Canada
Statement:
This
device
complies
with
Industry
Canada
license-exempt
RSS
standard(s).
Operation
is
subject
to
the
following
two
conditions:
lThis device may not cause interference, and
lThis device must accept any interference, including interference that may cause undesired operation of the device.
AP650 and AP650X Hardware User Guide
Page 13
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes :
ll'appareil ne doit pas produire de brouillage, et
ll'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonc-
tionnement.
Caution:
(i)
the
device
for
operation
in
the
band
5150-5250
MHz
is
only
for
indoor
use
to
reduce
the
potential
for
harmful
interference
to
co-channel
mobile
satellite
systems;
Avertissement:
(i)
les
dispositifs
fonctionnant
dans
la
bande
5150-5250
MHz
sont
réservés
uniquement
pour
une
utilisation
à
l’intérieur
afin
de
réduire
les
risques
de
brouillage
préjudiciable
aux
systèmes
de
satellites
mobiles
utilisant
les
mêmes
canaux;
Radiation
Exposure
Statement:
This
equipment
complies
with
IC
radiation
exposure
limits
set
forth
for
an
uncontrolled
environment.
This
equipment
should
be
installed
and
oper-
ated
with
minimum
distance
30
cm
between
the
radiator
and
people
or
animals.
Déclaration
d'exposition
aux
radiations:
Cet
équipement
est
conforme
aux
limites
d'exposition
aux
rayonnements
IC
établies
pour
un
environnement
non
contrôlé.
Cet
équipementdoit
être
installé
et
utilisé
avec
un
minimum
de
30
cm
de
distance
entre
la
source
de
rayonnement
et
des
personnes
ou
des
animaux.
Taiwan
Compliance
Information
AerohiveAP650
第 十 二 條 →經型式認證合格之低功率射頻電機
，非 經 許 可
，公 司
，商 號 或 使 用 者 均 不 得 擅 自 變 更 頻 率
、加大功率或變更原設計之特性及功能
。
第 十 四 條 →低 功 率射 頻 電 機 之 使 用 不得影響飛航安全及干擾合法通信
；經發現有干擾現象時
，應 立即停用
，並改善至無干擾時方得繼續使用
。
前 項 合 法 通 信
，指依電信法規定作業之無線電通信
。低 功 率射頻電機須忍受合法通信或工業
、科學及醫療用電波輻射性電機設備之干擾
。
在5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。
無線資訊傳設備的製造廠商應確保頻率穩定性，如依製造廠商使用手冊上所述正常操作，發射的信號應維持於操作頻帶中。
Taiwan MPE Warning
電磁波曝露量MPE標準值(MPE) 1mW/cm2，送測產品實值為0.734 mW/cm2
Aerohive Documentation Portal |Aerohive Blogs |HiveCare Community Forum
Copyright © Aerohive Networks, Inc.
AP650 and AP650X Hardware User Guide
Page 14
