Aeroview Electronic Technology MRA01 Aluminum Electronic Panoramic Head User Manual
Aeroview Electronic Technology Co., LTD Aluminum Electronic Panoramic Head
User manual
a
d
e
b
c
f
g
h
h
h
MRP01 Electronic Panoramic Head
Manual
Welcome to choose AFI product,
Please read this manual carefully before using.
⑦ LC-12 Phone Clamp
① Panoramic Head
④ USB Data Cable
⑤ Storage Case
③ User Manual
⑥ GoPro Adapter
② Remote controller

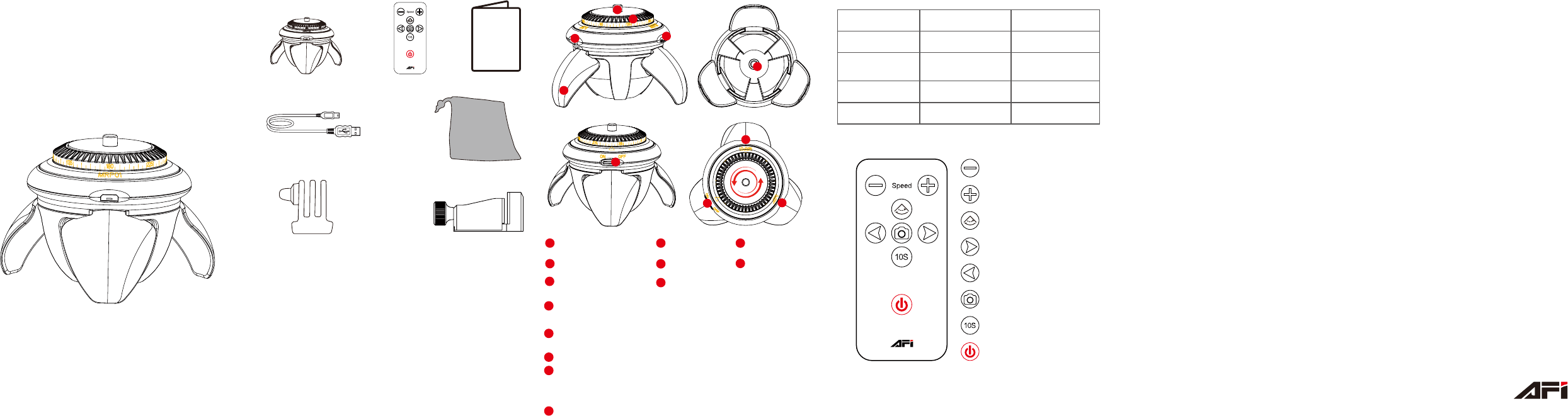

1.Packing Accessories
Model: MRP01
Diameter* Height: 72 mm*70 mm
Stand-by Time: Over 12H
Rotational Speed:2-5r/min
Weight:205g
Continuous Working Time:Over 9H
Nominal Voltage:3.7 V
Max No-load Current:65mA Max
Battery Capacity:750 mAh
Compatible Bluetooth system: above Android 2.3.3, I0S4.0
Pan Max. Load:Within 500g
Tilt Max. Load:Within 200g
Vertical Max. Load:Within 200g
Inverted Max. Load:Within 300g
2.Specification
3.Profile
a、1/4” screw is easily adaptable to mobile phone, GoPro camera, pocket
camera, mini-SLR camera and other equipment.
b、360 degree panoramic photography,more stable electronic rotation,more
convenient Bluetooth remote control.
d、Easy USB port charging by computer and normal mobile charger.
e、Perfect combination between supporting legs and head body, exquisite
workmanship, smart and innovative structural design to make sure the
stability.
f、Perfect match with selfie stick, tripods and other camera accessories.
Rotator
bSignal Receiver
c
USB Charging Port
d
d
Support Leg
e
e
1/4” Universal Screw
a
a
1/4” Screw Hole
f
f
Power On/Off
g
b
Indicator Light
h
Blue light flashes once Function switch
Please charge at
low battery
Green light keeps
bright when bluetooth
is connected
Red light will be off
when fully charged
Press any function
key once
Bluetooth light
Charging light
Low voltage light Green light flashes fast
Red light keeps bright
when charging
Green light slowly
flashes when bluetooth
stand-by
4.Indicator Light
Mode Indicator Function
5.Remote Controller
Counter-clockwise Rotation
Rotation Deceleration
Rotation Acceleration
Left-Right Rotation
Clockwise Rotation
Time-lapse Photo
Mobile Phone Shutter Button
Power
1.Remote Control Power button:Press the power button to stop the
head operation. Press the power button first when it is needed to
transfer from one mode to the other mode.
2.Shutter button:Control the phone to take photos(When the bluetooth
between the head and phone is connected successfully,it can take
photos by shutter button)
3.Acceleration button:Control to speed up the head rotation,Max speed
is 5r/min.(Speed will not be accelerated any quicker than speed
5r/min, no matter how pressing the acceleration button)
4.Deceleration button:Control to gear down the head rotation, Min
speed is 2r/min.(Speed will not be decelerated any lower than speed
2r/min, no matter how pressing the deceleration button)
5.90° button:Control the head to 90° leftward and rightward cycle
rotation.(Leftward and rightward cycle rotation can also be workable
under the rotation speed of 2-5r/min)
6.Anti-clockwise button:Control the head to continuous leftward rotate.
(Continuous leftward rotation can be workable under the rotation
speed of 2-5r/min)
7.Clockwise button:Control the head to continuous rightward rotate.
(Continuous rightward rotation can be workable under the rotation
speed of 2-5r/min)
8.10S Time-lapse button:Control the head to rightward rotate 40° by
10S.
9.Bluetooth connection:
The bluetooth indicator light is green. The green light flashing means
bluetooth disconnected. When the green light keeps bright,it means
bluetooth successfully connected.The bluetooth name is AFI.
Attention:
Power on the head, if the bluetooth is disconnected within 3 minutes,
which will enter into sleeping mode( green light will go out and the
bluetooth signal can not be searched. Please press photo button again
to wake up the Bluetooth.
Romote Controller Panel Instruction:
● Please use the head according to the diagram.
● Please charge the battery with the standard configuration
USB data cable.
● Please install the camera before power on the head.
● Please do not use chemicals for wiping the head.
● Please do not spill or paint acidity medicament on the head.
● Please keep the head from high temperature or fire place.
● Please do not strong press or bang the head.
● For the first use, please take out the clear plastic insert under
the bottom of the remote controller, otherwise the remote
won’t work.
● Please hold the rotation body by hand when you need to install
or uninstall the camera or the mobile holder, which will avoid
the rotation during mounting or removing process so as to
damage the motor.
Warning & Disclaimer
● AFI Electronic Panoramic Head is a wonderful head for video
footage.It’s lightweight and portable.
● It is prohibited for any user with any illegal purpose. The user
will be responsible for all behavior of purchase and use the
product.
● AFI will not be responsible for any damage or liability caused
by the use of this product during calibration and operation
(Including the loss directly, indirectly or by the third party).
● AFI will not be responsible for the product from unknown
sources and usage purpose.
● AFI reserves the right to amend the user manual and the
terms & conditions of using the product at any time.
6.Attention
www.afiuav.com
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
