XCALI-97190 Revision B July 2007

Agilent®1100 Series

LC Devices

Connecting the Hardware and Triggering Data

Acquisition

© 2007 Thermo Fisher Scientific Inc. All rights reserved.

Agilent® is a registered trademark of Agilent Technologies Inc. Hewlett-Packard® is a registered trademark

of Hewlett-Packard Company. LCQ™, LTQ™, LXQ™, MSQ™, TSQ™, and Xcalibur™ are trademarks of

Thermo Fisher Scientific Inc.

Thermo Fisher Scientific Inc. provides this document to its customers with a product purchase to use in the

product operation. This document is copyright protected and any reproduction of the whole or any part of this

document is strictly prohibited, except with the written authorization of Thermo Fisher Scientific Inc.

The contents of this document are subject to change without notice. All technical information in this

document is for reference purposes only. System configurations and specifications in this document supersede

all previous information received by the purchaser.

Thermo Fisher Scientific Inc. makes no representations that this document is complete, accurate or error-

free and assumes no responsibility and will not be liable for any errors, omissions, damage or loss that might

result from any use of this document, even if the information in the document is followed properly.

This document is not part of any sales contract between Thermo Fisher Scientific Inc. and a purchaser. This

document shall in no way govern or modify any Terms and Conditions of Sale, which Terms and Conditions of

Sale shall govern all conflicting information between the two documents.

Release history: First release February 2007, second release July 2007

For Research Use Only. Not regulated for medical or veterinary diagnostic use by U.S. Federal Drug

Administration or other competent authorities.

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition iii

C

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v

About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Safety and Special Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi

Contacting Us . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi

Chapter 1 Agilent Modules Supported by LC Devices Versions 2.0.2 and 2.1.0. . . . . . . . . . .1

Chapter 2 Connecting the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Ethernet Communication Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installing a Network Card in an Agilent Module. . . . . . . . . . . . . . . . . . . . . . . . . 4

Connecting the Ethernet Communication Cables . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the External Contact Interface Board . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting the Trigger Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 3 Configuring the Autosampler for Contact Closure . . . . . . . . . . . . . . . . . . . . . . . . .11

Chapter 4 Triggering Data Acquisition with the Autosampler . . . . . . . . . . . . . . . . . . . . . . . .13

Chapter 5 Turning Off the Solvent Tracking Feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Appendix A Upgrading an HP 1100 Series LC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Contents

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition v

P

Preface

About This Guide

This guide describes how to hardwire an Agilent® 1100 Series LC to a Thermo Scientific

mass spectrometer and the data system computer, configure an Agilent autosampler for

contact closure from within the Xcalibur Instrument Configuration program, and trigger data

collection with an Agilent autosampler.

This guide also describes how to upgrade a Hewlett-Packard® 1100 Series LC to an

Agilent 1100 Series LC with Ethernet communication.

Related Documentation

In addition to this guide, Thermo Fisher Scientific provides Help available from within the

Xcalibur software.

Safety and Special Notices

Make sure you follow the precautionary statements presented in this guide. The safety and

other special notices appear in boxes.

Safety and special notices include the following:

CAUTION Highlights hazards to humans, property, or the environment. Each CAUTION

notice is accompanied by an appropriate CAUTION symbol.

CAUTION Highlights electric shock related hazards to human beings. Each electric shock

notice is accompanied by the international High Voltage symbol.

IMPORTANT Highlights information necessary to prevent damage to software, loss of

data, or invalid test results; or might contain information that is critical for optimal

performance of the system.

Preface

vi Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition Thermo Scientific

Safety Precautions

To connect the Agilent 1100 Series LC stack to a Thermo Scientific mass spectrometer, you

must install an external contact board in one of the Agilent modules and a LAN interface

board in a second Agilent module. To install a board, you must remove the cover from the

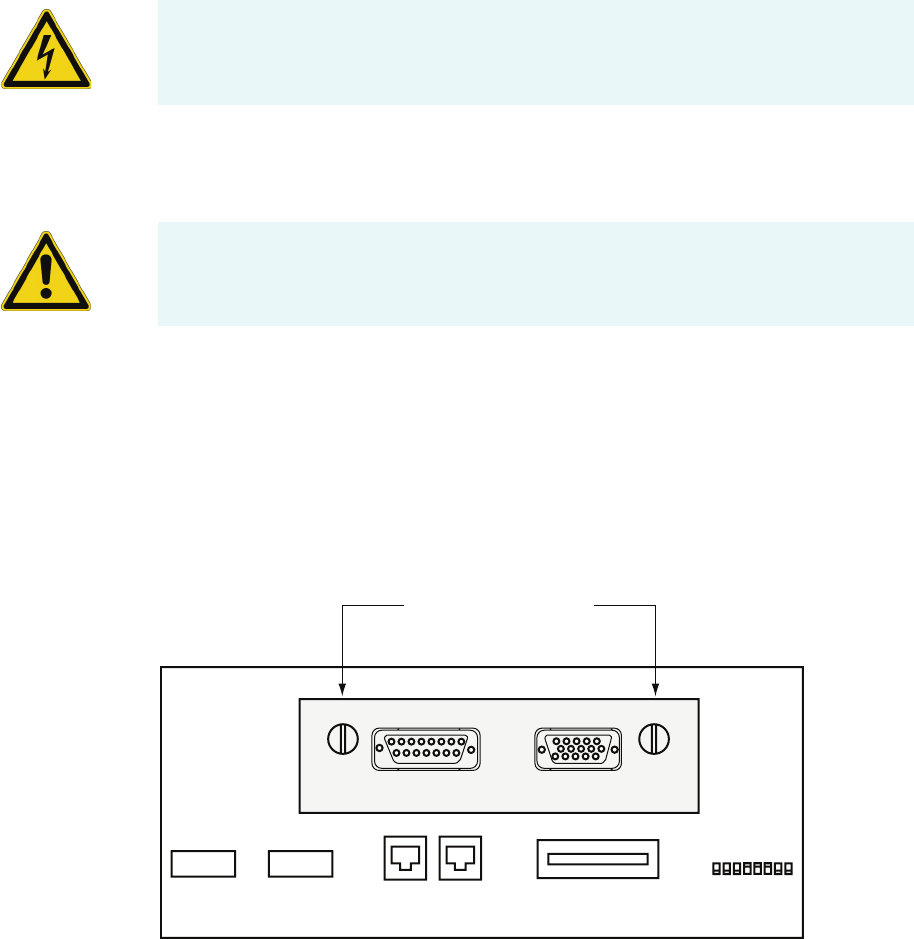

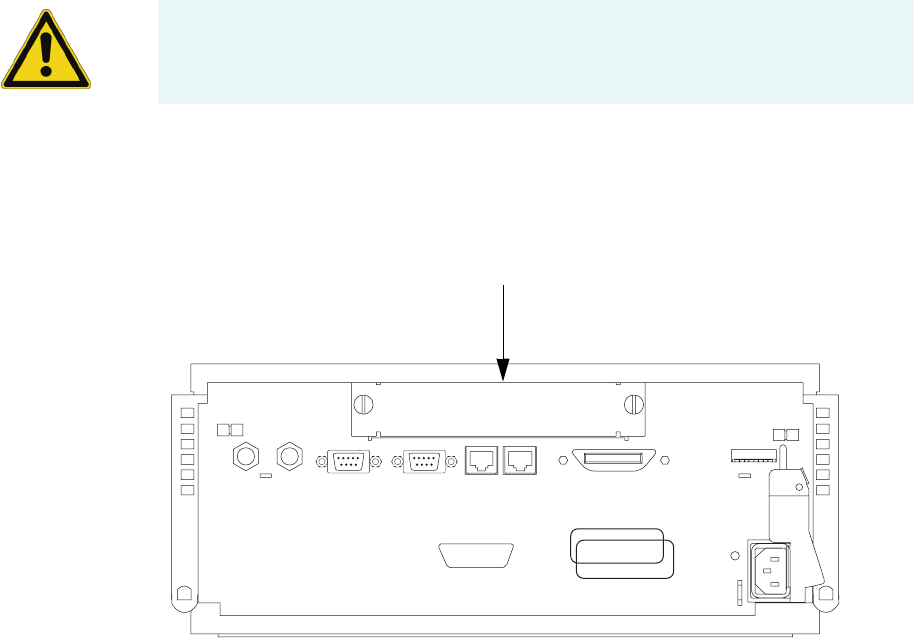

optional board slot. Figure 2 on page 6 shows the location of the slot on the back panel of the

detector.

Before you remove the slot cover from an Agilent 1100 Series module, do the following:

• Turn the power switch to the Off position and unplug the power cable.

• Refer to the Reference Manual for the module for additional safety information and for

information on preventing ESD damage caused by an electrical discharge.

Contacting Us

There are several ways to contact Thermo Fisher Scientific.

YTo contact Technical Support

Find software updates and utilities to download at www.mssupport.thermo.com.

Note Highlights information of general interest.

Tip Helpful information that can make a task easier.

CAUTION To avoid an electric shock, always turn off an Agilent module and unplug

it from line power before you remove its cover.

CAUTION To prevent damage to an instrument, always use ESD protection when

handling electronic boards and components.

Phone 800-685-9535

Fax 561-688-8736

E-mail TechSupport.C+MS@thermofisher.com

Knowledge base www.thermokb.com

Preface

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition vii

YTo contact Customer Service for ordering information

YTo suggest changes to documentation or to Help

• Fill out a reader survey online at www.thermo.com/lcms-techpubs.

• Send an e-mail message to the Technical Publications Editor at

techpubs.finnigan-lcms@thermofisher.com.

Phone 800-532-4752

Fax 561-688-8731

Web site www.thermo.com/finnigan

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition 1

1

Agilent Modules Supported by LC Devices

Versions 2.0.2 and 2.1.0

Tabl e 1 lists the model number and firmware versions for the Agilent 1100 Series LC

modules that are supported by the Xcalibur 2.0 and higher data system.

YTo check the firmware version of an Agilent 1100 module

1. Make sure that the Agilent 1100 Series modules are connected by CAN communication

cables, that all the modules are turned on, and that the Agilent 1100 Control Module is

connected.

Refer to the Agilent 1100 Series LC reference manuals for instructions on how to connect

the CAN cables.

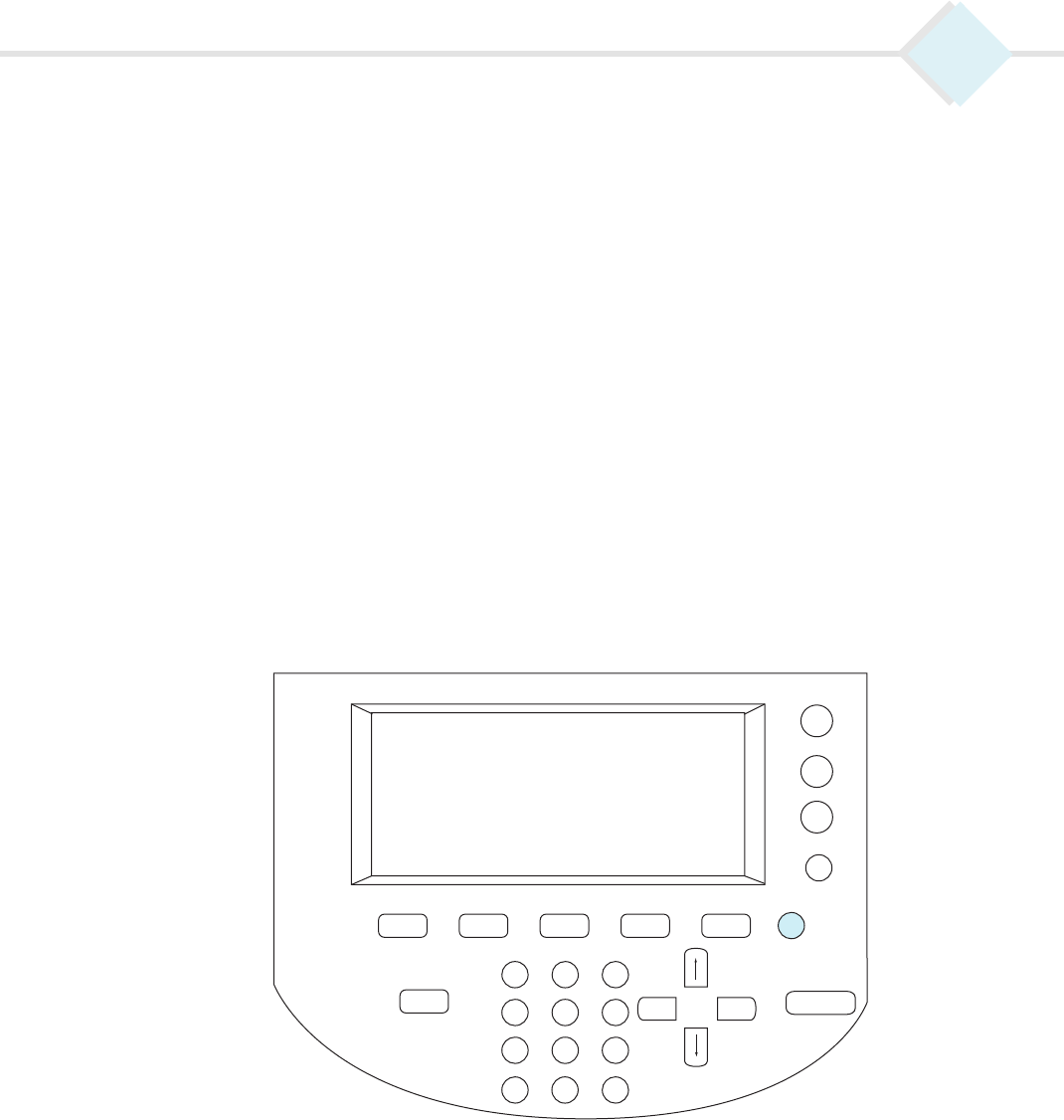

2. Press the Esc key on the Control Module until System appears in the upper-left corner of

the LCD display.

3. Press the F4 key on the Control Module to access the Records LCD display.

Table 1. Xcalibur 2.0 supported firmware versions for the Agilent 1100 Series LC

Module Model Number Firmware Version

Binary pump G1312A A.06.01 (012)

Quaternary pump G1311A A.06.01 (012)

Autosampler G1313A A.06.01 (012)

Thermostatted autosampler G1329A A.06.01 (012)

Well-plate autosampler G1367A A.06.01 (012)

Thermostatted column compartment G1316A A.06.01 (012)

Variable wavelength detector G1314A A.06.01 (012)

Diode-array detector G1315A A.06.01 (012)

Multiple wavelength detector*

*Only works with version B of the Control Module.

G1365B A.06.01 (012)

1 Agilent Modules Supported by LC Devices Versions 2.0.2 and 2.1.0

2Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition Thermo Scientific

4. Check the firmware versions of the Agilent 1100 Series modules. Refer to Table 1 for the

firmware versions supported by the Xcalibur 2.0. and higher data system.

Records

Module Product Serial# Version On-time EMF

Time Ready

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition 3

2

Connecting the Hardware

This chapter describes how to install the interface boards, connect the Ethernet cables, and

make the contact closure connections required to control an LC/MS system (Agilent

LC/Thermo scientific MS) system from Xcalibur.

Ethernet Communication Kit

To connect an Agilent 1100 series HPLC to your Thermo Scientific MS detector, you must

have the Ethernet Communication kit (P/N OPTON 30012), which contains the parts listed

in Tabl e 2. In addition, one of the modules of the Agilent 1100 Series LC must have a

JetDirect 400N LAN card (P/N 00825-01140) or an Agilent LAN interface board, model

number G1369A.

Contents

•Ethernet Communication Kit

•Installing a Network Card in an Agilent Module

•Connecting the Ethernet Communication Cables

•Installing the External Contact Interface Board

•Connecting the Trigger Cable

Table 2. Ethernet Communication kit (P/N OPTON 30012)

Description Part Number

Ethernet switch 00825-01-00024

PCB, contact closure, external contact interface 00012-27714

Cable, trigger external contact, 2-wire DB15 00012-27716

Cable, patch, 3 m (10 ft) CAT5 RJ45, straight shield 00012-70008

2 Connecting the Hardware

Installing a Network Card in an Agilent Module

4Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition Thermo Scientific

Installing a Network Card in an Agilent Module

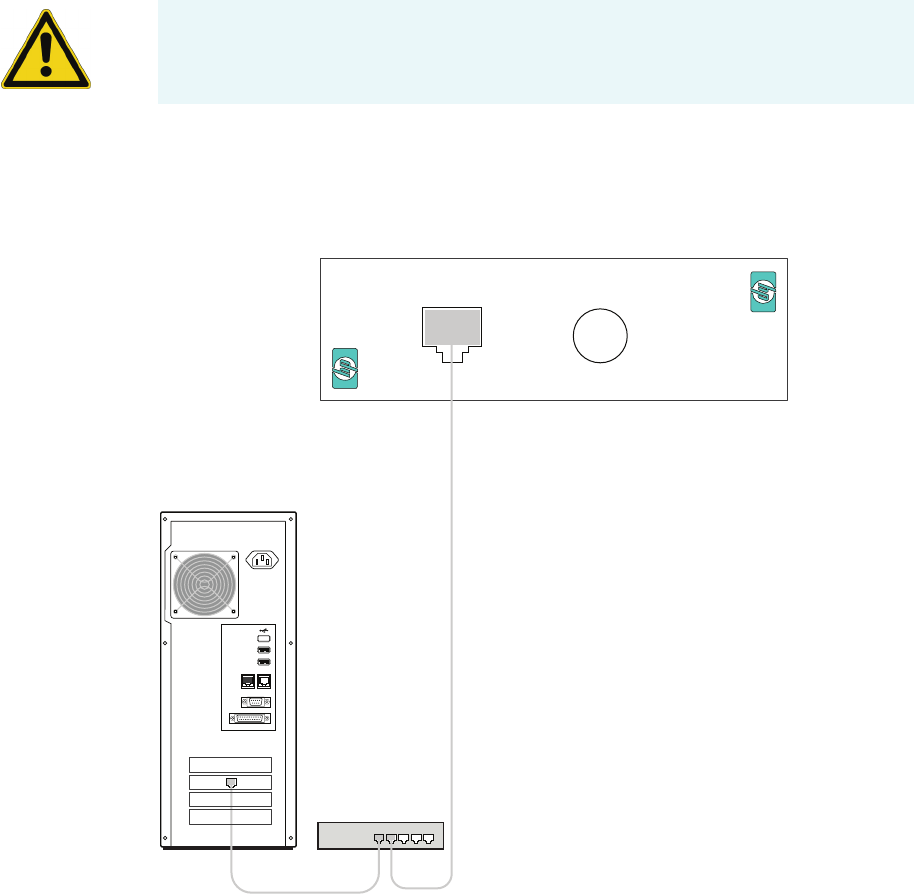

For the Agilent LC system to communicate with the Xcalibur data system through an

Ethernet connection, one of the modules in the Agilent 1100 Series LC stack must have a

network interface card. If the stack has a detector, the card is usually installed in the detector.

Agilent 1100 Series LC systems with JetDirect® network cards must have revision 2

mainboards to function properly with LAN communications. Ta ble 3 shows the required

revision level for each module. The serial number listed in the table and all serial numbers

after that number are supported.

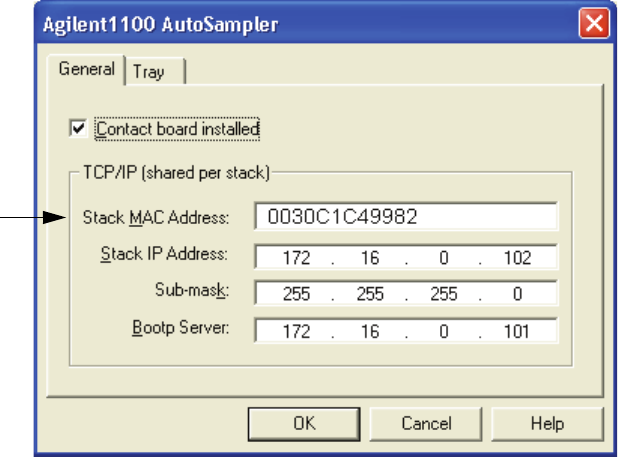

Tip Vendors label network cards with a unique MAC address, which is a 12-digit

hexadecimal number. The first portion of the MAC address identifies the vendor. The

second portion of the MAC address is a unique serial number. For example, a typical mark

on a network card is AD: 0030C1C49982, in which 0030C1C49982 is the stack MAC

address. The first portion, 0030C1, identifies the vendor as Hewlett-Packard. The MAC

address of the HP JetDirect 400N network card is located on the back of the card.

Because you need the MAC address when you configure the Agilent stack, record the

network card MAC address before you install the card.

Table 3. Supported serial number

Module P/N (Mainboard) Serial Numbers for Supported Version *

* All serial numbers above the listed number in numeric order are supported

G1310A

Isocratic pump

G1311-65520 DE64300355 (made in Germany)

US64400233 (made in U.S.A.)

G1311A

Quaternary pump

G1311-65520 DE64301137 (made in Germany)

US64401134 (made in U.S.A.)

G1312A

Binary pump

G1312-65520 DE64300703 (made in Germany)

US64400425 (made in U.S.A.)

G1313A

ALS autosampler

G1313-65520 DE64302092 (made in Germany)

US64400886 (made in U.S.A.)

G1314A

Variable wavelength detector

G1314-65520 JP64201926 (made in Japan)

G1315A

Diode array detector

G131-65520 DE64301532 (made in Germany

US64400333 (made in U.S.A.)

2 Connecting the Hardware

Installing a Network Card in an Agilent Module

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition 5

YTo install the network interface card in an Agilent module

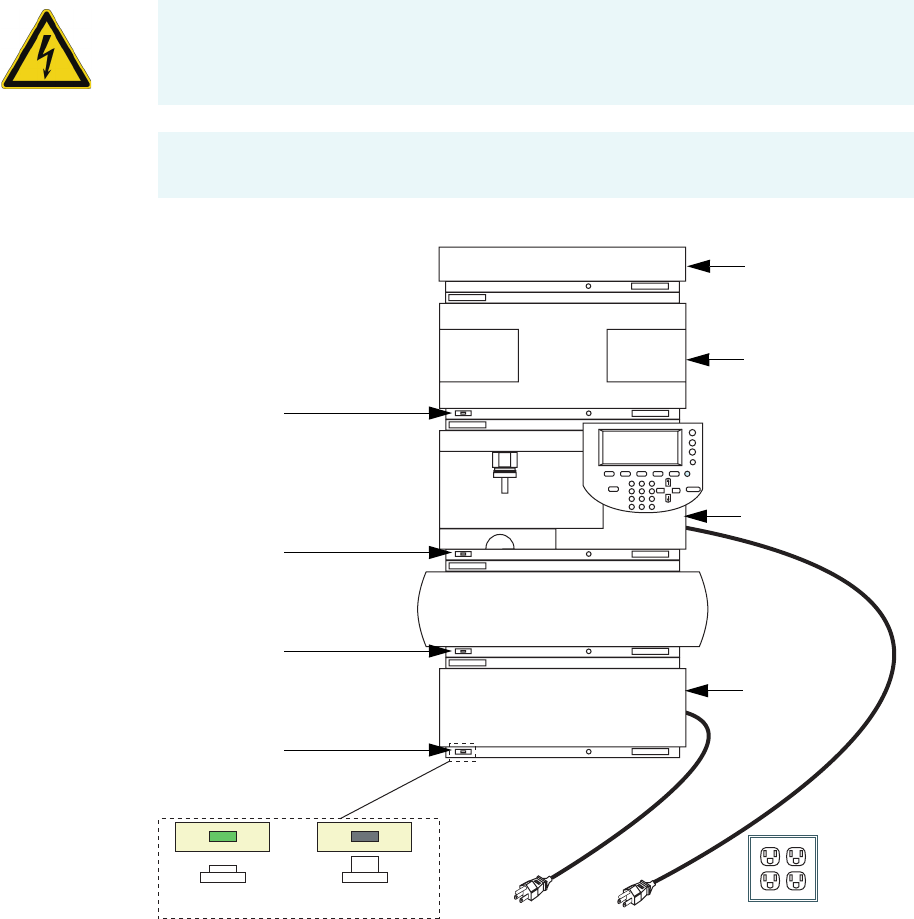

1. Make sure the module (usually the detector) is turned off and unplugged from line

power. Figure 1 shows the location of the power switches.

When the power switch of a module is in the On position, the LED on the switch is

green. When you turn the power switch of a module to the Off position, the LED

turns off.

If your LC stack contains a detector (for example, diode-array detector, variable

wavelength detector, multiple wavelength detector), install the network interface card in

the detector. If your LC stack does not contain a detector, install the network card in any

module with an open slot.

Figure 1. Front panels of the Agilent 1100 Series modules

CAUTION To avoid electric shock, unplug the power cable that connects the Agilent

module to line power. After you turn the power switch to the Off position, the power

supply continues to draw current.

Tip You can install an Agilent LAN interface board (model G1369A) instead of a

JetDirect 400N network card.

1100 Series

1100 Series

1100 Series

1100 Series

F1

F8

i

m

F7

F6

F2 F3 F4 F5

9

8

7

5 64

1 2 3

0.-

Esc Enter

◄

◄

Detector

Power switch

Column

compartment

Autosampler

Binary pump

Solvent cabinet

Power switch

Power switch

Power switch

On position Off position

2 Connecting the Hardware

Installing a Network Card in an Agilent Module

6Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition Thermo Scientific

2. To prevent damage to the interface board, ensure that you are using ESD protection. For

more information on preventing damage caused by an electric discharge, refer to the

Reference Manual for the Agilent module.

3. To remove the cover plate from the slot where you plan to install the network interface

card, loosen the two screws that fasten the plate to the chassis of the module. Figure 2

shows the location of the cover plate on the back panel of an Agilent 1100 Series detector.

Figure 2. Back panel of an Agilent 1100 Series detector

4. Record the MAC address (12-digit hexadecimal number) located on the back of the HP

JetDirect 400N network card. You will need this number to complete the configuration

of the Agilent stack. See Figure 6 on page 12.

5. Insert the HP JetDirect 400N network card into the slot, and then tighten the two screws

that fasten the PCB to the chassis of the module.

CAUTION To prevent damage to an instrument, always use ESD protection when

handling electronic boards and components.

ANALOG ANALOG RS232 RS232 CAN CAN

Cover plate

2 Connecting the Hardware

Connecting the Ethernet Communication Cables

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition 7

Connecting the Ethernet Communication Cables

YTo connect the Ethernet communication cable to an Agilent 1100 Series LC

1. Connect a category 5, shielded Ethernet cable from the JetDirect 400N network card to

the Ethernet switch.

2. Connect a category 5, shielded Ethernet cable from the Ethernet switch to the Ethernet

card in the computer dedicated to the LC system (typically network interface card

number 3).

Figure 3. Ethernet connections

CAUTION To comply with safety and EMC regulations, you must use category 5,

shielded Ethernet cables to make the Ethernet connections for your instrument.

HEWLETT

PACKARD

JET DIRECT 400N

BNC

BNC

100 (RJ-45)

100 (RJ-45)

HEWLETT

PACKARD

JET DIRECT 400N

Not drawn to scale

USB

ENET

Cat5 shielded

Ethernet cables

Ethernet Switch

JetDirect 400N card

(installed in one of

the Agilent modules)

Computer

Optiplex GX520

(subject to change)

2 Connecting the Hardware

Installing the External Contact Interface Board

8Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition Thermo Scientific

Installing the External Contact Interface Board

If your Agilent 1100 Series Autosampler is not already equipped with an external contact

interface board, install one as described below.

YTo install the external contact interface board

1. If you have not already done so, turn off the autosampler and unplug it from line power.

2. To prevent damage to the interface board, ensure that you are using ESD protection. For

more information on preventing damage caused by an electric discharge, refer to the

Reference Manual for the Agilent module.

3. To remove the cover plate from the slot where you plan to install the external contact

interface board, loosen the two screws that fasten the plate to the chassis of the

autosampler.

4. Insert the external contact interface board (see Tab l e 2 for the part number) into the slot,

and then tighten the two screws to fasten the board to the chassis of the autosampler. See

Figure 4.

Figure 4. View of the external contact interface board installed in an Agilent 1100 Series

autosampler

CAUTION To avoid electric shock, unplug the power cable that connects the Agilent

module to line power. After you turn the power switch to the Off position, the power

supply continues to draw current.

CAUTION To prevent damage to an instrument, always use ESD protection when

handling electronic boards and components.

1 8

Screws for fastening

the external contact interface board

CAN CAN HP-1B CONFIG

RELAY CONTACTS

REMOTE RS232

VIAL- # -OUTPUT

2 Connecting the Hardware

Connecting the Trigger Cable

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition 9

Connecting the Trigger Cable

A trigger cable with a DB15 connector relays the start signal from the autosampler to the

MS detector.

YTo connect the trigger cable to the Agilent autosampler and the MS detector

1. If you have not already done so, install the external contact interface board as described in

“Installing the External Contact Interface Board.”

2. Connect the 2-pin connector to the I/O panel of the MS detector, such that the

white wire is connected to the Start In+ pin and the brown wire is connected to the

Start In– pin.

3. Connect the DB15 connector to the RELAY CONTACTS receptacle located on the

external contact interface board of the Agilent 1100 Series autosampler. See Figure 5.

2 Connecting the Hardware

Connecting the Trigger Cable

10 Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition Thermo Scientific

Figure 5. Connections for 2-wire, DB15 trigger cable

Surveyor MSQ

(Rear panel)

+-

Not drawn to scale

LXQ or LTQ

MS detector

(Right-side panel)

START IN

START IN

TSQ Series MS detector

(Rear panel)

(Right-side

panel)

LCQ Series

(Rear panel)

(Left-side

panel)

Peripheral

Control

RELAY CONTACTS

White wire

Brown wire

Trigger Cable

Connection to autosampler

Start In +

Start In -

START IN

(5V Max)

(5V Max)

+

–

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition 11

3

Configuring the Autosampler for Contact Closure

The Agilent 1100 Series devices query the PC for the stack IP address only during their start

up procedure. Therefore, complete the following procedure, and ensure that the Xcalibur

Home Page window is open before you turn on the Agilent 1100 Series devices.

YTo assign contact closure control to the Agilent 1100 Series autosampler

1. Choose Start > All Programs > Xcalibur > Instrument Configuration.

The Instrument Configuration dialog box appears.

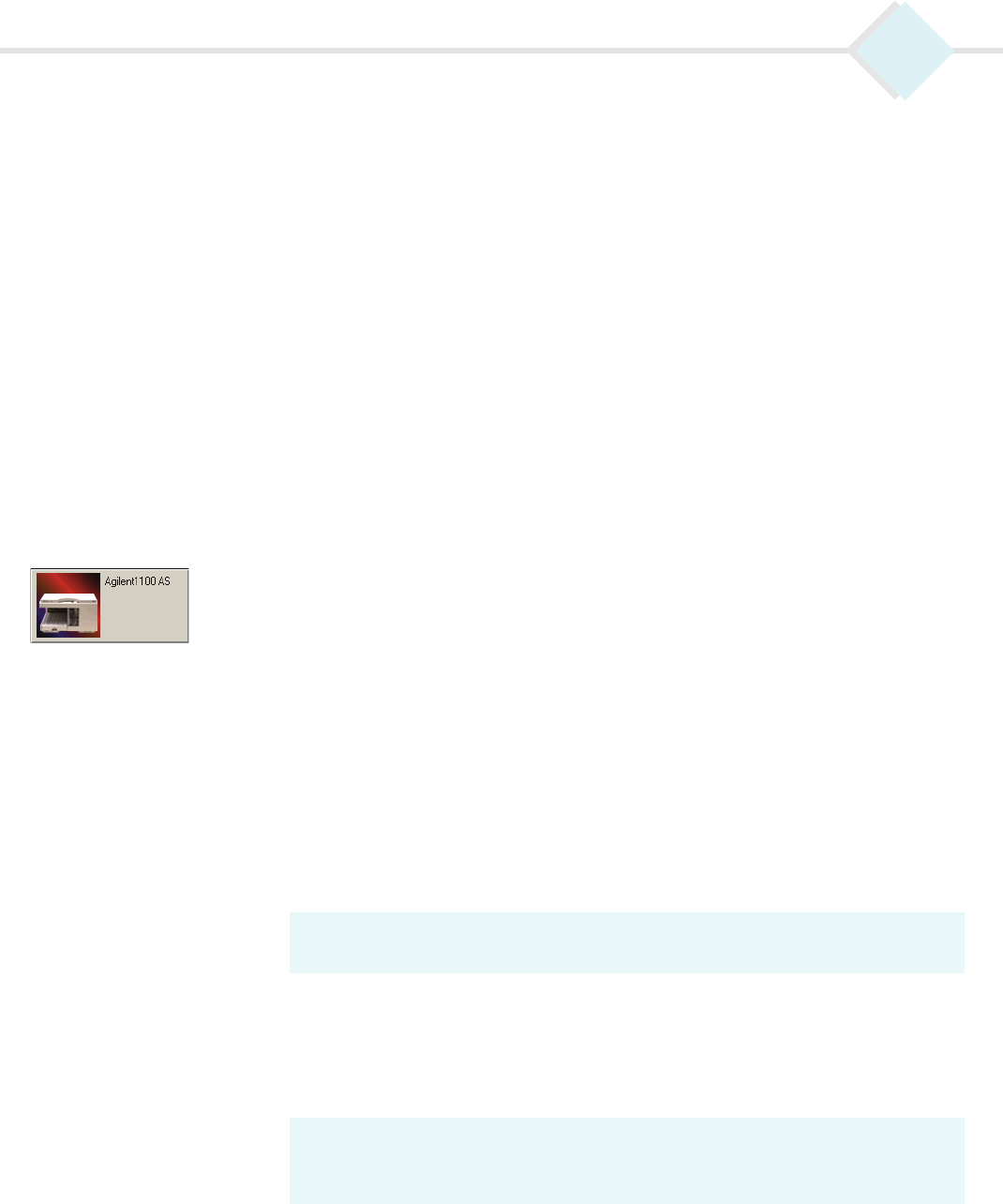

2. Scroll through the Available Devices area and double-click the Agilent 1100 AS button.

The Agilent 1100 AS button is copied to the Configured Devices area and is displayed as

a Configured Devices button.

3. Double-click the Agilent 1100 AS button in the Configured Devices area.

The Agilent 1100 Autosampler dialog box appears.

4. Click the General tab.

The General page appears. See Figure 6

5. In the General page, make the appropriate selections:

• Select the Contact Board Installed check box.

• In the Stack MAC address box, type the media access control address for your

Agilent LC stack.

The stack MAC address is a unique identification for each network card. The

manufacturer usually stamps it on the network card.

Note If you do not select the Contact Board Installed check box, the Timed

Events page does not appear in the Instrument Setup view for the autosampler.

Note The TCP/IP settings are shared by all Agilent 100 LC modules in the stack.

Changing the value of a setting for one module in the Instrument Configuration

dialog box changes the value of that setting for all modules in the stack.

3 Configuring the Autosampler for Contact Closure

12 Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition Thermo Scientific

• In the Stack IP Address box, type the IP address for your Agilent 1100 LC stack.

Leave the value set to the default or contact your network administrator for the IP

address.

The default stack IP address is 172-16-0-102.

• In the Sub-mask box, type the subnet mask (address mask). Leave the subnet mask set

to its default value, or contact your network administrator for the subnet mask.

The default subnet mask value is 255-255-255-0.

• In the Bootp Server box, type the IP address for the network card in your PC that is

responsible for assigning the stack IP address for your Agilent 1100 LC system. Leave

the value set to the default or contact your network administrator for the BOOTP

server IP address.

The default IP address for the network card is 172-16-0-101.

6. Click OK to save the settings and close the dialog box.

Figure 6. Agilent1100 Autosampler dialog box

7. Click Done to exit the Xcalibur Instrument Configuration program.

8. Open the Xcalibur data system before you turn on the devices of your Agilent1100 Series

LC stack.

12-digit hexadecimal number

located on the back of the

HP JetDirect network card

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition 13

4

Triggering Data Acquisition with the Autosampler

If you want the Agilent 1100 series autosampler to trigger data acquisition, you must make

the appropriate selections in the Timed Events page for the autosampler for each instrument

method you create. Instrument methods contain the contact closure signals, the

chromatographic conditions, and the MS detector settings for an LC/MS application.

YTo trigger data acquisition with the Agilent 1100 Series autosampler

1. Choose Start > All Programs > Xcalibur > Xcalibur.

The Home Page appears.

2. Click the Instrument Setup button.

The Instrument Setup window appears.

3. Click the Agilent 1100 AS button in the Instrument Setup viewbar located on the left

side of the window.

The Instrument Setup view for the Agilent 1100 AS appears.

4. Click the Timed Events tab.

The Timed Events page appears.

5. In the Timed Events page, select the appropriate contact closure signal settings as shown

in Figure 7.

a. Click the Contact 1 box to display the list and select Closed.

b. Make sure that all the other Contact boxes display Open.

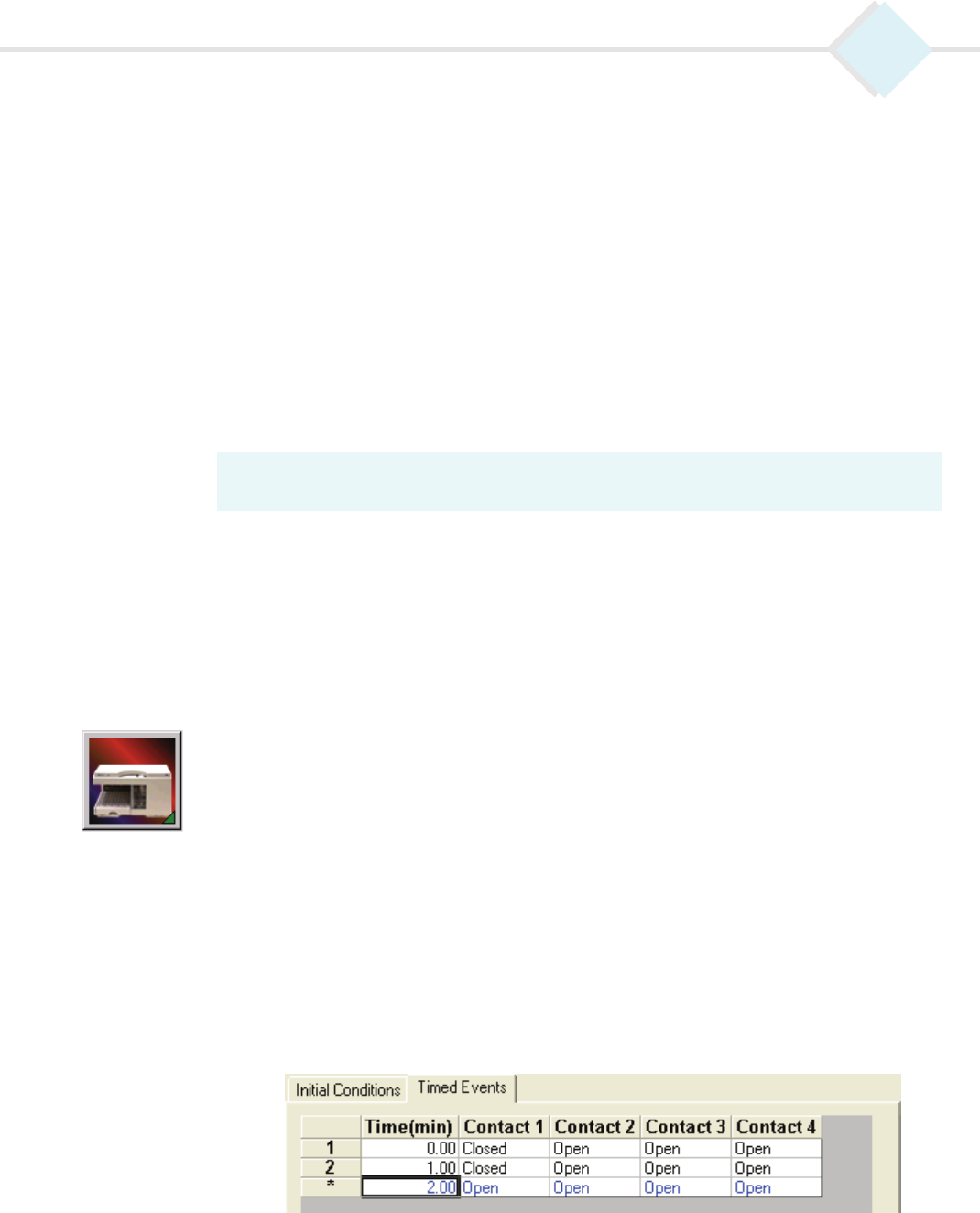

Figure 7. Timed Events page for the Agilent 1100 Series autosampler

6. Make the appropriate entries and selections for the rest of the instrument method.

Note Configure the Agilent 1100 Series autosampler before performing the following

procedure. Refer to Chapter 3, “Configuring the Autosampler for Contact Closure,”

4 Triggering Data Acquisition with the Autosampler

14 Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition Thermo Scientific

7. Save your method with an appropriate name.

8. Choose File > Exit to close the Instrument Setup window. Xcalibur prompts you with the

Save As dialog box, the File Summary Information Dialog box, and the File Save - Audit

Trail dialog box.

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition 15

5

Turning Off the Solvent Tracking Feature

The solvent tracking feature on the Agilent 1100 LC pumps is not supported by Xcalibur at

this time. You must turn off this feature to prevent error messages from terminating the data

acquisition.

YTo turn off the solvent tracking feature on the Agilent 1100 pump

1. If Xcalibur is open, close it.

2. Open the Analysis screen on the Agilent 1100 handheld control module.

3. Press the Settings button F1.

Figure 8. Agilent 1100 handheld control module

4. Press the number corresponding to the pump.

5. Press the Bottle Fillings button F4.

6. Set all of the solvent Total boxes to 0.

The solvent Actual boxes are then automatically set to 0.

7. Clear the Error If Empty check box by using the right arrow to move the focus to this

setting, and then pressing Enter.

F1

F8

i

m

F7

F6

F2 F3 F4 F5

9

8

7

56

4

1 2 3

0.-

Esc Enter

◄

◄

5 Turning Off the Solvent Tracking Feature

16 Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition Thermo Scientific

8. Press the Done button F6.

9. From the Windows XP start menu, choose All Programs > Xcalibur > Xcalibur.

The Home Page appears.

The Agilent 1100 devices should reconnect and appropriately display their status.

10. If the Info view is not displayed, choose View > Info View.

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition 17

A

Upgrading an HP 1100 Series LC

The Xcalibur 2.0 and higher data system supports control of the Hewlett-Packard (HP)

1100 Series LC only if you upgrade the HP 1100 communication interface to an Ethernet

interface.

YTo upgrade your HP 1100 Series LC

1. Order the appropriate upgrade parts from your local office for Thermo Electron San Jose

products:

• If the HP 1100 is not interfaced to an MS detector as an Xcalibur-controlled GPIB

inlet device, order the JetDirect Ethernet Control kit, which contains the parts listed

in Tabl e 4.

• If the HP 1100 is interfaced to an MS detector as an Xcalibur-controlled GPIB inlet

device, order the parts listed in Table 5.

Note An HP 1100 LC system that is currently interfaced to a MS detector as an

Xcalibur-controlled GPIB inlet device should have already installed the contact

closure PCB and the external contact closure cable. Therefore, you need to order

only the parts specified in Table 5 .

Table 4. JetDirect Ethernet Control Kit (P/N OPTON 30018)

Part Number Description of Kit

00012-27714 Contact closure PCB

00012-27716 External contact closure cable

00012-70008 Ethernet 10 Base-T cable (2)

00825-01-00024 10/100 Autosensing 8-port Ethernet switch

00825-01140 HP JetDirect 400N PCB

A Upgrading an HP 1100 Series LC

18 Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition Thermo Scientific

2. Follow the instructions in “Installing a Network Card in an Agilent Module” on page 4

to install the JetDirect 400N PCB.

Table 5. Parts required to upgrade an Xcalibur-controlled HP 1100 Series LC

Part Number Description of Part

00825-01140 HP JetDirect 400N PCB

00012-70008 Ethernet 10 Base-T cable (2)

00825-01-00024 Ethernet switch

Note After the communication interface in the HP 1100 LC system is upgraded to

an Ethernet interface, the system is the same as, and will be referred to as, an Agilent

1100 LC system.

Thermo Scientific Agilent 1100 Series LC Devices Connecting the Hardware and Triggering Data Acquisition 19

I

A

Agilent 1100 Series LC

configuring autosampler for contact closure 11

external contact interface PCB, installing 8

solvent tracking feature, deactivating 15

supported mainboards for JetDirect cards 4

Agilent LAN interface board (G1369A) 5

C

configuring the Agilent 1100 Series Autosampler 11

contact board 11

contact closure, configuring the Agilent Autosampler for 11

Contacting vi

D

data acquisition, triggering 13

deactivating the solvent tracking feature for Agilent 1100 LC

pumps 15

E

Electric shock safety precaution 5, 8

ESD precaution vi, 6, 8

Ethernet cable connections 7

Ethernet card for upgrading HP 1100 LC 17

F

firmware for Agilent LC 1

H

HP 1100 Series LC, upgrading to Ethernet interface 17

I

instrument methods, triggering data acquisition 13

J

JetDirect boards, supported 4

M

MAC address 4

mainboards supported for JetDirect Cards 4

S

safety precautions vi

slot cover, removing from an Agilent module vi

solvent tracking feature for Agilent pumps 15

stack IP address 12

stack MAC address 4, 12

X

Xcalibur data system

Instrument Configuration program, configuring the

Agilent 1100 series autosampler for contact closure 11

Instrument Setup view 13

Index
