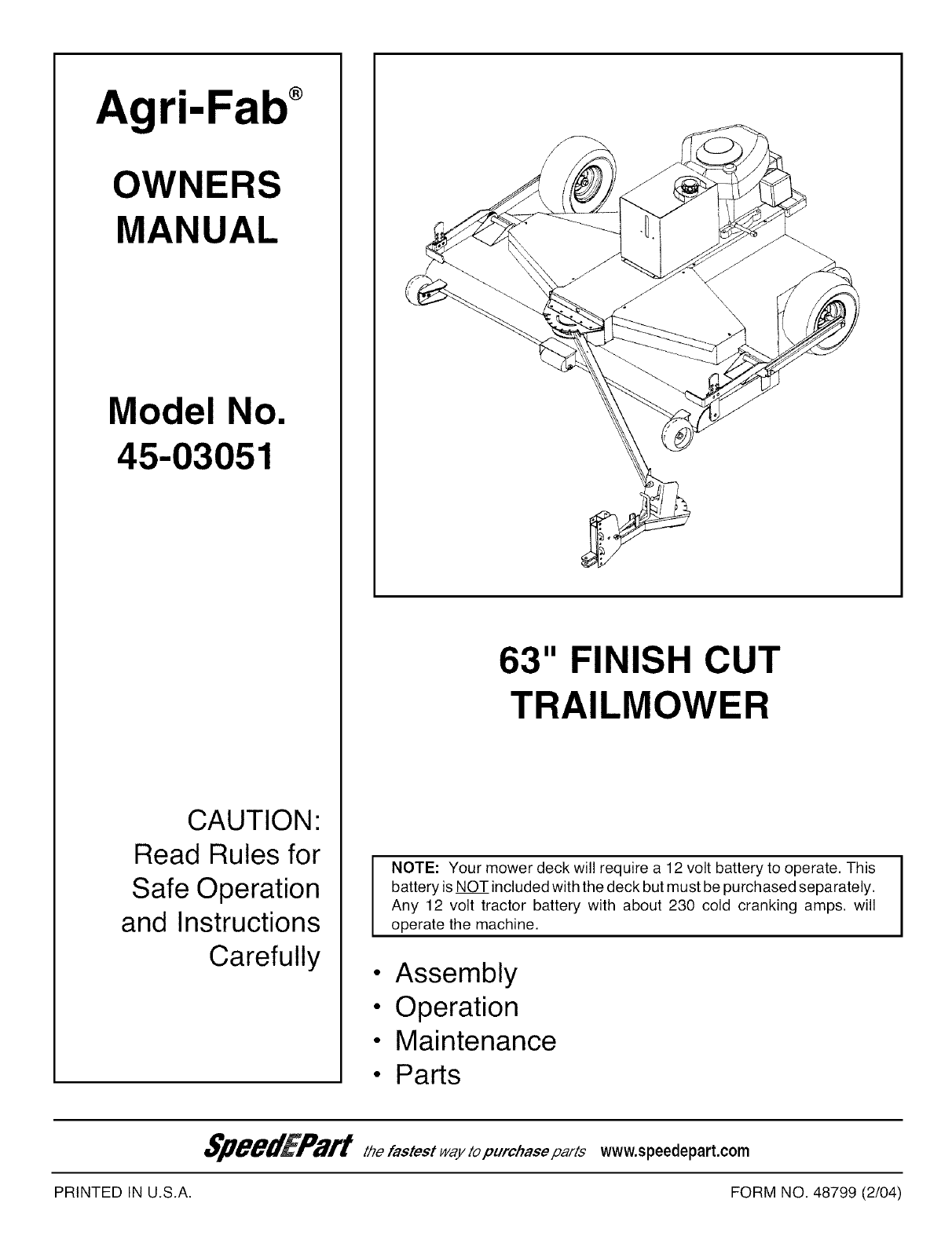

Agri-Fab ®

OWNERS

MANUAL

Model No.

45-03051

CAUTION"

Read Rules for

Safe Operation

and Instructions

Carefully

63" FINISH CUT

TRAILMOWER

NOTE: Your mower deck will require a 12 volt battery to operate. This

battery is NOT included with the deck but must be purchased separately.

Any 12 volt tractor battery with about 230 cold cranking amps. will

operate the machine.

• Assembly

• Operation

• Maintenance

• Parts

•7_l_UM_rdri the fastest way topurchase parts www.speedepart.corn

PRINTED_NU.S.A. FORMNO.48799/2/04/

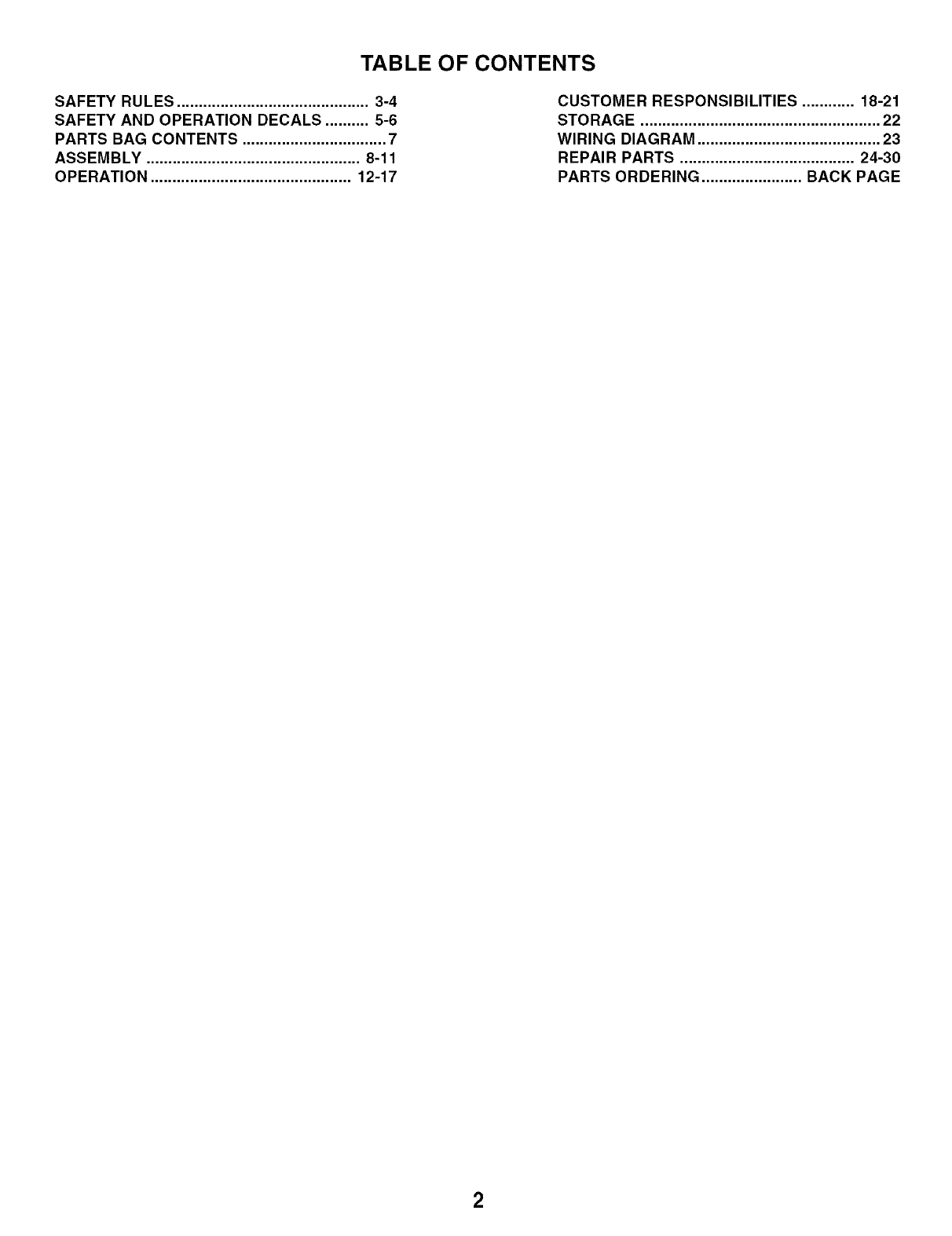

TABLE OF CONTENTS

SAFETY RULES ............................................ 3-4

SAFETY AND OPERATION DECALS .......... 5-6

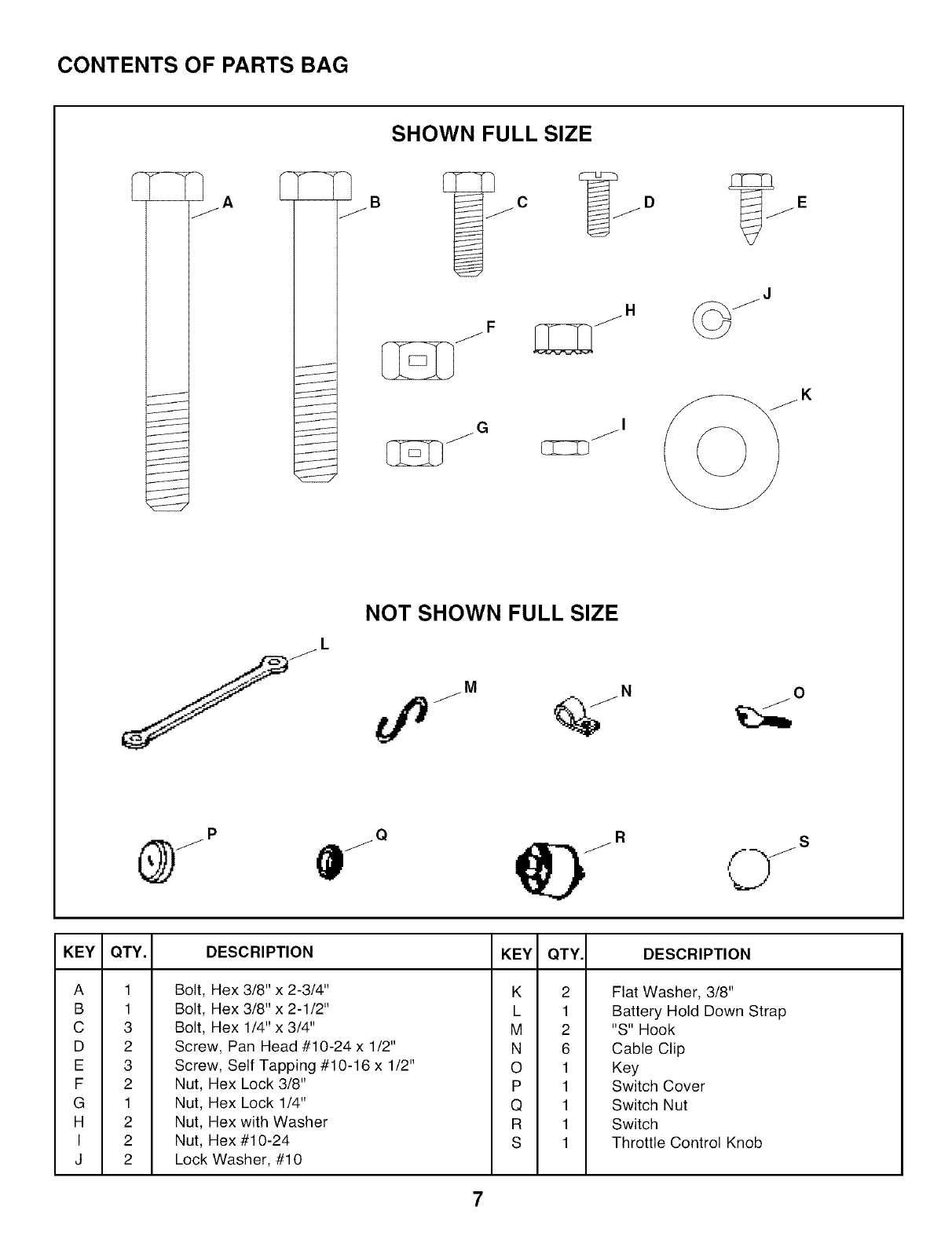

PARTS BAG CONTENTS ................................. 7

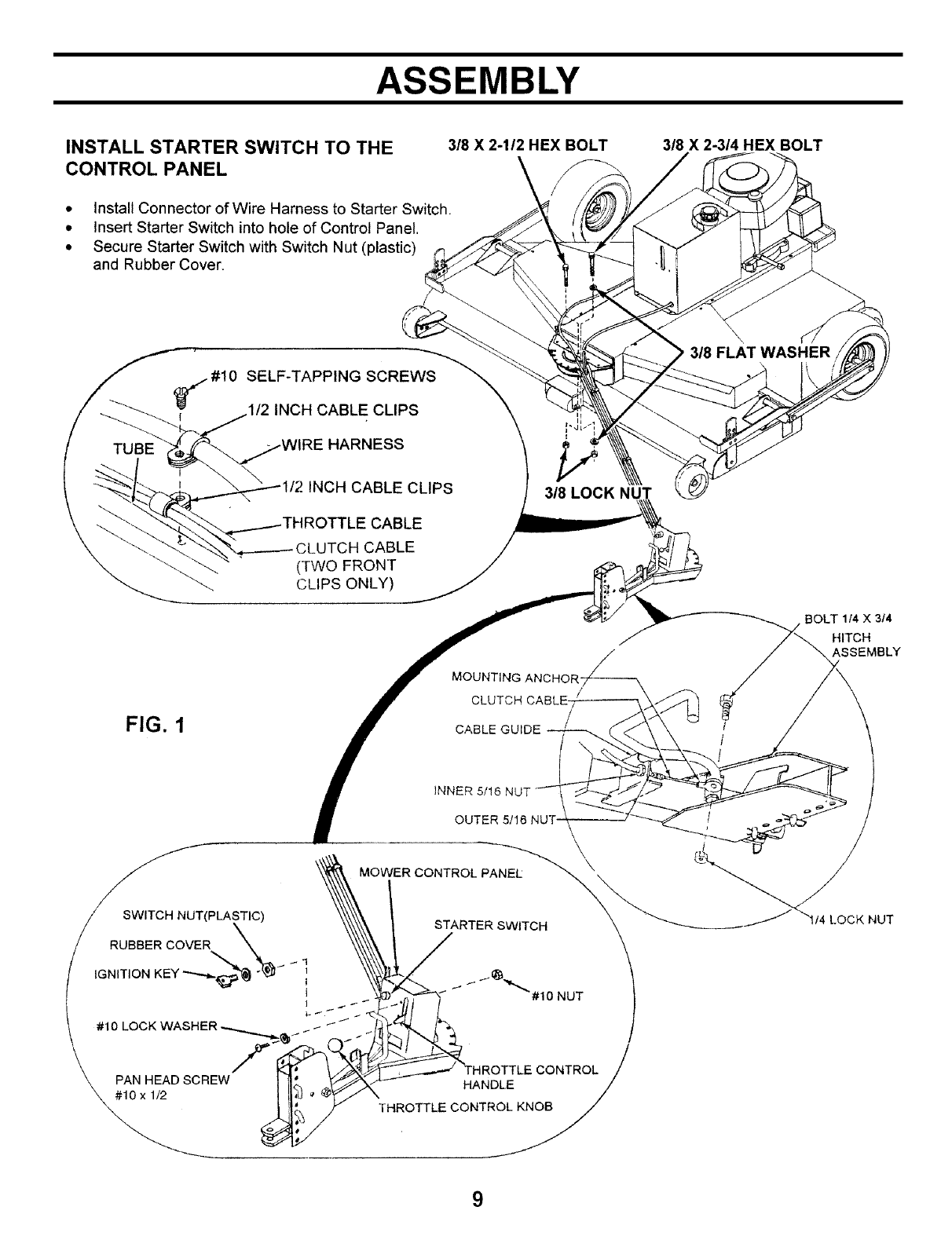

ASSEMBLY ................................................. 8-11

OPERATION .............................................. 12-17

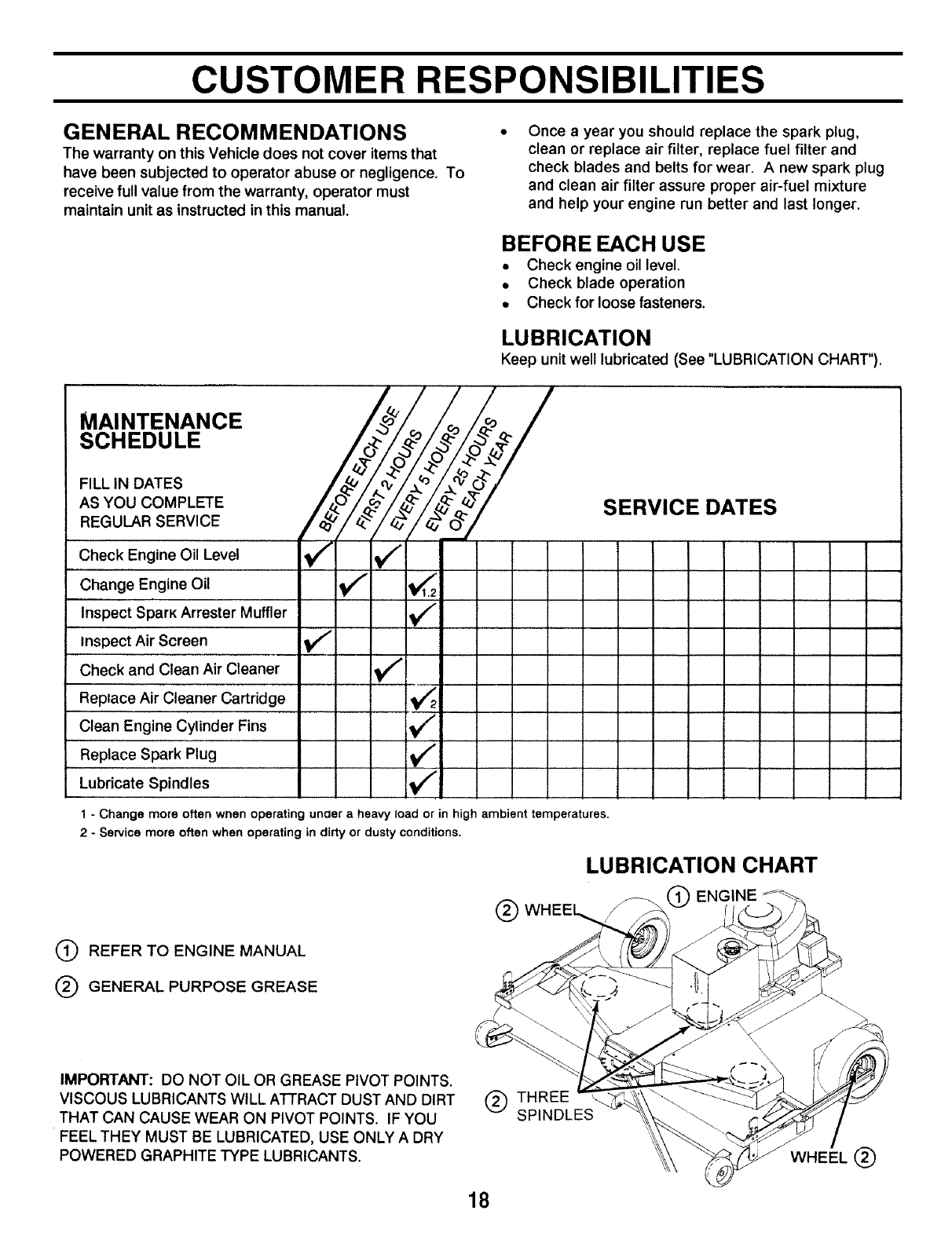

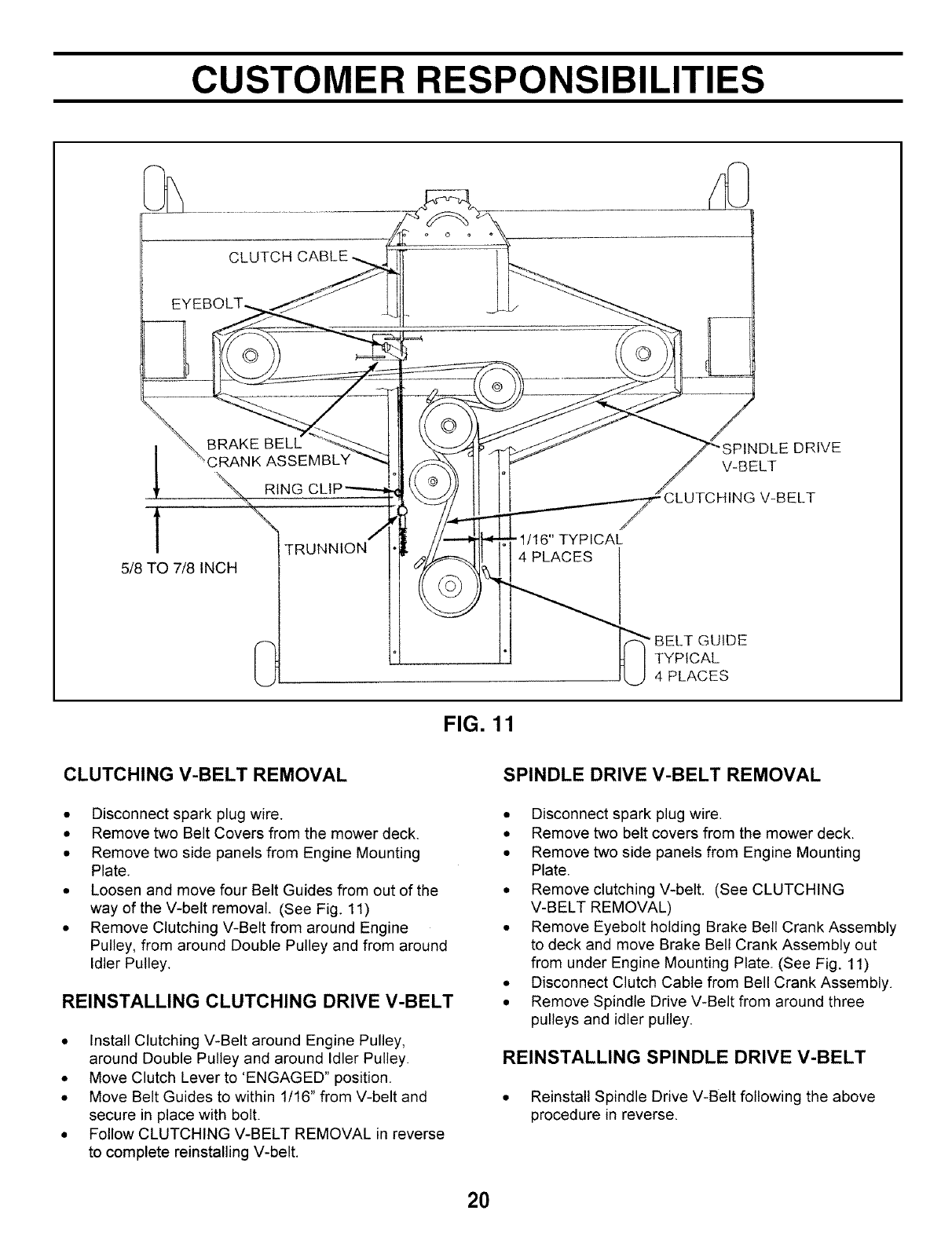

CUSTOMER RESPONSIBILITIES ............ 18-21

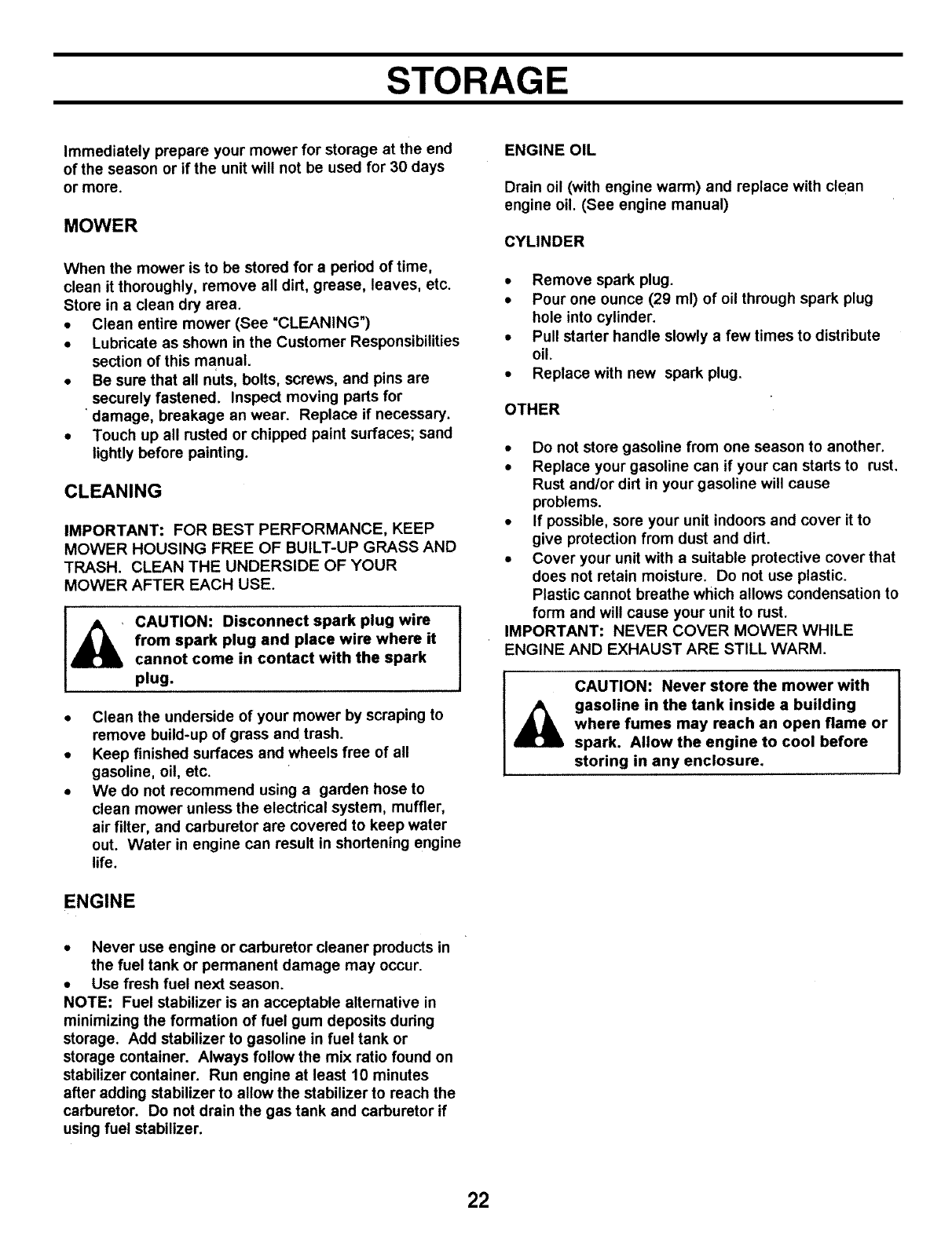

STORAGE ....................................................... 22

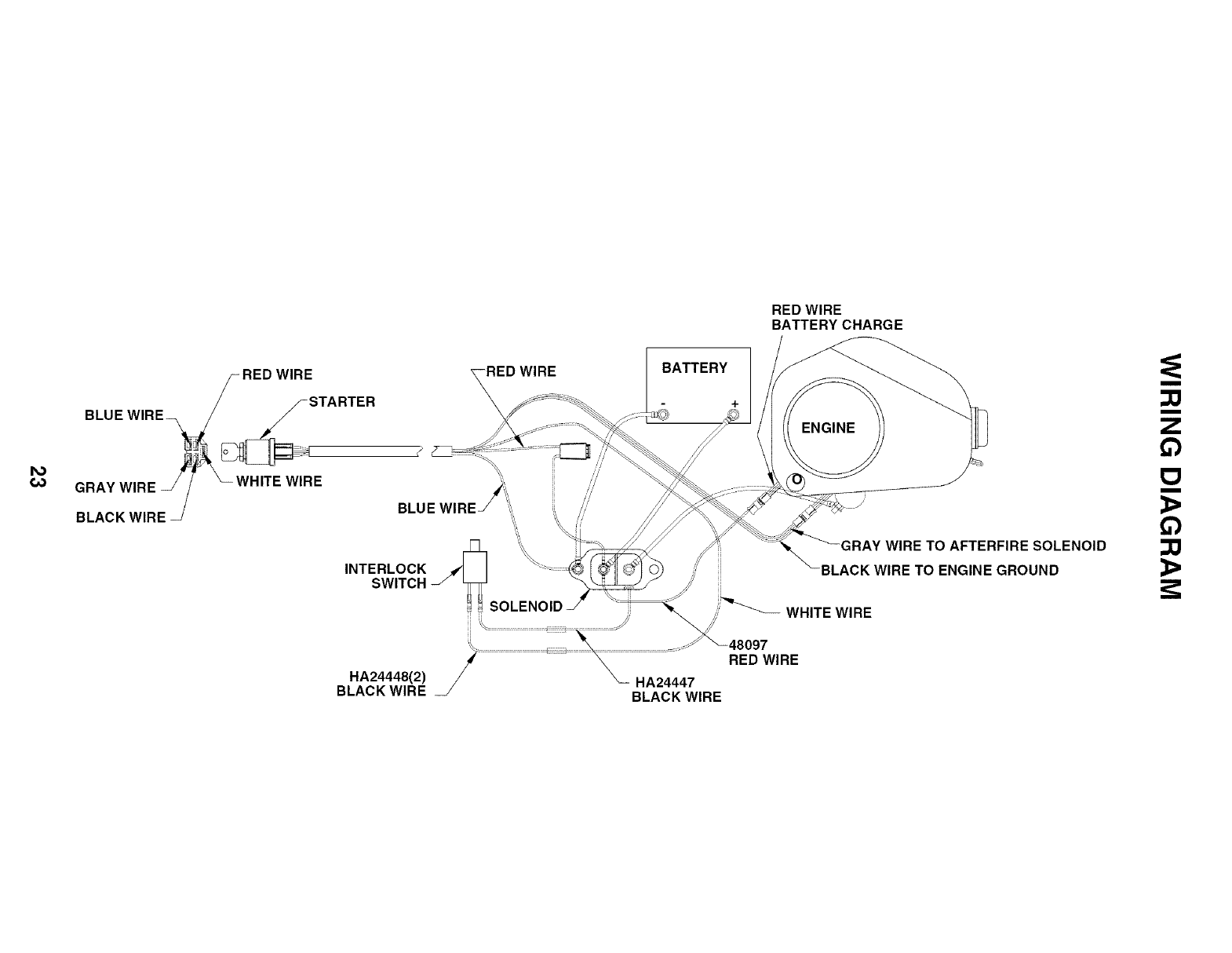

WIRING DIAGRAM .......................................... 23

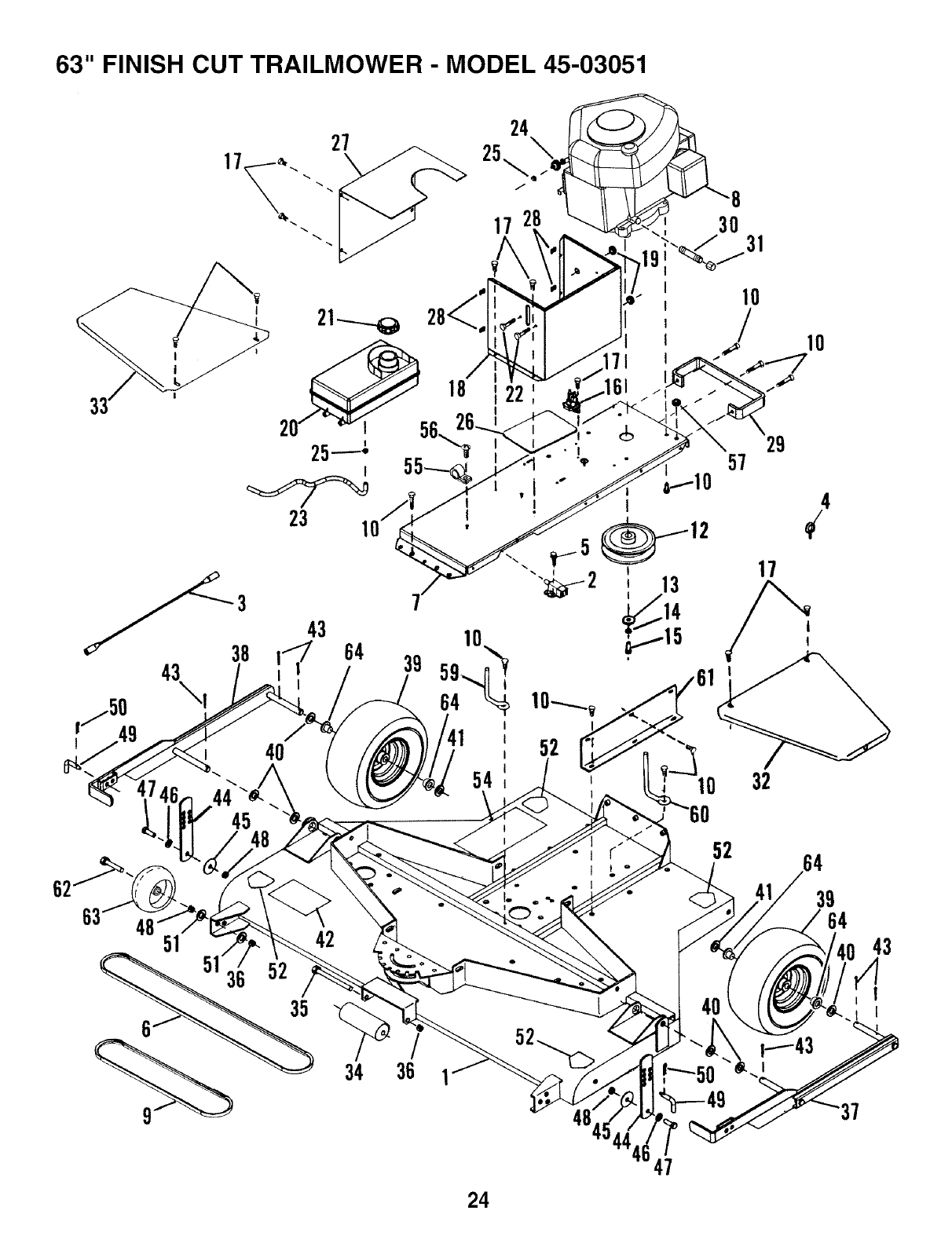

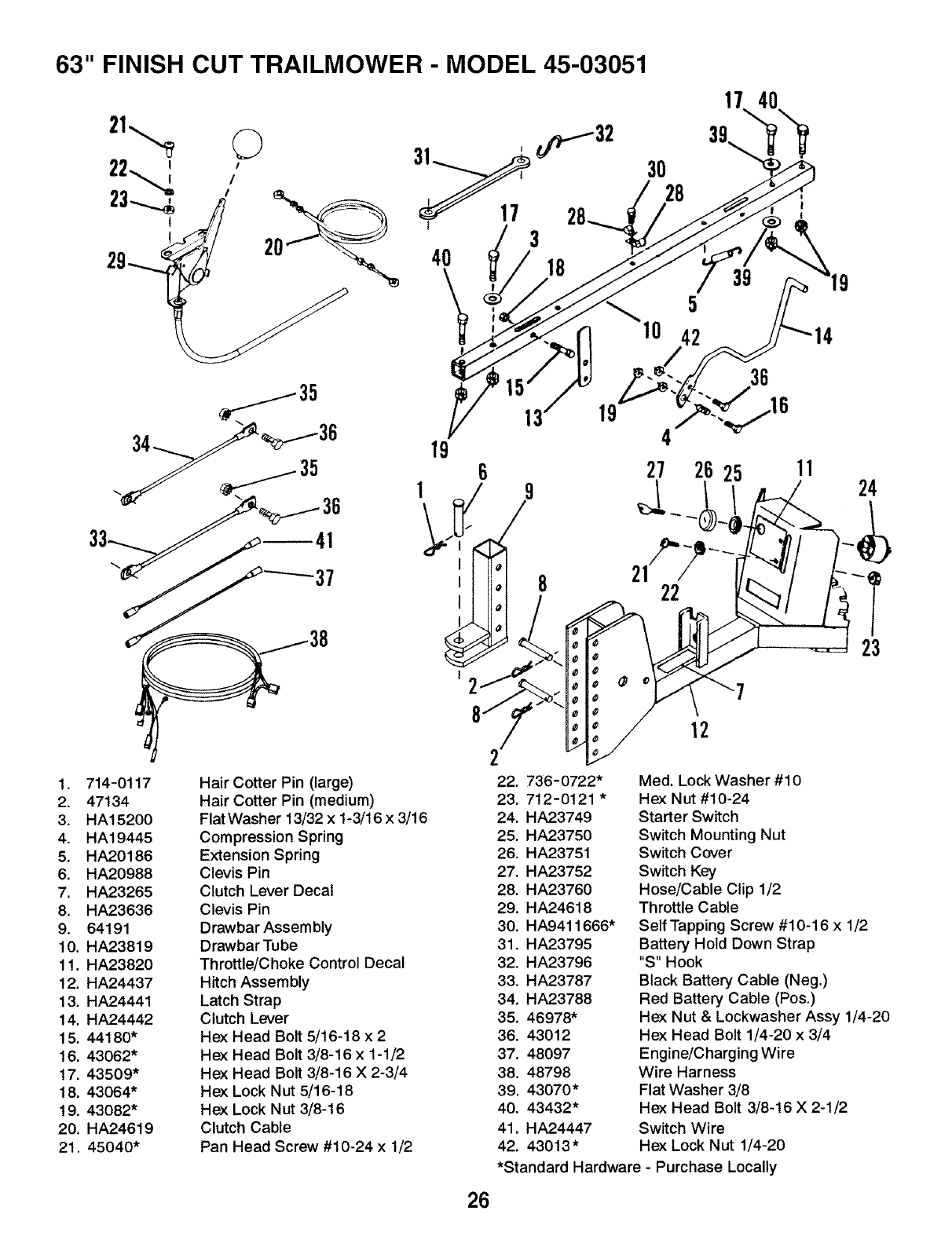

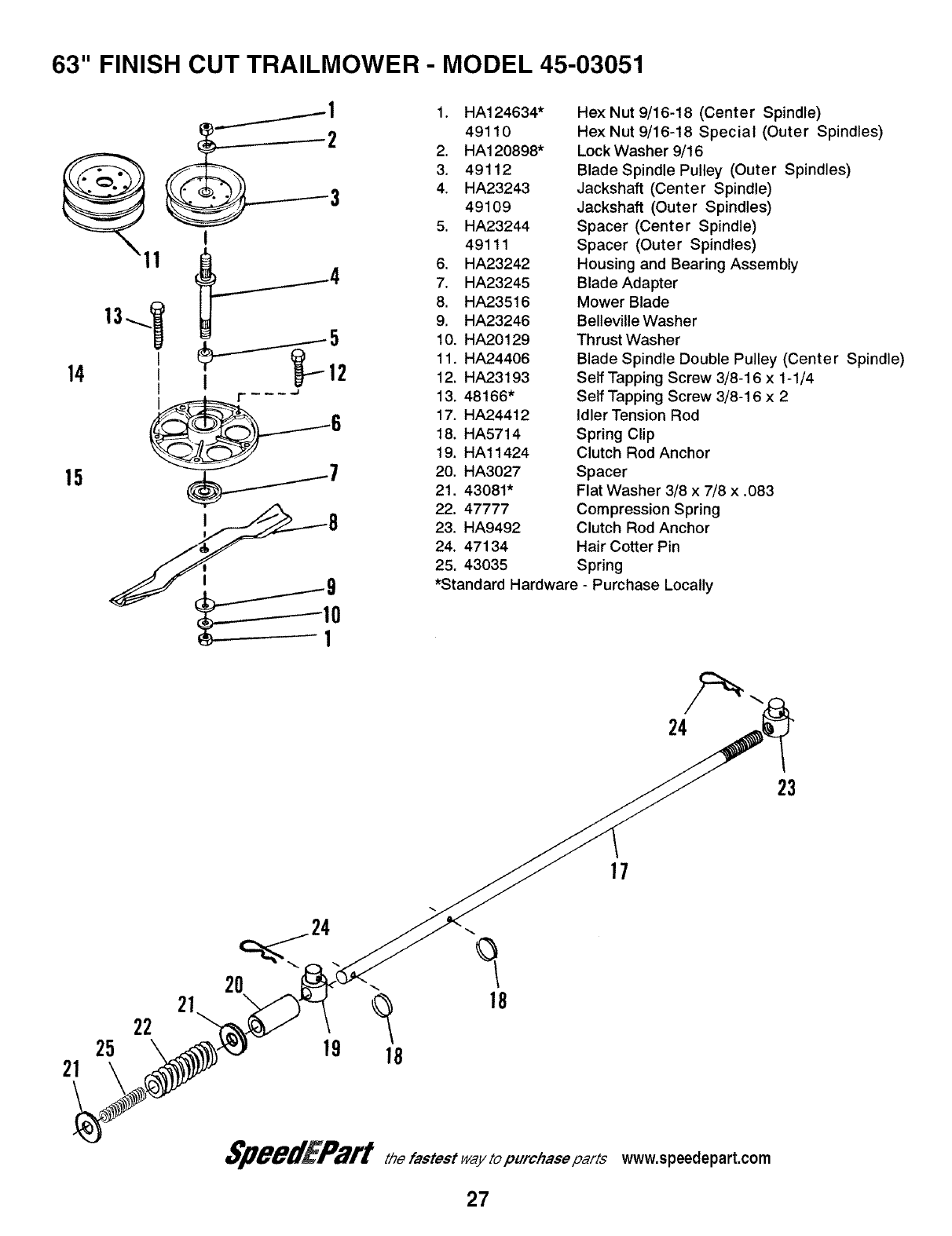

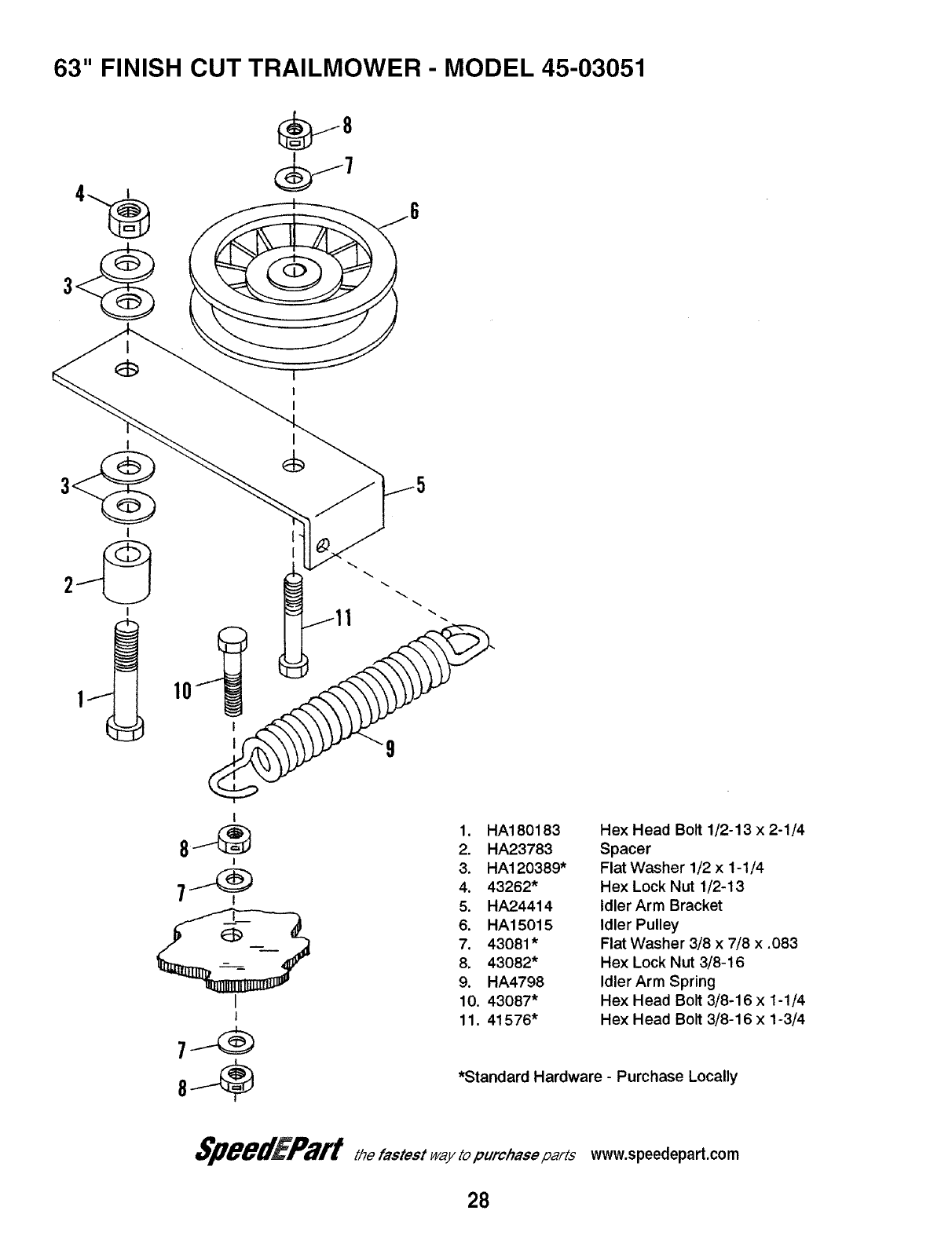

REPAIR PARTS ........................................ 24-30

PARTS ORDERING ....................... BACK PAGE

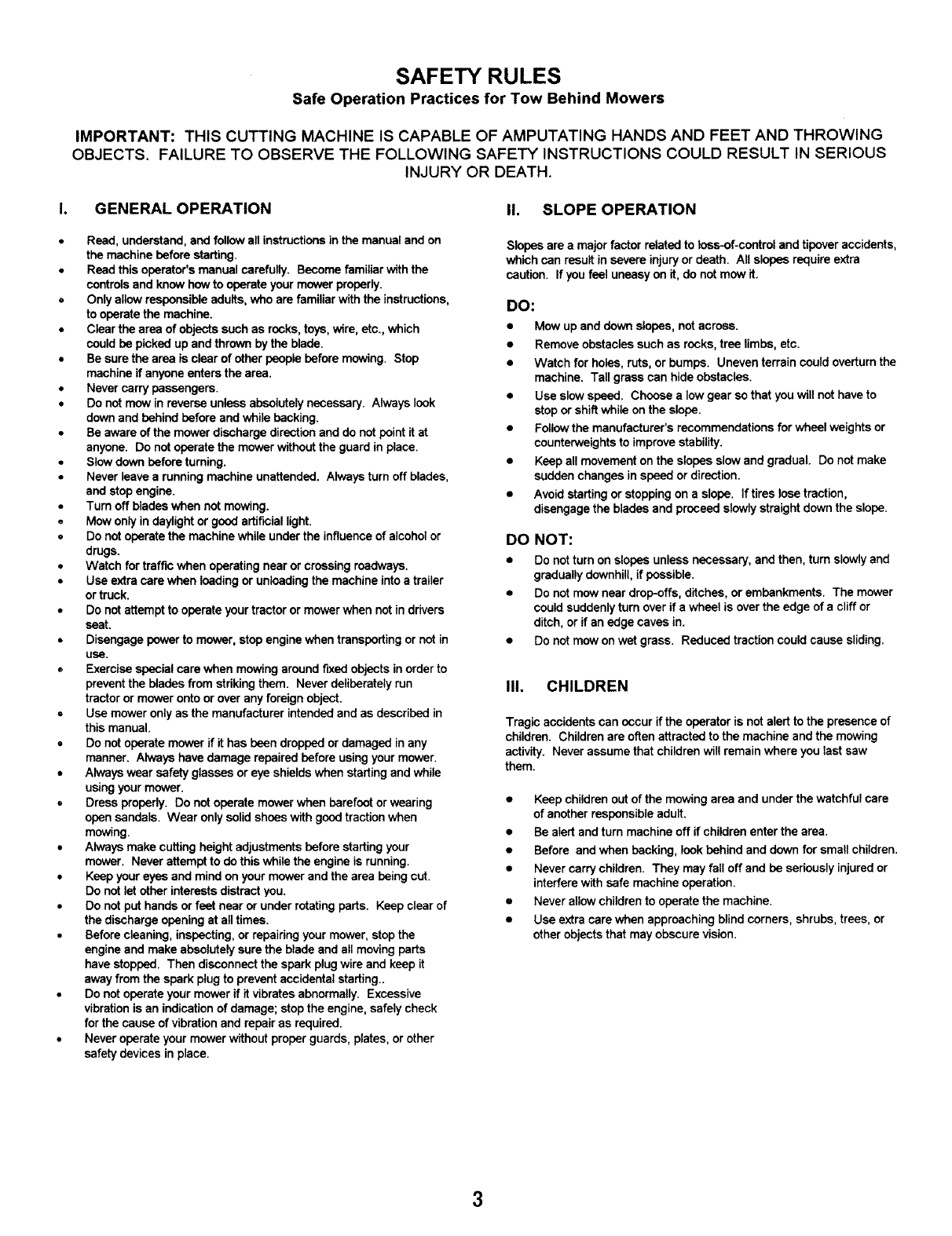

SAFETY RULES

Safe Operation Practices for Tow Behind Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING

OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS

INJURY OR DEATH.

GENERAL OPERATION|,

• Read, understand, and follow all instructions in the manual and on

the machine before starting.

•Reed this operator's manual carefully. Become familiar with the

controls and know how to operate your mower properly.

oOnly allow responsible adults, who are familiar with the instructions,

to operate the machine.

•Clear the area of objects such as rocks, toys, wire, etc., which

could be picked up and thrown by the blade.

•Be sure the area isclear of other people before mowing. Stop

machine if anyone enters the area.

•Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Always lock

down and behind before and while becking.

•Be aware of the mower discharge direction and do not point it at

anyone. Do not operate the mower withoutthe guard in place.

•Slow down before turning.

•Never leave a running machine unattended. Always turn off blades,

and stop engine.

•Turn off blades when not mowing.

eMow only in daylight or good artificial light.

•Do not operate the machine while under the influence of alcohol or

drugs.

• Watch for traffic when operating near or crossing roadways.

•Usa extra care when loading or unloading the machine into a trailer

or truck.

• Do not attempt to operate your tractor or mower when notin drivers

seat.

• Disengage power to mower, stop engine when transporting or not in

Use.

•Exercise special cars when mowing around fixed objects in order to

prevent the blades from striking them. Never deliberately run

tractor or mower onto or over any foreign object.

•Use mower only as the manufacturer intended and as described in

this manual.

•Do not operate mower if it has been dropped or damaged in any

manner. Always have damage repaired before using your mower.

•Always wear safety glasses or eye shields when starting and while

using your mower.

. Dress properly. Do not operate mower when barsfcot orwearing

open sandals. Wear only solid shoes with good traction when

mowing.

•Always make cutting height adjustments before starting your

mower. Never attempt to do this while the engine is running.

•Keep your eyes and mind on your mower and the area being cut.

Do not let other interests distract you.

•Do not put hands or feet near or under rotating parts. Keep clear of

the discharge opening at all times.

•Before cleaning, inspecting, or repairing your mower, stop the

engine and make absolutely sure the blade and all moving parts

have stopped. Then disconnect the spark plugwire and keep it

away from the spark plug to prevent accidental starting..

•Do not operate your mower if it vibrates abnormally. Excessive

vibration is an indication of damage; stop the engine, safely check

for the cause of vibration and repair as required.

• Never operate your mower without proper guards, plates, or other

safety devices in place.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and tipover accidents,

which can result in severe injuryor death. All slopes require extra

caution. If you feel uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree limbs, etc.

•Watch for holes, ruts, or bumps. Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

•Use slow speed. Choose a low gear so that you will not have to

stop or shift while on the slope.

•Followthe manufacturer's recommendations for wheel weights or

counterweights to improve stability.

•Keep all movement on the slopes slow and gradual. Do not make

sudden changes in speed or dirsction,

•Avoid starting or stopping on a slope. If tires lose traction,

disengage the blades and proceed slowly straight down the slope.

DO NOT:

•Do not turn on slopes unless necessary, and then, turn slowly and

gradually downhill, if possible.

• Do not mow near drop-offs, ditches, or embankments. The mower

could suddenly turn over if a wheel is over the edge of a cliff or

ditch, or if an edge caves in.

•Do not mow on wet grass. Reduced traction could cause sliding.

III. CHILDREN

Tragic accidents can occur if the operator is notalert to the presence of

children. Children are often attracted to the machine and the mowing

activity. Never assume that children will remain where you last saw

them.

• Keep children out of the mowing area and under the watchful care

of another responsible adult.

• Be alert and turn machine off if children enter the area.

•Before and when backing, look behind and down for small children.

•Never carry children. They may fall off and be seriously injuredor

interfere with safe machine operation,

• Never allow children to operate the machine.

•Use extra care when approaching blind corners, shrubs, trees, or

other objects that may obscure vision.

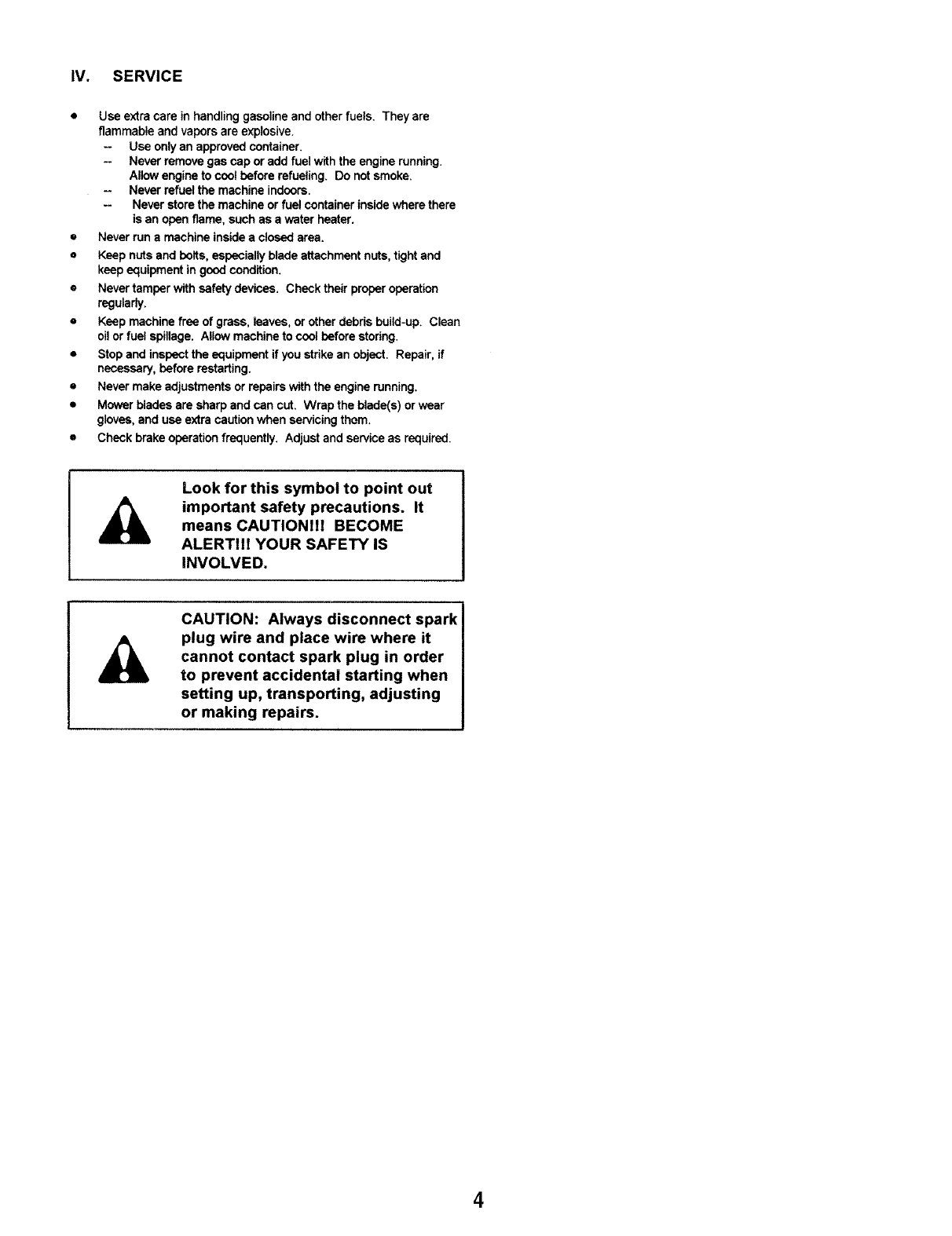

IV. SERVICE

• Use extra care in handling gasoline and other fuels. They are

flammable and vapors are explosive.

Use only an approved container.

-- Never remove gas cap or add fuel with the engine running,

Allow engine to cool before refueling. Do notsmoke.

-- Never refuel the machine indoors.

-- Never store the machine or fuel container inside where there

is an open flame, such as a water heater.

• Never run a machine inside a closed area.

• Keep nuts and belts, especially blade attachment nuts, tight and

keep equipment in good condition.

• Never tamper with safety devices. Check their proper operation

regulady.

•Keep machine free of grass, leaves, or other debris build-up. Clean

oilor fuel spillage. Allow machine to cool before storing.

•Stop and inspect the equipment if you strike an object. Repair, if

necessary, before restarting.

•Never make adjustments or repairs with the engine running.

•Mower blades are sharp and can cut. Wrap the blade(s) or wear

gloves, and usa extra caution when servicing thom.

•Check brake operation frequently. Adjust and service as required.

Look for this symbol to point out

important safety precautions. It

means CAUTIONI!! BECOME

ALERTII! YOUR SAFETY IS

INVOLVED.

CAUTION: Always disconnect spark

plug wire and place wire where it

cannot contact spark plug in order

to prevent accidental starting when

setting up, transporting, adjusting

or making repairs.

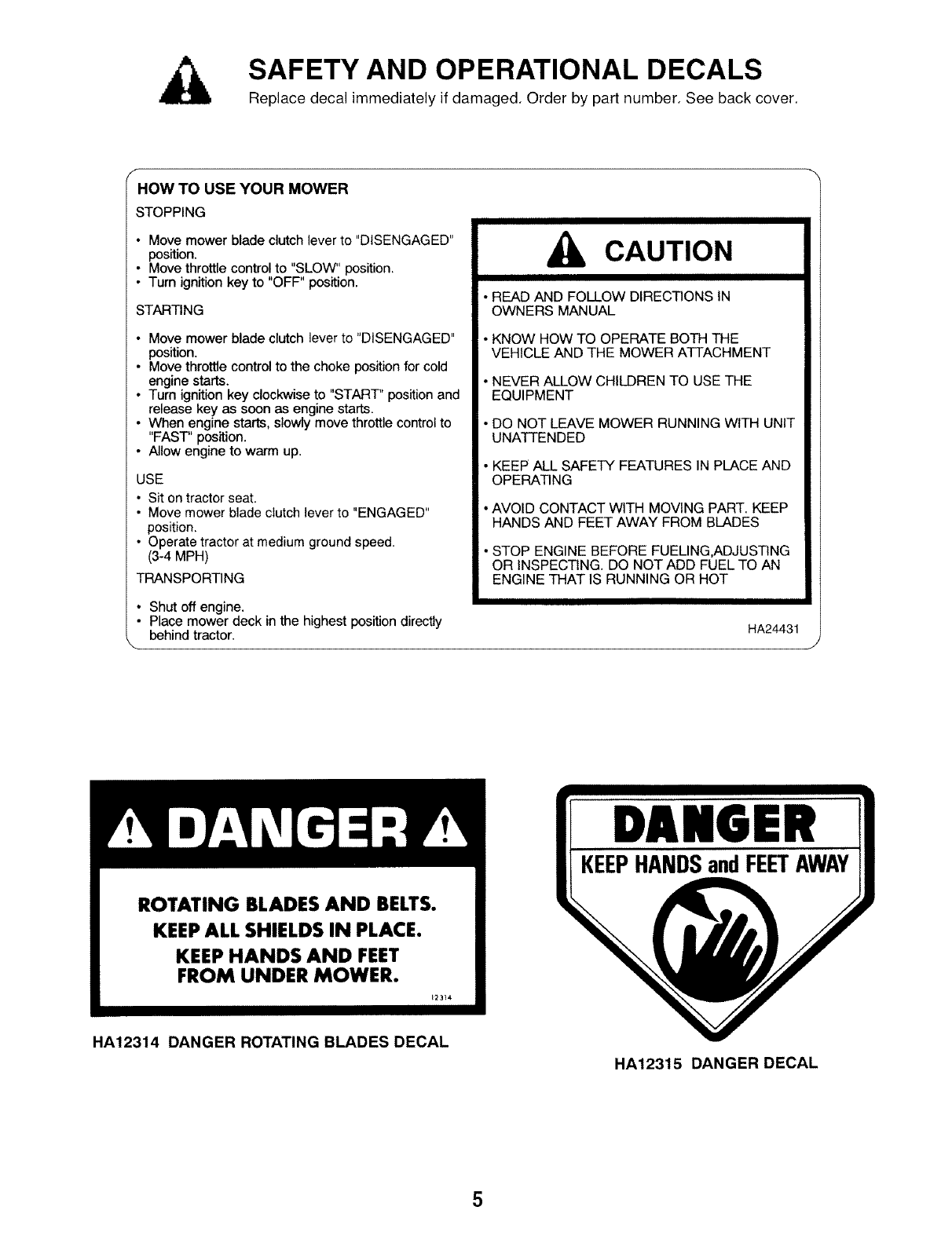

SAFETY AND OPERATIONAL DECALS

Replace decal immediately if damaged. Order by part number. See back cover.

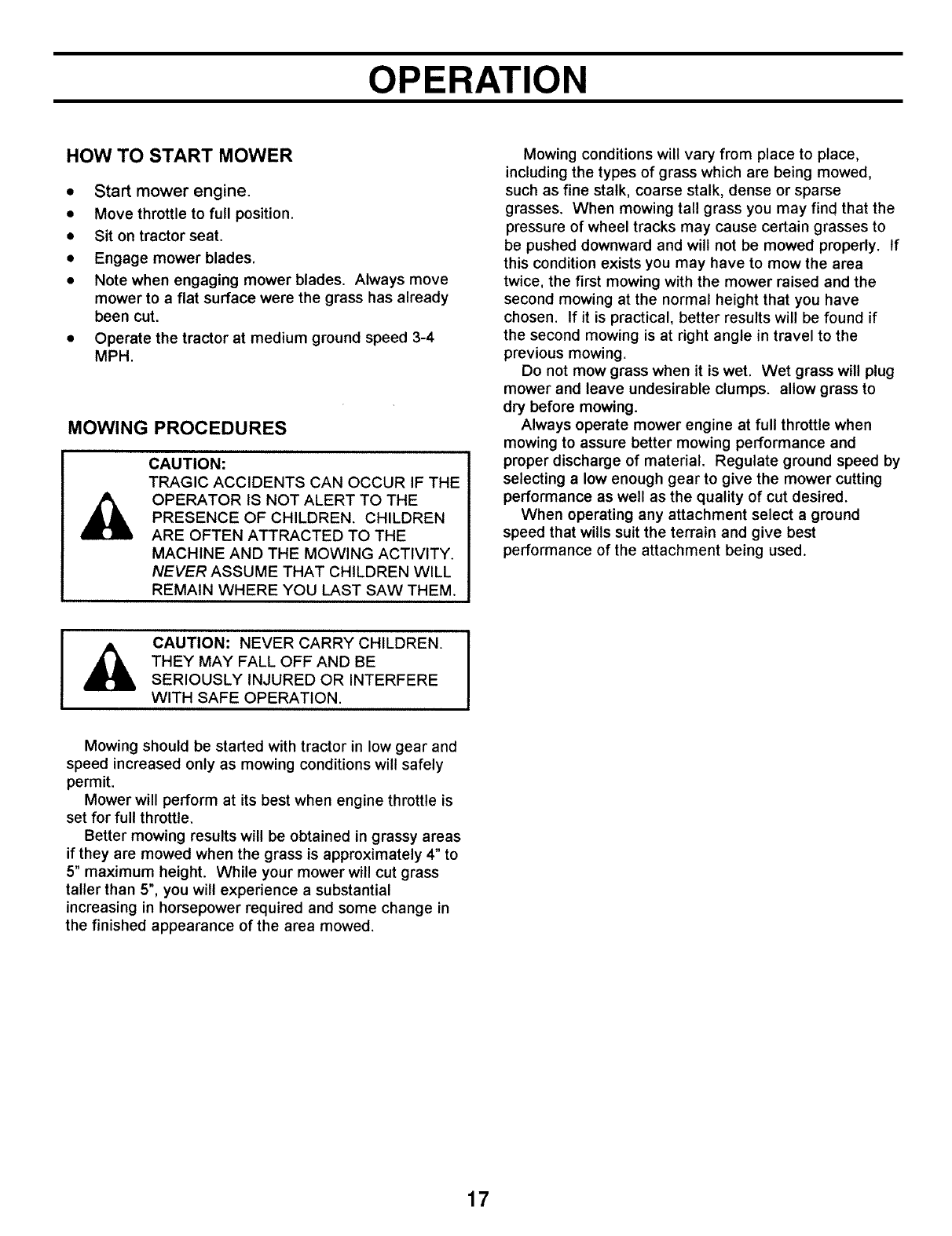

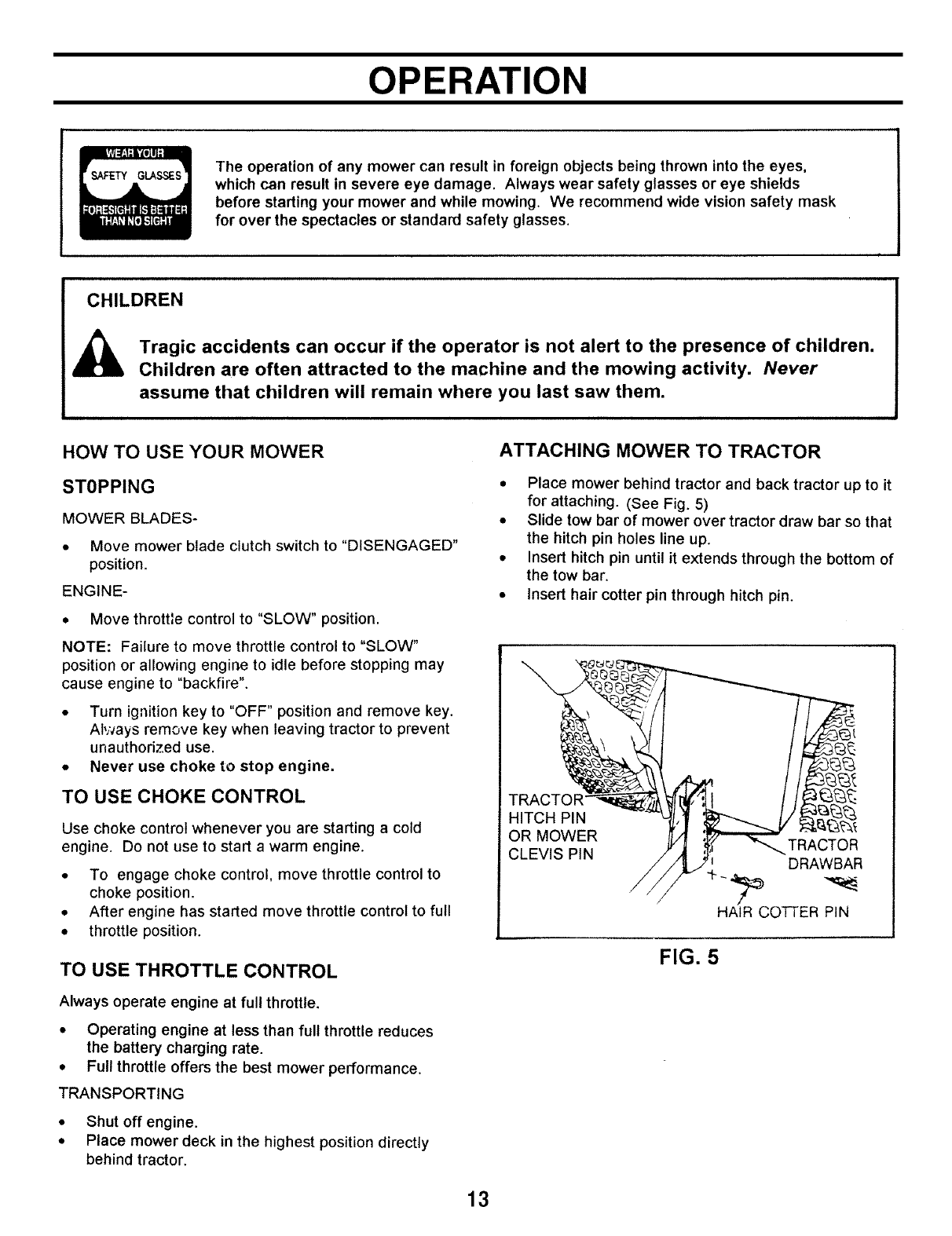

HOW TO USE YOUR MOWER

STOPPING

•Move mower blade clutchlever to "DISENGAGED"

position.

• Move throttle control to "SLOW" position.

• Turn ignition key to "OFF" position.

STARTING

•Move mower blade clutch lever to "DISENGAGED"

position.

• Move throttle control to the choke position for cold

engine starts.

• Turn ignition key clockwise to "START' position and

release key as soon as engine starts.

• When engine starts, slowly move throttle control to

"FAST" position.

• Allow engine to warm up.

USE

• Sit on tractor seat.

• Move mower blade clutch lever to "ENGAGED"

position.

• Operate tractor at medium ground speed.

(3-4 MPH)

TRANSPORTING

• Shut off engine.

• Place mower deck in the highest position directly

behind tractor.

CAUTION

• READ AND FOLLOW DIRECTIONS IN

OWNERS MANUAL

• KNOW HOW TO OPERATE BOTH THE

VEHICLE AND THE MOWER ATTACHMENT

• NEVER ALLOW CHILDREN TO USE THE

EQUIPMENT

• DO NOT LEAVE MOWER RUNNING WITH UNIT

UNATTENDED

• KEEP ALL SAFETY FEATURES IN PLACE AND

OPERATING

• AVOID CONTACT WITH MOVING PART. KEEP

HANDS AND FEET AWAY FROM BLADES

STOP ENGINE BEFORE FUELING,ADJUSTING

OR INSPECTING. DO NOT ADD FUEL TO AN

ENGINE THAT IS RUNNING OR HOT

HA24431

ROTATING BLADES AND BELTS.

KEEP ALL SHIELDS IN PLACE.

KEEP HANDS AND FEET

FROM UNDER MOWER.

DANGER

HA12314 DANGER ROTATING BLADES DECAL

HA12315 DANGER DECAL

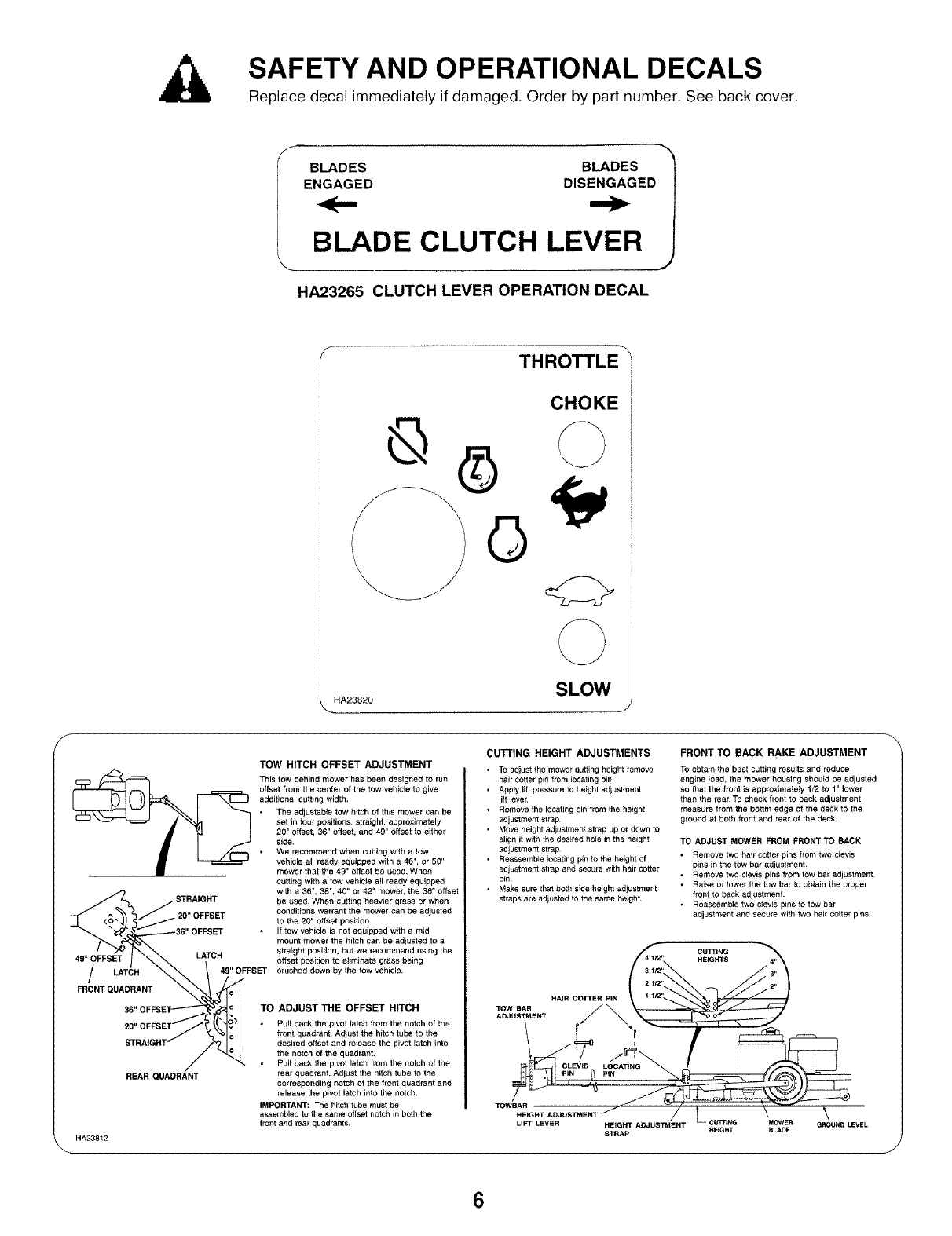

SAFETY AND OPERATIONAL DECALS

Replace decal immediately if damaged. Order by part number. See back cover.

SBLADES BLADES

ENGAGED DISENGAGED

BLADE CLUTCH LEVER

HA23265 CLUTCH LEVER OPERATION DECAL

THRO_LE _

CHOKE

49" OFFSET

LATCH

FRONTQUADRANT

HA23812

STRAIGHT

20" OFFSET

LATCH

REAR QUADRANT

HA23820 SLOW

49" OFFSET

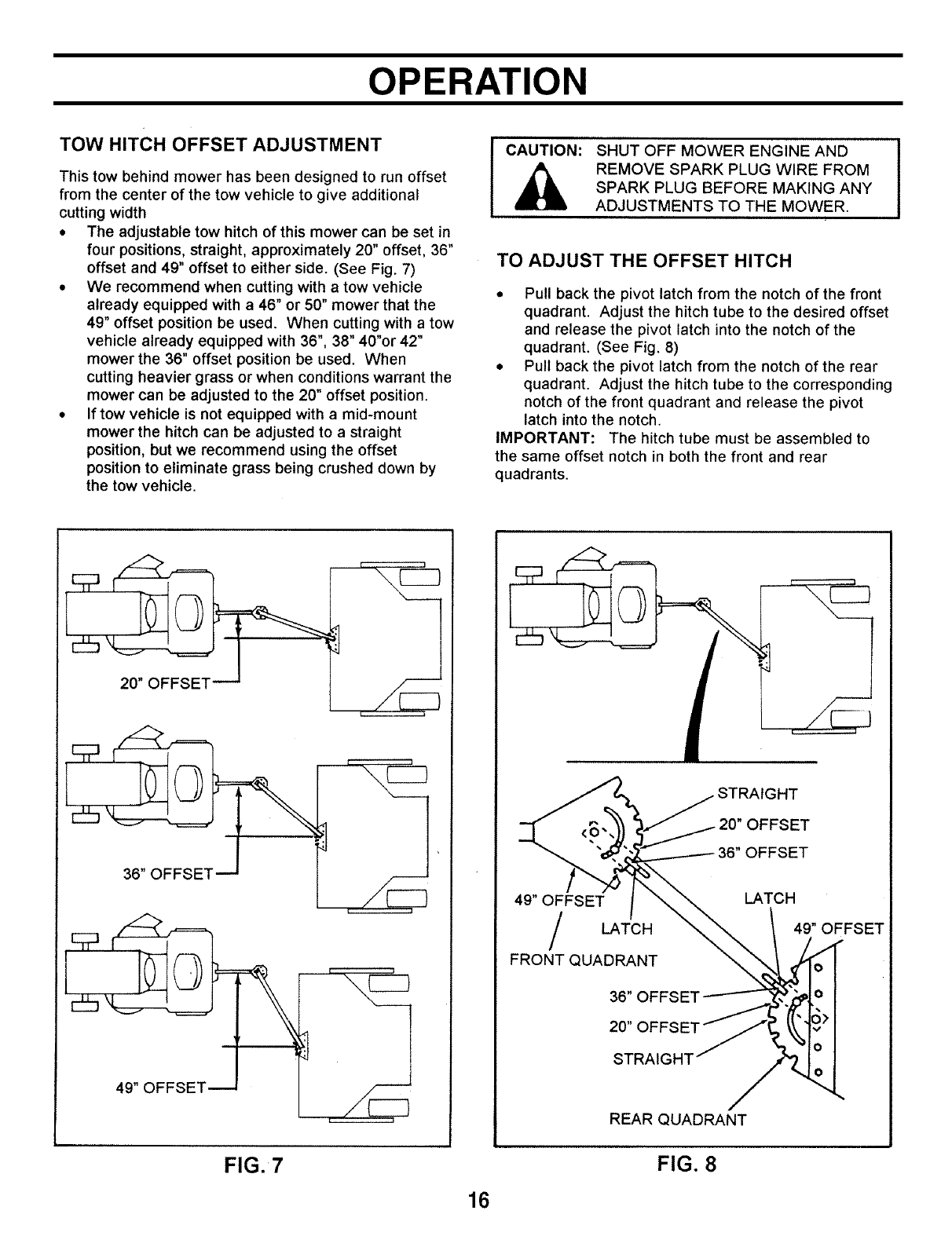

TOW HITCH OFFSET ADJUSTMENT

This tow behind mower has been designed to run

offset from the center of the tow vehicle to give

additional cutting width,

• The adjustable tow hitch of this mower can be

set in four positions, straight, approximately

20" offset, 36" offset, and 49" offset to either

side.

•We recommend when cutting with a tow

vehicle all ready equipped with a 46", or 50"

mower that the 49" offset be used, When

cutting with a tow vehicle all ready equipped

with a 36", 38", 40" or 42" mower, the 36" offset

be used, When cuffing heavier grass or when

conditions warrant the mower can be adjusted

to the 20" offset position.

If tow vehicle is not equipped with a mid

mount mower the hitch can be adjusted to a

straight position, but we recommend using the

offset position to eliminate grass being

crushed down by the tow vehicle,

TO ADJUST THE OFFSET HITCH

•Pull back the pivot latch from the notch of the

front quadrant. Adlust the hitch tube to the

desired offset and release the pivot latch into

the notch of the quadrant.

• Pull back the pivot latch from the notch of the

rear quadrant. Adjust the hitch tube to the

corresponding notch of the front quadrant and

release the pivot latch into the notch,

IMPORTANT: The hgch tube must be

assembled to the same offset notch }n both the

front and rear quadrants.

CUTTING HEIGHT ADJUSTMENTS

•To adjust the mower cutting height remove

hair cotter pin from IDeating pin

•Apply lift pressure to height adiustment

lift lever,

• Remove the locating pin from the height

adjustment strap.

•Move height adjustment strap up or down to

align it with the desired hole in the height

adjustment strap

• Reassembte tocating pin to the height of

adjustment strap and secure with hair cotter

pin.

•Make sure that both side height adjustment

straps are adiusted to the same height,

TOW BAR

ADJUSTMENT

LOCATING

TOWBAR

LIFT LEVER HEIGHT ADJUSTMENT

STRAP

FRONT TO BACK RAKE ADJUSTMENT

TO obtain the best cutting results and reduce

engine _oad, the mower housing sbou_d be adjusted

so that the front is approximately 1/2 to 1" lower

than the rear, To check front to back adjustment,

measure from the bottm edge of the deck to the

ground at both front and rear of the deck.

TO ADJUST MOWER FROM FRONT TO BACK

• Remove two hair cotter pins from two clevis

pins in the tow bar a_djustment

•Remove two clevis pins from tow bar adjustment

• Raise or lower the tow bar to obtain the proper

front to back adjustment.

• Reassemble two clevis pins to tow bar

adjustment and secure with two hair cotter pir_s.

T_ CUTTtNG MOWER \

GROUND LEVEL

HEIGHT BLADE

CONTENTS OF PARTS BAG

SHOWN FULL SIZE

jF _jH

NOT SHOWN FULL SIZE

-_ j

KEY

QTY.

DESCRIPTION KEY QTY. DESCRIPTION

Bolt, Hex 3/8" x 2-3/4"

Bolt, Hex 3/8" x 2-1/2"

Bolt, Hex 1/4" x 3/4"

Screw, Pan Head #10-24 x 1/2"

Screw, Self Tapping #10-16 x 1/2"

Nut, Hex Lock 3/8"

Nut, Hex Lock 1/4"

Nut, Hex with Washer

Nut, Hex #10-24

Lock Washer, #10

Flat Washer, 3/8"

Battery Hold Down Strap

"S" Hook

Cable Clip

Key

Switch Cover

Switch Nut

Switch

Throttle Control Knob

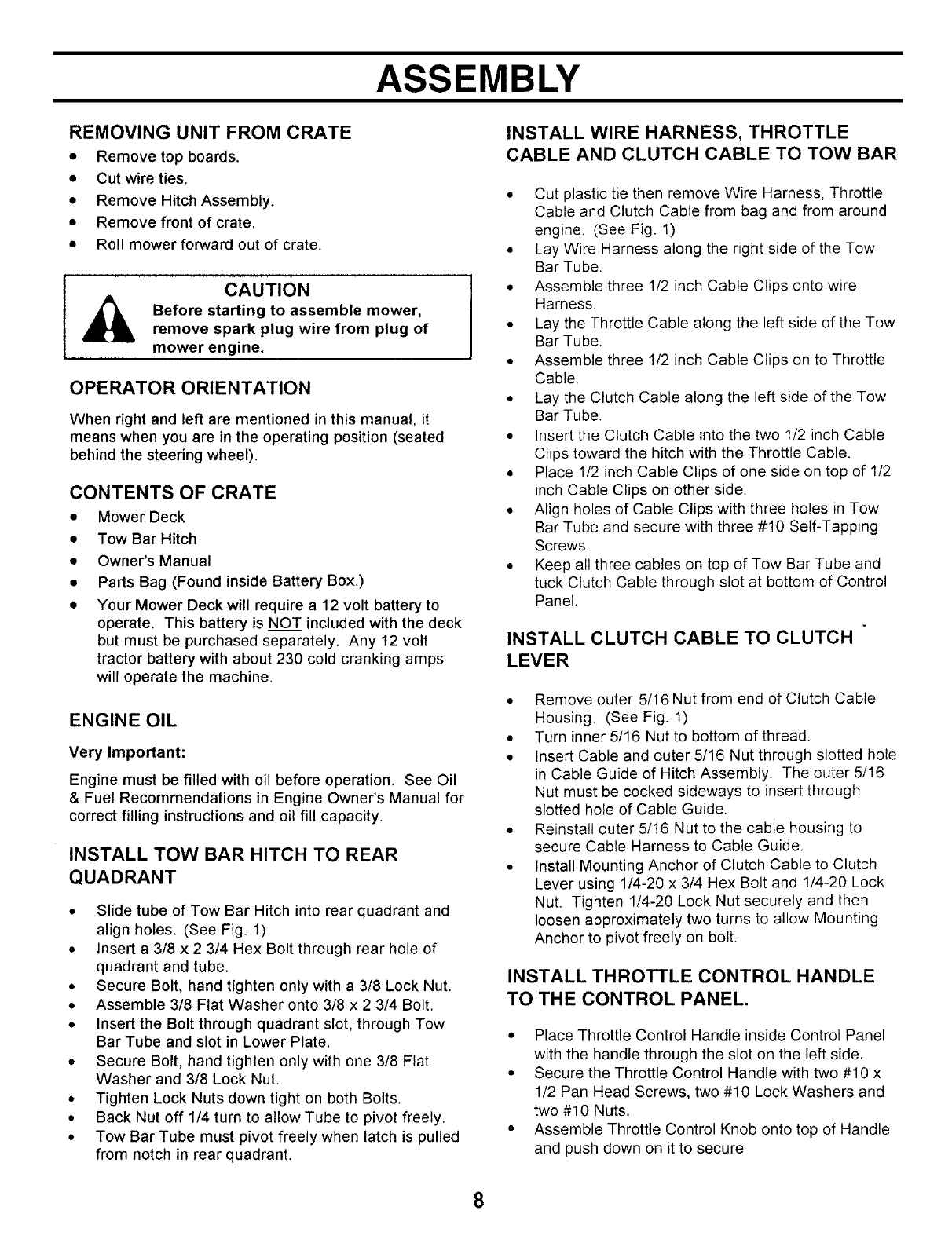

ASSEMBLY

REMOVING UNIT FROM CRATE

• Remove top boards.

• Cut wire tie&

• Remove Hitch Assembly.

• Remove front of crate.

•Roll mower forward out of crate.

CAUTION

Before starting to assemble mower,

remove spark plug wire from plug of

mower engine.

OPERATOR ORIENTATION

When right and left are mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel).

CONTENTS OF CRATE

•Mower Deck

•Tow Bar Hitch

• Owner's Manual

•Parts Bag (Found inside Battery Box.)

• Your Mower Deck will require a 12 volt battery to

operate. This battery is NOT included with the deck

but must be purchased separately. Any 12 volt

tractor battery with about 230 cold cranking amps

will operate the machine.

ENGINE OIL

Very Important:

Engine must be filled with oil before operation. See Oil

& Fuel Recommendations in Engine Owner's Manual for

correct filling instructions and oil fill capacity.

INSTALL TOW BAR HITCH TO REAR

QUADRANT

•Slide tube of Tow Bar Hitch into rear quadrant and

align holes. (See Fig. !)

• Insert a 3/8 x 2 3/4 Hex Bolt through rear hole of

quadrant and tube.

• Secure Bolt, hand tighten only with a 3/8 Lock Nut.

• Assemble 3/8 Flat Washer onto 3/8 x 2 3/4 Bolt.

•Insert the Bolt through quadrant slot, through Tow

Bar Tube and slot in Lower Plate.

• Secure Bolt, hand tighten only with one 3/8 Flat

Washer and 3/8 Lock Nut.

• Tighten Lock Nuts down tight on both Bolts.

•Back Nut off 1/4 turn to allow Tube to pivot freely.

•Tow Bar Tube must pivot freely when latch is pulled

from notch in rear quadrant.

INSTALL WIRE HARNESS, THROTTLE

CABLE AND CLUTCH CABLE TO TOW BAR

• Cut plastic tie then remove Wire Harness, Throttle

Cable and Clutch Cable from bag and from around

engine. (See Fig. 1)

• Lay Wire Harness along the right side of the Tow

Bar Tube.

• Assemble three 1/2 inch Cable Clips onto wire

Harness.

• Lay the Throttle Cable along the left side of the Tow

Bar Tube.

• Assemble three 1/2 inch Cable Clips on to Throttle

Cable

• Lay the Clutch Cable along the left side of the Tow

Bar Tube.

• Insert the Clutch Cable into the two 1/2 inch Cable

Clips toward the hitch with the Throttle Cable.

• Place 1/2 inch Cable Clips of one side on top of 1/2

inch Cable Clips on other side.

• Align holes of Cable Clips with three holes in Tow

Bar Tube and secure with three #10 Self-Tapping

Screws.

• Keep all three cables on top of Tow Bar Tube and

tuck Clutch Cable through slot at bottom of Control

Panel.

INSTALL CLUTCH CABLE TO CLUTCH

LEVER

• Remove outer 5/16 Nut from end of Clutch Cable

Housing. (See Fig. 1)

• Turn inner 5!16 Nut to bottom of thread.

• insert Cable and outer 5/16 Nut through slotted hole

in Cable Guide of Hitch Assembly. The outer 5/16

Nut must be cocked sideways to insert through

slotted hole of Cable Guide.

• Reinstall outer 5/16 Nut to the cable housing to

secure Cable Harness to Cable Guide.

• Install Mounting Anchor of Clutch Cable to Clutch

Lever using 1/4-20 x 3/4 Hex Bolt and 1/4-20 Lock

Nut. Tighten 1/4-20 Lock Nut securely and then

loosen approximately two turns to allow Mounting

Anchor to pivot freely on bolt.

INSTALL THROTTLE CONTROL HANDLE

TO THE CONTROL PANEL.

• Place Throttle Control Handle inside Control Panel

with the handle through the slot on the left side.

• Secure the Throttle Control Handle with two #10 x

1/2 Pan Head Screws, two #10 Lock Washers and

two #10 Nuts.

• Assemble Throttle Control Knob onto top of Handle

and push down on it to secure

ASSEMBLY

INSTALL STARTER SWITCH TO THE

CONTROL PANEL

3/8 X 2-1/2 HEX BOLT

•Install Connector of Wire Harness to Starter Switch.

• Insert Starter Switch into hole of Control Panel.

• Secure Starter Switch with Switch Nut (plastic)

and Rubber Cover.

3/8 X 2-3/4 HEX BOLT

#10

_I" 1/2 INCH CABLE CLIPS

HARNESS

FIG. 1

CABLE

(TWO FRONT

CLIPS ONLY)

3/8 LOCK

MOUNTING ANCHOF /

CLUTCH

CABLE GUIDE /

t'114 X 3/4

HITCH

INNER 5116 NL

OUTER

MOWER CONTROL PAN

UT(PLASTIC)

/RUBBER COVER X STARTER SWITCH

_ _ "" _ "_'_#10 NUT

_ #10 LOCK WASHER .-. _ I- /

-IROTTLE CONTROL

\ PAN HEAD SCREW HANDLE ,

THROTTLE CONTROL_

LOCK NUT

ASSEMBLY

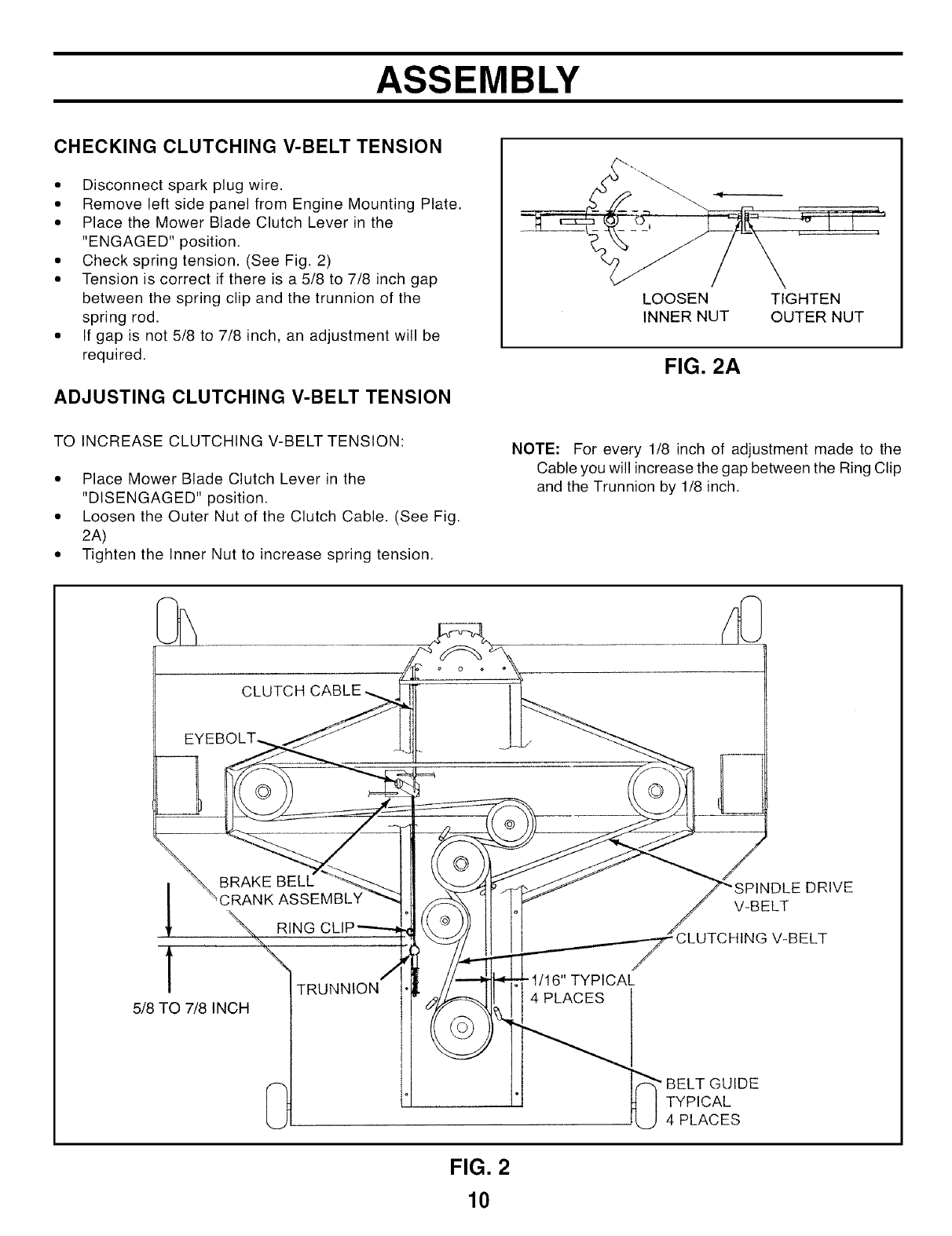

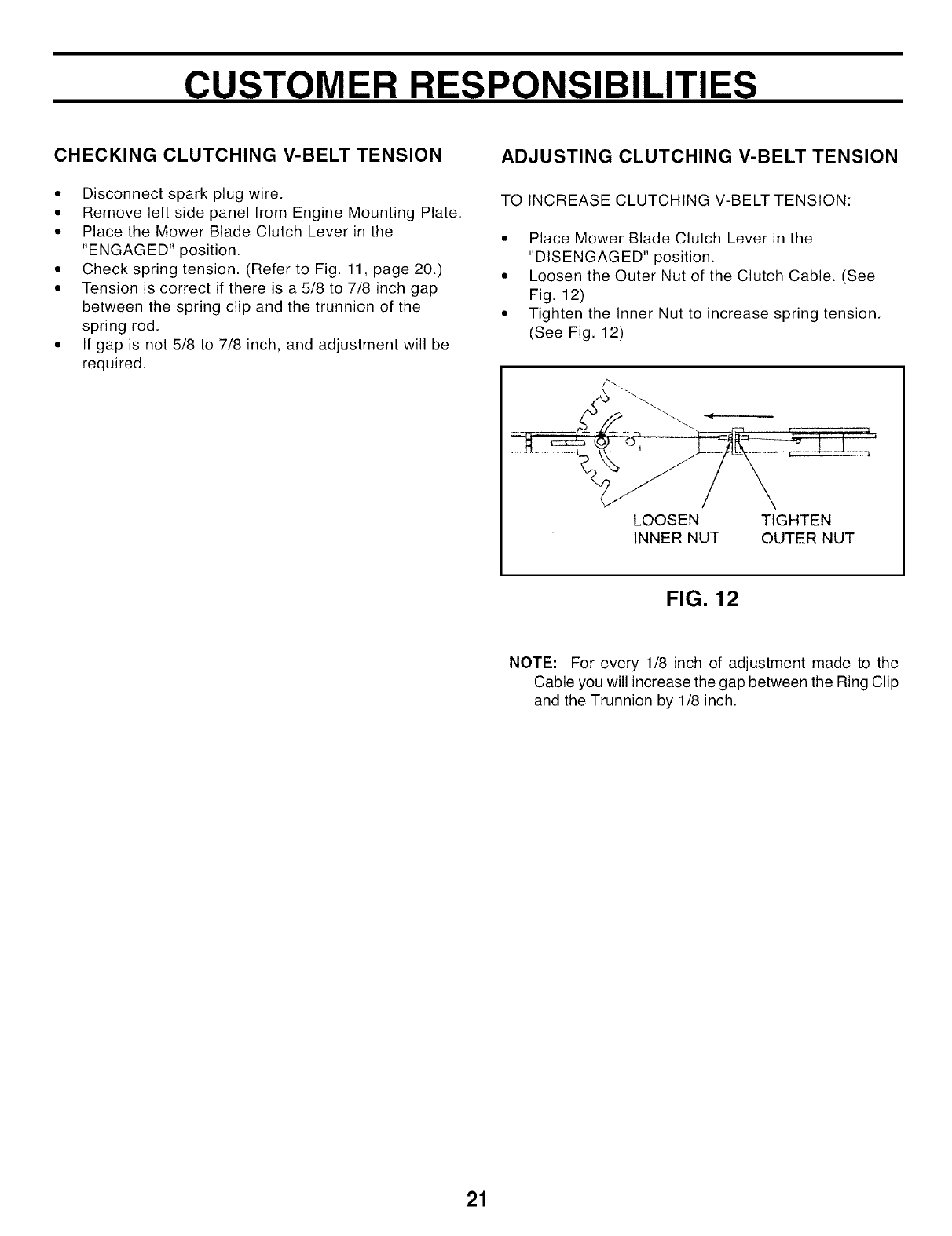

CHECKING CLUTCHING V-BELT TENSION

• Disconnect spark plug wire.

• Remove left side panel from Engine Mounting Plate.

• Place the Mower Blade Clutch Lever in the

"ENGAGED" position.

• Check spring tension. (See Fig. 2)

• Tension is correct if there is a 5/8 to 7/8 inch gap

between the spring clip and the trunnion of the

spring rod.

• If gap is not 5/8 to 7/8 inch, an adjustment will be

required.

ADJUSTING CLUTCHING V-BELT TENSION

==..__ ____-_ _._--- _ -- ,

...._ _:p___-.-.% i _IK,=---_ ! t '

LOOSEN TIGHTEN

INNER NUT OUTER NUT

FIG. 2A

TO INCREASE CLUTCHING V-BELT TENStON:

• Place Mower Blade Clutch Lever in the

"DISENGAGED" position.

• Loosen the Outer Nut of the Clutch Cable. (See Fig.

2A)

• Tighten the Inner Nut to increase spring tension.

NOTE: For every 1/8 inch of adjustment made to the

Cable you will increase the gap between the Ring Clip

and the Trunnion by 1/8 inch.

CLUTCH

1/16" TYPICAL

4 PLACES

/INDLE DRIVE

V-BELT

BELT GUIDE

TYPICAL

4 PLACES

FIG. 2

ASSEMBLY

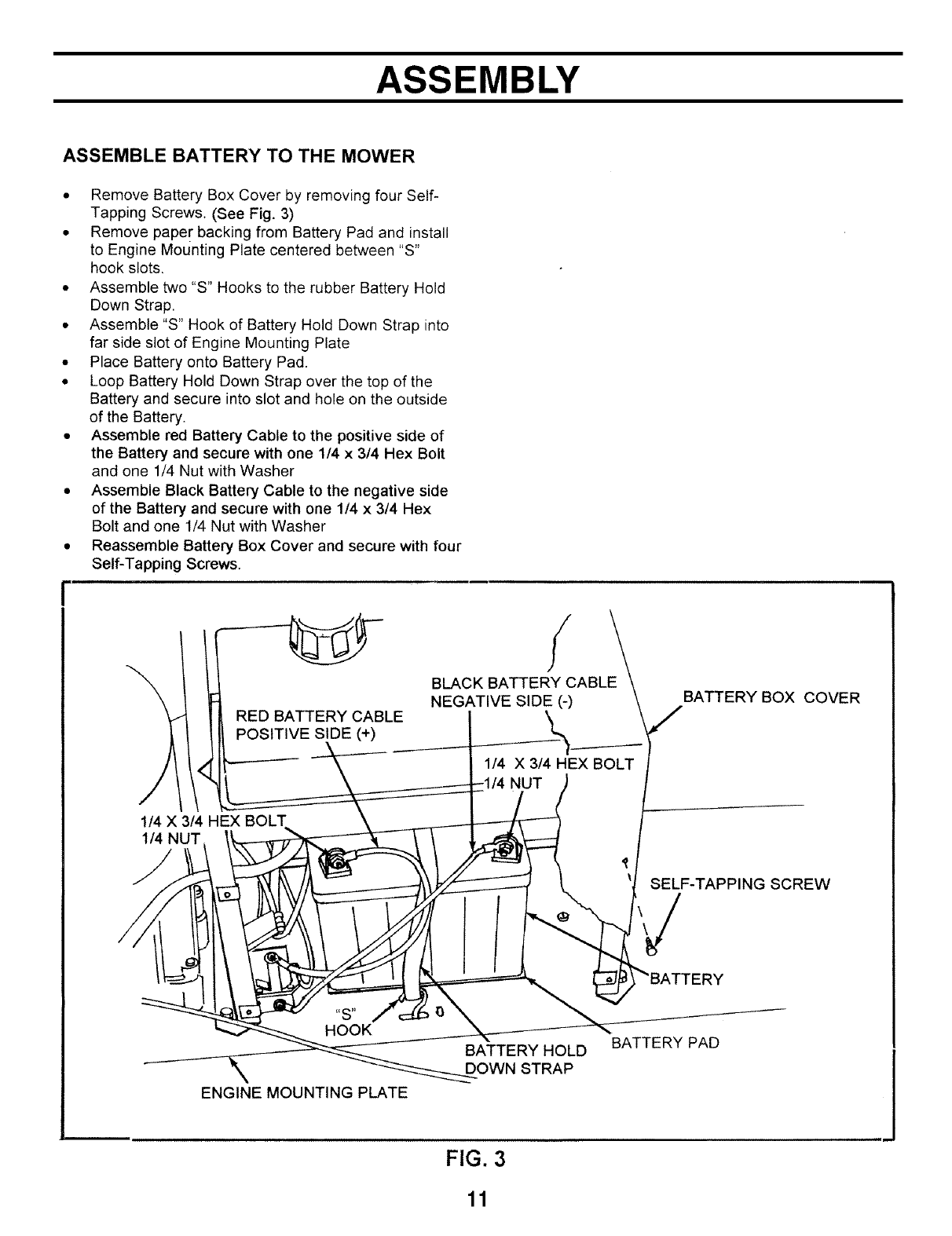

ASSEMBLE BATTERY TO THE MOWER

• Remove Battery Box Cover by removing four Self-

Tapping Screws. (See Fig. 3)

• Remove paper backing from Battery Pad and install

to Engine Mounting Plate centered between "S"

hook slots.

• Assemble two "S" Hooks to the rubber Battery Hold

Down Strap.

• Assemble"S" Hook of Battery Hold Down Strap into

far side slot of Engine Mounting Plate

• Place Battery onto Battery Pad.

• Loop Battery Hold Down Strap over the top of the

Battery and secure into slot and hole on the outside

of the Battery.

• Assemble red Battery Cable to the positive side of

the Battery and secure with one 1/4 x 3/4 Hex Bolt

and one 1/4 Nut with Washer

• Assemble Black Battery Cable to the negative side

of the Battery and secure with one 1/4 x 3/4 Hex

Bolt and one 1/4 Nut with Washer

• Reassemble Battery Box Cover and secure with four

Self-Tapping Screws.

1/4 X 3/4

1/4 NUT

RED BATTERY CABLE

POSITIVE SIDE (+)

BLACK BATTERY CABLE

NEGATIVE SIDE (-)

1/4 X 3/4 HEX BOLT

NUT

BATTERY BOX COVER

SELF-TAPPING SCREW

ENGINE MOUNTING PLATE

BATTERY HOLD

DOWN STRAP

BATTERY PAD

FIG. 3

OPERATION

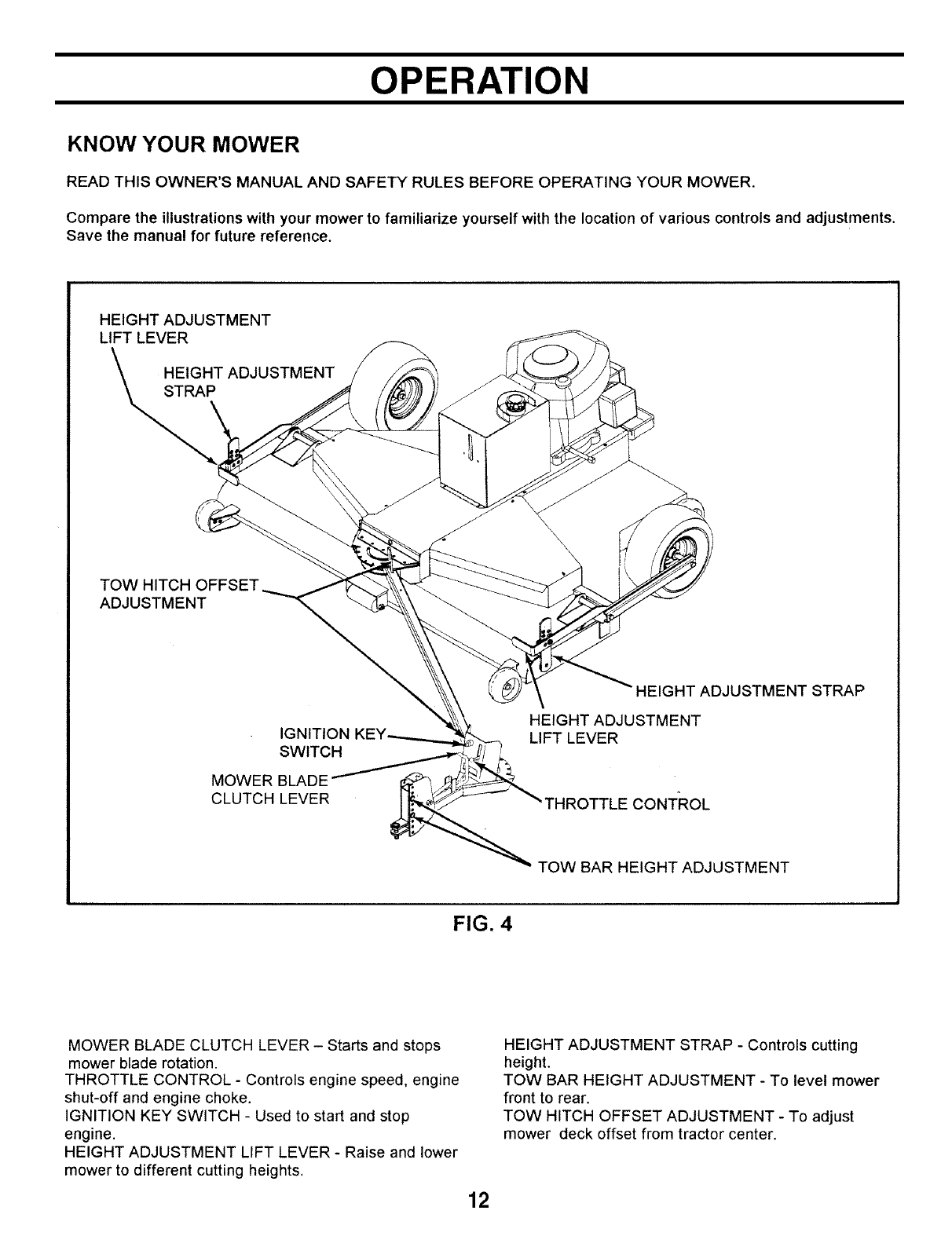

KNOW YOUR MOWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR MOWER.

Compare the illustrations with your mower to familiarize yourself with the location of various controls and adjustments.

Save the manual for future reference.

HEIGHT ADJUSTMENT

LIFT LEVER

HEIGHT ADJUSTMENT

STRAP

TOW HITCH OFFSET

ADJUSTMENT

\\\

IGNITION

SWITCH

MOWER BLADE

CLUTCH LEVER

HEIGHT ADJUSTMENT STRAP

HEIGHT ADJUSTMENT

LIFT LEVER

'THROTTLE CONT_ROL

TOW BAR HEIGHT ADJUSTMENT

FIG. 4

MOWER BLADE CLUTCH LEVER - Starts and stops

mower blade rotation.

THROTTLE CONTROL - Controls engine speed, engine

shut-off and engine choke.

IGNITION KEY SWITCH - Used to start and stop

engine.

HEIGHT ADJUSTMENT LIFT LEVER - Raise and lower

mower to different cutting heights.

HEIGHT ADJUSTMENT STRAP -Controls cutting

height.

TOW BAR HEIGHT ADJUSTMENT - To level mower

front to rear.

TOW HITCH OFFSET ADJUSTMENT - To adjust

mower deck offset from tractor center.

OPERATION

The operation of any mower can result in foreign objects being thrown into the eyes,

which can result in severe eye damage. Always wear safety glasses or eye shields

before starting your mower and while mowing. We recommend wide vision safety mask

for over the spectacles or standard safety glasses.

CHILDREN

,_ Tragic accidents can occur if the operator is not alert to the presence of children.

Children are often attracted to the machine and the mowing activity. Never

assume that children will remain where you last saw them.

HOW TO USE YOUR MOWER

STOPPING

MOWER BLADES-

• Move mower blade clutch switch to "DISENGAGED"

position.

ENGINE-

•Move throttle control to "SLOW" position.

NOTE: Failure to move throttle control to "SLOW"

position or allowing engine to idle before stopping may

cause engine to "backfire".

• Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

•Never use choke to stop engine.

TO USE CHOKE CONTROL

Use choke control whenever you are starting a cold

engine. Do not use to start a warm engine.

• To engage choke control, move throttle control to

choke position.

• After engine has started move throttle control to full

• throttle position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle,

• Operating engine at less than full throttle reduces

the battery charging rate.

•Full throttle offers the best mower performance.

TRANSPORTING

•Shut off engine.

•Place mower deck in the highest position directly

behind tractor.

ATTACHING MOWER TO TRACTOR

•Place mower behind tractor and back tractor up to it

for attaching. (See Fig. 5)

• Slide tow bar of mower over tractor draw bar so that

the hitch pin holes line up.

• Insert hitch pin until it extends through the bottom of

the tow bar.

• Insert hair cotter pin through hitch pin.

TRACTOR"

HITCH PIN

OR MOWER

CLEVIS PIN TRACTOR

DRAWBAR

HAIR COTTER PIN

FIG. 5

OPERATION

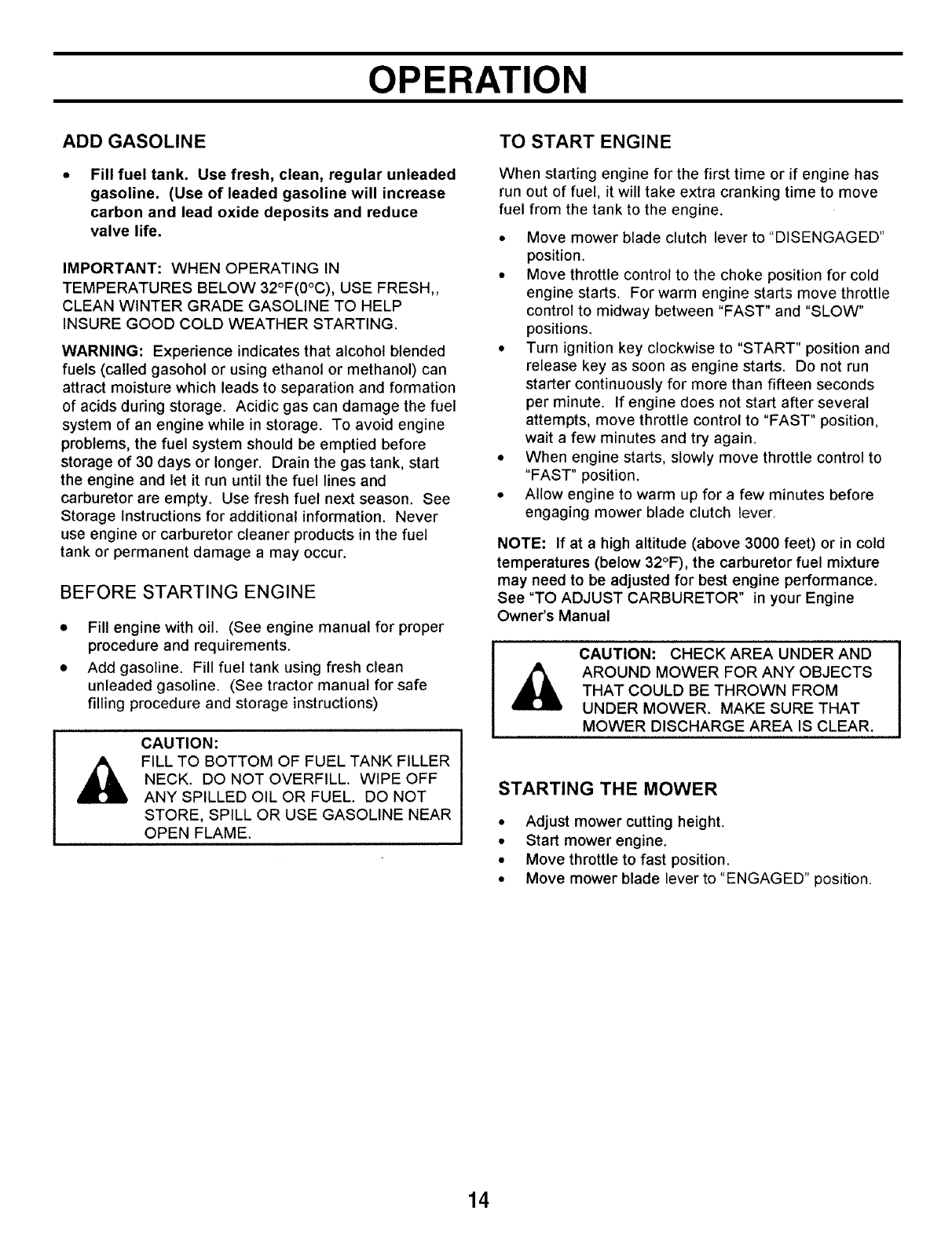

ADD GASOLINE

Fill fuel tank. Use fresh, clean, regular unleaded

gasoline. (Use of leaded gasoline will increase

carbon and lead oxide deposits and reduce

valve life.

IMPORTANT: WHEN OPERATING IN

TEMPERATURES BELOW 32°F(0°C), USE FRESH,,

CLEAN WINTER GRADE GASOLINE TO HELP

INSURE GOOD COLD WEATHER STARTING.

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation

of acids during storage. Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before

storage of 30 days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines and

carburetor are empty. Use fresh fuel next season. See

Storage Instructions for additional information. Never

use engine or carburetor cleaner products in the fuel

tank or permanent damage a may occur.

BEFORE STARTING ENGINE

• Fill engine with oil. (See engine manual for proper

procedure and requirements.

• Add gasoline. Fill fuel tank using fresh clean

unleaded gasoline. (See tractor manual for safe

filling procedure and storage instructions)

CAUTION:

FILL TO BOTTOM OF FUEL TANK FILLER

NECK. DO NOT OVERFILL. WIPE OFF

ANY SPILLED OIL OR FUEL. DO NOT

STORE, SPILL OR USE GASOLINE NEAR

OPEN FLAME.

TO START ENGINE

When starting engine for the first time or if engine has

run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.

•Move mower blade clutch lever to"DISENGAGED"

position.

•Move throttle control to the choke position for cold

engine starts. For warm engine starts move throttle

control to midway between "FAST" and "SLOW"

positions.

• Turn ignition key clockwise to "START" position and

release key as soon as engine starts. Do not run

starter continuously for more than fifteen seconds

per minute. If engine does not start after several

attempts, move throttle control to "FAST" position,

wait a few minutes and try again.

• When engine starts, slowly move throttle control to

"FAST" position.

• Allow engine to warm up for a few minutes before

engaging mower blade clutch lever.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32°F), the carburetor fuel mixture

may need to be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in your Engine

Owner's Manual

CAUTION: CHECK AREA UNDER AND

AROUND MOWER FOR ANY OBJECTS

THAT COULD BE THROWN FROM

UNDER MOWER. MAKE SURE THAT

MOWER DISCHARGE AREA IS CLEAR.

STARTING THE MOWER

• Adjust mower cutting height.

• Start mower engine.

• Move throttle to fast position.

•Move mower blade lever to"ENGAGED" position.

OPERATION

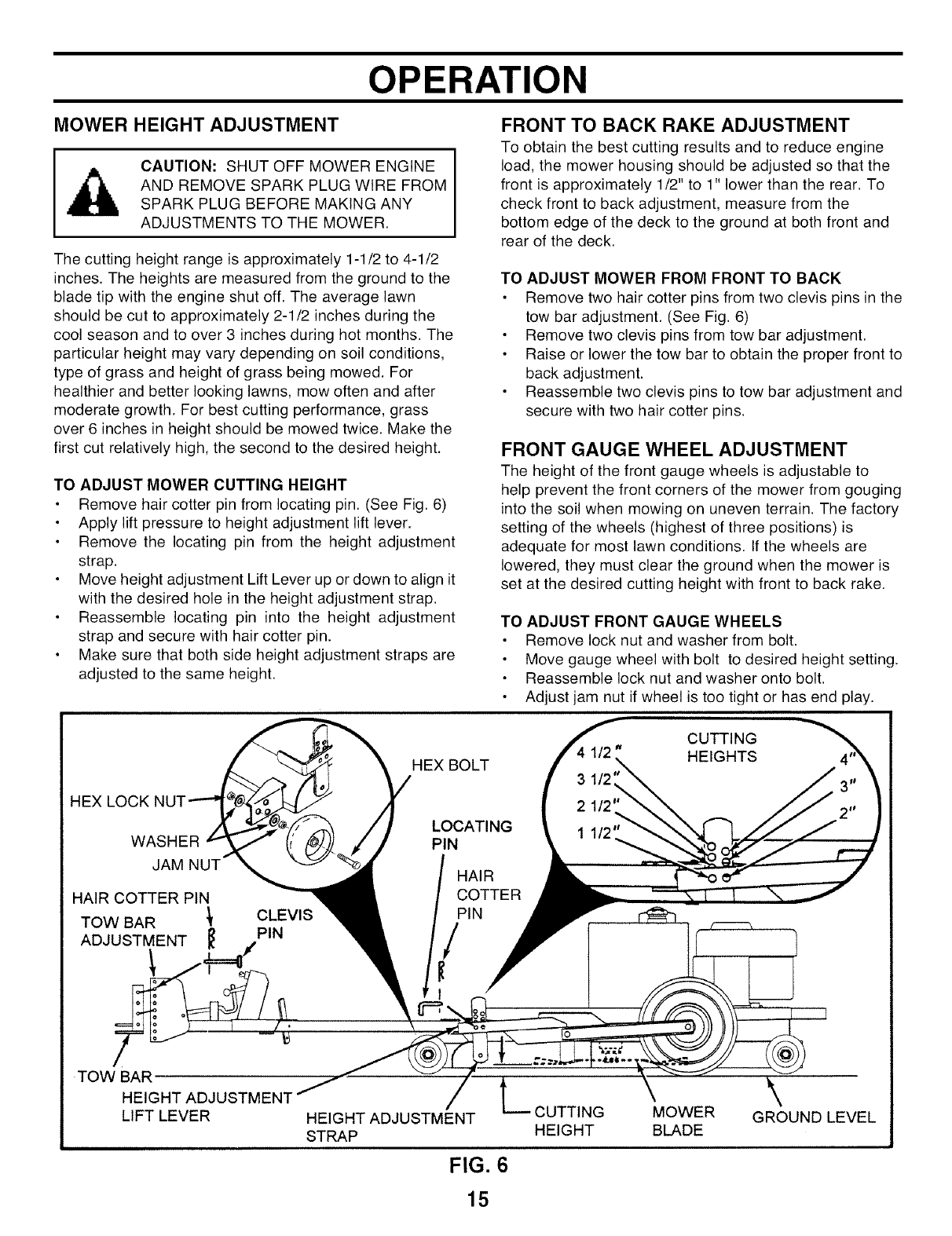

MOWER HEIGHT ADJUSTMENT

CAUTION: SHUT OFF MOWER ENGINE

AND REMOVE SPARK PLUG WIRE FROM

SPARK PLUG BEFORE MAKING ANY

ADJUSTMENTS TO THE MOWER.

The cutting height range is approximately 1-1/2 to 4-1/2

inches. The heights are measured from the ground to the

blade tip with the engine shut off. The average lawn

should be cut to approximately 2-1/2 inches during the

cool season and to over 3 inches during hot months. The

particular height may vary depending on soil conditions,

type of grass and height of grass being mowed. For

healthier and better looking lawns, mow often and after

moderate growth. For best cutting performance, grass

over 6 inches in height should be mowed twice. Make the

first cut relatively high, the second to the desired height.

TO ADJUST MOWER CUTTING HEIGHT

Remove hair cotter pin from locating pin. (See Fig. 6)

Apply lift pressure to height adjustment lift lever.

Remove the locating pin from the height adjustment

strap.

Move height adjustment Lift Lever up or down to align it

with the desired hole in the height adjustment strap.

Reassemble locating pin into the height adjustment

strap and secure with hair cotter pin.

Make sure that both side height adjustment straps are

adjusted to the same height.

FRONT TO BACK RAKE ADJUSTMENT

To obtain the best cutting results and to reduce engine

load, the mower housing should be adjusted so that the

front is approximately 1/2" to 1" lower than the rear. To

check front to back adjustment, measure from the

bottom edge of the deck to the ground at both front and

rear of the deck.

TO ADJUST MOWER FROM FRONT TO BACK

Remove two hair cotter pins from two clevis pins in the

tow bar adjustment. (See Fig. 6)

Remove two clevis pins from tow bar adjustment.

Raise or lower the tow bar to obtain the proper front to

back adjustment.

Reassemble two clevis pins to tow bar adjustment and

secure with two hair cotter pins.

FRONT GAUGE WHEEL ADJUSTMENT

The height of the front gauge wheels is adjustable to

help prevent the front corners of the mower from gouging

into the soil when mowing on uneven terrain. The factory

setting of the wheels (highest of three positions) is

adequate for most lawn conditions. If the wheels are

lowered, they must clear the ground when the mower is

set at the desired cutting height with front to back rake.

TO ADJUST FRONT GAUGE WHEELS

Remove lock nut and washer from bolt.

Move gauge wheel with bolt to desired height setting.

Reassemble lock nut and washer onto bolt.

Adjust jam nut if wheel is too tight or has end play.

HEX LOCK

WASHER

JAM NUT

HAIR COTTER PINit

TOW BAR CLEVIS

ADJUSTMENT _ fPIN

HEX BOLT

LOCATING

PII'

HAIR

COTTER

CUTTING

HEIGHTS

TOW BAR

HEIGHT ADJUSTMEN3"

LIFT LEVER t

HEIGHT ADJUSTMENT _ CUTTING

STRAP HEIGHT

MOWER

BLADE

FIG. 6

GROUND LEVEL

OPERATION

TOW HITCH OFFSET ADJUSTMENT

This tow behind mower has been designed to run offset

from the center of the tow vehicle to give additional

cutting width

• The adjustable tow hitch of this mower can be set in

four positions, straight, approximately 20" offset, 36"

offset and 49" offset to either side. (See Fig. 7)

• We recommend when cutting with a tow vehicle

already equipped with a 46" or 50" mower that the

49" offset position be used. When cutting with a tow

vehicle already equipped with 36", 38" 4O"or 42"

mower the 36" offset position be used. When

cutting heavier grass or when conditions warrant the

mower can be adjusted to the 20" offset position.

• If tow vehicle is not equipped with a mid-mount

mower the hitch can be adjusted to a straight

position, but we recommend using the offset

position to eliminate grass being crushed down by

the tow vehicle.

CAUTION: SHUT OFF MOWER ENGINE AND

REMOVE SPARK PLUG WIRE FROM

SPARK PLUG BEFORE MAKING ANY

ADJUSTMENTS TO THE MOWER.

TO ADJUST THE OFFSET HITCH

• Pull back the pivot latch from the notch of the front

quadrant. Adjust the hitch tube to the desired offset

and release the pivot latch into the notch of the

quadrant. (See Fig. 8)

• Pull back the pivot latch from the notch of the rear

quadrant. Adjust the hitch tube to the corresponding

notch of the front quadrant and release the pivot

latch into the notch.

IMPORTANT: The hitch tube must be assembled to

the same offset notch in both the front and rear

quadrants.

49" OFFSET--

STRAIGHT

OFFSET

49" OFFSET LATCH

LATCH 49" OFFSET

FRONT QUADRANT

36" OFFSET

20" OFFSE J)"

)

STRAIGHT

REAR QUADRANT

FIG. 7 FIG. 8

OPERATION

HOW TO START MOWER

• Start mower engine.

• Move throttle to full position.

• Sit on tractor seat.

• Engage mower blades.

• Note when engaging mower blades. Always move

mower to a flat surface were the grass has already

been cut.

•Operate the tractor at medium ground speed 3-4

MPH.

MOWING PROCEDURES

CAUTION:

TRAGIC ACCIDENTS CAN OCCUR IF THE

OPERATOR IS NOT ALERT TO THE

PRESENCE OF CHILDREN. CHILDREN

ARE OFTEN ATTRACTED TO THE

MACHINE AND THE MOWING ACTIVITY.

NEVER ASSUME THAT CHILDREN WILL

REMAIN WHERE YOU LAST SAW THEM.

Mowing conditions will vary from place to place,

including the types of grass which are being mowed,

such as fine stalk, coarse stalk, dense or sparse

grasses. When mowing tal! grass you may find that the

pressure of wheel tracks may cause certain grasses to

be pushed downward and will not be mowed properly. If

this condition exists you may have to mow the area

twice, the first mowing with the mower raised and the

second mowing at the normal height that you have

chosen. If it is practical, better results will be found if

the second mowing is at right angle in travel to the

previous mowing.

Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps, allow grass to

dry before mowing.

Always operate mower engine at full throttle when

mowing to assure better mowing performance and

proper discharge of material. Regulate ground speed by

selecting a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

When operating any attachment select a ground

speed that wills suit the terrain and give best

performance of the attachment being used.

CAUTION: NEVER CARRY CHILDREN.

THEY MAY FALL OFF AND BE

SERIOUSLY INJURED OR INTERFERE

WITH SAFE OPERATION.

Mowing should be started with tractor in low gear and

speed increased only as mowing conditions will safely

permit.

Mower will perform at its best when engine throttle is

set for full throttle.

Better mowing results will be obtained in grassy areas

if they are mowed when the grass is approximately 4" to

5" maximum height. While your mower will cut grass

taller than 5", you will experience a substantial

increasing in horsepower required and some change in

the finished appearance of the area mowed.

CUSTOMER RESPONSIBILITIES

GENERAL RECOMMENDATIONS •Once a year you should replace the spark plug,

The warranty on this Vehicle does not cover items that clean or replace air filter, replace fuel filter and

have been subjected to operator abuse or negligence. To check blades and belts for wear. A new spark plug

receive full value from the warranty, operator must and clean air filter assure proper air-fuel mixture

maintain unit as instructed in this manual, and help your engine run better and last Ionge_.

BEFORE EACH USE

•Check engine oil level.

•Check blade operation

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICATION CHART").

MAINTENANCE

SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check Engine Oil Level

Change Engine Oil

Inspect Spark Arrester Muffler

Inspect Air Screen

Check and Clean Air Cleaner

Reptace Air Cleaner Cartridge

Clean Engine Cylinder Fins

Replace Spark Plug

Lubricate Spindles

€" €'1

¢"

€"

SERVICE DATES

1- Change more often wnen operating unoer aheavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

LUBRICATION CHART

QENGINE

REFER TO ENGINE MANUAL

Q GENERAL PURPOSE GREASE

IMPORTANT: DO NOT OIL OR GREASE PIVOT POINTS.

VISCOUS LUBRICANTS WILL ATTRACT DUST AND DIRT

THAT CAN CAUSE WEAR ON PIVOT POINTS. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY

POWERED GRAPHITE TYPE LUBRICANTS.

Q THREE

SPINDLES

WHEEL (_

CUSTOMER RESPONSIBILITIES

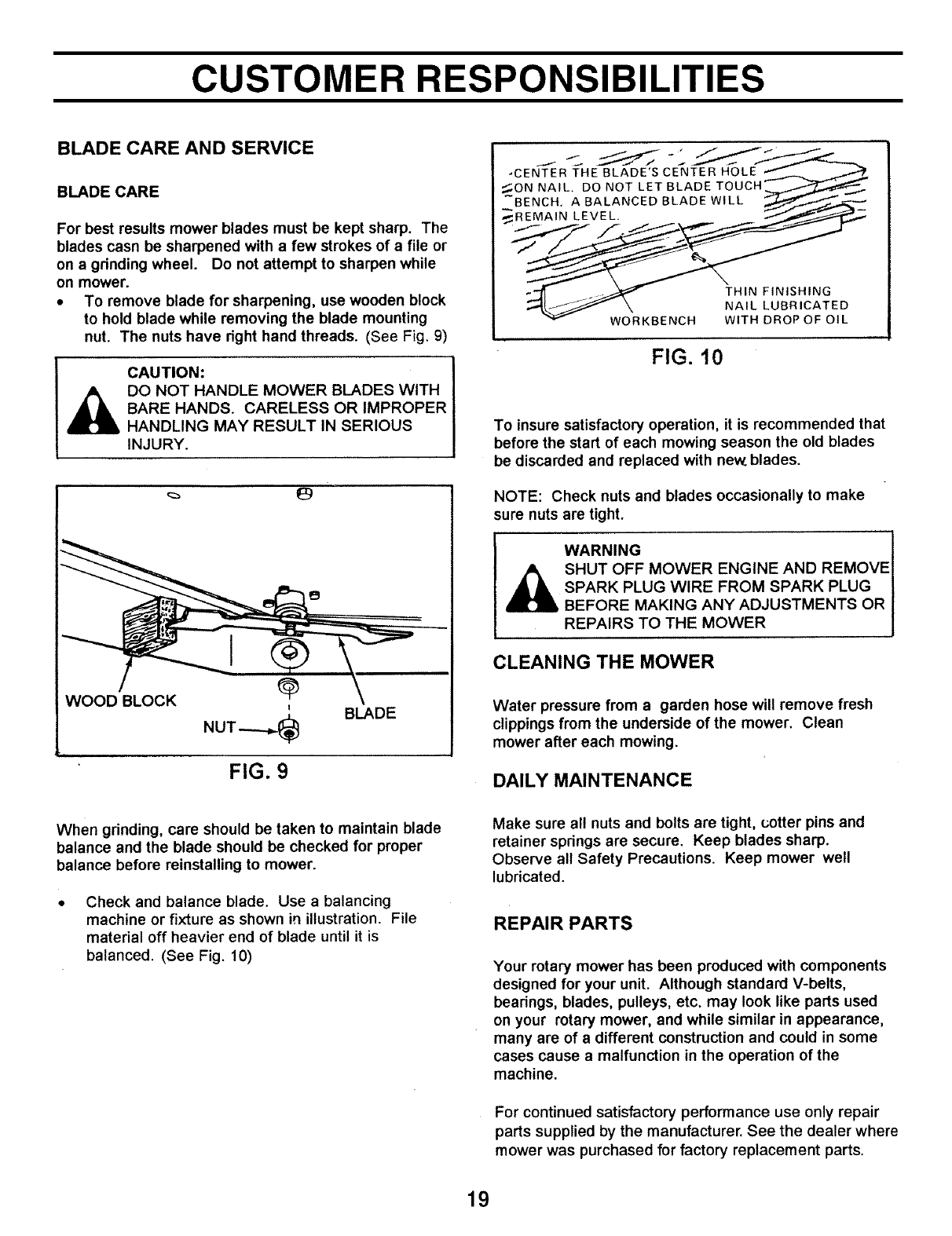

BLADE CARE AND SERVICE

BLADE CARE

For best results mower blades must be kept sharp. The

blades casn be sharpened with afew strokes of a file or

on a grinding wheel. Do not attempt to sharpen while

on mower.

•To remove blade for sharpening, use wooden block

to hold blade while removing the blade mounting

nut. The nuts have right hand threads. (See Fig. 9)

CAUTION:

_lllL O NOT HANDLE MOWER BLADES WITH

BARE HANDS. CARELESS OR IMPROPER

HANDLING MAY RESULT IN SERIOUS

INJURY.

WOOD BLOCK

FIG. 9

BLADE

-CENTER THE BLADE'S CENTER HOLE

_-ON NAIL. DO NOT LET BLADE TOUCH

-BENCH. ABALANCEDBLADEWILL

_REMAIN LEVEL.

WORKBENCH

THIN FINISHING

NAIL LUBRICATED

WITH DROP OF OIL

FIG. 10

To insure satisfactory operation, it is recommended that

before the start of each mowing season the old blades

be discarded and replaced with nev_ blades.

NOTE: Check nuts and blades occasionally to make

sure nuts are tight.

WARNING

,_ SHUT OFF MOWER ENGINE AND REMOVE

SPARK PLUG WIRE FROM SPARK PLUG

BEFORE MAKING ANY ADJUSTMENTS OR

REPAIRS TO THE MOWER

CLEANING THE MOWER

Water pressure from a garden hose will remove fresh

clippings from the underside of the mower. Clean

mower after each mowing.

DAILY MAINTENANCE

When grinding, care should be taken to maintain blade

balance and the blade should be checked for proper

balance before reinstalling to mower.

Check and balance blade. Use a balancing

machine or fixture as shown in illustration. File

material off heavier end of blade until it is

balanced. (See Fig. 10)

Make sure all nuts and bolts are tight, cotter pins and

retainer springs are secure. Keep blades sharp.

Observe all Safety Precautions. Keep mower well

lubricated.

REPAIR PARTS

Your rotary mower has been produced with components

designed for your unit. Although standard V-belts,

bearings, blades, pulleys, etc. may look like parts used

on your rotary mower, and while similar in appearance,

many are of a different construction and could in some

cases cause a malfunction in the operation of the

machine.

For continued satisfactory performance use only repair

parts supplied by the manufacturer. See the dealer where

mower was purchased for factory replacement parts.

CUSTOMER RESPONSIBILITIES

CLUTCH CABLE

BRAKE

;RANK ASSEMBLY

RING (

O N%_ TRUNNION

5/8 718INCH

"1/16" TYPICAL

4 PLACES

NDLE DRIVE

V=BELT

,LUTCHING V-BELT

" BELT GUIDE

TYPICAL

4 PLACES

FIG. 11

CLUTCHING V-BELT REMOVAL

•Disconnect spark plug wire.

• Remove two Belt Covers from the mower deck.

• Remove two side panels from Engine Mounting

Plate.

• Loosen and move four Belt Guides from out of the

way of the V-belt removal. (See Fig. 11)

•Remove Clutching V-Belt from around Engine

Pulley, from around Double Pulley and from around

Idler Pulley.

REINSTALLING CLUTCHING DRIVE V-BELT

• Install Clutching V-Belt around Engine Pulley,

around Double Pulley and around Idler Pulley.

• Move Clutch Lever to'ENGAGED" position.

• Move Belt Guides to within 1/16" from V-belt and

secure in place with bolt.

• Follow CLUTCHING V-BELT REMOVAL in reverse

to complete reinstalling V-belt.

SPINDLE DRIVE V-BELT REMOVAL

• Disconnect spark plug wire.

• Remove two belt covers from the mower deck,

•Remove two side panels from Engine Mounting

Plate.

• Remove clutching V-belt. (See CLUTCHING

V-BELT REMOVAL)

• Remove Eyebolt holding Brake Bell Crank Assembly

to deck and move Brake Belt Crank Assembly out

from under Engine Mounting Plate. (See Fig. 11)

•Disconnect Clutch Cable from Bell Crank Assembly.

•Remove Spindle Drive V-Belt from around three

pulleys and idler pulley.

REINSTALLING SPINDLE DRIVE V-BELT

• Reinstall Spindle Drive V-Belt following the above

procedure in reverse,

CUSTOMER RESPONSIBILITIES

CHECKING CLUTCHING V-BELT TENSION

•Disconnect spark plug wire.

• Remove left side panel from Engine Mounting Plate.

• Place the Mower Blade Clutch Lever in the

"ENGAGED" position.

• Check spring tension. (Refer to Fig. 11, page 20.)

• Tension is correct if there is a 5/8 to 7/8 inch gap

between the spring clip and the trunnion of the

spring rod.

• If gap is not 5/8 to 7/8 inch, and adjustment will be

required.

ADJUSTING CLUTCHING V-BELT TENSION

TO INCREASE CLUTCHING V-BELT TENSION:

• Place Mower Blade Clutch Lever in the

"DISENGAGED" position.

• Loosen the Outer Nut of the Clutch Cable. (See

Fig. 12)

• Tighten the Inner Nut to increase spring tension.

(See Fig. 12)

LOOSEN TIGHTEN

INNER NUT OUTER NUT

FIG. 12

NOTE: For every 1/8 inch of adjustment made to the

Cable you will increase the gap between the Ring Clip

and the Trunnion by 1/8 inch.

STORAGE

Immediately prepare your mower for storage at the end

of the season or if the unit will not be used for 30 days

or more.

MOWER

When the mower is to be stored for a pedod of time,

clean it thoroughly, remove all dirt, grease, leaves, etc.

Store in a clean dry area.

•Clean entire mower (See "CLEANING')

•Lubdcate as shown in the Customer Responsibilities

section of this manual.

•Be sure that all nuts, bolts, screws, and pins are

securely fastened. Inspect moving parts for

damage, breakage an wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

CLEANING

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH. CLEAN THE UNDERSIDE OF YOUR

MOWER AFTER EACH USE.

CAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with the spark

plug.

•Clean the underside of your mower by scraping to

remove build-up of grass and trash.

•Keep finished surfaces and wheels free of all

gasoline, oil, etc.

• We do not recommend using a garden hose to

clean mower unless the electrical system, muffler,

air filter, and carburetor are covered to keep water

out. Water in engine can result in shortening engine

life.

ENGINE

ENGINE OIL

Drain oil (with engine warm) and replace with clean

engine oil. (See engine manual)

CYLINDER

•Remove spark plug.

•Pour one ounce (29 ml) of oil through spark plug

hole into cylinder.

•Pull starter handle slowly a few times to distribute

oil.

•Replace with new spark plug.

OTHER

•Do not store gasoline from one season to another.

•Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause

problems.

• If possible, sore your unit indoors and cover it to

give protection from dust and dirt.

• Cover your unit with asuitable protective cover that

does not retain moisture. Do not use plastic.

Plastic cannot breathe which allows condensation to

form and will cause your unit to rust.

IMPORTANT: NEVER COVER MOWER WHILE

ENGINE AND EXHAUST ARE STILL WARM.

CAUTION: Never store the mower with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

•Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable altemative in

minimizing the formation of fuel gum deposits during

storage. Add stabilizer to gasoline in fuel tank or

storage container. Always follow the mix ratio found on

stabilizer container. Run engine at least 10 minutes

after adding stabilizer to allow the stabilizer to reach the

carburetor. Do not drain the gas tank and carburetor if

using fuel stabilizer.

RED WIRE

BATTERY CHARGE

_-RED WIRE

\BATTERY

BLUE WIRE

INTERLOCK

SWITCH

SOLENOIC ....i_ WHITE WIRE

._--48097

RED WIRE

HA24447

BLACK WIRE

WIRE TO AFTERFIRE SOLENOID

TO ENGINE GROUND

63" FINISH CUT TRAILMOWER - MODEL 45-03051

21----.__

.44

43 64

63 48" 42

1' 52

34 36 1

18 ]22

54_

10 32

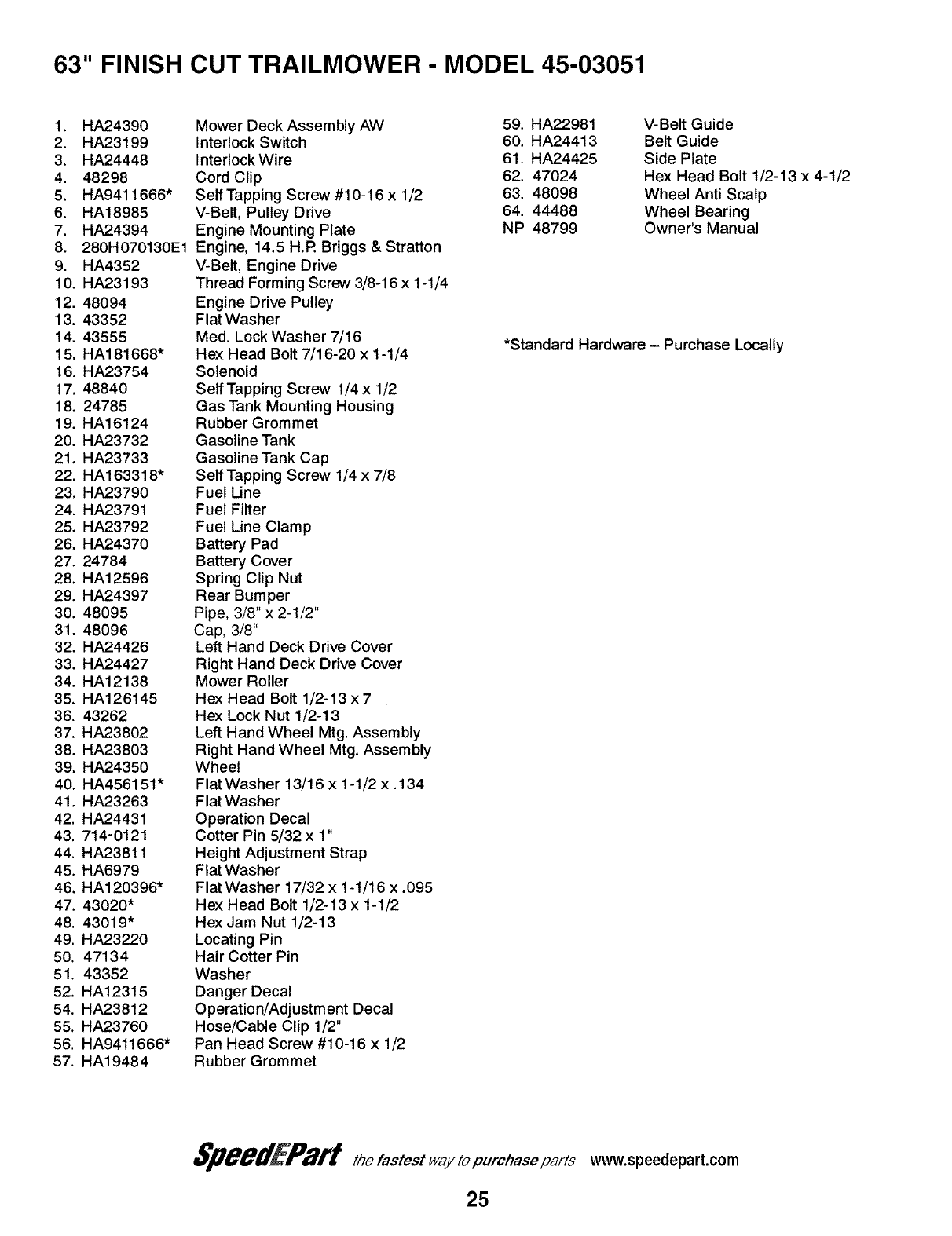

63" FINISH CUT TRAILMOWER - MODEL 45-03051

1. HA24390

2. HA23199

3. HA24448

4. 48298

5. HA9411666"

6. HA18985

7. HA24394

8. 280H070130E1

9. HA4352

10. HA23193

12. 48094

13. 43352

14. 43555

15. HA181668"

16. HA23754

17. 48840

18. 24785

19. HA16124

20. HA23732

21. HA23733

22. HA163318"

23. HA23790

24. HA23791

25. HA23792

26. HA24370

27. 24784

28. HA12596

29. HA24397

30. 48095

31. 48096

32. HA24426

33. HA24427

34. HA12138

35. HA126145

36. 43262

37. HA23802

38. HA23803

39. HA24350

40. HA456151"

41. HA23263

42. HA24431

43. 714-0121

44. HA23811

45. HA6979

46. HA120396*

47. 43020*

48. 43019*

49. HA23220

50. 47134

51. 43352

52. HA12315

54. HA23812

55. HA23760

56. HA9411666"

57. HA19484

Mower Deck Assembly AW

Interlock Switch

Interlock Wire

Cord Clip

Self Tapping Screw #10-16 x 1/2

V-Belt, Pulley Drive

Engine Mounting Plate

Engine, 14.5 H.R Briggs & Stratton

V-Belt, Engine Drive

Thread Forming Screw 3/8-16 x 1-1/4

Engine Drive Pulley

Flat Washer

Med. Lock Washer 7/16

Hex Head Bolt 7/16-20 x 1-1/4

Solenoid

Self Tapping Screw 1/4 x 1/2

Gas Tank Mounting Housing

Rubber Grommet

Gasoline Tank

Gasoline Tank Cap

Self Tapping Screw 1/4 x 7/8

Fuel Line

Fuel Filter

Fuel Line Clamp

Battery Pad

Battery Cover

Spring Clip Nut

Rear Bumper

Pipe, 3/8" x 2-1/2"

Cap, 3/8"

Left Hand Deck Drive Cover

Right Hand Deck Drive Cover

Mower Roller

Hex Head Bolt 1/2-13 x 7

Hex Lock Nut 1/2-13

Left Hand Wheel Mtg. Assembly

Right Hand Wheel Mtg. Assembly

Wheel

Flat Washer 13/16 x 1-1/2 x .134

Flat Washer

Operation Decal

Cotter Pin 5/32 x 1"

Height Adjustment Strap

Flat Washer

Flat Washer 17/32 x 1-1/16 x .095

Hex Head Bolt 1/2-13 x 1-1/2

Hex Jam Nut 1/2-13

Locating Pin

Hair Cotter Pin

Washer

Danger Decal

Operation/Adjustment Decal

Hose/Cable Clip 1/2"

Pan Head Screw #10-16 x 1/2

Rubber Grommet

59. HA22981

60. HA24413

61. HA24425

62. 47024

63. 48098

64. 44488

NP 48799

V-Belt Guide

Belt Guide

Side Plate

Hex Head Bolt 1/2-13 x 4-1/2

Wheel Anti Scalp

Wheel Bearing

Owner's Manual

*Standard Hardware -Purchase Locally

SpeedEPart ther=.,te.,,to partswww.speedepart.com

63" FINISH CUT TRAILMOWER - MODEL 45-03051

22.. ©

1. 714-0117

2. 47134

3. HA15200

4. HA19445

5. HA20186

6. HA20988

7. HA23265

8. HA23636

9. 64191

10. HA23819

11. HA23820

12. HA24437

13. HA24441

14. HA24442

15. 44180*

16. 43062*

17. 43509*

18. 43064*

19. 43082*

20. HA24619

21. 45040*

Hair Cotter Pin (large)

Hair Cotter Pin (medium)

FlatWasher 13/32 x 1-3/16 x 3/16

Compression Spring

Extension Spring

Clevis Pin

Clutch Lever Decal

Clevis Pin

Drawbar Assembly

Drawbar Tube

Throttle/Choke Control Decal

Hitch Assembly

Latch Strap

Clutch Lever

Hex Head Bolt 5/16-18 x 2

Hex Head Bolt 3/8-16 x 1-1/2

Hex Head Bolt 3/8-16 X 2-3/4

Hex Lock Nut 5/16-18

Hex Lock Nut 3/8-16

Clutch Cable

Pan Head Screw #10-24 x 1/2

19 6

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

17,,

27 26 25 11

736-0722*

712-0121 *

HA23749

HA23750

HA23751

HA23752

HA23760

HA24618

HA9411666*

HA23795

HA23796

HA23787

HA23788

46978*

43012

48097

48798

43070*

43432*

HA24447

Med. Lock Washer #10

Hex Nut #10-24

Starter Switch

Switch Mounting Nut

Switch Cover

Switch Key

Hose/Cable Clip 1/2

Throttle Cable

Self Tapping Screw #10-16 x 1/2

Battery Hold Down Strap

"S" Hook

Black Battery Cable (Neg.)

Red Battery Cable (Pos.)

Hex Nut & Lockwasher Assy 1/4-20

Hex Head Bolt 1/4-20 x 3/4

Engine/Charging Wire

Wire Harness

Flat Washer 3/8

Hex Head Bolt 3/8-16 X 2-1/2

Switch Wire

42. 43013* Hex Lock Nut 1/4-20

*Standard Hardware - Purchase Locally

63" FINISH CUT TRAILMOWER - MODEL 45-03051

1. HA124634"

49110

2. HA120898"

3. 49112

4. HA23243

49109

5. HA23244

49111

6. HA23242

7. HA23245

8. HA23516

9. HA23246

10. HA20129

11. HA24406

12. HA23193

13. 48166*

17. HA24412

18. HA5714

19. HA11424

20. HA3027

21. 43081*

22. 47777

23. HA9492

24. 47134

25. 43035

Hex Nut 9/16-18 (Center Spindle)

Hex Nut 9/16-18 Special (Outer Spindles)

Lock Washer 9/16

Blade Spindle Pulley (Outer Spindles)

Jackshatt (Center Spindle)

Jackshaft (Outer Spindles)

Spacer (Center Spindle)

Spacer (Outer Spindles)

Housing and Bearing Assembly

Blade Adapter

Mower Blade

Belteville Washer

Thrust Washer

Blade Spindle Double Pulley (Center Spindle)

Self Tapping Screw 3/8-16 x 1-1/4

Self Tapping Screw 3/8-16 x 2

Idler Tension Rod

Spring Clip

Clutch Rod Anchor

Spacer

Flat Washer 3/8 x 7/8 x .083

Compression Spring

Clutch Rod Anchor

Hair Cotter Pin

Spring

*Standard Hardware - Purchase Locally

21,

SpeedEPart ra..es,to partswww.speedepart.com

63" FINISH CUT TRAILMOWER - MODEL 45-03051

HA180183

HA23783

HA120389*

43262*

HA24414

HA15015

43081 *

43082*

HA4798

43087*

41576*

Hex Head Bolt 1/2-13 x 2-1/4

Spacer

Flat Washer 1/2 x 1-1/4

Hex Lock Nut 1/2-13

Idler Arm Bracket

Idler Pulley

Flat Washer 3/8 x 7/8 x ,083

Hex Lock Nut 3/8-16

Idler Arm Spring

Hex Head Bolt 3/8-16 x t-1/4

Hex Head Bolt 3/8-16 x 1-3/4

*Standard Hardware - Purchase Locally

SpeedEPart the1,,,e,,wa_top.,'_h_e,.a.'_www.speedepart.com

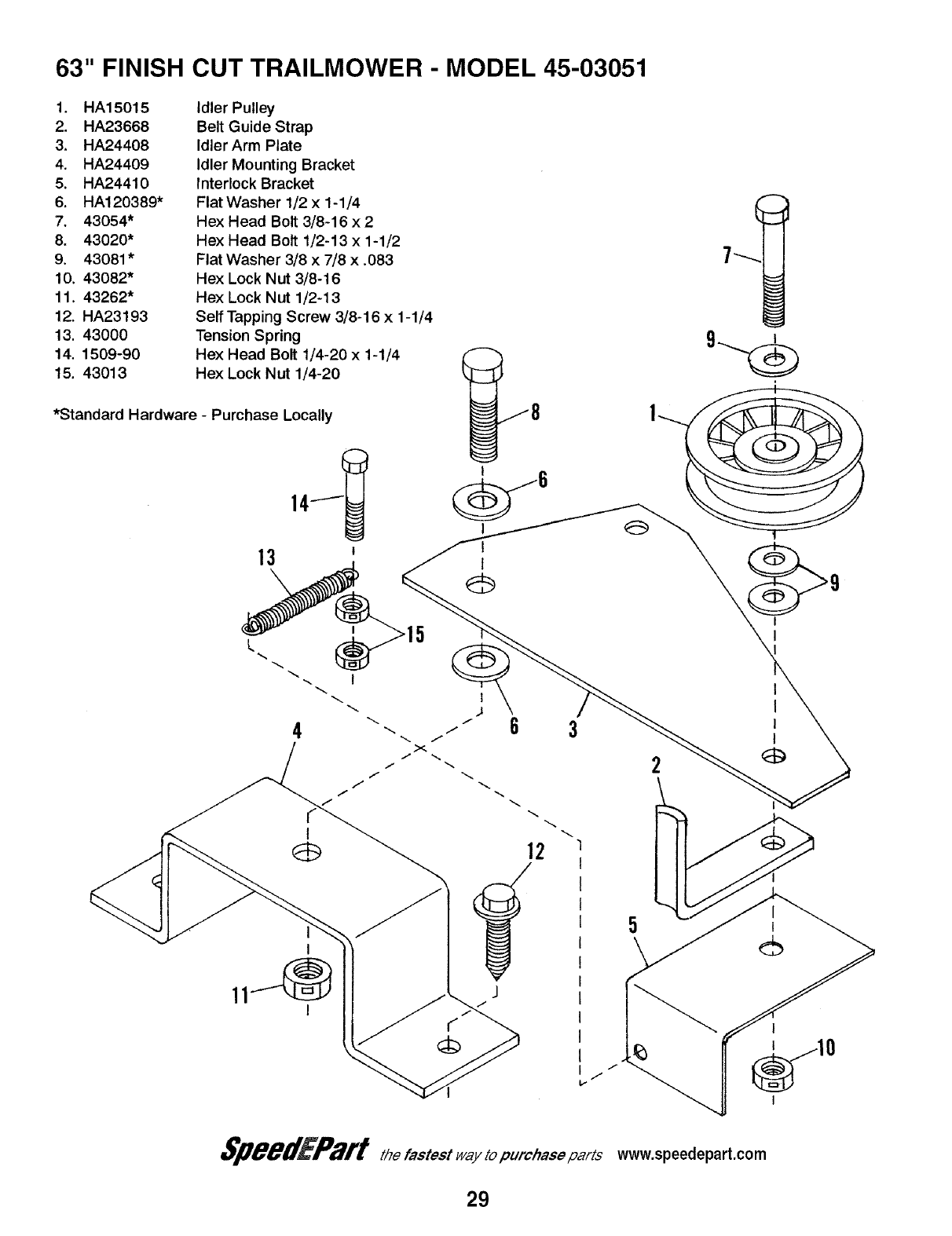

63" FINISH CUT TRAILMOWER - MODEL 45-03051

1. HA15015

2. HA23668

3. HA24408

4. HA24409

5. HA24410

6. HA120389"

7. 43054*

8. 43020*

9. 43081 *

10. 43082*

11. 43262*

12. HA23193

13. 43000

14. 1509-90

15. 43013

Idler Pulley

Belt Guide Strap

Idler Arm Plate

Idler Mounting Bracket

Interlock Bracket

Flat Washer 1/2 x 1-1/4

Hex Head Bolt 3/8-16 x 2

Hex Head Bolt 1/2-13 x 1-1/2

Flat Washer 3/8 x 7/8 x .083

Hex Lock Nut 3/8-16

Hex Lock Nut 1/2-13

Self Tapping Screw 3/8-16 x 1-1/4

Tension Spring

Hex Head Bolt 1/4-20 x 1-1/4

Hex Lock Nut 1/4-20

*Standard Hardware - Purchase Locally

SpeedEPartthe to.ur h se www.speedepart.com

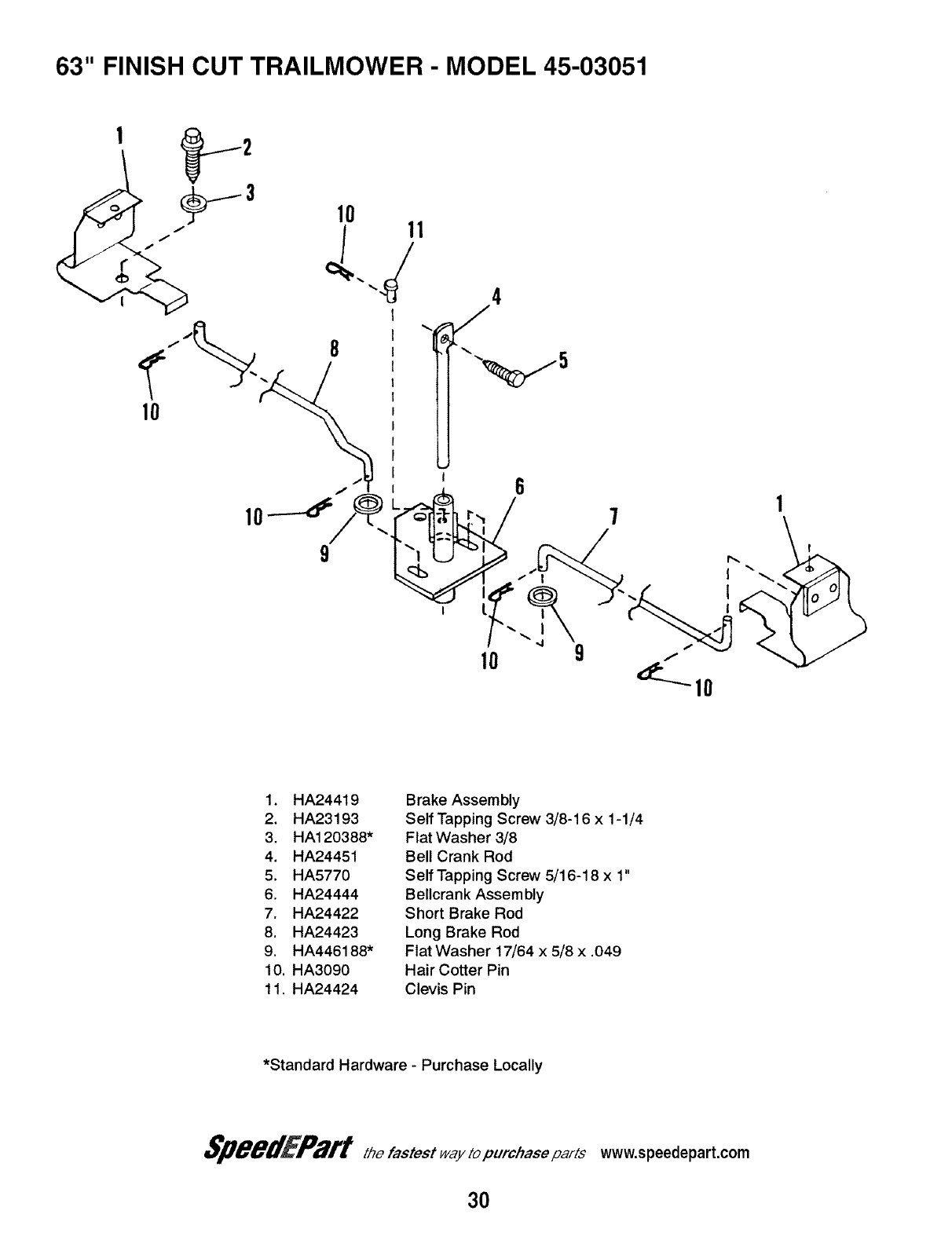

63" FINISH CUT TRAILMOWER - MODEL 45-03051

10 f

1. HA24419

2. HA23193

3. HA120388"

4. HA24451

5. HA5770

6. HA24444

7. HA24422

8. HA24423

9. HA446188"

10. HA3090

11. HA24424

Brake Assembly

Serf Tapping Screw 3/8-16 x 1-1/4

Flat Washer 3/8

Bell Crank Rod

Self Tapping Screw 5/16-18 x 1"

Bellcrank Assembly

Short Brake Rod

Long Brake Rod

Flat Washer 17/64 x 5/8 x .049

Hair Cotter Pin

Clevis Pin

*Standard Hardware - Purchase Locally

SpeedEPartther..,e., to partswww.speedepart.com

SpeedEPart_ _ _ to._._ _www.speedepart.com

REPAIR PARTS

Agri-Fab, Inc.

303 West Raymond

Sullivan, IL. 61951

217-728-8388

www.agri-fab.com

Agri Fab 45 03051 User Manual 63 FINISH CUT TRAIL MOWER Manuals And Guides L0406283

AGRI-FAB Mower Deck Manual L0406283 AGRI-FAB Mower Deck Owner's Manual, AGRI-FAB Mower Deck installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
