AX SERIES

Hands-Free Video Security

Intercom with Integration

CAT-5e

cabling throughout

entire system!!

Versatile Intercom Communication

for any Security Demand

2

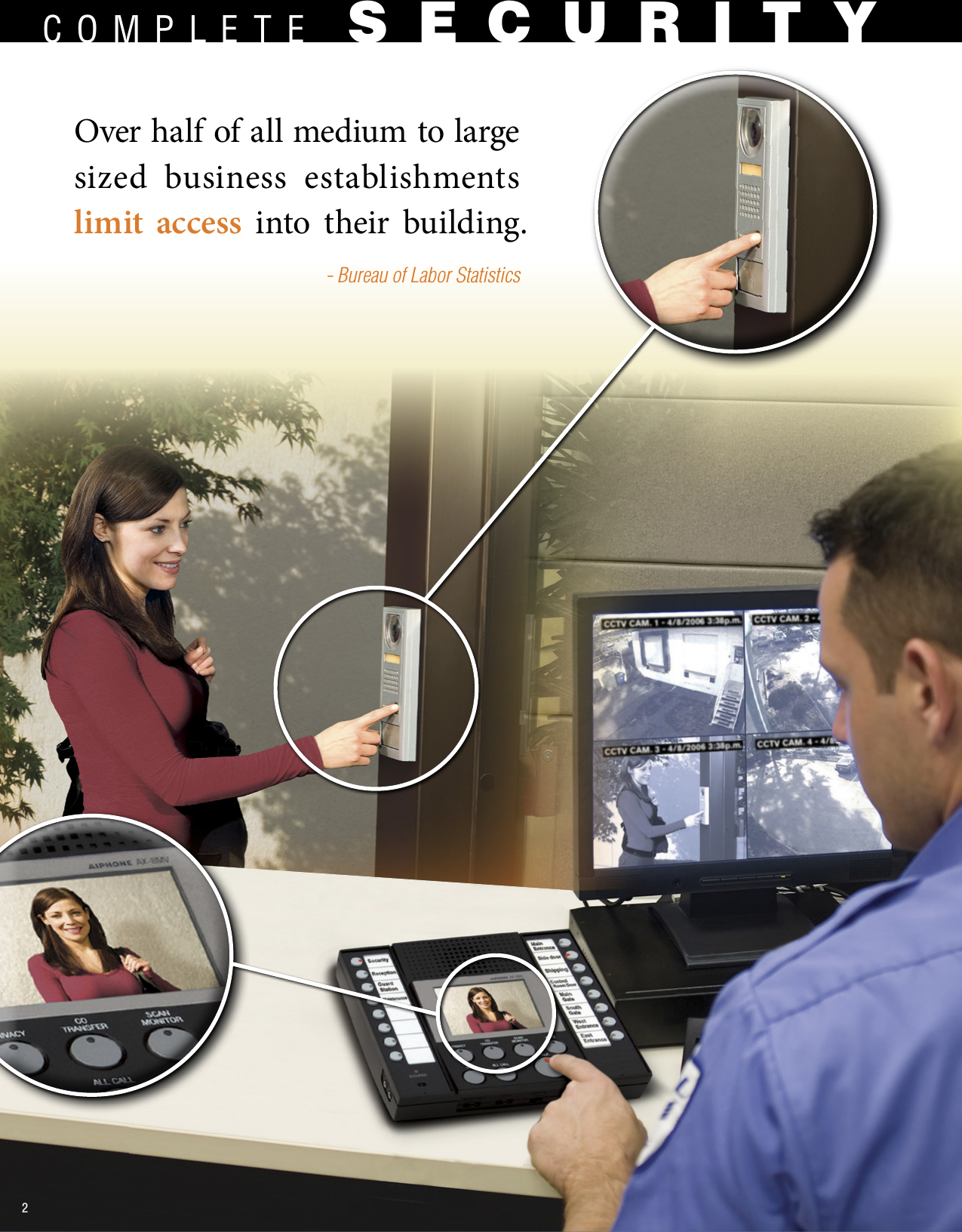

COMPLETE SECURITY

- Bureau of Labor Statistics

Over half of all medium to large

sized business establishments

limit access into their building.

3

identity with crisp

audio and clear,

up-close video

GOVERNMENT EDUCATIONAL HEALTHCARE COMMERCIAL

• CONFIRM

• CONTROL

• COMMUNICATE

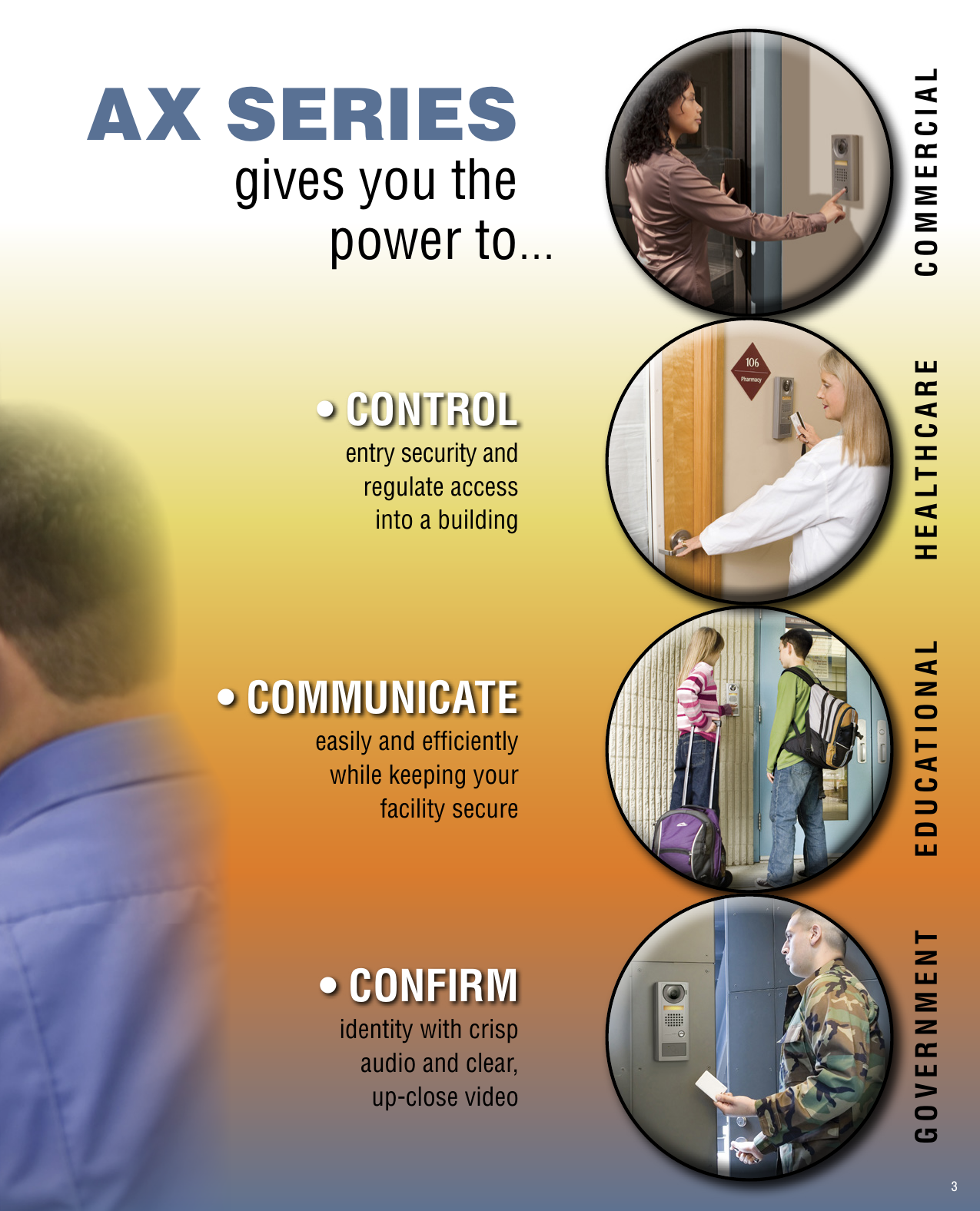

AX SERIES

gives you the

power to

easily and efficiently

while keeping your

facility secure

entry security and

regulate access

into a building

...

CEU (AX-084C shown)

IE-SSR

AX-DVF

4

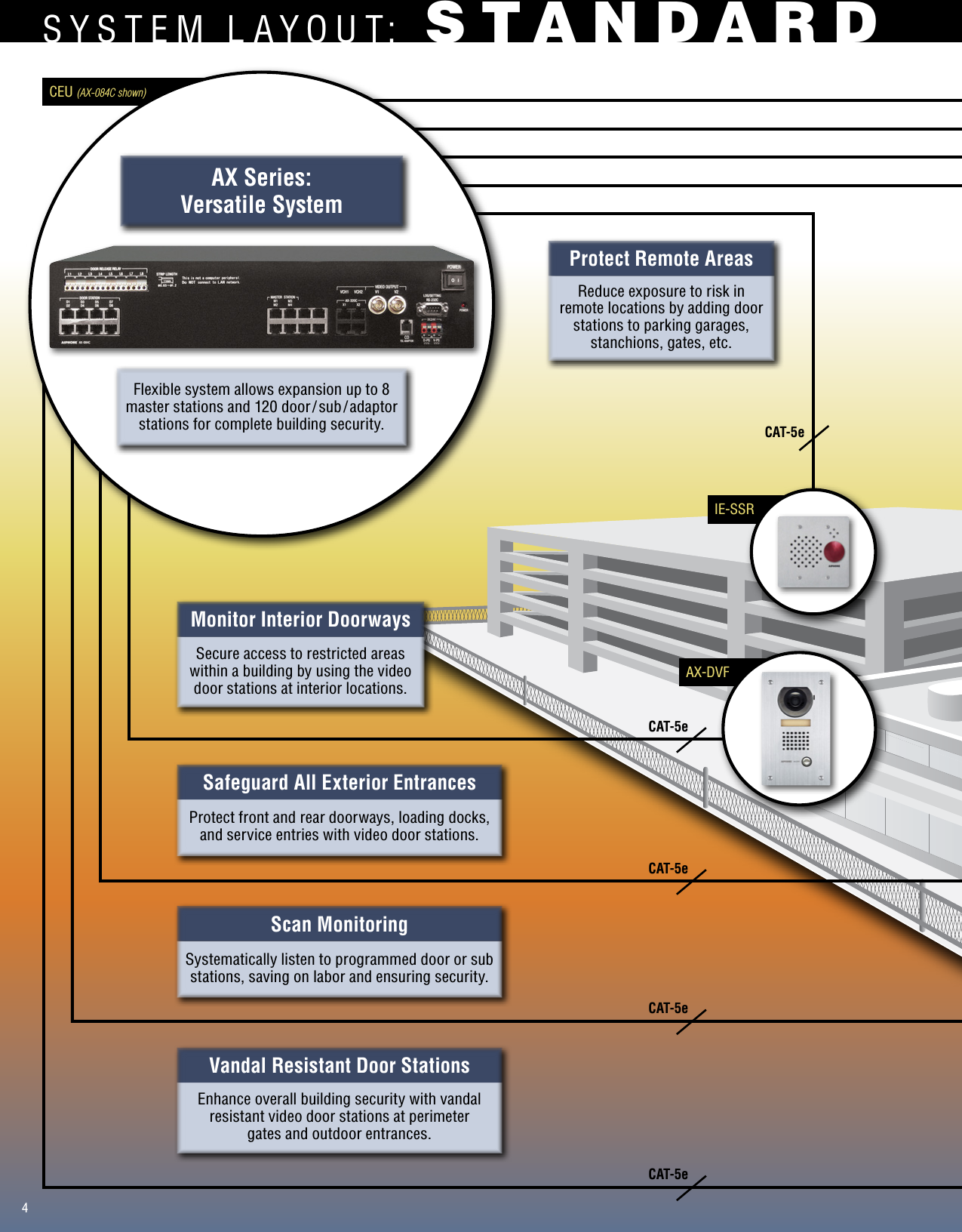

SYSTEM LAYOUT: STANDARD

Flexible system allows expansion up to 8

master stations and 120 door / sub / adaptor

stations for complete building security.

Reduce exposure to risk in

remote locations by adding door

stations to parking garages,

stanchions, gates, etc.

Protect Remote Areas

AX Series:

Versatile System

Secure access to restricted areas

within a building by using the video

door stations at interior locations.

Monitor Interior Doorways

Protect front and rear doorways, loading docks,

and service entries with video door stations.

Safeguard All Exterior Entrances

Systematically listen to programmed door or sub

stations, saving on labor and ensuring security.

Scan Monitoring

Enhance overall building security with vandal

resistant video door stations at perimeter

gates and outdoor entrances.

Vandal Resistant Door Stations

CAT-5e

CAT-5e

CAT-5e

CAT-5e

CAT-5e

AX-8MV

AX-DV

AX-DVF

AX-DM

AX-AN

AX-8MV

AX-8M

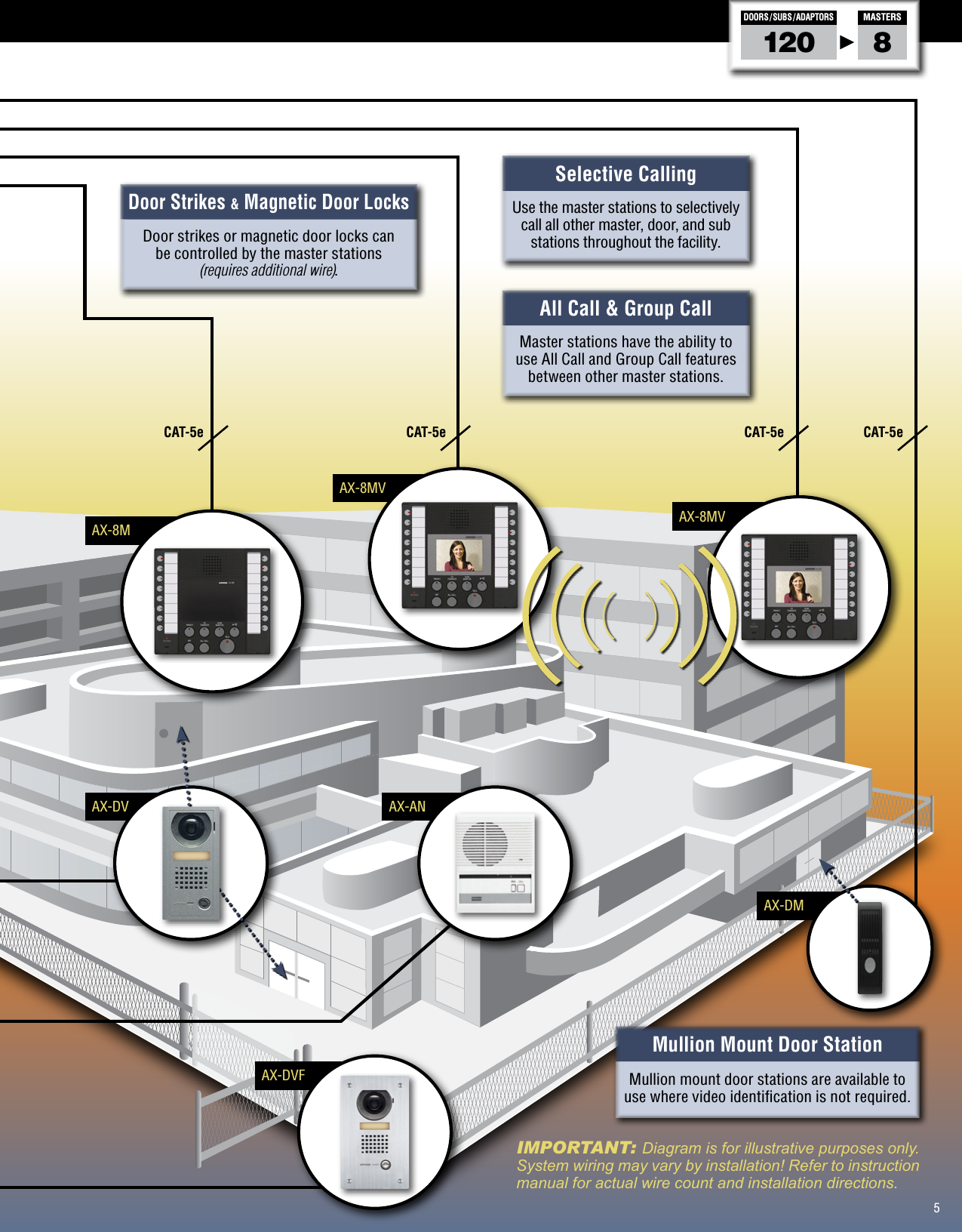

5

Door strikes or magnetic door locks can

be controlled by the master stations

(requiresadditional wire).

Door Strikes & Magnetic Door Locks

Use the master stations to selectively

call all other master, door, and sub

stations throughout the facility.

Selective Calling

Mullion mount door stations are available to

use where video identification is not required.

Mullion Mount Door Station

CAT-5e CAT-5e CAT-5e

12 0

DOORS / SUBS / ADAPTORS

8

MASTERS

CAT-5e

Master stations have the ability to

use All Call and Group Call features

between other master stations.

All Call & Group Call

IMPORTANT: Diagram is for illustrative purposes only.

System wiring may vary by installation! Refer to instruction

manual for actual wire count and installation directions.

CEU (AX-248C shown)

CCTV Camera*

AXW-AVR

IE-SSR

AXW-AVT

AXW-AZ

Viking Model K-1900-5

Programmable Dialer*

6

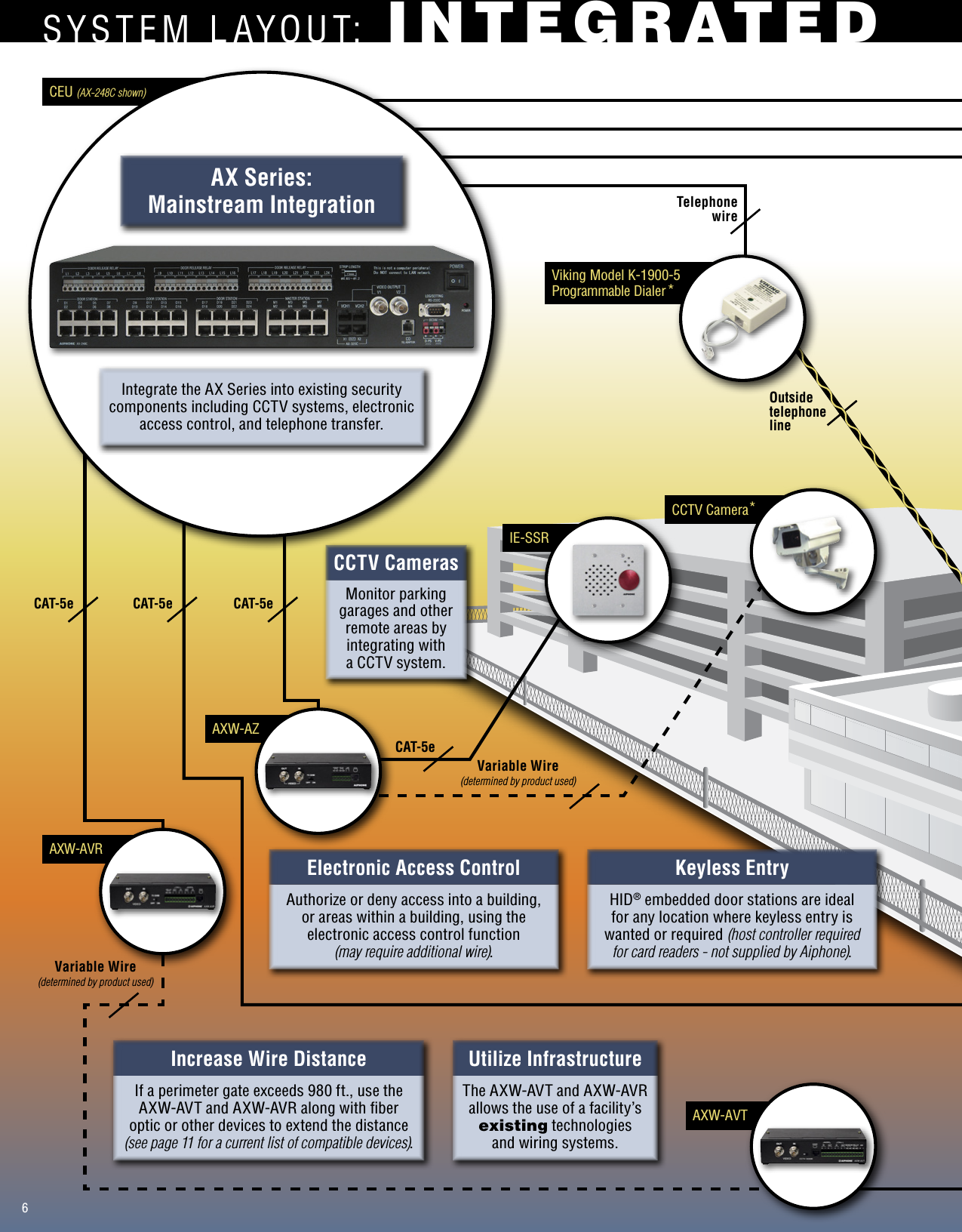

SYSTEM LAYOUT: INTEGRATED

CAT-5e CAT-5e CAT-5e

CAT-5e

Telephone

wire

Variable Wire

(determined by product used)

Outside

telephone

line

Variable Wire

(determined by product used)

HID® embedded door stations are ideal

for any location where keyless entry is

wanted or required (host controller required

for card readers - not supplied by Aiphone).

Keyless Entry

Integrate the AX Series into existing security

components including CCTV systems, electronic

access control, and telephone transfer.

Monitor parking

garages and other

remote areas by

integrating with

a CCTV system.

CCTV Cameras

If a perimeter gate exceeds 980 ft., use the

AXW-AVT and AXW-AVR along with fiber

optic or other devices to extend the distance

(seepage 11 for a current list of compatible devices).

Increase Wire Distance

Authorize or deny access into a building,

or areas within a building, using the

electronic access control function

(mayrequire additional wire).

Electronic Access Control

The AXW-AVT and AXW-AVR

allows the use of a facility’s

existing technologies

and wiring systems.

Utilize Infrastructure

AX Series:

Mainstream Integration

SP-2570N

DMA2120

Paging Amplifier

AX-DV-P

AX-8MV

Monitor*

AXW-PA1

DVR*

AX-DVF

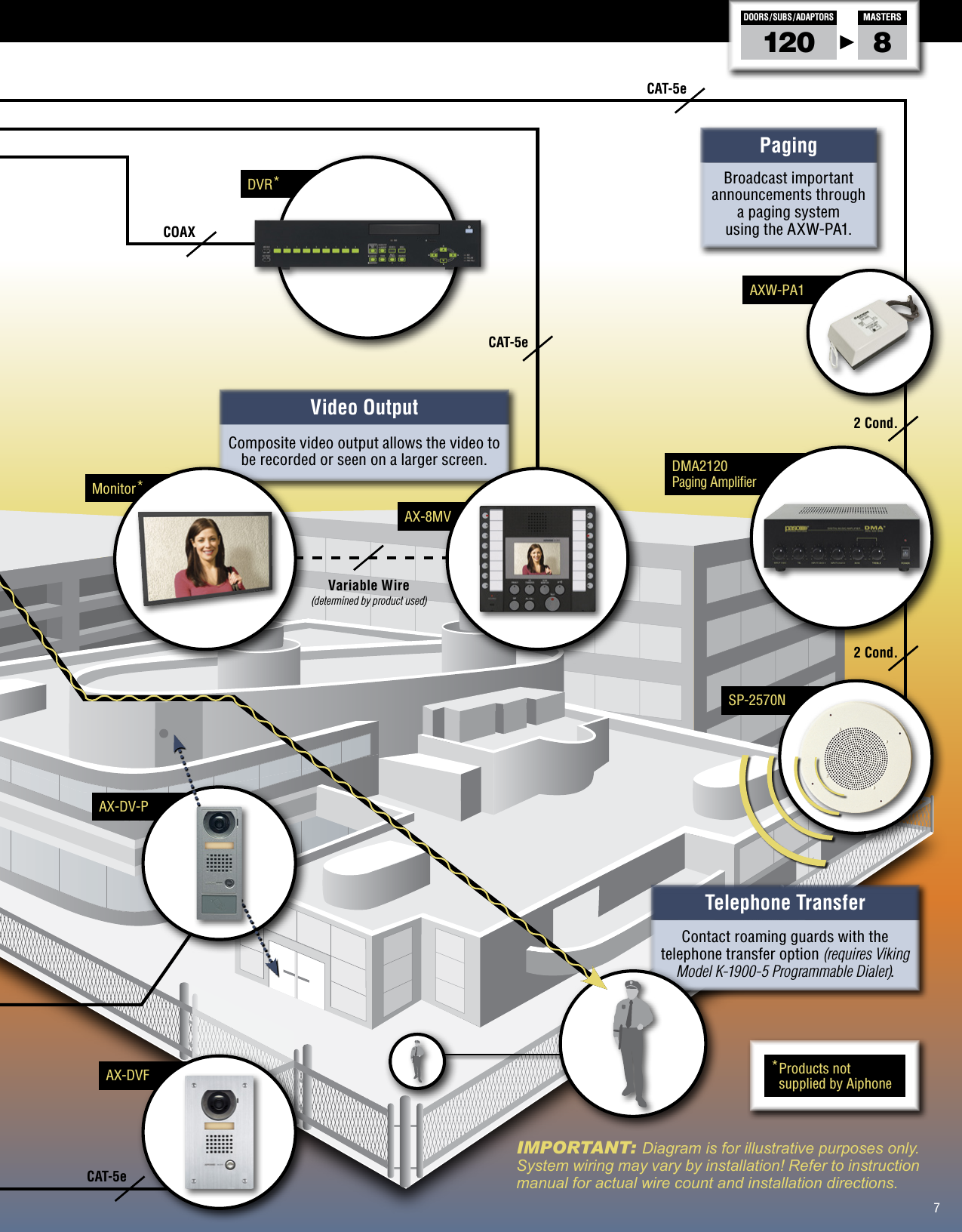

7

CAT-5e

CAT-5e

2 Cond.

2 Cond.

COAX

Composite video output allows the video to

be recorded or seen on a larger screen.

Video Output

Contact roaming guards with the

telephone transfer option (requires Viking

Model K-1900-5 Programmable Dialer).

Telephone Transfer

*

Products not

supplied by Aiphone

Broadcast important

announcements through

a paging system

using the AXW-PA1.

Paging

CAT-5e

Variable Wire

(determined by product used)

IMPORTANT: Diagram is for illustrative purposes only.

System wiring may vary by installation! Refer to instruction

manual for actual wire count and installation directions.

12 0

DOORS / SUBS / ADAPTORS

8

MASTERS

CEU

(AX-248C)

CAT-5e

wire

Variable wire

(determined by product used)

CAT-5e

wire

CAT-5e

wire

CAT-5e

wire

CAT-5e

wire

CAT-5e

wire

2 cond. 2 cond.

AX-8M AX-8MV

AX-AN

AX-DV-P AX-DM AX-DVF

PS-2420UL

PS-2420UL

EL-12S

PT-1210N

REQUIRES

3rd party access

control panel

(Not supplied by Aiphone)

8

CAT-5e

When the need is for basic and affordable

security communication, the AX Series is

ideal. Its easy installation and user-friendly

programming will not only save on time, but

cost as well. A wide variety of door and sub

stations, combined with sleek and sturdy

master stations, will provide a system that is

versatile, comprehensible, and simple to use.

NOTE: Power supplies not shown. For a fully integrated installation, see the system software example on the next page.

Features and functions are programmed using the custom

software, included with the CEU. It is intuitive to use and

allows you to set individual door stations’ call-in length (10

seconds to 10 minutes, or infinite), call-in priority levels,

scan monitoring inclusion, and door release relay activation

and timing. In addition, the software features an easy to use

interface for gathering log data, setting the communication

method at the master (VOX or PTT), and data up / down loading.

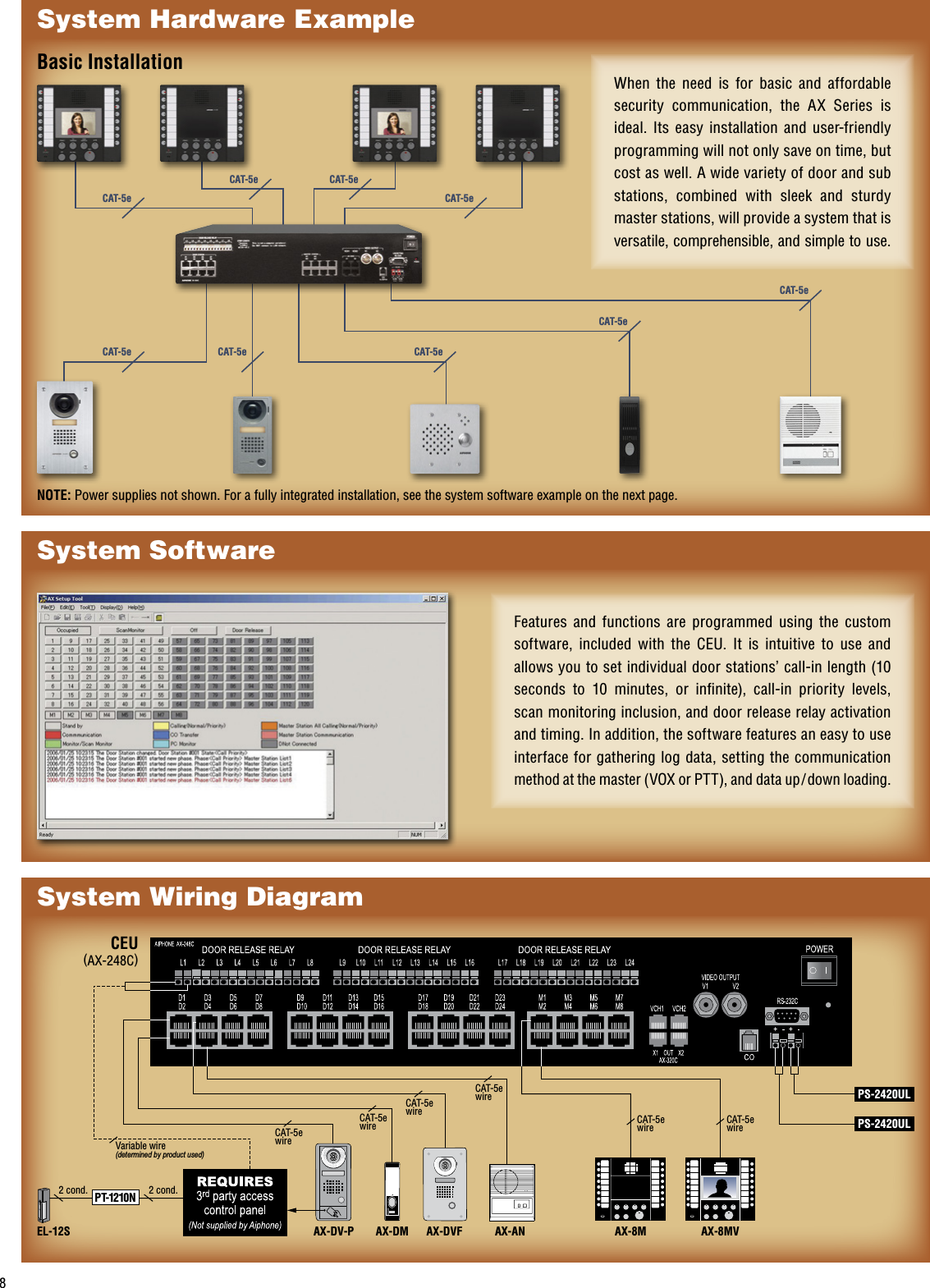

Basic Installation

System Wiring Diagram

System Hardware Example

System Software

CAT-5e CAT-5e

CAT-5e

CAT-5e CAT-5e CAT-5e

CAT-5e

CAT-5e

CO

RS-232C

POWER

VIDEO OUTPUT

V1 V2

+ -

D-PS V-PS

+ -

CO

RS-232C

POWER

VIDEO OUTPUT

V1 V2

VCH1 VCH2

DOOR RELEASE RELAY

L1 L2 L3 L4 L5 L6 L7 L8

DOOR RELEASE RELAY

L9 L10 L11 L12 L13 L14 L15 L16

DOOR RELEASE RELAY

L17 L18 L19 L20 L21 L22 L23 L24

+ -

D-PS V-PS

+ -

X1 OUT X2

AIPHONE AX-248C

VCH1 VCH2

VCH1

VCH2

D

OO

R RELEA

S

E RELA

Y

L1

L2

L3

L

4

L5

L6

L

7

L8

D

OO

R RELEA

S

E RELAY

L9

L10

L11

L12

L13

L

1

4

L1

5

L16

DOO

R RELEA

S

E RELA

Y

L1

7

L18

L19

L20

L21

L22

L23

L2

4

X1

OU

T X2

A

IPH

O

NE AX-24

8C

CCTV System

Computer for Programming

and Event Logging

RS-232 cable

REQUIRES

Viking Model K-1900-5

programmable dialer

COAX RS-232 cable

RJ-11 telephone wire Access Control

*Interface requires custom program

(not supplied by Aiphone)

*RS-232 Data

CCTV Control

9

IP (wired or wireless)

or Fiber Optic

Interface Device

PC

CCTV

System

Outside Telephone Line

(Requires Viking Model

K-1900-5 Programmable Dialer)

DVR or

Monitor

CCTV

Camera

Access

Control

System

Paging

System

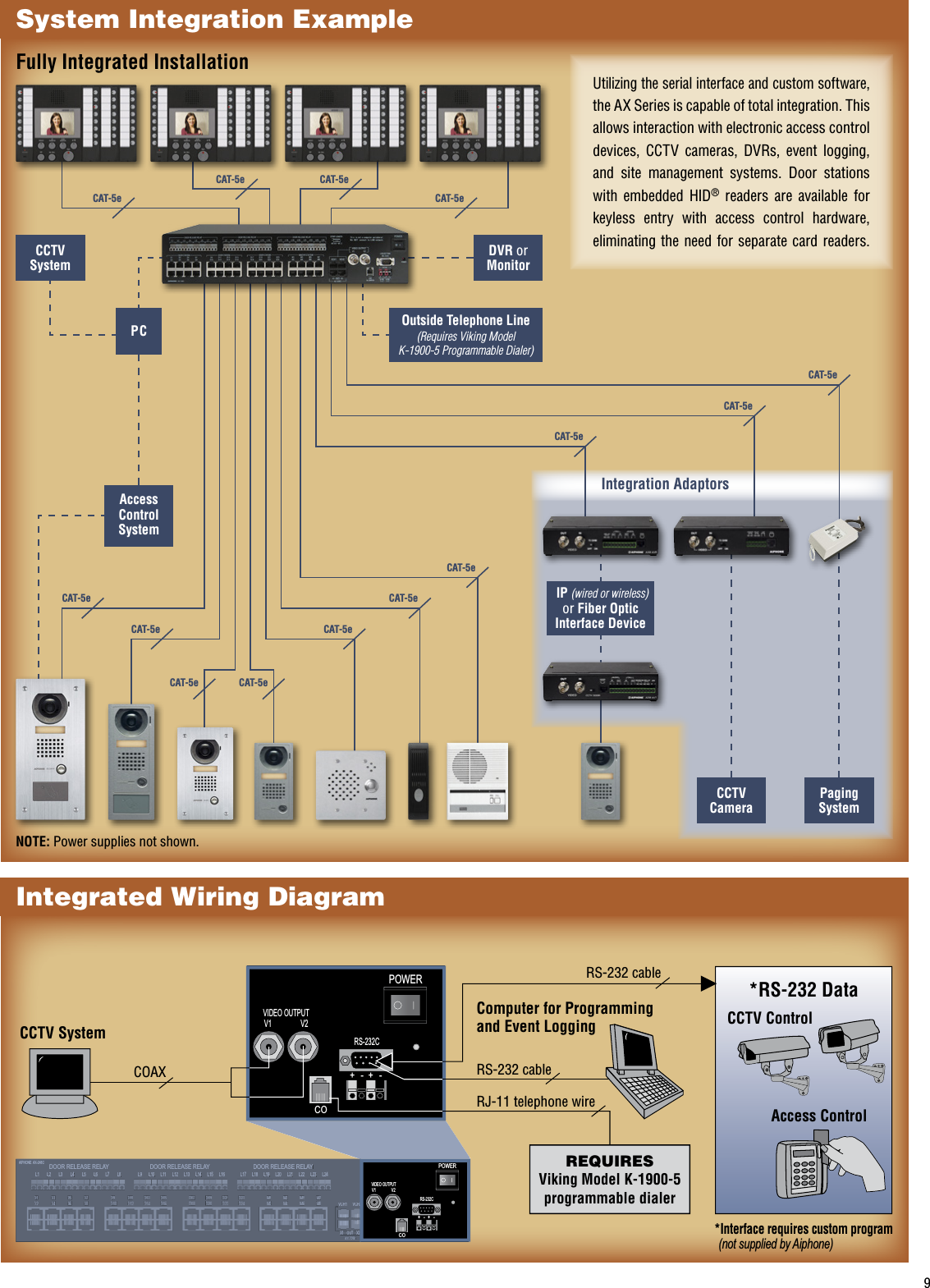

Fully Integrated Installation

Utilizing the serial interface and custom software,

the AX Series is capable of total integration. This

allows interaction with electronic access control

devices, CCTV cameras, DVRs, event logging,

and site management systems. Door stations

with embedded HID® readers are available for

keyless entry with access control hardware,

eliminating the need for separate card readers.

NOTE: Power supplies not shown.

Integration Adaptors

System Integration Example

Integrated Wiring Diagram

CAT-5e CAT-5e

CAT-5e CAT-5e

CAT-5e

CAT-5e

CAT-5e

CAT-5e

CAT-5e

CAT-5eCAT-5e

CAT-5e

CAT-5e CAT-5e

10

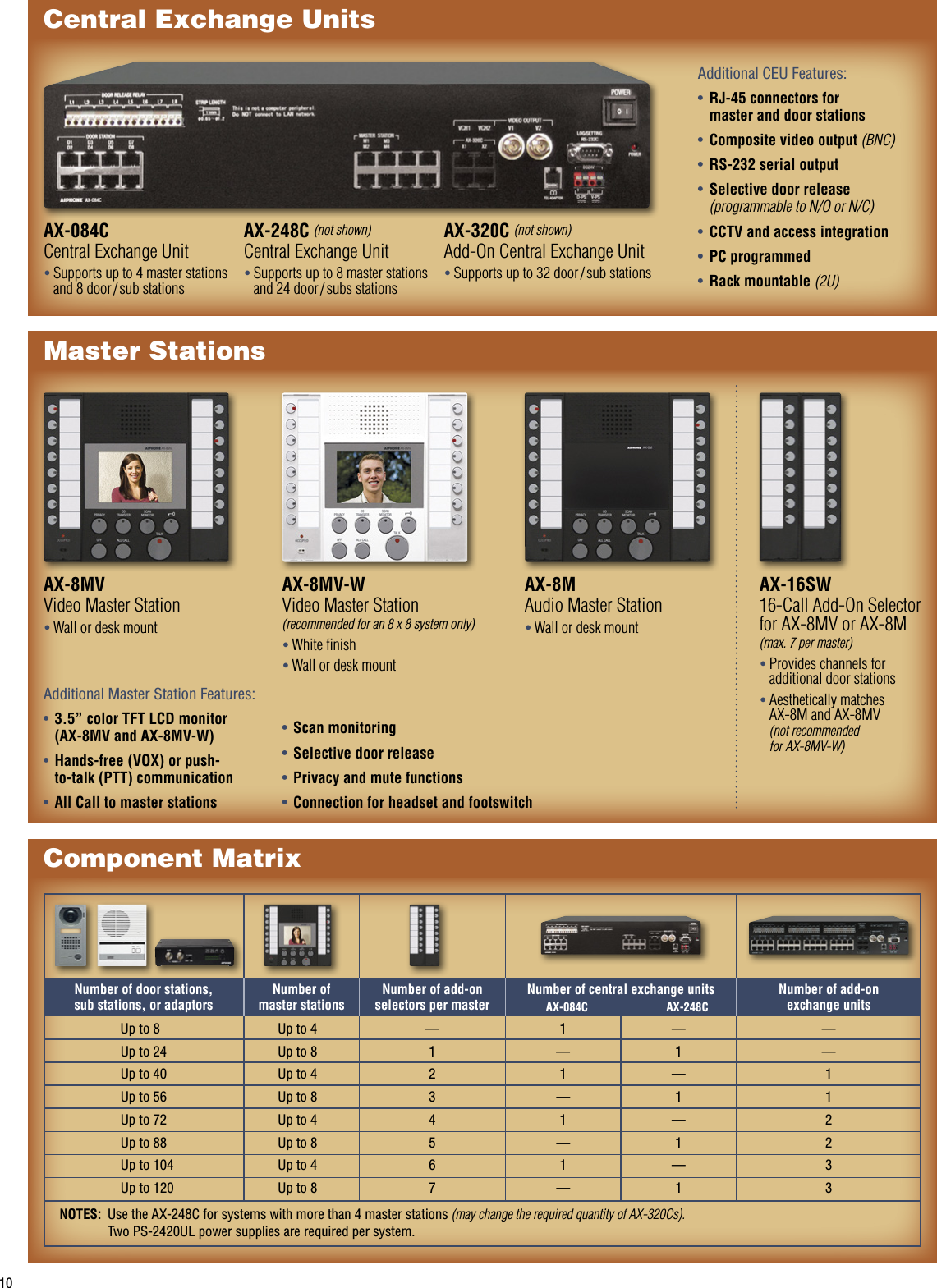

AX-248C (not shown)

Central Exchange Unit

• Supports up to 8 master stations

and 24 door / subs stations

AX-320C (not shown)

Add‑On Central Exchange Unit

• Supports up to 32 door / sub stations

AX-084C

Central Exchange Unit

• Supports up to 4 master stations

and 8 door / sub stations

AX-8MV

Video Master Station

• Wall or desk mount

AX-8M

Audio Master Station

• Wall or desk mount

Component Matrix

Master Stations

Central Exchange Units

NOTES: Use the AX-248C for systems with more than 4 master stations (may change the required quantity of AX-320Cs).

Two PS-2420UL power supplies are required per system.

Up to 8 Up to 4 — 1 — —

Up to 24 Up to 8 1 — 1 —

Up to 40 Up to 4 2 1 — 1

Up to 56 Up to 8 3 — 1 1

Up to 72 Up to 4 4 1 — 2

Up to 88 Up to 8 5 — 1 2

Up to 104 Up to 4 6 1 — 3

Up to 120 Up to 8 7 — 1 3

Number of door stations,

sub stations, or adaptors

Number of

master stations

Number of add-on

selectors per master

Number of central exchange units

AX-084C AX-248C

Number of add-on

exchange units

AX-16SW

16‑Call Add‑On Selector

for AX‑8MVor AX‑8M

(max. 7 per master)

• Provides channels for

additional door stations

• Aesthetically matches

AX‑8M andAX‑8MV

(not recommended

for AX-8MV-W)

AX-8MV-W

Video Master Station

(recommended for an 8 x 8 system only)

• White finish

• Wall or desk mount

Additional Master Station Features:

• 3.5” color TFT LCD monitor

(AX-8MV and AX-8MV-W)

• Hands-free (VOX) or push-

to-talk (PTT) communication

• All Call to master stations

Additional CEU Features:

• RJ-45 connectors for

master and door stations

• Composite video output (BNC)

• RS-232 serial output

• Selective door release

(programmable to N/O or N/C)

• CCTV and access integration

• PC programmed

• Rack mountable (2U)

• Scan monitoring

• Selective door release

• Privacy and mute functions

• Connection for headset and footswitch

11

*HID® stations require a 3rd party host. Power for

card reader and door strike require additional wire.

Manufacturer Model Type

AFI (American Fibertek) MT / MR -1890 Fiber Optic

Infinova N3732TA- M / N3732RA - M Fiber Optic

Meridian Technologies ST / SR -1W2A2C2G / 2A2C2G-X Fiber Optic

NOTE: This list of approved devices is subject to change. For an updated

list, please contact Aiphone Technical Support (Mon. - Fri., 6:00am - 4:30pm)

at

(

800

)

692-0200 or e-mail tech@aiphone.com.

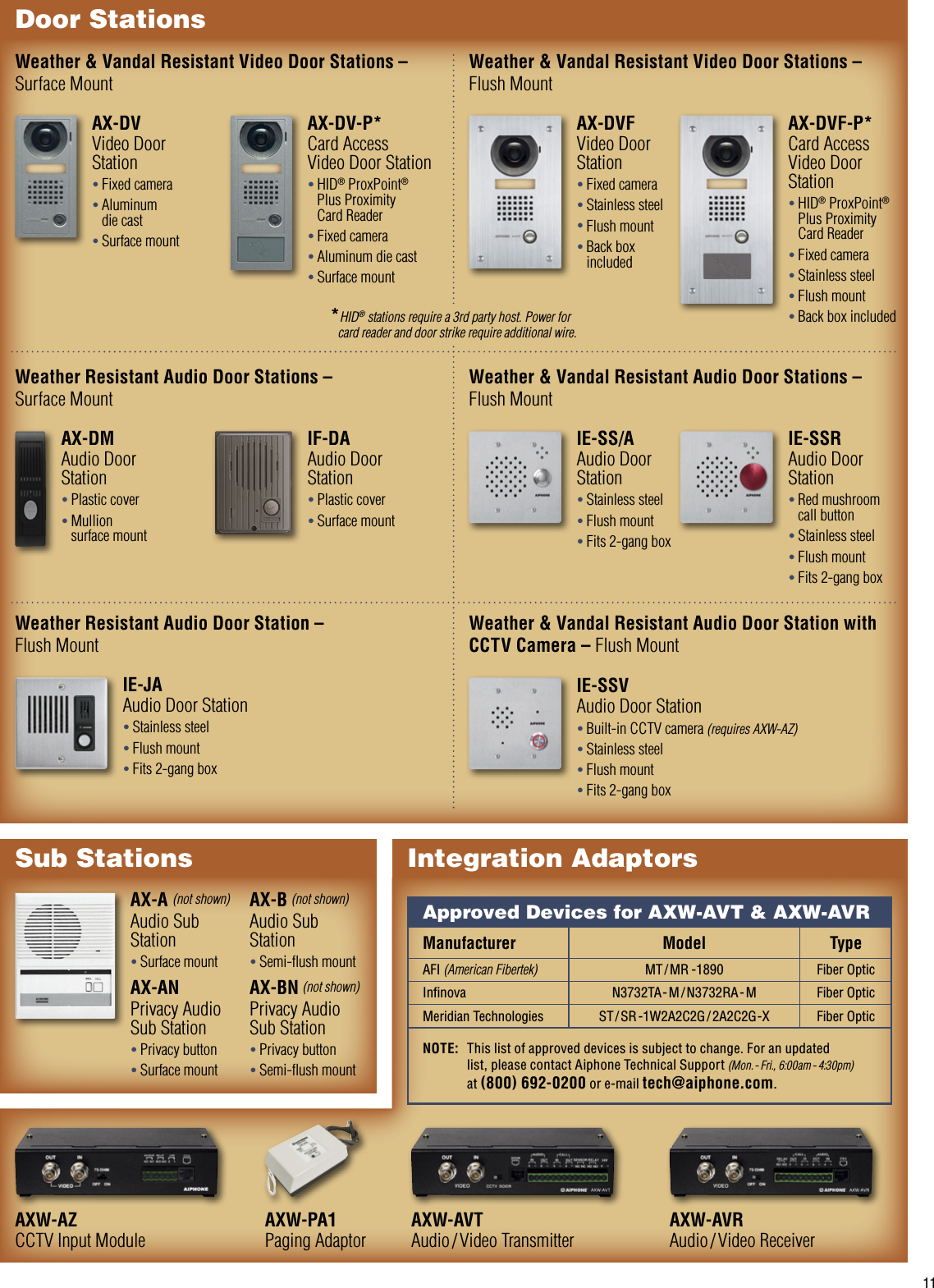

Door Stations

Integration AdaptorsSub Stations

Approved Devices for AXW-AVT & AXW-AVR

AX-DV-P*

Card Access

VideoDoor Station

• HID® ProxPoint®

Plus Proximity

Card Reader

• Fixed camera

• Aluminum die cast

• Surface mount

AX-DVF-P*

Card Access

VideoDoor

Station

• HID® ProxPoint®

Plus Proximity

Card Reader

• Fixed camera

• Stainless steel

• Flush mount

• Back box included

AX-DM

Audio Door

Station

• Plastic cover

• Mullion

surfacemount

AX-DV

Video Door

Station

• Fixed camera

• Aluminum

die cast

• Surface mount

AX-DVF

Video Door

Station

• Fixed camera

• Stainless steel

• Flush mount

• Back box

included

IF-DA

Audio Door

Station

• Plastic cover

• Surface mount

IE-JA

Audio Door Station

• Stainless steel

• Flush mount

• Fits 2‑gang box

IE-SS/A

Audio Door

Station

• Stainless steel

• Flush mount

• Fits 2‑gang box

IE-SSR

Audio Door

Station

• Red mushroom

call button

• Stainless steel

• Flush mount

• Fits 2‑gang box

IE-SSV

Audio Door Station

• Built‑in CCTVcamera (requiresAXW-AZ)

• Stainless steel

• Flush mount

• Fits 2‑gang box

AX-A (not shown)

Audio Sub

Station

• Surface mount

AX-AN

Privacy Audio

Sub Station

• Privacy button

• Surface mount

AX-B (not shown)

Audio Sub

Station

• Semi‑flush mount

AX-BN (not shown)

Privacy Audio

Sub Station

• Privacy button

• Semi‑flush mount

Weather & Vandal Resistant Video Door Stations –

Surface Mount

Weather & Vandal Resistant Video Door Stations –

Flush Mount

Weather Resistant Audio Door Stations –

Surface Mount

Weather & Vandal Resistant Audio Door Stations –

Flush Mount

Weather Resistant Audio Door Station –

Flush Mount

Weather & Vandal Resistant Audio Door Station with

CCTV Camera – Flush Mount

AXW-AZ

CCTV Input Module

AXW-PA1

Paging Adaptor

AXW-AVT

Audio / Video Transmitter

AXW-AVR

Audio / Video Receiver

Unit Dimensions INCHES MILLIMETERS

MODEL HEIGHT WIDTH DEPTH RECESSED HEIGHT WIDTH DEPTH RECESSED

AX‑084C, AX‑248C, AX‑320C 3‑7/16'' 18‑7/8'' 13‑3/16'' ‑88 480 335 ‑

AX‑16SW 6‑7/8'' 3‑3/8'' 1‑7/8'' ‑175 86 48 ‑

AX‑8MV, AX‑8MV‑W, AX‑8M 6‑7/8'' 7‑5/8'' 2‑9/16'' ‑175 194 65 ‑

AX‑A, AX‑AN 7‑1/16'' 5‑5/8'' 2‑1/8'' ‑180 143 53.5 ‑

AX‑B, AX‑BN 8‑3/16'' 6'' 2'' 9/16'' 208 153 50.5 15

AX‑DM 6‑5/16'' 1‑11/16'' 7/8'' ‑160 43 22.5 ‑

AX‑DV 7‑11/16'' 3‑15/16'' 1'' ‑195 100 25 ‑

AX‑DVF 9‑11/16'' 5‑3/4'' * ‑ 246 146 * ‑

AX‑DVF‑P 11‑5/8'' 5‑3/4'' * ‑ 295 146 * ‑

AX‑DV‑P 9‑5/8'' 3‑15/16'' 1'' ‑245 100 25 ‑

AXW‑AZ, AXW‑AVT, AXW‑AVR 1‑5/8'' 7'' 4'' ‑41 178 102 ‑

IE‑JA 4‑1/2'' 4‑9/16'' * ‑ 115 116 * ‑

IE‑SS/A, IE‑SSR, IE‑SSV 4‑3/4'' 4‑3/4'' * ‑ 121 121 * ‑

IF‑DA 5‑1/8'' 3‑7/8'' 1‑1/8'' ‑130 98 28.5 ‑

*Aiphone recommends a 2‑1/2" minimum back box depth for all flush mount stations.

MCW-S/A

Desk Stand for AX‑8MV,

AX‑8MV‑W, or AX‑8M

LB-XDVF

Security Lock

Box for AX‑DV

or AX‑DVF

(lock not included)

EL-12S

Electric DoorStrike

(requires PT-1210N)

SBX-DVF-P

Surface

Mount Box

forAX‑DVF‑P

IER-2

Call Extension

Speaker

RY-ES

External

Signaling Relay

RY-24L

Form C Door

Release Relay

(1 per door)

SBX-AXDV30

30˚ Angle Box

for AX‑DV

SBX-2G

Surface Mount

Box for IE‑JA,

IE‑SS/A, IE‑SSR,

orIE‑SSV SBX-AXDVF

Surface Mount

Box for AX‑DVF

SBX-LSP

Security

Lock Box for

AX‑DVF‑P

(lock not included)

BBX-1E

Back Box for flush

mounting AX‑B

or AX‑BN

HID-SS

Card Access Station with

HID® ProxPoint® Plus

Proximity Card Reader

SBX-2BH

Horizontal Surface

Mount Box for HID‑SS

and one IE‑SS/A,

IE‑SSR, or IE‑SSV

AX Series Brochure

0 8 / 2 015

Digital Copy

The information in this

brochure is subject to

change without notice. GS-35F-0065L Aiphone Co. Ltd.

Deming

Prize

Aiphone Corp.

ISO 9001:2008

Certified

Copyright © 2015. All Rights Reserved • T: (800) 692-0200 • F: (800) 525-3372 • www.aiphone.com |

Door Station Features

• Fixed camera provides clear visitor

identification (video door stations)

• Card access door stations available

Master Station Features

• Masters available with 3.5" color LCD screen

• Hands‑free or push‑to‑talk communication

• Two talk channels

• Composite video output from

CEU / video masters

• All Call or Group Call

to master stations

• Scan monitoring

System Features

• Up to 8 masters and 120 doors / subs / adaptors

• CAT‑5e wiring homerun from each station

Specifications

Power Source 24V DC – use two PS‑2420ULs

Communication Hands‑free (VOX) or push‑to‑talk (simplex)

Video Display 3‑1/2" color LCD

Camera Type: 1/4" color CCD

View Area: 2'1" vert. x 3'1" horiz. at 20"

Door Release Programmable dry contact, 24V AC/DC, 500mA–

useEL‑12S (use RY‑24L for larger contact rating)

Wire Type Between Door / Sub Station, Master Station,

and Central Exchange Unit: CAT‑5e

Power Supply to Central Exchange Unit

and Add‑On Central Exchange Unit:

2‑cond.,overallshield – use Aiphone 821802

Distance Door / Sub Station to Central Exchange Unit

and Add‑On Central Exchange Unit: 980'

Central Exchange Unit to Master: 980'

Central Exchange Unit to Add‑On Central Exchange Unit: 16'

Power Supply to Central Exchange Unit and Add‑On Central

Exchange Unit: 16'(22AWG) 33'(18AWG)

*Interface requires custom software

(not supplied by Aiphone)

• Selective calling between

masters, and from masters

to door / sub stations

• Normal or priority call levels

• Data output on CEU provides

custom integration capability with

CCTV and access control systems*

• PC programmable with a

large variety of settings

• Transfer calls to an outside phone

line (requires Viking Model

K‑1900‑5 programmable dialer)

• Optional features: headset,

footswitch, call transfer to

telephone, and PC remote control*

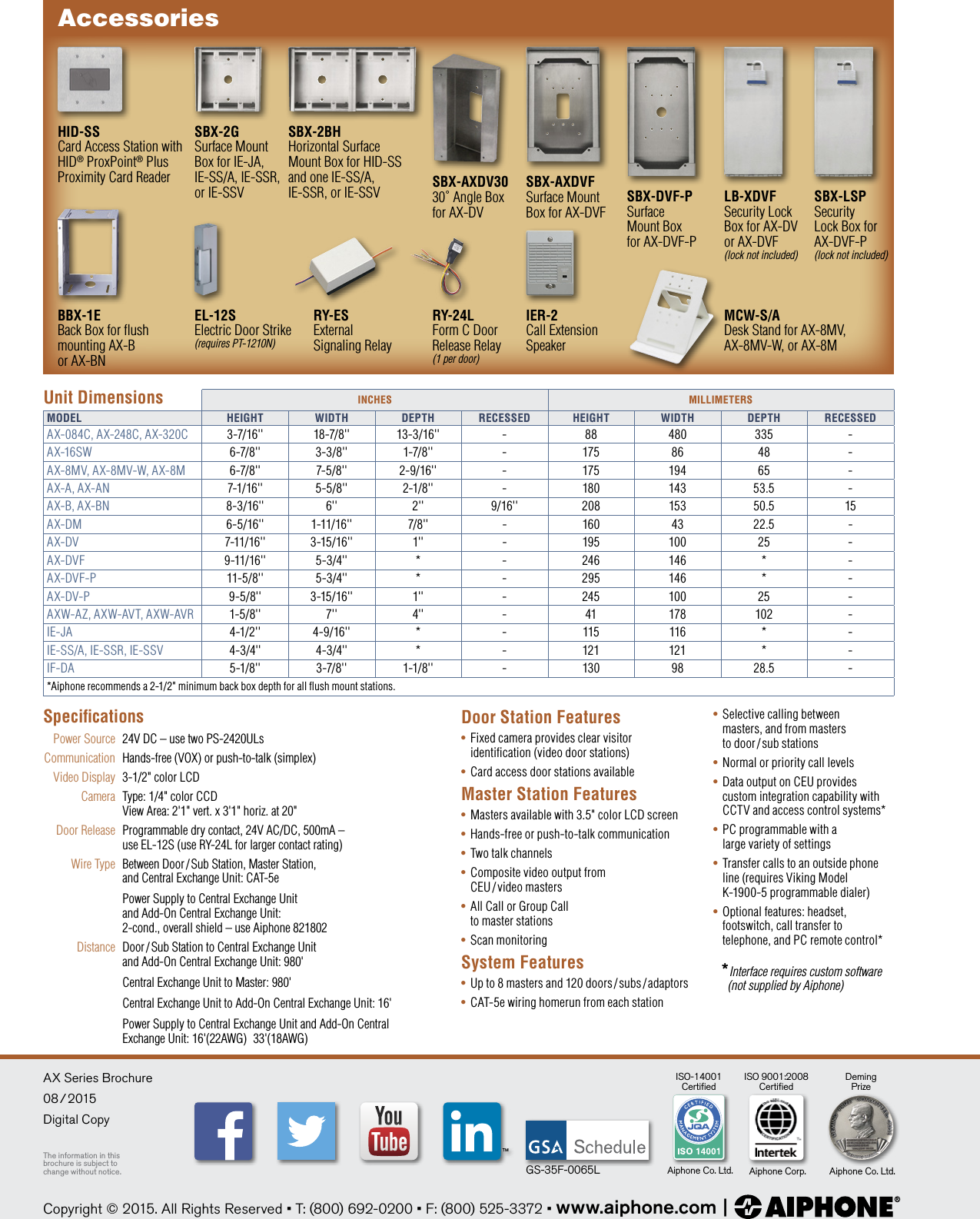

Accessories

Aiphone Co. Ltd.

ISO-14001

Certified

---

---

---

---

---

---

---

---

---

---

---

---
