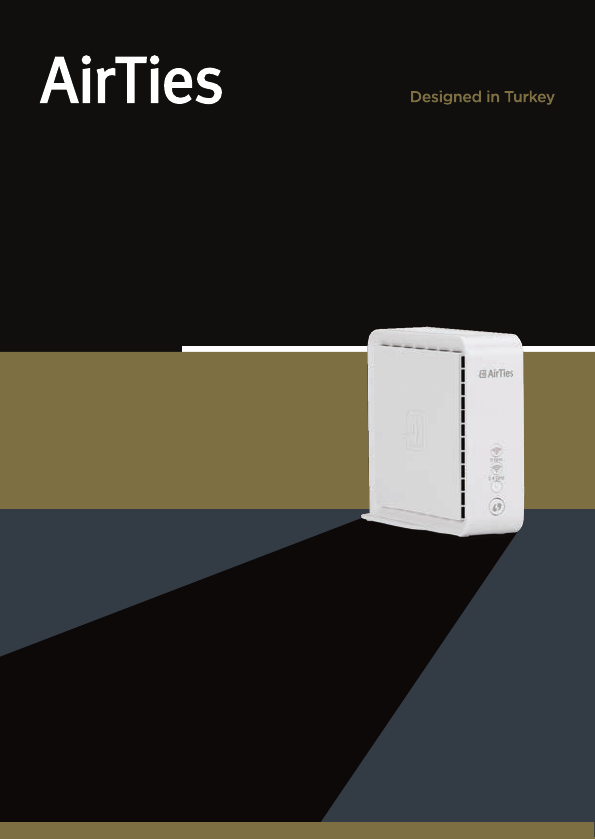

QUICK INSTALLATION
GUIDE
ADDITIONAL PACK
Home Wi-Fi
Solution Kit
![](/img.php?id=3101931&img=bg3.png)
• Keep units away from:
- Potential sources of electrical interference. Equipment that potentially cause
interference include ceiling fans, home security systems, microwaves, PCs, and
cordless phones (handset and base).
- Large metal surfaces and objects. Large objects and wide surfaces such as
glass, insulated walls, fish tanks, mirrors, brick, and concrete walls can also
weaken wireless signals.
- Sources and areas of heat such as ovens and sun rooms as well as direct sun
light even if there is good air conditioning.
- Please use device upright position. The openings are provided for ventilation,
do not block or cover openings.
• Storage temperature range of -40°C ~ +70°C and humidity range of 0% ~ 90%
are recommended.
TIPS FOR BEST PERFORMANCE:
This product makes use of software developed by the open source community. Any such software is licensed under the specific license terms applicable to
that particular software (like GPL, LGPL etc). Detailed information on the applicable licenses and license terms can be found on the device's user interface.
By using this product, you acknowledge that you have reviewed such license terms and that you agree to be bound by them. Where such terms entitle you
to the source code of said software, that source code will be made available at cost upon request from AirTies.
To obtain a copy of said source code, please send your request in writing via email to osrb@airties.com or via snail mail to:
AirTies Wireless Communications
Mithat Uluünlü Sokak No. 23 Esentepe,
P.K. 34394 Şişli ISTANBUL/Turkey
AirTies will mail to you a CD with the requested source code at the cost of CD preparation and shipping&handling. For details please contact
osrb@airties.com
![](/img.php?id=3101931&img=bg4.png)
NOTES
• Returning to factory settings:
To return unit to factory settings, press down
on the reset button (in a small opening on the
back) for 5 seconds. A metal paperclip (with
an extended tip) or strong toothpick are
typically good choices for this task. When the
reset process is triggered, the LEDs in the
front will temporarily “shimmer” and the unit
will reboot (in about 3 minutes) to factory
settings.
• If you personalize the network settings, please record them here:
Network Name: ………………………………………………………………...
Network Password: ………………………………………………………….
User Interface Password: ………………………………………………..
![](/img.php?id=3101931&img=bg5.png)
Wireless 5 GHz
Status Led
Power On/OFF
Status Led
WPS Button
Wireless 2.4 GHz
Status Led Power On/OFF
Button External Power
Supply
Gigabit
Ethernet Port
Reset Button
Power Adapter Ethernet CableAirTies Wireless Unit

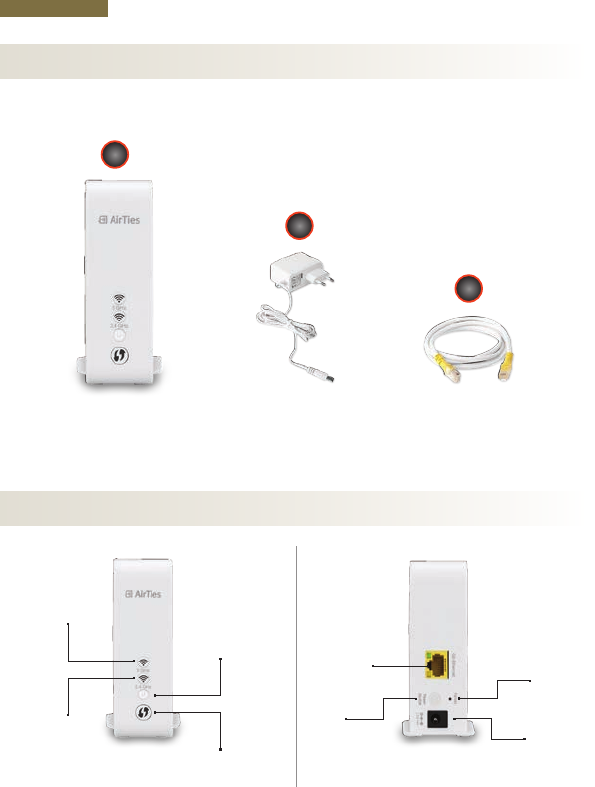

PACKAGE CONTENT
1
2
3
PORTS and BUTTONS
![](/img.php?id=3101931&img=bg6.png)
4

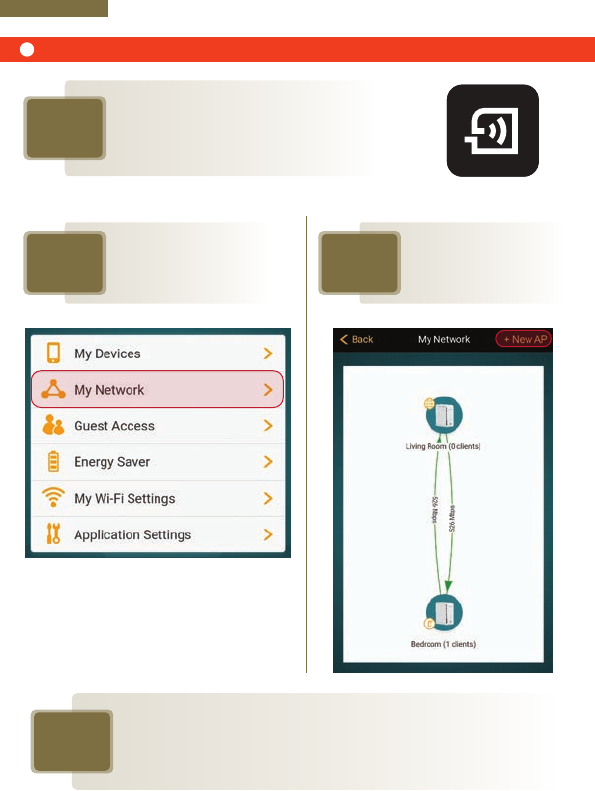

Please follow the instructions on your mobile
application to complete your setup. This
process should take only a couple of minutes.
1Please open «AirTiesWiFi»
application on your mobile
device.
2Select My Network
from the menu. 3Click on
+ New AP.
AirTiesWiFi
Please remove protective plastic cover from the product before installation.
!
![](/img.php?id=3101931&img=bg7.png)
TROUBLESOOTING
LED
Indicators Condition LED Behavior Timing Explanation Recommended Action(s)
Blinking
-
Solid
(No blinking)
Solid
(No blinking)
Solid
(No blinking)
Blinking
Blinking in sync
Blinking in sync
Blinking
50ms OFF
5000ms ON
4000ms OFF
4000ms ON
1000msec OFF
1000msec ON
Power OFF
Device is not ready
WLAN is active and the node
has an active strong Mesh
connection on the Radio
WLAN is active and all MESH
links on the Radio are weak
Radio is inactive or Searching
for radar activity
WPS is in progress
WPS is succesful
Unconfigured device
WLAN active, Device configured,
No MESH link on the Radio
There is configured MESH
connection on the radio,
however connection is inactive
(Can not connect)
WPS is not successful
LED Color
(OFF/Dark)
White
Green
Red
(OFF/Dark)
Green
Green
Green
Green
Red
Red
State
Identifier
A
C
D
E
F
G
H
J
I
K
L
This behavior is temporary and
lasts for about 5 seconds, after
which the LEDs go to one of
the following states:
1) MESH with strong signal
(state D), and
2)MESH with poor signal
(state E)
Device has factory setting and
is not connected to the home
network in any way (e.g., the
device is not wired to the router-
gateway)
First AP (wired to router-
gateway)
AP is part of MESH, but unable
to find any of its MESH partners.
This behavior is temporary and
lasts for about 5 seconds, after
which the LEDs go back to the
state the device was in before
the WPS attempt
Power the device on if desired.
No other action required.
Solid
(No blinking)
Power ON White B
just powered on, then please
wait for at least 2 minutes for
No action required. If unit was
the unit to complete its boot
process.
No action required. Please wait.
No action required.
Bring device closer to another
device on the MESH network.
No action required.
No action required.
If LED is red (state E) then bring
device closer to another device
on the MESH network.
If LED is green (state D), then no
action is required.
Configure device (refer to
Quick Installation Guide)
No action required.
Make sure other device(s) that
are part of the MESH network
are powered on and close
enough to connect.
On failure, repeat WPS attempt
after bringing device near
another device that is already
on the MESH network
(i.e., in state D).
Power
2.4 GHz
5 GHz
![](/img.php?id=3101931&img=bg8.png)
CE Declaration of Conformity
Is herewith confirmed to comply with the requirements set out in the Council
(European parliament) Directive on the harmonisation of the laws of the Member
States relating to
R&TTE Directive 1999/5/EC
EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC
Ecodesign requirements for Energy Related Products Directive 2009/125/EC
RoHS Directive 2011/65/EU
For the evaluation regarding these Directives, the following standards have been applied:
EN 62311:2008
EN 60950-1:2006 + A11: 2009 +A1:2010 + A12:2011 + A2:2013
EN 301 489-17 V2.2.1
EN 301 489-1 V1.9.2
EN 55022:2010 / AC:2011
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 300 328:2015 V1.9.1
EN 301 893:2015 V1.8.1
Regulation(EC) No : 1275/2008
Regulation (EU) No: 801/2013
The following importer / manufacturer is responsible for this declaration:
AirTies Kablosuz İletişim
(Company Name, Importer)
(Company Name, Manufacturer)
Mithat Uluünlü Sokak No. 23
Esentepe, Şişli / İstanbul
(Company Address, Importer) (Company Address, Manufacturer)
Person responsible for this declaration: Person responsible for this declaration:
Bülent Çelebi
(Name, Surname, Importer) (Name, Surname, Manufacturer)
Executive Chairman
(Position/Title) (Position/Title)
(Legal Signature) (Legal Signature)
Turkey 10.09.2016
(Place) (Date) (Place) (Date)
For the following Equipment: Smart Mesh Access Point
Product Name: Air 4830
![](/img.php?id=3101931&img=bg9.png)
YM.AP.4830.UM.GN.F00REV17062016
For more information:
http://www.airties.com/products
FCC ID: Z3WAIR4830
