AirTies Wireless Networks AIR49200 2 Port Gigabit Ethernet 11ac/11n Wireless Router User Manual
AirTies Wireless Networks 2 Port Gigabit Ethernet 11ac/11n Wireless Router Users Manual
Contents
- 1. Users Manual
- 2. Users Manual Statements
Users Manual
![](/img.php?id=2625853&img=bg1.png)
![](/img.php?id=2625853&img=bg2.png)
![](/img.php?id=2625853&img=bg3.png)

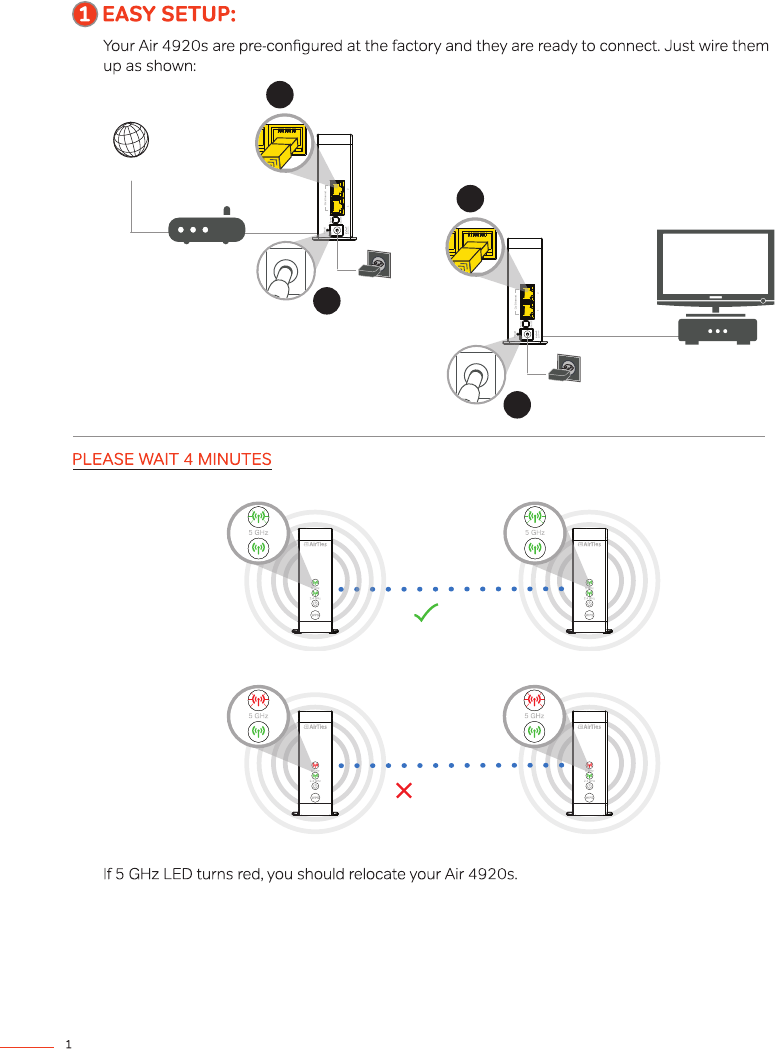

INTERNET
YOUR MODEM
YOUR STB
1
2
12
3
4
12
SUCCESS
OUT OF RANGE
![](/img.php?id=2625853&img=bg4.png)
Designed by AirTies in Europe. Manufactured in China.
Wi-Fi Name: AirTies_Air4920_XXXX
Wi-Fi Password: abcdef1234
Designed by AirTies in Europe. Manufactured in China.
Wi-Fi Name: AirTies_Air4920_XXXX
Wi-Fi Password: abcdef1234
INTERNET
YOUR MODEM YOUR STB
1

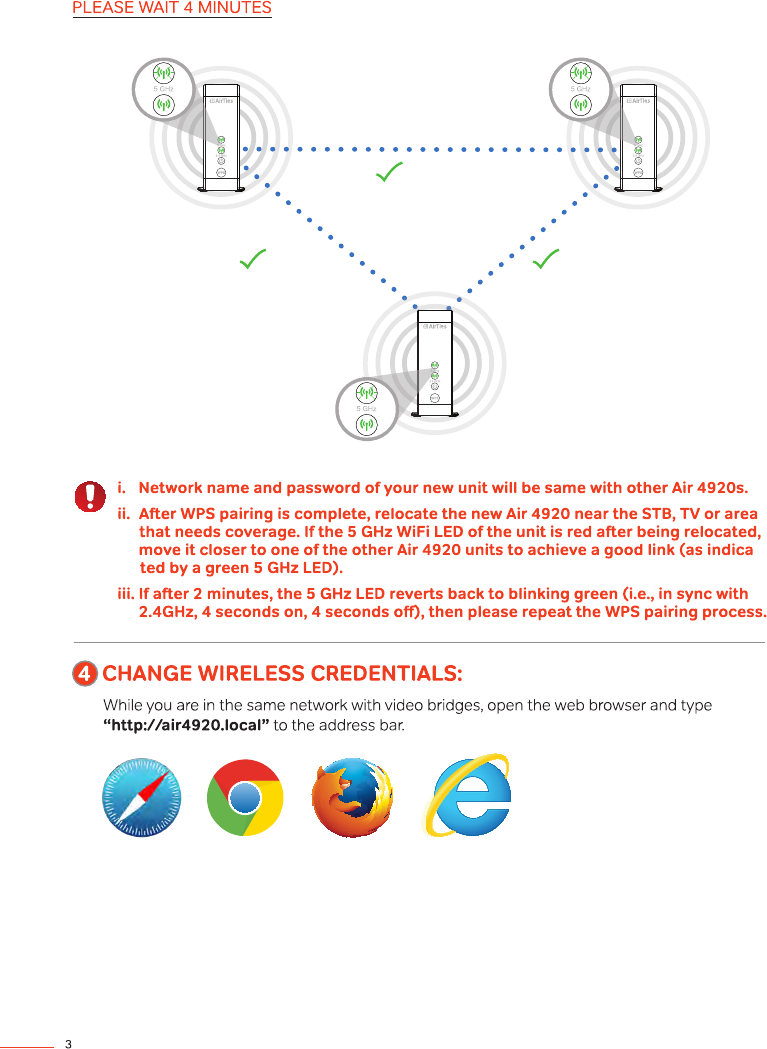

WPS
2
WPS
YOUR STBADDITIONAL UNIT
![](/img.php?id=2625853&img=bg5.png)
SUCCESS
SUCCESS
SUCCESS

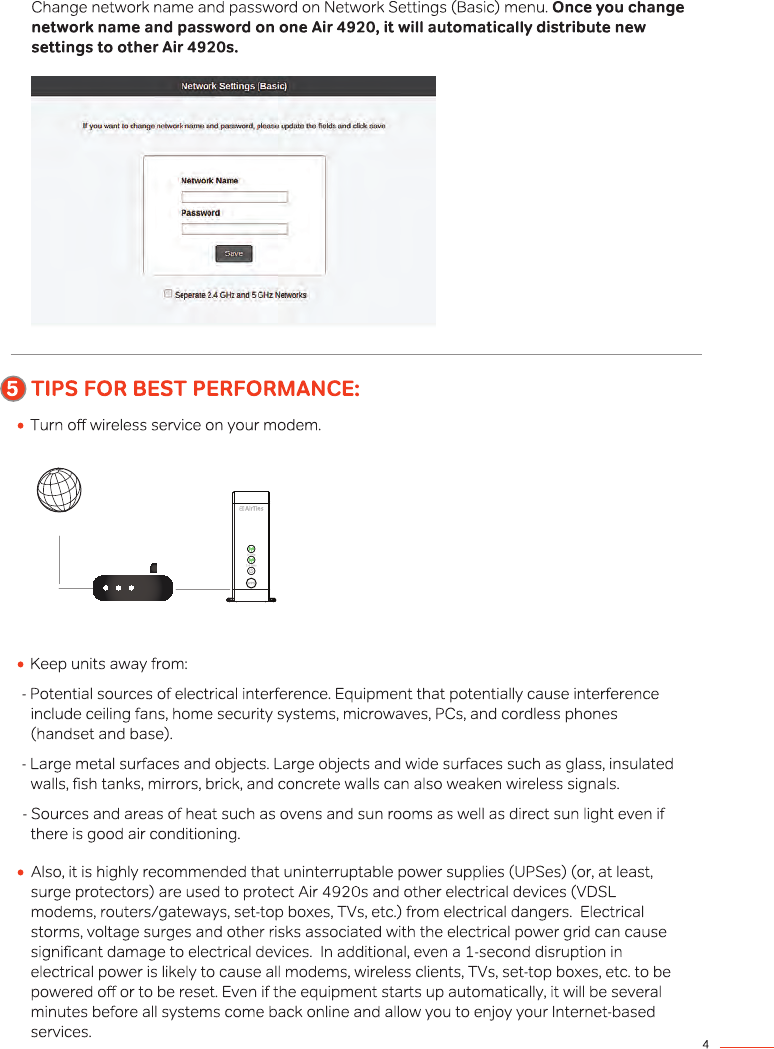

![](/img.php?id=2625853&img=bg6.png)
INTERNET
YOUR MODEM
![](/img.php?id=2625853&img=bg7.png)
LED
Indicators: Condition LED Color LED Behavior Timing State
Identifier Explanation Recommended Action(s)
Power OFF (OFF/Dark) - A
Power on device if desired. No other
action required.
Power ON White Solid (No blinking) B
No action required. If unit was just
powered on, then please wait for at
least 2 minutes for the unit to complete
its boot process.
Firmware upgrade in progress White Blinking
500ms OFF
500ms ON C
No action required. Please wait for the
unit to reboot (and enter state B).
WLAN is active and the node has an
active strong Mesh/Repeater connection
on the 5GHz Radio. Green Blinking
50ms OFF
5000ms ON D
No action required.
WLAN is active and all MESH/Repeater
links on 5GHz Radio are weak. Red Solid (No blinking) E
Bring device closer to another device
on the MESH.
WLAN is active or Searching for radar
activity (OFF/Dark) Both Radio LEDs are dark F
No action required.
WPS is in progress Green Blinking in sync with 2.4GHz led
WPS
Cert. Compliant G
No action required.
WPS is succesful Green Solid (No blinking)
WPS
Cert. Compliant H
This behavior is temporary and lasts for
about 10 seconds, after which the LEDs
go to one of the following states:
1) MESH with strong signal (state D), and
2) MESH with poor signal (state E)
If LED is red (state E) then bring device
closer to another device on the MESH.
If LED is green (state D), then no action
is required.
Unconfigured device. Green Blinking in sync with 2.4GHz led
4000ms OFF
4000ms ON I
Device has factory setting and is not
connected to the home network in any
way (e.g., the device is not wired to the
router-gateway)
Configure device (refer to Quick
Installation Guide)
WLAN active, Device configured, No
Repeater/MESH link on 5GHz Radio. Green Solid (No blinking) J
First AP (wired to router-gateway) No action required.
There is configured MESH/Repeater
connection on 5GHz, however
connection is inactive. (Cannot connect.) Red Blinking
1000msec OFF
1000msec ON K
AP is part of MESH, but unable to find any
of its MESH partners.
Make sure other device(s) that are part
of the MESH network are powered on
and close enough to connect.
WPS is not successful Red Blinking with 2.4GHz led
WPS
Cert. Compliant L
This behavior is temporary and lasts for
about 10 seconds, after which the LEDs
go back to the state the device was in
before the WPS attempt
On failure, repeat WPS attempt after
bringing device next to another device
that is already on the MESH network
(i.e., in state D).
Power
