Ultra HD Wireless
Set-Top Box
USER MANUAL
![](/img.php?id=3868517&img=bg3.png)
AirTies Air 7415B is a state of the art IPTV / OTT Set-Top Box that
provides access to next generation interactive digital television services
over a broadband IP connection.
The Air 7415B gives you access to Live TV Channels, Catch-up TV, some
online video and radio applications on your UHD television.
The following items are included in the box:
• This user manual
• 1 x Air 7415B Set-Top Box
• 1 x Power Adapter
• 1 x IR Remote Control
• 2 x AAA Batteries
• 1 x Ethernet Cable
• 1 x HDMI Cable
1 Air 7415B
2Air 7415B FEATURES
Front Panel Back Panel
EthernetS/PDIFA/V Out
1

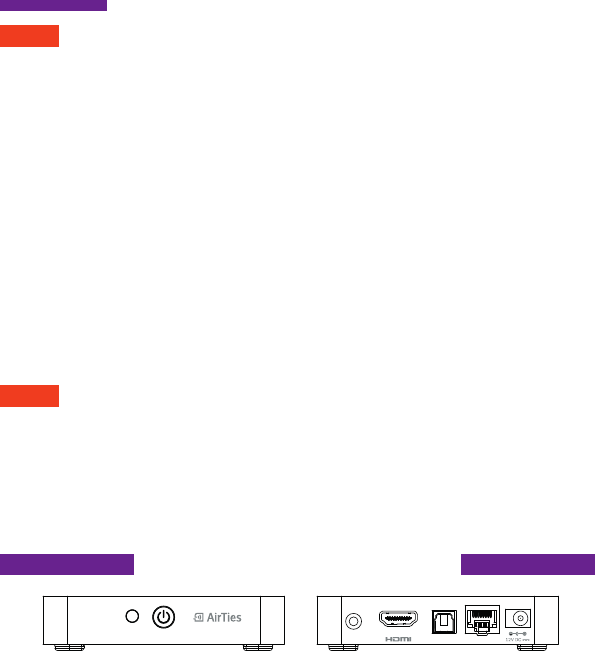

Please refer to the pictures below for front and rear panel interfaces.
There is a standby button on the front panel with dual-color LED. When
the device is not powered on, there will be no LED indication. When
powered on, the LED color will turn blue. In standby mode, LED color will
be red.
![](/img.php?id=3868517&img=bg4.png)
5. The “POWER” LED will light up indicating that the unit is now powered
up and ready for operation.
6. In order to display the video from Air 7415B, you may need to change
the settings on your television set so that its input matches to the
television’s physical connection to the Set-Top Box.
When you press the “POWER” button on your remote control, the
Air 7415B will go to standby mode.
If you are facing any problems with your device please contact your
Service Provider.

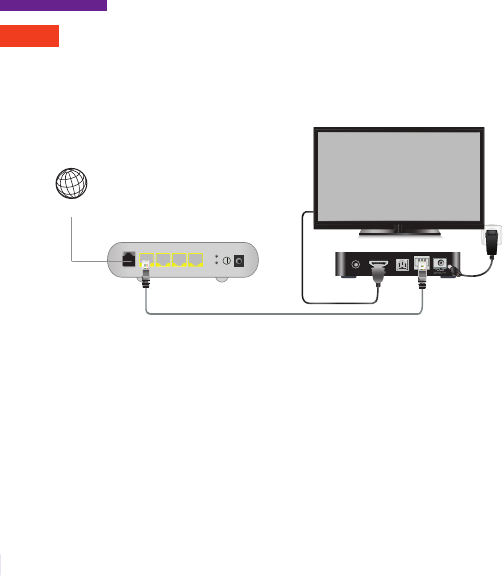

You can setup your Air 7415B quickly and easily by following the steps
below:
1. Place the batteries provided into the remote controller as shown inside
the battery room.
2. Connect the audio/video outputs of the Air 7415B to the audio/video
inputs of your television using HDMI cable provided with the product.
UHD video resolutions are only possible through the TV's HDMI ports
supporting UHD and HDCP2.2.
3. Connect the Ethernet cable provided with the product to Air 7415B.
4. Connect the power adapter provided to the wall outlet and connect
the other end to your Air 7415B.
Please refer to the safety instructions included in the product box.
EthernetS/PDIFA/V Out
MODEM Air 7415B
Reset
WIFI
12V
ETHERNET
4
ADSL
3 2 1
On/Off
INTERNET
3SETUP
2
![](/img.php?id=3868517&img=bg5.png)
This product makes use of software developed by the open source community. Any such software is licensed under
the specific license terms applicable to that particular software (like GPL, LGPL etc). Detailed information on the
applicable licenses and license terms can be found on the device's user interface.
By using this product, you acknowledge that you have reviewed such license terms and that you agree to be bound by
them. Where such terms entitle you to the source code of said software, that source code will be made available at
cost upon request from AirTies.
To obtain a copy of said source code, please send your request in writing via email to osrb@airties.com or via snail
mail to:
AirTies Wireless Communications
Mithat Uluünlü Sokak No. 23 Esentepe,
P.K. 34394 Şişli ISTANBUL/Turkey
AirTies will mail to you a CD with the requested source code at the cost of CD preparation and shipping&handling.
For details please contact osrb@airties.com
For more information:
http://www.airties.com/products
MP-0000066020
REV30032018
Video Properties
MPEG-2 : MP@HL/ML
H.264 : AVC MP/HP @L4.2
H.265 : HEVC Main Profile up to 4Kp60
VP9 : up to 4Kp60
Audio
AAC, Dolby Digital, Dolby Digital Plus, MPEG-1/2 Layers 1,2,3
I/O Ports
Front Panel: Power LED and IR receiver
Back Panel : A/V Out, HDMI Out, Ethernet, S/PDIF, DC Jack In
Device Specifications
Power Adapter: 100 - 240VAC, Output 12V 1A
Dimensions: 100x100x20mm
Storage Temperature/Humidity: -40°C to +70°C / 5% - 95%, non-condensing
Operating Temperature/Humidity: 0°C to +40°C / 10% - 85%, non-condensing
4SPECIFICATIONS
3
Dolby:
Manufactured under license from Dolby Laboratories
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
