AirVast Technology WN110 802.11b P3 Wireless LAN PCMCIA Card User Manual 802 11b WLAN P3 PCMCIA Card

AirVast Technology Inc. 802.11b P3 Wireless LAN PCMCIA Card 802 11b WLAN P3 PCMCIA Card

User Manual

880022..1111bb WWiirreelleessss LLAANN PPCCMMCCIIAA CCaarrdd WWNN--111100 User Manual Version 1.0

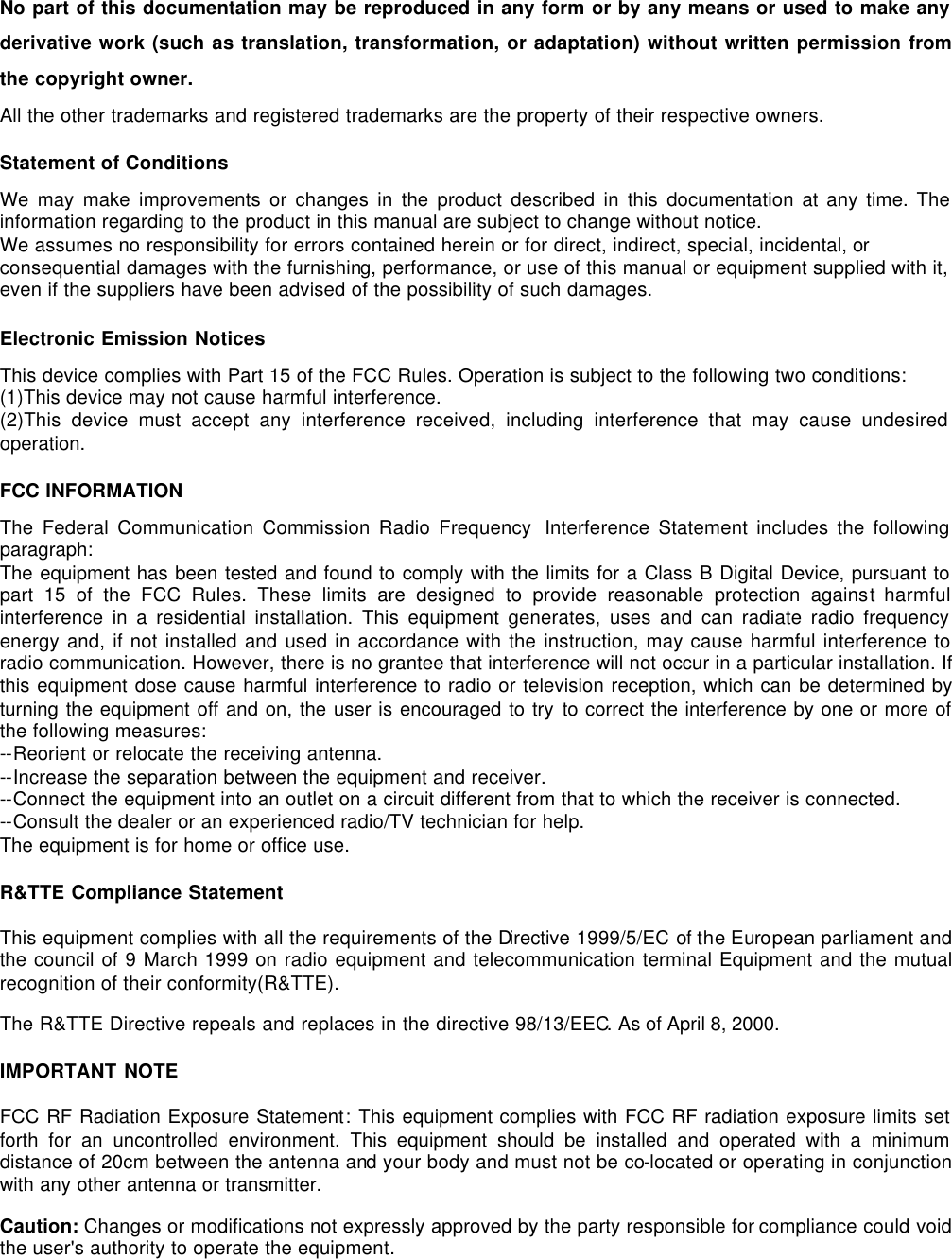

No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions We may make improvements or changes in the product described in this documentation at any time. The information regarding to the product in this manual are subject to change without notice. We assumes no responsibility for errors contained herein or for direct, indirect, special, incidental, or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if the suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment is for home or office use. R&TTE Compliance Statement This equipment complies with all the requirements of the Directive 1999/5/EC of the European parliament and the council of 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity(R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC. As of April 8, 2000. IMPORTANT NOTE FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the antenna and your body and must not be co-located or operating in conjunction with any other antenna or transmitter. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

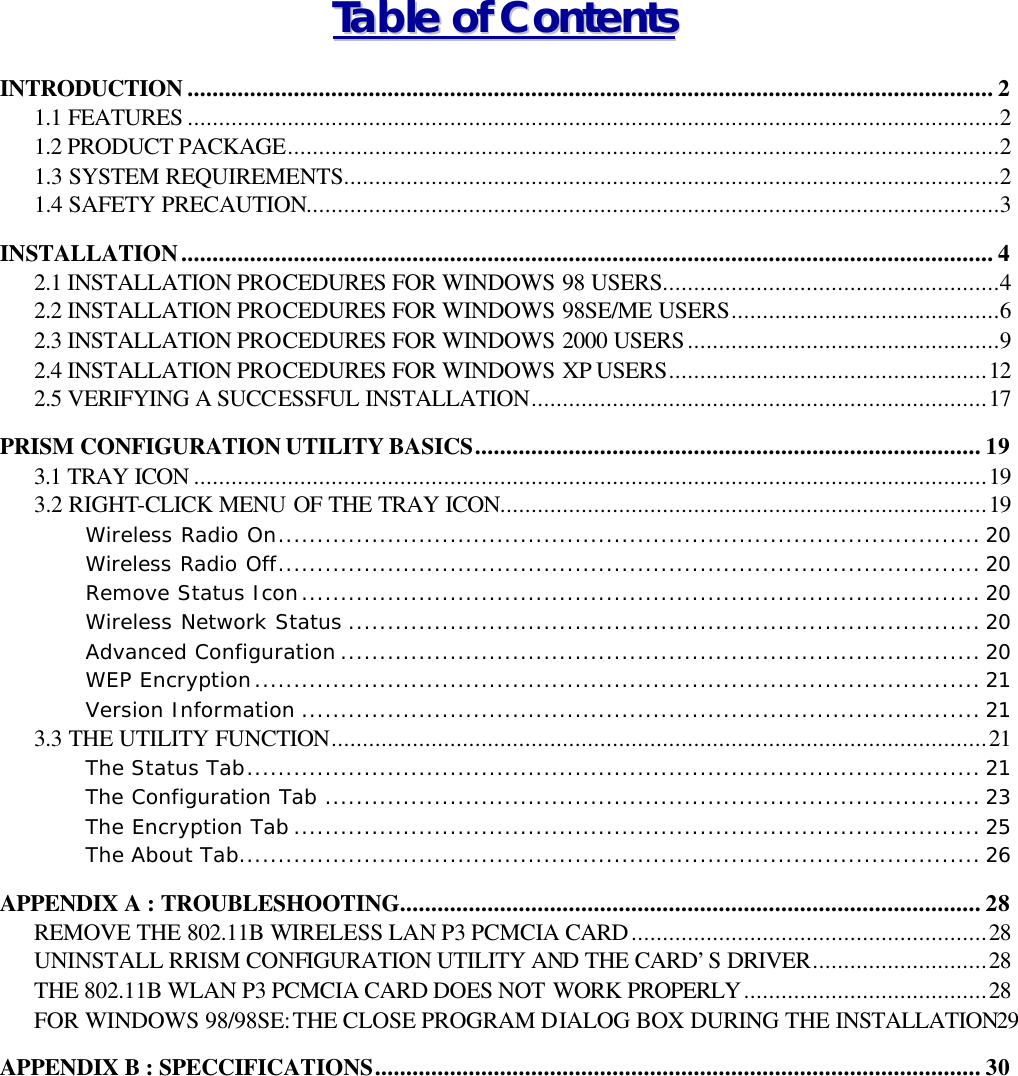

TTaabbllee ooff CCoonntteennttss INTRODUCTION ................................................................................................................................. 2 1.1 FEATURES ..................................................................................................................................2 1.2 PRODUCT PACKAGE..................................................................................................................2 1.3 SYSTEM REQUIREMENTS.........................................................................................................2 1.4 SAFETY PRECAUTION...............................................................................................................3 INSTALLATION.................................................................................................................................. 4 2.1 INSTALLATION PROCEDURES FOR WINDOWS 98 USERS......................................................4 2.2 INSTALLATION PROCEDURES FOR WINDOWS 98SE/ME USERS...........................................6 2.3 INSTALLATION PROCEDURES FOR WINDOWS 2000 USERS..................................................9 2.4 INSTALLATION PROCEDURES FOR WINDOWS XP USERS...................................................12 2.5 VERIFYING A SUCCESSFUL INSTALLATION.........................................................................17 PRISM CONFIGURATION UTILITY BASICS................................................................................. 19 3.1 TRAY ICON ...............................................................................................................................19 3.2 RIGHT-CLICK MENU OF THE TRAY ICON..............................................................................19 Wireless Radio On.......................................................................................... 20 Wireless Radio Off.......................................................................................... 20 Remove Status Icon....................................................................................... 20 Wireless Network Status ................................................................................. 20 Advanced Configuration .................................................................................. 20 WEP Encryption............................................................................................. 21 Version Information ....................................................................................... 21 3.3 THE UTILITY FUNCTION.........................................................................................................21 The Status Tab.............................................................................................. 21 The Configuration Tab .................................................................................... 23 The Encryption Tab ........................................................................................ 25 The About Tab............................................................................................... 26 APPENDIX A : TROUBLESHOOTING............................................................................................. 28 REMOVE THE 802.11B WIRELESS LAN P3 PCMCIA CARD.........................................................28 UNINSTALL RRISM CONFIGURATION UTILITY AND THE CARD’S DRIVER............................28 THE 802.11B WLAN P3 PCMCIA CARD DOES NOT WORK PROPERLY.......................................28 FOR WINDOWS 98/98SE: THE CLOSE PROGRAM DIALOG BOX DURING THE INSTALLATION29 APPENDIX B : SPECCIFICATIONS................................................................................................. 30

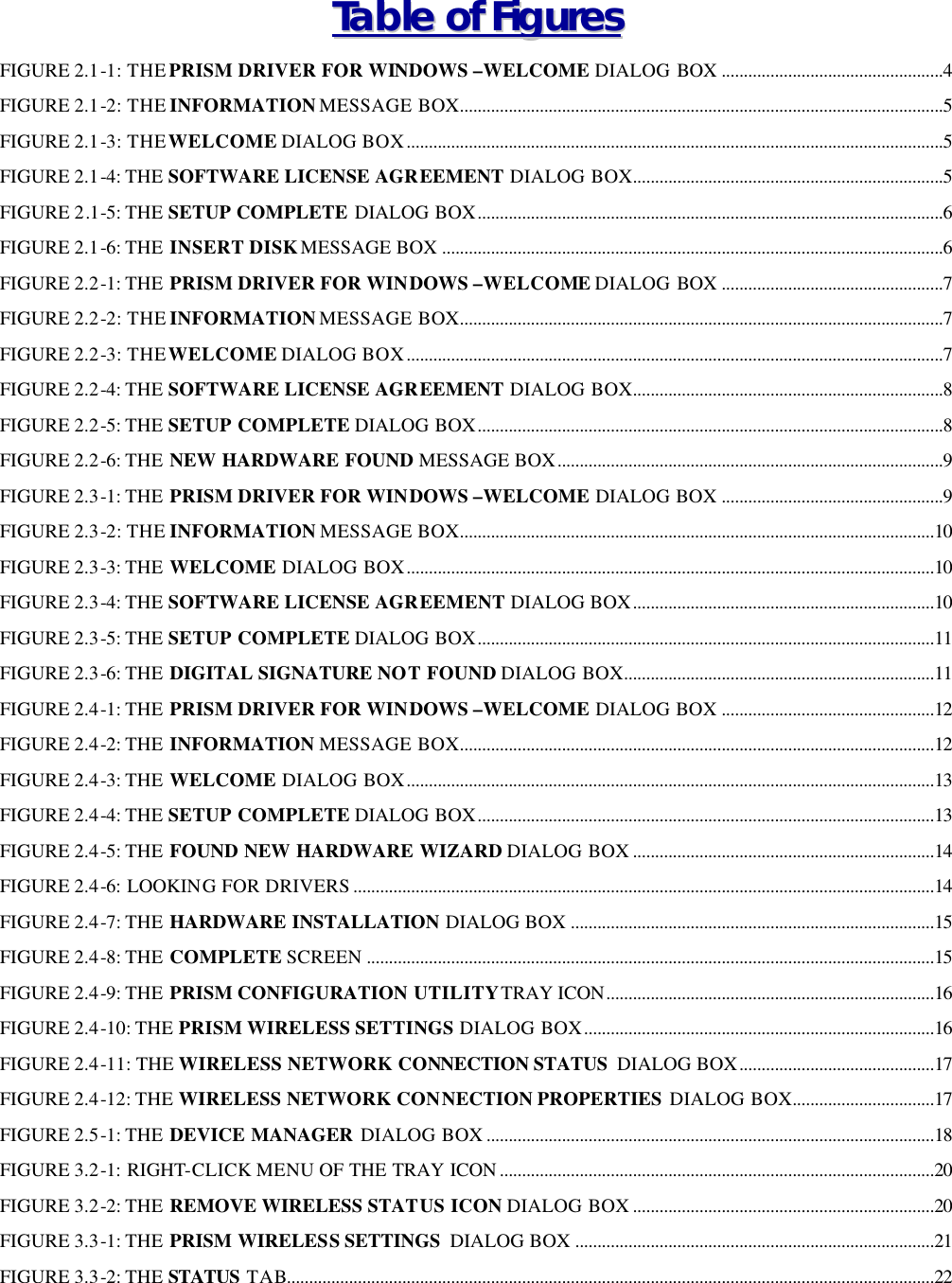

TTaabbllee ooff FFiigguurreess FIGURE 2.1-1: THE PRISM DRIVER FOR WINDOWS –WELCOME DIALOG BOX ..................................................4 FIGURE 2.1-2: THE INFORMATION MESSAGE BOX.............................................................................................................5 FIGURE 2.1-3: THE WELCOME DIALOG BOX.........................................................................................................................5 FIGURE 2.1-4: THE SOFTWARE LICENSE AGREEMENT DIALOG BOX......................................................................5 FIGURE 2.1-5: THE SETUP COMPLETE DIALOG BOX.........................................................................................................6 FIGURE 2.1-6: THE INSERT DISK MESSAGE BOX .................................................................................................................6 FIGURE 2.2-1: THE PRISM DRIVER FOR WINDOWS –WELCOME DIALOG BOX ..................................................7 FIGURE 2.2-2: THE INFORMATION MESSAGE BOX.............................................................................................................7 FIGURE 2.2-3: THE WELCOME DIALOG BOX.........................................................................................................................7 FIGURE 2.2-4: THE SOFTWARE LICENSE AGREEMENT DIALOG BOX......................................................................8 FIGURE 2.2-5: THE SETUP COMPLETE DIALOG BOX.........................................................................................................8 FIGURE 2.2-6: THE NEW HARDWARE FOUND MESSAGE BOX.......................................................................................9 FIGURE 2.3-1: THE PRISM DRIVER FOR WINDOWS –WELCOME DIALOG BOX ..................................................9 FIGURE 2.3-2: THE INFORMATION MESSAGE BOX...........................................................................................................10 FIGURE 2.3-3: THE WELCOME DIALOG BOX.......................................................................................................................10 FIGURE 2.3-4: THE SOFTWARE LICENSE AGREEMENT DIALOG BOX....................................................................10 FIGURE 2.3-5: THE SETUP COMPLETE DIALOG BOX.......................................................................................................11 FIGURE 2.3-6: THE DIGITAL SIGNATURE NOT FOUND DIALOG BOX......................................................................11 FIGURE 2.4-1: THE PRISM DRIVER FOR WINDOWS –WELCOME DIALOG BOX ................................................12 FIGURE 2.4-2: THE INFORMATION MESSAGE BOX...........................................................................................................12 FIGURE 2.4-3: THE WELCOME DIALOG BOX.......................................................................................................................13 FIGURE 2.4-4: THE SETUP COMPLETE DIALOG BOX.......................................................................................................13 FIGURE 2.4-5: THE FOUND NEW HARDWARE WIZARD DIALOG BOX ....................................................................14 FIGURE 2.4-6: LOOKING FOR DRIVERS ...................................................................................................................................14 FIGURE 2.4-7: THE HARDWARE INSTALLATION DIALOG BOX ..................................................................................15 FIGURE 2.4-8: THE COMPLETE SCREEN ................................................................................................................................15 FIGURE 2.4-9: THE PRISM CONFIGURATION UTILITY TRAY ICON..........................................................................16 FIGURE 2.4-10: THE PRISM WIRELESS SETTINGS DIALOG BOX...............................................................................16 FIGURE 2.4-11: THE WIRELESS NETWORK CONNECTION STATUS DIALOG BOX............................................17 FIGURE 2.4-12: THE WIRELESS NETWORK CONNECTION PROPERTIES DIALOG BOX................................17 FIGURE 2.5-1: THE DEVICE MANAGER DIALOG BOX .....................................................................................................18 FIGURE 3.2-1: RIGHT-CLICK MENU OF THE TRAY ICON ..................................................................................................20 FIGURE 3.2-2: THE REMOVE WIRELESS STATUS ICON DIALOG BOX ....................................................................20 FIGURE 3.3-1: THE PRISM WIRELESS SETTINGS DIALOG BOX .................................................................................21 FIGURE 3.3-2: THE STATUS TAB..................................................................................................................................................22

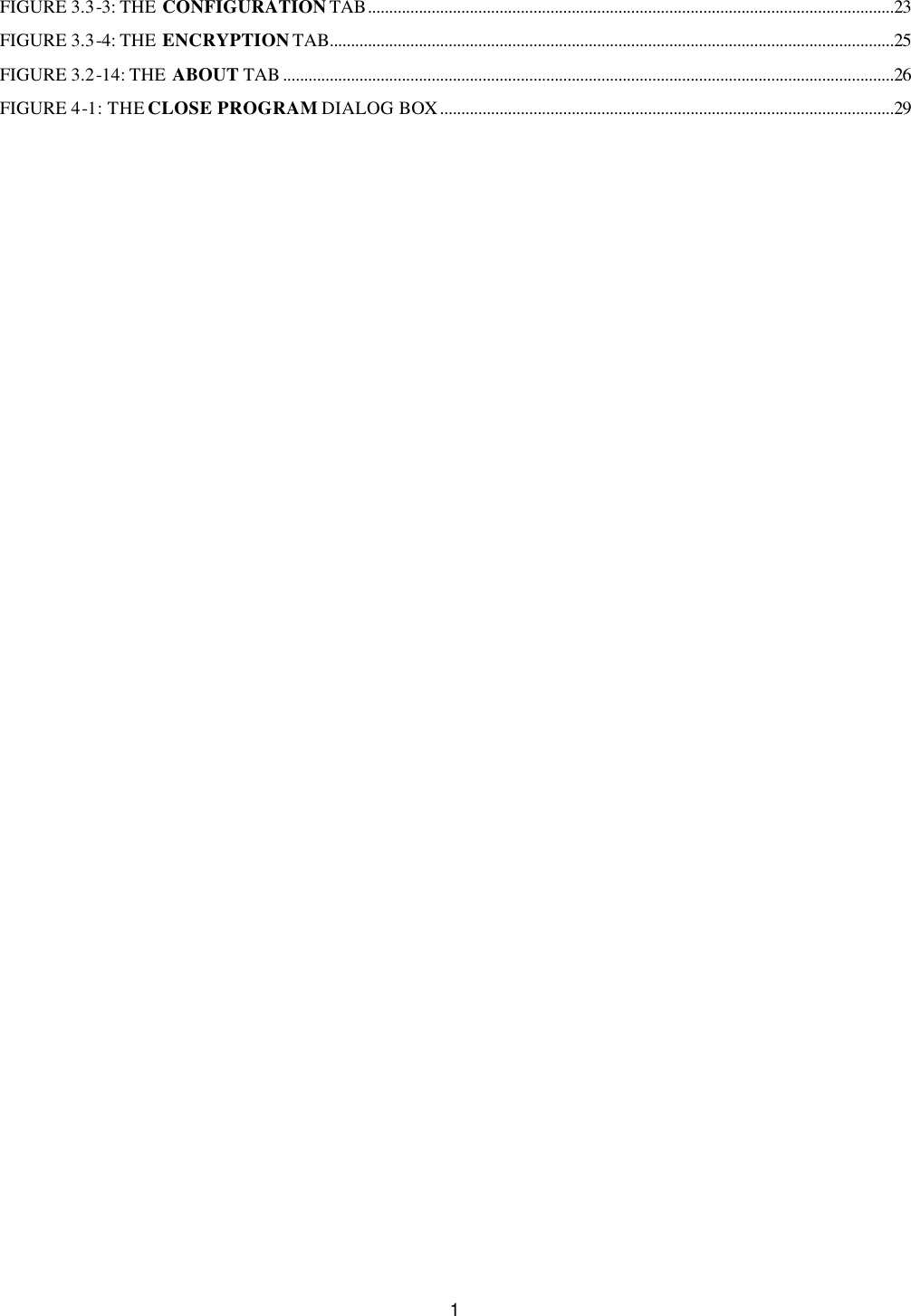

1 FIGURE 3.3-3: THE CONFIGURATION TAB............................................................................................................................23 FIGURE 3.3-4: THE ENCRYPTION TAB.....................................................................................................................................25 FIGURE 3.2-14: THE ABOUT TAB ................................................................................................................................................26 FIGURE 4-1: THE CLOSE PROGRAM DIALOG BOX ...........................................................................................................29

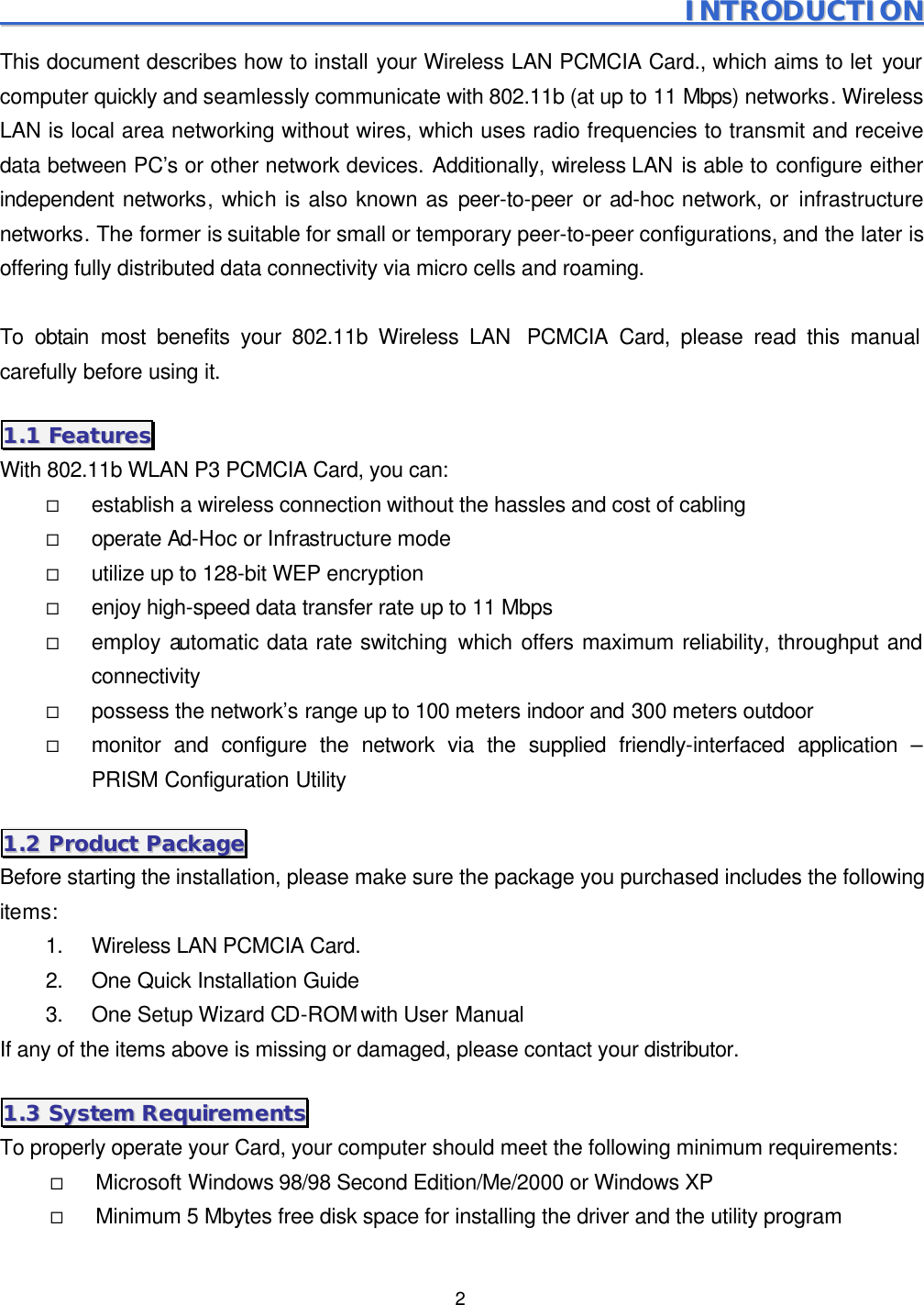

2 IINNTTRROODDUUCCTTIIOONN This document describes how to install your Wireless LAN PCMCIA Card., which aims to let your computer quickly and seamlessly communicate with 802.11b (at up to 11 Mbps) networks. Wireless LAN is local area networking without wires, which uses radio frequencies to transmit and receive data between PC’s or other network devices. Additionally, wireless LAN is able to configure either independent networks, which is also known as peer-to-peer or ad-hoc network, or infrastructure networks. The former is suitable for small or temporary peer-to-peer configurations, and the later is offering fully distributed data connectivity via micro cells and roaming. To obtain most benefits your 802.11b Wireless LAN PCMCIA Card, please read this manual carefully before using it. 11..11 FFeeaattuurreess With 802.11b WLAN P3 PCMCIA Card, you can: ¨ establish a wireless connection without the hassles and cost of cabling ¨ operate Ad-Hoc or Infrastructure mode ¨ utilize up to 128-bit WEP encryption ¨ enjoy high-speed data transfer rate up to 11 Mbps ¨ employ automatic data rate switching which offers maximum reliability, throughput and connectivity ¨ possess the network’s range up to 100 meters indoor and 300 meters outdoor ¨ monitor and configure the network via the supplied friendly-interfaced application – PRISM Configuration Utility 11..22 PPrroodduucctt PPaacckkaaggee Before starting the installation, please make sure the package you purchased includes the following items: 1. Wireless LAN PCMCIA Card. 2. One Quick Installation Guide 3. One Setup Wizard CD-ROM with User Manual If any of the items above is missing or damaged, please contact your distributor. 11..33 SSyysstteemm RReeqquuiirreemmeennttss To properly operate your Card, your computer should meet the following minimum requirements: ¨ Microsoft Windows 98/98 Second Edition/Me/2000 or Windows XP ¨ Minimum 5 Mbytes free disk space for installing the driver and the utility program

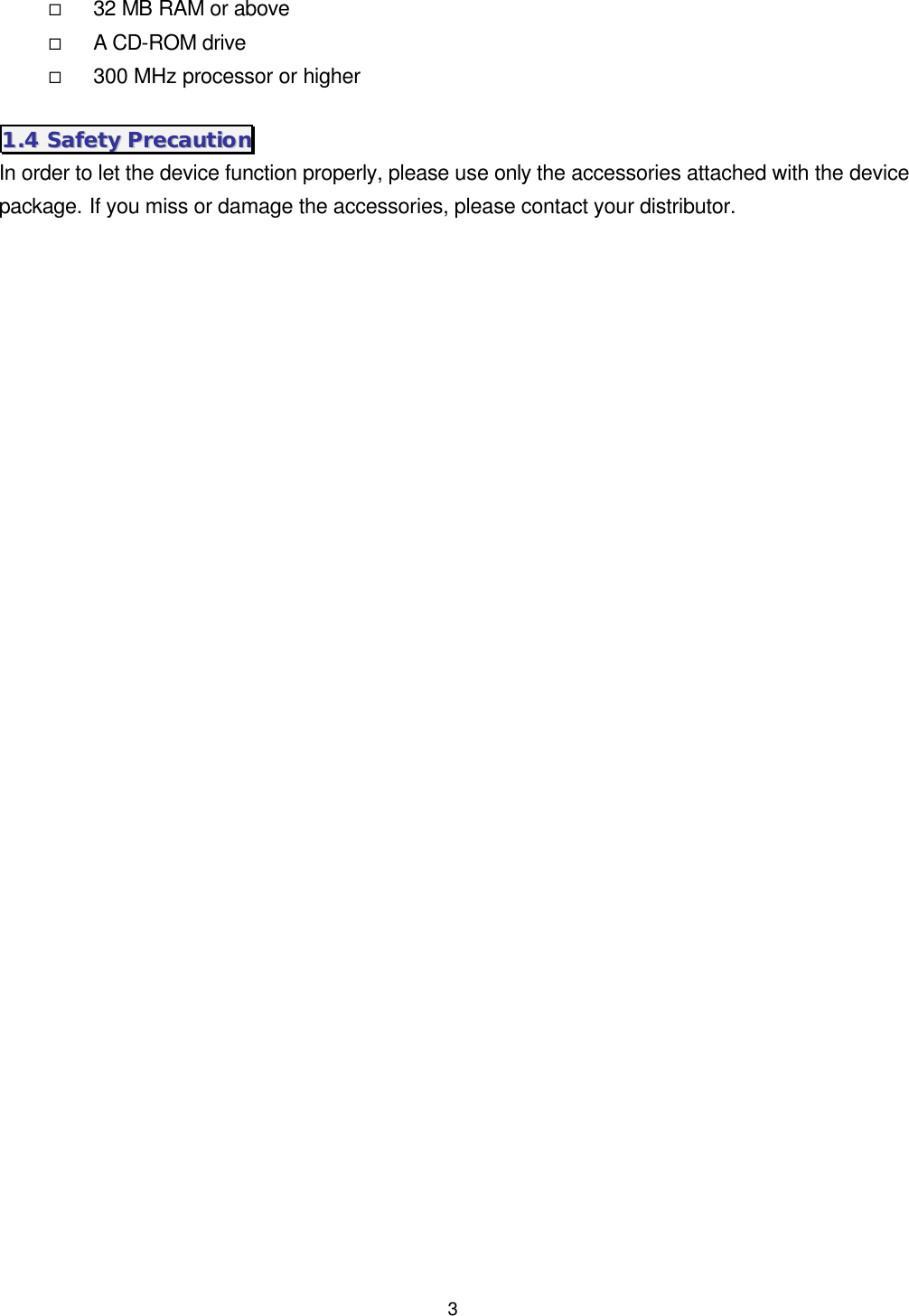

3 ¨ 32 MB RAM or above ¨ A CD-ROM drive ¨ 300 MHz processor or higher 11..44 SSaaffeettyy PPrreeccaauuttiioonn In order to let the device function properly, please use only the accessories attached with the device package. If you miss or damage the accessories, please contact your distributor.

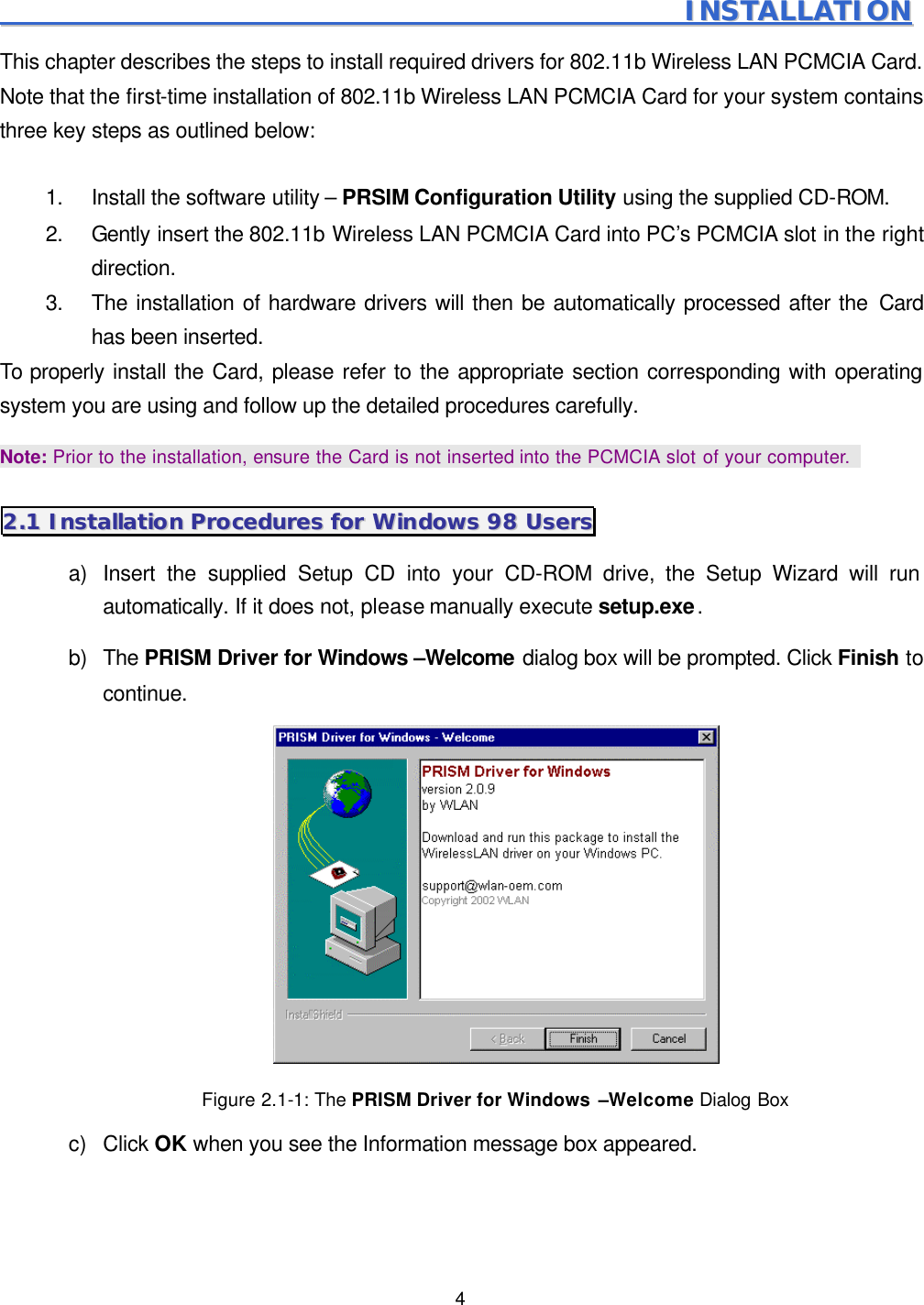

4 IINNSSTTAALLLLAATTIIOONN This chapter describes the steps to install required drivers for 802.11b Wireless LAN PCMCIA Card. Note that the first-time installation of 802.11b Wireless LAN PCMCIA Card for your system contains three key steps as outlined below: 1. Install the software utility – PRSIM Configuration Utility using the supplied CD-ROM. 2. Gently insert the 802.11b Wireless LAN PCMCIA Card into PC’s PCMCIA slot in the right direction. 3. The installation of hardware drivers will then be automatically processed after the Card has been inserted. To properly install the Card, please refer to the appropriate section corresponding with operating system you are using and follow up the detailed procedures carefully. Note: Prior to the installation, ensure the Card is not inserted into the PCMCIA slot of your computer. 22..11 IInnssttaallllaattiioonn PPrroocceedduurreess ffoorr WWiinnddoowwss 9988 UUsseerrss a) Insert the supplied Setup CD into your CD-ROM drive, the Setup Wizard will run automatically. If it does not, please manually execute setup.exe. b) The PRISM Driver for Windows –Welcome dialog box will be prompted. Click Finish to continue. Figure 2.1-1: The PRISM Driver for Windows –Welcome Dialog Box c) Click OK when you see the Information message box appeared.

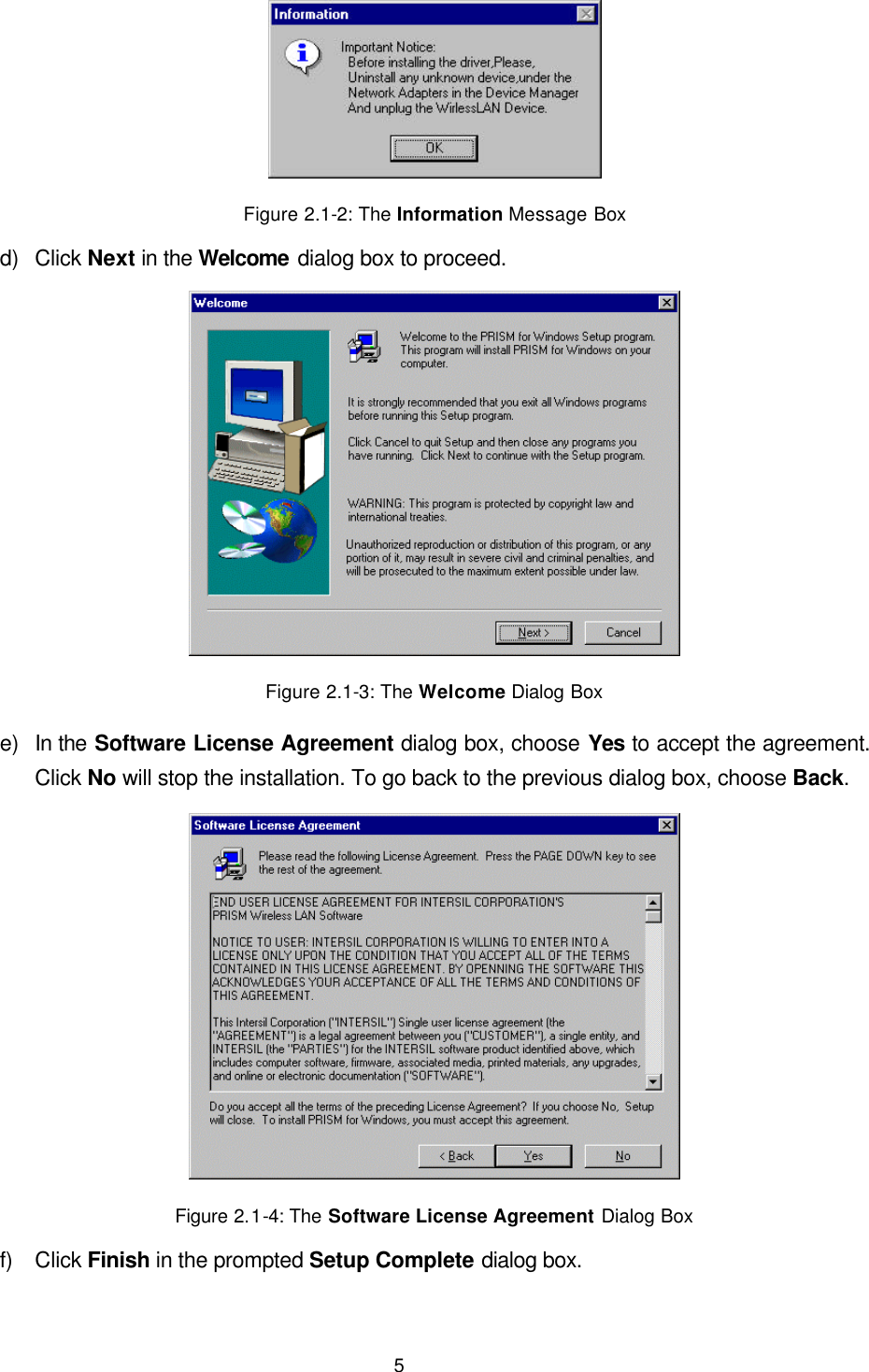

5 Figure 2.1-2: The Information Message Box d) Click Next in the Welcome dialog box to proceed. Figure 2.1-3: The Welcome Dialog Box e) In the Software License Agreement dialog box, choose Yes to accept the agreement. Click No will stop the installation. To go back to the previous dialog box, choose Back. Figure 2.1-4: The Software License Agreement Dialog Box f) Click Finish in the prompted Setup Complete dialog box.

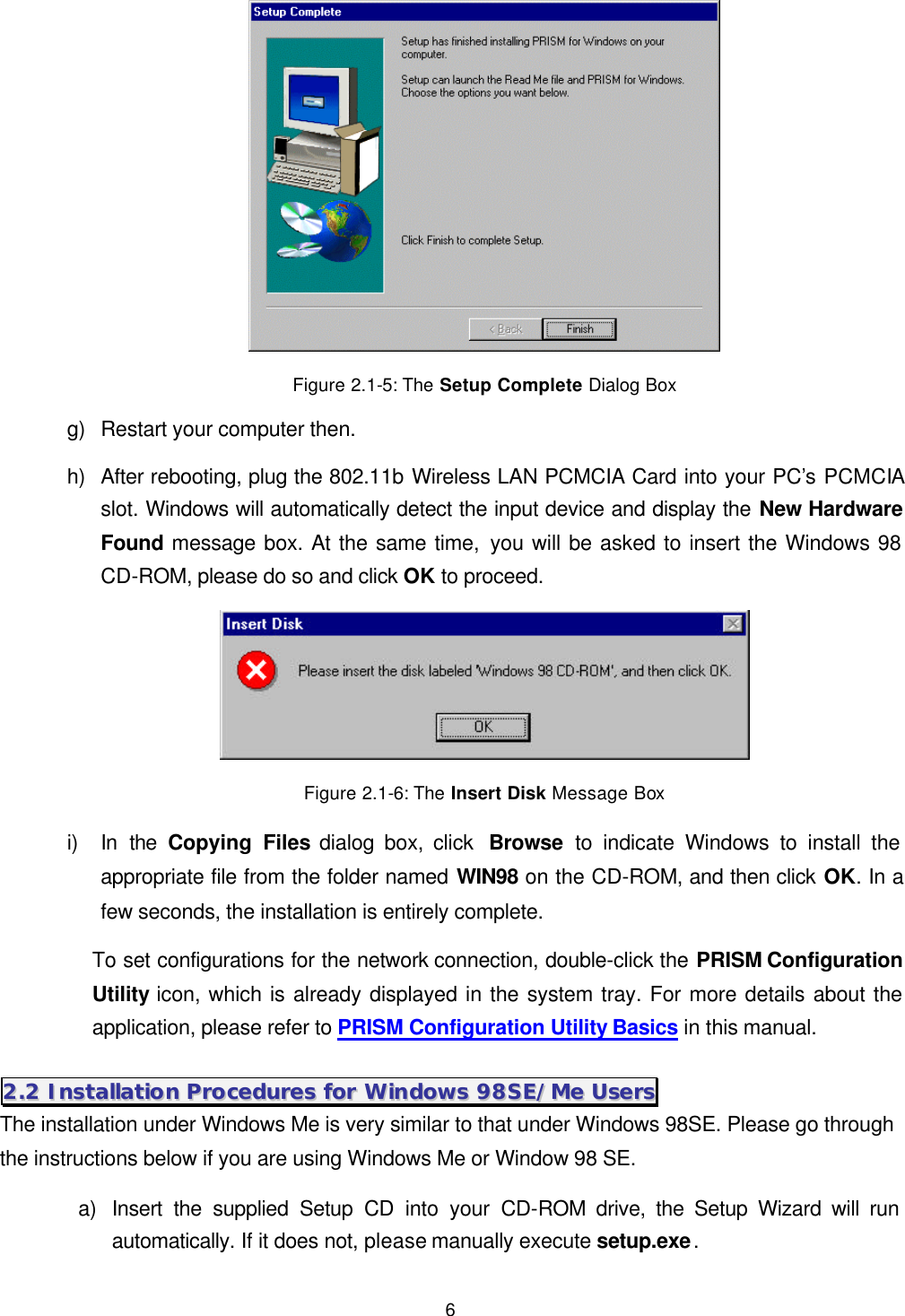

6 Figure 2.1-5: The Setup Complete Dialog Box g) Restart your computer then. h) After rebooting, plug the 802.11b Wireless LAN PCMCIA Card into your PC’s PCMCIA slot. Windows will automatically detect the input device and display the New Hardware Found message box. At the same time, you will be asked to insert the Windows 98 CD-ROM, please do so and click OK to proceed. Figure 2.1-6: The Insert Disk Message Box i) In the Copying Files dialog box, click Browse to indicate Windows to install the appropriate file from the folder named WIN98 on the CD-ROM, and then click OK. In a few seconds, the installation is entirely complete. To set configurations for the network connection, double-click the PRISM Configuration Utility icon, which is already displayed in the system tray. For more details about the application, please refer to PRISM Configuration Utility Basics in this manual. 22..22 IInnssttaallllaattiioonn PPrroocceedduurreess ffoorr WWiinnddoowwss 9988SSEE//MMee UUsseerrss The installation under Windows Me is very similar to that under Windows 98SE. Please go through the instructions below if you are using Windows Me or Window 98 SE. a) Insert the supplied Setup CD into your CD-ROM drive, the Setup Wizard will run automatically. If it does not, please manually execute setup.exe.

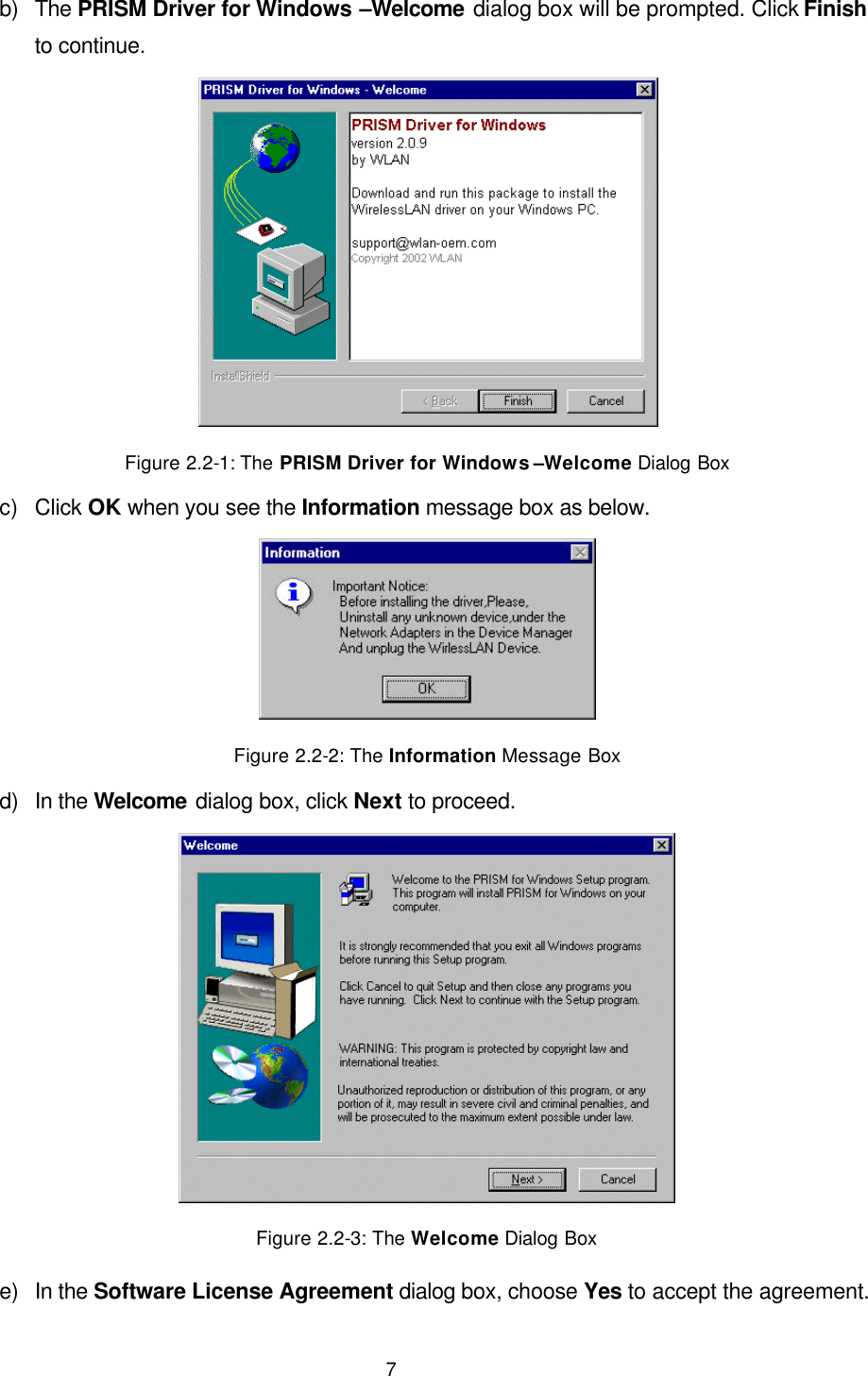

7 b) The PRISM Driver for Windows –Welcome dialog box will be prompted. Click Finish to continue. Figure 2.2-1: The PRISM Driver for Windows –Welcome Dialog Box c) Click OK when you see the Information message box as below. Figure 2.2-2: The Information Message Box d) In the Welcome dialog box, click Next to proceed. Figure 2.2-3: The Welcome Dialog Box e) In the Software License Agreement dialog box, choose Yes to accept the agreement.

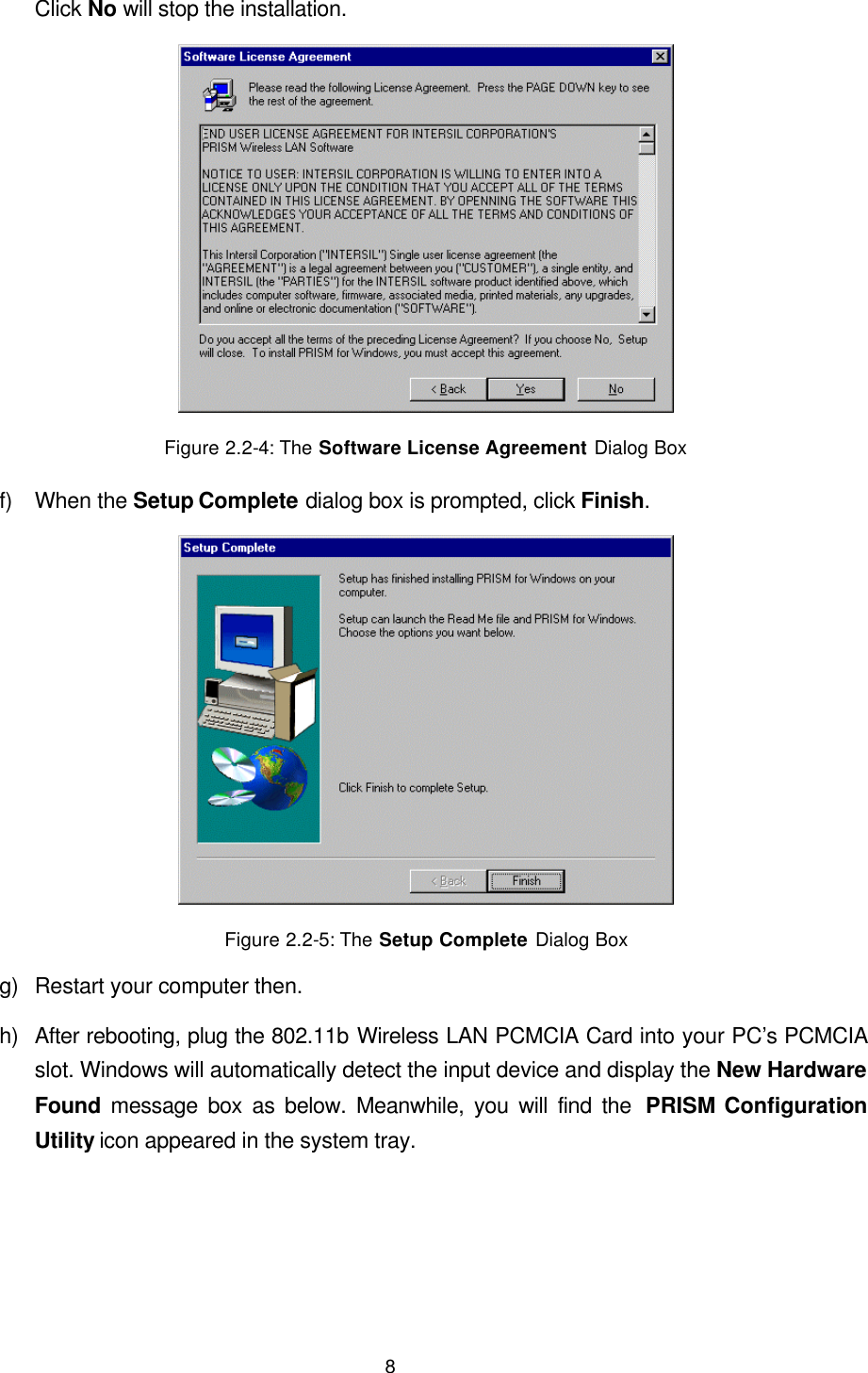

8 Click No will stop the installation. Figure 2.2-4: The Software License Agreement Dialog Box f) When the Setup Complete dialog box is prompted, click Finish. Figure 2.2-5: The Setup Complete Dialog Box g) Restart your computer then. h) After rebooting, plug the 802.11b Wireless LAN PCMCIA Card into your PC’s PCMCIA slot. Windows will automatically detect the input device and display the New Hardware Found message box as below. Meanwhile, you will find the PRISM Configuration Utility icon appeared in the system tray.

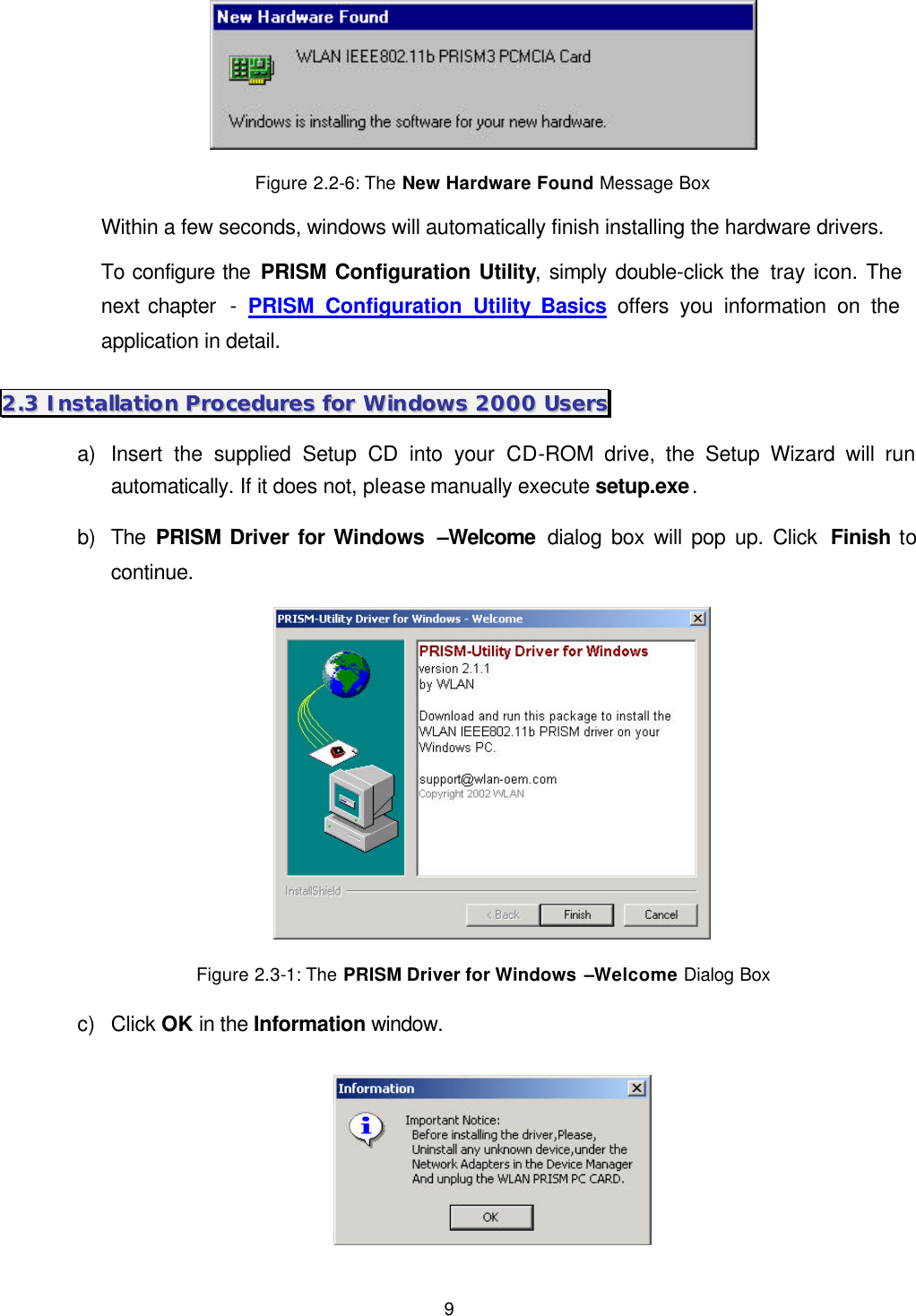

9 Figure 2.2-6: The New Hardware Found Message Box Within a few seconds, windows will automatically finish installing the hardware drivers. To configure the PRISM Configuration Utility, simply double-click the tray icon. The next chapter - PRISM Configuration Utility Basics offers you information on the application in detail. 22..33 IInnssttaallllaattiioonn PPrroocceedduurreess ffoorr WWiinnddoowwss 22000000 UUsseerrss a) Insert the supplied Setup CD into your CD-ROM drive, the Setup Wizard will run automatically. If it does not, please manually execute setup.exe. b) The PRISM Driver for Windows –Welcome dialog box will pop up. Click Finish to continue. Figure 2.3-1: The PRISM Driver for Windows –Welcome Dialog Box c) Click OK in the Information window.

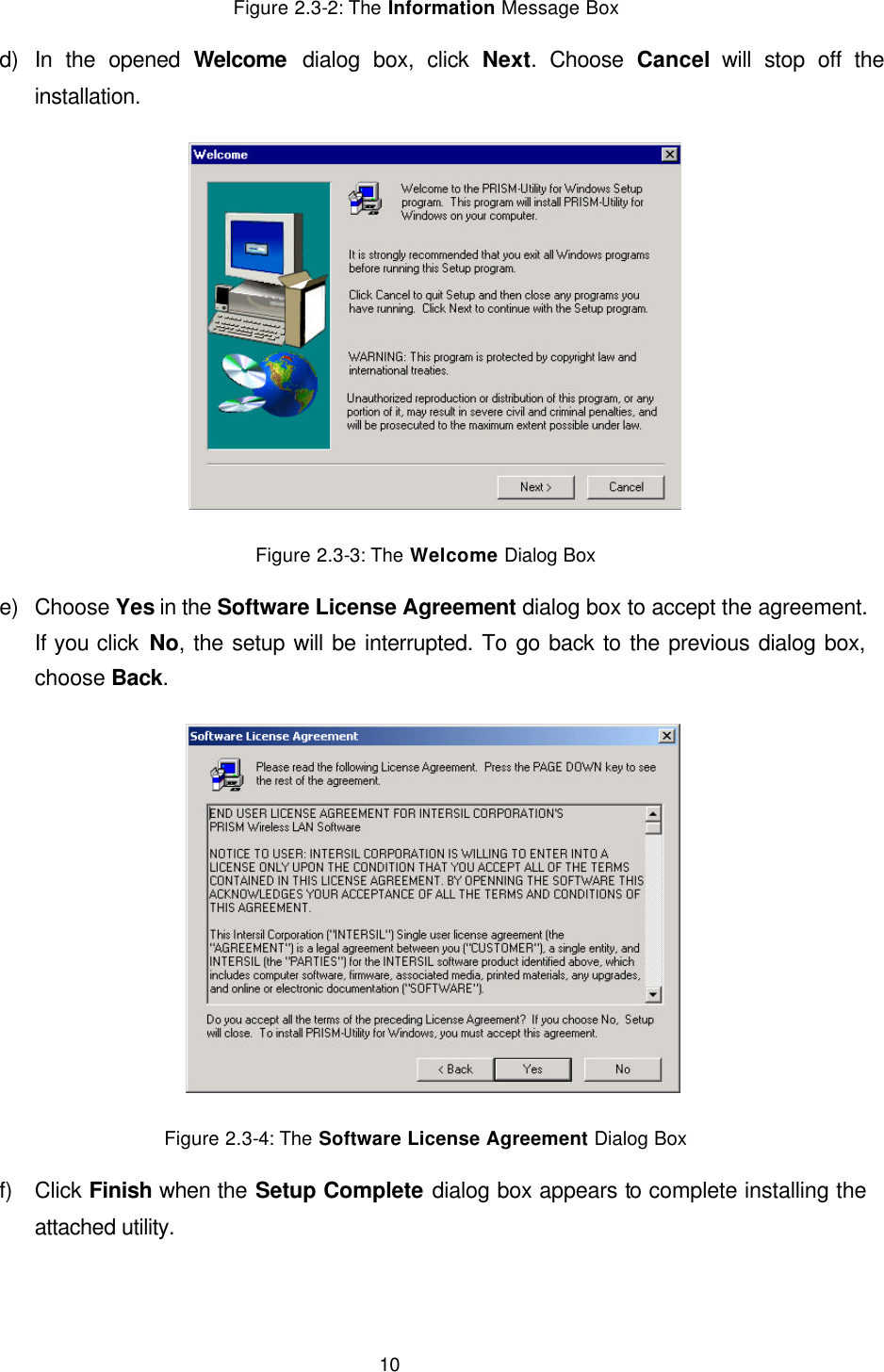

10 Figure 2.3-2: The Information Message Box d) In the opened Welcome dialog box, click Next. Choose Cancel will stop off the installation. Figure 2.3-3: The Welcome Dialog Box e) Choose Yes in the Software License Agreement dialog box to accept the agreement. If you click No, the setup will be interrupted. To go back to the previous dialog box, choose Back. Figure 2.3-4: The Software License Agreement Dialog Box f) Click Finish when the Setup Complete dialog box appears to complete installing the attached utility.

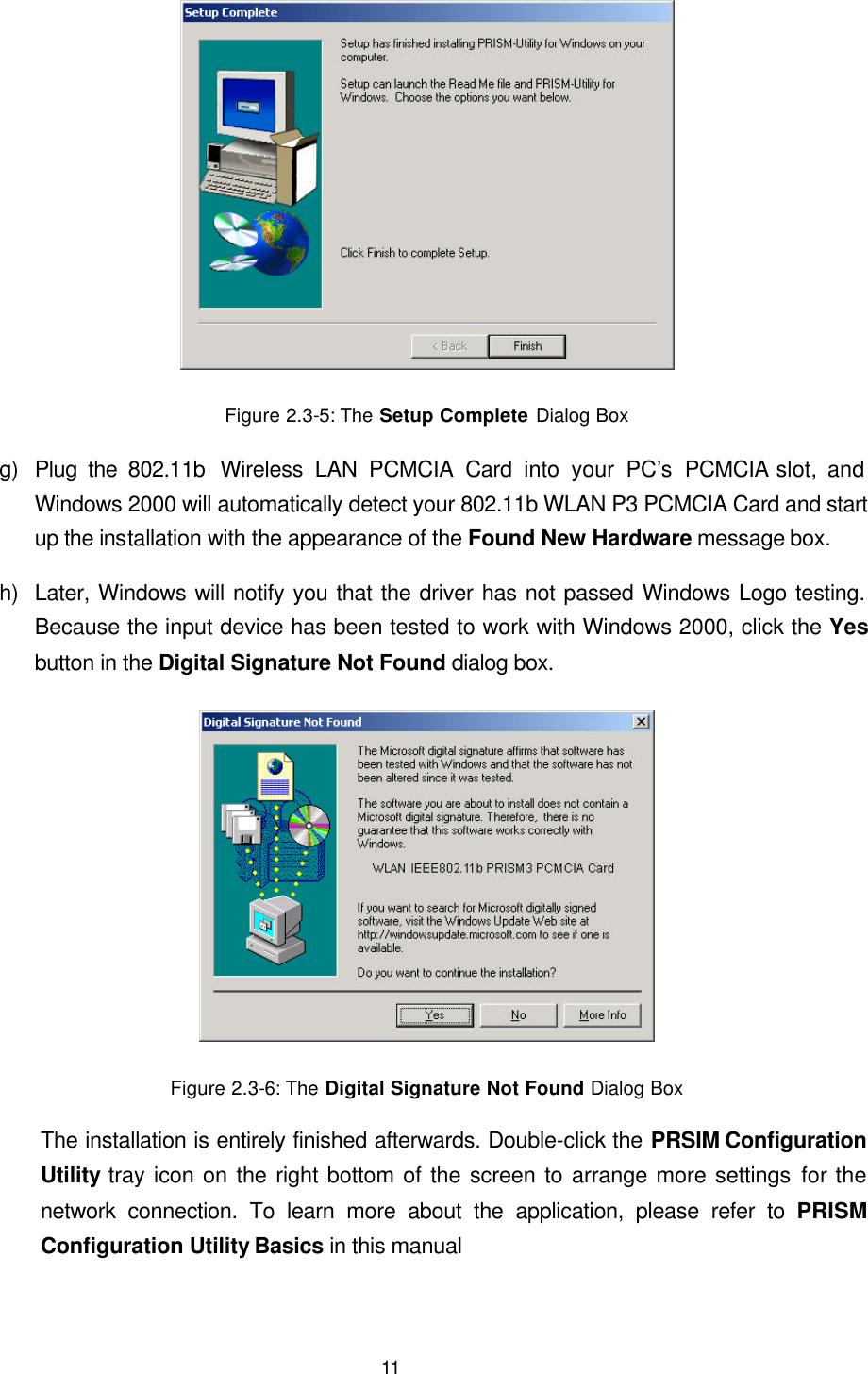

11 Figure 2.3-5: The Setup Complete Dialog Box g) Plug the 802.11b Wireless LAN PCMCIA Card into your PC’s PCMCIA slot, and Windows 2000 will automatically detect your 802.11b WLAN P3 PCMCIA Card and start up the installation with the appearance of the Found New Hardware message box. h) Later, Windows will notify you that the driver has not passed Windows Logo testing. Because the input device has been tested to work with Windows 2000, click the Yes button in the Digital Signature Not Found dialog box. Figure 2.3-6: The Digital Signature Not Found Dialog Box The installation is entirely finished afterwards. Double-click the PRSIM Configuration Utility tray icon on the right bottom of the screen to arrange more settings for the network connection. To learn more about the application, please refer to PRISM Configuration Utility Basics in this manual

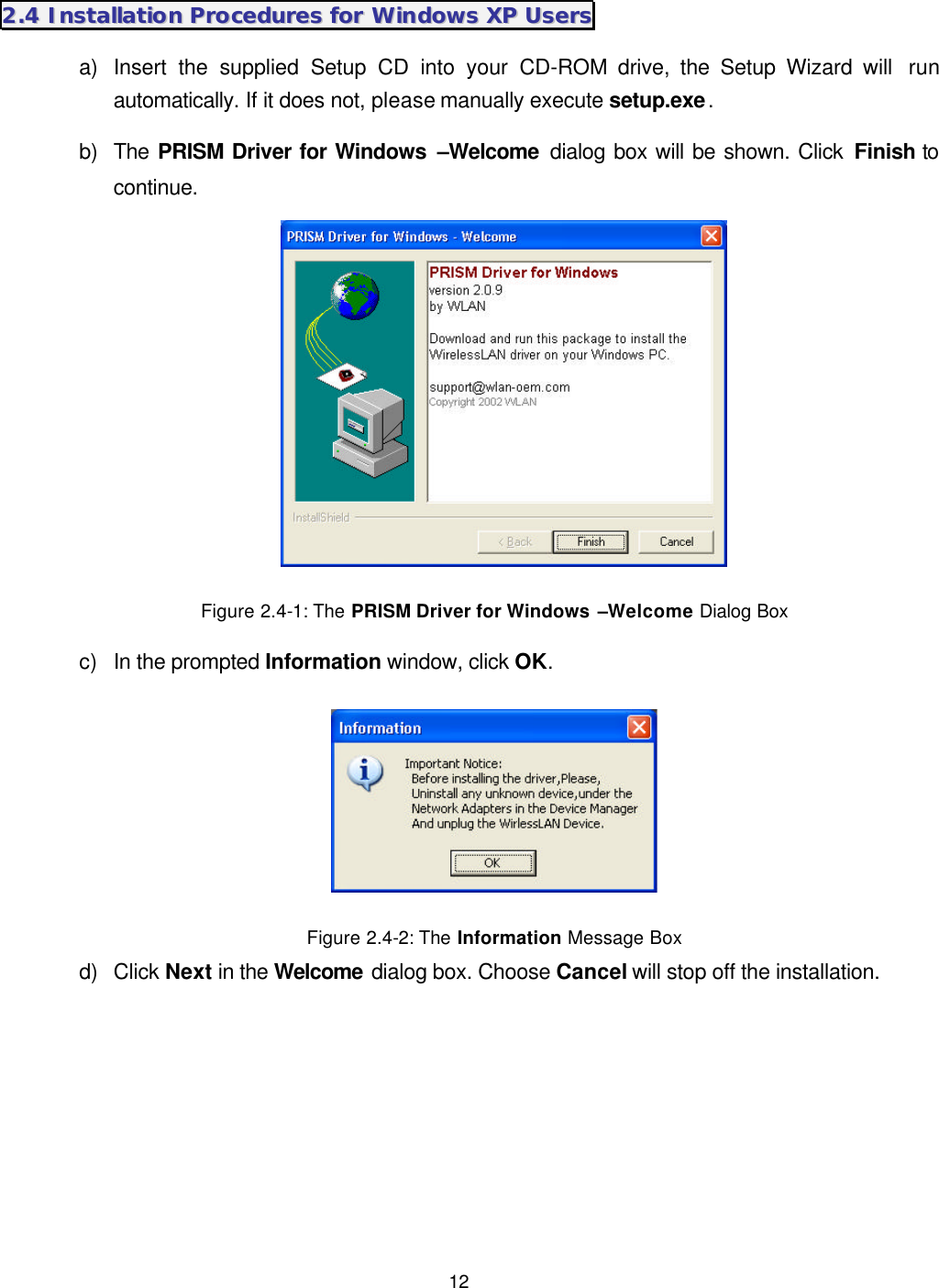

12 22..44 IInnssttaallllaattiioonn PPrroocceedduurreess ffoorr WWiinnddoowwss XXPP UUsseerrss a) Insert the supplied Setup CD into your CD-ROM drive, the Setup Wizard will run automatically. If it does not, please manually execute setup.exe. b) The PRISM Driver for Windows –Welcome dialog box will be shown. Click Finish to continue. Figure 2.4-1: The PRISM Driver for Windows –Welcome Dialog Box c) In the prompted Information window, click OK. Figure 2.4-2: The Information Message Box d) Click Next in the Welcome dialog box. Choose Cancel will stop off the installation.

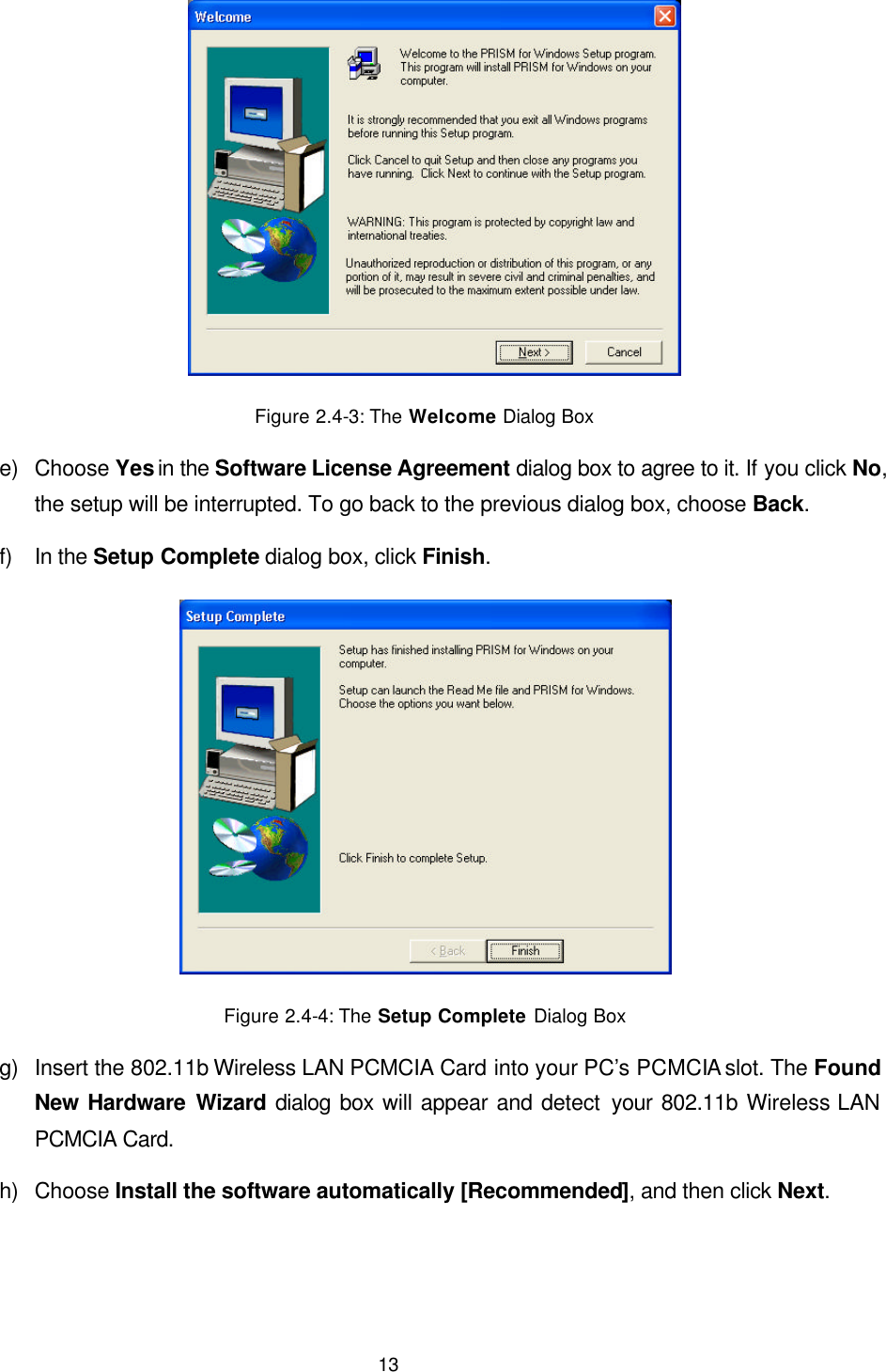

13 Figure 2.4-3: The Welcome Dialog Box e) Choose Yes in the Software License Agreement dialog box to agree to it. If you click No, the setup will be interrupted. To go back to the previous dialog box, choose Back. f) In the Setup Complete dialog box, click Finish. Figure 2.4-4: The Setup Complete Dialog Box g) Insert the 802.11b Wireless LAN PCMCIA Card into your PC’s PCMCIA slot. The Found New Hardware Wizard dialog box will appear and detect your 802.11b Wireless LAN PCMCIA Card. h) Choose Install the software automatically [Recommended], and then click Next.

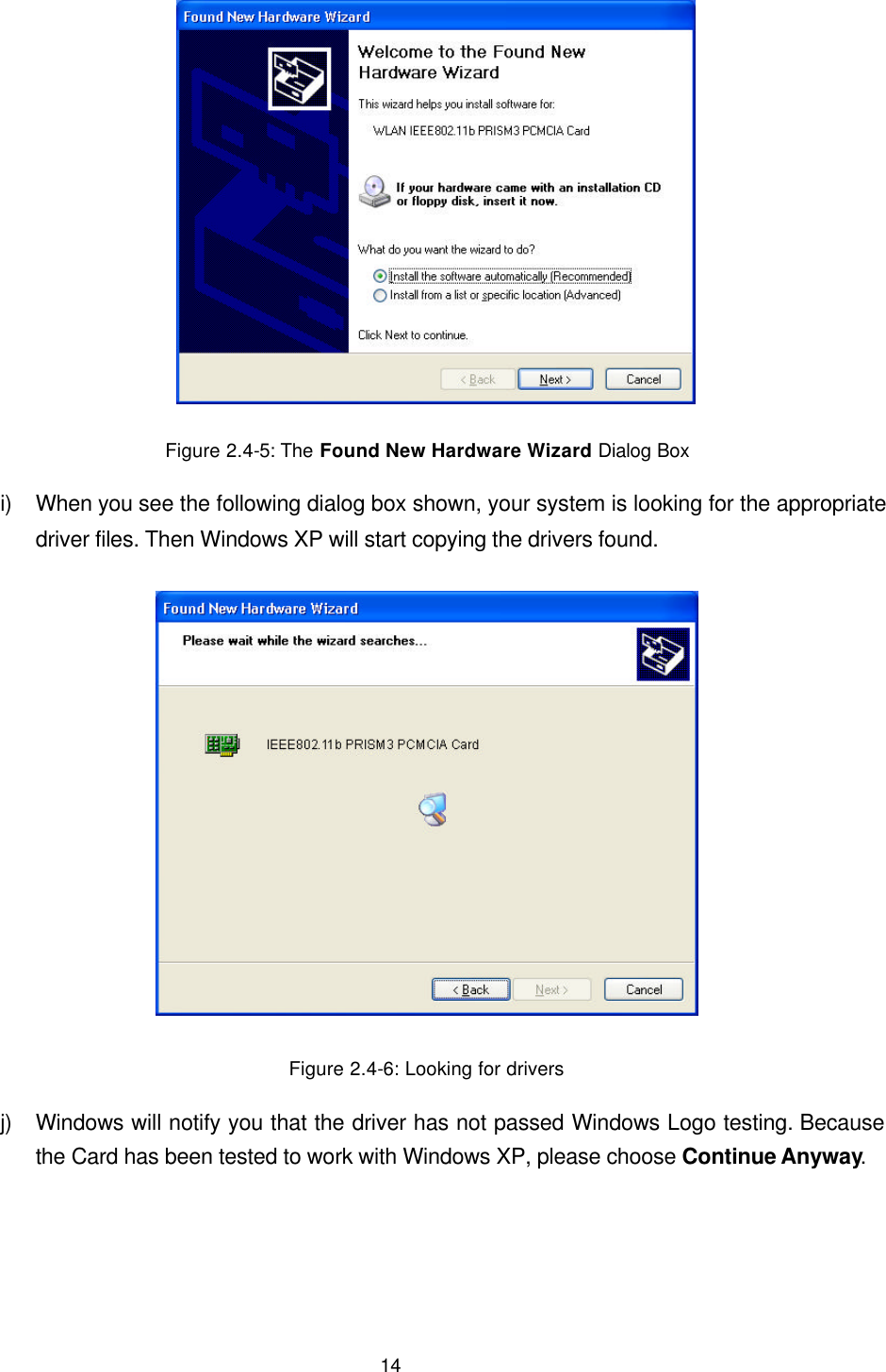

14 Figure 2.4-5: The Found New Hardware Wizard Dialog Box i) When you see the following dialog box shown, your system is looking for the appropriate driver files. Then Windows XP will start copying the drivers found. Figure 2.4-6: Looking for drivers j) Windows will notify you that the driver has not passed Windows Logo testing. Because the Card has been tested to work with Windows XP, please choose Continue Anyway.

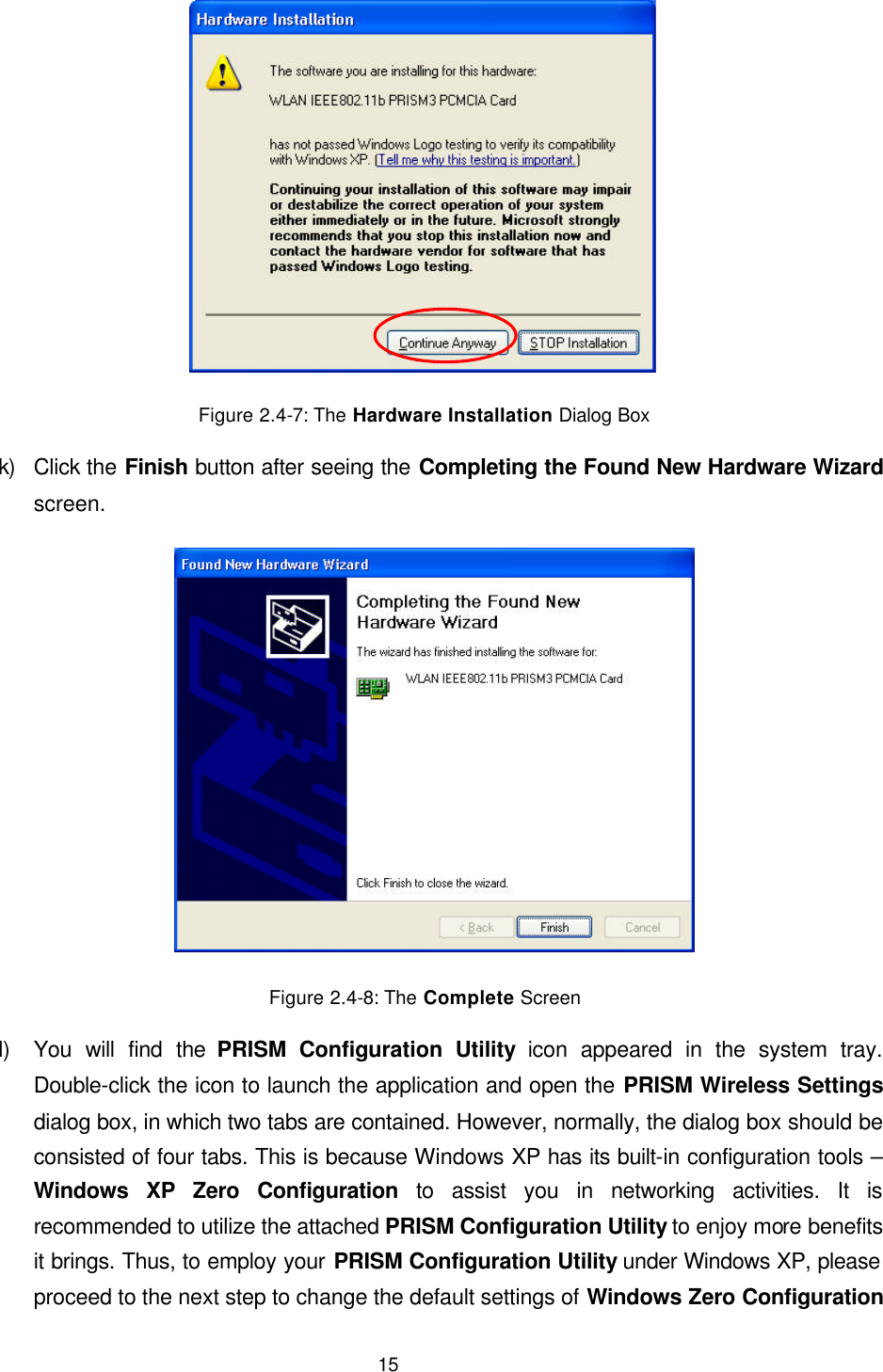

15 Figure 2.4-7: The Hardware Installation Dialog Box k) Click the Finish button after seeing the Completing the Found New Hardware Wizard screen. Figure 2.4-8: The Complete Screen l) You will find the PRISM Configuration Utility icon appeared in the system tray. Double-click the icon to launch the application and open the PRISM Wireless Settings dialog box, in which two tabs are contained. However, normally, the dialog box should be consisted of four tabs. This is because Windows XP has its built-in configuration tools – Windows XP Zero Configuration to assist you in networking activities. It is recommended to utilize the attached PRISM Configuration Utility to enjoy more benefits it brings. Thus, to employ your PRISM Configuration Utility under Windows XP, please proceed to the next step to change the default settings of Windows Zero Configuration

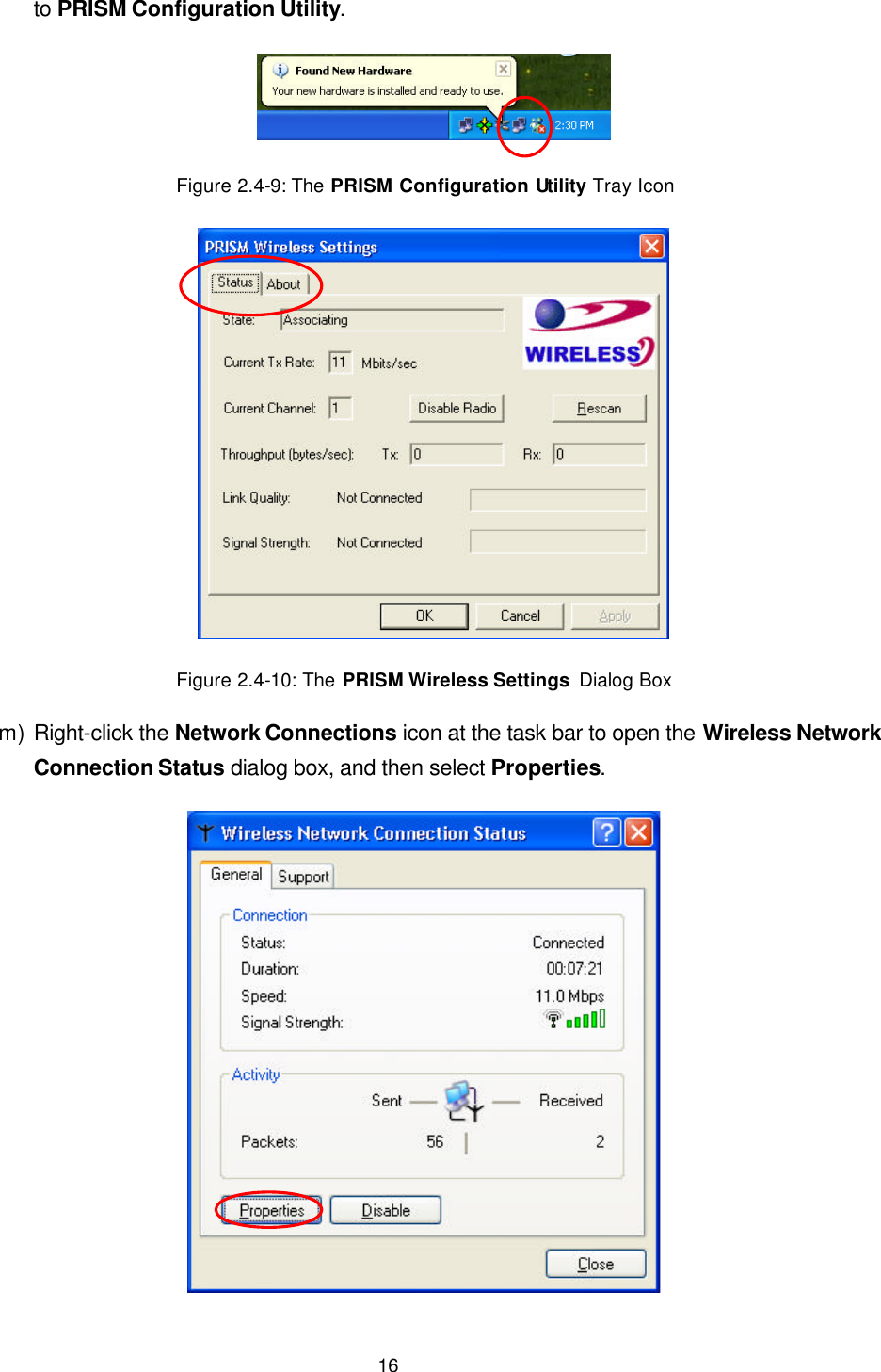

16 to PRISM Configuration Utility. Figure 2.4-9: The PRISM Configuration Utility Tray Icon Figure 2.4-10: The PRISM Wireless Settings Dialog Box m) Right-click the Network Connections icon at the task bar to open the Wireless Network Connection Status dialog box, and then select Properties.

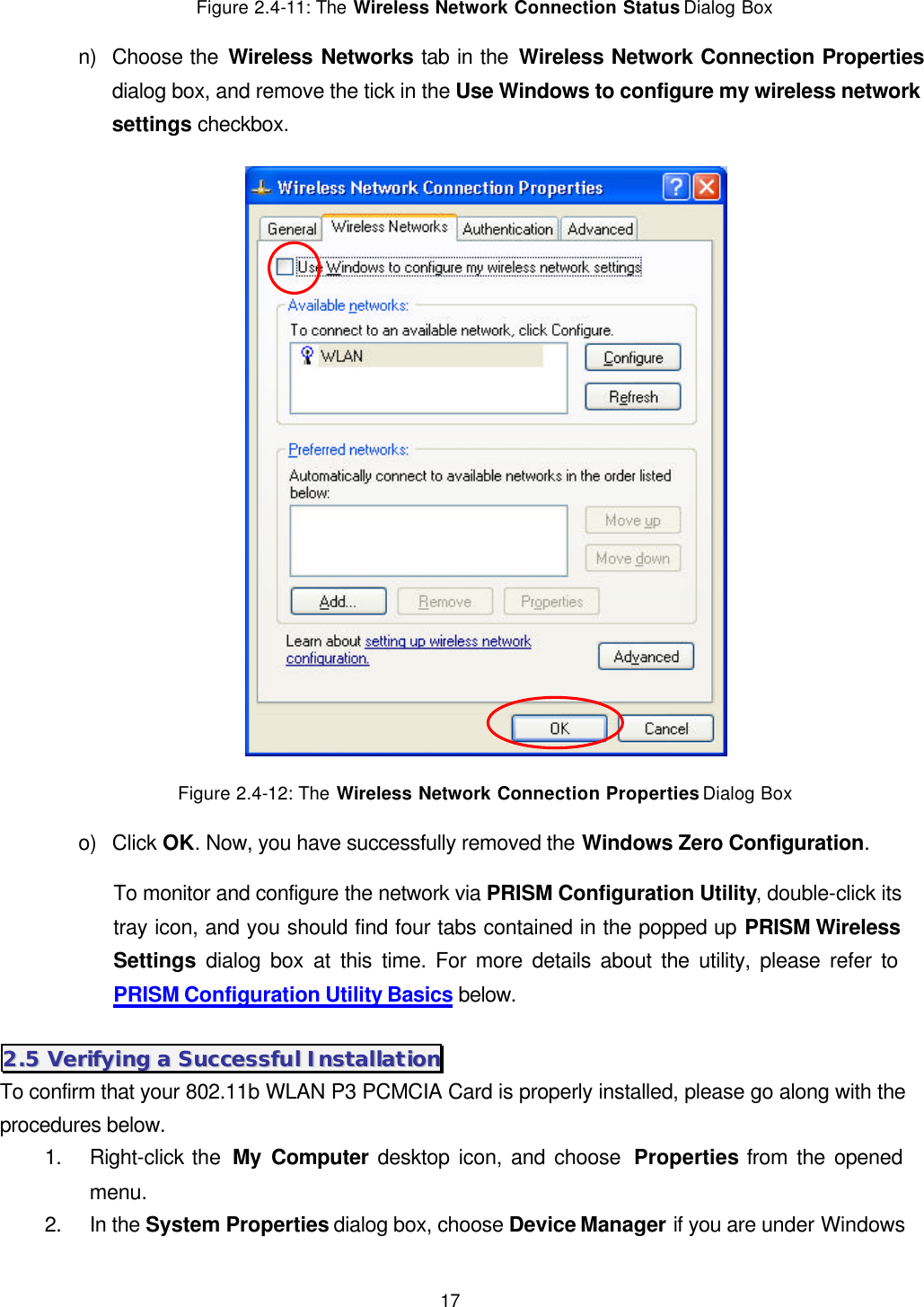

17 Figure 2.4-11: The Wireless Network Connection Status Dialog Box n) Choose the Wireless Networks tab in the Wireless Network Connection Properties dialog box, and remove the tick in the Use Windows to configure my wireless network settings checkbox. Figure 2.4-12: The Wireless Network Connection Properties Dialog Box o) Click OK. Now, you have successfully removed the Windows Zero Configuration. To monitor and configure the network via PRISM Configuration Utility, double-click its tray icon, and you should find four tabs contained in the popped up PRISM Wireless Settings dialog box at this time. For more details about the utility, please refer to PRISM Configuration Utility Basics below. 22..55 VVeerriiffyyiinngg aa SSuucccceessssffuull IInnssttaallllaattiioonn To confirm that your 802.11b WLAN P3 PCMCIA Card is properly installed, please go along with the procedures below. 1. Right-click the My Computer desktop icon, and choose Properties from the opened menu. 2. In the System Properties dialog box, choose Device Manager if you are under Windows

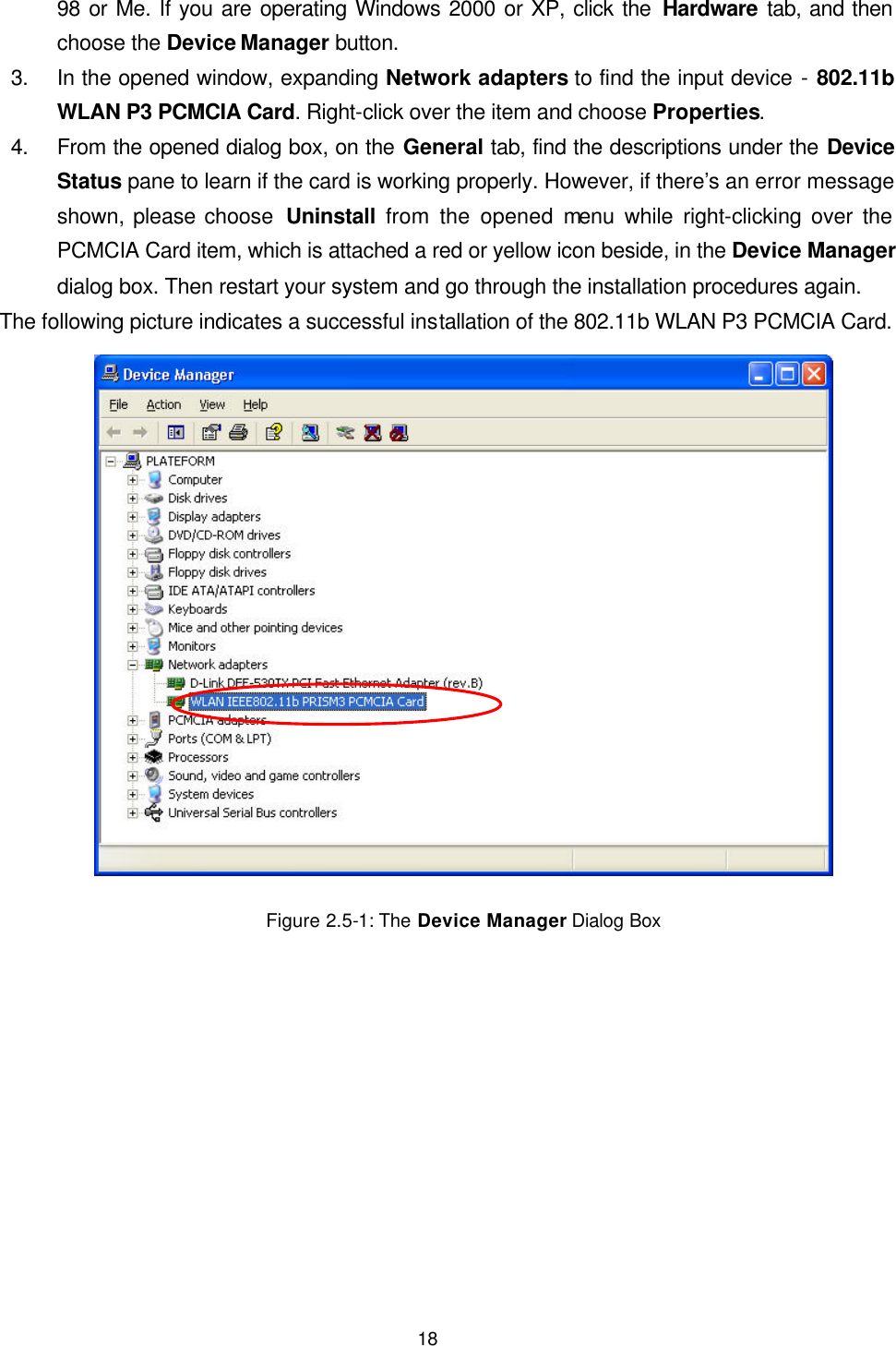

18 98 or Me. If you are operating Windows 2000 or XP, click the Hardware tab, and then choose the Device Manager button. 3. In the opened window, expanding Network adapters to find the input device - 802.11b WLAN P3 PCMCIA Card. Right-click over the item and choose Properties. 4. From the opened dialog box, on the General tab, find the descriptions under the Device Status pane to learn if the card is working properly. However, if there’s an error message shown, please choose Uninstall from the opened menu while right-clicking over the PCMCIA Card item, which is attached a red or yellow icon beside, in the Device Manager dialog box. Then restart your system and go through the installation procedures again. The following picture indicates a successful installation of the 802.11b WLAN P3 PCMCIA Card. Figure 2.5-1: The Device Manager Dialog Box

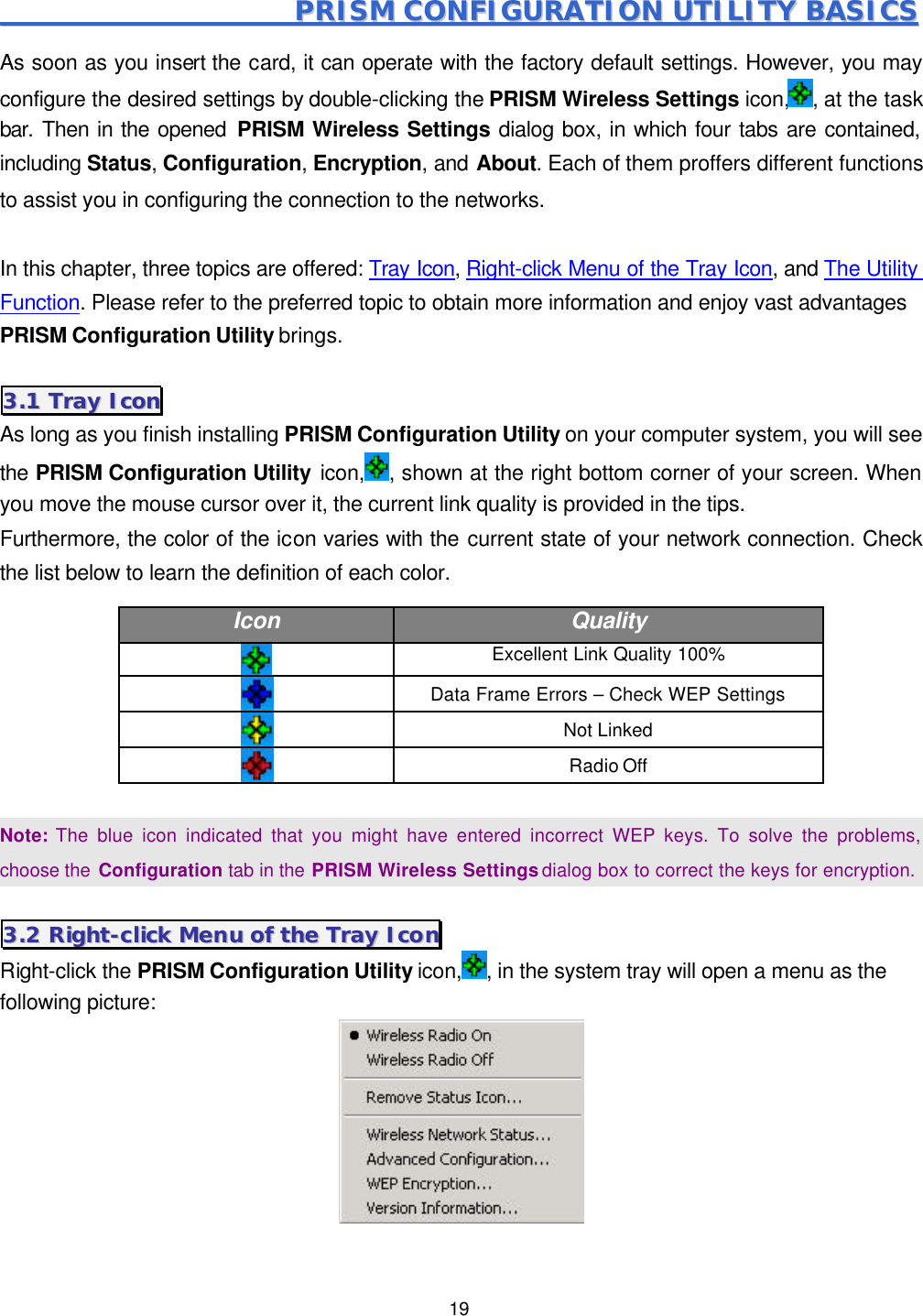

19 PPRRIISSMM CCOONNFFIIGGUURRAATTIIOONN UUTTIILLIITTYY BBAASSIICCSS As soon as you insert the card, it can operate with the factory default settings. However, you may configure the desired settings by double-clicking the PRISM Wireless Settings icon, , at the task bar. Then in the opened PRISM Wireless Settings dialog box, in which four tabs are contained, including Status, Configuration, Encryption, and About. Each of them proffers different functions to assist you in configuring the connection to the networks. In this chapter, three topics are offered: Tray Icon, Right-click Menu of the Tray Icon, and The Utility Function. Please refer to the preferred topic to obtain more information and enjoy vast advantages PRISM Configuration Utility brings. 33..11 TTrraayy IIccoonn As long as you finish installing PRISM Configuration Utility on your computer system, you will see the PRISM Configuration Utility icon, , shown at the right bottom corner of your screen. When you move the mouse cursor over it, the current link quality is provided in the tips. Furthermore, the color of the icon varies with the current state of your network connection. Check the list below to learn the definition of each color. Icon Quality Excellent Link Quality 100% Data Frame Errors – Check WEP Settings Not Linked Radio Off Note: The blue icon indicated that you might have entered incorrect WEP keys. To solve the problems, choose the Configuration tab in the PRISM Wireless Settings dialog box to correct the keys for encryption. 33..22 RRiigghhtt--cclliicckk MMeennuu ooff tthhee TTrraayy IIccoonn Right-click the PRISM Configuration Utility icon, , in the system tray will open a menu as the following picture:

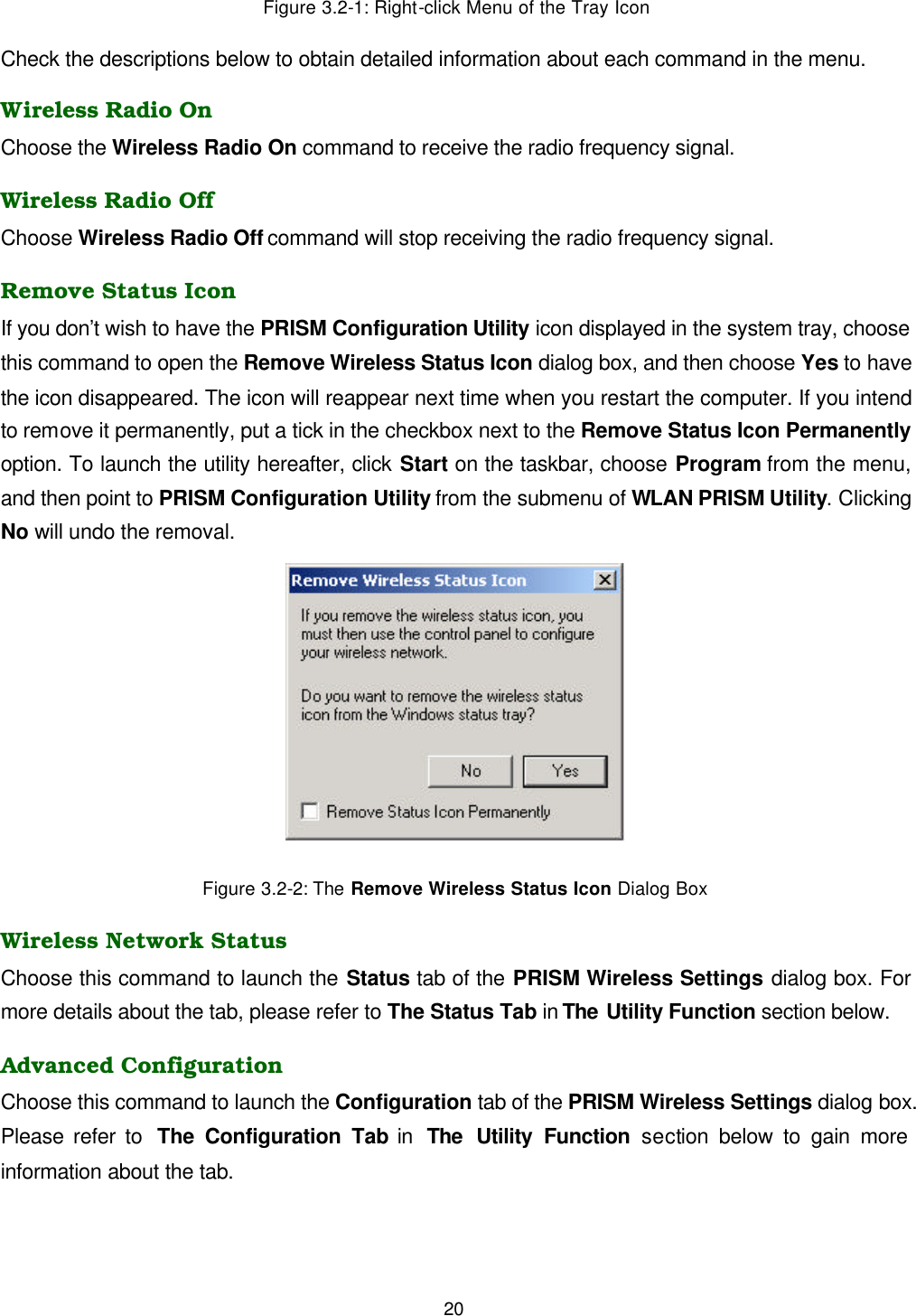

20 Figure 3.2-1: Right-click Menu of the Tray Icon Check the descriptions below to obtain detailed information about each command in the menu. Wireless Radio On Choose the Wireless Radio On command to receive the radio frequency signal. Wireless Radio Off Choose Wireless Radio Off command will stop receiving the radio frequency signal. Remove Status Icon If you don’t wish to have the PRISM Configuration Utility icon displayed in the system tray, choose this command to open the Remove Wireless Status Icon dialog box, and then choose Yes to have the icon disappeared. The icon will reappear next time when you restart the computer. If you intend to remove it permanently, put a tick in the checkbox next to the Remove Status Icon Permanently option. To launch the utility hereafter, click Start on the taskbar, choose Program from the menu, and then point to PRISM Configuration Utility from the submenu of WLAN PRISM Utility. Clicking No will undo the removal. Figure 3.2-2: The Remove Wireless Status Icon Dialog Box Wireless Network Status Choose this command to launch the Status tab of the PRISM Wireless Settings dialog box. For more details about the tab, please refer to The Status Tab in The Utility Function section below. Advanced Configuration Choose this command to launch the Configuration tab of the PRISM Wireless Settings dialog box. Please refer to The Configuration Tab in The Utility Function section below to gain more information about the tab.

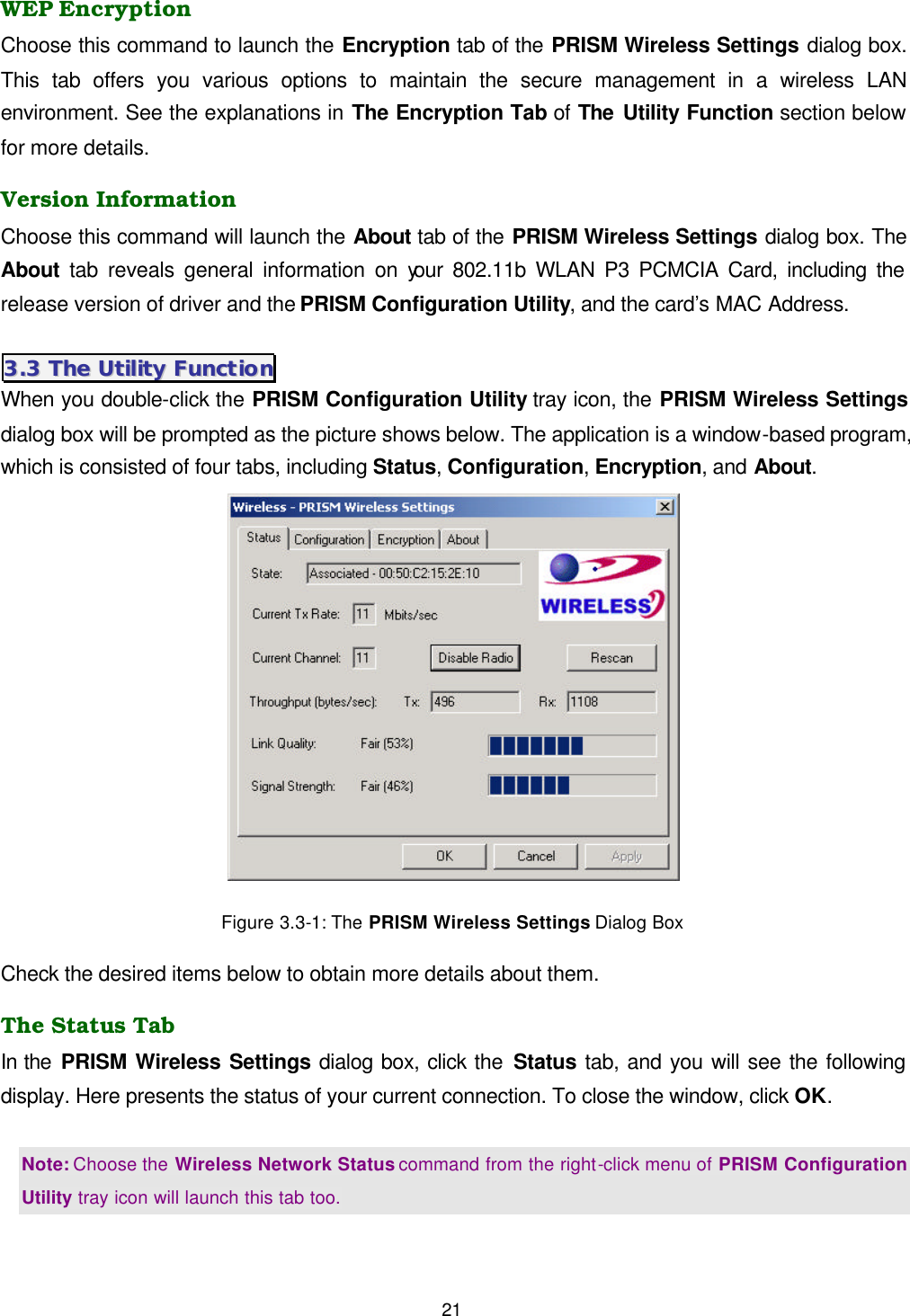

21 WEP Encryption Choose this command to launch the Encryption tab of the PRISM Wireless Settings dialog box. This tab offers you various options to maintain the secure management in a wireless LAN environment. See the explanations in The Encryption Tab of The Utility Function section below for more details. Version Information Choose this command will launch the About tab of the PRISM Wireless Settings dialog box. The About tab reveals general information on your 802.11b WLAN P3 PCMCIA Card, including the release version of driver and the PRISM Configuration Utility, and the card’s MAC Address. 33..33 TThhee UUttiilliittyy FFuunnccttiioonn When you double-click the PRISM Configuration Utility tray icon, the PRISM Wireless Settings dialog box will be prompted as the picture shows below. The application is a window-based program, which is consisted of four tabs, including Status, Configuration, Encryption, and About. Figure 3.3-1: The PRISM Wireless Settings Dialog Box Check the desired items below to obtain more details about them. The Status Tab In the PRISM Wireless Settings dialog box, click the Status tab, and you will see the following display. Here presents the status of your current connection. To close the window, click OK. Note: Choose the Wireless Network Status command from the right-click menu of PRISM Configuration Utility tray icon will launch this tab too.

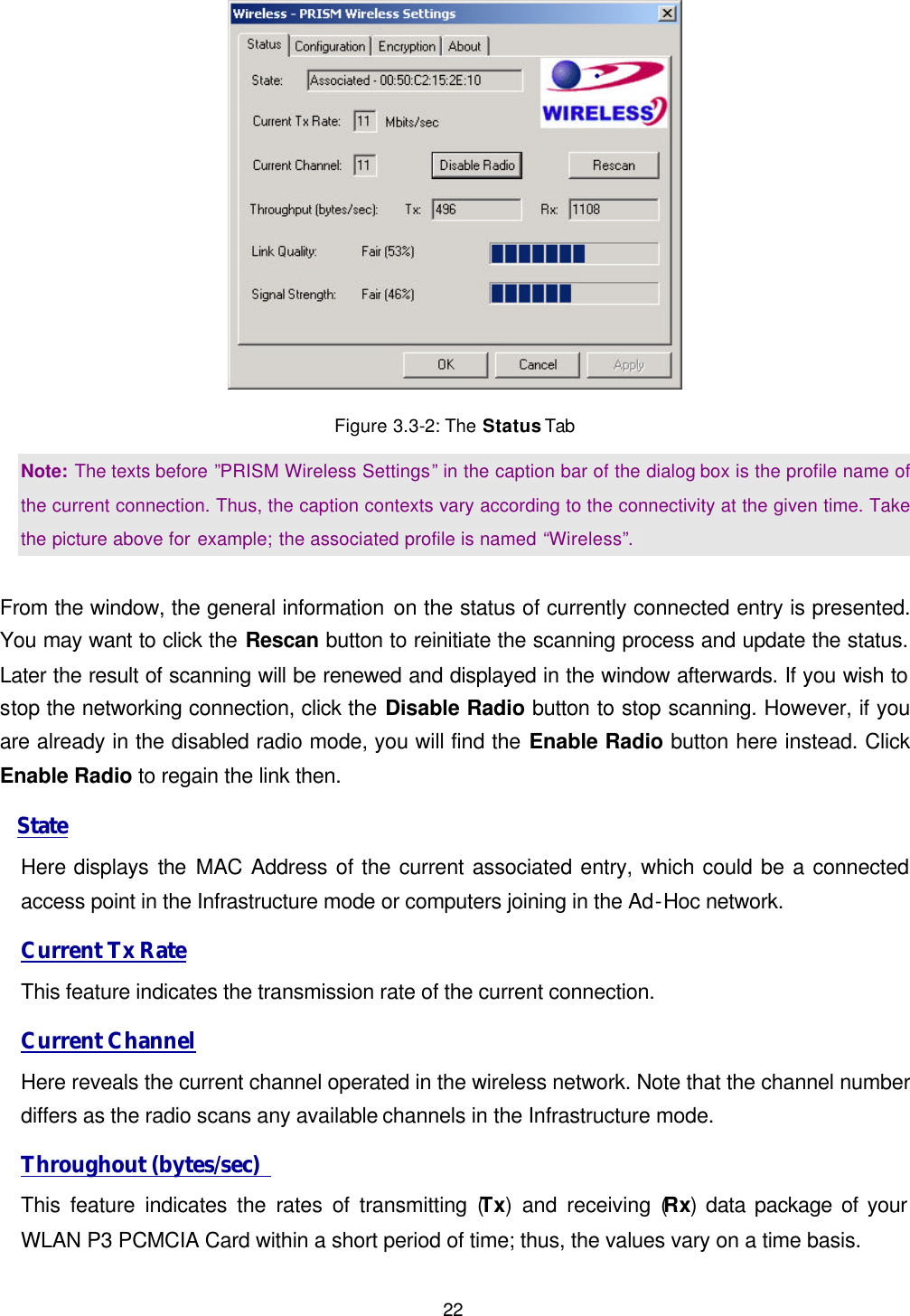

22 Figure 3.3-2: The Status Tab Note: The texts before ”PRISM Wireless Settings” in the caption bar of the dialog box is the profile name of the current connection. Thus, the caption contexts vary according to the connectivity at the given time. Take the picture above for example; the associated profile is named “Wireless”. From the window, the general information on the status of currently connected entry is presented. You may want to click the Rescan button to reinitiate the scanning process and update the status. Later the result of scanning will be renewed and displayed in the window afterwards. If you wish to stop the networking connection, click the Disable Radio button to stop scanning. However, if you are already in the disabled radio mode, you will find the Enable Radio button here instead. Click Enable Radio to regain the link then. State Here displays the MAC Address of the current associated entry, which could be a connected access point in the Infrastructure mode or computers joining in the Ad-Hoc network. Current Tx Rate This feature indicates the transmission rate of the current connection. Current Channel Here reveals the current channel operated in the wireless network. Note that the channel number differs as the radio scans any available channels in the Infrastructure mode. Throughout (bytes/sec) This feature indicates the rates of transmitting (Tx) and receiving (Rx) data package of your WLAN P3 PCMCIA Card within a short period of time; thus, the values vary on a time basis.

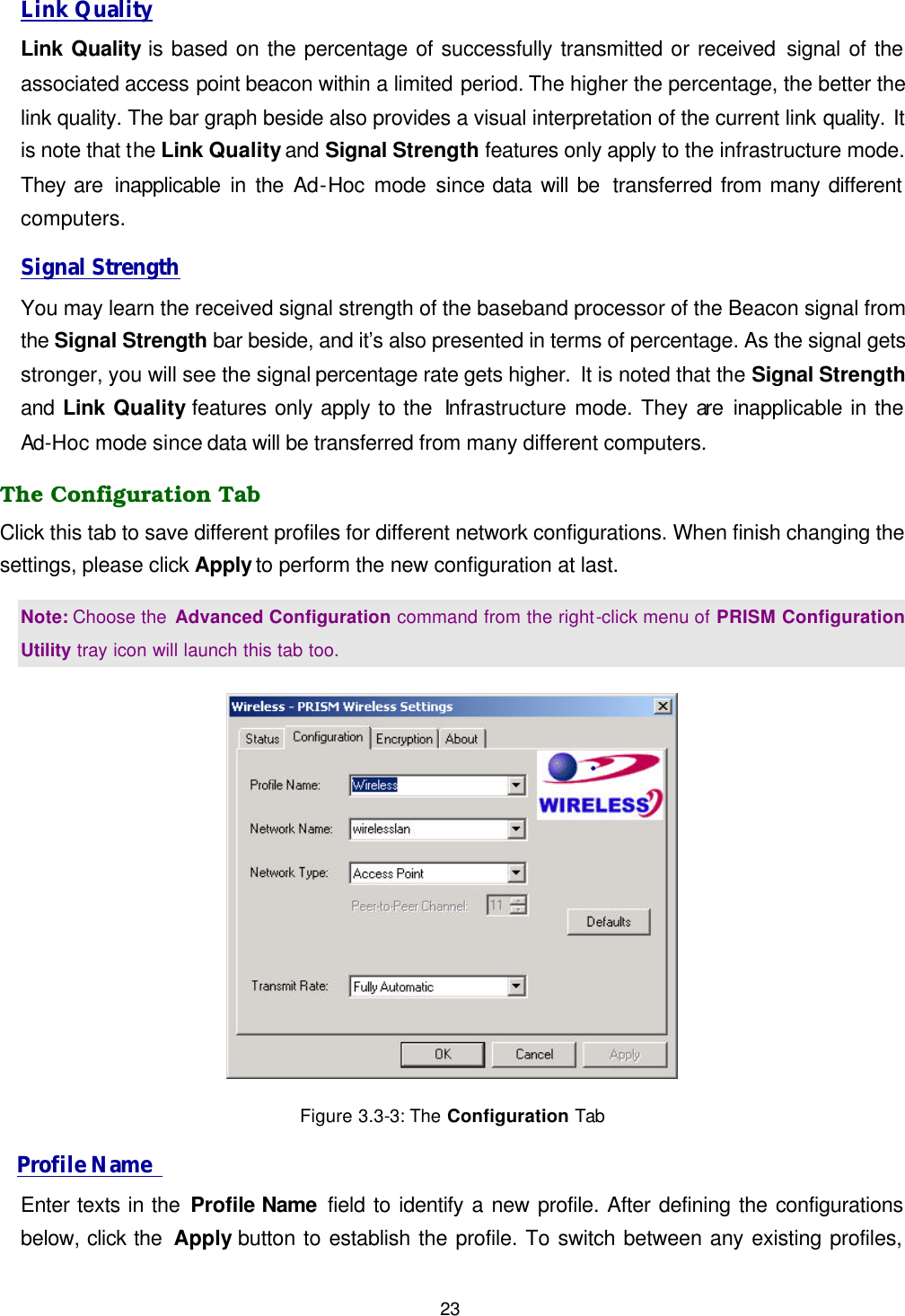

23 Link Quality Link Quality is based on the percentage of successfully transmitted or received signal of the associated access point beacon within a limited period. The higher the percentage, the better the link quality. The bar graph beside also provides a visual interpretation of the current link quality. It is note that the Link Quality and Signal Strength features only apply to the infrastructure mode. They are inapplicable in the Ad-Hoc mode since data will be transferred from many different computers. Signal Strength You may learn the received signal strength of the baseband processor of the Beacon signal from the Signal Strength bar beside, and it’s also presented in terms of percentage. As the signal gets stronger, you will see the signal percentage rate gets higher. It is noted that the Signal Strength and Link Quality features only apply to the Infrastructure mode. They are inapplicable in the Ad-Hoc mode since data will be transferred from many different computers. The Configuration Tab Click this tab to save different profiles for different network configurations. When finish changing the settings, please click Apply to perform the new configuration at last. Note: Choose the Advanced Configuration command from the right-click menu of PRISM Configuration Utility tray icon will launch this tab too. Figure 3.3-3: The Configuration Tab Profile Name Enter texts in the Profile Name field to identify a new profile. After defining the configurations below, click the Apply button to establish the profile. To switch between any existing profiles,

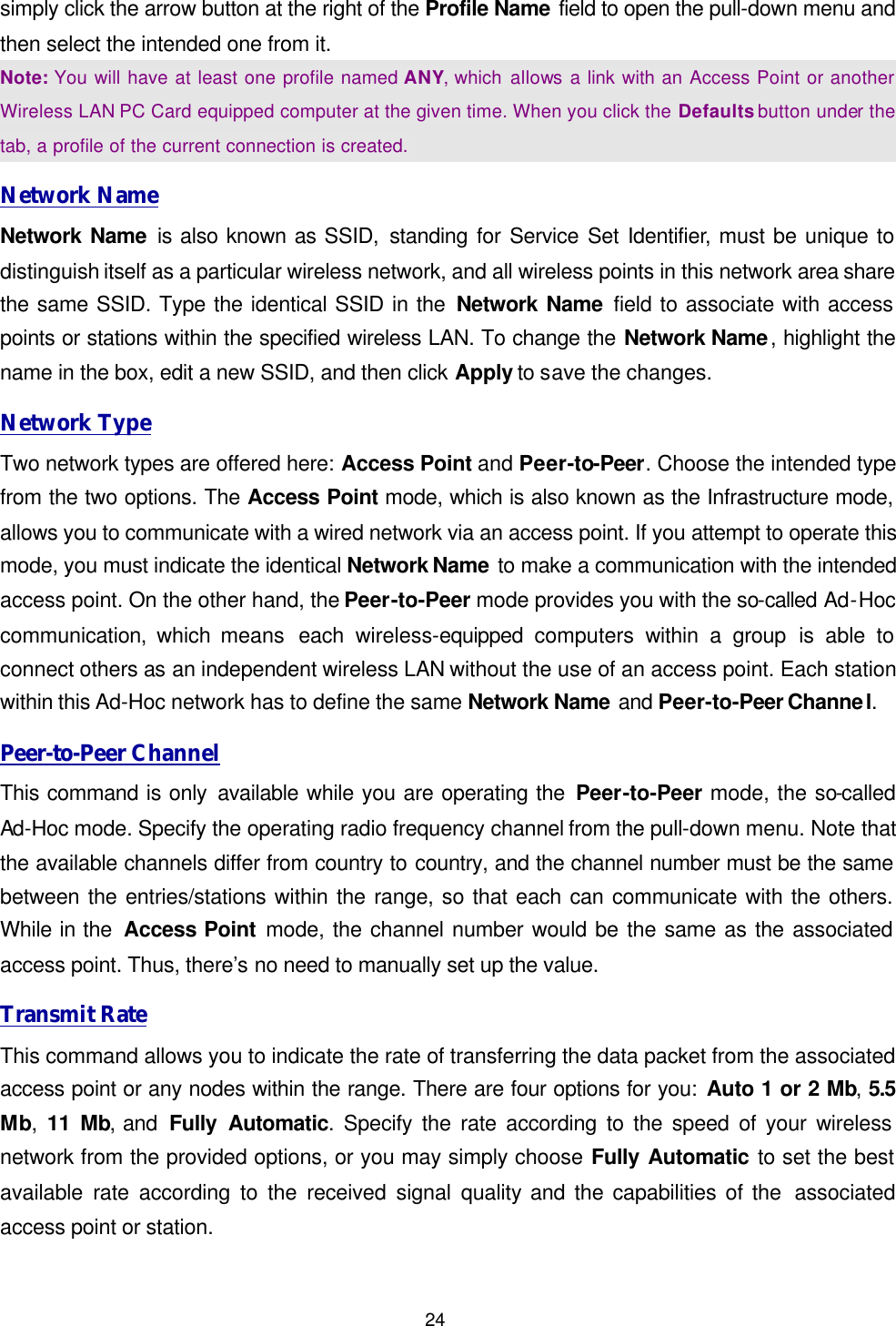

24 simply click the arrow button at the right of the Profile Name field to open the pull-down menu and then select the intended one from it. Note: You will have at least one profile named ANY, which allows a link with an Access Point or another Wireless LAN PC Card equipped computer at the given time. When you click the Defaults button under the tab, a profile of the current connection is created. Network Name Network Name is also known as SSID, standing for Service Set Identifier, must be unique to distinguish itself as a particular wireless network, and all wireless points in this network area share the same SSID. Type the identical SSID in the Network Name field to associate with access points or stations within the specified wireless LAN. To change the Network Name, highlight the name in the box, edit a new SSID, and then click Apply to save the changes. Network Type Two network types are offered here: Access Point and Peer-to-Peer. Choose the intended type from the two options. The Access Point mode, which is also known as the Infrastructure mode, allows you to communicate with a wired network via an access point. If you attempt to operate this mode, you must indicate the identical Network Name to make a communication with the intended access point. On the other hand, the Peer-to-Peer mode provides you with the so-called Ad-Hoc communication, which means each wireless-equipped computers within a group is able to connect others as an independent wireless LAN without the use of an access point. Each station within this Ad-Hoc network has to define the same Network Name and Peer-to-Peer Channel. Peer-to-Peer Channel This command is only available while you are operating the Peer-to-Peer mode, the so-called Ad-Hoc mode. Specify the operating radio frequency channel from the pull-down menu. Note that the available channels differ from country to country, and the channel number must be the same between the entries/stations within the range, so that each can communicate with the others. While in the Access Point mode, the channel number would be the same as the associated access point. Thus, there’s no need to manually set up the value. Transmit Rate This command allows you to indicate the rate of transferring the data packet from the associated access point or any nodes within the range. There are four options for you: Auto 1 or 2 Mb, 5.5 Mb, 11 Mb, and Fully Automatic. Specify the rate according to the speed of your wireless network from the provided options, or you may simply choose Fully Automatic to set the best available rate according to the received signal quality and the capabilities of the associated access point or station.

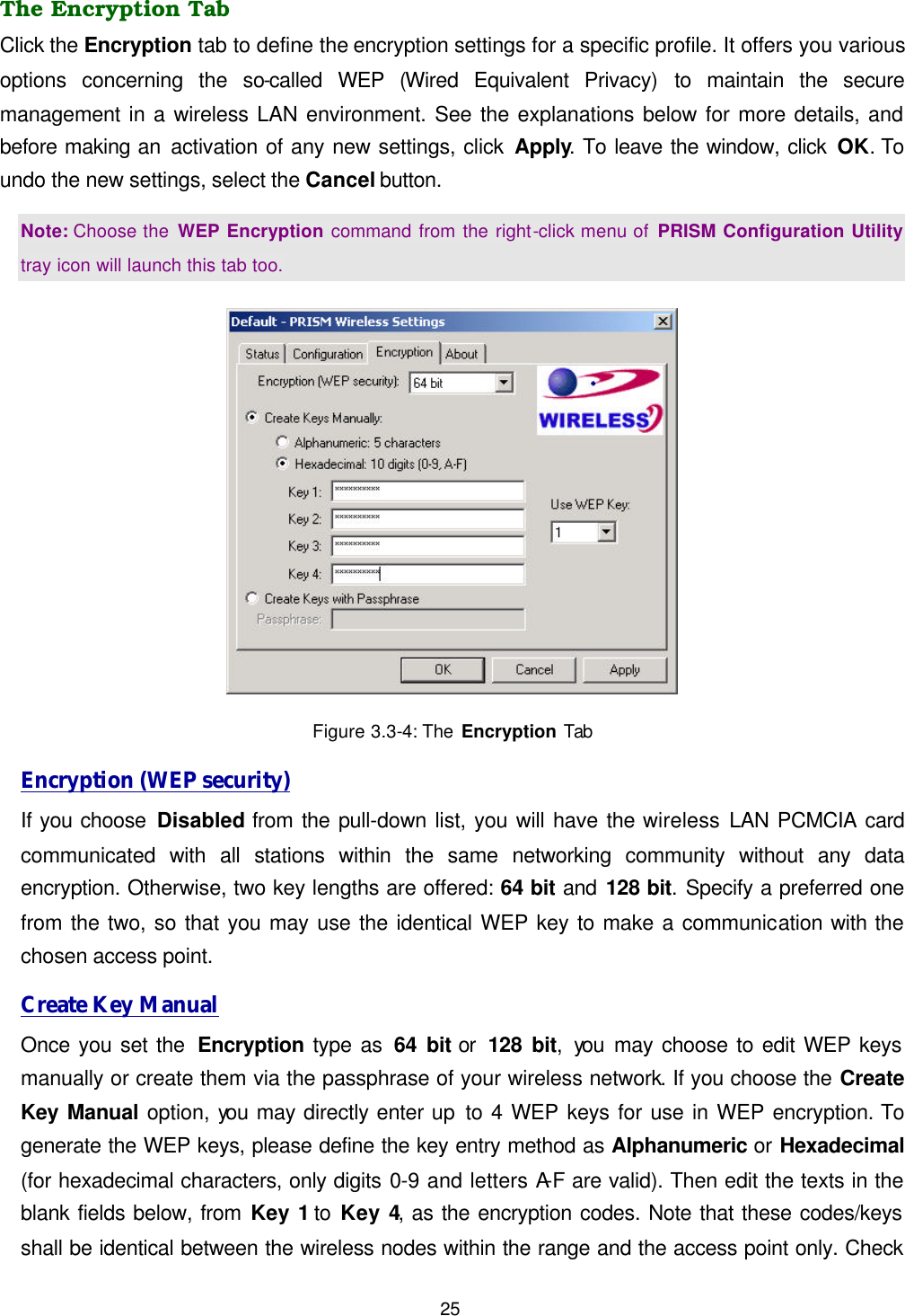

25 The Encryption Tab Click the Encryption tab to define the encryption settings for a specific profile. It offers you various options concerning the so-called WEP (Wired Equivalent Privacy) to maintain the secure management in a wireless LAN environment. See the explanations below for more details, and before making an activation of any new settings, click Apply. To leave the window, click OK. To undo the new settings, select the Cancel button. Note: Choose the WEP Encryption command from the right-click menu of PRISM Configuration Utility tray icon will launch this tab too. Figure 3.3-4: The Encryption Tab Encryption (WEP security) If you choose Disabled from the pull-down list, you will have the wireless LAN PCMCIA card communicated with all stations within the same networking community without any data encryption. Otherwise, two key lengths are offered: 64 bit and 128 bit. Specify a preferred one from the two, so that you may use the identical WEP key to make a communication with the chosen access point. Create Key Manual Once you set the Encryption type as 64 bit or 128 bit, you may choose to edit WEP keys manually or create them via the passphrase of your wireless network. If you choose the Create Key Manual option, you may directly enter up to 4 WEP keys for use in WEP encryption. To generate the WEP keys, please define the key entry method as Alphanumeric or Hexadecimal (for hexadecimal characters, only digits 0-9 and letters A-F are valid). Then edit the texts in the blank fields below, from Key 1 to Key 4, as the encryption codes. Note that these codes/keys shall be identical between the wireless nodes within the range and the access point only. Check

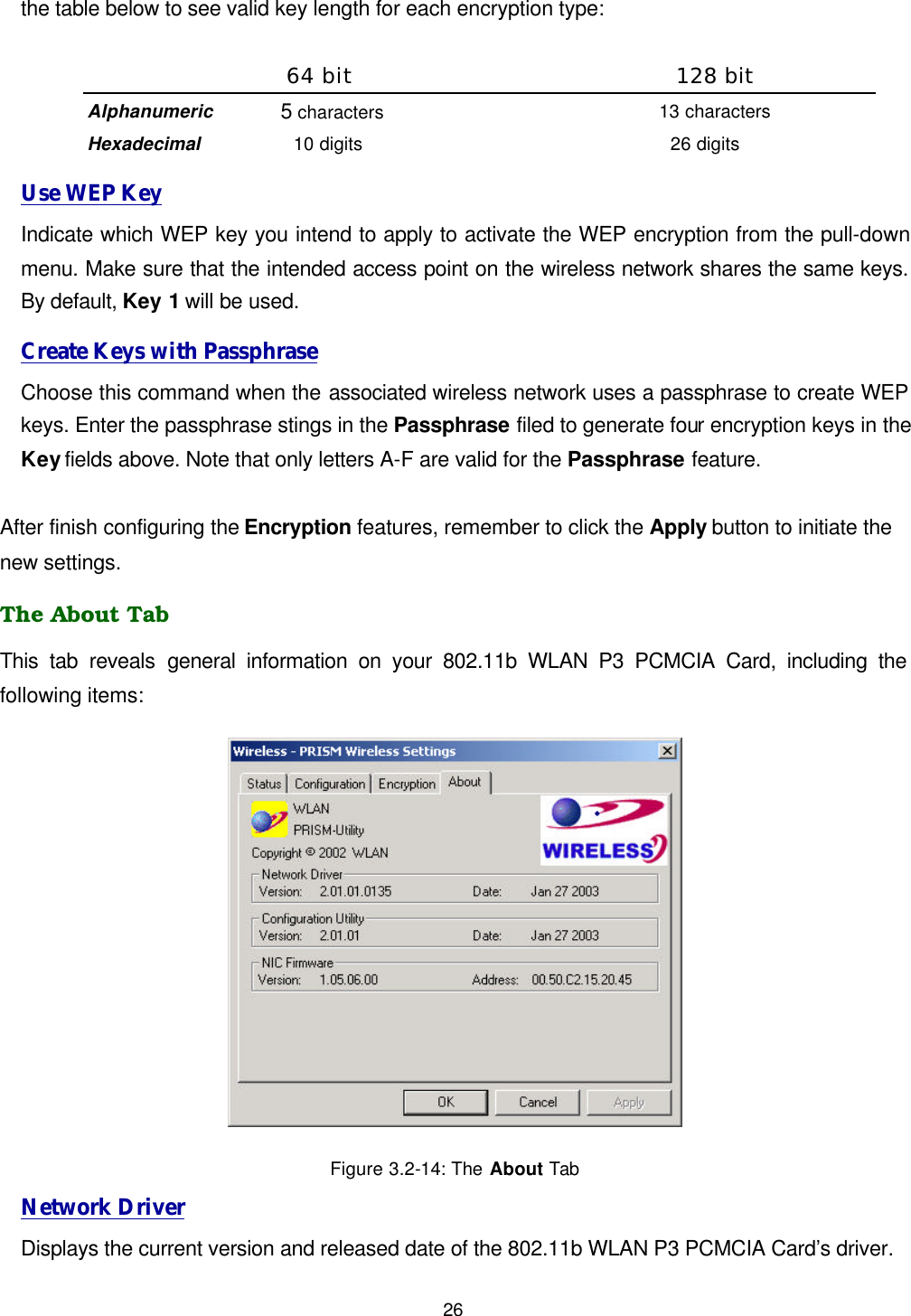

26 the table below to see valid key length for each encryption type: 64 bit 128 bit Alphanumeric 5 characters 13 characters Hexadecimal 10 digits 26 digits Use WEP Key Indicate which WEP key you intend to apply to activate the WEP encryption from the pull-down menu. Make sure that the intended access point on the wireless network shares the same keys. By default, Key 1 will be used. Create Keys with Passphrase Choose this command when the associated wireless network uses a passphrase to create WEP keys. Enter the passphrase stings in the Passphrase filed to generate four encryption keys in the Key fields above. Note that only letters A-F are valid for the Passphrase feature. After finish configuring the Encryption features, remember to click the Apply button to initiate the new settings. The About Tab This tab reveals general information on your 802.11b WLAN P3 PCMCIA Card, including the following items: Figure 3.2-14: The About Tab Network Driver Displays the current version and released date of the 802.11b WLAN P3 PCMCIA Card’s driver.

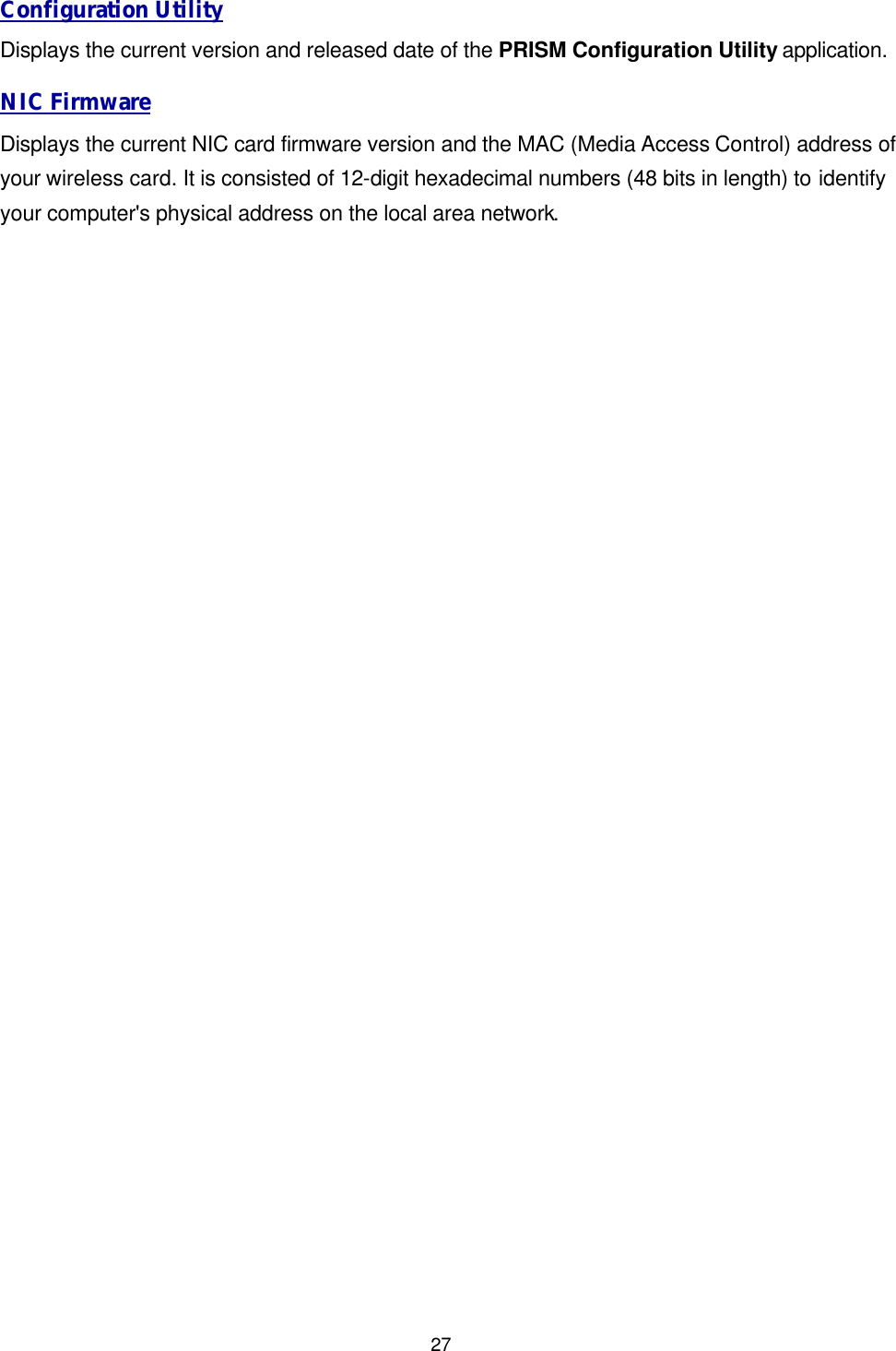

27 Configuration Utility Displays the current version and released date of the PRISM Configuration Utility application. NIC Firmware Displays the current NIC card firmware version and the MAC (Media Access Control) address of your wireless card. It is consisted of 12-digit hexadecimal numbers (48 bits in length) to identify your computer's physical address on the local area network.

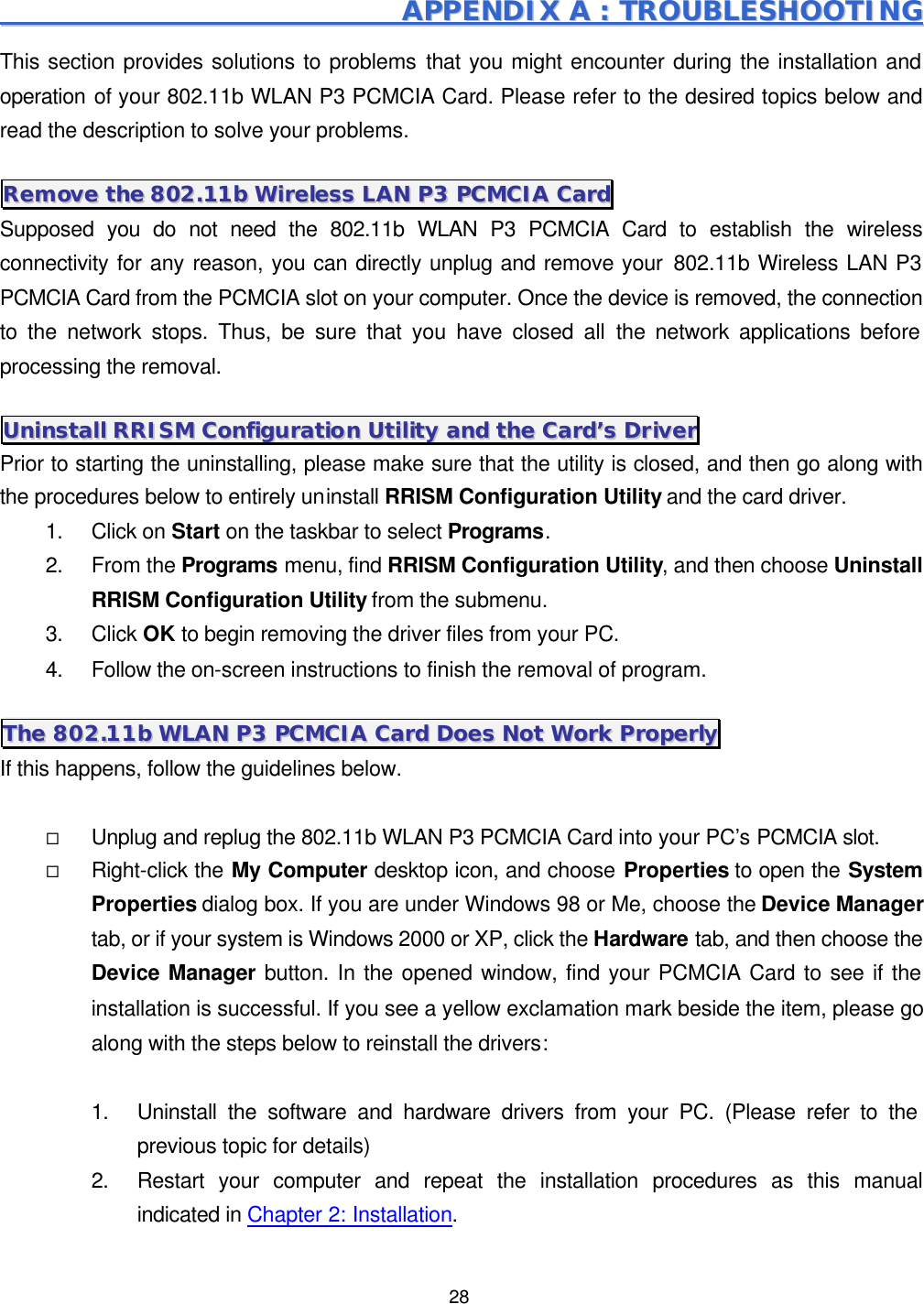

28 AAPPPPEENNDDIIXX AA :: TTRROOUUBBLLEESSHHOOOOTTIINNGG This section provides solutions to problems that you might encounter during the installation and operation of your 802.11b WLAN P3 PCMCIA Card. Please refer to the desired topics below and read the description to solve your problems. RReemmoovvee tthhee 880022..1111bb WWiirreelleessss LLAANN PP33 PPCCMMCCIIAA CCaarrdd Supposed you do not need the 802.11b WLAN P3 PCMCIA Card to establish the wireless connectivity for any reason, you can directly unplug and remove your 802.11b Wireless LAN P3 PCMCIA Card from the PCMCIA slot on your computer. Once the device is removed, the connection to the network stops. Thus, be sure that you have closed all the network applications before processing the removal. UUnniinnssttaallll RRRRIISSMM CCoonnffiigguurraattiioonn UUttiilliittyy aanndd tthhee CCaarrdd’’ss DDrriivveerr Prior to starting the uninstalling, please make sure that the utility is closed, and then go along with the procedures below to entirely uninstall RRISM Configuration Utility and the card driver. 1. Click on Start on the taskbar to select Programs. 2. From the Programs menu, find RRISM Configuration Utility, and then choose Uninstall RRISM Configuration Utility from the submenu. 3. Click OK to begin removing the driver files from your PC. 4. Follow the on-screen instructions to finish the removal of program. TThhee 880022..1111bb WWLLAANN PP33 PPCCMMCCIIAA CCaarrdd DDooeess NNoott WWoorrkk PPrrooppeerrllyy If this happens, follow the guidelines below. ¨ Unplug and replug the 802.11b WLAN P3 PCMCIA Card into your PC’s PCMCIA slot. ¨ Right-click the My Computer desktop icon, and choose Properties to open the System Properties dialog box. If you are under Windows 98 or Me, choose the Device Manager tab, or if your system is Windows 2000 or XP, click the Hardware tab, and then choose the Device Manager button. In the opened window, find your PCMCIA Card to see if the installation is successful. If you see a yellow exclamation mark beside the item, please go along with the steps below to reinstall the drivers: 1. Uninstall the software and hardware drivers from your PC. (Please refer to the previous topic for details) 2. Restart your computer and repeat the installation procedures as this manual indicated in Chapter 2: Installation.

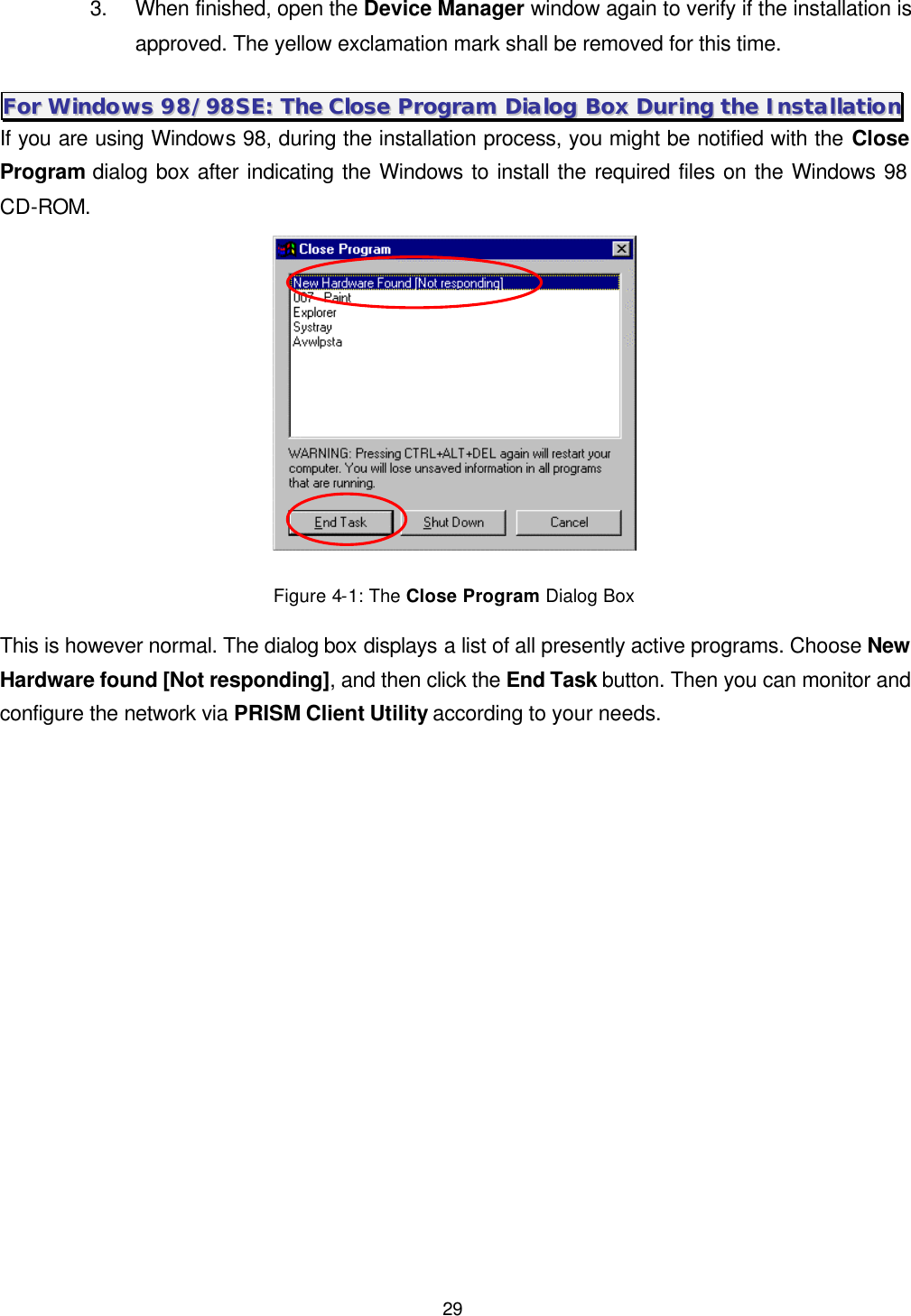

29 3. When finished, open the Device Manager window again to verify if the installation is approved. The yellow exclamation mark shall be removed for this time. FFoorr WWiinnddoowwss 9988//9988SSEE:: TThhee CClloossee PPrrooggrraamm DDiiaalloogg BBooxx DDuurriinngg tthhee IInnssttaallllaattiioonn If you are using Windows 98, during the installation process, you might be notified with the Close Program dialog box after indicating the Windows to install the required files on the Windows 98 CD-ROM. Figure 4-1: The Close Program Dialog Box This is however normal. The dialog box displays a list of all presently active programs. Choose New Hardware found [Not responding], and then click the End Task button. Then you can monitor and configure the network via PRISM Client Utility according to your needs.

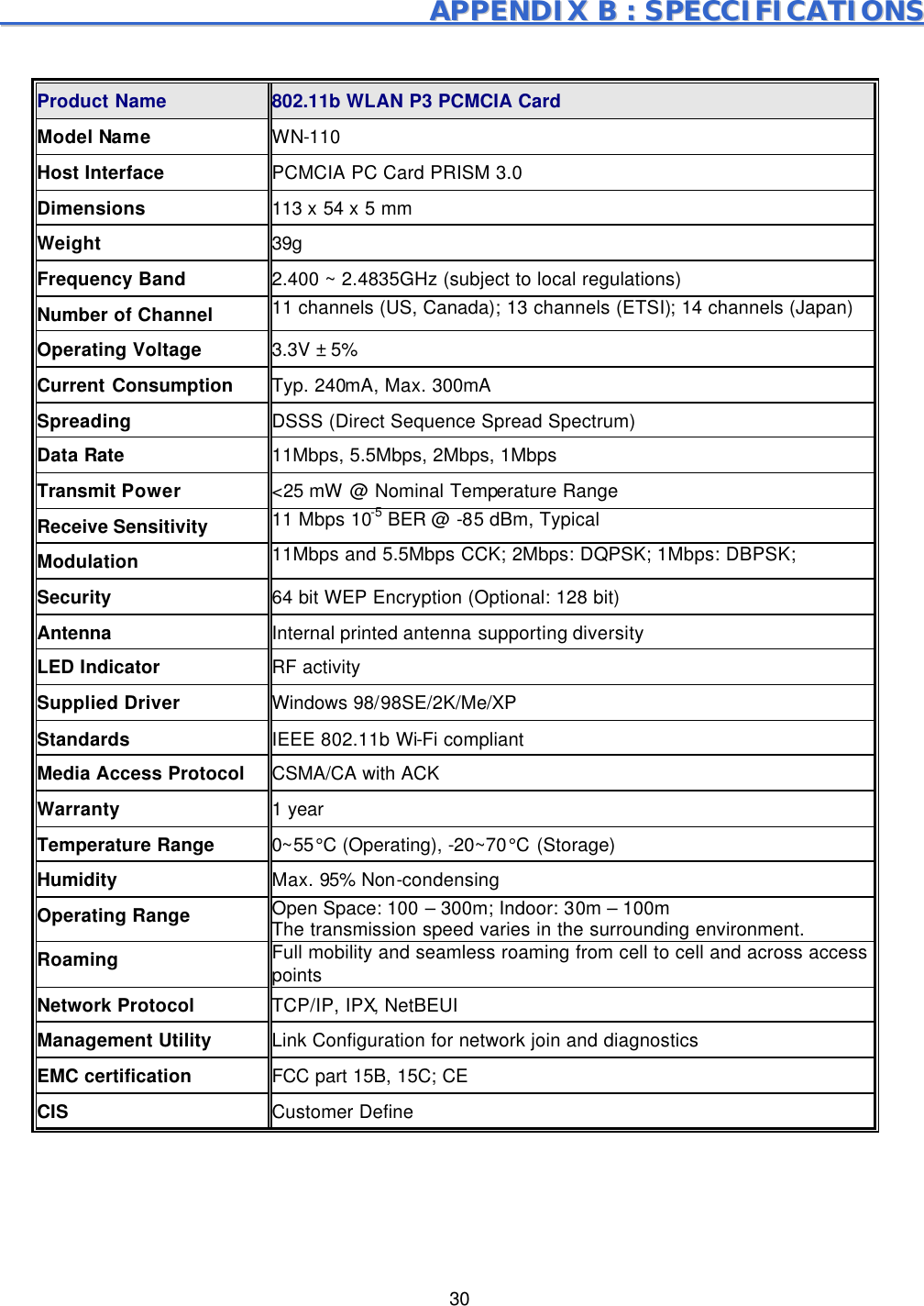

30 AAPPPPEENNDDIIXX BB :: SSPPEECCCCIIFFIICCAATTIIOONNSS Product Name 802.11b WLAN P3 PCMCIA Card Model Name WN-110 Host Interface PCMCIA PC Card PRISM 3.0 Dimensions 113 x 54 x 5 mm Weight 39g Frequency Band 2.400 ~ 2.4835GHz (subject to local regulations) Number of Channel 11 channels (US, Canada); 13 channels (ETSI); 14 channels (Japan) Operating Voltage 3.3V ± 5% Current Consumption Typ. 240mA, Max. 300mA Spreading DSSS (Direct Sequence Spread Spectrum) Data Rate 11Mbps, 5.5Mbps, 2Mbps, 1Mbps Transmit Power <25 mW @ Nominal Temperature Range Receive Sensitivity 11 Mbps 10-5 BER @ -85 dBm, Typical Modulation 11Mbps and 5.5Mbps CCK; 2Mbps: DQPSK; 1Mbps: DBPSK; Security 64 bit WEP Encryption (Optional: 128 bit) Antenna Internal printed antenna supporting diversity LED Indicator RF activity Supplied Driver Windows 98/98SE/2K/Me/XP Standards IEEE 802.11b Wi-Fi compliant Media Access Protocol CSMA/CA with ACK Warranty 1 year Temperature Range 0~55°C (Operating), -20~70°C (Storage) Humidity Max. 95% Non-condensing Operating Range Open Space: 100 – 300m; Indoor: 30m – 100m The transmission speed varies in the surrounding environment. Roaming Full mobility and seamless roaming from cell to cell and across access points Network Protocol TCP/IP, IPX, NetBEUI Management Utility Link Configuration for network join and diagnostics EMC certification FCC part 15B, 15C; CE CIS Customer Define
