AirWalk Communications AWSRU20W800 Slim RU Ext 20W Amp 800MHZ User Manual Product Specification
AirWalk Communications, Inc. Slim RU Ext 20W Amp 800MHZ Product Specification
user manual
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 1 of 49
CDMA2000 1xRTT
IP Radio Access Network (IP-RAN)
OneRAN Pilot Station
Installation & Maintenance Manual
Version # 1.6
May 2008
Prepared By
AirWalk Communications, Inc.
1830 North Greenville Ave
Richardson, TX, 75081
Phone: (972) 638-9400
Fax: (972) 638-9401
www.airwalkcom.com
FOR USE BY TRAINED TECHNICIANS ONLY
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 2 of 49
Revision History
Version Date Person Description
0.1 10/15/2005 CMO Draft Document
1.0 11/23/2005 CMO Released
1.1 4/30/2006 CMO Pictures corrected
1.2 6/14/2006 CMO Added regulatory compliance information
1.3 1/8/2008 CB Create separate Pilot Station document, update
nomenclature and photographs
1.4 4/9/2008 R MacL
Added RCPB description and RF Exposure
update
1.5 4/21/2008 R MacL
Deleted Section 2.5.4 RF Exposure and
updated label in Section 2.4.2
1.6 5/06/2008 R MacL
Deleted FCC Sample label and added Section
2.5.4 RF Power Requirements
Revision Numbering Key
0.x Work in Progress
1.0 Initial Document Approval
1.x Revisions Following Initial Document Approval
2.0 Revisions Approval
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 3 of 49
Table of Contents
TABLE OF CONTENTS .................................................................................................................................. 3
1INTRODUCTION ..................................................................................................................................... 5
1.1PROPRIETARY INFORMATION NOTICE .................................................................................................. 5
1.2PURPOSE OF DOCUMENT ...................................................................................................................... 5
1.3SCOPE .................................................................................................................................................. 5
1.4ORDER OF PRECEDENCE ....................................................................................................................... 5
1.5TERMINOLOGY ..................................................................................................................................... 5
1.6APPLICABLE DOCUMENTS .................................................................................................................... 5
1.6.1AirWalk Documents ..................................................................................................................... 5
1.6.2Telecom Standards ...................................................................................................................... 6
1.6.3Other Documents ......................................................................................................................... 6
2ONERAN PILOT STATION SAFETY AND COMPLIANCE INFORMATION .............................. 7
2.1STATEMENT OF INTENT ........................................................................................................................ 7
2.2SAFETY PRECAUTIONS ......................................................................................................................... 7
2.3MAINTENANCE INFORMATION ............................................................................................................. 8
2.3.1Cleaning ...................................................................................................................................... 8
2.3.2Filter Maintenance ...................................................................................................................... 8
2.3.3Fuse Replacement ....................................................................................................................... 8
2.3.4Other Maintenance ...................................................................................................................... 8
2.4LABELING ............................................................................................................................................ 9

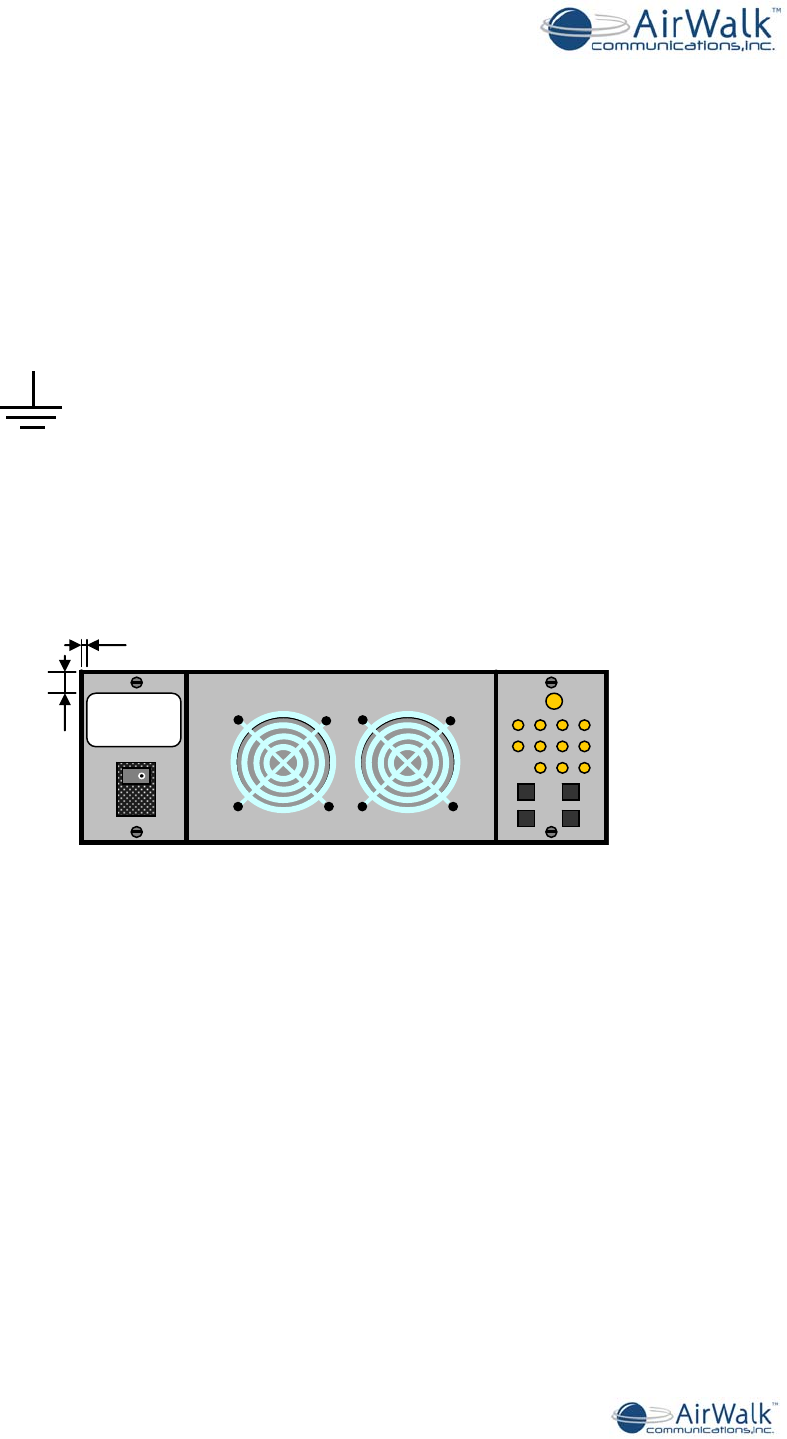

2.4.1Grounding ................................................................................................................................... 9
2.4.2Label: Model Identification, FCC Identification, Power ............................................................ 9
2.5REGULATORY COMPLIANCE INFORMATION ....................................................................................... 10
2.5.1Radio Interference (FCC 15.19 Statement) ............................................................................... 10
2.5.2Unauthorized Modifications (FCC 15.21 Statement) ................................................................ 10
2.5.3Digital Device Interference (FCC 15.105 Statement) ............................................................... 10
2.5.4RF Power Requirements ............................................................................................................ 10
3ONERAN PILOT STATION SYSTEM INTRODUCTION ............................................................... 11
3.1HARDWARE CONFIGURATION ............................................................................................................ 11
3.1.1Physical Description ................................................................................................................. 11
3.1.2Typical Configurations .............................................................................................................. 11

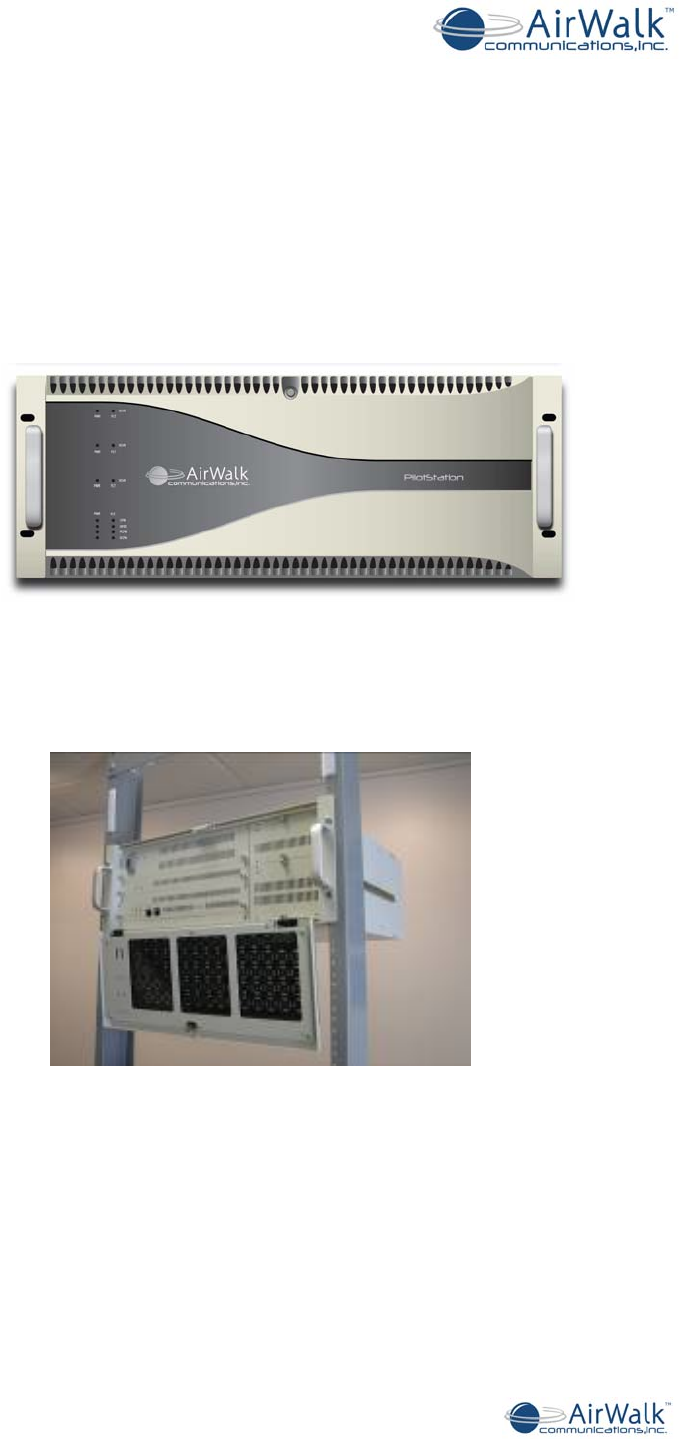

3.1.3Installation Photographs ........................................................................................................... 12
3.2BLOCK DIAGRAM – ONERAN PILOT STATION ................................................................................... 13
3.3SYSTEM CAPACITIES AND SPECIFICATIONS ........................................................................................ 14
3.3.1OneRAN Pilot Station Technical Specification ......................................................................... 14
3.3.2IP-BS Power Supply & Environment Technical Specification .................................................. 15
4ONERAN PILOT STATION COMPONENTS .................................................................................... 16
4.1ONERAN PILOT STATION .................................................................................................................. 16
4.2RF POWER AMPLIFIER BOARD (RCPB – 4 WATT) .............................................................................. 17

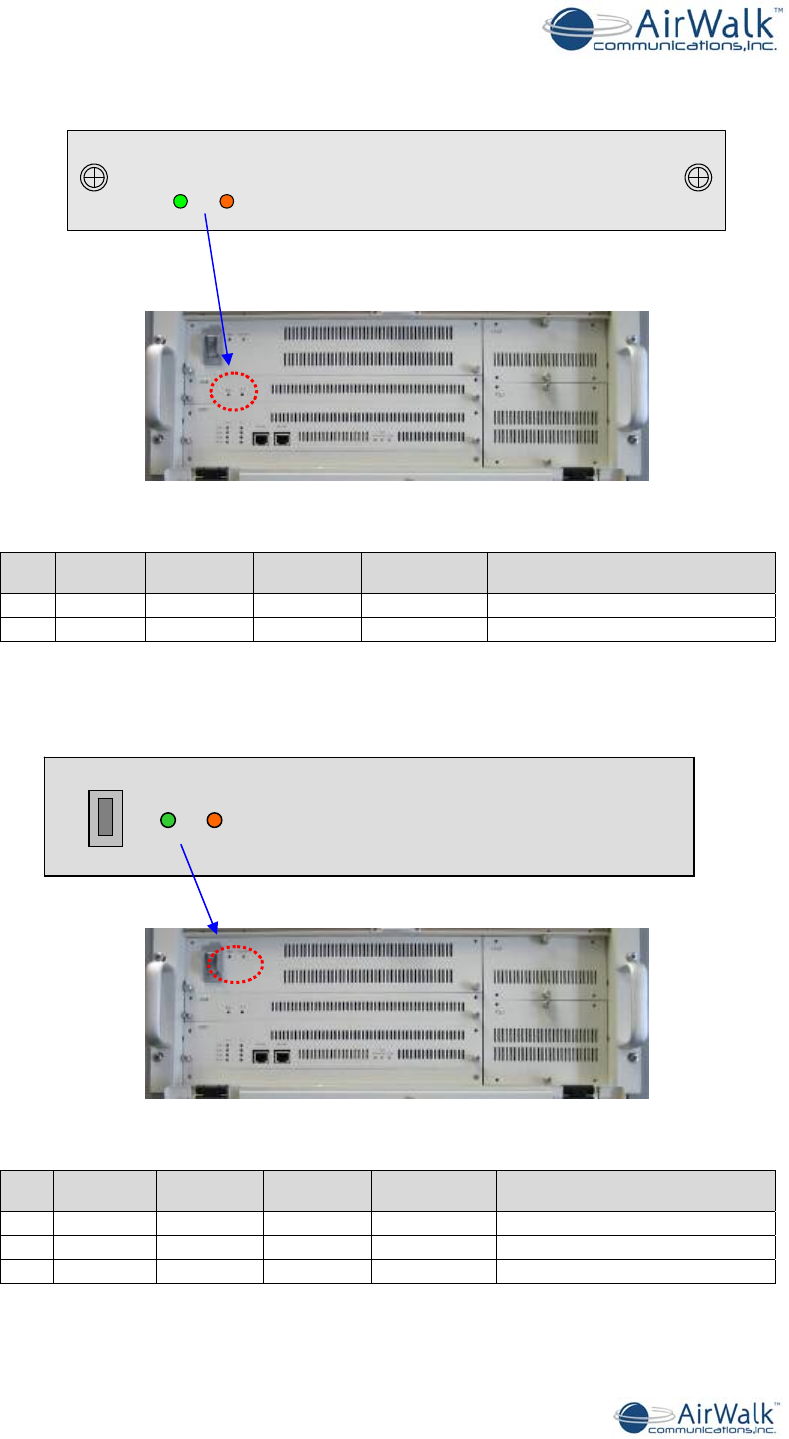

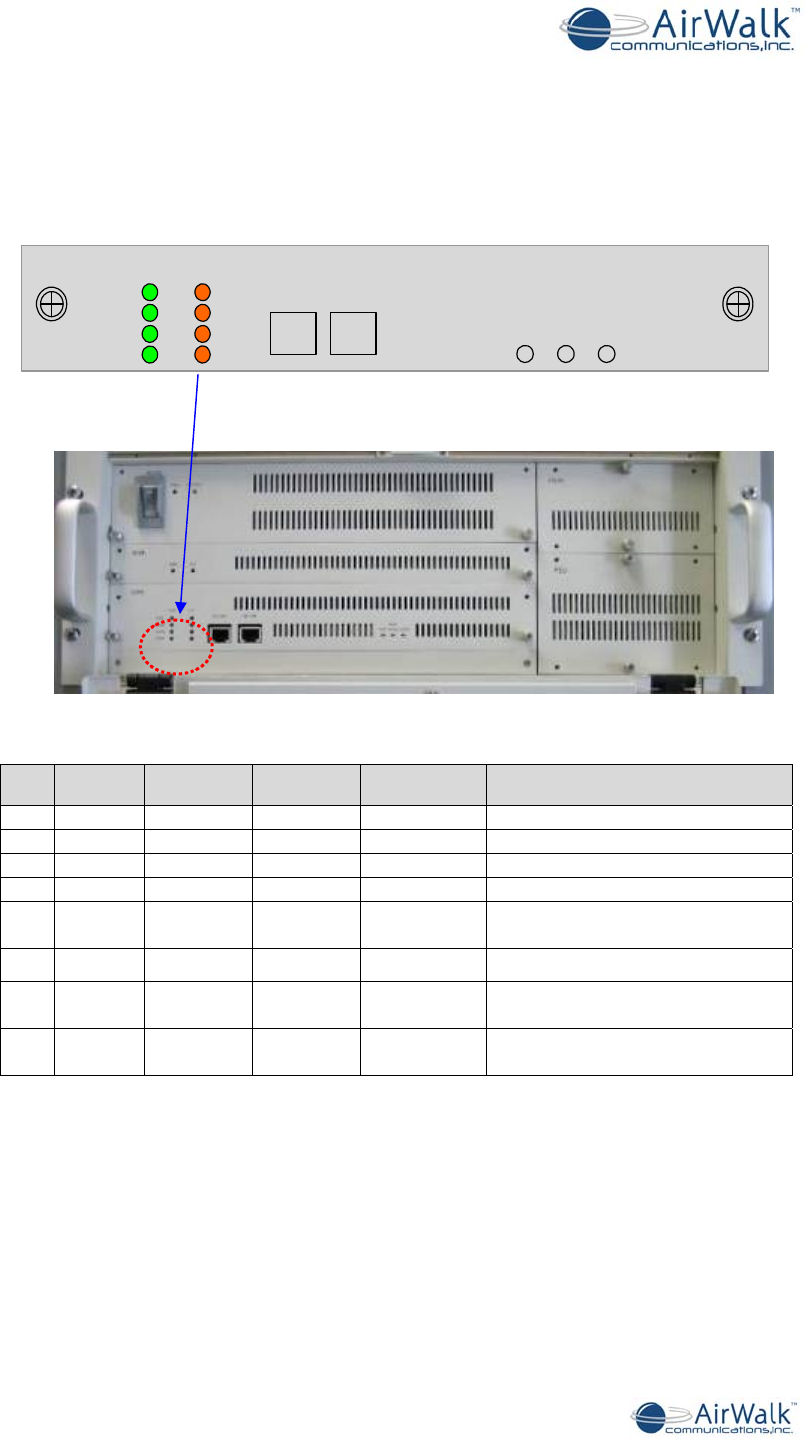

4.3COMPONENT LED CONFIGURATION .................................................................................................. 18
5ONERAN PILOT STATION INTERFACE CABLING ..................................................................... 20
5.1RF CABLING ...................................................................................................................................... 20
5.2ETHERNET/SERIAL CABLE WIRING .................................................................................................... 21
5.3ELECTRIC POWER CABLE WIRING ...................................................................................................... 21
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 4 of 49
6ONERAN PILOT STATION FREQUENCY SETTING PROCEDURES ........................................ 22
6.1BSM MANAGEMENT .......................................................................................................................... 22

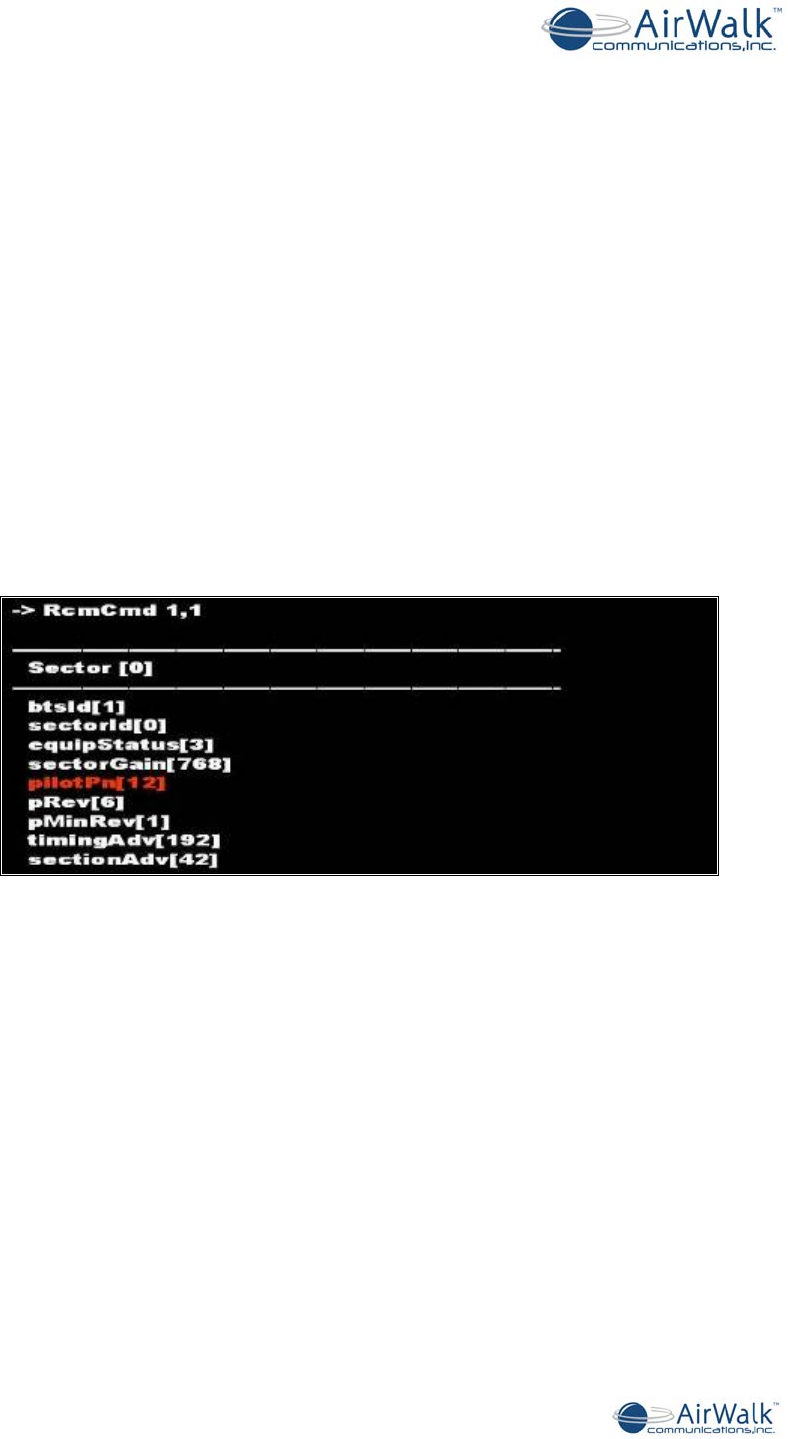

6.2LOCAL FA SETTING ........................................................................................................................... 22

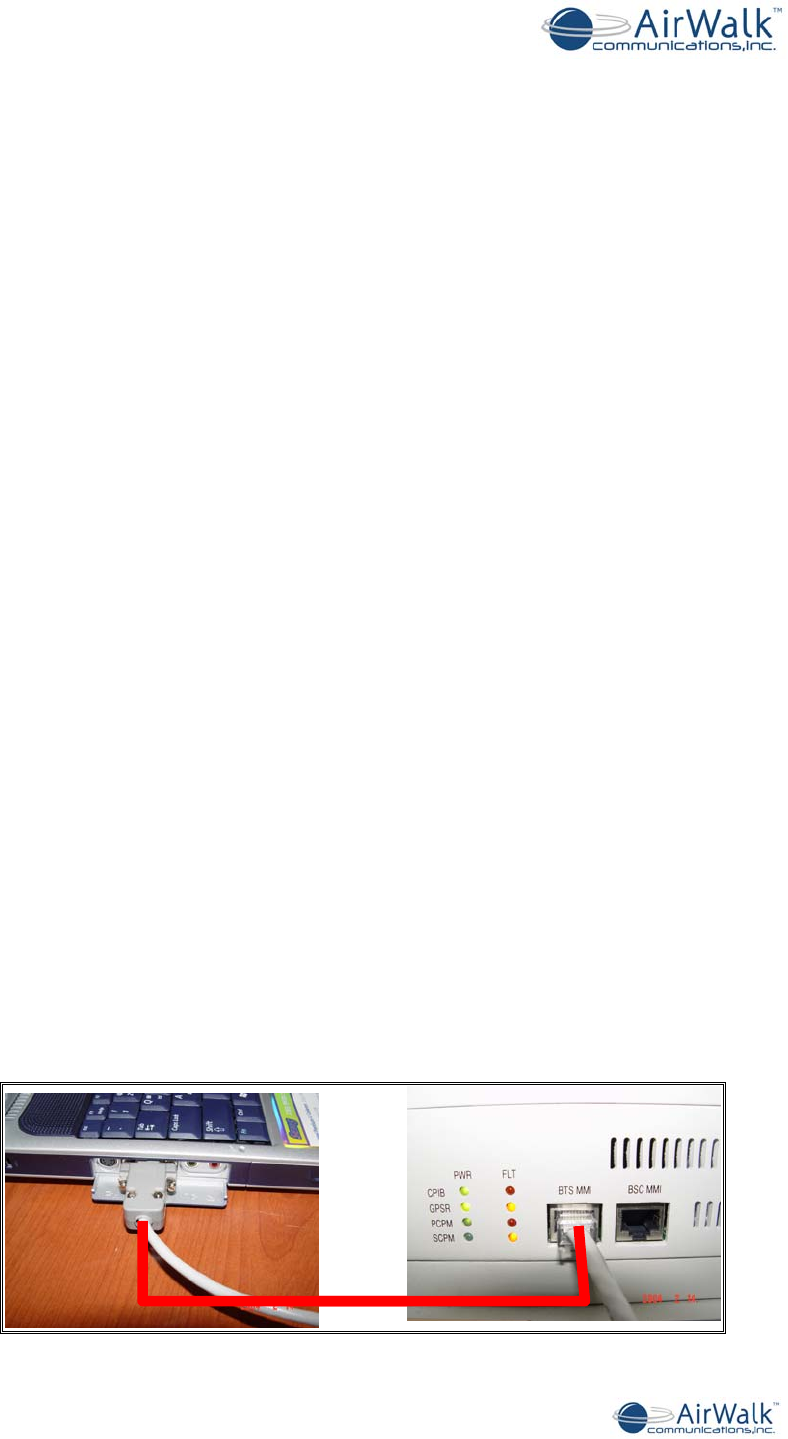

6.2.1MMI Connection ....................................................................................................................... 22
6.2.2FA Change Procedure ............................................................................................................... 23
7ONERAN PILOT STATION INSTALLATION PROCEDURES ..................................................... 25
7.1INSTALLATION VERIFICATION ............................................................................................................ 25
7.1.1Verify Customer Contact & Equipment location ....................................................................... 25
7.1.2Uncrate and arrange for packing material disposal ................................................................. 26
7.1.3Verify location of all Facility distribution points (main and intermediate) .............................. 26
7.2ONERAN PILOT STATION INSTALL PROCEDURES .............................................................................. 27
7.2.1Install OneRAN Pilot Station Cabinet ....................................................................................... 27
7.2.2External System Connections .................................................................................................... 28
7.2.3Connect Power to Cabinet ........................................................................................................ 28
7.2.4Connect Communications Facilities .......................................................................................... 28
7.2.5Power-up procedure .................................................................................................................. 28
7.3SYSTEM TEST ..................................................................................................................................... 29
7.3.1PC to OneRAN Pilot Station cable ............................................................................................ 29
7.3.2System Certification Tests ......................................................................................................... 29
7.3.3Operation Tests ......................................................................................................................... 35
7.3.4Operator Specific Tests ............................................................................................................. 35
7.4SITE CLEAN UP AND CUSTOMER SIGNOFF .......................................................................................... 35
7.4.1Dispose of all packing material. ................................................................................................ 35
7.4.2Clean-up site ............................................................................................................................. 35
7.4.3Update Installation Checklist. ................................................................................................... 36
7.4.4Customer Signoff ....................................................................................................................... 36
7.5REQUIRED TOOLS AND SUPPLIES ....................................................................................................... 36
7.6TROUBLESHOOTING PROCEDURES ..................................................................................................... 36
7.6.1Before Calling for Assistance .................................................................................................... 36
7.6.2When Calling for Assistance ..................................................................................................... 37
8APPENDIX A - ACRONYMS ................................................................................................................ 38
9APPENDIX B - SITE PREPARATION CHECKLIST ....................................................................... 42
10APPENDIX C - INSTALLATION CHECKLIST ............................................................................ 45
11APPENDIX D - CUSTOMER CERTIFICATION DOCUMENT .................................................. 48
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 5 of 49
1 INTRODUCTION
1.1 Proprietary Information Notice
THIS DOCUMENT IS THE PROPERTY OF AIRWALK COMMUNICATIONS, INC. THE
RECIPIENT MAY USE IT ONLY FOR THE PURPOSE FOR WHICH IT WAS
TRANSMITTED AND WILL BE RETURNED UPON REQUEST OR WHEN NO LONGER
NEEDED BY RECIPIENT. IT MAY NOT BE COPIED OR COMMUNICATED WITHOUT
THE WRITTEN CONSENT OF AIRWALK COMMUNICATIONS, INC.
1.2 Purpose of Document
The purpose of this document is to define the Installation, Maintenance and Safety
Compliance of AirWalk Communication’s, Inc. unique CDMA Radio Access Network
(RAN) system. The AirWalk RAN is a market ready, standards compliant, high channel
capacity, cost effective, modular and expandable wireless radio access network system.
Designed specifically for CDMA2000 networks, the Base Station Transceiver (BTS) and
Base Station Controller (BSC) are integrated into a single compact platform.
The target market and applications are corporations, corporate campuses, enterprises,
university campuses, large industrial plants, stadiums, airports, shopping malls, blind
spots, hot spots, rural areas, neighborhoods, and highways.
1.3 Scope
The scope of this document covers the description, environmental specifications,
equipment location, cabling, system installation and maintenance of the AirWalk RAN.
The information contained in this manual was previously included in the combined
Installation & Maintenance Manual for the MiniCell and Pilot Beacon products.
1.4 Order of Precedence
This System Installation Manual will take precedence over any previous AirWalk System
Installation Manual or Document.
1.5 Terminology
See the section entitled: Appendix A - Acronyms
1.6 Applicable Documents
The following documents are applicable to the extent specified in this System Installation
Manual.
1.6.1 AirWalk Documents
• IP- Base Station (BS) System Description.
• IP- Base Station (BS) CPIB Block Diagram.
• IP- Base Station (BS) GPSR Block Diagram.
• IP- Base Station (BS) PCPM Block Diagram.
• IP- Base Station (BS) XCVB Block Diagram.
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 6 of 49
1.6.2 Telecom Standards
(1) TIA/EIA/IS-2000 Series Revision: C - Introduction to CDMA2000 Spread Spectrum
Systems, 05/00/02
(2) Personal Station – Base Station Compatibility Requirements for1.8 to 2.0 GHz CDMA
PCS.
(3) TIA/EIA-664 - Wireless Features Description, 12/00/00
(4) TIA/EIA Interim Standard 95 Revision A - Mobile Station –Base Station Compatibility
Standard for Dual-Mode Wideband Spread Spectrum Cellular Systems, May 1995
(5) TIA/EIA-95-B - Mobile Station-Base Station Compatibility Standard for Dual-Mode
Spread Spectrum Systems, October 31, 1998
(6) MSC to BS Interface Inter-Operability Specification (IOS) IOS-4.2
(7) IMT-2000 Specification, (indoor wireless propagation)
1.6.3 Other Documents
None Identified
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 7 of 49
2 OneRAN Pilot Station Safety and Compliance
Information
2.1 Statement of Intent
The AirWalk OneRAN Pilot Station is intended for use in a CDMA cellular infrastructure
radio access network. The responsible body shall be made aware that, if the equipment
is used in a manner not specified by the manufacturer, the protection provided by the
equipment may be impaired.
2.2 Safety Precautions
1) Power Sources
Use only power sources that are within the specified limits as designated on the
equipment labels. Use of power sources outside the specified limits is hazardous and
may cause personal injury or property damage.
2) Equipment Location
Equipment should be located indoors or in a suitable protected environment such as an
equipment enclosure. Use of unprotected equipment outdoors is hazardous and may
cause personal injury or property damage.
3) Grounding and Electrical Connections
Electrical connections including equipment grounding should be made in accordance with
the National Electric Code and any local regulations. Improper electrical connections are
hazardous and may cause personal injury or property damage. Consult a licensed
electrical installer if in doubt.
4) Hazardous Voltages
Equipment may contain hazardous voltages. Only qualified service personnel should
open the equipment for adjustments, repairs or replacements.
5) Replacement Parts
Damaged parts and protective devices such as fuses should only be replaced by
components approved or recommended by AirWalk Communications. Replacement
fuses must be of the same rating and type as the original for continued protection.
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 8 of 49
2.3 Maintenance Information
2.3.1 Cleaning
The AirWalk OneRAN Pilot Station units are protected by a high performance paint which
does not require normal maintenance. If paintwork is soiled, it can be cleaned using a
damp cloth after AC power has been disconnected. Do not use liquids or spray cleaning
substances on the unit since property damage or personal injury may result.
The AirWalk OneRAN Pilot Station units are protected by a high performance paint which
does not require normal maintenance. If paintwork is soiled, it can be cleaned using a
damp cloth after AC power has been disconnected. Do not use liquids or spray cleaning
substances on the unit since property damage or personal injury may result.
2.3.2 Filter Maintenance 2.3.2 Filter Maintenance
The OneRAN Pilot Station Unit is equipped with a washable air filter located in a front
mounted drop down door.
The OneRAN Pilot Station Unit is equipped with a washable air filter located in a front
mounted drop down door.
This filter should be checked annually for dirt build-up and cleaned if required. Note more
frequent inspections may be needed in dusty environments.
This filter should be checked annually for dirt build-up and cleaned if required. Note more
frequent inspections may be needed in dusty environments.
2.3.3 Fuse Replacement 2.3.3 Fuse Replacement
The OneRAN Pilot Station contains a 250 V 5A fuse located behind the AC connector
cap as shown in the diagram. Replace the fuse with the same type and ratings.
The OneRAN Pilot Station contains a 250 V 5A fuse located behind the AC connector
cap as shown in the diagram. Replace the fuse with the same type and ratings.
2.3.4 Other Maintenance 2.3.4 Other Maintenance
Any other required maintenance must be performed by suitable trained service personnel.
Do not open covers or attempt to repair unit if not suitably trained.
Any other required maintenance must be performed by suitable trained service personnel.
Do not open covers or attempt to repair unit if not suitably trained.

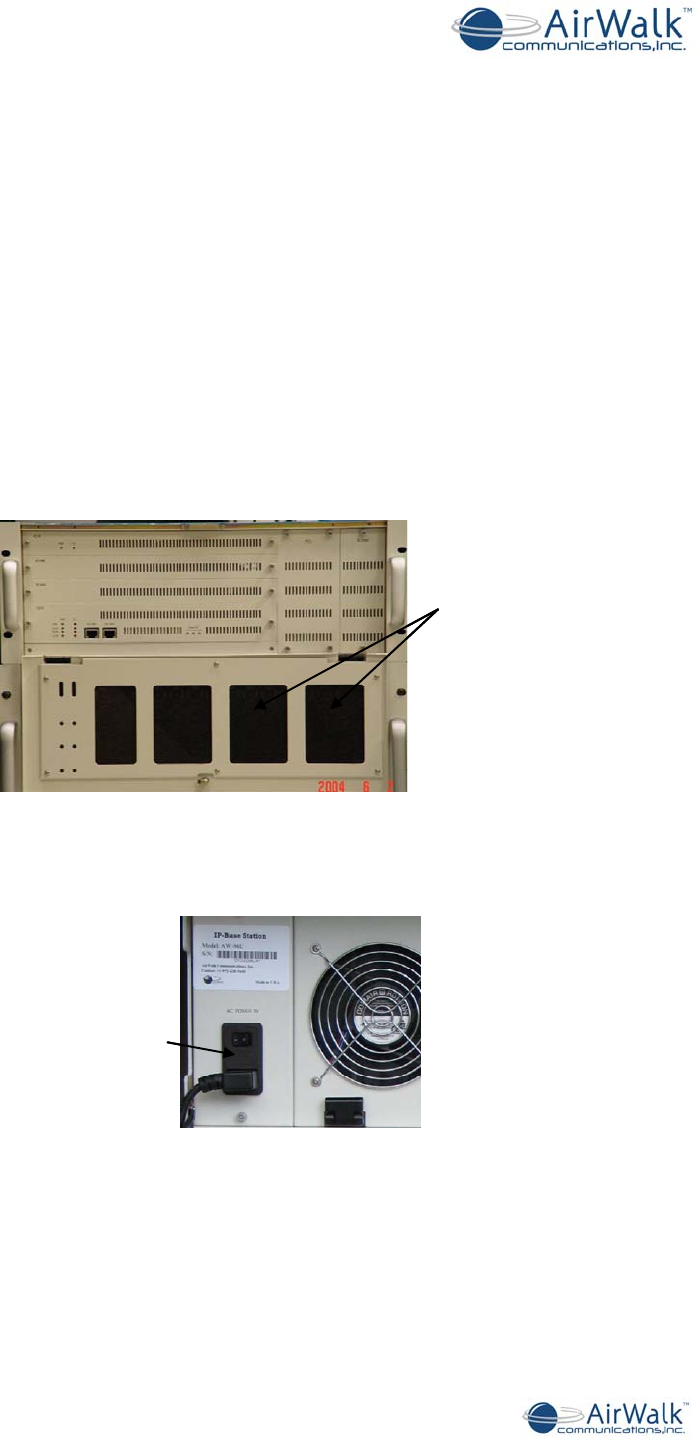

Removable
Fuse Cap
Removable
Fuse Cap
Air Filter Located In
Drop Down Front Door
Air Filter Located In
Drop Down Front Door
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 9 of 49
2.4 Labeling
2.4.1 Grounding
Proper grounding is recommended to ensure good RF performance in addition to
personnel safety. Antenna systems should also be suitably grounded for good RF
performance.
recommended to ensure good RF performance in addition to
personnel safety. Antenna systems should also be suitably grounded for good RF
performance.
Grounding connection points on the chassis are identified by this symbol: Grounding connection points on the chassis are identified by this symbol:

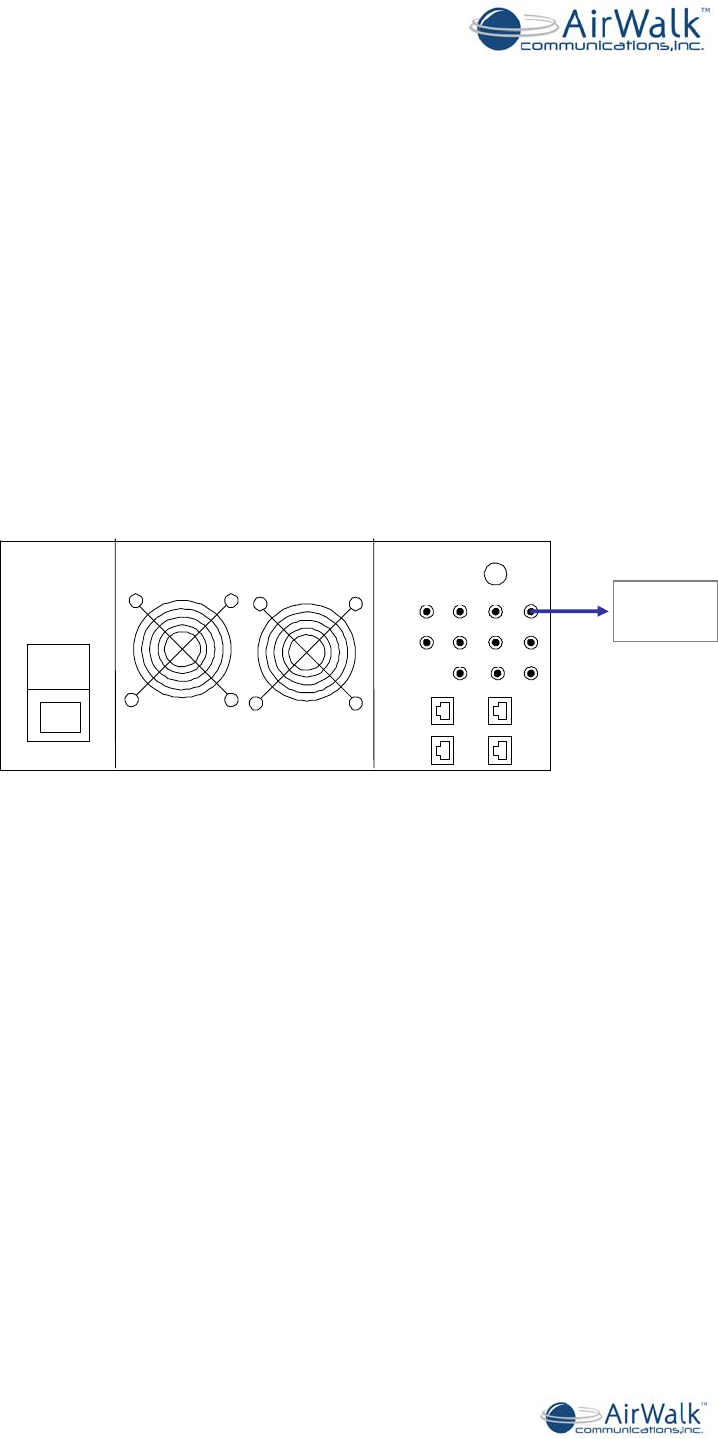

2.4.2 Label: Model Identification, FCC Identification, Power 2.4.2 Label: Model Identification, FCC Identification, Power
The following diagram illustrates the location of the FCC label that will be applied to the
OneRAN Pilot Station unit to provide model identification, FCC identification and rated
power supply information.
The following diagram illustrates the location of the FCC label that will be applied to the
OneRAN Pilot Station unit to provide model identification, FCC identification and rated
power supply information.
1.0
15.0
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 10 of 49
2.5 Regulatory Compliance Information
The FCC regulatory compliance information provided in this section is applicable only to
models equipped with an FCC identification number (FCC ID).
2.5.1 Radio Interference (FCC 15.19 Statement)
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
2.5.2 Unauthorized Modifications (FCC 15.21 Statement)
Persons or parties responsible for operation of this equipment are cautioned that any
changes or modifications not expressly approved by AirWalk Communications
Incorporated could void the user’s authority to operate this equipment.
2.5.3 Digital Device Interference (FCC 15.105 Statement)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
2.5.4 RF Power Requirements
The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent
structures.
For systems built with additional RF amplification, power reduction is required at the band
edges to comply with FCC limits.
For the 4W RCPB the maximum RF power must not exceed the following:
Channel Maximum Power
1013 – 1014 0.109 Watts
1015 – 775 4 Watts
776 – 777 0.726 Watts
For the 20W Slim RU the maximum RF power must not exceed the following:
Channel Maximum Power
1013 – 1015 0.140 Watts
1016 – 773 20 Watts
774 – 777 0.500 Watts
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 11 of 49
3 OneRAN Pilot Station System Introduction
3.1 Hardware Configuration
The IP-BS is a unique modular and stackable combination BSC and BTS platform that is
differentiated from other systems. Other systems have separate BTS and BSC platforms
which add to cost and complexity. The AirWalk OneRAN Pilot Station has a structure that
combines and arranges the BSC interface with one the BTS in a single package.
The main components are:
o CDPB (Common Digital Processing Board), consisting of:
CPIB (Channel Processor and IF Interface Board) PB Only
PCPM (Primary Call Processor Module)
GPSR (Global Positioning System Receiver)
o XCVB-SP (RF Transceiver Board) Transmit Only configuration
o PSA (Power Supply Assembly)
o RCPB (RF Power amplifier Board) 4 Watt CDMA Power Amplifier
3.1.1 Physical Description
• AirWalk OneRAN Pilot Station
o Dimension: Max. 482mm[19”](W) x 457mm[18”](D) x 178mm[7”](H)
o 19” EIA Rack x 4 Rack Units
o Weight: 15 kg [33 lbs]
3.1.2 Typical Configurations
The following shows typical component configurations for common applications. Refer to
the model charts for the contents of specific model numbers.
Omni Macrocell Pilot Station System (4W PPS)
- AirWalk OneRAN Pilot Station self contained unit
Omni Multi-Carrier Macrocell Pilot Beacon System (4W PPS, 3 carrier hopping)
- AirWalk OneRAN Pilot Station self contained unit with Multi-Carrier software
option
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 12 of 49
3.1.3 Installation Photographs
The following photographs show typical field installations for the AirWalk OneRAN Pilot
Station systems:
Figure 3-2 – Typical OneRAN Pilot Station System
Figure 3-3 – Typical OneRAN Pilot Station Rack Mounted
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 13 of 49

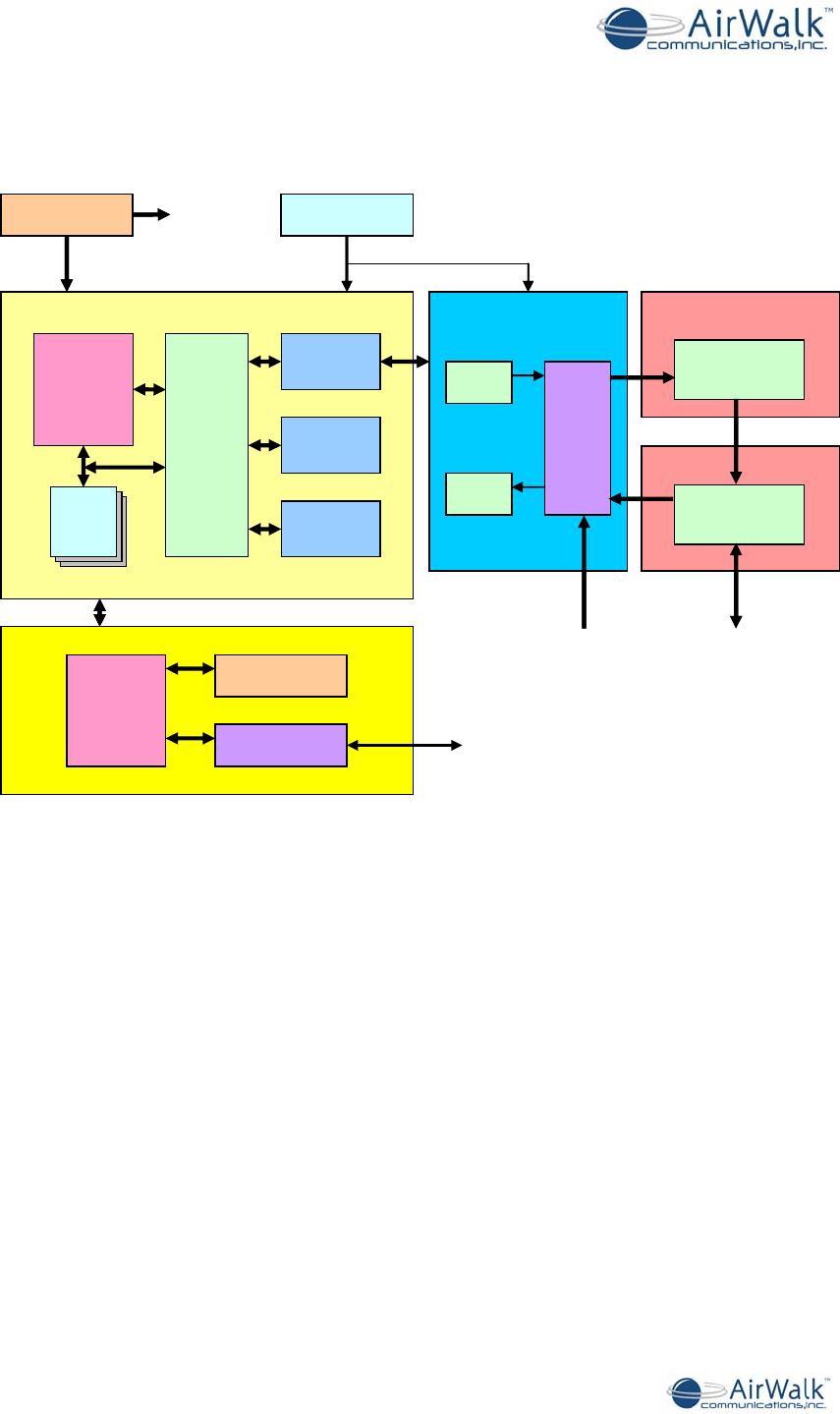

3.2 Block Diagram – OneRAN Pilot Station
Figure 3-6 AirWalk OneRAN Pilot Station Hardware Structure Figure 3-6 AirWalk OneRAN Pilot Station Hardware Structure
OneRAN Pilot Station Notes: OneRAN Pilot Station Notes:
- FEDB not provided on all models - FEDB not provided on all models
- OneRAN Pilot Station may not be equipped with diversity receiver - OneRAN Pilot Station may not be equipped with diversity receiver
- OneRAN Pilot Station may not be equipped with 3 CSM-5000 or receiver A/D & IF - OneRAN Pilot Station may not be equipped with 3 CSM-5000 or receiver A/D & IF
Processor
(MPC8250)
CSM5K
X3
FPGA
(Control
Logic)
IF I/F - α
(A/D & D/A)
IF I/F - β
(A/D & D/A)
IF I/F - γ
(A/D & D/A)
GPSR
XCVB
UPCB
DNCB
DPL
PSA
Processor
(MPC8260)
Memory Block
Gateway I/F
CPIB
PCPM
From/To
CA &
WPM
HPAU
(4/8Watt)
From/To
Antenna
RCPB
Duplexer
FEDB
To
RCPB
Processor
(MPC8250)
CSM5K
X3
FPGA
(Control
Logic)
IF I/F - α
(A/D & D/A)
IF I/F - β
(A/D & D/A)
IF I/F - γ
(A/D & D/A)
GPSR
XCVB
UPCB
DNCB
DPL
PSA
Processor
(MPC8260)
Memory Block
Gateway I/F
CPIB
PCPM
From/To
CA &
WPM
HPAU
(4/8Watt)
From/To
Antenna
RCPB
Duplexer
FEDB
To
RCPB
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 14 of 49
3.3 System Capacities and Specifications
3.3.1 OneRAN Pilot Station Technical Specification
Item Capacity and
Specification Remarks
Frequency Band
Up-Link: 1850 ~ 1910 MHz
Down-Link: 1930 ~ 1990 MHz North American PCS Band
Up-Link: 824 ~ 849 MHz
Down-Link: 869 ~ 894 MHz 800 MHz Cellular Band
FA 1FA/Omni
3FA Hopping Pilot Beacon Each Pilot Station Unit
Handoff Softer H/O, soft H/O. Hard H/O
GPS External GPS Antenna One per Pilot Station
Installation Rack Mountable 4 Rack Units
Cooling Forced Air Front To Rear Flow
IP-Network Interface 10/100 Base-T Ethernet
Transmitter output power 4W Internal RU system Includes duplexer
RF Interface Antenna A (Tx/RxA)
Antenna B (RxB) CDMA 2000 1xRTT
Common Air Interface (CAI) J-STD-008/IS-95-A/IS-95B
/CDMA2000-1x
Channel bandwidth 1.25MHz
Mechanical Specification
RF Input and Output
Connector SMA Female (Input/Output) From/To Antenna
System
AC Power Connector IEC
Ethernet Signal Port
Connectors RJ-45
Dimensions ( WxHxD ) 482mm(W) x 457mm(D) x 178mm(H)
19”(W) x 18”(D) x 7”(H) 4 Rack Units
Weight 15 kg [33 lbs]
Table 3-1 – AirWalk OneRAN Pilot Station Specifications
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 15 of 49
3.3.2 IP-BS Power Supply & Environment Technical Specification
Input Power Supply
Input Voltage: AC 100Volts ~ 250Volts
Input Frequency: 50Hz ~ 60Hz
Dissipated Power
Main Unit: 350 Watt Max (Efficiency 75%)
Environment Specification
Operating Temperature 0o ~ +50 o
Storage Temperature -30 o ~ +60 o
Relative Humidity 5% ~ 95% - Non-condensing
Noise Less than 60dBA, distance 1.5m
Airborne Particle 0 ~ 90 ㎍/㎥
Table 3-3 - Power Supply & Environment Specifications
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 16 of 49
4 OneRAN Pilot Station Components
4.1 OneRAN Pilot Station

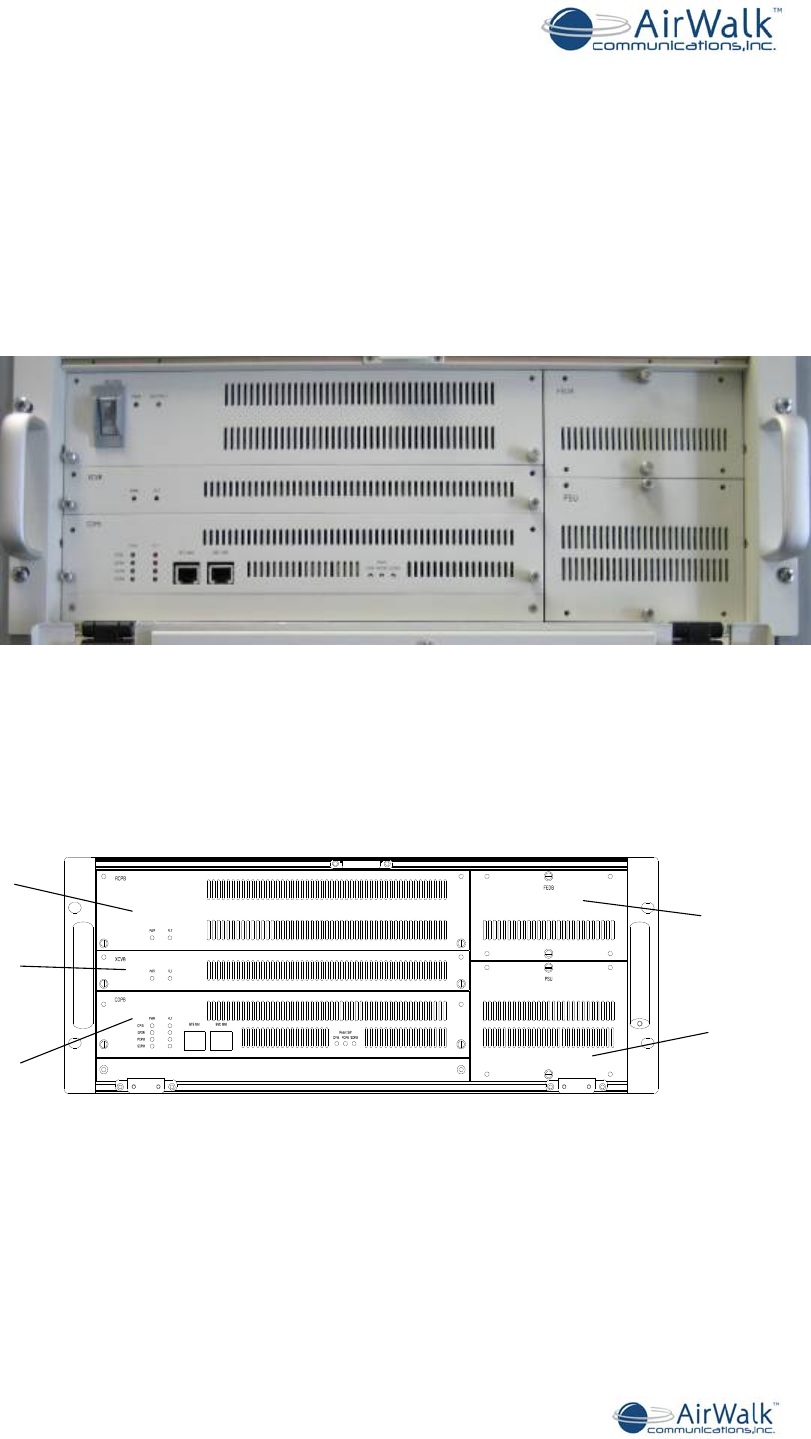

Figure 4-1 OneRAN Pilot Station Photo (Front View)
Figure 4-2 OneRAN Pilot Station Line Diagram (Front View)
FEDB: not used with OneRAN Pilot Station
CDPB
XCVB
RCPB
FEDB
PSU
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 17 of 49

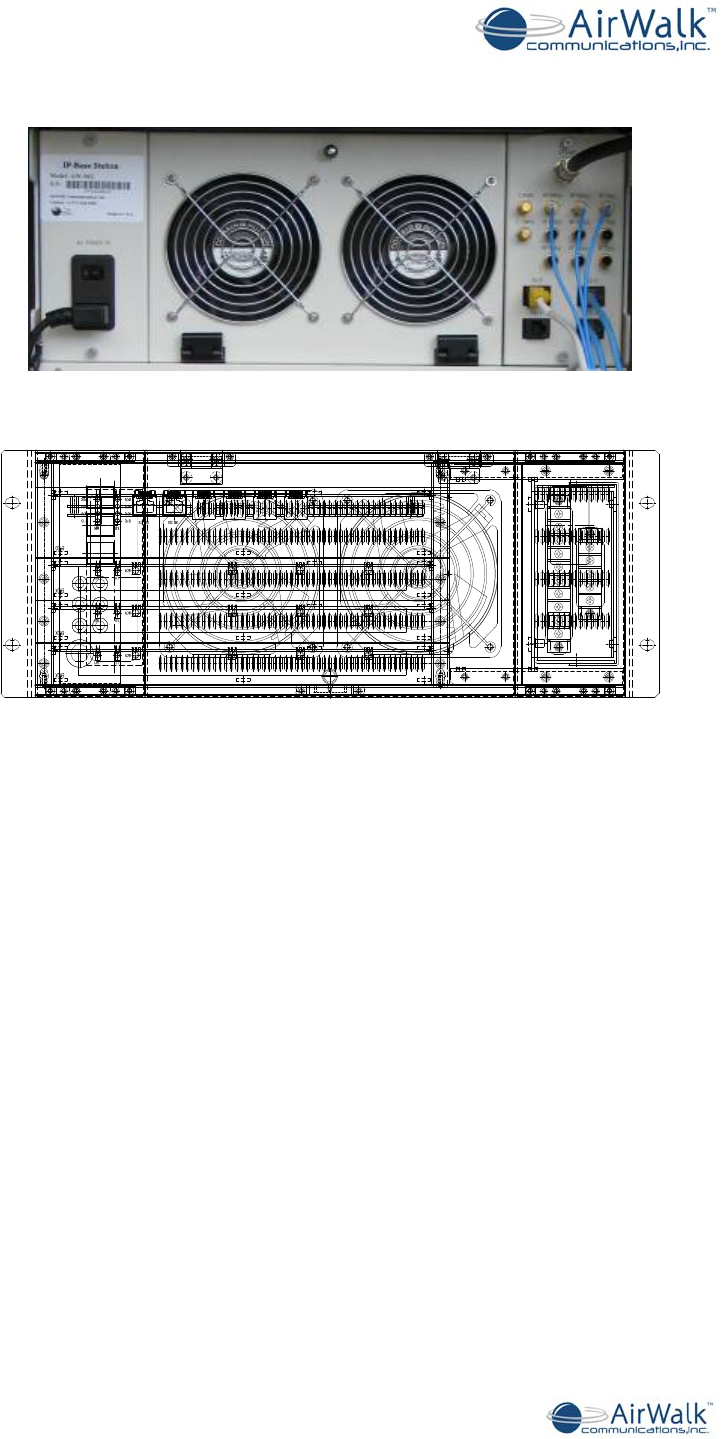

Figure 4-3 OneRAN Pilot Station Photo (Back View)
Figure 4-4 OneRAN Pilot Station – Line Diagram (Back View)
4.2 RF Power amplifier Board (RCPB – 4 Watt)
RCPB (RF Power amplifier Board) is an integrated 4 Watt CDMA Power Amplifier.
Integrated meaning that this unit is one of the modules installed into the OneRAN
chassis. This unit is provided for use in the mini macro cell and Pilot Station systems
with medium sized geographic coverage areas.
The RCPB contains a High Power RF amplifier to increase the downlink signal strength
from the RF Transceiver Board (XCVB) to the broadcast antenna. The RCPB is used
predominately in an omni cell site configuration.
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 18 of 49
4.3 Component LED Configuration .3 Component LED Configuration
CDPB: LED status indicators are provided on the OneRAN Pilot Station CDPB module.
LED functions are described in the following pictures and tables.
CDPB: LED status indicators are provided on the OneRAN Pilot Station CDPB module.
LED functions are described in the following pictures and tables.
CPIB
GPSR
PCPM
SCPM
CDPB PWR FLT
BTS
MMI BSC
MMI RESET
CPIB
PCPM SCPM
Figure 4-9 CDPB Panel Diagram
Figure 4-10 - CDPB Panel Photo
Name Color On Off Note
1 CPIB Green Normal Abnormal CPIB power on/off indicator
2 GPSR Green Normal Abnormal GPSR power on/off indicator
3 PCPM Green Normal Abnormal PCPM power on/off indicator
4 SCPM Green Normal Abnormal SCPM power on/off indicator
5 CPIB Orange Abnormal Normal Check function of CPU in CPIB
Board and ALARM
6 GPSR Orange Abnormal Normal GPSR alarm on/off indicator
7 PCPM Orange Abnormal Normal Check function of CPU in
PCPM Board and ALARM
8 SCPM Orange Abnormal Normal Check function of CPU in
SCPM Board and ALARM
Table 4-1 – CDPB Indicator Codes
NOTE: OneRAN Pilot Station units are NOT normally equipped with an SCPM
(Secondary Call Processor Module), therefore these indicators are not used in most
system applications.
XCVB: The XCVB module is equipped with 2 indicators. LED functions are described in
the following pictures and tables.
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 19 of 49
XCVB
PWR
FLT
Figure 4-11 - XCVB Panel Diagram
Figure 4-12 XCVB Panel Photo
Name Color On Off Note
1 PWR Green Normal Abnormal XCVB power on/off indicator
2 FLT Orange Abnormal Normal XCVB alarm on/off indicator
Table 4-2 - XCVB Indicator Code Key
RCPB: The RCPB module is equipped with 2 indicators. LED functions are described in
the following pictures and tables.
Figure 4-13 - RCPB Panel Diagram
Figure 4-14 RCPB Panel Photo
Name Color On Off Note
1 PWR Green Normal Abnormal RCPB power on/off indicator
2 ACT/FLT Green Normal (power off) RCPB alarms are clear
2 ACT/FLT Orange Abnormal (power off) RCPB alarm/fault
Table 4-3 - RCPB Indicator Code Key
RCPB
ACT/FLTPWR
RCPB
ACT/FLTPWR
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 20 of 49
5 OneRAN Pilot Station Interface Cabling
5.1 RF Cabling
The OneRAN Pilot Station Antenna port is connected to the external antenna system as
shown in Figure 6.2 (cables not included). External connector is SMA type.
The OneRAN Pilot Station is not equipped with any receivers, therefore there is no
duplexer requirement for normal operation. Note the main antenna port may be marked
Txα on some enclosures.
Antenna systems must include suitable protection against lightning and other hazards in
accordance with conventional cell site installation practices.
Figure 6-2 RF Cabling Diagram
GPSANT
RF RXA(a) RF TX (a)
RF TX(b)
RF RXB(r) RF RXA(r) RF TX (r)
T_EVEN
T_10MHz
RU IF BSC IF
ENV IF BTS IF
RF RXB(a)
RF RXB(b) RF RXA(b)
GPSANT
RF RXA(a) RF TX (a)
RF TX(b)
RF RXB(r) RF RXA(r) RF TX (r)
T_EVEN
T_10MHz
RU IF BSC IF
ENV IF BTS IF
RF RXB(a)
RF RXB(b) RF RXA(b)
To Main
Antenna
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 21 of 49
5.2 Ethernet/Serial Cable Wiring
Connect the external Ethernet connections (cable not supplied) from the local Ethernet
switch or hub at the cell site to the BTS and BSC Ethernet ports on the OneRAN Pilot
Station as shown in Figure 6.3. Use category 5 Ethernet cable (or better) for best
performance.
5.3 Electric Power Cable Wiring
Connect OneRAN Pilot Station to suitable AC power sources as shown in Figure 6-3.
Use only the AC power cables provided with the unit to ensure continued safe operation. the unit to ensure continued safe operation.

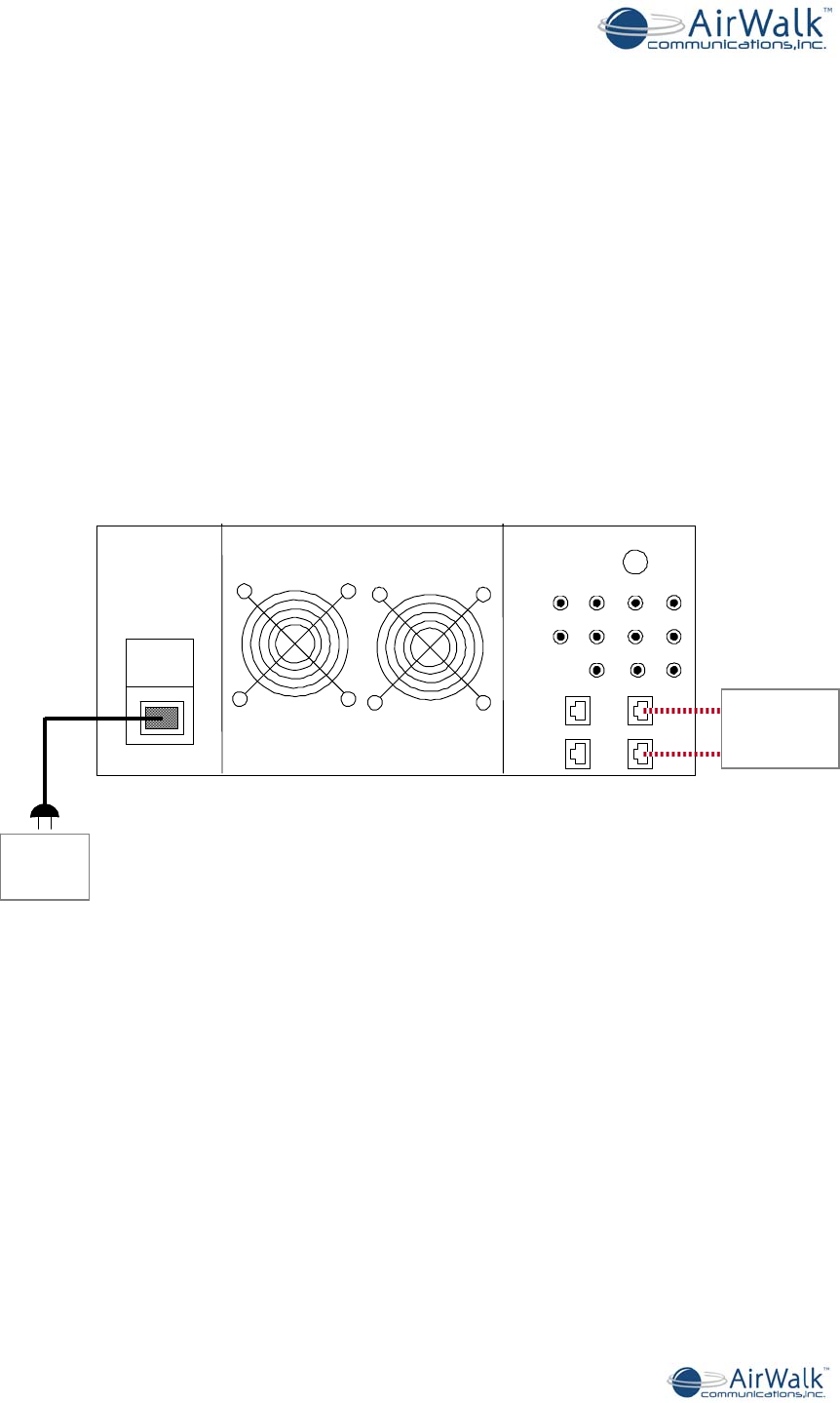

Figure 6-3 OneRAN Pilot Station Power & Ethernet Cabling Figure 6-3 OneRAN Pilot Station Power & Ethernet Cabling
GPSANT
RF RXA(a) RF TX (a)
RF TX(b)
RF RXB(r) RF RXA(r) RF TX (r)
T_EVEN
T_10MHz
RU IF BSC IF
ENV IF BTS IF
RF RXB(a)
RF RXB(b) RF RXA(b)
GPSANT
RF RXA(a) RF TX (a)
RF TX(b)
RF RXB(r) RF RXA(r) RF TX (r)
T_EVEN
T_10MHz
RU IF BSC IF
ENV IF BTS IF
RF RXB(a)
RF RXB(b) RF RXA(b)
To Local
Ethernet
Switch/Hub
AC
Power
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_______ ____
AirWalk Proprietary and Confidential Page 22 of 49
6 OneRAN Pilot Station Frequency Setting Procedures
6.1 BSM Management
The OneRAN Pilot Station base stations are normally managed by the centrally located
BSM (Base Station Manager) system which communicates with the unit over an IP
connection.
The BSM will download system software and configuration information which includes the
physical FA (Frequency Assignment) for each base station. The base station will tune to
the correct frequency as defined by the BSM configuration files.
Refer to the BSM operations manual for instructions on base station remote configuration.
6.2 Local FA Setting
It may be required to set the OneRAN Pilot Station physical FA (frequency assignment)
locally for specialized test purposes or when the BSM connection is unavailable (for
example during early BTS installations). This can be done using the local MMI (Man
Machine Interface) port and a local PC.
The configuration data downloaded from the BSM will override local settings when BSM
connections are established.
Refer to the MMI instruction manual for further information on other commands.
6.2.1 MMI Connection

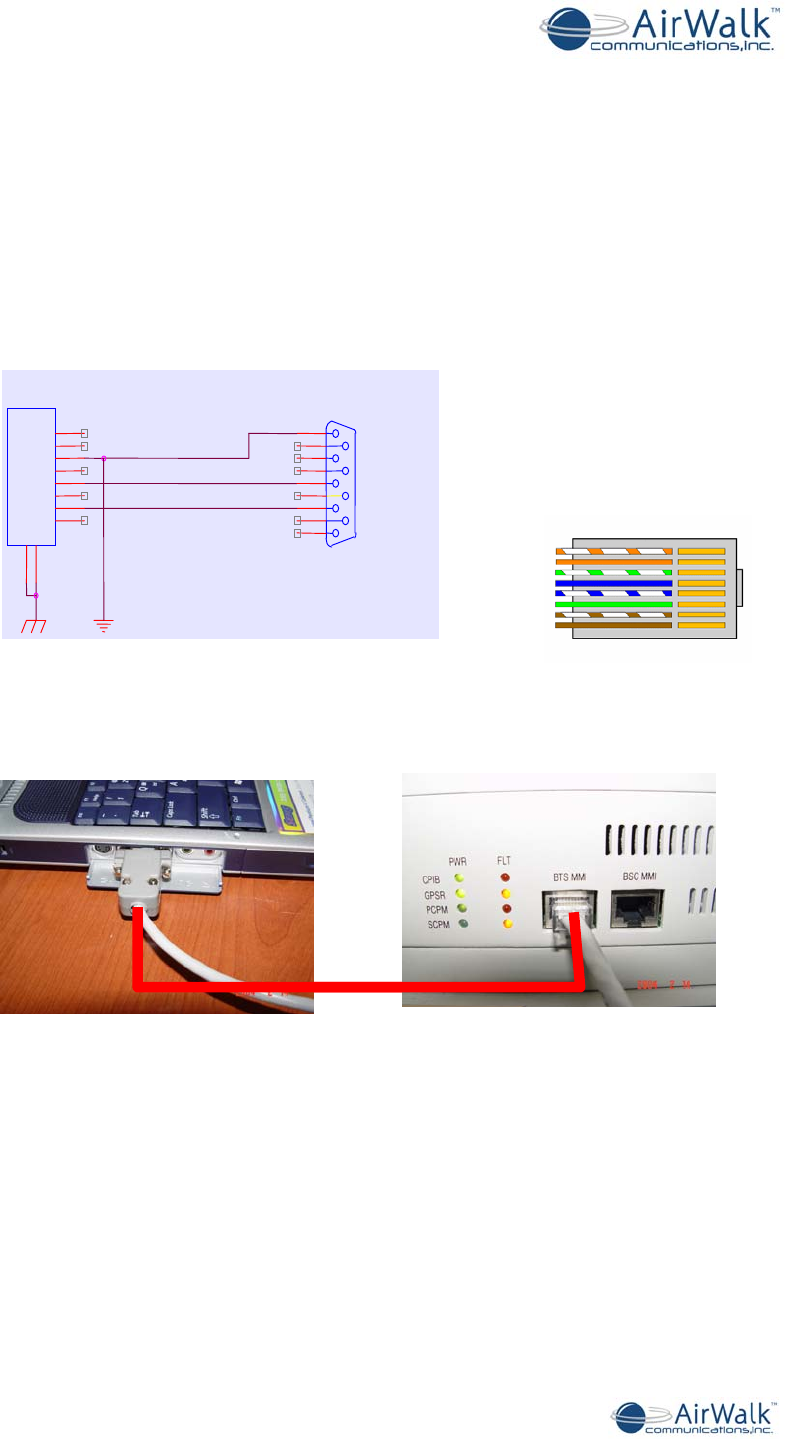

Connect the serial port of the PC to the “BTS MMI” port on the OneRAN Pilot Station
front panel. Use the cable described in section 7.3.1 and the following port settings:
115200 baud
8 bit
No Parity
1 stop bit
No flow control
__________________________________________________________________
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 23 of 49
6.2.2 FA Change Procedure
The following menu driven commands will permit local change of the FA.
Step 1
At the prompt enter the following:
> pn3383 // this will take you to the menu screen which looks something like this:
================= PN 3383 ====================
1. Tx Test
2. Rx Test
3. ParameterSetup
4. Rf Gain Display
5. xcvbSetup
6. ampSetup
7. Normal Gain Display
8. MakeTestCall
9. callClear
10. Overhead Calibration Control
11. Test Phone Setup (619 2221001)
12. Handoff Test
0. Exit
--------------------------------------------------
Select Number ===>
Step 2
Enter the following:
Select number => 5 // it will take you to the below menu screen.
================= Xcvb Setup ====================
1. Change Ch
2. Tx On
3. Tx Off
4. Rx_Main_AGC ON
5. Rx_Main_AGC OFF
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 24 of 49
6. Rx_Sub_AGC ON
7. Rx_Sub_AGC OFF
8. Set RxMain ATT
9. Set RxSub ATT
10. Set Tx Att
11. Xcvb Status
12. showXcvrAttGain
0. Exit
--------------------------------------------------
Select Input Number =====>
Step 3
Enter the following:
Select Input Number => 1 // choosing 1 will take you to the below menu.
ALPHA : xcvrChangeCh Num [001 ~ 1500] [1175] [/0:Exit]==>
Step 4
From the above menu, type the new channel desired (CDMA channels from 1 to 1500)
and 0 to exit. Note that for 3 sector base stations Step 3 must be repeated for each
sector (alpha, beta, and gamma).
Note that only standard CDMA channel numbers within the designated band capability of
the radio will be accepted by the base station.
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 25 of 49
7 OneRAN Pilot Station Installation Procedures
This Section gives definitions and instructions for installing the OneRAN Pilot Station and
for connecting it to the wireless carrier’s infrastructure. It contains detailed definitions
needed for completing site Installation Checklist (Appendix B).
7.1 Installation Verification
Before installing the equipment, it is necessary to verify the following:
7.1.1 Verify Customer Contact & Equipment location
7.1.1.1 Contact Customer1
1) Verify contact name check Site Preparation Planning Checklist Appendix B.
2) Verify contact phone number.
3) Introduce yourself to the Customer contact.
4) Introduce Installation team (if more than one person on team).
5) Verify that all current customer contacts are listed.
a) Verify that contacts can solve problems within a timely manner for:
i) Power Connection(s),
ii) T1 Connection(s),
iii) LAN Connection(s),
iv) If not, have main customer contact provide names and method of
contacting.
6) Determine when contacts are available for help (e.g.; Time of day, day of week.).
7) Obtain any site access or security requirements (e.g.: ID Badges, Card-keys, Keys,
Access codes) required to access installation site.
8) Indicate all changes on checklist.
7.1.1.2 Locate OneRAN Pilot Station Equipment.2
1) Determine where OneRAN Pilot Station is stored.
2) Check for any visible shipment damage.
1 NOTE: Make sure all changes are sent to the Installation Coordinator Immediately.
2 NOTE: If any visible damage contact the Installation Coordinator immediately.
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 26 of 49
7.1.1.3 Locate and verify floor space.
1) Determine where the OneRAN Pilot Station is to be installed (Refer to site diagram
in Appendix B).
2) Verify that there is enough space to safely install it (Refer to site diagram in
Appendix B).
7.1.2 Uncrate and arrange for packing material disposal
1) Carefully unpack the OneRAN Pilot Station and related components from packing
material.
2) Check for any shipment damage.3
3) Be certain that all components match system order.4
4) Make arrangements with customer contact on where, when, and how to dispose of
all OneRAN Pilot Station packing material.
7.1.3 Verify location of all Facility distribution points
(main and intermediate)
7.1.3.1 Power Check
7.1.3.1.1 Power Location
1) Locate the customer provided power connection.
a) There should be a –48VDC connection for DC powered models (if required).
b) There should be a 120 or 240 VAC connection for AC powered models (if
required).
7.1.3.1.2 Verify Connector.
1) An 8 AWG three wire stranded cable to connect to a WECO DC terminal block
connector is required for –48VDC (if required).
2) A 6ft (1.84m) e conductor type SJT cables with standard grounded connector is
required for 110VAC connection (if required).
7.1.3.1.3 Voltage
3 NOTE: Note any damage on shipping report, and Installation Checklist. Contact
the Installation Coordinator immediately
4 NOTE: If components do not match the system order, contact the Coordinator
immediately.
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 27 of 49
1) Using a power meter check for correct voltage.
a) –48VDC range is 40VDC to 57VDC (if required).
b) 120 VAC range is 90 VAC to 132 VAC (if required).
c) 240 VAC range is 180 VAC to 264 VAC (if required).
7.1.3.1.4 Amps
1) Check cables to determine if they will handle required Amps.
a) –48VDC should be able to support 27.9 Amps.
b) 120 VAC should support 15 Amps, 240 VAC should support 7.5 Amps
7.1.3.1.5 LAN Facilities check.
1) Location – Locate the customer provided LAN connections.
2) Verify IP Address (Site Prep Checklist Appendix B).
3) Verify Connector is an RJ45 (if not contact customer).
4) Connect Laptop and Ping IP Address.
5) Prepare a site IP addressable device diagram showing the IP address for each
device at the base station site. This diagram is essential for any needed
troubleshooting activities.
6) Post the diagram at the site and return a copy to the customer’s maintenance center
and a copy to the AirWalk customer service center:
AirWalk Customer Service Centre
1830 North Greenville Ave.,
Richardson, Texas 75081
7.2 OneRAN Pilot Station Install Procedures
7.2.1 Install OneRAN Pilot Station Cabinet
Move OneRAN Pilot Station to location.
Secure OneRAN Pilot Station in designated location
(Bolt down or Secure Wheels if provided).
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 28 of 49
7.2.2 External System Connections5
To install new internal connections refer to the Section and Figures in the following Table
for proper cable installation.
Section Description Reference 3
6.1 External Diversity Antenna System Figure 6-2
6.2 Electrical Power Cable
Figure 6-3
Use AC power
cables supplied
with unit.
6.3 External BSC & BTS Ethernet Cable Figure 6-4
6.4 External GPS Antenna Cable Figure 6-5
Table 7-1 - External System Cable Reference
7.2.3 Connect Power to Cabinet
Connect -48VDC to DC distribution panel (if applicable).
Connect 120VAC or 240VAC to Rack AC distribution panel (if applicable).
7.2.4 Connect Communications Facilities
Connect LAN Facilities to BSC
Connect LAN Facilities to BTS.
7.2.5 Power-up procedure67
7.2.5.1 Power-up Main cabinet
Make sure all appropriate LED’s are illuminated.
7.2.5.2 Complete any Configuration options.
a) Configure the OneRAN Pilot Station.
i) Outgoing and incoming channels.
5 WARNING: Make sure all system power supplies are turned off. All
breakers/Fuses are pulled on all main and intermediate panels. Then proceed with
the Installation.
6 Note: Once all connections are made, make sure to: Reset/install all breakers/fuses for
all main and intermediate breaker/fuse box(s). Then proceed with the Installation.
7 Make sure all added cabling is tie-wrapped correctly
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 29 of 49
7.3 System Test
This section contains the system tests that should be completed to determine if the
OneRAN Pilot Station is operational.
7.3.1 PC to OneRAN Pilot Station cable
A special cable is required to run the required certification tests.
Connect a PC with the subject cable to run tests
BTS
P1
CONNECTOR DB9
5
9
4
8
3
7
2
6
1
RJ1
RJ-45
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
BTS
P1
CONNECTOR DB9
5
9
4
8
3
7
2
6
1
RJ1
RJ-45
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
Pin Configuration
DB9 RJ-45
(Computer) (BTS)
5 3
3 5
2 7
Figure 7-1 - PC to OneRAN Pilot Station Cable Specifiaction
Figure 7-2 - PC to OneRAN Pilot Station Cable Connection Diagram
7.3.2 System Certification Tests
Start The OneRAN Pilot Station tests.
This sequence of test cases is designed to certify the OneRAN Pilot Station installation.
It is assumed the person running this checklist is familiar with the basics of configuring,
running, stopping, and starting the OneRAN Pilot Station.
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 30 of 49
7.3.2.1 Test Case #1 - Image/PLD loading
7.3.2.1.1 Test Procedure #1
• Command: user: ipbs001
FTP password: ipbs001
• Command: Edit:
- P: display
- C: edit
7.3.2.1.2 Expected Result of Case #1

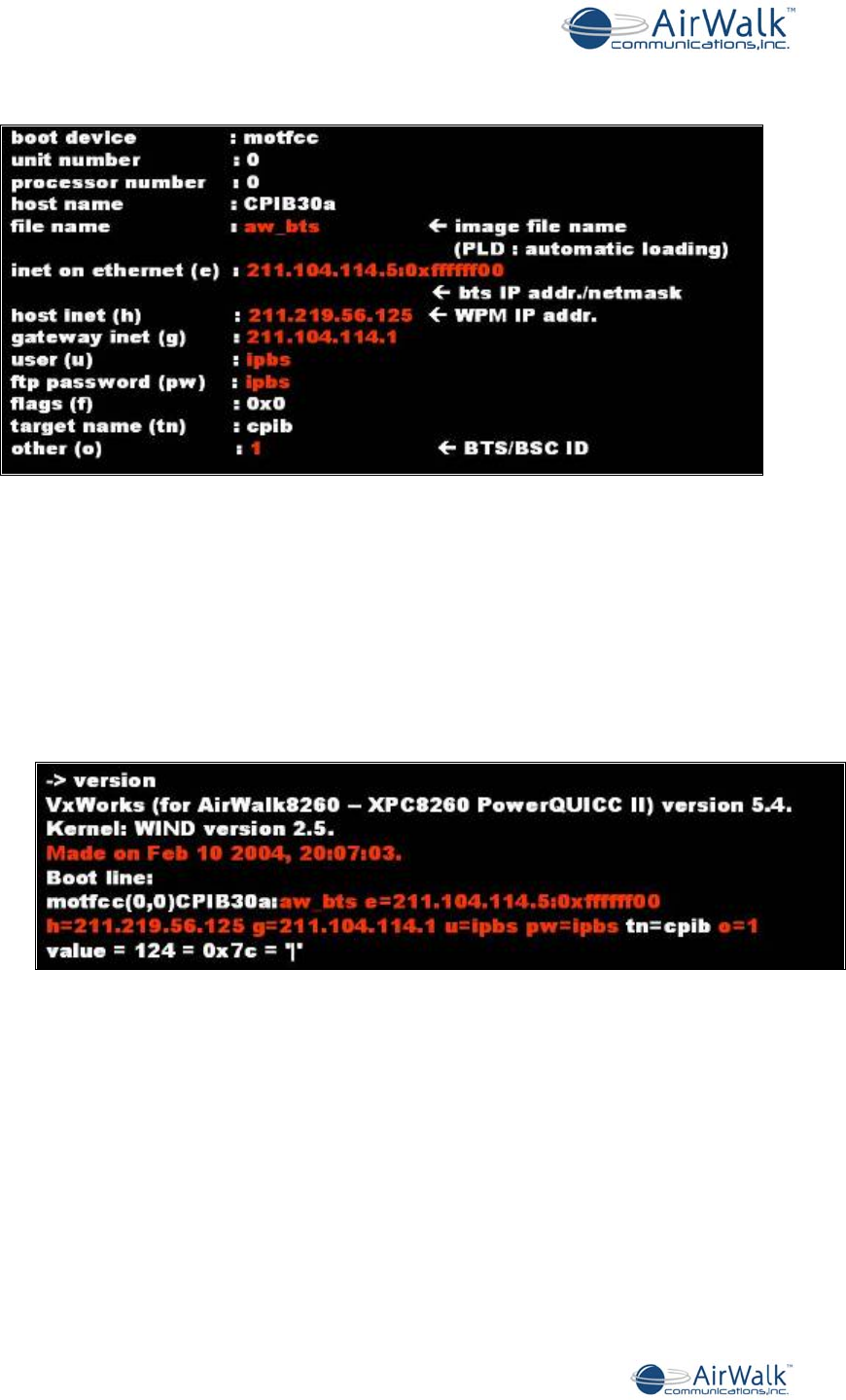

Screen from PC using ftp Server is shown in Figure 7-3.
Figure 7-3 - Screen from PC Screen from WPM
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 31 of 49

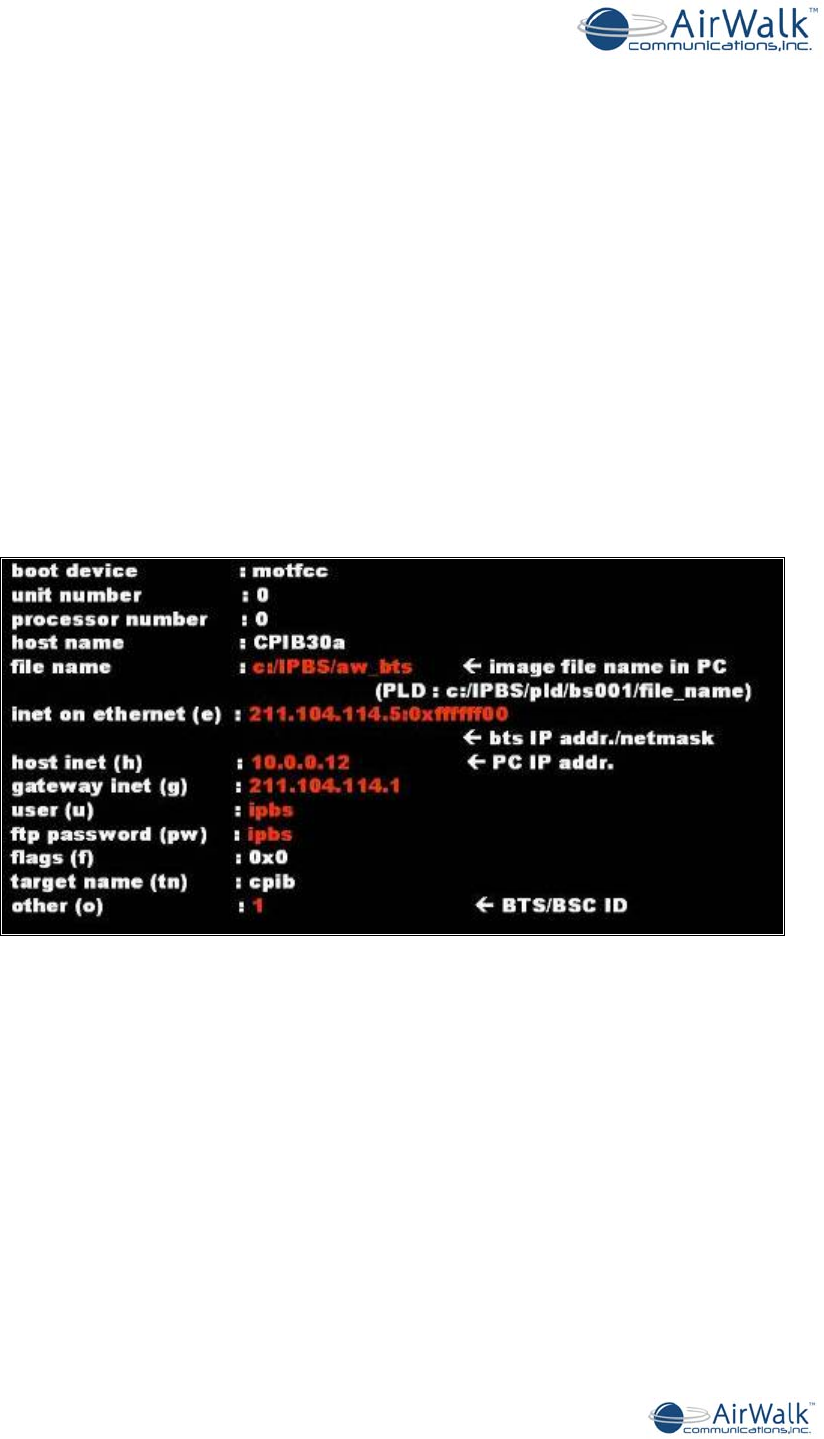

Figure 7-4 - Screen from PC
7.3.2.2 Test Case #2 – System Check
7.3.2.2.1 Test Procedure #2
• Command: Version
7.3.2.2.2 Expected Result of Case #2
Figure 7-5 - Version Command Screen
7.3.2.3 Test Case #3 – Tx check
7.3.2.3.1 Test Procedure #3
• Command: txReason
• Expected Result of Case #3
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 32 of 49

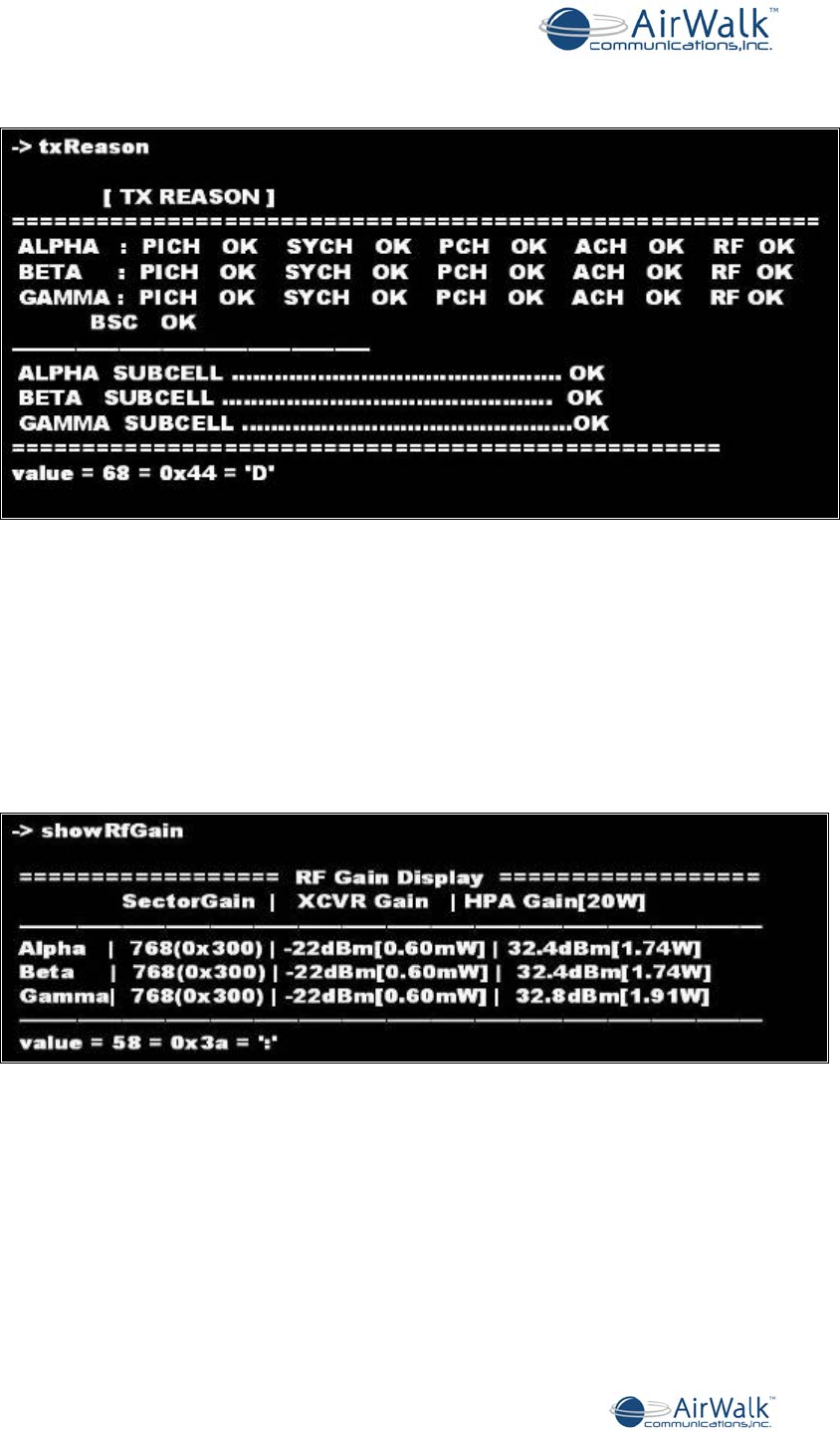

Figure 7-6 - Tx Check Screen
7.3.2.4 Test Case #4 – Output power
7.3.2.4.1 Test Procedure #4 – RF Check
• Command: showRfGain
7.3.2.4.2 Expected Result of Case #4
Figure 7-7 - RF Check Screen
7.3.2.5 Test Case #5 – GPS Check
7.3.2.5.1 Test Procedure #5
• Command: gpsStatus
7.3.2.5.2 Expected Result of Case #5
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_______
AirWalk Proprietary and Confidential Page 33 of 49

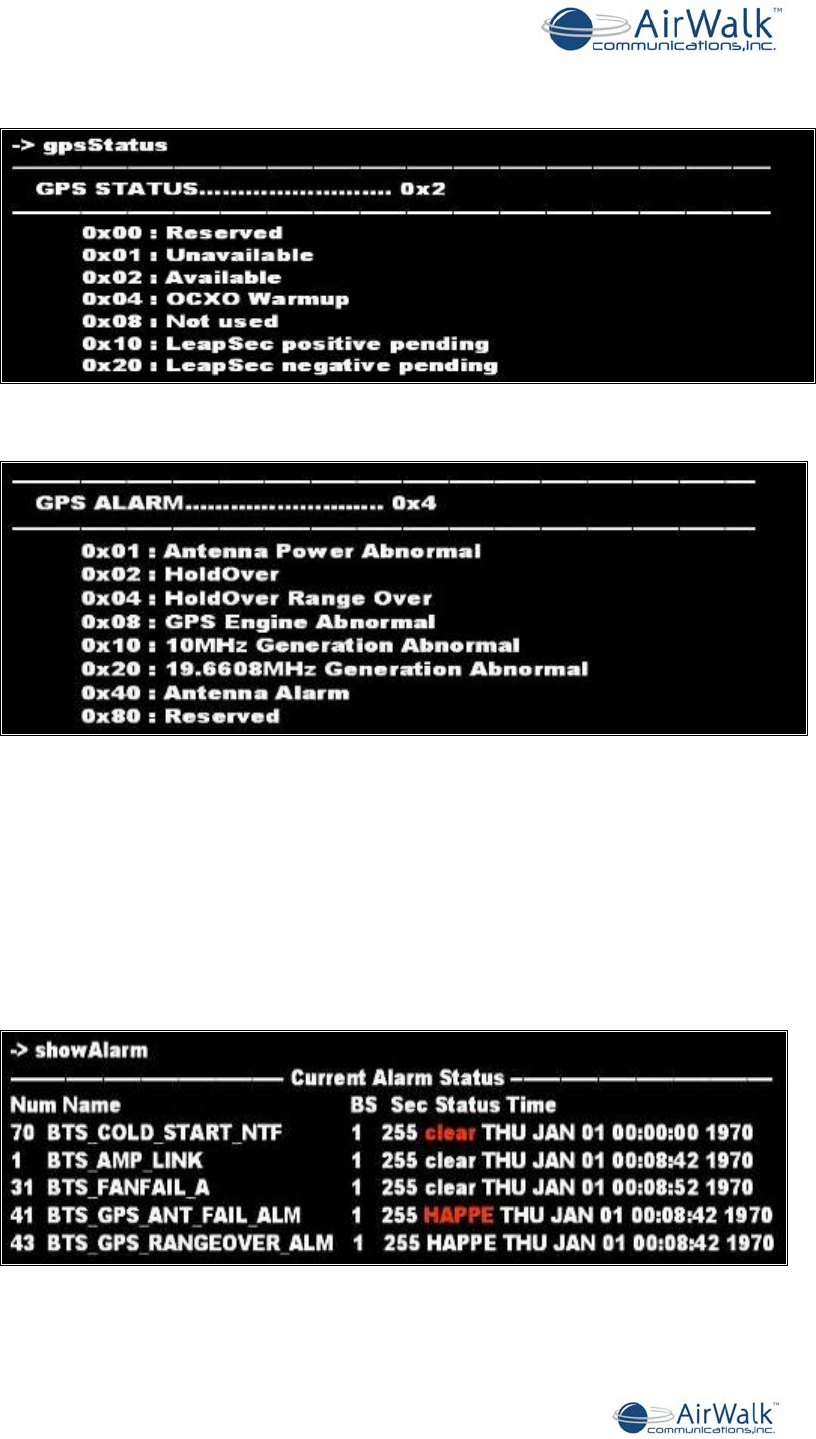

Figure 7-8 – GPS Status Check Screen
Figure 7-9 - GPS Alarm Check Screen
7.3.2.6 Test Case #6 – BTS Alarm Check
7.3.2.6.1 Test Procedure #6
• Command: showAlarm
7.3.2.6.2 Expected Result of Case #6
Figure 7-10 - BTS Alarm Check Screen
______________________________________________________________________
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 34 of 49
7.3.2.7 Test Case #7 – System Reset
7.3.2.7.1 Test Procedure #7
• Command: btsReset/bscReset/allReset
7.3.2.7.2 Expected Result of Case #7
The system is RESET
7.3.2.8 Test Case #8 – PN Check
7.3.2.8.1 Test Procedure #8
• Command: RcmCmd 1,1
7.3.2.8.2 Expected Result of Case #8
Figure 7-11 - PN Check Screen
7.3.2.9 Test Case #9 – System Interface Check
7.3.2.9.1 Test Procedure
• Command: Ping
Send Ping Command to the Following system IP Addresses
1. WPM (Wireless PBX Manager)
2. PDSN (Packet Data Serving Node)
3. CA (Call Agent)
4. MG (Media Gateway)
5. SG (Signal Gateway)
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 35 of 49
7.3.2.9.2 Expected Result of Case #X
A successful PING command response should be received from each system.
7.3.3 Operation Tests
These test cases are designed to determine if OneRAN Pilot Station is ready for
production testing.
7.3.3.1 Test Case #1 – Voice Calls
7.3.3.1.1 Test Procedure
Test Call from MS #1 to MS #2.
Test Call from MS #1 to Landline Phone #1.
7.3.3.1.2 Excepted Result of Case #1
1. 2nd MS Rings and call is answered
2. Landline phone Rings and call is answered.
7.3.3.2 Test Case #2 – Data Calls
7.3.3.2.1 Test Procedure
1. A Test Data Call from MS #1 to MS #2.
2. A Test Data Call from MS #2 to MS #1.
7.3.3.2.2 Excepted Result of Case #2
1. A Data Session is established between MS #1 and MS #2.
2. A Data Session is established between MS #2 and MS #1.
7.3.4 Operator Specific Tests
These test cases are covered in a separate test plan document and are agreed to by the
operator and AirWalk Communications, Inc.
7.4 Site Clean up and Customer Signoff
7.4.1 Dispose of all packing material.
Make sure to dispose of all OneRAN Pilot Station packing material.
7.4.2 Clean-up site
Make sure not to leave anything but the installed OneRAN Pilot Station. (e.g., excess tie-
wraps, bolts, etc).
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 36 of 49
7.4.3 Update Installation Checklist.
Make sure all changes are notes on Installation Checklist.
7.4.4 Customer Signoff
Get Customer Signature on Certification Document Appendix D.
7.5 Required Tools and Supplies
1) Hand Tools
a) Screwdriver set,
b) Pliers set,
c) Nut Driver set,
d) Cutter set,
e) Punch Down Tool,
f) Wire-wrap (Optional),
g) RJ-45 Crimper.
2) Test Equipment.
a) Multi-Meter & Adapter kit,
b) Cable Tester,
c) Protocol Analyzer & Adapter kit,
d) Telephone Test Set (Butt-set),
e) Set of Banjo adapters
f) Tone Generator & Inductive pick-up.
3) Supplies.
a) RJ-45,
b) Cat 5 Cable,
c) Tie-wraps.
7.6 Troubleshooting Procedures
The OneRAN Pilot Station is designed to provide reliability and consistently high
performance in all network environments. The installation procedure for the OneRAN
Pilot Station is a straightforward and is discussed in these sections.
Should problems develop during installation, this section is intended to help locate,
identify and correct these types of problems. Please follow the suggestions listed below
prior to contacting AirWalk Communications, Inc. or Carrier contacts. If you are unsure of
the procedures described in this section, contact the Installation coordinator immediately.
7.6.1 Before Calling for Assistance
1) If difficulty is encountered with a specific component of the OneRAN Pilot Station,
refer back to the Installation Section for that component.
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 37 of 49
2) Check the cables and connectors to ensure that they have been properly connected
and the cables/wires have not been crimped or impaired in some way during
installation. (About 90% of component problems can be attributed to wiring and
connector problems).
a) Check Cable,
b) Check connector,
c) Check for solid connection,
d) Check with Carrier contact.
3) Make sure that all power cord is properly attached to each OneRAN Pilot Station
component. Be certain that all power cords are plugged into a functioning electrical
outlet. Use the PWR LED’s to verify each unit is receiving power.
a) Check intermediate breakers or fuses.
4) If the problem is isolated to something other than the OneRAN Pilot Station contact
the appropriate Carrier contact person.
5) Verify whether or not the problem is corrected. If not, go to Step 6 below. If the
problem is corrected, continue with installation.
6) If the problem continues after completing Step 4 above, contact the AirWalk
Communications, Inc. Installation Project manager, to determine the next course of
action.
7.6.2 When Calling for Assistance
Please be prepared to provide the following information.
1) A complete description of the problem, including the following points:
a) The nature and duration of the problem;
b) Situations when the problem occurs;
c) The components involved in the problem;
d) Any particular application that, when used, appears to create the problem;
2) A record of changes that have been made to the OneRAN Pilot Station configuration
prior to the occurrence of the problem.
3) Any changes to system should all be noted.
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 38 of 49
8 Appendix A - Acronyms
Acronym Description
2G Second Generation in CDMA wireless network
3G Third Generation in CDMA wireless network
AC Alternating Current
Access
Channel
A Reverse CDMA Channel used by mobile stations for communicating to the
base station. The Access Channel is used for short signaling message
exchanges, such as call originations, responses to pages and registrations. The
Access Channel is a slotted random access channel.
ACH Access Channel
AD Analog to Digital
AFEU Antenna Front End Unit
AGC Automatic Gain Control
ANT Antenna
AWGN Additive White Gaussian Noise
Base Station
(BS)
A fixed station used for communicating with mobile stations. Depending upon
the context, the term base station may refer to a cell, a sector within a cell, an
MSC, or other part of the wireless system.
BCCM BTS Call Control Module
BHCA Busy Hour Call Attempts
BLK Blank
BS Base Station
BSAP Base Station Application Part
BSC Base Station Controller
BSMAP Base Station Management Application Part
BTS Base station Transceiver Subsystem
CA Call Agent
CAI Common Air Interface
CC Connection Confirm
CCM Channel Control Module in BTS
CDMA Code Division Multiple Access
CEC Channel Elements Control Block
CED Channel Elements Diagnostic Block
CLAP Composite Link Analysis Platform
CPIB BTS Channel and Call Processing Interface Board
CPU Central Processing Unit
CR Connection Request
CREF Connection Refused
CSM5000 Cell Site Modulator 5000 (CDMA ASIC chip released by Qualcomm for
cdma2000)
DA Digital to Analog
DC Direct Current
DCCH Dedicated Control Channel
DCLI Data Link Connection Identifier
DRS Data Ready to Send
DT Data Form
DTAP Direct Transfer Application Part
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 39 of 49
Acronym Description
EMI Electro-Magnetic Interference
ESN Electronic Serial Number
EVDO Evolution Data Only
EVDV Evolution Data and Voice
EVRC Enhanced Variable Rate CODEC
FA Frequency Assignment
FCC Federal Communications Commission
F-CCH Forward Common Control Channel
FCH Fundamental Channel
F-DCCH Forward Dedicated Control Channel
FDCH Forward Dedicated Signaling Logical Channel
FER Frame Error Rate
FM Fault Management
FO Frame Offset
Forward
Traffic
Channel
One or more code channels used to transport user and signaling traffic from the
base station to the mobile station.
FSCH Forward Common Signaling Logical Channel
GND Ground
GPS Global Positioning System
GRE Generic Routing Encapsulation
HLR Home Location Register
HO Handoff
HPAU High Power Amplifier Unit
IF Intermediate Frequency
IMSI International Mobile Subscriber Identity
ING Inter Network Gateway
IOS Interoperability System
IP Internet Protocol
IPC Inter Processor Communication
LAC Link Access Control.
Entity that provides assured mode or unassured mode delivery of information
across the air interface between the mobile station and the base station.
LPA Linear Power Amplifier
LTU Logical Transmission Unit
One or more Type 3 or Type 5 MuxPDUs with a 16bit CRC.
MAC Medium Access Control
Entity that controls the access to and from Upper Layer Signaling, Data Services
and Voice Services to Physical Layer resources.
MAHHO Mobile Assisted Hard Hand Off
MCC Main Call Control module in IP-BSC
MG Media Gateway
MIMO Multi Input Multi Output
MIN Mobile Identification Number
MMC Man-Machine Command
MMS Multimedia Messaging Service
MN Mobile Node
MS Mobile Station
MSC Mobile Switching Center
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 40 of 49
Acronym Description
MTBF Mean Time between Failure
MTTR Mean Time to Repair
NDSS Network Directed System Selection
NGN Next Generation Networks
NMS Network Management System
OAM Operation, Administration, and Maintenance
OCNS Orthogonal channel Noise Simulator
OS Operating System
OTD Orthogonal Transmit Diversity
OUNS Other User Noise Source
PACA Priority Access Channel Assignment
Paging
Channel
A code channel in a Forward CDMA Channel used for transmission of control
information and pages from a base station to a mobile station
PBA Printed Board Assembly
PBX Private Branch Exchange
PCB Printed Circuit Board
PCF Packet Control Function in IP-BSC
PCH Paging Channel
PCM Pulse Code Modulation
PCPM Primary BSC Call Processing Board
PDSN Packet Data Serving Node
PDU Protocol Data Unit. An atomic set of data, header information, and control
information that are provided by a service user to a service provider.
PER Packet Error Rate
Physical
Channel
Radio transmission link
Pilot
Channel
An un-modulated, direct-sequence spread spectrum signal transmitted by a
CDMA base station or mobile station. A pilot channel provides a phase
reference for coherent demodulation and may provide a means for signal
strength comparisons between base stations for determining when to handoff.
PLD Program Loaded Data
PN Pseudo Noise
PSA Power Supply Assembly
PSTN Public Switched Telephone Network
QCELP Qualcomm Code Excited Linear Prediction
QOF Quasi-Orthogonal Function
QOF Quasi Orthogonal Function
QoS Quality of Service
RAN Radio Access network
RC Radio Configuration
RCC Radio interface Call Control
RDCH Reverse Dedicated Signaling Logical Channel
Reverse
Traffic
Channel
A traffic channel on which data and signaling are transmitted from a mobile
station to a base station. The Reverse Traffic Channel is composed of up to one
Reverse Dedicated Control Channel, up to one Reverse Fundamental Channel,
zero to two Reverse Supplemental Channels, and zero to seven Reverse
Supplemental Code Channels.
RF Radio Frequency
RLC Release Complete
OneRAN Pilot Station System Installation Manual
____________________________________________________________________________
_____________________________________________________________________________
AirWalk Proprietary and Confidential Page 41 of 49
Acronym Description
RLP Radio Link Protocol. Connection-oriented, negative-acknowledgement-based
data delivery protocol.
RLSD Released
RP Radio Network – PDSN
RPSU Remote RF Power Supply Unit
RRCU Remote RF Control Unit
RRM Radio Resource Management Block
RRP Registration Reply Message
RRQ Registration Request Message
RSCH Reverse Common Signaling Logical Channel
RSSI Received Signal Strength Indication
RTP Real-Time Transport Protocol
RU Remote RF Unit
RUpd Registration Update Message
SAP Service Access Point
Conceptual point at the interface between two adjacent layers where services
are provided to the upper layer and data and protocol information is exchanged
between layers.
SAR Segmentation and Reassembly
SCCH Supplemental Code Channel
SCCP Signaling Connection Control Protocol
SCH Supplemental Channel
SDU Selection and Distribution Unit
SEU Sector Expansion Unit
SIGTRAN Signaling Transport processing module in IP-BSC
Slotted Mode An operation mode of the mobile station in which the mobile station monitors
only selected slots on the Paging Channel
SMS Short Message Service
SMV Selectable Mode VOCODER
SRBP Signaling Radio Burst Protocol. An entity that provides connectionless protocol
for Signaling messages.
SRU Sector Reduction Unit
SS Soft Switch
STS Space Time Spreading
Sync
Channel
A code channel in the Forward CDMA Channel which transports the
synchronization message to the mobile station
TCC Traffic Channel Control Block
TCE Traffic Channel Element
TCM Traffic Control Module in BTS
TCP Transmission Control Protocol
TOD Time of Day
TP Traffic processing and Path Control module in IP-BSC
TPTL Transmit Power Tracking Loop
UART Universal Asynchronous Receiver/Transmitter
UDP User Datagram Protocol
VSWR Voltage Standing Wave Ratio
XCV Base Station Transceiver Control Block
XCVR Transceiver Board
OneRAN Pilot Station System Installation Manual
__________________________________________________________________________________________________________________
9 Appendix B - Site preparation checklist
OneRAN Pilot Station Site Preparation Check List for: {Customer Name}
ITEM # Description
Site
Prep
Guide
Section
#
Date
Complete Com
plete Information
1 Customer Contact & Equipment location 1
a. Main Contact Customer 1.1.1
b. Other Customer Contacts 1.1.2
1. Power contact 1.1.2
2. Communications Facilities Contact 1.1.2
3. LAN Facilities Contact 1.1.2
4. MSC Security Contact 1.1.2
c. Complete Customer Questions Appendix C App. C
2 AirWalk Series IP-RAN Site Requirements 2.1
a. Space requirements 2.1.1
b. AirWalk Series IP-RAN placement Diagram 2.1.2
c. Installation Location for AirWalk Series IP-RAN Equipment 2.1.2.1
3 Complete Site Drawings Appendix B App. B
Power requirements 2.1.3
___________________________________________________________________________________________________________________
AirWalk Proprietary and Confidential Page 42 of 49 5/6/2008
OneRAN Pilot Station System Installation Manual
__________________________________________________________________________________________________________________
ITEM # Description
Site
Prep
Guide
Section
Date Com
pleteComplete
#
Information
a. Location
b. Voltage
c. Amps
d. Connector
Security 2.1.3
a. MSC Equipment Room security
b. MSC Equipment room access
Communications Facilities 2.1.3
a. Number of T1 circuits
Connector
Location
LAN Facilities 2.1.3
a. Location
b. Connector
c. Carrier Network IP Address
d. AirWalk Series IP-RAN Component IP Addresses
Other Information
a. Heat dissipation
b. Environmental specifications 2.1.4
___________________________________________________________________________________________________________________
AirWalk Proprietary and Confidential Page 43 of 49 5/6/2008
OneRAN Pilot Station System Installation Manual
__________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
AirWalk Proprietary and Confidential Page 44 of 49 5/6/2008
ITEM # Description
Site
Prep
Guide
Section
#
Date
Complete Com
plete Information
c. Ambient temperature and humidity 2.1.4.2
d. Dust density 2.1.4.4
e. Altitude 2.1.4.5
f. Air conditioning 2.1.4.6
g. Fire protection
OneRAN Pilot Station System Installation Manual
__________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
AirWalk Proprietary and Confidential Page 45 of 49 5/6/2008
10 Appendix C - Installation Checklist
OneRAN Pilot Station Site Installation Check List for: {Customer Name}
Address Installer Name (s) Customer Contact (s)
{OneRAN Pilot Station Installation Address}
ITEM
# Description Install
Manual
Section
Date
Complete
Time Customer
Contact
Initials
Installer
Initials
1 Verify Customer Contact & Equipment location 9.1.1
2 Contact Customer 9.1.1.1
3 Locate OneRAN Pilot Station Equipment 9.1.1.2
4 Locate and verify Floor Space 9.1.1.3
5 Uncrate and arrange for packing material disposal 9.1.2
6 Verify location of all distribution points (main and intermediate) 9.1.3
7 Power Check 9.1.3.1
8 Power Location 9.1.3.1.1
9 Verify Connector 9.1.3.1.2
10 Voltage 9.1.3.1.3
11 Amps 9.1.3.1.4
12 LAN Facilities check 9.1.3.1.5
13 Location 9.1.5.1.5
14 Verify IP Address 9.1.3.1.5
15 Verify Connector 9.1.3.1.5
16 Ping IP Address 9.1.3.1.5
OneRAN Pilot Station System Installation Manual
__________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
AirWalk Proprietary and Confidential Page 46 of 49 5/6/2008
ITEM
# Description Install
Manual
Section
Date
Complete
Time Customer
Contact
Initials
Installer
Initials
17 Prepare IP addressable device diagram 9.1.3.1.5
18 Post IP diagram at: i) site; ii) customer; iii) Airwalk Customer Service 9.1.3.1.5
19 Install OneRAN Pilot Station Cabinet 9.2.1
20 Move OneRAN Pilot Station to location 9.2.1
21 Secure OneRAN Pilot Station in designated location 9.2.1
22 Verify all internal System connections 9.2.2
23 External System Connections 9.2.3
MAKE SURE ALL SYSTEM POWER SUPPLIES ARE TURNED OFF BEFORE PROCEEDING! ! !
24 Connect Power to Cabinet 9.2.4
25 Connect -48VDC to DC distribution panel (If applicable) 9.2.4
26 Connect 120-240 VAC to AC distribution panel (If applicable) 9.2.4
27 Connect Communications Facilities 9.2.5
28 Connect LAN Facilities to BSC 9.2.5
29 Connect LAN Facilities to BTS 9.2.5
30 Power-up procedure 9.2.6
31 Power-up Main cabinet/rack power, check LEDs 9.2.6.1
32 Complete any configuration options 9.2.6.2
System Certification Tests 9.3.2
33 Test Case #1 - Image/PLD loading 9.3.2.1
34 Test Case #2 – System Check 9.3.2.2
35 Test Case #3 – Tx check 9.3.2.3
36 Test Case #4 – Output power 9.3.2.4
37 Test Case #5 – GPS Check 9.3.2.5
38 Test Case #6 – BTS Alarm Check 9.3.2.6
39 Test Case #7 – System Reset 9.3.2.7
40 Test Case #8 – PN Check 9.3.2.8
OneRAN Pilot Station System Installation Manual
__________________________________________________________________________________________________________________
___________________________________________________________________________________________________________________
AirWalk Proprietary and Confidential Page 47 of 49 5/6/2008
ITEM
# Description Install
Manual
Section
Date
Complete
Time Customer
Contact
Initials
Installer
Initials
41 Test Case #9 – System Interface Check 9.3.2.9
Operation Tests 9.3.3
42 Test Case #1 – Voice Calls 9.3.3.1
43 Test Case #2 – Data Calls 9.3.3.2
44 Operator Specific Tests (If Required) 7.3.4
Site Clean Up & Documentation
45 Dispose of all packing material 7.4.1
46 Clean-up site 7.4.2
47 Update Installation Checklist 7.4.3
48 Get Customer Signature on Certification Document 7.4.4
OneRAN Pilot Station System Installation Manual
__________________________________________________________________________
____________________________________________________________________________
AirWalk Proprietary and Confidential Page 48 of 49 5/6/2008
11 Appendix D - Customer Certification Document
Date
Subject:
The subject OneRAN Pilot Station has been certified to be up and running today.
_______________________________________ __________________
AirWalk Communications, Inc. (Installation Team) Date
_______________________________________ __________________
Authorized Carrier Representative Date
OneRAN Pilot Station System Installation Manual
__________________________________________________________________________
____________________________________________________________________________
AirWalk Proprietary and Confidential Page 49 of 49 5/6/2008
This Page Marks End of Document
