Airgo Networks AGN0912AR0100 802.11 b/g 1x2 APx Radio Module User Manual PRELIMINARY Product Details
Airgo Networks Inc. 802.11 b/g 1x2 APx Radio Module PRELIMINARY Product Details
User Manual
Document Number 640-00084c-01
Airgo Networks
AGN0912AR-01
Installation and Configuration Guide
Updated 5/24/2005
Airgo Document PN: 640-00084c-01
AGN0912AR-01 BBGW Radio--2.4 GHz MISO Design Details
Airgo Networks Inc. Page 1 of 10 May 2005
Airgo Networks Proprietary Information
AGN0912AR-01
802.11b/g MISO BBGW Radio
Preliminary Product Details
Table of Contents
Product Description ............................................................................................................ 3
Major Features .................................................................................................................... 4
Applications........................................................................................................................ 4
Standards Supported ........................................................................................................... 4
Chipset ................................................................................................................................ 4
Data Rates Supported.......................................................................................................... 4
Modulation Supported ........................................................................................................ 4
Noise Figure........................................................................................................................ 5
Output Power ...................................................................................................................... 5
Typical Receiver Sensitivity............................................................................................... 6
Security Features................................................................................................................. 6
Quality of Service (QoS) Features...................................................................................... 6
Interfaces............................................................................................................................. 6
Physical............................................................................................................................... 6
Antenna Connections.......................................................................................................... 6
Interfaces............................................................................................................................. 6
External Memory Support................................................................................................... 7
Additional Hardware Features............................................................................................ 7
Typical Power Consumption............................................................................................... 7
Operating Parameters.......................................................................................................... 7
AGN0912AR-01 Installation.............................................................................................. 7
AGN0912AR-01 Antenna Specifications........................................................................... 8
Regulatory........................................................................................................................... 9
Product Labeling............................................................................................................. 9
Product Usage................................................................................................................. 9
Product Documentation .................................................................................................. 9
Physical Dimensions......................................................................................................... 10
Table of Figures
Figure 1 AGN0912AR-01................................................................................................... 3
Figure 2 Radio Module Alignment..................................................................................... 8
Airgo Networks Inc. Page 2 of 10 May 2005
Airgo Networks Proprietary Information
AGN0912AR-01
802.11b/g MISO BBGW Radio
Preliminary Product Details
Product Description
Airgo Network’s AGN0912AR-01 product design is based on Airgo’s advanced two- receiver AGN103BB
and AGN100RF chipset. The product is designed specifically for Broadband Gateways and other similar
Access Point applications. Airgo Network’s patented multi-antenna technology yields enhanced range and
provides data rates of up to 10 times the competition at the same range. Airgo’s patented True MIMOTM
multi-antenna technology enables the AGN0912AR-01 to deliver 108 Mbps data rates in a single 20 MHz
channel that is legal worldwide. Full support for IEEE 802.11b/g standards allows for an unprecedented
level of backwards compatibility and performance at all data rates. Airgo Networks has shattered the
previous definition of range, speed giving you maximum performance and feature advantages.

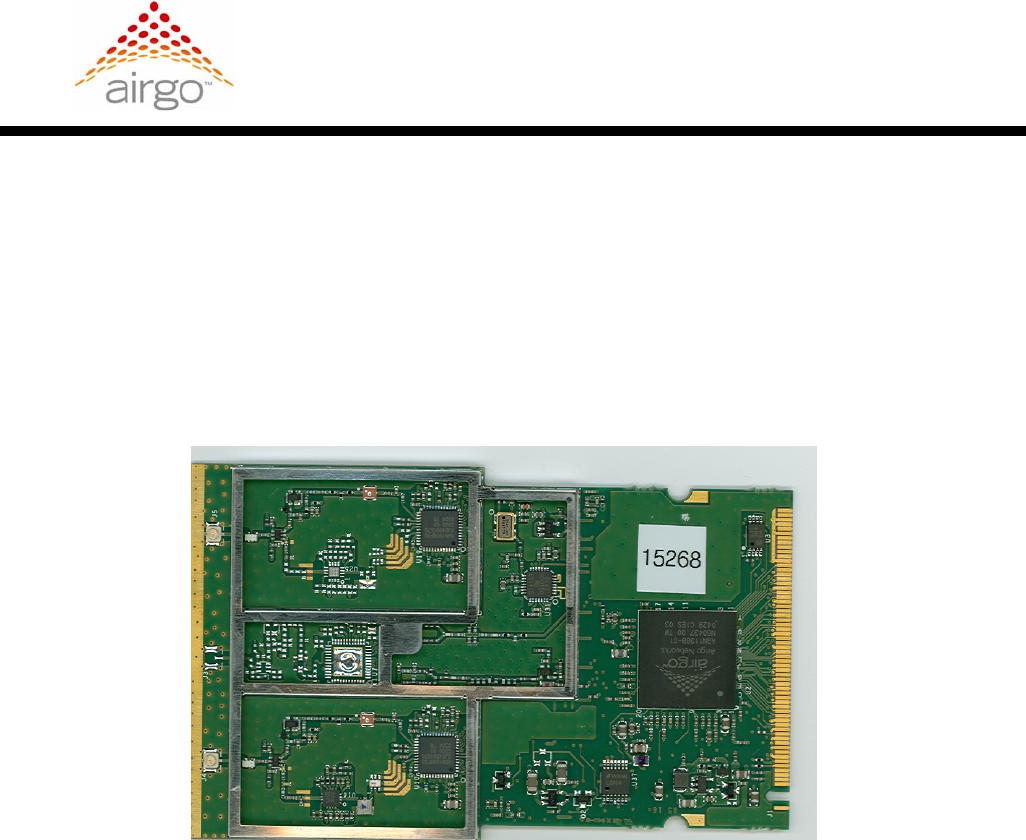

Figure 1 AGN0912AR-01
Users will no longer be frustrated by severe degradations in performance as they move away from Access
Points (APs). Airgo’s technology delivers up to five times the range and ten times the data rates of other
vendor solutions, thus significantly increasing network capacity and reducing total cost of ownership.
Although the AGN0912AR-01 displays high performance and range in any Wi-Fi environment, its file
transfer rate, robustness and range are greatly enhanced when it is used in conjunction with Airgo’s True
MIMOTM -based Client Adapters, with data rates up to 108 Mbps.
Airgo’s patented True MIMOTM multi-antenna technology also permits the AGN0912AR-01 to
communicate simultaneously with legacy devices at standard 802.11 b/g rates, while communicating with
Airgo True MIMOTM enabled devices (APs and clients) at data rates up to 108 Mbps. This is enabled by the
AGN0912AR-01’s use of True MIMOTM or standards compliant modulation on a packet by packet basis,
depending on the capability of the device at the other end of the link.
Airgo Networks Inc. Page 3 of 10 May 2005
Airgo Networks Proprietary Information
AGN0912AR-01
802.11b/g MISO BBGW Radio
Preliminary Product Details
Major Features
• Highly integrated chipset for IEEE
802.11b and 802.11g standards provides
reduced BOM costs, and seamless
roaming between all standards
• Muti-Antenna MISO OFDM
technology yields extreme rate and
range advantages over other vendor
radio implementations
• Data rates up to 108 Mbps in the 2.4
GHz band within a single channel yield
unprecedented throughput and capacity
• Radio supports the 2.4 GHz ISM band
providing worldwide operation.
• Hardware Security Support for the latest
standards increases system performance
• Multiple Quality of Service (QoS)
features supports multi-media
applications
• 802.11 compliant and Airgo’s protocol
enhancements yield industry-best
throughput
• Wi-Fi , WHQL, FCC and TELEC
certifiable modules
Applications
• WLAN Access Points and Bridges
• Voice and Video over WLAN
applications
Standards Supported
• IEEE 802.11b
• IEEE 802.11d
• IEEE 802.11e
• IEEE 802.11f
• IEEE 802.11g
• IEEE 802.11i draft
• IEEE 802.11j draft
• IEEE 802.11k draft
• Wi-Fi Protected Access TKIP
encryption
• Wi-Fi Protected Access AES-CCMP
encryption
• Wi-Fi (WMM) Wi-Fi Wireless
Multimedia
• Wi-Fi (WSM) Wireless Scheduled
Multimedia
Chipset
• AGN103BB Single Chip integrated
Baseband and MAC
• AGN100RF Single Chip (2.4 GHz)
Transceiver
Data Rates Supported
• IEEE 802.11b: 1, 2, 5.5 and 11 Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Proprietary Operation at: 72, 96 and 108 Mbps within a single 20 MHz channel for 2.4GHz band
• Switching time between any mode: < 3ms
• Background Scanning and on-the-fly switching between any of the above standards and modes.
Frequency Range Supported
• 2.4 GHz: Channels 1 to 14; 2.412 to 2.484 GHz1
Modulation Supported
• OFDM: BPSK, QPSK, 16QAM, 64QAM, Proprietary MIMO modulation
• BPSK, QPSK, CCK, DSSS
1 The supported frequency range and transmit power will be limited based on the ISO Country Code in
EEPROM to adhere to country specific regulatory requirements.
Airgo Networks Inc. Page 4 of 10 May 2005
Airgo Networks Proprietary Information
AGN0912AR-01
802.11b/g MISO BBGW Radio
Preliminary Product Details
Noise Figure
The following table lists the noise figure for the frequency band:
Noise
Frequency Figure
Band (dB)
2.4 GHz 4.0
Output Power
Maximum transmitted power shown in the tables below is limited by EVM and performance. In
typical end user product operation, actual maximum transmit power will vary based on regulatory
requirements.
Maximum Transmit Power*
Channel Frequency Modulation Rate
Number MHz 1-11 6-12 18 24 36 48 54 72 96 108
1 2412 17 17 17 17 17 16 14 16 14 14
2 2417 17 17 17 17 17 16 14 16 14 14
3 2422 17 17 17 17 17 16 14 16 14 14
4 2427 17 17 17 17 17 16 14 16 14 14
5 2432 20 20 19 19 17 16 14 16 14 14
6 2437 20 20 19 19 17 16 14 16 14 14
7 2442 20 20 19 19 17 16 14 16 14 14
8 2447 20 20 19 19 17 16 14 16 14 14
9 2452 17 17 17 17 17 16 14 16 14 14
10 2457 17 17 17 17 17 16 14 16 14 14
11 2462 17 17 17 17 17 16 14 16 14 14
12 2467 17 17 17 17 17 16 14 16 14 14
13 2472 17 17 17 17 17 16 14 16 14 14
14 2484 17 17 17 17 17 16 14 16 14 14
Airgo Networks Inc. Page 5 of 10 May 2005
Airgo Networks Proprietary Information
AGN0912AR-01
802.11b/g MISO BBGW Radio
Preliminary Product Details
Typical Receiver Sensitivity
The following figures depict Rx Sensitivity in dBm as defined in IEEE 802.11 specification(s)
2.4 GHz CCK (8% PER)
Data Rate 2Rx
1 -102.5
2 -101.5
5.5 -100.5
11 -97.5
2.4 GHz OFDM (10% PER)
Data Rate 2Rx
6 -99.5
9 -97.5
12 -94.5
18 -93.5
24 -89.5
36 -87.5
48 -82.5
54 -81.5
Security Features
• Hardware Support for 40bit and 128bit WEP
• Software Support for Wi-Fi Protected Access WPA (TKIP encryption)
• Hardware-based AES-CCM (Advanced Encryption Standard IEEE TGi draft compliant)
Quality of Service (QoS) Features
• Support for IEEE 802.11e DCF (WMM: Wi-Fi Multimedia)
• Hybrid Coordination Function (HCF), (WSM: Wi-Fi Scheduled Multimedia)
• Burst ACK and Enhanced Distributed Coordination Function (eDCF)
• 256 user queues for packet prioritization
Interfaces
• 32bit 3.3volt Cardbus (PC Card v7.1) compliant
• PCI/MiniPCI ver2.2 Compliant with bus-master and slave-mode support
Physical
• MiniPCI Interface Extended form factor
Antenna Connections
Three U.FL connectors (also known as IPAX or Hirose connectors).
Interfaces
• PCI/MiniPCI ver2.2 Compliant with slave mode support.
• On-chip ADCs and DACs
• GPIO interface
• I and Q for RF analog
• SPI for RF Control
• SDRAM Interface (optional)
Airgo Networks Inc. Page 6 of 10 May 2005
Airgo Networks Proprietary Information
AGN0912AR-01
802.11b/g MISO BBGW Radio
Preliminary Product Details
External Memory Support
• SEEPROM
• SDRAM (optional)
Additional Hardware Features
• Hardware based Multicast address filtering
• Automatic RTS/CTS generation
• Independent AGC functions for up to 3 receive chains
• Enhanced Interference Avoidance
• Beacon Mode hardware support
• Programmable defer / detect thresholds
• Automatic transmit gain control compensates for gain.
Typical Power Consumption
• 808mW @54Mbps (10% Tx, 20% Rx, 20% Listen, 50% Sleep)
Operating Parameters
• Operating Voltage: 3.3V +/- .10V
• Operating Temperature Range: -10 to +85C
• Operating Humidity Range: 15% - 95%, non-condensing
AGN0912AR-01 Installation
The AGN0912AR-01 is designed specifically for Broadband Gateways and other similar Access Point
applications. The AGN0912AR-01 uses a miniPCI connector for insertion into an attaching system.
However, the AGN0912AR-01 does not conform to the miniPCI PCB size or power restrictions.
Below is a “typical” AGN0912AR-01 module installation:
• Align the miniPCI connector on the AGN0912AR-01 with the miniPCI receptacle on the attaching
system, taking care to fit the notch in the bottom left of the radio module with the tab on the
miniPCI receptacle on the attaching system (see Figure 3).
• Firmly press the radio card towards the attaching system until the clips engage.
• Disseminating end-user documentation for the installation/removal of the AGN0912AR-01 is
expressly prohibited by regulatory statues.
Airgo Networks Inc. Page 7 of 10 May 2005
Airgo Networks Proprietary Information
AGN0912AR-01
802.11b/g MISO BBGW Radio
Preliminary Product Details
Cli
p
s
Notch

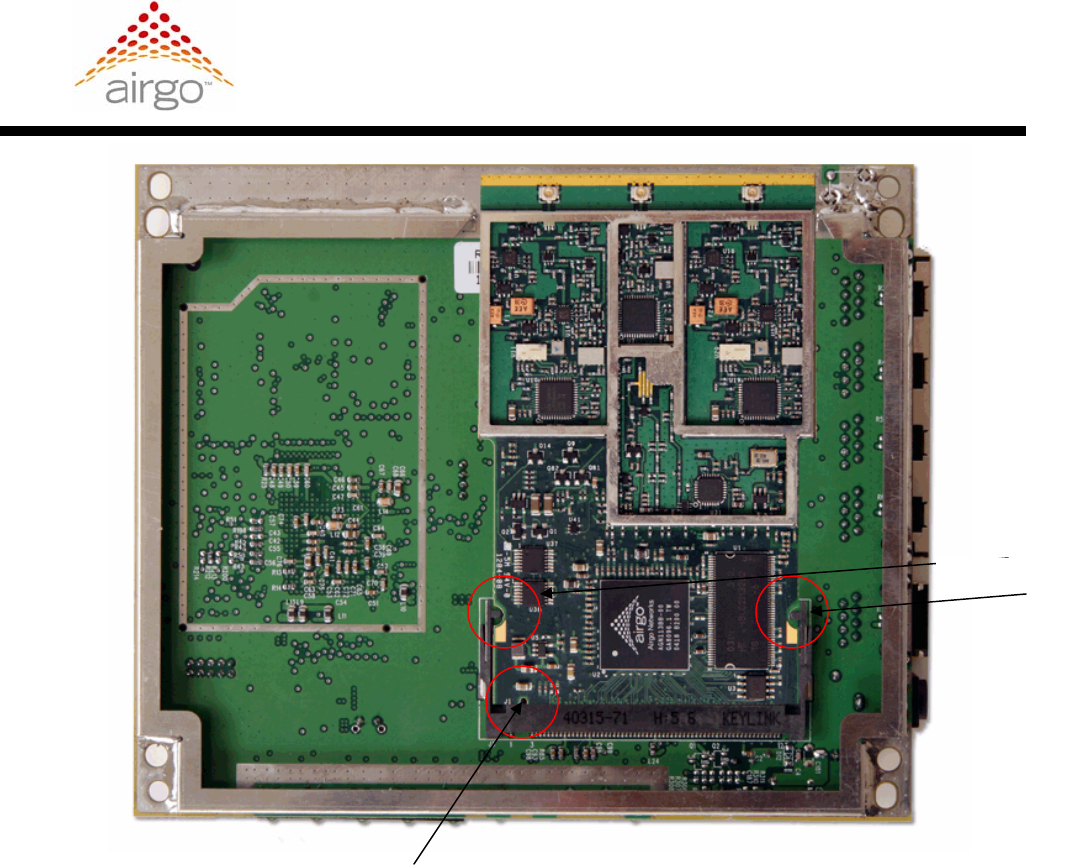

Figure 2 Radio Module Alignment
AGN0912AR-01 Antenna Specifications
The AGN0912AR-01 provides support for three antennas per radio module. These antennas are connected
by way of Hirose connectors. It must be noted that there are no special requirements for the types of
antennas used with Airgo’s MIMO technology. The specifications for the antennas that have been used
with the AGN0912AR-01 are as follows:
• Frequency Range: 2.4 to 2.5 GHz
• Impedance: 50 Ohms nominal
• VSWR: 2.0
• Normal Gain: 2 dBi @ 2.45GHz
• Radiation: Omni-directional
• Polarization: Vertical
Airgo Networks Inc. Page 8 of 10 May 2005
Airgo Networks Proprietary Information
AGN0912AR-01
802.11b/g MISO BBGW Radio
Preliminary Product Details
Regulatory
Product Labeling
The AGN0912AR-01 radio transmitter module is authorized only for use in a device where the antenna
may be installed such that 20 cm can be maintained between the antenna and the users. End-user products
containing AGN0912AR-01 modules MUST have affixed to their labels the following phrase:
This product contains FCC ID: SA3-AGN0912AR0100 modules.
Product Usage
This device is intended only for OEM/ODM integrators under the following conditions:
1. The antenna must be installed such that 20 cm is maintained between the antenna and users.
2. The transmitter module may not be co-located with any other transmitter or antenna.
3. Use only authorized antenna(s) as described in the FCC filing under FCCID:SA3-
AGN0912AR0100
The OEM/ODM integrator is responsible for testing their product for any additional compliance mandates
required when this module is installed within an end-user product.
i IMPORTANT NOTE: In the event that these conditions cannot be met,
then the FCC authorization is no longer considered valid and the FCC ID
number cannot be used on the final product and thus the OEM/ODM
integrator will be responsible for re-evaluating the end product (including
the transmitter) and obtaining a separate FCC authorization.
Product Documentation
Following RF exposure information shall be supplied in end-users manual for products containing the
AGN0912AR-01:
IMPORTANT NOTE:
To comply with FCC RF exposure compliance requirements, the antennas
used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
Airgo Networks Inc. Page 9 of 10 May 2005
Airgo Networks Proprietary Information
AGN0912AR-01
802.11b/g MISO BBGW Radio
Preliminary Product Details

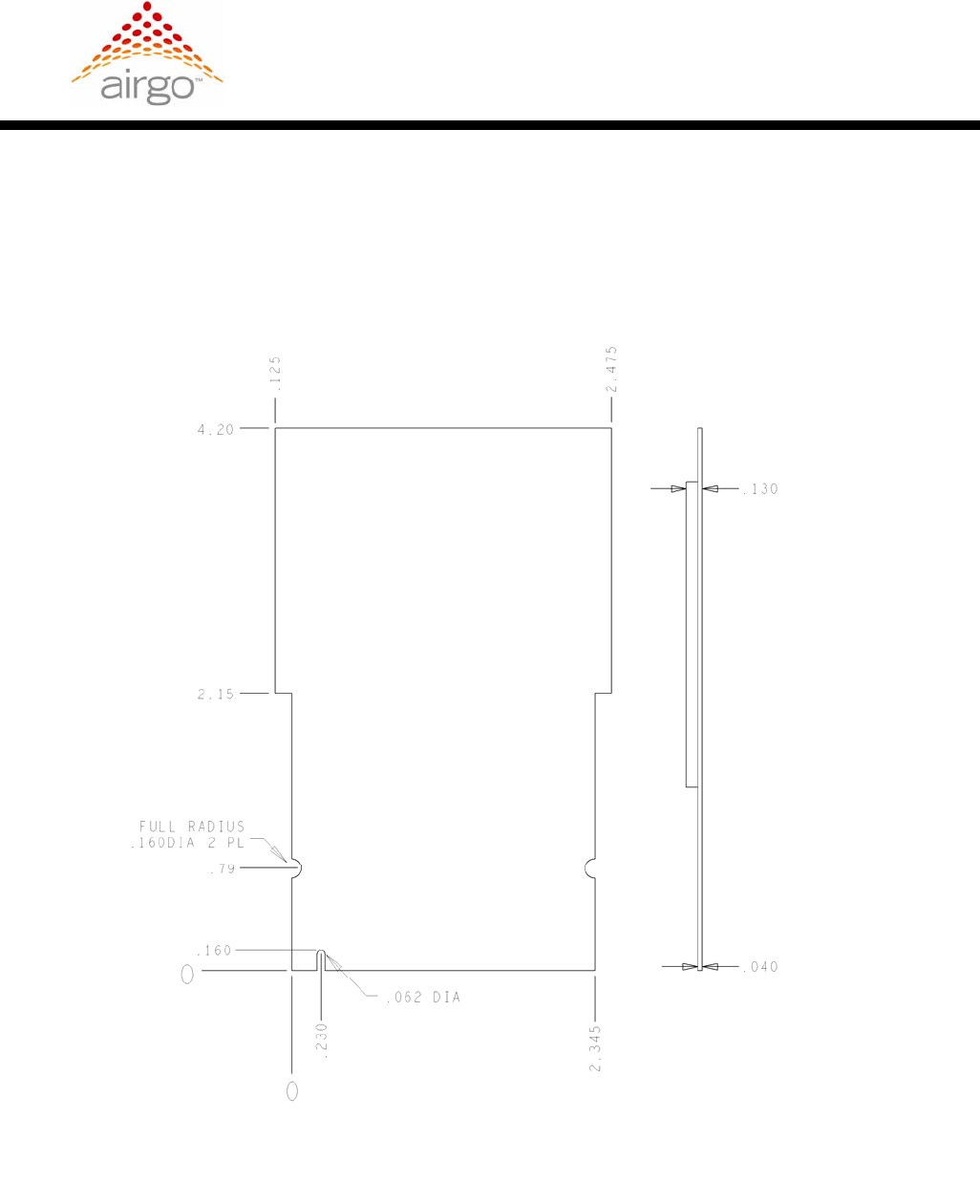

Physical Dimensions
Airgo Networks Inc. Page 10 of 10 May 2005
Airgo Networks Proprietary Information
