Airgo Networks AGN1022PC0100 802.11 b/g 2x2 MIMO Cardbus Card User Manual Installation and User Guide
Airgo Networks Inc. 802.11 b/g 2x2 MIMO Cardbus Card Installation and User Guide
User Manual
Installation and User Guide
Wireless LAN Client Adapter
Installation and User Guide: Wireless LAN Client Published July2005
Copyright © 2004, 2005 by Airgo Networks. All Rights Reserved.
No part of this work may be reproduced, stored in a retrieval system, or transmitted in any
form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without
the prior written permission of unless such copying is expressly permitted by U.S. copyright
law.
Page 2 of 36 Installation and User Guide: Wireless LAN Client
Contents
PREFACE....................................................................................................... 4
OVERVIEW ................................................................................................... 6
DEVICE TYPES ............................................................................................. 6
SHIPPING PACKAGE CONTENTS........................................................................ 6
SYSTEM REQUIREMENTS................................................................................. 6
INSERTING AND REMOVING THE WIRELESS LAN CLIENT ADAPTER........................... 6
Checking Adapter Activity .......................................................................... 7
INSTALLING THE WIRELESS LAN CLIENT ADAPTER DRIVER AND CLIENT UTILITY ........ 7
Installation Steps...................................................................................... 7
CUSTOM INSTALLATION ................................................................................13
UNINSTALLING THE CLIENT UTILITY AND DRIVERS..............................................14
INTRODUCTION TO THE CLIENT UTILITY................................................... 15
SERVICE SET IDENTIFIERS ............................................................................15
CLIENT UTILITY OVERVIEW ...........................................................................15
ACCESSING THE CLIENT UTILITY.....................................................................16
Using the Tray Icon..................................................................................16
NAVIGATING THE USER INTERFACE..................................................................17
Top Display............................................................................................17
Windows Configuration Checkbox...............................................................17
Available Networks List.............................................................................17
Configured Networks List ..........................................................................19
Additional Buttons and Connection Information..............................................20
Monitoring Network Connection Status.........................................................20
CONFIGURATION OVERVIEW ..................................................................... 22
SCANNING FOR AVAILABLE NETWORKS.............................................................22
WORKING WITH PROFILES ............................................................................22
Profile Tasks ..........................................................................................24
Advanced Profile Settings .........................................................................24
WIRELESS SECURITY....................................................................................25
USING THE CLIENT UTILITY WITH WINDOWS XP ...................................... 28
GLOSSARY.................................................................................................. 30
REGULATORY.............................................................................................. 36
Page 3 of 36 Installation and User Guide: Wireless LAN Client
Preface
This guide explains how to install and configure the Wireless LAN Client Adapter, which
provides PC laptop and desktop users with access to 802.11 access points. The guide is intended
for business and consumer users who want to install and configure the Wireless LAN Client
Adapter quickly and easily. It is also intended for users who are interested in advanced
configuration and troubleshooting.
The Wireless LAN Client Adapter products include the following device options:
PC Card adapter for use in laptop and notebook computers
Mini PCI adapter for use in laptop computer mini-PCI expansion slots
The Client Utility, a software tool designed to provide basic configuration options for the
device, is shipped with each unit along with the device drivers.
Organization of this Guide
This guide consists of the following chapters:
Chapter 1 describes the features of the Wireless LAN Client Adapter and explains how to install
it.
Chapter 2 provides an overview of the Client Utility.
Chapter 3 describes the configuration settings of the Client Utility.
Appendix A explains how to use the profile features of the Client Utility with Windows XP.
Glossary defines terms that apply to wireless and networking technology and the product suite.
Regulatory provides import information about operations of the radio frequency client.
Conventions Used in this Guide
This guide uses the following conventions for instructions and information.
Notes, Cautions, and Warnings
Notes, cautions, and time-saving tips use the following conventions and symbols.
NOTE: Notes contain helpful suggestions or information that is important to the task at hand.
CAUTION: Caution indicates that there is a risk of equipment damage or loss of data when certain
actions are performed.
WARNING: Warnings are intended to alert you to situations that could result in injury (such as
exposure to electric current, for example).
Related Documentation
The following documentation related to the Airgo Networks wireless networking product line is
available on CD-ROM and also on the company website, http://www.airgonetworks.com:
_ Access Point Installation and Configuration Guide — Describes how to install and configure
the Access Point.
Page 4 of 36 Installation and User Guide: Wireless LAN Client
_ NMS Pro Installation and Configuration Guide — Explains how to install and use the
enterprise network management application.
_ Access Point Command Line Interface (CLI) Reference Manual — Provides a listing of all
the commands available for the Access Point, usable through console access and command line
interface; this manual is intended for advanced users and system administrators.
Installation and User Guide: Wireless LAN Client Page 5 of 36
Overview
The Wireless LAN Client Adapter provides the communication link between your laptop and
other devices in a wireless network. The adapter operates in the 2.4 GHz radio frequency band
and can communicate with any device that meets the compatible IEEE 802.11 standards.
When used with Access Points as part of a wireless network installation, the Wireless
LAN Client Adapter offers the following special features:
o Extended range
o Multi mode operation
o Interference handling
The Client Utility, shipped with each Wireless LAN Client Adapter, includes tools for
setting the basic configuration.
Device Types
The Wireless LAN Client Adapter is currently offered in two device types:
• PC Card — Extended Type II PCMCIA CardBus (32-bit interface) for use in laptop and
notebook computers.
• Mini-PCI— Mini-PCI adapter for use in laptop computer mini-PCI expansion slots. Mini-PCI
adapters are installed by factory personnel when the PC system is configured by the PC
manufacturer. For mini-PCI adapter information, consult your PC manufactures’s documentation.
Shipping Package Contents
The Wireless LAN Client Adapter shipping package contains the following items:
• Wireless LAN Client Adapter
• CD containing the device driver and Client Utility
System Requirements
Your PC must meet the following minimum requirements:
• Windows XP or Windows 2000
• 128 MB memory
• CPU 750 MHz or greater
• At least 10 MB disk capacity available for the driver and Client Utility software.
• Type II or Type III CardBus slot for notebooks and laptops
Inserting and Removing the Wireless LAN Client
Adapter
To insert the PC card:
1 With the computer powered on or off, slide the PC card firmly into an available CardBus slot
Page 6 of 36 Installation and User Guide: Wireless LAN Client
(Figure 1).

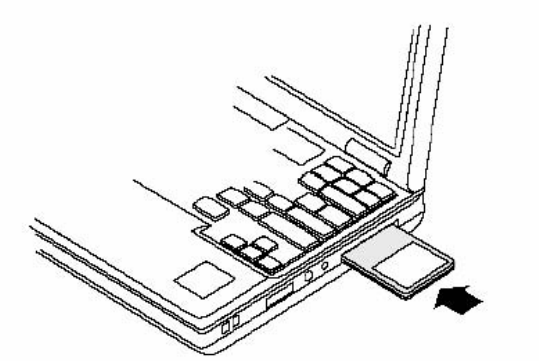

Figure 1: PC Card Installation
To safely remove the PC card while the computer is powered up:
2 Right-click the system tray icon entitled Safely Remove Hardware or Eject or Stop Hardware.
The system prompts you to select the device to stop.
3 Select Wireless LAN NIC, and click Stop.
4 Click OK when asked to confirm.
5 Press the CardBus eject button on the side of your computer to release the slot locking
mechanism and slide the PC card out.
Checking Adapter Activity
The LEDs on the PC card indicate the state of current communications. LED 1 is on the left and
LED 2 is on the right when the card is facing up (thick section on top, metallic contact on the
bottom):
• LED 1 — Shows solid green when the adapter is associated (connected) to the network.
• LED 2 — Blinks green when the adapter is associated to the network and transmitting
or receiving data. The blinking speed reflects the level of network activity.
Installing the Wireless LAN Client Adapter Driver and
Client Utility
Follow the steps in this section to install the software needed to support your Wireless LAN
Client Adapter. The software includes:
• Wireless LAN Client Adapter driver
• Client Utility
Installation Steps
1 Power up your computer.

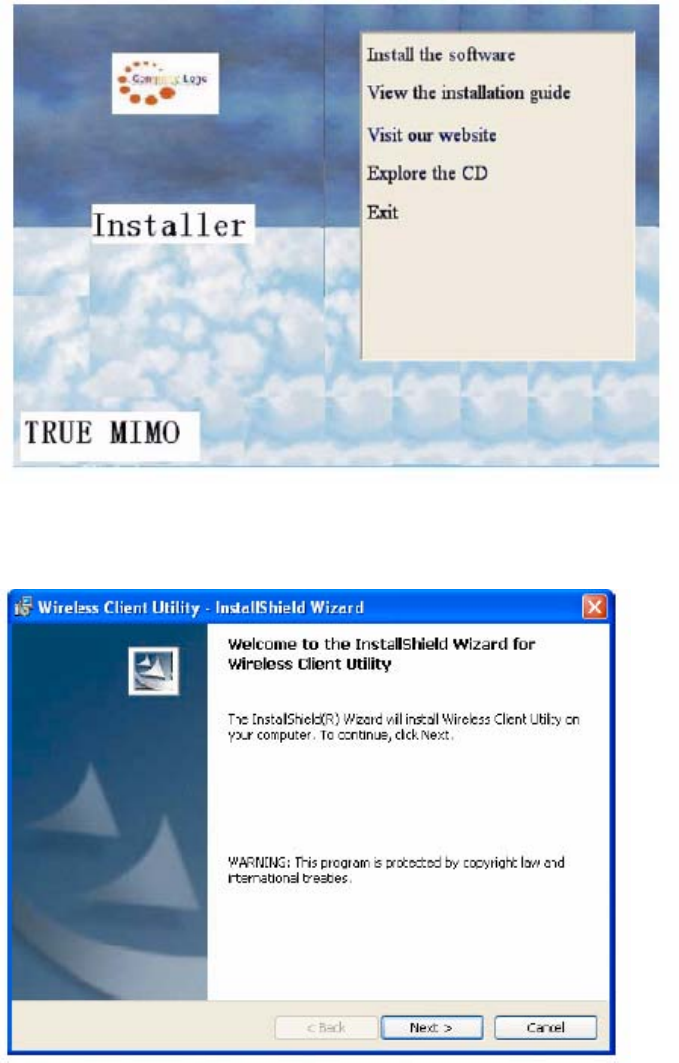

2 Insert the Wireless LAN Client Adapter distribution CD, which should automatically start the
Installation Wizard. If the wizard does not start automatically, open the CD and double-click
Setup.msi.
The Installation Wizard opens.
Installation and User Guide: Wireless LAN Client Page 7 of 36
3 Click Install the software.
The Installation Welcome screen opens.
4 Click Next.
The License agreement window opens.
Page 8 of 36 Installation and User Guide: Wireless LAN Client

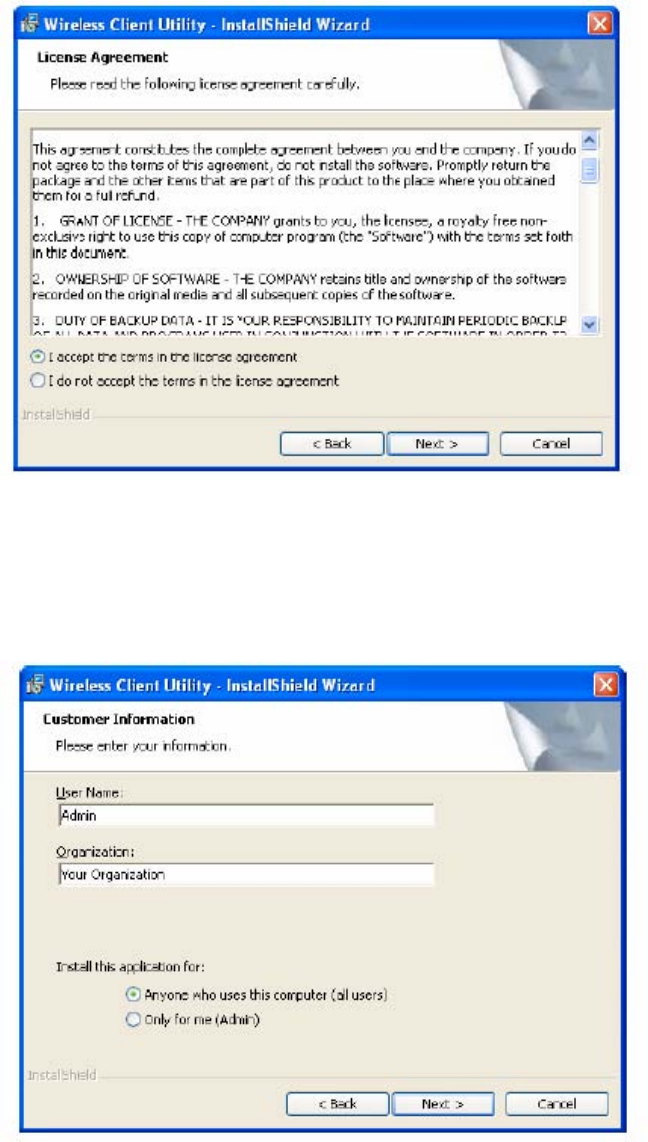

5 Review the license agreement, and then choose I accept the terms in the license
agreement.
6 Click Next.
7 Enter a user name and organization name, and indicate whether access to the Client Utility will
be permitted for all users or just the specified user.
8 Click Next.

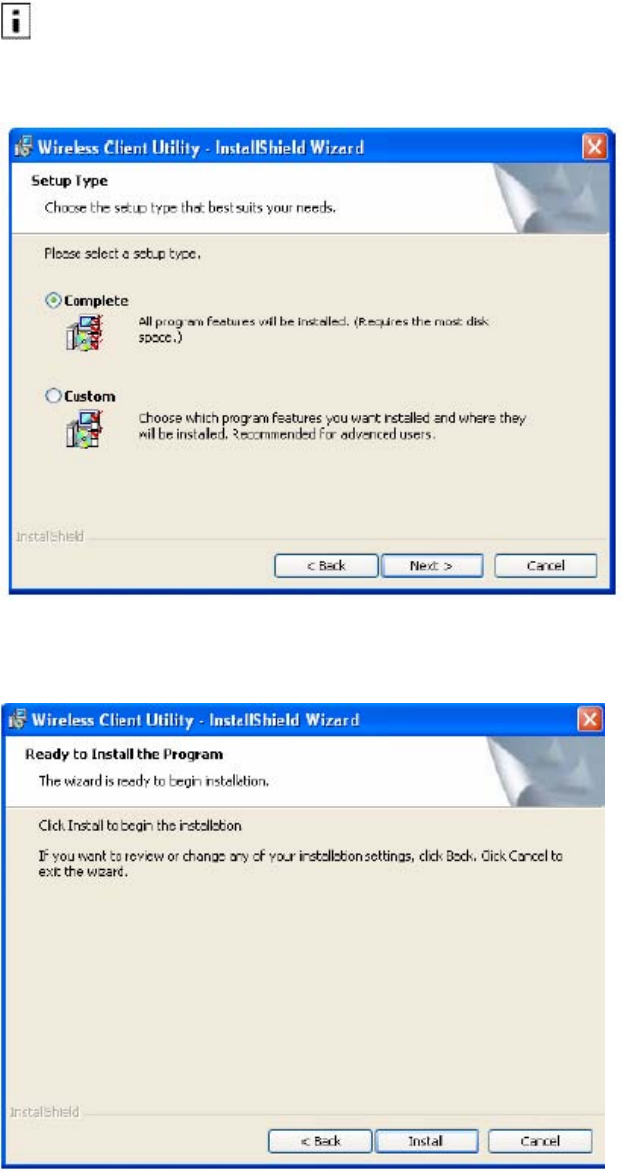

9 Accept Complete as the setup type.
Installation and User Guide: Wireless LAN Client Page 9 of 36
NOTE: If you select Complete, the software is automatically installed in the default location. To
choose another location, select the Custom option (“Custom Installation”).
10 Click Next.
11 Click Install to begin installation. To review previous selections, click Back.

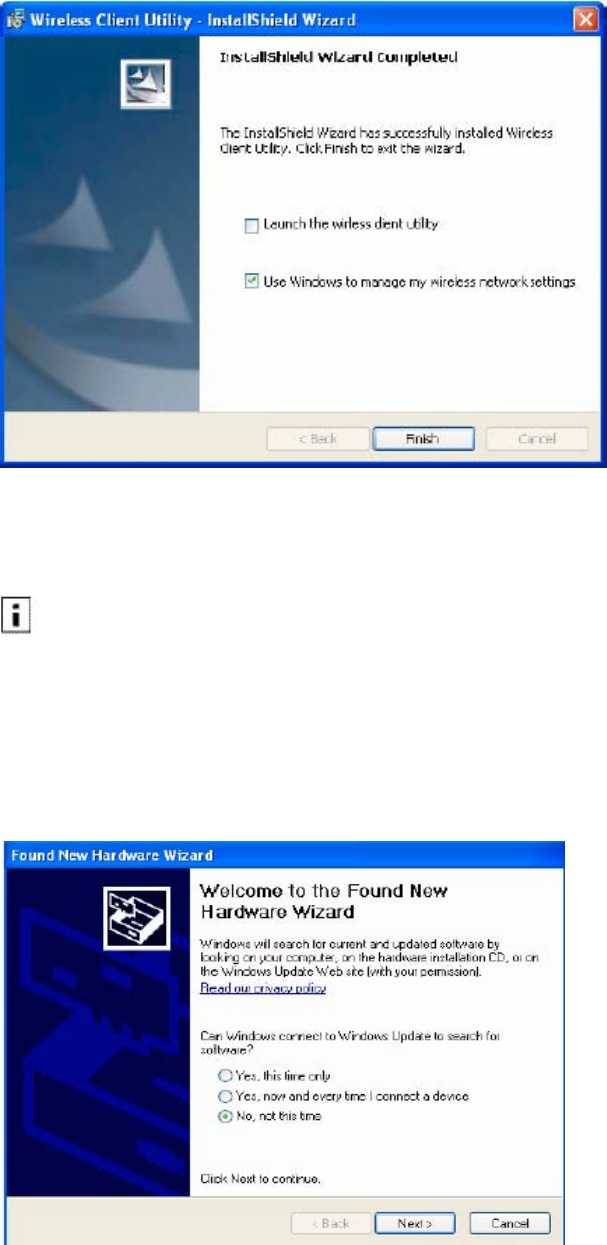

The wizard completes the installation of the driver and the Client Utility and presents the
completion window.
Page 10 of 36 Installation and User Guide: Wireless LAN Client
Select Use Windows to manage my wireless network settings if you want to use Wireless
Zero Config (WZC) to manage the Client Adapter.
NOTE: It is necessary to use WZC if you want to configure Wi-Fi Protected Access (WPA)
security. For information about security, see Chapter 3, “Configuration.” For instructions on
enabling or disabling WZC, see Appendix A, “Using the Client Utility With Windows XP.” You
can change the WZC option at a later time, from the Client Utility main window, as explained in
“Working with Profiles”.
13 Click Finish to complete the software installation.
14 Now, insert the Wireless LAN Client Adapter.
The Found New Hardware Wizard opens.
15 If your system has Windows XP Service Pack 2, a welcome window opens. Select No, not at
Installation and User Guide: Wireless LAN Client Page 11 of 36
this time to the question, Can Windows connect to Windows Update to search for software and
Click Next.

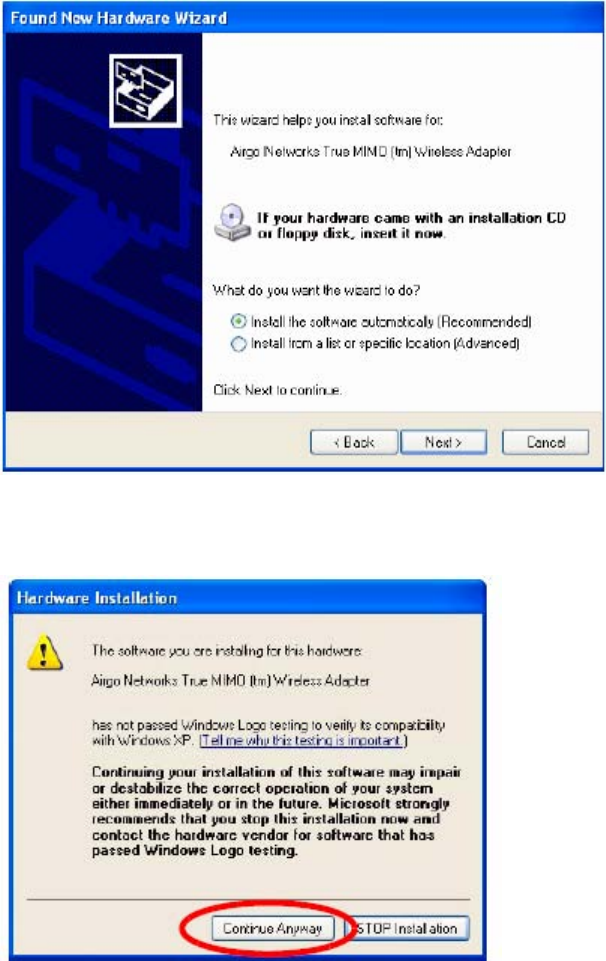

16 For all installations, the following window now opens. Accept the default to install the
software automatically.
17 Click Next.
18 A message appears regarding Windows logo testing. Click Continue Anyway.
19 The installation proceeds. When the process is complete, the Completing the Found New
Hardware Wizard window opens.
20 Click Finish.
Page 12 of 36 Installation and User Guide: Wireless LAN Client
The installation is now complete. Examine the LEDs to confirm that the Client Adapter is
installed and working properly. See “Inserting and Removing the Wireless LAN Client Adapter”
Custom Installation
Follow these steps if you want to change the default software installation location.

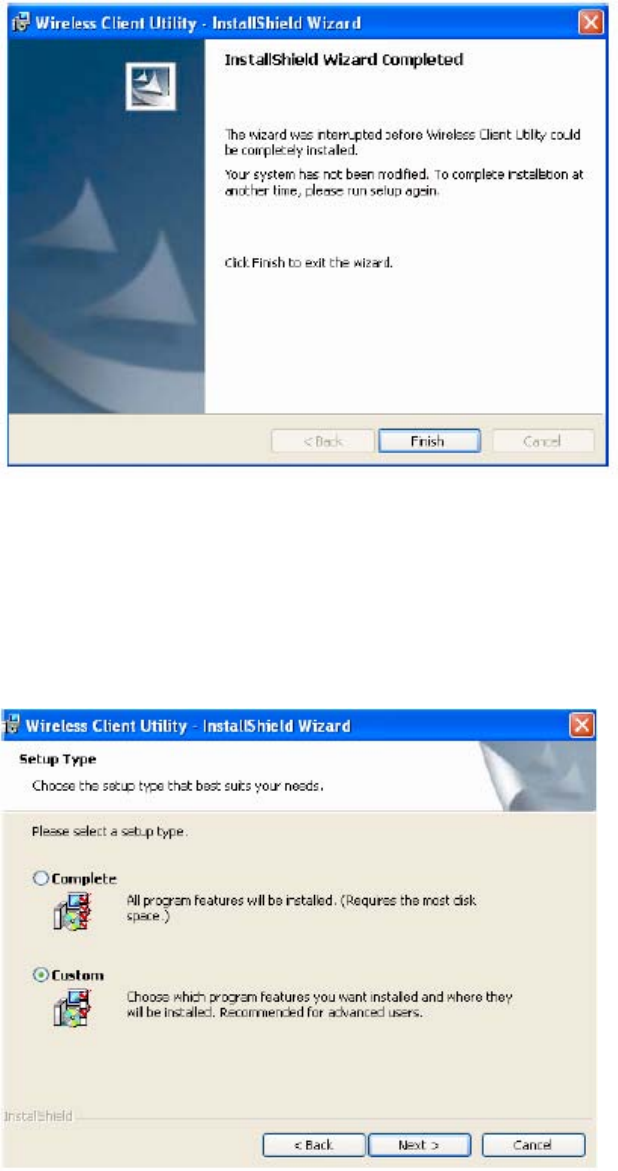

1 In the Customer Information window, select Custom, and click Next.

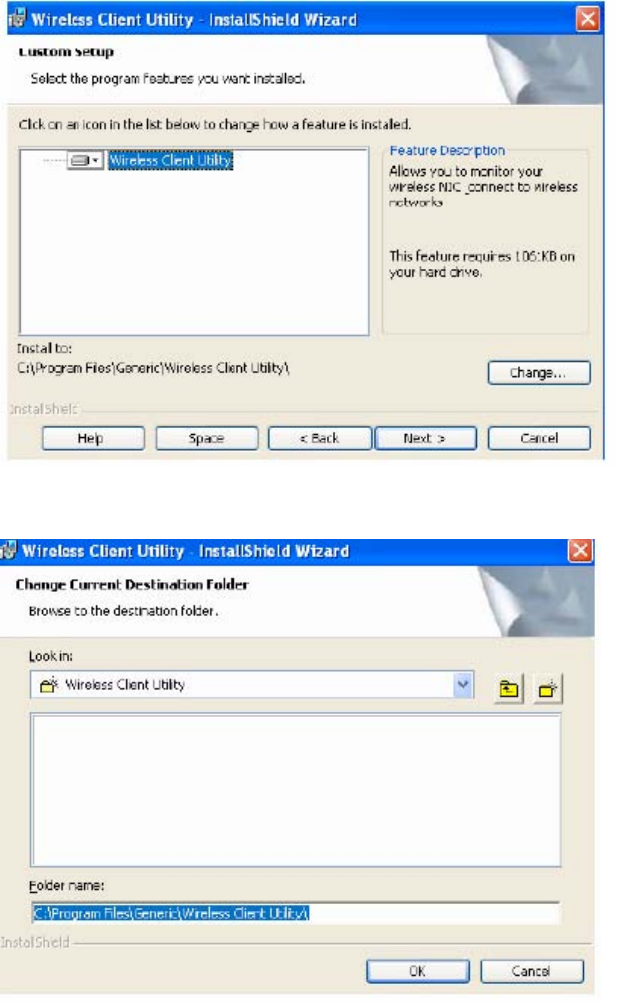

2 Click Change to select a new location.
Installation and User Guide: Wireless LAN Client Page 13 of 36
3 Enter the path for the new location, or click Browse to select a path.
4 Click OK.
Uninstalling the Client Utility and Drivers
Uninstall the Client Utility if you are upgrading to a newer version of the utility. To do so, use the
Windows Add or Remove Programs utility.
To access Add or Remove Programs:
1 Choose Start > Control Panel > Add or Remove Programs.
2 Select the Client Utility program, and click Remove.
3 Confirm that you want to remove the program, and following the wizard instructions.
Page 14 of 36 Installation and User Guide: Wireless LAN Client
Introduction to the Client
Utility
The Wireless LAN Client Adapter connects your PC to a wireless local area network (wireless
LAN) by way of radio signals. An access point is the device that forwards data from the wired
network to your PC by way of radio signals and connects you with other wireless users. The IEEE
802.11 standard identifies two types of wireless networking modes:
In an infrastructure network, an access point links the wireless LAN to a wired network. By
attaching to an existing network infrastructure, you can gain access to other resources on the
wired network, other wireless LANs, or the Internet. This is the mode to use when setting up a
home network or accessing an office network.
In an ad-hoc wireless network, you establish communications between your PC and a small
number of other wireless users without using an access point.
The Wireless LAN Client Adapter installed on your PC can communicate with any access point that
supports the industry standard IEEE 802.11 wireless communications protocol.
Service Set Identifiers
The Service Set Identifier (SSID) is a name that uniquely identifies a wireless local area
network. Each device in the wireless network must have the same SSID configured in
order to participate in the network. The SSID can be up to 32 alphanumeric characters in
length and is also known as the wireless network name.
The 802.11 standard specifies two types of network service sets identified by SSID:
Basic Service Set (BSS) -- collection of wireless devices operating with an access point in
infrastructure mode (Basic Service Set - BSS) or without an access point in ad-hoc mode
(Independent Basic Service Set - IBSS).
Extended Service Set (ESS) -- collection of BSSs with wireless devices that can roam from one
BSS to another while staying connected to wireless network resources.
Client Utility Overview
The Client Utility enables you to perform all these functions:
Obtain a view of your wireless network, including the type of network, the access point with
which you are associated, and information about the radio signals currently being transmitted and
received.
Scan and connect to wireless networks within radio range of your PC.
Create or select a profile, which stores the specifics of the network connection and security
selections for your Wireless LAN Client Adapter. The Client Utility supports multiple profiles,
enabling you to connect to different networks, whether at home, at work, or at wireless hotspot
locations.
Installation and User Guide: Wireless LAN Client Page 15 of 36
To use the profile features of the Client Utility on Windows XP, you must specify that Windows
will not be managing the Client Adapter.
Accessing the Client Utility
The Client Utility normally runs automatically when the Client Adapter is installed, and
the application icon appears in the Windows system tray. If the Client Utility is not
running, you can start it from the Start menu:
Choose Start > Programs > ... > Client Utility .

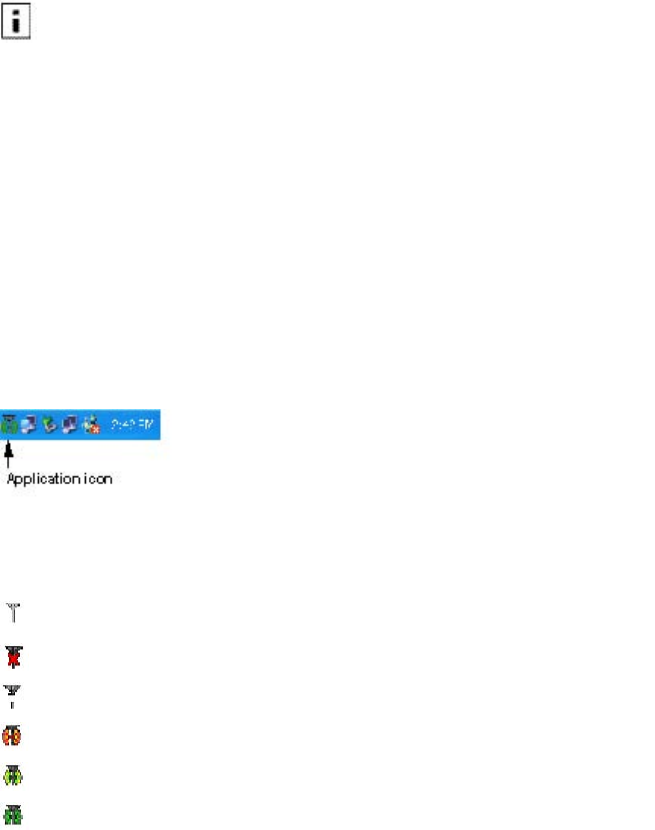

Using the Tray Icon
When you start the Client Utility, a small signal icon becomes visible in the system tray
on the Windows toolbar.
The color of the icon reflects the quality of the wireless connection:
Icon Description
No adapter present
Adapter present, radio turned off
Adapter present, radio on, no association
Adapter present, radio on, poor signal quality
Adapter present, radio on, marginal signal quality
Adapter present, radio on, good signal quality
The tray icon has a right-click menu that includes the following options:
Item Description
Show Open the Client Utility window.
Radio
On/Off Turn the Client Adapter radio on or off.
Help Open the online help system.
About Display information that may be helpful for technical support.
Exit Exit the Client Utility. To restart the Client Utility after exiting, you must
use the Start menu.
Page 16 of 36 Installation and User Guide: Wireless LAN Client
Navigating the User Interface
This section explains how to use the Client Utility interface.
Top Display
The top display section lists characteristics of the current network connection:
Item Description
Status Indicates whether the Client Adapter is currently associated to a working
AP.
Network If Status is Connected, lists the name of the network to which the Client
Adapter is connected.
AP Name If Status is Connected, lists the name of the AP to which the Client
Adapter is connected.
Channel
(Mode) If Status is Connected, lists the radio channel used and the 802.11 mode
(b or g).

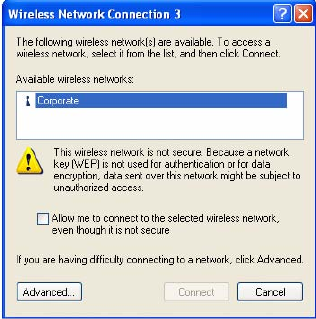

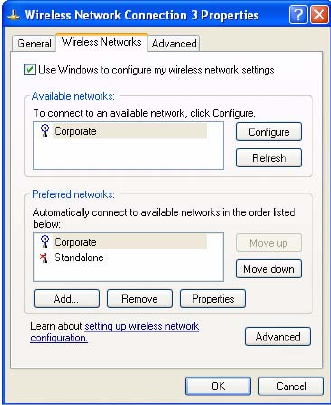

Windows Configuration Checkbox
A checkbox entitled Use Windows to configure my wireless networks is located just
below the top display section. Select this checkbox to use Wireless Zero Config (WZC)
to configure the Client Adapter. WZC is required to use Wi-Fi Protected Access (WPA)
as the security mode when connecting to the network. For more information on security,
see. If you use WZC to configure the Client Adapter, you can still use the Client Utility
to monitor available networks and check connection status.
Available Networks List
The Available Networks section of the Client Utility window lists all the working
networks within radio range of your Client Adapter. The following information is
presented:
Icon Column Description
SSID Name of the network, associated
SSID Name of the network, not associated
Signal
quality Signal strength, as a percentage: Four solid green bars, 60% or
greater
Signal
quality Signal strength, as a percentage: Three solid green bars, one
hollow green: 40-60%
Signal
quality Signal strength, as a percentage: Two solid yellow, two hollow
yellow bars, 20-40%
Signal
quality Signal strength, as a percentage: One solid yellow bar, three
hollow yellow bars, 5-20%
Installation and User Guide: Wireless LAN Client Page 17 of 36
Signal
quality Signal strength, as a percentage: All red hollow bars, less than
5%
Security Open security
Security WEP security
Security WPA security
Channel Current radio channel used for communications between the
Client Adapter and the access point
Type Infrastructure
Ad-hoc network
QoS Applicable wireless quality of service (QoS) settings for Wi-Fi
multimedia (WMM) and 802.11e QoS
Perform any of the following operations on the Available Networks list:
Item Description
Re-Scan
Causes the Client Adapter software to immediately scan for all the
wireless networks within radio range. Detected networks are presented in
the Available Networks list. Background scanning for available networks
occurs by default every five seconds.
Configure Open the Profile Editor window (See Profile Tasks).
Resize
columns Select and move the column header dividers.
Sort entries
by column
Click the column header. The arrow that appears indicates the sort order
(upward facing for ascending and downward facing for descending). To
change the sort order, click the column header again.
Add or
remove
columns Right-click on the column header, and select or deselect columns.
Reorder
columns Drag the column headers to reorder the columns.
Properties
Displays network details. Select one or more networks and click
Properties to open the Properties window. See Properties Window
Information lists the information shown in the Properties window. All
APs for the selected networks are displayed.
Properties Window Information
Item Description
BSSID IDs of the APs belonging to the selected SSIDs
SSID ID of the selected networks
Page 18 of 36 Installation and User Guide: Wireless LAN Client
Security Security mode (WEP, WPA, or open)
Supported
Rates All data rates supported by the access point
Basic Rates Minimum data rates supported by the access point
Channel Radio channel used for communication between the Client Adapter and
access point
Mode 802.11 mode (b or g)
Type Network type (Infrastructure or Ad-hoc)
Country Code International Standards Organization (ISO) standards for frequency
selection based on country-specific regulations1
Environment Type of physical environment (Indoor, Outdoor or Both)
Channel List Available operating channels
True MIMO Use of enhanced, True MIMO, data rates (Yes or No)
Signal
strength Strength of the radio signal, as a percentage
Configured Networks List
The Configured Networks list shows all the networks for which a network profile is
defined. For information on using profiles, see Working with Profiles. The Configured
Networks list includes the following information:
Item Description
SSID Name of the network
Signal quality Quality of the radio signal
Security Type of active security
Type Infrastructure or ad-hoc network
Perform any of the following operations on the Configured Networks
list:
Item Description
Add Click Add to open the Profile Editor to create a new profile.
Remove Click Remove to eliminate a network from the Configured Networks list.
Edit Click Edit to edit the selected network using the Profile Editor.
Change
network
order
Highlight an entry and use the arrows to the right of the list to move the
entry up or down.
1 Client adapters will be channel restricted based on country code programmed in the
adapters EEPROM.
Installation and User Guide: Wireless LAN Client Page 19 of 36
Resize
columns Select and move the column header dividers.
Sort entries
by column
Click the column header. The arrow that appears indicates the sort order
(upward facing for ascending and downward facing for descending). To
change the sort order, click the column header again.
Additional Buttons and Connection Information
The following buttons are located below the Configured Networks area:
Button Description
Expansion
arrow Click the arrow to display or hide current connection information (see
Current Connection Information).
Help Open the online help system.
OK Save changes and then close the Client Utility window without quitting
the application. To exit the application, use the system tray right-click
menu.
Cancel Cancel changes if they have not been saved.
Apply Make the selected configured network active.
The remaining area displays read-only information about the current
connection and settings:
Current Connection Information
Item Description
Transmit Rate Current connection rate for data transmitted from your PC to the access
point.
Transmit
Bytes Number of bytes of data transmitted since your Client Adapter was last
enabled.
Receive Rate Current connection rate for data received by your PC from the access
point.
Receive Bytes Number of bytes of data received since the Client Adapter was last
enabled.
Band 802.11 radio frequency band used for communications.
Channel Radio channel used for communications.
Authentication Method of client identification.
Encryption Method of protecting data integrity.
Monitoring Network Connection Status
Once a profile is activated and you are associated to the selected network, the main Client
Utility presents status information. The SSID icon changes to active and in the top left
Page 20 of 36 Installation and User Guide: Wireless LAN Client
area of the window, an SSID signal indicator shows the overall strength of all APs that
are configured for that SSID.
Installation and User Guide: Wireless LAN Client Page 21 of 36
Configuration Overview
The Client Utility uses profiles to store information describing how your Wireless LAN
Client Adapter connects to the wireless network. Each profile contains information about
the type of network connection and security settings.
To make it easy to connect to wireless networks at home, office, or wireless hotspot
locations, Client Utility allows you to create multiple profiles, each containing
information about a different network or a different set of configuration values. When
you move from one location to another, your Client Adapter automatically detects which
network is currently available and applies the correct profile. The Configured Networks
list in the Client Utility main window contains an entry for each profile.
The following rules apply when connecting to a wireless network:
The Client Utility always attempts to connect to a network with a configured profile, in the order
in which the configured networks are listed.
If there are no previously configured networks, or if it is not possible to connect to any currently
configured networks, the Client Adapter attempts to connect to the AP with the best signal
quality, open authentication, and no encryption.
If all the connection options fail, or if you want to connect to a different available network, you
can create a profile for the network with appropriate security parameters. This adds the network
to the Configured Networks list and makes it available for automatic connection in the future.
Scanning for Available Networks
Upon driver load, the Client Adapter scans for all access points within radio range and attempts to
connect to one of them based on previously scanned profiles. It associates to the first access point
it finds for which it can establish radio communications. Although association normally happens
automatically; it is recommended that you keep the Client Utility running while you are
connected. This enables you to verify the configuration and confirm that the access point to which
you are connected is a trusted component of your network.
Whenever you open the Client Utility, the system performs an automatic scan. You can also scan
for networks on demand, at any time.
To scan for available networks:
Choose Start > Programs > ... > Client Utility .
This displays the application icon in the system tray.
Click Re-Scan .
The Re-Scan button is disabled while scanning takes place. When the scan is complete,
the Available Networks list displays all the discovered networks.
Working with Profiles
Profiles store configuration information about how your Wireless LAN Client Adapter connects
to specific wireless networks. Use the Profile Editor to create new profiles or modify existing
ones.
The Profile Editor contains the following fields:
Page 22 of 36 Installation and User Guide: Wireless LAN Client
Field Description
SSID Service Set Identifier (SSID) is a name that uniquely identifies a
wireless local area network. Each device in the wireless network must
have the same SSID configured in order to participate in the network.
BSSID
Basic Service Set (BSS) is the collection of wireless devices operating
with an individual access point in infrastructure mode or without an
access point in ad-hoc mode. For further information on service set
identifiers.
Network Type
The Network Type indicates the type of network arrangement.
Infrastructure -- Refers to an existing wireless network, usually with an
interface to a wired network, for Internet and email access, file sharing,
and print and other services.
Ad Hoc -- Refers to a temporary wireless network that has been set up
by another user.
Start Ad-Hoc Network -- Permits you to set up a new ad-hoc network to
communicate with other PCs without using an access point.
Channel
In infrastructure networks, the channel used for radio communications
is determined at the access point and for ad-hoc networks; the channel
is determined by the user who starts the network. It is necessary to
select a channel only if you are starting a new ad-hoc network. 2
Authentication
The authentication and encryption settings provide options for
configuring a secure connection between your PC and access point. The
following authentication options are available:
Open -- No authentication
Share -- Authentication based on shared keys
See Wireless Security for background on wireless security options and
guidelines for security settings in the enterprise, small office, and home
environments.
Encryption
Type
The following encryption options are available:
None -- No encryption
WEP -- Encryption based on shared WEP keys
See Wireless Security for background on wireless security options and
guidelines for security settings in the enterprise, small office, and home
environments.
Encryption
Encryption Enter up to 4 encryption keys, if the encryption type is
WEP. The radio buttons under Default provide for default selection of
one of the up to 4 WEP keys that may be entered. The keys are 64-bit or
128-bit and may be specified in ASCII (text) or hexadecimal (numeric)
format:
ASCII - 5 ASCII characters (64-bit); 13 ASCII characters (128-bit)
Hexadecimal - 10 ASCII characters (64-bit); 26 hexadecimal digits (128-bit)
2 Channel selection will be restricted based on country code programmed into the
client adapter EEPROM.
Installation and User Guide: Wireless LAN Client Page 23 of 36
Profile Tasks
To create a profile for an available network:
Select the Network and click Configure.
The Profile Editor window opens with the SSID, BSSID, Network Type, and Channel fields
already filled in.
Select an authentication method and encryption type. If you select WEP as the encryption type,
enter encryption key information. For information on encryption keys, see Encryption.
Click OK .
The Profile window closes and the newly created profile appears in the Configured Networks list
in the Client Utility window.
You can edit any profile in the list, including the active one. If you edit and apply the active
profile, the system temporarily drops the network connection while implementing the changes.
When the configuration change is complete, the network connection is restored.
To make a profile active:
Select the profile in the Configured Networks list, and click Apply .
To edit a profile:
Highlight a name in the Configured Networks list and click Edit .
The Profile Editor window opens.
Enter or confirm authentication and encryption type, and enter WEP keys, if appropriate.
Click OK .
To add a new profile not based on an existing profile or network:
Click Add.
The Profile Editor window opens.
Enter the SSID of the network. The BSSID is determined automatically when your Client
Adapter associates to an access point.
Select the network type. If you select Start Ad-Hoc, enter a radio channel setting for the
network. If you select Infrastructure or Ad-Hoc (for an existing ad-hoc network), the
channel is automatically set.
Select authentication and encryption type, and enter WEP keys, if appropriate.
Click OK.
To delete a profile:
Highlight the profile name and click Delete .
Click OK when prompted to confirm.
Advanced Profile Settings
The Advanced button to the right of the Profile Name opens the Advanced Profile Settings
window. The settings in this window enable you to take advantage of the enhanced performance
features of the Access Point. It is recommended that you retain the default Auto settings, which
provide compatibility with basic, enhanced data rates, network density, and power usage.
Page 24 of 36 Installation and User Guide: Wireless LAN Client
Wireless Security
Although security is important in any network, the characteristics of wireless networks
can make them vulnerable to attack. Unlike wired networks, which require a physical
connection that can be secured with lock and key, wireless networks require only a radio
signal for communication, and physical barriers do not provide protection. A concern
since the introduction of the IEEE 802.11 wireless communication standard, wireless
security continues to evolve, as shortcomings of existing security solutions are uncovered
and new solutions are adopted.
Wireless security encompasses two major components: encryption and authentication.
Encryption is the means by which data transferred across the wireless link are protected
from eavesdropping. Authentication is the means by which the identity of your PC or
your identity, or both, are confirmed so that you have permission to use the network.
Authentication
This section provides an overview of authentication options. The most effective authentication
options available today are supported either through the Client Utility or by leveraging the
Microsoft Wi-Fi software implementations. For further information, see Client Utility Security
Options.
Effective authentication methods rely on manual distribution of shared or pre-shared
authentication keys or automatic generation of keys by a RADIUS (Remote
Authentication Dial-In User Service) server.
A shared or pre-shared key is an authentication string entered at the access point and
client PCs. Authentication takes place by matching the key stored in each PC with the
key stored in the access point.
Automatic key-generation methods rely upon digital certificates, which contain encoded
user and encryption information to verify the identity of a user and match it with a
database of secure user records. A certificate authority is the network service that
manages digital certificates and guarantees their integrity. The IEEE 802.1X standard
specifies certificate-based authentication using EAP (Extensible Authentication
Protocol). EAP, in turn, comes in numerous variations.
Most enterprises manage remote access to the certificate authority using a RADIUS
(Remote Authentication Dial-In User Service) server. In this arrangement, client PC users
install RADIUS client software on their local PCs to provide RADIUS server access.
Funk Software and Microsoft are the major suppliers of RADIUS client software.
For home or small office networks, shared or pre-shared keys can provide adequate
authentication without the burden of centralized management and control. A built-in
RADIUS security portal is provided in the Access Point to extend the management and
scalability features of centralized management to administrators in small-to-mid sized
office environments.
Installation and User Guide: Wireless LAN Client Page 25 of 36
Encryption
This section provides an overview of encryption options. The most effective authentication options
available today are supported either through the Client Utility or by leveraging the Microsoft Wi-Fi
software implementations. For further information, see Client Utility Security Options.
Encryption protects wireless data from being intercepted and
deciphered during transmission, and thereby assures the security of
your data. The Client Adapter is compatible with the following options:
AES (Advanced Encryption Standard) -- Excellent, financial-grade security
TKIP (Temporal Key Integrity Protocol) -- Good security, used as an upgrade
to legacy systems
WEP (Wired Equivalent Privacy) -- Minimal protection security, acceptable for
non-critical data
Open or no encryption -- No protection, use for non-critical communications
or with other security protection such as https or VPN/IPsec for corporate
communications
The most effective encryption methods are part of the WPA (Wi-Fi
Protected Access) cipher suite and are recommended for all
environments in which security is an important consideration, whether
in the enterprise, small office or home. WPA provides much more
complete protection against discovery of encryption keys than do the
WEP standards. WPA itself has already spawned two generations of
encryption technology, with AES being the latest and most effective
standard. TKIP is the encryption protocol that was first introduced with
WPA, but it provides less complete protection than does AES.
The original 802.11 wireless communication specification standard
included WEP for wireless security. Still widely used today, WEP
security provides some security protection, but can be vulnerable to
attack. Use WEP in cases where the access point does not support
higher level security and security is a consideration in your network
design.
.The WEP algorithm requires an encryption key or keys to be used in
the encrypting and decrypting of data. The Client Utility uses 64-bit or
128-bit encryption keys, which may be specified in ASCII (text) or
hexadecimal (numeric) format:
ASCII keys must be 5 characters in length (64-bit) or 13 characters in length
(128-bit) Example: 64-bit: mynm5 ; 128-bit: 17keycode1298
Hexadecimal keys must be 10 hex digits in length (64-bit) or 26 hex digits in length (128-bit),
where hex digits are in the range 0-9, a, b, c, d, e, f). Example: 64-bit: 55772abbcc ; 128-
bit: 12340987afcb45677fdc789045
The Client Utility supports as many as four WEP keys.
Page 26 of 36 Installation and User Guide: Wireless LAN Client
Client Utility Security Options
The Available Networks list in the Client Utility window displays the security advertised by the
AP.
The Client Utility supports configuration of WEP or shared key options for authentication
and WEP or None options for encryption. In the Profile window, you can select WEP or
open security for the radio connection between your PC and the access point and enter
choices for encryption and authentication within the selected security framework. For
instructions, see Working with Profiles.
Windows XP users can connect to networks that support WPA security provided that the
appropriate Microsoft security updates have been installed. To use WPA security, it is
necessary to use the Wireless Zero Config (WZC) capability native to Windows XP.
When WZC is managing the device, the profile features of the Client Utility are
automatically disabled; however, it is still recommended to use the Client Utility to view
scanned networks.
To use WZC to configure security settings:
Select Use Windows to configure my wireless networks in the Client Utility main window.
Click OK .
Now use WZC to configure security settings:
Right-click the wireless icon on the system tray.
Select View Available Wireless Networks.
The appearance of the next dialog box depends upon whether your computer has Service
Pack 1 or Service Pack 2 installed.
Select the network, and click Connect .
If the network requires a security password or key, you are prompted to enter the key. This
occurs, for instance, if WPA-PSK security is currently used in the network.
The system connects the Client Adapter to the network and presents a star icon, indicating
that a successful connection was made. A balloon message also appears in the system tray.
For Service Pack 1, a window opens to show the list of available networks.
Select your network, and click Advanced to open the Wireless Network Connection
Properties window, Wireless Networks tab.
Confirm that Use Windows to configure my wireless network settings is selected.
Select the network, and click Configure.
Confirm the authentication and encryption selections exactly match those of the access point
to which you are connecting. Enter a network key, if required.
If you selected AES for data encryption, open the Authentication tab and select the EAP type
appropriate to your network.
Click OK as needed to close the WZC windows.
To revert to using the Client Utility to manage the network, you must clear the Use Windows to
configure my wireless network settings checkbox shown in Confirm that Use Windows to configure
my wireless network settings is selected.
Installation and User Guide: Wireless LAN Client Page 27 of 36
Using the Client Utility With
Windows XP
To use the profile features of the Client Utility on Windows XP, you must specify that Windows
XP will not be managing the wireless adapter.
To specify that Windows will not be managing the wireless adapter:
Right-click the wireless icon on the system tray.
Select View Available Wireless Networks.
The window shows the list of available networks.
Click Advanced to open the Wireless Network Connection Properties window, Wireless
Networks tab.
Page 28 of 36 Installation and User Guide: Wireless LAN Client
Clear the checkbox entitled Use Windows to configure my wireless network settings.
Click OK.
You can now use the Client Utility to manage your wireless connections.
Installation and User Guide: Wireless LAN Client Page 29 of 36
Glossary
This glossary defines terms that apply to wireless and networking technology.
802.1x Standard for port-based authentication in LANs. Identifies each user and allows
connectivity based on policies in a centrally managed server.
802.11 Refers to the set of WLAN standards developed by IEEE. The three commonly in use
today are 802.11a, 802.11b, and 802.11g, sometimes referred to collectively as
Dot11.
access control list (ACL) A list of services used for security of programs and operating systems.
Lists users and groups together with the access awarded for each.
access point (AP) An inter-networking device that connects wired and wireless networks
together. Also, an 802.11x capable device that may support one or more 802.11
network interfaces in it and coordinates client stations to establish an Extended
Service Set 802.11 network
Advanced Encryption Standard (AES) An encryption algorithm developed for use by U.S.
government agencies; now incorporated into encryption standards for
commercial transactions.
ad-hoc network A group of nodes or systems communicating with each other without an
intervening access point. Many wireless network cards support ad-hoc
networking modes.
authentication server A central resource that verifies the identity of prospective network users
and grants access based on pre-defined policies.
authentication zone A administrative grouping of resources for user authentication.
backhaul The process of getting data from a source and sending it for distribution over the main
backbone network. Wireless backhaul refers to the process of delivering data
from a node on the wireless network back to the wired network. Also referred to
as WDS.x.
Basic Service Set (BSS) The set of all wireless client stations controlled by a single access
point.
bridge A connection between two (or more) LANs using the same protocol. Virtual bridges are
used as a means of defining layer 2 domains for broadcast messages. Each virtual
bridge uniquely defines a virtual local area network (VLAN).
Class of Service (COS) A method of specifying and grouping applications into various QoS
groups or categories.
client utility This application executes on a station and provides management and diagnostics
functionality for the 802.11 network interfaces.
Page 30 of 36 Installation and User Guide: Wireless LAN Client
Differentiated Services Code Point (DSCP) A system of assigning Quality of Service "Class of
Service" tags.
Domain Name Service (DNS) A standard methodology for converting alphanumeric Internet
domain names to IP addresses.
Dynamic Host Configuration Protocol (DHCP) A communications protocol enabling IP address
assignments to be managed both dynamically and centrally. With DHCP enabled
on a node (a system, device, network card, or access point), when it boots or is
connected to a network, an address is automatically assigned. Each assigned
address is considered to be "leased" to a specific node; when the lease expires, a
new IP can be requested and/or automatically reassigned. Without DHCP, IP
addresses would need to be entered manually for each and every device on the
network.
dynamic IP address A TCP/IP network address assigned temporarily (or dynamically) by a
central server, also known as a DHCP server. A node set to accept dynamic IPs is
said to be a "DHCP client."
Extensible Authentication Protocol (EAP) Standard that specifies the method of
communication between an authentication server and the client, or supplicant,
requesting access to the network. EAP supports a variety of authentication
methods.
Extensible Authentication Protocol Over LAN (EAPOL) Protocol used for 802.1x
authentication.
EAP-TLS EAP using Transport Layer Security. EAP-based authentication method based on
X.509 certificates, which provides mutual, secure authentication. Certificates
must be maintained in the authentication server and supplicant.
EAP-PEAP Protected EAP-based authentication method based on X.509 certificates. Uses a two-
phase approach in which the server is first authenticated to the supplicant. This
establishes a secure channel over which the supplicant can be authenticated to the
server.
Extended Service Set (ESS) A set of multiple connected BSSes. From the perspective of
network clients, the ESS functions as one wireless network; clients are able to
roam between the BSSs within the ESS.
ESSID Name or identifier of the ESS used in network configuration.
hostname The unique, fully qualified name assigned to a network computer, providing an
alternative to the IP address as a way to identify the computer for networking
purposes.
Hypertext Transfer Protocol (HTTP) Protocol governing the transfer of data on the World Wide
Web between servers and browser (and browser enabled software applications).
Hypertext Transfer Protocol over SSL (HTTPS) A variant of HTTP that uses Secure Sockets
Layer (SSL) encryption to secure data transmissions. HTTPS uses port 443,
while HTTP uses port 80.
Installation and User Guide: Wireless LAN Client Page 31 of 36
Independent Basic Service Set (IBSS) A set of clients communicating with each other or with a
network via an access point.
Internet Protocol (IP) The network layer protocol for routing packets through the Internet.
IP address 32-bit number, usually presented as a period-separated (dotted decimal) list of three-
digit numbers, which identifies an entity on the Internet according to the Internet
Protocol standard.
local area network (LAN) A group of computers, servers, printers, and other devices connected
to one another, with the ability to share data between them.
management information bases (MIBs) A database of objects that can be monitored by a
network management system. Both SNMP and RMON use standardized MIB
formats that allows any SNMP and RMON tools to monitor any device defined
by a MIB.
maskbits Number of bits in the subnet prefix for an IP address, (provides the same information
as subnet mask). Each triplet of digits in an IP address consists of 8 bits. To
specify the subnet in maskbits, count the number of bits in the prefix. To specify
using a subnet mask, indicate the masked bits as an IP address. Example: subnet
mask 255.255.255.0 is equivalent to 24 maskbits, which is the total number of
bits in the 255.255.255 prefix.
Media Access Control (MAC) address A unique hardware-based equipment identifier, set
during device manufacture. The MAC address uniquely identifies each node of a
network. Access points can be configured with MAC access lists, allowing only
certain specific devices to connect with the LAN through them, or to allow
certain MAC-identified network cards or devices access only to certain
resources.
MAC address authentication Method of authenticating clients by using the MAC address of the
client station rather than a user ID.
Network Address Translation (NAT) The translation of one IP address used within a network to
another address used elsewhere. One frequent use of NAT is the translation of
IPs used inside a company, versus the IP addresses visible to the outside world.
This feature helps increase network security to a small degree, because when the
address is translated, it is an opportunity to authenticate the request and/or to
match it to known, authorized types of requests. NAT is also used sometimes to
map multiple nodes to a single outwardly visible IP address.
Network Interface Card (NIC) Generic term for network interface hardware that includes wired
and wireless LAN adapter cards, PC Cardbus PCMCIA cards, and USB-to-LAN
adapters.
network management system (NMS) Software application that controls a network of multiple
access points and clients.
node Generic term for a network entity. Includes an access point, network adapter (wireless or
wired), or network appliance (such as a print server or other non-computer
device).
Page 32 of 36 Installation and User Guide: Wireless LAN Client
Network Time Protocol (NTP) NTP servers are used to synchronize clocks on computers and
other devices. APs have the capability to connect automatically to NTP servers to
set their own clocks on a regular basis.
Packet INternet Groper (PING) A utility that determines whether a specific IP address is
accessible, and the amount of network time (measured in milliseconds) needed
for response. PING is used primarily to troubleshoot Internet connections.
policy-based networking The management of a network with rules (or policies) governing the
priority and availability of bandwidth and resources, based both on the type of
data being transmitted and the privileges assigned to a given user or group of
users. This allows network administrators to control how the network is used in
order to help maximize efficiency.
Power over Ethernet (PoE) Power supplied to a device by way of the Ethernet network data
cable instead of an electrical power cord.
preamble type The preamble defines the length of the cyclic redundancy check (CRC) block for
communication between the access point and a roaming network adapter. All
nodes on a given network should use the same preamble type.
Quality of Service (QoS) QoS is a term encompassing the management of network performance,
based on the notion that transmission speed, signal integrity, and error rates can
be managed, measured, and improved. In a wireless network, QoS is commonly
managed through the use of policies.
Remote Authentication Dial-In User Service (RADIUS) A client/server protocol and software
that enables remote access servers to communicate with a central server in order
to authenticate users and authorize service or system access. RADIUS permits
maintenance of user profiles in a central repository that all remote servers can
share.
radio frequency (RF) The electromagnetic wave frequency radio used for communications
applications.
roaming Analogous to the way cellular phone roaming works, roaming in the wireless
networking environment is the ability to move from one AP coverage area to
another without interruption in service or loss in connectivity.
rogue AP An access point that connects to the wireless network without authorization.
Secure Shell (SSH) Also known as the Secure Socket Shell, SSH is a UNIX-based command
line interface for secure access to remote systems. Both ends of a communication
are secured and authenticated using a digital certificate, and any passwords
exchanged are encrypted.
Service Set Identifier (SSID) The SSID is a unique identifier attached to all packets sent over a
wireless network, identifying one or more wireless network adapters as
"belonging" to a common group. Some access points can support multiple SSIDs,
allowing for varying privileges and capabilities based on user roles.
Secure Sockets Layer (SSL) A common protocol for message transmission security on the
Internet. Existing as a program layer between the Internet's Hypertext Transfer
Installation and User Guide: Wireless LAN Client Page 33 of 36
Protocol (HTTP) and Transport Control Protocol (TCP) layers, SSL is a standard
feature in Internet Explorer, Netscape, and most web server products.
Simple Mail Transfer Protocol (SMTP) Protocol used to transfer email messages between email
servers.
Simple Network Management Protocol (SNMP) An efficient protocol for network management
and device monitoring.
SNMP trap A process that filers SNMP messages and saves or drops them, depending upon how
the system is configured.
Spanning Tree Protocol (STP) A protocol that prevents bridging loops from forming due to
incorrectly configured networks.
Station (STA) An 802.11 capable device that supports only one 802.11 network interface,
capable of establishing a Basic Service Set 802.11 network (i.e., peer-to-peer
network).
static IP address A permanent IP address assigned to a node in a TCP/IP network.
subnet A portion of a network, designated by a particular set of IP addresses. Provides a
hierarchy for addressing in LANs. Also called a subnetwork.
subnet mask A TCP/IP addressing method for dividing IP-based networks into subgroups or
subnets (compare with maskbits). Each triplet of digits in an IP address consists
of 8 bits. To specify using a subnet mask, indicate the masked bits as an IP
address. To specify the subnet in maskbits, count the number of bits in the prefix.
Example: subnet mask 255.255.255.0 is equivalent to 24 maskbits, which is the
total number of bits in the 255.255.255 prefix.
Temporal Key Integrity Protocol (TKIP) Part of the IEEE 802.11i encryption standard, TKIP
provides improvements to WEP encryption, including per-packet key mixing,
message integrity check, and a re-keying mechanism.
Traffic Class Identifier (TCID) Part of the standard 802.11 frame header. The 3-bit TCID is used
for mapping to class-of-service values.
Transmission Control Protocol/Internet Protocol (TCP/IP) One of the most commonly used
communication protocols in modern networking. Addresses used in TCP/IP
usually consist of four triplets of digits, plus a subnet mask (for example,
192.168.25.3, subnet 255.255.255.0).
Transport Layer Security (TLS) A protocol that provides privacy protection for applications that
communicate with each other and their users on the Internet. TLS is a successor
to the Secure Sockets Layer (SSL).
True MIMO? The Airgo Networks, Inc. implementation of the data multiplexing technique
known as Multiple Input Multiple Output (MIMO). MIMO uses multiple
spatially-separated antennas to increase wireless throughput, range, and spectral
efficiency by simultaneously transmitting multiple data streams on the same
frequency channel.
Page 34 of 36 Installation and User Guide: Wireless LAN Client
Trunk In telecommunications, a communications channel between two switching systems. In a
wireless network, a trunk is a wireless connection from one Access Point to
another.
Type of Service (ToS) Sometimes also called IP Precedence, ToS is a system of applying QoS
methodologies, based on headers placed into transmitted IP packets.
User Datagram Protocol (UDP) A connectionless protocol similar to TCP/IP, but without the
same level of error checking. UDP is commonly used when some small degree of
error and packet loss can be tolerated without losing program integrity, such as
for online games.
virtual LAN (VLAN) A local area network with a definition that addresses network nodes on some
basis other than physical location or even whether the systems are wired together
or operating using the same local equipment. VLANs are, on average, much
easier to manage than a physically implemented LAN. In other words, moving a
user from one VLAN to another is a simple change in software, whereas on a
regular LAN, the computer or device would need to be connected physically to a
different switch or router to accomplish the same thing. Network management
software of some sort is used to configure and manage the VLANs on a given
network.
Wired Equivalent Privacy (WEP) Security protocol for wireless local area networks (WLANs)
defined in the 802.11b standard. Uses dynamically or manually assigned keys for
encryption and authentication, as dictated by the capabilities of the client station.
The WEP algorithms are vulnerable to compromise; therefore, WEP security is
only recommended for legacy clients that do not support the newer generation
security standards.
Windows Internet Name Server (WINS) The Windows implementation of DNS, which maps IP
addresses to computer names (NetBIOS names). This allows users to access
resources by computer name instead of by IP address.
Wi-Fi A play on the term "HiFi," Wi-Fi stands for Wireless Fidelity, a term for wireless
networking technologies.
Wi-Fi Protected Access Wi-Fi Alliance-sponsored security solution that addresses many of the
WEP inadequacies. Originally promulgated as an interim solution, WPA is now
included as part of the IEEE 802.11i standard.
wireless local area network (WLAN) A type of local area network that employs radio
frequencies to transmit data (usually encrypted), much like LANs transmit data
over wires and fiber optic cables.
Installation and User Guide: Wireless LAN Client Page 35 of 36
Regulatory
FCC Certifications
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
FCC RF Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment, and users must follow specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in
conjunction with any other transmitter or antenna. This equipment has been SAR –
evaluated and is authorized for use in laptop and notebook computers.
Page 36 of 36 Installation and User Guide: Wireless LAN Client
