Part #802

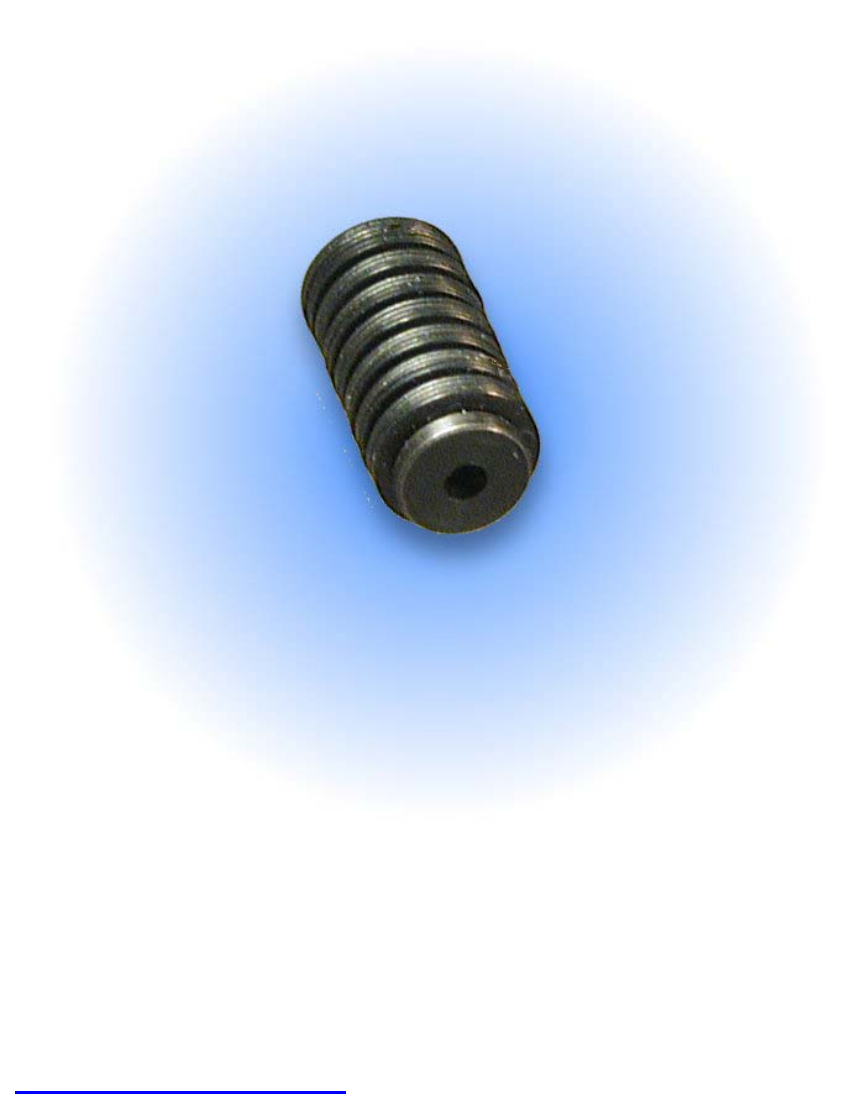

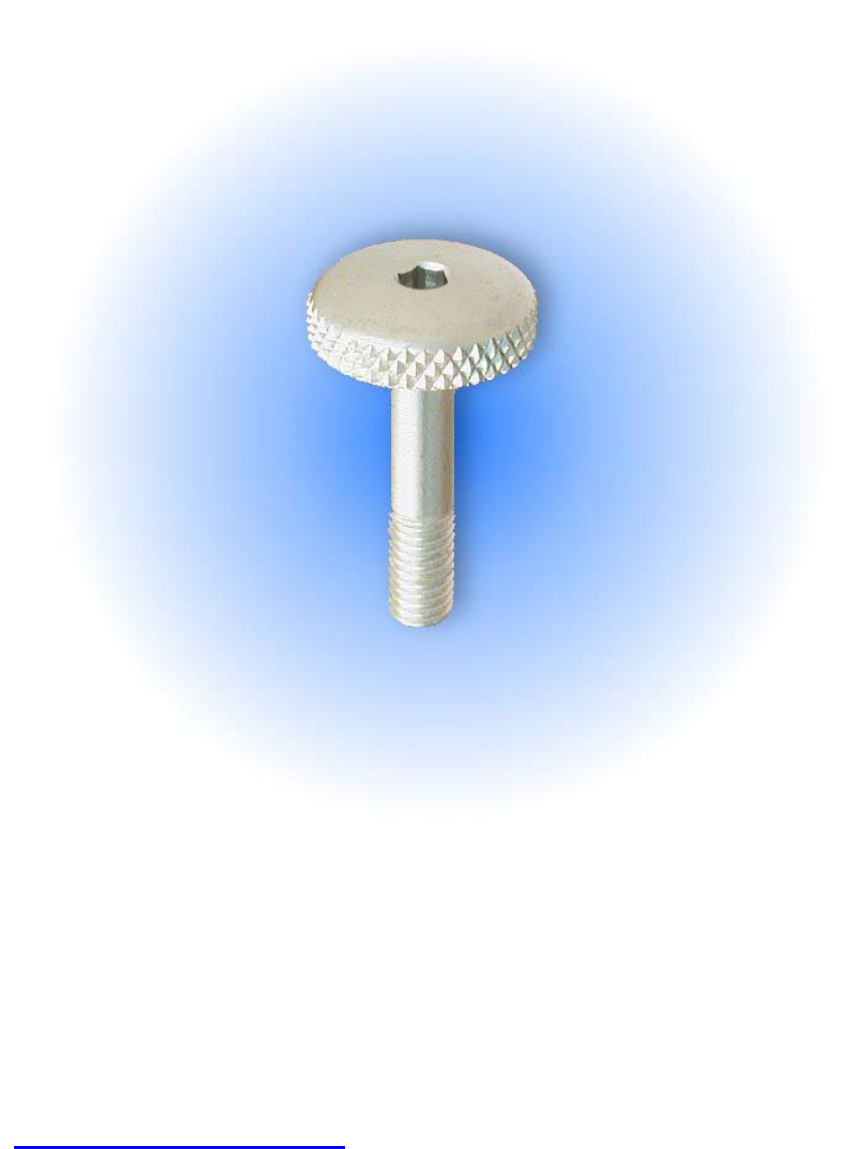

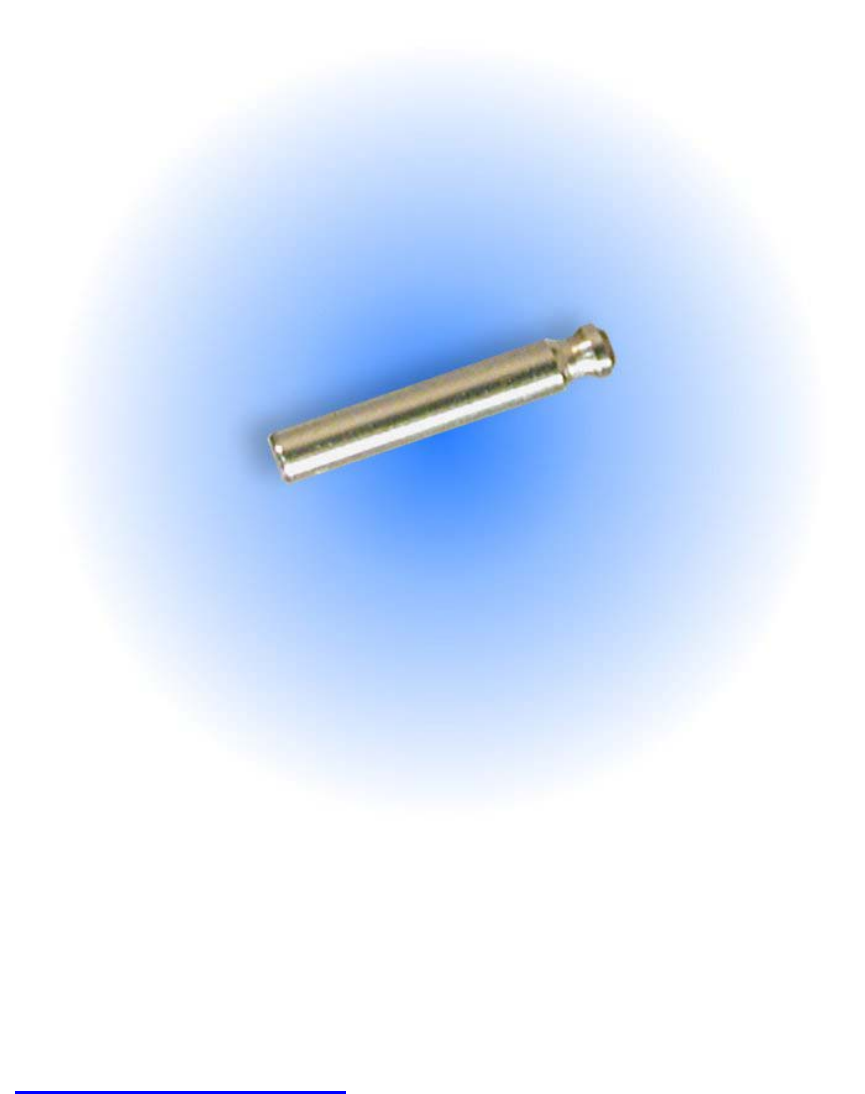

Bolt Foamieless
Bolts from AGD are made from hardened stainless for extra long life. They come
in three different types:
1. Foamieless (hard nose): all stainless construction including the tip that pushes
on the paintball. Get this one if you don't want to fool around with replacing stuff.
2. Foamie: a small foam rubber cushion is glued to the front of the bolt to softly
push your paintballs into the barrel. Good if you play a lot in cold weather. The
foamies do wear off and need to be replaced with superglue.
3. Superbolt: not shown here it is a different product (see link below). The
Superbolt is for people who want the highest level of performance and the
smoothest shooting marker possible. This bolt is about half the weight of the
normal all stainless bolt shown here because it has a light weight delrin sleeve
Order Online Now! Back to Top
Part #798

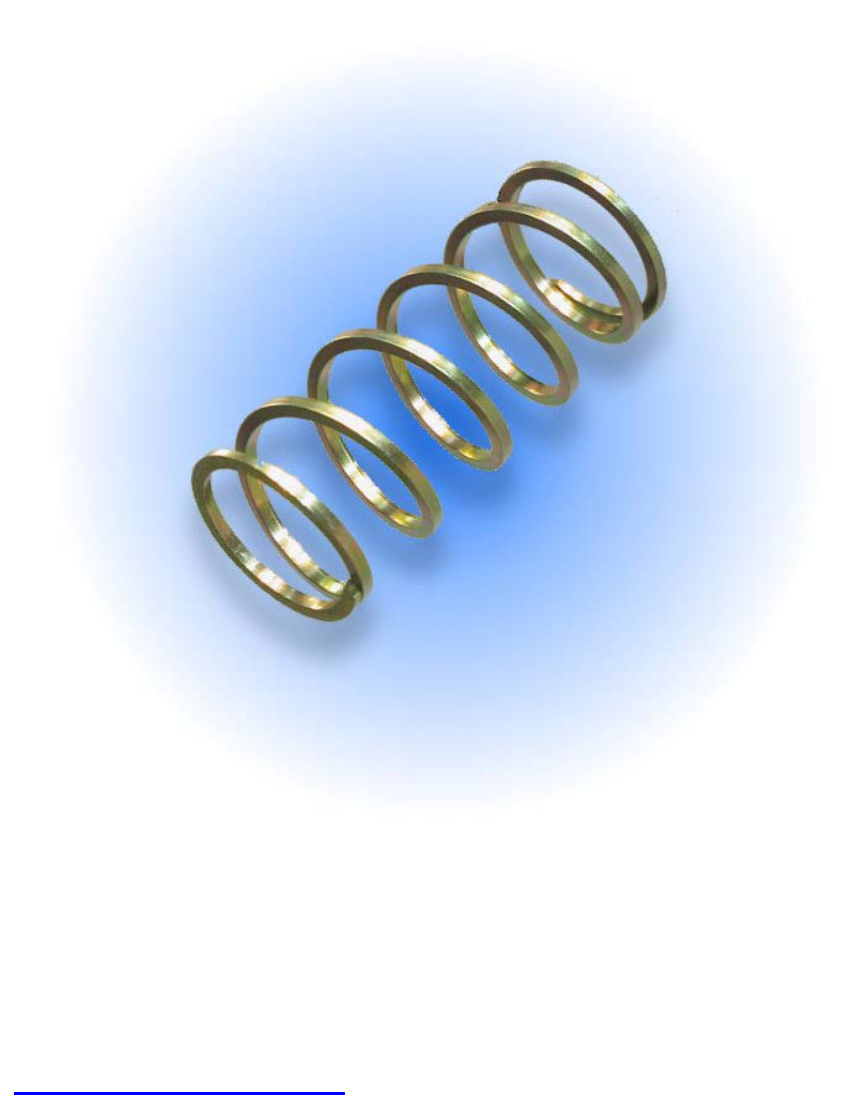

Bolt Spring
The Bolt Spring fits all AGD markers regardless of age or type. They are made
from very special square wire so they don't fold inside themselves when
collapsed. Replace your old springs when they sag below the front of the bolt.
Special honed bolt springs come with Superbolts to prevent premature wear.
One spring also comes in the Parts Kit. If you need any o-rings the kit is a good
value.
Order Online Now! Back to Top

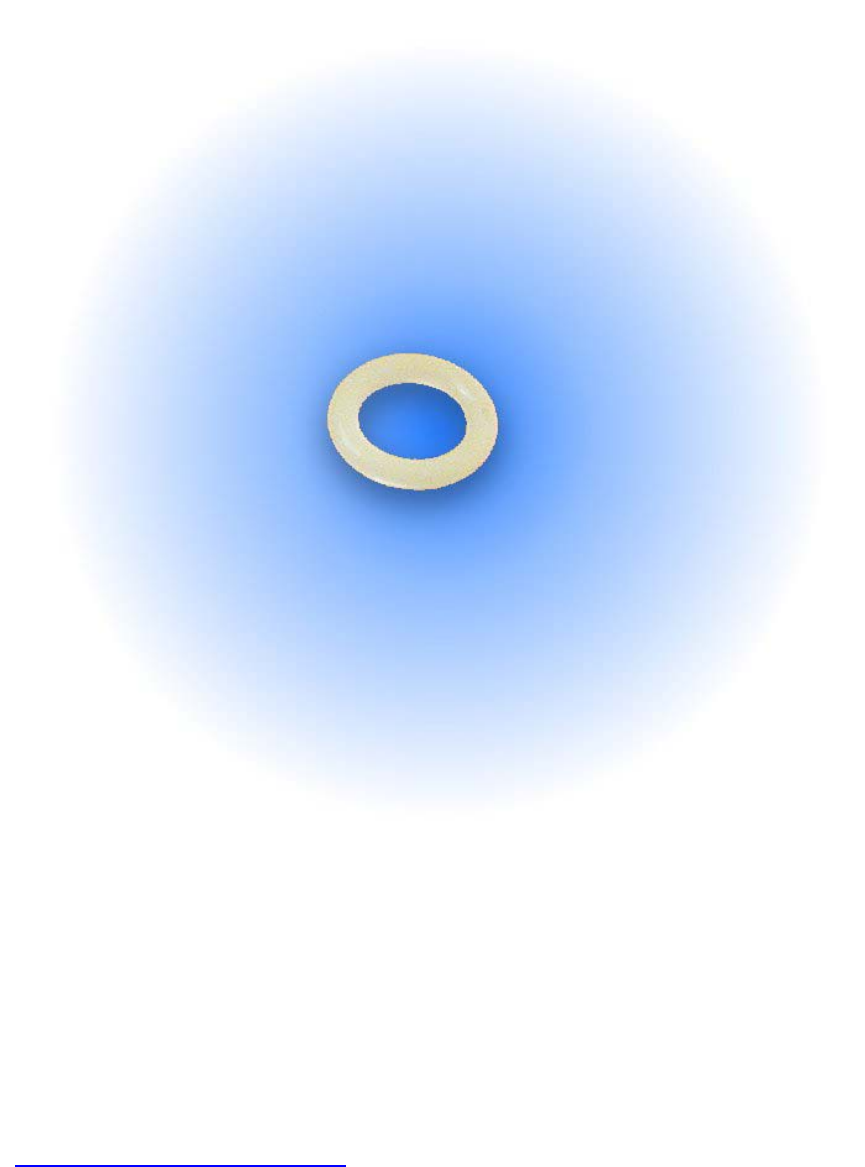

Part #140

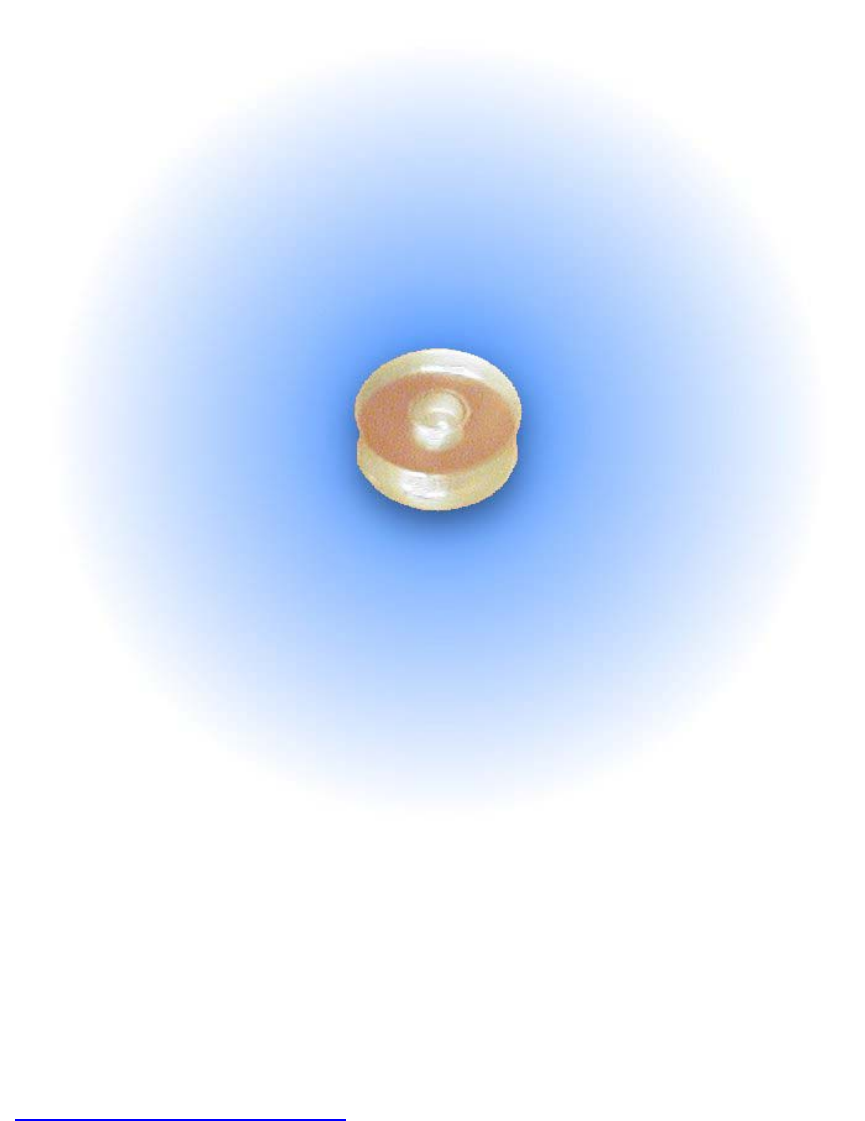

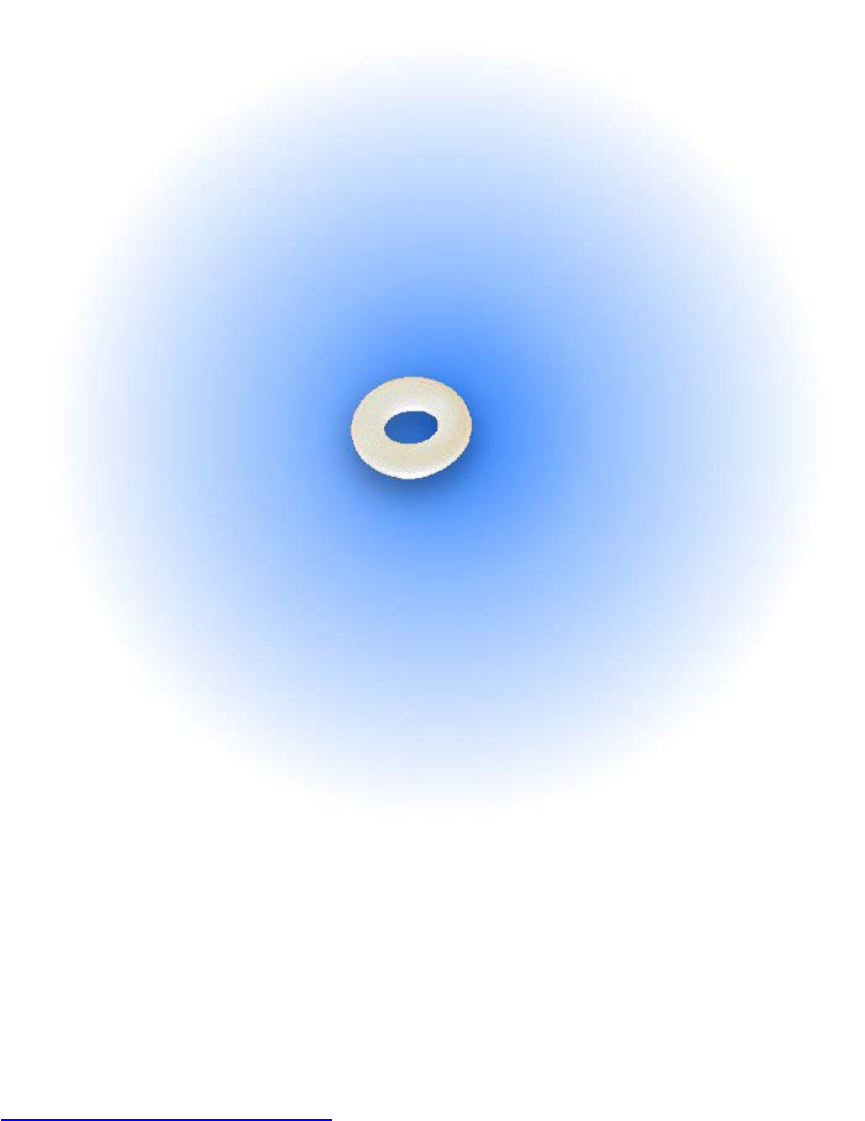

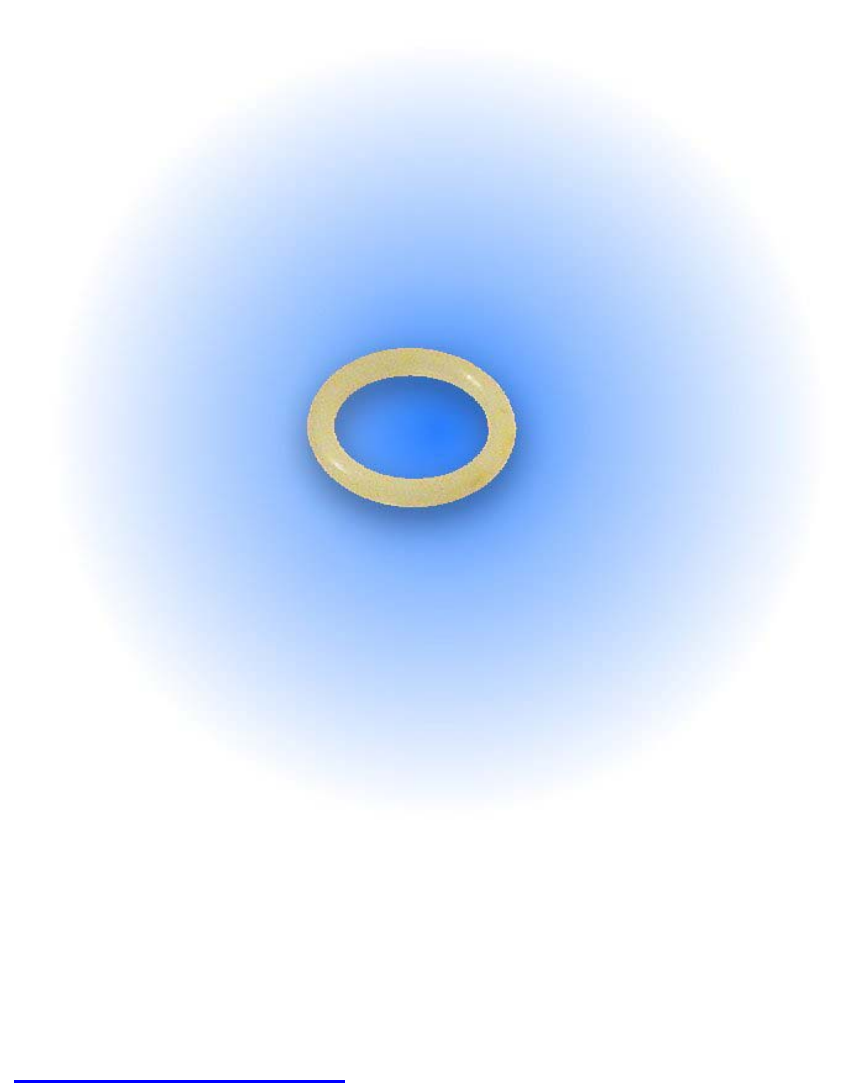

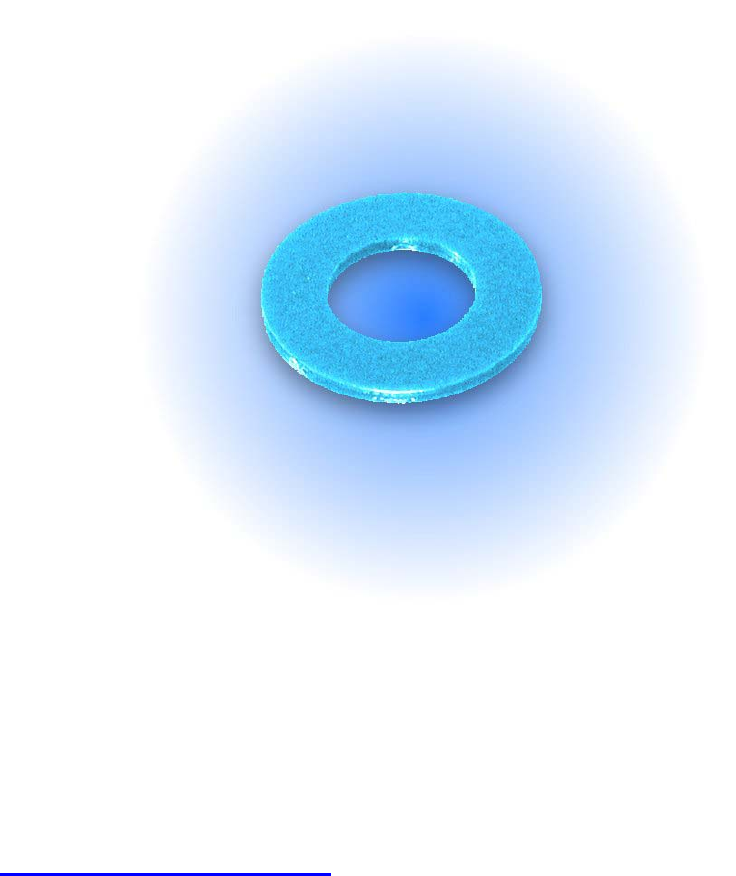

O-Ring Teflon - On/Off
Found in the On/Off assembly the Teflon O-Ring opens and seals with every
shot. Replace this o-ring if you can pull and hold the trigger and you still hear
leaking out the barrel. This o-ring is not rubber but more like plastic. Do not dent
or abuse it.
Order Online Now! Back to Top

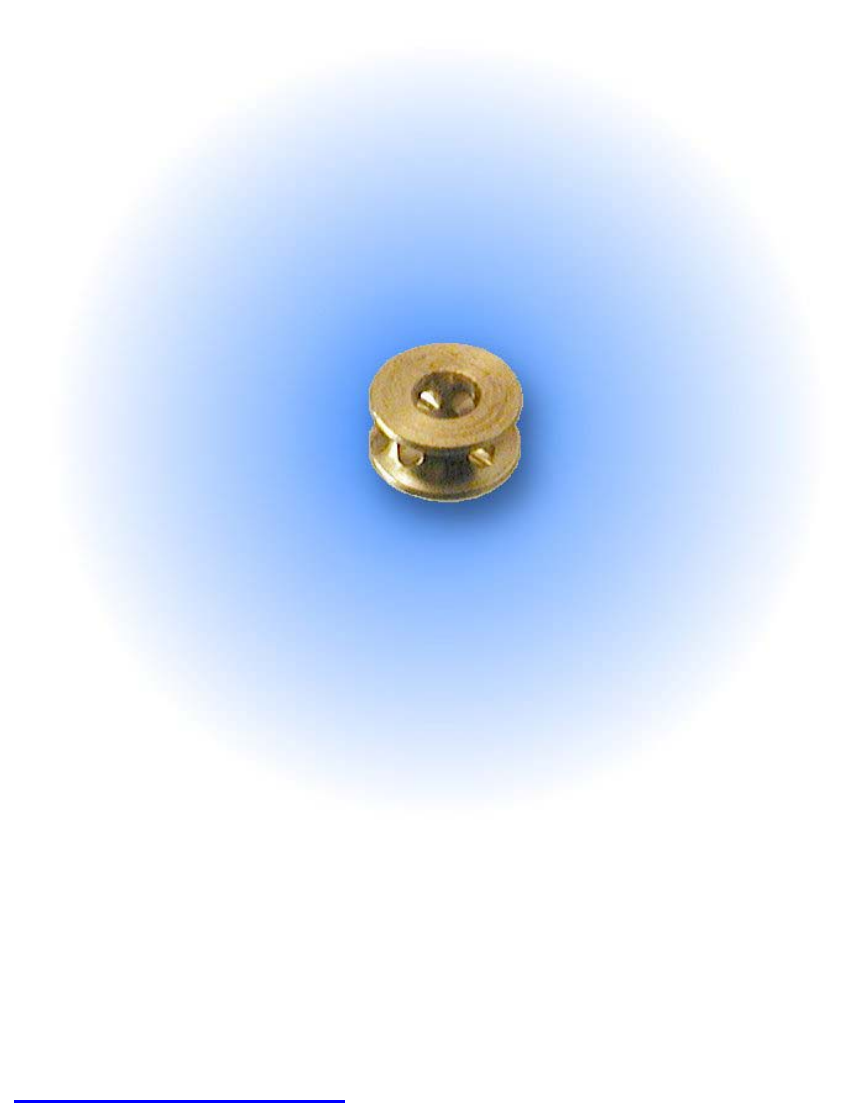

Part #683

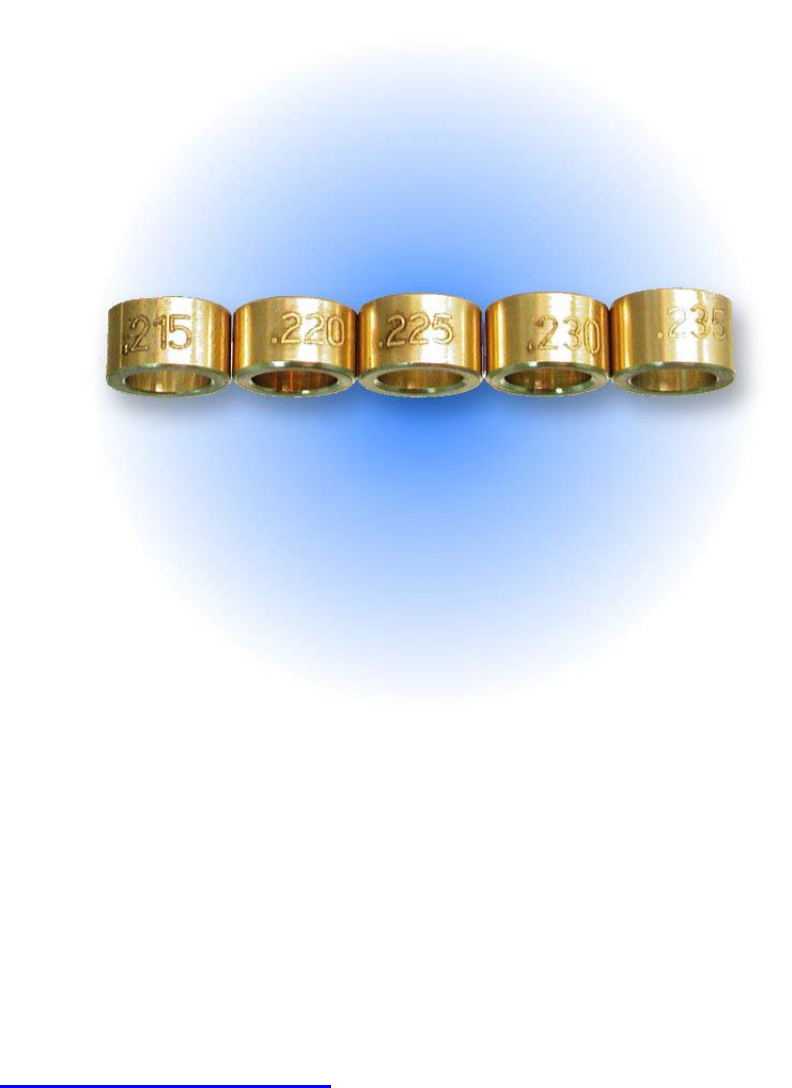

PT Spacer Kit
The PT Spacer Kit gives you five different brass spacers all legibly numbered so
you can adjust the spacing of the power tube o-ring. If your marker has bolt stick
use a longer one, if it leaks down the barrel use a shorter one. Find one that
works and stick with it! Quality machined brass to AGD standards. PT Spacer Kit
comes with an extra power tube o-ring not shown.
Order Online Now! Back to Top

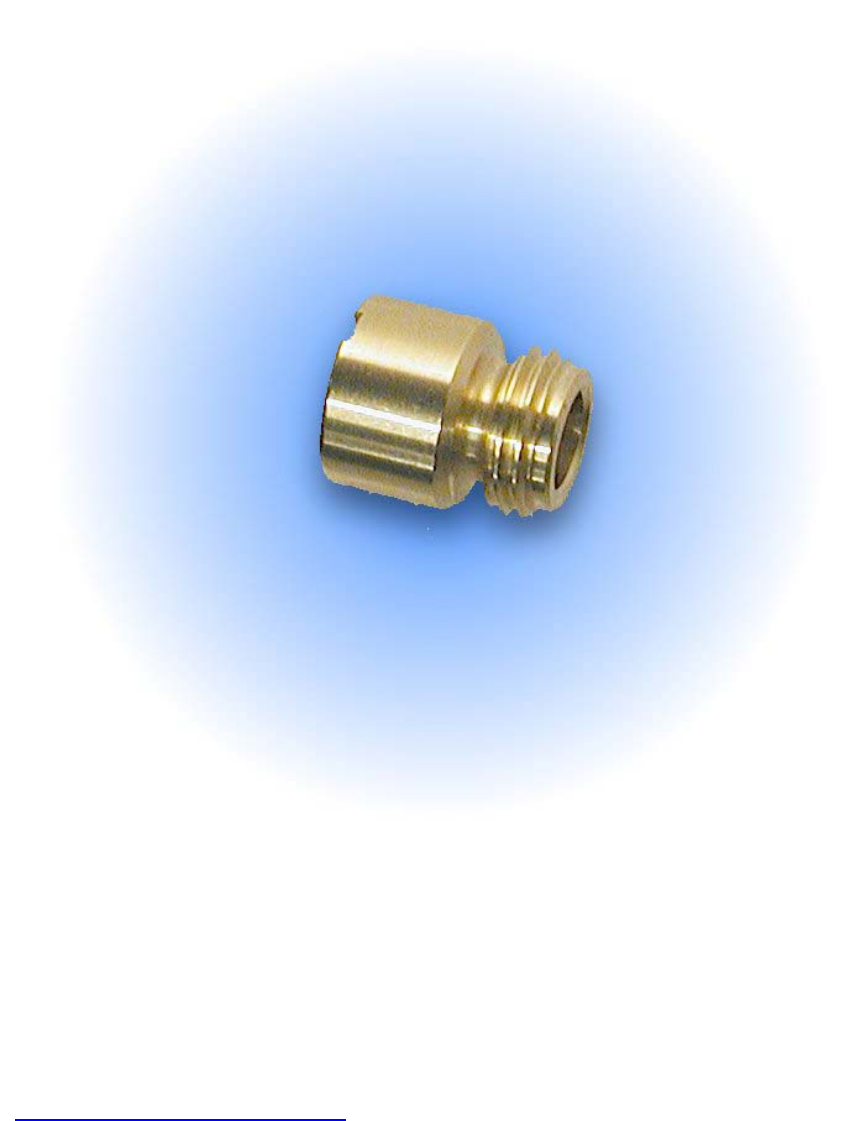

Part #819

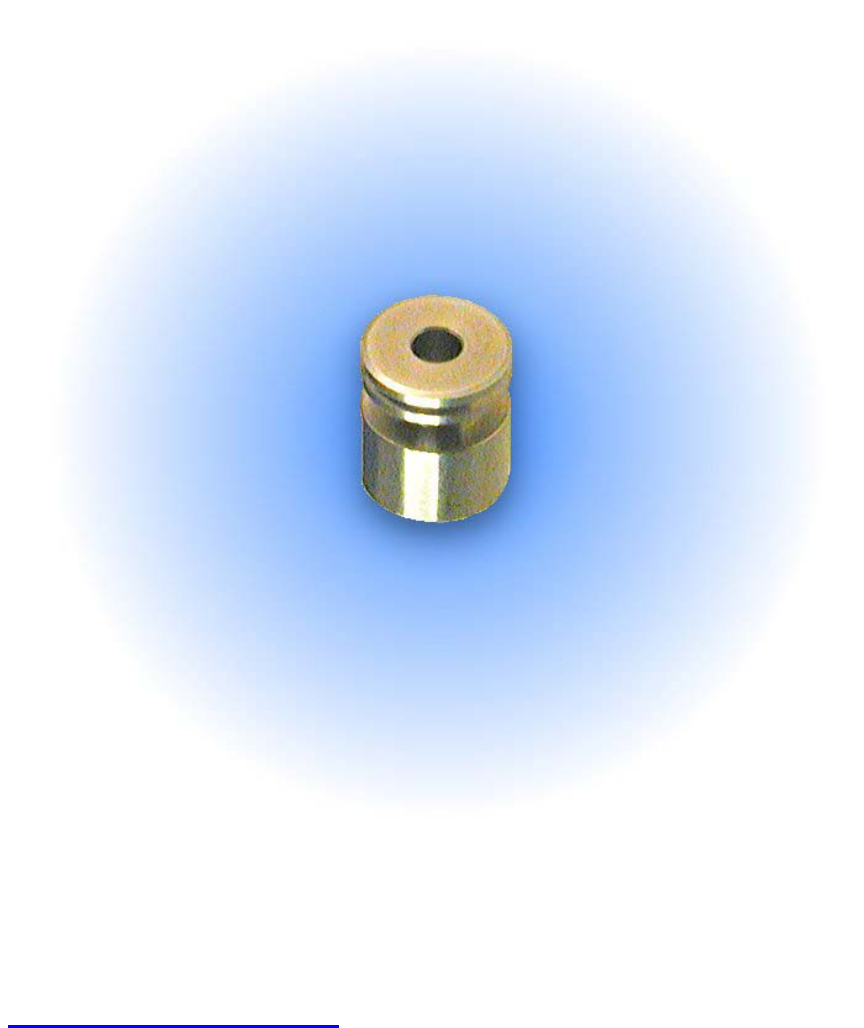

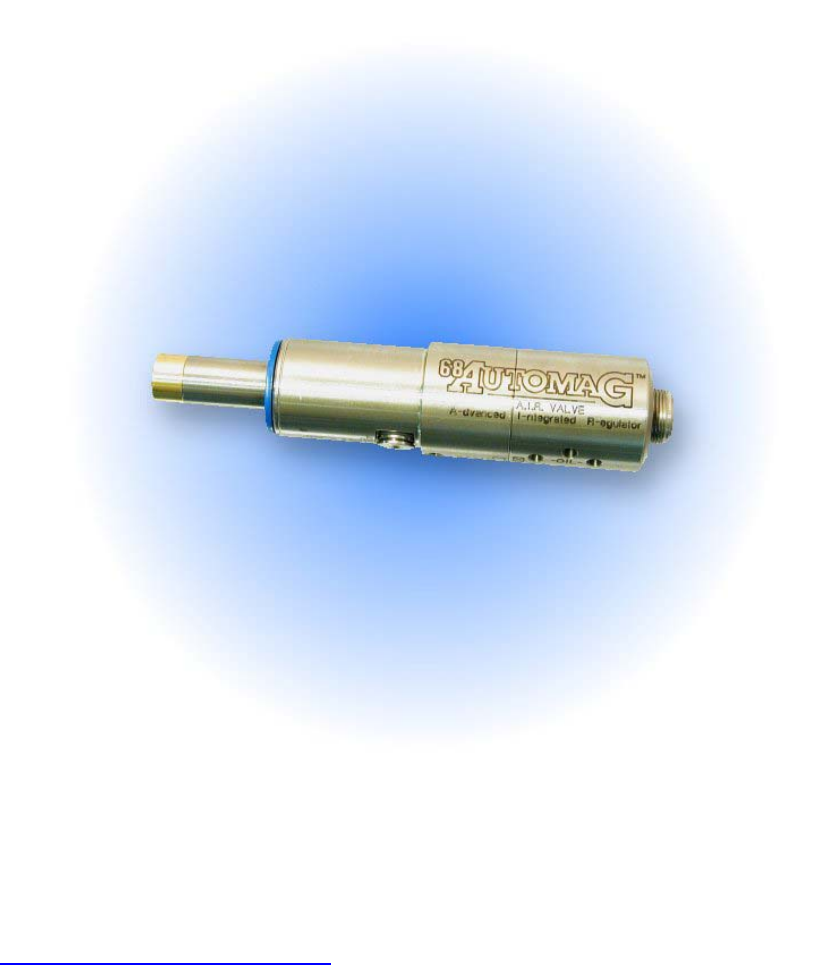

Power Tube Tip Assembly
This item screws into the end of the Power Tube and is a precision part. It
releases the air blast behind the ball in a controlled manner so the air hits the ball
with low pressure to gently accelerate it out the barrel. Use a coin to tighten it
up.
Order Online Now! Back to Top
Part #684

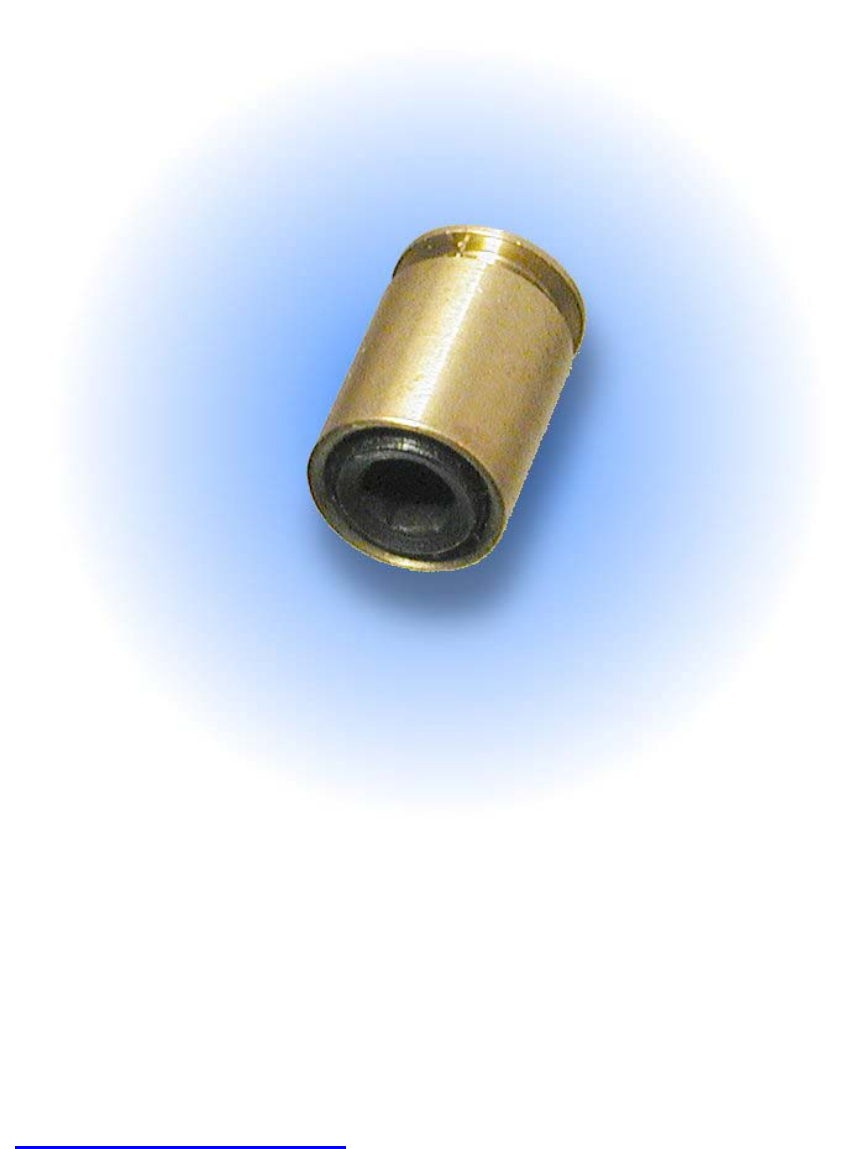

Reg Piston Assembly (Pre Assembled)
The Regulator Piston comes as an assembly. DO NOT take this apart. It has a
built in blow off valve that will leak air if your marker becomes over pressurized.
The blow off resets once your pressure goes back to normal. This safety feature
is found exclusively in AGD markers. Replace the entire assembly if your marker
is shooting at normal speeds and it still leaks out the back.
Order Online Now! Back to Top

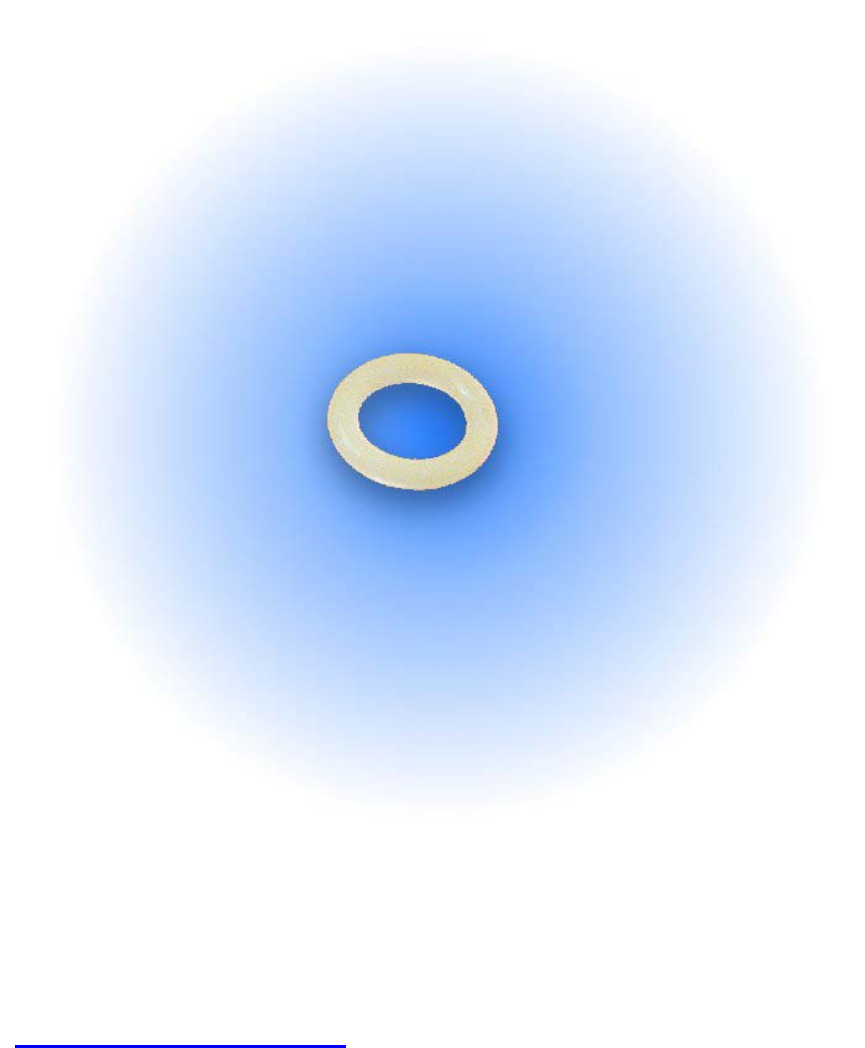

Part #116
Regulator Seat
The Regulator Seat is the most abused part of the marker. It opens and closes
with every shot and every piece of dirt in your air system eventually goes through
it. To fix most velocity problems the first place to start is the Reg. Seat. Keep it
clean! The seat snaps in and stays one way.
Order Online Now! Back to Top
