Airspan Networks AS1300 Base station of LTE fixed cellular system User Manual AirStrand 1300 Installation Guide
Airspan Networks Inc Base station of LTE fixed cellular system AirStrand 1300 Installation Guide
Users Manual
AirStrand 1300 Installation Guide
Part Number: DUG01370-SP
System Release: 15.5
Revision: A
Published: January 2018
© Copyright by Airspan Networks Inc., 2017 - 2018. All rights reserved worldwide.
Legal Notices
The information contained within this document is proprietary and is subject to all relevant copyright, patent and other laws
protecting intellectual property, as well as any specific agreements protecting Airspan Networks Inc. rights in the aforesaid
information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third
parties, in whole or in part, without the express, prior, written permission of Airspan Networks Inc. In addition, any use of this
document or the information contained herein for the purposes other than those for which it is disclosed is strictly forbidden.
Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in equipment design or specifications.
Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no responsibility is assumed by
Airspan Networks Inc. for the use thereof nor for the rights of third parties which may be effected in any way by the use of thereof.
Any representation(s) in this document concerning performance of Airspan Networks Inc. product(s) are for informational
purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks Inc. standard limited
warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks Inc. in relation
thereto.
This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto
unless specifically undertaken in Airspan Networks Inc. sales contract or order confirmation. Information contained herein is
periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify
Airspan Networks Inc. All specifications are subject to change without prior notice.
Product performance figures quoted within this document are indicative and for information purposes only.
Acknowledgements
© Intel Corporation http://www.intel.com/
© Microsoft Corporation http://www.microsoft.com
DUG01370-SP Airspan Commercial and Internal Use i
Table of Contents
Document Information ............................................................................. 1
Abstract .................................................................................................................. 1
Revision History ..................................................................................................... 1
Warnings and Cautions ........................................................................... 2
Human Exposure to Radio Frequencies ................................................................ 2
Avertissement et Precautions d’Utilisation .............................................. 2
Radio Interference ................................................................................................. 2
Modifications .......................................................................................................... 2
General .................................................................................................................. 2
Général .................................................................................................................. 2
Important Safety Instructions ............................................................................ 3
Safety ..................................................................................................................... 3
Securite .................................................................................................................. 4
Warning of Hazardous Voltages ............................................................................ 4
Attention aux Voltages Hasardeux ......................................................................... 4
Adherence to European Directive 1999/5/EC ........................................................ 5
Warning Symbols ................................................................................................... 5
Service Information ................................................................................................ 5
UL Information ....................................................................................................... 6
Power Rating ......................................................................................................... 6
Lightning Protection ............................................................................................... 6
DECLARATION OF CONFORMITY....................................................................... 7
GPS Compliance ................................................................................................... 8
Maximum Output TX Total Power ........................................................... 9
Power Consumption ............................................................................................... 9
Antenna System ................................................................................................... 10
About This Document ........................................................................... 11
Purpose ................................................................................................................ 11
Intended Audience ............................................................................................... 11
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use ii
Document Conventions ........................................................................................ 11
Related Reading .................................................................................................. 12
Customer Care Help Desk .................................................................... 13
Airspan Encourages Comments .......................................................................... 13
1 Introduction ....................................................................................... 14
1.1 AirStrand 1300 .............................................................................................. 14
1.1.1 Deployment .................................................................................................. 14
2 Getting Started .................................................................................. 16
2.1 Workflow of Installation ................................................................................. 16
2.2 AirStrand 1300 Installation Checklist ............................................................. 16
3 Verifying Prerequisites ...................................................................... 17
3.1 Verifying Site Requirements .......................................................................... 17
3.2 Verify Installation Requirements .................................................................... 17
3.2.1 Verify the Tools ............................................................................................ 17
3.2.2 Verify the Parts and Kits ............................................................................... 18
3.2.3 Power ........................................................................................................... 19
3.2.4 Physical Dimensions .................................................................................... 19
4 Installation of AirStrand 1300 ............................................................ 20
4.1 Strand Mounting of AirStrand 1300 ............................................................... 20
4.1.1 Bracket Assembly on the AirStrand 1300 ..................................................... 21
4.1.2 GPS Bracket Adjustment .............................................................................. 23
5 Connecting and Managing Cables .................................................... 24
5.1 Connecting the Ground Cable ....................................................................... 24
5.2 1300 Interface Connection ............................................................................ 24
5.2.1 Connecting the CATV Cable ........................................................................ 24
5.2.2 Accessing the Attenuator(s) and Test Port ................................................... 25
5.2.3 Replacing the Maintenance Cover ................................................................ 26
A Job Sheet .......................................................................................... 28
B Installation Checklist.......................................................................... 29
C Abbreviations .................................................................................... 30
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use iii
Figures

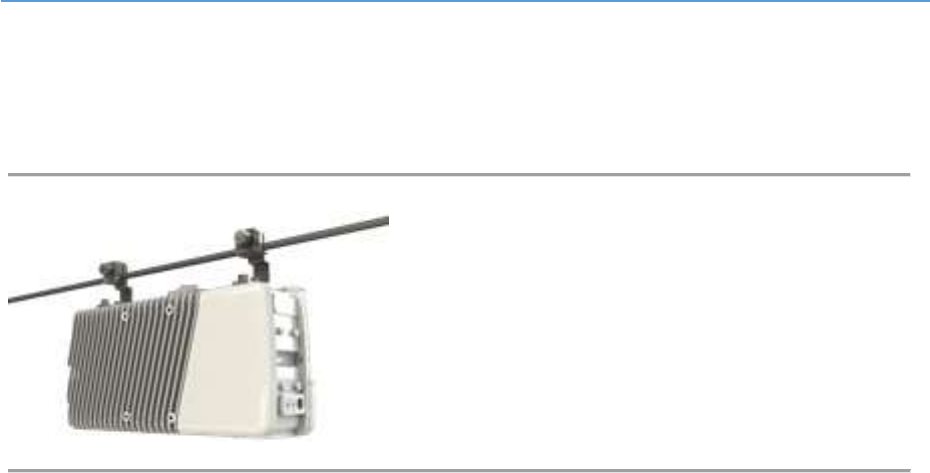

Figure 1: AirStrand 1300 ....................................................................................................................... 10

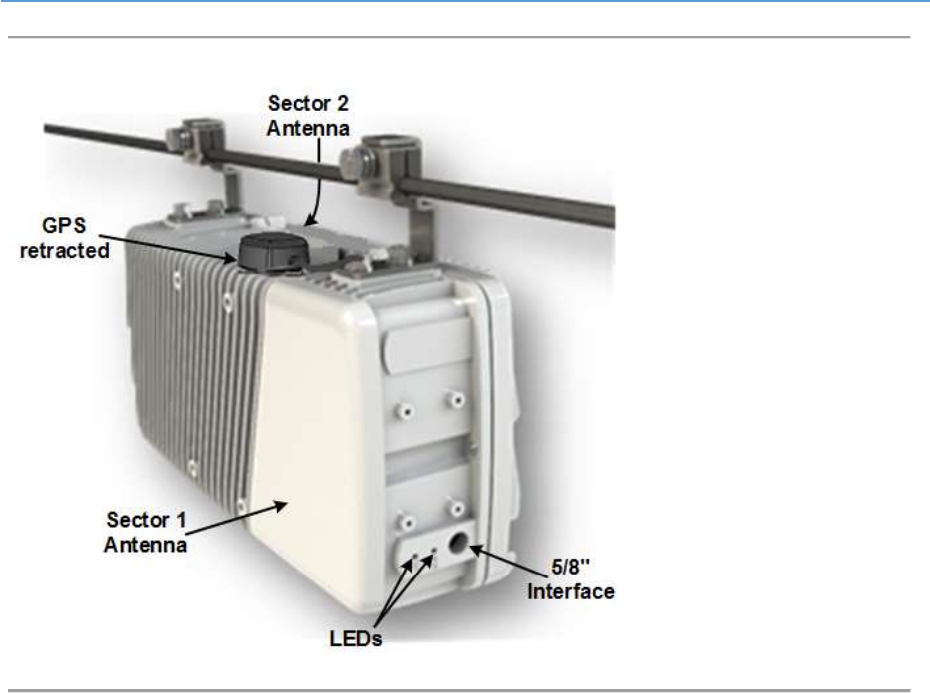

Figure 2: AirStrand 1300 ....................................................................................................................... 15

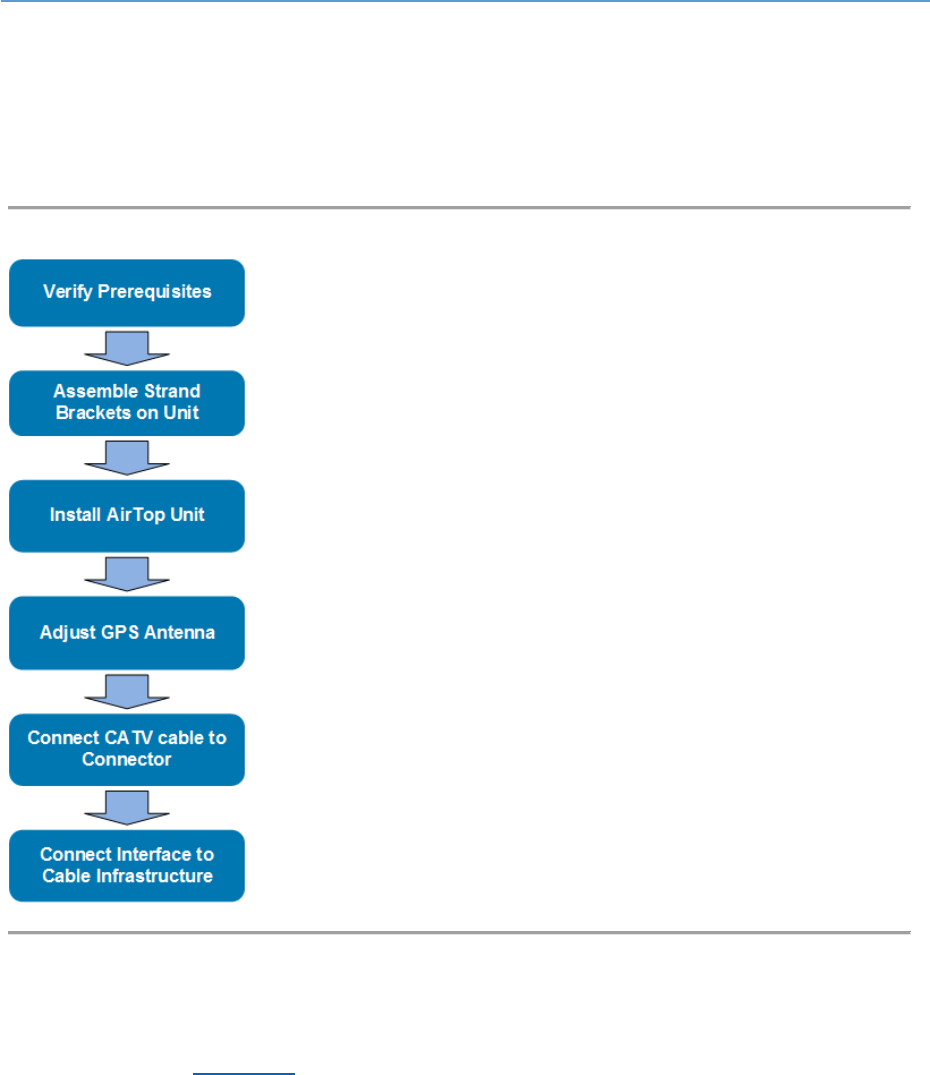

Figure 3: Workflow ................................................................................................................................ 16

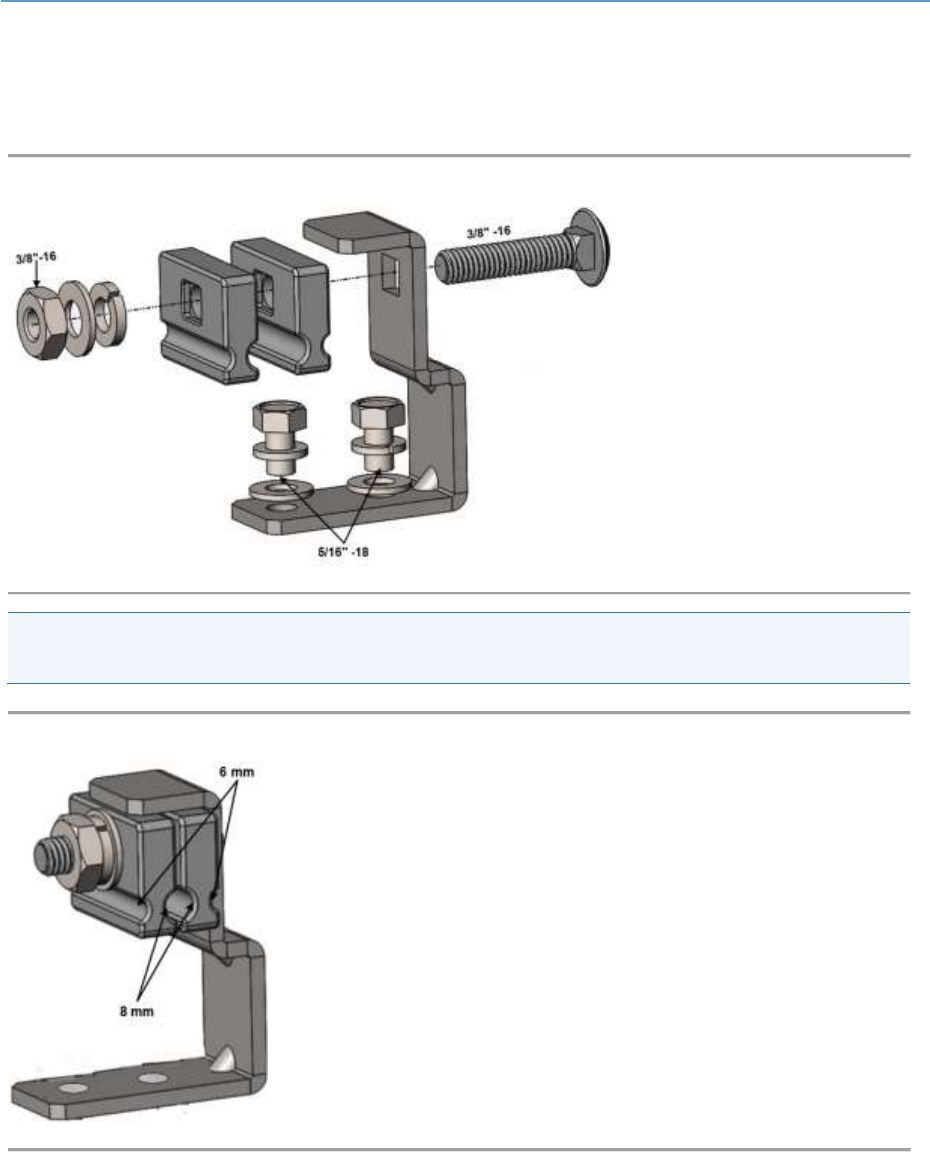

Figure 4: Hanger and Clamp Assembly ................................................................................................ 21
Figure 5: Mounting Hanger Assembled ................................................................................................ 21

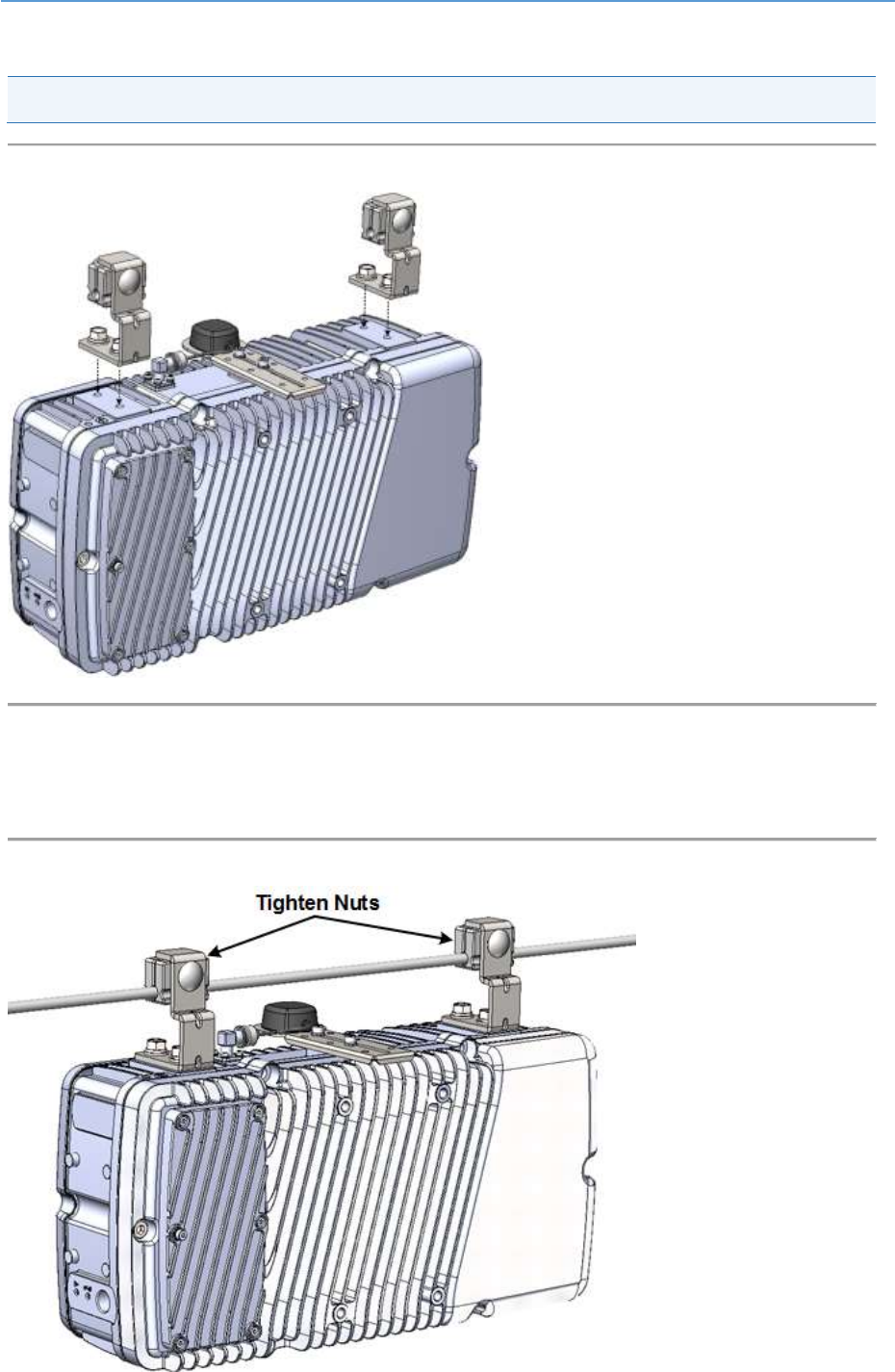

Figure 6: Hanger Bracket Assembly on Unit ......................................................................................... 22
Figure 7: Unit on Cable Strand ............................................................................................................. 22

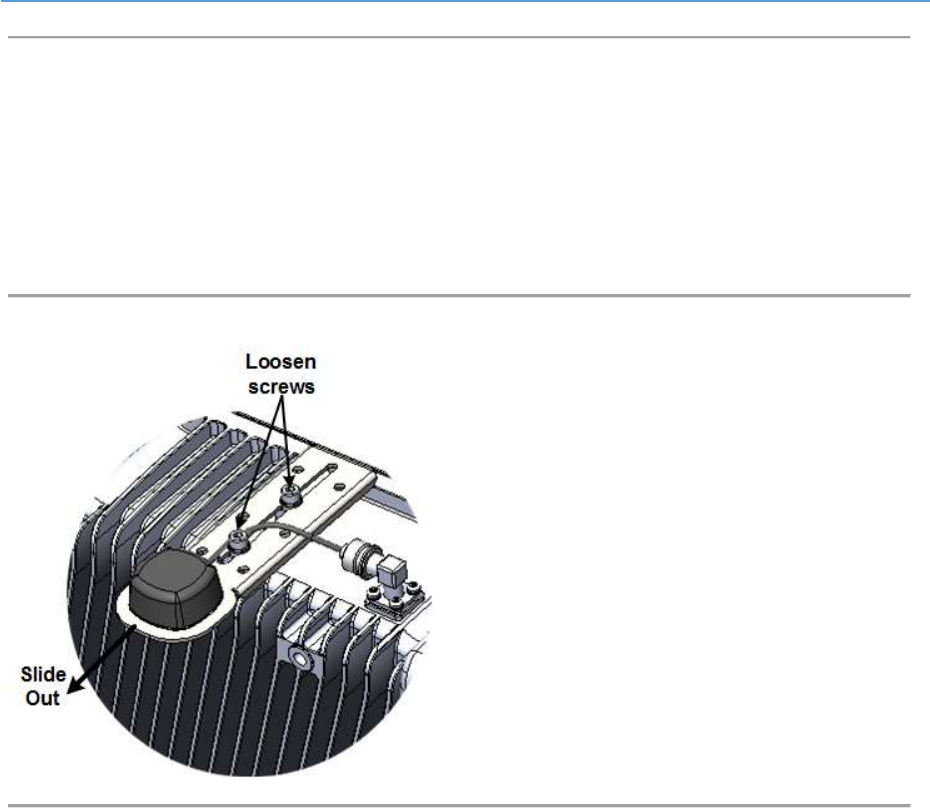

Figure 8: GPS Bracket Adjustment ....................................................................................................... 23

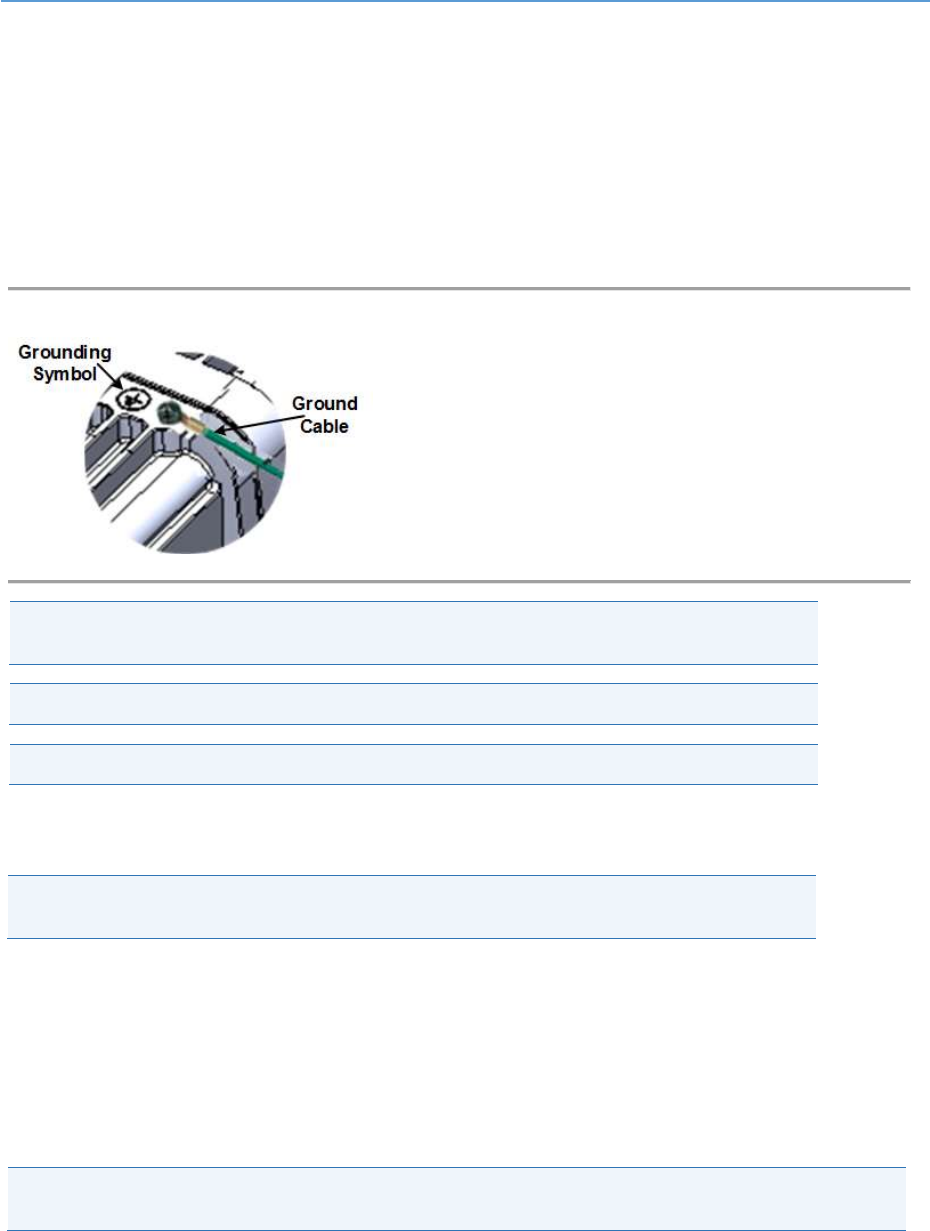

Figure 9: Ground Cable Connection ..................................................................................................... 24

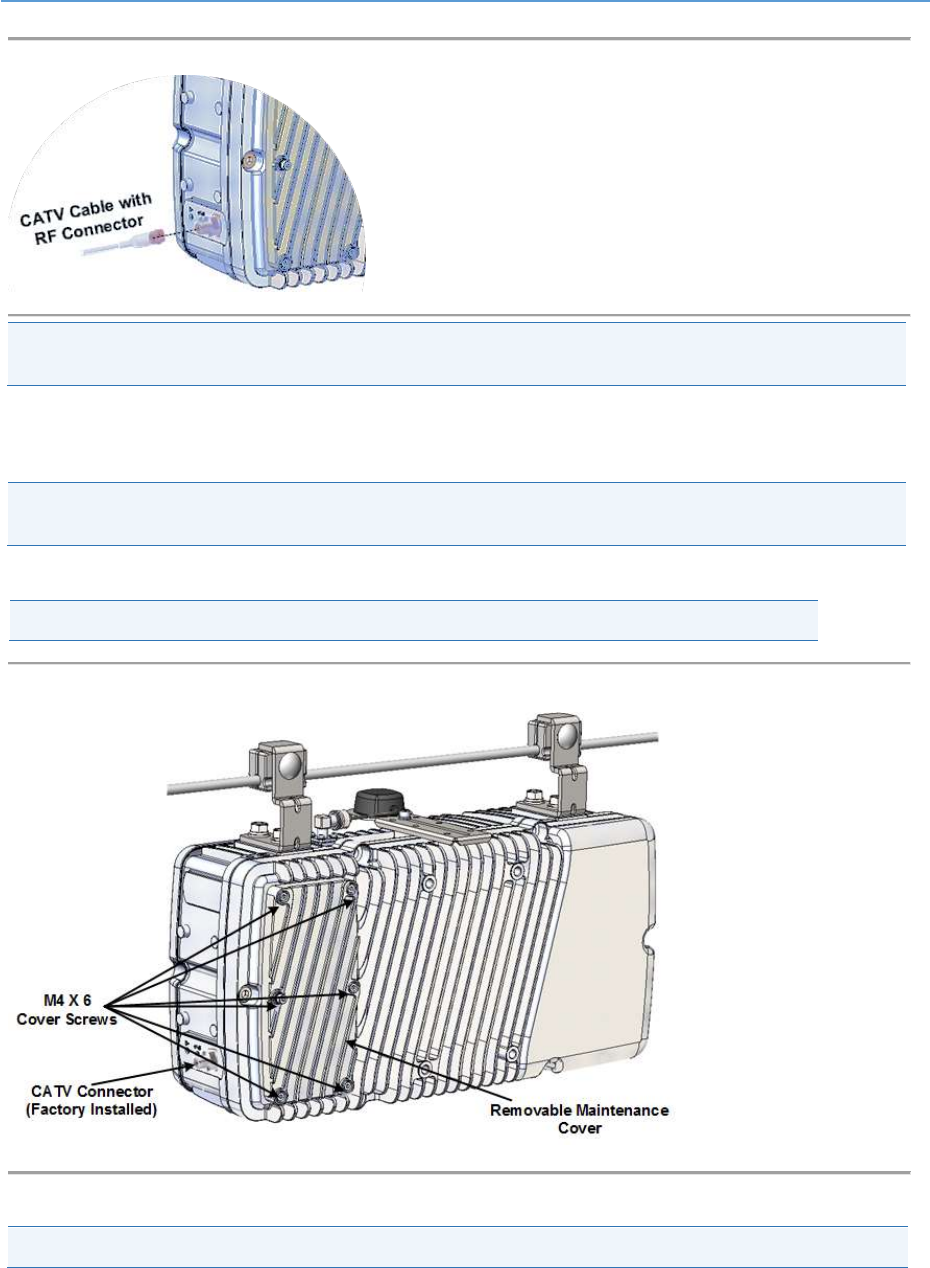

Figure 10: Connect CATV Cable .......................................................................................................... 25
Figure 11: Removable Maintenance Cover .......................................................................................... 25

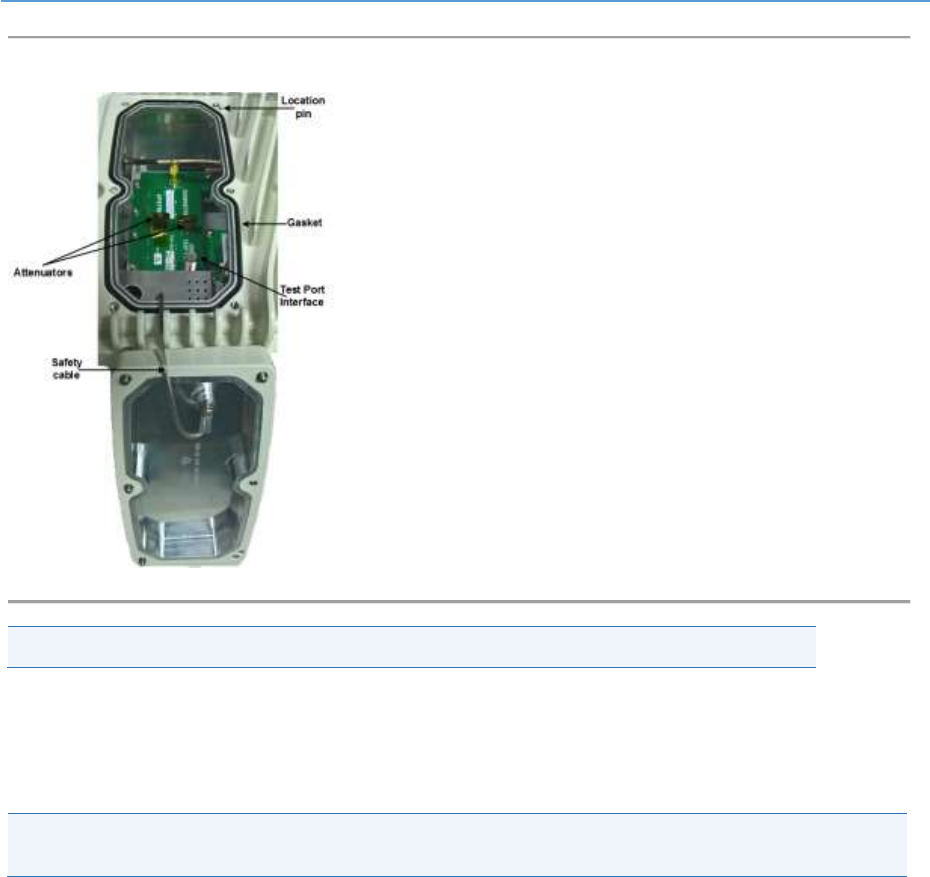

Figure 12: Maintenance Cover Open .................................................................................................... 26

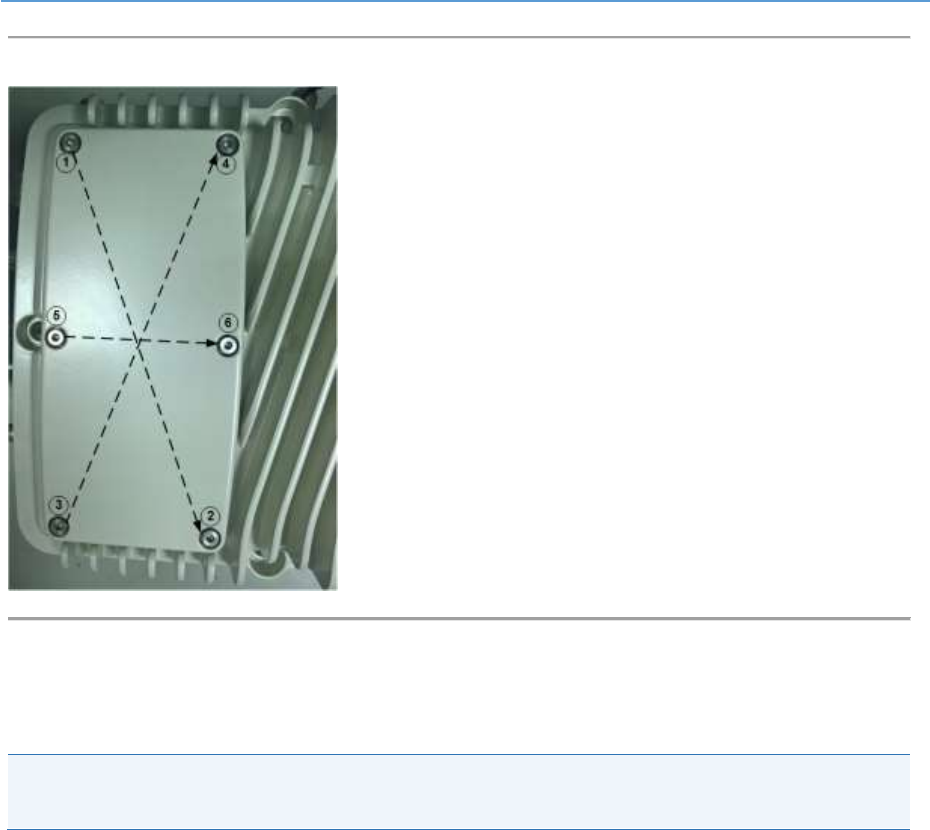

Figure 13: Screw Tightening Pattern .................................................................................................... 27
Tables
Table 1: AirStrand 1300 B41 FCC Maximum Output TX Total Power .................................................... 9
Table 2: AirStrand 1300 B41 ETSI Maximum Output TX Total Power ................................................... 9
Table 3: Power Consumption .................................................................................................................. 9
Table 4: Typographic Conventions ....................................................................................................... 11
Table 5. Minimum Hardware Requirements ......................................................................................... 17

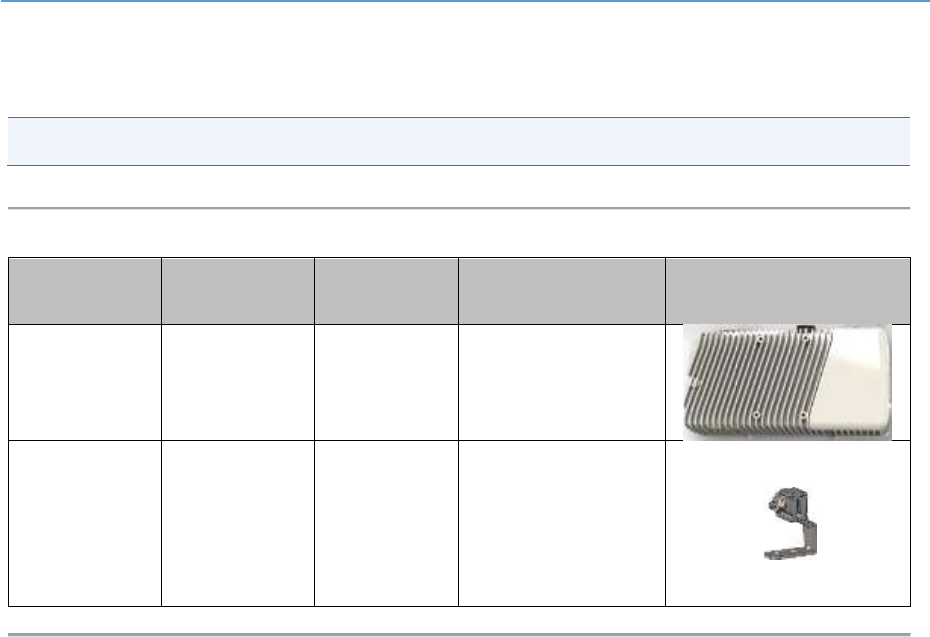

Table 6: AirStrand 1300 Components ................................................................................................... 18
Table 7: Power ...................................................................................................................................... 19
Table 8. AirStrand 1300 Physical Dimensions ...................................................................................... 19
AirStrand 1300T Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 1
Document Information
Abstract
This document details procedures for installing the Airspan’s AirStrand 1300 Pico-class LTE eNodeB
variant.
Revision History
Revision Details
Date
Summary of Changes
0.1 – 0.2
November 2017
Initial document & comments
A & A1
November 2017
Publish
Comments
A2 + A3
December 2017
Tx Power update
Updates from Comments
A4
January 2018
Modifications and Updates
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 2
Warnings and Cautions
Human Exposure to Radio Frequencies
The AirStrand 1300 when operational should be operated from a minimum safe distance of 2m.
Avertissement et Precautions d’Utilisation
Exposition des personnes aux fréquences radioélectriques
Les antennes d’AirStrand 1300 quand opérationnel doivent être installée et utilisée de façon à garantir
la distance minimale de sécurité de 2m.
Radio Interference
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Modifications
Any changes and modifications to this device that are not expressly approved by Airspan Networks
may void the user's authority to operate the equipment.
General
Only qualified personnel should be allowed to install, replace, and service the equipment.
The device cannot be sold retail, to the general public or by mail order. It must be sold to
operators.
Installation must be controlled.
Installation must be performed by licensed professionals.
Installation requires special training. The AirStrand 1300 radio and antenna should be
installed ONLY by experienced installation professionals who are familiar with local building
and safety codes and, wherever applicable, are licensed by the appropriate government
regulatory authorities. Failure to do so may void Airspan's product warranty and may expose
the end user or the service provider to legal and financial liabilities. Airspan and its resellers
or distributors are not liable for injury, damage or violation of regulations associated with the
installation of outdoor units or antennas.
The device is to be installed in a Restricted Access Location.
Power provided by PoE output cannot be considered limited power source (LPS) per IEC/UL
60950-1 clause 2.5.
Connection to the PoE port is permitted only by certified electrician according to NEC
requirements.
Connect PoE terminal only to equipment which does NOT require “LPS only” feeding.
Général
Seul le personnel qualifié peut être autorisé pour installer ou remplacer l’équipement ainsi
qu’effectuer les opérations de maintenance pour cet équipement.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 3
L’équipement ne peut pas être vendu en grande distribution ou par commande via email à
destination du public. Il doit être vendu aux opérateurs de télécommunications.
Son installation doit être contrôlée
Son Installation doit être effectuée par des professionnels autorises.
Son installation requiert une formation spécifique du personnel. L’AirStrand 1300, radio et
antenne doit être installe UNIQUEMENT par des installateurs professionnels expérimentés et
ayant une connaissance des constructions locales et règles de sécurité, ainsi que, dès que
nécessaire, disposant d’un agreement des autorités gouvernementales de régulation. Toute
enfreinte a ces obligations peut annuler la garantie délivrée par Airspan pour ces produits et
peut exposer l’utilisateur final ou le fournisseur de services a des dommages légaux et
financiers.
Airspan et ses revendeurs ou ses distributeurs ne sont pas responsables des blessures,
dommages ou violations de la régulation en vigueur lies a l’installation du système extérieur
ou des antennes.
L’Equipment doit être installe dans une zone a accès réduit et contrôle.
L’alimentation fournie par la sortie PoE ne peut pas être considérée comme une Source
d’Alimentation Limitée ( ou LPS – limited power source ) selon le standard IEC/UL 60950-1
clause 2.5
La connexion au port PoE est autorisée par un électricien certifie selon les standards NEC.
Connecter le port PoE uniquement aux équipements NE demandant PAS un source de type ‘’
LPS only
Important Safety Instructions
Read and Save these instructions
This Installation Guide contains instructions and warnings that should be followed during
installation, and operation.
Failure to follow these instructions could cause bodily injury and/or product failure.
Safety
1. Read this guide and follow all operating and safety instructions.
2. Supply cord is not shipped with the unit and is to be provided by user. Installation is to be
performed by a qualified electrician according to local codes. Installation to be done in
accordance with the National Electrical Code (NEC), ANSI/NFPA 70, the Canadian
Electrical Code (CEC), Part I, CAN/CSA C22.1, and when applicable, the National
Electrical Safety Code, IEEE C2.
3. Static sensitive components inside - do not remove the lid or base: No user serviceable
parts inside.
4. The ground connection should be made before connecting to supply connections.
5. Position the power cord to avoid possible damage; do not overload circuits.
6. Do not place this product on or near a direct heat source, and avoid placing objects on
the terminal.
7. To avoid electrical shock do not install this device during adverse conditions such as rain
or inclement weather.
8. The units should not be located too near power lines or other electrical power circuits,
where it can come into contact with such power lines or circuits.
9. The radio transceiver must be properly grounded to protect against power surges and
accumulated static electricity. It is the user’s responsibility to install this device in
accordance with the local electrical codes.
10. Installation of the AirStrand 1300 must be contracted to a professional installer.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 4
11. The circuit breaker should be easily accessible in case you have to disconnect the
device.
12. When installed in the final configuration, the product must comply with the applicable
Safety Standards and regulatory requirements of the country in which it is installed. If
necessary, consult with the appropriate regulatory agencies and inspection authorities to
ensure compliance.
Securite
1. Lire attentivement ce guide et suivre les instructions d’utilisation et de sécurité.
2. Le cordon d’alimentation n’est pas livré avec l'appareil et doit être fourni par l'utilisateur.
L’installation doit être effectuée par un électricien qualifié conformément aux règles et
standards locaux. L’installation doit être effectuée en conformité avec le Code national de
l'électricité ( NEC ), ANSI / NFPA 70, le Code canadien de l'électricité (CCE ), Partie I,
CAN / CSA C22.1, et le cas échéant, le Code national de sécurité électrique, IEEE C2.
3. Des composants sensibles a électricité statique sont utilisés à l’intérieur. Ne pas retirer le
coffre ou la base. Aucune pièce a l’intérieur est d’utilité pour l’utilisateur.
4. La connexion "terre" doit être effectuée en priorité et avant d'effectuer les connexions à la
source d'alimentation (phase et neutre).
5. Positionner le cordon d’alimentation de façon à éviter des dommages potentiels. Ne pas
surcharger les circuits.
6. Ne pas placer ce produit sur ou à proximité d’une source directe de chaleur et éviter de
placer des objets sur le terminal.
7. Afin d’éviter des problèmes électriques, ne pas installer cet équipement au cours
d’évènements climatiques difficiles comme averses ou météo non clémente.
8. L’unité ne doit pas être située trop près de lignes électriques ou autres circuits de
puissance, avec lesquels il pourrait entrer en contact.
9. L’émetteur radio doit être correctement relie a la terre afin de le protéger contre les
surtensions ou accumulation d’électricité statique. L’utilisateur est tenu responsable de
l’installation du produit conformément aux règles électrique en vigueur localement.
10. L’installation de AirStrand 1300 doit être contractualisée avec un installateur
professionnel.
11. L’interrupteur de circuit électrique doit être facilement accessible afin de pouvoir
déconnecter l’équipement.
12. Lors de l’installation de la configuration finale, le produit doit être conforme aux Standards
de Sécurité en vigueur ainsi qu’aux exigences réglementaires du pays dans lequel il est
installé. Si nécessaire, consulter les agences règlementaires appropriées, ainsi que les
autorités chargées de l’inspection afin de garantir la conformité.
Warning of Hazardous Voltages
On AC installations, hazardous voltages exist. Use caution when verifying or working with AC power.
Remove metal jewellery that could come into contact with AC power.
On DC sections, short-circuiting the low voltage, low impedance circuits can cause severe arcing that
may result in burns or eye damage. Remove rings, watches etc. to avoid shorting DC circuits.
Note: Airspan products do not contain hazardous substances (as defined in UK Control of
Substances Hazardous to Health Regulations 1989 and the Dangerous Substances Regulations
1990). At the end of any Airspan products life cycle, the customer should consult with Airspan to
ensure that the product is disposed of in conformance with the relevant regulatory requirements.
Attention aux Voltages Hasardeux
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 5
Sur les installations de réseau électrique de type courant alternatif (CA), des voltages hasardeux
peuvent survenir. Garder une Attention particulière lors d’une vérification ou de travaux sur réseau
électrique CA. Retirer tous bijoux en métal qui pourraient entrer en contact avec l’alimentation ou le
réseau CA.
Sur les portions de réseau électrique de type courant continu (CC), un circuit basse impédance peut
causer de sérieux arcs électriques qui pourraient bruler ou endommager les yeux. Retirer bagues,
anneaux, montres etc… afin d’éviter les court-circuit sur le réseau CC.
Adherence to European Directive 1999/5/EC
European Council Recommendation 1999/5/EC details basic restrictions and reference levels on
human exposure to electromagnetic fields as advised by the ICNIRP. Adherence to these
recommended restrictions and reference levels should provide a high level of protection as regards
the established health effects that may result from exposure to electromagnetic fields.
Airspan equipment is compliant with CE and R&TTE regulations and can be operated in all EU
(European Union) locations listed below:
Country Code
BE
EL
LT
PT
BG
ES
LU
RO
CZ
FR
HU
SI
DK
HR
MT
SK
DE
IT
NL
FI
EE
CY
AT
SE
IE
LV
PL
UK
Warning Symbols
The following symbols may be encountered during installation or troubleshooting. These warning
symbols mean danger. Bodily injury may result if you are not aware of the safety hazards involved in
working with electrical equipment and radio transmitters. Familiarize yourself with standard safety
practices before continuing.
Caution, hot surface
Caution
Electro-Magnetic
Radiation
High Voltage
Service Information
Refer all repairs to qualified service personnel. Do not modify any part of this device, as this will void
the warranty.
Disconnect the power to this product and return it for service if the following conditions apply:
a. The terminal does not function after following the operating instructions outlined in this
manual.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 6
b. The product has been dropped or the housing is damaged.
Locate the serial number of the terminal and record this on your registration card for future reference.
Also record the MAC address, located on the product sticker.
UL Information
- The equipment must be properly grounded according with NEC and other local safety code
requirements.
- Reminder to all the BWA system installers: Attention to Section 820-40 of the NEC which provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected
to the grounding system of the building, as close to the point of cable entry as is practical.
Power Rating
40-90 VAC 47/63Hz 1.4A
Lightning Protection
WARNING: The following notes are general recommendations for the system. The wireless equipment
should be installed by a qualified professional installer and must follow local and national codes for
electrical grounding and safety. Failure to meet safety requirements and/or use of non-standard
practices and procedures could result in personal injury and damage to equipment. A direct lightning
strike may cause serious damage even if these guidelines are followed.
All outdoor wireless equipment is susceptible to lightning damage from a direct hit or induced current
from a near strike. Lightning protection and grounding practices in local and national electrical codes
serve to minimize equipment damage, service outages, and serious injury. The antennas are to be DC
grounded, so surge protection is not required. Reasons for lightning damage are summarized as:
- Poorly grounded tower/antenna sites that can conduct high lightning strike energy into equipment.
- Lack of properly installed lightning protection equipment that can cause equipment failures from
lightning induced currents.
A lighting protection system provides a means by which the energy may enter earth without passing
through and damaging parts of a structure. A lightning protection system does not prevent lightning
from striking; it provides a means for controlling it and preventing damage by providing a low resistance
path for the discharge of energy to travel safely to ground. Improperly grounded connections are also a
source of noise that can cause sensitive equipment to malfunction.
A good tower grounding system disperses most of the surge energy from a tower strike away from the
building and equipment.
To limit the equipment damage due to a lightning strike, the following practices are recommended for
the wireless system:
- Provide direct grounding from the antenna mounting bracket, the radio and antenna and the
lightning/surge protectors to the same ground point at the base of the tower or a ground bus on the
building. Use the grounding screws on the antenna bracket and the radio and antenna for terminating
the ground wires.
- The circuit ground must be connected to the same grounding system as the eNodeB.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 7
DECLARATION OF CONFORMITY
European Community, Switzerland, Norway, Iceland, and Liechtenstein
Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC
English:
This equipment is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Deutsch:
Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprecheneden
Vorgaben der Richtlinie 1999/5/EU.
Dansk:
Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Directiv
1999/5/EF.
Español:
Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la Directive
1999/5/EC.
Greek:
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Airspan ΔΗΛΩΝΕΙ ΟΤΙ Ο ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français:
Cet appareil est conforme aux exigencies essentialles et aux autres dispositions pertinantes de la
Directive 1999/5/EC.
Íslenska:
Þessi búnaður samrýmist lögboðnum kröfum og öðrum ákvæðum tilskipunar 1999/5/ESB.
Italiano:
Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva 1999/5/EC.
Nederlands:
Deze apparatuur voldoet aan de belangrijkste eisen en andere voorzieningen van richtlijn 1999/5/EC.
Norsk:
Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU-directiv
1999/5/EC.
Português:
Este equipamento satisfaz os requisitos essenciais e outras provisões da Directiva 1999/5/EC.
Suomalainen:
Tämä laite täyttää direktiivin 1999/5/EY oleelliset vaatimukset ja on siinä asetettujen muidenkin ehtojen
mukainen.
Svenska:
Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser
i Direktiv 1999/5/EC.
Român:
Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale Directivei
1999/5/CE.
The Declaration of Conformity related to this product can be obtained from PLM@Airspan.com.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 8
GPS Compliance
The GPS is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC."
The GPS complies with the following EMC Common Regulatory Testing standards:
EN55022: Radiated and Conducted Emissions
CISPR 22: Class B
EN 50081-1: Generic Emissions Class B
EN 50082-1: Generic Immunity Class B
EN 61000-4-2: Electrostatic Discharge Immunity
EN 61000-4-3: Radiated RF EM Field Immunity Test
EN 61000-4-4: Electrical Fast Transient/Burst Test
EN 61000-4-6: Conducted Immunity
EN 61000-4-8: Magnetic Field Immunity
Note: A GPS is recommended for synchronizing between LTE sectors.
Note: An optional GPS Lightning/Surge protector is available from Airspan when installing the GPS
antenna in a remote location for lightning prone deployments.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 9
Maximum Output TX Total Power
Table 1: AirStrand 1300 B41 FCC Maximum Output TX Total Power
Frequency Band
FCC
TX EIRP
Antenna Gain
2496 – 2690 MHz
30.4 dBm
40.9 dBm
10.5dBi
Table 2: AirStrand 1300 B41 ETSI Maximum Output TX Total Power
Frequency Band
ETSI
TX EIRP
Antenna Gain
2496 – 2690 MHz
30 dBm
40.5 dBm
10.5dBi
Caution: Do not set maximum output TX power to higher than local regulations.
Power Consumption
AirStrand 1300 has a nominal power consumption of 40W. AirStrand 1300 power consumption is
described in the following table:
Table 3: Power Consumption
Duplex
Tx Power at RF Port (dBm)
Nominal Power Consumption (W)
TDD
Sec1: 26
Sec2: 26
45
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 10
Antenna System
The eNB solution is based on a dual sector model that can be operated as a dual sector / dual carrier
mode of operation. There are 2x directional 2x2 antennas which are positioned perpendicular to the
strand (back to back).
Figure 1: AirStrand 1300
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 11
About This Document
Purpose
This guide provides the workflow and step-by-step procedures for Installing the AirStrand 1300. These
procedures include:
Verify prerequisites
Assemble Strand Brackets on Unit
Install the AirStrand 1300
Connect and manage cables
Intended Audience
This guide is intended for persons who are responsible for installing the AirStrand 1300 equipment.
These persons should have a working knowledge of the equipment.
Document Conventions
This document uses the following typographic conventions.
Table 4: Typographic Conventions
Convention
Element
Blue underlined text
Cross-reference links.
Bold text
Keyboard buttons and GUI elements.
Command
Command names or phrases.
Computer output
Text displayed by the computer.
Hyperlinks
Website and e-mail addresses.
Danger
Signifies a hazardous situation—if not avoided—will
cause death or serious injury. Describes how to avoid
it.
Warning
Signifies a hazardous situation—if not avoided—can
cause death or serious personal injury. Describes
how to avoid it.
Caution
Signifies a hazardous situation—if not avoided—can
void the product warranty, and cause property
damage. Describes how to avoid it.
Important
Provides necessary information to explain a task.
Note
Provides additional information.
Tip
Provides helpful hints.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 12
Related Reading
The following documents contain related information:
AirStrand 1300 Hardware Product Specification Pending
Airspan LTE Commissioning Manual Pending
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 13
Customer Care Help Desk
Airspan’s Customer Care Help Desk offers prompt and efficient customer support services.
Note: To avail Airspan’s Customer Care Help Desk support, you must be a registered user and must
have a valid support contract. To register, click here and fill the Registration form.
To create and update issue logs, send e-mails to Customer Care Help Desk. Once you submit your
issue, the system generates a new issue and sends an issue number for your reference. The system
uses this issue number to categorize and store e-mails under the appropriate issue.
To help Customer Care Help Desk identify your issue, include the issue number and your Customer
Care Helpdesk account details in all further communications.
Main Operations
Airspan Communications Ltd.
Capital Point
33 Bath Road
Slough, Berkshire
SL1 3UF, United Kingdom
Tel: +44-1895-467-100
Worldwide Headquarters
Airspan Networks Inc.
777, Yamato Road, Suite 105
Boca Raton, FL 3341-4408, USA
Tel: +1 561 893 8670
Airspan Encourages Comments
Airspan welcomes any feedback and suggestions that help to improve the quality of the documentation.
Send your feedback to documentfeedback@airspan.com.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 14
1 Introduction
This section provides a descriptive overview of the Airspan’s AirStrand 1300 Pico-class eNodeB
variant and its place in the Airspan product suite.
1.1 AirStrand 1300
AirStrand 1300 is part of Airspan’s carrier-class LTE advanced outdoor small cell eNodeB family.
AirStrand 1300 is a Pico-class LTE eNodeB product, providing high-speed data, mobility, Voice over
LTE, and broadcast/multicast services.
AirStrand 1300 is a super compact, easy to install Pico-class Outdoor Small Cell Strand mounted
eNodeB with an integrated DOCSIS (Alpha DSM33) backhaul solution. Allowing an operator to deploy
LTE broadband services on a cable strand without the need for backhaul connectivity or infrastructure
– It uses the already existing Macro layer for backhauling.
AirStrand 1300 is a dual sector product which is operated as a single 2x2 MIMO cell of 20MHz
channel using the advanced Lite-CoMP technology.
AirStrand 1300 fully supports the standard LTE (Uu/S1/X2) interfaces.
All Airspan eNodeB products, including AirStrand 1300, are interoperable with a rich portfolio of 3rd
party end user devices, including many handsets, indoor UEs, outdoor UEs and USB dongles from
several ODMs, using various chipsets. For an updated of interoperability list, please contact your
nearest Airspan Sales Representative.
Note: For management please refer to the AirStrand 1300 LTE Commissioning Manual as well as
the Netspan User Manual.
1.1.1 Deployment
AirStrand 1300 perfectly fits the requirements of the hard zoning outdoor locations such as hotels,
city centers, parks and universities all due to its super compact one box form factor.
AirStrand 1300 creates a single install process for LTE Access and Backhaul, and enables “Just
add Power” plug and play deployment method and along with the easy zoning of the product
saving deployment related costs and time.
Note: The following is for illustration only; actual layout may differ as infrastructure is installation-
specific.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 15
Figure 2: AirStrand 1300
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 16
2 Getting Started
2.1 Workflow of Installation
The Workflow to install the AirStrand 1300 is shown in the following diagram:
Figure 3: Workflow
2.2 AirStrand 1300 Installation Checklist
Plan the installation of the AirStrand 1300 by using the Installation Checklist, which you can find as a
removable job aid in Appendix A for this guide.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 17
3 Verifying Prerequisites
Prior to installing the AirStrand 1300, verify the required safety, power, tools, parts and components.
This chapter includes the hardware, software, and client requirements for installation.
Important: Set up requirements for the installation is detailed in the Job Sheet, see Appendix A.
3.1 Verifying Site Requirements
To set up the AirStrand 1300, an IP connection to a Netspan server is required.
3.2 Verify Installation Requirements
3.2.1 Verify the Tools
Table 5. Minimum Hardware Requirements
Tool
Use
9/16 inch wrench
Tightening hanger 3/8-16 bracket nuts
1/2 inch wrench
Tightening hanger 5/16-18 bracket screws and
nuts
#10 (5/32) Allen wrench
For adjusting the GPS slide screws
Philips screw driver
Good to have
Torque screwdriver
Tightening screws
Adjustable Wrench
For CATV 5/8” connector (if needed)
Small flat blade screw driver
(insulated shaft recommended)
Good to have
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 18
3.2.2 Verify the Parts and Kits
The following figures display various AirStrand 1300 components and accessory kits.
Note: Verify order and requirements to ensure the correct unit type is being installed.
Table 6: AirStrand 1300 Components
Installation Kit
/ Part
Product Code
Airspan No.
Consisting of
Images
AirStrand 1300
AT13-U41-B03S
998-73-419 SP
AirStrand 1300 2.496 -
2.690 / 2.496 - 2.690
MHz (B41), DOCSIS
Backhaul, DOCSIS
Power
AirStrand
Strand
Mounting Kit
AS12-SMK-1
Included in the
main unit
packaging
903-03-040
Strand bracket x 2 with
Hanger clamps x 2
Hardware (bolts,
threaded stud and
nuts)
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 19
3.2.3 Power
AirStrand 1300 supports direct connection to AC Quasi-sine power source. To be fed from the HFC
network.
Operational Voltage Range: 44V~90V
Table 7: Power
Power Source
Nominal Power Consumption (W)
Nominal Power Consumption (W)
AC Quasi Sine 44V~90V
45
70
3.2.4 Physical Dimensions
AirStrand 1300 is in an all outdoor enclosure.
Table 8. AirStrand 1300 Physical Dimensions
Variant
Dimensions (L x W x H)
Comment
Total size
16.5 x 5.5 x 8.5 in. / 420 x 140 x 203 mm
The physical dimensions
exclude connectors
Volume
11.5L
Weight
Complete Unit (including hangers)
24 Lbs. / 11 Kg.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 20
4 Installation of AirStrand 1300
AirStrand 1300 is installed on the strand (the steel cable) that runs from pole to pole supporting other
cables, such as telephone and cable company cables that run from pole to pole.
When mounting the AirStrand 1300 on a cable strand, you must use the Strand mount accessory kit.
The kit contains several parts that you should assemble before mounting on a cable strand. The Strand
Accessory kit contains the strand bracket(s) and the hanger bracket(s) (clamps) with the required
hardware (included) required for installation.
To install AirStrand 1300 to a cable strand, you need to perform these operations:
Assemble strand hanger brackets.
Attach the strand hanger brackets to the AirStrand 1300 unit.
Attach the hanger bracket clamps to the cable strand.
Connect interface (5/8” Interface connector type) to the cable infrastructure.
4.1 Strand Mounting of AirStrand 1300
Caution: Proper local rigging and hoisting practices should be followed when installing the AirStrand
1300.
Caution: The AirStrand 1300 is intended to be strand mounted in the telecommunications space
between poles, not in the electrical space.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 21
4.1.1 Bracket Assembly on the AirStrand 1300
1. Assemble the hanger clamp bracket (first verify the cable diameter, and select either the 6
mm or 8 mm hole configuration).
Figure 4: Hanger and Clamp Assembly
Note: Different sized strand(s) may be accommodated when securing hanger bracket by rotating the
notched clamp to the suitable hole size, as displayed below.
Figure 5: Mounting Hanger Assembled
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 22
2. Assemble both strand brackets to the top of the unit. Inserting the 5/16”-18 bolts (provided)
into the threaded holes.
Note: Assemble the brackets in the direction as shown in Figure 6 below.
Figure 6: Hanger Bracket Assembly on Unit
3. After assembly tighten down the bolts.
4. Orient the AirStrand 1300 to enable optimal positioning prior to placing on strand cable.
5. Lift assembled unit into place on the cable strand.
Figure 7: Unit on Cable Strand
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 23
6. Secure the hanger bracket on the strand.
4.1.2 GPS Bracket Adjustment
After the AirStrand 1300 is securely fastened on the strand cable, the GPS and its bracket should be
extended for maximum efficiency.
1. Loosen the two (2) Hex Head Allen screws on the GPS slide, which is attached on the top of
the slide bracket.
Figure 8: GPS Bracket Adjustment
2. Extend the slide bracket.
3. Re-tighten the two (2) Hex Head Allen screws.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 24
5 Connecting and Managing Cables
5.1 Connecting the Ground Cable
Once the AirStrand 1300 is securely attached on the strand it is advisable to connect an approved
ground cable.
Connect the ground cable after attaching a grounding lug to the ¼-20 threaded hole on the top of the
AirStrand 1300 body, as shown below:
Figure 9: Ground Cable Connection
Note: Cutting the Ground cable to the required length and crimping the grounding lug is
performed by the Installer.
Note: The threaded ¼-20 ground hole is bare metal and needs no preparation.
Note: The minimum cable gauge to be used for the ground wire is 9 AWG.
5.2 1300 Interface Connection
Danger: Hazardous voltage! Before working, ensure that the power is off prior to
performing any connections.
5.2.1 Connecting the CATV Cable
Once the AirStrand 1300 is securely attached on the strand the installer should connect the CATV
cable terminated with an RF connector to the F-type connector (factory installed) connected to the
unit’s connecting outlet.
1. Connect the CATV cable terminated with an RF connector to the F-type connector connected
(factory installed) to the unit’s connecting outlet.
Note: Supplied with F-type connector adapter but other connectors (i.e. stinger) are available if
required.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 25
Figure 10: Connect CATV Cable
Note: When securing the cable make sure there is no tension on the connector so that it is easy to
disconnect and re-connect for future maintenance actions.
5.2.2 Accessing the Attenuator(s) and Test Port
Note: Opening of the maintenance cover is done in order to change the attenuators or for
connecting to a stinger connector (instead of the supplied connector).
1. Loosen the six (6) M4 screws that hold the maintenance cover in place.
Note: The screws are secured to the cover and will not fall off.
Figure 11: Removable Maintenance Cover
2. Open the removable maintenance cover and let it hang on the attached safety cable.
Note: Access to Attenuator(s) and test port are available via the Maintenance cover, see Figure 12.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 26
Figure 12: Maintenance Cover Open
Note: The “test port” is available for use to test required attenuation as needed.
5.2.3 Replacing the Maintenance Cover
The following is the recommended procedure to set the maintenance cover in place and the correct
pattern for tightening the screws to maintain proper weather proofing.
Note: Verify that the gasket is “seated” fully within the groove encircling the opening before setting
the cover in place.
1. Carefully place the maintenance cover (utilize the location pin) over the opening and hand
tighten the six (6) M4 screws in place.
2. Tighten the screws in the following pattern in order to achieve proper pressure for optimal
weather proofing.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 27
Figure 13: Screw Tightening Pattern
Tightening the screw in this pattern reduces the likelihood of the cover shifting and flexing, which could
nullify the weather proofing.
When you’ve tightened all the screws, go back through the pattern again with the torque screwdriver to
ensure that every screw is tightened appropriately.
Caution: Initially hand-tighten the six (6) M4 screws. Torque the screws to no more than a
maximum of 17.70 in-lbs or 2 N.m using a Torque screwdriver.
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 28
A Job Sheet
This job sheet enables the users to keep track of their installation. It covers all the prerequisites
required for accomplishing the AirStrand 1300 installation.
Site Requirements
o Cable Strand for installation identified
o Position on Strand identified
o Access restrictions (highway regulations, other services on pole, power
pole)
o Method of reaching Strand positions (Bucket truck, Elevated work platform)
o Configuration programming details known
o All equipment items available at the installation site
o AirStrand 1300 unit
o Strand Mounting Kit
Tool Requirements
(For further information, see Verify the Tools.)
o 9/16 inch wrench
o 1/2 inch wrench
o #10 (5/32) Allen wrench
o Torque screwdriver
o Philips screw driver
o Adjustable Wrench
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 29
B Installation Checklist
During installation, review and perform all the steps on this checklist (in the given order). This checklist
is meant for the person who performs the AirStrand 1300 installation. It includes the high–level steps
involved in the installation process.
Tip: To make sure you complete all the tasks, detach or print this checklist and use it as
a job aid. After performing, check off each task.
Procedure
Action
Check If Performed
Verify the prerequisites
Verify site requirements.
☐
Verify safety requirements.
☐
Verify installation requirements.
☐
Assemble the strand
bracket onto the unit
Assemble the strand bracket on the
AirStrand 1300 unit.
☐
Install AirStrand 1300 on
the cable strand
Fit and secure the AirStrand 1300 unit to
the strand cable.
☐
Adjust the GPS bracket
Extend the GPS bracket as required
☐
Connect to Infrastructure
Connect the CATV cable to the factory
installed Connector
☐
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 30
C Abbreviations
Term
Definition
3GPP
3rd Generation Partnership Project, responsible for LTE
ABS
Almost Blank Subframe
ACS
Adjacent Channel Selectivity is a measurement of a receiver's
ability to process a desired signal while rejecting a strong signal
in an adjacent frequency channel. ACS is defined as the ratio of
the receiver filter attenuation on the assigned channel frequency
to the receiver filter attenuation on the adjacent channel
frequency.
AWGN
Additive White Gaussian Noise is a channel model in which the
only impairment to communication is a linear addition of white
noise with a constant spectral density and a Gaussian distribution
of amplitude.
BER
Bit Error Rate
CN
Core Network
CP
Cyclic Prefix
CTC
Convolution Turbo Code is a high-performance forward error
correction (FEC) code
dB
Decibel. A logarithmic unit used to describe a ratio (such as
power ratio in radio telecommunications)
dBm
An abbreviation for the power ratio in decibels (dB) of the
measured power referenced to one milliwatt (mW). It is used as a
convenient measure of absolute power because of its capability
to express both very large and very small values in a short form
eNodeB
Evolved Node B, is the element in E-UTRAN of LTE
ESP
Encapsulating Security Payloads (ESP) provide confidentiality,
data-origin authentication, connectionless integrity, an anti-replay
service (a form of partial sequence integrity), and limited traffic-
flow confidentiality
E-UTRAN
Evolved UMTS Terrestrial Radio Access Network, is the air
interface of 3GPP's Long Term Evolution
EVM/RCE
The Error Vector Magnitude or EVM (sometimes also called
Receive Constellation Error or RCE) is a measure used to
quantify the performance of a digital radio transmitter or receiver.
It is measured in dB or percentage (%) – the lower the better
FDD
Frequency-Division Duplexing. A transceiver mode where the
transmitter and receiver operate at different carrier frequencies
GNSS
Global Navigation Satellite System is a term used to describe a
satellite navigation system with global coverage. There are
currently two fully operational GNSSs – the US GPS and the
Russian GLONASS.
GTP-U
GPRS Tunneling Protocol for User data is a relatively simple IP
based tunneling protocol which permits many tunnels between
each set of end points
HPBW
Half Power BandWidth is the angular separation in an antenna, in
which the magnitude of the radiation pattern decreases by 50%
(or -3 dB) from the peak of the main beam
ICS
In-channel selectivity is a measure of the receiver’s ability to
receive a wanted signal at its assigned Resource Block locations
in the presence of an interfering signal
IPSec
Internet Protocol Security is a protocol suite for securing Internet
Protocol (IP) communications by authenticating and encrypting
each IP packet of a communication session
AirStrand 1300 Installation Guide
DUG01370-SP Airspan Commercial and Internal Use 31
Term
Definition
LED
Light Emitting Diode
LTE
Long Term Evolution
MAC
Medium Access Controller – responsible for several functions
such Error Correction, Packet (De)Multiplexing, etc…
MBSFN
Multicast-Broadcast Single Frequency Network is an LTE feature
designed to deliver services such as Mobile TV using the LTE
infrastructure, and is expected to be a competitor to DVB-H-
based TV broadcast
MCS
Modulation and Coding Scheme
MME
Mobility Management Entity is the key control-node for the LTE
access-network. It is responsible, among other things for idle
mode UE tracking and paging procedure including
retransmissions
MTBF
Mean Time Between Failures
OFDMA
Orthogonal Frequency-Division Multiple Access (OFDMA) is a
multi-user version of OFDM digital modulation scheme, used for
eNodeB transmissions to UEs
PDCP
Packet Data Convergence Protocol. A Sub-Layer in LTE
responsible for IP Header (De) Compression, etc…
PDU
Protocol Data Unit
PTP
Precision Time Protocol is used to synchronize clocks throughout
a network. In this document, PTP is referring to IEEE1588-2008
protocol
RB
Resource Block
RLC
Radio Link Control. A Sub-Layer in LTE responsible for Ack/Nack,
error correction, packet reordering, etc…
ROHS
Restriction Of Hazardous Substances
RRM
Radio Resource Management is used to cover all functions that
are related to the assignment and sharing of radio resources
among UEs
S-GW
Serving Gateway. A Core entity in the LTE EPC architecture
responsible for routing and forwarding user data packets, while
also acting as the mobility anchor for the user plane during inter-
eNodeB handovers and as the anchor for mobility between LTE
and other 3GPP technologies
SC-FDMA
Single-Carrier FDMA is a frequency-division multiple access
scheme, dealing with the assignment of multiple users to a
shared communication resource. Used in LTE for UE
transmissions to the eNodeB
SCTP
Stream Control Transmission Protocol is a reliable transport layer
protocol, ensuring in-sequence transport of messages with
congestion control like TCP
SDR
Software Defined Radio
WEEE
Waste Electrical and Electronic Equipment
