Airspan Networks MIMAX365 MIMAX Pro ODU User Manual
Airspan Networks Inc MIMAX Pro ODU
User manual
Product Specification:
Airspan WiMAX MiMAX-Pro
V-Series
System Release 9.0
This specification details performance parameters and features supported by
the specific product and Airspan system release as stated. It covers the
standard configuration of MiMAX-Pro.
Title Name Signature Date
Author
Alex Tipograff 2009-11-20
Approved
Senior Director of Prod Mgt
& Marketing
Boaz Rein
Approved
Engineering Ori Hareli
Approved
Product Verification Zigi Avni
This is the unpublished work, the copyright of which vests in Airspan Networks Inc. All Rights Reserved
.
The
information contained herein is the property of Airspan Networks Inc. and is supplied without liability for errors or
omissions. No part may be reproduced or used except by contract or other permission. The copyright and the
foregoing restriction on reproduction and use extend to all media in which the information may be embodied.
Document Reference Number Revision Date
PSP-D00120 A5 10
th
May 2010
.
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 2 of 16
Revision History
Revision Originator Date Description
0.1 Alex Tipograff
2008/8/5 Initial draft
0.2 Alex Tipograff
2008/8/11 Minor changes
0.3 Alex Tipograff
2008/8/19 document reference number added
0.4 Alex Tipograff
2008/9/17 MTBF values added
0.5 Alex Tipograff
2008/9/18 Dimensions and weight updated
0.6 Alex Tipograff
2008/11/14
N type connector for ext. ant. removed
A Alex Tipograff
2009/3/11 Minor changes ,doc. Status change
A1 Alex Tipograff
2009/3/14 Minor changes
A2 Alex Tipograff
2009/10/12
Classifier number added + TX power figures corrected
A3 Alex Tipograff
2009/11/20
Minor changes
A4 Felix Eshed 2010/4/20 Minor changes and updates
A5 Felix Eshed 2010/5/10 Minor changes
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 3 of 16
Contents
1
PRODUCT OVERVIEW.............................................................................................................................4
1.1
M
AIN
F
EATURES
......................................................................................................................................4
1.2
B
LOCK
D
IAGRAM
....................................................................................................................................5
1.3
M
I
MAX
P
RO
V-S
ERIES PRODUCT VIEW
..................................................................................................5
2
AIR INTERFACE ........................................................................................................................................6
2.1
F
REQUENCY OF
O
PERATION
&
D
UPLEX
M
ETHODS
..................................................................................6
2.2
M
ULTIPLE
A
CCESS
S
CHEME
....................................................................................................................6
2.3
C
HANNEL
B
ANDWIDTHS
..........................................................................................................................6
2.4
M
ODULATION
&
FEC..............................................................................................................................6
2.5
F
RAME
D
URATION
...................................................................................................................................6
2.6
C
YCLIC
P
REFIX
........................................................................................................................................6
2.7
S
CHEDULING
...........................................................................................................................................6
2.8
A
UTHENTICATION
&
S
ECURITY
...............................................................................................................6
2.9
MIMO
SUPPORT
......................................................................................................................................6
3
EQUIPMENT CAPACITY..........................................................................................................................7
3.1
RF
C
HANNEL
T
HROUGHPUT
....................................................................................................................7
4
RADIO PERFORMANCE & FEATURES................................................................................................8
4.1
S
TANDARDS
C
OMPLIANCE
.......................................................................................................................8
4.2
L
INK
B
UDGET
..........................................................................................................................................8
4.3
D
YNAMIC
R
ANGE
....................................................................................................................................9
5
SOFTWARE FEATURES.........................................................................................................................10
5.1
S
TANDARDS
C
OMPLIANCE
.....................................................................................................................10
5.2
C
ONVERGENCE LAYER SUPPORT
............................................................................................................10
5.3
S
ERVICE
F
LOW
S
CHEDULING
&
Q
O
S.....................................................................................................10
5.4
A
UTHENTICATION
&
S
ECURITY
.............................................................................................................11
5.5
N
ETWORKING
........................................................................................................................................11
5.6
L
OCAL
&
R
EMOTE
M
ANAGEMENT
........................................................................................................11
6
PHYSICAL & POWERING......................................................................................................................12
6.1
D
IMENSIONS
..........................................................................................................................................12
6.2
M
I
MAX-P
RO
P
ORT
D
ESCRIPTION
.........................................................................................................12
6.3
P
OWER
S
UPPLY
.....................................................................................................................................12
7
ENVIRONMENTAL, REGULATORY AND CERTIFICATION ........................................................13
7.1
E
NVIRONMENTAL
..................................................................................................................................13
7.2
R
EGULATORY
........................................................................................................................................13
8
ACCESSORIES..........................................................................................................................................14
8.1
A
NTENNA
..............................................................................................................................................14
8.2
P
O
E
A
DAPTER
.......................................................................................................................................14
8.3
M
OUNTING
K
IT
.....................................................................................................................................14
8.4
RSSI
STRENGTH INDICATOR
..................................................................................................................14
9
MTBF...........................................................................................................................................................15
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 4 of 16
1 Product Overview
MiMAX-Pro is outdoor WiMAX customer premises equipment (CPE). The MiMAX-Pro, which is
used Sequans broadband interface, connects IP-enabled devices directly to WiMAX networks.
Designed for the residential and small enterprise markets, the device supports high-speed
broadband Internet through a Fast Ethernet connection. The MiMAX-Pro ensures high service
availability at enhanced ranges, operating in both LOS and NLOS propagation environments.
MiMAX-Pro is normally deployed with a built-in, integral antennas. Requiring professional
installation, the MiMAX-Pro is installed outdoors on a pole or wall, enabling optimal positioning for
best reception with the BS.
Designed for the residential, SOHO, and small to medium enterprise (SME) markets, the device
delivers over-the-air, high-speed broadband Internet from the Airspan WiMAX base stations to the
end-user. The MiMAX-Pro ensures high service availability at enhanced ranges, operating in both
LOS and NLOS propagation environments.
MiMAX-Pro is available in the following RF bands1:
• 2.3-2.4 GHz in TDD mode
• 2.5-2.69 GHz in TDD mode
• 3.3 – 3.6 GHz in TDD mode
• 3.6 – 3.8 GHz in TDD mode
MiMAX-Pro uses the OFDM signaling format, providing non line-of-sight (NLOS) performance.
MiMAX-Pro utilizes 64 QAM, 16 QAM and QPSK, modulation technologies by modulating
transmitted signals and demodulating the received signals where the original digital message can
be recovered. The use of adaptive modulation allows MiMAX-Pro to optimize throughput, yielding
higher throughputs while also covering long distances.
1.1 Main Features
IEEE 802.16e-2005 Wave 2 compliance
OFDMA modulation, 512, 1024 FFT points QPSK, 16QAM, 64QAM
Output power: 38 dBm (EIRP)
Antenna - Integrated Directional Dual Polarization
Security
802.16e PKMv2 key management
X.509 digital certification for device authentication
EAP-TLS & EAP-TTLS (MD5, MSCHAPv2) device and user authentication methods
AES encryption
TR-069 & OMA-DM for remote management
WEB-based interface for local management
MIMO Matrix A and B on DL
DL MRC
1 Supported channel bandwidths detailed in 2.3
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 5 of 16

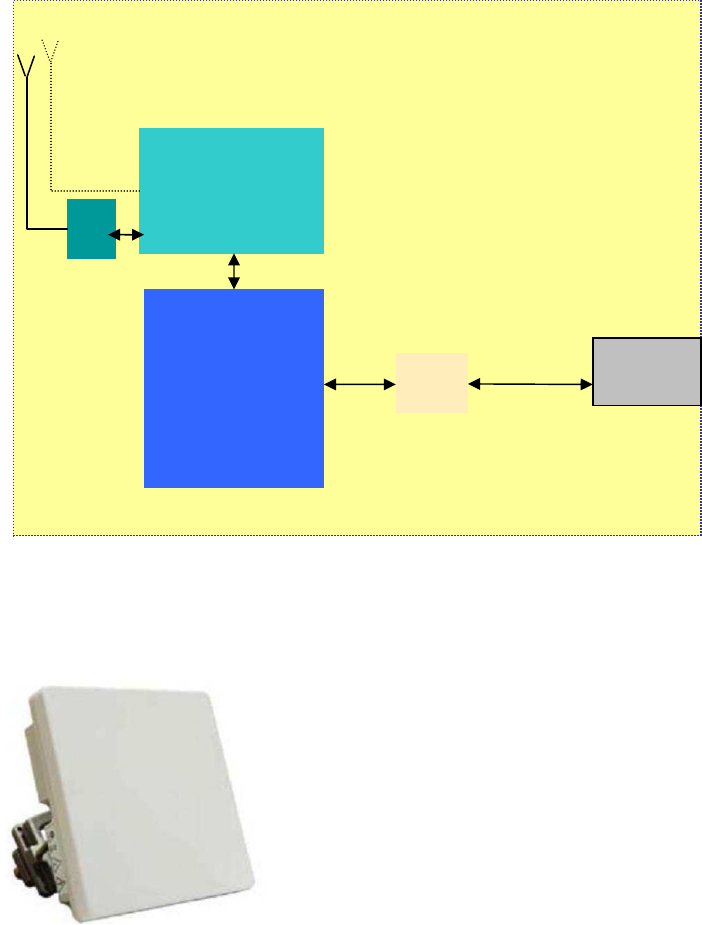

1.2 Block Diagram
MiMAX-Pro block diagram is shown below:
1.3 MiMAX Pro V-Series product view
MiMAX-Pro picture is shown below:
802.16
Transceiver
(1Tx/2Rx)
802.16
BB+ Lower MAC
PA
Wimax antenna(s)
MII
Phy
Data/PoE
(RJ45)
802.16e chipset manages
PHY and MAC
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 6 of 16
2 Air Interface
2.1 Frequency of Operation & Duplex Methods
Frequency Frequency Range
2.3 GHz 2300 to 2400 MHz
2.5 GHz 2496 to 2690 MHz
3.5 GHz 3300 to 3600 MHz
3.7 GHz 3600 to 3800MHz
2.2 Multiple Access Scheme
Scalable OFDMA, as defined by IEEE802.16-2005
2.3 Channel Bandwidths
5 & 10Mhz for 2.3 GHz and 2.5 GHz, 3.5, 5 ,7 & 10Mhz for 3.5 and 3.7GHz.
2.4 Modulation & FEC
The following modulation and FEC combinations are supported as indicated:
Modulation
FEC
64QAM
5
/
6
64QAM
3
/
4
64QAM
2
/
3
64QAM
1
/
2
16QAM
3
/
4
16QAM
1
/
2
QPSK
3
/
4
QPSK
1
/
2
2.5 Frame Duration
5ms
2.6 Cyclic Prefix
1/8
2.7 Scheduling
MiMAX Pro Supports UGS, RT-VR, NRT-VR,ERT-VR and BE as defined by IEEE802.16-2005
2.8 Authentication & Security
MiMAX Easy supports following aspects of authentication and security:
802.16e PKMv2 key management
X.509 digital certification for device authentication
EAP-TLS , EAP-TTLS (MD5, MSCHAPv2) device and user authentication methods
AES encryption
2.9 MIMO support
Matrix A + MRC in DL for two antennas
Matrix B on DL
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 7 of 16
3 Equipment Capacity
3.1 RF Channel Throughput
RF Channel capacity is as per the IEEE802.16-2005 specification.
MiMAX -Pro is half duplex.
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 8 of 16
4 Radio Performance & Features
4.1 Standards Compliance
MiMAX-Pro is compliant with IEEE 802.16-2005 Wave2 Standard
4.2 Link Budget
The following RF Parameters contribute to the overall system link budget
4.2.1 Maximum Transmit Level (dBm)
The following table details the Transmit (Tx) Power levels of MiMAX-Pro at the various
modulations*
Modulation
FEC 2.3~2.4 GHz
2.5 & 2.7 GHz
3.3~3.6 GHz
3.6~3.8 GHz
Model CTC MiMAX-Pro
MiMAX-Pro
MiMAX-Pro
MiMAX-Pro
16QAM
3/4
27 27 27 27
16QAM
1/2
27 27 27 27
QPSK
1/2
27 27 27 27
*Note: The output power is measured (1) at antenna port; and (2) under normal room temperature
@25C
4.2.2 Receiver Sensitivity
The following table details the receiver sensitivity for each modulation/FEC combination as
measured at the transceiver RF port.
• 10Mhz, Typical levels for BER <1x10
-6
(dBm) MIMO
2
and MRC ON
Modulation
FEC 2.3~2.4 GHz
2.5 & 2.7 GHz
3.3~3.6Ghz
3.6~3.8Ghz
Model CTC MiMAX-Pro
MiMAX-Pro
MiMAX-Pro
MiMAX-Pro
64QAM
5/6
-85 -86 -87 -85
64QAM
3/4
-86 -86 -87 -87
64QAM
2/3
-90 -91 -92 -90
64QAM
1/2
-91 -91 -92 -91
16QAM
3/4
-92 -92 -93 -92
16QAM
1/2
-96 -96 -97 -96
QPSK
3/4
-98 -99 -100 -98
QPSK
1/2
-100 -100 -100 -100
• 5Mhz, Typical levels for BER <1x10
-6
(dBm) MIMO
3
and MRC ON
Modulation
FEC 2.3~2.4 GHz
2.5 & 2.7 GHz
3.3~3.6Ghz
3.6~3.8Ghz
Model MiMAX-Pro
MiMAX-Pro
MiMAX-Pro
MiMAX-Pro
64QAM
5/6
-86 -87 -87 -86
64QAM
3/4
-87 -88 -87 -86
64QAM
2/3
-91 -92 -92 -91
64QAM
1/2
-92 -92 -92 -92
16QAM
3/4
-93 -93 -93 -93
16QAM
1/2
-97 -97 -97 -96
QPSK
3/4
-99 -99 -100 -98
QPSK
1/2
-101 -101 -101 -100
2
Matrix A
3
Matrix A
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 9 of 16
*Note: (1) Sensitivity levels measured while MiMAX-Pro operating in fixed modulation scheme as
described in MRCT.
4.3 Dynamic Range
MiMAX-Pro Transmit Power Control Range is 60 dB
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 10 of 16
5 Software Features
5.1 Standards Compliance
MiMAX-Pro is compliant to the following standards:
• IEEE 802.16e-2005 (802.16e)
5.2 Convergence layer support
MiMAX-Pro operates as NAT/NAPT or IP forwarder on IPCS.
5.2.1 Convergence Sub-layer
• The MiMAX-Pro provides hardware support to perform classification based on Ethernet and
IP convergence sub layers, as well as PHS and ROHC header compression.
Radio interface packets can be classified according to classifiers based on Ethernet and IP
convergence sublayer formats.
Packet Convergence Sublayer support
A. Internet Protocol (IPv4)
B. Internet Protocol (IPv6)
C. IEEE 802.3 (Ethernet)
D. 802.1Q
E. Packet, IPv4 over 802.3/Ethernet
F. Packet, IPv6 over 802.3/Ethernet
G. IPv4 with Header Compression (ROHC)
H. IPv6 with Header compression (ROHC)
IP Packet Classification in the UL
Classification based on DSCP /IP TOS field
Classification based on IP Protocol/Next Header field
Classification based on IP masked Source Address
Classification based on IP Destination Address
Classification based on protocol source port range
Classification based on protocol destination port range
Classification based on 802.1Q
• Data Forwarding
IP: basic IP switching support for IPv4. TCP and UDP checksums are verified when
present.
Raw: No specific action is undertaken, just simple forwarding of all packets.
5.3 Service Flow Scheduling & QoS
5.3.1 Service Flows
MiMAX-Pro is designed to support up to 18 Service Flows (1 Primary, 1 Basic and 16 data).
MiMAX-Pro is designed to support up to 8 classifiers per SF
MiMAX-Pro is designed to support up to 64 classifiers on UL
Note: The numbers above are predefined in order to prevent memory fragmentation and can be
modified according to the specific customer’s request with congestion of the memory size allocation.
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 11 of 16
5.3.2 QoS
MiMAX-Pro supports following scheduling services
• Best Effort (BE)
• Unsolicited Grant service (UGS)
• Real-Time Polling Service (RTPS)
• Non-Real-Time Polling Service (NRTPS)
• Extended Real-Time Polling Service (ERTPS)
5.4 Authentication & Security
Following features are supported
PKMv2 CMAC, security association
EAP-TLS, EAP-TTLS(MD5, MS-CHAPv2) authentication
X.509 certificate
Cryptographic Suites
No data encryption, no data authentication
CCM-Mode 128-bit AES, CCM Mode, AES Key Wrap with 128-bit key
5.5 Networking
5.5.1 NAPT (Network Address Port Translation)/ NAT (Network Address Translation)
NAPT extends the capabilities of Basic NAT by translating the port field in outgoing packet
headers in addition to the source address field. It allows the MiMAX-Pro to handle multiple
simultaneous connections from multiple hosts on the private network to the same server on
the public side.
5.5.2 DHCP
DHCP (Dynamic Host Configuration Protocol) server and client support
5.6 Local & Remote Management
MiMAX-Pro is designed for local and remote management via TR-069, OMA-DM or web server:
Provisioning & Configuration: auto configuration and dynamic service activation
Initial CPE configuration
Remote CPE configuration - configuration of the device (including first time use),
enabling and disabling features; Allowing changes to settings and parameters of
the device
Firmware upgrade & management
Version management
Update management
Fault Management: Status and performance control
Logfile analysis and dynamic messages
Diagnostics
Connectivity and service control.
Device error report, devise status query
5.6.1 TR-069
TR-069 (Technical Report 069) is a DSL Forum technical specification entitled CPE WAN
Management Protocol (CWMP). It defines an application layer protocol for remote
management of end-user devices.
5.6.2 OMA-DM
OMA Device Management is a device management protocol specified by the Open Mobile
Alliance (OMA) Device Management (DM) Working Group and the Data Synchronization (DS)
Working Group.
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 12 of 16
6 Physical & Powering
6.1 Dimensions
Parameter Value
Dimensions (height x width x depth) 205 X 205 X 55 mm
Weight 1.2Kg
6.2 MiMAX-Pro Port Description
Panel Interface
Back One 10/100BaseT Ethernet LAN & PoE
6.3 Power Supply
6.3.1 Supply Voltage
48V PoE (Power Over Ethernet)
6.3.2 Power Consumption
Mode Power Consumption
Peak 12.9 W
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 13 of 16
7 Environmental, Regulatory and Certification
7.1 Environmental
Operating Temperature -40° to +70°C
Humidity 95% @ 40°C (non condensing)
7.2 Regulatory
The MiMAX-Pro V-Series are compliant with the following standards:
EMI FCC 47CFR Part 27 Subpart M(2.5~2.69Ghz)
EN302 326-1/-2/-3
EMC FCC 47CFR Part 15 Subpart B
EN301 489
EN55022, Class B (Emissions)
EN50082-1 (Immunity)
EN61000-3-2 (Harmonic AC current emissions)
Safety: UL1950 /CSA C22.2.950
EN60 950 (IEC 950)
Note: The compliance is subject to the local regulatory
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 14 of 16
8 Accessories
8.1 Antenna
• Integrated Directional Dual Polarization antenna
• Typical antenna gain:
o 14 dBi @ 2.3 and 2.5 GHz
o 15 dBi @ 3.3-3.6 GHz
o 15 dBi @ 3.6-3.8 GHz
8.2 PoE Adapter
Dimensions: 68x50x25mm
Input voltage 100 VAC – 240 VAC 50 Hz to 60 Hz
Operating Temperature: -5°C to 50°C
One RJ-45 Data cable out for PC& One RJ-45 female connector Data Out and 48V Power
Out
8.3 Mounting Kit
Pole/Wall mounting with vertical and horizontal tilting options
Waterproof sealing cap for RJ 45 POE connector
Bracket screws and washers
8.4 RSSI strength indicator
MiMAX Pro V-Series equipped with buzzer indication the signal strength and link status.
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 15 of 16
9 MTBF
Product MTBF (Years) MTBF (Hours)
MiMAX PRO V- Series 28 243,860
PSP-D00120 Product Specification Airspan WiMAX MiMAX –Pro V-Series - System Release 9.0
Revision A4 Airspan Networks Inc. - CONFIDENTIAL Page 16 of 16
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 23 cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent
and are firmware programmed at the factory to match the intended destination. The firmware setting is
not accessible by the end user.
Due to the essential high output power natural of WiMAX device, use of this device with other
transmitter at the same time may exceed the FCC RF exposure limit and such usage must be
prohibited (unless such co-transmission has been approved by FCC in the future).
