Airspan Networks MIMAX4900 WIMAX OUTDOOR CPE User Manual

User Manual

WiMAX CPE ─ Physical Connection Installation Guide

Document Version 1.0 Page 1 of 2

WiMAX Outdoor CPE (AirStram 4000)

Installation Guide

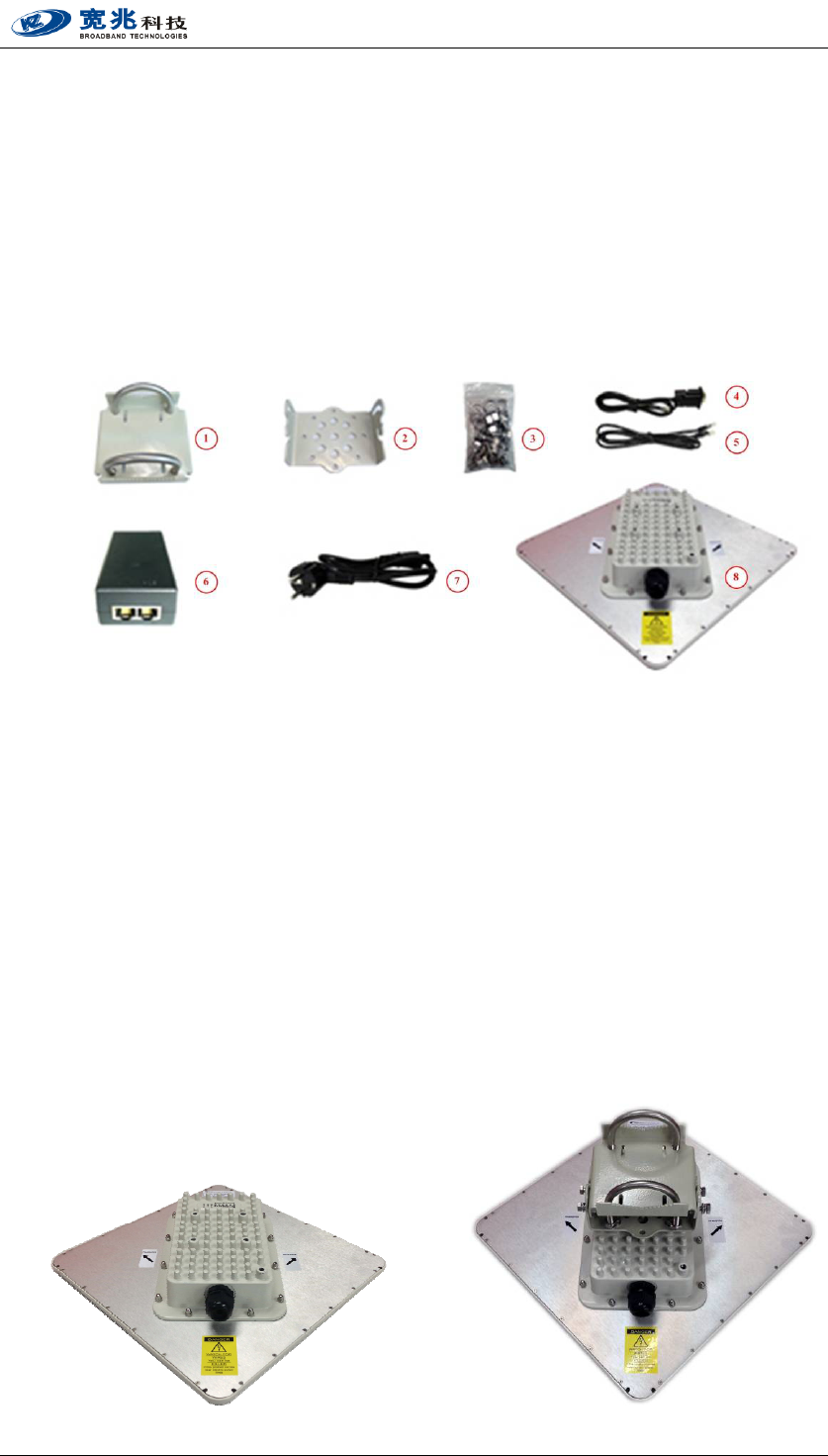

1） Check the package content.

① Clamp x 1

② Bracket x 1

③ Hexagon Screw x 8

④ Serial Cable x 1

⑤ Ethernet Cable x 2 (1.5m)

⑥ PoE Adapter x 1

⑦ Power cord x 1

⑧ CPE x 1

If anything is missing, please contact your local dealer.

2） Quick Installation

a) Fix the Bracket (②) on the CPE using 4 Hexagon Screws (③). Then fix the Clamp (①)

on the CPE (⑧).

WiMAX CPE ─ Physical Connection Installation Guide

Document Version 1.0 Page 2 of 2

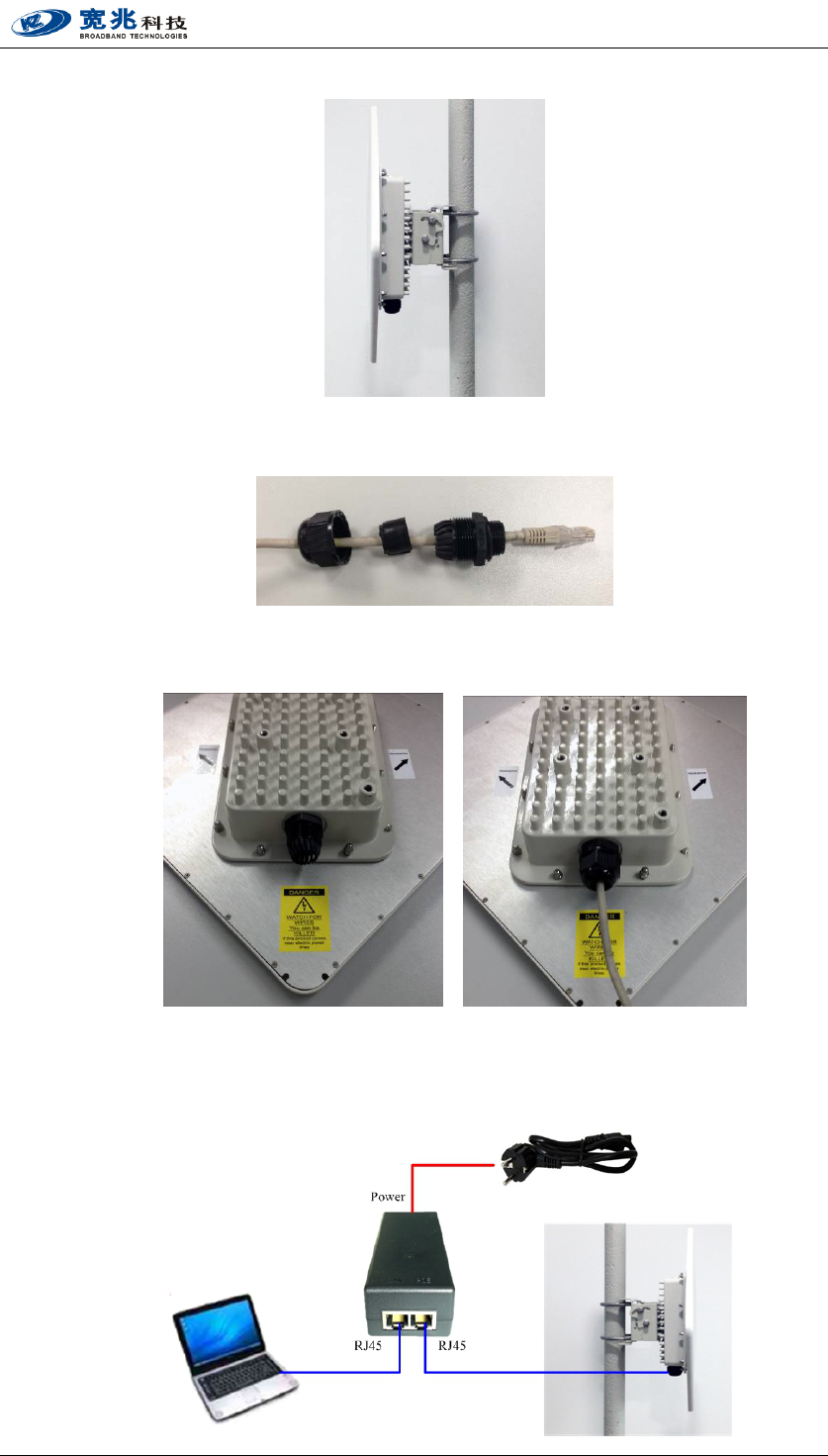

b) Find a suitable position to locate your CPE, and then install your CPE on a fixed pole.

c) Put the Ethernet cable through the waterproof joint. Install a crystal plug on the cable.

d) Plug Ethernet cable into your CPE and then plug the waterproof joint into it. Then plug

the waterproof joint into your CPE and turn the knob until it is tight.

e) Connect another end of the Ethernet cable to the PoE Adapter (⑥). Connect the PoE

Adapter to power source by Power cord (⑦).Connect the PoE Adapter to your computer

through an Ethernet cable.
