Airspan Networks MMAX58 Base Station Transceiver User Manual MicroMAX SOC Installation

Airspan Networks Inc Base Station Transceiver MicroMAX SOC Installation

Users Manual Revised

IP-based
Broadband Wireless Access (BWA) System
605-0000-742 Rev D
MicroMAX-SOC
Hardware Installation
The Innovation Behind Broadband Wireless
Connecting the World
ii
Table Of Contents
Introduction....................................................................................................................... 1
Purpose .......................................................................................................................... 1
Targeted Audience ........................................................................................................... 1
Referenced Documentation................................................................................................ 1
Conventions ....................................................................................................................1
Warnings and Cautions ........................................................................................................ 2
Human Exposure to Radio Frequencies ................................................................................ 2
Radio Interference ........................................................................................................... 2
Avoiding Radio Interference............................................................................................... 2
Modifications ...................................................................................................................2
General .......................................................................................................................... 2
Manufacturer's Disclaimer Statement .................................................................................. 2
DECLARATION OF CONFORMITY............................................................................................ 4
European Community, Switzerland, Norway, Iceland, and Liechtenstein ................................... 4
Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC................................. 4
System Overview................................................................................................................6
MicroMAX-SOC Frequency Ranges ...................................................................................... 7
Main Features.................................................................................................................. 7
Customer Benefits............................................................................................................ 7
Architecture ....................................................................................................................8
Power............................................................................................................................. 8
Models ........................................................................................................................... 8
Installation Prerequisites......................................................................................................9
Package Contents............................................................................................................. 9
Required Tools................................................................................................................. 9
Radio Site Planning .......................................................................................................... 9
Radio Antenna Alignment ............................................................................................. 10
Physical Description .......................................................................................................... 11
MicroMAX-SOC BSR........................................................................................................ 11
Physical Dimensions..................................................................................................... 11
Ports ......................................................................................................................... 12
SDA-4S Type II ............................................................................................................. 13
Physical Dimensions..................................................................................................... 13
Ports ......................................................................................................................... 14
LEDs ......................................................................................................................... 15
Mounting the Base Station Radio (BSR)................................................................................ 16
Mounting the MicroMAX-SOC............................................................................................ 16

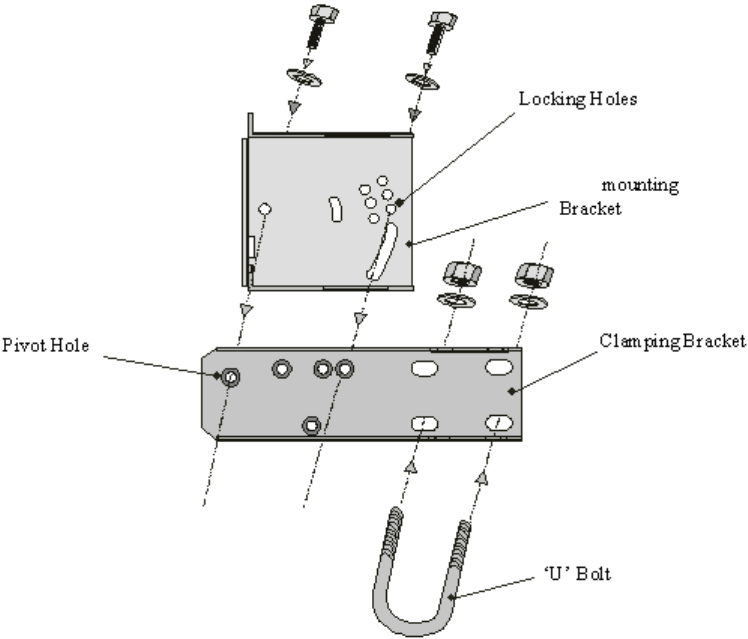

Pole-Mounting the BSR ................................................................................................... 16
Table Of Contents
iii

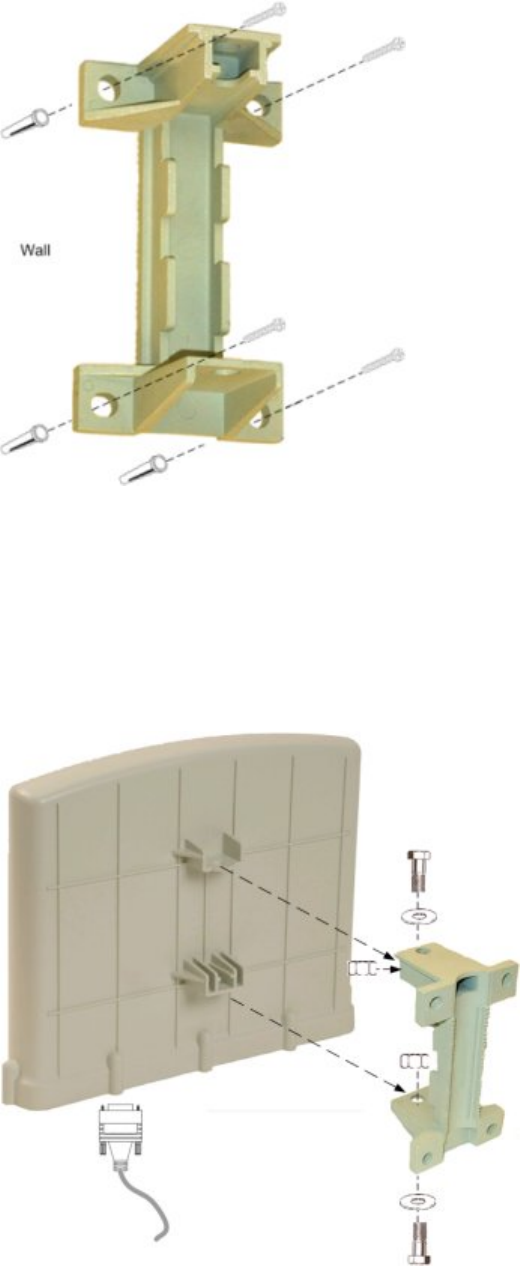

Wall-Mounting the BSR (Optional) .................................................................................... 21
Installing the SDA-4S Type II .......................................................................................... 24

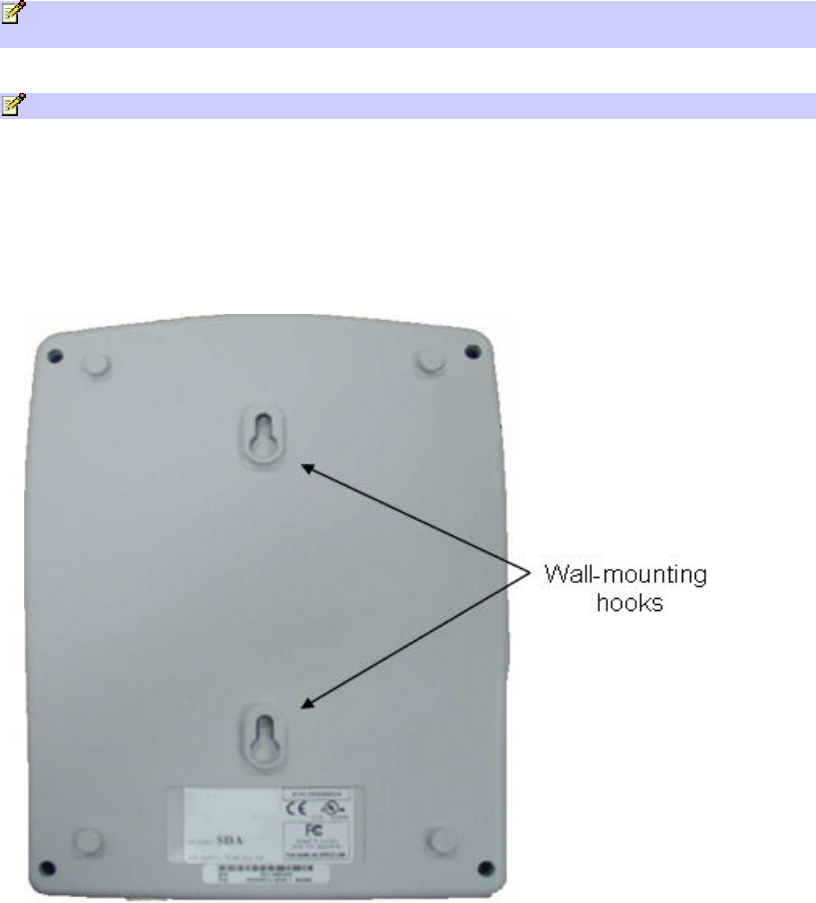

Wall Mounting............................................................................................................. 24
Cabling the BSR................................................................................................................ 26

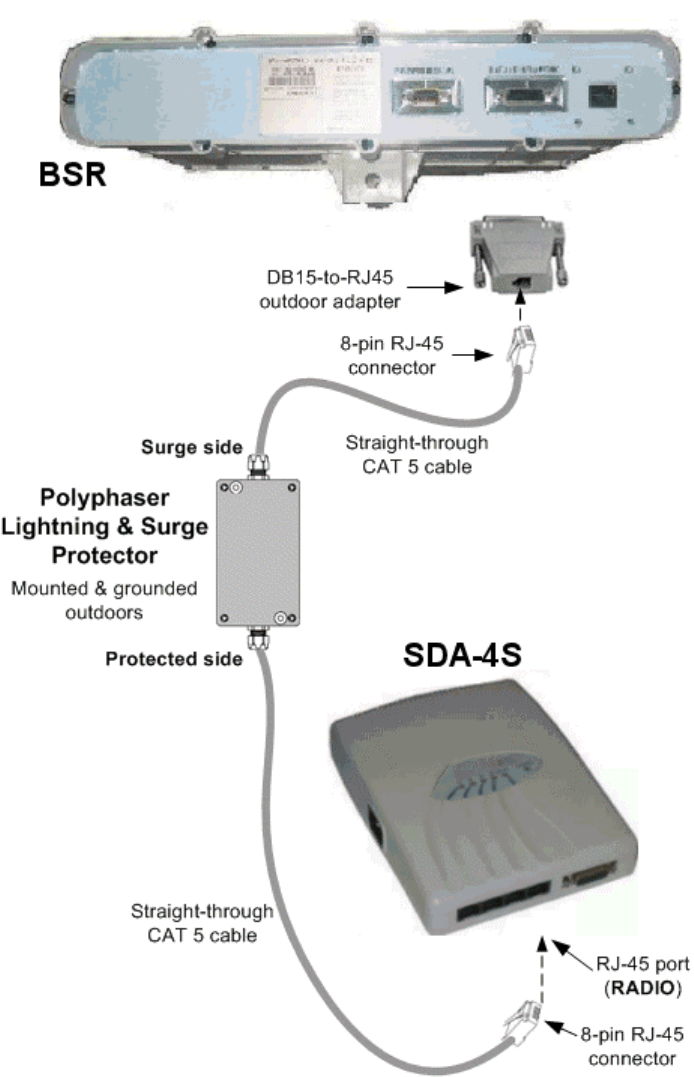

Connecting the BSR to the SDA-4S ................................................................................... 26
SDA-4S Type II ............................................................................................................. 27
Using the SDA-4S Type II............................................................................................. 27

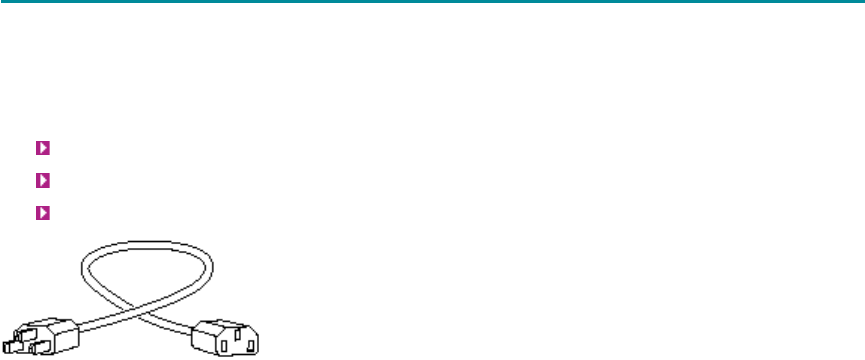

Connecting the sda-4s to the power supply........................................................................... 28
Connecting the SDA-4S Type II........................................................................................ 28
Connecting SDA-4S to Ethernet Network ........................................................................... 29

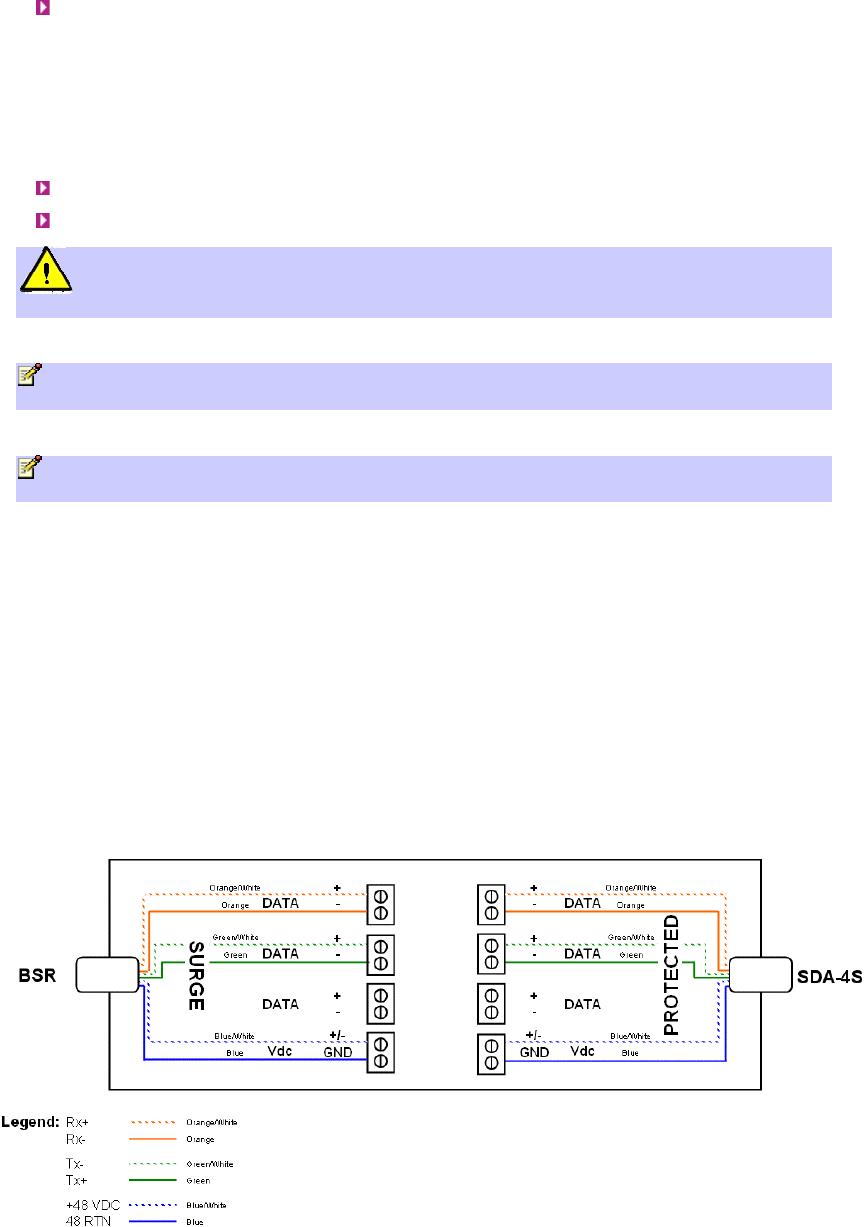

Connecting Lightning and Surge Protector.......................................................................... 29
Connecting an External Antenna ......................................................................................... 33

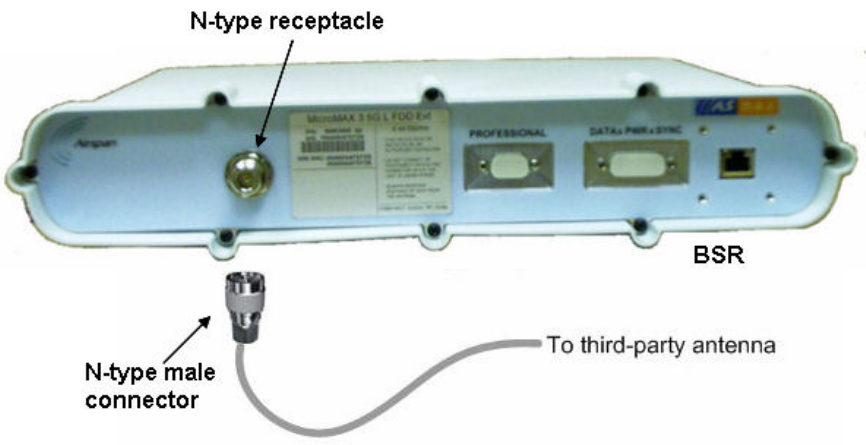

Connecting Third Party External Antenna ........................................................................... 33
Trademarks and Copyrights................................................................................................ 35
Contact Information .......................................................................................................... 36
Revisions......................................................................................................................... 37
Warnings......................................................................................................................... 38
1. Disclaimer ................................................................................................................. 38
1.1 Safety Warnings ....................................................................................................... 38
1.2 Important Warning Symbols....................................................................................... 38
1.3 Important Service Information.................................................................................... 39
1.4 UL Information ......................................................................................................... 39
1.5 CE Notice ................................................................................................................ 39
1.6 European Community, Switzerland, Norway, Iceland, and Liechtenstein............................ 40
Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC............................ 40
1.7 CAUTION................................................................................................................. 41
1.8 Lightning Protection .................................................................................................. 41
Glossary .......................................................................................................................... 43
1
INTRODUCTION
Thank you for purchasing Airspan's's MicroMAX-SOC Base Station Radio. The MicroMAX-SOC Base
Station Radio (BSR) is part of Airspan's AS.MAX family of WiMAX-based products.
This section discusses the purpose, audience, conventions, and customer support of this guide.
Purpose
This guide provides step-by-step instructions for setting up and installing the MicroMAX-SOC BSR.
Targeted Audience
This guide is intended for the Airspan technician who is a qualified installer responsible for installing
the MicroMAX-SOC BSR.
Referenced Documentation
For a description of the Web-based management tools for configuring and managing MicroMAX-SOC
BSR, see the following manuals:
MicroMAX-SOC Web-based Management User's Guide
Conventions
This guide uses the following typographical conventions:
Convention Meaning Example
Bold Command, icon, button, and
field
Click the Next button.
"To" in bold face and at the
beginning of a sentence
Introduces a numbered
procedure To download a SW file:
1. ...
Note that provides useful
information
--
Warning that provides
information that can prevent
and avoid bodily or
mechanical harm
--
605-0000-742_MicroMAX-SOC_Installation_Rev_D
2
WARNINGS AND CAUTIONS
Human Exposure to Radio Frequencies
The MicroMAX-SOC should be installed and operated from a minimum distance of 20 cm to
your body.
Radio Interference
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment on and off, the user is
encouraged to try to correct the interference by performing one or more of the following
measures:
Reorientate or relocate the receiving antenna
Increase separation between the equipment and receiver
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced radio/TV technician for help
Avoiding Radio Interference
This transmitter must not be co-located or operating in conjunction with any antenna or
transmitter.
Ensure a minimum of 1-meter separation between co-located BSRs.
Modifications
Any changes and modifications to this device that are not expressly approved by Airspan
Networks may void the user's authority to operate the equipment.
General
Only qualified personnel should be allowed to install, replace, and service the equipment.
The device cannot be sold retail, to the general public or by mail order. It must be sold to
dealers.
Installation must be controlled.
Installation must be performed by licensed professionals.
Installation requires special training.
The MicroMAX-SOC radio and antenna should be installed ONLY by experienced installation
professionals who are familiar with local building and safety codes and, wherever
applicable, are licensed by the appropriate government regulatory authorities. Failure to do
so may void Airspan's AS.MAX product warranty and may expose the end user or the
service provider to legal and financial liabilities. Airspan and its resellers or distributors are
not liable for injury, damage or violation of regulations associated with the installation of
outdoor units or antennas.
Manufacturer's Disclaimer Statement
The information in this document is subject to change without notice and does not represent
a commitment on the part of the vendor. No warranty or representation, either expressed or
implied, is made with respect to the quality, accuracy or fitness for any particular purpose of
this document. The manufacturer reserves the right to make changes to the content of this
document and/or the products associated with it at any time without obligation to notify any
person or organization of such changes. In no event will the manufacturer be liable for direct,
Introduction
3
indirect, special, incidental or consequential damages arising out of the use or inability to use
this product or documentation, even if advised of the possibility of such damages. This
document contains materials protected by copyright. All rights are reserved. No part of this
manual may be reproduced or transmitted in any form, by any means or for any purpose
without expressed written consent of its authors. Product names appearing in this document
are mentioned for identification purposes only. All trademarks, product names or brand
names appearing in this document are registered property of their respective owners.
605-0000-742_MicroMAX-SOC_Installation_Rev_D
4
DECLARATION OF CONFORMITY
European Community, Switzerland, Norway, Iceland, and
Liechtenstein
Declaration of Conformity with Regard to the R&TTE Directive
1999/5/EC
English:
This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Deutsch:
Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren
entsprecheneden Vorgaben der Richtlinie 1999/5/EU.
Dansk:
Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante
bestemmelser i Directiv 1999/5/EF.
Español:
Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la
Directive 1999/5/EC.
Greek:
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Airspan ∆ΗΛΩΝΕΙ ΟΤΙ Ο ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Français:
Cet appareil est conforme aux exigencies essentialles et aux autres dispositions pertinantes
de la Directive 1999/5/EC.
Íslenska:
Þessi búnaður samrýmist lögboðnum kröfum og öðrum ákvæðum tilskipunar 1999/5/ESB.
Italiano:
Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva
1999/5/EC.
Nederlands:
Deze apparatuur voldoet aan de belangrijkste eisen en andere voorzieningen van richtlijn
1999/5/EC.
Norsk:
Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i
EU-directiv 1999/5/EC.
Português:
Este equipamento satisfaz os requisitos essenciais e outras provisões da Directiva
1999/5/EC.
Suomalainen:
Tämä laite täyttää direktiivin 1999/5/EY oleelliset vaatimukset ja on siinä asetettujen
muidenkin ehtojen mukainen.
Svenska:
Introduction
5
Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta
bestämmelser i Direktiv 1999/5/EC.
The Declaration of Conformity related to this product can be obtained from
product_management@Airspan.com
6

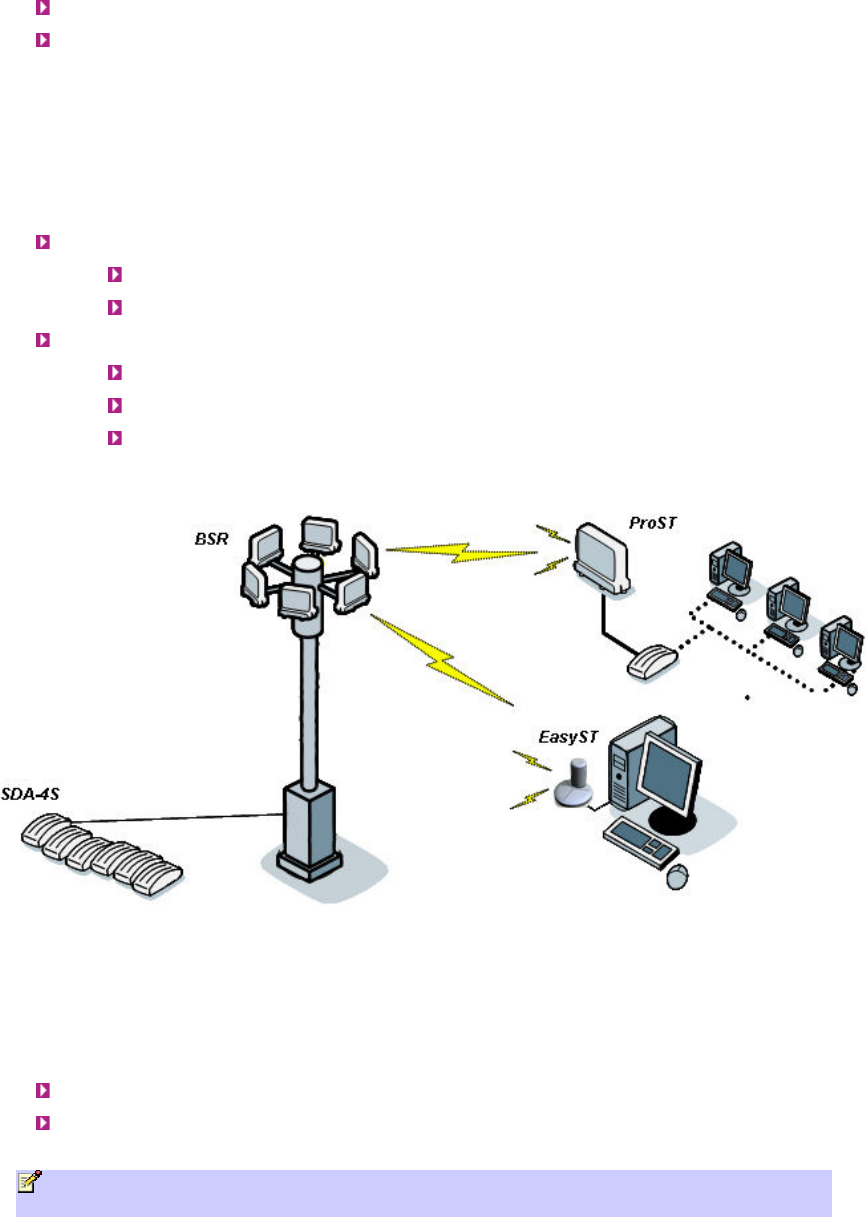

SYSTEM OVERVIEW
MicroMAX-SOC is a highly upgradeable Micro-cell base station, based on the Sequans System On a
Chip, with a pole/roof (wall) mounted radio system and antennae. This high performance chip can
support up to 28 + 28 MHz channels (full duplex) forms part of the AS.MAX portfolio of WiMAX
network infrastructure equipment. It is compatible with the Airspan EasyST and ProST subscriber
terminals and other manufacturer's CPEs that are fully WiMAX compliant.
The MicroMAX-SOC BSR is an outdoor radio that is mounted outside on a pole or wall. The BSR
provides a wireless link with subscribers and interfaces with the provider's backbone. The
MicroMAX-SOC BSR is available in two models. These models differ by antenna design (providing
integral flat-panel antennas, or an N-type port for attaching third-party external antennas).
MicroMAX-SOC BSR is available in numerous ETSI frequency bands, operating in FDD and TDD
modes in numerous channels, see: MicroMAX-SOC Frequency Ranges.
The BSR connects to the indoor Ethernet hub/switch by a CAT 5e cable, which carries the Ethernet
signal, and DC power. For a MicroMAX-SOC Base Station consisting of multiple BSRs, the BSRs
connect to individual Subscriber Data Adapters (SDA-4S). For a Base Station consisting of a single
BSR, the BSR typically connects to a single Subscriber Data Adapter (SDA-4S).
MicroMAX-SOC BSR provides a low cost, high-performance point-to multipoint packet-based
Broadband Wireless Access (BWA) solution. MicroMAX-SOC BSR Provides wireless connectivity
designed to deliver high-speed data, voice over IP (VoIP) and multimedia services to residential,
SOHO (Small Office/Home Office), and SME (Small to Medium Enterprises).
The MicroMAX-SOC is an encased outdoor radio providing access to the MicroMAX-SOC's
communication ports on its bottom panel. The MicroMAX-SOC's back panel provides holes for
mounting.
MicroMAX-SOC BSR interfaces with the subscriber's LAN through the SDA-4S Type II (referred
henceforth as SDA-4S) integrated LAN switches.
SDA-4S Type II: integrated LAN switch, providing power and four 10/100BaseT ports for
interfacing with the subscriber’s network
MicroMAX-SOC can be managed by an SNMP-based network management system (Netspan) using
standard and proprietary MIBs. In addition, external third-party management systems such as HP
OpenView can also manage the MicroMAX-SOC using these MIBs. Basic management can be
performed using any standard Web browser.
System Overview
7
MicroMAX-SOC Frequency Ranges
The table below lists the frequency range of MicroMAX-SOC models currently available. This table
will grow as more models become available.
Frequency Band Channel
Bandwidth Channel Throughput
3.3 – 3.5 GHz in TDD
mode
1.75 MHz
3.5 MHz
5 MHz
speeds of up to 6.5
Mbps
speeds of up to 13.1
Mbps
speeds of up to 18
Mbps
3.4 – 3.6 GHz in FDD
mode
1.75 MHz
3.5 MHz
speeds of up to 6.5
Mbps
speeds up to 13.1
Mbps
4.9 – 5.0 GHz in TDD
mode
5 MHz
10 MHz
speeds of up to 18
Mbps
speeds of up to 37
Mbps
5.725 – 5.825 in TDD
mode
5 MHz
10 MHz
speeds of up to 18
Mbps
speeds of up to 37
Mbps
Main Features
Outdoor Unit(s):
o
MicroMAX-SOC Base Station Radio(s) (BSR)
Indoor:
o
SDA-4S Type II: small low cost IDU with built in LAN switch
IDU/ODU connectivity:
o
BSR requires CAT 5e cable 24 gauge or better (22 gauge recommended)
o
Fast Ethernet: 4 pins
o
(-48) VDC power: BSR FDD/TDD requires 2 pins
o
IDU/ODU length for BSR FDD: up to 100 meters
Minimum configuration:
o
SDA-4S and a single BSR
Larger configurations:
o
N*SDA-4Ss and N*BSRs
Customer Benefits
The MicroMAX-SOC BSR offers the following customer benefits:
605-0000-742_MicroMAX-SOC_Installation_Rev_D
8
Based on the latest wireless technology WiMAX IEEE 802.16 2004 standard
SOC engine for best cost/performance
o
Based on Sequans "System On a Chip" (SOC)
o
high performance chip
o
high growth potential
Architecture
The MicroMAX-SOC system consists of the following component designs:
Integrated Antenna Design
Encased MicroMAX-SOC BSR outdoor unit with integrated antenna
SDA-4S Type II indoor unit
External Antenna Design
Encased MicroMAX-SOC BSR outdoor unit
SDA-4S Type II indoor unit
Third-party external antenna (optional deployment)
The figure below displays a typical setup of the MicroMAX-SOC(s) mounted outdoors on a pole (with
an integrated antenna).
Power
The SDA-4S is a switch providing the MicroMAX-SOC BSR with -48 VDC power supply, and
10/100BaseT interface with the subscriber's PCs/network.
Models
The MicroMAX-SOC is available in the following basic physical designs:
MicroMAX-SOC with a built-in (integral), internal antenna
MicroMAX-SOC with an N-type type RF connector for connecting an optional third-party
external antenna
Note: A MicroMAX-SOC with an N-type port for attaching a third-party external antenna
does not provide a built-in antenna.
9
INSTALLATION PREREQUISITES
Before installing your MicroMAX-SOC, review:
Package contents
Required tools
Radio Site planning
Package Contents
Examine the AS.MAX shipping container. If you notice any damage, or missing items as listed in the
Packing List, immediately notify the carrier that delivered the unit and contact a Airspan
representative.
The MicroMAX-SOC kit should contain the following items:
MicroMAX-SOC Base Station radio
DB15-to-RJ45 adapter for plugging into the BSR's 15-pin D-type port
Pole-mounting kit:
o
2 x M10 hex head screws
o
2 x M10 flat washers
o
2 x M10 spring lock washers
o
2 x M10 hex nuts
o
Mounting bracket
o
2 x M6 hex head screws
o
2 x M6 spring lock washers
o
Clamping bracket
o
2 x M8 'U'- bolts
o
4 x M8 hex nuts
o
4 x M8 plain washers
o
4 x M8 spring lock washers
Note: The standard MicroMAX-SOC kit does not include wall-mounting accessories. For
pricing and ordering of wall-mounting accessories, please contact your nearest Airspan
dealer.
Required Tools
The following tools are required to install the MicroMAX-SOC unit:
Torque wrench for N-type connectors (only relevant when implementing external antenna)
Cable stripping tool
10-, 13-, and 17-mm A/F open ended spanners
Radio Site Planning
Proper site selection and planning before installing your MicroMAX-SOC will ensure a successful
deployment of your AS.MAX system. A summary of the main site planning considerations is
provided below:
Minimum obstructions (e.g. buildings) in the radio path between base station and the
subscriber terminals
Mount radio as high as possible to avoid obstructions in the wireless path
605-0000-742_MicroMAX-SOC_Installation_Rev_D
10
Check possibility of future obstructions such as plans to erect buildings and trees that may
grow tall enough to obstruct the wireless path
Align radio for maximizing received signal strength (RSS)
Consider nearby sources of interference that could degrade performance of radio
Mount radio as far from sources of interference as possible
Ensure base station and subscriber terminals (i.e ProST/EasyST) are within maximum
coverage range of reception
Maximum standard CAT-5e cable length connecting the MicroMAX-SOC to the indoor SDA-
4S is 100 meters
Ensure that you have sufficient wiring conduit and cable ties to channel and protect the CAT
5e cable connecting the outdoor MicroMAX-SOC to the indoor SDA-4S
Radio Antenna Alignment
ProST
Once the subscriber unit (i.e. ProST) is installed and aimed in the general direction of the
BSR, it is recommended to measure the received signal strength (RSS) to determine the
signal strength received from the BSR, and to precisely align the ProST for maximum signal
strength.
You need to orientate (up/down, left/right) the ProST until the maximum RSSI levels are
achieved, and then secure the ProST.
EasyST
Once the subscriber unit (i.e. EasyST) is installed and aimed in the general direction of the
BSR, simply move the EasyST to the position that gives optimal reception.
11
PHYSICAL DESCRIPTION
This section provides a description of the components of the MicroMAX-SOC installation:
MicroMAX-SOC (outdoor unit)
SDA-4S Type II (indoor unit)
MicroMAX-SOC BSR
The BSR is an encased outdoor radio providing access to communication ports on its bottom panel.
The BSR's back panel provides holes for mounting.
Physical Dimensions
The table below lists the physical dimensions of the BSR.
Parameter Value Comment
Height 400 mm (15.74 inches)
Width 317 mm (12.48 inches)
Depth 65.5 mm (2.58 inches)
Weight 3.8 kg
The physical dimensions exclude
the mounting kit.

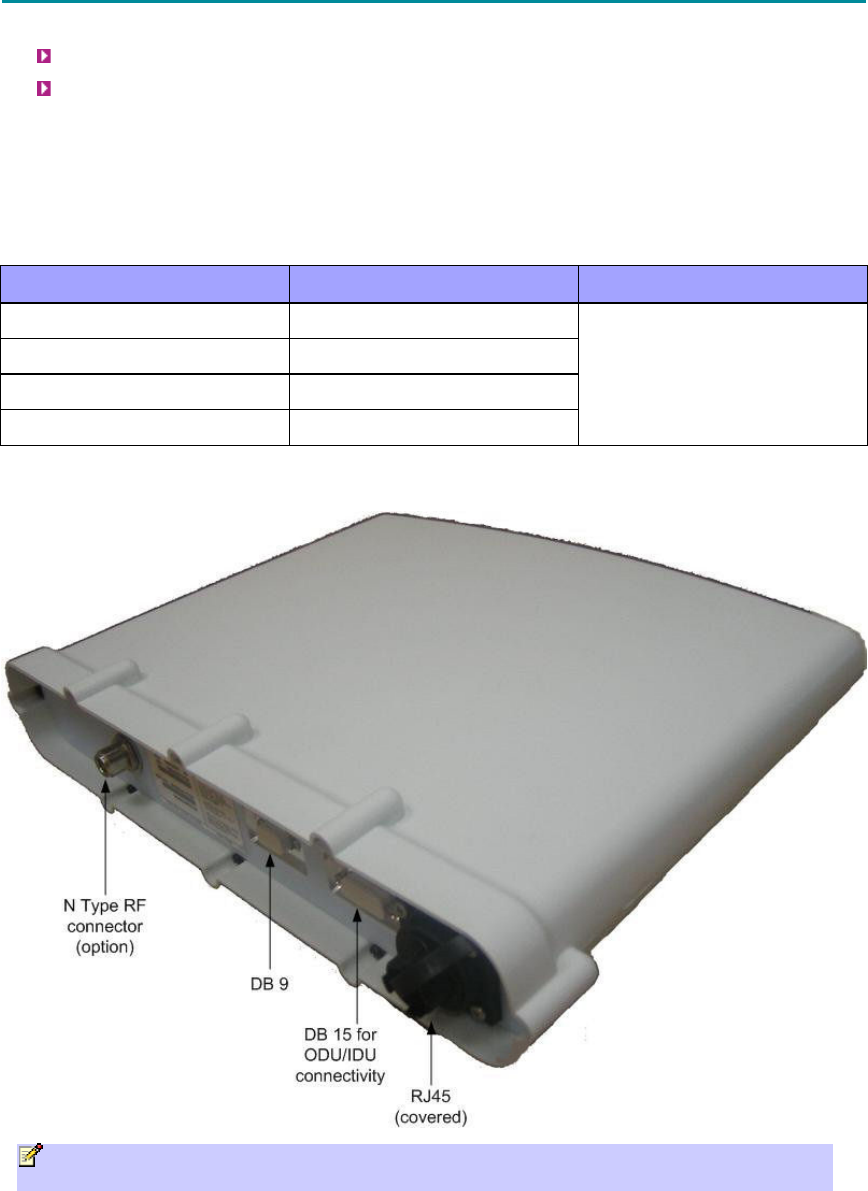

The figure below illustrates the MicroMAX-SOC's physical dimensions.
Note: BSR models that use third-party external antennas provide an N-type receptacle for
attaching an external antenna.
605-0000-742_MicroMAX-SOC_Installation_Rev_D
12

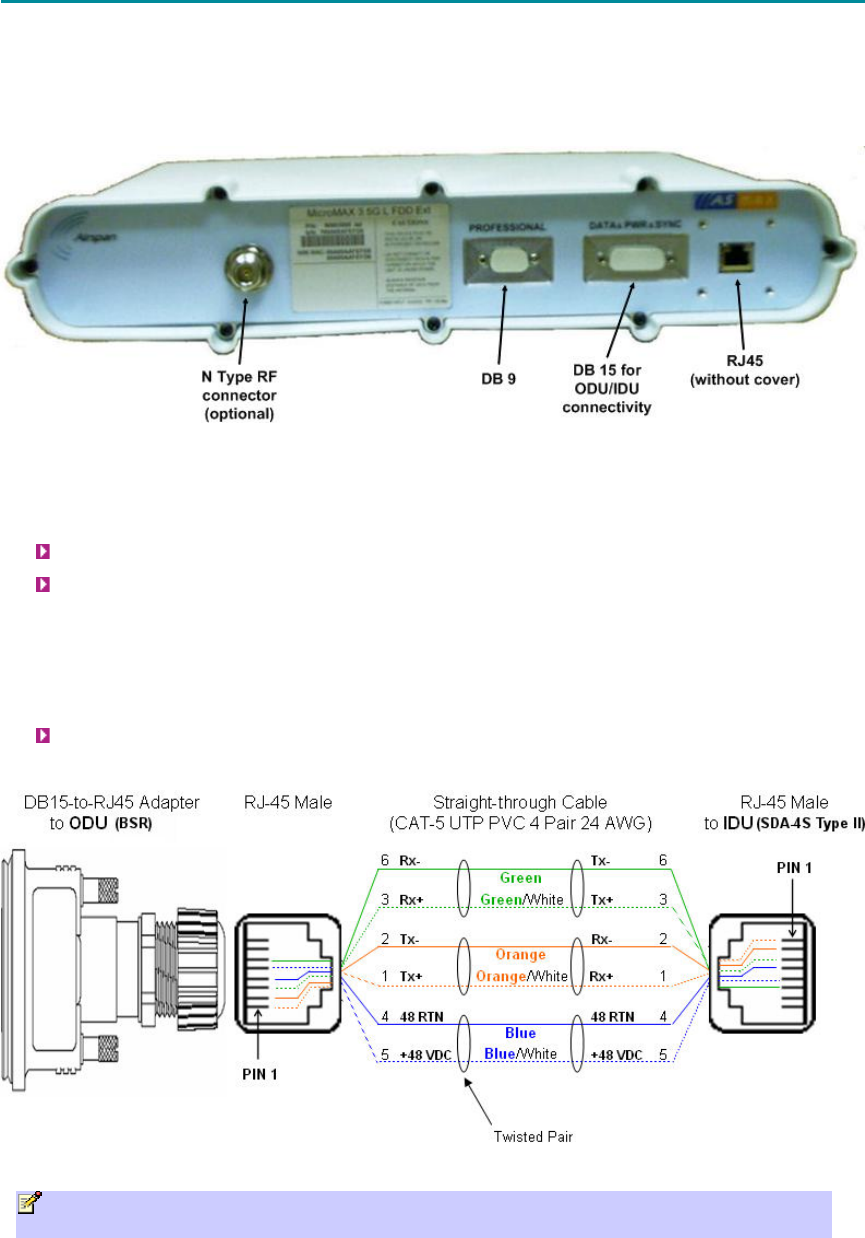

Ports
The table below defines the different ports on the bottom panel.
Port interfaces Description
DB 15 IDU/ODU interface:
Fast Ethernet from/to SDA-4S Type II
(also BSDU in the future)
Power from SDA-4S Type II (also BSDU
in the future)
TDD Tx/Rx sync from BSDU (future)
DB 9 Engineering applicability (Technical Service only)
RJ45 (with cover) For future use
N Type RF connector - relevant when
implementing external antenna
External antenna connection
Physical Description
13

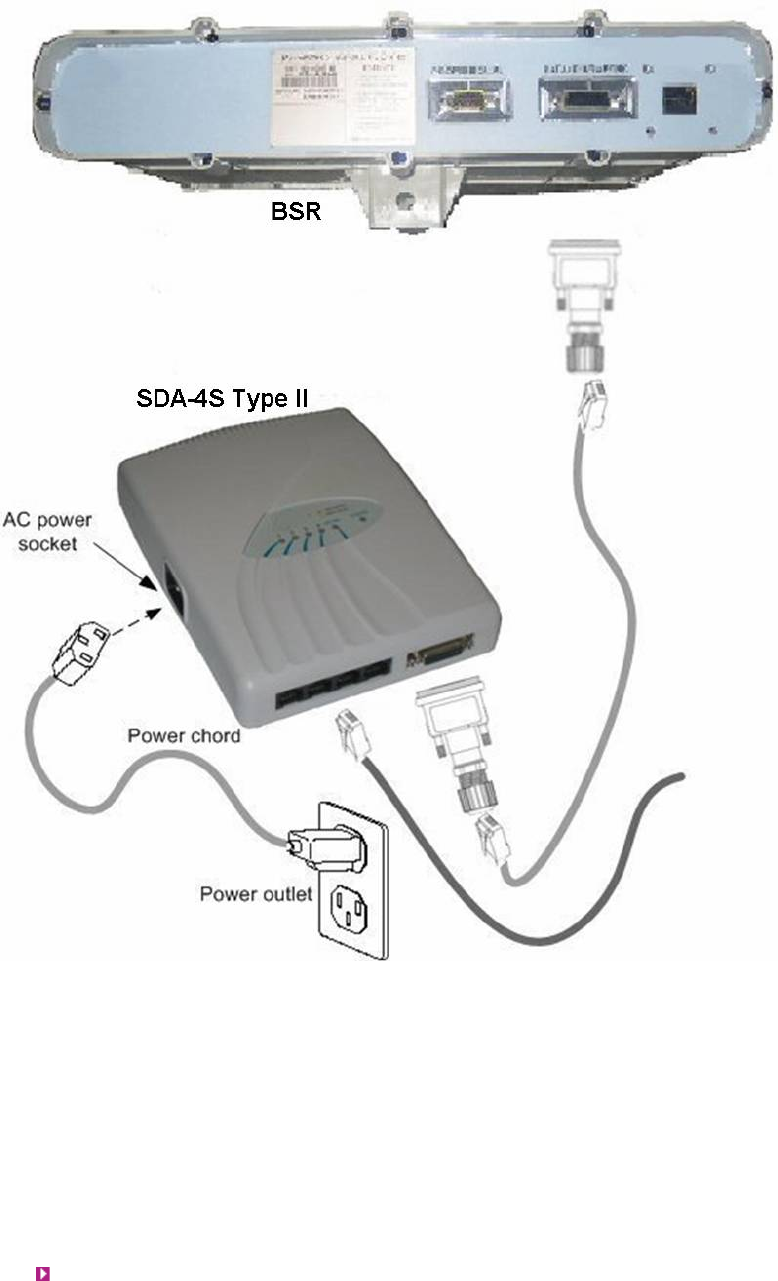

MicroMAX-SOC is powered from the indoor integrated LAN switch:
SDA-4S Type II

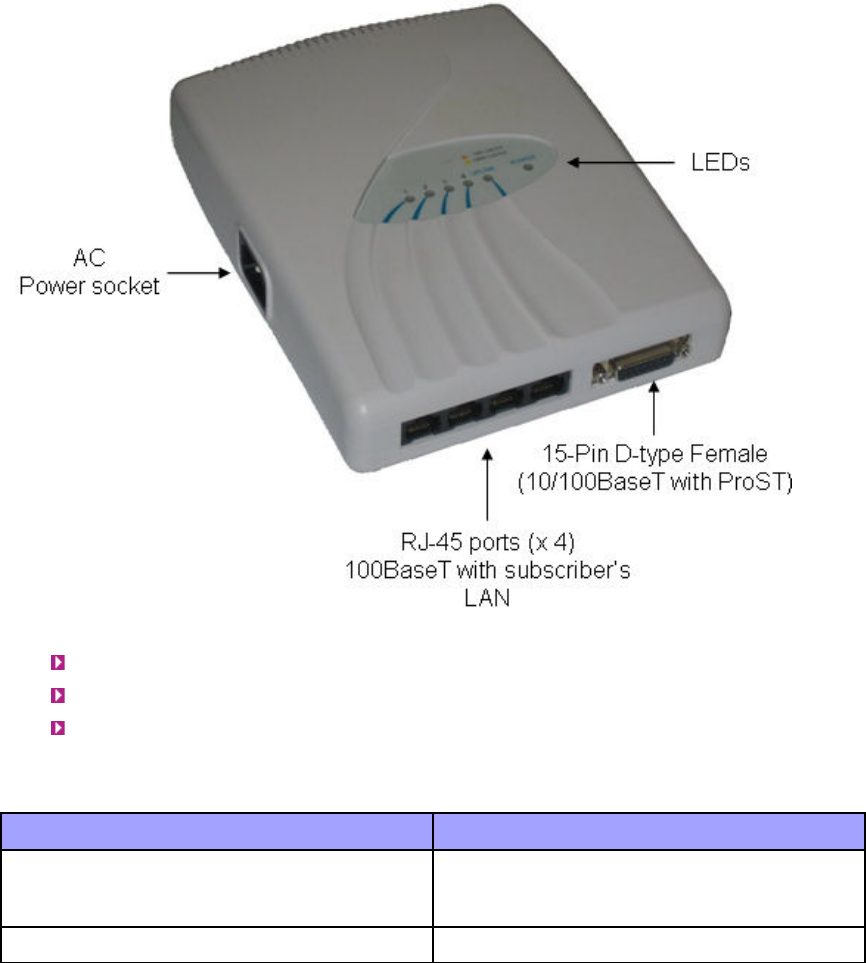

The SDA-4S Type II indoor unit (hereafter referred to as SDA-4S for convenience) is an integrated
LAN switch, providing power and four 10/100BaseT ports for interfacing with the subscriber’s
network. The unit is displayed in the figure below.
This subsection provides the following SDA-4S physical descriptions:
Dimensions
Ports
LEDs
Physical Dimensions
The SDA-4S physical dimensions are described in the table below:
Parameter Value
Dimensions Height - 200mm (7.87 inches)
Width - 150mm (5.9 inches)
Depth - 40mm (1.57 inches)
Weight 0.53 Kg
605-0000-742_MicroMAX-SOC_Installation_Rev_D
14
Ports
The SDA-4S adapter provides ports on the front panel, which are described in the table below:
Port Interface
4 x 8-pin RJ-45 10/100BaseT with subscriber's network
(supports Auto Negotiation and MDI/MDI-X
automatic crossover, allowing connection of
straight-through or crossover cables)
15-pin D-type (female) 10/100BaseT with BSR
AC power socket Subscriber's power outlet (110-240 VAC, 1A,
50/60 Hz, 50W)
Note: The ports of the SDA-4S models support Auto Negotiation, allowing automatic
configuration for the highest possible speed link (10BaseT or 100BaseT), and Full Duplex or
Half Duplex mode. In other words, the speed of the connected device (e.g. PC) determines
the speed at which packets are transmitted through the specific SDA-4S port. In addition, the
SDA-4S ports support MDI/MDI-X automatic crossover, allowing connection to straight-
through or crossover cables.
Physical Description
15
LEDs
The SDA-4S adapter provides LED indicators on the top panel, which are described in the table
below:
LED Color Status Meaning
On Physical link (10BaseT
or 100BaseT) between
SDA-4S adapter and
BSR
Blinking Traffic currently
flowing between SDA-
4S and BSR
UPLINK Yellow (100BaseT) or
Orange (10BaseT)
Off No link between SDA-
4S and BSR
On Physical link (10BaseT
or 100BaseT) between
SDA-4S and
subscriber's Ethernet
network
Blinking Traffic currently
flowing between SDA-
4S and subscriber's
Ethernet network
1, 2, 3, 4 Yellow (100BaseT) or
Orange (10BaseT)
Off No link between SDA-
4S and subscriber's
Ethernet network
On Power received by
SDA-4S
POWER Green
Off No power received by
SDA-4S

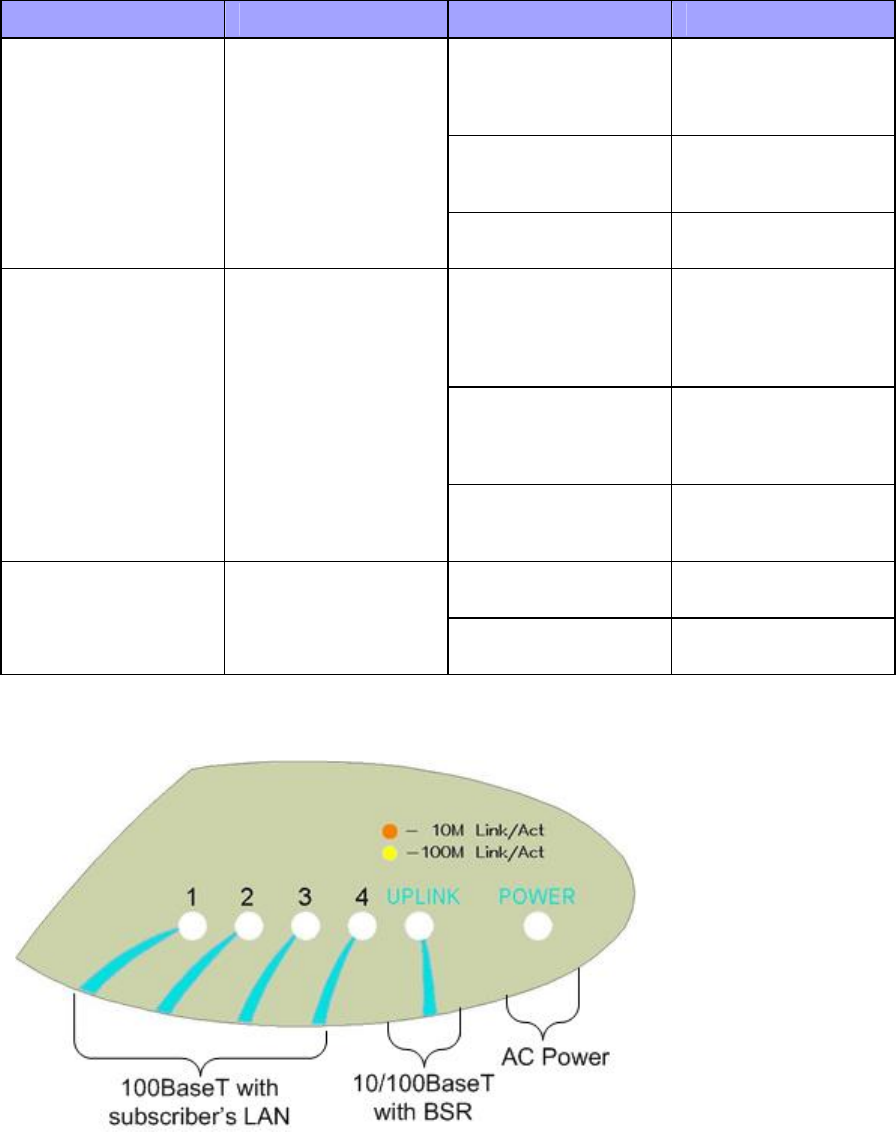

The figure below displays the LEDs which are located on the top panel of the SDA-4S Type II
adapter:
16
MOUNTING THE BASE STATION RADIO (BSR)
Mounting the MicroMAX-SOC
The MicroMAX-SOC BSR can be pole-mounted or wall-mounted (optional). Pole mounting allows the
BSR to be easily adjusted in the horizontal (azimuth) and vertical (elevation) planes for antenna
alignment.

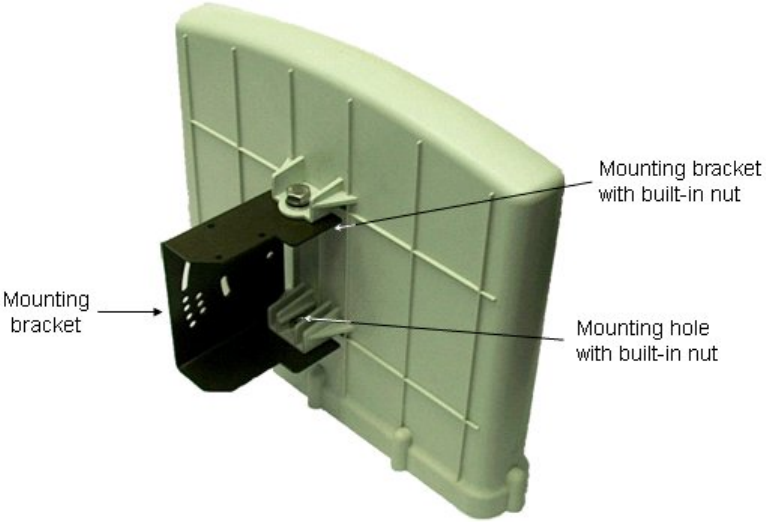

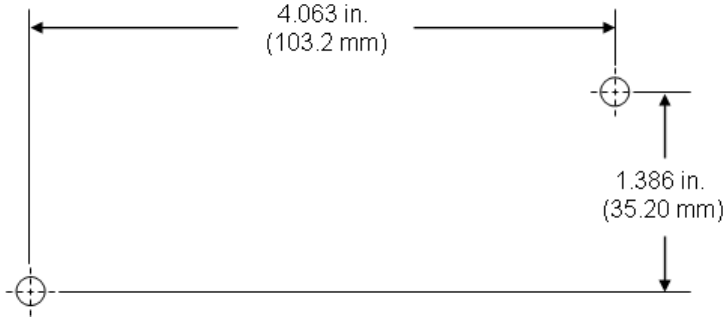

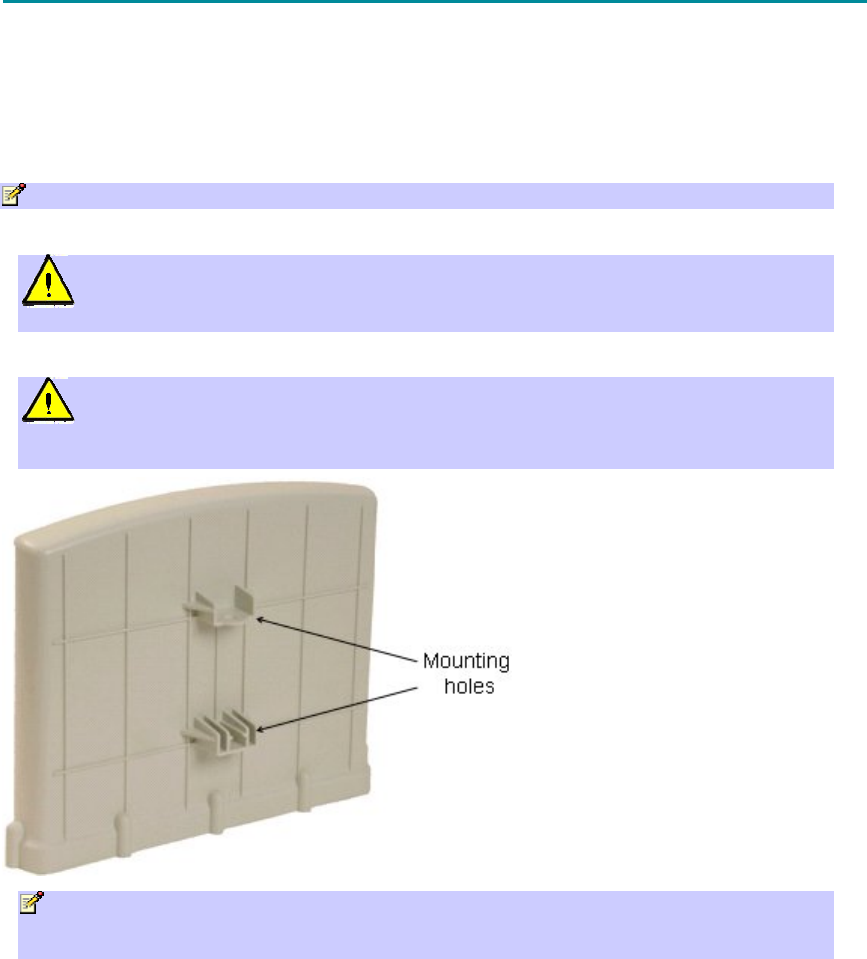

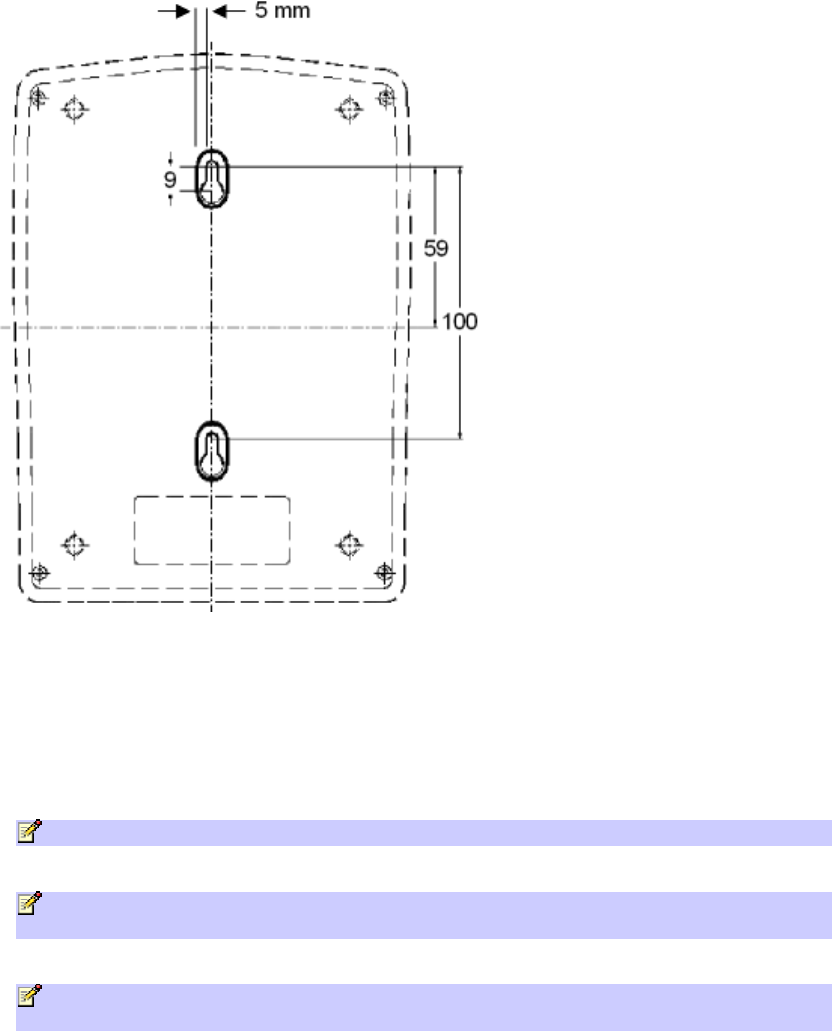

For either mounting method, the MicroMAX-SOC provides mounting holes (displayed in the figure
below), molded into its back panel for attaching the mounting brackets.
Note: The BSR fully complies with IP Code - IPX6 for product enclosure protection.
Warning: The BSR device is an outdoor radio unit, and therefore, must only be
mounted outside.
Warning: Mount the MicroMAX-SOC in an orientation such that its ports (located on
the bottom panel) faces downwards. This prevents rain water from settling on the ports, and
thereby, avoiding damage to the unit such as corrosion and electrical short-circuiting.
Note: The standard BSR kit, provides pole-mounting brackets. If you want to wall-mount
the MicroMAX-SOC, contact your Airspan distributor for pricing and ordering of wall-mounting
brackets.
Pole-Mounting the BSR
Pole mounting allows the MicroMAX-SOC to be easily adjusted in the horizontal (azimuth) and
vertical (elevation) planes for antenna alignment. The BSR is mounted using the mounting holes
located on the BSR's back panel and the supplied pole-mounting brackets. The pole-mounting
bracket is designed to support the BSR on a round pole of 45 mm in diameter.
The figure below summarizes of the MicroMAX-SOC's pole-mounting procedure.
Mounting the Base Station Radio (BSR)
17
To pole mount the MicroMAX-SOC BSR:
1. Attach the mounting bracket to the MicroMAX-SOC:
a. Align the mounting bracket with the MicroMAX-SOC's mounting holes so that the mounting
bracket's side with the built-in nut is aligned with the BSR's mounting holes furthest from
the MicroMAX-SOC's bottom panel, as shown in the figure below.
b. Slide an M10-flat washer and M10-spring lock washer onto an M10-hex head screw (ensure
spring lock washer is closest to the bolt's head). From the external side, insert the M10-hex
head screw through the mounting bracket and MicroMAX-SOC's mounting holes. Fasten the
M10-hex head screw (one is provided with a built-in nut while the other requires you to
insert an M10-hex nut into the MicroMAX-SOC's mounting hole).
605-0000-742_MicroMAX-SOC_Installation_Rev_D
18
2. Attach the clamping bracket to the mounting bracket:
a. Slide an M6-spring lock washer onto an M6-hex head screw. Align the mounting bracket's
and clamping bracket's pivot holes, such that the clamping bracket is aligned to the inside
of the mounting bracket. From the external side of the mounting bracket, insert the M6-hex
head screw into the pivot holes and then fasten, but not tightly. (The clamping bracket
provides a built-in nut.)
b. Choose an elevation hole on the mounting bracket and then align it with the corresponding
hole on the clamping bracket. Slide an M6-spring lock washer onto an M6-hex head screw,
and then from the external side of the mounting bracket, insert the M6-hex head screw
through the elevation hole on the mounting bracket and into the clamping bracket's
corresponding hole. Fasten but not tightly the M6-hex head screw (the clamping bracket
provides built-in nut). The elevation hole can later be changed according to desired antenna
orientation in the elevation plane.
Mounting the Base Station Radio (BSR)
19
3. Attach the U-bolt to the pole:
a. Place one U-bolt around the pole, and then insert the U-bolt screw side through the two
corresponding holes (horizontally parallel) on the clamping bracket. Slide an M8-flat washer
and M8-spring lock washer onto each U-bolt screw side (ensure that the flat washer is
adjacent to the clamping bracket). Fasten each U-bolt side with the two M8-hex nuts.
b. Attach the second U-bolt as described above.
4. Perform final MicroMAX-SOC orientation:
a. Adjust the vertical position of the MicroMAX-SOC by choosing a final elevation hole as
described in Step 2. Lock the MicroMAX-SOC at the desired position by inserting the locking
bolt in the desired position and fastening it tightly. Fasten tightly the bolt in the pivot hole.
The figure below illustrates the angles (in degrees) of each elevation hole. As shown, the
MicroMAX-SOC pole-mounting bracket allows elevation between -18.5° and 26.3°.
605-0000-742_MicroMAX-SOC_Installation_Rev_D
20
b. Adjust the horizontal position of the MicroMAX-SOC by rotating it about the pole, and then
tightening the nuts of the U-bolts.
Note: A thread-locking compound must be used to prevent the bolts from working loose.
MicroMAX-SOC positioning is obtained in two planes by adjustment of the mounting bracket
assembly as shown below.
It is important to provide strain relief and drip loop for Cat-5 cables. Create a drip loop and strain
relief using cable tie, to tie cable to pole, as displayed in the figure below:
Mounting the Base Station Radio (BSR)
21
Wall-Mounting the BSR (Optional)
Note: The standard BSR kit provides pole-mounting brackets. If you want to wall-mount
the MicroMAX-SOC BSR contact your Airspan distributor for pricing and ordering of wall-
mounting brackets.
Note: A minimum of 3-meter separation is required between mounted MicroMAX-SOC's
and existing customer radio equipment when transmitting on different sectors (see figure
below). However, only a 1-meter separation is required between MicroMAX-SOC's when on
the same sector and transmitting to the same base station radio without requiring shielding.

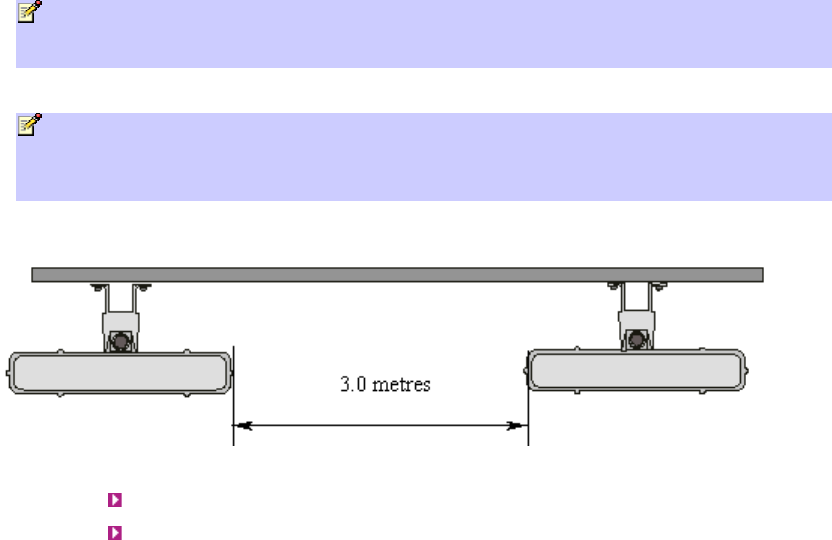

The figure below illustrates the minimum separation between mounted MicroMAX-SOC's when
transmitting on different sectors:
MicroMAX-SOC wall mounting consists of two main stages:
Attaching the mounting bracket to the MicroMAX-SOC's mounting holes
Attaching the mounting bracket (already attached to the MicroMAX-SOC ) to the
wall (or pole)
To wall mount the MicroMAX-SOC:
1. Position the unassembled mounting bracket on the mounting surface (e.g. wall), and then
use a pencil to mark the position of the four mounting holes. Ensure that the distance
between the hole centers are 120 mm (height) and 60 mm (width), as displayed in the
figure below showing the MicroMAX-SOC's fixing dimensions.
605-0000-742_MicroMAX-SOC_Installation_Rev_D
22
2. Drill holes for each hole that you marked in the step above.
3. Insert wall anchors (not supplied) into each of the drilled holes.
4. Align the mounting bracket's four holes with the wall anchors, and then insert a screw (not
supplied) through the mounting bracket holes into each wall anchor, and then tighten.
Note: Airspan does not provide screws for attaching the mounting bracket to the wall. The
screw size depends on the structure of the building to which the bracket is to be attached.
When selecting screw sizes, consideration must be given to the weight of the MicroMAX-SOC
and load that may be induced in windy conditions.
Mounting the Base Station Radio (BSR)
23
5. Attach the MicroMAX-SOC to the mounting bracket by performing the following:
a. Slide an M10-spring lock washer and then an M10-plain washer onto each M10-hex head
screw (ensure lock washer is nearest to head of screw bolt).
b. Align the mounting bracket's holes with the MicroMAX-SOC's mounting holes as displayed
below. (The mounting bracket side that provides a groove for inserting a nut must be
aligned with the MicroMAX-SOC's mounting hole that is nearest to the MicroMAX-SOC's
bottom panel.)
c. From the external sides, insert the M10-hex head screws through the mounting bracket's
holes and MicroMAX-SOC's mounting holes. Loosely fasten with the M10-hex nuts.
605-0000-742_MicroMAX-SOC_Installation_Rev_D
24
6. Adjust the horizontal positioning of the MicroMAX-SOC (see "Web-Based Management" for
MicroMAX-SOC antenna alignment using RSS measurements), and then tighten the two
M10-hex head screws with the M10 hex nuts.
Note: A third-party thread-locking compound must be applied to the M10-hex head screws
to prevent the bolts from working loose.
Note: For wall mounting, rotation is restricted in the horizontal plane only.
Installing the SDA-4S Type II
The SDA-4S Type II is mounted vertically on a wall.
Wall Mounting
Wall mounting is made possible by the existence of two mounting hooks molded into the SDA-
4S's bottom panel, as displayed in the figure below.
Mounting the Base Station Radio (BSR)
25
To wall mount the SDA-4S:
1. On the wall, mark the position of the two mounting hooks. The dimensions of the wall-
mounting hooks are displayed in the template below.
2. Drill holes for each hole that you marked in the step above.
3. Insert wall anchors (supplied) into each of the drilled holes.
4. Insert the 9-inch screws (supplied) into the wall anchors. Ensure at least 2 mm of the screw
is exposed to allow insertion into the SDA-4S mounting holes.
5. Hold the SDA-4S with both hands, and align the entrance to the two mounting hooks with
the screws. Slide the screws into the mounting hooks, by lowering the SDA-4S onto the
screws.
Note: For safety, both mounting hooks must be utilized when mounting the unit.
Note: The SDA-4S is supplied with a 1-metre AC power lead assembly. Therefore, ensure
the unit is mounted within reachable distance to the customer's mains power outlet.
Note: The maximum cable run between SDA-4S and MicroMAX-SOC is 100 meters.
Therefore, ensure the unit is mounted within reachable distance.
26
CABLING THE BSR
Connecting the BSR to the SDA-4S
he SDA-4S provides -48 VDC power to the BSR as well as the Fast Ethernet interface between the
BSR and the provider's backhaul network. The outdoor Base Station Radio and Modem are powered
over a CAT5e Cable by the SDA-4S Type II IDU in the minimum configuration. For larger
configurations N* SDA-4Ss and N* BSRs are required.
The BSR interfaces with the subscriber's Ethernet network through the SDA-4S. To connect the BSR
to the SDA-4S, you need to connect the BSR's 15-pin D-type port to the SDA-4S's 15-pin D-type
port using a CAT-5e cable.
The cable setup for MicroMAX-SOC-to-SDA-4S connectivity is as follows:
Cable: Straight-through CAT 5e Ethernet cable
Connectors:
o
MicroMAX-SOC: DB15-to-RJ45 outdoor adapter
o
SDA-4S: DB15-to-RJ45 indoor adapter (for connecting to DATA&PWR&SYNC D-type
connector)
o
CAT 5e cable with 8-pin RJ-45 male connectors on either end
Connector pinouts:
Note: The wire color-coding described in the table is Airspan's standard for wire color-
coding. However, if you implement your company's wire color-coding scheme, ensure that the
Cabling the BSR
27
wires are paired and twisted according to pin functions listed in the table above (e.g. Rx+
with Rx-).
Note: The maximum CAT 5 cable length for ODU/IDU connectivity is 100 meters.
To connect the BSR to the SDA-4S:
1. Connect the 15-pin D-type male connector, at one end of the CAT 5e cable, to the BSR's
15-pin D-type port labeled DATA&PWR&SYNC.
2. Connect the 15-pin D-type male connector, at the other end of the CAT 5e cable, to the
SDA-4S's 15-pin D-type port.
SDA-4S Type II
Using the SDA-4S Type II
The SDA-4S Type II provides one to four RJ-45 (100BaseT) ports for interfacing with the
subscriber's LAN network.
The ports of the SDA-4S model support Auto Negotiation, allowing automatic configuration for
the highest possible speed link (10BaseT or 100BaseT), and Full Duplex or Half Duplex mode.
In other words, the speed of the connected device (e.g. PC) determines the speed at which
packets are transmitted through the specific port. For example, if the device to which the port
is connected is running at 100 Mbps, the port connection will transmit packets at 100 Mbps.
Conversely, if the device to which the port is connected is running at 10 Mbps, the port
connection will transmit packets at 10 Mbps
In addition, the SDA-4S ports support MDI/MDI-X automatic crossover, allowing connection to
straight-through or crossover CAT 5e cables. Therefore, these ports can be connected to either
a hub (i.e. using crossover cables) or a PC (i.e. using straight-through cables).
The cable setup for SDA-4S LAN connectivity is as follows:
Cable: Straight-through (e.g. when connecting to PC) or crossover (i.e. when connecting to
a hub) CAT 5e Ethernet cable
Connectors: 8-pin RJ-45 at both ends
Connector pinouts:
o
Straight-through cable (e.g. connecting to a PC)
605-0000-742_MicroMAX-SOC_Installation_Rev_D
28
CONNECTING THE SDA-4S TO THE POWER SUPPLY
Connecting the SDA-4S Type II
The SDA-4S adapters are plugged into a standard electrical wall outlet (110/240 VAC) using an AC
power cord. The appropriate AC power cord is supplied according to the country of use
The cable setup between the SDA-4S and power outlet includes the following:
Connector: AC IEC 60320 type (female)
Plug: The appropriate plug type is supplied according to the country of use
Cable: 3x1.z0 mm, 10A / 250 VAC (maximum length is 180 cm)
To connect the SDA-4S to the AC power supply:
1. Connect the power plug female, at the end of the AC power chord, into the AC power socket
located on the left panel of the SDA-4S.
2. Plug the power plug male, at the other end of the AC power chord, into the AC power outlet
(110-240 VAC).
3. Verify that the power is received by the SDA-4S by checking that the POWER LED light is
on.
Cabling the BSR
29
4. Verify that your SDA-4S is on and receiving power by checking that the LED labeled
POWER is lit (see SDA-4S LED description).
Connecting SDA-4S to Ethernet Network
The MicroMAX-SOC typically interfaces with the subscriber's network/computer using the SDA-4S
Type II which provides four (10/100BaseT) LAN ports for interfacing with the subscriber's LAN
network.
Connecting Lightning and Surge Protector
The optional third-party lightning and surge protector (PolyPhaser) is implemented in the following
deployment scenarios:
ODU-to-IDU cable length of 40 meters or more (mandatory to use surge protector)
605-0000-742_MicroMAX-SOC_Installation_Rev_D
30
Deployment of MicroMAX-SOC in geographical areas that frequently experience severe
lightning storms
The lightning and surge protector protects the ODU-to-IDU CAT 5e cable's six used wires (two -48
VDC wires and four Ethernet Tx and Rx wires) from any electrical surges due to lighting strikes.
The protector is installed outdoors on the CAT 5e cable that connects between the MicroMAX-SOC
and the SDA-4S Type II. In other words, two CAT 5e cables are required for the following
connections:
MicroMAX-SOC-to-protector connection
Protector-to-IDU connection
Warning: Do not install the lightning and surge protector during adverse weather
conditions when the threat of lightning strike is possible.
Note: The protector unit must be grounded to a low-impedance (low R and low L) ground
system to operate properly.
Note: For pricing and ordering of the PolyPhaser lightning and surge protector, contact
your Airspan representative.
To install the lightning protector:
1. Connect the protector in the direction according to the labels. The end labeled SURGE
accepts the cable from the MicroMAX-SOC; the end labeled PROTECTED accepts the cable
from the SDA-4S.
2. Feed the CAT 5e cable through the grommet (for each side). If the RJ-45 connector is
already crimped to the other end, ensure that you have fed the cable through the gland nut
beforehand. The gland nut secures the cable to the grommet.
3. Strip about 0.25" (6.35 mm) of the cable sheath and expose about 0.03" (0.8 mm) of the
strands/wires.
4. Secure the wires to the protector's terminal block using the two spot ties. Each side of the
data and DC assembly has + or – markings to ensure lines entering (surge side) match
lines exiting ( protected side).
5. Mount and ground the protector outdoors with the provided 2 x 8-32 screws according to
the fixing template illustrated below (showing distances between centers of the two
Cabling the BSR
31
mounting holes). The unit may be mounted/grounded on a nearby plate or bulkhead panel
that is bonded to an earth-ground system.
6. Attach the protector's lid by using the four M4 x 20-mm screws. Ensure that the neoprene
gasket on the lid is not loose or out of the groove.
7. Secure the CAT 5e cable to the grommet by fastening the gland nut.
The figure below illustrates the connectivity of the lightning and surge protector.
605-0000-742_MicroMAX-SOC_Installation_Rev_D
32
Cabling the BSR
33
CONNECTING AN EXTERNAL ANTENNA
Connecting Third Party External Antenna
The MicroMAX-SOC BSR model without a built-in antenna provides an N-type port for connecting a
third-party external antenna. The addition of an external antenna allows greater RF sector coverage
than the standard MicroMAX-SOC BSR built-in antenna model.
Warning: Before connecting the external antenna, ensure that the MicroMAX-SOC is
not connected to the power source.
Warning: Before powering on the MicroMAX-SOC, ensure that some type of equipment
such as an antenna or an RF attenuator is connected to the N-type receptacle. This eliminates
the risk of irreversibly damaging the MicroMAX-SOC device.
Warning: It is the responsibility of the person installing the MicroMAX-SOC to ensure
that only those antennas certified with the product are used. The use of any antenna other
than those certified with the product is expressly forbidden.
Warning: The external antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
Warning: The MicroMAX-SOC and external antenna should be installed ONLY by
experienced installation professionals who are familiar with the local building and safety codes
and are licensed by the appropriate government authorities.
Note: The MicroMAX-SOC model that provides an N-type connector for attaching a third-
party external antenna does not contain an internal, built-in antenna.
The following lists the cable setup for attaching the external antenna:
Cable: RF coaxial
Connector: N-type male
To connect a third-party external antenna to the MicroMAX-SOC:
Connect the N-type male connector of the third-party antenna to the N-type receptacle
located on the MicroMAX-SOC's panel (labeled ANTENNA), as displayed below.
605-0000-742_MicroMAX-SOC_Installation_Rev_D
34
35
TRADEMARKS AND COPYRIGHTS
1. ©Airspan Networks Inc 2006
2. The information in this document is proprietary to Airspan Networks Inc. This document
may not in whole or in part be copied, reproduced, or reduced to any medium without prior
consent, in writing, from Airspan Networks Incorporated.
3. This manual is subject to revision.
4. All rights reserved.
5. Right of modification reserved.
6. This manual is supplied without liability for errors or omissions.
7. No part of this manual may be reproduced or used except as authorised by contract or
other written permission.
8. This equipment is conditioned by the requirement that no modifications are made to the
equipment unless the changes or modifications are expressly approved by the Airspan
Communications Corporation
9. Prerequisite skills: Personnel installing, commissioning, and maintaining the Airspan
products must have a basic knowledge of telephony and radio communications, and have
experience in installing, commissioning and maintaining telecommunications products.
Airspan provides a range of comprehensive training courses specifically aimed at providing
operators/users of Airspan products with the prerequisite skills to install, commission and or
maintain the product. The courses are tailored to provide the level of training required by
the operator/user.
10. AS MicroMAX-SOC, AS8200 and Netspan are brands of Airspan Networks Inc.
36
CONTACT INFORMATION
Customer Service Help-Desk for customer service emergency
Airspan Communications Limited
Cambridge House
Oxford Road
Uxbridge
Middlesex
UB8 1UN.
Int. Tel: +44 (0) 1895 467 467
Int. Fax: +44 (0) 1895 467 472
E-mail: Support@Airspan.com
UK Office for sales and general enquiries
Airspan Communications Ltd
Cambridge House
Oxford Road
Uxbridge
Middlesex
UB8 1UN.
Call +44 (0) 1895 467100
Fax +44 (0) 1895 467101
email sales@ airspan.com
Internet: Airspan.com
37
REVISIONS
Revision Level Date Main Changes
01 4-4-2006 Initial Document
A 09-05-2006 additional content
B 26-06-2006 corrections
C 27-06-2006 added PolyPhaser
D 10-08-2006 corrections
38
WARNINGS
1. Disclaimer
Every effort has been made to ensure the accuracy of the material provided herein; however,
Airspan assumes no responsibility regarding the use of the material. Additionally, Airspan
makes no representations or warranties, either expressed or implied, regarding the contents
of this product. Airspan Networks Inc. shall not be liable for any misuse regarding this
product.
Any product performance limits stated within this document are for information purposes
only and should be considered as indicative.
1.1 Safety Warnings
1. Read this User Manual and follow all operating and safety instructions.
2. Keep all product information for future reference.
3. This product is supplied with a grounding power plug. Do not defeat this important safety
feature.
4. Warning: High voltages exist inside the product - do not remove the lid or base: No user
serviceable parts inside.
5. CAUTION: DOUBLE POLE/NEUTRAL FUSING - Always replace the fuse with the correct type
and current rating.
6. Position the power cord to avoid possible damage; do not overload wall outlets.
7. Do not place this product on or near a direct heat source, and avoid placing objects on the
terminal.
8. Do not operate this device near water or in a wet location.
9. Use only a damp cloth for cleaning. Do not use liquid or aerosol cleaners. Disconnect the
power before cleaning.
10. Protect the terminal by disconnecting the power if not used for long periods.
11. Mount the terminal in a Telco rack on a stable horizontal surface.
12. The radio antenna units must not be located near power lines or other electrical power
circuits.
13. The radio transceiver must be properly grounded to protect against power surges and
accumulated static electricity. It is the user’s responsibility to install this device in
accordance with the local electrical codes: correct installation procedures for grounding of
the transceiver unit, mast, lead-in wire and discharge unit, location of discharge unit, size
of grounding conductors and connection requirements for grounding electrodes.
14. Installation of the transceiver must be contracted to a professional installer.
15. Disconnect Device. The socket outlet shall be installed near the equipment , easily
accessible and will act as the disconnect for the MicroMAX-SOC.
16. When installed in the final configuration, the product must comply with the applicable
Safety Standards and regulatory requirements of the country in which it is installed. If
necessary, consult with the appropriate regulatory agencies and inspection authorities to
ensure compliance.
1.2 Important Warning Symbols
The following symbols may be encountered during installation or troubleshooting. These warning
symbols mean danger. Bodily injury may result if you are not aware of the safety hazards involved
in working with electrical equipment and radio transmitters. Familiarize yourself with standard
safety practices before continuing.
Warnings and Cautions
39
Electro-Magnetic Radiation High Voltage
1.3 Important Service Information
1. Refer all repairs to qualified service personnel. Do not remove the covers or modify any
part of this device, as this will void the warranty.
2. Disconnect the power to this product and return it for service if the following conditions
apply:
a. The terminal does not function after following the operating instructions outlined in
this manual.
b. Liquid has been spilled, a foreign object is inside, or the terminal has been exposed
to rain.
c. The product has been dropped or the housing is damaged.
3. Locate the serial number of the terminal, antenna, and transceiver and record these on
your registration card for future reference. Use the space below to affix serial number
stickers. Also record the MAC address, located on the back of the terminal.
1.4 UL Information
- The equipment must be properly grounded according with NEC and other local safety code
requirements
- Reminder to all the BWA system installers: Attention to Section 820-40 of the NEC which
provides guidelines for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of cable
entry as is practical.
1.5 CE Notice
The MicroMAX-SOC shelf carries the CE mark to demonstrate conformity with the Radio
Equipment and Telecommunications Terminal Equipment and the Mutual recognition of their
conformity (R&TTE) directive 1999/5/EC.
WARNING: This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Installation
The transceiver and antenna equipment must be installed by a qualified professional installer
and must be installed in compliance with regional, national, and local regulations. It is the
responsibility of the system installer and/or system operator to ensure the installed system
does not exceed any operational constraints identified by local regulations.
Refer to the sections in this product User Guide for detailed information about the correct
installation steps to ensure power and frequency settings are set correctly before connecting
the antenna.
Antenna Selection
Refer to the product User Guide for a list of Airspan Networks approved antennas. Antennas
not listed in the User Guide are outside the scope of this Declaration.
CAUTION: European Directive 1999/519/EC details basic restrictions and reference levels on
human exposure to electromagnetic fields as advised by the ICNIRP. The directive states that
adherence to these recommended restrictions and reference levels should provide a high
level of protection as regards the established health effects that may result from exposure to
such fields.
605-0000-742_MicroMAX-SOC_Installation_Rev_D
40
By the very nature of the system design and installation users will not find them selves
within close proximity of the subscriber terminals.
Standards EN50383 and EN50385 are the applicable harmonised standards for EM fields
generated by fixed wireless equipment.
The Electromagnetic fields generated by the Central Terminal antenna are below the
recommended safe levels at all distances greater than 65 cm from an approved Airspan
antenna.
The safe distance from a non-approved antenna of length D and Sector Angle δ may be
calculated using the formula:
Safe distance, r = 36 / (π * D * δ)
1.6 European Community, Switzerland, Norway, Iceland, and
Liechtenstein
Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC
English:
This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Deutsch:
Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren
entsprecheneden Vorgaben der Richtlinie 1999/5/EU.
Dansk:
Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante
bestemmelser i Directiv 1999/5/EF.
Español:
Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la
Directive 1999/5/EC.
Eλληνικά:
Αυτός ο εξοπλισµός συµµορφώνεται µε τις ουσιώδεις απαιτήσεις και τις λοιπές διατάξεις της
Οδηγίας 1999/5/EΚ.
Français:
Cet appareil est conforme aux exigencies essentialles et aux autres dispositions pertinantes
de la Directive 1999/5/EC.
Íslenska:
Þessi búnaður samrýmist lögboðnum kröfum og öðrum ákvæðum tilskipunar 1999/5/ESB.
Italiano:
Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva
1999/5/EC.
Nederlands:
Deze apparatuur voldoet aan de belangrijkste eisen en andere voorzieningen van richtlijn
1999/5/EC.
Norsk:
Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i
EU-directiv 1999/5/EC.
Português:
Warnings and Cautions
41
Este equipamento satisfaz os requisitos essenciais e outras provisões da Directiva
1999/5/EC.
Suomalainen:
Tämä laite täyttää direktiivin 1999/5/EY oleelliset vaatimukset ja on siinä asetettujen
muidenkin ehtojen mukainen.
Svenska:
Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta
bestämmelser i Direktiv 1999/5/EC.
The Declaration of Conformity related to this product can be obtained from
product_management@Airspan.com
1.7 CAUTION
Any modifications to this device not expressly authorised by the manufacturer could void the
user's authority to operate this device.
Responsible party for compliance is:
David Mann, Airspan Networks Inc.,Cambridge House, Oxford Rd, Uxbridge, Middlesex,
England, UB8 1UN. Telephone (44) 1 895 467450.
1.8 Lightning Protection
WARNING: The following notes are general recommendations for the system. The wireless
equipment should be installed by a qualified professional installer and must follow local and
national codes for electrical grounding and safety. Failure to meet safety requirements
and/or use of non-standard practices and procedures could result in personal injury and
damage to equipment. A direct lightning strike may cause serious damage even if these
guidelines are followed.
All outdoor wireless equipment is susceptible to lightning damage from a direct hit or induced
current from a near strike. Lightning protection and grounding practices in local and national
electrical codes serve to minimize equipment damage, service outages, and serious injury.
Reasons for lightning damage are summarized as:
- Poorly grounded tower/antenna sites that can conduct high lightning strike energy into
equipment.
- Lack of properly installed lightning protection equipment that can cause equipment failures
from lightning induced currents.
A lighting protection system provides a means by which the energy may enter earth without
passing through and damaging parts of a structure. A lightning protection system does not
prevent lightning from striking; it provides a means for controlling it and preventing damage
by providing a low resistance path for the discharge of energy to travel safely to ground.
Improperly grounded connections are also a source of noise that can cause sensitive
equipment to malfunction.
A good tower grounding system disperses most of the surge energy from a tower strike away
from the building and equipment. The remaining energy on the RF cable shield and center
conductor can be directed safely to ground by using a lightning arrestor in series with the RF
cable.
To limit the equipment damage due to a lightning strike, the following practices are
recommended for the wireless system:
- Provide direct grounding from the antenna mounting bracket, the radio and antenna and
the lightning arrestors to the same ground point at the base of the tower or a ground bus on
the building. Use the grounding screws on the antenna bracket and the radio and antenna for
terminating the ground wires.
605-0000-742_MicroMAX-SOC_Installation_Rev_D
42
- Install one RF lightning protector between the radio and antenna in series with the RF
cable.
- A lightning arrestor in series with the RF cable at the point of entry to the building.
- Install a lightning arrestor in series with the IF cable at the transceiver on the tower/mast.
- The AC wall outlet ground for the terminal must be connected to the same grounding
system as the radio and antenna lightning protectors.
43
GLOSSARY
A
AAS: Adaptive antenna system (see Introduction for further details)
AP: Access point
API: Application programmers interface
ATCA: Advanced telecommunications computing architecture
B
BE: Best effort scheduling service for requesting uplink bandwidth
BER: Bit error rate
BS: Base station
BWA: Broadband wireless access
C
CIR: Committed information rate used to specify the guaranteed data rate to the customer.
CPE: Customer premises equipment (interchangeable with ST)
D
DCD: Downlink channel descriptor
DFS: Dynamic frequency selection (see Introduction for further details)
DL: Downlink
DLFP: Downlink frame prefix
E
E1: ITU term for a 2Mb/s pulse code modulated transmission link
EiRP: Effective isotropic radiated power
F
FCH: Frame control header
FDD: Frequency division duplex
FEC: Forward error correction
FFT: Fast Fourier transform used to convert a signal from the time domain into the frequency
domain
H
H-FDD: Half duplex FDD
605-0000-742_MicroMAX-SOC_Installation_Rev_D
44
I
IAD: Integrated access device
IP: Internet protocol
K
Kb/s: Kilobits per second
M
MAC: The next layer up from the PHY, known as the media access controller
Mb/s: Megabits per second
MIB: Management interface block
MIMO: Multiple-in, multiple-out
MIR: Maximum information rate used to specify the maximum data throughput to a customer.
MRC: Maximal-ratio combining
N
NLOS: None line of sight radio propagation path
NRTP: Non real time polling is similar to real time polling but is used to request uplink bandwidth
less regularly
O
O&M: Operations and maintenance
ODU: Out door unit associated with a ST
OFDM: Orthogonal frequency division multiplexing
P
PHY: The physical layer associated with the WiMAX interconnection stack
PMP: Point to multipoint radio systems architecture
PoE: Point to point protocol over Ethernet
PtP: Point to point radio systems architecture
Q
QoS: Quality of service, which is used to specify level of data throughput
R
REC: Radio equipment controller
RTP: Real time polling allows a service flow to request uplink bandwidth at regular intervals
Rx: Receiver
Glossary
45
S
SDMA: Space division multiple access is a technique which makes it possible to increase the
capacity of a cellular mobile radio system by taking advantage of spatial separation
between users
SDR: Software defined radio
SF: Service flow
SME: Small to medium sized enterprise
SNMP: Simple network management protocol
SNR: Signal to noise
SOFDMA: Scaleable orthogonal frequency division multiplexing
SoHo: Small office/home office
SS: Subscriber station (interchangeable with CPE or ST)
ST: Subscriber terminal (interchangeable with CPE or SS)
STC: Space time coding
T
T1: North American standard 1.56Mb/s pulse code modulated transmission link
TDD: Time division duplex
TDM: Time division multiplexing
Tx: Transmitter
U
UCD: Uplink channel descriptor
UGS: Unsolicited grant service used to provide fixed bandwidth slots on the uplink for an ST to
transmit data at regular intervals. The bandwidth should be used by the UGS SF, however
the final decision of which SF (if any) uses the bandwidth slot is made by the ST.
V
VoIP: Voice over Internet protocol
W
WiMAX: WiMAX is a wireless industry coalition whose members are organized to advance IEEE
802.16 standards for broadband wireless access (BWA) networks.
46
How to find out
more
about
Airspan products
and solutions
Airspan has offices in the following
countries:
Europe
Czech Republic
Poland
Russia
United Kingdom
Africa
South Africa
Americas
United States
Asia Pacific
A
ustralia
China
Indonesia
Japan
New Zealand
For more information about Airspan, its
products and solutions, please visit our
Web site:
www.airspan.com
Or write to us at one of the addresses
below.
We will be delighted to send you
additional
information on any of our products and
their
applications around the world.
Worldwide Headquarters:
Airspan Networks Inc.
777 Yamato Road, Suite 105
Boca Raton, Florida 33431-4408
USA
Tel: +1 561 893 8670
Fax: +1 561 893 8671
Main Operations:
Airspan Communications Ltd.
Cambridge House, Oxford Road,
Uxbridge, Middlesex UB8 1UN
UK
Tel: +44 (0) 1895 467 100

Navigation menu
