Airspan Networks SYN2620 Base station of LTE fixed cellular system User Manual Air4G Installation Guide

Airspan Networks Inc Base station of LTE fixed cellular system Air4G Installation Guide

Users Manual

UGD-D01001 Rev A
AirSynergy 2000
Installation Guide
AirSynergy 2000 Installation Guide
Page 2 Commercial in Confidence UGD-D01001 Rev A
Copyright
© Copyright by Airspan Networks Inc., 2013. All rights reserved worldwide.
The information contained within this document is proprietary and is subject to all relevant
copyright, patent and other laws protecting intellectual property, as well as any specific
agreements protecting Airspan Networks Inc. rights in the aforesaid information. Neither this
document nor the information contained herein may be published, reproduced or disclosed to
third parties, in whole or in part, without the express, prior, written permission of Airspan Networks
Inc. In addition, any use of this document or the information contained herein for the purposes
other than those for which it is disclosed is strictly forbidden.
Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in
equipment design or specifications.
Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However,
no responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third
parties which may be effected in any way by the use of thereof.
Any representation(s) in this document concerning performance of Airspan Networks Inc.
product(s) are for informational purposes only and are not warranties of future performance, either
expressed or implied. Airspan Networks Inc. standard limited warranty, stated in its sales contract
or order confirmation form, is the only warranty offered by Airspan Networks Inc. in relation
thereto.
This document may contain flaws, omissions or typesetting errors; no warranty is granted nor
liability assumed in relation thereto unless specifically undertaken in Airspan Networks Inc. sales
contract or order confirmation. Information contained herein is periodically updated and changes
will be incorporated into subsequent editions. If you have encountered an error, please notify
Airspan Networks Inc. All specifications are subject to change without prior notice.
Product performance figures quoted within this document are indicative and for information
purposes only.
AirSynergy 2000 Installation Guide
Page 3 Commercial in Confidence UGD-D01001 Rev A
Table of Contents
Copyright .......................................................................................................................................... 2
Table of Contents ............................................................................................................................. 3
Summary of Figures ......................................................................................................................... 6
Summary of Tables .......................................................................................................................... 8
Warnings and Cautions .................................................................................................................... 9
Human Exposure to Radio Frequencies ...................................................................................... 9
Radio Interference ........................................................................................................................ 9
Avoiding Radio Interference ......................................................................................................... 9
Modifications ................................................................................................................................. 9
General ......................................................................................................................................... 9
Safety .......................................................................................................................................... 10
Warning of Hazardous Voltages ............................................................................................. 10
Adherence to European Directive 1999/519/EC ........................................................................ 10
Warning Symbols........................................................................................................................ 11
Service Information ..................................................................................................................... 11
UL Information ............................................................................................................................ 11
Lightning Protection .................................................................................................................... 11
DECLARATION OF CONFORMITY ............................................................................................... 13
FCC Notice ..................................................................................................................................... 14
Federal Communication Commission Notice ............................................................................. 14
GPS Compliance ........................................................................................................................ 14
Maximum Output TX Power ........................................................................................................... 15
Power Consumption ................................................................................................................... 15
Antenna Types............................................................................................................................ 15
Switched Beam Antenna ............................................................................................................ 15
Front Mount Sector Antenna ...................................................................................................... 16
Supported Frequencies .......................................................................................................... 17
AirSynergy Antenna Usage Options ....................................................................................... 17
1 About this Guide ..................................................................................................................... 20
1.1 Purpose .......................................................................................................................... 20
1.2 Intended Audience .......................................................................................................... 20
1.3 Conventions .................................................................................................................... 20
1.4 Referenced Documentation ............................................................................................ 20
1.5 Organization of this Guide .............................................................................................. 20
2 Introduction ............................................................................................................................. 22
2.1 AirSynergy ...................................................................................................................... 22
2.1.1 Deployment Description.......................................................................................... 22
3 Getting Started ........................................................................................................................ 24
AirSynergy 2000 Installation Guide
Page 4 Commercial in Confidence UGD-D01001 Rev A
3.1 Workflow of Installation ................................................................................................... 24
3.2 AirSynergy Installation Checklist .................................................................................... 25
4 Verify Prerequisites................................................................................................................. 26
4.1 Verify Site Requirements ................................................................................................ 26
4.2 Verify Installation Requirements ..................................................................................... 26
4.2.1 Verify the Tools ....................................................................................................... 26

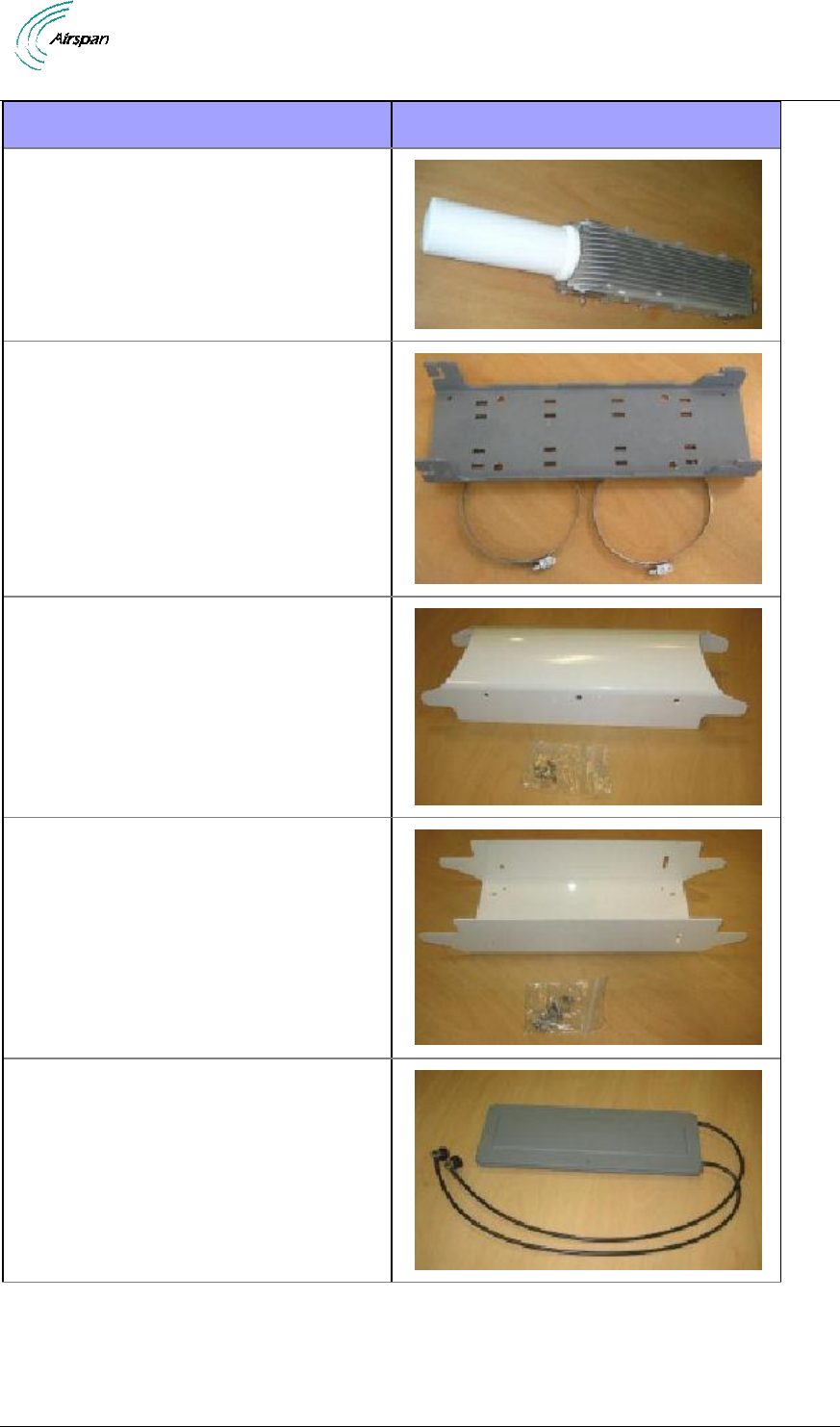

4.2.2 Verify the Parts and Kits ......................................................................................... 26
4.2.3 Verify Components ................................................................................................. 29
5 Install AirSynergy .................................................................................................................... 34
5.1 Pole Mount Assembly ..................................................................................................... 34
5.2 Front Sector Antenna Assembly ..................................................................................... 35
5.3 Connecting GPS Antenna to AirSynergy ........................................................................ 36
5.4 Securing AirSynergy to the Mounting Plate .................................................................... 38
5.5 LED Display .................................................................................................................... 39
6 Connect and Manage Cables ................................................................................................. 41
6.1 Connecting the Ground Cable ........................................................................................ 41
6.2 Connecting RF Jumper Cables to External Antenna ...................................................... 42
6.3 Connecting the Power Drop Cable to AirSynergy .......................................................... 42
7 Power System Connection ..................................................................................................... 44
7.1 Required Tools ............................................................................................................... 44
7.2
Cable Connections
........................................................................................................... 44
7.2.1 Power Drop Cable Installation ................................................................................ 44
7.2.2 Network Cable Installation ...................................................................................... 44
7.3 Wiring Power Drop Cable to the PSU............................................................................. 45
7.4 Connecting the PSU to Power Supply ............................................................................ 47
8 Initial WEB Configuration ........................................................................................................ 49

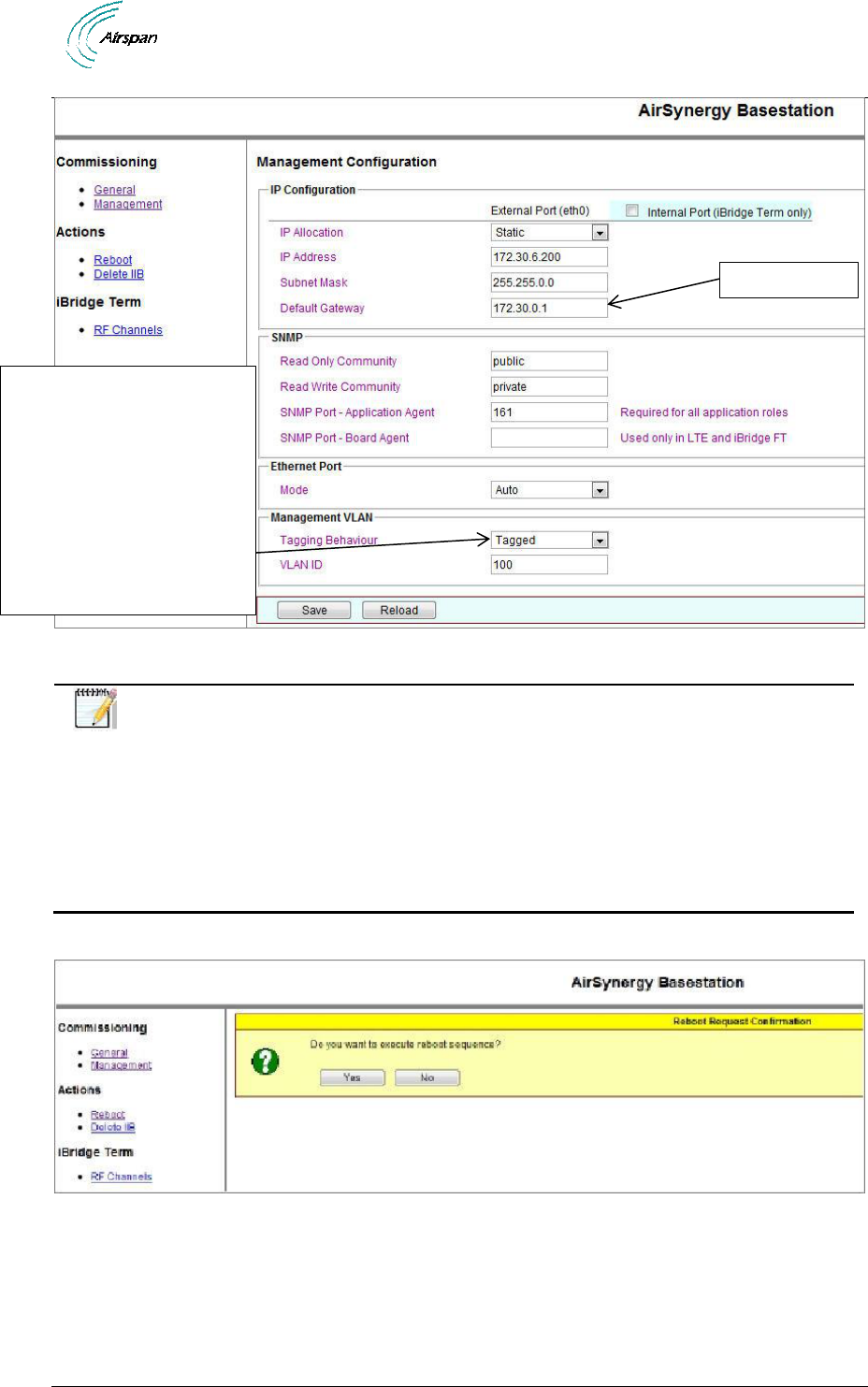

8.1 Initial configuration .......................................................................................................... 49

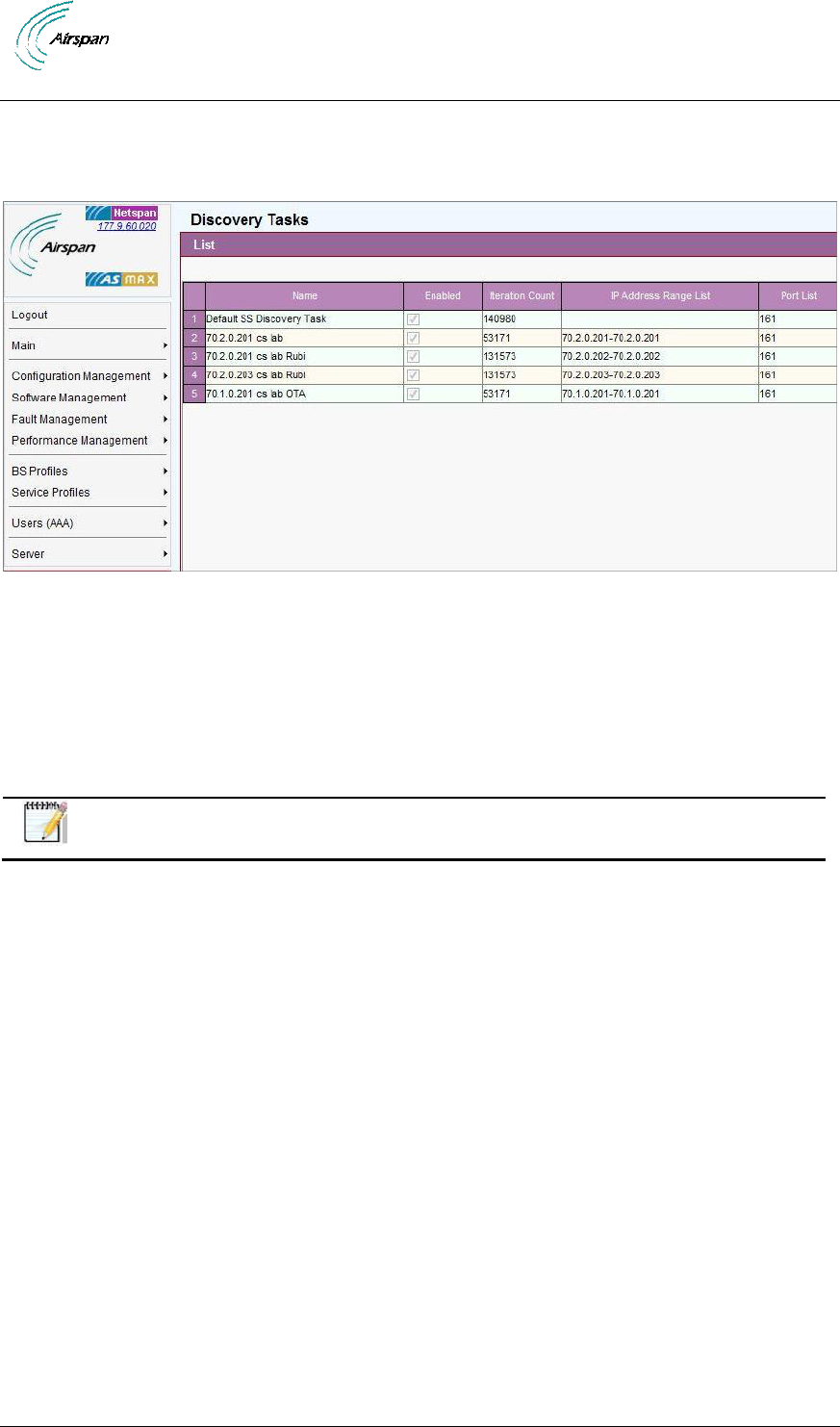

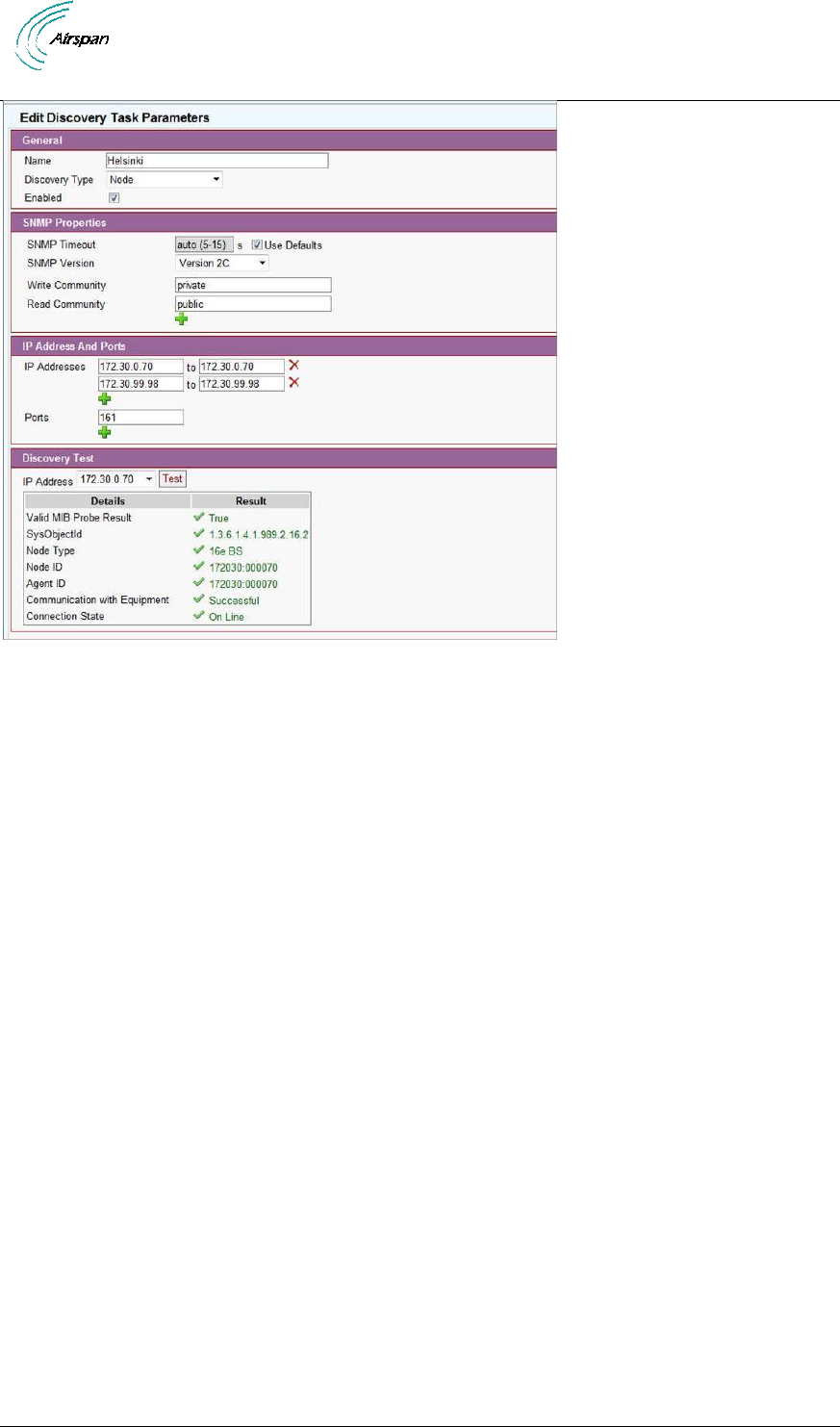

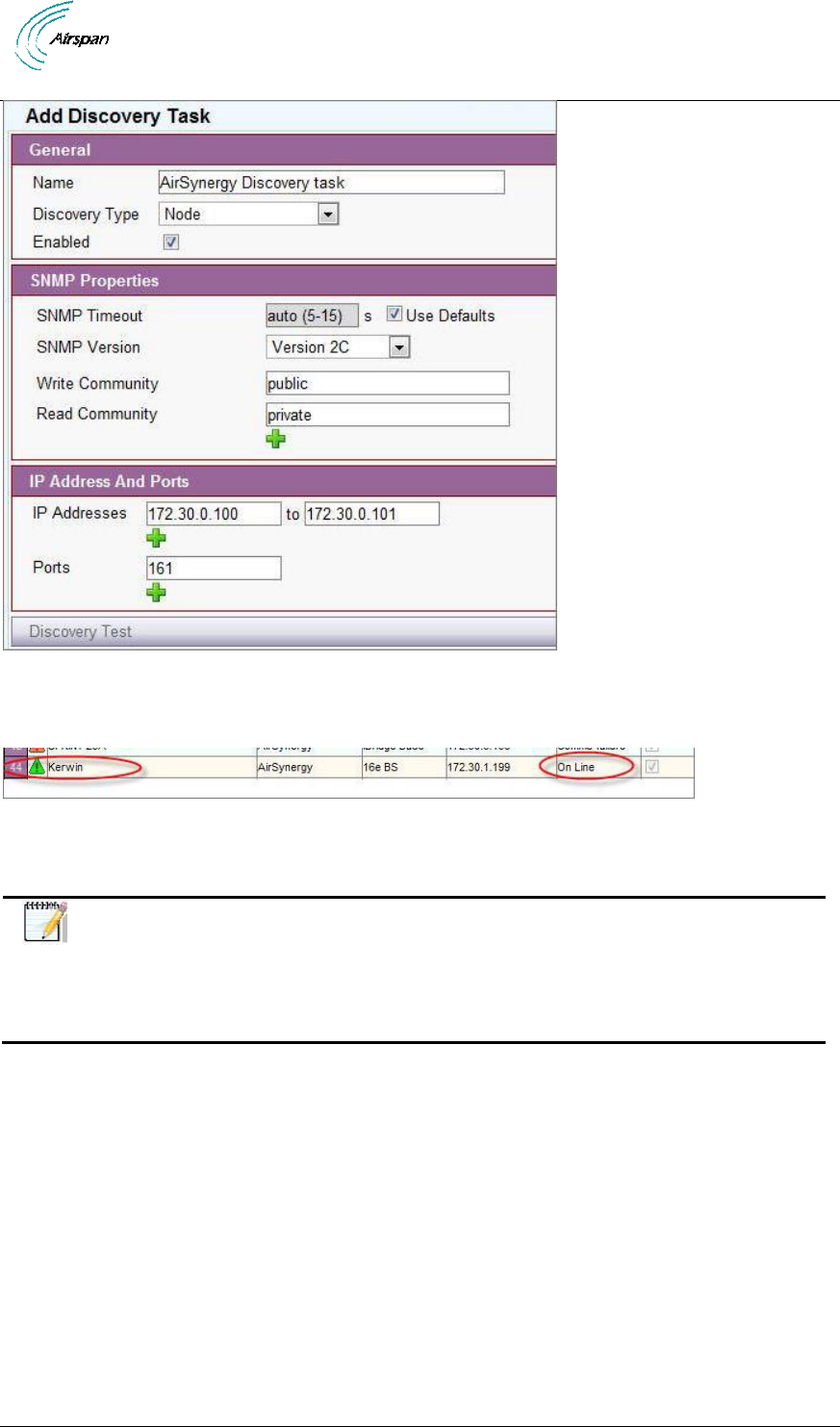

8.2 Automatic Discovery via Netspan ................................................................................... 50
9 Appendix A ............................................................................................................................. 54
Review Job Sheet ....................................................................................................................... 54
10 Appendix B - Field Assembly of Back to Back AirSynergy units ........................................ 56
10.1 Removal of the Existing Stud Mounting Plates .............................................................. 56
10.2 Reassembly with the Joining Plates ............................................................................... 56
11 Appendix C - Glossary of Terms - Acronym, Abbreviations & Definitions .......................... 59
12 Appendix D - Installation Checklist ..................................................................................... 62
13 Appendix E PSU for USA ................................................................................................ 63
14 Appendix F Antenna (Currently Supported) Types ......................................................... 64
15 Appendix G ......................................................................................................................... 65
15.1 Revision History .............................................................................................................. 65
AirSynergy 2000 Installation Guide
Page 5 Commercial in Confidence UGD-D01001 Rev A
15.2 Contact Information ........................................................................................................ 65
AirSynergy 2000 Installation Guide
Page 6 Commercial in Confidence UGD-D01001 Rev A
Summary of Figures

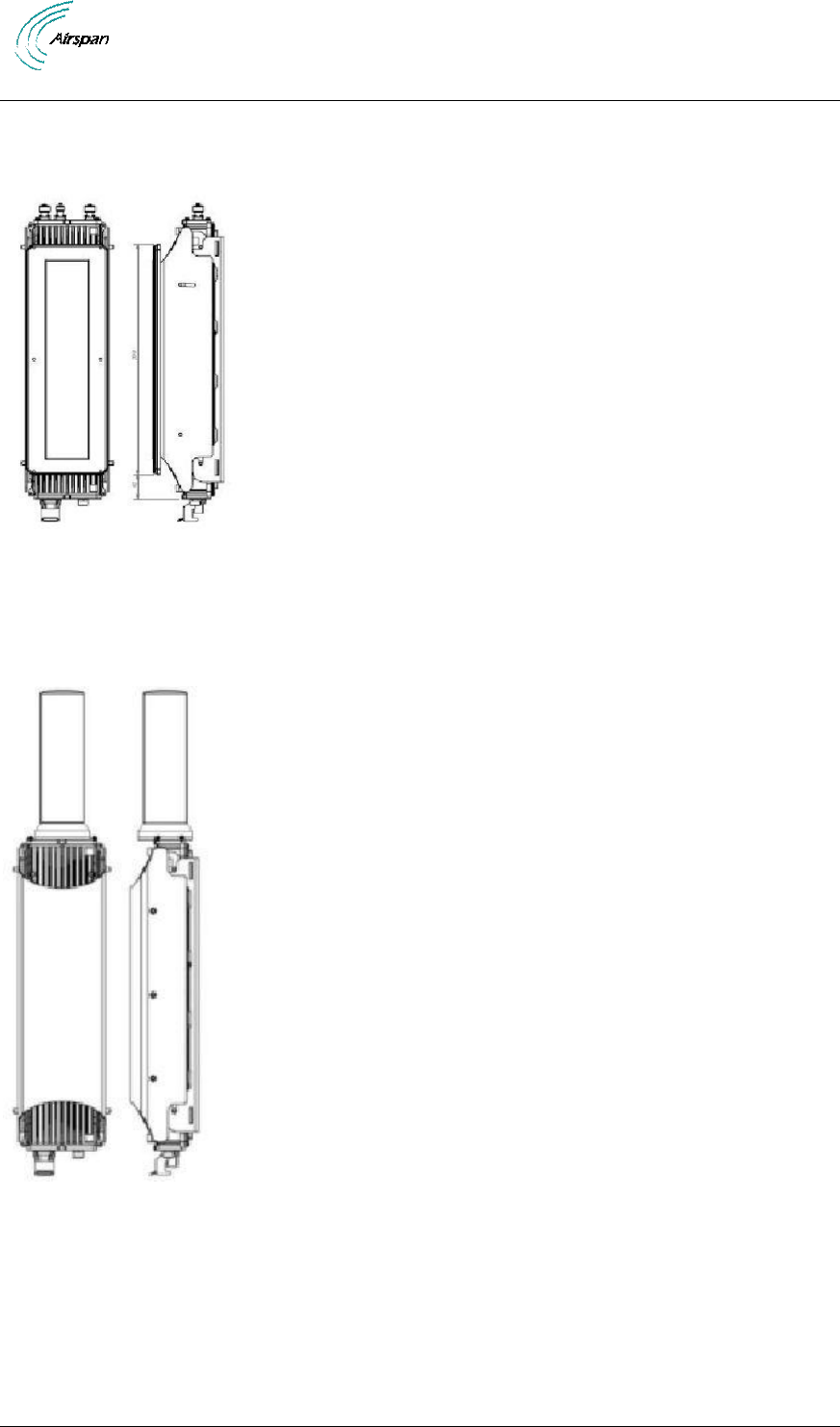

Figure 1 - AirSynergy with sunshield .............................................................................................. 18
Figure 2 - AirSynergy with front sector antenna ............................................................................. 18
Figure 3 - AirSynergy with switched beam antenna ....................................................................... 18
Figure 4 - AirSynergy dual unit with GPS attached ........................................................................ 19

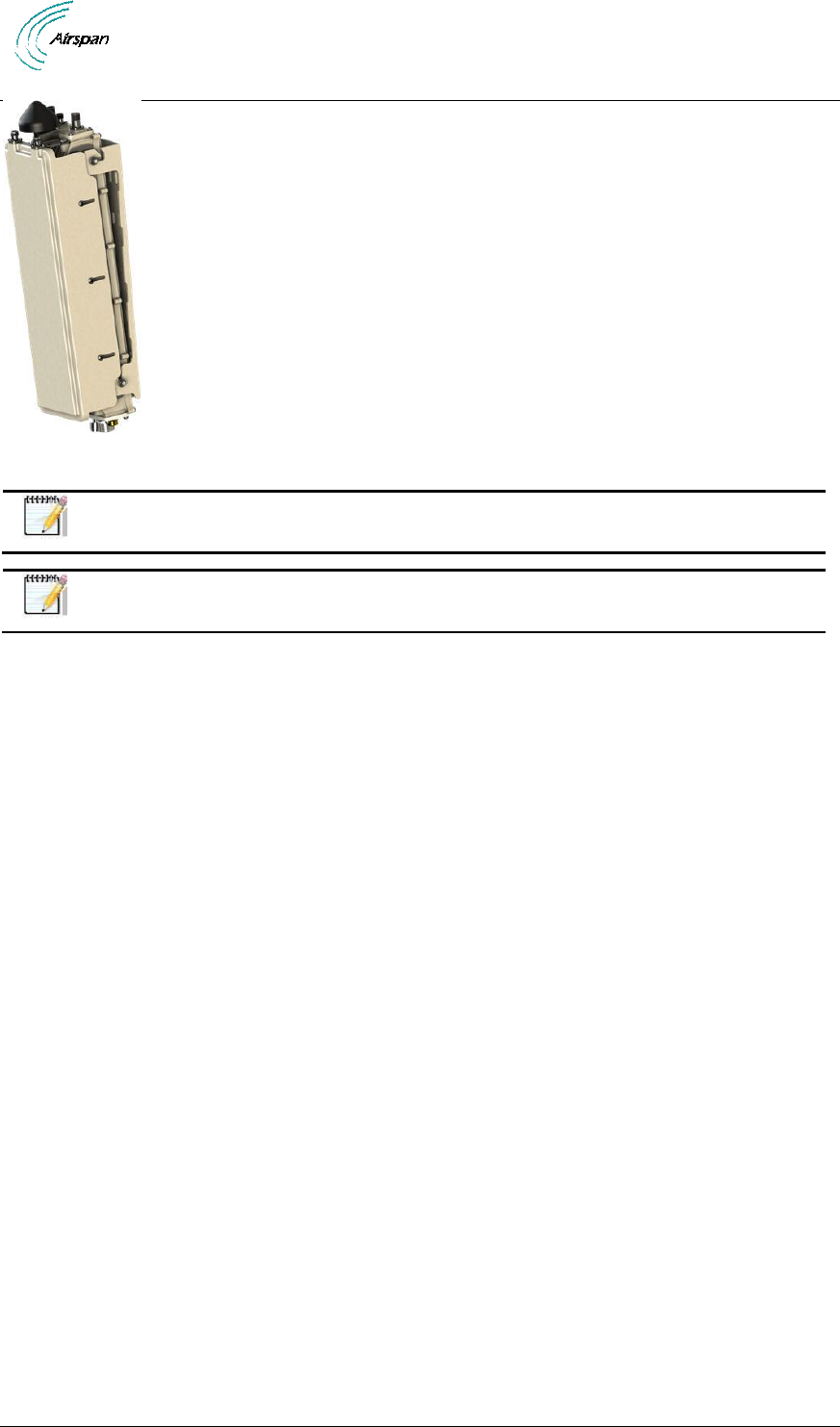

Figure 5 - AirSynergy 2000 ............................................................................................................. 23

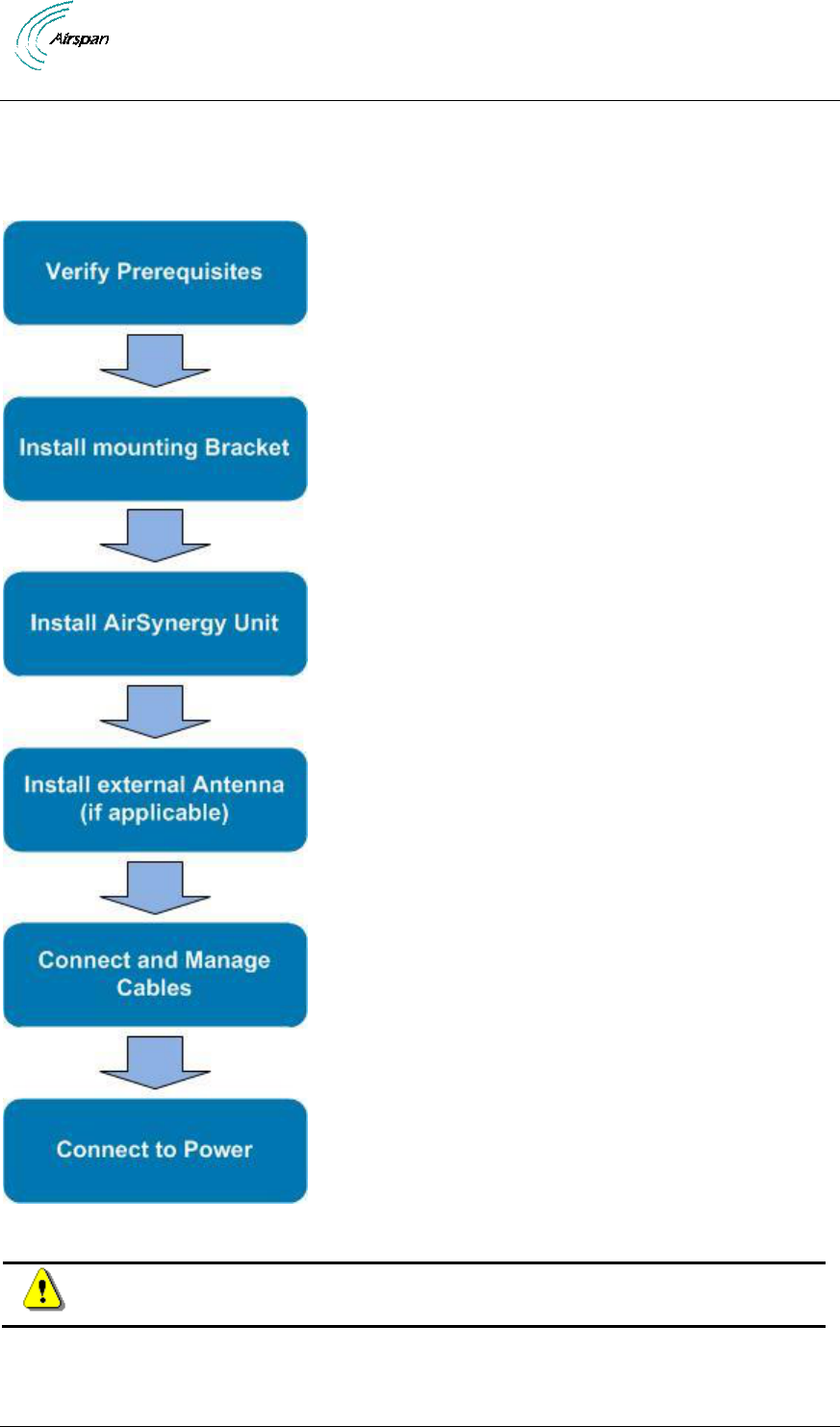

Figure 6 - Workflow of Installation .................................................................................................. 24

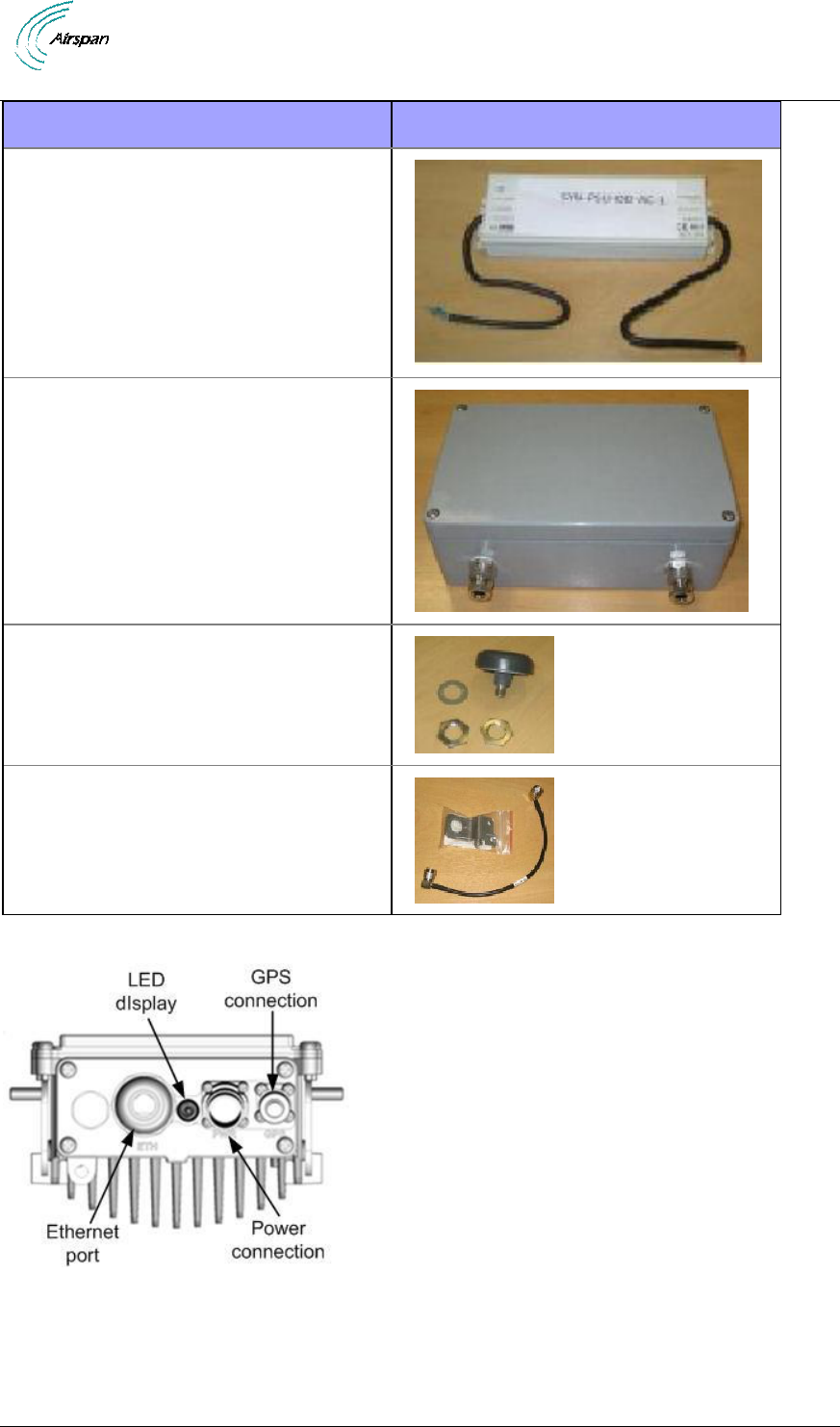

Figure 7 - AirSynergy Unit, bottom termination .............................................................................. 31

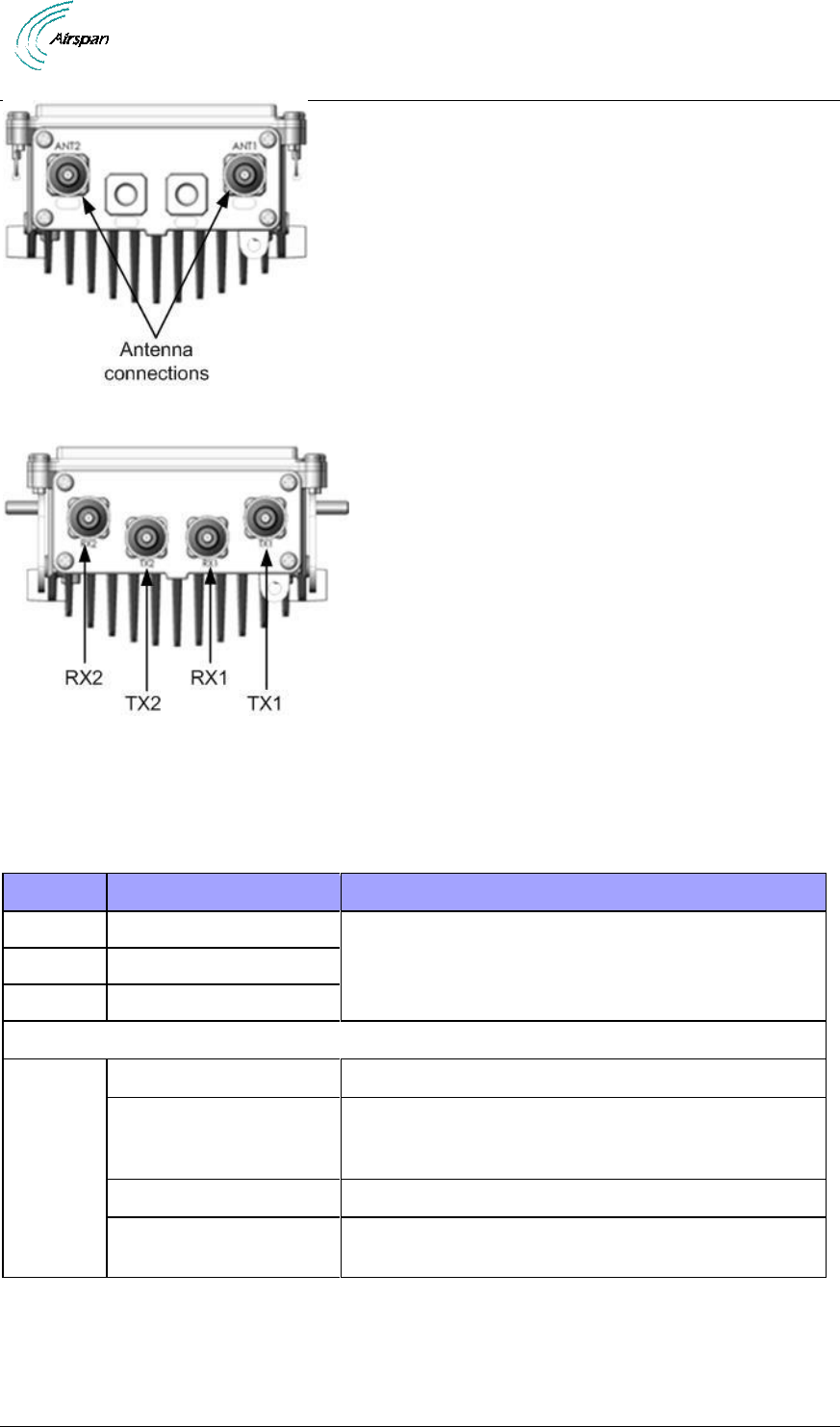

Figure 8 - AirSynergy Unit, RF ports, Internal Duplexers ............................................................... 32
Figure 9 - AirSynergy Unit, RF ports, External Duplexers .............................................................. 32

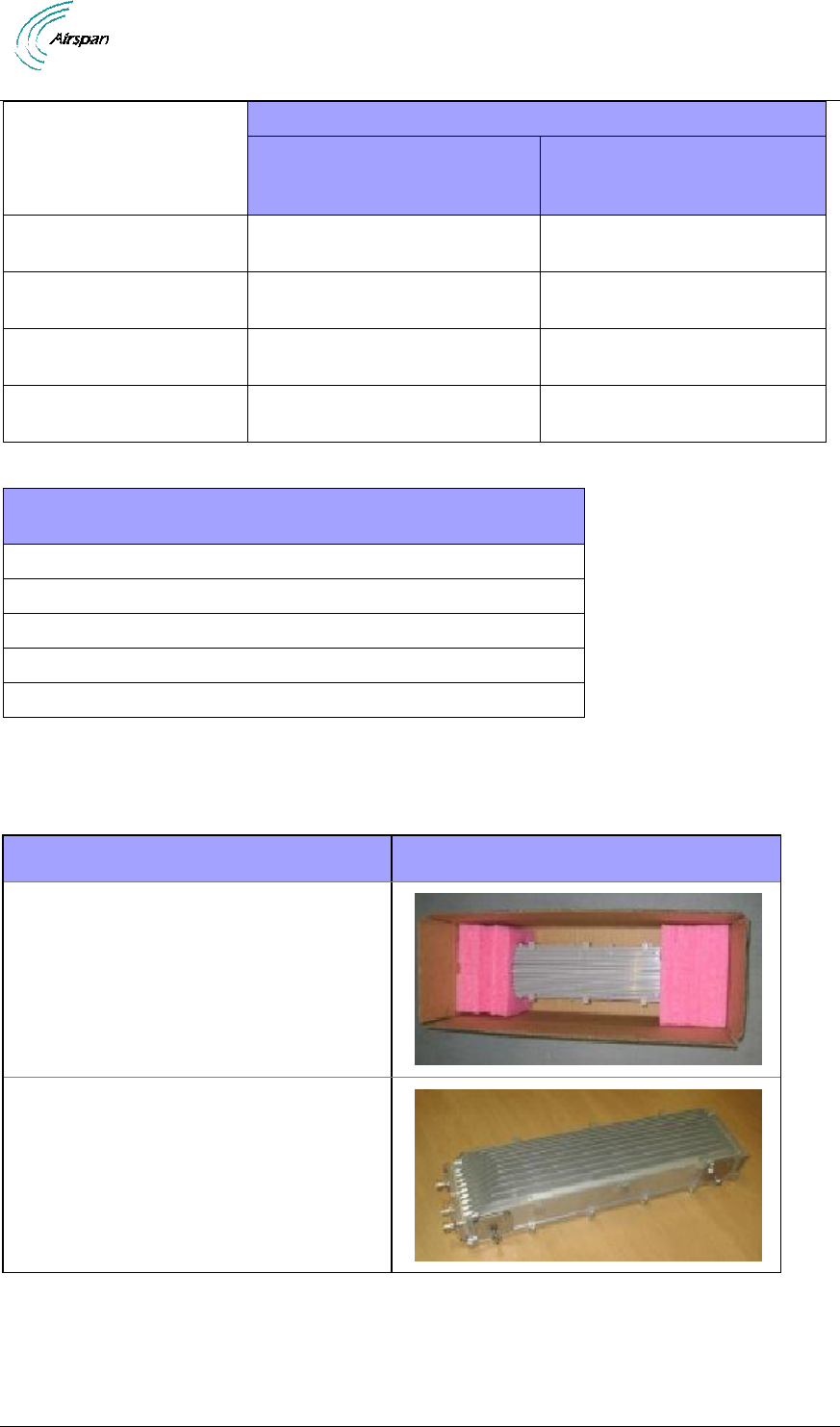

Figure 10 - pre-assembled External Duplexer ................................................................................ 33
Figure 11 - External Duplexer bottom panel ................................................................................... 33
Figure 12 - External Duplexer top panel ......................................................................................... 33
Figure 13 - AirSynergy mounting plate and hardware .................................................................... 34

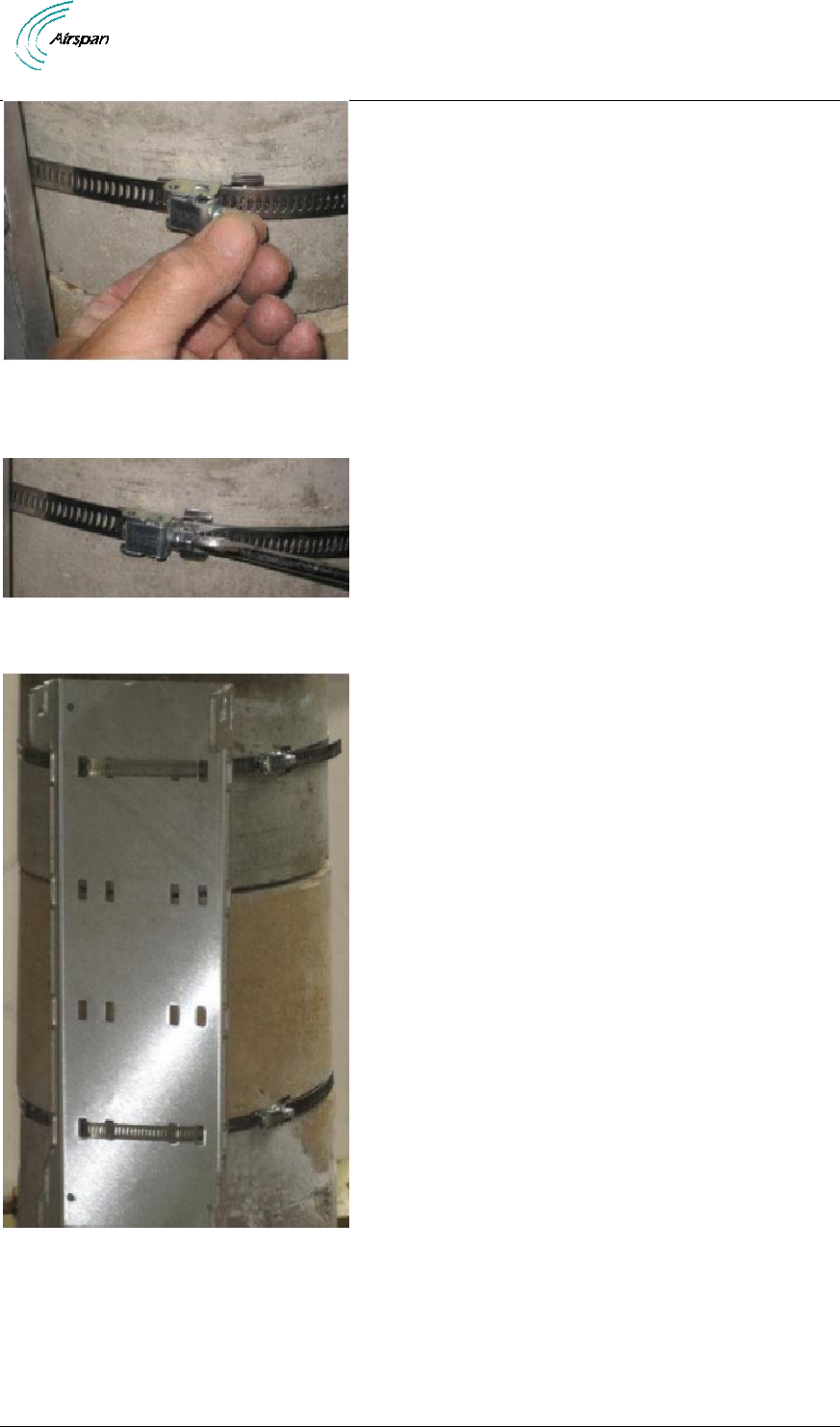

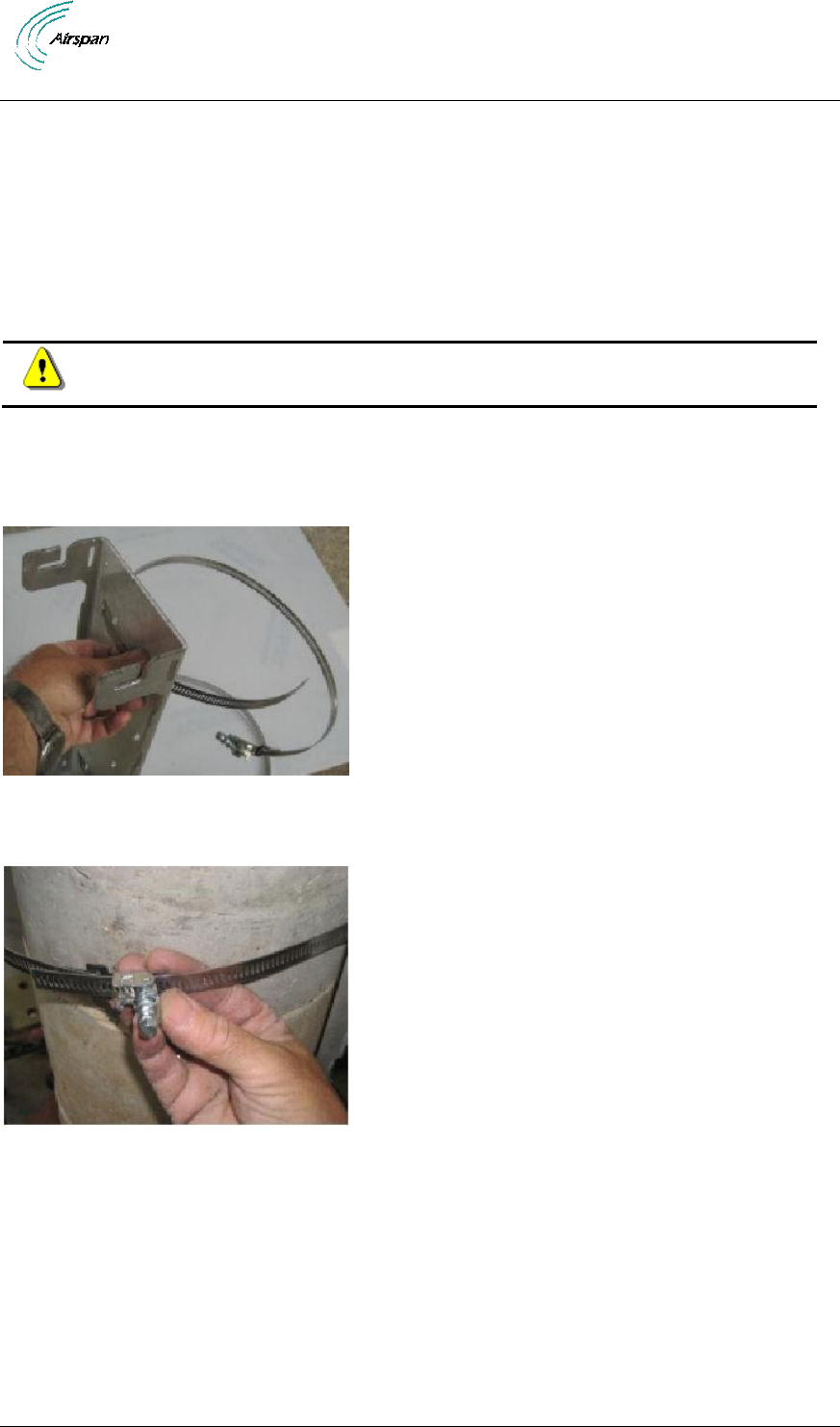

Figure 14 - Assemble clamp bands (2 required) ............................................................................ 34
Figure 15 press down locking mechanism .................................................................................. 35
Figure 16 tighten clamp bands .................................................................................................... 35

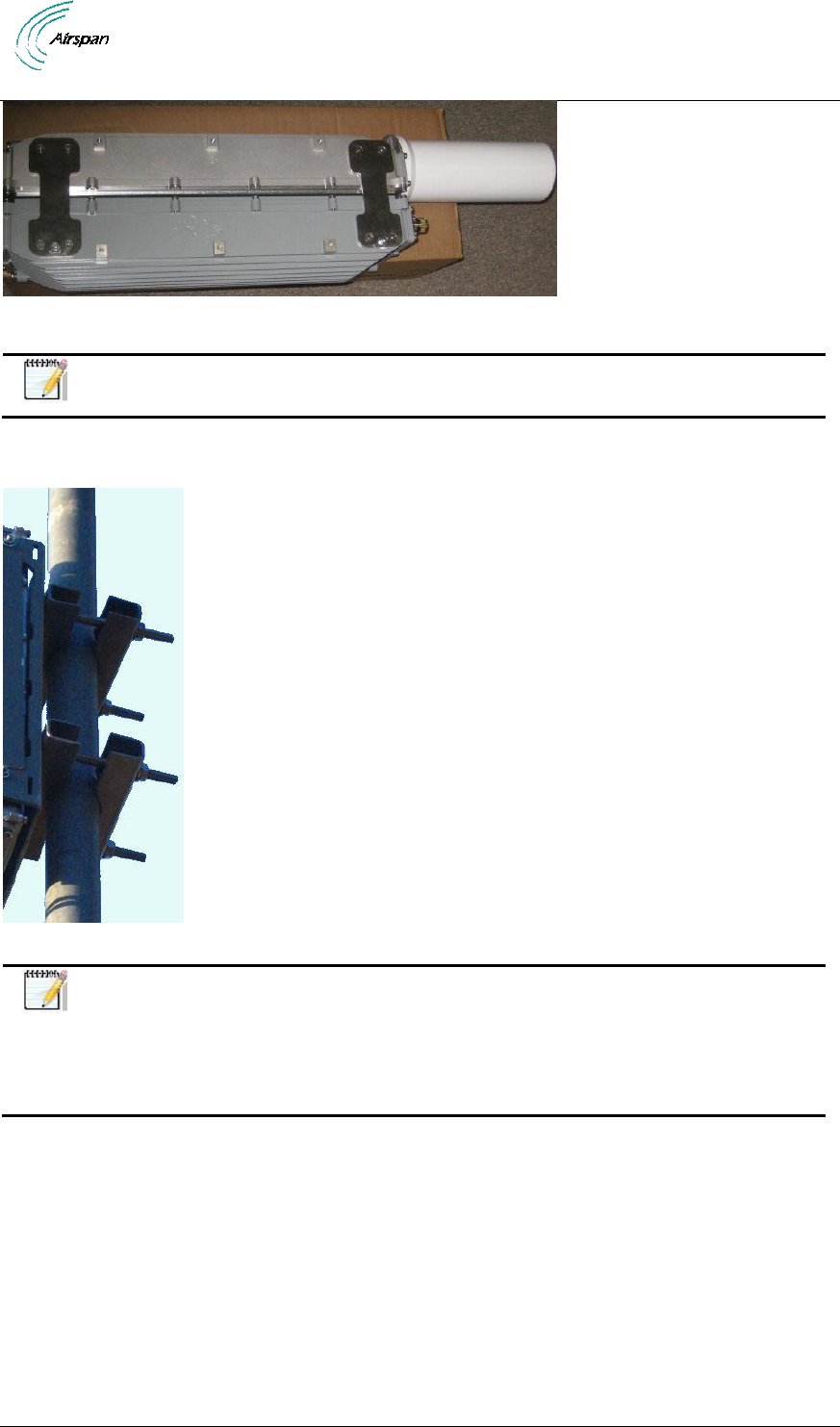

Figure 17 mounting plate installed on large diameter pole ......................................................... 35
Figure 18 - attaching front mounted antenna to mounting plate .................................................... 36
Figure 19 Attaching front mount antenna assembly to AirSynergy ............................................. 36

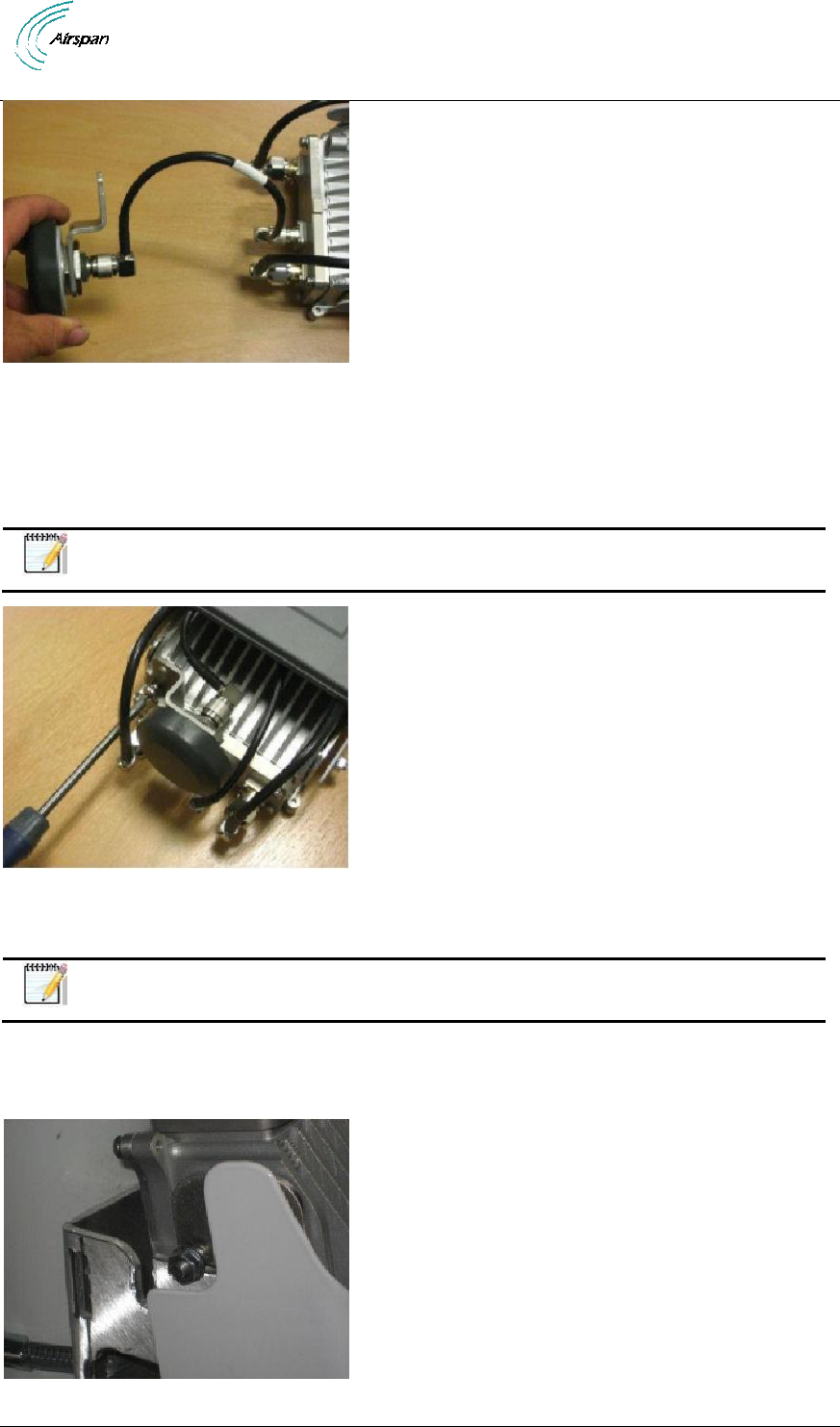

Figure 20 - attaching GPS antenna to mounting bracket ............................................................... 37

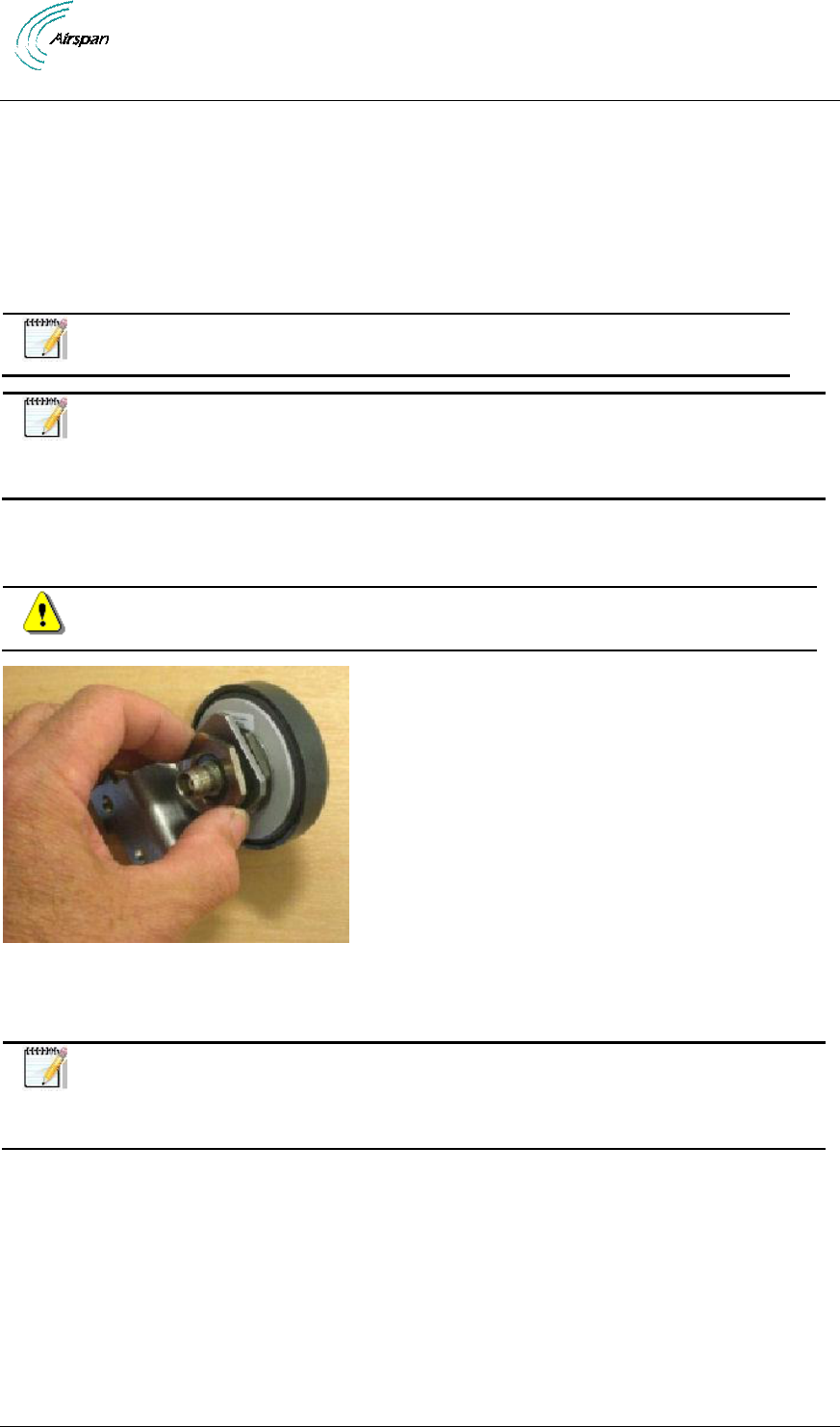

Figure 21 - GPS antenna cable connected .................................................................................... 38
Figure 22 - Assembling GPS antenna with bracket to AirSynergy ................................................. 38

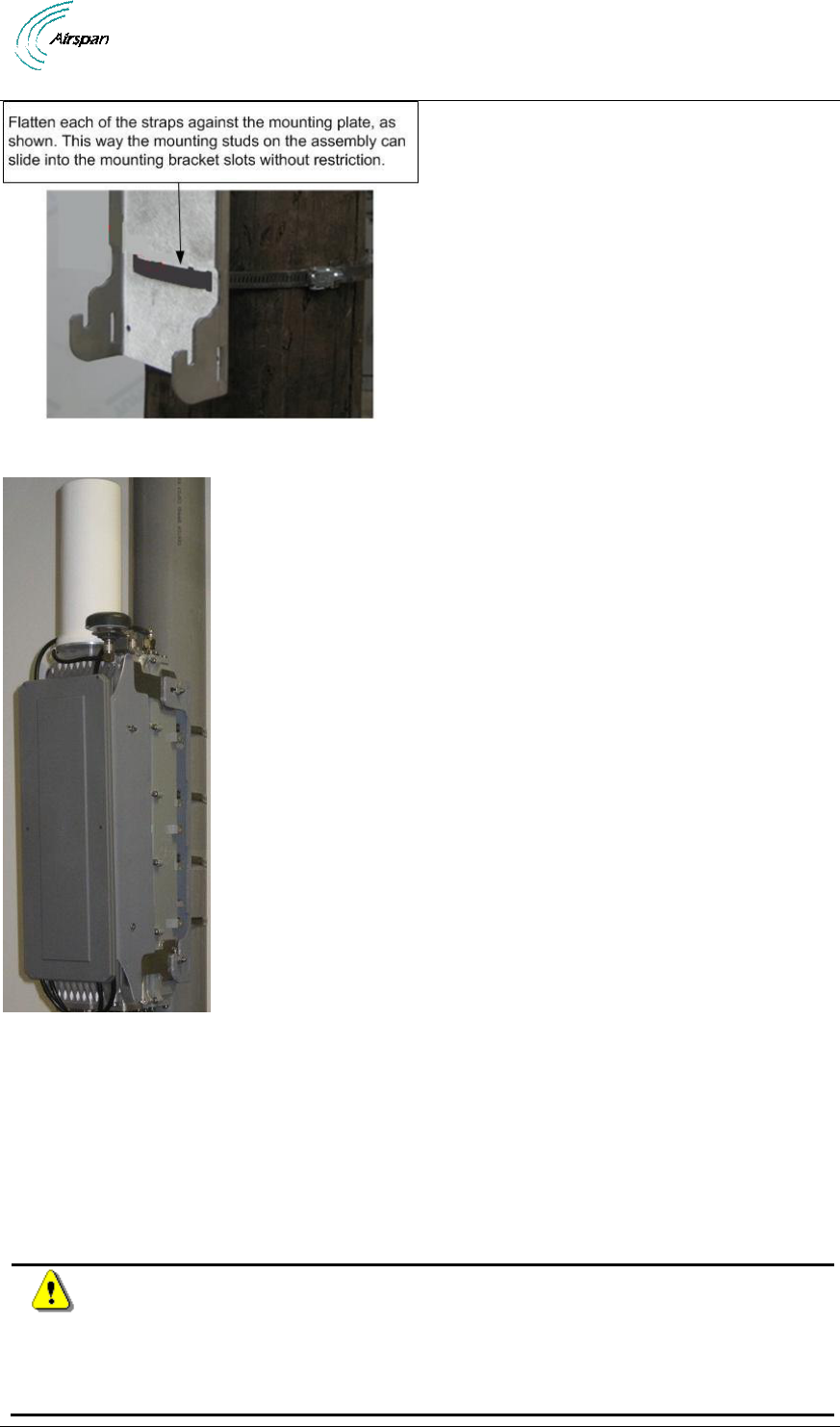

Figure 23 - Lift unit to top of mounting plate ................................................................................... 38
Figure 24 - unit engages into slots on the top of mounting plate ................................................... 39
Figure 25 - Gently lift the unit until the bottom studs fit into the bottom slots ................................. 39
Figure 26 - AirSynergy unit engaged into the bottom slots ............................................................ 39

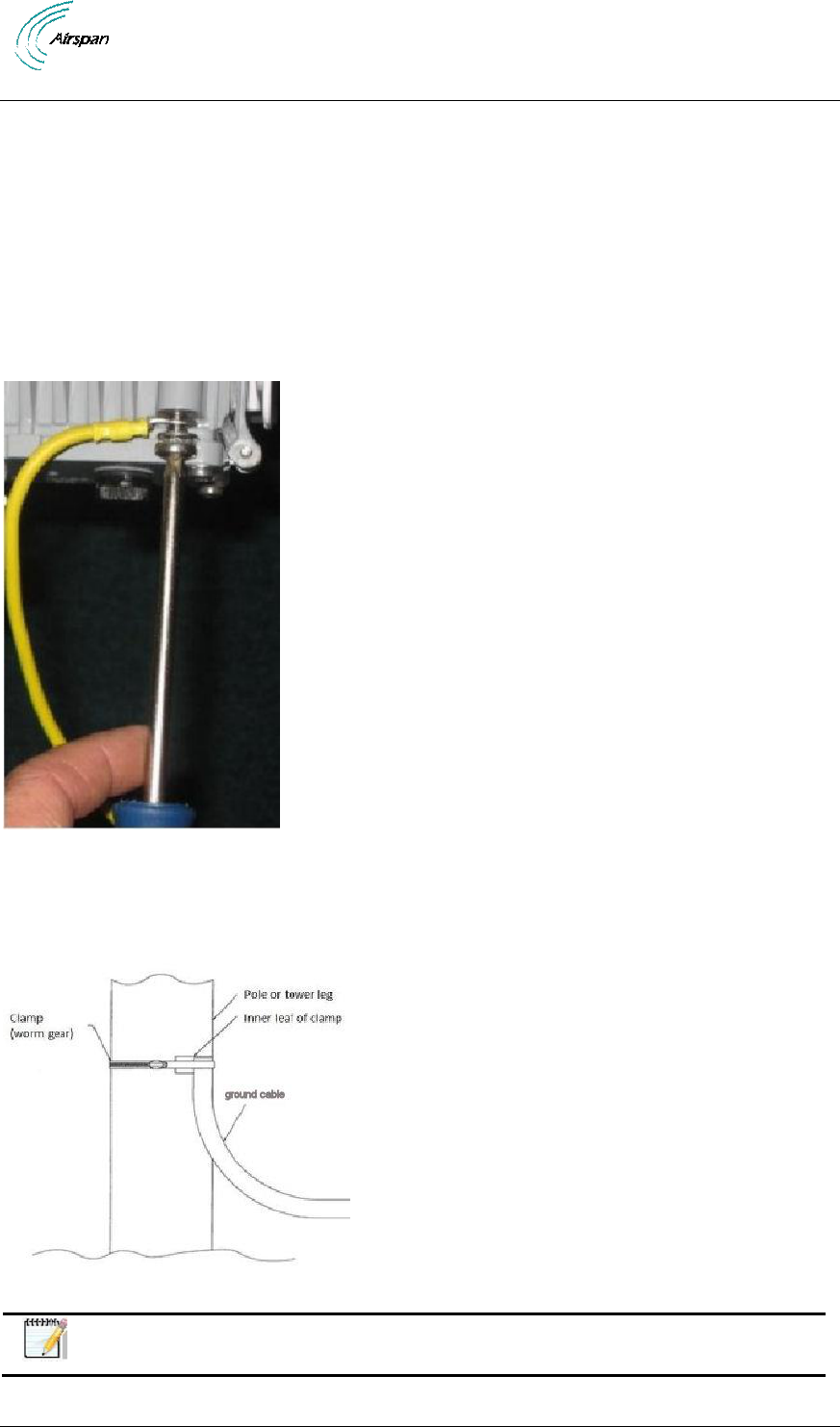

Figure 27 attaching ground cable to AirSynergy ......................................................................... 41
Figure 28 - attach ground cable to pole .......................................................................................... 41

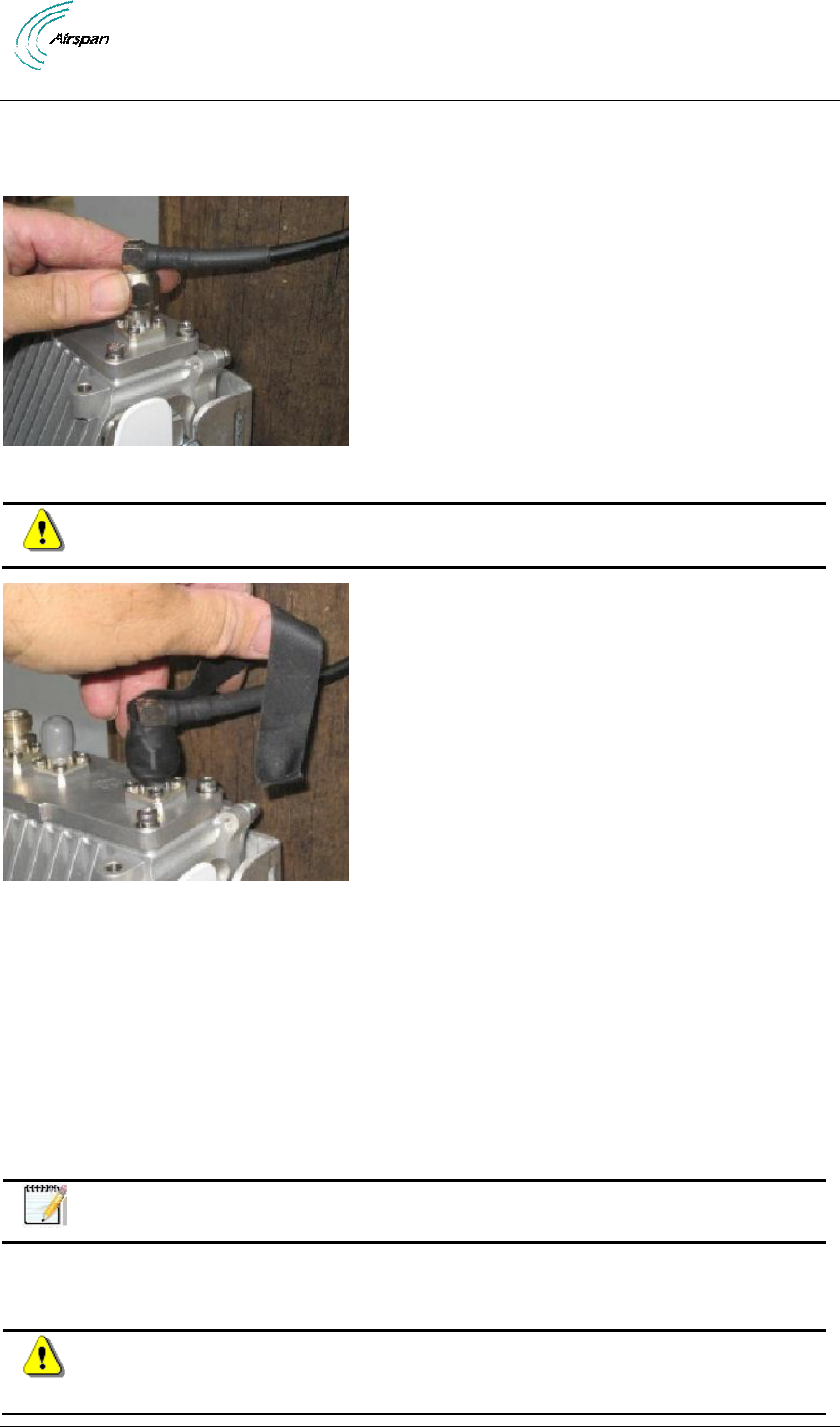

Figure 29 - Connecting RF cable .................................................................................................... 42
Figure 30 - weather-proof the connection - front mount antenna ................................................... 42

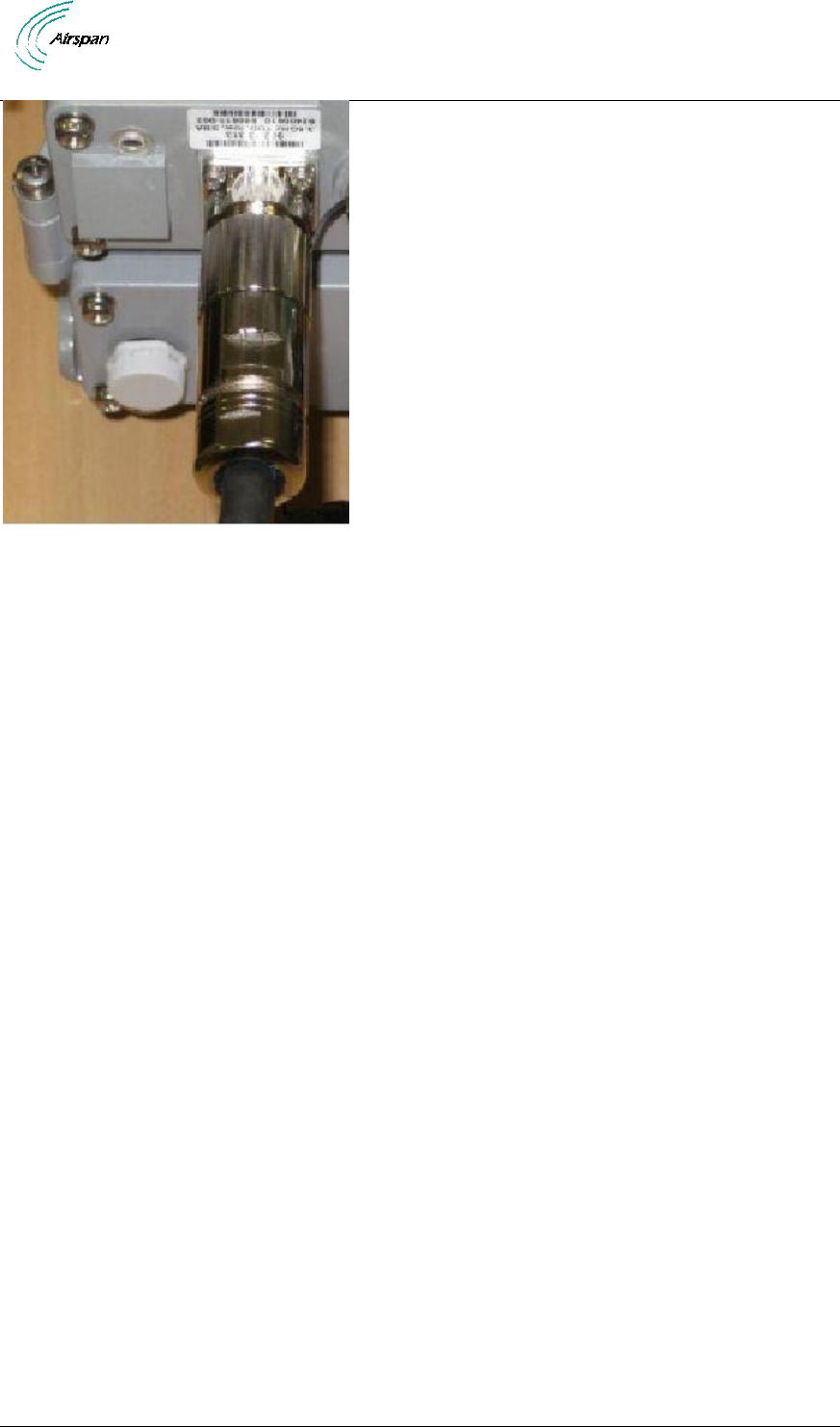

Figure 31 - attaching power cable to AirSynergy ........................................................................... 43

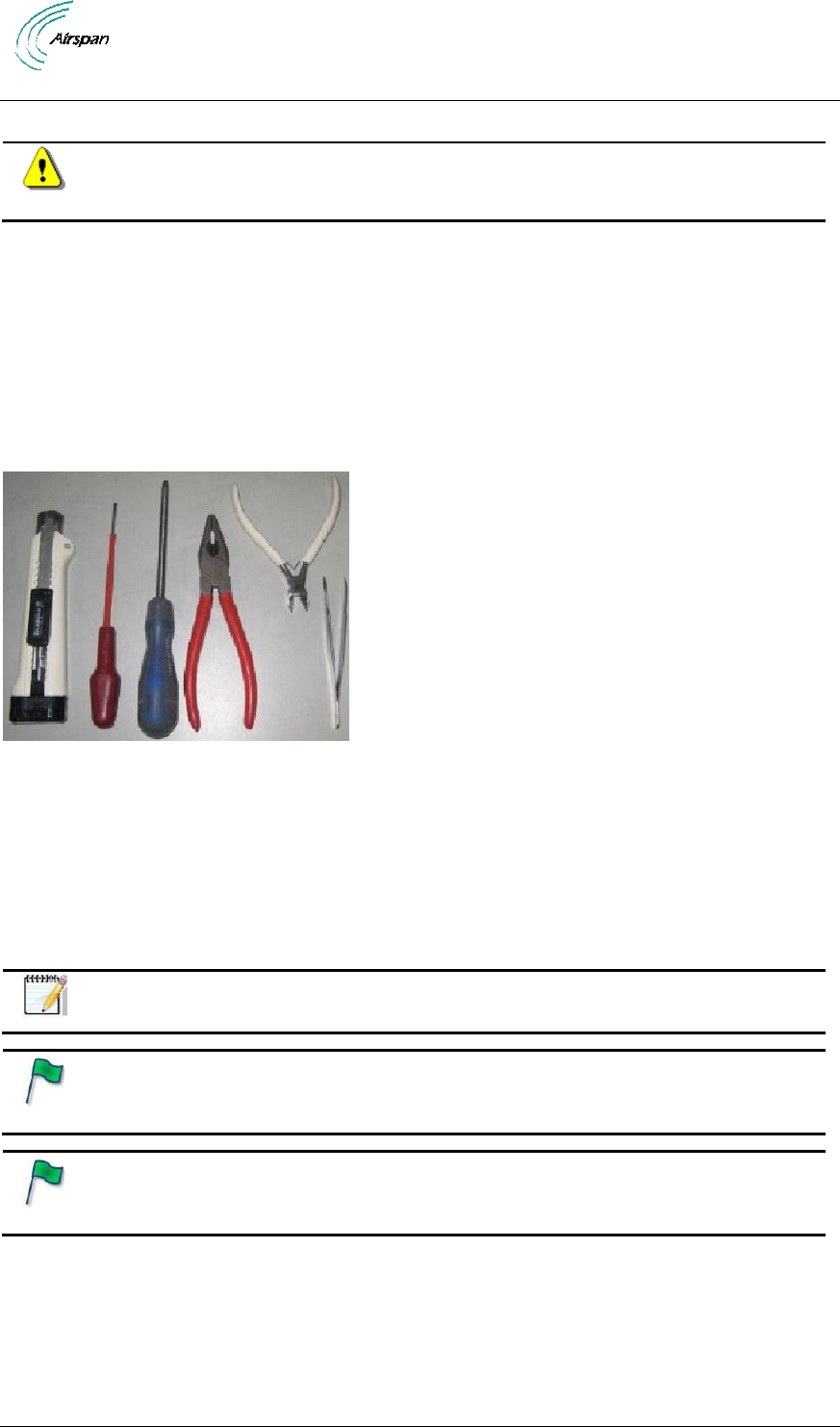

Figure 32 - required tools ............................................................................................................... 44
Figure 33 - power and network cable overview .............................................................................. 45

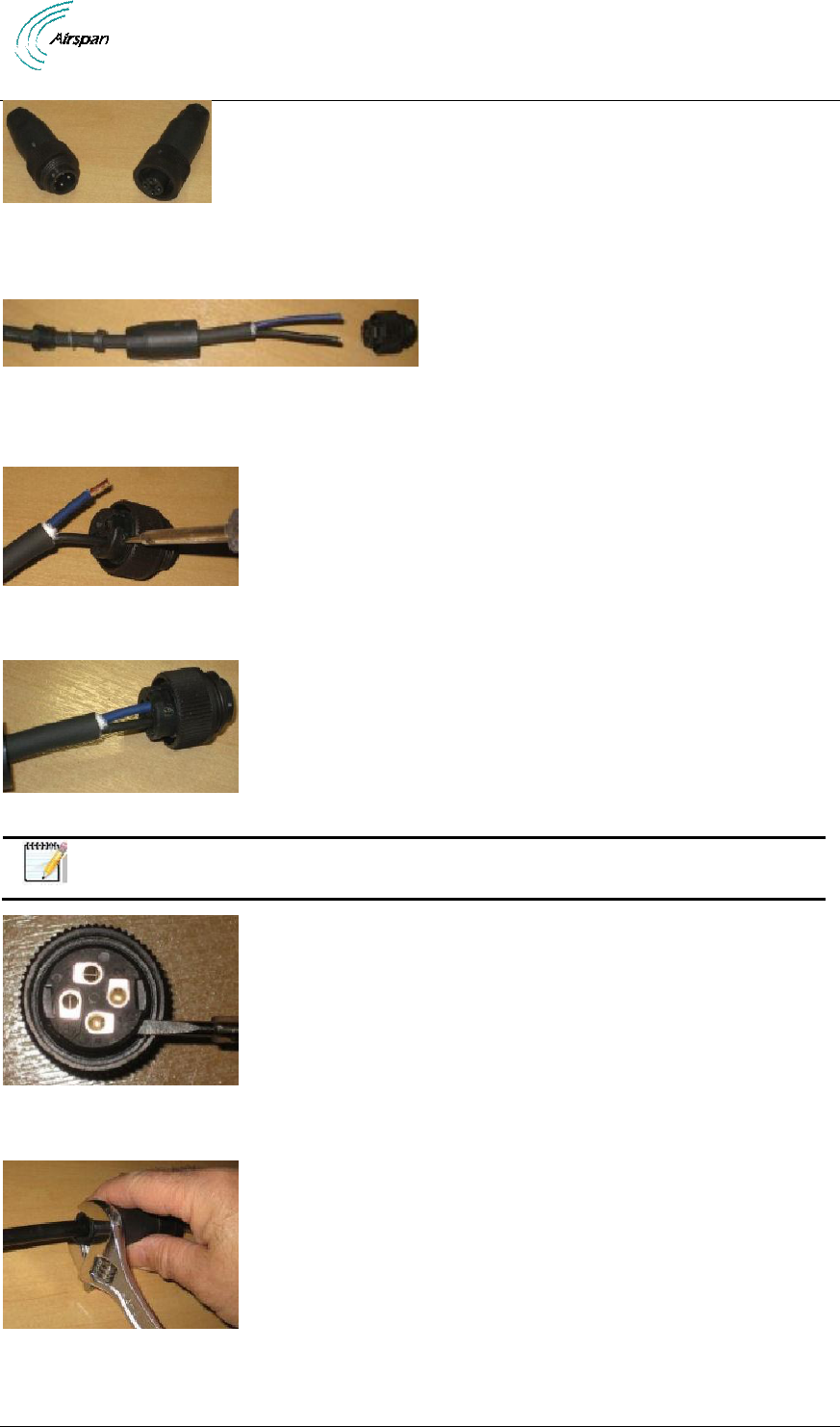

Figure 34 - Waterproof connector exploded view ........................................................................... 45
Figure 35 - power cable preparation............................................................................................... 45
Figure 36 - waterproof connector separated .................................................................................. 46
Figure 37 - gland and connector on cable ...................................................................................... 46
Figure 38 - secure cable to connector ............................................................................................ 46
AirSynergy 2000 Installation Guide
Page 7 Commercial in Confidence UGD-D01001 Rev A

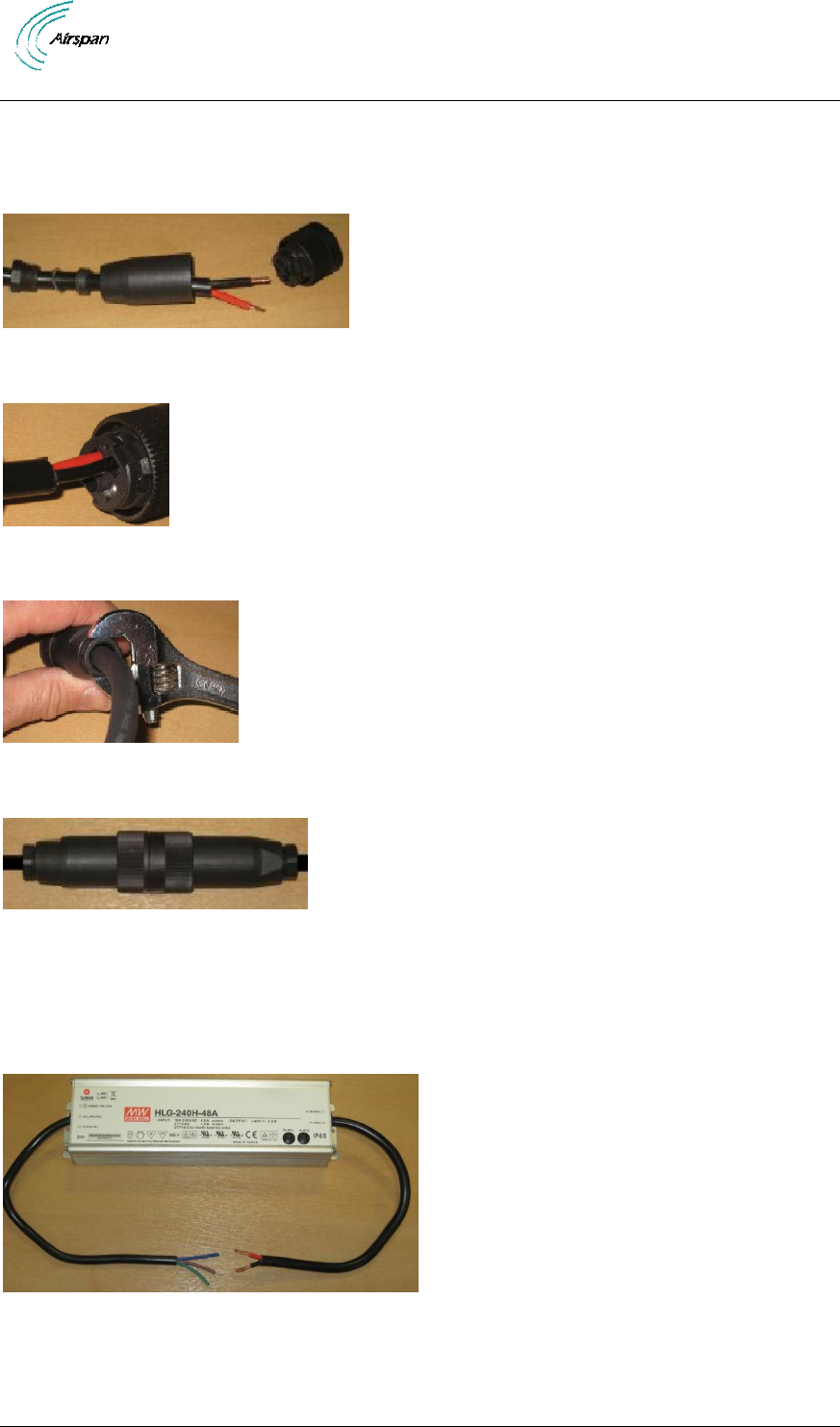

Figure 39 power cable wires assembled ..................................................................................... 46
Figure 40 - numbered connector contacts ...................................................................................... 46
Figure 41 - assemble and tighten ................................................................................................... 46
Figure 42 - PSU cable connector assembly ................................................................................... 47
Figure 43 - PSU wires assembled .................................................................................................. 47
Figure 44 - assemble and tighten ................................................................................................... 47
Figure 45 - connector assembled and tightened ............................................................................ 47
Figure 46 - High power (240W) PSU .............................................................................................. 47

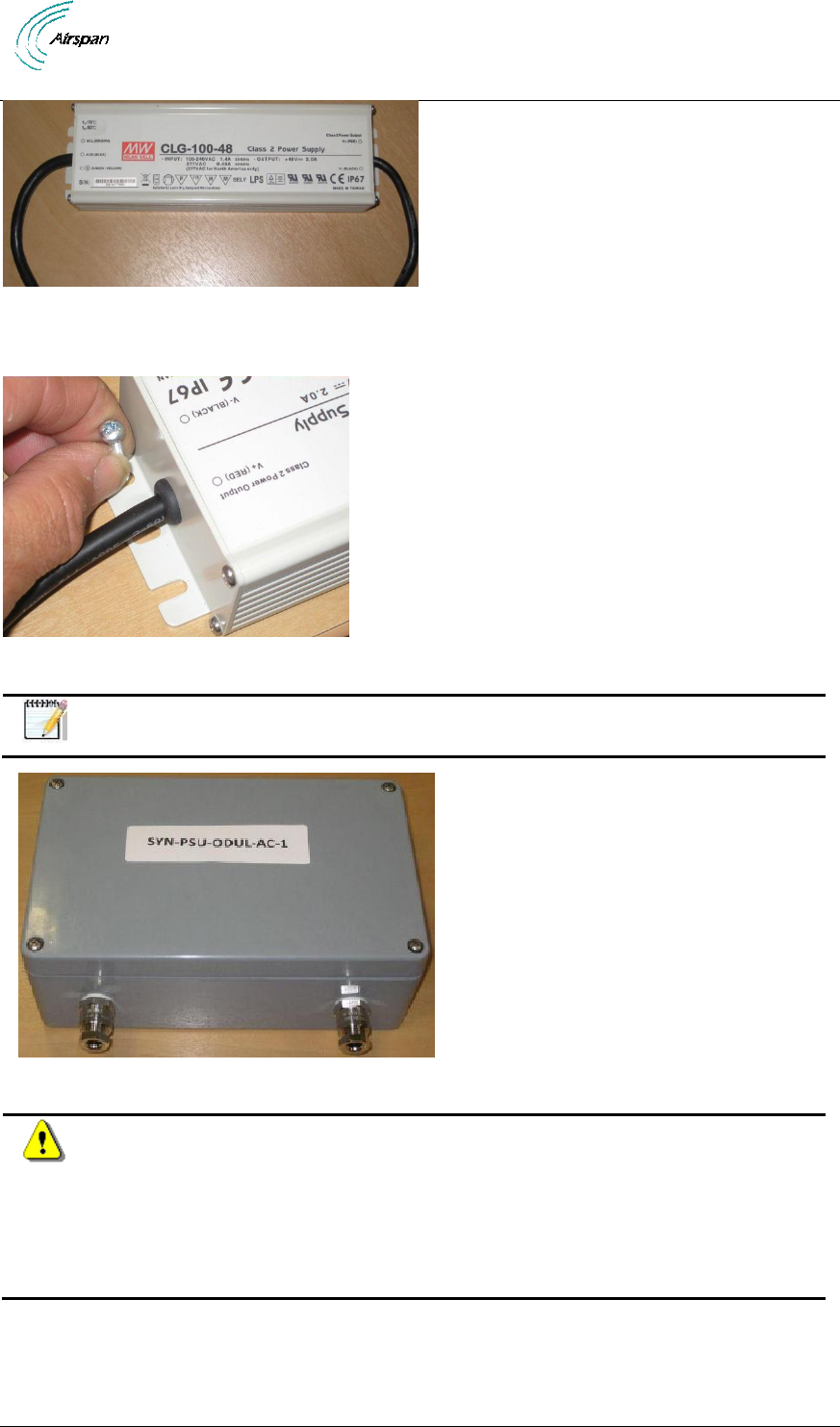

Figure 47 - Standard power (100W) PSU ...................................................................................... 48
Figure 48 - attaching PSU .............................................................................................................. 48

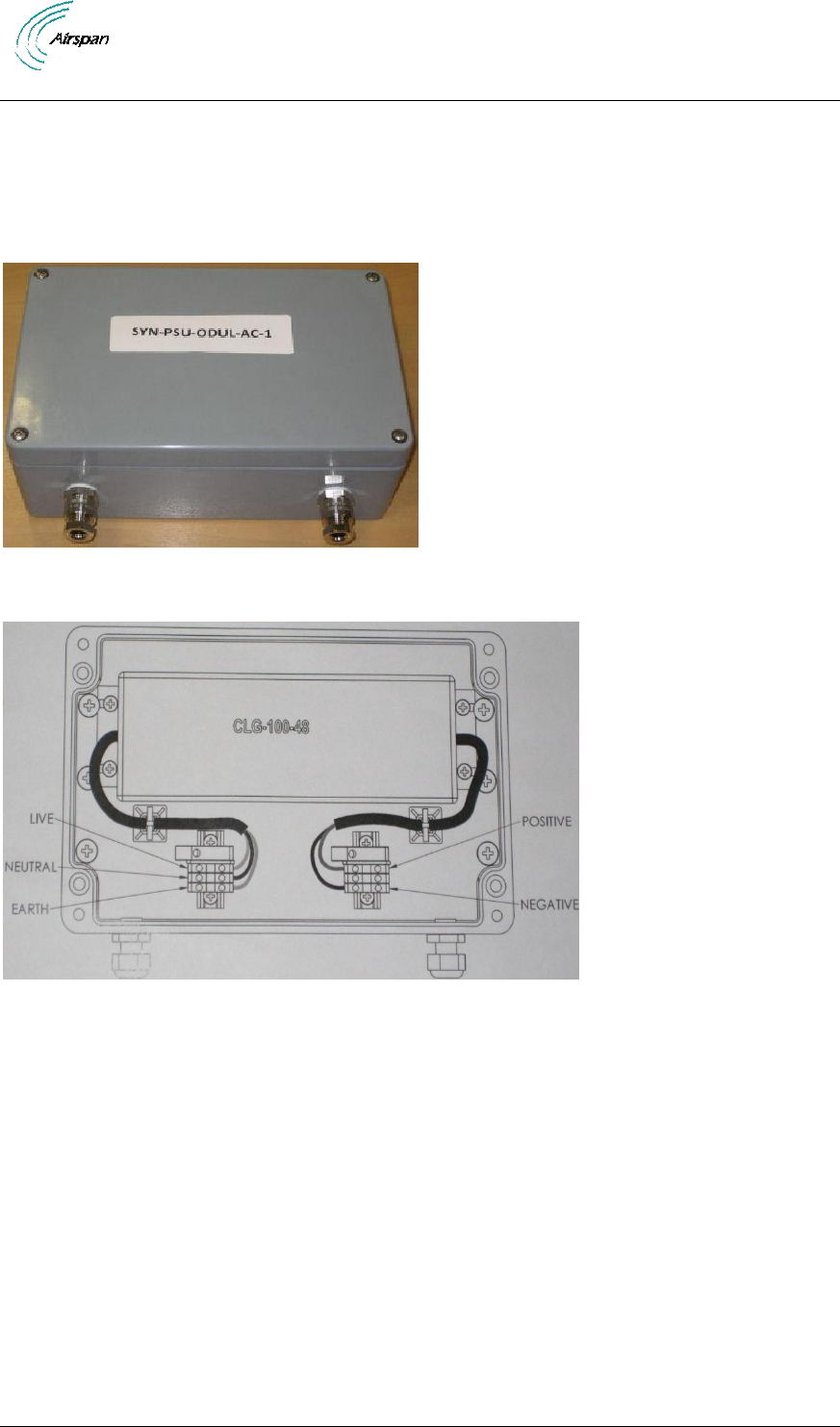

Figure 49 - PSU for USA deployment ............................................................................................ 48

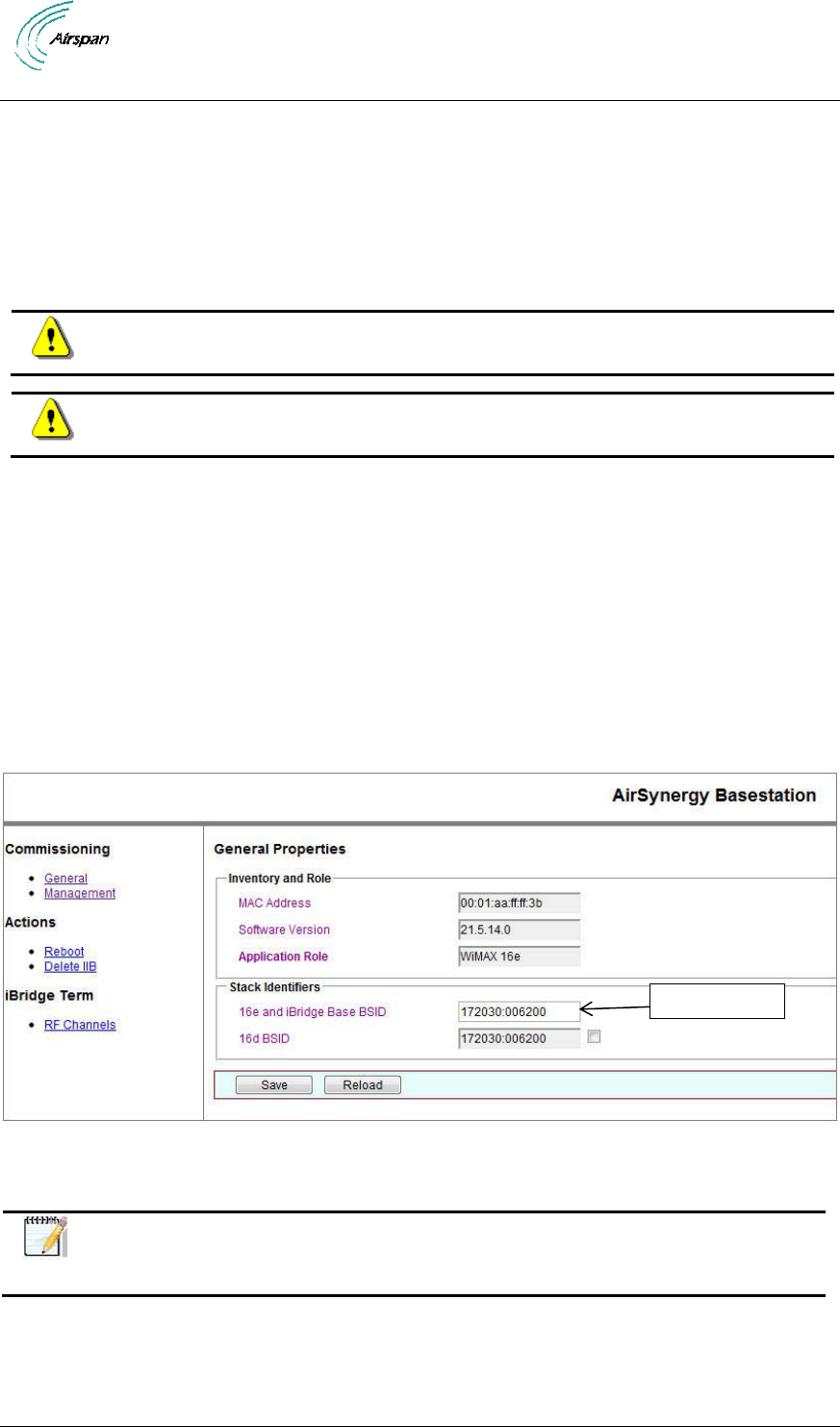

Figure 50 - General BS Configuration ............................................................................................ 49
Figure 51 - Mgmt IP Config ............................................................................................................ 50
Figure 52 - reboot confirmation ...................................................................................................... 50
Figure 53 Discovery Tasks .......................................................................................................... 51
Figure 54 - Edit Discovery tasks parameters ................................................................................. 52
Figure 55 - Discovery Target .......................................................................................................... 52
Figure 56 - Discovery Test ............................................................................................................. 53

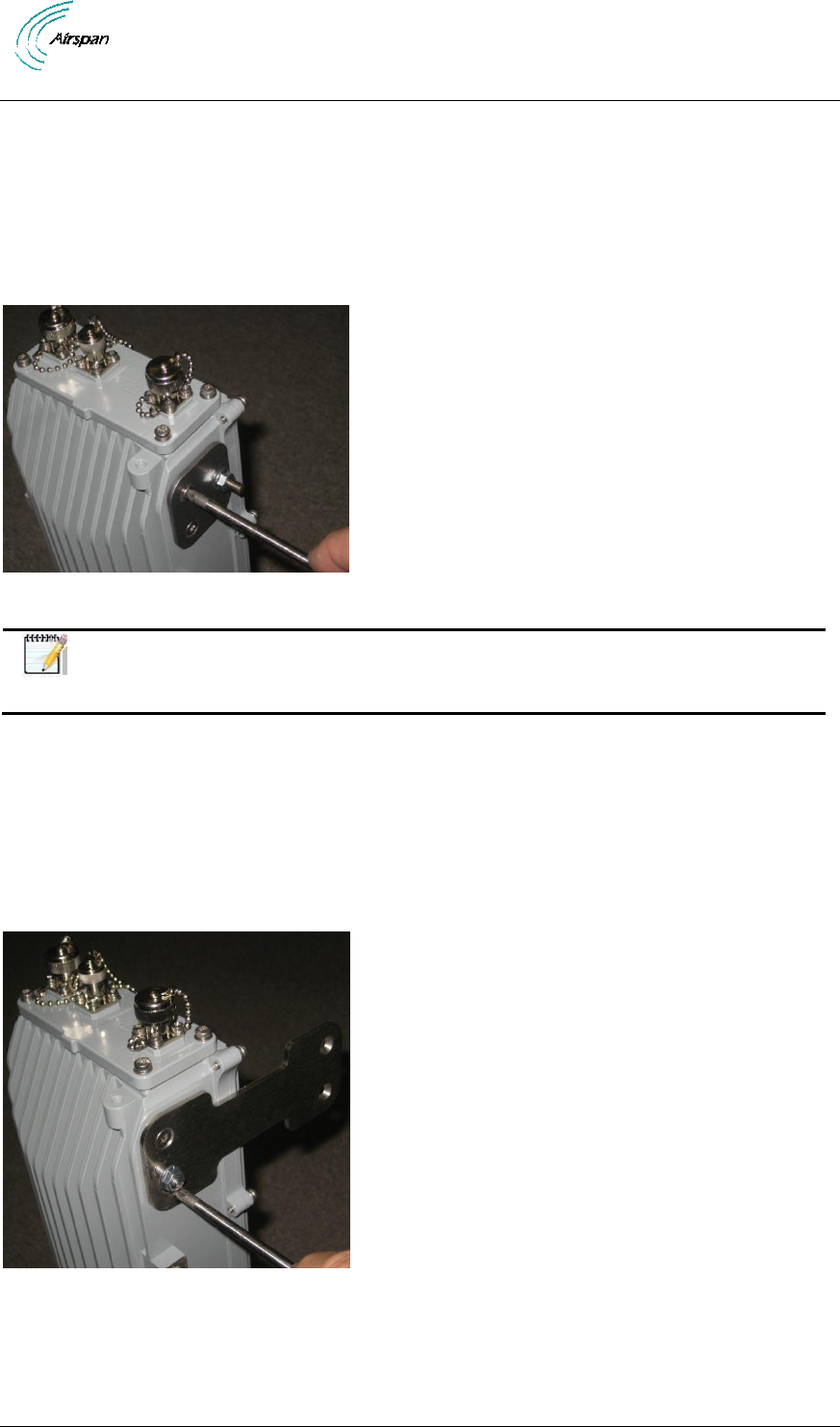

Figure 57 - stud mounting plates removal ...................................................................................... 56
Figure 58 - stud mounting plates assembly .................................................................................... 56
Figure 59 - tighten all fixing screws ................................................................................................ 57
Figure 60 - back 2 back mounting .................................................................................................. 57
Figure 61 - back plate straps .......................................................................................................... 58
Figure 62 - back to back mounted with 4 straps ............................................................................. 58
Figure 63 - PSU for USA ................................................................................................................ 63
Figure 64 - Inside PSU with cable terminations ............................................................................. 63
AirSynergy 2000 Installation Guide
Page 8 Commercial in Confidence UGD-D01001 Rev A
Summary of Tables
Table 1 - AirSynergy FCC Maximum Output TX Power ................................................................. 15
Table 2 - AirSynergy ETSI Maximum Output TX Power ................................................................ 15
Table 3 - Switched Beam Antenna Parameters - Directional Mode ............................................... 15
Table 4 - Switched Antenna Parameters - Omni Mode .................................................................. 16
Table 5 - Front Mounted Sector Antenna Parameters ................................................................... 16
Table 6 - Supported Frequency Types ........................................................................................... 17
Table 7 - AirSynergy installation tools ............................................................................................ 26
Table 8 - AirSynergy installation parts and kits .............................................................................. 26
Table 9 - External Antenna and feeder kits (Optional) ................................................................... 28
Table 10 - Input Power for AirSynergy ........................................................................................... 28
Table 11 - AirSynergy additional items ........................................................................................... 29
Table 12 - AirSynergy components ................................................................................................ 29
Table 13 - AirSynergy physical dimensions ................................................................................... 32
Table 14 - External Duplexer variants ............................................................................................ 33
Table 15 - LED Display ................................................................................................................... 39
Table 16 - Glossary of Terms ......................................................................................................... 59
Table 17 - Checklist for Procedure ................................................................................................. 62
Table 19 - 2.x GHz Antenna Types - Technical ............................................................................. 64
AirSynergy 2000 Installation Guide
Page 9 Commercial in Confidence UGD-D01001 Rev A
Warnings and Cautions
Human Exposure to Radio Frequencies
The AirSynergy antennas should be installed and operated from a minimum distance from your
body of:
AirSynergy with External Antenna - 1.5 meters
AirSynergy with Front Mount Antenna - 1.0 meter
AirSynergy with Smart Beam Antenna (SBA) - 0.5 meter
Radio Interference
This AirSynergy generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment on and off, the technician is encouraged to try
to correct the interference by performing one or more of the following measures:
Re-orientate or relocate the antenna
Increase separation between the eNodeBs and/or End Device
Connect the equipment to an outlet on a circuit different from that to which the power
source is connected
Avoiding Radio Interference
Ensure a minimum of 1-meter separation between co-located antennas of AirSynergy units.
Modifications
Any changes and modifications to this device that are not expressly approved by Airspan
Networks may void the user's authority to operate the equipment.
General
Only qualified personnel should be allowed to install, replace, and service the
equipment.
The device cannot be sold retail, to the general public or by mail order. It must be
sold to operators.
Installation must be controlled.
Installation must be performed by licensed professionals.
Installation requires special training. The AirSynergy radio and antenna should be
installed ONLY by experienced installation professionals who are familiar with local
building and safety codes and, wherever applicable, are licensed by the appropriate
government regulatory authorities. Failure to do so may void Airspan's product
warranty and may expose the end user or the service provider to legal and financial
liabilities. Airspan and its resellers or distributors are not liable for injury, damage or
violation of regulations associated with the installation of outdoor units or antennas.
Note: Outdoor units and antennas should be installed ONLY by experienced
installation professionals who are familiar with local building and safety codes
and, wherever applicable, are licensed by the appropriate government regulatory
authorities. Failure to do so may void the XXX product warranty and may expose
the end user or the service provider to legal and financial liabilities. XXX and its
resellers or distributors are not liable for injury, damage or violation of regulations
associated with the installation of outdoor units or antennas.
AirSynergy 2000 Installation Guide
Page 10 Commercial in Confidence UGD-D01001 Rev A
Warning: It is the responsibility of the installer to insure that when using the
outdoor antenna kits in the United States (or where FCC rules apply), only those
antennas certified with the product are used. The use of any antenna other than
those certified with the product is expressly forbidden in accordance to FCC rules
CFR47 part 15.204.
The installer should configure the output power level of antennas,
according to country regulations and per antenna type.
Safety
1. Read this guide and follow all operating and safety instructions.
2. Keep all product information for future reference.
3. This product is supplied with a grounding power plug. Do not defeat this important
safety feature.
4. Warning: High voltages exist inside the product - do not remove the lid or base: No
user serviceable parts inside.
5. Position the power cord to avoid possible damage; do not overload wall outlets.
6. Do not place this product on or near a direct heat source, and avoid placing objects
on the terminal.
7. Do not operate this device near water or in a wet location.
8. Use only a damp cloth for cleaning. Do not use liquid or aerosol cleaners. Disconnect
the power before cleaning.
9. The units should not be located near power lines or other electrical power circuits.
10. The radio transceiver must be properly grounded to protect against power surges and
accumulated static electricity. It is the user’s responsibility to install this device in
accordance with the local electrical codes.
11. Installation of the AirSynergy must be contracted to a professional installer.
12. Disconnect Device. The socket outlet should be easily accessible in case you have to
disconnect the device.
13. When installed in the final configuration, the product must comply with the applicable
Safety Standards and regulatory requirements of the country in which it is installed. If
necessary, consult with the appropriate regulatory agencies and inspection
authorities to ensure compliance.
Warning of Hazardous Voltages
On AC installations, hazardous voltages exist. Use caution when verifying or working with AC
power. Remove metal jewelry that could come into contact with AC power.
On DC sections, short circuiting the low voltage, low impedance circuits can cause severe arcing
that may result in burns or eye damage. Remove rings, watches etc. to avoid shorting DC circuits.
Note: Airspan products do not contain hazardous substances (as defined in UK
Control of Substances Hazardous to Health Regulations 1989 and the Dangerous
Substances Regulations 1990). At the end of any Airspan products life cycle, the
customer should consult with Airspan to ensure that the product is disposed of in
conformance with the relevant regulatory requirements.
Adherence to European Directive 1999/519/EC
European Council Recommendation 1999/519/EC details basic restrictions and reference levels
on human exposure to electromagnetic fields as advised by the ICNIRP. Adherence to these
AirSynergy 2000 Installation Guide
Page 11 Commercial in Confidence UGD-D01001 Rev A
recommended restrictions and reference levels should provide a high level of protection as
regards the established health effects that may result from exposure to electromagnetic fields.
Warning Symbols
The following symbols may be encountered during installation or troubleshooting. These warning
symbols mean danger. Bodily injury may result if you are not aware of the safety hazards involved
in working with electrical equipment and radio transmitters. Familiarize yourself with standard
safety practices before continuing.
Electro-Magnetic Radiation
High Voltage
Service Information
Refer all repairs to qualified service personnel. Do not remove the covers or modify any
part of this device, as this will void the warranty.
Disconnect the power to this product and return it for service if the following conditions
apply:
a. The terminal does not function after following the operating instructions outlined
in this manual.
b. Liquid has been spilled, a foreign object is inside, or the terminal has been
exposed to rain.
c. The product has been dropped or the housing is damaged.
Locate the serial number of the terminal, antenna, and transceiver and record these on your
registration card for future reference. Use the space below to affix serial number stickers.
Also record the MAC address, located on the back of the terminal.
UL Information
- The equipment must be properly grounded according with NEC and other local safety code
requirements.
- Reminder to all the BWA system installers: Attention to Section 820-40 of the NEC which
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building, as close to the point of cable entry as is
practical.
Lightning Protection
WARNING: The following notes are general recommendations for the system. The wireless
equipment should be installed by a qualified professional installer and must follow local and
national codes for electrical grounding and safety. Failure to meet safety requirements and/or use
of non-standard practices and procedures could result in personal injury and damage to
equipment. A direct lightning strike may cause serious damage even if these guidelines are
followed.
All outdoor wireless equipment is susceptible to lightning damage from a direct hit or induced
current from a near strike. Lightning protection and grounding practices in local and national
electrical codes serve to minimize equipment damage, service outages, and serious injury.
Reasons for lightning damage are summarized as:
- Poorly grounded tower/antenna sites that can conduct high lightning strike energy into
equipment.
- Lack of properly installed lightning protection equipment that can cause equipment failures from
lightning induced currents.
AirSynergy 2000 Installation Guide
Page 12 Commercial in Confidence UGD-D01001 Rev A
A lighting protection system provides a means by which the energy may enter earth without
passing through and damaging parts of a structure. A lightning protection system does not
prevent lightning from striking; it provides a means for controlling it and preventing damage by
providing a low resistance path for the discharge of energy to travel safely to ground. Improperly
grounded connections are also a source of noise that can cause sensitive equipment to
malfunction.
A good tower grounding system disperses most of the surge energy from a tower strike away
from the building and equipment.
To limit the equipment damage due to a lightning strike, the following practices are recommended
for the wireless system:
- Provide direct grounding from the antenna mounting bracket, the radio and antenna and the
lightning/surge protectors to the same ground point at the base of the tower or a ground bus on
the building. Use the grounding screws on the antenna bracket and the radio and antenna for
terminating the ground wires.
- The AC wall outlet ground must be connected to the same grounding system as the eNodeB.
AirSynergy 2000 Installation Guide
Page 13 Commercial in Confidence UGD-D01001 Rev A
DECLARATION OF CONFORMITY
European Community, Switzerland, Norway, Iceland, and Liechtenstein
Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC
English:
This equipment is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Deutsch:
Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprecheneden
Vorgaben der Richtlinie 1999/5/EU.
Dansk:
Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i
Directiv 1999/5/EF.
Español:
Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la
Directive 1999/5/EC.
Greek:
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Airspan ΔΗΛΩΝΕΙ ΟΤΙ Ο ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français:
Cet appareil est conforme aux exigencies essentialles et aux autres dispositions pertinantes de la
Directive 1999/5/EC.
Íslenska:
Þessi búnaður samrýmist lögboðnum kröfum og öðrum ákvæðum tilskipunar 1999/5/ESB.
Italiano:
Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva
1999/5/EC.
Nederlands:
Deze apparatuur voldoet aan de belangrijkste eisen en andere voorzieningen van richtlijn
1999/5/EC.
Norsk:
Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU-
directiv 1999/5/EC.
Português:
Este equipamento satisfaz os requisitos essenciais e outras provisões da Directiva 1999/5/EC.
Suomalainen:
Tämä laite täyttää direktiivin 1999/5/EY oleelliset vaatimukset ja on siinä asetettujen muidenkin
ehtojen mukainen.
Svenska:
Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta
bestämmelser i Direktiv 1999/5/EC.
Român:
Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale
Directivei 1999/5/CE.
The Declaration of Conformity related to this product can be obtained from PLM@Airspan.com.
AirSynergy 2000 Installation Guide
Page 14 Commercial in Confidence UGD-D01001 Rev A
FCC Notice
Federal Communication Commission Notice
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his/her own
expense.
Note: This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Fixed and base stations transmitting a signal with an emission bandwidth greater than 1 MHz
must not exceed an ERP of 1000 watts/MHz and an antenna height of 305 m HAAT, except that
antenna heights greater than 305 m HAAT are permitted if power levels are reduced below 1000
watts/MHz ERP.
GPS Compliance
The GPS is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC."
The GPS complies with the following EMC Common Regulatory Testing standards:
EN55022: Radiated and Conducted Emissions
CISPR 22: Class B
EN 50081-1: Generic Emissions Class B
EN 50082-1: Generic Immunity Class B
EN 61000-4-2: Electrostatic Discharge Immunity
EN 61000-4-3: Radiated RF EM Field Immunity Test
EN 61000-4-4: Electrical Fast Transient/Burst Test
EN 61000-4-6: Conducted Immunity
EN 61000-4-8: Magnetic Field Immunity
Note: A GPS is required for synchronizing between TDD sectors.
Note: A GPS Lightning/Surge protector is required. (ordered separately)
AirSynergy 2000 Installation Guide
Page 15 Commercial in Confidence UGD-D01001 Rev A
Maximum Output TX Power
Table 1 - AirSynergy FCC Maximum Output TX Power
Frequency Band
Antenna Gain
2.62 2.69 GHz
33.36dBm
51.36dBm
18dBi
Table 2 - AirSynergy ETSI Maximum Output TX Power
Frequency Band
ETSI
TX EIRP
Antenna Gain
698-746 MHz
33 dBm
46.5dBm
13.5dBi
2290-2350 MHz
33dBm
51dBm
18.0dBi
2340-2400 MHz
33dBm
51dBm
18.0dBi
2496-2570 MHz
33dBm
51dBm
18.0dBi
2560-2630 MHz
33dBM
51dBm
18.0dBi
2620-2690 MHz
33dBm
51dBm
18.0dBi
3300-3400 MHz
33dBm
51dBm
18.0dBi
3400-3500 MHz
33dBm
51dBm
18.0dBi
3500-3600 MHz
33dBm
51dBm
18.0dBi
3600-3700 MHz
33dBm
51dBm
18.0dBi
3650-3675 MHz
33dBm
35dBm
2dBi
3700-3800 MHz
33dBm
51dBm
18.0dBi
Caution: Do not set maximum output TX power to higher than local regulations.
Power Consumption
AirSynergy has a Max nominal power consumption of 78W.
Antenna Types
The following antennas are designed specifically for AirSynergy deployments. Externally mounted
antennas are available for use as well, but are specified separately.
Note: For a list of compatible external antennas, please contact your nearest
Airspan sales representative.
Note: For currently supported antenna types see Appendix F .
Switched Beam Antenna
Switched Beam antenna (with built-in GPS antenna) variant include a top mounted steerable
antenna with the following specification. The antenna is a multi-element cross polarized (dual
slant) design which can be used in directional or omni modes of operation.
Table 3 - Switched Beam Antenna Parameters - Directional Mode
AirSynergy 2000 Installation Guide
Page 16 Commercial in Confidence UGD-D01001 Rev A
Parameter
2.3 GHz
2.6 GHz
3.x GHz
Frequency
2.3 - 2.5 GHz
2.5 - 2.7 GHz
3.4 - 3.7 GHz
Polarization
Dual Slant ±45
Dual Slant ±45
Dual Slant ±45
Polarization
discrimination
14-15 dB
14-15 dB
14-15 dB
Boresight gain
8 dBi
8 dBi
9 dBi
Azimuth HPBW
90±10
90±10
90±10
Elevation HPBW
25
25
25
Co & X-Pol RPE
EN302-326-3 Class
DN1
EN302-326-3 Class
DN1
EN302-326-3 Class
DN1
Grounding
DC Grounded
DC Grounded
DC Grounded
Table 4 - Switched Antenna Parameters - Omni Mode
Parameter
2.3 GHz
2.6 GHz
3.x GHz
Frequency
2.3 - 2.5 GHz
2.5 - 2.7 GHz
3.4 - 3.7 GHz
Polarization
Dual Slant ±45
Dual Slant ±45
Dual Slant ±45
Polarization
discrimination
10-16 dB
10-16 dB
10-16 dB
Average gain
2 dBi
2 dBi
3.5 dBi
Maximum gain
ripple
4.5 dB
4.5 dB
4.5 dB
Elevation HPBW
20
20
20
Co & X-Pol RPE
EN 302-326-3
EN 302-326-3
EN 302-326-3
Grounding
DC Grounded
DC Grounded
DC Grounded
Front Mount Sector Antenna
The front mounted sector antenna is a cross polarized fixed antenna which mounts on the front of
the unit in place of the sun-shield.
Note: When using a front mounted antenna, external antennas cannot be
used.
Table 5 - Front Mounted Sector Antenna Parameters
Parameter
2.x GHz
3.x GHz
Frequency
2.3 2.7 GHz
3.3 3.8 GHz
Polarization
Dual Slant ±45
Dual Slant ±45
Polarization discrimination
>18 dB
>15 dB
Boresight gain
12 dBi
11.5 dBi
Azimuth HPBW
63
65
AirSynergy 2000 Installation Guide
Page 17 Commercial in Confidence UGD-D01001 Rev A
Elevation HPBW
21
22
Grounding
DC Grounded
DC Grounded
Supported Frequencies
AirSynergy currently supports the following frequency bands and Downlink/Uplink ratios:

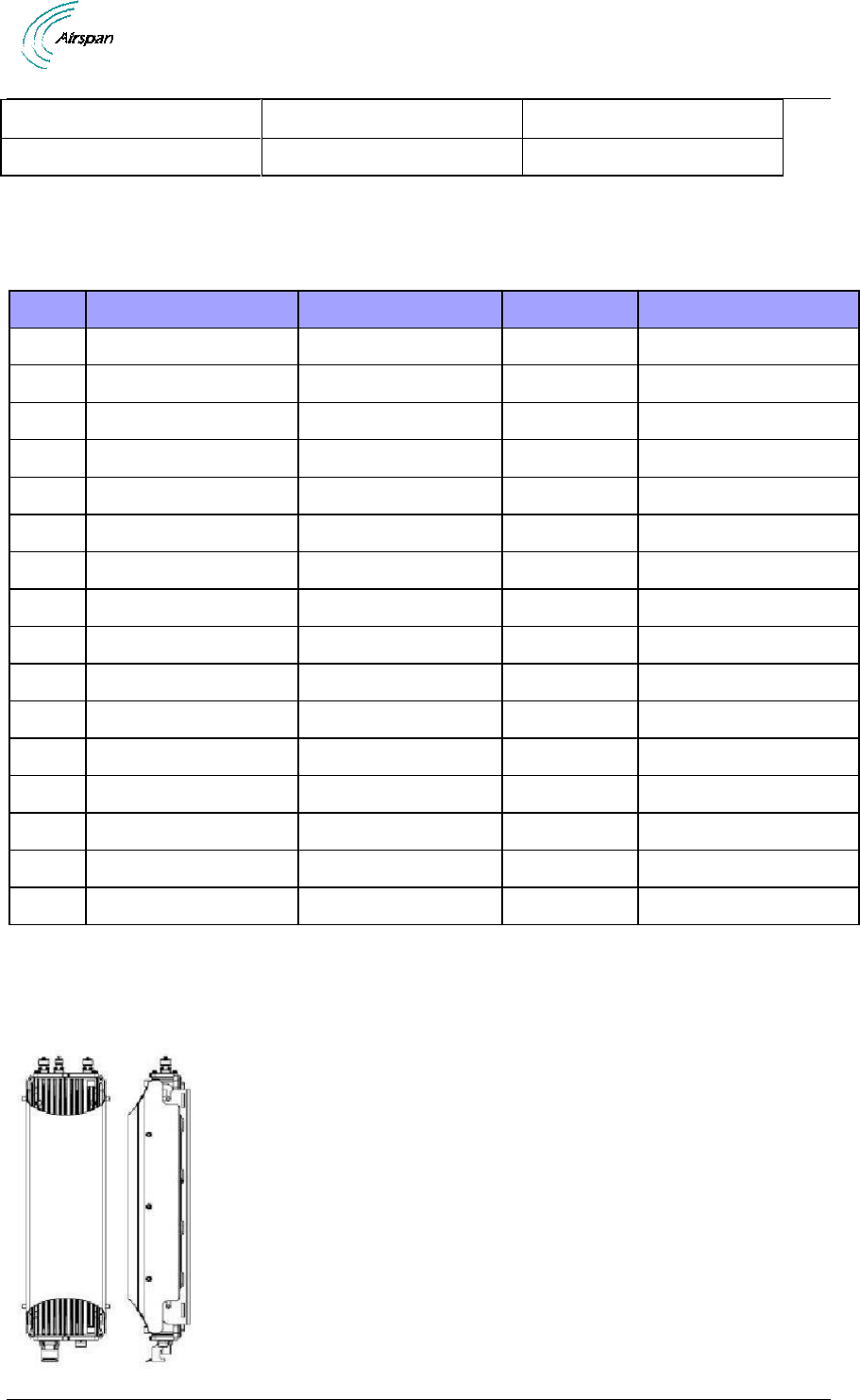

Table 6 - Supported Frequency Types
Band
Downlink Freq. (MHz)
Uplink Freq. (MHz)
Duplex
Duplexers / Filters
2
1930-1990
1850-1910
FDD
Internal
3
1805-1880
1710-1785
FDD
Internal
4
2110-2155
1710-1755
FDD
Internal
7
2620-2690
2500-2570
FDD
Internal
10
2110-2170
1710-1770
FDD
Internal
12
728-746
698-716
FDD
External
13
746-756
777-787
FDD
External
14
758-768
788-798
FDD
External
17
734-746
704-716
FDD
External
20
791-821
832-862
FDD
External
25
1930-1995
1850-1915
FDD
Internal
38
2570-2620
2570-2620
TDD
Internal
40
2300-2400
2300-2400
TDD
Internal
41
2496-2690
2496-2690
TDD
Internal
42
3400-3600
3400-3600
TDD
Internal
43
3600-3800
3600-3800
TDD
Internal
AirSynergy Antenna Usage Options
AirSynergy comes in a range of frequency variants that can be mounted with different
antenna options and formats.
AirSynergy 2000 Installation Guide
Page 18 Commercial in Confidence UGD-D01001 Rev A
Figure 1 - AirSynergy with sunshield
A typical sector installation will have a cross-polar sector antenna fitted directly to the front of the
AirSynergy main unit. (This is attached instead of the sun-shield).
Figure 2 - AirSynergy with front sector antenna
A switched beam antenna version (factory built option) with built in GPS antenna allows for
flexible backhaul functionality where the strongest signal from any direction is automatically
selected.
The same antenna can also be configured in omni mode for support of access.
Figure 3 - AirSynergy with switched beam antenna
AirSynergy units may be mounted together in a dual arrangement on the same mounting plate
utilizing a special joining kit (supplied as a separate accessory).
AirSynergy 2000 Installation Guide
Page 19 Commercial in Confidence UGD-D01001 Rev A
Figure 4 - AirSynergy dual unit with GPS attached
Note: Appropriate mounting kit (included) for the various external antennas
are required.
AirSynergy 2000 Installation Guide
Page 20 Commercial in Confidence UGD-D01001 Rev A
1 About this Guide
This section discusses the purpose, intended audience, conventions, referenced documentation
and organization for this guide.
1.1 Purpose
This guide provides the workflow and step-by-step procedures for Installing the AirSynergy.
These procedures include:
Verify Prerequisites
Install the AirSynergy Radio equipment
Install the PSU equipment
Connect and Manage Cables
Commission and discovery via Netspan, prior to full configuration
1.2 Intended Audience
This guide is intended for persons who are responsible for installing the AirSynergy equipment.
These persons should have a working knowledge of the equipment.
1.3 Conventions
This document uses the following informational conventions.
Icon
Description
Checkpoint: Marks a point in the workflow where there may be an exit or branch
to some other procedure. At each Checkpoint the reason for an exit or branch is
given along with specific directions to locate the entry point in the other
procedure.
Reference: Gives a resource in the workflow that may be needed to complete a
procedure along with specific directions to use the resource.
Caution: Describes a possible risk and how to lessen or avoid the risk.
Advice: Provides a recommendation based on best practice.
Note: Provides useful information.
1.4 Referenced Documentation
AirSynergy Product Specification
AirSynergy Overview Guide (pending)
1.5 Organization of this Guide
This guide is organized into the following Sections:
About this Guide
Introduction
Getting Started
Verify Prerequisites
AirSynergy 2000 Installation Guide
Page 21 Commercial in Confidence UGD-D01001 Rev A
Install the AirSynergy Radio equipment
Install the PSU equipment
Connect and manage cables
Set eNodeB Management IP & BSID via Web Page
Connect and manage cables
Appendixes
AirSynergy 2000 Installation Guide
Page 22 Commercial in Confidence UGD-D01001 Rev A
2 Introduction
This section provides a descriptive overview of the Airspan’s AirSynergy Pico eNodeB variant and
its place in the product suite.
2.1 AirSynergy
AirSynergy is part of Airspan’s carrier-class 4G Pico eNodeB family. AirSynergy supports 3GPP’s
Long Term Evolution (LTE) eNodeB, providing high-speed data and mobility, in order to meet the
demands of the Broadband Wireless Access market.
AirSynergy is a compact, easy to install pico-cell, allowing an operator to deploy LTE broadband
services using existing Street Furniture (e.g. street lamps, power poles, etc…)
AirSynergy supports a wide array of frequencies and channel sizes, able to operate in both
licensed and unlicensed bands with more frequencies and channel sizes added regularly.
AirSynergy implements dual 30dBm (2 x 1W) transmitters, with several optional integral antennas
and external antennas connectivity.
AirSynergy fully supports the standard LTE (Uu/S1/X2) interfaces, and can also operate in
“Standalone” mode, without the need for an LTE Core network - providing an ideal cost effective
solution for fixed applications.
AirSynergy is managed by an SNMP-based network management system (Netspan) using
standard and proprietary MIBs. Basic management can be performed using any standard Web
browser.
Note: For management refer to AirSynergy Commissioning documentation.
2.1.1 Deployment Description
A highly flexible and scalable 4G Base Station, the AirSynergy is capable of supporting LTE
profiles across multiple frequency bands.
Note: The following is for illustration only; actual layout may differ as
infrastructure is installation-specific.
Note: AirSynergy must be properly grounded according with NEC and other
local safety code requirements.
Note: Installation of the GPS Lightning/Surge protector (ordered separately)
is necessary to protect the GPS antenna. The Lightning/Surge protector must
be properly grounded with NEC and other local safety code requirements.
Note: (U.S.A. - WCS market only) A Cavity filter is required for the 2.3 GHz
variant (ordered separately).
Note: An External Duplexer is required for some FDD variants (supplied with
AirSynergy, where required).
AirSynergy 2000 Installation Guide
Page 23 Commercial in Confidence UGD-D01001 Rev A
Figure 5 - AirSynergy 2000
Note: Auto-negotiation must always be enabled on the core network side.
Note: Illustration above display the GPS connected directly to the top of the unit,
there is also a remote GPS antenna option.
AirSynergy 2000 Installation Guide
Page 24 Commercial in Confidence UGD-D01001 Rev A
3 Getting Started
3.1 Workflow of Installation
The Workflow to install the AirSynergy is shown in the following diagram:
Figure 6 - Workflow of Installation
Caution: Antennas must be connected and attached before AirSynergy is
powered on.
AirSynergy 2000 Installation Guide
Page 25 Commercial in Confidence UGD-D01001 Rev A
3.2 AirSynergy Installation Checklist
Plan the installation of the AirSynergy by using the Installation Checklist, which you can find as a
removable job aid in Appendix A for this guide.
AirSynergy 2000 Installation Guide
Page 26 Commercial in Confidence UGD-D01001 Rev A
4 Verify Prerequisites
Prior to installing the AirSynergy, verify the required safety, power, tools, parts and components.
Reference: Set up requirements for the installation is detailed in the Job Sheet,
see Appendix A for this guide.
4.1 Verify Site Requirements
To set up the AirSynergy a connection to a Netspan server PC will be required.
4.2 Verify Installation Requirements
4.2.1 Verify the Tools
Table 7 - AirSynergy installation tools
Tool
Use
Small flat blade screwdriver
screw terminals inside PoE injector
Large flat bladed screwdriver
securing the pole straps
Medium Phillips (crosshead)
screwdriver
PoE injector lid and mounting screws
13mm wrench x 2
heavy-duty pole clamp option only
10mm or 13/32 inch wrench
AirSynergy securing flange nuts
Large pliers
Tightening cable glands - To fit 15mm
Knife
For stripping insulation
Large pliers
Tightening cable glands on the US PSU -
To fit 15mm across flats
Wire cutters
Wire strippers
Cutting of insulation
Ring terminal crimp tool
Tilt-meter
If accurate down-tilt of antenna needs to be set
4.2.2 Verify the Parts and Kits
Table 8 - AirSynergy installation parts and kits
Installation Kit /
Part
Consisting of
Note:
Main AirSynergy
parts
1 x AirSynergy Universal Mounting
Plate and pole strap kit
(Includes 2 pole straps for poles up
to 200mm diameter)
AirSynergy 2000 Installation Guide
Page 27 Commercial in Confidence UGD-D01001 Rev A
Installation Kit /
Part
Consisting of
Note:
AirSynergy unit(s)
Frequency band specific and
available with and without integral
switched beam antenna.
Verify order and requirement to
ensure the correct unit type is
being installed.
Either of the following
1 x Sun Shield (for single unit
installation where a separately
mounted external antenna is
deployed)
Sun shield with included hardware
(6 Flathead screws)
OR (for front mount antenna option)
1 x Sector Antenna mounting plate
with fixing kit
4 M4 nuts
4 M4 flat washers
4 M4 spring washers
4 Cable ties
4 M5 SEM
1 x Sector Antenna (front mount)
Additionally required for non-switched beam antenna versions of
AirSynergy
GPS Antenna
GPS Antenna mounting kit
Bracket
M6 screw
M6 plain washer
M6 spring washer
TNC to TNC cable (25cm)
Additionally required for back to back unit installations
Note: Dual radio units are usually pre-assembled
from the factory.
1 x back to back joining kit
4 joining straps with mounting
studs and flange nuts pre-fitted.
16 M5 countersink screws
1 x Extended sun shield
( If no front mount antenna is to be
fitted to the front face of the back
to back AirSynergy units)
AirSynergy 2000 Installation Guide
Page 28 Commercial in Confidence UGD-D01001 Rev A
Installation Kit /
Part
Consisting of
Note:
OPTIONAL
Heavy-duty
mounting (for
specific
mounting
locations)
1 heavy-duty pole clamp mounting
kit
4 clamps
4 M8x150 bolts
4 M8 plain washer
4 M8 spring washer
Connecting
cables
CAT5e
External grade 25m with weather
hood pre-fitted. One for each
AirSynergy unit
Grounding cable
M6 Lug at each end
Power Supply
and power cable
48V PSU module
1 per AirSynergy unit
Power drop cable
1 per AirSynergy unit (or dual
radio unit) with external grade
30m power cable with
compatible power weather-proof
connector .
Cable Join kit
1 per AirSynergy unit (or dual radio
unit)
48V PSU in weatherproof enclosure
(NEMA approved)
Alternative to the standard 48V
PSU (required for all North
American installations)
Table 9 - External Antenna and feeder kits (Optional)
Installation Kit / Part
Note
External Antenna
Several variants - Verify the
correct unit type is being
installed.
Typically a 2 port cross-polar antenna
Pole mounting kits (supplied with antenna)
Short Feeder cable
0.5M feeder tails x 2 (for mounting antenna directly above
the AirSynergy unit)
Long Feeder tail
1.5M feeder tails x 2 (for mounting antenna on the same
pole immediately behind the AirSynergy unit or where the
Antenna needs to be mounted away from the AirSynergy
unit)
Table 10 - Input Power for AirSynergy
AirSynergy
(2.3-2.7 GHZ)
&
(698-746 MHz)
3x (3.3-3.38 GHZ)
AirSynergy 2000 Installation Guide
Page 29 Commercial in Confidence UGD-D01001 Rev A
AirSynergy
(2.3-2.7 GHZ)
&
(698-746 MHz)
3x (3.3-3.38 GHZ)
Input Voltage to
AirSynergy (1)
TBD
TBD
PS output Voltage - 30
meter cable (2)
TBD
TBD
PS output Voltage - 75
meter cable (2)
TBD
TBD
PS output Voltage - 100
meter cable (2)
TBD
TBD
Table 11 - AirSynergy additional items
Additional Common Accessories
(not provided by Airspan)
Cable ties
Self-amalgamating tape
Black PVC tape
Ring terminal for ground cable. M6
Ground cable (4-6 mm) (yellow and green cable)
4.2.3 Verify Components
The following figures display AirSynergy components and accessory kits.
Table 12 - AirSynergy components
Parts
Images
AirSynergy Unit in typical packing box
AirSynergy unit (connectorised)
AirSynergy 2000 Installation Guide
Page 30 Commercial in Confidence UGD-D01001 Rev A
Parts
Images
AirSynergy unit with Switched Beam
antenna (factory assembled)
Universal mounting plate and pole straps
Sun-Shield and hardware
Sector Antenna plate and hardware
Sector antenna (Check frequency
variants)
AirSynergy 2000 Installation Guide
Page 31 Commercial in Confidence UGD-D01001 Rev A
Parts
Images
PSU (power supply unit)
Enclosed PSU (U.S. requirement)
GPS antenna
GPS antenna mounting kit
AirSynergy is shown below from the Ethernet termination and RF port end views respectively.
Figure 7 - AirSynergy Unit, bottom termination
AirSynergy 2000 Installation Guide
Page 32 Commercial in Confidence UGD-D01001 Rev A
Figure 8 - AirSynergy Unit, RF ports, Internal Duplexers
Figure 9 - AirSynergy Unit, RF ports, External Duplexers
4.2.3.1 Physical Dimensions
AirSynergy is in an all outdoor enclosure.
Table 13 - AirSynergy physical dimensions
Parameter
Value
Comment
Height
530 mm (20.9 in)
The physical dimensions exclude and connectors.
Width
144 mm (4.49 in)
Depth
106 mm (4.17 in)
Weight
Main unit (Connectorized)
4.65 kg (10.25 lb)
Universal mounting
bracket (Including pole
straps)
925 g (2.04 lb)
Sun-shield
575 g (1.27 lb)
Front mount antenna &
plate
1.35 kg (2.98 lb)
RF Ports for antenna connections are N-Type Female connectors located on the top of the
AirSynergy enclosure.
AirSynergy 2000 Installation Guide
Page 33 Commercial in Confidence UGD-D01001 Rev A
4.2.3.2 External Duplexer (FDD Variant Only)
An External Duplexer is required for some AirSynergy FDD variants, and is pre-installed adjacent
to the AirSynergy unit. The Duplexer is shown below (in different views) with the pre-assembled
brackets. The external Duplexer measures TBD mm (TBD in.), TBD mm (TBD in.) and TBD mm
(TBD in.).
TBD
Figure 10 - pre-assembled External Duplexer
TBD
Figure 11 - External Duplexer bottom panel
TBD
Figure 12 - External Duplexer top panel
Table 14 - External Duplexer variants
Variant
Band
Weight
AirSynergy-TBD
12, 17
TBD Kg (TBD Lbs.)
AirSynergy-TBD
20
TBD Kg (TBD Lbs.)
AirSynergy 2000 Installation Guide
Page 34 Commercial in Confidence UGD-D01001 Rev A
5 Install AirSynergy
Install the AirSynergy base station by pole mount, wall mount, or single point. The AirSynergy
can be connected to various types of antennas via standard RF coaxial cables. Antennas are
positioned with up to 10 wavelengths horizontal separation to give optimal Downlink and Uplink
MIMO performance.
AirSynergy is normally mounted on a pole (in close proximity to its external antenna when not
using the AirSynergy front mounted Antenna. Take care to install the mounting plate the correct
way up so that the AirSynergy unit will fit with the PoE connector pointing downwards. This is with
the slot openings in the bracket at the top edges as shown.
Caution: Proper local rigging and hoisting practices should be followed when
installing the AirSynergy.
5.1 Pole Mount Assembly
The following images show the pole mount assembly.
1. Position mounting plate with slots facing up.
Figure 13 - AirSynergy mounting plate and hardware
2. Feed clamp bands through the quick release locking mechanisms and wrap around pole.
Figure 14 - Assemble clamp bands (2 required)
3. Wrap the band to properly fit on the pole. Press down locking mechanism with band
excess fed through the mechanism.
AirSynergy 2000 Installation Guide
Page 35 Commercial in Confidence UGD-D01001 Rev A
Figure 15 press down locking mechanism
4. Align and position each of the 2 pole clamps. Tighten the clamp bands with large flat
screwdriver in place.
Figure 16 tighten clamp bands
5. Mounting plate is installed and ready for AirSynergy mounting.
Figure 17 mounting plate installed on large diameter pole
5.2 Front Sector Antenna Assembly
The AirSynergy unit can be used either with a sector antenna mounted directly on the front or with
a remotely attached antenna. The following describes the installation procedure for the front
mounted antenna.
AirSynergy 2000 Installation Guide
Page 36 Commercial in Confidence UGD-D01001 Rev A
For installation of a remotely mounted antenna follow the instructions manufacturer’s instructions
and connect the antenna to the AirSynergy using the appropriate cables. (N-type RF connections
must be weather-proofed).
Note: A Sun-shield should be attached when a front mounted antenna is not
attached to the unit.
To
mount
the
front
antenna,
perform
the
following:
1. Fit the antenna to the (antenna) mounting plate. The four (4) studs on the back of the
antenna pass through the front face of the mounting plate and are secured with the 4 sets
of M4 nuts and washers (flat and split) included in the kit. Carefully position the lead RF
cables as shown in the figure below and secure them in place to the eyelets on the back
of the mounting plate with the provided cable ties. The cables are formed with a cross-
over at the bottom.
Note: It is recommended to place some packing material under the unit while
assembling to protect it from scratches.
Figure 18 - attaching front mounted antenna to mounting plate
2. Attach the assembled front mounted antenna with the bracket to the AirSynergy unit
using the M5 SEMs (2 on each side) and connect the RF cables to the N type RF ports
on the top of the AirSynergy.
Note: The plate is mounted with the side slots towards the top so that the
required tilt-down can be set.
Figure 19 Attaching front mount antenna assembly to AirSynergy
5.3 Connecting GPS Antenna to AirSynergy
The GPS antenna should be installed far from:
High-voltage power cables.
Strong radiation area of any TV transmission stations.
Radiation area of the main lobe of the RF Antenna.
Radiation area of the microwave antenna.
Other areas with inter-frequency interference or strong electromagnetic interference.
Cable Fastening Good Practices:
No more than 5m between cable fastening spaces.
AirSynergy 2000 Installation Guide
Page 37 Commercial in Confidence UGD-D01001 Rev A
No more than 1m between cable termination and first fastener.
Fastenings should be to a robust construction (i.e. mast pole, unit mount…).
Fasteners should be weather and UV resistant.
Cables should have some slack for thermal expansion/contraction between fastenings.
An 25cm, cable connects the GPS directly to the top of AirSynergy. When mounting the GPS
antenna remotely from the unit, the GPS antenna should be used in conjunction with the Remote
GPS Antenna Mounting Bracket (TBD) and appropriate length GPS Cable RG58 TNC-TNC by
way of TNC connectors.
Note: All cables should be properly secured to prevent undue strain on any of
the cable terminations.
Note: AirSynergy units without a factory assembled Switched Beam Antenna all
require a GPS antenna which comes in a kit with a mounting bracket and a 25cm
cable. A primary consideration for a GPS antenna is a clear view of the sky,
preferably 360 degrees.
1. Assemble the GPS antenna to the mounting bracket supplied in the GPS antenna
mounting kit. The large black nut should be tightened with a pipe wrench.
Caution: take care not to over tighten the nut so as not to damage the plastic
threads.
Figure 20 - attaching GPS antenna to mounting bracket
2. Attach the short TNC to TNC cable from the GPS antenna to the TNC connecter on the
top of the AirSynergy unit.
Note: For extreme weather conditions weather-proofing of the TNC connections
is recommended. This is done with a layer of self-amalgamating tape followed by
an over layer of PVC tape. The weather-proofing is best done at this stage to give
easier access to the connections.
AirSynergy 2000 Installation Guide
Page 38 Commercial in Confidence UGD-D01001 Rev A
Figure 21 - GPS antenna cable connected
3. Attach the GPS antenna assembly to the body of the AirSynergy unit using the single M6
screw and lock washer provided in the kit. There is a threaded hole on the top corner of
the AirSynergy unit for this purpose.
The TNC to TNC cable loop can be carefully positioned behind the front mount antenna
(or the sunshield) as shown below.
Note: weather-proofing (as described previously) should have already been
applied.
Figure 22 - Assembling GPS antenna with bracket to AirSynergy
5.4 Securing AirSynergy to the Mounting Plate
Note: If the installation is for a back to back assembly with two (2) AirSynergy
units sharing the same mounting bracket refer to additional steps in Appendix B..
To mount AirSynergy to the universal mounting plate, perform the following:
1. Loosely fit the flange nuts on the studs protruding from the sides of the unit.
Figure 23 - Lift unit to top of mounting plate
AirSynergy 2000 Installation Guide
Page 39 Commercial in Confidence UGD-D01001 Rev A
2. Hook the studs into the top slots of the mounting plate.
Figure 24 - unit engages into slots on the top of mounting plate
3. With the studs engaged in the top slots raise the unit slightly until the bottom studs also
drop into their respective slots.
Figure 25 - Gently lift the unit until the bottom studs fit into the bottom slots
Figure 26 - AirSynergy unit engaged into the bottom slots
4. Tighten the flange nuts (4 places) to the required degree of down-tilt.
5. Check and tighten all flange nuts.
5.5 LED Display
A single tri-color LED (Green/Red/Orange) appears at the bottom of the unit, providing unit status
indication.
When powering up refer to the following table for indication of current status:
Table 15 - LED Display
LED
Name
Color
Status
Description
AirSynergy 2000 Installation Guide
Page 40 Commercial in Confidence UGD-D01001 Rev A
Green
TBD
Green
On
TBD
Red
TBD
Red
TBD
Orange
TBD
Orange
TBD
AirSynergy 2000 Installation Guide
Page 41 Commercial in Confidence UGD-D01001 Rev A
6 Connect and Manage Cables
6.1 Connecting the Ground Cable
There is an option to connect an ground cable to the M6 screw threaded connection at the
bottom of the main body casting. This should be connected to a protection ground bar or
clamped directly to the steel structure of the power or pole. This is required in areas of high
lightning activity or when the AirSynergy unit is mounted on high exposed roofs or tower
structures. A direct earth ground connection is required for the surge protection devices inside the
AirSynergy to be effective.
1. Remove grounding screw and slip the ring terminal end of the ground cable onto the
screw prior to re-setting into the threaded hole.
Figure 27 attaching ground cable to AirSynergy
2. Connect the ground cable to the to the protection ground bar using a suitable crimp lugs.
Alternatively use a clamp to bond the ground cable to the mounting pole or to the tower
structure.
Figure 28 - attach ground cable to pole
Note: When installing a protection ground take care to use suitable metal
combinations to avoid or minimize galvanic corrosion.
AirSynergy 2000 Installation Guide
Page 42 Commercial in Confidence UGD-D01001 Rev A
6.2 Connecting RF Jumper Cables to External Antenna
1. Attach, connect and secure the RF cable between the external antenna and the
appropriate RF connection on the top of the unit.
Figure 29 - Connecting RF cable
Caution: Do not over-tighten the RF connector. RF failures can result when the
RF connector is over-tightened.
Figure 30 - weather-proof the connection - front mount antenna
2. Weather-proofing of the RF N type connections is recommended. This is done with a
layer of self-amalgamating tape followed by an over layer of PVC tape.
3. Verify the RF connector is completely weather-sealed.
6.3 Connecting the Power Drop Cable to AirSynergy
1. Plan the position of the power drop cable run from the AirSynergy unit to the power
supply. The recommended maximum run length is 30m (98.44 ft). (For run lengths
greater than 30m please contact your Airspan representative)
2. Uncoil the cable and secure the connector just below the AirSynergy unit.
Note: When securing the cable make sure there is not tension on the connector
so that it is easy to disconnect and re-connect for future maintenance actions.
3. Position the pins correctly, the connector is secured to the unit with a locking ring that is
screwed into place. Use firm hand pressure only, the connector has a built in sealing ring.
Caution: The internal plastic parts of the mating connector are keyed. Take care
to align these by visual inspection or by gently rotating the connector body until
the key way sections align and the pins go in before tightening the locking ring.
AirSynergy 2000 Installation Guide
Page 43 Commercial in Confidence UGD-D01001 Rev A
Figure 31 - attaching power cable to AirSynergy
AirSynergy 2000 Installation Guide
Page 44 Commercial in Confidence UGD-D01001 Rev A
7 Power System Connection
Hazardous voltage! Before working, ensure that the power is removed from the
power connection cables. When the system is powered on, do not touch the
power terminals.
7.1 Required Tools
The tools required for the connection of the PSU are:
knife
small flat blade screw driver (electrical insulated shaft recommended)
medium Philips head screwdriver
pliers
small side cutters
tweezers (or fine blade long nose pliers)
Figure 32 - required tools
7.2 Cable Connections
7.2.1 Power Drop Cable Installation
When the power drop cable is to be passed through glands and/or down the center of a lamp post
or other structure, the power drop cable can be cut leaving sufficient length for ease of termination.
With the power supply placed at the selected installation location, trim the cable to the length for
proper installation while allowing sufficient length to strip and prepare the cable ends.
Note: Standard cable supplied is 30m in length, other length options are
available.
Advice: It is good practice to label both ends of the cable to identify which
AirSynergy unit it is connected to. This is especially important where numerous
AirSynergy units are installed on the same pole/tower.
Advice: It is good practice to leave a spare loop of cable (approximately 0.5m).
This will allow for easier wiring to the power supply and will allow the cable to be
re-terminated if necessary in the future.
7.2.2 Network Cable Installation
For installations that require a network connection a separate cable must be run to the network
Ethernet switch. The standard length of pre-made cable is 30m. For other lengths up to a
maximum of 100m cables can be made up on site.
AirSynergy 2000 Installation Guide

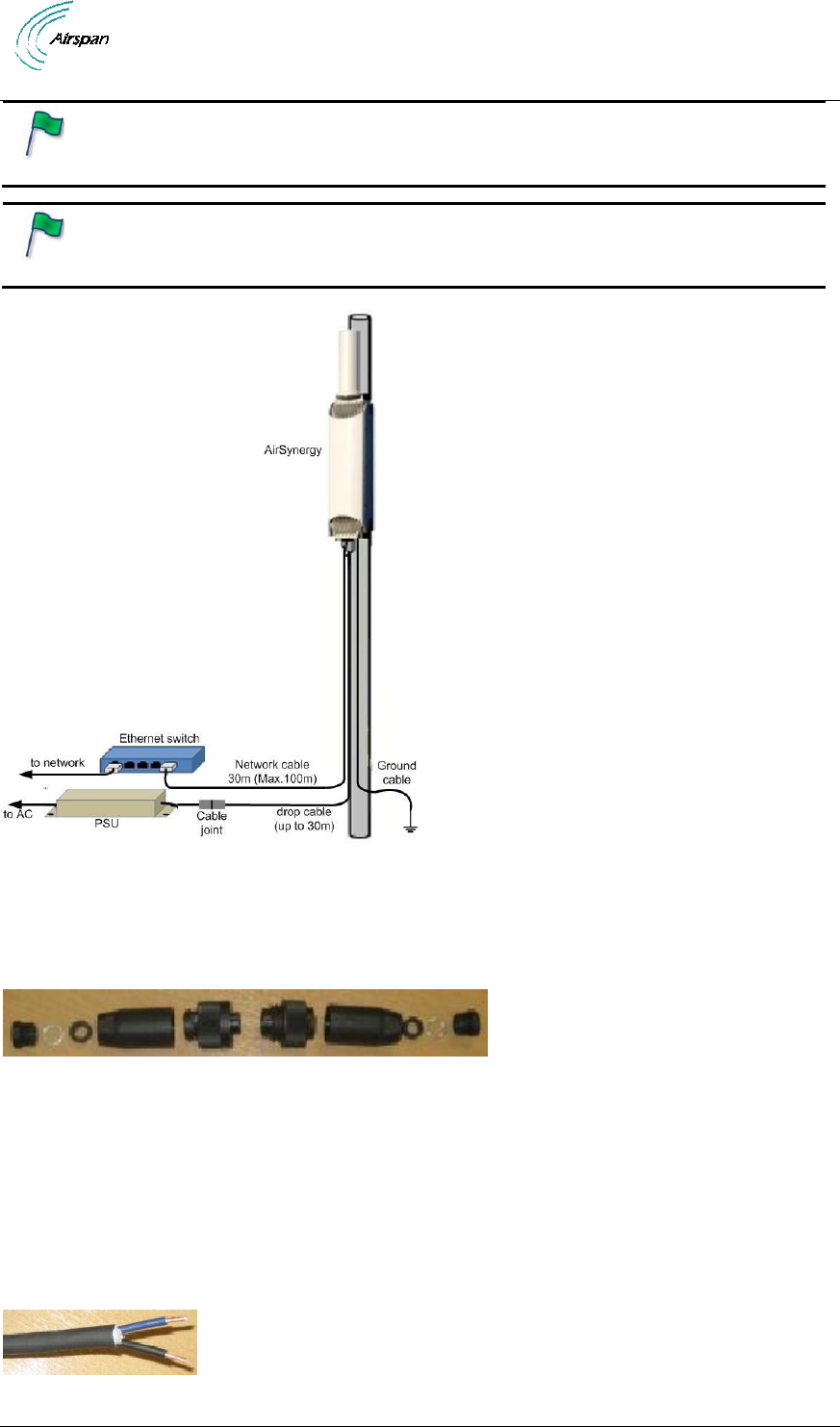

Page 45 Commercial in Confidence UGD-D01001 Rev A
Advice: It is good practice to label both ends of the Network cable to identify
which AirSynergy unit it is connected to. This is especially important where
numerous AirSynergy units are installed on the same pole/tower.
Advice: It is good practice to leave a spare loop of network cable (approximately
0.5m). This will allow for easier wiring to the Network switch and will allow the
cable to be re-terminated if necessary in the future.
Figure 33 - power and network cable overview
7.3 Wiring Power Drop Cable to the PSU
The power drop cable supplied is a standard 30m (98.42 ft) length with the power connector end
for the AirSynergy unit pre-fitted. (Longer lengths are available).
Figure 34 - Waterproof connector exploded view
1. Choose the location PSU and the route of the power cable. Pass the cable through any
building walls or cable entry glands and bring the unterminated end to the location of
the PSU.
2. With the power drop cable from the AirSynergy cut to the required length prepare the
cable to fit the waterproof power connector.
3. Strip back and remove the outer sheath to expose the inner blue and black insulated
wires to a length of 3cm (1.18 in). Then strip back 6mm (0.24 in) of the inner core
insulation.
Figure 35 - power cable preparation
AirSynergy 2000 Installation Guide
Page 46 Commercial in Confidence UGD-D01001 Rev A
Figure 36 - waterproof connector separated
4. Thread the prepared cable end through the gland, washer, sealing ring and body of the
connector.
Figure 37 - gland and connector on cable
5. Secure the prepared ends of the power cable into the head part of the connector (male
part with visible pins).
Figure 38 - secure cable to connector
6. Insert and secure the black wire into position 1and the blue wire into position 2.
Figure 39 power cable wires assembled
Note: Individual connection numbers are marked on each part of the connector.
Figure 40 - numbered connector contacts
7. Assemble the parts of the connector and tighten the gland to provide a waterproof seal.
Figure 41 - assemble and tighten
AirSynergy 2000 Installation Guide
Page 47 Commercial in Confidence UGD-D01001 Rev A
8. Prepare the ends of the PSU low voltage cable and thread the connector parts over
the cable.
9. Secure the prepared ends of the drop cable into the head part of the connector (female
part).
Figure 42 - PSU cable connector assembly
10. Insert and secure the red wire into position 1 and the black wire into position 2
Figure 43 - PSU wires assembled
11. Assemble the parts of the connector and tighten the gland to provide a waterproof seal.
Figure 44 - assemble and tighten
12. Fasten the 2 parts of the connector together and tighten to make a watertight seal.
Figure 45 - connector assembled and tightened
7.4 Connecting the PSU to Power Supply
The power (mains) connection should be connected to a fused or protected mains supply (100 to
240 Volts AC). The Brown wire is the Live, the Blue wire is the Neutral and the Green/Yellow wire
is the ground wire.
Figure 46 - High power (240W) PSU
AirSynergy 2000 Installation Guide
Page 48 Commercial in Confidence UGD-D01001 Rev A
Figure 47 - Standard power (100W) PSU
The PSU module can be screwed into position using the self-tapping screws provided (4 places).
Figure 48 - attaching PSU
Note: For USA deployments an alternative PSU and enclosure arrangement is
required Refer to Appendix E.
Figure 49 - PSU for USA deployment
Caution: Safety - Disconnection of AC supply.
When AirSynergy is connected directly to building or lamp post wiring a
suitably rated and easily accessible disconnect device shall be
incorporated external to the equipment.
When AirSynergy is connected to the AC power supply using a plug and
socket, the socket-outlet shall be installed near the equipment and shall
be easily accessible.
AirSynergy 2000 Installation Guide
Page 49 Commercial in Confidence UGD-D01001 Rev A
8 Initial WEB Configuration
To set AirSynergy base station Management IP & BSID via Web Page. This prepares the
equipment for connection to Netspan.
Verify that the Web browser with which you want to access the Web-based Management is active.
8.1 Initial configuration
To connect to AirSynergy via the WEB interface, perform the following:
Caution: The GPS antenna should be installed and attached before AirSynergy is
powered on.
Caution: Wait two minutes before performing other actions.
1. Apply power to the AirSynergy and connect the PC to the Ethernet port.
2. In a browser, open web page with BS address
IP address 192.168.0.100 (255.255.255.0) (AirSynergy default IP address).
3. Enter the default username and password:
Username = synergy
Password = synergy
4. Click Submit
5. For WiMAX 16e applications Navigate to “General” menu to specify the BS ID. (Format
xxxxxx:yyyyyy)
Where xxxxxx is reserved for the Operator ID and yyyyyy is a unique Hexadecimal
reference number within the network.
Figure 50 - General BS Configuration
6. Click Save
Notes: iBridge Term menu item is not applicable to 16e BS and must not be
used. Configuration of “RF Channels” may lead to failed installation (failed
commissioning and no discovery). TBD
7. Navigate to “Management” and modify the IP address according to your network.
Enter BS ID
AirSynergy 2000 Installation Guide
Page 50 Commercial in Confidence UGD-D01001 Rev A
Figure 51 - Mgmt IP Config
Note:
Dynamic” IP Allocation is not supported in the current release. Please
select Static.
Internal Port configuration is not applicable to 16e BS and must not be
used. Configuration of the internal port may lead to management comms
failure.
Clicking the “Submit” your configuration is NOT implemented
immediately in the BS. The BS needs to be rebooted for the new
configuration to be applied.
8. Navigate to “Reboot” and click on “Yes” to reboot the BS.
Figure 52 - reboot confirmation
8.2 Automatic Discovery via Netspan
Set the BS discovery profile in Netspan.
The following section explains the steps to take for the automatic discovery of AirSynergy via
Netspan.
Modify BS IP
Choose Untagged or
Modify the BS
Management VLAN when
applicable
(Take care when changing
to a management VLAN
since communication from
a Laptop or PC without the
relevant 802.1Q NIC
capability and configuration
will be lost)
AirSynergy 2000 Installation Guide
Page 51 Commercial in Confidence UGD-D01001 Rev A
To connect AirSynergy BS via Netspan:
1. Log into Netspan
2. Navigate to Server > Discovery Parameters
Figure 53 Discovery Tasks
3. Click Add
4. Define:
a. Name
b. Write Community
c. Read Write
Notes: This should be same as was configured before on the BS. TBD
5. Define the discovery Target IP Address Range. For example Start address =
172.30.0.100 and End Address=172.30.0.101
6. Port enter 161
7. Click OK, as displayed below:
AirSynergy 2000 Installation Guide
Page 52 Commercial in Confidence UGD-D01001 Rev A
Figure 54 - Edit Discovery tasks parameters
8. Click OK and wait till you see the new BS in the configuration management > BS > BS
TRx, as shown below:
Figure 55 - Discovery Target
Your AirSynergy BS is now “discovered” by Netspan and is ready for additional configuration,
provisioning and adaptations.
Notes: In case of discovery failure (BS not present on the list) Discovery Test can
be used to diagnose the problem.
Select Discovery Task created and Click Edit.
Select the discovery parameters and press Test. The report appears.
Correct the problem and try again.
AirSynergy 2000 Installation Guide
Page 53 Commercial in Confidence UGD-D01001 Rev A
Figure 56 - Discovery Test
AirSynergy 2000 Installation Guide
Page 54 Commercial in Confidence UGD-D01001 Rev A
9 Appendix A
Review Job Sheet
The Job Sheet should include the following information:
Pole for installation identified
Position on pole identified
Pole access restrictions (highway regulations, other services on pole, power pole)
Method of reaching pole positions (ladders, Elevated work platform)
AC main fuse block available for PSU
Configuration programming details known
Point of connection for Ethernet (if applicable)
All equipment items available at the installation site
o Main AirSynergy unit
o Mounting bracket and pole clamps
o PSU
o Ethernet cable assembly
o GPS Antenna
o GPS antenna installation kit
o Front sector Antenna (if applicable)
o Front sector Antenna mounting bracket ad fixing kit (if applicable)
o External panel antenna (if applicable)
o RF feeder cable tails (if applicable)
Required tools
o Large flat screw driver for pole clamps
o Small flat screwdriver for PoE power terminations
o Small cross-head screwdriver for PoE box lid and fixings for PSU
o 20mm wrench or small pipe wrench for RF connections
o 10mm wrench for main unit mounting flange nuts
o Side cutters
o Wire strippers
o Krone punch down tool
o Tilt meter to set antenna down-tilt
o Ring terminals crimp tool
Required ancilliary equipment
o Lap top PC for initial configuration
o Ethernet cable for temporary connection of the lap top
Other install materials
o Self-amalgamating tape
o Black PVC tape
o Cable ties
Labels
Whether the system is required to be locked to a GPS timing reference.
A BSID is required for each AirSynergy. This should be in a format xxxxxx:xxxxxx
where x is a decimal digit.
Network configuration information for the SDR blade. This shall include the
following information for the front panel and the backplane.
AirSynergy 2000 Installation Guide
Page 55 Commercial in Confidence UGD-D01001 Rev A
o IP Address: Should only be set if Management IP Mode is set to Static IP
Address. See below for Management IP Mode parameter.
o Netmask: Should only be set if Management IP Mode is set to Static IP
Address. See below for Management IP Mode parameter.
o Default Gateway: Should only be set if Management IP Mode is set to Static
IP Address. See below for Management IP Mode parameter.
o Management VLAN: Specified as either Untagged or Tagged
o Management VLAN Tag: Should only be set if Management VLAN is set to
Tagged
o Management IP Mode: Specified as Static IP Address or Obtain IP Address
via DHCP
o Ethernet Mode: Specified as Auto-negotiate or Fixed
o Ethernet Rate: Need only be configured if Ethernet Mode is set to Fixed,
specified as 10M or 100M.
o Ethernet Duplex: Need only be configured if Ethernet Mode is set to Fixed,
specified as Full or Half.
SNMP configuration information. This will allow events from the BS to arrive at the
specified Netspan server. This will include the following information:
o Read Only Community: This should be specified to the same value as in
Netspan Discovery Parameters (found under Server on Netspan’s left hand
panel).
o Read Write Community: This should be specified to the same value as in
Netspan Discovery Parameters (found under "Server" on Netspan’s left hand
panel).
Community: Normally specified to the same value as for Read Only Community.
AirSynergy 2000 Installation Guide
Page 56 Commercial in Confidence UGD-D01001 Rev A
10 Appendix B - Field Assembly of Back to Back AirSynergy units
In cases where 2 AirSynergy radios are to be installed on the same mounting bracket some
additional installation steps are required which are as follows:
10.1 Removal of the Existing Stud Mounting Plates
1. Remove the existing stud mounting plates (4 places) from each AirSynergy unit. Each
plate is secured with 2 countersunk head screws.
Figure 57 - stud mounting plates removal
Notes: The screws should be replaced with a new set (16 pieces) with new
locking patches on the threads when re-assembling with the joining plates. A new
set of screws is supplied with the back to back joining kit.
10.2 Reassembly with the Joining Plates
Re-assemble utilizing the joining plates. The studs with flange nuts must all be facing the same
direction. A typical arrangement will be with the AirSynergy with connectorised RF ports to be
mounted at the back. The mounting studs will then all be on the sides of the connectorised unit as
shown in the figure.
2. Fit all 4 plates to one of the AirSynergy units then slide the 2nd unit into place between the
brackets.
Figure 58 - stud mounting plates assembly
3. Position the back to back assembly on side in order to tighten all the joining plate screws.
AirSynergy 2000 Installation Guide
Page 57 Commercial in Confidence UGD-D01001 Rev A
Figure 59 - tighten all fixing screws
Note: It is recommended to place some packing material under the units while
tightening the screws to protect the units from scratches.
The recommended mounting method with pole clamps for back to back installations differs from
the regular mounting due to the additional weight of the 2 units.
Figure 60 - back 2 back mounting
Note: To support the additional weight of a back to back system on a single
universal mounting plate it is recommended that a pole clamp kit is used, as
shown above. This provides a stronger mounting option on the standard telecom
tower equipment pole. For larger diameter poles where pole straps are required
due to the larger pole diameter, it is recommended that 4 straps are used. It is
important that pole straps sit flat against the mounting plate as shown below.
AirSynergy 2000 Installation Guide
Page 58 Commercial in Confidence UGD-D01001 Rev A
Figure 61 - back plate straps
Figure 62 - back to back mounted with 4 straps
Mount the assembly on the universal mounting bracket and secure the flange nuts. The GPS
antenna and front mount antenna (if applicable) can be installed before or after mounting to the
pole depending on ease of access.
In cases where no front mount antenna is installed, an extended sun shield is available as an
accessory item and should be installed. The installation method is the same as the standard sun
shield with 3 fastenings on each side of the front AirSynergy unit.
Follow the normal procedures for the connection of power supply units and drop cabling to each
of the back to back mounted AirSynergy units.
Caution: When securing a back to back assembly to the mounting plate a safety
line should be secured to the units. The 6mm threaded holes used for the
protection ground at the bottom or the GPS mountings at the top of each Synergy
unit provide strong anchor points for a safety line. (This is the same threaded
hole used for protection ground connection in exposed areas or high lightening
risk areas).
AirSynergy 2000 Installation Guide
Page 59 Commercial in Confidence UGD-D01001 Rev A
11 Appendix C - Glossary of Terms - Acronym, Abbreviations &
Definitions
Table 16 - Glossary of Terms
Term
Definition
AAA
Authentication, Authorization and Accounting
ARQ
Automatic Repeat Request
ASN
Access Service Network
ASN GW
ASN Gateway
BS
Base Station
BWA
Broadband Wireless Access
CPE
Customer Premises Equipment
E-UTRAN
Evolved UMTS Terrestrial Radio Access Network, is the air interface of
3GPP's Long Term Evolution.
EVM/RCE
The Error Vector Magnitude or EVM (sometimes also called Receive
Constellation Error or RCE) is a measure used to quantify the
performance of a digital radio transmitter or receiver. It is measured in
dB or percentage (%) - the lower the better.
FDD
Frequency Division Duplex. Frequency-Division Duplexing. A transceiver
mode where the transmitter and receiver operate at different carrier
frequencies.
GNSS
Global Navigation Satellite System is a term used to describe a satellite
navigation system with global coverage. There are currently two fully
operational GNSSs - the US GPS and the Russian GLONASS.
GTP-U
GPRS Tunneling Protocol for User data is a relatively simple IP based
tunneling protocol which permits many tunnels between each set of end
points
GUI
Graphical User Interface
HO
Handover/Handoff
HPBW
Half Power BandWidth is the angular separation in an antenna, in which
the magnitude of the radiation pattern decreases by 50% (or -3 dB) from
the peak of the main beam
IP
Internet Protocol
ICS
In-channel selectivity is a measure of the receiver’s ability to receive a
wanted signal at its assigned Resource Block locations in the presence
of an interfering signal
IPSec
Internet Protocol Security is a protocol suite for securing Internet
Protocol (IP) communications by authenticating and encrypting each IP
packet of a communication session
LED
Light Emitting Diode
LTE
Long Term Evolution
AirSynergy 2000 Installation Guide
Page 60 Commercial in Confidence UGD-D01001 Rev A
Term
Definition
MAC
Medium Access Controller - responsible for several functions such Error
Correction, Packet (De)Multiplexing, etc.
MBSFN
Multicast-Broadcast Single Frequency Network is an LTE feature
designed to deliver services such as Mobile TV using the LTE
infrastructure, and is expected to be a competitor to DVB-H-based TV
broadcast
MCS
Modulation and Coding Scheme
MIMO
Multiple Input Multiple Output
MME
Mobility Management Entity is the key control-node for the LTE access-
network. It is responsible, among other things for idle mode UE tracking
and paging procedure including retransmissions
MTBF
Mean Time Between Failures
MS
Mobile Station
NEMA
National Electrical Manufacturers Association
NLOS
Non Line of Sight
NSP
Network Service Provider
OFDMA
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user
version of OFDM digital modulation scheme, used for eNodeB
transmissions to UEs
PDCP
Packet Data Convergence Protocol. A Sub-Layer in LTE responsible for
IP Header (De)Compression, etc…
PDU
Protocol Data Unit
PHY
PHYsical Layer
PTP
Precision Time Protocol is used to synchronize clocks throughout a
network. In this document, PTP is referring to IEEE1588-2008 protocol
RB
Resource Block
RLC
Radio Link Control. A Sub-Layer in LTE responsible for Ack/Nack, error
correction, packet reordering, etc…
ROHS
Restriction Of Hazardous Substances
RRC
Radio Resource Control. A Sub-Layer in LTE responsible for Broadcast
of system information, paging, security functions, radio bearer control,
etc…
RRM
Radio Resource Management is used to cover all functions that are
related to the assignment and sharing of radio resources among UEs
S-GW
Serving Gateway. A Core entity in the LTE EPC architecture responsible
for routing and forwarding user data packets, while also acting as the
mobility anchor for the user plane during inter-eNodeB handovers and
as the anchor for mobility between LTE and other 3GPP technologies
SBA
Switched Beam Antenna
AirSynergy 2000 Installation Guide
Page 61 Commercial in Confidence UGD-D01001 Rev A
Term
Definition
SC-FDMA
Single-Carrier FDMA is a frequency-division multiple access scheme,
dealing with the assignment of multiple users to a shared communication
resource. Used in LTE for UE transmissions to the eNodeB
SCTP
Stream Control Transmission Protocol is a reliable transport layer
protocol, ensuring in-sequence transport of messages with congestion
control like TCP
SDR
Software Defined Radio
SyncE
Synchronous Ethernet. A method for maintaining synchronous
communication over Ethernet using the physical layer (L1), as defined
by ITU-T G.8262
TDD
Time-Division Duplexing. A transceiver mode where the transmitter and
receiver operate on the same carrier frequency
UE
User Equipment. The end user in LTE
VoIP
Voice over IP
WEEE
Waste Electrical and Electronic Equipment
AirSynergy 2000 Installation Guide
Page 62 Commercial in Confidence UGD-D01001 Rev A
12 Appendix D - Installation Checklist
The Checklist below gives the high-level steps in the Workflow for this procedure. Detach or print
this page to use as a job-aid for completing the actions this procedure requires.
Table 17 - Checklist for Procedure
Procedure
Actions
Outcome
1. Verify Prerequisites
Verify site requirements
Verify safety
requirements
Verify installation
requirements
All requirements are in
place for a successful
installation
2. Install AirSynergy
universal mounting plate
Install the universal
mounting plate
Verify connection torque
settings
3. Install AirSynergy on
the mounting plate
4. Connect and manage
cables
Connect power cable
Connect GPS
5. Connect power system
Connect Power
Connect the ground
cable
Connect to Ethernet
backhaul
AirSynergy 2000 Installation Guide
Page 63 Commercial in Confidence UGD-D01001 Rev A
13 Appendix E PSU for USA
To comply with US regulations that apply to outdoor deployments of mains power supplies, a
special US version of the AirSynergy power supply has been produced with the PSU module and
the electrical connecting blocks enclosed in a small NEMA approved enclosure. The electrical
power cable and 48V power cables are brought through the weatherproof glands provided. This
type of power supply (SYN-PSU-ODUL-AC-1) must be used for all deployments in the USA.
Figure 63 - PSU for USA
1. Remove the top cover of the PSU enclosure.
Figure 64 - Inside PSU with cable terminations
2. Feed the power drop cable through the gland nearest to the low voltage connection and
connect to the terminal strip, observing the correct polarity. (Blue wire in drop cable to
negative terminal and Black wire in the drop cable to positive)
3. Isolate the power supply and pass the power cable through the input gland and
terminate on the connection blocks provided. The termination blocks are clearly labeled
as Live, Neutral and Earth.
4. Choose a suitable position for the PSU enclosure. The PSU enclosure should be
screwed to a firm surface with screws in 4 positions which are only accessible with the
top cover removed.
5. Once the enclosure top cover has been re-fitted (4 screw positions) and the wiring
completed the power can be connected.
AirSynergy 2000 Installation Guide
Page 64 Commercial in Confidence UGD-D01001 Rev A
14 Appendix F Antenna (Currently Supported) Types
The currently supported antenna a listed in the table below:
Table 18 - 2.x GHz Antenna Types - Technical
Type
Frequency range
Gain
Part number
45° Dual Slant mounting kit (50 >
115 mm) included Front Mount
2.3-2.7 GHz
11.0 dBi
Nom
SA12-2.5-DS/1915
+/-45° Polarized 65° Sector - Quad
Port Fixed Tilt mounting kit (50 >
115 mm) included - External
2.3-2.7 GHz
18.0 dBi
AW3007
+/-45° Polarized 65° Sector - Quad
Port Fixed Tilt mounting kit (50 >
115 mm) included - External
2.3-2.7 GHz
17.0 dBi
AW3008
AirSynergy 2000 Installation Guide
Page 65 Commercial in Confidence UGD-D01001 Rev A
15 Appendix G
15.1 Revision History
Revision
Originator
Date
Description
Rev A
M. Falik
08-2013
Initial document
15.2 Contact Information
Customer Service Help-Desk for customer service emergency
Airspan Networks have introduced the Airspan Tracker application to enable prompt and efficient
Customer Support services.
If you do not have an Airspan Tracker account, please obtain login credentials by filling-in the
form in the main page www.airspan.com/Support Register New Account
Worldwide Headquarters:
Airspan Networks Inc.
777, Yamato Road, Suite 310,
Boca Raton, FL 33431, USA
Tel: +1 561 893 8670
93Hwww.airspan.com
Feedback:
To provide feedback on this document, please send comments to the following email
address: 94Hdocumentfeedback@airspan.com
