AMTDT3502

HDD Personal Video

Recorder

Table of Contents

Table of Contents ------------------------------------------------------------------------- 1

Introduction-------------------------------------------------------------------------------- 2

Safety Information------------------------------------------------------------------------ 3

Remote Control--------------------------------------------------------------------------- 4

Front and Rear panel illustration------------------------------------------------------- 6

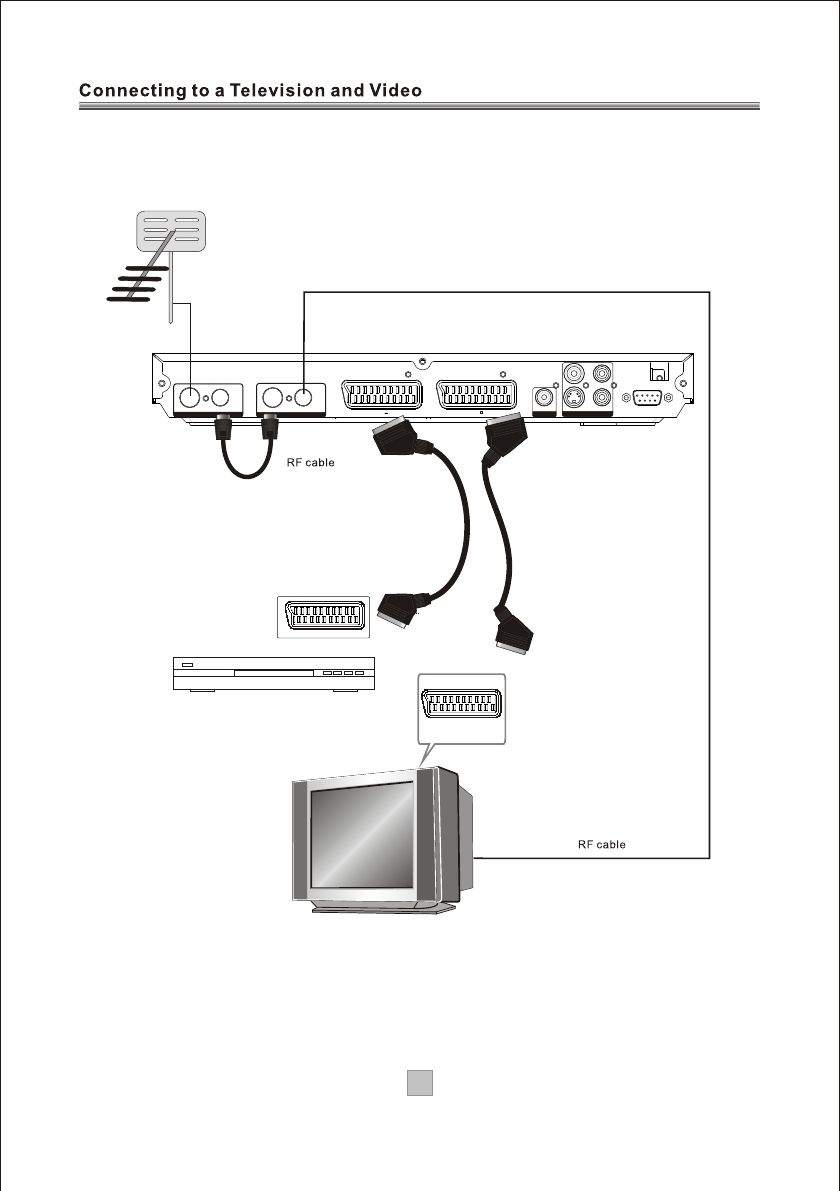

Connecting to a Television and Video------------------------------------------------- 7

Connecting to a Television ----------- -------------------------------------------------- 8

Connecting to a Surround Sound System------------------------------------------- 9

Getting Started --------------------------------------------------------------------------- 1 0

Switch on for the first time------------------------------------------------------------ 10

Channel Search------------------------------------------------------------------------ 11

Automatic channel scan------------------------------------------------------------ 11

Manual channel scan----------------------------------------------------------------11

System Setting-------------------------------------------------------------------------12

A/V Setting----------------------------------------------------------------------------12

First Time Installation--------------------------------------------------------------- 13

System Info--------------------------------------------------------------------------- 13

Change Pin Code-------------------------------------------------------------------- 13

Software Update--------------------------------------------------------------------- 14

Auto Mode:------------------------------------------------------------------------- 14

Manual Mode----------------------------------------------------------------------- 14

DTR Setting--------------------------------------------------------------------------- 15

Time Shift Durationg--------------------------------------------------------------- 15

Format Hard Disk------------------------------------------------------------------ 15

HDD Information------------------------------------------------------------------- 15

Auto discard Setting--------------------------------------------------------------- 15

OSD Setting------------------------------------------------------------------------ 15

Timers------------------------------------------------------------------------------------ 15

Channels List--------------------------------------------------------------------------- 16

Favourite List--------------------------------------------------------------------------- 17

Basic Operations---------------------------------------------------------------------- 18

Channel Schedule(EPG)----------------------------------------------------------- 18

Changing Channels----------------------------------------------------------------- 18

Volume Control---------------------------------------------------------------------- 19

Digital Teletext----------------------------------------------------------------------- 20

Subtitle-------------------------------------------------------------------------------- 20

Displaying programme information---------------------------------------------- 20

TV Format-----------------------------------------------------------------------------20

Pausing the current picture-------------------------------------------------------- 20

Record Operations-------------------------------------------------------------------- 21

Hard Disc Installation----------------------------------------------------------------- 23

Help and Advice-------------------------------------------------------------------------- 24

Technical Specifications --------------------------------------------------------------- 25

Introduction

Thank you for purchasing this product which has been designed and

manufactured to give you many years of trouble-free service.

About This User Guide

This user guide contains all the information you need to know about how to

setup and watch available free view Channels using your set top box.

What is DVB-T?

It works like traditional TV, but because the signals are Digital you need a

set top box to convert them. This means more channels can be transmitted with

extra features such as interactivity and wide screen pictures.

Look out for this symbol. It indicates useful and important tips.

Trade Mark of the DVB Digital Video Broadcasting

Project(1991 to 1996)

Digital Video

Broadcasting

Accessories In the Box

Remove your Digital set top box carefully from the box ,and remove the

packaging from each part.

You will find the following items:

Digital set top box with fitted mains plug

Remote Control with 2xAAA batteries (not installed)

User Manual

AV cable

RF loop through cable

PVR (Personal Video Recording) Instruction:

It supports up-to-55-hours recording time with 80G hard disk.

If more than 55 hours recording time needed, you should change the hard disk

with higher capacity one easily by yourself.

In the case of that, it is necessary to format new HDD.

Please refer to the section of PVR setting on page 16 for detail.

Safety Information

Please read all the safety information before using the product.

Safety Considerations

Position the cables so that they cannot be walked on or pinched by items

placed on or against them.

Do not use the set top box in humid or damp conditions.

Do not allow the set top box to get wet.

Do not place water filled objects such as vases on top of the set top box.

Do not expose the set top box to dripping or splashing.

Do not place naked flame sources, such as candles, on the top of the

set top box.

Cleaning

ALWAYS unplug the set top box before you clean it.

Do not use liquid or aerosol cleaners.

Clean the set top box with a soft, damp (not wet) cloth.

Ventilation

The slots and openings on the set top box are for ventilation. Do not cover or

block them as it may cause overheating.

NEVER let children push anything into the holes or slots on the case.

Servicing

There are no user serviceable parts in this set top box.

When servicing ,refer to qualified service personnel.

Consult your dealer if you are ever in doubt about the installation, operation

or safety of this unit.

Battery Disposal

Please ensure batteries are disposed of safely.

Never dispose of batteries in the fire or with household waste.

Check with your local authority for disposal regulations.

Safety is Important

To ensure your safety and the safety of others, please ensure you read

the Safety Instructions before you operate this product.

Keep this information in a safe place for future reference.

DTV/VCR

MUTE

RECORD

123

456

7890

TEXT

FAVOURITE

STANDBY

LANGUAGESUBTITLE WIDE

P+

P-

RECALL

EXITMENU

INFOEPG

STOP

REC LIST

PAUSE SLOWPLAY GOTO

VOL+VOL-

DT3506

Remote Control

Remote Key Function:

1) DTV/VCR Used to switch between the VCR SCART

input and the DTV output mode .

2) MUTE Used to turn the sound on or off.

3) P+: Used to change channels.

4) P-: Used to change channels.

5) RECORD: Used to record the program manually, and

select the record duration if pressed it again. the user

can change the watching channel if recording the

specific program

6) EXIT: Used to return to the previous screen or menu.

7) VOL+/RIGHT Used to move around the menu screens

or changing the volume in non-menu state.

8) OK Used to confirm a selection within a menu.

9) INFO Used to display information about the channel

being viewed.

10) FAVORITE Used to access your favourite channels.

11) RECALL Used to switch between the last two viewed

channels.

12) LANGUAGE Used to switch between different audio

languages that are broadcasted.

13) WIDE: Used to change the aspect ratios.

14) COLOR KEYS(RED/GREEN/YELLOW/BLUE):

Used to operate different functions in TEXT screen or

other menus.

15) GOTO:

16) SLOW: Used to adjust the slow speed in HDD playback

mode.

17) STANDBY Used to switch the set top box to on and off.

18) RECORD LIST: Used to view the recorded program.

19) STOP: Used to stop the current recording if exist or stop

the HDD playback back to DTV mode.

20) FAST FORWARD: Used to adjust the forward speed if in

HDD time shifting playback mode.

21) FAST BACKWARD: Used to adjust the backward speed

if in HDD time shifting playback mode.

22) MENU Used to open the main menu window.

23) UP Used to move around the menu screens.

24) VOL-/LEFT Used to move around the menu screens or

changing the volume in non-menu state.

Used to select the playback start time in HDD

playback mode.

25) DOWN Used to move around the menu screens.

26) EPG Used to display information about the program being viewed and what's on next.

27) NUMBER KEYS Used to select channel numbers or input numbers in menus.

28) TEXT: Used to open teletext OSD display if digital teletext available in the broadcasted

stream.

29) SUBTITLE: Used to switch between different subtitles that are broadcasted.

30) PLAY: Used to resume the playback if stopped or in time shifting mode(FF,FB,SLOW etc).

31) PAUSE Used to pause or playback the program being viewed .

Note: SUBTITLE/TEXT/LANGUAGE may not available for all channels

Installing the Batteries

Remove the battery cover from the remote control and put 2xAAA size batteries

inside the compartment.

The diagram inside the battery compartment shows the correct way to install the

batteries.

OPEN

1.Open the cover 2.Install batteries 3.Close the cover

Using the Remote Control

To use the remote control, point it towards the front of the digital set top box

The remote control has a range of up to 7 metres from the set top box at an angle

of up to 60 degrees.

The remote control will not operate if its path is blocked.

Sunlight or very bright light will decrease the sensitivity of the remote

control.

DT3506

OFF

LOOPRF

THROUGH

INRFLOOPRF

THROUGH

INRF

PVR TUNERPVR TUNERTV TUNERTV TUNER

100-240V~

50/60Hz

SERVICE

S-VIDEOS-VIDEO RR

COAXIALCOAXIAL

AUDIO/VIDEO OUTAUDIO/VIDEO OUT

DIGITAL AUDIODIGITAL AUDIO

VIDEOVIDEO LL

VCR O OVCR O O TVTV

Serial No.:

Model: DT3506

DVB-T Receiver / HDD Recorder

Power Supply: 100-240V~ 50/60Hz

Max Power Consumption: 15Watts

46789

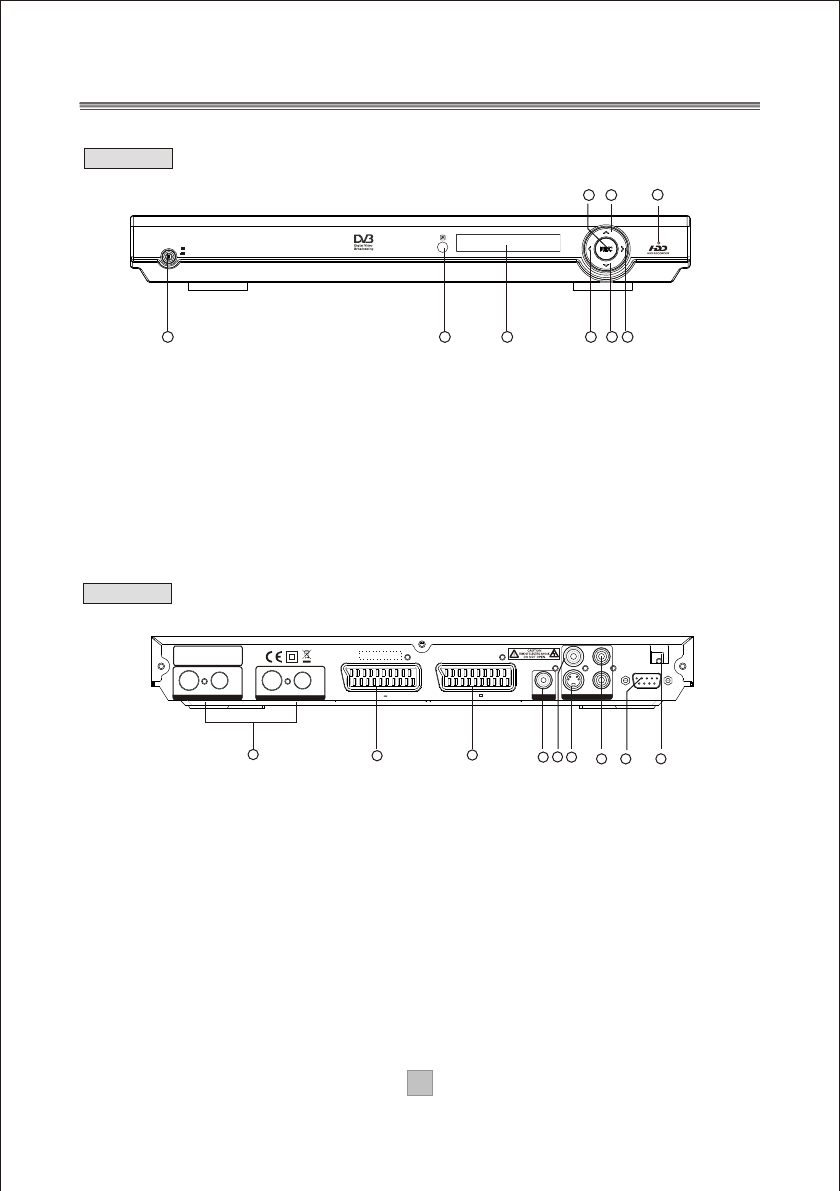

Front Panel and Rear Panel Illustration

1. Front panel

2. Rear panel

1) RF IN / RF LOOP THROUGH (PVR and TV tuner)

PVR/TV RF IN socket connects to your external aerial. PVR/TV RF LOOP THROUGH socket will

bypass the input RF signal to another tuner or your TV or other video system. See connection

pages for details

2) VCR SCART: This socket connects to either a DVD or another video system.

3) TV SCART: This socket connects to your TV.

4) COAXIAL: This socket connects to a coaxial socket on your surround sound system to output

digital audio.

5) CVBS video: This socket outputs composite video signal.

6) S-Video output: This socket outputs separate Y/C video signal.

7) AUDIO L/R: This socket outputs analog audio L/R signal.

8) RS-232 PORT: This socket is only used for software upgrade.

9) MAIN POWER CABLE:This is used to connect to your main power supply.

1) POWER BUTTON: Used to switch the main power of the set top box to on and off.

2) REMOTE CONTROL SENSOR: Used to receive the signal from the remote control.

3) LED DISPLAY: Used to display the channel number and time information and other play states.

4) VOLUME DOWN: Used to decrease the volume without using the remote control.

5) CHANNEL DOWN: Used to change channels without using the remote control.

6) VOLUME UP: Used to increase the volume without using the remote control.

7) RECORD: Used to record the program manually, and select the record duration if pressed it again.

the user can change the watching channel if recording the specific program.

8) CHANNEL UP: Used to change channels without using the remote control.

9) STANDBY INDICATOR: Used to visually show power state of the set top box,

the red LED will be light if the set top box entered standby mode.

TV Aerial

SCART

DVD or VCR

LOOPLOOPRRFF

THROUGHTHROUGH

ININRRFFLOOPLOOPRRFF

THROUGHTHROUGH

ININRRFF

PVR TUNERPVR TUNERTV TUNERTV TUNER

100-240V~

50/60Hz

SERVICE

S-VIDEOS-VIDEO RR

COAXIALCOAXIAL

AUDIO/VIDEO OUTAUDIO/VIDEO OUT

DIGITAL AUDIODIGITAL AUDIO

VIDEOVIDEO LL

VCR O OVCR O O TVTV

(SCART cable not included)

Connecting to a Television

SERVICE

VIDEO

S-VIDEO

COAXIAL

AUDIO/VIDEO OUT

DIGITAL AUDIO

100-240V~

50/60Hz

Connecting to a Surround Sound System

SERVICE

VIDEO

S-VIDEO

COAXIAL

AUDIO/VIDEO OUT

DIGITAL AUDIO

BASS

TREBLE

ECHO

DOWN UP

VOLUME

INPUT SELECTOR

MUTE

KARAOKE

CHANNEL

TEST

MODE

3 STEREO

PRO LOGIC

BYPASS

EXCITE

POWER

MIC

MIC VOL

MIC

Digital Amplifier

Coaxial

Coaxial cableCoaxial cable

AUDIO IN

100-240V~

50/60Hz

Getting Started

Turn on your TV set and select the corresponding AV input (with the AV key or simular, on

the television remote control).

Turn on the main power supply to the STB, the indicator on the front of the unit will turn

red and then green. In standby mode, the indicator light will be red. In working mode, the

indicator light will be green.

If you use the STB for the first time or have deleted all channels information in the

STB, a "TV Setting" menu displays.

Press the "LEFT" or "RIGHT" cursor button to choose either "16:9" or "4:3".

Press the "OK" button to continue installation , a confirmation message window

displays as right.

Press the "LEFT" or "RIGHT" cursor button to highlight "confirm".

Press the "OK" button to continue. " Scan Progress" menu will appear and list the

channels as they are found. A bar appears below the listing panel that indicates the

progress of the channel search.

When all available radio and television channels have been found, the channel at the

top of the list will be viewed.

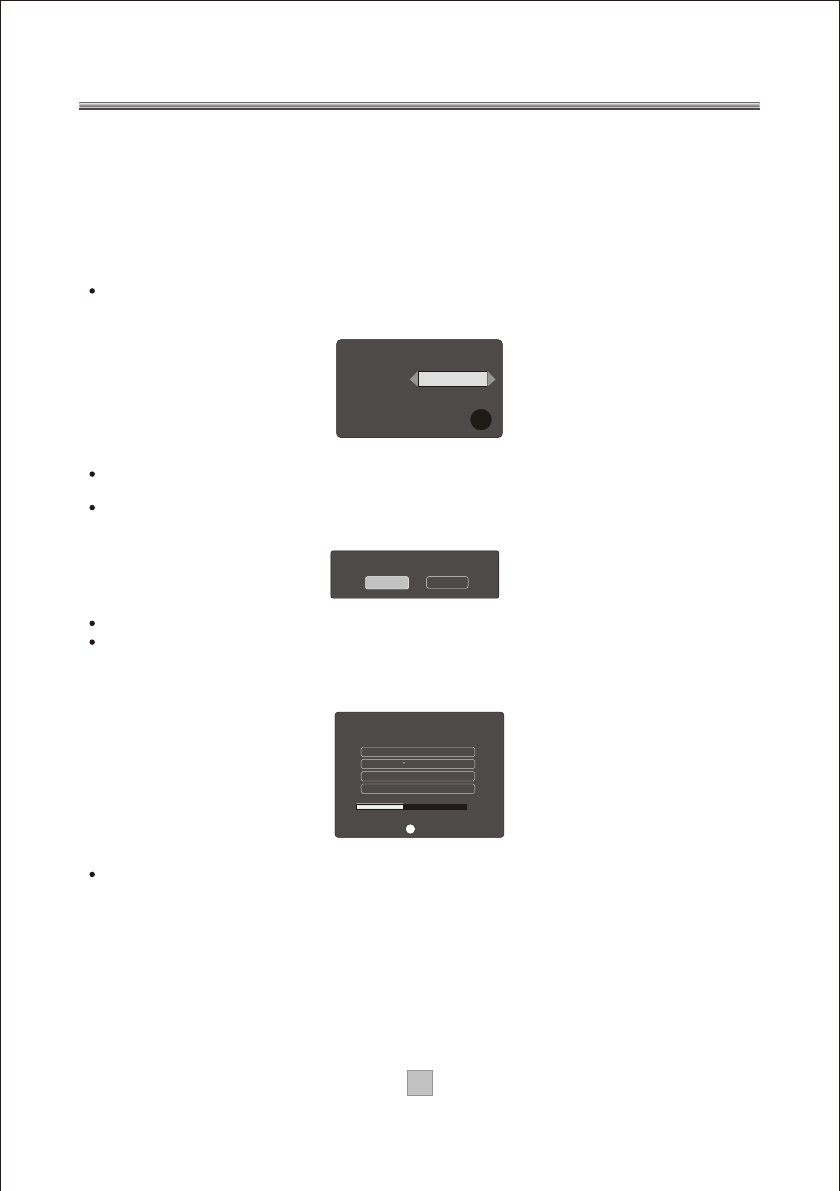

Switching on for the first time

Scan Progress:

Channels Found:

20. f tn

19. UKTV Br tldeas

21. TMF

18. The HITS

22/48

Channel No 42 (642 MHZ)

43%

Exit

EXIT

Do you want to start search?

Exit

Confirm

TV Setting

TV Shape

Continue installation:

4:3

1010

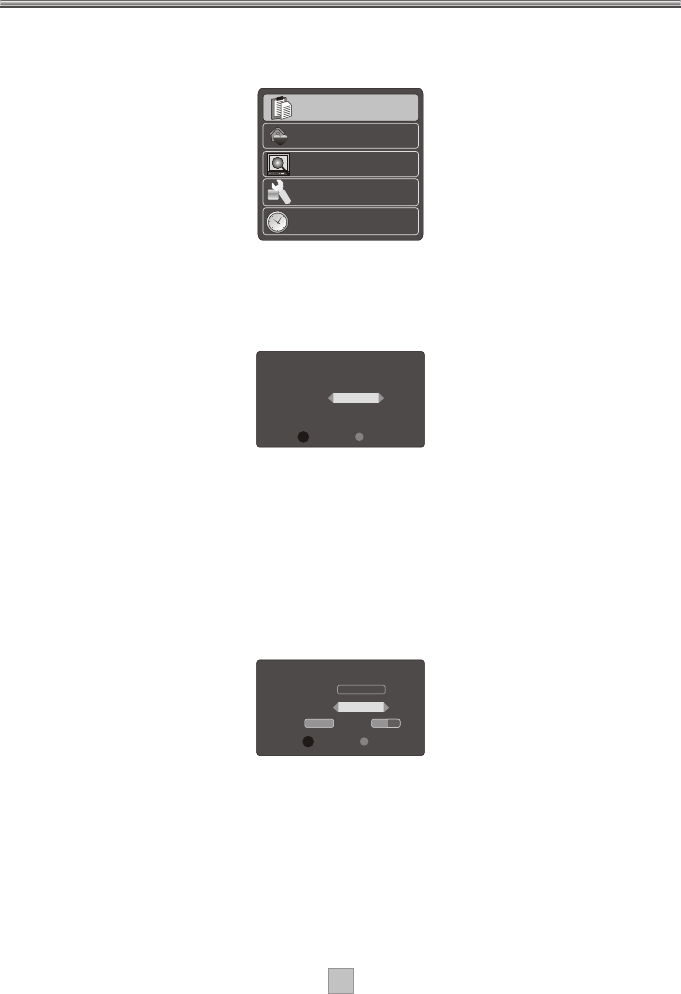

Automatic channel scan

1) Press the "MENU" button to enter the main menu of the STB.

2) Press the "UP" or "DOWN" cursor button to select Channel Search

3) Press the "OK" button to enter the sub-menu.

4) Highlight the "Search Type" and press the "LEFT" or "RIGHT" cursor button to

select " Auto Scan".

5) Press the "OK" button to start searching.

6) Press the "EXIT" button to quit.

Manual channel scan

1) Press the "MENU" button to enter the main menu of STB.

2) Press the "UP " or "DOWN" cursor to select "Channel Search"

3) Press the "OK" Button to enter the sub-menu.

4) Highlight the "Search Type" and press the "LEFT" or "RIGHT" cursor to select

"Manual Scan".

5) Press the "DOWN" cursor to select "Channel No" section, and enter desired

Channel Number.

6) Press the "OK" button to start searching.

7) Press the "EXIT"button to quit.

Note: When the search is finished, the first channel of the channel list is displayed you

Channel Search

Search Type

Start Search Exit

OK EXIT

Auto Scan

Channel Search

Channel No

Start Search Exit

OK EXIT

Search Type Manual Scan

Strength: 55%

Quality: 100%

1111

Channel Search

Favourite List

Channel Search

System Setting

Channel List

Timer

Many aspects of your STB can be set to reflect your circumstances and preference. The

System Setting menu is accessed from main menu.

A/V Setting

This menu allows the users to set TV shape, Video Output and OSD Transparency.

1). Press the "MENU" button to enter the main menu of the STB,

2). Press the "UP" or "DOWN" cursor to select System Setting,

3). Press the "OK" button to enter the sub-menu,

4). Press the "UP" or "DOWN" button to select "A/V Setting" and Press the "OK"

button to enter its sub-menu.

TV Shape options: 4:3 / 16:9

Video Output options: RGB / CVBS

OSD Transparency range: 0~100%

5), Press the "UP" or "DOWN" button to select the desired item and press the "LEFT" or

" RIGHT" button to select desired setting,

6), Press the "MENU" button to return the upper menu or "EXIT" button to quit.

System Setting

4:3

TV Shape

Video Output

OSD Transparency

RGB

00%

First Time Installation

System Info

Change Pin Code

Software Update

DTR Setting

OSD Setting

A/V Setting

1212

First Time Installation

This menu allows the user to delete all existing channels in the STB, and reset the

STB to factory default setting.

1). Enter the System Setting menu, press the "UP" or "DOWN" button to highlight the

"First Time Installation".

2). Press the "OK" button to confirm, a confirmation window appears.

3). Press the "LEFT" or "RIGHT" cursor to highlight "Confirm" icon, press the "OK"

button to start first time installation.

4). Or Highlight "Exit" icon, press the "OK" button to cancel the first time installation.

System Info

This menu allows users to view the software version and hardware version of the STB.

1). Enter the System Setting menu, press the "UP" or "DOWN" cursor to highlight the

System Info menu.

2). Press the "OK" button to open up the information box. You can view the software

version and hardware version of the STB in this box

Change Pin Code

This menu allows users to change pin code

1), Enter the System Setting menu, press the "UP" or "DOWN" cursor to highlight the

Change Pin Code menu.

2), Press the "OK" button to enter the sub-menu.

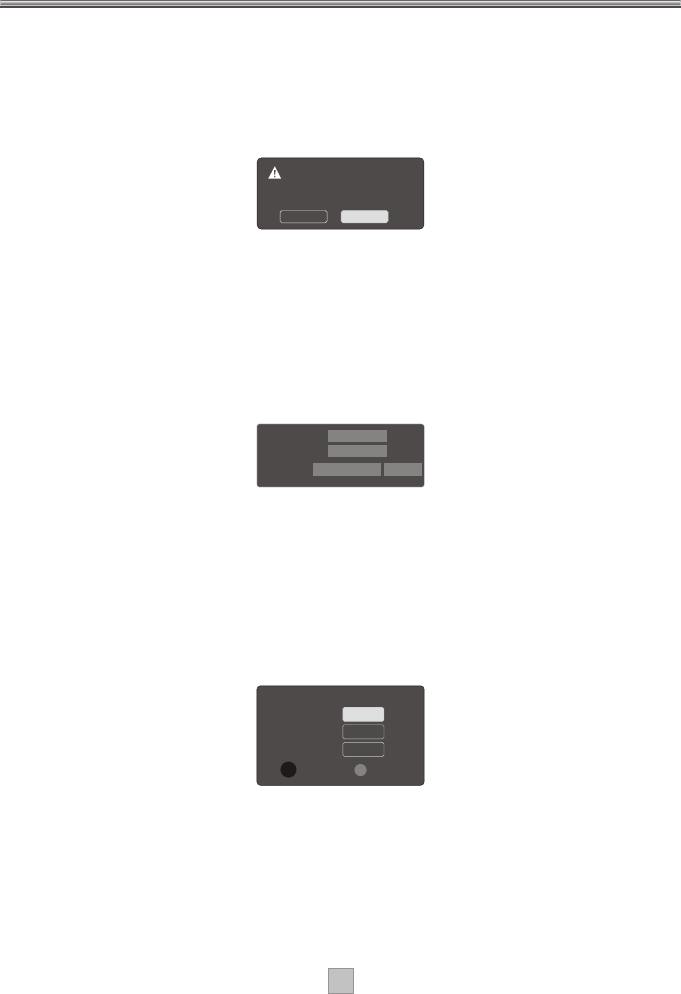

Are you sure you want to delete

all channels and setting for first

time installation?

Confirm Exit

Software Version

Hardware Version

20070703

39162000

Zoran 39163 Decoder Version 1.0

Change Pin Code

Old Pin Code

New Pin Code

Enter Again

Confirm Exit

OK EXIT

****

1313

3), Enter the old pin code using the numeric buttons(Default pin code is 6666).

4), Press the "UP" or "DOWN" cursor to select "New Pin Code" and enter 4 new numbers

with numeric buttons(0~9).

5), Press the "UP"or "DOWN" cursor to select "Enter Again", and enter the new pin code

again with numeric buttons(0~9).

6), Press the "OK" button to confirm the changed pin code.

Software Update

This menu allows users to update the software version.

1, Enter the System Setting menu, press the "UP" or "DOWN" cursor to highlight the

Software Update menu.

2, Press the "OK" button to enter the sub-menu,

Auto Mode:

1), Enter the software update menu, press the "UP" or "DOWN" cursor to highlight Auto

Mode.

2), Press the "OK" button to enter Auto Mode menu,

3), Press the "LEFT" or "RIGHT" cursor to set the status to "ON",

4), Press the "UP" or "DOWN" cursor to select Start Time. Use the numeric button to

enter the time in HH:MM mode.

5), Press the "OK" button to save the setting and quit, then the system will start auto

update at the set time.

Manual Mode:

1) Enter the Software Update menu, press the "UP" or "DOWN" cursor to highlight

Manual Mode.

2) Press the "OK" button to enter Manual Mode menu.

Status

Start Time HH:MM

Confirm Exit

OK EXIT

00: 00

Manual Mode

Auto Mode

Exit

EXIT

Searching...

Scan Progress:

Upgrade

Current Release:

537330434

Scan for Upgrade Now?

CancelScan

1414

12%

DTR Setting

You can modify the time shift duration, format the hard disk, check the hard disk

information or set the auto discard mode here.

Time Shift Duration

Adjust the time shift duration according to the options: 30/60/90/120 minutes.

Format Hard Disk

After pressed the OK button, you need input the right PIN code to proceed the

format operation.

HDD Information

Display the hard disk information of this unit if an available hard disk attached.

Auto Discard Setting

When the HDD is full erase the exist recordings as to their type, the choices are:

"Oldest,Shortest,Biggest", select "Excluded" to remove the unviewed recordings

otherwise choose "Included".

OSD Setting

You can modify the timeout of the OSD banner here. The options can be:5 seconds,

10 seconds,15 seconds,20 seconds, the OSD menu will turn off if timeout.

Timers

Follow below steps to activate the Timer window:

1). Enter the main menu, press the "UP" or "DOWN" button to highlight the "Timer".

2). Press the "OK" button to confirm, a pop up window appears.

When a timer start time is reached, the receiver starts to record or view the desired

programme, then when the end time is reached, the record stops. Filter the timers

with the RED button and Delete with the OK button.

1515

Timer

Exit

EXIT

Delete

OK Filter

No SERVICE NAME Start Date Start End Mode

001 Classic Hits Wee 19.11.2004 13:00 15:59

002 Fashion on Frid 19.11.2004 16:00 17:59

003 Matchmaker 19.11.2004 17:00 17:59

004 Then & Now 19.11.2004 18:00 18:59

Auto Discard Setting

Deleting Setting:

Exclude unviewed recordings

Oldest

Format Hard Disk

HDD Information

Auto Discard Setting

Time Shift 30 Min

The Channel List presents a list of all channels found during the channel search. From

the Channel List you can watch and listen to the selected channels, delete them from

the list or set a password to access the channel.

1), Press the "MENU " button to enter the main menu of the STB.

2), Press the "UP" or "DOWN" cursor to highlight the "Channel List"

3), Press the "OK" button to enter Channel List menu.

4), Press the "UP" or "DOWN" cursor to highlight a channel.

5), Press the "OK" button to preview the selected channel.

6), Press the "EXIT" button to quit the channel list menu and view the channel on full

screen.

Delete a channel:

1),Enter the channel list menu, press the "UP" or "DOWN" cursor to select a channel.

2),Press the "Yellow" button to delete the selected channel

Lock/Unlock a channel:

1), Enter the channel list menu, press the "UP" or "DOWN" cursor to select your desired

channel.

2), Press the "Blue" button, you are asked to enter the pin code.

3), Enter the correct pin code using the numeric buttons, press the "OK" button to

confirm.(the default pin code is 888888)

4),Then a lock symbol displays alongside the selected channel, it shows that the

channel has been locked.

5), Repeat step 1)2)3) to remove the lock symbol.

6), Press the "EXIT" button to quit the channel list.

Channels List

Channel List

18 - The HITS

19 - UKTV Br tldeas

20 - f tn

21 - TMF

22 - Ideal World

53 - YooPlay Games

80 - BBC World Sv.

81 - The Hits Radio

82 - Smash Hits!

Exit

EXIT

Confirm

Delete Lock

Quality:

Strength:

100%

56%

Channel List

18 - The HITS

19 - UKTV Br tldeas

20 - f tn

21 - TMF

22 - Ideal World

53 - YooPlay Games

80 - BBC World Sv.

81 - The Hits Radio

82 - Smash Hits!

Exit

EXIT

Confirm

Delete Lock

Quality:

Strength:

100%

56%

Enter Pin Code

Pin Code

Exit

EXIT

Confirm

1616

This menu allows the user to store a list of your favourite channels so that you can

access them more easily. In this STB, you have five favourite lists to set potentially,

each family member can have his own favourite list.

Adding channels to favourite list:

1), Press the "MENU" button to enter the main menu of the STB.

2), Press the "UP" or "DOWN cursor to select "Favourite List".

3), Press the "OK" button to enter the favourite list menu.

4), Press the "Red" button to switch to the desired favourite list.

5), Press the "UP" or "DOWN" cursor to highlight the desired channel in the selected

favourite list.

6), Press the "OK" button to add the selected channel to the favourite list.

7), Press the "EXIT" button to quit.

Remove favourite channels from favourite list:

1), Press the "MENU" button to enter the main menu of the STB.

2), Press the "UP" or "DOWN cursor to select "Favourite List".

3), Press the "OK" button to enter the Favourite List menu.

4), Press the "Red" button to switch the desired favourite list.

5), Press the "UP" or "DOWN" cursor to highlight the favourite channel in the favourite

list.

6), Press the "OK" button to remove the channel from the favourite list.

7), Press the "EXIT" button to quit.

Accessing the favourite channels:

1),Press the "FAVOURITE" button to enter the favourite list.

2),Press the "Red" button to switch to the desired favourite list.

3),Press the "UP" or "DOWN" cursor to select the favourite channel in the selected

favourite list.

Favourite List

Exit

EXIT

Add

Favourite Switch

18 - The HITS

19 - UKTV Br tldeas

20 - f tn

21 - TMF

22 - Ideal World

53 - YooPlay Games

80 - BBC World Sv.

81 - The Hits Radio

List 2

List 3

List 4

List 5

Favorites List

List 1

Fav List: 1

18 - The HITS

21 - TMF

22 - Ideal world

80 - BBC World Sv.

82 - Smash Hits!

85 - Magic

87 - oneword

88 - JAZZFM

Exit

EXIT

Confirm

Favourite Switch

1717

Channel Schedule(EPG)

From the channel schedule(EPG,Electronic programme Guide), you can change

channels available, check programme information, access one-week programme

schedule which details the times and programmes for the next seven days.

1, Press the "EPG" button to enter the Channel Schedule.

2, Press the "CH+" or "CH-" button to preview the current programme on the selected

channel, and check the current programme information.

3, Press the "LEFT"or "RIGHT" cursor to navigate the programme lists for the next

seven days.

4, Press the "UP "or "DOWN" cursor to highlight the desired programme.

5, Press the "OK" button to add a reminder for viewing or RECORD button to add a timer

for record, then reminder or record icon will appear alongside the selected programme,

press the "OK" button again to remove the reminder. When the reminder or record

programme is about to start, a reminder window will appear.

6, Press the BLUE button to set the content filter.

7, Press the " EXIT" button to quit the channel schedule.

Note: The current broadcast programme cannot be set as a reminder event.

Changing Channels

There are four ways of channel selection - stepping through the channel list, selection

by number, from the Channel Schedule, or using the on-screen channel list.

1,Stepping through the channel list:

Press the "P+" button to browse up and the "P-" button to browse down the available

channels.

2, Selection by number:

Enter the complete channel number directly via the remote control to select desired

channel.

3,Selection by Channel Schedule:

You can also select the desired channel directly from Channel Schedule. This is

displayed by pressing the "EPG" button on the remote control. The Channel Schedule

provides the users with a brief description of the programme on the currently selected

channel and lists the current channels.

1),Press the "EPG" button to enter the Channel Schedule .

2),Press the "P+" or "P-" cursor to select the desired channel, the screen switches to the

programme on the currently selected channel.

3), Press the "EXIT " button to quit the Channel Schedule and view the channel on full

screen.

Basic Operations

1818

Channel Schedule 19/11/2004 16:03

The playlist plagiarist is made

redundant as we bring you an

eclectic mix of vids that can only

be seen once this weekend.

18 - The HITS

19 - UKTV Br tldea

20 - f tn

21 - TMF

00:00 - 01:59 Matchmaker X-Rated

02:00 - 05:59 Lateshift

06:00 - 09:59 No Repeats Weekend

10:00 - 10:29 Rich Girls

10:30 - 10:59 Dismissed

11:00 - 16:59 No Repeats Weekend

Select Channel Reminder Record

P+ P-

26/11/2006 Friday

Content filter: All

HDD status: Used Reserved Free

4), Selection by on-screen Channel List:

You can also select the desired channel directly from on-screen channel list. This is

displayed using the STB's main menu.

a), Press the "MENU" button to enter main menu of the STB.

b), Press the "UP" or "Down" cursor to select "Channel List".

c), Press the "OK" button to enter the channel list menu.

d), Press the "UP" or "DOWN" cursor to highlight the desired channel.

e), Press the "OK" button to preview the selected channel.

f), Press the "EXIT" button to quit the channel list and view the channel on full screen.

Recall

You can switch to the previously viewed channel by pressing the "RECALL" button.

Volume Control

The volume level of the STB can be altered with the "VOL +" or "VOL -" button on the

remote control.

You can silence the sound from the receiver by pressing the "MUTE" button. The sound

remains muted until the "MUTE" button is pressed again or until the "VOL+" or "VOL-"

button is pressed, or until the receiver is turned off and on again.

1919

Channel List

Exit

EXIT

Confirm

18 - The HITS

19 - UKTV Br tldea

20 - f tn

22 - Ideal World

53 - YooPlay Game

80 - BBC World Sv

81 - The Hits Radio

82 - Smash Hits!

83 - Kiss

21 - TMF

Digital Teletext

Many digital terrestrial television channels not only broadcast pictures and sound for

programme but also pages of information on the programmes, the weather, news and

many other topics.Some channels are entirely given over to digital teletext and carry no

normal TV programme at all. These dedicated digital teletext channels will not give a

quarter-screen image in the Channel List screen. When such a channel is selected, after

a brief pause, they will usually display the opening page of information automatically.

Other channels have digital teletext pages broadcast alongside the television

programme and often include a reduced-size broadcast picture within digital teletext

pages. These usually require the TEXT button to be pressed to activate the digital

teletext pages.

In both cases, moving through the different pages of information is accomplished in a

variety of ways, dependent on the individual broadcasters, but including use of the

UP/DOWN/LEFT/RIGHT and OK keys to select items from on-screen menus, and the

coloured keys to jump directly to particular pages.

You can exit any digital teletext channel by changing channels in any of the normal ways.

You can leave the digital teletext function of a combined digital teletext /programme

channel, to return to normal television viewing of that channel, by pressing the TEXT

key.

Calling for the information banner or any menu on-screen stops the racier from

displaying the digital teletext pages and they are temporarily replaced by a blank picture

while the banner or menu is displayed.

Digital teletext cannot be accessed when the Subtitles are enabled.

Subtitle

Press the "SUBTITLE" button to switch the programmes subtitle to On/Off.

Displaying programme information

You can read the current programme information by pressing "INFO" button on the

remote control, then the programme information table will automatically remove in 3~5

seconds.

TV Format

You can change the TV picture aspect ratio by pressing "WIDE" button repeatedly on the

remote control.When you set "TV shape" to "4:3" in the System Setting-> A/V Setting

menu, you can switch the TV format to "FullFrame"(no scaling will be

done),"Pan&Scan"(stretch by 4/3 in the horizontal axis, typically when coming picture is

16:9 widescreen format) or "LetterBox"(picture stretch by 3/4 in the vertical axis,

typically when coming picture is 16:9 widescreen format). But when you set it to "16:9",

you can switch to "Auto"(detect the aspect from TS automatically), "FullFrame",

"VerticalCut"(stretch by 4/3 in the vertical axis, typically when coming picture is 4:3

standard format) or "PillarBox"(stretch by 3/4 in the horizontal axis, typically when

coming picture is 4:3 standard format). The target is to get a non-distortion picture on

the users TV.

Pausing the current picture

You can freeze the current picture by pressing the "PAUSE" button on the remote

control. Press the button again to switch the current broadcast programme back on to

"live".

Note: the broadcast between these two pauses will be skipped.

2020

Record Operations

Before using the record operations, please check the two tuner(TV/PVR tuner)

connections in connection pages.

Watch One Channel While Recording Another

The recording will receive the digital TV signal from the PVR tuner and the watching

will receive the digital TV signal from TV tuner, this makes it possible to watch one

channel while recording another channel.

There are 2 ways to start a recording:

1).Press the RECORD key while watching the live TV, the recording of the current

channel will start in several seconds, you can press the RECORD key again while

recording started to set the duration of the recording, the default duration is 2 hours.

2).Schedule Recording in full EPG menu, press the RECORD button to booking a

recording once you selected a valid programme event.

Once recording takes effect, the user can changing the current viewed channel as

they want while the system is doing recording at the background.

Changing the viewed channel while recording

Press the CH+/- keys to change the watching channel while the PVR is doing

background recording.

The RECORD button.

Pressing the RECORD button, the record will start using the PVR tuner, you can press

the CH+/- keys to change your viewing channel while the first recording in background.

A second record will start using the TV tuner if you pressed the RECORD button again.

If you did 2 recordings at the same you cannot change the channel unless you stop one

of it.

The STOP button

Press the STOP button will stop the current time shift or confirm to stop the recording.

The PVR INFO button

Press this button, the detailed time information and progress bar will be displayed

while recording or playback the program.

The button , SLOW and PAUSE button.

If the Time Shift enabled by pressing the PAUSE button one, you can use these

buttons to do time shifting feature.

2121

Recording 1 18. StarDate

Recording 2 21. TMF Top 10

0:01:44

0:00:27

Stop Recording

Stop recording 1

Stop recording 2

Dont stop recording, exit

Warning

There are two recordings, can

not change channel.

Exit

21 TMF

Switch Event Switch Channel Exit

View Record

Exit

16:00 - 16:59 TMF Top 10

17:00 - 17:59 Matchmaker

16:02

18 The HITS

Switch Event Switch Channel Exit

View Record

Exit

16:00 - 17:59 StarDate

18:00 - 19:59 Classic Hits Weekend

16:00

Recording 1 21. Skools Out!

Recording 2 18. StarDate

0:01:08

0:00:01

Time-Shifting( )

Have you been interrupted with a phone call or the doorbell while watching live TV

programs, inevitably missing out on a crucial scene? Pause and replay live TV by

simply pressing the PAUSE button once(

) and then PLAY button to pick up right where you left off. Just like

the live TV mode, This unit provides a slew of file playback functions such as

pause, instant replay, time-shifting with the scroll bar, fast-forward,rewind and

so on.

The REC List button

Press this button the recorded program list will be displayed. You can Play from

the beginning or Continue play from last stop or Rename the recording name or

Delete one exist recording or Lock&Unlock a selected recording. On the right-up

corner, you will find the detailed information of the selected recording. On the

bottom of the screen, you will find the help information and HDD status.

Pause Live Recording

In the PVR INFO banner the timeshift will

commence,

To terminate Pause Live Recording press STOP button. The duration of

Time Shift can be adjusted from the DTR Setting->Time Shift Duration.

2222

Recorded Program Lists

Play

HDD status: Used Reserved Free

Continue Rename Delete Lock/Unlock

Skools Out!

TMF

The Music Factory manufactures a batch...

Recorded at 03:59:41PM

00025 MB, 00:00:00 out of 00:01:17

Free 070186 MB, 51 hours 05 minutes

1. Skools Out! 19:11/ Friday

2. StarDate 19:11/ Friday

3. TMF Top 10 19:11/ Friday

4. Fashion on Friday at 4 and 5 19:11/ Friday

2323

Remove 6 screws

Hard Disk Installation/ replacement

Please note when replacing hard disk (HDD), the hard disk must format before start

using (this can be done in the DTR Setting menu).

Note: make sure that the main AC power is turn off and all cable is disconnect from this

unit while installing/replacing the Hard Disk (HDD).

Tool required: a screw driver

A) Remove old Hard Disk Drive (HDD)

1. Turn this unit upside down and locate the HDD trap door, un-crew the 6 screws

surrounding the edge of the HDD trap door.

2. Once done open the HDD trap door and locate the two cables that connected to

the HDD.

3. First disconnect the power cable that connected to your hard disk.

4. Then disconnect the IDE data cable from the HDD.

B) Insert new Hard Disk Drive (HDD)

1. Check and make sure that your new HDD jumper setting is set to MASTER

position.

2. Re-connect the power cable to your hard disk drive (HDD) then.

3. Re-connect the 40 pin flat data cable to the IDE socket on the HDD.

4. Place the HDD into its housing, close the HDD trap door and tighten all the 6

screws.

5. Once complete, you can now re-connect the main AC power of this unit and

reconnect to your TV, now turn on the main AC power.

6. 1). Press the Menu button on the remote controller and enter the main menu,

press the OK button again to enter the System Setting menu.

2). Press the UP or DOWN button to highlight the DTR Setting , then press

the OK button to enter its submenu.

3). High light and select Format Hard Disk option and press OK button, you

will see a warning message, press the OK button, then you have to enter the

4 digits pin code (default is 6666) to proceed, after you pressed the OK button,

the hard disk will be formatted and the unit will be reset in few seconds.

4). Now you can start recording or do time shift operations.

Jumper setting

for master

Help and Advice

Problem

Standby light not lit

No signal found

No picture or sound

Encrypted channel message

No response from remote control

Square blocks in picture or picture

freezes

Probable cause

Mains lead unplugged

Mains fuse blown

Aerial is disconnected

Aerial is damaged/misaligned

Out of digital signal area

Viewing incorrect scart output

It is a pay per view channel

Set top box is switched off

Remote control is not aimed correctly

Front panel obstructed

Remote control batteries inserted incorrectly

Remote control batteries exhausted

Aerial may not be compatable

Aerial is damaged/misaligned

What to do

Check mains lead

Check fuse

Check aerial lead

Check aerial

Check with dealer

Press the DTV/VCR button

Select an alternative channel

Plug in and turn on set top box

Aim remote control at front panel

Check for obstructions

Check batteries are inserted correctly

Replace remote control batteries

Check with dealer

Check aerial

If none of the above suggestions seem to work, try switching your set top box off and then on again. If

this does not work, contact either your supplier or a qualified repair technician. Never attempt to repair

your set top box yourself.

2424

Technical Specification

Power Supply

Input Voltage

Power Consumption

100-240V~ 50/60Hz.

Maximum 15W,Standby 5W.

Decoder

Video Formats

Audio Format

Video Output

SD,4:3/16:9 Switchable.

MPEG Layer l & ll,32/44.1/48Khz.

CVBS, RGB, S-Video

Connection

Main Power Cable

Tuner

Scart

RS-232

RCA

S-VIDEO

Fixed Type.

2 Antenna Input/2 Therefore Output.

1 for VCR/1 for TV

1 for software upgrade

1 CVBS output

1 R/L output

1 COAXIAL SPDIF digital audio output

1 S-Video output

This symbol on the product or in the instructions means that your electrical

and electronic equipment should be disposed at the end of life separately from your

household waste, There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you

purchase the product.

2525

Akura Amtdt3502 Users Manual DT3506 Zr39163 Usermanual MG01 01 40318350617

Navigation menu

Versions of this User Manual:

Views

Navigation
