ALAMO INDUSTRIAL

1502 E. Walnut

Seguin, Texas 78155

210-372-3551

PARTS MANUAL

Effective Serial No. 04837 through CurrentRev 12-08 Part No. 02924700P

BOOM ARM MOWER

A-BOOM

TO THE OWNER/OPERATOR/DEALER

All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who

recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to

be used with all its safety equipment properly attached to minimize the chance of accidents.

BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.

Observe the rules of safety and common sense!

WARRANTY INFORMATION:

Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form

in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card

and on the Warranty Form that you retain. The use of "will-fit" parts will void your warranty and can cause

catastrophic failure with possible injury or death.

RED

002369

LOCK UP.

5. TRANSPORT SAFELY,

6. USE SMV, LIGHTS, &

REFLECTORS.

7. DO NOT OPERATE WITH

MOWER OR WING RAISED.

8. DO NOT MOUNT OR

DISMOUNT WHILE MOVING.

4. BLOCK UP SECURELY

BEFORE WORKING UNDER.

3. USE SAFETY SHOES,HARD

HAT, SAFETY GLASSES,

SEAT BELTS, & ROPS.

2. NO RIDERS, NO CHILDREN

OPERATORS.

MANUAL

READ

Never mount or dismount a moving vehicle. Crushing from runover may cause injury or death.

Put tractor in park or set brake, disengage PTO, stop engine, remove key, and wait until noise of rotation has ceased

to prevent entanglement in rotating parts which may cause injury or death.

8. Before dismounting, secure flail mower in transport position or lower to ground.

7. Never operate with Flail Mower or Folding Section raised if passersby, bystandards or traffic are in the area to reduce

possibility of injury or death from objects thrown by Blades under Shields or implement structure.

6. Make certain that SMV sign, Warning Lights, and Reflectors are clearly visible. Follow local traffic codes.

Install Restrictor in folding circuit to slow down lowering and unfolding if action is faster than is desirable.

5. Before transporting, put Lift Lever in detent or full-lift position. Install Transport Safety Devices securely on folding

implements. Slowdown when turning and on hillsides.

4. Block up or support raised machine and all lifted components securely before putting hands or feet under or working

underneath any lifted component to prevent crushing injury or death from sudden dropping or inadvertent operation of

controls. Make certain that area is clear before lowering or folding.

3. Operate only with tractor having Roll-Over Protective Structure (ROPS) and with seatbelt fastened securely and

snugly to prevent injury and possible death from falling off or tractor overturn. Personal Protective Equipment such as

Hard Hat, Safety Glasses, Safety Shoes, and Ear Plugs are recommended.

2. Allow no children on or near implement of tractor. Allow no riders on tractor or implement. Falling off can cause

serious injury or death from being runover by tractor or mower or contact with Flail Mower Blades.

Learn how to stop engine suddenly in an emergency. Be alert for passersby and especially children.

1. Study and understand Operator's Manuals, Safety Signs, and Instructional Decals for tractor & flail mower to prevent

misuse, abuse, & accidents. Practice before operating mower in a confined area or near passersby.

FAILING TO FOLLOW SAFETY MESSAGES AND OPERATING INSTRUCTIONS CAN CAUSE

SERIOUS BODILY INJURY OR EVEN DEATH TO OPERATOR AND OTHERS IN THE AREA.

DANGER

PARTS

SECTION

Parts Section – 1

Parts Section – 2

For maximum safety and to guarantee optimum product reliability, always use

genuine Servis-Rhino Parts. The use of inferior replacement parts may cause

premature or catastrophic failure which could result in serious injury or death.

Direct any questions regarding parts to:

The following instructions are offered to help eliminate needless delay and error in

processing purchase orders for the equipment in this section.

1. The Parts Section is prepared in logical sequence and grouping of parts that belong to

the basic machine featured in this manual. Part Numbers and Descriptions are given to

help locate the parts and quantities required.

2. The Purchase Order must include the name and address of the person or organization

ordering the parts, who should be charged, and if possible, the serial number of the machine

for which the parts are ordered.

3. The Purchase Order must clearly list the quantity of each part, the complete and correct

part number (be sure to include all periods), and the basic name of the part.

4. The Manufacturer reserves the right to substitute parts where applicable.

5. Some parts are unlisted items which are special production items not normally stocked

and are subject to special handling. Request a quotation for such parts before sending a

Purchase Order.

6. The Manufacturer reserves the right to change prices without prior notice.

NOTE: Please refer to The Safety Section in the front of this Manual for the proper

Part Number when ordering Replacement Safety Decals.

PARTS ORDERING GUIDE

ALAMO INDUSTRIAL

1502 E. Walnut

Seguin, Texas 78155

830-379-1480

PART NAME INDEX

28 FT - BOOM DIPPER SECTION (PART 1).............................................................................................................................................. 7

28 FT - BOOM DIPPER SECTION (PART 2).............................................................................................................................................. 9

28 FT - BOOM EXTENSION ARM............................................................................................................................................................ 11

28 FT - BOOM LIFT SECTION.................................................................................................................................................................. 13

28 FT - MOTOR ASY (ROTARY HEAD) - PN 02961029........................................................................................................................ 15

28 FT - MOTOR PARTS (ROTARY HEAD) - PN 02960696.................................................................................................................... 16

28 FT - SPINDLE ASY (ROTARY HEAD) - PN 02960553C................................................................................................................... 17

28 FT - X-FRAME SQ HEAD (PARTS) - PN 02962177........................................................................................................................... 19

28 FT - X-FRAME SQ HEAD ASY - PN 02962177.................................................................................................................................. 21

50 IN - X-FRAME BLADE CARRIER ASY (DUAL BAR) - PN 02962721............................................................................................ 22

50 IN - X-FRAME BLADE CARRIER ASY (PAN) - PN 02964457......................................................................................................... 23

50 IN - X-FRAME BLADE CARRIER ASY (SINGLE BAR) - PN 02971745......................................................................................... 24

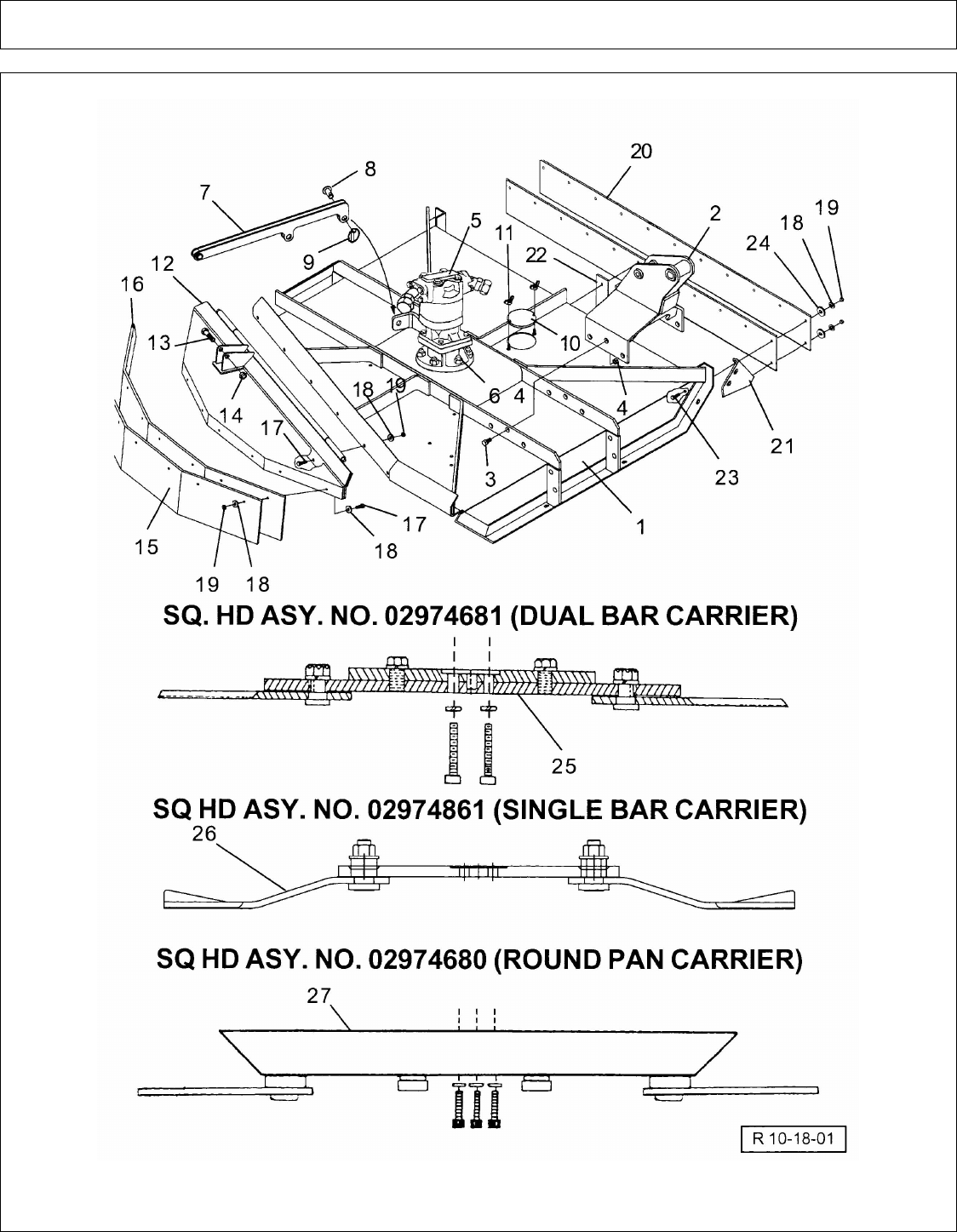

50 IN - X-FRAME SQ HEAD ASY............................................................................................................................................................ 25

50 IN - X-FRAME SQ HEAD MOTOR (PARTS)...................................................................................................................................... 27

50 IN - X-FRAME SQ HEAD MOTOR ASY W- FITTINGS.................................................................................................................... 29

60 IN - SQ HEAD ASY (BOOM-AXE)...................................................................................................................................................... 31

60 IN - SQ HEAD MOTOR (PARTS)......................................................................................................................................................... 33

60 IN - SQ HEAD MOTOR ASY................................................................................................................................................................ 35

60 IN - SQ HEAD SPINDLE - MOTOR & BLADE BAR......................................................................................................................... 37

60 IN - SQ HEAD SPINDLE ASY.............................................................................................................................................................. 39

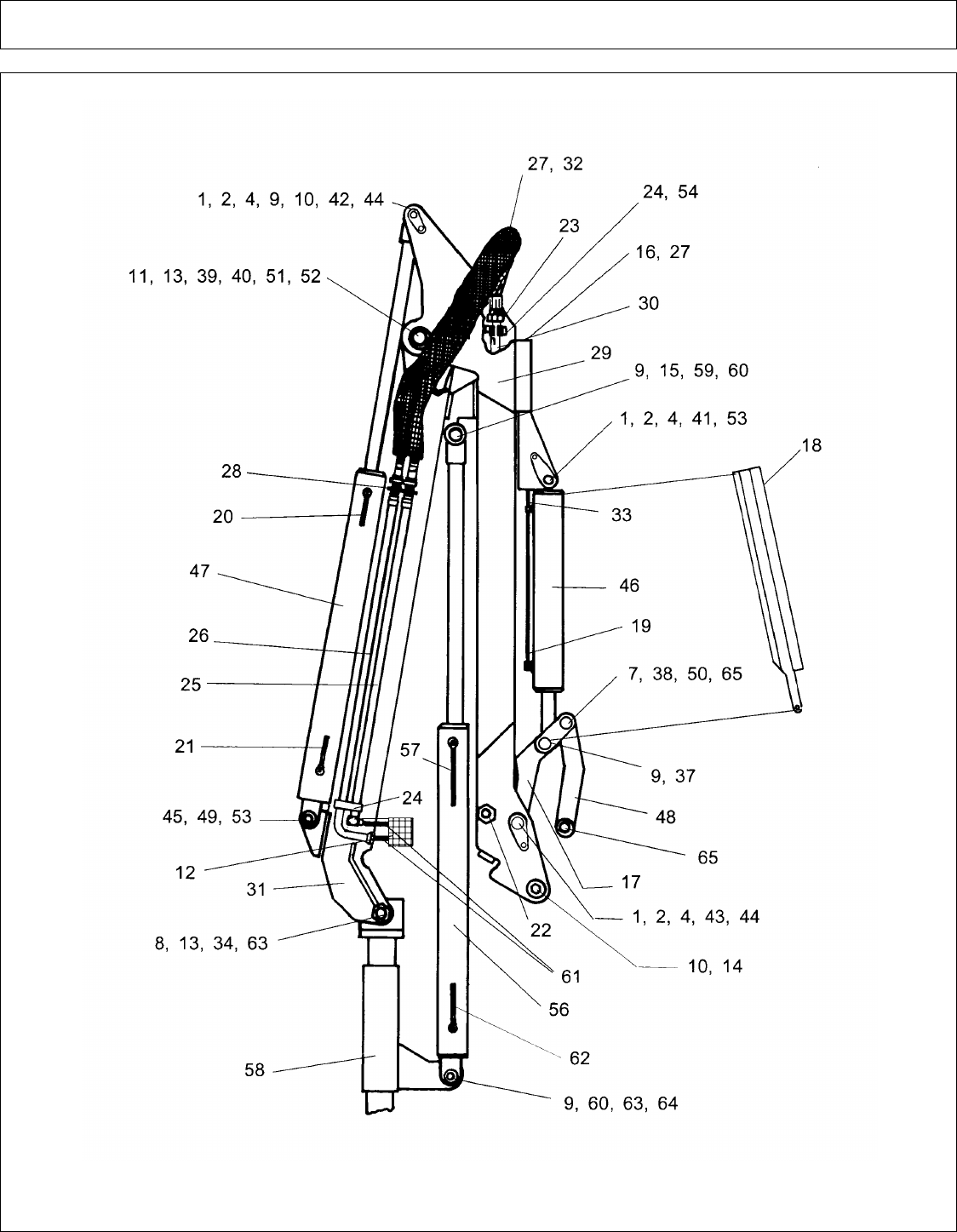

ARTICULATED ARM ASY - (17 FT) (PART 1)...................................................................................................................................... 41

ARTICULATED ARM ASY - (17 FT) (PART 2)...................................................................................................................................... 43

ARTICULATED ARM ASY - (20-23 FT) (PART 1)................................................................................................................................. 45

ARTICULATED ARM ASY - (20-23 FT) (PART 2)................................................................................................................................. 47

BUZZ BAR - HYD MOTOR (PARTS) - PN 02975175............................................................................................................................. 49

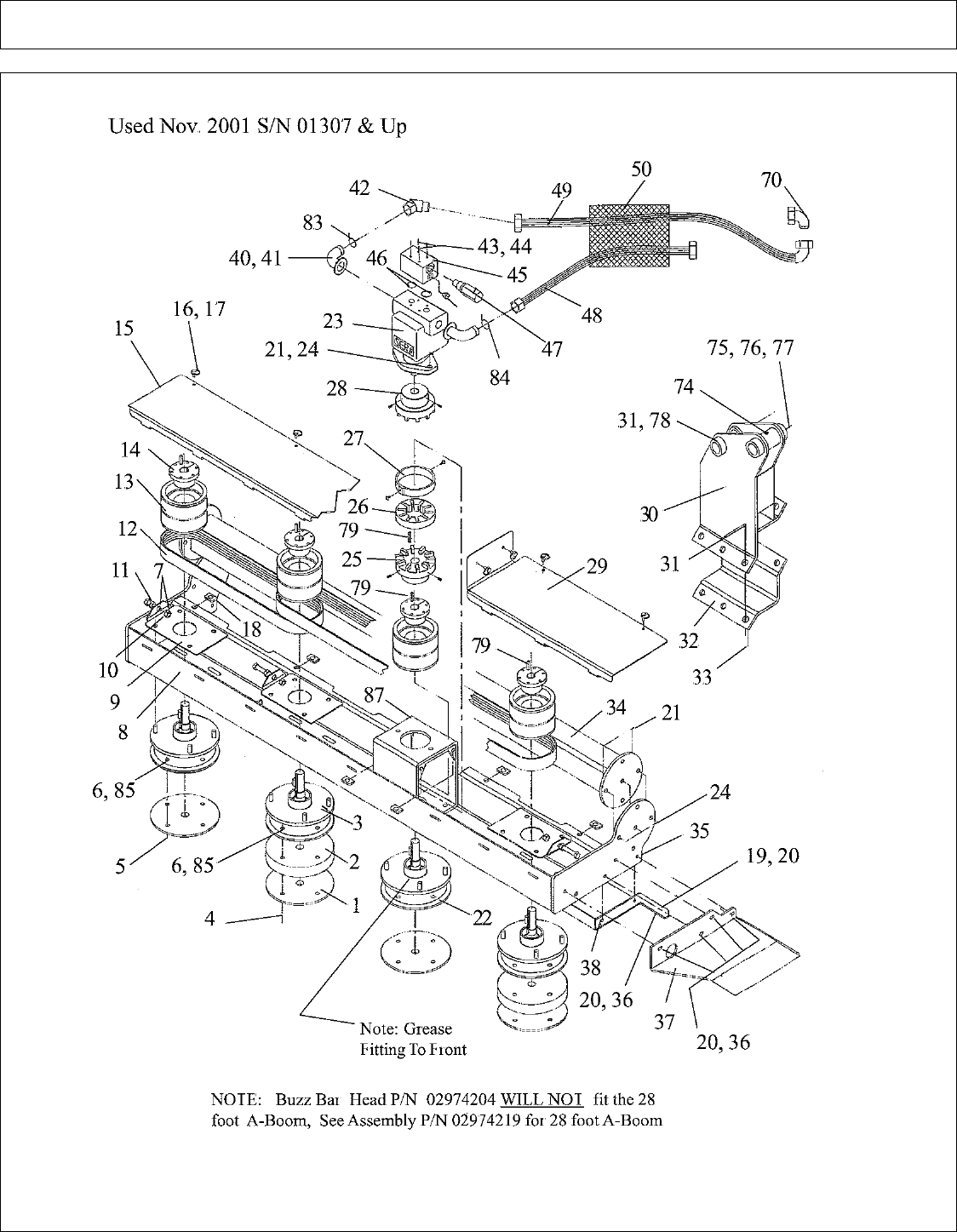

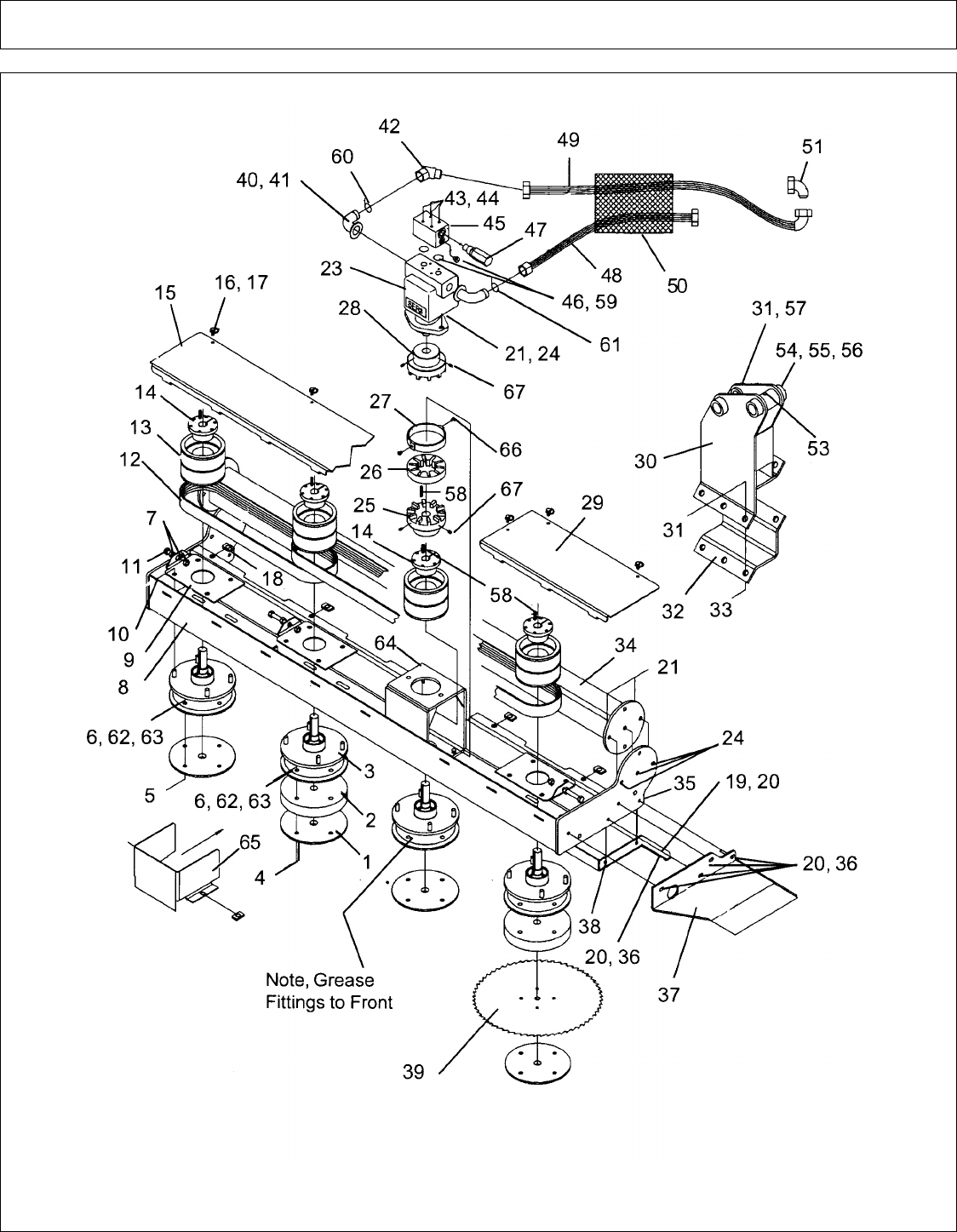

BUZZ BAR HEAD ASY 48 IN - SN 01307 (11-01) & UP (PAGE 1)....................................................................................................... 51

BUZZ BAR HEAD ASY 48 IN - SN 01307 (11-01) & UP (PAGE 2)....................................................................................................... 53

BUZZ BAR HEAD ASY 48 IN - SN 01307 (11-01) & UP (PAGE 3)....................................................................................................... 55

BUZZ BAR HEAD ASY 69 IN - SN 01307 (11-01) & UP (PART 1)........................................................................................................ 57

BUZZ BAR HEAD ASY 69 IN - SN 01307 (11-01) & UP (PART 2)........................................................................................................ 59

BUZZ BAR HEAD ASY 69 IN - SN 01307 (11-01) & UP (PART 3)........................................................................................................ 61

BUZZ BAR HEAD ASY 90 IN - SN 01306 (10-31) & DOWN (PART 1)................................................................................................ 63

BUZZ BAR HEAD ASY 90 IN - SN 01306 (10-31) & DOWN (PART 2)................................................................................................ 65

BUZZ BAR HEAD ASY 90 IN - SN 01307 (11-01) & UP (PART 1)........................................................................................................ 67

BUZZ BAR HEAD ASY 90 IN - SN 01307 (11-01) & UP (PART 2)........................................................................................................ 69

BUZZ BAR HEAD ASY 90 IN - SN 01307 (11-01) & UP (PART 3)........................................................................................................ 71

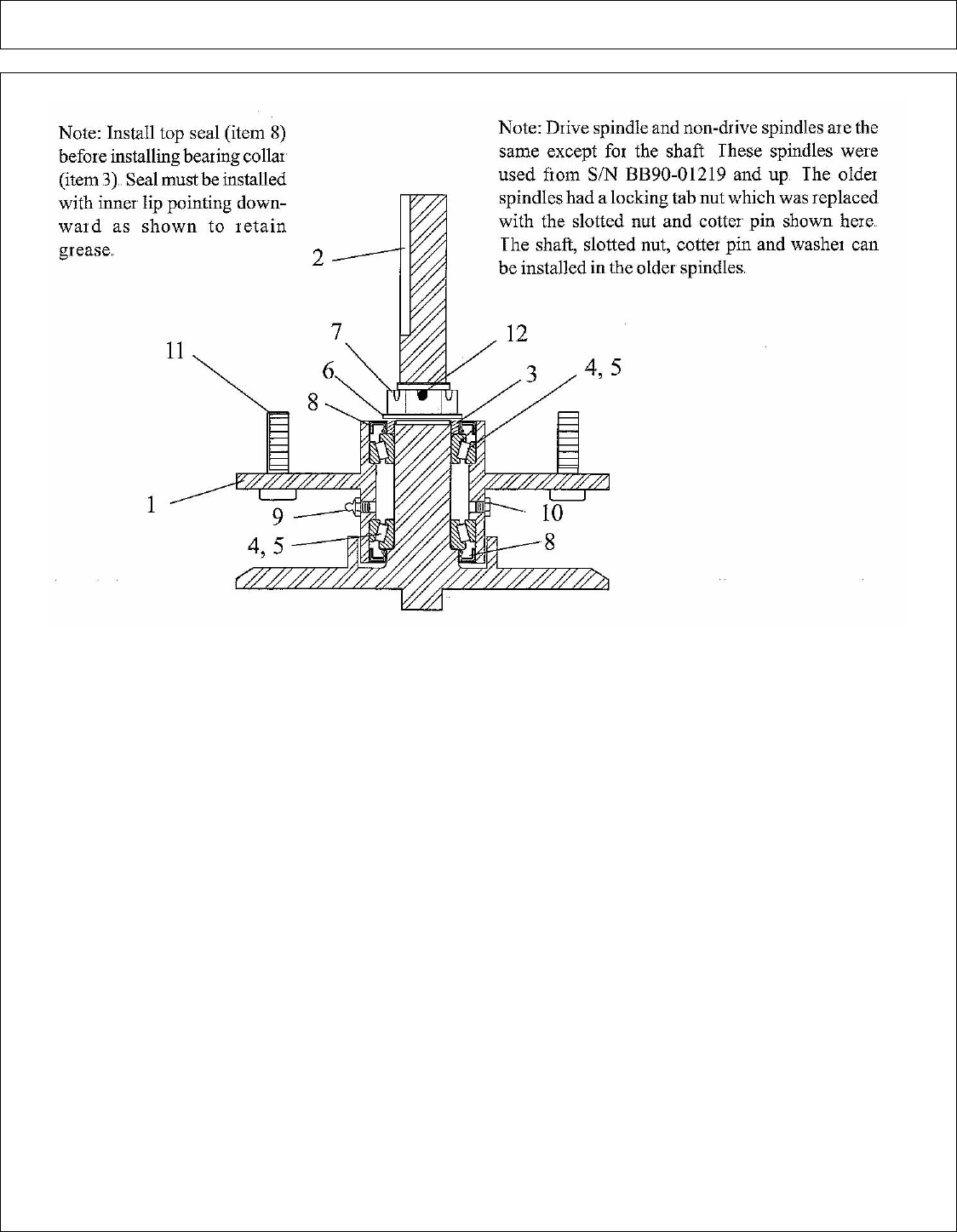

BUZZ BAR SPINDLE ASY - SN BB-01219.............................................................................................................................................. 73

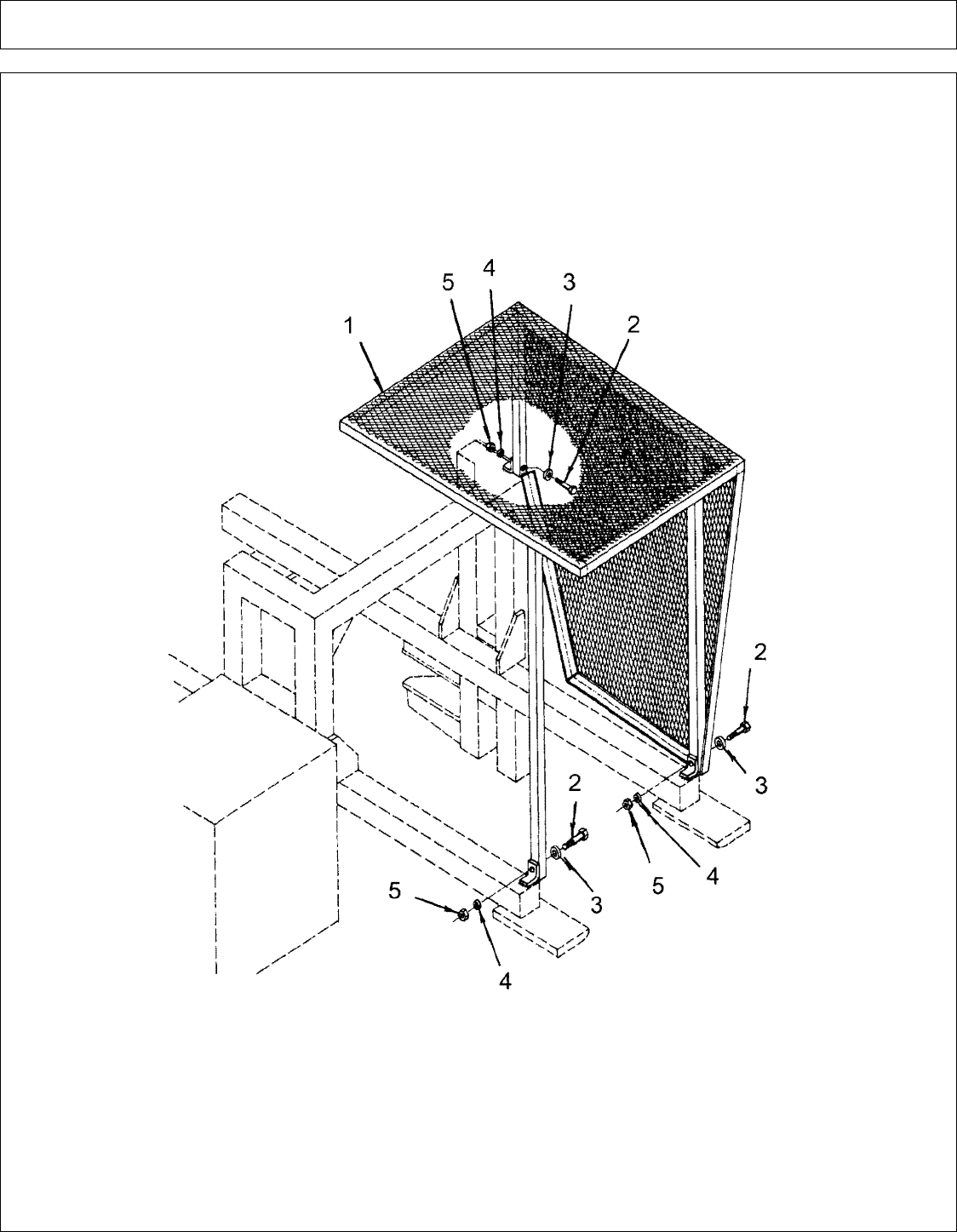

CAGE ASY - UNIVERSAL MOUNT......................................................................................................................................................... 75

DITCHER - BLADE HEAD ASY (FWD ROT) - PN 02875301................................................................................................................ 77

DITCHER - BLADE HEAD ASY (REV ROT) - PN 02898501................................................................................................................. 78

A-BOOM (04-04) SN 04837 - UP Rev 12-08

PART NAME INDEX

DITCHER - HEAD ASY - PN 02215413.................................................................................................................................................... 79

DITCHER - HOUSING ASY (FWD ROT) - PN 02873900....................................................................................................................... 80

DITCHER - HOUSING ASY (REV ROT) - PN 02898600........................................................................................................................ 81

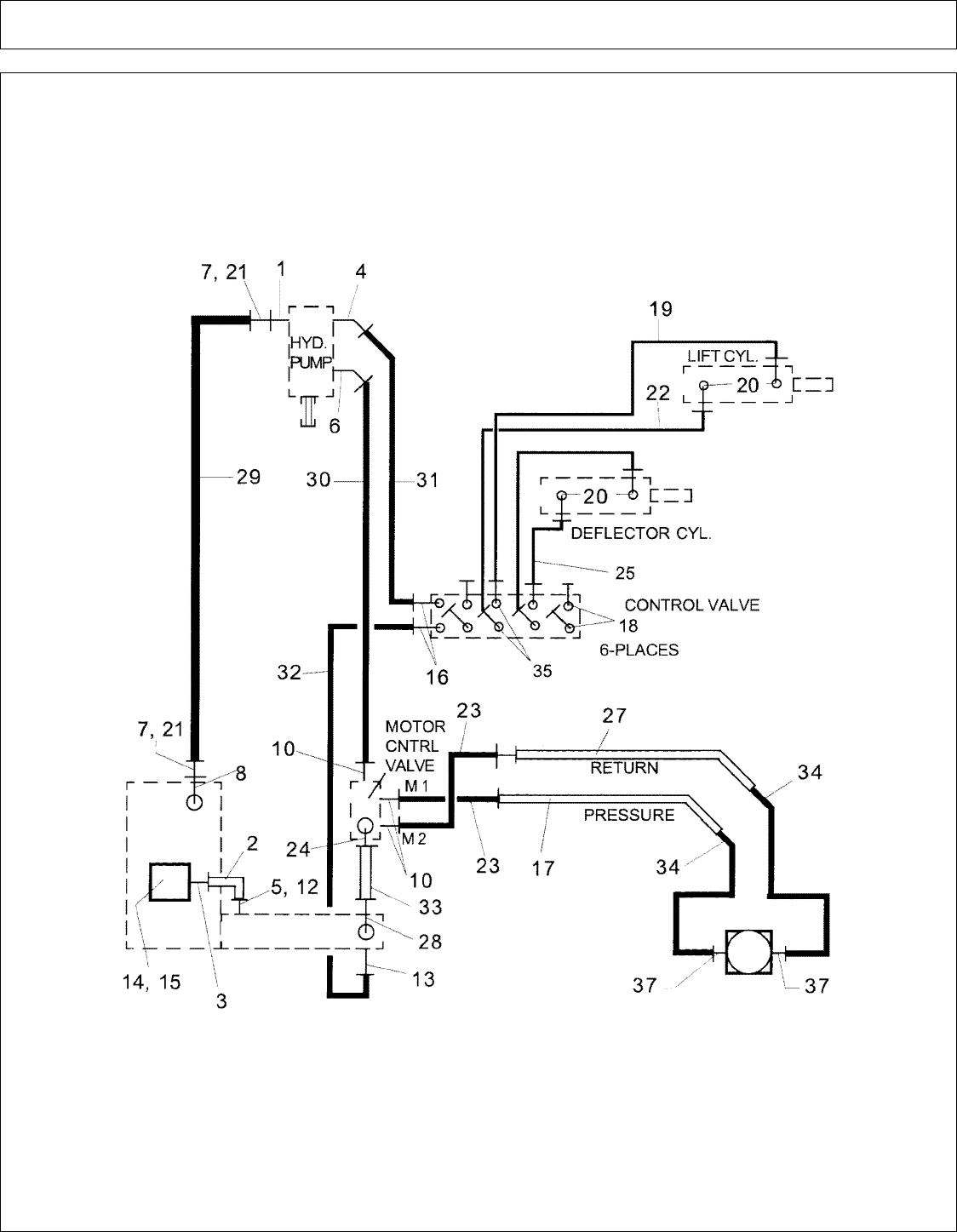

DITCHER - HYD SCHEMATIC W-PARTS.............................................................................................................................................. 83

DITCHER - MOTOR ASY (NEW STYLE) - PN 02978110...................................................................................................................... 85

DITCHER - MOTOR ASY (OLD STYLE) - PN 02870100....................................................................................................................... 86

DITCHER - MOTOR PARTS (NEW STYLE) - PN 02978110.................................................................................................................. 87

DITCHER - MOTOR PARTS (OLD STYLE) - PN 02870100................................................................................................................... 89

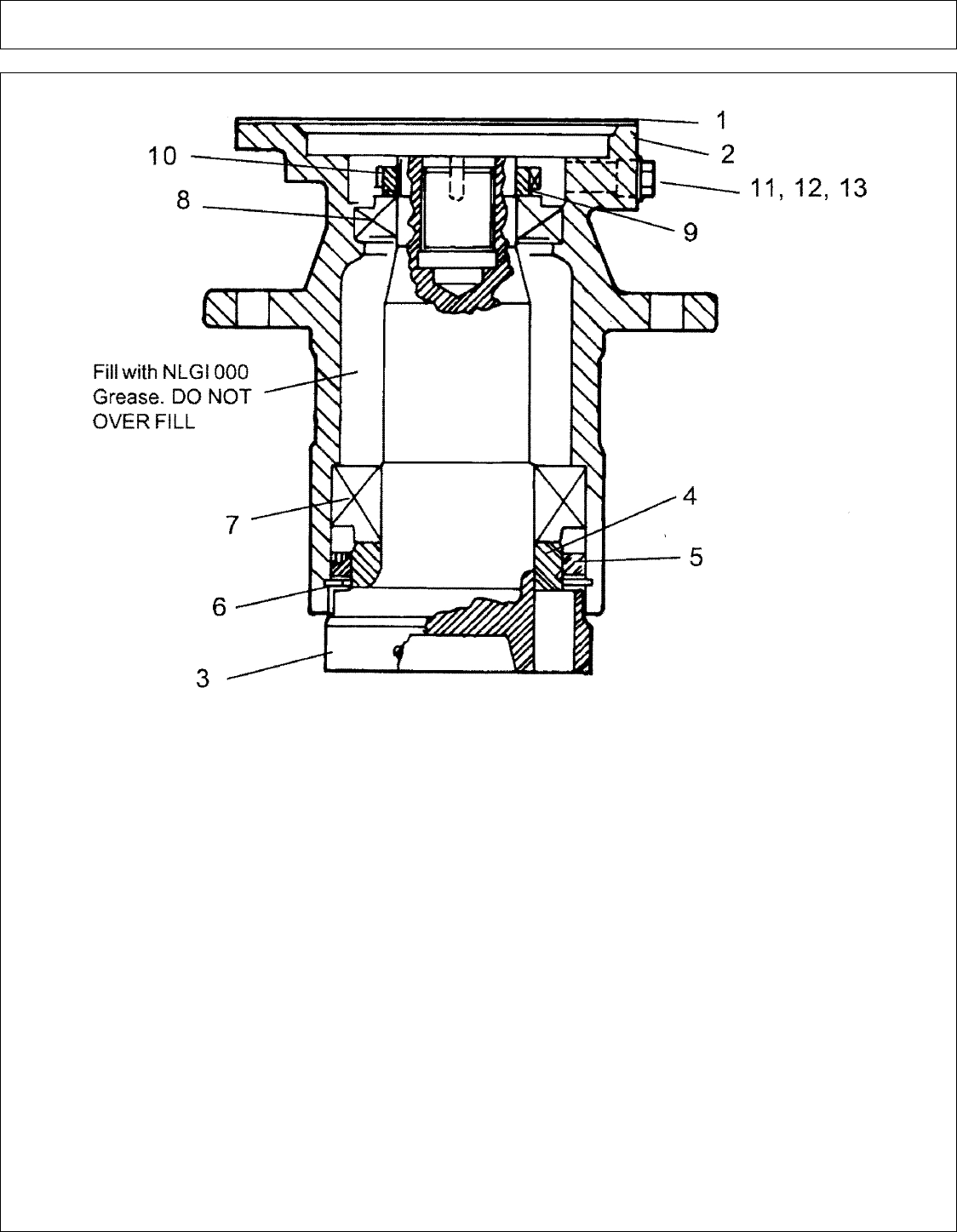

DITCHER - SPINDLE ASY - PN 02872300............................................................................................................................................... 91

DITCHER - SPINDLE ASY - PN 02973336............................................................................................................................................... 92

FILTER ASY - PN 02961000...................................................................................................................................................................... 93

FLAIL AXE - HEAD ASY (SN 04250 & UP) (PART 1)........................................................................................................................... 95

FLAIL AXE - HEAD ASY (SN 04250 & UP) (PART 2)........................................................................................................................... 97

FLAIL AXE - MOTOR ASY (SN FA-04250 & UP) - PN 02963893......................................................................................................... 99

FLAIL AXE - MOTOR PARTS (SN FA-04250 & UP) - PN 02961678.................................................................................................. 101

HVY DTY FLAIL - 48 IN AND 60 IN HEAD ASY (PART 1)............................................................................................................... 103

HVY DTY FLAIL - 48 IN AND 60 IN HEAD ASY (PART 2)............................................................................................................... 105

HVY DTY FLAIL - GAUGE WHEELS................................................................................................................................................... 107

HYD CUTTER VALVE - PN 02957254................................................................................................................................................... 109

HYD CUTTER VALVE ASY - PN 02961090.......................................................................................................................................... 111

HYD CUTTER VALVE ASY INSTALLATION - PN 02960565............................................................................................................ 112

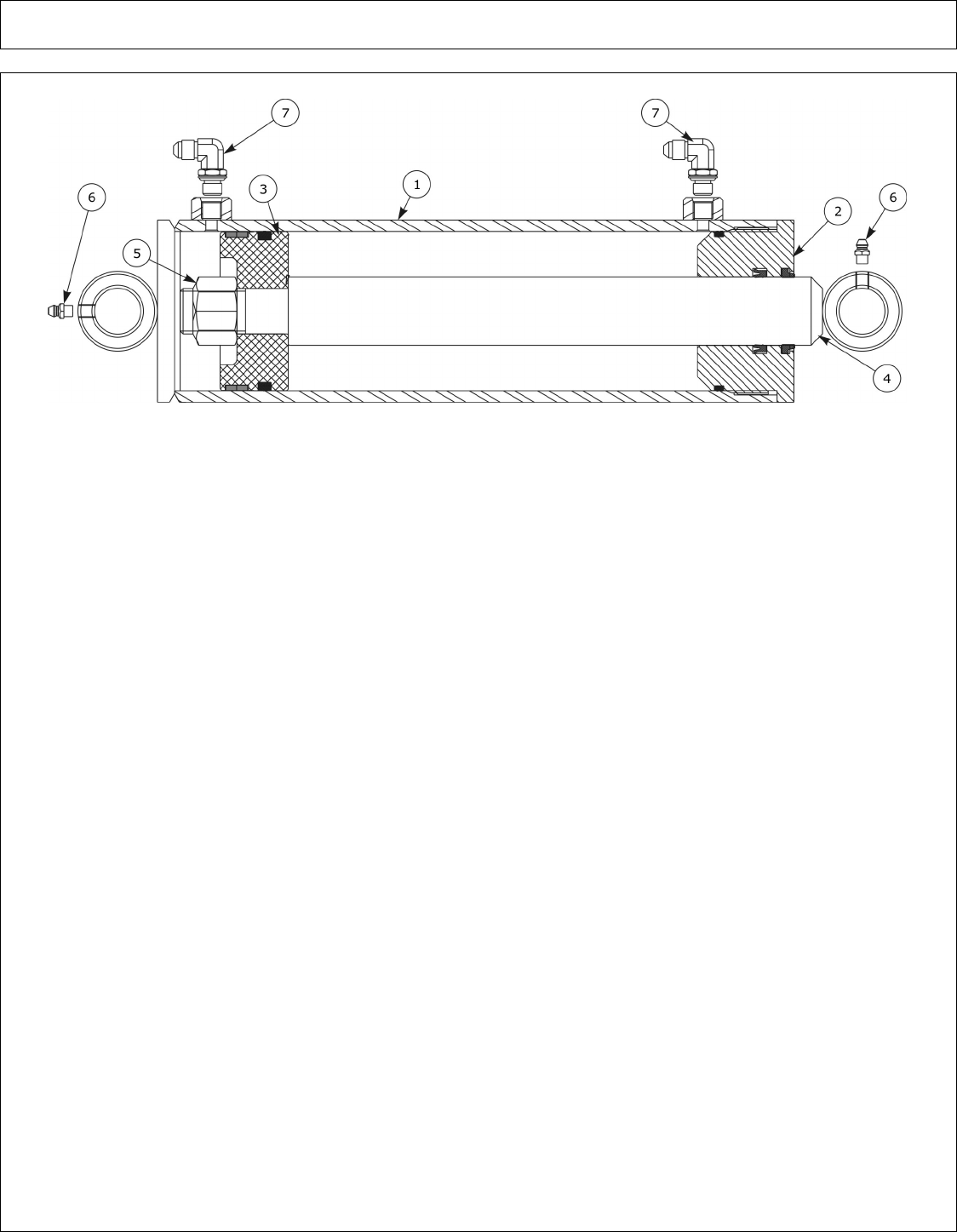

HYD CYL ASY - DIPPER (17 FT) - PN 02967017.................................................................................................................................. 113

HYD CYL ASY - DIPPER (20-23 FT) - PN 02961780T.......................................................................................................................... 115

HYD CYL ASY - DIPPER (28 FT) - PN 02222000 (03-00 & DOWN)................................................................................................... 117

HYD CYL ASY - DIPPER (28 FT) - PN 02222000 (04-00 & UP).......................................................................................................... 119

HYD CYL ASY - EXTENSION (28 FT) - PN 02961485C...................................................................................................................... 121

HYD CYL ASY - LIFT (17 FT) - PN 02962297....................................................................................................................................... 123

HYD CYL ASY - LIFT (20-23-28 FT) - PN 02961779............................................................................................................................ 124

HYD CYL ASY - SWING (17-20-23-28 FT) - PN 02961778.................................................................................................................. 125

HYD CYL ASY - TILT (17-20-23 FT) - PN 02967016............................................................................................................................ 126

HYD CYL ASY - TILT (28 FT) - PN 02961787....................................................................................................................................... 127

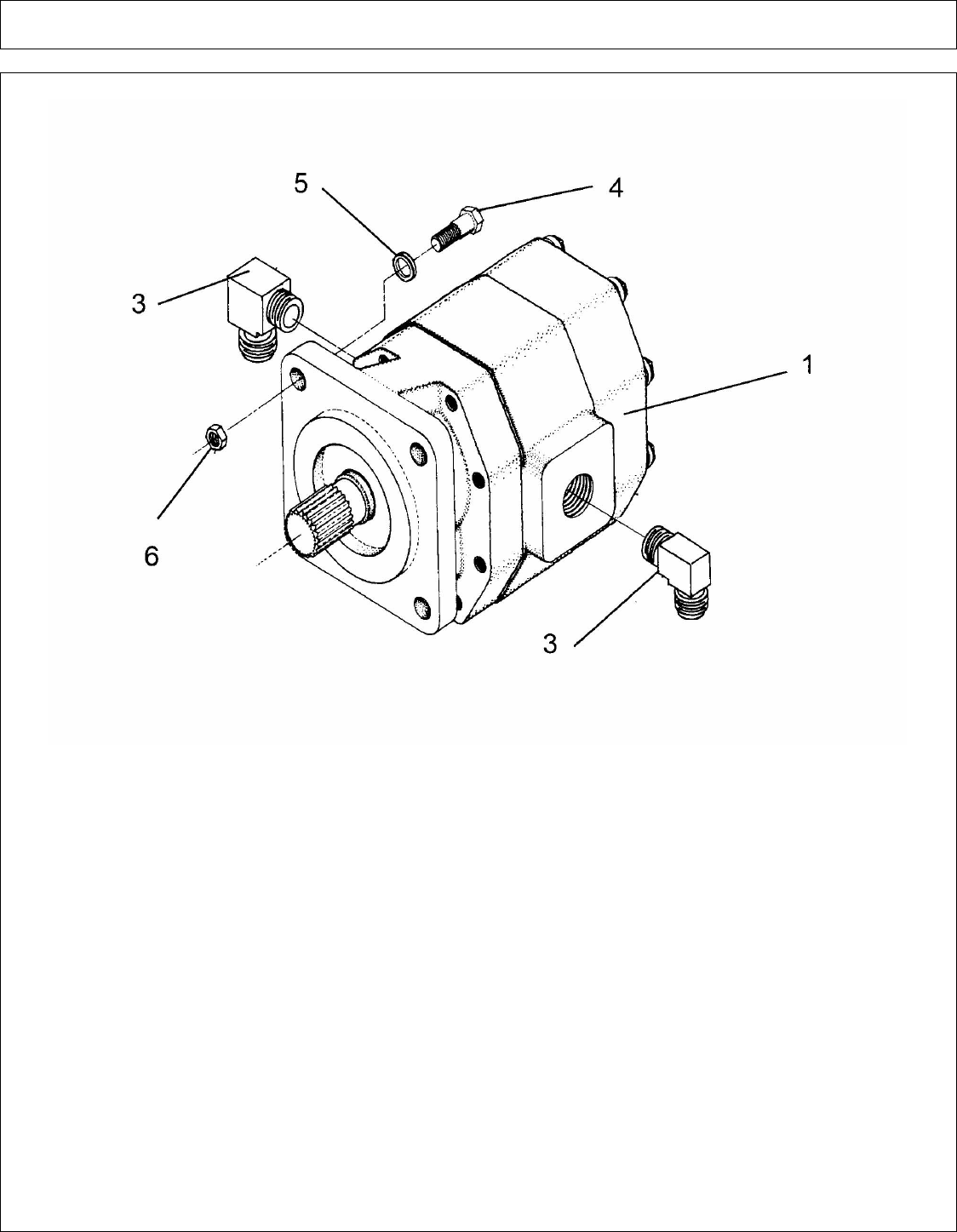

HYD PUMP ASY (FRONT SINGLE) - PN 02961827............................................................................................................................. 128

HYD PUMP ASY (FRONT TANDEM) - PN 02961826.......................................................................................................................... 129

HYD PUMP ASY (REAR SINGLE 540 RPM) - PN 02962096............................................................................................................... 130

HYD PUMP ASY (REAR TANDEM 540 RPM) - PN 02962097............................................................................................................ 131

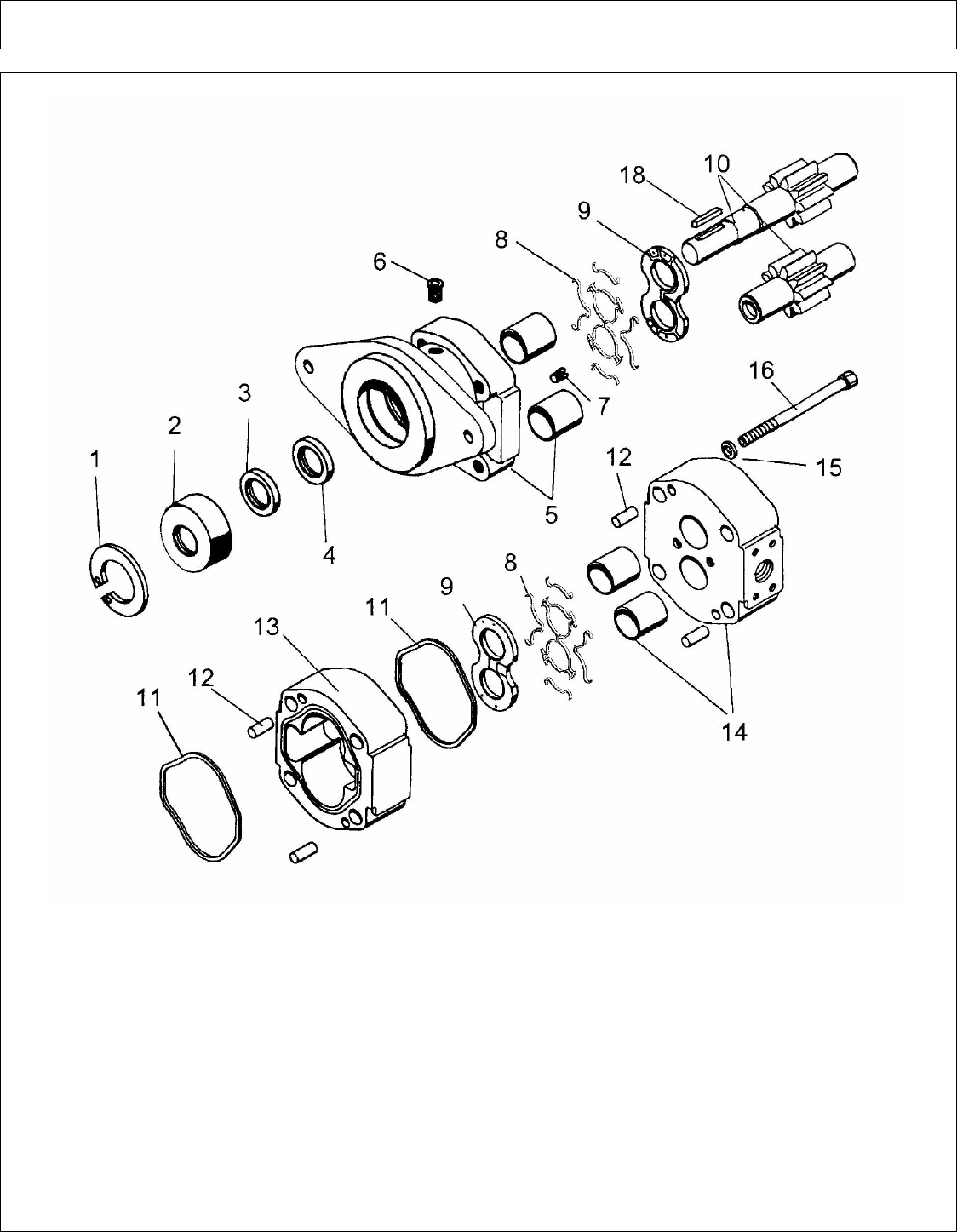

HYD PUMP PARTS (FRONT SINGLE) - PN 02961474......................................................................................................................... 133

HYD PUMP PARTS (FRONT TANDEM) - PN 02961735...................................................................................................................... 135

HYD PUMP PARTS (REAR SINGLE 540 RPM) - PN 02964947........................................................................................................... 137

HYD PUMP PARTS (REAR TANDEM 540 RPM) - PN 02964948........................................................................................................ 139

A-BOOM (04-04) SN 04837 - UP Rev 12-08

PART NAME INDEX

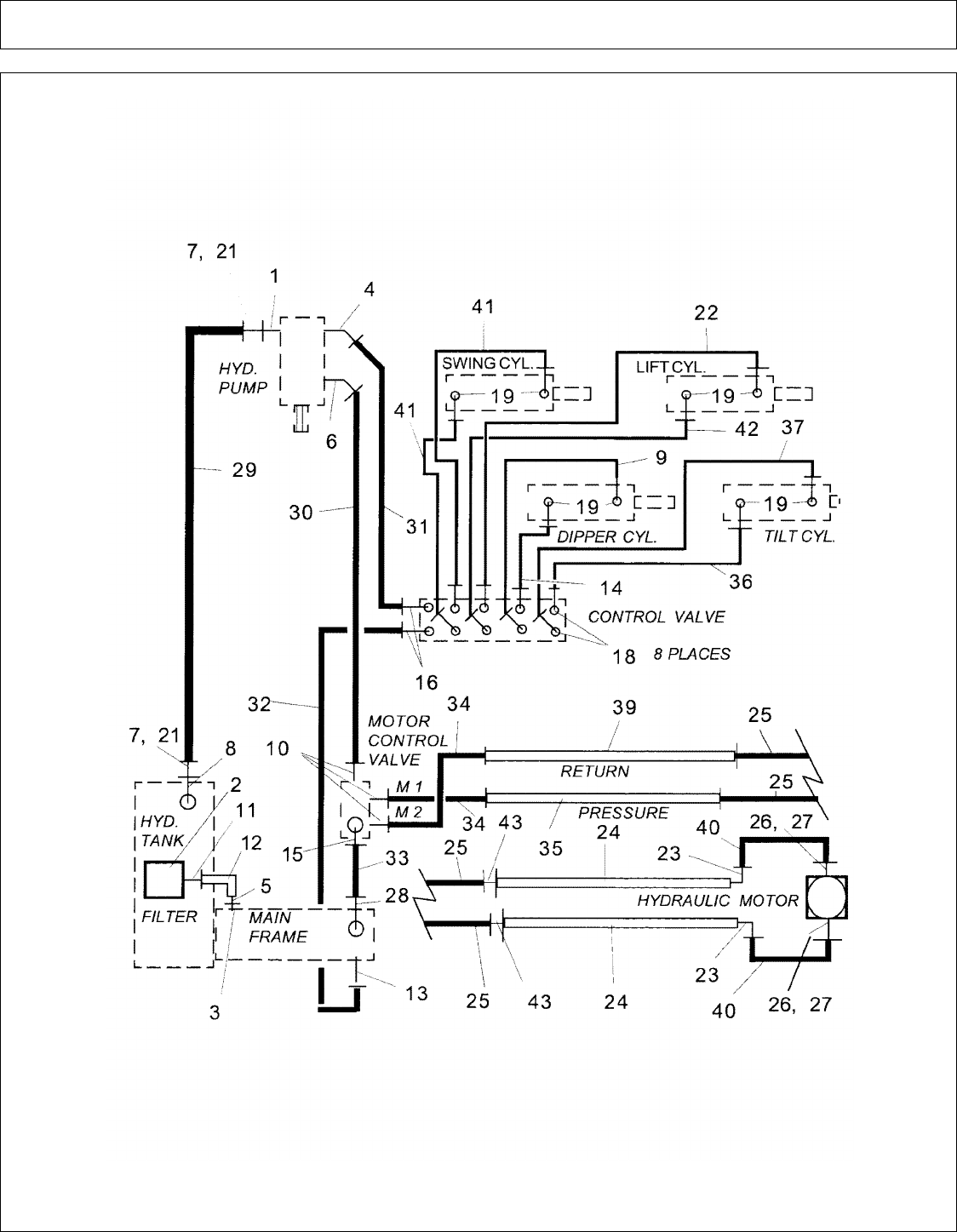

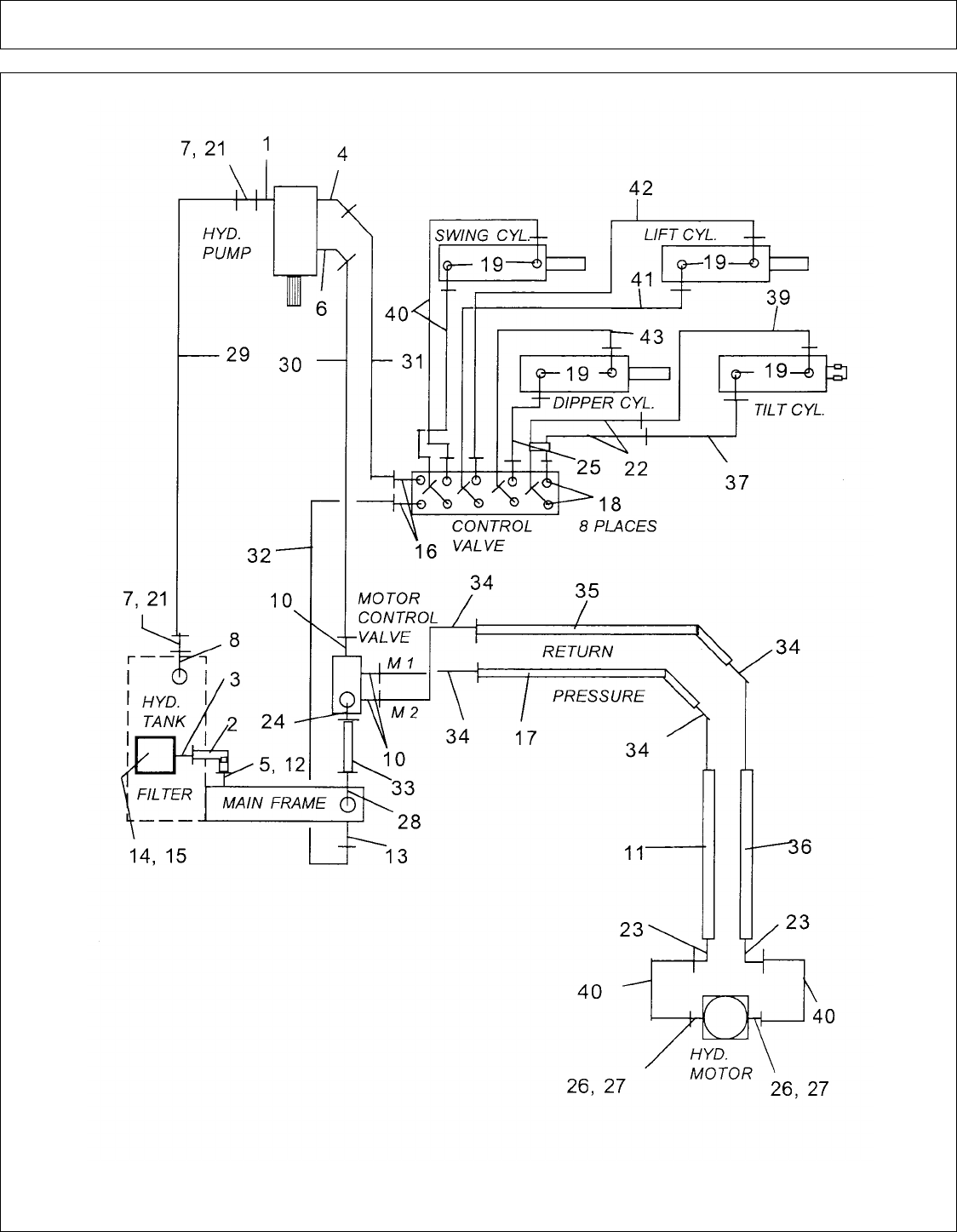

HYD SCHEMATIC (17 FT) (PART 1)..................................................................................................................................................... 141

HYD SCHEMATIC (17 FT) (PART 2)..................................................................................................................................................... 143

HYD SCHEMATIC (20-23 FT) (PART 1)................................................................................................................................................ 145

HYD SCHEMATIC (20-23 FT) (PART 2)................................................................................................................................................ 147

HYD SCHEMATIC W-PARTS (28 FT) (PART 1)................................................................................................................................... 149

HYD SCHEMATIC W-PARTS (28 FT) (PART 2)................................................................................................................................... 151

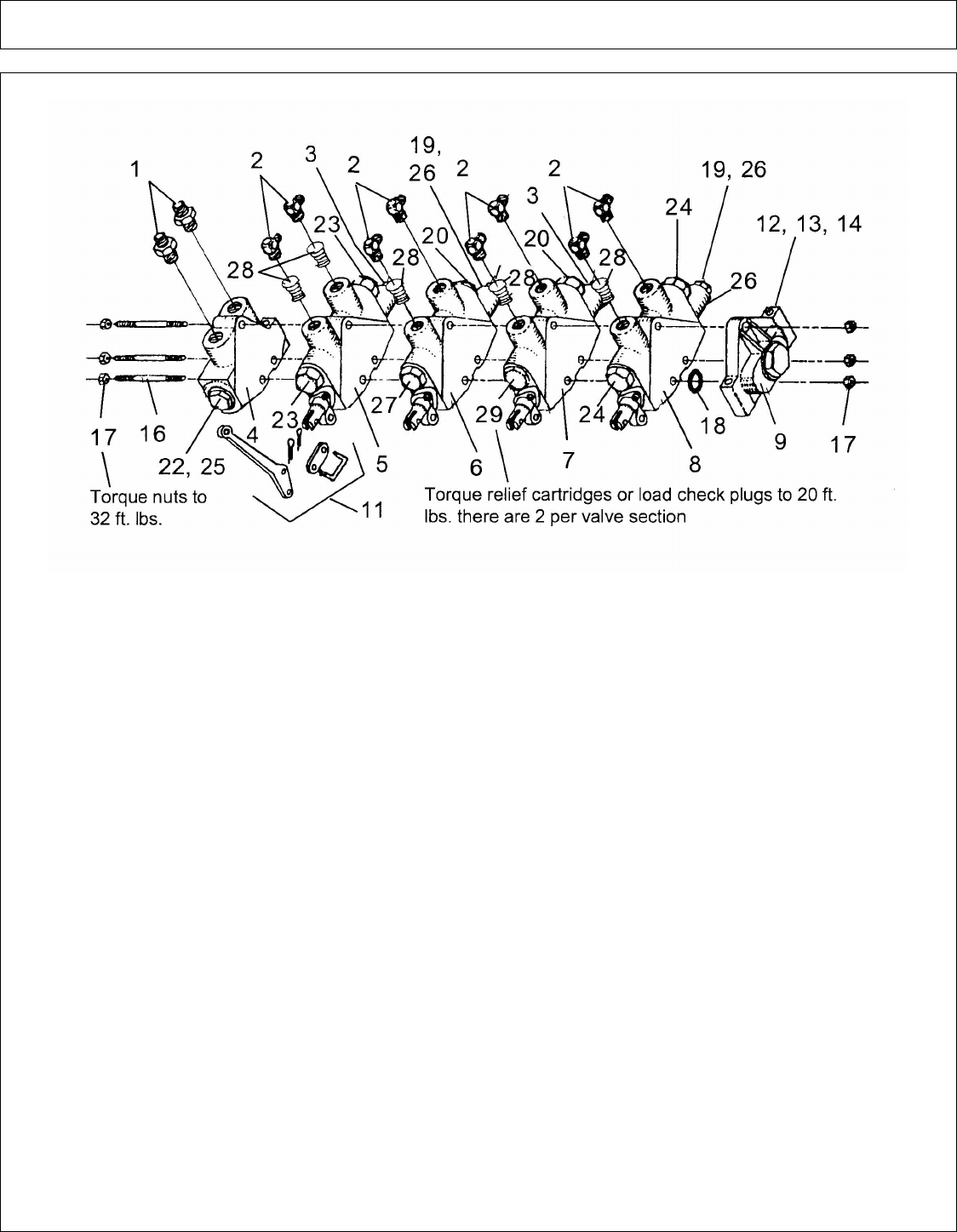

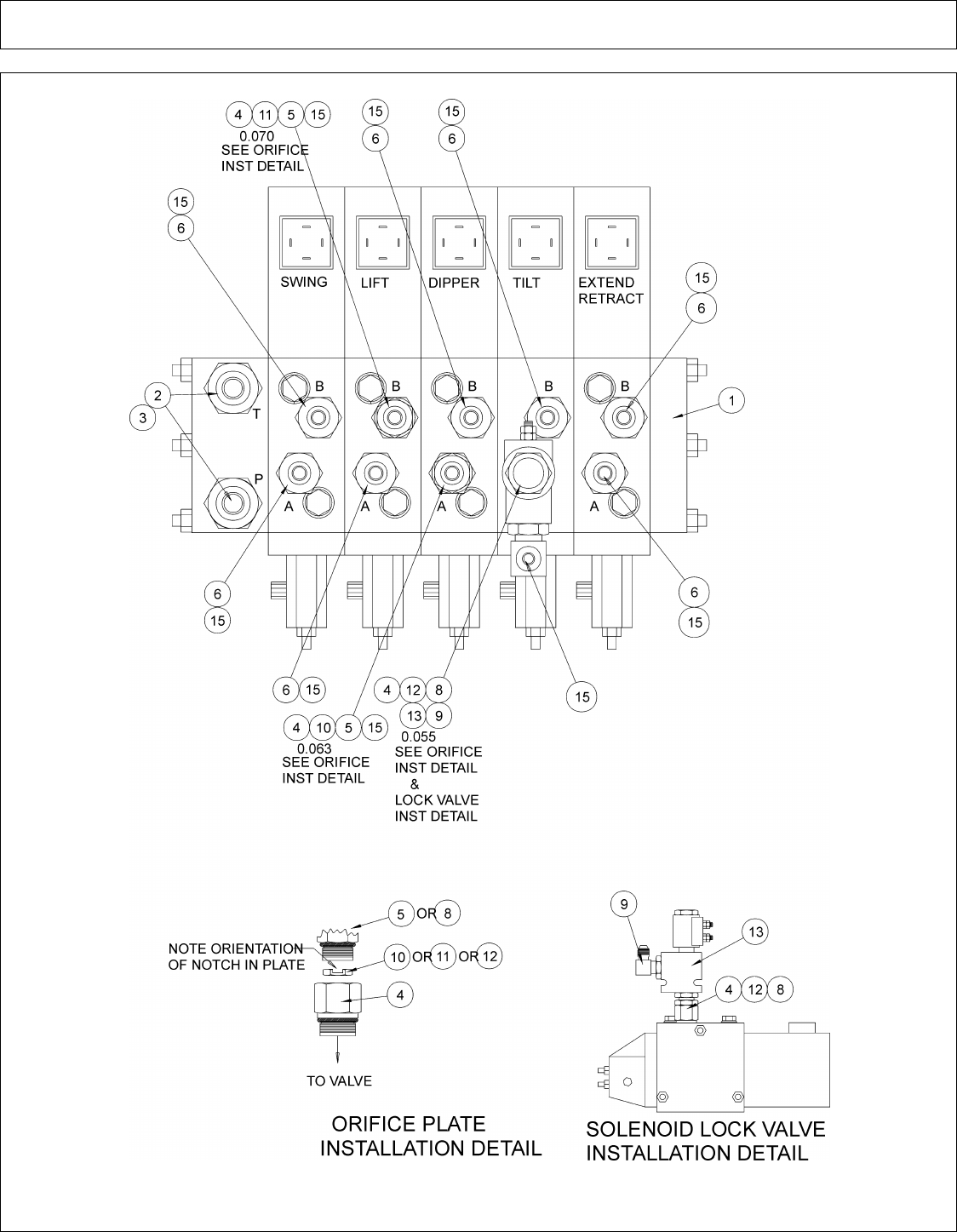

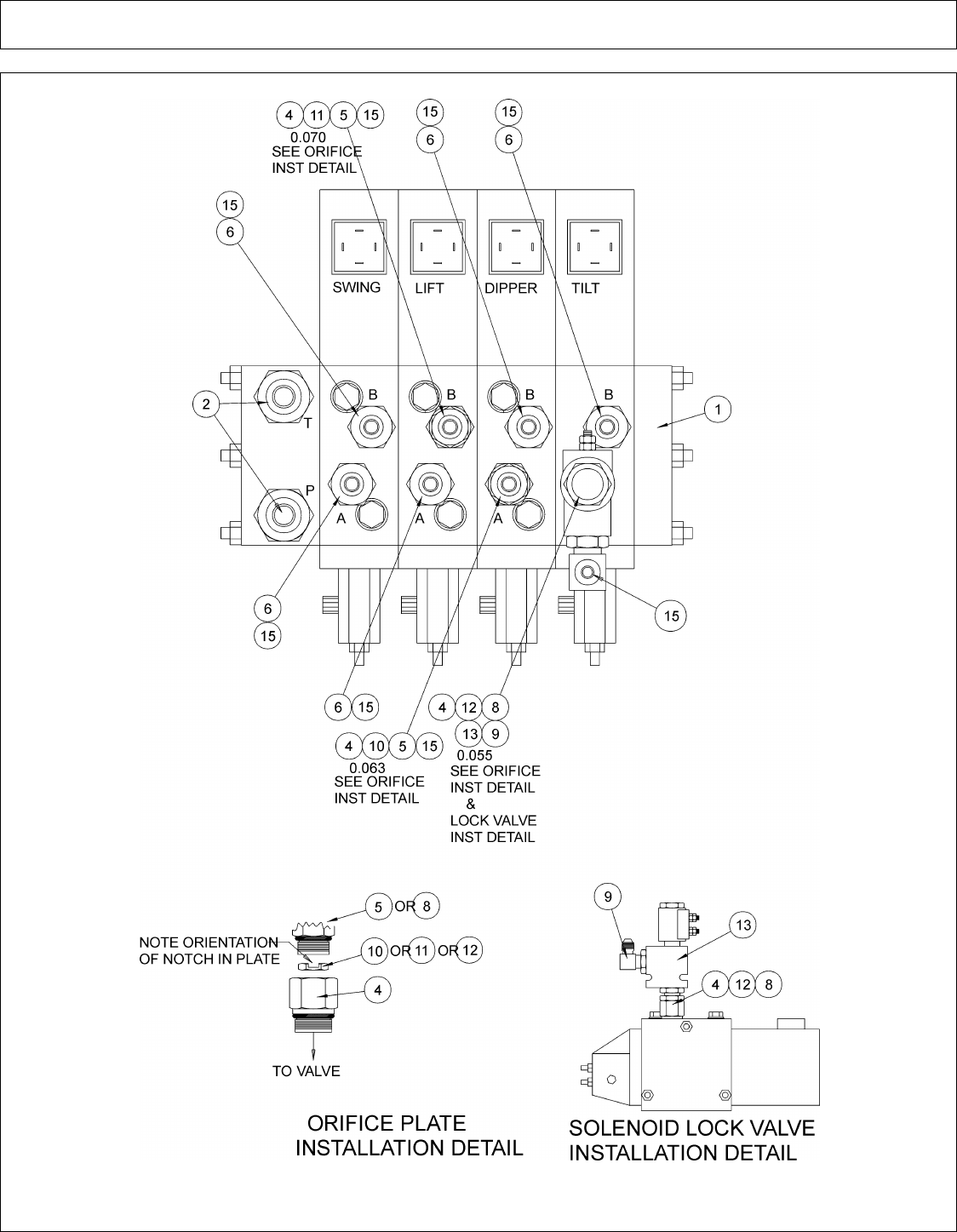

HYD VALVE BANK (28 FT) - PN 02957610.......................................................................................................................................... 153

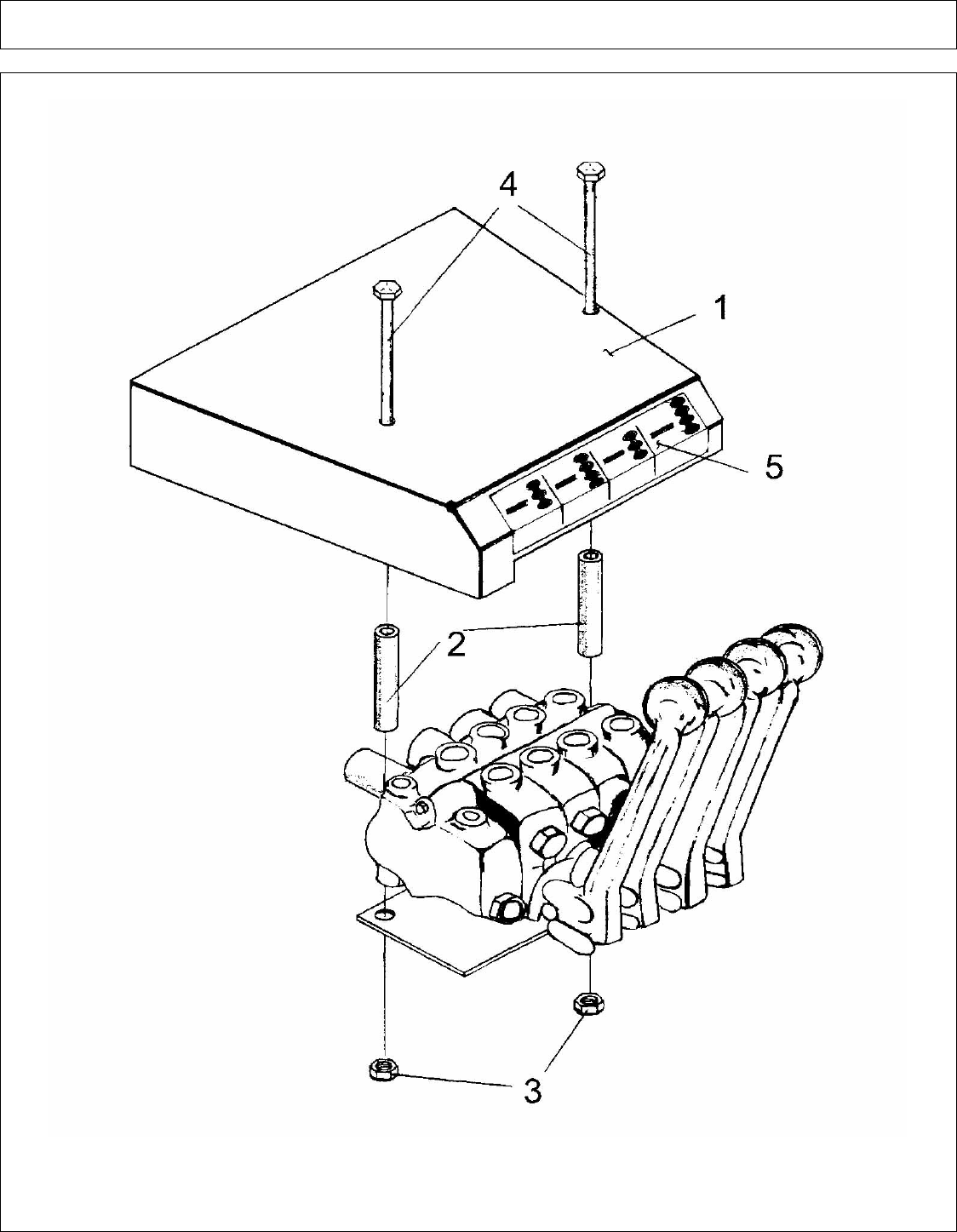

HYD VALVE BANK COVER.................................................................................................................................................................. 155

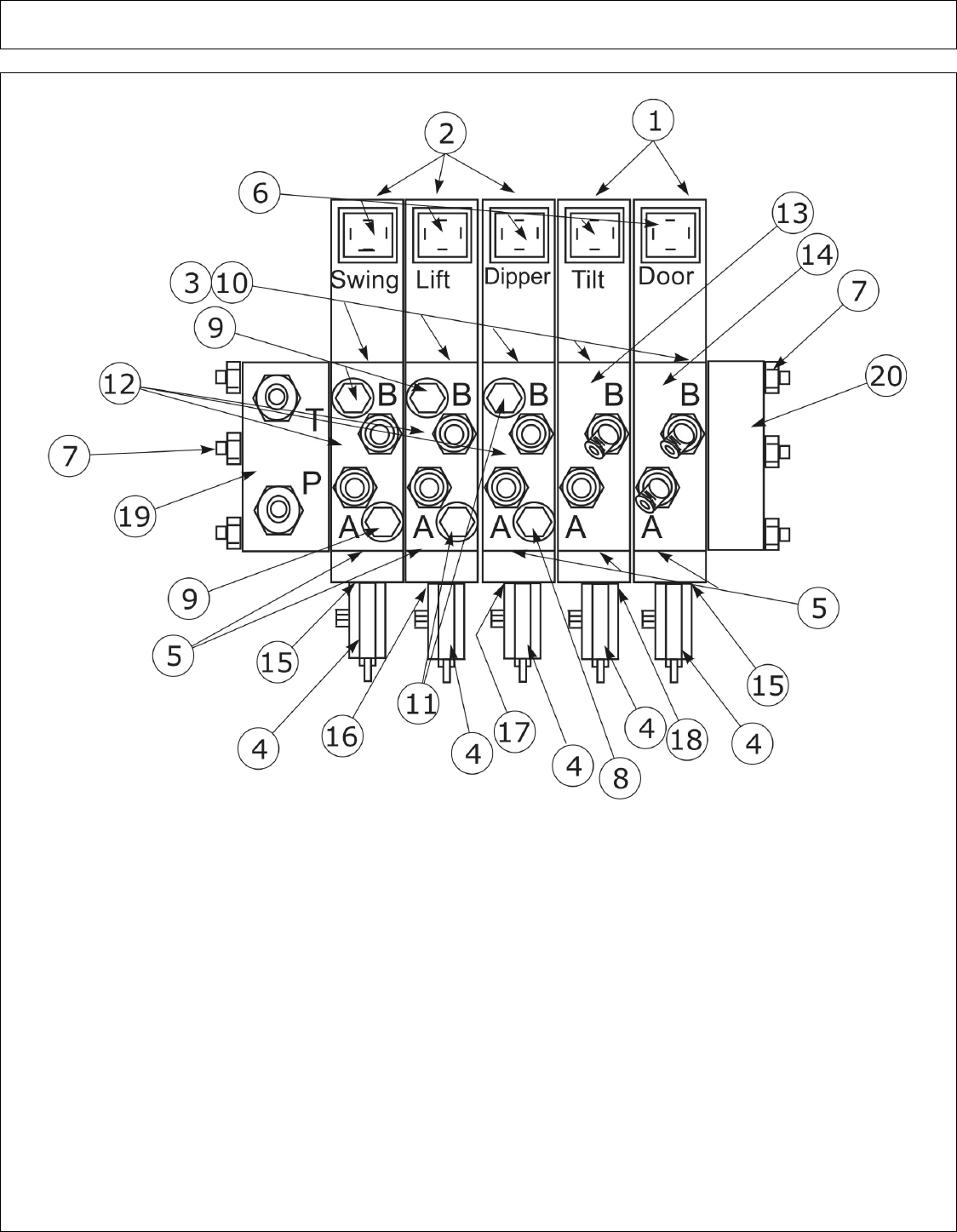

HYD VALVE BANK W- FITTINGS - PN 02962298.............................................................................................................................. 157

HYD VALVE REMOTE CONTROL CABLES & MOUNT................................................................................................................... 159

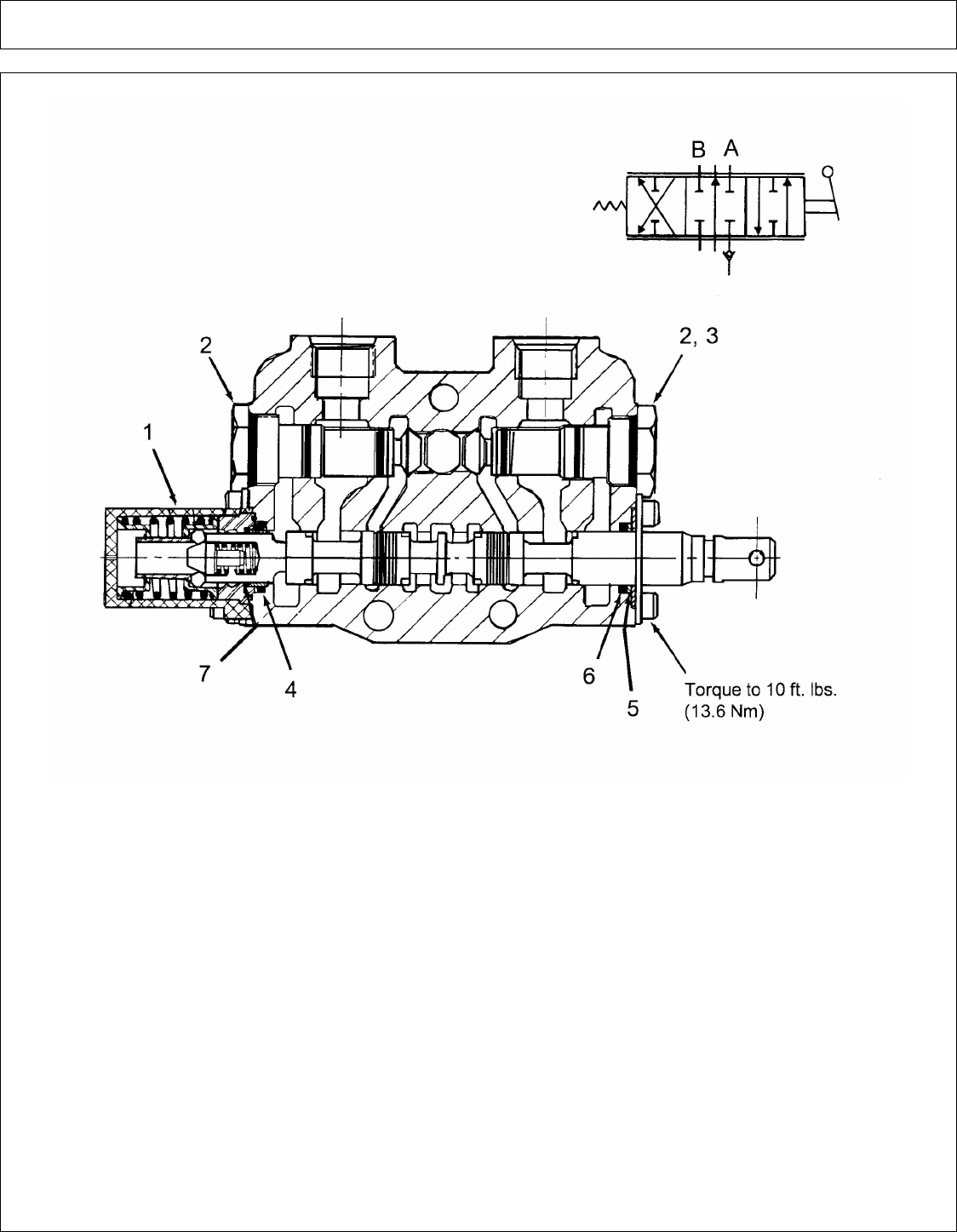

HYD VALVE SEGMENT - FLOAT......................................................................................................................................................... 161

HYD VALVE SEGMENT - NON-FLOAT............................................................................................................................................... 162

HYDRO FLOAT OPTION........................................................................................................................................................................ 163

JOYSTICK CONSOLE ASY..................................................................................................................................................................... 165

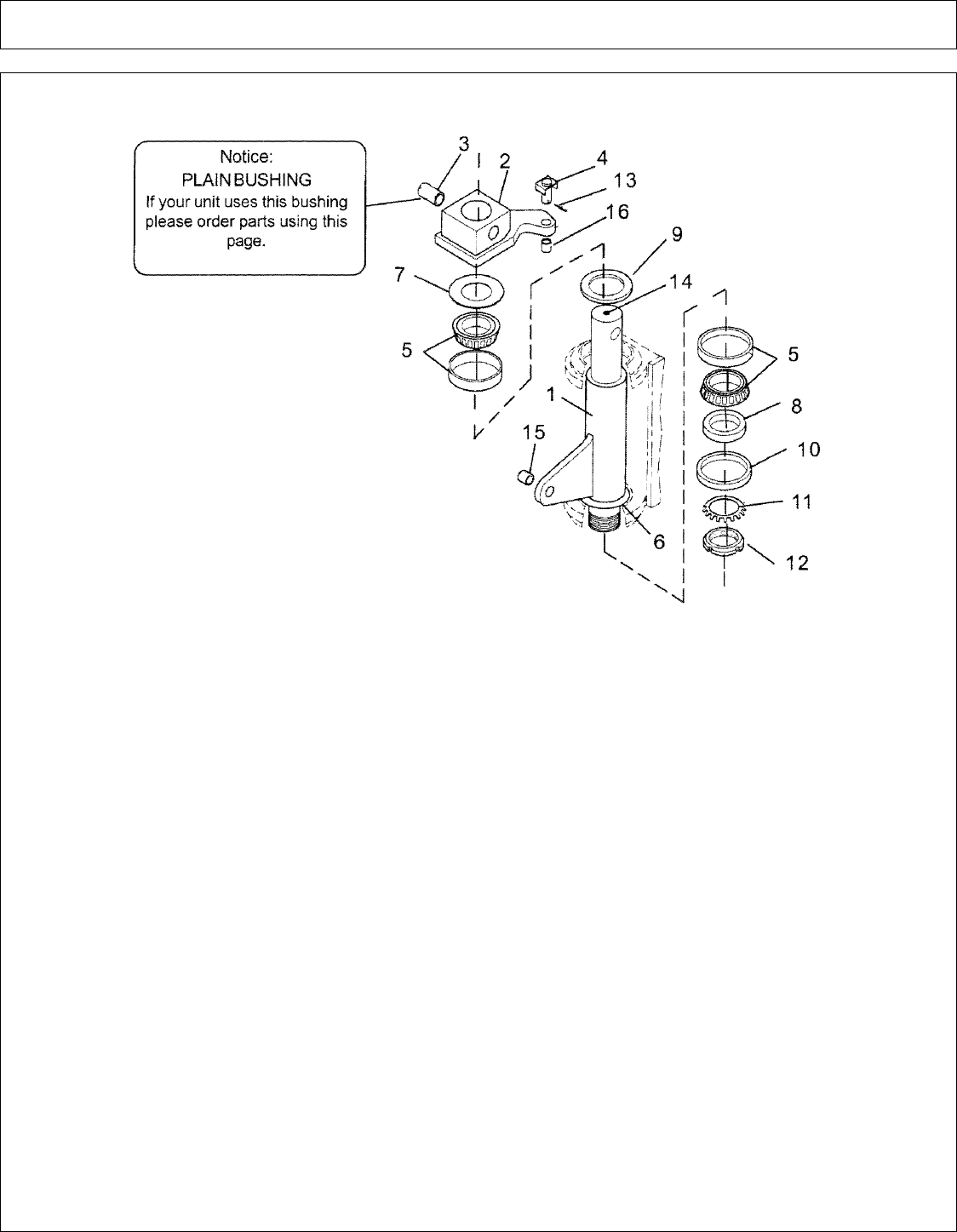

KING POST ATTACHMENT (W-PLAIN BUSHINGS)......................................................................................................................... 167

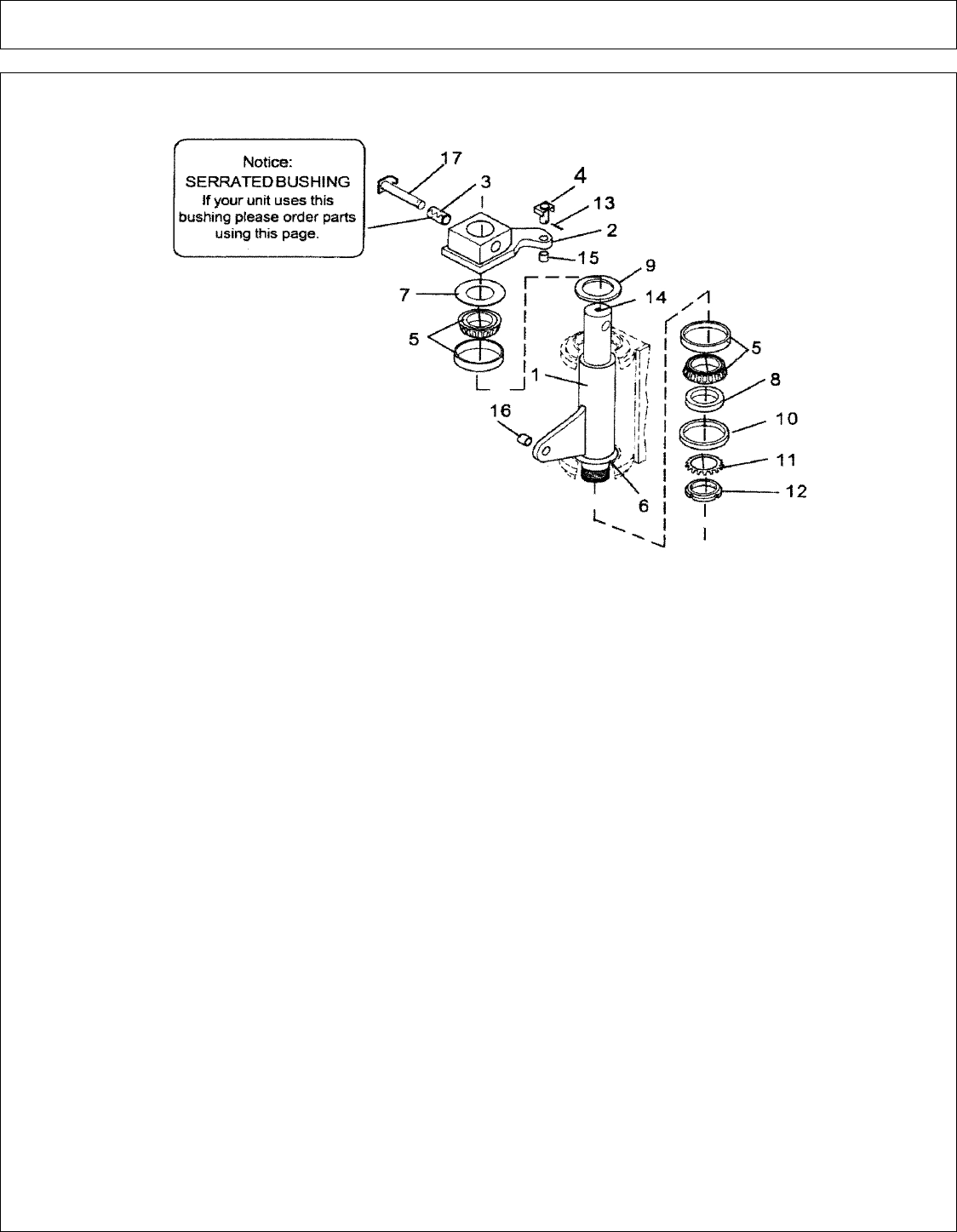

KING POST ATTACHMENT (W-SERRATED BUSHINGS)................................................................................................................ 169

MAIN FRAME ASY (03-06 & DOWN) (PART 1).................................................................................................................................. 171

MAIN FRAME ASY (03-06 & DOWN) (PART 2).................................................................................................................................. 173

MAIN FRAME ASY (04-06 & UP) (PART 1).......................................................................................................................................... 175

MAIN FRAME ASY (04-06 & UP) (PART 2).......................................................................................................................................... 177

MOUNTING COMPONENTS - COMMON PARTS BOX (OPTION)................................................................................................... 179

SICKLE BAR & BASKET ASY (28 FT BOOM)..................................................................................................................................... 181

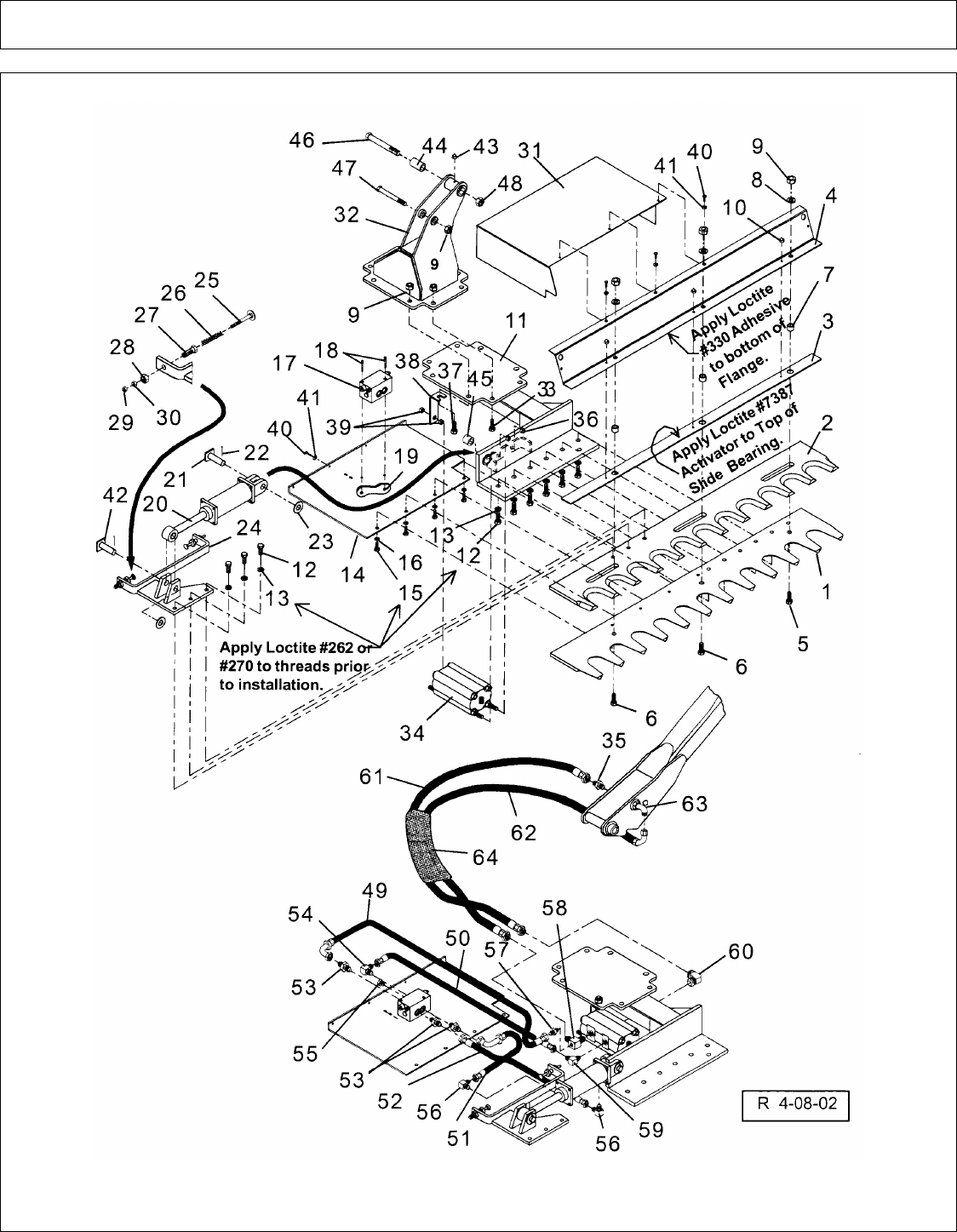

SICKLE BAR - BASIC DRIVE (PARTS) - PN 0666200......................................................................................................................... 183

SICKLE BAR - CUTTER BAR ASY........................................................................................................................................................ 185

SICKLE BAR - HEAD ASY - PN 02962179............................................................................................................................................ 187

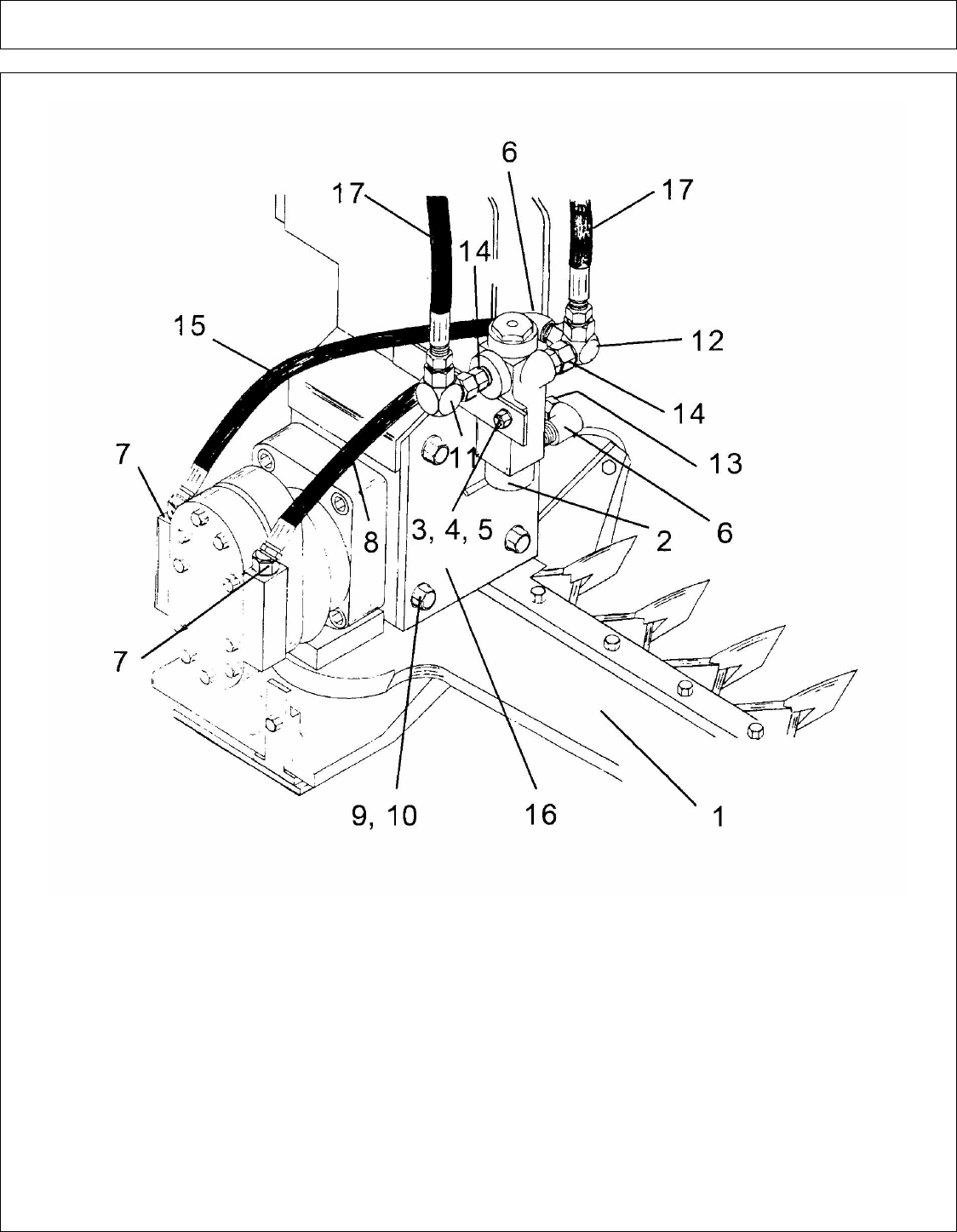

SICKLE BAR - HYD DRIVE ASY - PN 0666100................................................................................................................................... 189

SICKLE BAR - HYD MOTOR ASY - PN 0447300................................................................................................................................. 191

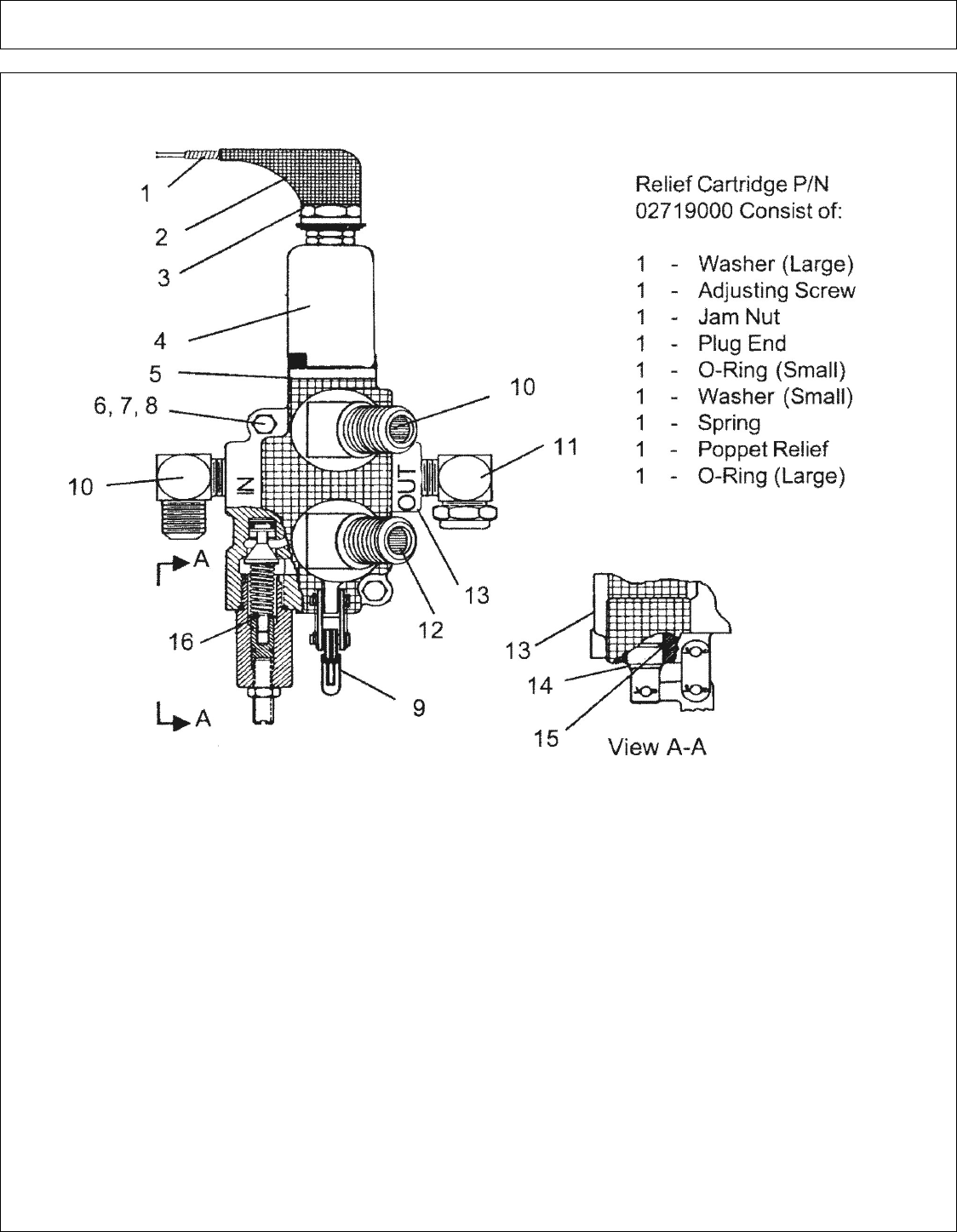

SICKLE BAR - HYD VALVE - PN 00750053 - (S/N AB-05999 01-04 & DOWN)............................................................................... 193

SICKLE BAR - HYD VALVE - PN 00750053A (S/N AB-06000 & UP)................................................................................................ 195

SICKLE BAR - KNIFE ASY..................................................................................................................................................................... 197

SLOPE MOWER HEAD - BLADE BAR ASY - PN 02957478............................................................................................................... 198

SLOPE MOWER HEAD - CASTER WHEEL ASY................................................................................................................................. 199

SLOPE MOWER HEAD - HEAD ASY - PN 02962174........................................................................................................................... 201

SLOPE MOWER HEAD - HEAD SUB-ASY........................................................................................................................................... 203

SLOPE MOWER HEAD - MOTOR ASY - PN 02960696....................................................................................................................... 204

SLOPE MOWER HEAD - MOTOR PARTS - PN 02960696................................................................................................................... 205

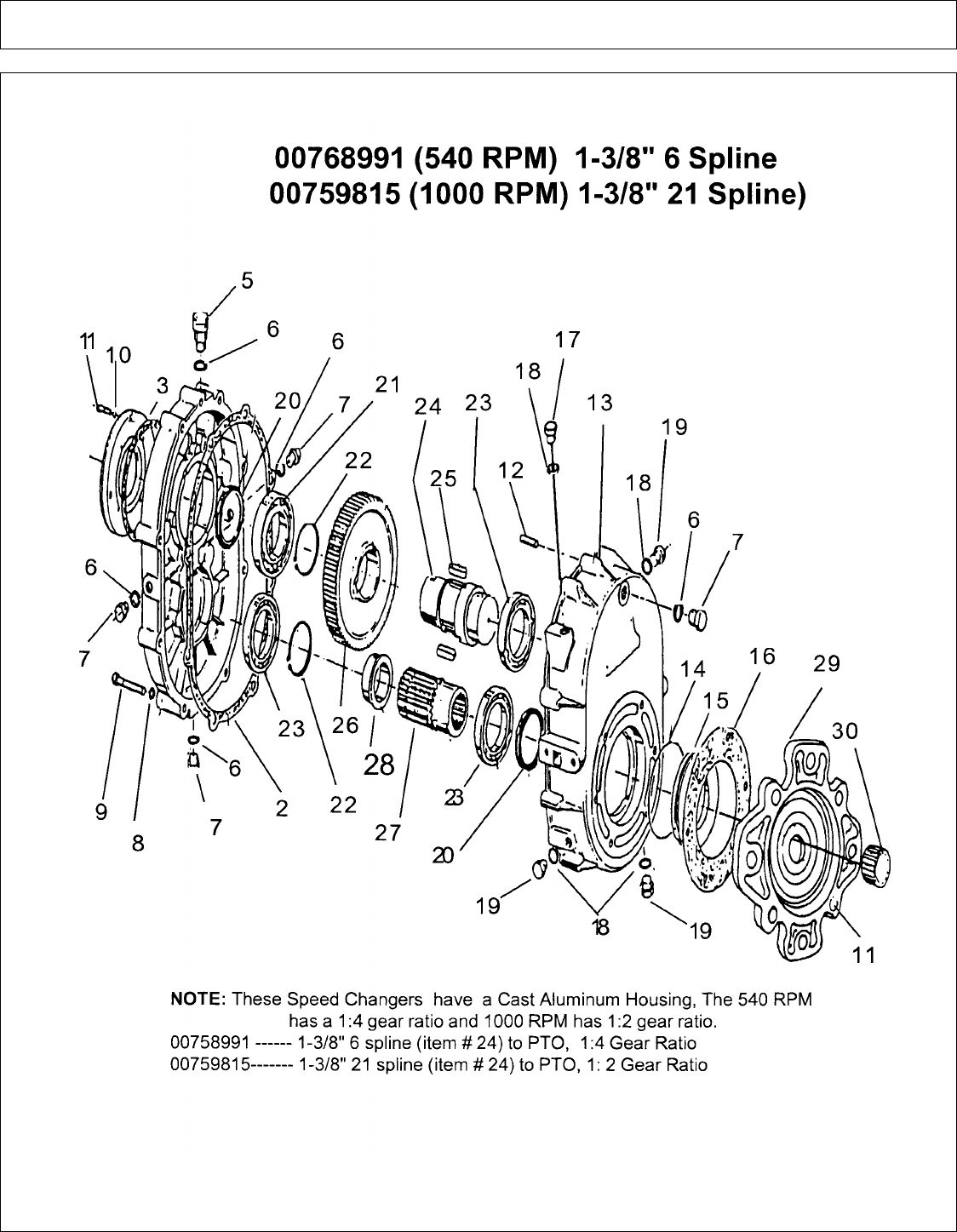

SPEED CHANGER (REAR PTO MNT) - PN 00758991......................................................................................................................... 207

TIMBERCAT - HEAD ASY (PART 1)..................................................................................................................................................... 209

TIMBERCAT - HEAD ASY (PART 2)..................................................................................................................................................... 211

A-BOOM (04-04) SN 04837 - UP Rev 12-08

PART NAME INDEX

VALVE ASSEMBLY - 4 SPOOL FIXED DISPLACEMENT (OPTION)............................................................................................... 213

VALVE ASSEMBLY - 5 SPOOL FIXED DISPLACEMENT (OPTION)............................................................................................... 215

VALVE ASSEMBLY - OCFD SYS 4 & 5 SPOOL (OPTION)................................................................................................................ 217

A-BOOM (04-04) SN 04837 - UP Rev 12-08

28 FT - BOOM DIPPER SECTION (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

28 FT - BOOM DIPPER SECTION (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02288400 1 SLEEVE, BOOM WLDMNT

2 02958924 1 EXTENSION ARM WLDMNT

3 02959268 2 BUSHING

4 02957089 1 LOCKWASHER

5 02921700 1 NUT

6 00003901 2 LOCKWASHER

7 00000200 2 NUT

8 02289400 1 ROLLER HOSE

9 00001300 1 LOCKWASHER

10 00001200 1 NUT

11 00003500 6 GREASE FITTING

12 00759946 6 WASHER

13 02030300 1 LOCKNUT

14 02956972 2 BOLT

15 02959302 1 BOLT

16 02758400 2 BOLT

17 02958938 1 PIN, MAIN WLDMNT

18 02289100 2 PIN, ROLLER (LARGE)

19 02289600 7 ROLLER ASY, (LARGE)

20 00606000 7 COTTER PIN

21 02289300 1 PIN, ROLLER (SMALL)

22 02971796 1 CYLINDER ASY, EXTENSION CYL.

23 02905300 2 HOSE, # 4 X 200" LONG

24 02289500 1 ROLLER ASY. (SMALL)

25 02774500 2 WASHER SPACER

26 00037200 2 LOCKNUT

27 02961787 1 TILT CYL ASSY-28 BOOM

28 02960528 1 CYLINDER ASY.

29 02965364 1 HOSE, # 4 X 26" LONG

30 02955365 1 HOSE, # 4 X 12" LONG

31 02960018 2 ELBOW, 90 DEG.

32 02958927 1 LINKAGE ARM ASY.

33 02967021 1 LINKAGE ARM ASY.

34 00752405 1 BOLT

35 02956918 2 CAP

36 02960049 1 PIN WLDMNT, DIPPER

37 02769200 1 BOLT

38 00752670 5 GREASE FITTING

39 00750959 4 BOLT

40 02043900 4 LOCKWASHER

41 02968301 2 HOSE, #4 X 100" LONG

A-BOOM (04-04) SN 04837 - UP Rev 12-08

28 FT - BOOM DIPPER SECTION (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

28 FT - BOOM DIPPER SECTION (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

42 02223900 2 WEAR PLATE

43 02965357 1 HOSE CLAMP BAR

44 02965358 2 CARRIAGE BOLT

45 02959924 2 LOCKNUT

46 02965367 1 PLATE, TUBING CLAMP

47 00002700 12 FLATWASHER

48 02963111 2 HOSE ROLLER

49 00751582 2 BOLT

50 02959302 3 BOLT

51 00001800 8 LOCKNUT

52 02963110 2 HOSE ROLLER

53 02963109 1 HOSE ROLLER WLDMNT ASY.

54 02968308 1 HOSE CLAMP WLDMNT

00015800 2 LOCKNUT, F/ ITEM 54 (NOT SHOWN)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

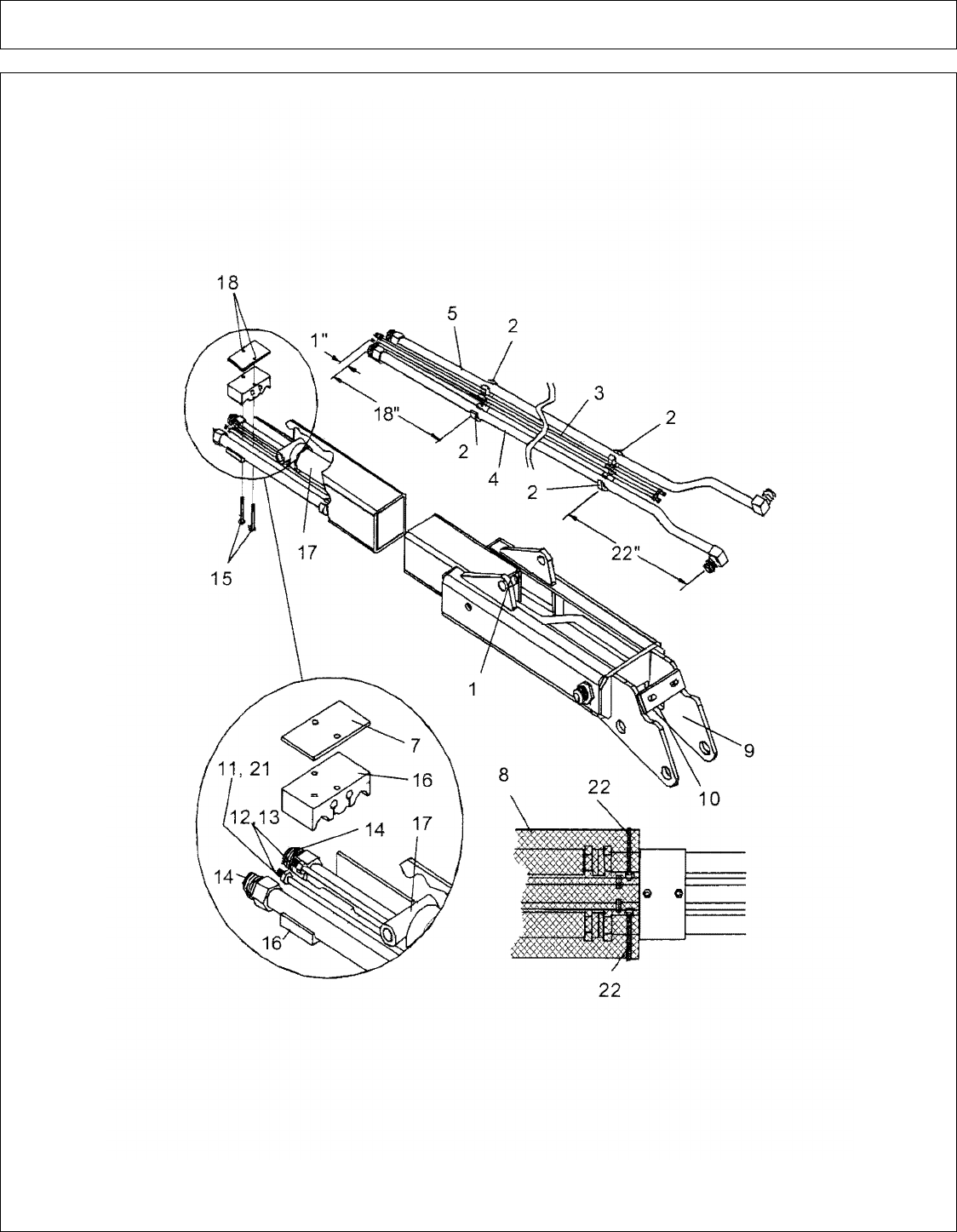

28 FT - BOOM EXTENSION ARM

A-BOOM (04-04) SN 04837 - UP Rev 12-08

28 FT - BOOM EXTENSION ARM

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02966574 2 SPACER

2 02966483 4 TUBE CLAMP

3 02966482 2 HYDRAULIC TUBE

4 02966481 1 HYDRAULIC TUBE, RH

5 02966480 1 HYDRAULIC TUBE, LH

7 02965367 1 CLAMP PLATE

8 02965366 1 SLEEVING W/ EYELETS

9 02965365 1 HOSE, # 4 X 12" LONG

10 02965364 1 HOSE, # 4 X 26" LONG

11 02965363 2 HOSE, # 4 X 100" LONG

12 02965361 2 HOSE, # 6 X 100" LONG

13 02965360 2 HOSE, # 6 X 202" LONG

14 02965359 2 HOSE, # 16 X 98" LONG

15 02965358 2 CARRIAGE BOLT

16 02965357 2 TUBING CLAMP SET

17 02971796 1 CYLINDER ASY, EXTENSION CYL.

18 02959924 2 LOCKNUT

19 02957475 1 SLEEVING, TOP LIFT SECTION

20 02906300 1 SLEEVING, BOTTOM LIFT SECTION

21 02905300 2 HOSE, # 4 X 200" LONG

22 02753400 5 PLATIC TIE

A-BOOM (04-04) SN 04837 - UP Rev 12-08

28 FT - BOOM LIFT SECTION

A-BOOM (04-04) SN 04837 - UP Rev 12-08

28 FT - BOOM LIFT SECTION

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02961112 1 LIFT SECTION WLDMNT

2 02958938 1 MAIN PIN WLDMNT

3 02959268 2 BUSHING

4 02957089 1 LOCKWASHER

5 02921700 1 NUT

6 02152800 3 BOLT

7 00002700 12 FLATWASHER

8 00001800 8 LOCKNUT

9 02963154 3 CLAMP, STEEL TUBING

10 02963323 2 COVER WLDMNT, MOUNT BRACKET

11 02026200 1 HOSE CLAMP

12 02959154 1 ELBOW, 45 DEG.

13 02956851 2 ELBOW

14 02961286 2 ADAPTER, STRAIGHT

15 00749946 6 WASHER

16 02960049 1 DIPPER PIN WLDMNT

17 00606000 7 COTTER PIN

18 02960506 2 CAP

19 02959225 1 BUSHING, CONNEX

20 02753400 5 PLASTIC TIE

21 02957475 1 SLEEVING, 69" LONG

22 02906300 1 SLEEVING

23 02222000 1 CYLINDER ASY, DIPPER

24 02962023 1 HOSE, # 4 X 12" LONG

25 02968299 2 HOSE, # 6 X 100" LONG

26 02215700 1 HOSE, # 4 X 190" LONG

27 02968301 2 HOSE, # 4 X 100" LONG

28 02905300 2 HOSE, # 4 X 200" LONG

29 02965360 2 HOSE, # 6 X 202" LONG

30 02968303 1 SLEEVING W/ GROMMETS

31 02968302 2 HOSE, # 16 X 98" LONG

32 02960982 1 TOP FOUR LINKAGE HYD. TUBE

33 02960983 1 TOP FOUR LINKAGE HYD. TUBE

34 00003500 6 GREASE FITTING

A-BOOM (04-04) SN 04837 - UP Rev 12-08

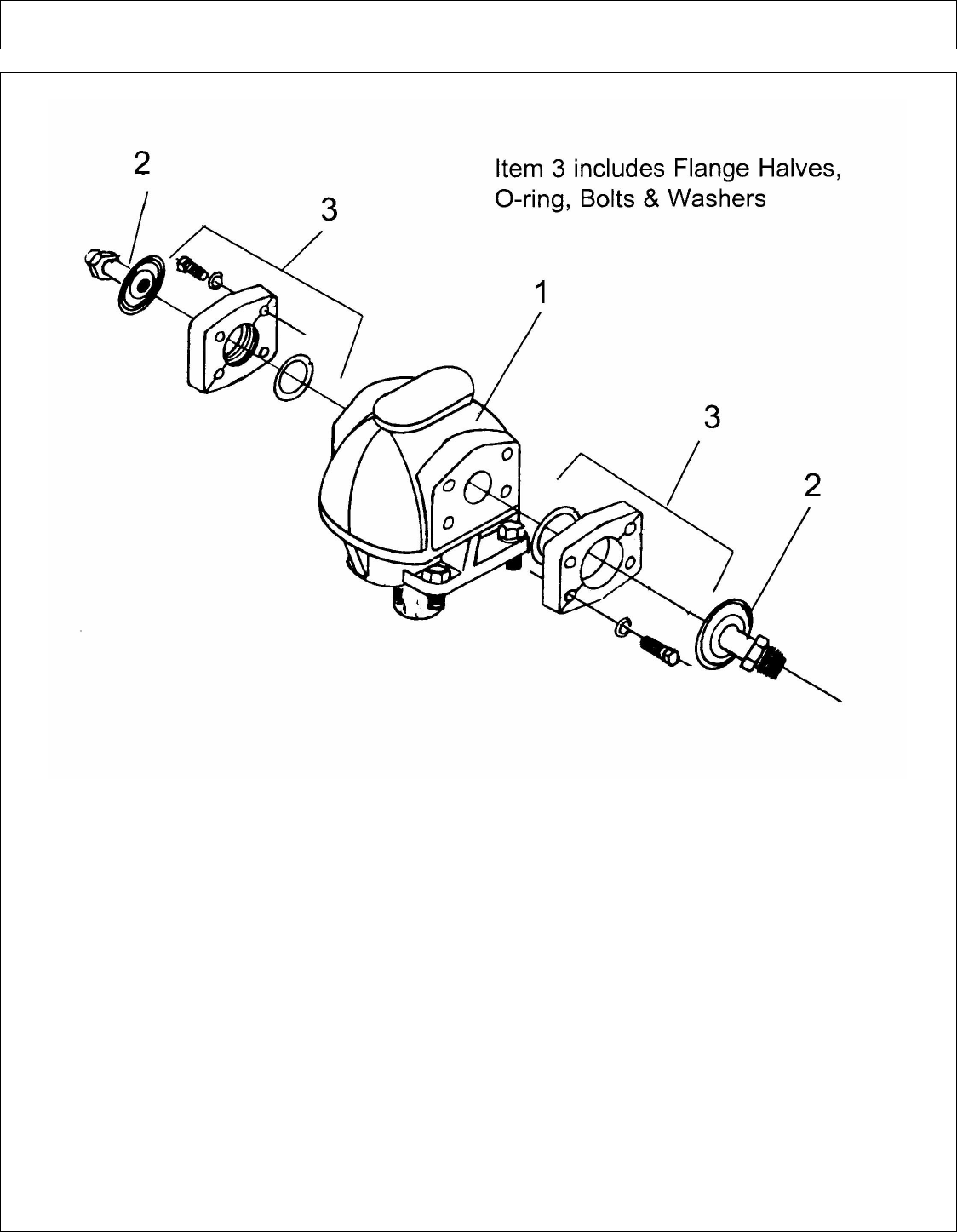

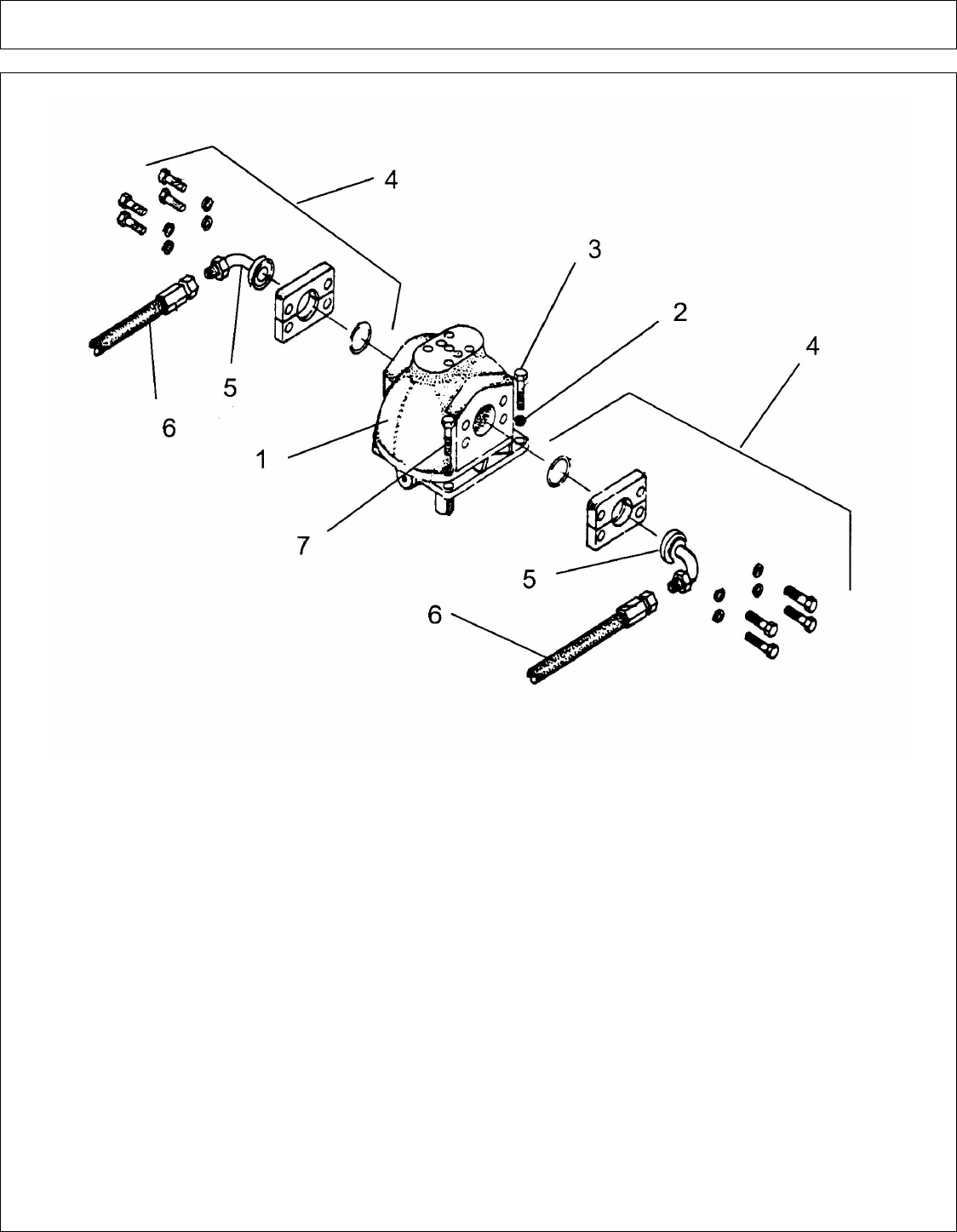

28 FT - MOTOR ASY (ROTARY HEAD) - PN 02961029

ITEM PART NO. QTY. DESCRIPTION

02961029 - MOTOR ASY, W/ FITTINGS

1 02960696 1 MOTOR ASY, W/O FITTINGS

2 63000500 4 WASHER

3 02788400 2 BOLT

4 00749103 1 SPLIT FLANGE KIT

5 02705100 2 ELBOW

6 02958647 2 HOSE

7 02960951 2 STUD

A-BOOM (04-04) SN 04837 - UP Rev 12-08

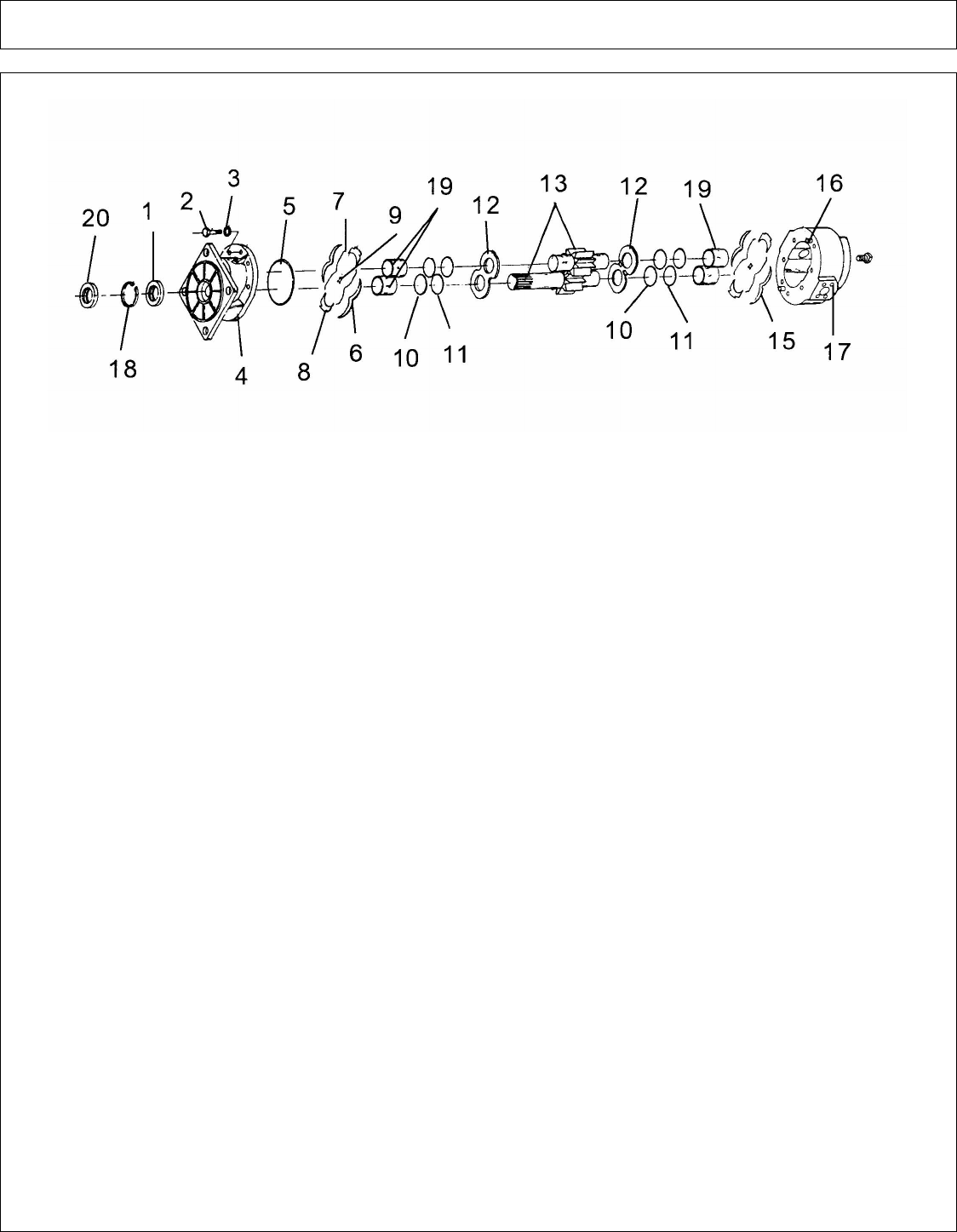

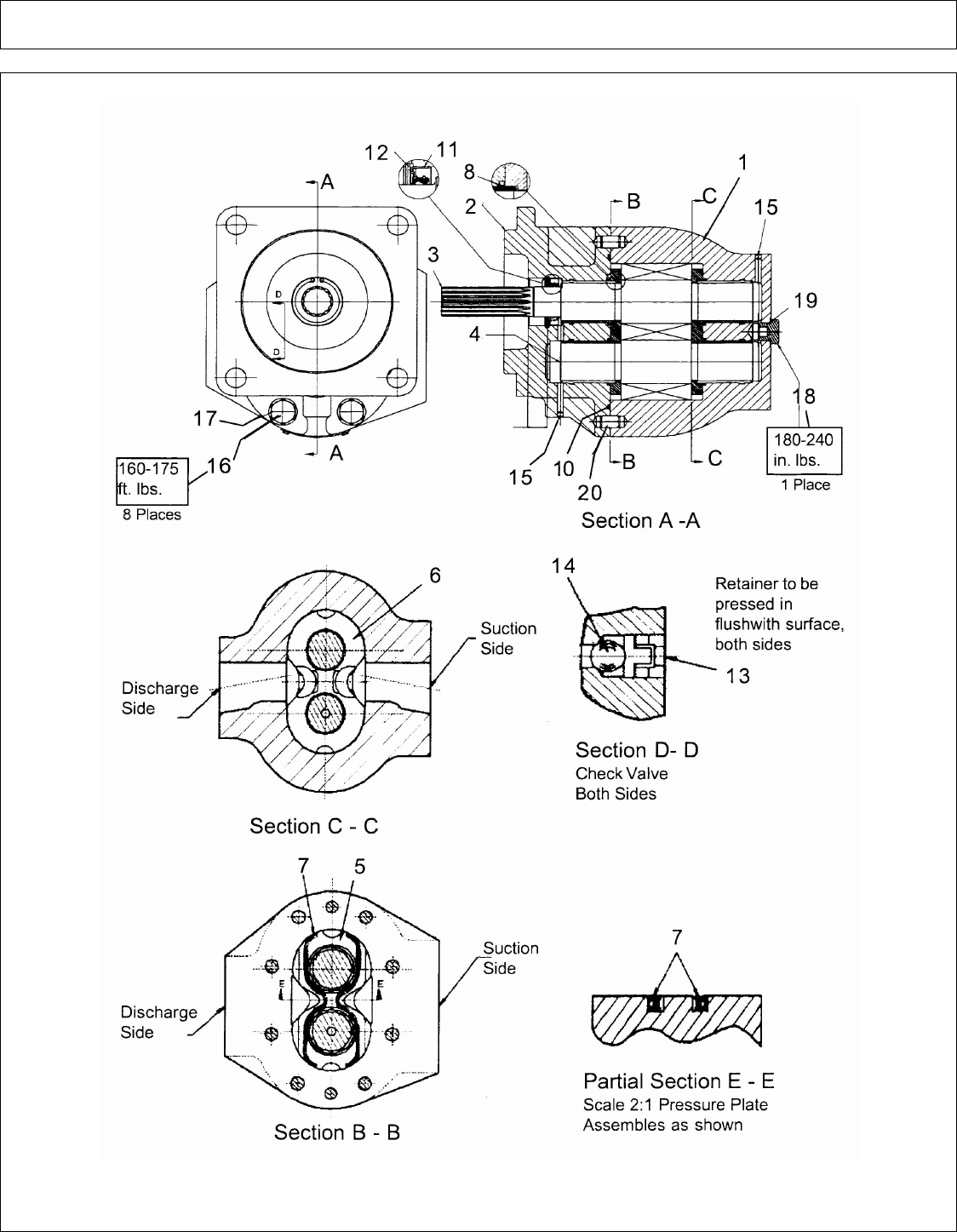

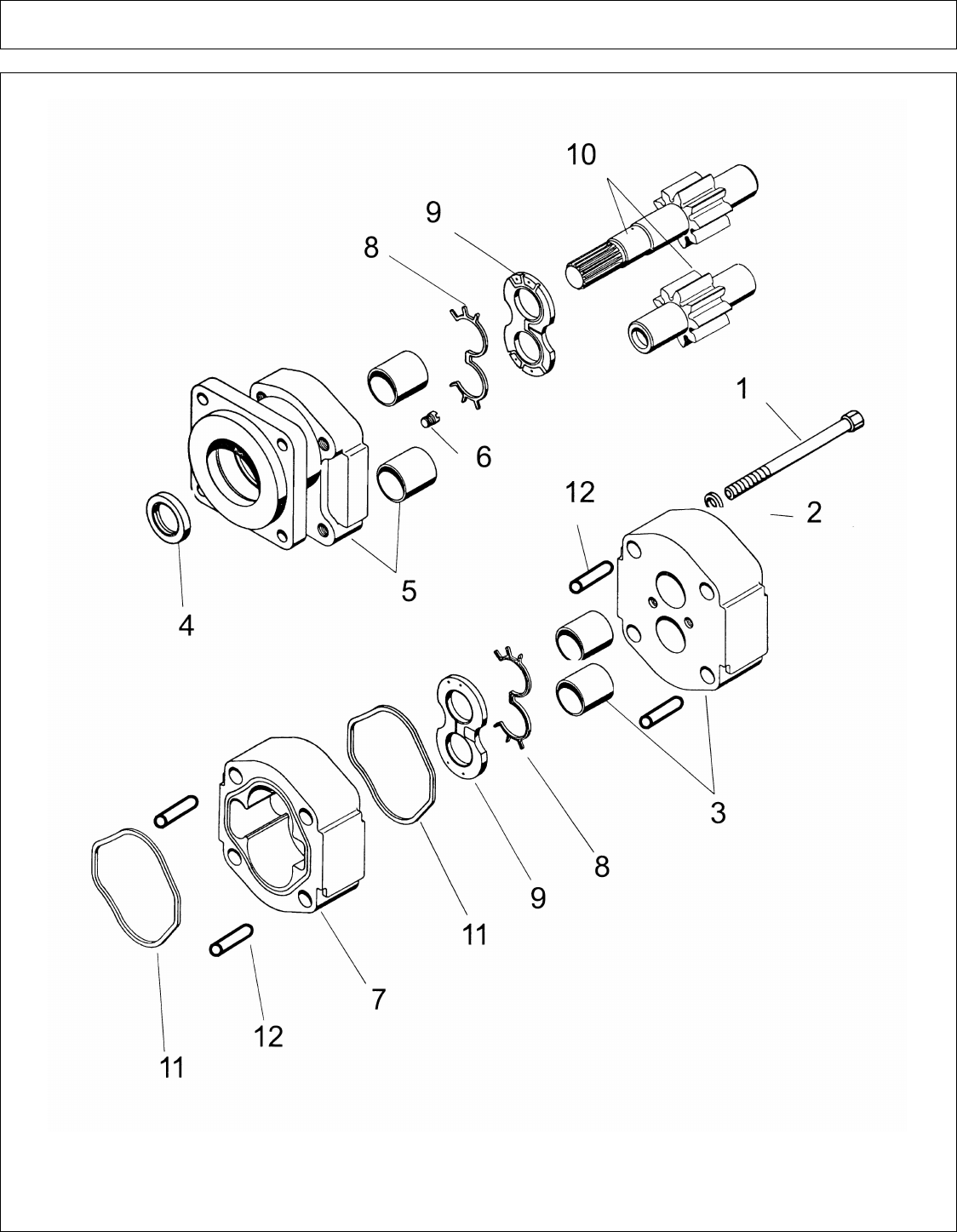

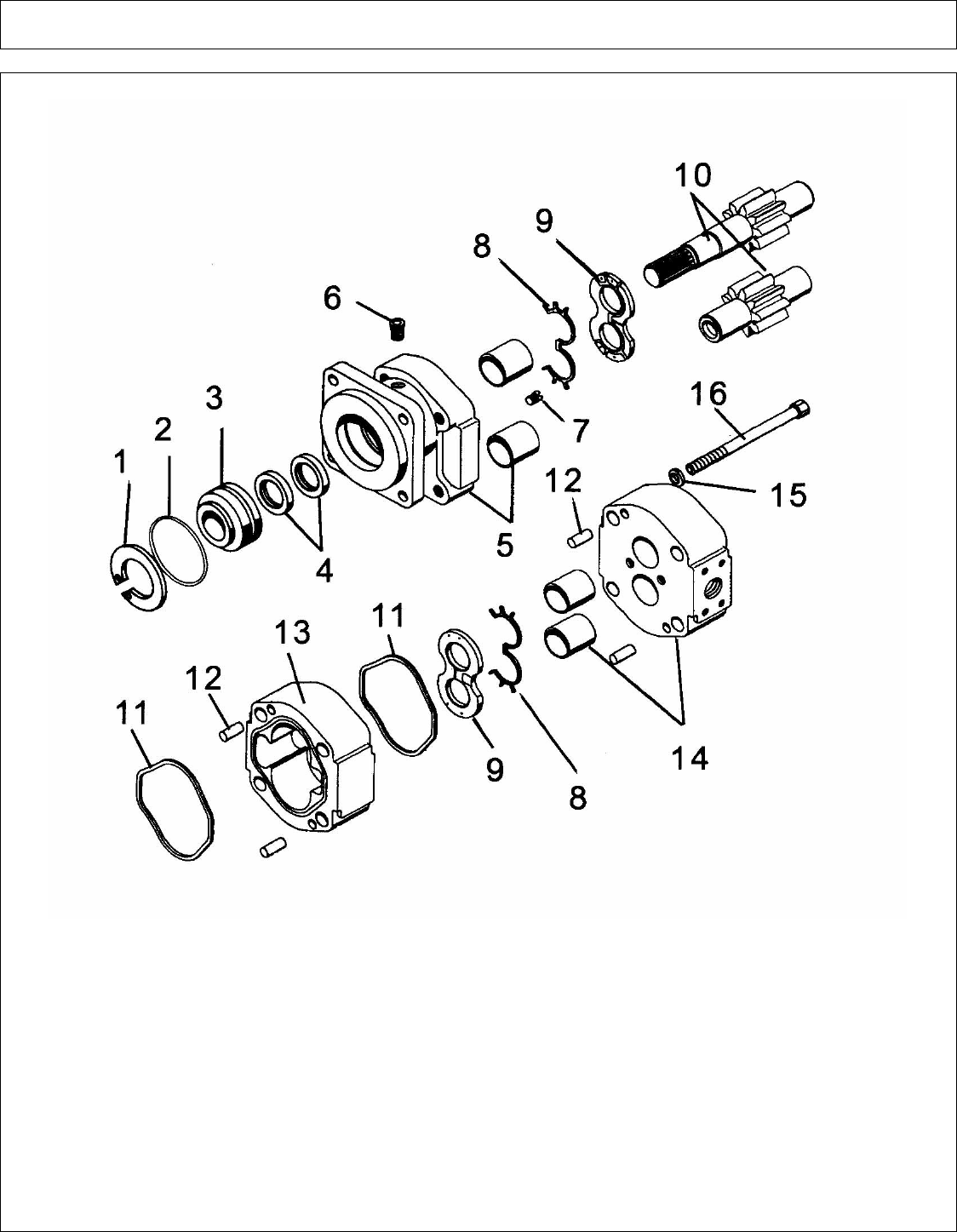

28 FT - MOTOR PARTS (ROTARY HEAD) - PN 02960696

ITEM PART NO. QTY. DESCRIPTION

02960696 - MOTOR ASY.

1 * SEAL KIT 1 SEAL (IN ITEM 21)

2 * SEAL KIT 8 BOLT (IN ITEM 21)

3 * SEAL KIT 8 FLATWASHER (IN ITEM 21)

4 02721000 1 FLANGE

5 * SEAL KIT 1 O-RING (IN ITEM 21)

6 02721500 2 BOTTOM ISOLATION PLATE

7 * SEAL KIT 4 SEALING STRIP (IN ITEM 21)

8 * SEAL KIT 4 END SEPERATOR (IN ITEM 21)

9 * SEAL KIT 2 CENTER SEPERATOR (IN ITEM 21)

10 * SEAL KIT 4 O-RING (IN ITEM 21)

11 * SEAL KIT 4 BACK UP RING (IN ITEM 21)

12 02721300 2 PRESSURE PLATE

13 02961071 1 DRIVE & IDLER GEAR SET

15 02721400 2 TOP ISOLATION PLATE

16 02721700 2 DOWEL PIN

17 NFS 1 BODY

18 02721800 1 SNAP RING

19 02721600 4 STEEL RING

20 * SEAL KIT 1 SEAL (IN ITEM 21)

21 02720000 1 SEAL KIT (ITEMS 1,2,3,5,7,8,9,10,11 & 20)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

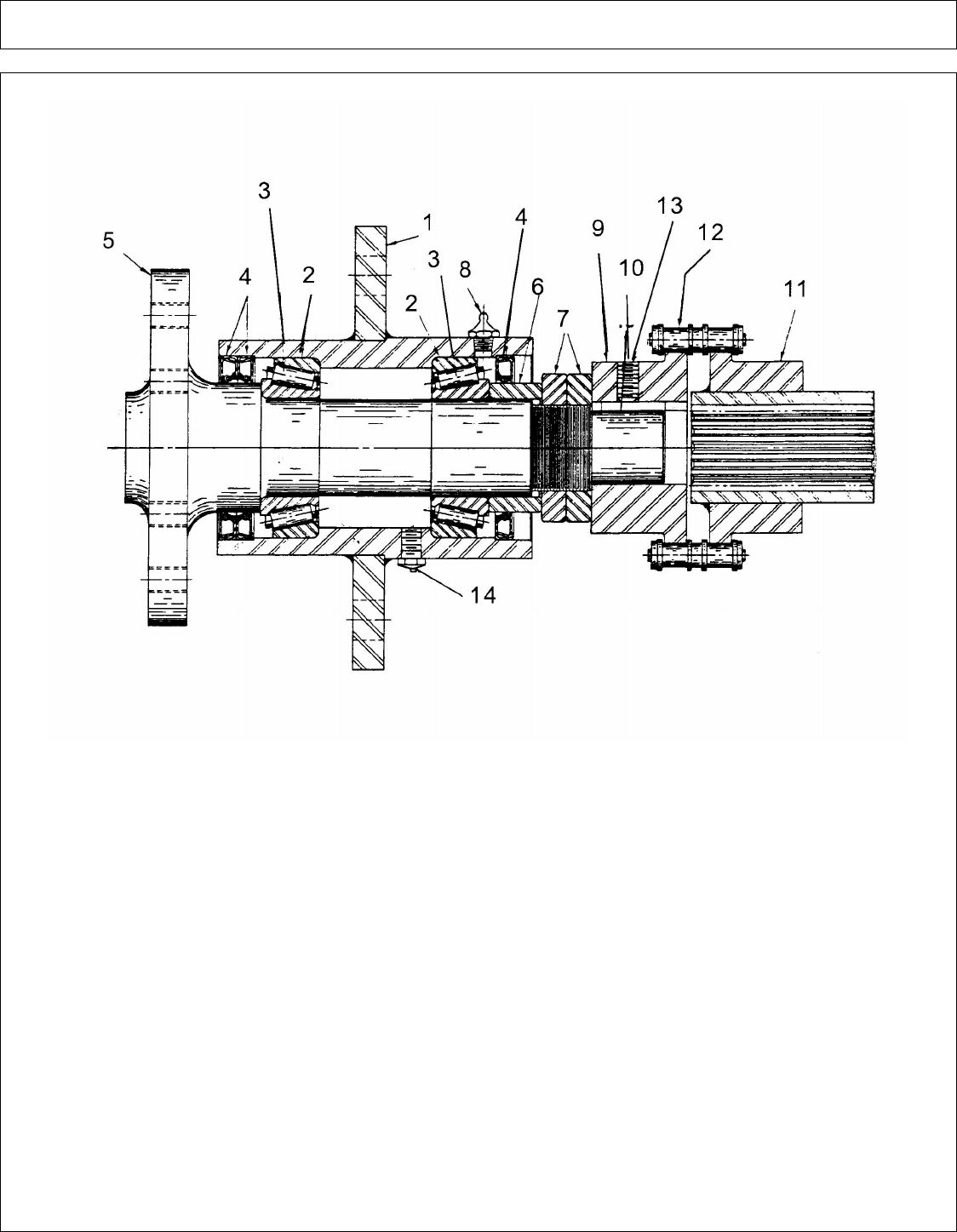

28 FT - SPINDLE ASY (ROTARY HEAD) - PN 02960553C

ITEM PART NO. QTY. DESCRIPTION

02960553C - SPINDLE ASY. COMPLETE

1 02961038 1 GASKET

2 02960562C 1 SPINDLE HOUSING

3 02960561 1 SPINDLE SHAFT

4 02960558 1 BEARING RING

5 02960559 1 SEAL

6 00754627 1 SNAP RING

7 02960557 1 BEARING ASY, CUP & CONE (LOWER)

8 00755628 1 BEARING ASY, CUP & CONE (UPPER)

9 02964269 1 LOCKING WASHER

10 02962030 1 BEARING ADJUSTING NUT

11 00755633 1 PLUG

12 02959860 1 PRESSURE RELIEF PLUG

13 00751731 1 REDUCER

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

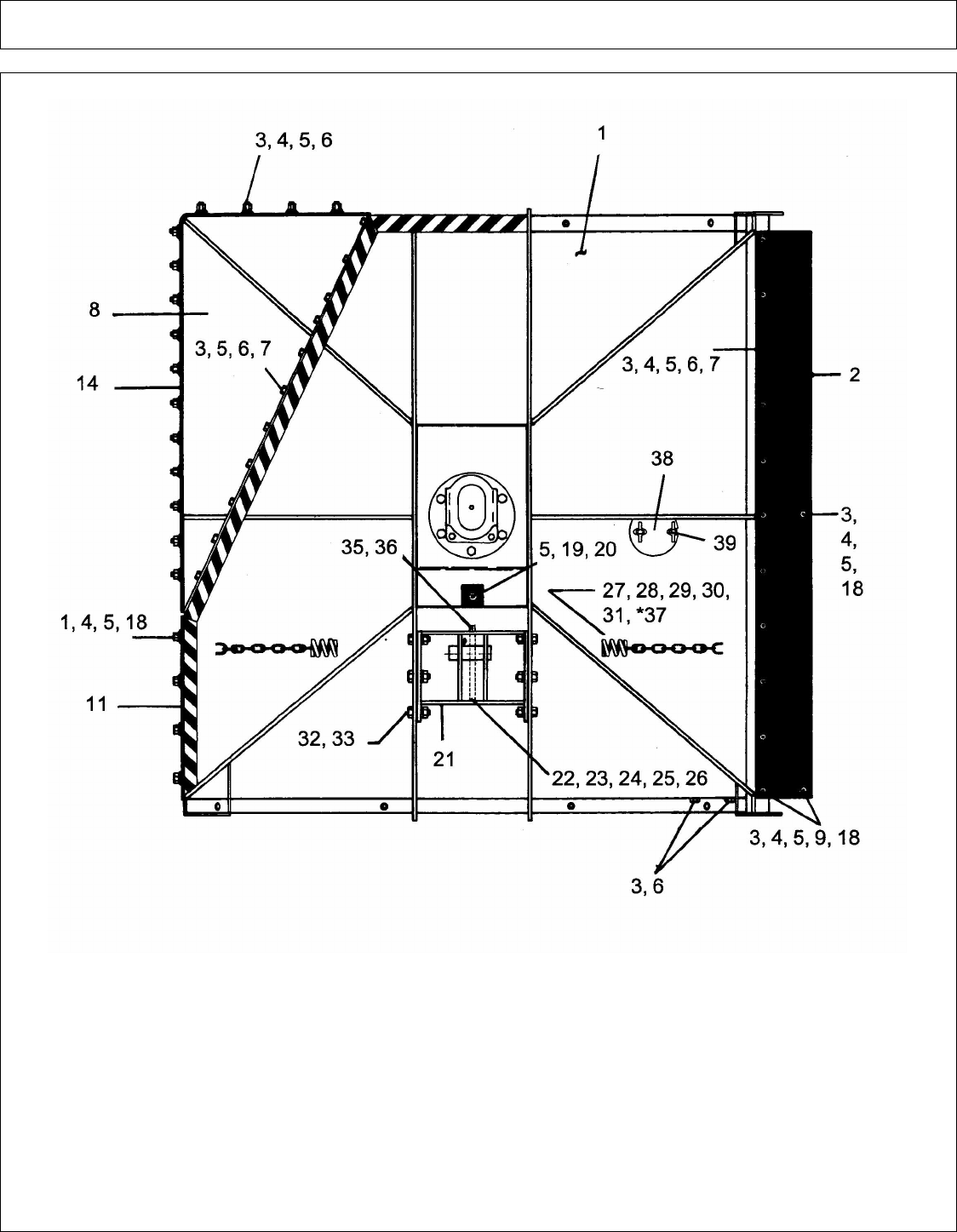

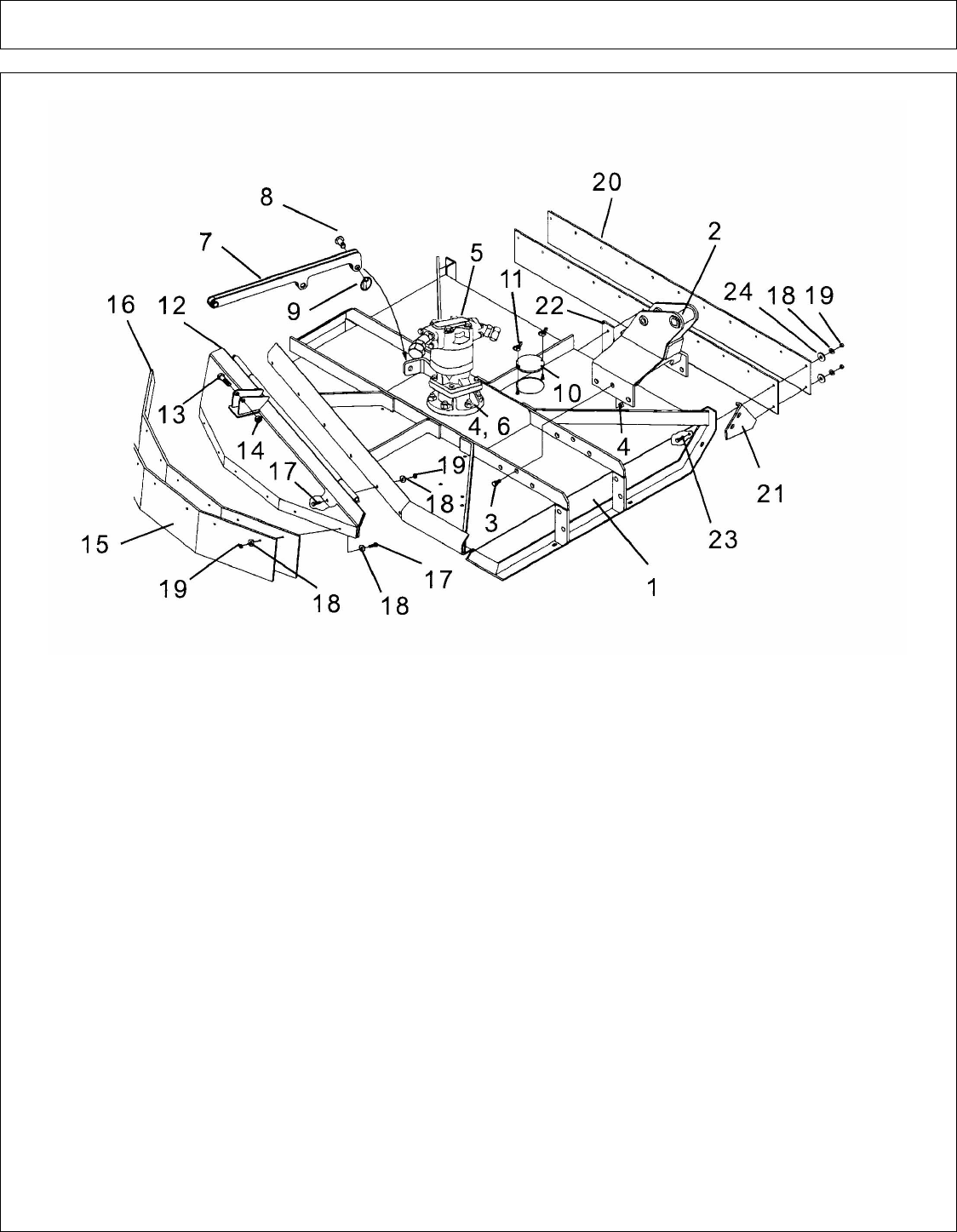

28 FT - X-FRAME SQ HEAD (PARTS) - PN 02962177

A-BOOM (04-04) SN 04837 - UP Rev 12-08

28 FT - X-FRAME SQ HEAD (PARTS) - PN 02962177

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02957436 1 SQUARE HEAD WLDMNT

2 02885700 2 REAR FLAP

3 00011100 67 WASHER

4 02035800 42 WASHER

5 00015800 48 NUT

6 00023100 11 BOLT

7 02959952 1 FRONT GUARD WLDMNT

8 02957380 1 SIDE GUARD

9 00059700 4 BOLT

10 02959957 1 FRONT DEFLECTOR FLAP

11 02957496 1 REAR FLAP RETAINER

12 02958644 1 HITCH POST ASY, W/ BUSHING & GREASE FITTING

02958459 1 HITCH POST ONLY

00003500 1 GREASE FITTING ONLY

02958424 1 BUSHING ONLY

13 02892100 6 BOLT

14 00037200 6 NUT

15 00023100 13 BOLT

16 02958856 1 FLAP GUARD

17 00007000 19 BOLT

5710121 1 COVER PLATE (NOT SHOWN)

5F5180 2 WINGNUT (F/ COVER PLATE)

18 02959955 1 HEAD GUARD ASY. (ITEMS 5,7,15 & 16)

19 02959958 1 DEBRIS DEFLECTOR, (USE WHEN ITEM 7 IS REMOVED)

20 02959959 1 DEBRIS DEFLECTOR, (USE WHEN ITEM 7 IS REMOVED)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

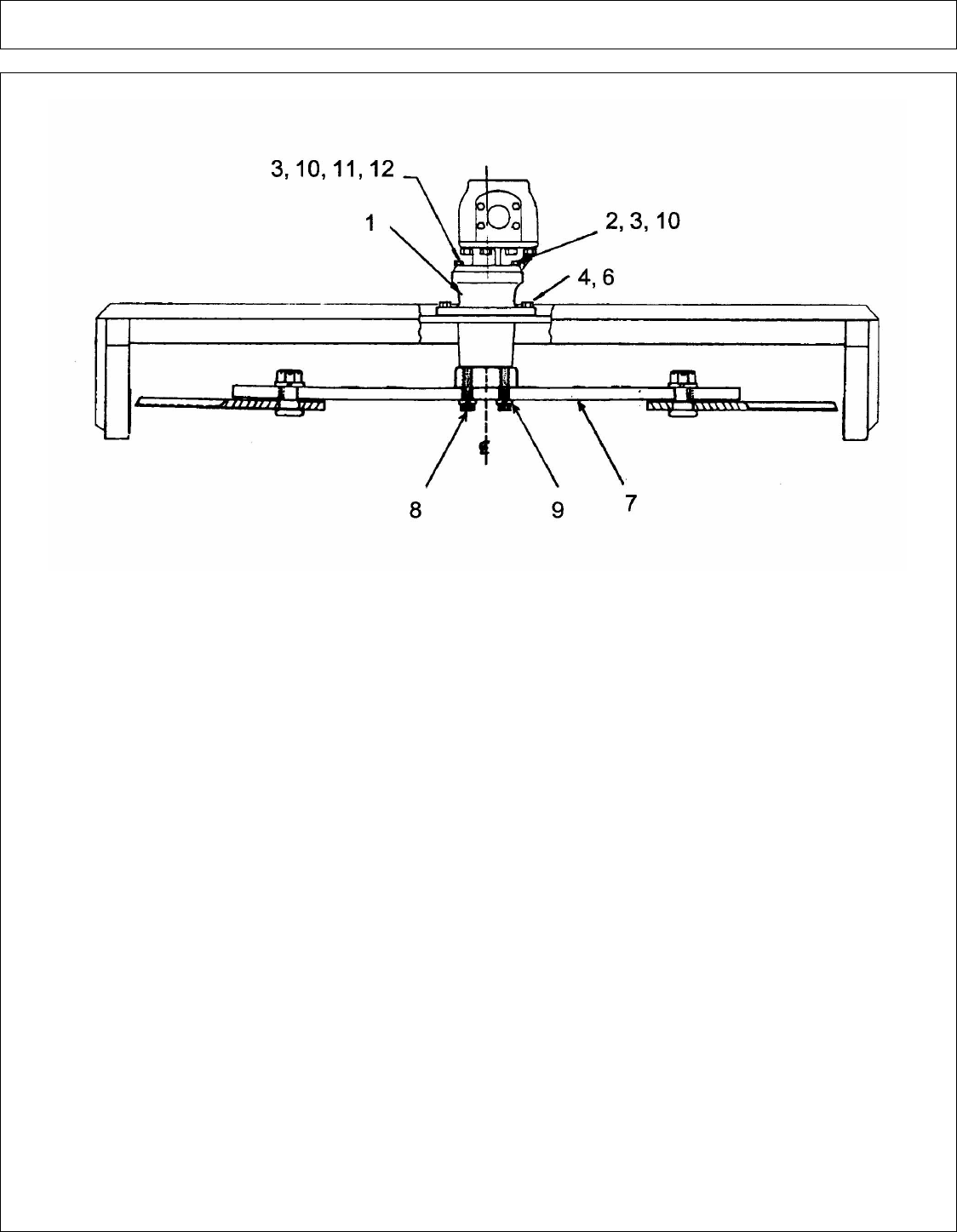

28 FT - X-FRAME SQ HEAD ASY - PN 02962177

ITEM PART NO. QTY. DESCRIPTION

1 02957331 1 SKID SHOE, RH 41-1/2" LONG

2 02957332 1 SKID SHOE, LH 61-1/2" LONG

3 00059700 7 BOLT

4 00011100 7 FLATWASHER

5 00015800 7 NUT

6 02960920 1 MOTOR AND SPINDLE HOUSING ASY.

02960553C 1 SPINDLE ASY ONLY

7 02959390 6 BOLT

8 00003901 6 LOCKWASHER

9 00037200 6 NUT

10 02957357 1 BLADE BAR ASY. (ITEMS 13 THRU 19)

11 02708700 4 BOLT

12 00003901 4 LOCKWASHER

13 02957347 2 BLADE BUSHING

14 00748547 4 WASHER

15 02957342 1 BLADE BAR

16 00749005 2 BLADE BOLT

17 02030300 2 BLADE NUT

19 00127028 2 BLADE

20 02960951 2 STUD

21 02788400 2 BOLT

22 00001800 4 NUT

23 63000500 2 WASHER

A-BOOM (04-04) SN 04837 - UP Rev 12-08

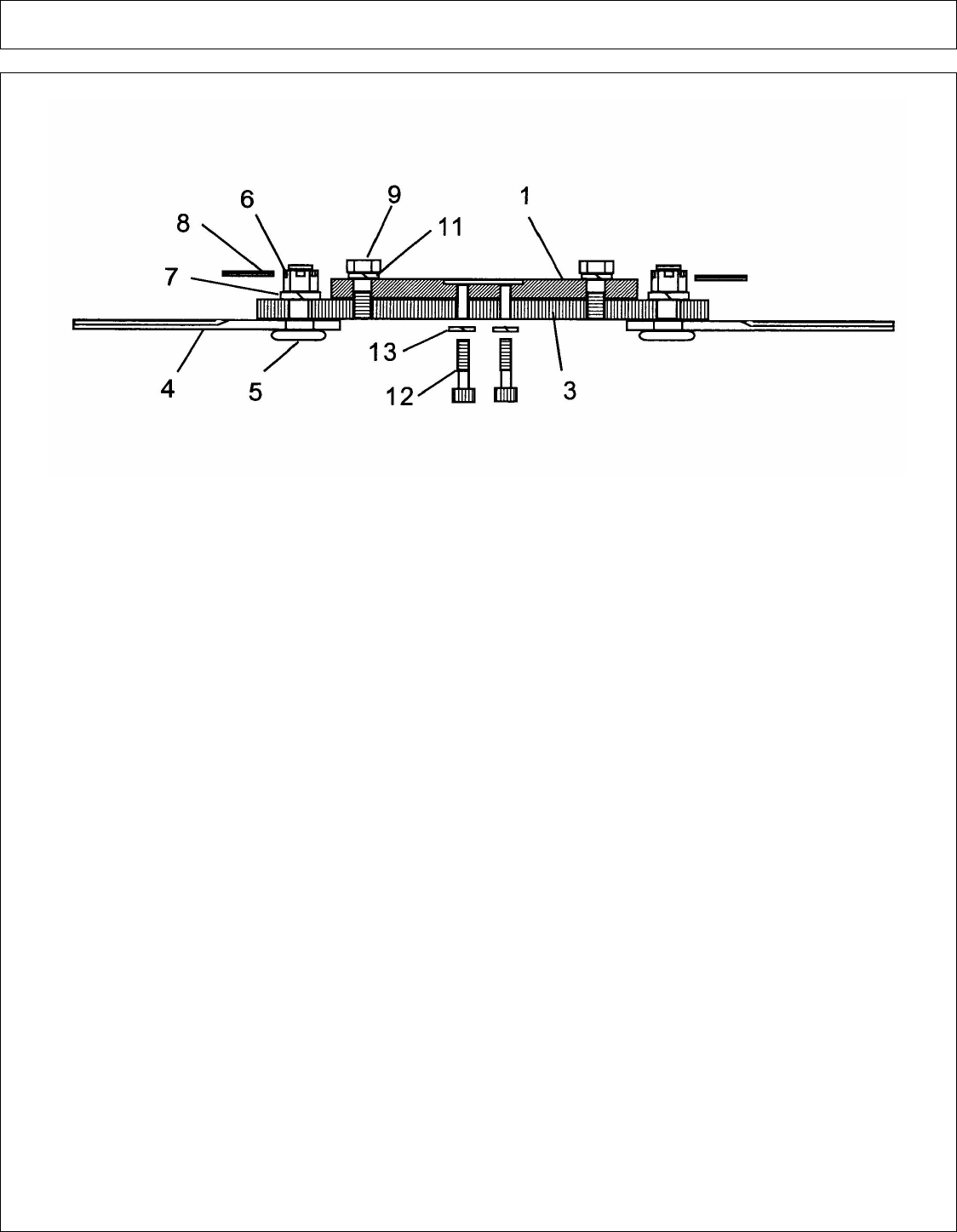

50 IN - X-FRAME BLADE CARRIER ASY (DUAL BAR) - PN 02962721

ITEM PART NO. QTY. DESCRIPTION

02962721 - BLADE CARRIER ASY, BAR W/ ITEMS 1 THRU 11 ONLY

1 02962636 1 BAR BLADE, TOP LEAF

3 02962637 1 BAR BLADE, BOTTOM LEAF

4 02962634 1 BLADE MATCHED SET, (2 BLADES)

5 02782900 2 BLADE BOLT

6 00020900 2 SLOTTED NUT

7 02957089 2 LOCKWASHER

8 00023200 2 ROLL PIN

9 02782200 2 BOLT, SPECIAL

11 02032200 2 LOCKWASHER

12 02961298 4 BOLT, SOCKET HEAD

13 00003901 4 LOCKWASHER, HEAVY

14 02984572 1 BLADE BOLTS, NUTS, ROLLPIN KIT, (2 EA OF ITEMS 5, 6 & 8)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

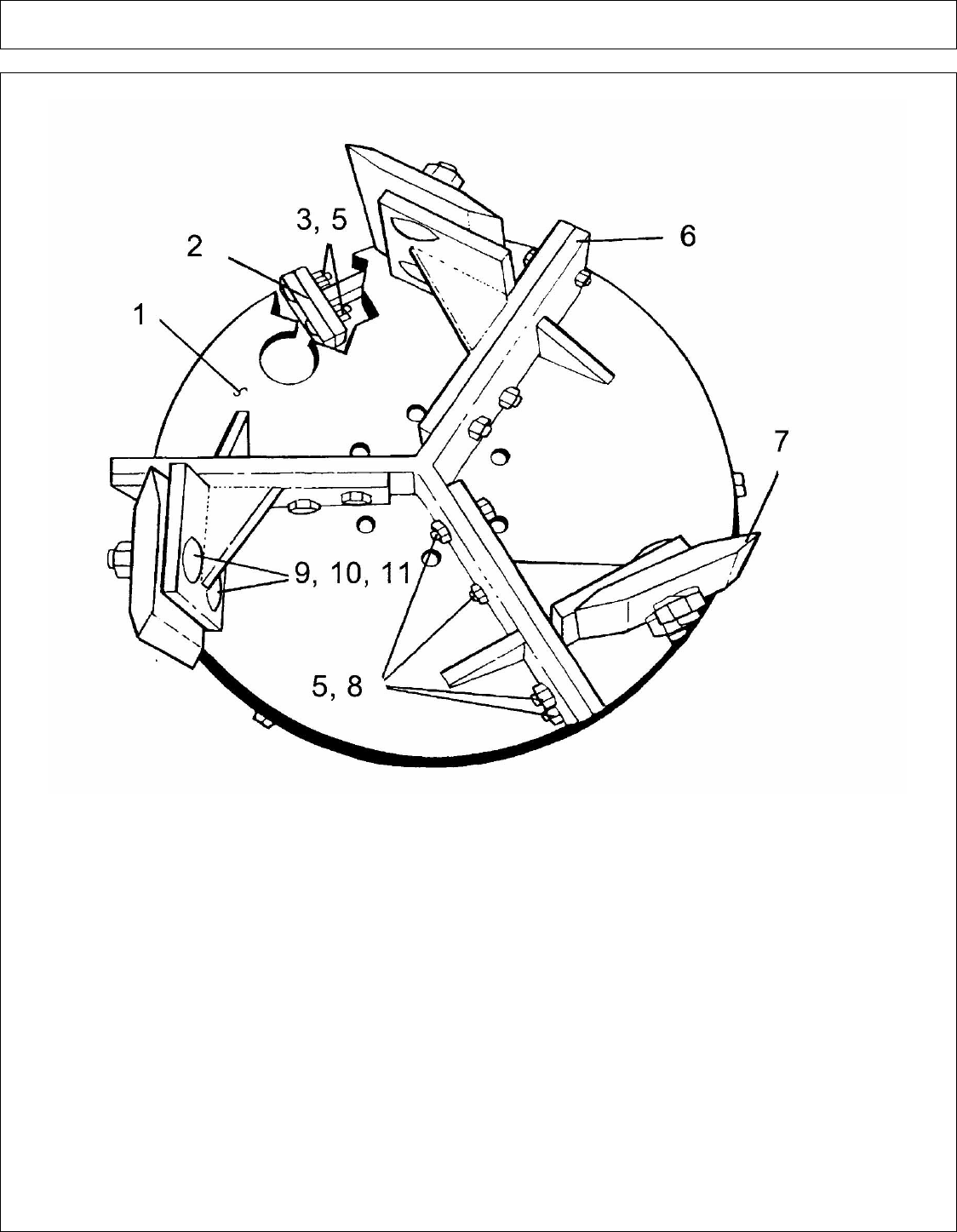

50 IN - X-FRAME BLADE CARRIER ASY (PAN) - PN 02964457

ITEM PART NO. QTY. DESCRIPTION

02964457 - THREE BLADE PAN ASY (W/ 3 BLADE SET) , W/ ITEMS 1 THRU 10

1 02964804 - PAN & SPYDER ASY W/ ITEMS 7,8,9 & 10

2 02962634 1 BLADE, MATCHED SET, (2) OPTIONAL (NOT INCLUDED IN ASY)

02962722 1 BLADE, MATCHED SET (3) STANDARD

3 02964330 3 BLADE BOLT, KEYED

4 00755623 3 WASHER

5 00023200 3 ROLL PIN

6 00020900 3 SLOTTED NUT, HEAVY

7 02030300 - LOCKNUT (1 IN EACH HOLE W/O BLADE)

8 00748547 - FLATWASHER (2 IN EACH HOLE W/O BLADE)

9 02964162 - SPACER (1 IN EACH HOLE W/O BLADE)

10 7A16824 - BOLT (1 IN EACH HOLE W/O BLADE)

11 00003901 4 LOCKWASHER, HEAVY

12 02886600 4 BOLT, SOCKET HEAD

13 02964954 3 KEY

14 02964161 3 BUSHING, KEYED F/ BLADE BOLT

15 02965229 3 FLAT WASHER, SPECIAL

A-BOOM (04-04) SN 04837 - UP Rev 12-08

50 IN - X-FRAME BLADE CARRIER ASY (SINGLE BAR) - PN 02971745

ITEM PART NO. QTY. DESCRIPTION

02971745 - BLADE BAR ASY, SINGLE BAR W/ ITEMS 1 THRU 5

1 02970195 1 BLADE BAR WLDMNT

2 02966262 1 BLADE, MATCHED SET (2 BLADE SET)

3 8227 2 BLADE BOLT, SQ SHOULDER

4 9216 2 FLATWASHER,

5 5JRC16140 2 LOCKNUT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

50 IN - X-FRAME SQ HEAD ASY

A-BOOM (04-04) SN 04837 - UP Rev 12-08

50 IN - X-FRAME SQ HEAD ASY

Continued...

ITEM PART NO. QTY. DESCRIPTION

02974681 - SQ HD ASY. W/ DUAL BLADE BAR & W/RND DOOR

02974861 - SQ HD ASY. W/ DUAL BLADE BAR (GRASS BLADES) & W/RND DOOR

02974680 - SQ HD ASY. W/ PAN BLADE CARRIER & W/RND DOOR

1 02974664 1 SQUARE HEAD WLDMNT, 50"

2 02958459 1 HITCH POST, 4 / BAR

00003500 1 GREASE FITTING, STRAIGHT

02958424 1 BUSHING

3 02892100 6 BOLT

4 00037200 12 LOCKNUT

5 02962272 1 MOTOR & SPINDLE ASY.

6 02973438 6 BOLT

7 02972723 1 BAR DOOR LOCK WLDMNT

8 02972726 1 PIN WELDMENT

9 2196 1 CLIP (LYNCH PIN)

10 5710121 1 COVER PLATE

11 5F5180 2 WING NUT

12 02974483 1 ROUND DOOR WLDMNT, 50" SQ HEAD

13 02845600 1 BOLT

14 00695100 1 LOCKNUT

15 02975227 3 FLAP, 50" DOOR (SQUARE FLAP)

16 02975228 1 FLAP, 50" DOOR (TRIANGLE END)

17 00753642 14 BOLT

18 00011100 50 FLATWASHER

19 00015800 34 LOCKNUT

20 02885700 2 REAR FLAP

21 02957380 1 SIDE GUARD

22 02957496 1 REAR FLAP RETAINER

23 00023100 19 BOLT

24 02035800 25 WOOD WASHER

25 02962721 1 BLADE CARRIER, ASY, BAR W/ DUAL BAR

26 02971745 1 BLADE CARRIER, ASY, BAR W/ SINGLE BAR (GRASS BLADE)

27 02964457 1 BLADE CARRIER, ASY, ROUND PAN

A-BOOM (04-04) SN 04837 - UP Rev 12-08

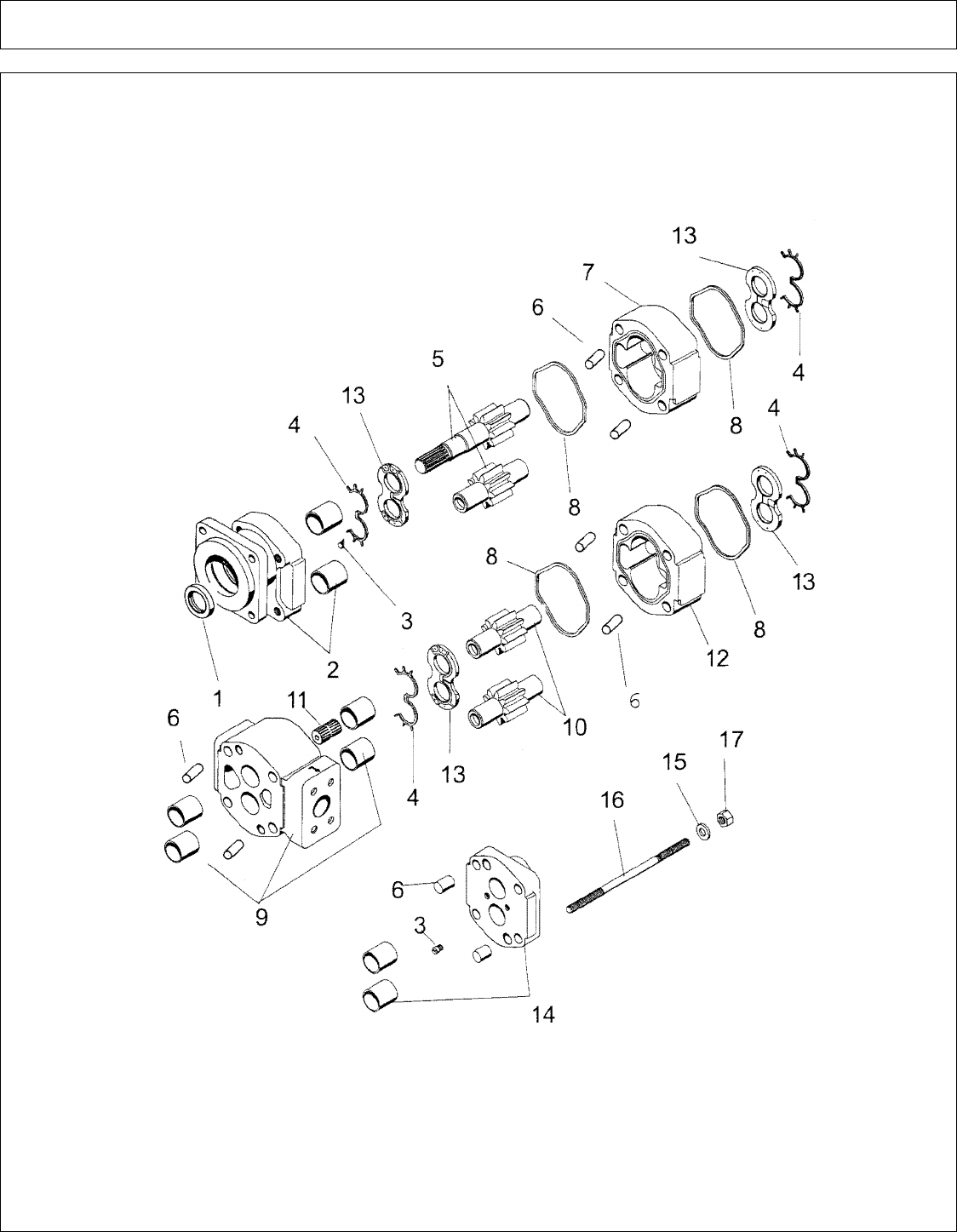

50 IN - X-FRAME SQ HEAD MOTOR (PARTS)

ITEM PART NO. QTY. DESCRIPTION

02962112 - HYD. MOTOR ASY, CAST IRON HSG. & SPLINED SHAFT

1 02961933 1 SNAP RING

2 * 1 O-RING (SEE ITEM 19 & 20)

3 02961932 1 RETAINER SEAL

4 * 2 SEAL (SEE ITEM 19 & 20)

5 02961926 1 MOUNTING FLANGE

6 02961940 1 PLUG HEX SKT HD

7 02961931 2 CHECK ASY.

A-BOOM (04-04) SN 04837 - UP Rev 12-08

50 IN - X-FRAME SQ HEAD MOTOR (PARTS)

Continued...

ITEM PART NO. QTY. DESCRIPTION

8 * 4 SEAL END (SEE ITEM 19 & 20)

9 * 2 THRUST PLATES (SEE ITEM 20)

10 02962287 1 KIT GEAR SET

11 * 2 SQUARE SEAL (SEE ITEM 19 & 20)

12 02961924 4 PINS-DOWEL

13 02962288 1 HOUSING GEAR

14 02961927 1 PORTING FLANGE

15 02961917 4 WASHER

16 02962289 4 BOLT

17 * 4 SIADE SEAL, NOT SHOWN (SEE ITEM 19 & 20)

18 02962286 1 RETAINER SEAL

19 02962538 - SEAL KIT, MINOR REBUILD KIT (ITEMS 2,4,8,11,17)

20 02961939 - SEAL KIT, MAJOR REBUILD (ITEMS 2,4,8,9,11,17)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

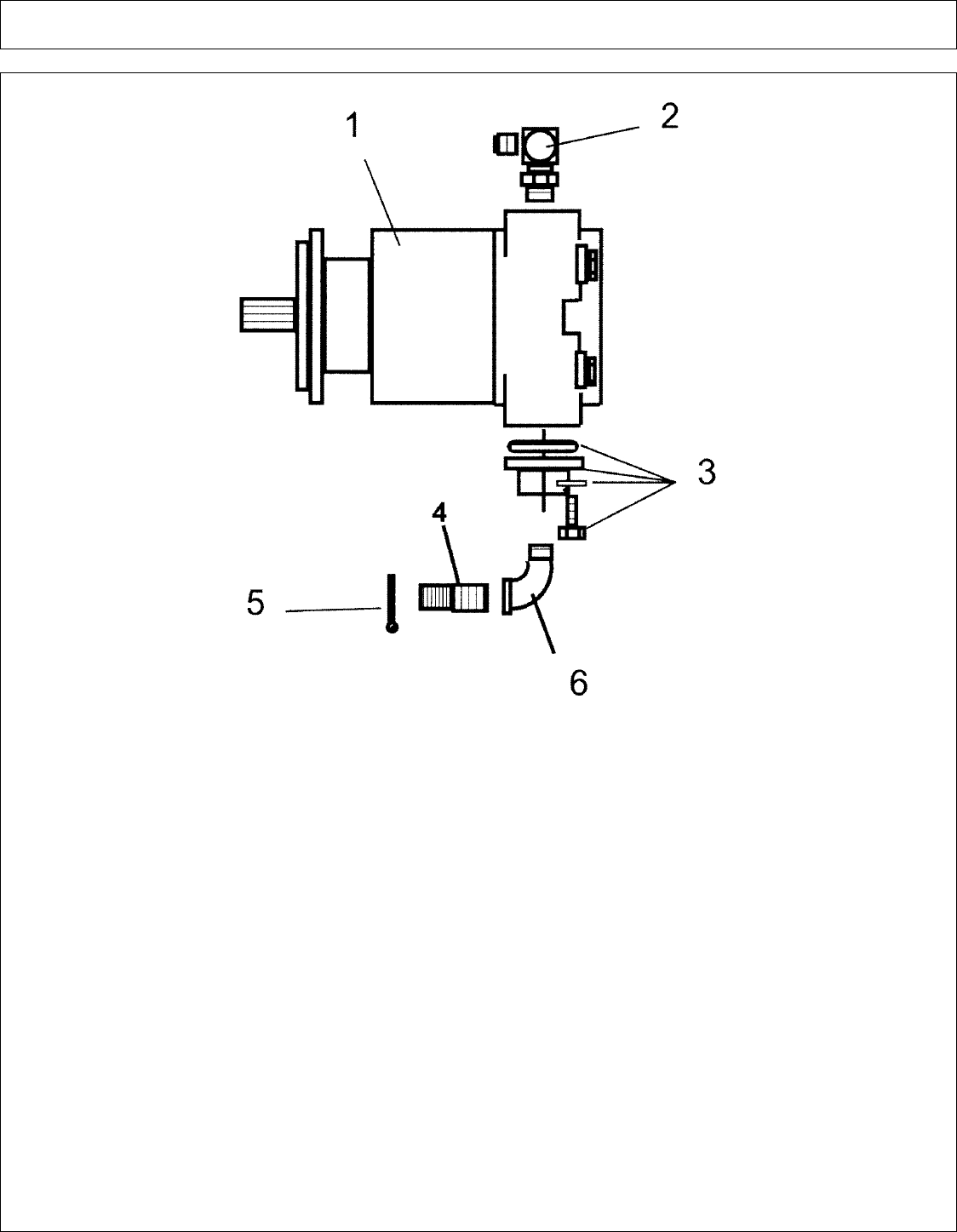

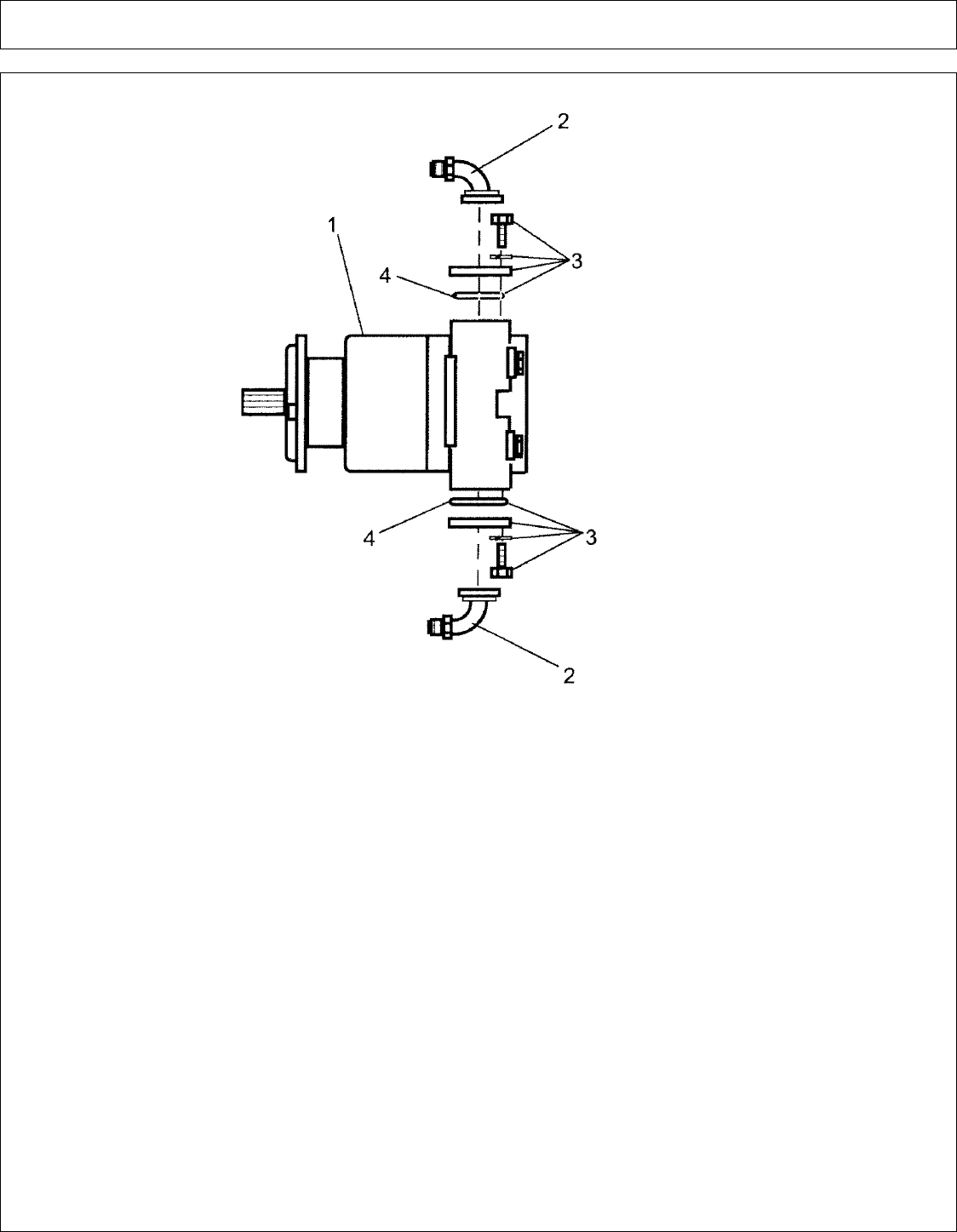

50 IN - X-FRAME SQ HEAD MOTOR ASY W- FITTINGS

ITEM PART NO. QTY. DESCRIPTION

1 02962112 1 HYD. MOTOR ASY. W/ CAST IRON HSG & SPLINED SHAFT

2 02962774 2 ADAPTER, HYD ELBOW

3 00749101 2 SPLIT FLANGE KIT

4 02044200 2 O-RING

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

60 IN - SQ HEAD ASY (BOOM-AXE)

ITEM PART NO. QTY. DESCRIPTION

02974676 - 60 " X-FRAME SQ. HD. ASY . BOOM AXE

1 02974674A 1 DECK WLDMNT, 60" SQ. HD.

2 02958459 1 HITCH POST, 4 BAR

00003500 1 GREASE FITTING

02958424 1 BUSHING

3 02892100 6 BOLT

4 00037200 12 LOCKNUT

5 02962272 1 MOTOR ASY.

6 02973438 6 BOLT

7 02972723 1 DOOR LOCK

8 02972726 1 PIN

9 2196 1 CLIP PIN

10 5710121 1 COVER PLATE

11 5F5180 2 WINGNUT

12 02973857A 1 DOOR WLDMNT

13 02845600 1 BOLT

14 00695100 1 NUT

15 02975229 3 FLAP DEFLECTOR, DOOR

16 02975230 1 FLAP DEFLECTOR, DOOR

A-BOOM (04-04) SN 04837 - UP Rev 12-08

60 IN - SQ HEAD ASY (BOOM-AXE)

Continued...

ITEM PART NO. QTY. DESCRIPTION

17 00753642 14 BOLT

18 00011100 50 FLATWASHER

19 00015800 34 LOCKNUT

20 02885700 2 FLAP DEFLECTOR, REAR

21 02957380 1 SIDE GUARD

22 02957496 1 REAR FLAP RETAINER

23 00023100 19 BOLT

24 02035800 25 WOODWASHER

A-BOOM (04-04) SN 04837 - UP Rev 12-08

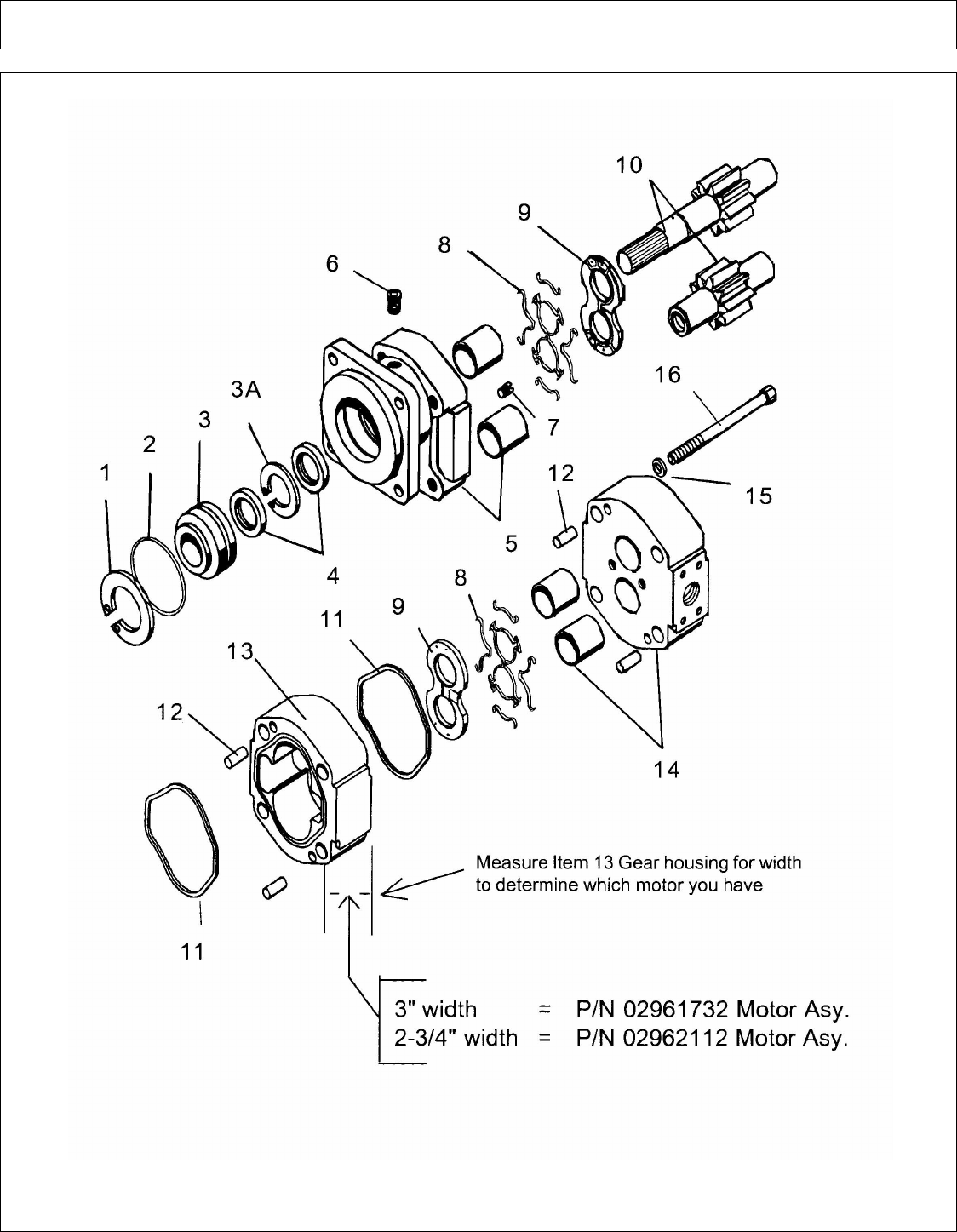

60 IN - SQ HEAD MOTOR (PARTS)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

60 IN - SQ HEAD MOTOR (PARTS)

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02961933 1 SNAP RING

2 * 1 O-RING (IN ITEM 18 & 19)

3 02961932 1 SEAL RETAINER, (F/ 02961237 OR 02962112 MOTOR)

3A 02962286 1 SEAL RETAINER, (F/ 02962112 MOTOR ONLY)

4 * 2 SEAL (IN ITEM 18 & 19)

5 02961926 1 MOUNTING FLANGE W/ BUSHINGS

6 02961940 1 PLUG

7 02961931 2 CHECK ASY.

8 * 2 SEAL END (IN ITEM 18 & 19)

9 * 2 THRUST PLATES (IN ITEM 19 ONLY)

10 02962287 1 GEAR SET, (F/ MOTOR 02962112)

02961929 1 GEAR SET, (F/ MOTOR 02961732)

11 * 2 SQUARE SEAL (IN ITEM 18 & 19)

12 02961924 4 DOWEL PIN

13 02962288 1 GEAR HOUSING, (F/ MOTOR 02962112)

02961928 1 GEAR HOUSING, (F/ MOTOR 02961732)

14 02961927 1 PORTING FLANGE W/ BUSHING

15 02961917 4 WASHER

16 02961918 4 BOLT, (F/ MOTOR 02961732)

02962289 4 BOLT, (F/ MOTOR 02962112)

17 * 4 SIDE SEAL (IN ITEM 18 & 19)

18 02961938 - MINOR SEAL KIT (ITEMS 2,4,8,11 & 17)

19 02962639 - MAJOR SEAL KIT (ITEM 2,4,8,9,11,17,& 18)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

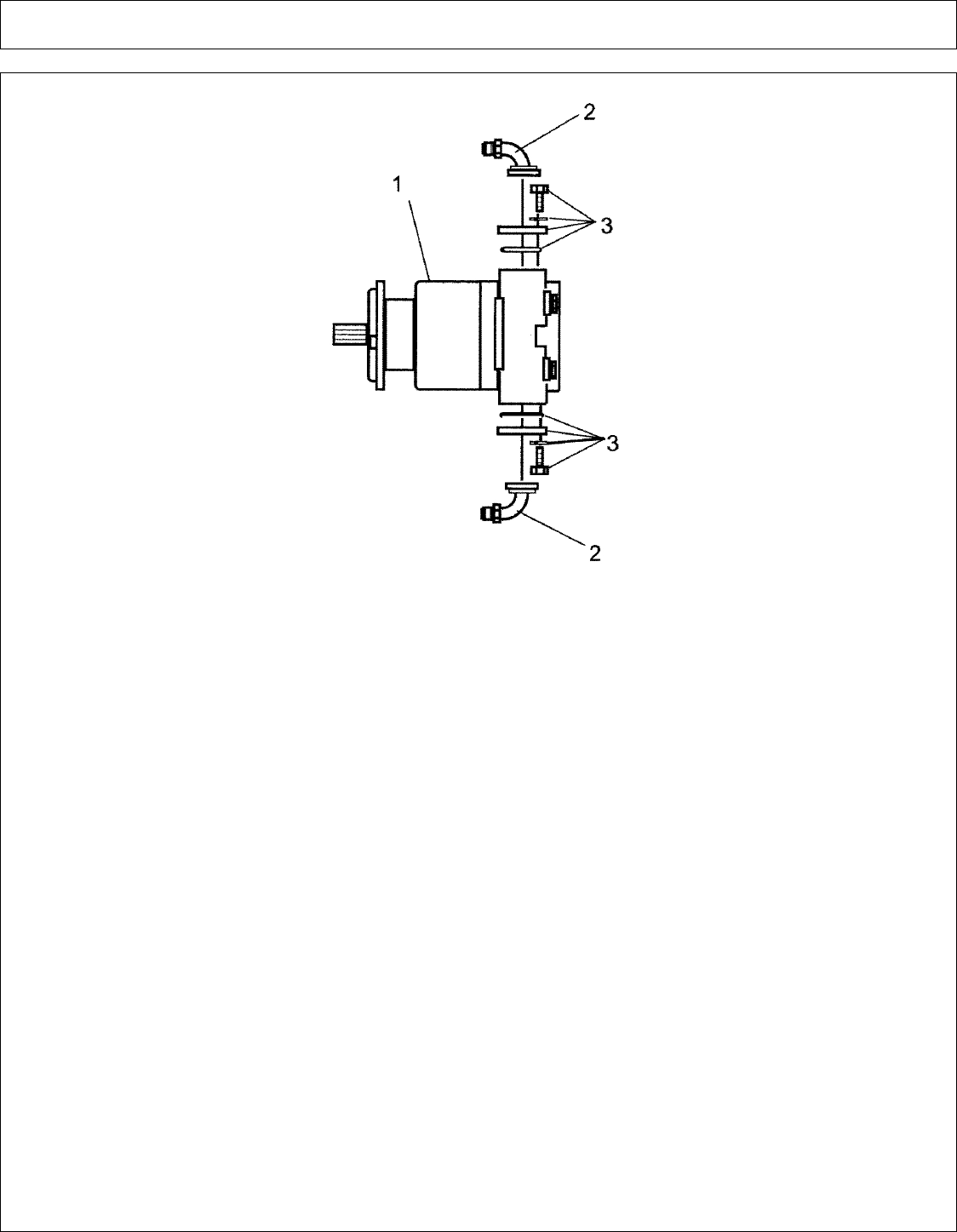

60 IN - SQ HEAD MOTOR ASY

ITEM PART NO. QTY. DESCRIPTION

1 02962112 1 MOTOR ASY, HIGH SPEED (S/N 03250 - 03400 & 03501 & ABOVE)

02961732 1 MOTOR ASY. (S/N 03259 AND PRIOR & 03401 - 03500)

2 02962774 2 ELBOW

3 00749101 2 SPLIT FLANGE KIT

4 02044200 2 O-RING

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

60 IN - SQ HEAD SPINDLE - MOTOR & BLADE BAR

ITEM PART NO. QTY. DESCRIPTION

1 02962272 1 SPINDLE & MOTOR ASY. W/ FITTINGS (HIGH SPEED) S/N 03260 & 03501 & ABOVE

02960553B 1 SPINDLE HSG & SPINDLE ASY.

02962112 1 MOTOR (HIGH SPEED) S/N 03260 -03400 & 03501 - ABOVE

02961732 1 MOTOR ASY, S/N 03259 - BELOW & 03401 - 03500

5 02782300 1 BLADE BAR ASY, (ITEM 19 THRU 29)

6 02782000 4 BOLT, (TORQUE TO 400 FT. LBS.)

7 00003901 4 NUT

8 02957331 1 SKID SHOE, RH (41-1/2" LONG)

9 02957332 1 SKID SHOE, LH (61-1/2" LONG)

10 00059700 7 BOLT

11 00015800 7 LOCKNUT

12 00011100 7 WASHER

13 02892000 4 BOLT

19 02781600 1 TOP LEAF

20 02781700 1 MIDDLE LEAF

21 02781800 1 BOTTOM LEAF

22 02761500 1 BLADE SET

23 02782900 2 BLADE BOLT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

60 IN - SQ HEAD SPINDLE - MOTOR & BLADE BAR

Continued...

ITEM PART NO. QTY. DESCRIPTION

24 00020900 2 NUT, SLOTTED

25 02957089 2 LOCKWASHER

26 00023200 2 ROLL PIN

27 02782100 2 BOLT

28 02782200 2 BOLT

29 02032200 4 LOCKWASHER

30 02961038 1 GASKET

31 02984572 1 BLADE BOLTS, NUTS, ROLLPIN KIT (INCLUDES 2 EACH OF ITEMS 23, 24, & 26)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

60 IN - SQ HEAD SPINDLE ASY

ITEM PART NO. QTY. DESCRIPTION

02960553B - SPINDLE ASY, (ITEMS 1 THRU 10)

1 02963815 1 HOUSING

2 02960561 1 SPINDLE SHAFT

3 02960558 1 BEARING RING, LOWER

4 02960559 1 SEAL

5 00754627 1 SNAP RING

6 02960557 1 BEARING ASY, CUP & CONE

7 00769938 1 BEARING ASY, CUP & CONE

8 02962030 1 BEARING ADJUSTING NUT

9 02979570 1 GREASE RELIEF FITTING

10 00003500 1 GREASE FITTING

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

ARTICULATED ARM ASY - (17 FT) (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

ARTICULATED ARM ASY - (17 FT) (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 00007000 3 BOLT

2 00011100 3 FLATWASHER

4 00015800 3 LOCKNUT

6 00037200 1 LOCKNUT

7 00606000 1 COTTER PIN

8 00748000 1 LOCKWASHER

9 00749946 1 WASHER

10 02030300 1 LOCKNUT

11 02957089 1 LOCKWASHER

12 02906300 1 SLEEVING

13 02921700 1 NUT

14 02956972 1 BOLT

15 02957501 1 BUSHING

16 02957969 2 GROMMET

17 02958716C 1 LINKAGE ARM ASY. W/ CONNEX BRG # 02958357

18 02959084 1 CYLINDER GUARD ASY.

19 02959198 1 HOSE

20 02959199 1 HOSE

21 02959200 1 HOSE

22 02960406 2 ELBOW

23 02960411 2 ELBOW

24 02960869 2 TUBE CLAMP

25 02961070 1 TUBE, LOWER

26 02961072 1 TUBE, UPPER

27 02961085 1 SLEEVING

28 02961103 2 ADAPTER

29 02961129 1 DIPPER SECTION WLDMNT, 17 FT.

30 02961130 2 TUBE, DIPPER

31 02961132 1 LIFT SECTION WLDMNT, 17 FT.

32 02961520 2 HOSE

33 02962023 1 HOSE

34 02965538 1 MAIN PIN

37 02966756 1 PIN, CYLINDER

38 02966757 1 PIN, LINKAGE ARM

39 02958591 1 PIN, DIPPER

40 02960841 2 BEARING

41 02966935 1 PIN, TILT CYLINDER

42 02969980 1 PIN, DIPPER CYLINDER

43 02966964 1 PIN

44 02967008 3 SPACER

45 02967013 1 PIN

A-BOOM (04-04) SN 04837 - UP Rev 12-08

ARTICULATED ARM ASY - (17 FT) (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

ARTICULATED ARM ASY - (17 FT) (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

46 02967016 1 CYLINDER ASY, TILT CYL.

47 02967017 1 CYLINDER ASY, DIPPER CYL.

48 02967021 1 LINKAGE ARM

49 02967246 1 SETSCREW

50 03100099 1 WASHER

51 02966443 1 BUSHING

52 02960842 2 BUSHING

53 02965214 2 BEARING

54 02044900 4 BOLT

55 02957501 1 BEARING

56 02962297 1 CYLINDER ASY, LIFT CYL.

57 02905100 1 HOSE

58 -------------- 1 KING POST, (SEE KING POST SECTION)

59 00750479 1 BOLT

60 02030300 2 NUT

61 02961054 2 HOSE

62 02905000 1 HOSE

63 -------------- 1 BUSHING (SEE KING POST SECTION)

64 00755076 1 BOLT

65 02959891 2 BUSHING

A-BOOM (04-04) SN 04837 - UP Rev 12-08

ARTICULATED ARM ASY - (20-23 FT) (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

ARTICULATED ARM ASY - (20-23 FT) (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02961820A 1 ARTICULATED ARM ASY. (20 FT MODEL)

02961823A 1 ARTICULATED ARM ASY. (23 FT. MODEL)

1 00001800 3 LOCKNUT

2 00002700 5 FLATWASHER

3 00007000 3 BOLT

4 00011100 3 FLATWASHER

6 00015800 3 LOCKNUT

8 00037200 1 LOCKNUT

9 00605600 3 BOLT

10 00606000 1 COTTER PIN

11 00748000 1 LOCKWASHER

12 00749946 4 WASHER

13 00751838 1 SLEEVING

14 02030300 3 NUT

15 02957089 1 LOCKWASHER

16 02905200 1 HOSE

02905300 1 HOSE

17 02905300 1 HOSE, (F/ 20 FT. MODEL)

02956911 1 HOSE, (F/ 23 FT. MODEL)

18 02906300 1 SLEEVING

19 02921700 1 NUT

20 02956972 1 BOLT

21 02957468 1 HOSE, (20 FT. MODEL)

02957467 1 HOSE, (23 FT. MODEL)

22 02957969 2 GROMMET

23 02958716C 1 LINKAGE ARM ASY.

24 02959066 1 HOSE, (20 FT. MODEL)

02959177 1 HOSE, (23 FT. MODEL)

25 02959067 1 HOSE, (20 FT. MODEL)

02959178 1 HOSE, (23 FT. MODEL)

26 02959084 1 CYLINDER GUARD ASY.

27 02959225 1 BUSHING

28 02960406 2 ELBOW

29 02960838 1 LARGE BOOM WLDMNT, (20 FT. MODEL)

02961082 1 LARGE BOOM WLDMNT, (23 FT. MODEL)

30 02960869 1 TUBE CLAMP

31 02960984 1 TUBE, LOWER (20 FT. MODEL)

02960982 1 TUBE, LOWER (23 FT. MODEL)

32 02960985 1 TUBE, UPPER (20 FT. MODEL)

02960983 1 TUBE, UPPER (23 FT. MODEL)

33 02960987 1 TUBE, DIPPER SECTION (20 FT. MODEL)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

ARTICULATED ARM ASY - (20-23 FT) (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

ARTICULATED ARM ASY - (20-23 FT) (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02960991 1 TUBE, DIPPER SECTION (23 FT. MODEL)

34 02960988 1 TUBE, DIPPER SECTION (20 FT. MODEL)

02960992 1 TUBE, DIPPER SECTION (23 FT. MODEL)

35 02961054 4 HOSE

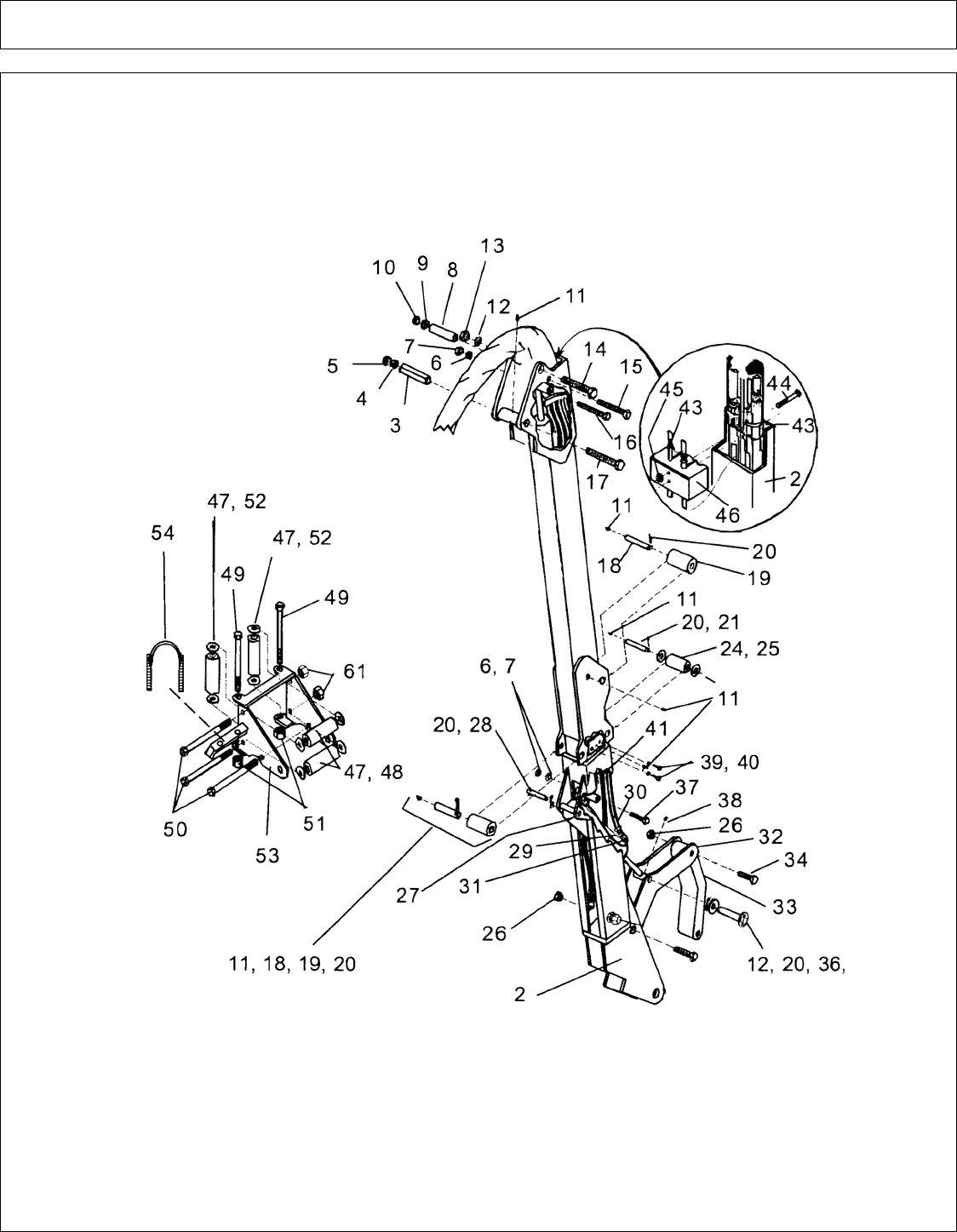

36 02961067 1 COVER, HYDRAULIC TUBING

37 02961081 1 DIPPER SECTION WLDMNT (20 FT. MODEL)

02961084 1 DIPPER SECTION WLDMNT (23 FT. MODEL)

38 02961085 1 SLEEVING

39 02961780 1 CYLINDER ASY, DIPPER CYL.

40 02963154 3 CLAMP

41 02963323 3 BRACKET, TOP

42 00750479 2 BOLT

43 02965538 1 MAIN PIN

46 02966756 1 PIN, CYLINDER

47 02966757 1 PIN, LINKAGE ARM

48 02958591 1 PIN, DIPPER

49 02960841 1 BEARING

50 02966935 1 PIN, TILT CYL.

51 02969980 1 PIN, DIPPER CYL.

52 02966964 1 PIN

53 02967008 3 SPACER

54 02967013 1 PIN

55 02967016 1 CYLINDER ASY, TILT CYL.

56 02967021 1 LINKAGE ARM

58 03100099 1 WASHER

59 02960842 2 BUSHING

60 02905100 1 HOSE

61 02905000 1 HOSE

62 ----------- 1 KING POST (SEE KING POST SECTION)

63 ----------- 1 MAIN PIN BUSHING (SEE KING POST SECTION)

64 02961779 1 LIFT CYLINDER ASSY-20-28 A/B

65 02921700 1 JAMNUT

66 02960650 4 BUSHING

67 02966792 2 BUSHING

68 00752405 1 BOLT

69 02965214 2 BEARING

70 02966792 2 BEARING

71 02959891 2 BUSHING

72 02966443 1 BUSHING

A-BOOM (04-04) SN 04837 - UP Rev 12-08

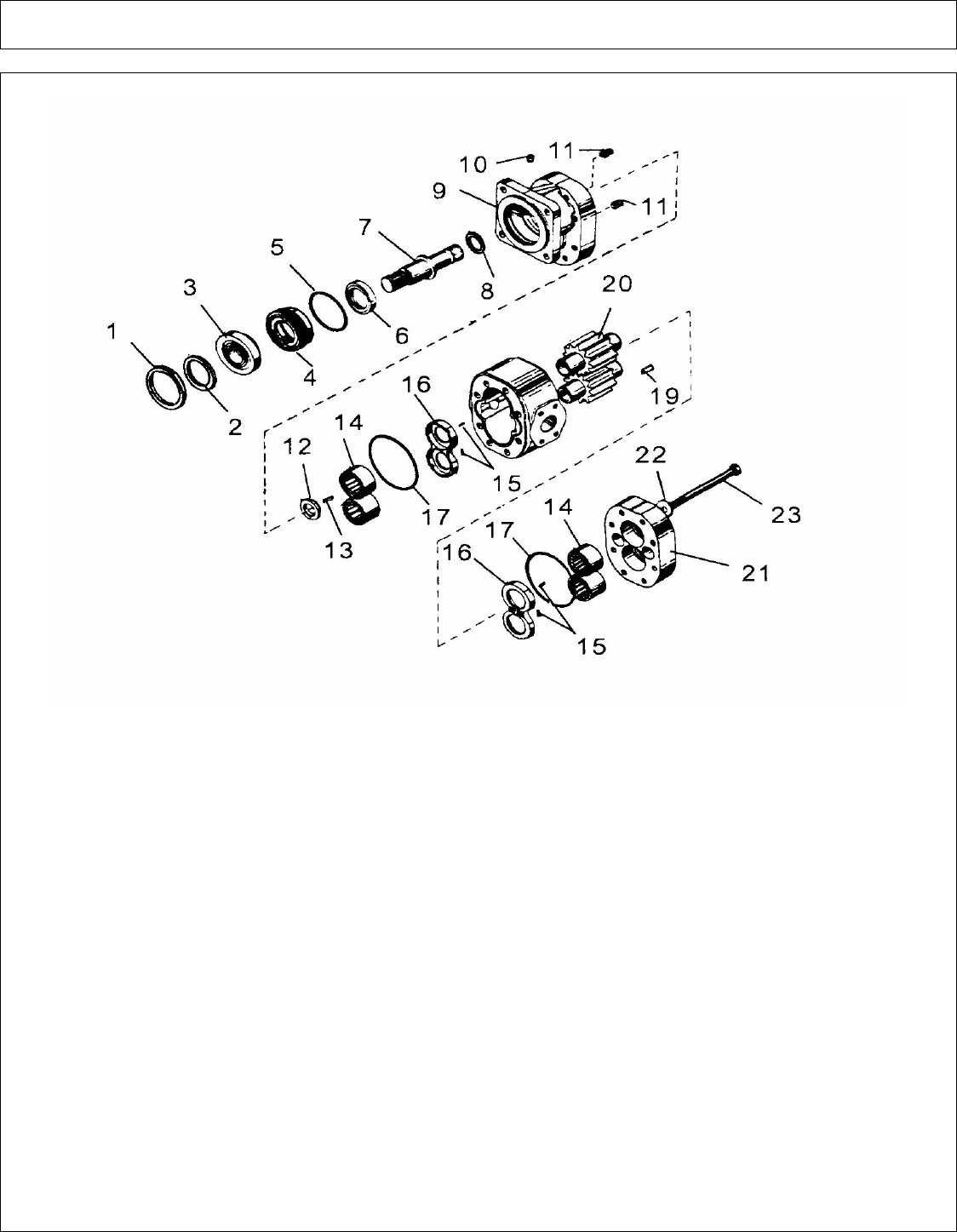

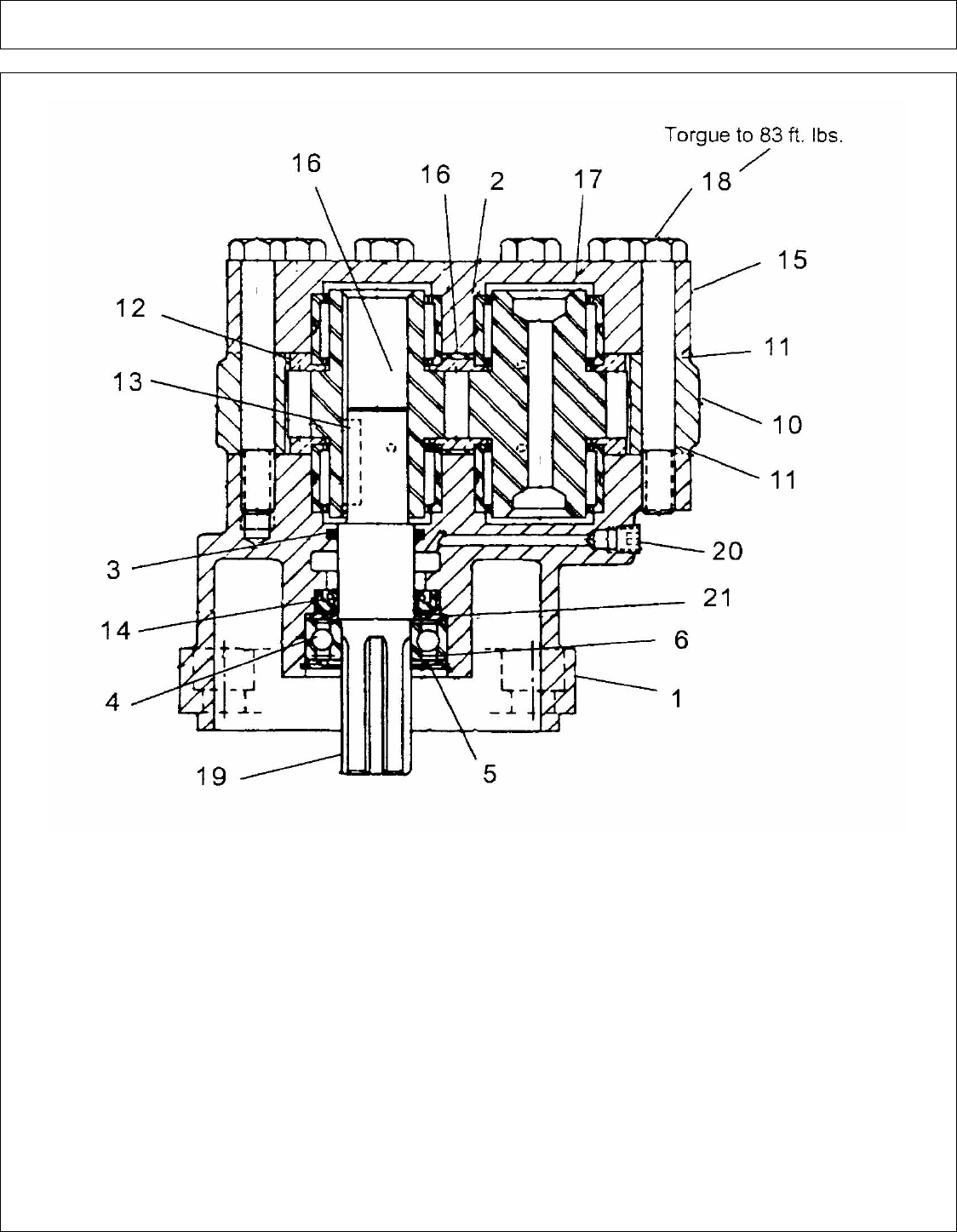

BUZZ BAR - HYD MOTOR (PARTS) - PN 02975175

ITEM PART NO. QTY. DESCRIPTION

02975175 - MOTOR ASY, GEAR TYPE 3.94 CIR

1 02962210 1 SNAP RING

2 02964940 1 SPACER

3 02976771 1 RETAINER SEAL

4 * 1 SEAL (IN ITEM 19 & 20)

5 02964704 1 FLANGE, MOUNTING

6 02961940 1 PLUG, HEX SOCKET HEAD

7 02961931 2 CHECK ASY.

8 * 4 SEAL END (IN ITEM 19 & 20)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR - HYD MOTOR (PARTS) - PN 02975175

Continued...

ITEM PART NO. QTY. DESCRIPTION

9 * 2 THRUST PLATE (IN ITEM 20 ONLY )

10 02964937 1 GEAR & SHAFT SET

11 * 2 SQUARE SEAL, (IN ITEM 19 & 20)

12 02961924 4 DOWEL PIN

13 02962205 1 GEAR HOUSING

14 02976773 1 PORTING FLANGE

15 02961917 4 WASHER

16 02962208 4 BOLT

17 * 4 SIDE SEAL, NOT SHOWN (IN ITEM 19 & 20)

18 02964956 1 KEY

19 02964938 - SEAL KIT, MINOR (ITEMS 4,8,11 & 17)

20 02964939 - SEAL KIT, MAJOR (ITEMS 4,8,9,11 & 17)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

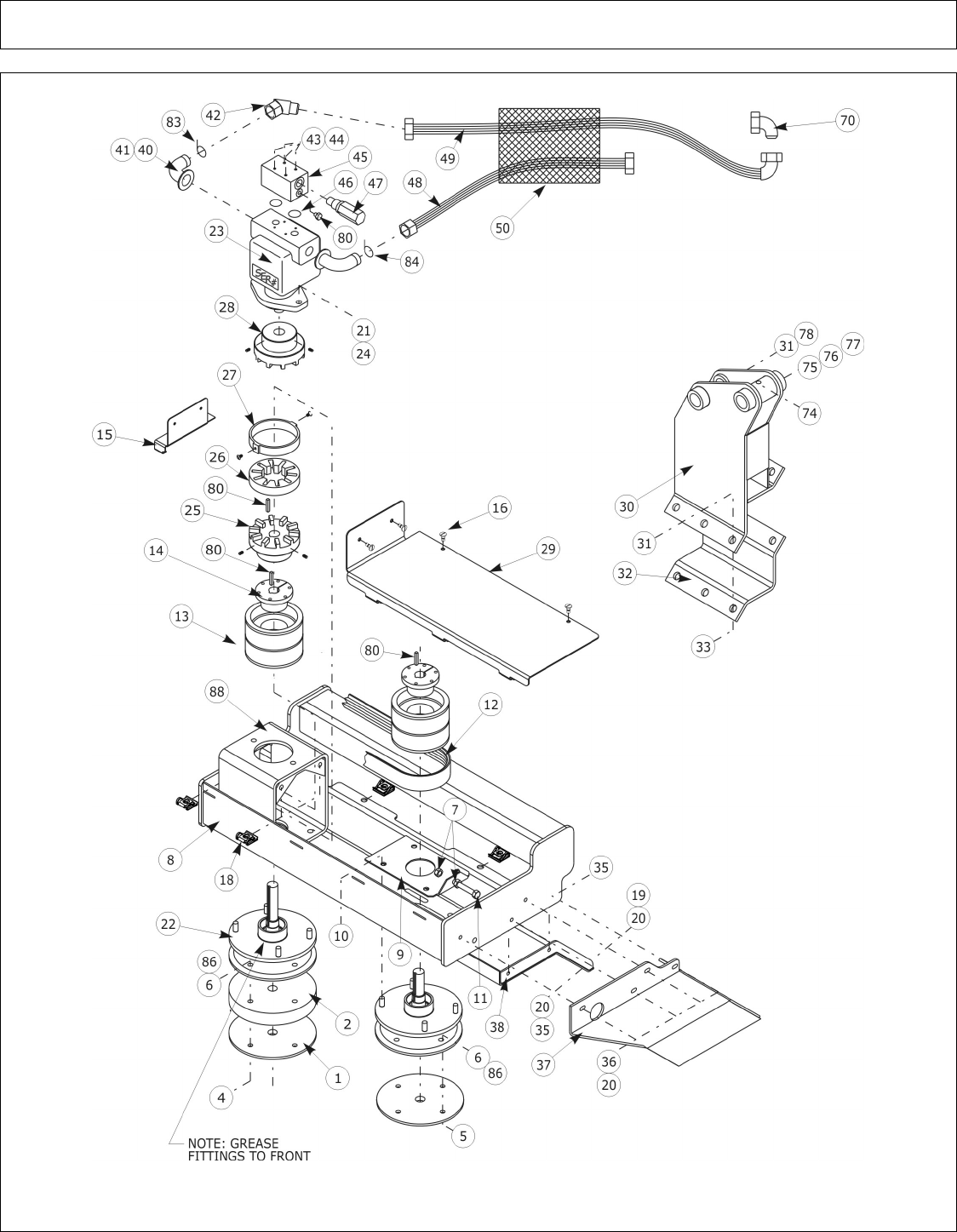

BUZZ BAR HEAD ASY 48 IN - SN 01307 (11-01) & UP (PAGE 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 48 IN - SN 01307 (11-01) & UP (PAGE 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02979266 - SAW BLADE HEAD ASY, 2 BLADE 48" (EXCEPT 28 FT A-BOOM)

02979268 - SAW BLADE HEAD ASY, 2 BLADE 48" (28 FT A-BOOM ONLY)

1 02974237 2 END CAP

2 02974238 1 BLADE SPACER

3 02974235 1 HUB ASSEMBLY

4 02974659 4 SHCS 1/2 NC 3-1/2 W/ HOLE

5 02974658 4 SHCS 1/2 NC 2 W/ HOLE

6 02976017 8 SLOT NUT

7 00001200 2 HEXNUT1/2 NC

8 02983631 1 WLDMT, 2 BLADE SAW BODY

9 02974225 1 TENSION ADJUST BRACKET

10 00750614 8 NUT 1/2 NF

11 002521 1 HHCS 1/2 NC 3-1/2, FULL THREAD

12 02974241 1 BELT, MICRO-V

13 02974239 2 SHEAVE

14 02974240 2 QD BUSHING

15 02979271 1 BELTCOVER, LEFT 2 BLADE

16 02984678 7 STUD 9MM 1/4 TURN

18 02984677 7 SLIP ON RECEPTACLE 9MM

19 00011400 1 HHCS 3/8 NC 1

20 00011100 10 FLATWASHER 3/8

21 00001800 2 LOCKNUT 1/2 NC

22 02978249 1 DRIVE HUB ASSEMBLY

23 02975175 11 MOTOR, GEAR

24 00749130 2 HHCS 1/2 NC 1-3/4

25 02978267 1 HUB, 20 R 10 W/1 - 1/8 BORE

26 02978268 1 INSERT, URETHANE 20 R 10 COUPLER

27 02978269 1 COVER,NYLON 20 R 10 COUPLER

28 02978266 1 HUB, 20R10 W/ 1" BORE

29 02979296 1 BELT COVER, SHORT

30 02970302 1 HITCH POST A-BOOM FLAILAXE

31 00037200 7 LOCKNUT 3/4 NC

32 02970324 1 CLAMP

33 02918600 6 HHCS 3/4 NC 2 GR8

35 00015800 9 LOCKNUT 3/8 NC

36 00023100 8 HHCS 3/8 NC 1-1/2

37 02974207 1 BUMPER

38 02979275 1 WLDMT, REAR SHIELD 2 BLADE (28 FT A-BOOM ONLY)

02979274 1 WLDMT, REAR SHIELD 2 BLADE (EXCEPT 28 FT A-BOOM)

39 02975600 2 SAW BLADE 2 - PACK (SHIP UNMOUNTED)

40 02754100 2 ADP, HYD 20FL-16MJ-90 (28 FT A-BOOM ONLY)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 48 IN - SN 01307 (11-01) & UP (PAGE 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 48 IN - SN 01307 (11-01) & UP (PAGE 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02961280 2 ADP, HYD 20FL-20MJ-90 (EXCEPT 28 FT A-BOOM)

41 00749103 2 #20 SPLIT FLANGE KIT (28 FT A-BOOM ONLY)

00749103 2 #20 SPLIT FLANGE KIT (EXCEPT 28 FT A-BOOM)

42 02959154 1 ADP, HYD 16MJ-16FJX-45 (28 FT A-BOOM ONLY)

02960411 1 ADP, HYD 20FJX-20MJ-45 (EXCEPT 28 FT A-BOOM)

43 00024100 4 FLATWASHER 1/4 PL

44 10074000 4 HHCS 1/4 NC3

45 00760886 1 MANIFOLD BLOCK

46 00761699 2 O-RING

47 00751790 1 RELIEF CARTRIDGE

48 02751300 1 HOSE# 16 16FJX-16FJX-68LG (28 FT A-BOOM ONLY)

02973124 1 HOSE# 20 20FJX-20FJX-68LG (EXCEPT 28 FT A-BOOM)

49 02215500 1 HOSE# 16 16FJX-16FJX90-84LG (28 FT A-BOOM ONLY)

02973125 1 HOSE# 20 20FJX-20FJX90-82LG (EXCEPT 28 FT A-BOOM)

50 02961085 1 CORDURA SLEEVE

51 00758194 1 WARNING V-BELT PINCH

52 00769736 1 WARNING USE/REPAIR SHIELDS

53 00769737 1 DANGER CUTTING BLADES...

54 02925100 1 CAUTION GENUINE PARTS

55 02958241 1 DANGER OPERATOR SAFETY

56 02962764 1 DANGER PINCH POINT

57 00756004 1 DANGER GUARD MISSING

58 02965262 1 DANGER LEAK / HOSE BURST

59 02967827 1 DANGER MULTIHAZARD ROTARY

60 00757139 1 ALAMO BY TERRAIN KING (28 FT A-BOOM ONLY)

02960766 1 ALAMO LOGO 4.5 X 4.5 (EXCEPT 28 FT A-BOOM)

61 02974998 1 LOGO BUZZBAR

62 D138 1 DECAL BLADE ROTATION

63 02975158 1 WARNING HEARING PROTECTION

64 02975170 1 DANGER FOOT/LEG CONTACT

65 02975515 1 WARNING DISCONNECT SOLENOID

66 02975516 1 CAUTION NO HITCH POST HERE

68 02975513 1 SERIAL PLATE

69 3710151 4 METAL TACK

70 02956851 1 ADP HYD 16MJ-16FJX90 (28 FT A-BOOM ONLY)

02960407 1 ADP HYD 20MJ-20FJX90 (EXCEPT 28 FT A-BOOM)

71 1458392 1 REFLECTOR RED

72 1458393 1 REFLECTOR YELLOW

74 00003500 1 GREASE FITTING

75 02030300 1 LOCKNUT 1 NC

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 48 IN - SN 01307 (11-01) & UP (PAGE 3)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 48 IN - SN 01307 (11-01) & UP (PAGE 3)

Continued...

ITEM PART NO. QTY. DESCRIPTION

76 02958424 1 BUSHING

77 02956972 1 HHCS 1 X 9 NC

78 00752405 1 BOLT 3/4 NC

79 02669600 3 KEY 1/4 SQUARE

80 02961940 1 PLUG

81 02961134 1 DECAL

82 02975931 1 INSERT SHEET (28 FT A-BOOM ONLY)

02975929 1 INSERT SHEET (EXCEPT 28 FT A-BOOM)

84 02968894 1 RED TIE

85 40010000 8 COTTER KEY (SHIP UNMOUNTED)

86 63000500 8 WASHER (SHIP UNMOUNTED)

87 02979262 1 MACHINED TUBE, MOTOR MOUNT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

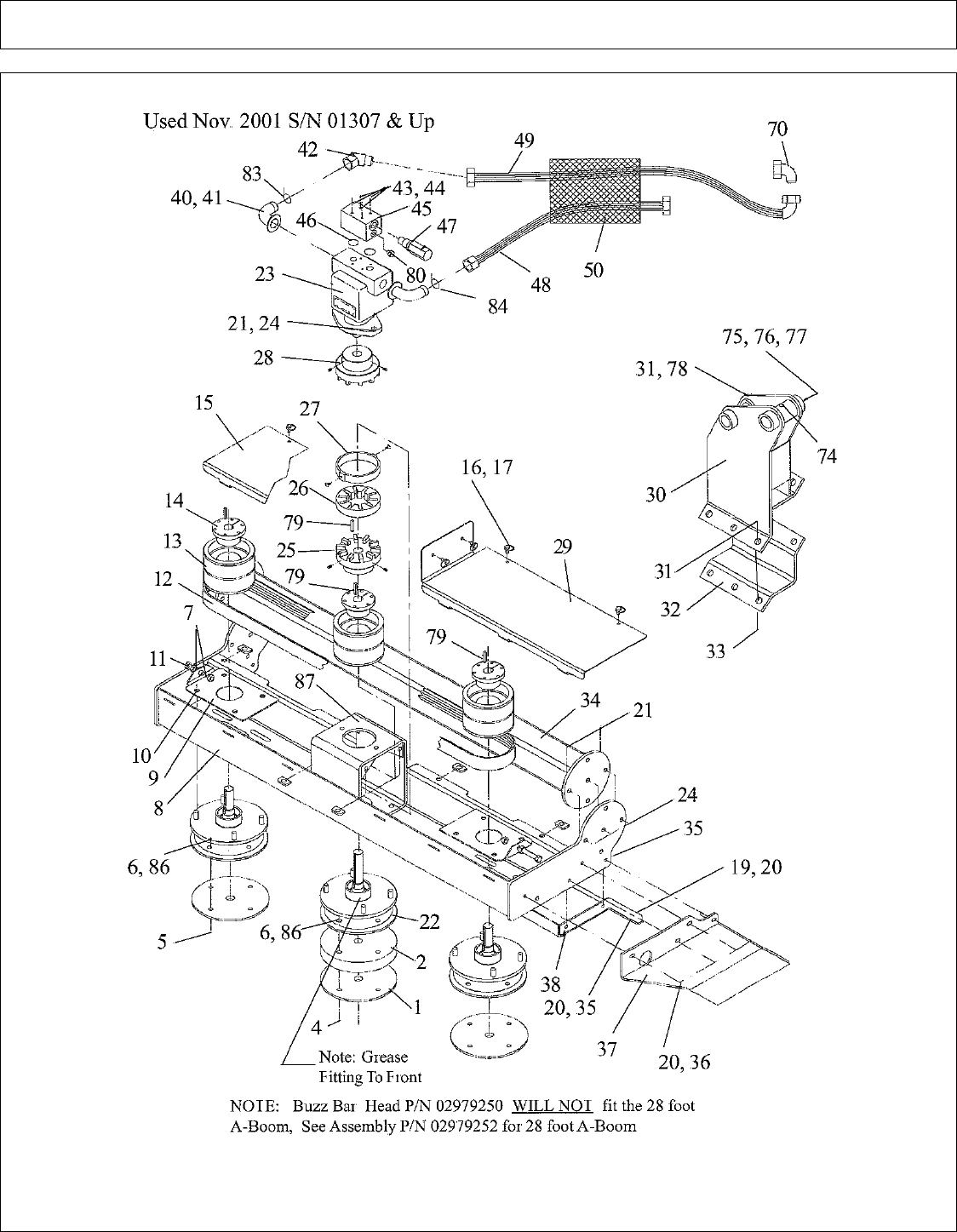

BUZZ BAR HEAD ASY 69 IN - SN 01307 (11-01) & UP (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 69 IN - SN 01307 (11-01) & UP (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02979250 1 SAW BLADE HEAD ASY, 3 BLADE 69" (EXCEPT 28 FT A-BOOM)

02979252 2 SAW BLADE HEAD ASY, 3 BLADE 69" (28 FT A-BOOM ONLY)

1 02974237 3 END CAP

2 02974238 1 BLADE SPACER

3 02974235 2 SPINDLE ASY.

4 02974659 4 BOLT, SCKT HD CNTR-SNK 1/2"-NC X 3-1/2" W/HOLE

5 02974658 8 BOLT, SCKT HD CNTR-SNK 1/2"-NC X 2" W/HOLE

6 02976017 12 NUT, SLOTTED 1/2"-NC PLB

7 00001200 4 NUT, HEX 1/2"-NC PL

8 02979253 1 SAW BODY WELDMENT, 3 BLADE

9 02974225 2 TENSION ADJUSTMENT BRACKET

10 00750614 12 NUT, 1/2"-20NF 90DEG CONE LUG PL

11 002521 2 BOLT, HEX HEAD 1/2"-NC X 3-1/2" PL GR5

12 02974241 2 V-BELT

13 02974239 3 SHEAVE W/GROOVE

14 02974240 3 BUSHING, QD

15 02979255 1 SHEET, BELT COVER, LEFT 3 BLADE

16 02975441 8 STUD, QUICK RELEASE W/RING

17 02975440 8 RETAINER F/QUICK RELEASE

18 02975439 8 RECEIVER F/ QUICK RELEASE

19 00011400 1 BOLT, HEX HEAD 3/8"-NC X 1 PL GR5

20 00011100 10 FLATWASHER, 3/8" PL STD

21 00001800 6 LOCKNUT, TOPLOCK 1/2"-NC PLB

22 02978249 1 DRIVE SPINDLE ASY.

23 02975175 1 MOTOR, GEAR TYPE

24 00749130 8 BOLT, HEX HEAD 1/2"-13NC X 1-3/4" PL GR5

25 02978267 1 HUB, 1-1/8" BORE X 1/4" KEY

26 02978268 1 INSERT, URETHANE

27 02978269 1 COVER, PROTECTIVE NYLON

28 02978266 1 HUB, 1" BORE

29 02979296 1 BELT COVER, SHORT

30 02970302 1 HITCH POST WELDMENT

31 00037200 6 LOCKNUT, TOPLOCK 3/4"-NC PLC

32 02970324 1 PLATE, HITCH POST CLAMP

33 02918600 6 BOLT, HEX HEAD 3/4"-10NC X 2" PL GR8

34 02979256 1 HITCH TUBE WELDMENT, 3 BLADE

35 00015800 9 LOCKNUT, TOPLOCK 3/8"-NC PLB

36 00023100 8 BOLT, HEX HEAD 3/8"-16NC X 1-1/2" PL GR5

37 02974207 1 BUMPER

38 02979258 1 SHIELD WELDMENT, REAR

39 02975600 1 SAW BLADE PACKAGE OF 2

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 69 IN - SN 01307 (11-01) & UP (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 69 IN - SN 01307 (11-01) & UP (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

40 02961280 2 ADAPTER, HYD 20FL-20MJ90 (EXCEPT 28 FT A-BOOM)

02754100 2 ADAPTER, HYD 20FL-16MJ90 (28 FT A-BOOM ONLY)

41 00749103 2 SPLIT FLANGE KIT, #20

42 02960411 1 ADAPTER, HYD 20FJX-20MJ45 (EXCEPT 28 FT A-BOOM)

02959154 2 ADAPTER, HYD 16MJ-16FJX45 (28 FT A-BOOM ONLY)

43 00024100 4 FLATWASHER, 1/4"

44 10074000 4 BOLT, HEX HEAD 1/4" X 3

45 00760886 1 MANIFOLD BLOCK

46 00761699 2 O-RING

47 00751790 1 RELIEF CARTRIDGE

48 02973124 1 HOSE, #20-20FJX-20FJX-68"LG (EXCEPT 28 FT A-BOOM)

02751300 1 HOSE, #16-16FJX-16FJX- 68"LG (28 FT A-BOOM ONLY)

49 02973125 1 HOSE, #20-20FJX-20FJX-82"LG (EXCEPT 28 FT A-BOOM)

02215500 1 HOSE, #16-16FJX-16FJX90-84"LG (28 FT A-BOOM ONLY)

50 02961085 1 CORDURA SLEEVE

51 00758194 1 DECAL, WARNING BELT SHIELD

52 00769736 1 DECAL, USE/REPAIR GUARDS

53 00769737 1 DECAL, BLADES THROWN OBJECTS

54 02925100 1 DECAL, REPLACE PARTS

55 02958241 1 DECAL, TRACTOR OPERATOR SAFETY

56 02962764 1 DECAL, PINCH POINTS

57 00756004 1 DECAL, SHIELD MISSING

58 02965262 1 DECAL, WARNING HOSE BURST

59 02967827 1 DECAL-MULTI HAZ

60 02960766 2 DECAL, ALAMO INDUSTRIAL LOGO

61 02974998 1 DECAL, BUZZBAR

62 D138 1 DECAL, BLADE ROTATION

63 02975158 1 DECAL, HEAR PROTECTION REQD

64 02975170 1 DECAL, ROTATING BLADES

65 02975515 1 DECAL, WARNING DISCONNECT

66 02975516 1 DECAL, NO HITCH POST HERE

68 ---NFS----- - SERIAL NUMBER PLATE BB90

69 ---NFS----- - METAL TACK

70 02960407 1 ADAPTER, HYD 20MJ-20FJX90 (EXCEPT 28 FT A-BOOM)

02956851 1 ADAPTER, HYD 16MJ-16FJX90 (28 FT A-BOOM ONLY)

71 1458392 1 DECAL, RED REFLECTOR

72 1458393 1 DECAL, YELLOW REFLECTOR

74 00003500 1 GREASE FITTING

75 02030300 1 NUT, 1"-NC

76 02958424 1 BUSHING

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 69 IN - SN 01307 (11-01) & UP (PART 3)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 69 IN - SN 01307 (11-01) & UP (PART 3)

Continued...

ITEM PART NO. QTY. DESCRIPTION

77 02956972 1 BOLT, HEX HEAD 1"-NC X 9"

78 00752405 1 BOLT, HEX HEAD 3/4"-NC

79 02969600 4 KEY, 1/4" SQ KEY X 1-1/4" LG

80 02961940 1 PLUG

81 02961134 1 DECAL, PATENT PENDING

82 02975929 1 INSERT SHEET, BUZZBAR (EXCEPT 28 FT A-BOOM)

02975931 1 INSERT SHEET, BUZZBAR (28 FT A-BOOM ONLY)

83 02968896 1 PLASTIC TIE, ORANGE

84 02968894 1 PLASTIC TIE, RED

85 40010000 12 COTTER PIN, 1/8" X 1"

86 63000500 12 WASHER, PLATED

87 02979262 1 MOTOR MOUNT TUBE, MACHINED

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 90 IN - SN 01306 (10-31) & DOWN (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 90 IN - SN 01306 (10-31) & DOWN (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02974204 1 BUZZ BAR HEAD ASY, 4 BLADE 90" (EXCEPT 28 FT A-BOOM)

02974219 1 BUZZ BAR HEAD ASY, 4 BLADE 90" (28 FT A-BOOM ONLY)

1 02974237 4 END CAP

2 02974238 2 BLADE SPACER

3 02974235 4 SPINDLE ASY.

4 02974659 8 BOLT, SOCKET HEAD

5 02974658 8 BOLT, SOCKET HEAD

6 02976017 16 SLOTTED NUT, SLOTTED 1/2 NC PLB

7 00001200 6 NUT

8 02974209 1 SAW BODY WLDMNT, USED 01/99 TO 12/01

02978273 1 SAW BODY WLDMNT, USED 01/02 TO 07/02

02979295 1 SAW BODY WLDMNT, USED 08/02 TO CURRENT

9 02974225 3 BRACKET, TENSION ADJUSTMENT

10 00750614 16 NUT

11 002521 3 BOLT

12 02974241 3 BELT

13 02974239 4 SHEAVE

14 02974240 3 BUSHING QD, W/ BOLTS

15 02974206 1 BELT COVER, LONG USED 01/99 TO 12/01

02978265 1 BELT COVER, LONG USED 01/02 TO 07/02

02979297 1 BELT COVER, LONG USED 08/02 TO CURRENT

16 02975441 5 STUD, QUICK RELEASE W/RING

17 02975440 5 RETAINER, F/ QUICK RELEASE

18 02975439 5 RECEIVER, F/ QUICK RELEASE

19 00011400 5 BOLT

20 00011100 6 FLATWASHER

21 00001800 6 LOCKNUT

22 02974216 1 PLATE, MOTOR MOUNT

23 02975175 1 MOTOR ASY, GEAR 3.94 CIR

24 00749130 8 BOLT

25 02976493 2 BRACKET, MOTOR ADJUSTMENT

26 02977203 3 BOLT

27 02976652 1 COUPLING, RUBBER

29 02974205 1 BELT COVER, SHORT USED 01/99 TO 12/01

02978264 1 BELT COVER, SHORT USED 01/02 TO 07/02

02979296 1 BELT COVER, SHORT USED 08/02 TO CURRENT

30 02970302 1 WELDMENT, HITCH POST

31 00037200 7 LOCKNUT

32 02970324 1 PLATE, HITCH POST CLAMP

33 02978600 6 SHIELD, SPLITTER MOUNT

34 02974215 1 HITCH TUBE WLDMNT, 4 BLADE SAW

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 90 IN - SN 01306 (10-31) & DOWN (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 90 IN - SN 01306 (10-31) & DOWN (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

35 00015800 9 LOCKNUT

36 00023100 9 BOLT

37 02974207 1 BUMPER

38 02974212 1 SHIELD WLDMNT, REAR

39 02975600 2 SAW BLADE PACKAGE OF 2 BLADES

40 02961280 2 ADAPTER, HYD 20FL-20MJ90 (EXCEPT 28 FT A-BOOM)

02754100 2 ADAPTER, HYD 20FL-16MJ90 (28 FT A-BOOM ONLY)

41 00749103 2 SPLIT FLANGE KIT

42 02960411 1 ADAPTER, HYD 20FJX-20MJ45 (EXCEPT 28 FT A-BOOM)

02959154 2 ADAPTER, HYD 16MJ-16FJX45 (28 FT A-BOOM ONLY)

43 00024100 4 FLATWASHER

44 10074000 4 BOLT

45 00760886 1 MANIFOLD BLOCK

46 00761699 2 O-RING

47 00751790 1 RELIEF VALVE, SET TO 1850 PSI

48 02973124 1 HOSE, #20-20FJX-20FJX-68"LG (EXCEPT 28 FT A-BOOM)

02751300 1 HOSE, #16-16FJX-16FJX-68"LG (28 FT A-BOOM ONLY)

49 02973125 1 HOSE, #20-2FJX-20FJX90-82"LG (EXCEPT 28 FT A-BOOM)

02215500 1 HOSE #16-16FJX-16FJX90-84"LG (28 FT A-BOOM ONLY)

50 02961085 1 CORDURA SLEEVING, 54" LG

51 02960407 1 ADAPTER, HYD 20MJ-20FJX90 (EXCEPT 28 FT A-BOOM)

02956851 1 ADAPTER, HYD 16MJ-16FJX90 (28 FT A-BOOM ONLY)

52 02975434 1 BUSHING QD, MODIFIED

53 00003500 1 GREASE FITTING, STRAIGHT

54 02030300 1 LOCKNUT

55 02958424 1 BUSHING

56 02956972 1 BOLT

57 00752405 1 BOLT

58 02669600 4 KEY

59 02961940 1 PLUG, HEX SOCKET HEAD

60 02968896 1 PLASTIC TIE 11" LG

61 02968894 1 PLASTIC TIE 11" LG

62 40010000 16 COTTER PIN

63 63000500 16 WASHER

64 02956851 1 ADAPTER, HYD ELBOW 90 DEG

65 02975929 1 INSERT SHEET BUZZBAR (EXCEPT 28 FT A-BOOM)

02975931 1 INSERT SHEET BUZZBAR, (28 FT A-BOOM ONLY)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 90 IN - SN 01307 (11-01) & UP (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 90 IN - SN 01307 (11-01) & UP (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02974204 1 SAW HEAD ASY, 4 BLADE 90" (EXCEPT 28 FT BOOM

02974219 1 SAW HEAD ASY, 4 BLADE 90" (28 FT BOOM ONLY)

1 02974237 4 END CAP

2 02974238 2 BLADE SPACER

3 02974235 3 SPINDLE HUB ASY.

4 02974659 8 BOLT, SOCKET HEAD COUNTERSUNK 1/2"-NC X 3-1/2" W/HOLE

5 02974658 8 BOLT, SOCKET HEAD COUNTERSUNK 1/2"-NC X 2" W/HOLE

6 02976017 16 NUT, SLOTTED 1/2"-NC PLB

7 00001200 6 NUT, HEX 1/2"-NC PL

8 02979295 1 SAW BODY WELDMENT, 4 BLADE

9 02974225 3 TENSION ADJUSTMENT BRACKET

10 00750614 16 NUT, 1/2"-20NF - 90 DEG.CONE LUG PL

11 002521 3 BOLT, HEX HEAD1/2"-NC X 3-1/2" PL GR5

12 02974241 3 BELT, POLY-V

13 02974239 4 SHEAVE, PULLEY

14 02974240 4 BUSHING, QD

15 02979297 1 SHEET, BELT COVER, LEFT 4 BLADE

16 02975441 9 STUD, QUICK RELEASE W/RING

17 02975440 9 RETAINER F/ QUICK RELEASE

18 02975439 9 RECEIVER F/ QUICK RELEASE

19 00011400 1 BOLT, HEX HEAD 3/8"-NC X 1" PL GR5

20 00011100 10 FLATWASHER, 3/8" PL STD

21 00001800 6 LOCKNUT, TOPLOCK 1/2"-NC PLB

22 02978249 1 DRIVE SPINDLE ASY

23 02975175 1 MOTOR, GEAR TYPE

24 00749130 8 BOLT, HEX HEAD 1/2"-13NC X 1-3/4" PL GR5

25 02978267 1 HUB, 1-1/8" BORE 1/4" KEY

26 02978268 1 INSERT, URETHANE

27 02978269 1 COVER, PROTECTIVE NYLON

28 02978266 1 HUB, 1" BORE

29 02979296 1 BELT COVER, SHORT

30 02970302 1 HITCH POST WELDMENT

31 00037200 6 LOCKNUT, TOPLOCK 3/4"-NC PLC

32 02970324 1 PLATE, HITCH POST CLAMP

33 02918600 6 BOLT, HEX HEAD 3/4"-10NC X 2" PL GR8

34 02974215 1 HITCH TUBE WELDMENT, 4 BLADE

35 00015800 9 LOCKNUT, TOPLOCK 3/8"-NC PLB

36 00023100 8 BOLT, HEX HEAD 3/8"-16NC X 1-1/2" PL GR5

37 02974207 1 BUMPER

38 02974212 1 SHIELD WELDMENT, REAR 4 BLADE

39 02975600 1 SAW BLADE SET, SET OF 2 BLADES

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 90 IN - SN 01307 (11-01) & UP (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 90 IN - SN 01307 (11-01) & UP (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

40 02961280 2 ADAPTER, HYD 20FL-20MJ45 (EXCEPT 28 FT. BOOM)

02754100 2 ADAPTER, HYD 20FL-16MJ90 (28 FT. BOOM ONLY)

41 00749103 2 SPLIT FLANGE KIT, #20

42 02960411 1 ADAPTER, HYD 20FJX-20MJ45 (EXCEPT 28 FT. BOOM)

02959154 1 ADAPTER, HYD 16MJ-16FJX45 (28 FT BOOM ONLY)

43 00024100 4 FLATWASHER, 1/4" PL

44 10074000 4 BOLT, HEX HEAD 1/4" X 3"

45 00760886 1 MANIFOLD BLOCK

46 00761699 2 O-RING

47 00751790 1 RELIEF CARTRIDGE

48 02973124 1 HOSE, #20-20FJX-20FJX90-82"LG (EXCEPT 28 FT. BOOM)

02751300 1 HOSE, #16-16FJX-16FJX-68"LG (28 FT. BOOM ONLY)

49 02973125 1 HOSE, #20-20FJX-20FJX-68"LG (EXCEPT 28 FT. BOOM)

02215500 1 HOSE, #16-16FJX-16FJX90-84"LG (28 FT. BOOM ONLY)

50 02961085 1 CORDURA SLEEVE

51 00758194 1 DECAL, WARNING BELT SHIELD

52 00769736 1 DECAL, USE/REPAIR GUARDS

53 00769737 1 DECAL, BLADES THROWN OBJECTS

54 02925100 1 DECAL, REPLACEMENT PARTS

55 02958241 1 DECAL, TRACTOR OPERATOR SAFETY

56 02962764 1 DECAL, PINCH POINTS

57 00756004 1 DECAL, SHIELD MISSING

58 02965262 1 DECAL, WARNING HOSE BURST

59 02967827 1 DECAL, MULTI HAZZARD

60 00757139 2 DECAL, ALAMO GROUP

61 02974998 1 DECAL, BUZZBAR

62 D138 1 DECAL, BLADE ROTATION

63 02975158 1 DECAL, HEAR PROTECTION REQD

64 02975170 1 DECAL, ROTATING BLADES

65 02975515 1 DECAL, WARNING DISCONNECT

66 02975516 1 DECAL, NO HITCH POST HERE

68 ----NFS---- - PLATE, SERIAL NUMBER BB90

69 ----NFS---- - METAL, TACK

70 02960407 1 ADAPTER, HYD 20MJ-20FJX90 (EXCEPT 28 FT BOOM)

02956851 1 ADAPTER, HYD 16MJ-16FJX90 (28 FT BOOM ONLY)

72 1458392 1 DECAL, RED REFLECTOR

73 1458393 1 DECAL, YELLOW REFLECTOR

74 00003500 1 GREASE FITTING

75 02030300 1 NUT, 1"-NC

76 02958424 1 BUSHING

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 90 IN - SN 01307 (11-01) & UP (PART 3)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR HEAD ASY 90 IN - SN 01307 (11-01) & UP (PART 3)

Continued...

ITEM PART NO. QTY. DESCRIPTION

77 02956972 1 BOLT, HEX HEAD 1"-NC X 9"

78 00752405 1 BOLT, HEX HEAD 3/4"-NC

79 02669600 5 KEY, 1/4" SQ KEY 1-1/4" LG

80 02961940 1 PLUG

81 02961134 1 DECAL, PATENT PENDING

82 02975929 1 INSERT SHEET, BUZZBAR (EXCEPT 28 FT BOOM)

02975931 1 INSERT SHEET BUZZBAR (28 FT BOOM ONLY)

83 02968896 1 PLASTIC TIE, ORANGE

84 02968894 1 PLASTIC TIE, RED

85 40010000 16 COTTER PIN, 1/8" X 1

86 63000500 16 WASHER, PLATED

87 02979262 1 MOTOR MOUNT TUBE, MACHINED

A-BOOM (04-04) SN 04837 - UP Rev 12-08

BUZZ BAR SPINDLE ASY - SN BB-01219

ITEM PART NO. QTY. DESCRIPTION

02978249 1 SPINDLE ASY, DRIVE SPINDLE (SHOWN)

02974235 - SPINDLE ASY, NON-DRIVE (NOT SHOWN)

1 02974224 1 SPINDLE HOUSING, MACHINED

2 02978472 - SPINDLE SHAFT, NON-DRIVE SPINDLE

02978257 1 SPINDLE SHAFT, DRIVE SPINDLE

3 02974234 - COLLAR, BEARING PRELOAD

4 70044 - BEARING CUP, UPPER OR LOWER

5 5312314 - BEARING CONE, UPPER OR LOWER

6 15C2000 - WASHER, 1-1/4" HARDEND

7 5D20120 - NUT, HEX SLOTTED 1-1/4"-12NF PL

8 00766549 - SEAL, UPPER OR LOWER

9 00003500 - GREASE FITTING, 1/8" STRAIGHT

10 02959018 - GREASE RELIEF FITTING, 1-5LBS

11 00752177 - BOLT, STUD 1/2"-20NF X 1-7/8"

12 00606000 - COTTER PIN, 3/16 X 2

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

CAGE ASY - UNIVERSAL MOUNT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

CAGE ASY - UNIVERSAL MOUNT

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02909000 1 CAGE WLDMNT

2 00999422 3 BOLT

3 00002700 3 FLATWASHER

4 00001300 3 LOCKWASHER

5 00001200 3 NUT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - BLADE HEAD ASY (FWD ROT) - PN 02875301

ITEM PART NO. QTY. DESCRIPTION

02875301 - BLADE HEAD ASY. W/ BLADES

1 02875400 1 BLADE HEAD WLD`MT

2 02875900 3 WEAR PLATE

3 02886900 6 BOLT

5 00001800 18 NUT

6 02958680 3 MOUNT BRACKET

7 02958675 3 BLADE, ROUGH CUT

02958685 - SHIM KIT, F/ ROUGH CUT BLADES

8 02891800 12 BOLT

9 02958684 6 BOLT

10 00003901 6 LOCKWASHER

11 00037200 6 NUT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - BLADE HEAD ASY (REV ROT) - PN 02898501

ITEM PART NO. QTY. DESCRIPTION

02898501 - BLADE HEAD ASY. W/ BLADES

1 02898400 1 BLADE HEAD WLDMNT

2 02875900 3 WEAR PLATE

3 02886900 6 BOLT

5 00001800 18 NUT

6 02958681 3 MOUNT BRACKET

7 02958675 3 BLADE, ROUGH CUT

02958685 - SHIM KIT, F/ ROUGH CUT BLADES

8 02891800 12 BOLT

9 02958684 6 BOLT

10 00003901 6 LOCKWASHER

11 00037200 6 NUT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

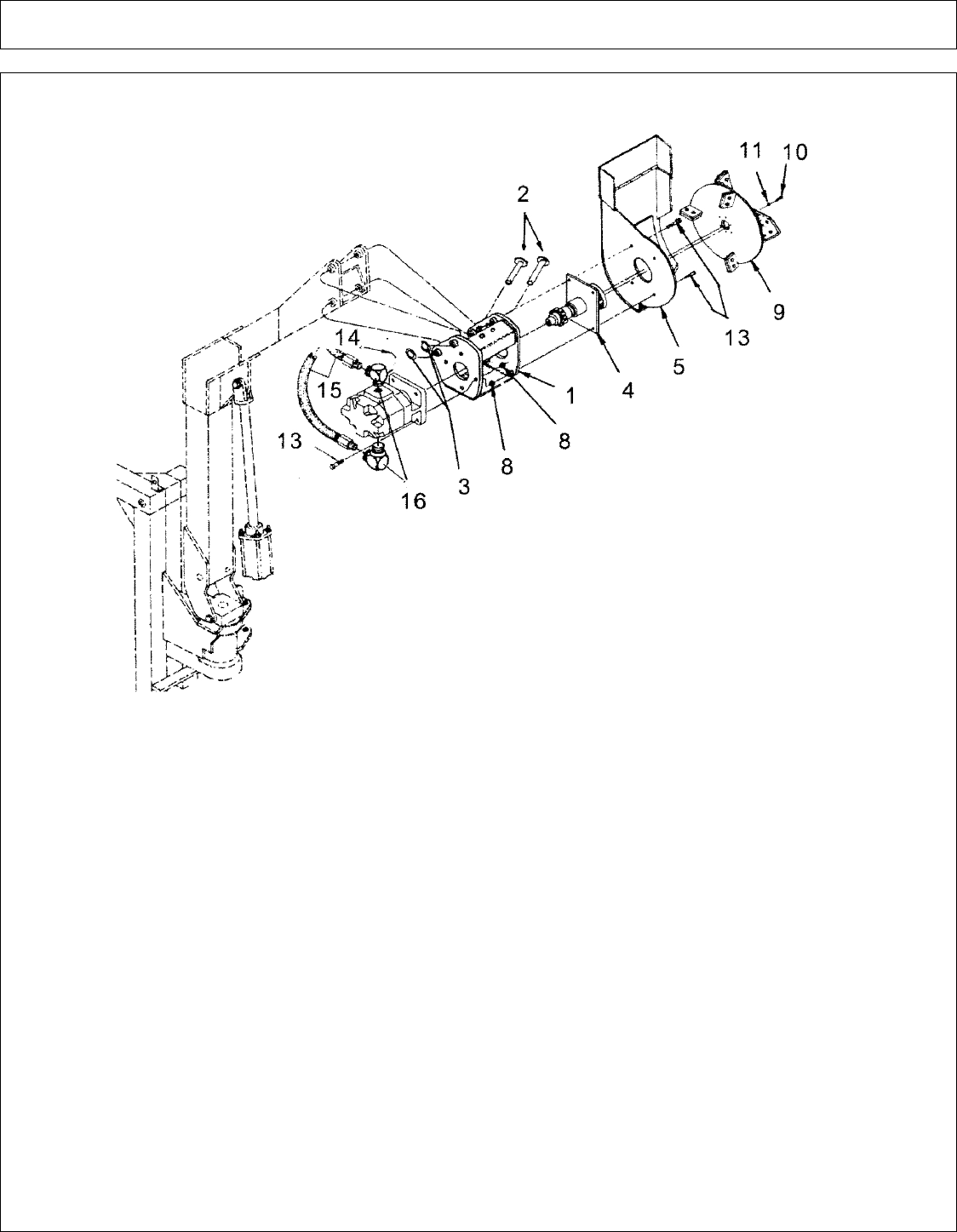

DITCHER - HEAD ASY - PN 02215413

ITEM PART NO. QTY. DESCRIPTION

02215413 - DITCHER HEAD ASY. COMPLETE

1 02975249 1 DITCHER MOUNT WLD`MT

2 02958929 2 DITCHER PIN

3 00749185 2 WASHER

4 02872300 1 SPINDLE ASY.

5 02873900 1 BLADE HOUSING ASY.

8 00037200 7 LOCKNUT

9 02875301 1 BLADE HEAD ASY.

10 02891800 6 BOLT

11 00001300 6 LOCKWASHER

12 02870100 1 MOTOR ASY.

13 02880900 8 BOLT

14 00610600 2 ROLL PIN

15 02961054 2 HOSE

16 02958920 2 ELBOW

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - HOUSING ASY (FWD ROT) - PN 02873900

ITEM PART NO. QTY. DESCRIPTION

02873900 - BLADE HOUSING ASY.

1 02874000 1 BLADE HOUSING WLDMNT

2 02874601 1 DEFLECTOR WLDMNT

3 02875001 1 HINGE PIN

4 00002700 2 FLATWASHER

5 00026200 2 COTTER PIN

6 02875101 1 BACK-UP PLATE WLDMNT

7 02886900 4 BOLT

9 00001800 4 NUT

10 02811000 1 CYLINDER ASY.

11 02276700 2 PIN, F/ CYL.

12 37107B13 4 HAIR PIN CLIP

13 02959086 3 RUBBER FLAP DEFLECTOR

14 02959087 3 CLAMP BAR FLAP DEFLECTOR

15 02961677 11 BOLT

16 00023100 1 BOLT

17 00059700 2 FLAT SOCKET BOLT

19 00015800 14 NUT

20 02959089 1 COVER HOUSING WLDMNT

21 00011100 3 FLATWASHER

A-BOOM (04-04) SN 04837 - UP Rev 12-08

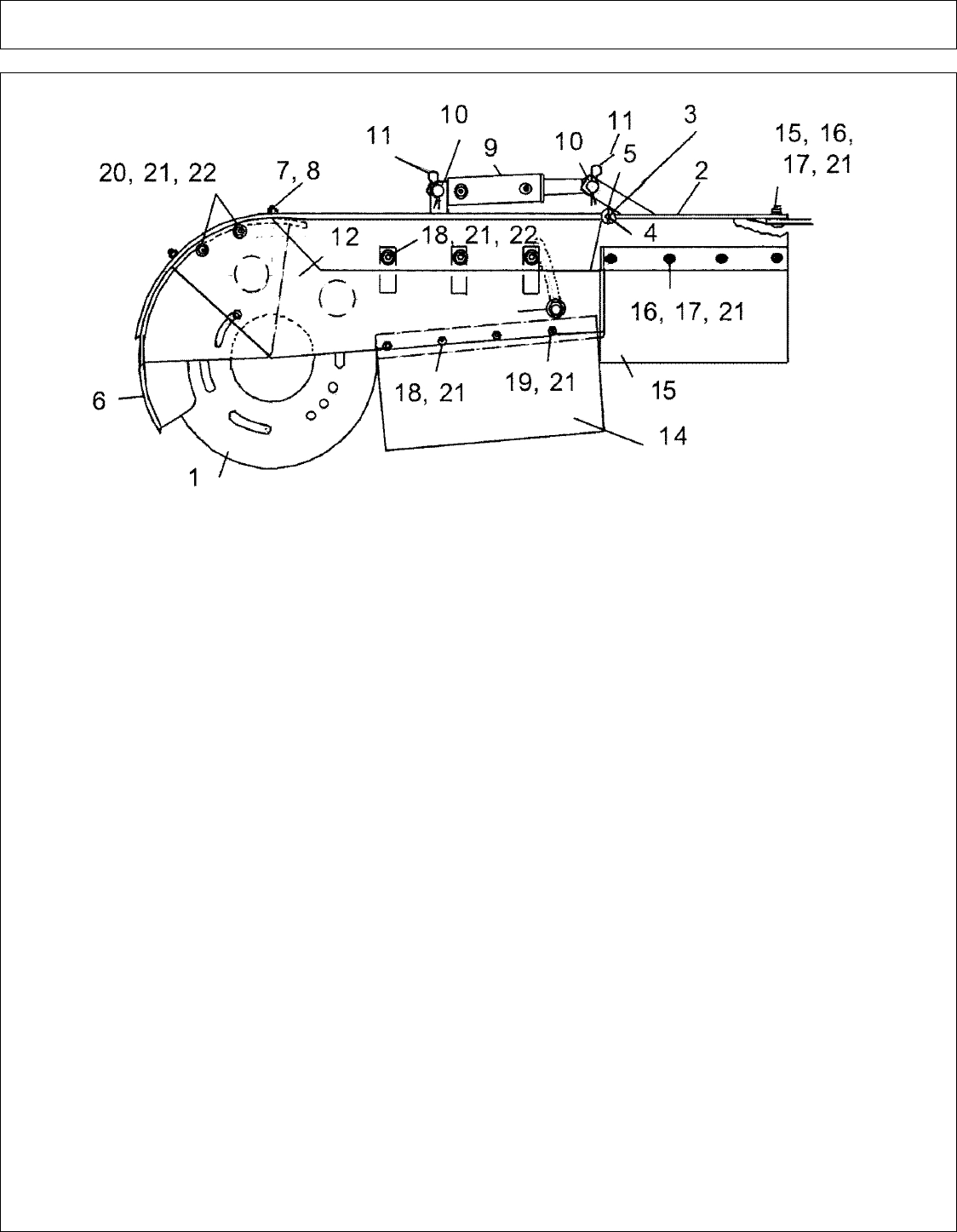

DITCHER - HOUSING ASY (REV ROT) - PN 02898600

ITEM PART NO. QTY. DESCRIPTION

02898600 - DITCHER DECK ASY, REVERSE ROTATION

1 02899000 1 BLADE HSG WLDMNT, REVERSE ROTATION

2 02874601 1 DEFLECTOR WLDMNT

3 02875001 1 HINGE PIN, DEFLECTOR

4 00002700 2 FLATWASHER

5 00026200 2 COTTER PIN

6 02898801 1 BACK-UP PLATE WLDMNT

7 02886900 5 CARRIAGE BOLT

8 00001800 5 LOCKNUT

9 02811000 - CYLINDER ASY. DEFLECTOR

10 02276700 - PIN, CYLINDER

11 37107B13 - CLIP, HAIR PIN

12 02959076 1 FRONT COVER WLDMNT

14 02959079 1 RUBBER FLAP

15 02959086 3 RUBBER FLAP, 10 WIDE X 17LG.

16 02959087 3 CLAMP-BAR FLAP, DEFLECTOR

17 02961677 11 CARRIAGE BOLT

18 00023100 7 BOLT

19 00010600 1 BOLT

20 00059700 2 BOLT, FLAT SOCKET HEAD

21 00015800 20 LOCKNUT

22 00011100 5 FLATWASHER

23 02880900 1 BOLT

24 00002701 1 FLATWASHER

25 00037200 1 LOCKNUT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - HYD SCHEMATIC W-PARTS

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - HYD SCHEMATIC W-PARTS

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02827700 1 FLANGE KIT

2 02960953 1 TUBE, FRAME TO RETURN FILTER

3 02960809 2 ADAPTER, STRAIGHT

4 02962214 1 ADAPTER, ELBOW 90 DEG.

5 02961004 1 RETURN TUBE STRAIGHT ADAPTER

6 02961825 2 ADAPTER, ELBOW 45 DEG.

7 02411000 2 HOSE BIB

8 02047200 1 ADAPTER, ELBOW 90 DEG.

10 02960807 3 ADAPTER, STRAIGHT

12 00751457 1 ELBOW, 90 DEG.

13 02825900 1 ADAPTER, ELBOW 90 DEG.

14 02961000 1 FILTER ASY, RETURN, IN TANK

15 02961001 1 FILTER ELEMENT

16 63042700 2 ADAPTER, STRAIGHT

17 02960983 1 TOP FOUR LINKAGE HYD TUBE 22

02962249 1 ADAPTER, HYD, ELBOW

18 02823100 8 ADAPTER, HYD, ELBOW

19 02905100 1 HOSE #4 X 114 " LONG

20 02960018 2 ADAPTER, ELBOW

21 02026200 2 HOSE CLAMP,

22 02905000 1 HOSE #4 X 80" LONG

23 02961054 2 HOSE #20 X 52" LONG

24 02961003 1 ADAPTER, STRAIGHT

25 02905300 1 HOSE #4 X 200" LONG

26 02958920 2 ADAPTER, ELBOW 90 DEG.

27 02960984 1 TYPE FOUR LINKAGE HYD TUBE 20 & 23 FT.

02960982 1 TYPE FOUR LINKAGE HYD TUBE 28 FT

28 02889300 2 ADAPTER, ELBOW

29 02512800 1 HOSE #24 X 84" LONG

30 02961094 1 HOSE #20 X 70" LONG

31 02513000 1 HOSE #8 X 108" LONG

32 02906100 1 HOSE #8 X 32" LONG

33 02960986 1 LINE, RETURN, 90 DEG

34 02961054 2 HOSE #20 X 52" LONG

35 02963249 2 PIPE,FOOT GUARD FRONT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - MOTOR ASY (NEW STYLE) - PN 02978110

ITEM PART NO. QTY. DESCRIPTION

1 02978110 1 MOTOR ASY. HYD GEAR 15.5 CUIN/REV

2 02958920 2 ADAPTER, HYD ELBOW 90 DEG.

3 02978111 2 ADAPTER, HYD STRAIGHT

4 02880900 - BOLT

5 00003901 - LOCKWASHER

6 00037200 - LOCKNUT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - MOTOR ASY (OLD STYLE) - PN 02870100

ITEM PART NO. QTY. DESCRIPTION

1 02870100 1 MOTOR ASY.

3 02958920 2 ADAPTER, HYD ELBOW 90 DEG.

4 02880900 - BOLT

5 00003901 - LOCKWASHER

6 00037200 - LOCKNUT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - MOTOR PARTS (NEW STYLE) - PN 02978110

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - MOTOR PARTS (NEW STYLE) - PN 02978110

Continued...

ITEM PART NO. QTY. DESCRIPTION

02978110 - MOTOR HYD GEAR 15.5 CUIN/REV

1 02978358 1 BODY,MOTOR

2 02978359 1 FLANGE

3 02978360 1 GEAR, DRIVE

4 02978361 1 GEAR, IDLER

5 02978362 1 PLATE, PRESSURE (TOP)

6 02978363 1 PLATE, PRESSURE (BOTTOM)

7 * 4 SEALING STRIP (IN ITEM 23)

8 * 4 BACK-UP RING (IN ITEM 23)

10 * 1 O-RING, (IN ITEM 23)

11 * 1 SHAFT SEAL (IN ITEM 24)

12 * 1 SNAP RING (IN ITEM 24)

13 02978364 2 RETAINER -CHECK VALVE

14 02978365 2 BALL 1/2" DIA

15 02978366 2 BALL 1/4" DIA

16 02976387 8 BOLT

17 02978371 5 WASHER

18 02978367 1 PLUG

19 * 1 O-RING, (IN ITEM 23)

20 02978368 2 DOWEL PIN

21 NFS 1 NAME PLATE (LISTED AS REF ONLY)

22 * 2 DRIVE SCREW (SEE SEAL KIT ITEM 23)

23 02978370 1 SEAL KIT, SERVICE SOFT GOODS

24 02978369 1 SHAFT SEAL KIT

25 02986425 1 BALL BEARING

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - MOTOR PARTS (OLD STYLE) - PN 02870100

ITEM PART NO. QTY. DESCRIPTION

02870100 - MOTOR ASY, HYD.

1 02864700 1 RETAINING RING

2 02864800 1 SPACER

3 02864900 1 BALL BEARING

4 02865000 1 SEAL RETAINER

5 02865100 1 O-RING

6 02865200 1 LIP SEAL

7 02865300 1 DRIVE SHAFT

8 02865400 1 RETAINING RING

9 02865500 1 COVER,SHAFT END

10 02865600 1 PLUG

11 02896200 2 CHECK ASY. & SET SCREW

12 02865800 2 SHAFT SEAL

13 02865900 2 PIN, SPIRAL

14 02866000 4 BEARING

15 02866100 12 POCKET SEAL

16 02866200 2 THRUST PLATE

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - MOTOR PARTS (OLD STYLE) - PN 02870100

Continued...

ITEM PART NO. QTY. DESCRIPTION

17 02866300 2 GASKET SEAL

19 02866500 4 PIN-DOWEL

20 02866600 1 MATCHED GEAR SET

21 02866700 1 PORT END COVER

22 00001400 8 FLATWASHER

23 02866800 8 BOLT

24 02926900 - SEAL KIT - MOTOR 02870100

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - SPINDLE ASY - PN 02872300

ITEM PART NO. QTY. DESCRIPTION

02872300 - SPINDLE ASY. COMPLETE (USED OCT. 2001 & DOWN)

1 02883700 1 SPINDLE HSG W/BRG CUP & ZERK

2 02708100 2 BEARING CUP (USE ASY. P/N 02778200 CUP & CONE)

3 02707700 2 BEARING CONE (USE ASY. P/N 02778200 CUP & CONE)

4 02707600 3 SEAL

5 02872701 1 SPINDLE, W/ CAPTIVE KEYWAY

6 02873200 1 SPACER

7 02870900 2 NUT

8 00003500 1 GREASE FITTING, STRAIGHT

9 02873301 1 COUPLING HALF SPINDLE

10 02959017 1 KEY, SPINDLE DITCHER

11 02873500 1 COUPLING HALF, MOTOR

12 02873800 1 CHAIN COUPLING

13 02959014 1 SETSCREW

14 02959018 1 GREASE RELIEF FITTING 1-5LBS

A-BOOM (04-04) SN 04837 - UP Rev 12-08

DITCHER - SPINDLE ASY - PN 02973336

ITEM PART NO. QTY. DESCRIPTION

02973336 - SPINDLE ASY. COMPLETE (USED NOV. 2001 & UP)

1 02872400 1 SPINDLE HSG WLD`MT

2 02708100 2 BEARING CUP (USE ASY. P/N 02778200 CUP & CONE)

3 02707700 2 BEARING CONE (USE ASY. P/N 02778200 CUP & CONE)

4 02707600 3 SEAL

5 02872701 1 SPINDLE, W/ CAPTIVE KEYWAY

6 02873200 1 SPACER

7 02870900 2 NUT

8 00003500 1 GREASE FITTING, STRAIGHT

9 02873301 1 COUPLING HALF SPINDLE

10 02959017 1 KEY, SPINDLE DITCHER

11 02984159 1 SPROCKET WLD`MT

12 02873800 1 CHAIN COUPLING

13 02959014 1 SETSCREW

14 02959018 1 GREASE RELIEF FITTING 1-5LBS

A-BOOM (04-04) SN 04837 - UP Rev 12-08

FILTER ASY - PN 02961000

ITEM PART NO. QTY. DESCRIPTION

02961000 - FILTER ASY. W/ ELEMENT

1 02961001 1 FILTER ELEMENT ONLY

2 02972678 1 SPRING FILTER CARTRIDGE

3 02973782 1 VALVE, FILTER BYPASS

4 02978349 1 FILTER COVER

5 02978354 1 SEAL KIT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

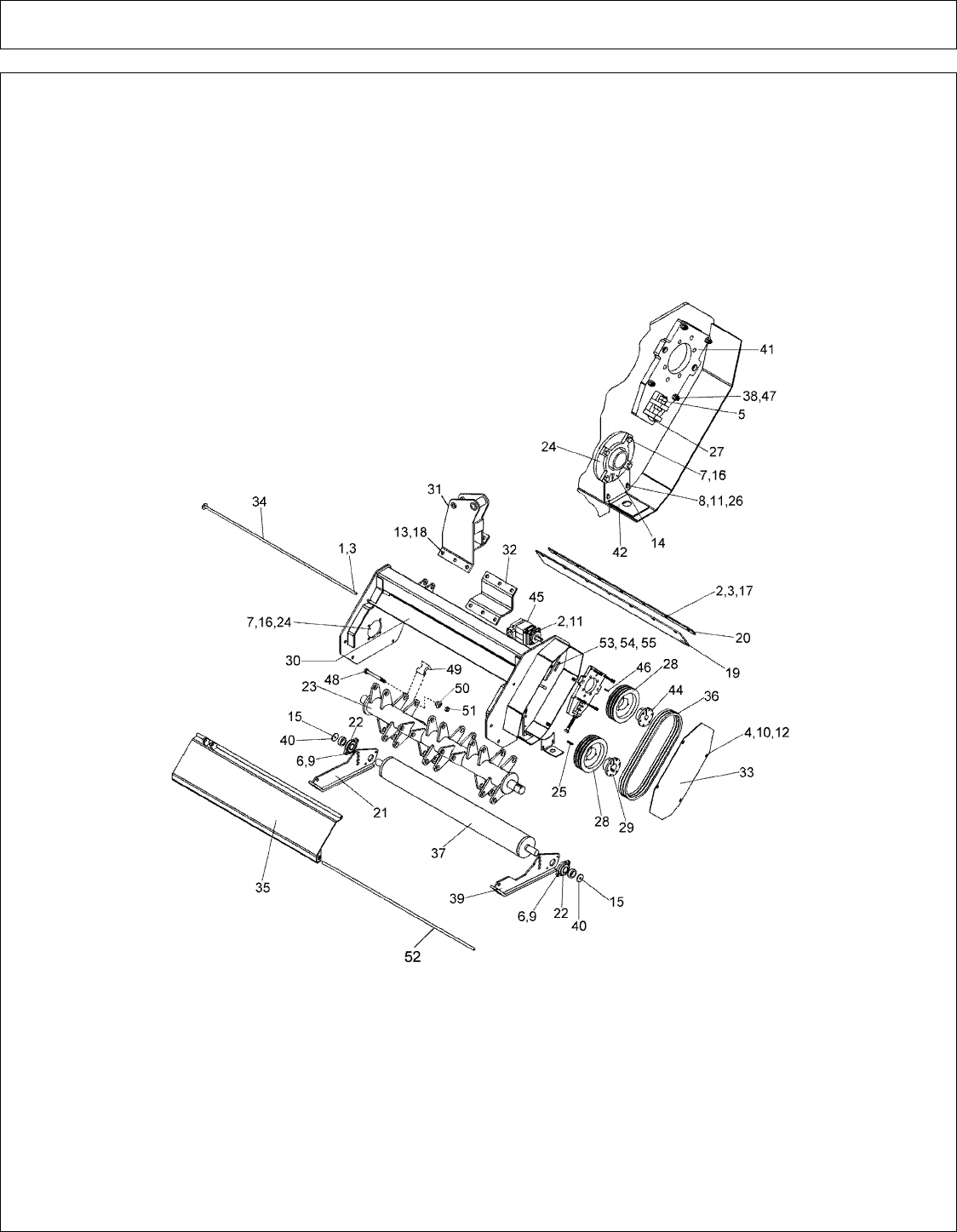

FLAIL AXE - HEAD ASY (SN 04250 & UP) (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

FLAIL AXE - HEAD ASY (SN 04250 & UP) (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 00026200 1 COTTER PIN

2 00001800 11 LOCKNUT

3 00002700 15 FLATWASHER

4 00011700 4 LOCKWASHER

5 00013500 3 JAM NUT

6 00015800 4 LOCKNUT

7 00019300 8 BOLT

8 00021400 2 BOLT

9 00023100 4 BOLT

10 00023500 6 FLATWASHER

11 02027400 4 BOLT

12 00035900 4 BOLT

13 00037200 4 LOCKNUT

14 00752176 1 GREASE FITTING, 90 DEG.

15 00753642 2 BOLT

16 02716500 8 LOCKNUT

17 02892000 7 BOLT

18 02918600 6 BOLT

19 02956712 1 RUBBER FLAP 6 X 48-1/2

20 02956714 1 CLAMP BAR

21 02956748 1 SKID SHOE WLDMNT

22 02957041 2 ROLLER BEARING AND FLANGE

02965509 2 LOCKING COLLAR

23 02957655M 1 ROTOR W/KNIVES (FLAIL AXE)

24 02958131A 2 FLANGE BEARING ASY 2" BORE

25 02958198 1 KEY

26 00750940 2 LOCKNUT

27 03200925 1 CARRIAGE BOLT

28 02967325 1 PULLEY

29 02967328 1 QD HUB BUSHING

30 02970301 1 FLAIL AXE HEAD WLDMNT

31 02970302 1 HITCH POST WLDMNT,FLAIL AXE

32 02970324 1 HITCH POST CLAMP PLATE

33 02970325 1 PLATE,COVER,BELT & PULLEY

34 02970326 1 ROD,HINGE,F/A DOOR

35 02970465 1 DOOR WLDMNT, FLAIL AXE

36 02970539 3 V-BELT

37 02970540 1 ROLLER WLDMNT

38 02970583 4 BOLT, SOCKET HEAD

39 02970585 1 SKID SHOE WLDMNT

40 02970586 2 WASHER

A-BOOM (04-04) SN 04837 - UP Rev 12-08

FLAIL AXE - HEAD ASY (SN 04250 & UP) (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

FLAIL AXE - HEAD ASY (SN 04250 & UP) (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

41 02973256 1 MOTOR MOUNT WLDMNT W/O STUDS

42 02970709 1 PLATE,INSIDE PLATE

44 02970537 1 QD HUB, W/KEY WAY

45 02961678 1 MOTOR, HYD. CAST IRON,FLAIL HD

46 02962207 1 KEY

47 23504500 8 JAMNUT

48 02956949 16 HANGER BOLT

49 02958540 16 BLADE KIT, FLAIL AXE

50 02956943 32 FLAIL HANGER BUSHING

51 02980976 16 LOCKNUT

52 02971725 1 ROD WLDMNT, FLAIL AXE DOOR

53 02675800 2 BOLT

54 00001400 2 FLATWASHER

55 00010300 2 LOCKWASHER

A-BOOM (04-04) SN 04837 - UP Rev 12-08

FLAIL AXE - MOTOR ASY (SN FA-04250 & UP) - PN 02963893

ITEM PART NO. QTY. DESCRIPTION

02963893 - MOTOR ASY, W/ FITTINGS

1 02961678 1 MOTOR ASY, W/O FITTINGS (CAST IRON)

2 02961280 2 ADAPTER, ELBOW

3 00749103 2 SPLIT FLANGE KIT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

FLAIL AXE - MOTOR PARTS (SN FA-04250 & UP) - PN 02961678

ITEM PART NO. QTY. DESCRIPTION

02961678 - MOTOR ASY, CAST IRON MOTOR

1 02962210 1 SNAP RING

2 * 1 O-RING (IN ITEM 20 & 21)

3 02962209 1 RETAINER SEAL

4 * 2 SEAL (IN ITEM 20 & 21)

5 02962203 1 MOUNTING FLANGE

6 02961940 1 PLUG, HEX SOCKET HEAD

7 02961931 2 CHECK ASY.

8 * 4 SEAL END (IN ITEM 20 & 21)

9 * 2 THRUST PLATE (IN ITEM 21 ONLY)

10 02962206 1 GEAR SET

11 * 2 SQUARE SEAL (IN ITEM 20 & 21)

12 02961924 4 PINS-DOWEL

13 02962205 1 GEAR HOUSING

14 02962204 1 PORTING FLANGE

A-BOOM (04-04) SN 04837 - UP Rev 12-08

FLAIL AXE - MOTOR PARTS (SN FA-04250 & UP) - PN 02961678

Continued...

ITEM PART NO. QTY. DESCRIPTION

15 02961917 4 WASHER

16 02962208 4 BOLT

17 * 4 SIDE SEAL, NOT SHOWN (IN ITEM 20 & 21)

18 02966771 1 SLEEVE, HOOK PIVOT

19 02962207 1 KEY

20 02962541 1 SEAL KIT, MINOR (ITEMS 2,4,8,11,17)

21 02962211 1 SEAL KIT, MAJOR (ITEMS 2,4,8,9,11,17)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

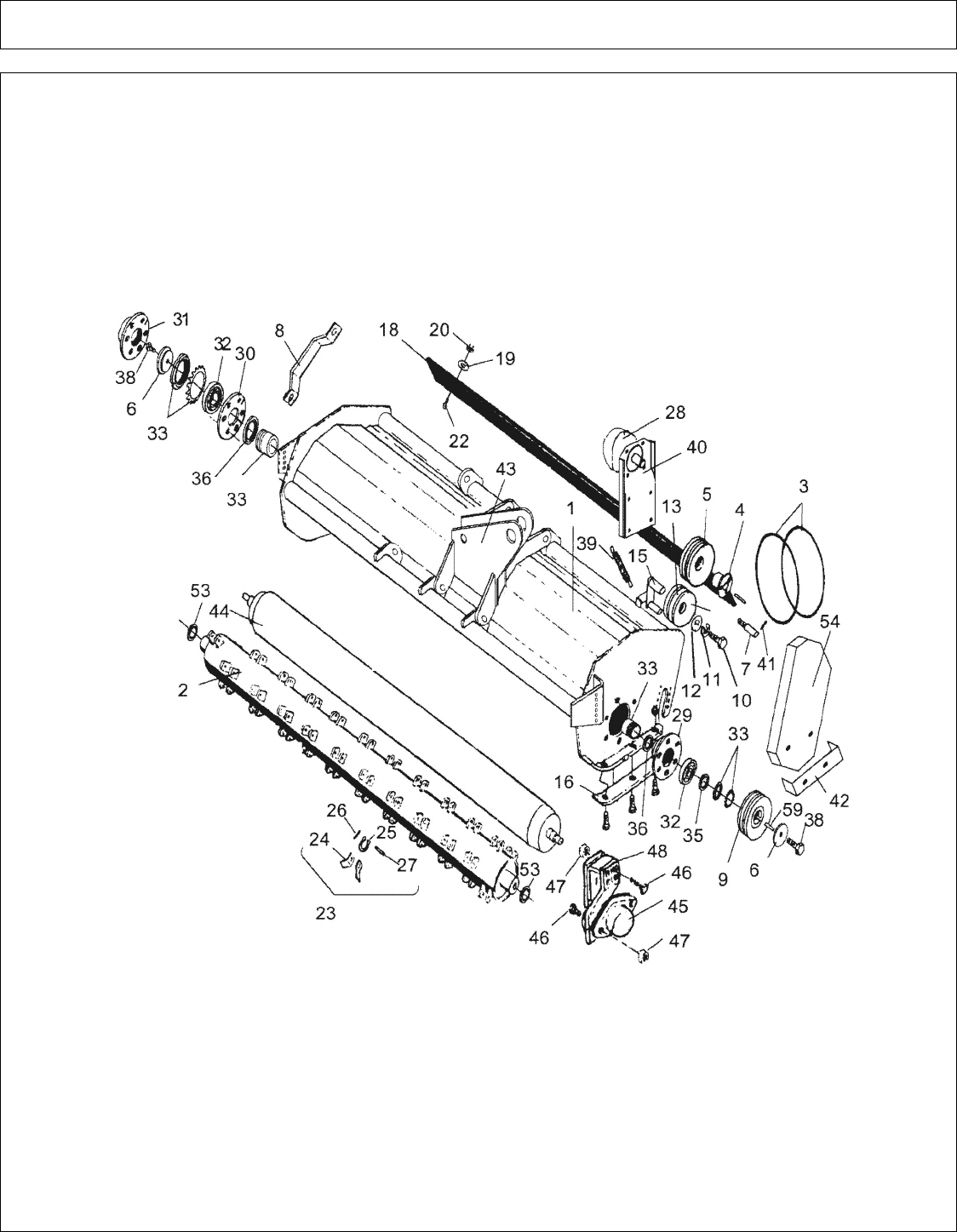

HVY DTY FLAIL - 48 IN AND 60 IN HEAD ASY (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HVY DTY FLAIL - 48 IN AND 60 IN HEAD ASY (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 107458 1 CUTTER HSG WLDMNT, 48 IN. HD FLAIL

107457 1 CUTTER HSG WLDMNT, 60 IN. HD FLAIL

2 105532 1 CUTTERSHAFT WLDMNT, 48 IN. HD FLAIL

105530 1 CUTTERSHAFT WLDMNT,CTRSHAFT 62CC

3 000533 2 BELT

4 000672 1 HUB , Q.D.

5 000673 1 PULLEY

6 02957177 2 WASHER, SPECIAL

7 103041 1 PIN, IDLER PIVOT

8 103064 1 FENDER

9 02960512 1 CUTTERSHAFT PULLEY, HD FLAIL

02959282 1 KEY

10 000001 1 BOLT

11 00023500 1 FLATWASHER

12 00011700 1 LOCKWASHER

13 101778 1 SPACER, IDLER BEARING

14 103105 2 PULLEY, IDLER

15 700949 1 LH IDLER ARM W/GREASE FITTING

16 700886 2 SHOE, WEAR PLATE & BOLTS

00001800 6 LOCKNUT

02886900 2 CRARRIAGE BOLT

000520 6 LOCKWASHER

000700 4 PLOW BOLT

103051 2 SHOE, WEAR PLATE

700194 1 TRASH DEFLECTOR PKG, REAR 48"

701650 1 TRASH DEFLECTOR PKG, REAR 62"

18 100101 1 TRASH DEFLECTOR ONLY, REAR 48"

104682 1 TRASH DEFLECTOR ONLY, REAR 62"

19 00024100 7 FLATWASHER

20 02959924 7 LOCKNUT

22 10058000 7 BOLT

23 701431 1 KNIFE PKG, 48"

700616 1 KNIFE PKG, 60"

24 100759 60 KNIFE, COURSE CUT

25 100761 30 KNIFE RING

26 000026 32 COTTER PIN

27 102670 30 PIN, HARDENED

28 02963893 1 MOTOR ASY, W/ FITTINGS

00749130 4 BOLT

63000500 4 WASHER

29 02957161 1 BEARING HOUSING, DRIVE SIDE

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HVY DTY FLAIL - 48 IN AND 60 IN HEAD ASY (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HVY DTY FLAIL - 48 IN AND 60 IN HEAD ASY (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

30 02957157 1 BEARING HOUSING, NON DRIVE SIDE

02957042 6 BOLT

00015800 6 LOCKNUT

31 02957166 1 HOUSING COVER

00753642 6 BOLT

32 02957167 2 BEARING

33 02957168 2 BEARING ADAPTER

00003500 4 GREASE FITTING

35 02957169 1 SEAL

36 02957173 2 SEAL

38 00603300 2 BOLT

39 02961194 1 TURNBUCKLE

40 02966254 1 MOTOR BRACKET WLDMNT

02957042 4 BOLT

00015800 4 LOCKNUT

41 00000400 1 COTTER PIN

42 02960550 1 BUMPER GUARD

02030400 4 BOLT

02957941 4 NUT

43 02958666 1 HITCH POST ASY.

02958424 1 BUSHING

02931300 4 BOLT

00037200 4 LOCKNUT

44 107810 1 ROLLER WLDMNT, 48" W/HEX SHAFT

107784 1 ROLLER WLDMNT, 62" W/HEX SHAFT

45 703976 2 BEARING ASY, ROLLER W/HEX BORE

002486 2 BEARING ONLY, ROLLER W/HEX BORE

002039 2 GREASE FITTING

002037 2 SEAL, F/ ROLLER BRG

46 000516 4 CARRIAGE BOLT

47 00001800 4 LOCKNUT

48 107182 1 ROLLER BRACKET WLDMNT, LH MNTG

107380 1 ROLLER BRACKET WLDMNT, RH MNTG

53 02957348 2 SPACER, BEARING

54 02960545 1 BELT GUARD WLDMNT

00999314 2 BOLT

00019700 2 FLATWASHER

00022200 2 LOCKWASHER

58 02959282 1 KEY

59 100768 1 KEY

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HVY DTY FLAIL - GAUGE WHEELS

ITEM PART NO. QTY. DESCRIPTION

02959639 - CASTER WHEEL KIT (ITEMS 15 THRU 19)

1 02035400 2 BOLT

2 00012101 2 LOCKWASHER

3 02035800 2 WOOD WASHER

4 02035600 4 SPACER

5 02957101 1 CASTER ARM WLDMNT, RH

02957100 1 CASTER ARM WLDMNT, LH

6 00749943 2 CASTER FORK WLDMNT

7 00001200 2 NUT

8 00001300 2 LOCKWASHER

9 02959181 4 SPACER

10 02605901 2 CASTER WHEEL

11 02036301 2 BUSHING

12 02036400 2 BOLT

13 02031000 4 CASTER BUSHING

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HVY DTY FLAIL - GAUGE WHEELS

Continued...

ITEM PART NO. QTY. DESCRIPTION

14 00752670 4 GREASE FITTING

15 00008300 6 BOLT

16 00010300 6 LOCKWASHER

17 00010400 6 NUT

18 02957071 1 CASTER WHEEL ASY, RH (ITEM 1 THRU 14)

19 02957155 1 CASTER WHEEL ASY, LH (ITEM 1 THRU 14)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD CUTTER VALVE - PN 02957254

ITEM PART NO. QTY. DESCRIPTION

02957254 - CUTTER VALVE ASY, REVERSING (FLAIL ONLY)

1 02775200 1 WIRE HARNESS - SAFETY SWITCH

2 02775100 1 BOOT - SAFETY SWITCH

3 02956996 1 SAFETY SWITCH

4 02956995 1 DETENT KIT

5 02040600 1 CUTTER VALVE W/ SAFETY SWITCH

6 ---NFS---- - BOLT, 5/16" NC

7 00011700 3 LOCKWASHER 5/16"

8 00021800 3 NUT, 5/16 NC

9 02882100 1 CUTTER HANDLE ASY.

10 02042600 2 ADAPTER, ELBOW 90 DEG.

11 02937300 1 ADAPTER, ELBOW

12 02957228 1 ADAPTER, ELBOW

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD CUTTER VALVE - PN 02957254

Continued...

ITEM PART NO. QTY. DESCRIPTION

13 ---NFS---- - VALVE BODY

14 ---NFS---- - SPOOL

15 02657400 - QUAD RING & O RING KIT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD CUTTER VALVE ASY - PN 02961090

ITEM PART NO. QTY. DESCRIPTION

02961090 - CUTTER VALVE ASY, W/ FITTINGS

1 02960565 1 CUTER VALVE ASY, W/O FITTINGS

2 02960807 1 ADAPTER, STRAIGHT

3 02961003 1 ADAPTER, STRAIGHT

4 02958203 1 WIRE HARNESS

5 02964028 1 SWITCH, PUSH & PULL

6 02964063 1 KNOB ONLY

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD CUTTER VALVE ASY INSTALLATION - PN 02960565

ITEM PART NO. QTY. DESCRIPTION

02960565 - MOTOR CONTROL VALVE ASY, W/O FITTINGS

1 02965223 1 SOLENOID, COMPLETE, (S/N 02721 & UP)

02961265 1 SOLENOID COMPLETE, (S/N 02720 & DOWN)

2 02965222 1 SOLENOID COIL, (S/N 02721 & UP)

02961263 1 SOLENOID COIL, (S/N 02720 & DOWN)

3 02965221 1 SOLENOID VALVE W/ SEALS (S/N 02721 & UP)

02961264 1 SOLENOID VALVE W/ SEALS (S/N 02720 & DOWN)

4 02961271 1 PILOT PISTON W/ SEALS

5 02961261 1 RELIEF VALVE

02961262 1 RELIEF VALVE SEAL KIT

6 02961267 1 LOGIC VALVE

02961268 1 LOGIC VALVE SEAL KIT

7 02961269 1 CHECK VALVE

02961270 1 CHECK VALVE SEAL KIT

8 02961266 1 SOLENOIN VALVE SEAL KIT (ALL S/N)

9 02972768 1 PLUG

10 02979442 3 RUBBER COIL WASHER

A-BOOM (04-04) SN 04837 - UP Rev 12-08

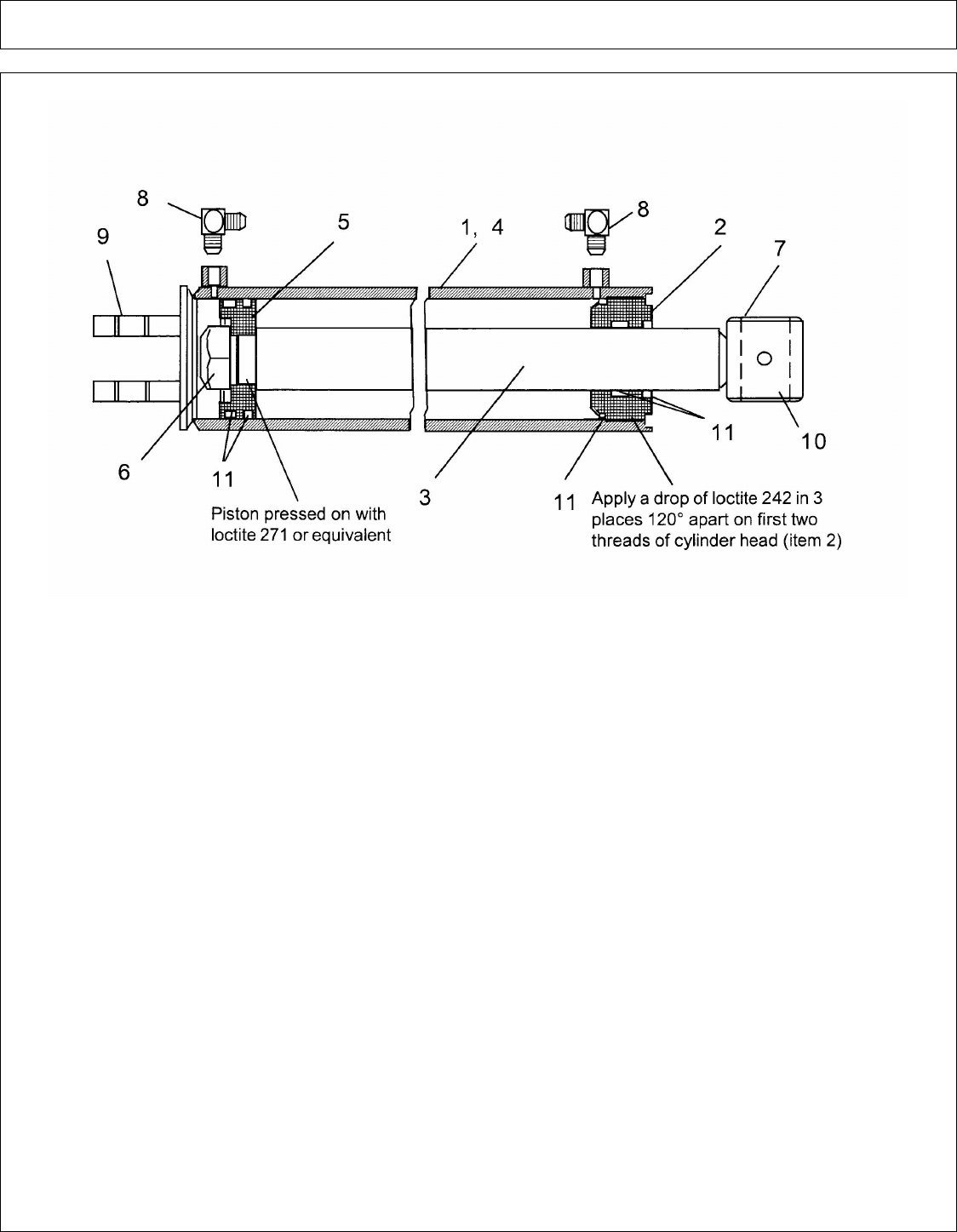

HYD CYL ASY - DIPPER (17 FT) - PN 02967017

ITEM PART NO. QTY. DESCRIPTION

02967017 - CYLINDER ASY, W/ FITTINGS

1 02961478B 1 CYLINDER ASY, W/O FITTINGS

2 02975450 1 CYLINDER HEAD, GLAND

3 02975907 1 ROD WLDMNT

4 02975906 1 BARREL WLDMNT

5 ---------------- 1 PISTON (NOT AVAILABLE)

6 5JRC16140 1 LOCKNUT

7 02975873 1 SETSCREW

8 02960018 2 ADAPTER, ELBOW

9 02984729 2 BUSHING, TEFLON IMPREGNATED 1/2" LG

10 02984729 2 BUSHING, TEFLON IMPREGNATED, 1/2" LG

11 02975530 1 SEAL KIT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

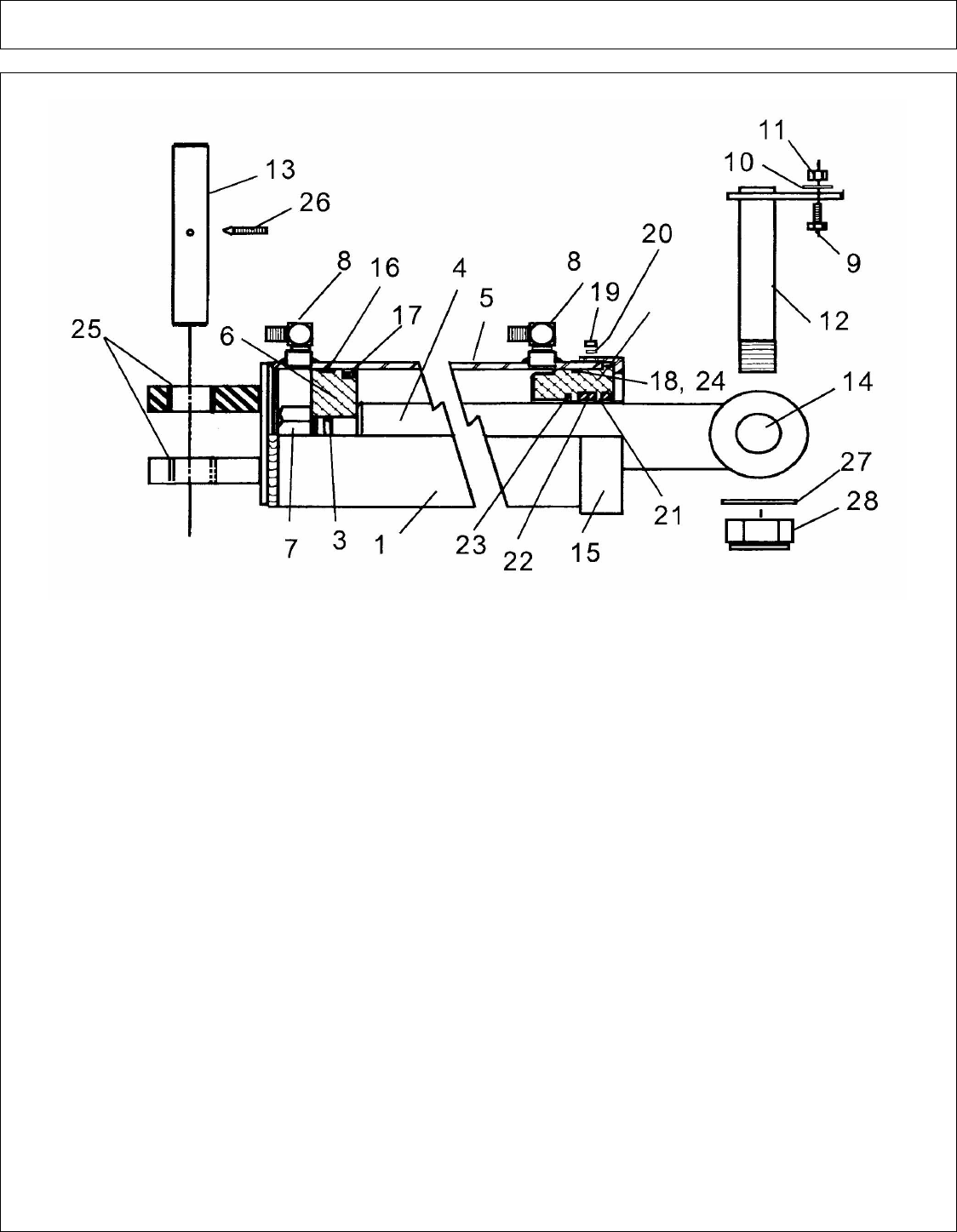

HYD CYL ASY - DIPPER (20-23 FT) - PN 02961780T

ITEM PART NO. QTY. DESCRIPTION

02961780T - CYLINDER ASY, W/FITTINGS (ITEM 1,8,14,25 & 26)

1 02961482A 1 CYLINDER ASY, W/O FITTINGS (ITEM 2,3,4,5,6,7,8,14,19,20,25,2 & 29)

2 ------------ 1 CYLINDER HEAD, GLAND (NOT AVAILABLE)

3 * 1 O-RING

4 02967042 1 ROD WLDMNT

5 ----------- 1 BARREL WLDMNT (NOT AVAILABLE)

6 02962131 1 PISTON

7 02252400 1 LOCKNUT

8 02960018 2 ELBOW

9 00007000 - BOLT

10 00011100 - FLATWASHER

11 00015800 - NUT

12 02969980 - PIN

13 02967013 - PIN

14 02965548 2 BUSHING

15 02962129 1 COLLAR

16 * 1 WEAR RING (IN ITEM 29)

17 * 1 PISTON SEAL (IN ITEM 29)

18 * 1 O-RING (IN ITEM 29)

19 02962169 1 SETSCREW

20 02962170 1 NYLON INSERT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD CYL ASY - DIPPER (20-23 FT) - PN 02961780T

Continued...

ITEM PART NO. QTY. DESCRIPTION

21 * 1 ROD WIPER (IN ITEM 29)

22 * 1 ROD SEAL (IN ITEM 29)

23 * 1 BUFFER SEAL (IN ITEM 29)

24 * 1 BACK-UP RING (IN ITEM 29)

25 02965214 2 BUSHING

26 02967246 1 SETSCREW

27 00749946 1 WASHER

28 02030300 1 LOCKNUT

29 02962141 1 SEAL KIT (ITEM 3,16,17,18,21,22,23 & 24)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

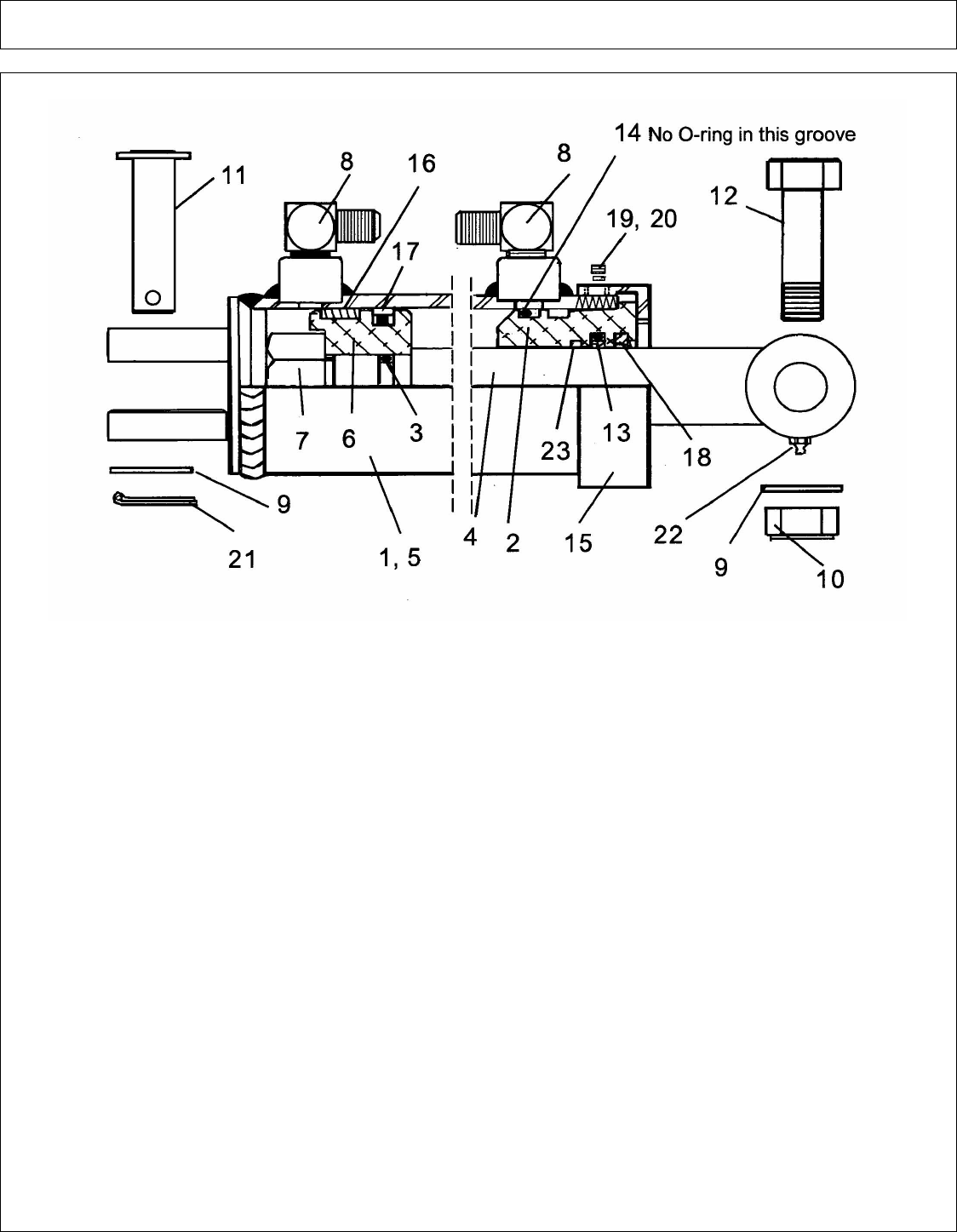

HYD CYL ASY - DIPPER (28 FT) - PN 02222000 (03-00 & DOWN)

ITEM PART NO. QTY. DESCRIPTION

02222000 - CYLINDER ASY, W/ FITTINGS (ITEM 1 THRU 24)

1 02222100A 1 CYLINDER ASY, W/O FITTINGS (ITEM 2 TO 7 & 13 TO 24) REPLACED W/ P/N 02222100A (04-00 & UP)

2 ------------ 1 CYLINDER HEAD, GLAND (NOT AVAILABLE)

3 * 1 O-RING, (IN ITEM 24)

4 02960573 1 ROD WLDMNT

5 02957426 1 BARREL WLDMNT

6 02957425 1 PISTON

7 02252400 1 LOCKNUT

8 02962249 2 ELBOW

9 00749946 - WASHER

10 02030300 - LOCKNUT

11 02960049 - PIN WLDMNT

12 02956972 - BOLT

13 * 1 ROD SEAL (IN ITEM 24)

14 * 1 GLAND STATIC SEAL (IN ITEM 24)

15 02962603 1 COLLAR

16 * 1 WEAR RING (IN ITEM 24)

17 * 1 PISTON SEAL, 2 PIECES (IN ITEM 24)

18 * 1 ROD WIPER (IN ITEM 24)

19 02962169 1 SETSCREW

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD CYL ASY - DIPPER (28 FT) - PN 02222000 (03-00 & DOWN)

Continued...

ITEM PART NO. QTY. DESCRIPTION

20 02962170 1 NYLON INSERT

21 00606000 1 COTTER PIN

22 00752670 1 GREASE FITTING

23 * 1 BUFFER SEAL, 2 PIECES (IN ITEM 24)

24 02975527 1 SEAL KIT (ITEM 3,13,14,16,17,18 & 23)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD CYL ASY - DIPPER (28 FT) - PN 02222000 (04-00 & UP)

ITEM PART NO. QTY. DESCRIPTION

02222000 - CYLINDER ASY, W/ FITTINGS

02222100A - CYLINDER ASY, W/O FITTINGS - REPLACED P/N 02222100 (03-00 & DOWN)

1 02976181 1 TUBE WLDMT 4.00 - 16.00 STROKE

2 02976182 1 CYLINDER HEAD 4 X 1.5 ROD W/

3 02975457 1 PISTON 4.00-1.25-S-W-PSP

4 02976180 1 ROD WLDMT 1.5 X 16.00 STROKE

00752670 1 GREASE FITTING 1/4-28 BOLT THD

5 02975453 1 LOCKNUT, 1-1/4" NF GRB

6 02975527 - SEAL KIT

7 02960049 1 PIN-WLDMT - DIPPER CYL

8 02962249 2 ADAPTER, HYD, ELBOW

9 00749946 2 WASHER

10 00606000 1 COTTER PIN

11 02030300 1 LOCKNUT

12 02956972 1 BOLT, 1" NC 9 GR8

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

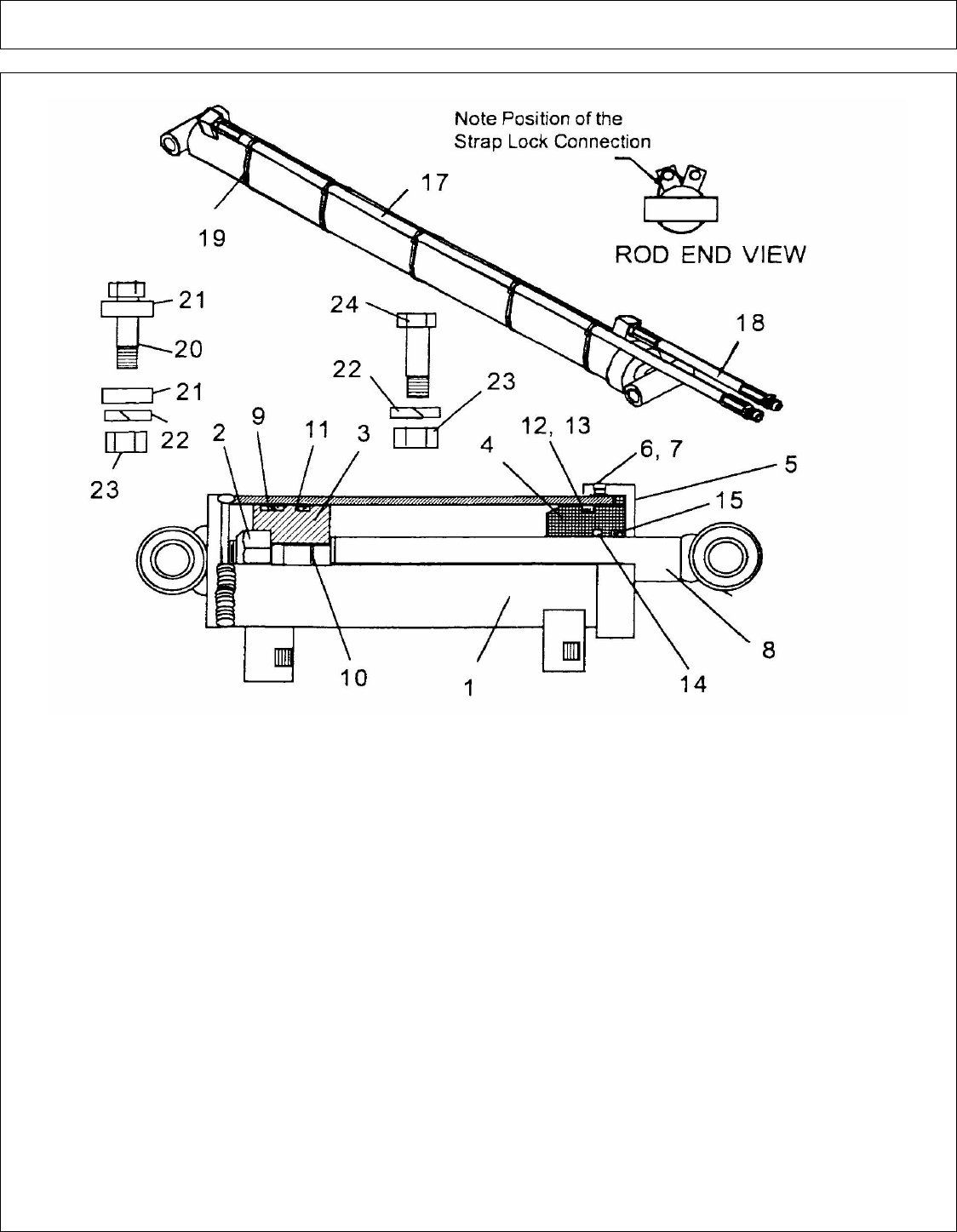

HYD CYL ASY - EXTENSION (28 FT) - PN 02961485C

ITEM PART NO. QTY. DESCRIPTION

02961485C - CYLINDER ASY, (ITEMS 1 THRU 16)

1 02965450 1 BARREL WELDMNT

2 02247100 1 LOCKNUT

3 -------------- 1 PISTON (NOT AVAILABLE)

4 -------------- 1 CYLINDER HEAD, GLAND (NOT AVAILABLE)

5 -------------- 1 COLLAR (NOT AVAILABLE)

6 02962169 1 SET SCREW

7 02962170 1 LOCKING INSERT

8 --------------- 1 ROD WLDMNT (NOT AVAILABLE)

9 * SEAL KIT 1 WEAR BAND (IN ITEM 16)

10 * SEAL KIT 1 O-RING (IN ITEM 16)

11 * SEAL KIT 1 PISTON SEAL (IN ITEM 16)

12 * SEAL KIT 1 O-RING (IN ITEM 16)

13 * SEAL KIT 1 BACK-UP RING (IN ITEM 16)

14 * SEAL KIT 2 BUFFER RING (IN ITEM 16)

15 * SEAL KIT 1 ROD WIPER (IN ITEM 16)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD CYL ASY - EXTENSION (28 FT) - PN 02961485C

Continued...

ITEM PART NO. QTY. DESCRIPTION

16 02962130 1 SEAL KIT (ITEMS 9 THRU 15)

17 02971727 1 HOSE, # 4 (LONG HOSE)

18 02971728 1 HOSE, # 4 (SHORT HOSE)

19 02753400 5 TIE STRAP

20 02769200 1 BOLT, (F/ BARREL END OF CYL ONLY)

21 02966574 2 SPACER, (F/ BARREL END OF CYL ONLY)

22 00003901 2 LOCKWASHER

23 00000200 2 LOCKNUT

24 02758400 1 BOLT, (F/ ROD END OF CYL ONLY)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD CYL ASY - LIFT (17 FT) - PN 02962297

ITEM PART NO. QTY. DESCRIPTION

02962297 - LIFT CYL.ASSY-17A/B

1 02962651A 1 CYLINDER,HYD 3

2 02960018 2 ADP HYD ELBOW 4MB-4MJ90

3 02959891 2 BSHG CONX 1-1/4X1 X 7/8

4 00776304 1 WDMT,CYLINDER ROD 2 X 27.25

5 00776302 1 HEAD,CYLINDER 3 X 1.75

6 ----------------- 1 PISTON (NOT AVAILABLE)

7 00776303 1 WDMT,CYLINDER TUBE

8 5JRC16140 1 LOCKNUT 1 -14 TLDT GC ZP

9 02975530 1 SEAL KIT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD CYL ASY - LIFT (20-23-28 FT) - PN 02961779

ITEM PART NO. QTY. DESCRIPTION

02961779 - CYLINDER ASYM W/ FITTINGS

1 02961479A 1 CYLINDER ASY, W/O FITTINGS

2 02960018 1 ADAPTER, ELBOW

3 02959891 1 BUSHING, CONNEX

4 02976195 1 BARREL WLDMNT

5 02975452 1 CYLINDER HEAD, GLAND

6 02975457 1 PISTON

7 02976196 1 ROD WLDMNT

8 02975453 1 LOCKNUT

9 02975527 1 SEAL KIT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

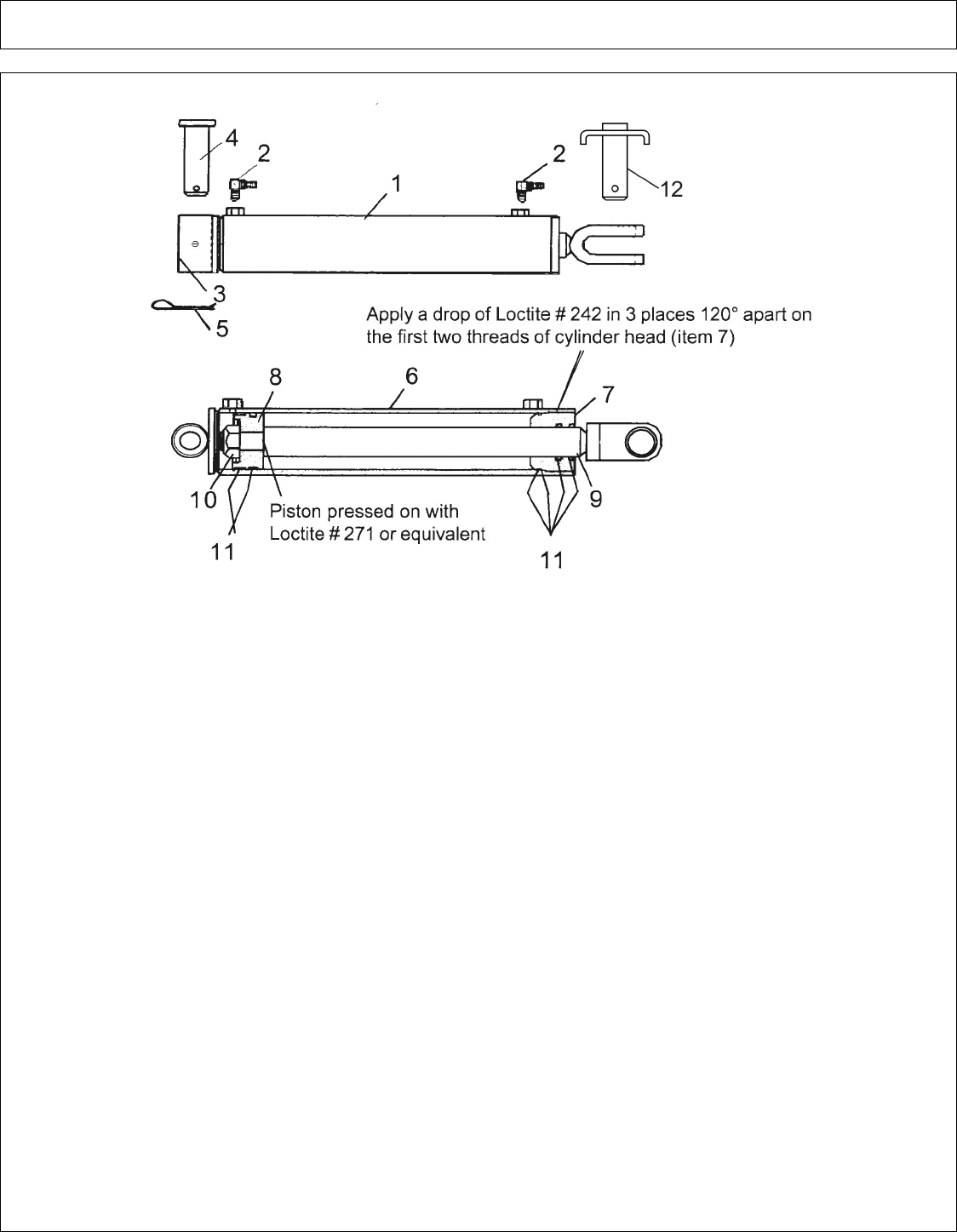

HYD CYL ASY - SWING (17-20-23-28 FT) - PN 02961778

ITEM PART NO. QTY. DESCRIPTION

02961778 - CYLINDER ASY, W/ FITTINGS

1 02961476B 1 CYLINDER ASY, W/O FITTINGS

2 02960018 2 ADAPTER, ELBOW

3 02965214 2 BEARING, TEFLON IMPREGNATED

4 02930100 1 PIN WLDMNT

5 00606000 1 COTTER PIN

6 02975619 1 BARREL WLDMNT

7 02975450 1 CYLINDER HEAD, GLAND

8 02975454 1 PISTON

9 02975620 1 ROD WLDMNT

10 5JRC16140 1 LOCKNUT

11 02975530 1 SEAL KIT

12 02966767 1 PIN WLDMT (ROD END SIDE)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

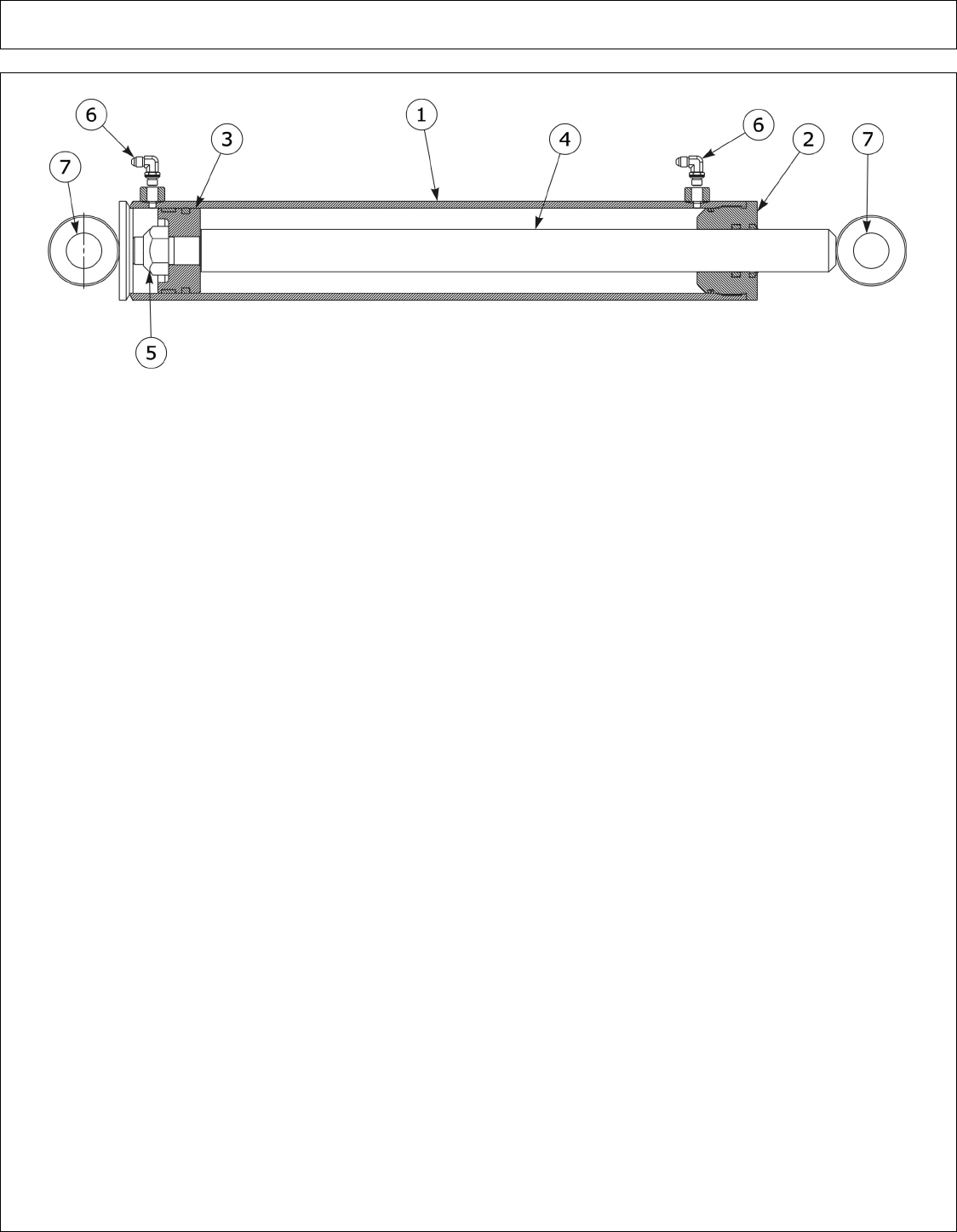

HYD CYL ASY - TILT (17-20-23 FT) - PN 02967016

ITEM PART NO. QTY. DESCRIPTION

02961475B 1 HYD CYLINDER 3.00 X 17.50 X1.5

1 02975869 1 TUBE WLDMT 3.00-17.50-W

2 02975450 1 HEAD,CYLINDER 3 X 1.50

3 02975454 1 PISTON 3.00-1.00-S-WR-PSP

4 02975870 1 ROD WLDMT 1.50-17.50-W

5 5JRC16140 1 LOCKNUT TLM 1 NF PL

6 02960018 2 ADP HYD ELBOW 4MB-4MJ90

7 02965548 4 BSHG TF-1-1/4OD X 1 ID X1

02975530 1 SEAL KIT

NOTE: 02961475B INCLUDES ITEMS 1, 2, 3, 4, 5, AND SEAL KIT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD CYL ASY - TILT (28 FT) - PN 02961787

ITEM PART NO. QTY. DESCRIPTION

02961484A 1 HYD CYL 3-1/2 BORE X 9STROKE

1 02976240 1 TUBE WLDMT 3.5-9.00-W

2 02975302 1 CYLINDER HEAD 3.50-1.50-THGD

3 02975305 1 PISTON 3.50-1.00-5WR PSP

4 02976239 1 ROD WLDMT 1.50-9.00-1.00

5 5JRC16140 1 LOCKNUT TLM 1 NF PL

6 00752670 2 FITTING,GREASE STRAIGHT 1/4-28

7 02960018 2 ADP HYD ELBOW 4MB-4MJ90

02975531 1 SEAL KIT

NOTE: 02961484A INCLUDES ITEMS 1, 2, 3, 4, 5, AND SEAL KIT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD PUMP ASY (FRONT SINGLE) - PN 02961827

ITEM PART NO. QTY. DESCRIPTION

02961827 - PUMP ASY, SINGLE PUMP W/ FITTINGS

1 02961474 1 PUMP ASY, W/O FITTINGS

2 02961825 1 ELBOW, 90 DEG.

3 02827700 1 FLANGE KIT

4 02411000 1 HOSE BIB

5 02026200 1 HOSE CLAMP

A-BOOM (04-04) SN 04837 - UP Rev 12-08

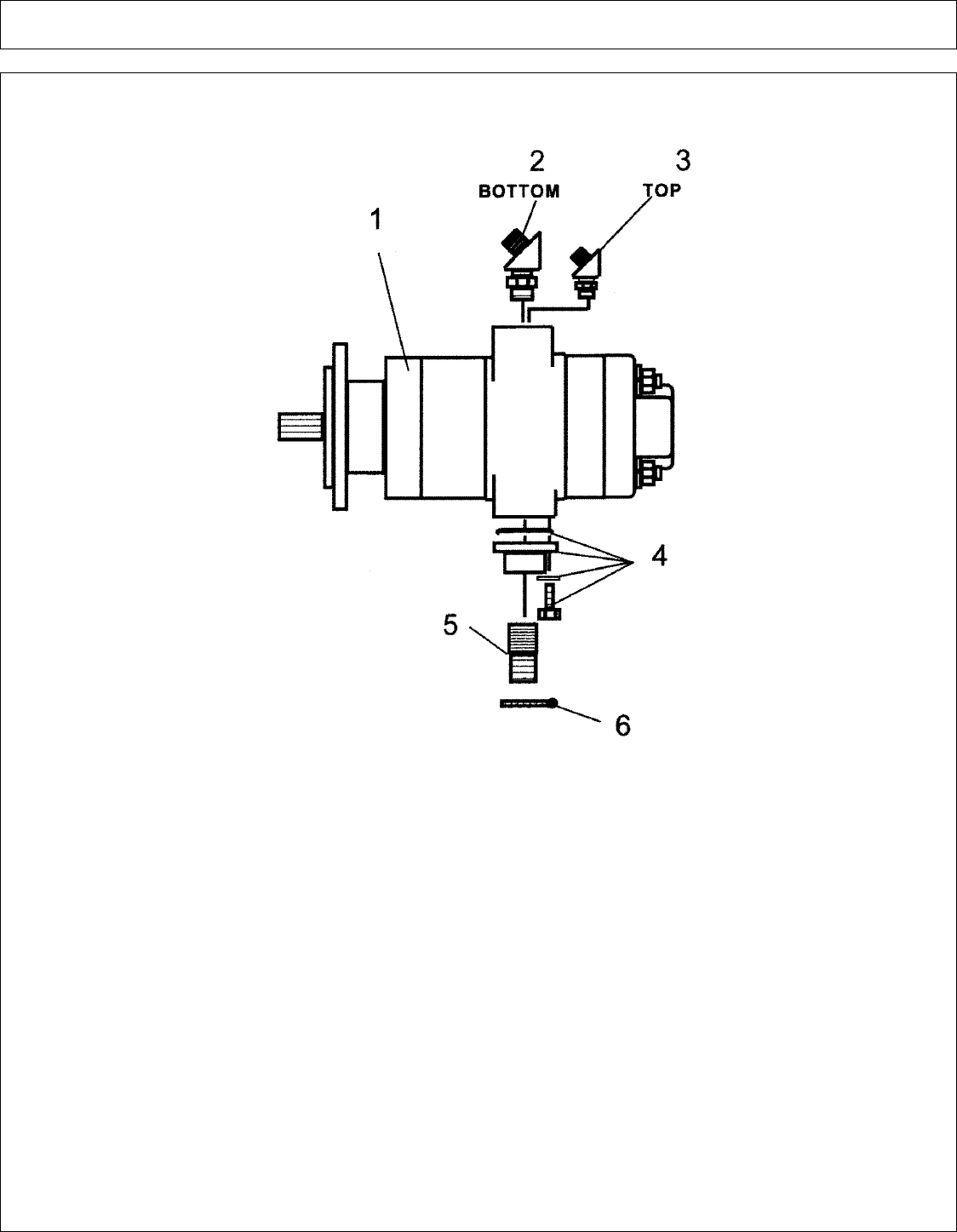

HYD PUMP ASY (FRONT TANDEM) - PN 02961826

ITEM PART NO. QTY. DESCRIPTION

02961826 - PUMP ASY, W/ FITTINGS TANDEM FRONT MOUNTED

1 02961735 1 PUMP ASY, W/O FITTINGS

2 02961825 1 ELBOW, 45 DEG.

3 02962214 1 ELBOW, 45 DEG.

4 02827700 1 FLANGE KIT

5 02411000 1 HOSE BIB

6 02026200 1 HOSE CLAMP

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD PUMP ASY (REAR SINGLE 540 RPM) - PN 02962096

ITEM PART NO. QTY. DESCRIPTION

02962096 - PUMP ASY W/ FITTING, SINGLE PUMP REAR 540 PTO MOUNTED

1 02964947 1 PUMP ASY, W/O FITTINGS

2 02961098 1 ELBOW, 90 DEG.

3 02827700 1 FLANGE KIT

4 02411000 1 HOSE BIB

5 02026200 1 HOSE CLAMP

6 02047200 1 ELBOW

A-BOOM (04-04) SN 04837 - UP Rev 12-08

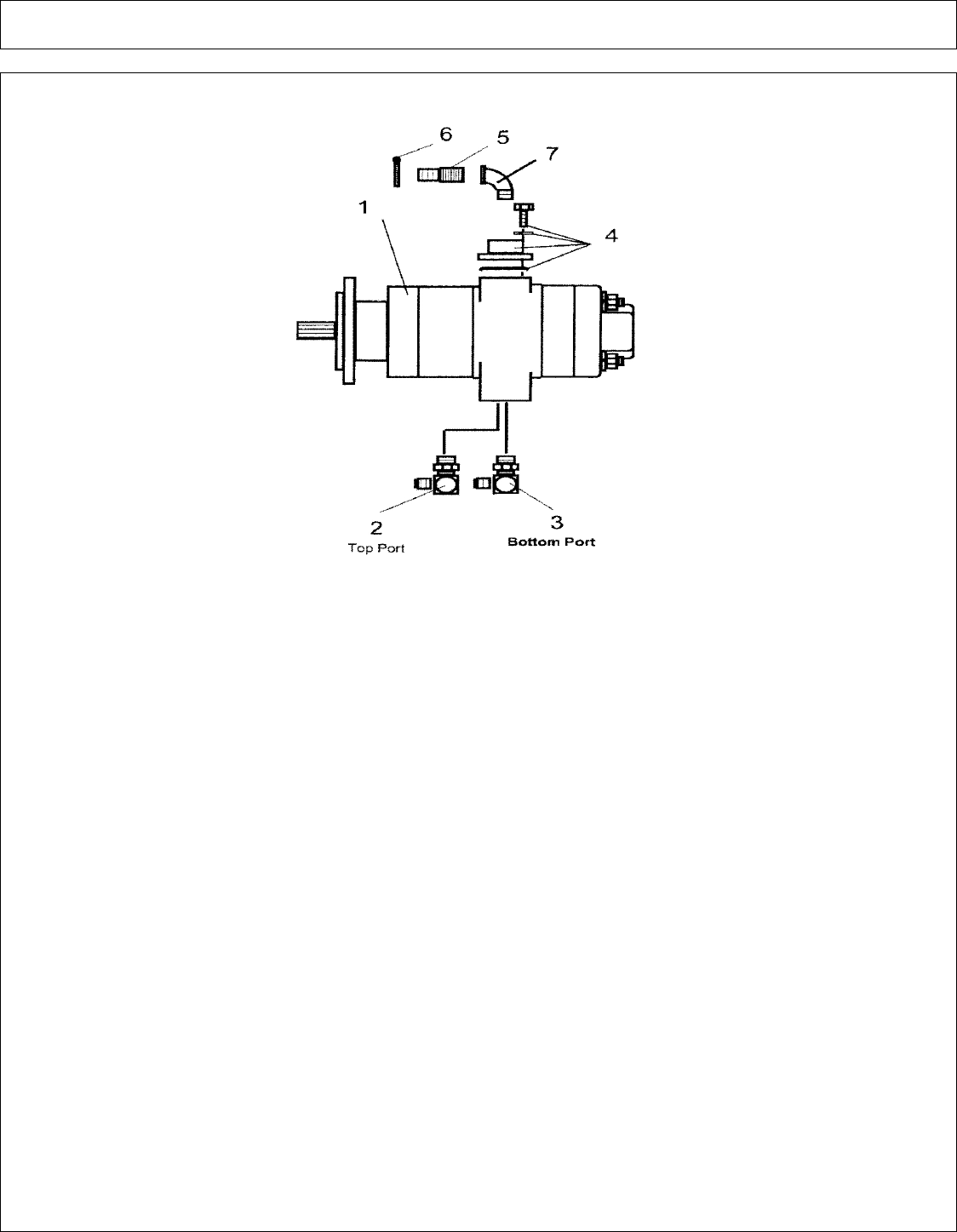

HYD PUMP ASY (REAR TANDEM 540 RPM) - PN 02962097

ITEM PART NO. QTY. DESCRIPTION

02962097 - PUMP ASY, W/ FITTINGS (REAR 540 PTO MNT)

1 02964948 1 PUMP ASY. W/O FITTINGS

2 02961098 1 ELBOW, 90 DEG.

3 02962213 1 ELBOW, 90 DEG.

4 02827700 1 FLANGE KIT

5 02411000 1 HOSE BIB

6 02026200 1 HOSE CLAMP

7 02047200 1 ELBOW

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD PUMP PARTS (FRONT SINGLE) - PN 02961474

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD PUMP PARTS (FRONT SINGLE) - PN 02961474

Continued...

ITEM PART NO. QTY. DESCRIPTION

02961474 - PUMP ASY, FRONT MOUNTED SINGLE PUMP

1 02961918 4 BOLT

2 02961917 4 WASHER

3 02961914 1 PORTING FLANGE W/ BUSHING

4 * 2 SEAL

5 02961913 1 MOUNTING FLANGE W. BUSHING

6 02961920 1 PLUG

7 02961915 1 GEARHOUSING

8 * 4 SEAL END

10 02961916 1 GEAR SET

11 * 2 SQUARE SEAL

12 02961924 4 DOWEL PINS

13 02961925 - MAJOR SEAL KIT (ITEMS 4,8,9 & 11)

14 02962548 - MINOR SEAL KIT (ITEMS 4,8 & 11)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD PUMP PARTS (FRONT TANDEM) - PN 02961735

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD PUMP PARTS (FRONT TANDEM) - PN 02961735

Continued...

ITEM PART NO. QTY. DESCRIPTION

02961735 1 PUMP ASY, TANDEM (FRONT MOUNTED)

1 * 1 SEAL (IN ITEM 18 & 19)

2 02961913 1 MOUNTING FLANGE W/ BUSHINGS

3 02961920 2 PLUG

4 * 4 SEAL END (IN ITEM 18 & 19)

5 02962187 1 GEAR SET ( FRONT SET)

6 02961924 8 DOWEL PIN

7 02961915 1 GEAR HOUSING (FRONT HOUSING)

8 * 4 SQUARE SEAL (IN ITEM 18 & 19)

9 02962185 1 BEARING CARRIER HOUSING W/BUSHINGS

10 02962188 1 GEAR SET (REAR SET)

11 02962216 1 CONNECTOR SHAFT (F/ CONNECTING GEAR SETS)

12 02962186 1 GEAR HOUSING (REAR HOUSING)

13 * 4 THRUST PLATE (IN ITEM 19 ONLY)

14 02962184 1 END FLANGE W/ BUSHING

15 02961917 4 WASHER

16 02962189 4 STUD

17 02962190 4 NUT

18 02962539 - MINOR SEAL KIT (ITEMS 1,4 & 8)

19 02962191 - MAJOR SEAL KIT (ITEMS 1,4,8 & 13)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD PUMP PARTS (REAR SINGLE 540 RPM) - PN 02964947

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD PUMP PARTS (REAR SINGLE 540 RPM) - PN 02964947

Continued...

ITEM PART NO. QTY. DESCRIPTION

02964947 - PUMP ASY, REAR MOUNTED 540 PTO

1 02961918 4 BOLT

2 02961917 4 WASHER

3 02961914 1 PORTING FLANGE W/ BUSHING

4 * 2 SEAL (IN ITEM 13 & 14)

5 02961913 1 MOUNTING FLANGE W/ BUSHING

6 02961920 1 PLUG

7 02965092 1 GEAR HOUSING

8 * 4 SEAL END (IN ITEM 13 & 14)

9 * 2 THRUST PLATES (IN ITEM 13 ONLY)

10 02965091 1 GEAR SET

11 * 2 SQUARE SEAL (IN ITEM 13 & 14)

12 02961924 4 DOWEL PIN

13 02961925 - MAJOR REBULID SEAL KIT (ITEMS 4,8,9, & 11)

14 02962548 - MINOR REBUILD KIT (ITEMS 4.8 & 11)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD PUMP PARTS (REAR TANDEM 540 RPM) - PN 02964948

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD PUMP PARTS (REAR TANDEM 540 RPM) - PN 02964948

Continued...

ITEM PART NO. QTY. DESCRIPTION

02964948 - PUMP ASY, REAR (540 PTO MNT)

1 * 1 SEAL (IN ITEM 18 & 19)

2 02961913 1 MOUNTING FLANGE W/BUSHINGS

3 02961920 2 PLUG

4 * 4 SEAL END (IN ITEM 18 & 19)

5 02965091 1 GEAR SET (FRONT GEARS)

6 02961924 8 DOWEL PIN

7 02965092 1 GEAR HOUSING (FRONT HOUSING)

8 * 4 SQUARE SEAL (IN ITEM 18 & 19)

9 02962185 1 BEARING CARRIER HOUSING W/ BUSHINGS

10 02962188 1 GEAR SET, (REAR GEARS)

11 02962216 1 CONNECTER SHAFT

12 02962186 1 GEAR HOUSING (REAR HOUSING)

13 * 4 THRUST PLATE (IN ITEM 19 ONLY)

14 02962184 1 END FLANGE W/ BUSHING

15 02961917 4 WASHER

16 02962189 4 STUD

17 02962190 4 NUT

18 02962539 1 MINER SEAL KIT (ITEM 1,4 & 8)

19 02962191 1 MAJOR SEAL KIT (ITEM 1,4,8 & 13)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD SCHEMATIC (17 FT) (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD SCHEMATIC (17 FT) (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02827700 1 FLANGE KIT

2 02961000 1 FILTER ASY, W/ ELEMENT

02961001 1 FILTER ELEMENT ONLY

3 00751457 1 ELBOW

4 02962214 1 ELBOW, 90 DEG.

5 02962404 1 RETURN TUBE, STRAIGHT ADAPTER

6 02961825 2 ELBOW, 45 DEG.

7 02411000 2 HOSE BIB

8 02047200 10 ELBOW, 90 DEG.

9 02959199 1 HOSE, CONTROL VALVE TO DIPPER CYL.

10 02960807 3 ADAPTER, STRAIGHT

11 02960809 1 ADAPTER, STRAIGHT

12 02960953 1 TUBE, FRAME TO RETURN FILTER

13 02825900 1 ELBOW, 90 DEG.

14 02959200 1 HOSE, CONTROL VALVE TO DIPPER CYL.

15 02961003 1 ADAPTER, STRAIGHT

16 63042700 2 ADAPTER, STRAIGHT

18 02962249 8 ELBOW, 90 DEG.

19 02960018 8 ELBOW, 90 DEG.

21 02026200 2 HOSE CLAMP

22 02905100 1 HOSE, CONTROL VALVE TO LIFT CYL.

23 02960406 2 ELBOW, BULKHEAD

24 02961130 2 TUBE

25 02961520 1 HOSE, TUBE TO TUBE

26 00749101 2 FLANGE KIT, SPLIT

27 02962774 2 ADAPTER, MOTOR

02960411 1 ELBOW, 45 DEG. (F/ FLAIL AXE HEAD)

02960409 1 ELBOW, 90 DEG. (F/ FLAIL AXE HEAD)

02960407 2 ELBOW, 90 DEG. (F/ FLAIL HEAD)

28 02889300 1 ELBOW

29 02512800 1 HOSE, TANK TO PUMP

30 02961094 1 HOSE, PUMP TO CUTTER VALVE

31 02513000 1 HOSE, PUMP TO CONTROL VALVE

32 02906100 1 HOSE, CONTROL VALVE TO RETURN FILTER

33 02960986 1 TUBE, CUTTER VALVE RETURN TO FRAME 90?

34 02961054 2 HOSE, CUTTER VALVE TO BULKHEAD

35 02961070 1 TUBE, LIFT SECTION (LOWER)

36 02962023 1 HOSE, CONTROL VALVE TO TILT CYLINDER

37 02959198 1 HOSE, CONTROL VALVE TO TILT CYLINDER

39 02961072 1 TUBE, LIFT SECTION (UPPER)

40 02961057 2 HOSE, MOTOR TO BULKHEAD

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD SCHEMATIC (17 FT) (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD SCHEMATIC (17 FT) (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02961057 2 HOSE, MOTOR TO BULKHEAD (ROTARY HEAD)

02961074 2 HOSE, MOTOR TO BULKHEAD (FLAIL HEAD)

02961058 1 HOSE, MOTOR TO BULKHEAD (FLAIL AXE HEAD)

02961059 1 HOSE, MOTOR TO BULKHEAD (FLAIL AXE HEAD)

41 02839000 2 HOSE, CONTROL VALVE TO SWING CYLINDER

42 02905000 1 HOSE, CONTROL VALVE TO LIFT CYLINDER

43 02960411 2 ELBOW, 45 DEG.

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD SCHEMATIC (20-23 FT) (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD SCHEMATIC (20-23 FT) (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02827700 1 FLANGE KIT

2 02960953 1 TUBE, FRAME TO RETURN FILTER

3 02960809 1 ADAPTER, STRAIGHT

4 02962214 1 ELBOW, 90 DEG.

5 02962404 1 RETURN TUBE STRAIGHT ADAPTER

6 02961825 1 ADAPTER

7 02411000 2 HOSE BIB

8 02047200 1 ELBOW, 90 DEG.

10 02960807 3 ADAPTER, STRAIGHT

11 02960988 1 TUBE, DIPPER (20 FT. MODEL)

02960988 1 TUBE, DIPPER (23 FT. MODEL)

12 00751457 1 ELBOW

13 02825900 1 ELBOW, 90 DEG.

14 02961000 1 FILTER ASY.

15 02961001 1 FILTER ELEMENT ONLY

16 63042700 2 ADAPTER, STRAIGHT

17 02960985 1 TUBE, LIFT SECTION (20 FT. MODEL)

02960983 1 TUBE, LIFT SECTION (23 FT. MODEL)

18 02962249 8 ELBOW, 90 DEG.

19 02960018 8 ELBOW, 90 DEG.

21 02026200 2 HOSE CLAMP

22 02957468 2 HOSE, CONTROL VALVE TO HOSE (20 FT. MODEL)

02957467 1 HOSE, CONTROL VALVE TO HOSE, (23 FT. MODEL)

23 02960406 2 ELBOW, BULKHEAD

24 02961003 1 ADAPTER, STRAIGHT

25 02905300 1 HOSE, CONTROL VALVE TO DIPPER CYL. (20 FT. MODELS)

02956911 1 HOSE, CONTROL VALVE TO DIPPER CYL. (23 FT. MODELS)

26 00749101 2 SPLIT FLANGE ADAPTER

27 02962774 2 ADAPTER

28 02889300 1 ELBOW

29 02512800 1 HOSE, RESERVOIR TANK TO PUMP

30 02961094 1 HOSE, PUMP TO CUTTER VALVE

31 02513000 1 HOSE, PUMP TO CONTROL VALVE

32 02906100 1 HOSE, CONTROL VALVE TO FRAME

33 02960986 1 TUBE, CUTTER VALVE RETURN TO FRAME 90?

34 02961054 4 HOSE, TUBE TO TUBE

35 02960984 1 TUBE, LIFT SECTION TOP, (20 FT. MODEL)

02960982 1 TUBE, LIFT SECTION TOP, (23 FT. MODEL)

36 02960987 1 TUBE, DIPPER REAR (20 FT. MODEL)

02960991 1 TUBE, DIPPER REAR (23 FT. MODEL)

37 02959067 1 HOSE, HOSE TO TILT CYL. (20 FT. MODEL)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD SCHEMATIC (20-23 FT) (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD SCHEMATIC (20-23 FT) (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02959178 1 HOSE, HOSE TO TILT CYL, (23 FT. MODEL)

38 02959066 1 HOSE, HOSE TO TILT CYL. (20 FT. MODEL)

02959177 1 HOSE, HOSE TO TILT CYL. (23 FT. MODEL)

39 02839000 2 HOSE, MOTOR TO BULKHEAD

40 02961057 2 HOSE, CONTROL VALVE TO SWING CYL.

41 02905000 1 HOSE, CONTROL VALVE TO LIFT CYL.

42 02905100 1 HOSE, CONTROL VALVE TO LIFT CYL.

43 02905200 1 HOSE, CONTROL VALVE TO DIPPER CYL. (20 FT. MODEL)

02905300 1 HOSE, CONTROL VALVE TO DIPPER CYL. (23 FT. MODEL)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

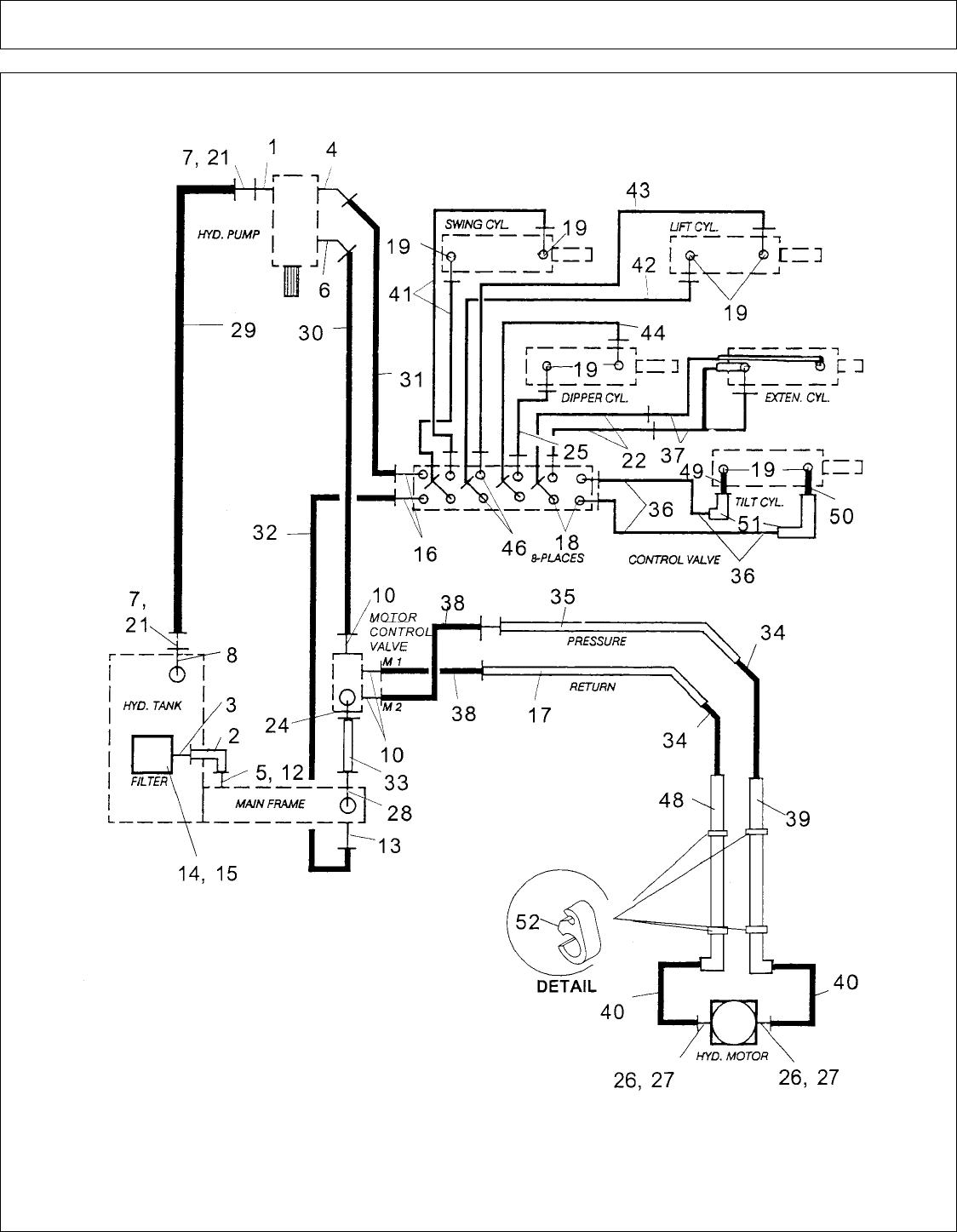

HYD SCHEMATIC W-PARTS (28 FT) (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD SCHEMATIC W-PARTS (28 FT) (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02827700 1 FLANGE KIT

2 02960953 1 TUBE, FRAME TO RETURN FILTER

3 02960809 1 ADAPTER, STRAIGHT

4 02962214 1 ELBOW, 90 DEG.

5 02962404 1 RETURN TUBE STRAIGHT ADAPTER

6 02961825 1 ADAPTER

7 02411000 2 HOSE BIB

8 02047200 1 ELBOW, 90 DEG.

10 02957622 3 ADAPTER, STRAIGHT

12 00751475 1 ELBOW

13 02825900 1 ELBOW, 90 DEG.

14 02961000 1 FILTER ASY.

15 02961001 1 FILTER ELEMENT ONLY

16 63042700 2 ADAPTER, STRAIGHT

17 02960983 1 TUBE, LIFT SECTION BOTTOM

18 02962249 10 ELBOW, 90 DEG.

19 02960018 8 ELBOW, 90 DEG.

21 02026200 2 HOSE CLAMP

22 02965360 2 HOSE, CONTROL VALVE TO HOSE

24 02961003 1 ADAPTER, STRAIGHT

25 02962023 1 HOSE, CONTROL VALVE TO DIPPER CYL. - DEAD END

26 00749103 2 SPLIT FLANGE KIT

27 02705100 2 ADAPTER

28 02889300 1 ELBOW

29 02512800 1 HOSE, RESERVOIR TANK TO PUMP

30 02961094 1 HOSE, PUMP TO CUTTER VALVE

31 02513000 1 HOSE, PUMP TO CONTROL VALVE

32 02906100 1 HOSE, CONTROL VALVE TO FRAME

33 02960986 1 TUBE, CUTTER VALVE RETURN TO FRAME 90?

34 02965359 2 HOSE, TUBE TO TUBE 98" LONG

35 02960982 1 TUBE, LIFT SECTION

36 02965363 2 HOSE, 100" LONG

37 02965361 2 HOSE, HOSE TO EXT CYL. 100" LONG

38 02961054 2 HOSE, TUBE TO CUTTER VALVE

39 02966481 1 HYDRAULIC TUBING, BACK

40 02958647 2 HOSE, MOTOR TO BULKHEAD

41 02839000 2 HOSE, CONTROL VALVE TO SWING CYL.

42 02905000 1 HOSE, CONTROL VALVE TO LIFT CYL.

43 02905100 1 HOSE, CONTROL

44 02215700 1 HOSE, CONTROL VALVE TO DIPPER CYL, ROD END

46 02962249 2 ELBOW, 90 DEG.

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD SCHEMATIC W-PARTS (28 FT) (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD SCHEMATIC W-PARTS (28 FT) (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

48 02966680 1 HYDRAULIC TUBING, FRONT

49 02955364 1 HOSE, TUBING TO TILT CYL, DEAD END

50 02965365 1 HOSE, TUBING TO TILT CYL, ROD END

51 02966482 2 TUBE, TUBING TO TILT CYL.

52 02966483 4 CLAMP

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD VALVE BANK (28 FT) - PN 02957610

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD VALVE BANK (28 FT) - PN 02957610

Continued...

ITEM PART NO. QTY. DESCRIPTION

02957610 - VALVE BANK ASY. 5 SPOOL W/ FITTINGS

1 63042700 2 ADAPTER

2 02962249 8 ELBOW

3 001654 2 ELBOW

4 02750100 3 DETENT KIT, STANDARD

5 02962303 1 VALVE SECTION, INLET COVER

6 02962300 1 VALVE SECTION, SWING

7 02962028 1 VALVE SECTION, LIFT

8 02962301 1 VALVE SECTION, DIPPER

9 02962301 1 VALVE SECTION, EXTENSION

10 02962302 1 VALVE SECTION, TILT

11 02046700 1 VALVE SECTION, OUTLET COVER

13 02049600 - HANDLE LINKAGE BRACKET REPAIR KIT

14 00021800 3 NUT

15 00011700 3 LOCKWASHER

16 02044900 3 BOLT

17 02612200 3 TIE ROD

18 02031800 6 NUT

19 00545500 - O-RING KIT (SEE NOTE BELOW)

20 02958734 2 DETENT KIT, FLOAT (W/ ITEM 27)

21 02728200 - RELIEF CARTRIDGE (875 PSI)

22 02962778 - RELIEF CARTRIDGE (2500 PSI)

23 02785300 - MAIN RELIEF SEAL KIT

24 -------------- - RELIEF CARTRIDGE (1750 PSI) (NOT AVAILABLE)

25 02957172 - LOAD CHECK PLUG ASY. (2000 PSI)

26 02957191 - MAIN RELIEF (2000 PSI)

02286600 - MAIN RELIEF SPRING (2500 PSI)

27 02962596 - DETENT CAP ONLY

28 02957194 - RELIEF CARTRIDGE (2000 PSI)

02962403 - RESTRICTOR ASY (NOT SHOWN)

02965115 - SEAL KIT, F/ RELIEF CARTRIDGES

29 02962403 5 ONE WAY RESTRICTOR

30 02979124 1 VAVLE ASY, 5 SECTION W/O FITTINGS

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD VALVE BANK COVER

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD VALVE BANK COVER

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02964681 1 VALVE BANK COVER, F/ 4 HANDLE VALVE

02964682 1 VALVE BANK COVER, F/ 5 HANDLE VALVE

2 02964685 2 TUBE SPACER, F/ VALVE COVER

3 00750940 2 LOCKNUT

4 02964686 2 BOLT

5 02964683 1 DECAL, VALVE OPERATION OF 4 HANDLE VALVE

02964684 1 DECAL, VALVE OPERATION OF 5 HANDLE VALVE

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD VALVE BANK W- FITTINGS - PN 02962298

ITEM PART NO. QTY. DESCRIPTION

1 63042700 2 ADAPTER

2 02962249 8 ADAPTER

3 02750100 2 DETENT KIT (STANDARD)

4 02962303 1 VALVE SECTION, INLET COVER

5 02962300 1 VALVE SECTION, SWING

6 02962028 1 VALVE SECTION, LIFT

7 02962301 1 VALVE SECTION, DIPPER

8 02962302 1 VALVE SECTION, TILT

9 02046700 1 VALVE SECTION, OUTLET COVER

11 02049600 - HANDLE LINKAGE REPAIR KIT

12 00021800 3 NUT

13 00011700 3 LOCKWASHER

14 02014900 3 BOLT

16 02698200 3 TIE ROD

17 00013901 6 NUT

18 00545500 4 O-RING KIT

19 02958734 2 DETENT KIT, FLOAT, (INCLUDES ITEM 26)

20 02728200 - RELIEF CARTRIDGE, (SET AT 875 PSI)

22 02785300 - MAIN RELIEF VALVE SEAL KIT

23 02956999 - RELIEF CARTRIDGE, (SET AT 1500 PSI)

24 02957172 - LOAD CHECK PLUG ASY, (SET AT 2000 PSI)

25 02957191 - MAIN RELIEF, (SET AT 2500 PSI)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD VALVE BANK W- FITTINGS - PN 02962298

Continued...

ITEM PART NO. QTY. DESCRIPTION

26 02962596 - DETENT CAP ONLY

27 02957194 - RELIEF CARTRIDGE, (SET AT 2000 PSI)

02962403 - RESTRICTOR ASY (NOT SHOWN)

02965115 - SEAL KIT FOR RELIEF CARTRIDGES

28 02962403 5 ONE WAY RESTRICTOR

29 02962778 - RELIEF CARTRIDGE, (SET AT 2500 PSI)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD VALVE REMOTE CONTROL CABLES & MOUNT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD VALVE REMOTE CONTROL CABLES & MOUNT

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02971188 1 BRACKET, ARM REST MOUNT

2 02971189 1 PLATE, CONTROL STICK EXTENSION

3 02971190 1 BRACKET, PIVOT MOUNT

4 02971191 1 SWITCH MOUNT WLD`MT

5 02971243 - CONTROL, ASY, SINGLE AXIS

6 02971260 1 ARM REST ASY

7 02965619 3 BOLT, USE W/ 4 REMOTE HANDLES

02971272 3 BOLT, USE W. 5 REMOTE HANDLE

8 00023500 10 FLATWASHER

9 00035900 2 BOLT

10 10119000 2 BOLT

11 00011400 2 BOLT

12 00011100 2 FLATWASHER

13 00059900 2 BOLT

14 00015800 4 LOCKNUT

15 00750940 7 LOCKNUT

16 02964028 1 SWITCH, PUSH PULL

17 02964063 1 KNOB, SWITCH

18 02961489 1 PIVOT PLATE WLD`MT

19 02962748 1 DECAL, ON-OFF SWITCH CUTTER VALVE

20 02958203 1 WIRE HARNESS KIT, SOLENOID

A-BOOM (04-04) SN 04837 - UP Rev 12-08

HYD VALVE SEGMENT - FLOAT

ITEM PART NO. QTY. DESCRIPTION

1 02958734 1 POSITIONER, FLOAT

2 -------------- 2 SEE VALVE BANK FOR PART NO.

3 02965115 - SEAL KIT, F/ RELIEF CARTRIDGE

4 00545500 - O-RING KIT

5 02962529 - WASHER & O-RING

6 -------------- - O-RING, (IN ITEM 4)

7 -------------- - O-RING, (IN ITEM 4)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

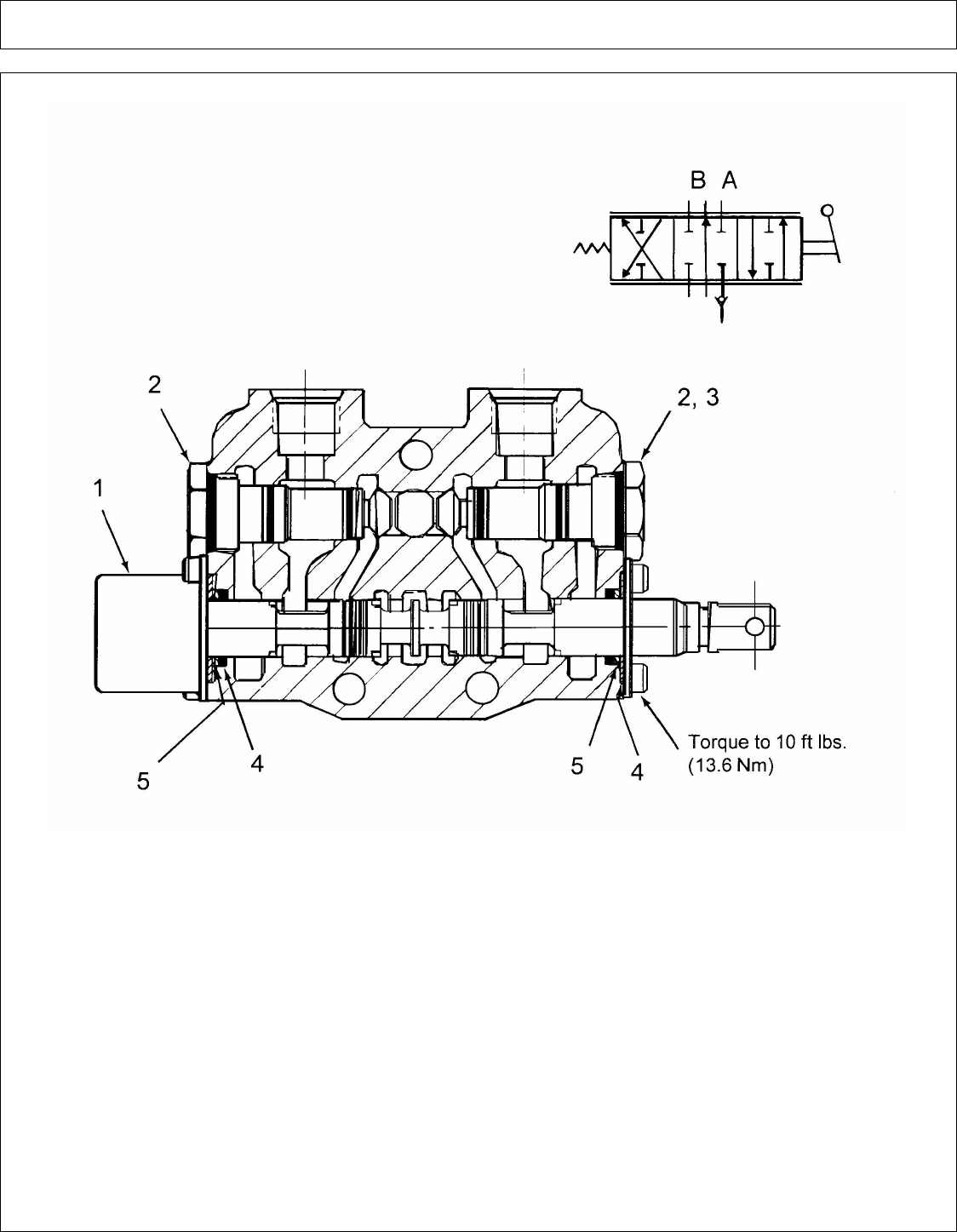

HYD VALVE SEGMENT - NON-FLOAT

ITEM PART NO. QTY. DESCRIPTION

1 02750100 1 POSITIONER, NON -FLOAT

2 -------------- 2 SEE VALVE BANK F/ PART NO.

3 02965115 - SEAL KIT F/ RELIEF CARTRIDGE

4 00545500 - O-RING KIT

5 02962529 - WASHER & O-RINGS

A-BOOM (04-04) SN 04837 - UP Rev 12-08

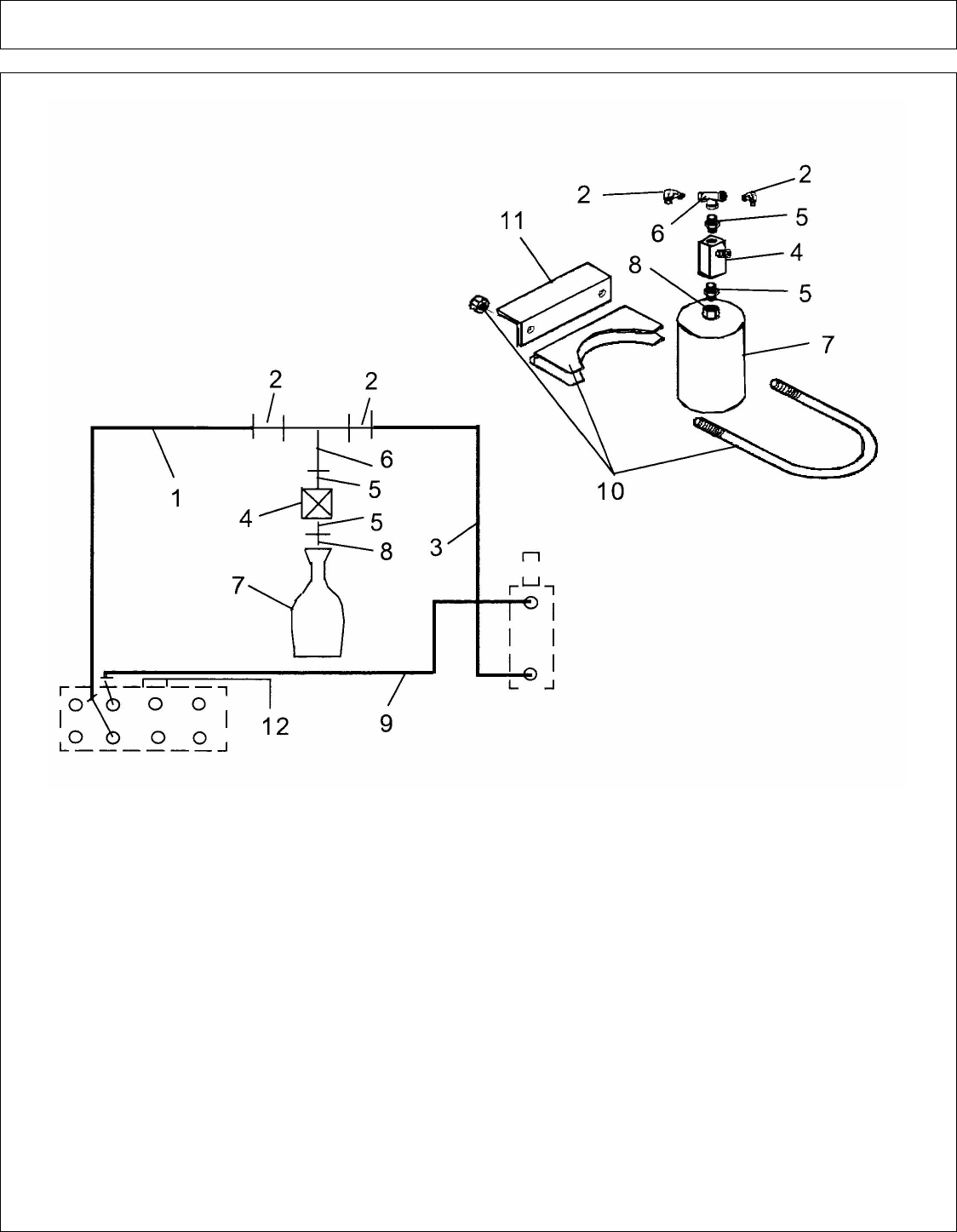

HYDRO FLOAT OPTION

ITEM PART NO. QTY. DESCRIPTION

1 02823600 1 HOSE, 28" LG

2 02045200 2 ADAPTER, ELBOW

3 02905000 - HOSE, 80" LG

4 02959853 1 VALVE, NEEDLE VALVE

5 02959884 2 ADAPTER, STRAIGH

6 02959883 1 ADAPTER, TEE

7 02966906 1 ACCUMULATOR, 60 CU. IN.

8 00717800 1 REDUCER

9 02905100 - HOSE, 114" LG

10 02960450 1 CLAMP

11 02966903 1 ANGLE

12 02963642 1 PLATE, VALVE OPERATION

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

JOYSTICK CONSOLE ASY

A-BOOM (04-04) SN 04837 - UP Rev 12-08

JOYSTICK CONSOLE ASY

Continued...

ITEM PART NO. QTY. DESCRIPTION

02987829 1 JOYSTICK ASSEMBLY W/ COMPONENTS

1 02981020 1 LED RED 12VDC

2 02981021 1 DECAL JOYSTICK OPERATION CNSLE

3 02981022 2 SWITCH MOMNTRY PUSHBUTTON RED

3A 02983472 2 PUSH BOTTOM CAP RED

4 02981023 2 SWITCH MOMNTRY PUSHBUTTON BLK

4A 02983473 2 BOTTON COVER BLACK

5 02981024 1 SOCKET RELAY

6 02981025 1 RELAY SPDT 12VDC 20A

7 02981026 1 CIRCUIT BREAKER 10A PANEL MNT

8 02981027 1 BOOT CIRCUIT BREAKER COVER

9 02977642 1 CONNECTOR RECEPTACLE

9A 02977645 17 PIN, 16-18 AWG

9B 02977646 4 PIN, 12AWG

10 02977643 1 NUT, PANEL - 24 SHELL SIZE

11 02981028 1 SWITCH PUSH PULL

12 02981029 1 JOYSTICK ASSEMBLY

13 02981031 1 HANDLE ASSEMBLY

14 02981032 1 DECAL SWITCH OPERATION HANDLE

15 02981033 1 ASSEMBLY PUSHBUTTON FACE PLATE

16 02981030 1 SWITCH MOMENTARY PUSHBUTTON

17 02977644 1 LOCKWASHER - 24 SHELL SIZE

18 02977043 1 SWITCH ROCKER DPDT W/GREEN LED

19 02983475 1 POTENTIOMETER - SWING

20 02983476 2 POTENTIOMETER - LIFT & DIPPER

21 02983477 8 MACHINE SCREW #10-32 5/8 LG.

22 02983478 8 WASHER #10 NYLON

23 02963584 1 LOCKNUT 8-32 PL

02987905 1 TRIGGER SWITCH

- 1 -

A-BOOM (04-04) SN 04837 - UP Rev 12-08

KING POST ATTACHMENT (W-PLAIN BUSHINGS)

ITEM PART NO. QTY. DESCRIPTION

1 02965545 1 KING PIN W/ BUSHING

2 02965555 1 TURNING ARM WLDMNT, FRONT TURNING BOOM W/ BUSHING

02965556 1 TURNING ARM WLDMNT, REAR TURNING BOOM W/ BUSHING

3 02965536 1 BUSHING, STEEL

4 02966767 1 TURNING ARM PIN, USE W/ TEFLON BUSHING

5 02957008 2 BEARING ASY. CUP & CONE

6 02956882 1 RING, BOTTOM BEARING SEAL

7 02956941 1 RING, TOP BEARING SEAL

8 02956818 1 BEARING SUPPORT COLLAR

9 02956836 1 SEAL

10 02956837 1 SEAL

11 02956838 1 LOCKWASHER

12 02956839 1 NUT

13 00606000 1 PIN

14 00752176 1 GREASE FITTING

15 02959225 1 BUSHING

16 02965548 1 BEARING, TEFLON IMPREGNATED

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

KING POST ATTACHMENT (W-SERRATED BUSHINGS)

ITEM PART NO. QTY. DESCRIPTION

1 02956821 1 KING PIN W/ BUSHINGS

2 02967171 1 TURNING ARM WLDMNT, REAR W/ TEFLON BUSHINGS

02967397 1 TURNING ARM WLDMNT, FRONT W/ TEFLON BUSHINGS

02956830 - TURNING ARM WLDMNT, REAR W/ STEEL BUSHINGS

02956831 - TURNING ARM WLDMNT W / STEEL BUSHINGS

3 02958345 1 BUSHING, STEEL SERRATED

4 02966767 1 TURNING ARM PIN, CHROME (USE W. TEFLON BUSHINGS

02960458 - TURNING ARM PIN, GREASABLE (USE W/ STEEL BUSHINGS

5 02957008 2 BEARING ASY, CUP & CONE

6 02956882 1 RING, BOTTOM BRG. SEAL

7 02956941 1 RING, TOP BRG. SEAL

8 02956818 1 BEARING SUPPORT COLLAR

9 02956836 1 SEAL

10 02956837 1 SEAL

11 02956838 1 LOCKWASHER

12 02956839 1 NUT

13 00606000 1 COTTER PIN

14 00752176 1 GREASE FITTING

15 02965548 1 BUSHING, TEFLON, 1-1/4" OD

02957501 - BUSHING, STEEL SERRATED, 1-3/8" OD

16 02959225 1 BUSHING

A-BOOM (04-04) SN 04837 - UP Rev 12-08

KING POST ATTACHMENT (W-SERRATED BUSHINGS)

Continued...

ITEM PART NO. QTY. DESCRIPTION

17 02965538 1 MAIN PIN WLDMNT, USE W/TEFLON BUSHINGS

02967491 - MAIN PIN WLDMNT, USE W/STEEL BUSHINGS

A-BOOM (04-04) SN 04837 - UP Rev 12-08

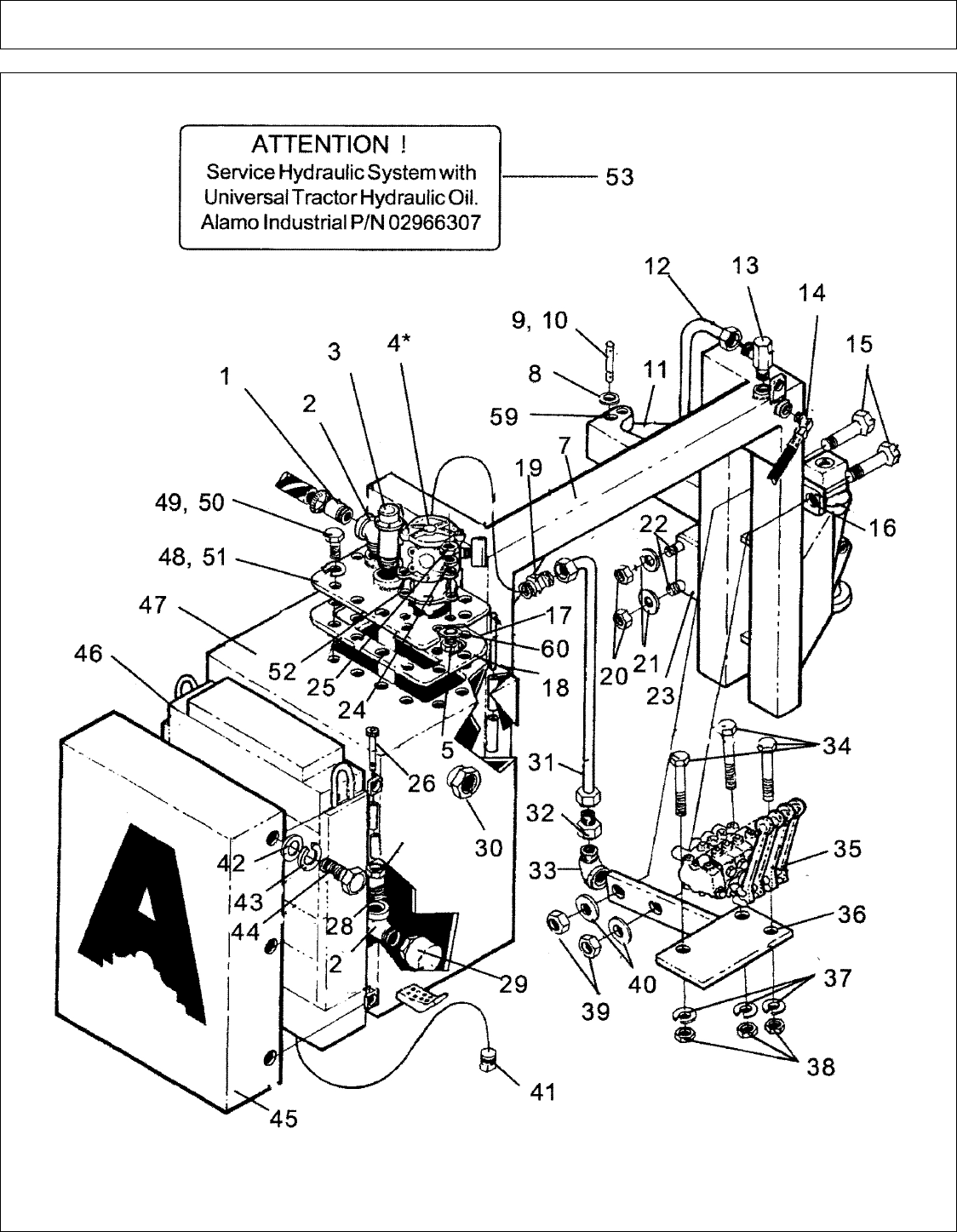

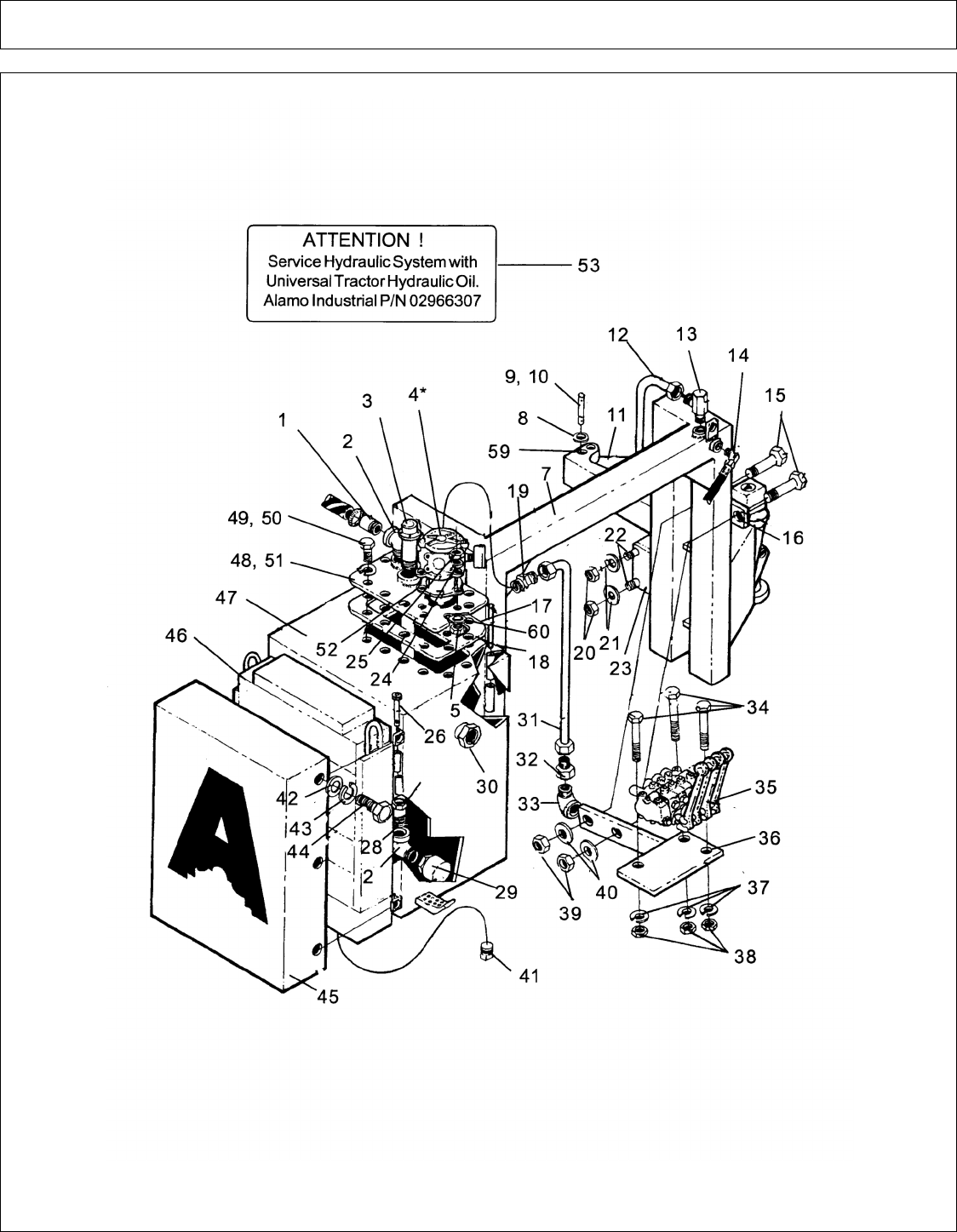

MAIN FRAME ASY (03-06 & DOWN) (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

MAIN FRAME ASY (03-06 & DOWN) (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02411000 1 HOSE BIB

2 02047200 2 ADP HYD ELBOW

3 02209500 1 FILLER TUBE ASY.

4 02961000 1 FILTER ASY. W/ ELEMENT

02961001 1 FILTER ELEMENT

5 00007000 4 BOLT

6 02962963 1 FILTER INDICATOR DIAL

7 02962594 1 MOUNTING FRAME

8 02822500 2 WASHER

9 02930100 1 CYLINDER PIN

10 00606000 2 COTTER PIN

11 02961778 1 CYLINDER ASY. SWING CYL.

12 02960986 1 RETURN LINE, 2 WD TRACTORS

02972016 1 RETURN LINE, 4 WD TRACTORS

13 02889300 1 ELBOW

14 02825900 1 ELBOW

15 02014200 2 BOLT

16 02821400 1 MOUNT STRAP

17 02962374 3 PIN

18 00751179 6 COILED PIN

19 02960809 1 ADAPTER

20 00015800 2 LOCKNUT

21 00011100 2 FLATWASHER

22 10204000 2 BOLT

23 02961090 1 CUTTER VALVE ASY.

24 02962864 4 WASHER, SEALING

25 00015800 4 LOCKNUT

26 02962777 2 BOLT, ALLEN HEAD

27 00037200 2 LOCKNUT

28 02910500 1 NIPPLE

29 02047400 1 FILTER, SUCTION

30 02049700 1 SIGHT GAUGE, OIL LEVEL

31 02960953 1 RETURN LINE

32 02962404 1 ADAPTER

33 00751457 1 ELBOW

34 02044900 3 BOLT

35 02962298 1 CONTROL VALVE ASY.

36 02958331 1 MOUNTING PLATE

02964028 1 PUSH-PULL SWITCH (NOT SHOWN)

37 00011700 3 LOCKWASHER

38 00750940 3 NUT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

MAIN FRAME ASY (03-06 & DOWN) (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

MAIN FRAME ASY (03-06 & DOWN) (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

39 00001800 2 LOCKNUT

40 00002700 2 FLATWASHER

41 02963659 1 PLUG,1 MAGNETIC

42 00023500 5 FLATWASHER,5/16,TYPE AW,ZP

43 00011700 5 LOCKWASHER 5/16 PL STD

44 00025900 5 BOLT

45 02962387 1 COVER-CWT

46 02962390 1 WLDMT-CWT 20A/B

47 02962389 1 WLDMT-TANK

52 02963662 1 GASKET,FILTER ASY,FIBER

53 02966305 1 DECAL,UNIVERSAL TRACTOR

54 02959746 1 SWING STOP

02963037 1 STOP, FRONT SWING BOOM

55 02788400 2 HEXB 1/2 NC 2-1/2PL5

56 00001800 2 LOCKNUT TLM 1/2 NC PLB

59 02959890 2 BSH CONX 1-1/4X1X 5/8

60 00011001 4 FLATWASHER

61 02977385 1 CANISTER BRACKET

A-BOOM (04-04) SN 04837 - UP Rev 12-08

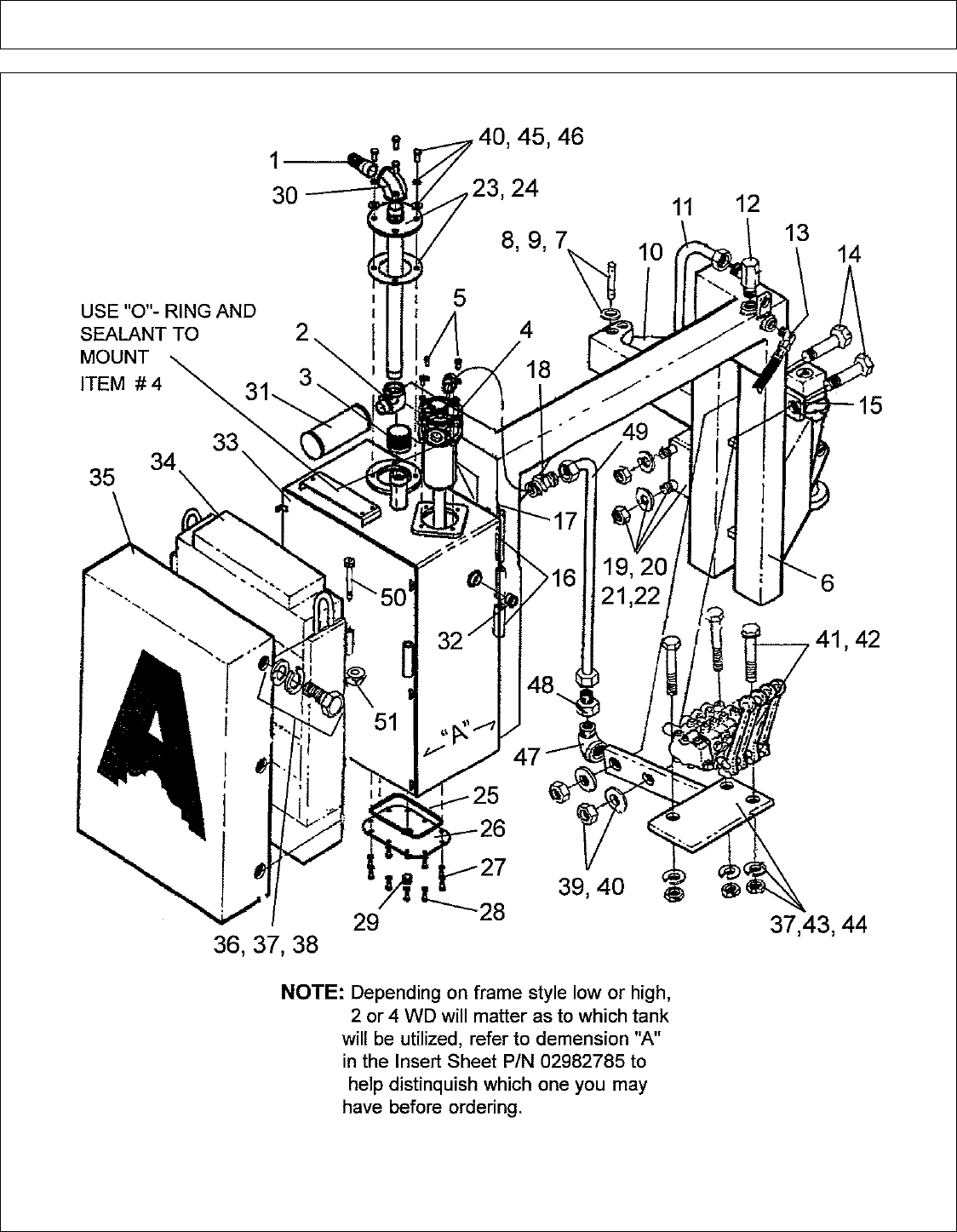

MAIN FRAME ASY (04-06 & UP) (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

MAIN FRAME ASY (04-06 & UP) (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

1 02411000 1 HOSE BIB - #24HOSE - #24MP

2 02047200 1 HYD, ELBOW ADAPTER

3 02980215 1 BREATHER CAP, W/ RING

4 02961000 1 FILTER ASY

5 000645 4 BOLT, HEX HEAD - 3/8"- NC X 7/8" PL GR5

6 02962594 1 MOUNTING FRAME WLD`MT

7 02822500 2 FLATWASHER, 1"- PL STD

8 02930100 1 PIN

9 00606000 2 COTTER PIN - 3/16" X 2"

10 02961778 1 SWING CYLINDER ASY

11 02960986 1 RETURN LINE, W/ 90 DEG - 2 WD

02972016 1 RETURN LINE, W/ 90 DEG - 4 WD

12 02889300 1 HYD, ELBOW ADAPTER

13 02825900 1 HYD, ELBOW ADAPTER

14 02014200 1 BOLT, HEX HEAD - 1/2"- NC X 6" PL GR5

15 02821400 1 VALVE MOUNT STRAP

16 02962374 3 PIN, 3/4" X 11-1/8"

17 00751179 6 COILED PIN, 3/16" X 1-1/4"

18 02960809 1 HYD, STGHT ADAPTER

19 00015800 2 LOCKNUT, 3/8"- NC X PLB

20 00011100 2 FLATWASHER, 3/8"- PL STD

21 10204000 2 BOLT, HEX HEAD, 3/8"- NC X 4" PL GR5

22 02961090 1 CUTTER VALVE ASY

23 02208500 1 SUCTION PIPE WLD`MT

24 02963661 1 SUCTION PLATE GASKET

25 02981400 1 O-RING, CLEANOUT SEAL

26 02981413 1 CLEANOUT COVER WLD`MT

27 00012101 14 LOCKWASHER, 3/8"- PL HVY

28 00002000 10 BOLT, HEX HEAD - 3/8"-16" X 3/4" GR5

29 02963659 1 MAGNETIC PLUG, 1"

30 02208400 1 HYD, ELBOW ADAPTER

31 02047400 1 SUCTION LINE - FILTER

32 02049700 1 SIGHT GAUGE, 16MP

33 02982536 1 TANK WLD`MT - DIM "A" - 16-3/8"

02982542 1 TANK WLD`MT - DIM "A" - 19"

34 02962390 1 COUNTER WEIGHT

35 02962387 1 COUNTER WEIGHT COVER

36 00035900 5 FLATWASHER, 5/16"

37 00011700 5 LOCKWASHER, 5/16"- PL STD

38 00035900 5 BOLT, HEX HD 5/16-NC X 3/4 GR5

39 00001800 2 LOCKNUT, 1/2"- NC PLB

A-BOOM (04-04) SN 04837 - UP Rev 12-08

MAIN FRAME ASY (04-06 & UP) (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

MAIN FRAME ASY (04-06 & UP) (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

40 00002700 6 FLATWASHER, 1/2"- PL STD

41 02044900 3 BOLT, HEX HEAD - 5/16"- NC X 2-3/4" PL GR5

42 02962298 1 VALVE ASY

43 02958331 1 VALVE MOUNT WLD`MT

02964028 1 PUSH PULL SWITCH

44 00750940 3 LOCKNUT, 5/16"- NC PLB

45 00001300 4 LOCKWASHER, 1/2"- PL STD

46 02030700 4 BOLT,HEX HEAD - 1/2"- 13UNC X 1-1/4" PL GR5

47 00751457 1 PIPE ELBOW, 90 DEGREE 20MP-20FP

48 02962404 1 HYD STGHT ADAPTER, 20MP - 20BT

49 02960953 1 RETURN TUBE - TO FILTER

50 02962777 2 BOLT, SOCKET HEAD - 3/4"- NC X 11" PL GR8

51 00037200 2 LOCKNUT, 3/4"- NC PLC

A-BOOM (04-04) SN 04837 - UP Rev 12-08

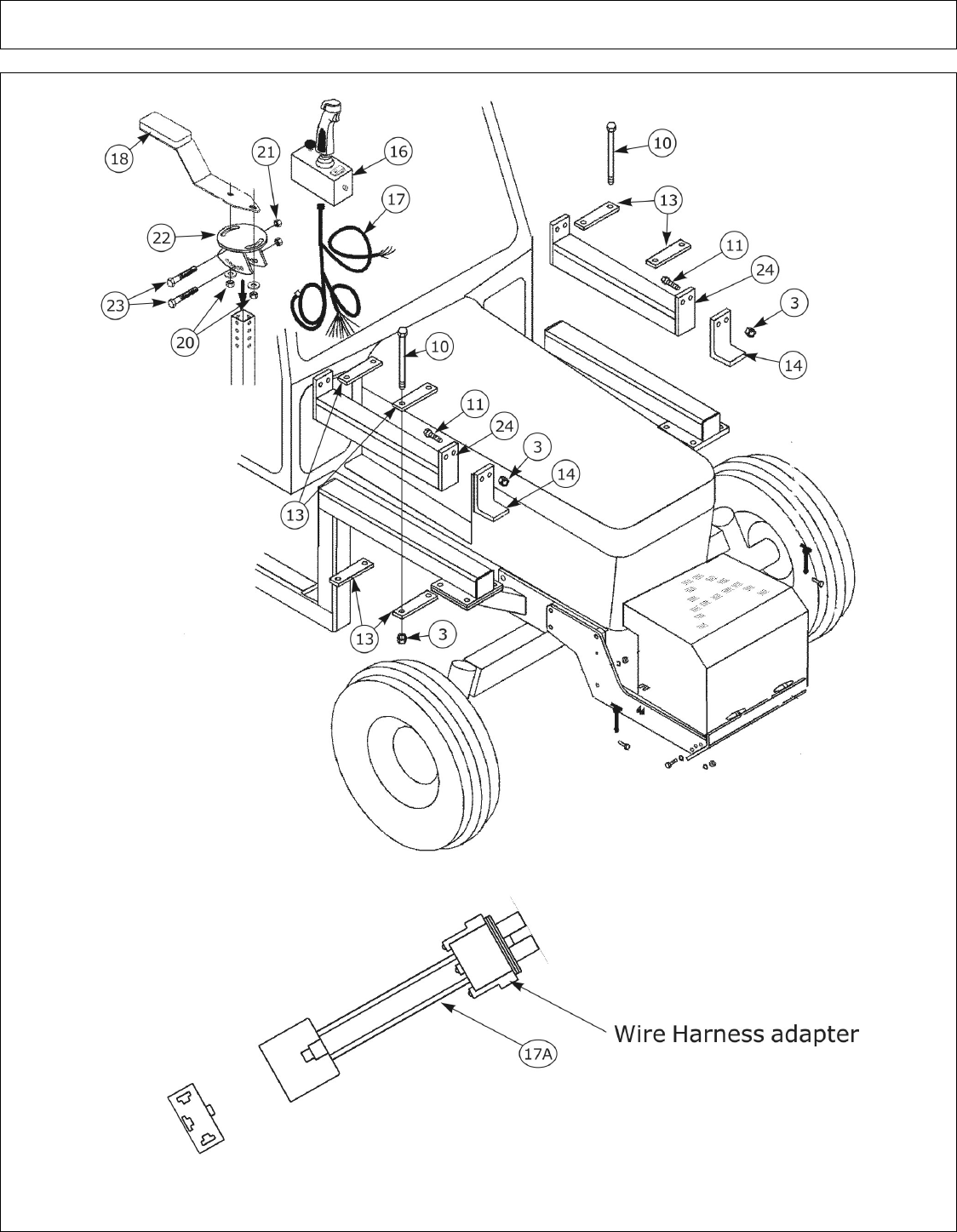

MOUNTING COMPONENTS - COMMON PARTS BOX (OPTION)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

MOUNTING COMPONENTS - COMMON PARTS BOX (OPTION)

Continued...

ITEM PART NO. QTY. DESCRIPTION

3 00037200 13 LOCKNUT

10 02957039 8 BOLT

11 02918600 4 BOLT

13 02966639 8 BAR, MOUNT STRAP

14 02966641 2 BAR MOUNT ANGLE

16 02987829 1 JOYSTICK CONSOLE ASY

17 02971381 1 WIRE HARNESS

17A 02972115 1 ADAPTER, WIRE HARNESS

18 02974389 1 ASSEMBLY JOYSTICK ARM REST

19 00011400 2 BOLT

20 00011100 2 FLATWASHER

21 00015800 4 LOCKNUT

00023500 10 FLATWASHER

22 02961489 1 PIVOT PLATE WLDMNT

23 00059900 2 BOLT

02970236 1 PLATE, CONSOLE

02975806 1 DRAWING, HOSE CONNECTIONS

02976857 1 INSERT SHEETS, ELECTRO HYD. CONVERSION

02976858 1 DECAL, HOSE CONNECTION

000859 2 PLASTIC TIE

00748000 1 LOCKWASHER, HEAVY

00752405 1 BOLT

00763977 1 DECAL, NOTICE TO OWNER

02753400 3 PLASTIC TIE, 15" LONG

02775500 10 PLASTIC TIE, 21" LONG

02924700A 1 ASSEMBLY A-BOOM OPERATOR &

02958206 1 QUICK SPLICE, 18 - 14 TO 18 - 14 GA.

02959010 1 PAMPHLET SAFETY MOUNTING

02961001 1 FILTER ELEMENT

02961290 1 BOOM STOP

02963524 1 DECAL, ATTENTION - BOOM SWINGING

02964677 1 DECAL, BOOM REST

02965093 1 DECAL, PROPER ENGINE OPERATING

02965262 1 DECAL, WARNING HOSE BURST

02966990L 1 CONTENTS LIST

02967827 1 DECAL, MULTI HAZARD

02974920 1 INSTRUCTION DRAWING BOOKLET, A-BOOM

63096300 1 PAINT, SPRAY CAN YELLOW

63118700 5 PLASTIC TIE, 7" LONG

02924700T 1 MANUAL, TECHNICAL SERVICE, A-BOOM

A-BOOM (04-04) SN 04837 - UP Rev 12-08

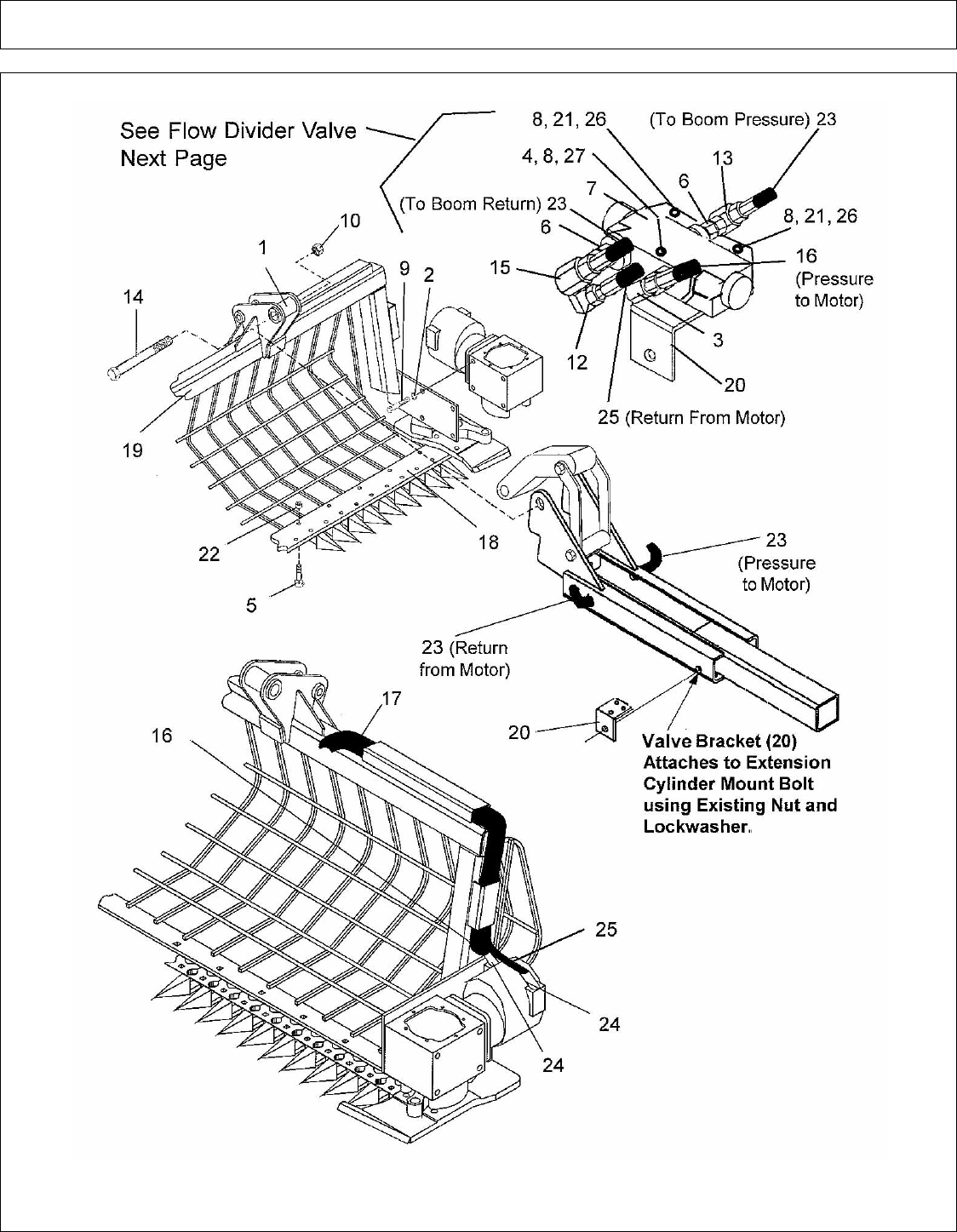

SICKLE BAR & BASKET ASY (28 FT BOOM)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR & BASKET ASY (28 FT BOOM)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02971523 - MOWER, ASY, SICKLE BAR W/ BASKET ASY. F/ 28` BOOM

1 00003500 1 GREASE FITTING

2 00010300 4 LOCKWASHER

3 02972064 1 ADAPTER HYD, ELBOW

4 10074000 1 BOLT

5 12666000 10 CARRIAGE BOLT

6 02957622 1 ADAPTER HYD, STRAIGHT

7 00750053 1 FLOW DIVIDER VALVE - (AB- S/N 05999 & DOWN)

00750053A 1 VALVE ASY - (AB -S/N 06000 & UP)

8 02959924 3 LOCKNUT

9 00752658 4 BOLT

10 02030300 1 LOCKNUT

12 02825900 1 ADAPTER HYD, ELBOW

13 02959154 1 ADAPTER HYD, ELBOW

14 02956972 1 BOLT

15 02959408 1 ADAPTER HYD, ELBOW

16 02961853 1 HOSE

17 02965464 1 CORDURA SLEEVING, 78" LG

18 02966846 1 BASE ASSEMBLY

19 02971516 1 SICKLE BAR BASKET WLD`MT

20 02982170 1 VALVE MOUNT BRACKET

21 10070000 2 BOLT

22 02957941 10 LOCKNUT

23 001779 2 HOSE

24 00750823 1 ADAPTER HYD, ELBOW

25 02890700 1 HOSE

26 00761027 2 SPACER, 1-1/4" LG (NOT SHOWN)

27 701316R 1 SPACER, 1/2" LG (NOT SHOWN)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - BASIC DRIVE (PARTS) - PN 0666200

ITEM PART NO. QTY. DESCRIPTION

0666200 - BASIC DRIVE UNIT

1 0445000 1 DRIVE HOUSING

2 * - CRANKSHAFT (ONLY AVAIL IN ITEM 24)

3 0445100 1 COVER

4 * - WOBBLE BOX (ONLY AVAIL IN ITEM 24)

5 0445700 1 WOBBLE SHAFT

6 0448100 1 CAP

7 0588700 1 BEARING, DRIVE UNIT

8 044580B 2 BEARING CUP

9 0445300 1 BEARING

10 * - BEARING (ONLY AVAIL IN ITEM 24)

11 0446200 2 RETAINING RING

12 0445500 1 RETAINING RING

13 * - RETAINING RING (ONLY AVAIL IN ITEM 24)

14 0445600 1 SHIM

15 0445900 1 BEARING ADJ WASHER

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - BASIC DRIVE (PARTS) - PN 0666200

Continued...

ITEM PART NO. QTY. DESCRIPTION

16 0448700 1 OIL SEAL

17 0447000 1 GASKET

18 10119000 6 BOLT

19 * - SCREW (ONLY AVAIL IN ITEM 24)

20 000253 1 NUT, SLOTTED

21 * - LOCKNUT (ONLY AVAIL IN ITEM 24)

22 00011700 6 LOCKWASHER

23 0012300 1 GREASE FITTING, STRAIGHT

24 0676200 1 CRANKSHAFT / WOBBLE BOX ASY, FIELD REPAIR ASY. (INCLUDES ITEMS 2,4,10,19 & 21

A-BOOM (04-04) SN 04837 - UP Rev 12-08

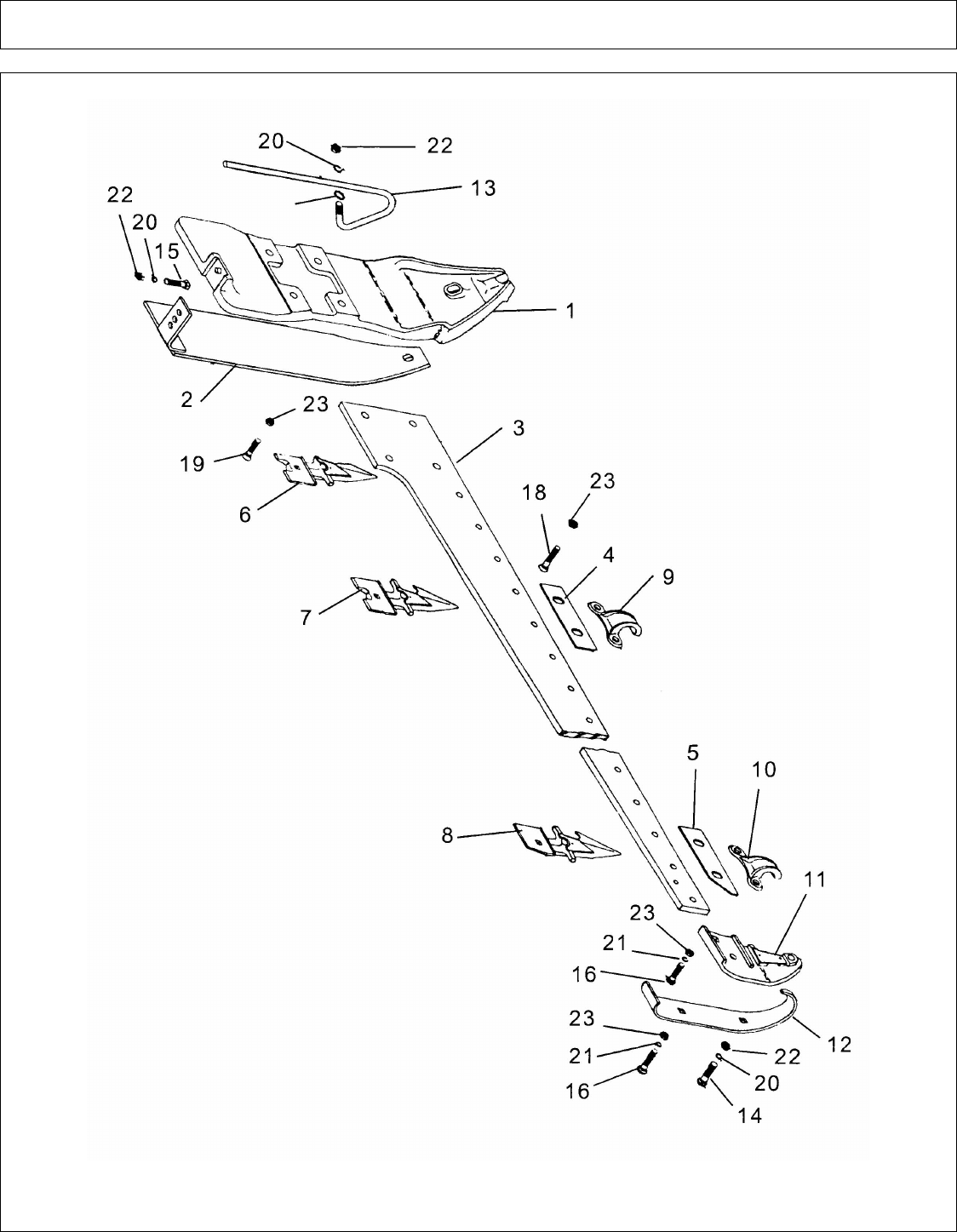

SICKLE BAR - CUTTER BAR ASY

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - CUTTER BAR ASY

Continued...

ITEM PART NO. QTY. DESCRIPTION

0583500 - 5 FT. CUTTER BAR ASY, W/ KNIVES

0582500 - 5 FT. CUTTER BAR ASY, W/O KNIVES

1 0449300 1 INNER SHOE, RH

2 0448900 1 INNER SHOE SOLE

3 0580500 1 5 FT. CUTTER BAR

4 0532600 4 PLATE

5 0571900 1 WEAR PLATE

6 0593800 1 INNER ROCK GUARD, RH

7 0593700 18 CENTER ROCK GUARD

8 0593600 1 OUTER ROCK GUARD

9 0012700 1 KNIFE CLIP HIGH

10 0188700 4 KNIFE CLIP

11 0570900 1 OUTER SHOE ASY.

12 0123800 1 OUTER SHOE SOLE

02966847 1 SICKLE BAR BASKET WLDMNT

13 0044700 1 INNER SHOE GUARD ROD

14 000516 1 CARRIAGE BOLT

15 02886900 1 CARRIAGE BOLT

16 0129000 1 CARRIAGE BOLT

17 12666000 1 CARRIAGE BOLT

18 0571800 10 PLOW BOLT

19 0046400 10 PLOW BOLT

20 00019600 3 LOCKWASHER, HEAVY

21 00022200 2 LOCKWASHER

22 00001200 3 NUT

23 00999316 22 NUT

24 00002700 1 FLATWASHER

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - HEAD ASY - PN 02962179

ITEM PART NO. QTY. DESCRIPTION

02962179 - SICKLE BAR ASY, F/ A-BOOM

1 0583500 1 CUTTER BAR ASY, W/KNIFE

2 00750053 1 VALVE - (AB- S/N 05999 & DOWN)

00750053A 1 VALVE ASY - (AB-S/N 06000 & UP)

3 10058000 2 BOLT

4 00024000 2 NUT

5 00017000 2 LOCKWASHER

6 02825900 2 ADAPTER, ELBOW

7 00750823 2 ADAPTER ELBOW, 45 DEG

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - HEAD ASY - PN 02962179

Continued...

ITEM PART NO. QTY. DESCRIPTION

8 02158800 1 HOSE, 17" LG

9 00752658 8 BOLT

10 00010300 8 LOCKWASHER

11 02956851 1 ADAPTER, ELBOW 90 DEG.

12 02959408 1 ADAPTER, ELBOW 90 DEG.

13 02761100 1 ADAPTER, ELBOW

14 00749070 2 ADAPTER, STRAIGHT

15 02959372 1 HOSE, 21" LG

16 02958922 1 HITCH POST ASY, 4-BAR SICKLE (INCLUDES FOLLOWING 3 ITEMS)

02958933 1 HITCH POST WLDMNT, 4/BAR

00003500 1 GREASE FITTING

02958424 1 BUSHING

17 02957222 2 HOSE, 54" LG

A-BOOM (04-04) SN 04837 - UP Rev 12-08

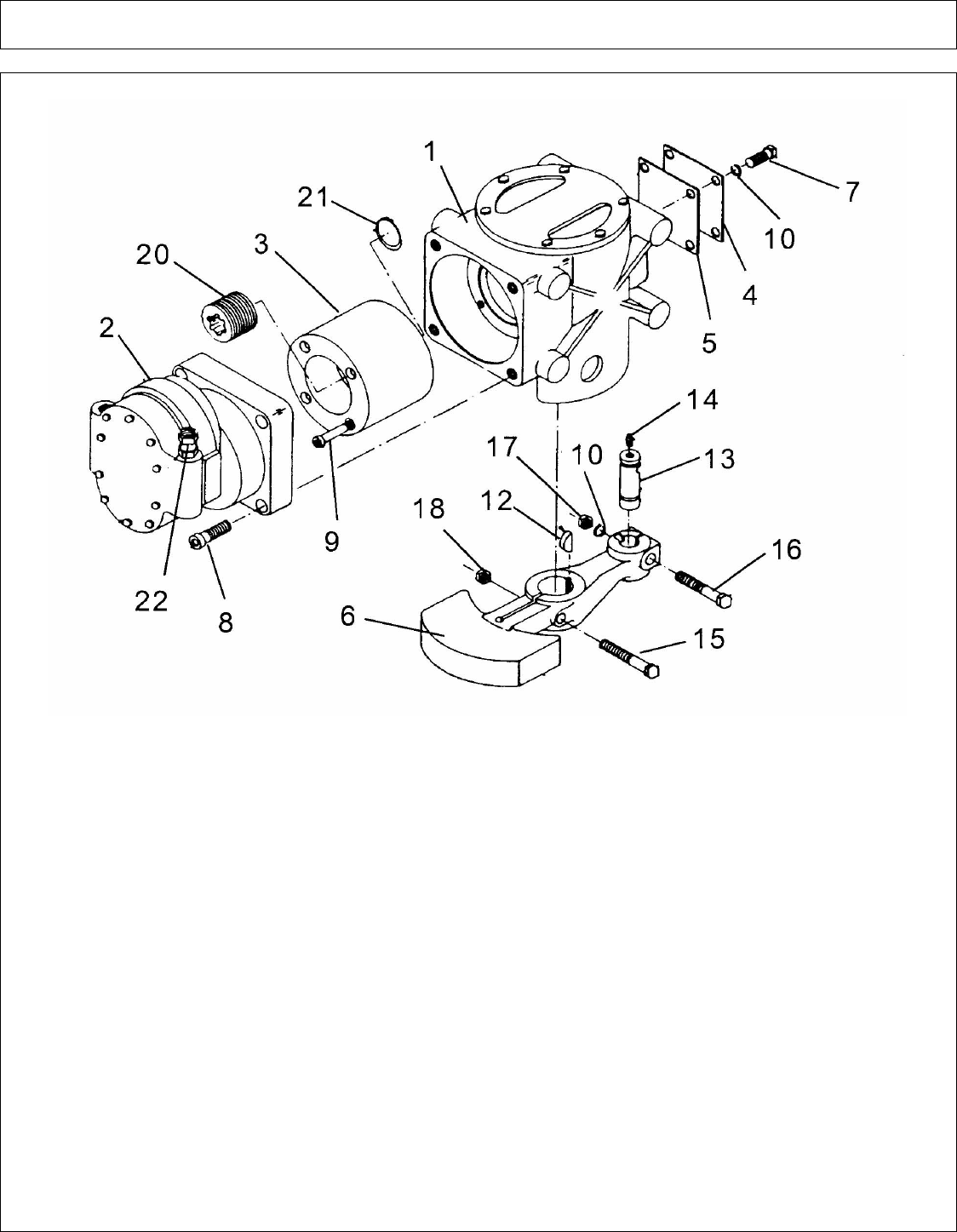

SICKLE BAR - HYD DRIVE ASY - PN 0666100

ITEM PART NO. QTY. DESCRIPTION

0666100 - HYDRAULIC DRIVE UNIT ASY

1 0666200 1 BASIC DRIVE UNIT

2 0447300 1 MOTOR ASY 2.8 CID

3 0447500 1 FLYWHEEL (INCL. 20 & 21)

4 0447600 1 COVER PLATE

5 0447700 1 GASKET

6 0446400 1 DRIVE ARM

7 00750959 4 BOLT

8 0447100 4 BOLT

9 0447400 4 BOLT, SOCKET HEAD

10 00019600 5 LOCKWASHER

12 0564100 1 KEY

13 0446600 1 KNIFE DRIVE PIN

14 000088 1 GREASE FITTING

15 00695000 1 BOLT

16 02788400 1 BOLT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - HYD DRIVE ASY - PN 0666100

Continued...

ITEM PART NO. QTY. DESCRIPTION

17 00001200 1 NUT

18 02716500 1 LOCKNUT

20 044750B 1 SLEEVE

21 044750C 1 SNAP RING

22 000898 1 ADAPTER, SWIVEL

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - HYD MOTOR ASY - PN 0447300

ITEM PART NO. QTY. DESCRIPTION

0447300 - MOTOR ASY, 2.8 CID

1 0448400 1 SHAFT END COVER

2 0159900 4 BEARING & SLEEVE ASY.

3 0029000 1 O-RING SEAL

4 0028700 1 SHAFT BALL BEARING

5 0028800 1 BEARING RETAINER RING

6 0028900 1 BALL BEARING SHIELD

7 0038000 2 CHECK VALVE KIT

8 0038100 2 CHECK BALL RETAINER (USE ITEM 22 P/N 0038000)

9 0038200 2 CHECK VLAVE SEAT (USE ITEM 22 P/N 0038000)

10 0448800 1 GEAR HSG, CENTER SECTION

11 0163100 2 GASKET

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - HYD MOTOR ASY - PN 0447300

Continued...

ITEM PART NO. QTY. DESCRIPTION

12 0029200 2 THRUST PLATE

13 0029300 1 GEAR KEY

14 0231800 1 DOUBLE LIP OIL SEAL

15 0448300 1 END COVER W/PORTS

16 0029700 2 POCKET SEAL .103 DIA X 3-1/4LG (MUST CUT TO FIT)

17 0147200 2 GEAR (SET OF 2)

18 00008200 10 BOLT (REPLACES P/N 0186500)

19 0037100 1 SHAFT

20 0063500 1 PLUG, PIPE (STEEL)

21 0241100 1 RETAINER

22 0038000 1 CHECK VALVE KIT (REPLACES ITEMS 8 & 9)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - HYD VALVE - PN 00750053 - (S/N AB-05999 01-04 & DOWN)

ITEM PART NO. QTY. DESCRIPTION

3 02972064 1 ADP HYD, ELBOW 16MB - 8MJ90

4 10074000 1 BOLT, HEX HEAD 1/4"-NC X 3" PL GR5

6 02957622 2 ADAPTER HYD, STRAIGHT 16MB - 16MJ

7 00750053 1 FLOW DIVIDER VALVE, 8GPM

8 02959924 3 LOCKNUT, TOPLOCK 1/4"-NC PLB

12 02825900 1 ADAPTER HYD, ELBOW 8MP - 8MJ90

13 02959154 1 ADAPTER HYD, ELBOW 16MJ - 16FJX45

15 02959408 1 ADAPTERP HYD, ELBOW 16MJ - 16FJX 90 - 8FPT

16 02961853 1 HOSE, #8 - 8FJX - 8FJX90 - 84"LG

20 02982170 1 VALE MOUNT BRACKET (NOT SHOWN)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - HYD VALVE - PN 00750053 - (S/N AB-05999 01-04 & DOWN)

Continued...

ITEM PART NO. QTY. DESCRIPTION

21 10070000 2 BOLT, HEX HEAD 1/4"-NC X 2-1/2" PL GR5

23 001779 2 HOSE, #16 -16FJX - 16FJX90 -18.5

25 02890700 1 HOSE, #8 - 8FJX - 8FJX - 90"LG

26 00761027 2 PIPE SPACER, 1-1/4" LONG (NOT SHOWN)

27 701316R 1 SPACER, 1/2" LONG

A-BOOM (04-04) SN 04837 - UP Rev 12-08

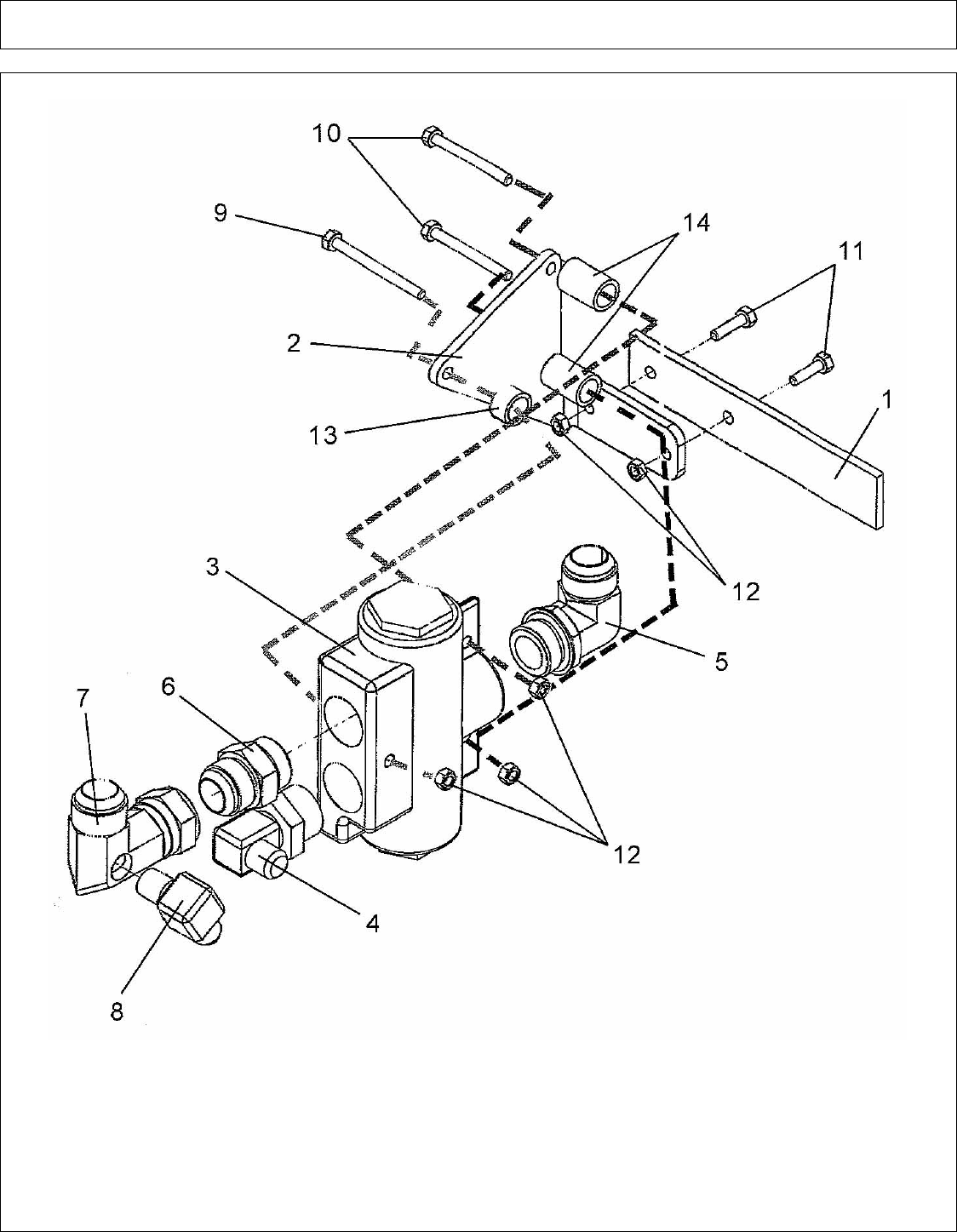

SICKLE BAR - HYD VALVE - PN 00750053A (S/N AB-06000 & UP)

ITEM PART NO. QTY. DESCRIPTION

1 -------------- - MOUNTING BRACKET (WELDED TO FRAME MOUNT)

2 02982141 1 FLOW DIVIDER MOUNT BRACKET

3 00750053A 1 FLOW DIVIDER PRIORITY VALVE

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - HYD VALVE - PN 00750053A (S/N AB-06000 & UP)

Continued...

ITEM PART NO. QTY. DESCRIPTION

4 02972064 1 HYD, ELBOW

5 02090900 1 HYD, ELBOW

6 02957622 1 STRAIGHT ADAPTER

7 02959408 1 HYD, ELBOW

8 02825900 1 HYD, ELBOW

9 10074000 1 BOLT

10 10070000 2 BOLT

11 10058000 2 BOLT

12 02959924 5 LOCKNUT

13 701316R 1 BUSHING

14 00761027 2 PIPE SPACER

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SICKLE BAR - KNIFE ASY

ITEM PART NO. QTY. DESCRIPTION

0531600 - KNIFE ASY, 5 FT. SERRATED KNIVES (STANDARD)

0533900 - KNIFE ASY, 5 FT. SMOOTH KNIVES (OPTIONAL)

1 0448200 1 KNIFE HEAD

0446000 1 BUSHING

0547500 1 PLUG

2 0064700 9 SECTION RIVET

3 0187100 33 SECTION RIVET

4 8064600 - KNIFE SECTION, SERRATED KNIVES (STANDARD)

8122700 - KNIFE SECTION, SMOOTH KNIVES (OPTIONAL)

5 0530100M 1 BACKING STRIP (SAME AS OLD P/N 0530100)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SLOPE MOWER HEAD - BLADE BAR ASY - PN 02957478

ITEM PART NO. QTY. DESCRIPTION

02957478 - BLADE BAR CARRIER, ASY. F/ SLOPEMOWER HEAD

1 02957407 1 BLADE BAR WLDMNT

2 02032400 2 BLADE

3 00749005 2 BLADE BOLT

4 00748547 4 FLATWASHER

5 02032300 2 BLADE BUSHING

6 02030300 2 LOCKNUT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SLOPE MOWER HEAD - CASTER WHEEL ASY

ITEM PART NO. QTY. DESCRIPTION

1 00750925 3 BOLT

2 00021800 3 NUT

3 00748667 3 COLLAR

4 00011700 3 LOCKWASHER

5 02957593 3 CASTER FORK WLDMNT

6 02036400 3 BOLT

7 02036301 3 BUSHING

8 00001300 12 LOCKWASHER

9 00001200 12 NUT

10 02605901 3 CASTER WHEEL

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SLOPE MOWER HEAD - CASTER WHEEL ASY

Continued...

ITEM PART NO. QTY. DESCRIPTION

11 02277900 1 CASTER ARM ASY, LH

02277800 2 CASTER ARM ASY, RH

12 02959181 2 SPACER

13 02892000 9 BOLT

02957594 3 CASTER WHEEL ASY,(ITEM 1 THRU 10 & 12)

02031600 - WHEEL & BUSHING ASY, (ITEMS 1 OF 7, 1 OF 10 & 2 OF 12)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SLOPE MOWER HEAD - HEAD ASY - PN 02962174

ITEM PART NO. QTY. DESCRIPTION

02962174 - SLOPEMOWER HEAD ASY

1 02957436 1 SQUARE HEAD WLDMNT

2 02885700 2 REAR FLAP

3 00011100 47 FLATWASHER

4 02035800 34 WOOD WASHER

5 00015800 41 LOCKNUT

6 00023100 24 BOLT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SLOPE MOWER HEAD - HEAD ASY - PN 02962174

Continued...

ITEM PART NO. QTY. DESCRIPTION

8 02959952 1 FRONT GUARD WLDMNT

9 02957380 1 SIDE GUARD

11 02959957 2 RUBBER FLAP

12 02957496 1 REAR FLAP RETAINER

13 02962439 3 BUMPER, RUBBER

14 02959956 1 RUBBER FLAP

18 00007000 22 BOLT

19 02958114 1 ELEVATER BOLT, FLAT HEAD COUNTERSUNK

20 02957537 1 PLATE, BUMPER

21 02958921 1 SWIVEL ASY, 4-BAR

22 02958945 1 SWIVEL HITCH POST WLDMNT, 4-BAR

23 02958944 1 HITCH POST, 4-BAR

24 00003500 1 GREASE FITTING, STRAIGHT

25 02958424 1 BUSHING

26 00752670 1 GREASE FITTING 1/4-28 BOLT THD

27 02957437 1 SPRING & CHAIN ASY.

28 02060201 2 CHAIN, 9 LINK

29 02060100 2 SPRING

30 02703700 4 CHAIN SHACKLE

31 02772400 2 SHACKLE

32 00037200 6 LOCKNUT

33 02892100 6 BOLT

35 00606000 1 COTTER PIN

36 02958946 1 PIN, SWIVEL 4-BAR

37 02733500 2 CHAIN, 22 LINK

38 5710121 1 COVER PLATE

39 5F5180 2 WING NUT

02959955 - HEAD GUARD ASY.

40 02959958 1 * DEBRIS DEFLECTOR

41 02959959 1 * RUBBER FLAP

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SLOPE MOWER HEAD - HEAD SUB-ASY

ITEM PART NO. QTY. DESCRIPTION

1 02962923 1 MOTOR & SPINDLE ASY,

02960553C 1 SPINDLE ASY, SPLINED

02960696 1 MOTOR ASY, W/1-1/4 SPLINED SHAFT

2 02788400 2 BOLT

3 63000500 4 WASHER

4 02959390 6 BOLT

6 00037200 6 LOCKNUT

7 02957478 1 BAR BLADE CARRIER ASY, W/ BLADES

8 02708700 4 SOCKET HEAD BOLT

9 00003901 4 LOCKWASHER

10 00001800 4 LOCKNUT

11 02960951 2 DOUBLE END STUD

12 00001200 2 NUT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SLOPE MOWER HEAD - MOTOR ASY - PN 02960696

ITEM PART NO. QTY. DESCRIPTION

1 02960696 1 MOTOR ASY, W/ 1-1/4 SPLINED SHAFT

2 02961317 2 ADAPTER, HYD, ELBOW

3 00749103 1 * SPLIT FLANGE KIT

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SLOPE MOWER HEAD - MOTOR PARTS - PN 02960696

ITEM PART NO. QTY. DESCRIPTION

02960696 - MOTOR ASY.

1 * 1 SEAL (IN ITEM 21)

2 * 8 BOLT (IN ITEM 21)

3 * 8 FLATWASHER (IN ITEM 21)

4 02721000 1 FLANGE

5 * 1 O-RING (IN ITEM 21)

6 02721500 2 BOTTOM ISOLATION PLATE

7 * 4 SEALING STRIP (IN ITEM 21)

8 * 4 END SEPERATOR (IN ITEM 21)

9 * 2 CENTER SEPERATOR (IN ITEM 21)

10 * 4 O-RING (IN ITEM 21)

11 * 4 BUCK UP RING (IN ITEM 21)

12 02721300 2 PRESSURE PLATE

13 02961071 1 DRIVE & IDLER GEAR SET

15 02721400 2 TOP ISOLATION PLATE

16 02721700 2 DOWEL PIN

17 NFS 1 BODY

18 02721800 1 SNAP RING

19 02721600 4 STEEL RING

20 * 1 SEAL (IN ITEM 21)

21 02720000 1 SEAL KIT (ITEMS 1,2,3,5,7,8,9,10,11 & 20)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

THIS PAGE INTENTIONAL LEFT BLANK

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SPEED CHANGER (REAR PTO MNT) - PN 00758991

A-BOOM (04-04) SN 04837 - UP Rev 12-08

SPEED CHANGER (REAR PTO MNT) - PN 00758991

Continued...

ITEM PART NO. QTY. DESCRIPTION

00768991 1 SPEED CHANGER ASY, 540 PTO

2 00754520 1 GASKET

4 00754522 1 FLANGE

5 00754523 1 PLUG

6 00754524 4 GASKET

7 00754525 3 PLUG

8 00754526 8 LOCKWASHER

9 00754527 8 BOLT

10 00754528 4 LOCKWASHER

11 00754529 4 BOLT

12 00754530 2 DOWEL PIN

13 00754531 1 HOUSING

14 00754532 1 GASKET

15 00754533 1 FLANGE

16 00754534 1 GASKET

17 00754535 1 BREATHER

18 00754536 5 GASKET

19 00754537 4 PLUG

20 00754538 1 O-RING

21 00754539 1 BEARING

22 00754540 1 RETAINING RING

23 00754541 3 BEARING

24 00754542 1 SHAFT, 540 RPM

02048500 1 O-RING

25 00754543 2 KEY

26 00754544 1 GEAR, 540 RPM

00756532 1 GEAR, 1000 RPM

27 00754545 1 PINION GEAR, 540 RPM

00756531 1 PINION GEAR, 1000 RPM

28 00754546 1 GEAR SPACER, 540 RPM

29 00754950 1 PUMP FLANGE

30 02966731 - SPLINED PUMP ADAPTER, 1"X 15 SPLINE

00754951 - SPLINE PUMP ADAPTER, 7/8" X 13 SPLINE

A-BOOM (04-04) SN 04837 - UP Rev 12-08

TIMBERCAT - HEAD ASY (PART 1)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

TIMBERCAT - HEAD ASY (PART 1)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02972145 1 SICKLE BAR HEAD ASY, 5 FT.

02972146 1 SICKLE BAR HEAD ASY, 7 FT.

1 02971390 1 BLADE BOTTOM, F/ 5 FT.

02971392 1 BLADE BOTTOM, F/ 7 FT.

2 02971389 1 BLADE TOP, F/ 5 FT.

02971391 1 BLADE TOP, F/ 7 FT.

3 02971398 1 SLIDE BEARING, F/ 5 FT.

02971399 1 SLIDE BEARING, F/ 7 FT.

4 02972363 1 FRONT COVER, F/ 5 FT.

02972512 1 FRONT COVER, F/ 7 FT.

5 00751581 1 BOLT

6 02960521 2 BOLT

7 02971400 3 BUSHING

8 5312316 3 WASHER, (SPECIAL)

9 00037200 12 LOCKNUT

10 4720 3 GREASE FITTING, SELF TAPPING

11 02972567 1 FRAME WLDMNT

12 00024400 9 BOLT

13 02972570 9 LOCKWASHER

14 02972256 1 PLATE, VALVE MOUNT

15 00750959 4 BOLT

16 00001300 4 LOCKWASHER

17 02972549 1 VALVE, INVERSION W/PUSH BUTTONS

18 02972807 2 BOLT, SOCKET HEAD

19 00750940 2 LOCKNUT

20 02971423 1 CYLINDER ASY.

21 02972505 1 PIN WLDMNT

22 00749495 2 COTTER PIN

23 02822500 2 FLATWASHER

24 02972353 1 CYLINDER MOUNT WLDMNT, ROD END

25 02972352 2 BOLT WLDMNT

26 02972262 2 SPRING

27 02972261 2 BOLT, ADJUSTING

28 65010300 2 JAM NUT

29 00015800 2 LOCKNUT

30 00751281 2 JAMNUT

31 02972355 1 COVER WLDMNT

32 02972815 1 HITCH POST WLDMNT

33 02918600 7 BOLT

34 02972504 1 DIVIDER FLOW, GEAR TYPE

35 02960411 1 ADAPTER, HYD. ELBOW

A-BOOM (04-04) SN 04837 - UP Rev 12-08

TIMBERCAT - HEAD ASY (PART 2)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

TIMBERCAT - HEAD ASY (PART 2)

Continued...

ITEM PART NO. QTY. DESCRIPTION

36 00695100 2 LOCKNUT

37 02959390 1 BOLT

38 02972750 1 BRACKET

39 00013500 2 JAM NUT

40 00752735 7 SCREW, SELF TAPPING

41 00023500 7 FLATWASHER

42 02972507 1 PIN WLDMNT

43 00003500 1 GREASE FITTING

44 02958424 1 BUSHING

45 02957501 1 BUSHING

46 02956972 1 BOLT

47 00752405 1 BOLT

48 02030300 1 LOCKNUT

49 02972797 1 HOSE, 17" LG

50 02972798 1 HOSE, 19-1/2" LG

51 02972799 1 HOSE, 22" LG

52 02972800 1 HOSE, 14-3/4" LG

53 02042300 3 ADAPTER, HYD. STGHT

54 02161300 1 ADAPTER, HYD. ELBOW

55 001582 1 PLUG

56 02962213 2 ADAPTER, HYD. ELBOW

57 02042400 1 ADAPTER, HYD. STGHT

58 02972806 1 ADAPTER, SPECIAL

59 02161400 1 ADAPTER, HYD ELBOW

60 02961098 1 ADAPTER HYD ELBOW 90 DEG

61 02973124 1 HOSE, 68" LG

62 02973125 1 HOSE, 84" LG

63 02960407 1 ADAPTER, HYD. ELBOW 90 DEG

64 02961085 1 CORDURA SLEEVING, 54" LG

65 02974943 1 KIT, ADHESIVE

A-BOOM (04-04) SN 04837 - UP Rev 12-08

VALVE ASSEMBLY - 4 SPOOL FIXED DISPLACEMENT (OPTION)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

VALVE ASSEMBLY - 4 SPOOL FIXED DISPLACEMENT (OPTION)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02975797 1 VALVE ASSEMBLY OCFD

1 02975798 1 ASSEMBLY, VALVE - 4 SPOOL

2 63042700 2 STRAIGHT ADAPTER

3 02957417 2 PLASTIC CAP

4 02972113 3 STRAIGHT ADAPTER

5 02822300 2 STRAIGHT ADAPTER

6 02972179 5 STRAIGHT ADAPTER

8 02972180 1 STRAIGHT ADAPTER

9 02962249 1 ELBOW

10 02972209 1 ORIFICE, .063 ONE WAY RESTRICTOR

11 02972210 1 ORIFICE, .070 ONE WAY RESTRICTOR

12 02969398 1 ORIFICE, .055 ONE WAY RESTRICTOR

13 02972208 1 VALVE ASSEMBLY, SOLENOID LOCK

15 02957416 8 PLASTIC CAP

16 02980656 3 SECTION ASY, SWING, LIFT OR DIPPER

17 02980657 1 SECTION ASY, TILT

18 02980659 2 SPOOL, SWING

19 02980660 1 SPOOL, LIFT

20 02980661 1 SPOOL, DIPPER

21 02980662 1 SPOOL, TILT

22 02980664 1 SECTION, INLET OCFD VALVE

23 02980665 1 SECTION, END OCFD VALVE

A-BOOM (04-04) SN 04837 - UP Rev 12-08

VALVE ASSEMBLY - 5 SPOOL FIXED DISPLACEMENT (OPTION)

A-BOOM (04-04) SN 04837 - UP Rev 12-08

VALVE ASSEMBLY - 5 SPOOL FIXED DISPLACEMENT (OPTION)

Continued...

ITEM PART NO. QTY. DESCRIPTION

02975810 1 VALVE ASSEMBLY, OCFD

1 02971379 1 ASSEMBLY, VALVE - 5 SPOOL

2 63042700 2 STRAIGHT ADAPTER

3 02957417 2 PLASTIC CAP

4 02972113 3 STRAIGHT ADAPTER

5 02822300 2 STRAIGHT ADAPTER

6 02972179 7 STRAIGHT ADAPTER

8 02972180 1 STRAIGHT ADAPTER

9 02962249 1 ELBOW

10 02972209 1 ORIFICE, .063 ONE WAY RESTRICTOR

11 02972210 1 ORIFICE, .070 ONE WAY RESTRICTOR

12 02969398 1 ORIFICE, .055 ONE WAY RESTRICTOR

13 02972208 1 VALVE ASSEMBLY, SOLENOID LOCK

15 02957416 10 PLASTIC CAP

16 02980656 3 SECTION ASY, SWING, LIFT OR DIPPER

17 02980657 1 SETION ASY, TILT

18 02980658 1 SECTION ASY, DOOR

19 02980659 2 SPOOL, SWING OR DOOR

20 02980660 1 SPOOL, LIFT

21 02980661 1 SPOOL, DIPPER

22 02980662 1 SPOOL, TILT

23 02980664 1 SECTION, INLET OCFD VALVE

24 02980665 1 SECTION, END OCFD VALVE

A-BOOM (04-04) SN 04837 - UP Rev 12-08

VALVE ASSEMBLY - OCFD SYS 4 & 5 SPOOL (OPTION)

ITEM PART NO. QTY. DESCRIPTION

02975798 1 VALVE ASSEMBLY, OCFD, 4 SPOOL

02971379 1 VALVE ASSEMBLY, OCFD, 5 SPOOL

1 02974004 2 ELECTRONIC MODULE, DOOR & TILT

2 02974005 3 ELECTRONIC MODULE, SWING/LIFT & DIPPER

3 02974027 5 SEAL KIT MODULE TO VALVE SECTION

4 02974838 5 HANDLE MODULE

5 02975950 5 SEAL KIT HANDLE TO VALVE SECTION

6 02976024 5 CONNECTOR GASKET

7 02977032 1 VALVE ASSY KIT (INCL. TIE BOLTS & SEALS)

8 02977414 1 RELIEF VALVE 2755 PSI

9 02977745 3 RELIEF VALVE 2030 PSI

10 02977851 20 SHCS METRIC, 33MM

11 02977957 2 RELIEF VALVE, 1160 PSI

A-BOOM (04-04) SN 04837 - UP Rev 12-08

VALVE ASSEMBLY - OCFD SYS 4 & 5 SPOOL (OPTION)

Continued...

ITEM PART NO. QTY. DESCRIPTION

12 02980656 3 SECTION ASY, SWING, LIFT OR DIPPER

13 02980657 1 SETION ASY, TILT

14 02980658 1 SECTION ASY, DOOR

15 02980659 2 SPOOL, SWING OR DOOR

16 02980660 1 SPOOL, LIFT

17 02980661 1 SPOOL, DIPPER

18 02980662 1 SPOOL, TILT

19 02980663 1 SECTION, INLET CCLS VALVE

02980664 1 SECTION, INLET OCFD VALVE

20 02980665 1 SECTION, END CCLS OR OCFD VALVE

A-BOOM (04-04) SN 04837 - UP Rev 12-08

ALAMO INDUSTRIAL

Limited Warranty

ALAMO INDUSTRIAL

1502 E. Walnut

Seguin, Texas 78155

830-379-1480

1. LIMITED WARRANTIES

1.01. Alamo Industrial warrants for one year from the purchase date to the original non-commercial, governmental, or

municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser

(“Purchaser”) that the goods purchased are free from defects in material or workmanship.

1.02. Manufacturer will replace for the Purchaser any part or parts found, upon examination at one of its factories, to be

defective under normal use and service due to defects in material or workmanship.

1.03. This limited warranty does not apply to any part of the goods which has been subjected to improper or abnormal use,

negligence, alteration, modification, or accident, damaged due to lack of maintenance or use of wrong fuel, oil, or

lubricants, or which has served its normal life. This limited warranty does not apply to any part of any internal

combustion engine, or expendable items such as blades, shields, guards, or pneumatic tires except as specifically found

in your Operator’s Manual.

1.04. Except as provided herein, no employee, agent, Dealer, or other person is authorized to give any warranties of any

nature on behalf of Manufacturer.

2. REMEDIES AND PROCEDURES.

2.01. This limited warranty is not effective unless the Purchaser returns the Registration and Warranty Form to Manufacturer

within 30 days of purchase.

2.02. Purchaser claims must be made in writing to the Authorized Dealer (“Dealer”) from whom Purchaser purchased the

goods or an approved Authorized Dealer (“Dealer”) within 30 days after Purchaser learns of the facts on which the

claim is based.

2.03. Purchaser is responsible for returning the goods in question to the Dealer.

2.04. If after examining the goods and/or parts in question, Manufacturer finds them to be defective under normal use and

service due to defects in material or workmanship, Manufacturer will:

(a) Repair or replace the defective goods or part(s) or

(b) Reimburse Purchaser for the cost of the part(s) and reasonable labor charges (as determined by Manufacturer)

if Purchaser paid for the repair and/or replacement prior to the final determination of applicability of the warranty

by Manufacturer.

The choice of remedy shall belong to Manufacturer.

2.05. Purchaser is responsible for any labor charges exceeding a reasonable amount as determined by Manufacturer and

for returning the goods to the Dealer, whether or not the claim is approved. Purchaser is responsible for the transportation

cost for the goods or part(s) from the Dealer to the designated factory.

3. LIMITATION OF LIABILITY.

3.01. MANUFACTURER DISCLAIMS ANY EXPRESS (EXCEPT AS SET FORTH HEREIN) AND IMPLIED WARRANTIES

WITH RESPECT TO THE GOODS INCLUDING, BUT NOT LIMITED TO, MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE.

3.02. MANUFACTURER MAKES NO WARRANTY AS TO THE DESIGN, CAPABILITY, CAPACITY, OR SUITABILITY FOR

USE OF THE GOODS.

3.03. EXCEPT AS PROVIDED HEREIN, MANUFACTURER SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO

PURCHASER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS, OR DAMAGE

CAUSED OR ALLEGED TO BE CAUSED DIRECTLY OR INDIRECTLY BY THE GOODS INCLUDING, BUT NOT

LIMITED TO, ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES RESULTING FROM

THE USE OR OPERATION OF THE GOODS OR ANY BREACH OF THIS WARRANTY. NOT WITHSTANDING THE

ABOVE LIMITATIONS AND WARRANTIES, MANUFACTURER’S LIABILITY HEREUNDER FOR DAMAGES

INCURRED BY PURCHASER OR OTHERS SHALL NOT EXCEED THE PRICE OF THE GOODS.

3.04. NO ACTION ARISING OUT OF ANY CLAIMED BREACH OF THIS WARRANTY OR TRANSACTIONS UNDER

THIS WARRANTY MAY BE BROUGHT MORE THAN TWO (2) YEARS AFTER THE CAUSE OF ACTION HAS

OCCURRED.

4. MISCELLANEOUS.

4.01. Proper Venue for any lawsuits arising from or related to this limited warranty shall be only in Guadalupe County,

Texas.

4.02. Manufacturer may waive compliance with any of the terms of this limited warranty, but no waiver of any terms shall

be deemed to be a waiver of any other term.

4.03. If any provision of this limited warranty shall violate any applicable law and is held to be unenforceable, then the

invalidity of such provision shall not invalidate any other provisions herein.

4.04. Applicable law may provide rights and benefits to purchaser in addition to those provided herein.

KEEP FOR YOUR RECORDS

ATTENTION: Purchaser should fill in the blanks below for his reference when buying repair parts and/or for proper machine

identification when applying for warranty.

Alamo Industrial Implement Model ____________________________ Serial Number ________________________________

Date Purchased __________________________________________ Dealer ______________________________________

ATTENTION:

READ YOUR OPERATOR’S MANUAL

TO THE OWNER/OPERATOR/DEALER

To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and

the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily find

the information you need.

The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety

requirements of tractor operators:

REQUIRED OF THE OWNER:

1. Provide a Roll-Over-Protective Structure that meets the requirements of this Standard; and

2. Provide Seatbelts that meet the requirements of this paragraph of this Standard and SAE J4C; and

3. Ensure that each employee uses such Seatbelt while the tractor is moving; and

4. Ensure that each employee tightens the Seatbelt sufficiently to confine the employee to the protected

area provided by the ROPS.

REQUIRED OF THE OPERATOR

1. Securely fasten seatbelt if the tractor has a ROPS.

2. Where possible, avoid operating the tractor near ditches, embankments, and holes.

3. Reduce speed when turning, crossing slopes, and on rough, slick, or muddy surfaces.

4. Stay off slopes too steep for safe operation.

5. Watch where you are going - especially at row ends, on roads, and around trees.

6. Do not permit others to ride.

7. Operate the tractor smoothly - no jerky turns, starts, or stops.

8. Hitch only to the drawbar and hitch points recommended by the tractor manufacturer.

9. When the tractor is stopped, set brakes securely and use park lock, if available.

Keep children away from danger all day, every day...

Equip tractors with rollover protection (ROPS) and keep all machinery

guards in place...

Please work, drive, play and live each day with care and concern for your

safety and that of your family and fellow citizens.

Printed U.S.A

A-BOOM-PM-04/04 P/N 02924700P

Alamo A Boom Users Manual 002 Machete Front Cover

!! Alamo-13 Alamo Lawn Mower Manuals - Lawn Mower Manuals – The Best Lawn Mower Manuals Collection

A-Boom to the manual bb7b21d1-5a1b-4cb8-8403-12396469fdcc

Navigation menu

Versions of this User Manual:

Views

Navigation
