www.alarmcontrols.com 1

10027 S 51st St, Ste 102

Phoenix, AZ 85044

WWW.ALARMCONTROLS.COM

800-645-5538

Alarm Controls

Product Guide

Access. Value. Today.

2www.alarmcontrols.com

About

Founded in 1971, Alarm Controls offers a complete line of affordable

access control products and accessories to secure and control

commercial door openings at an exceptional value. Whether you

need maglocks, push buttons, push plates, keyswitches, keypads,

exit devices, electric strikes, wall plates, a power supply, or

monitoring and control stations, we have what you need. Our robust

push button and push plate product lines provide a wide variety

of text, finishes, engravings, fills, and sizes for every application,

including pneumatic options.

Today, backed by the strength of ASSA ABLOY, the global leader

in door opening solutions, Alarm Controls continues to grow while

maintaining the high level of customer service, quality and short lead

times that our customers have grown accustomed to over the years.

The Alarm Controls customer care representatives have the proven

knowledge and industry experience to help customers find the best

solution for their application

We also remain committed to custom solutions. As always -

“IF YOU NEED IT, WE WILL MAKE IT!”

On behalf of everyone in the Alarm Controls family, thank you for

using our products.

Customer Support

We’re here to help and you can contact us in the following ways:

• Talk to us. Call us at 800.645.5583 to talk to a Customer Support

representative from 6:00 a.m. to 4 p.m. Mountain Standard Time

• Email us at info@alarmcontrols.com

• Visit www.alarmcontrols.com to learn more about our

products and services

Connect With Us!

ABOUT ALARM CONTROLS

Follow us on Twitter at

@alarmcontrols

Connect with us on LinkedIn at

Alarm Controls

Like us on Facebook at

Alarm Controls

www.alarmcontrols.com 3

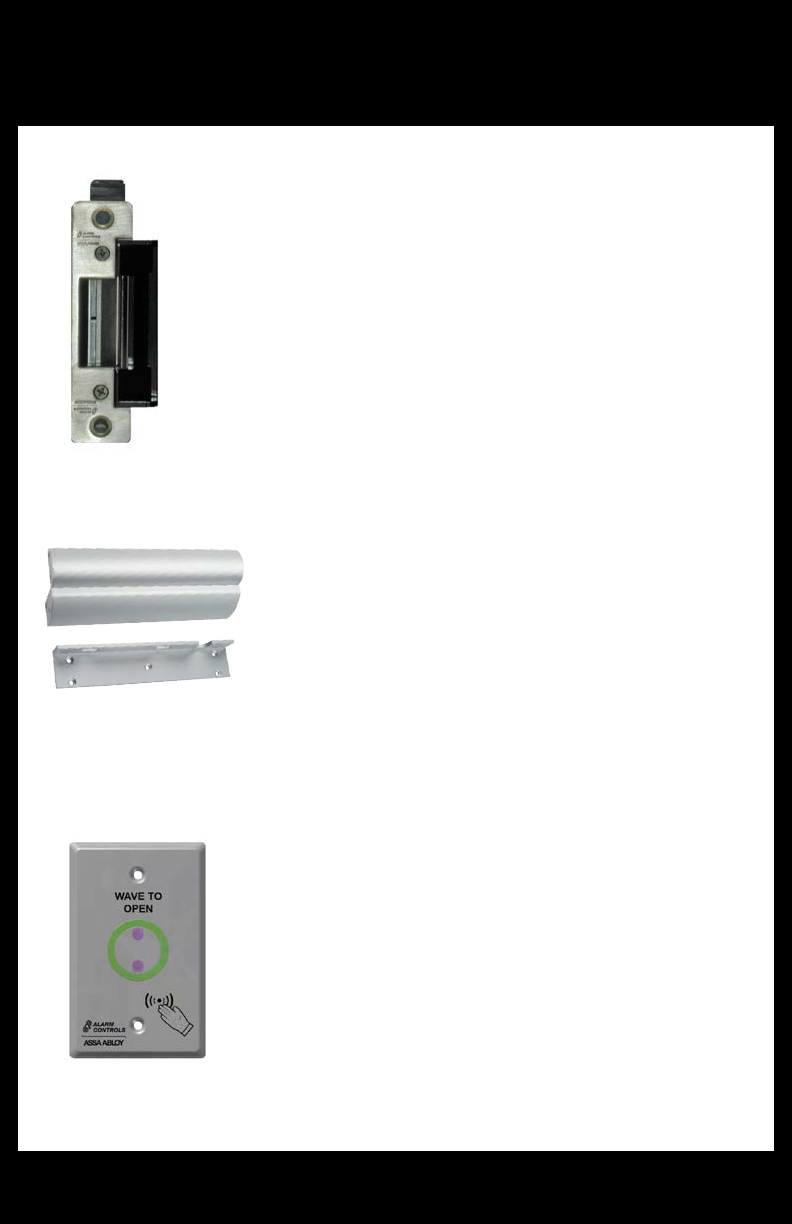

FEATURED PRODUCTS

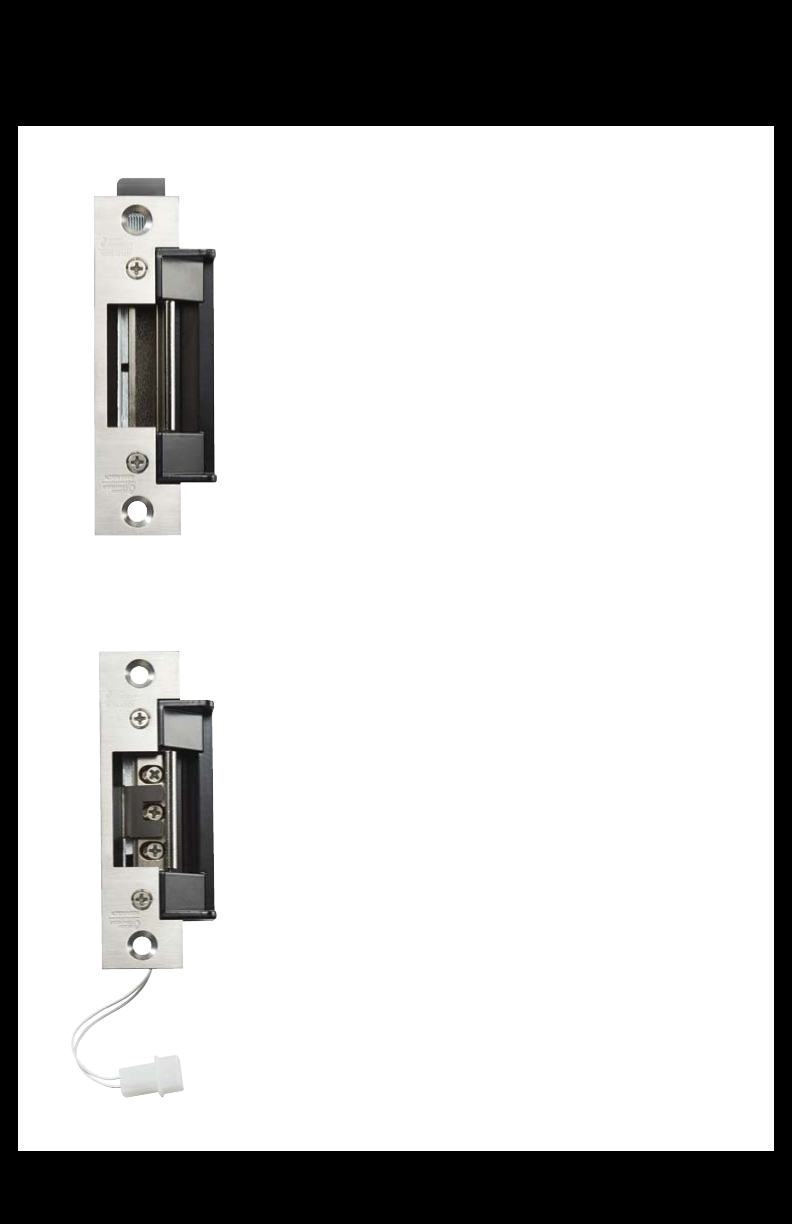

Model AES-100

• BHMA Grade 1 dual voltage electric strike

• UL 1034 burglary resistant, 1500 lbs

static strength

Model AES-200

• BHMA Grade 2 dual voltage electric strike

• 1000 lbs static strength

• latch monitoring

See page 20 for more information

Electric Door Strikes

No Touch Request To Exit Station

Model NTS-1

• Sensor dectection range up to

approximately 4 inches

• Dual color LED, red/green, indicates

active/inactive status

• Time delay settable from 1 to 35 seconds

• Single gang stainless steel, weather

resistant, vandal resistant face plate

• Operates on 12-24VDC

• SPDT relay rated 2 A @ 30VDC or VAC

• Operating temperature range is -25˚C to +55˚C

Z Brackets with Integrated Dress Cover

• AM3370C for 600 lbs single magnetic locks

• AM6370C for 1200 lbs single magnetic locks

• For use on in-swinging doors

4www.alarmcontrols.com

MAGNETIC LOCKS

Limited Lifetime Warranty

MODEL 300S

300 lbs Single Lock

• 300 lbs maximum holding

force

• Magnet size: 6-11/16" L x

1-1/2" H x 7/16" W

• 12 or 24VDC, selectable

• Ideal for cabinets and

showcases

MODEL 600L

600 lbs Single Lock with

Status LED

MODEL 1200S

1200 lbs Single Lock

• 600 lbs maximum holding

force

• Magnet size: 9-7/8" L x

1-11/16" H x 1" W

• UL listed to UL 10C, ULC

listed to ULC-S104 (Canada)

• Green status LED

• Recommended for

interior doors

• 1200 lbs maximum holding

force

• Magnet size: 10-1/2" L x

2-7/8" H x 1-1/2" W

• UL listed to UL 10C, ULC

listed to ULC-S104 (Canada)

• 12 or 24VDC, selectable

• Recommended for exterior

doors

MODEL 600S

600 lbs Single Lock

• 600 lbs maximum

holding force

• Magnet size: 9-7/8" L x

1-11/16" H x 1" W

• UL listed to UL 10C, ULC

listed to ULC-S104 (Canada)

• 12 or 24VDC, selectable

• Recommended for interior

doors

MODEL 600LB

600 lbs Single Lock with

Bond Sensor, Door Status

Sensor and LED

MODEL 1200D

1200 lbs Double Lock with

Bond Sensor, Door Status

Sensor and LED

• 600 lbs maximum holding

force

• Magnet size: 9-7/8" L x

1-11/16" H x 1" W

• UL listed to UL 10C, ULC

listed to ULC-S104 (Canada)

• Bi-color status LED, SPDT 3A

relay contact rating

• Recommended for interior

doors

• 1200 lbs maximum holding

force per lock

• Magnet size: 21" L x 2-7/8" H

x 1-1/2" W

• UL listed to UL 10C, ULC

listed to ULC-S104 (Canada)

• Bi-color status LED, SPDT 3A

relay contact rating

• Recommended for exterior

doors

MODEL 600D

600 lbs Double Lock

• 600 lbs maximum holding

force per lock

• Magnet size: 19-3/4" L x

1-7/8" H x 1" W

• UL listed to UL 10C, ULC

listed to ULC-S104 (Canada)

• 12 or 24VDC, selectable

• Recommended for interior

doors

MODEL 600WP

600 lbs Weatherproof

Gate Lock

MODEL 1200L

1200 lbs Single Lock

with Status LED

• 600 lbs maximum holding

force

• Magnet size: 8-5/8" L x 1-5/8"

H x 1"W

• 12 or 24VDC

• 3/8" I.D. Stainless Steel

jacket protects cable

• UL and ULC Listed

• 1200 lbs maximum holding

force

• Magnet size: 10-1/2" L x

2-7/8" H x 1-1/2" W

• UL listed to UL 10C, ULC

listed to ULC-S104 (Canada)

• Green status LED

• Recommended for exterior

doors

www.alarmcontrols.com 5

MAGNETIC LOCKS

AND ACCESSORIES

Limited Lifetime Warranty

MODEL 1200LB

1200 lbs Single Lock with

Bond Sensor, Door Status

Sensor and LED

• 1200 lbs maximum holding

force

• Magnet size: 10-1/2" L x 2-7/8"

H x 1-1/2" W

• UL listed to UL 10C, ULC

listed to ULC-S104 (Canada)

• Bi-color status LED, SPDT 3A

relay contact

• Recommended for exterior

doors

MODEL 1200WP

1200 lbs Weatherproof

Gate Lock

MODEL JN-1

Jacknut Tool Kit

• 1200 lbs maximum holding

force

• Magnet size: 9" L x 2-5/8" H x

1-5/8" W

• 12 or 24VDC

• Fitted with 1/2" I.D. and 3/4"

O.D. NPT fittings

• 10" colored leads in plastic

jacket

• Sealed in stainless steel case

• Provides a reliable and

secure method for securing

locks to a metal door frame

• Kit contains 50 jack nuts

and screws. Additional sets

available, part number JN-50

• Includes 25/64" drill bit and

five mandrel sizes

MODEL LNB-6

Lock N’ A Box

• One model 600S, UL Listed

magnetic lock

• One model TS-2 UL Listed

Request to exit station

• One model KP-100 backlit

digital keypad

• One 24VDC UL plug-in

power supply

• Recommended for interior

doors

MODEL GDH

Glass Door Holder

• Mounts armature plate on

frameless glass doors

• Accommodates 600 and

1200 Series magnetic lock

armature plates

MODEL LNB-12

Lock N’ A Box

• One model 1200S, UL Listed

magnetic lock

• One model TS-2 UL Listed

Request to exit station

• One model KP-400 weather-

proof digital keypad

• One 24VDC UL plug-in

power supply

• Recommended for exterior

doors

MODEL DJ-1

Magnetic Lock Drill Jig

MAGNETIC LOCK

Armature Housings

and Mounting Plates

• Designed for fast and

accurate magnetic lock

installations

• Use for 600 and 1200 Series

single locks

• Jig has temporary mounting

holes for hands-free use

• For use on extra thick doors

• For use on glass doors with

frames

• AM3310 for 600 Series locks

• AM6310 for 1200 Series locks

• AM3315 for 600 and 1200

Series locks

AM3310/AM6310

AM3315

ARMORED DOOR

LOOPS

DL-2

Model DL-1

• 1/4" I.D. stainless steel 18”

jacket

• White & brown plastic end caps

Model DL-2

• 3/8" I.D. stainless steel 18"

jacket

• Die cast end caps

• Custom lengths are available

DL-1

6www.alarmcontrols.com

MAGNETIC LOCK

MOUNTING BRACKETS

DROP DOWN PLATES

for Single Locks

• AM3300 1/2" plate for

600 lbs lock

• AM3305 5/8" plate for

600 lbs lock

• AM3330 1/4" plate for

600 lbs lock

• AM6300 1/2" plate for

1200 lbs lock

• AM6305 5/8" plate for

1200 lbs lock

• AM6330 1/4" plate for

1200 lbs lock

SPLIT ARMATURES

for Single Maglocks

• AM3339 converts a 600

Series single magnetic lock

for use on a double door

• AM6339 converts a 1200

Series single magnetic lock

for use on a double door

DROP DOWN PLATES

for Double Locks

• AM3331 1/4" plate for

600 lbs lock

• AM3332 1/2" plate for

600 lbs lock

• AM3334 5/8" plate for

600 lbs lock

• AM6331 1/4" plate for

1200 lbs lock

• AM6332 1/2" plate for

1200 lbs lock

• AM6334 5/8" plate for

1200 lbs lock

OFFSET

ARMATURE PLATES

FILLER PLATES

for Magnetic Locks

• Sex bolt is offset 1/2"

• Use to clear glass on

aluminum frame doors

• Use AM3338 with 600 Series

single and double magnetic

locks

• Use AM6338 with 1200

Series single and double

magnetic locks

Use to widen door stop

• AM6360 Filler Plate 10-1/2" L

x 3/4" W x 5/8" H

• AM6361 Filler Plate 10-1/2" L

x 3/4" W x 1/2" H

Z BRACKETS

for Magnetic Locks

• AM2370 for 300 lbs

single lock

• AM3370 for all 600 lbs

single locks

• AM3375 for all 600 lbs

double locks

• AM6370 for all 1200 lbs

single locks

• AM6375 for all 1200 lbs

double locks

ANGLE BRACKETS

for Magnetic Locks

DRESS COVERS

for Magnetic Locks

• AM3320 for 600 Series single

locks 1" x 1-1/2" x 9-7/8"

• AM3326 for 600 Series

double locks 1" x 1-1/2" x 19"

• AM6320 for 1200 Series

single locks 1" x 1-1/2" x

10-1/2"

• AM6326 for 1200 Series

double locks 1" x 1-1/2" x 21"

• Available for both 600 and

1200 Series magnetic locks

• Available in polished chrome

and brass

• Easy to install and retrofit

existing installations

Z BRACKETS

WITH INTEGRATED

DRESS COVER

• AM3370C for 600 lbs single

magnetic locks

• AM6370C for 1200 lbs single

magnetic locks

• For use on in-swinging doors

www.alarmcontrols.com 7

MAGNETIC LOCK

MOUNTING BRACKETS

DROP DOWN PLATES

Lowers Single Magnetic

Locks by 1/4"

• Model AM3330 for 600 Series

• Model AM6330 for 1200 Series

• Model AM3331 for 600D and

600DLB

• Model AM6331 for 1200D

Fixed single lock

brackets

• AM3320 for

600 Series

• AM6320 for

1200 Series

Single Lock Brackets

• AM2370 for 300 Series

• AM3370 for 600 Series

• AM6370 for 1200 Series

5/8" Filler Plate

• AM6360 for 600 and 1200

single locks

Adjustable Single

Lock Brackets

• AM3325 for 600 Series

• AM6325 for 1200 Series

Double Lock Brackets

• AM3375 for 600 Series

• AM6375 for 1200 Series

1/2" Filler Plate

• AM6361 for 600 and 1200

single locks

USE TWO

FILLER

PLATES FOR

DOUBLE

LOCKS

Fixed Double Lock Brackets

• AM3326 for 600 Series

• AM6326 for 1200 Series

• Model AM3300 for 600 Series

• Model AM6300 for 1200

Series

• Model AM3332 for 600D and

600DLB

• Model AM6332 for 1200D

• Model AM3305 for 600 Series

• Model AM6305 for 1200

Series

• Model AM3334 for 600D and

600DLB

• Model AM6334 for 1200D

DROP DOWN PLATES

Lowers Double Magnetic

Locks by 1/4"

ANGLE BRACKETS

Use to Extend Door Header

DROP DOWN PLATES

Lowers Single Magnetic

Locks by 1/2"

DROP DOWN PLATES

Lowers Double Magnetic

Locks by 1/2"

Z BRACKETS

Use on In-Swinging Doors

DROP DOWN PLATES

Lowers Single Magnetic

Locks by 5/8"

DROP DOWN PLATES

Lowers Double Magnetic

Locks by 5/8"

FILLER PLATES

Use When Door Stop

is Narrow

8www.alarmcontrols.com

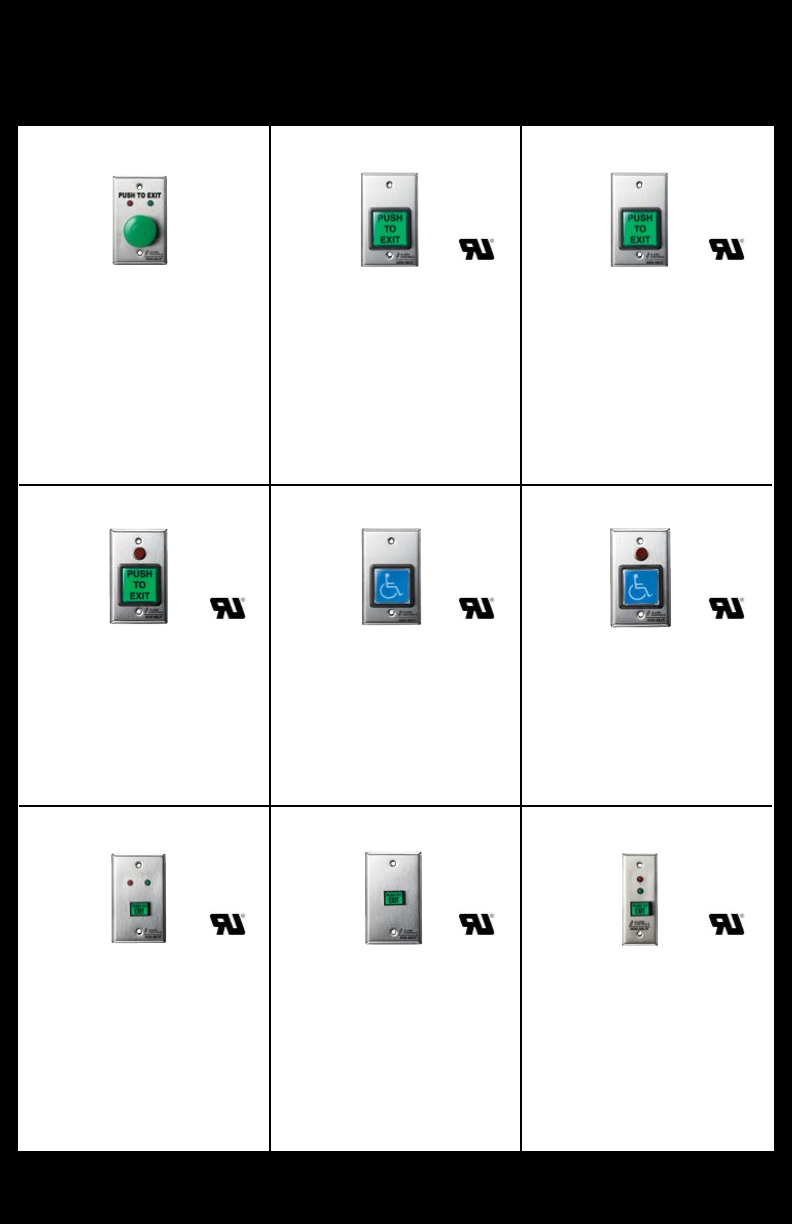

REQUEST TO EXIT STATIONS

Limited Lifetime Warranty

MODEL TS-1

• 1-1/2" diameter button

• Momentary switch

• One N/O and one N/C

contact

• Contacts rated 10A

• Red and green LED’s

• Works on 12 or 24VDC

• Mounted on single gang

stainless steel wall plate

• 2" square LED illuminated

button operates on 12 or

24VDC

• SPDT momentary switch

• Contacts rated 1A @ 35VDC

• UL listed to UL 294

• 1-1/2" mounting depth

• Model TS-2-2 provides an

additional SPDT momentary

output

MODEL TS-2

• Same specifications as TS-2

• Contacts rated 1A @ 35VDC

• UL listed to UL 294

• 1-1/2” mounting depth

• 2 to 45 second adjustable

timed SPDT output

• Model TS-2-2T provides an

additional SPDT momentary

output

MODEL TS-2T

• 2" square LED illuminated

button and 1/2" red LED

operate on 12 or 24VDC

• SPDT momentary switch

• Contacts rated 1A @ 35VDC

• UL listed to UL 294

• 1-1/2” mounting depth

MODEL TS-3

• 2" square LED illuminated

button operates on 12 or

24VDC

• SPDT momentary switch

• Contacts rated 1A @ 35VDC

• UL listed to UL 294

• 1-1/2” mounting depth

MODEL TS-4

• 2" square LED illuminated

button and 1/2" red LED

operate on 12 or 24VDC

• SPDT momentary switch

• Contacts rated 1A @ 35VDC

• UL listed to UL 294

• 1-1/2” mounting depth

MODEL TS-5

• 5/8" x 7/8" LED illuminated

button and 1/4" red and

green LED’s operate on 12

or 24VDC

• DPDT momentary switch

• Contacts rated 3A @ 35VDC

• UL listed to UL 294

• Mounted on single gang

stainless steel wall plate

MODEL TS-6

• 5/8" x 7/8" LED illuminated

button operates on 12 or

24VDC

• DPDT momentary switch

• Contacts rated 3A @ 35VDC

• UL listed to UL 294

• Model TS-7T provides a 2 to

45 second adjustable timed

SPDT output and a SPDT

momentary output

MODEL TS-7

• 5/8" x 7/8" LED illuminated

button and 1/4" red and

green LED’s operate on 12

or 24VDC

• DPDT momentary switch

• Contacts rated 3A @ 35VDC

• UL listed to UL 294

• Mounted on 1-3/4" wide

stainless steel wall plate

MODEL TS-8

9www.alarmcontrols.com

Limited Lifetime Warranty

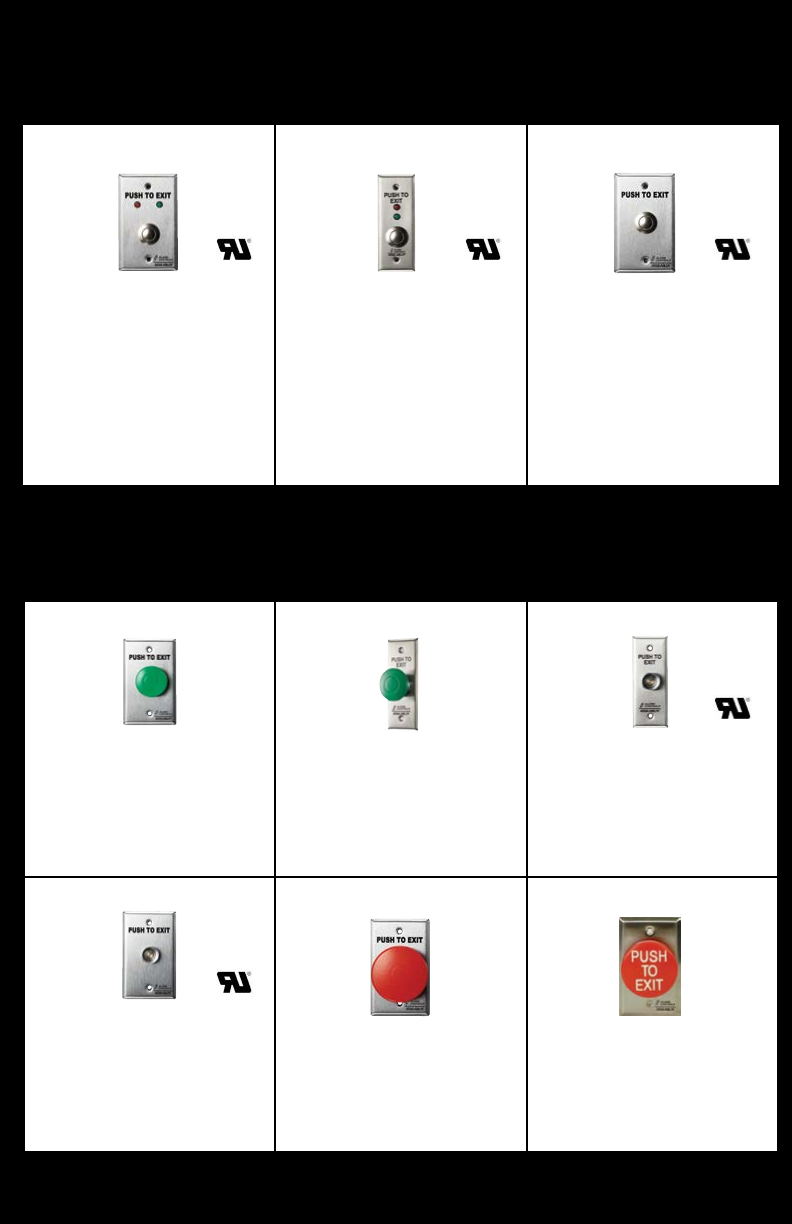

VANDAL RESISTANT

REQUEST TO EXIT STATIONS

MODEL TS-10

• 3/4" diameter pushbutton

• Momentary switch

• DPDT contacts rated 4A @

25VDC

• Red and green LED’s

• Works on 12 or 24VDC

• Switch depth 1-1/2"

• Meets IP65 standard

• UL listed to UL 294

• Single gang stainless steel plate

• 3/4" diameter pushbutton

• Momentary switch

• DPDT contacts rated 4A @

25VDC

• Red and green LED’s

• Works on 12 or 24VDC

• Switch depth 1-1/2"

• Meets IP65 standard

• UL listed to UL 294

• 1-3/4" wide stainless steel plate

MODEL TS-11

• 3/4" diameter pushbutton

• Momentary switch

• DPDT contacts rated 4A @

25VDC

• Switch depth 1-1/2"

• Meets IP65 standard

• UL listed to UL 294

• Single gang stainless

steel plate

MODEL TS-12

PNEUMATIC TIME DELAY

EXIT RELEASE STATIONS

MODEL TS-14 MODEL TS-15

MODEL TS-16

• 1-3/4" wide stainless steel plate

• 0.25" diameter button with

guard ring

• N/O and N/C contacts rated

10A @ 35VDC

• UL listed to UL 294

• Time range 2–60 seconds

• 1/4" diameter button with

guard ring

• N/O and N/C contacts rated

10A @ 35VDC

• Time range 2–60 seconds

• UL listed to UL 294

• Single gang stainless steel plate

Limited Lifetime Warranty

• 1-1/2" diameter green

mushroom button

• N/O and N/C contacts rated

10A @ 35VDC

• Time range 2–60 seconds

• 1-3/4” wide stainless steel plate

MODEL TS-14N

MODEL TS-21RPN

• 2-1/2" diameter red mushroom

button

• N/O and N/C contacts rated

10A @ 35VDC

• Time range 2–60 seconds

• Single gang stainless steel plate

MODEL TS-60

• 2-1/2" diameter red mushroom

button

• N/O and N/C contacts rated

10A @ 35VDC

• Time range 2–60 seconds

• Single gang stainless steel plate

• 1-1/2" diameter green

mushroom button

• N/O and N/C contacts rated

10A @ 35VDC

• Time range 20–60 seconds

• Single gang stainless steel plate

10 www.alarmcontrols.com

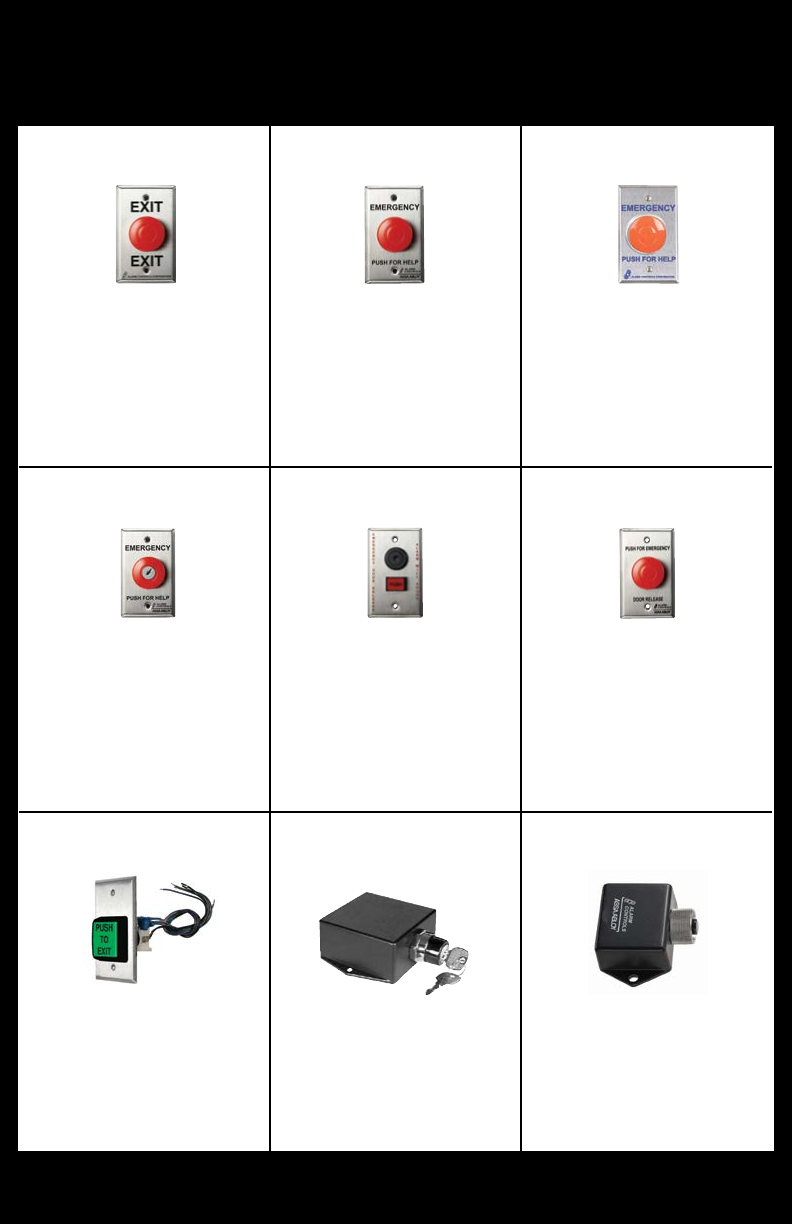

WEATHERPROOF SOLUTIONS

MODEL WP-4

MODEL 30203

MODEL TS-14302

MODEL WPC

MODEL EB-1-1

MODEL TS-12302

• Die cast zinc painted gray

• Three 0.5" hold plugs

• O.D.: 4-1/2" L x 2-3/4” W

x 2” D

• I.D.: 4-5/6” L x 2-9/16” W

x 1-7/8” D

• Remote station with a hinged

self-closing cover

• 1/4" red and green LEDs

operate on 12 or 24 VDC

• LED current draw 8mA at 12

VDC, 12ma at 24 VDC

• 6” red and black leads

• 3/4" “D” hole for Ace lock

• 1-1/2" red mushroom button

• Single gang satin stainless steel

• Contacts rated 10A @ 35VDC

• Meets IP65 standards

• Labeled “EXIT” momentary

action switch

• N/O and N/C contacts rated 10A

@ 35VDC

• Hinged self-closing cover

• Die cast metal construction

• Hasp allows secure closure

with a small padlock

• Mounts on Model 30203 back

box

Limited Lifetime Warranty

• 3/4" diameter pushbutton

• Momentary switch

• DPDT contacts rated 4A

@ 25VDC

• Switch depth 1-1/2"

• Meets IP65 standard

• UL listed to UL 294

• Single gang stainless

steel plate

• 1-1/2" diameter green

mushroom button

• N/O and N/C contacts rated

10A @ 35VDC

• Time range 20–60 seconds

• Meets IP65 standards

• Pneumatic

• Single gang stainless steel plate

11www.alarmcontrols.com

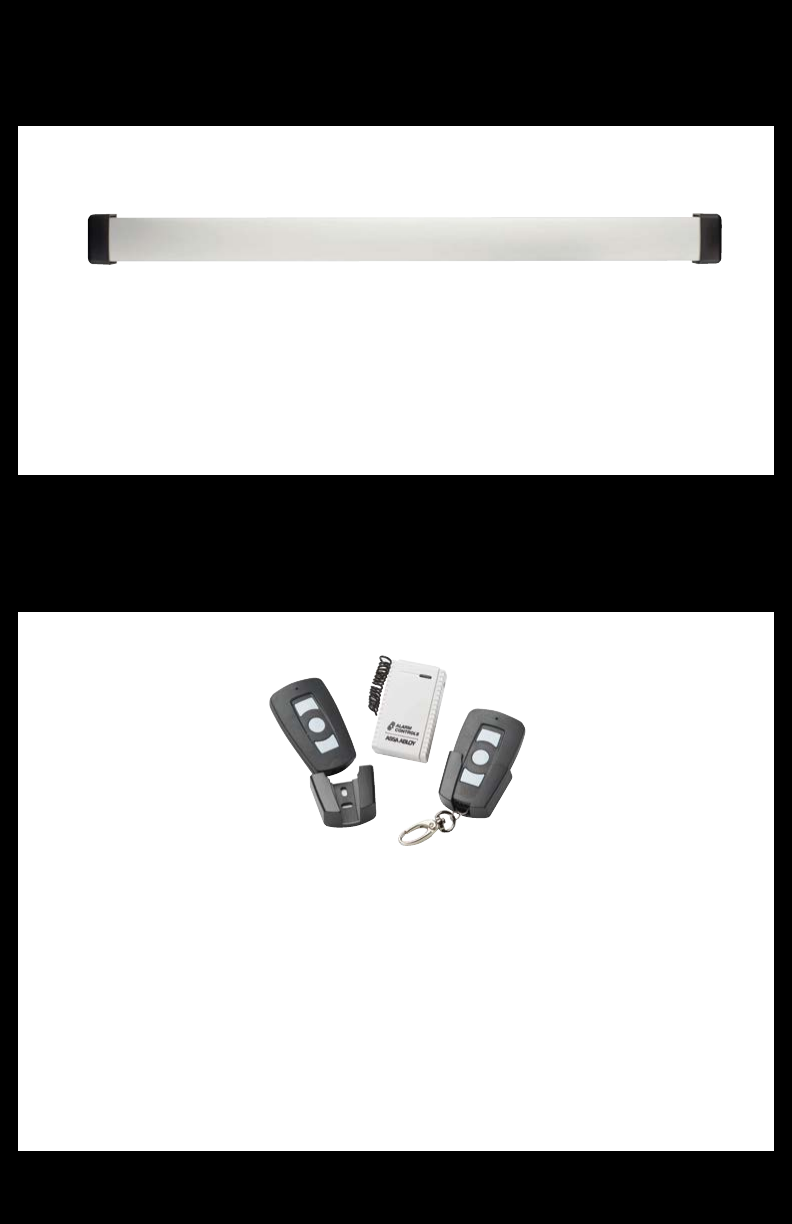

REQUEST TO

EXIT PUSHBAR

WIRELESS TRANSMITTERS

AND RECEIVERS

MODEL RT-1

MODELS

REB-1 AND REB-3

• REB-1 measures 34-1/2" in length. REB-3 measures 48" in length

• Low profile design, 2-1/2" wide x 2" high

• Low operating force, minimal bar travel

• Four SPDT switches for positive redundant operation

• 18" armored door loop included with changeable white and brown end caps

• Field reversible and easily installed on all types of doors

• Heavy duty clear anodized satin aluminum construction

• Available in Duronic finish, part number REB-1DURO or REB-3DURO

• Receiver operates on 12 or 24 volts AC or DC, maximum current 50 mA

• SPDT relay with 1A @ 30 VDC or 120 VAC contacts

• Receiver has five second momentary output. User programmable option for latching output

• 433.92 MHz working frequency

• Rolling code, more than one billion code combinations

• Receiver will accept up to thirty transmitters

• Receiver has a small size 2-1/2" L x 1-1/4" W x 3/4" D with an attractive off white case

• Receiver screw terminals are hidden by cover

• Bi-color LED on receiver indicate condition of relay

• Receiver has a 12" long thin wire antenna for maximum range of 300 feet

• Two transmitters are supplied with each receiver

• A unique transmitter holder can be mounted under a desk or on a wall

• One transmitter has a keychain; additional transmitters are available (part number RT-1T)

Limited Lifetime Warranty

Limited Lifetime Warranty

PUSH TO EXIT

12 www.alarmcontrols.com

TIMERS

MODEL MT-1

One Shot Mini-Timer

MODEL UT-1

Programmable Digital Timer

MODEL T-7P

Precision Digital Timer

MODEL MT-1F

Fail Safe Mini-Timer

• 12-24VAC or VDC

voltage range

• Current draw: 37mA

• Contact arrangement: SPDT

• Contact rating: 2A @

35VDC/125VAC

• 2-45 seconds time settings

• One shot relay operating

mode

• -25°C to +70°C

temperature rating

• Connections made with 8"

colored leads

• Foam tape mounting

• Size: 1-3/4" x 1-3/4"

• Input voltage: 12VDC

• Current draw: 37mA maximum

• Time range: one second to one hour

• Contact arrangement: SPDT

• Contact rating: 10A @ 35VDC

• Sixteen time ranges

• Four timing modes, delay on operate, delay on

release, one shot and pulsing

• Extreme accuracy

• Mounting: adhesive foam tape

• Size: 2-1/8" W x 5-1/4" L

• Available in 24VDC operating voltage model

(specify UT-1/24)

• 12-24VAC or VDC voltage range

• Current draw: 8mA idle, 40mA relay energized

• Relay contacts: SPDT

• Contact rating: 10A @ 35VDC

• Latching or momentary relay modes

• Relay on time adjustable from one second to

three minutes

• Time based quartz stabilized

• Six “on" and six “off" times per day

• Liquid crystal 7 segment display

• Lithium battery back-up, up to 60 hours

• Accuracy ± 1 second per day

• 12 hour format, 24 hour format available

• Size: 4" W x 5-1/4" L

In fail safe operation relay

is energized when power is

applied. During timing mode

relay is not energized.

• 12-24VAC or VDC voltage

range

• 37mA current draw

• One shot relay operating

mode

• Contact arrangement: SPDT

• 2-45 seconds time settings

• -25°C to +70°C temperature

rating

• Connections made with

8"colored leads

• Size: 1-3/4" x 1-3/4"

Limited Lifetime Warranty

www.alarmcontrols.com 13

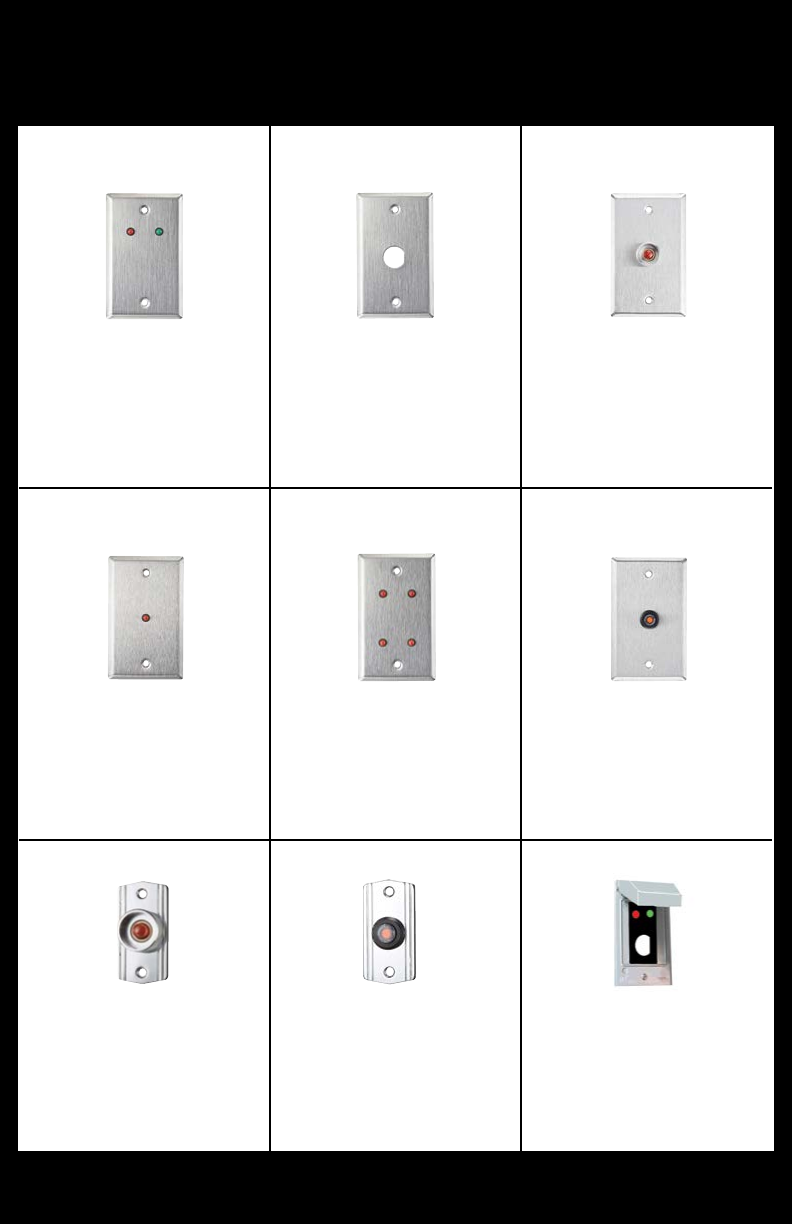

MONITORING/CONTROL

STATIONS

MODEL SLP-1M

One Station

• 1 DPDT momentary contact,

4A @ 28VDC

• 1 red LED operates on

12/24VAC or VDC

• Illuminated switch terminated

with 8" colored leads

• Order SLP-1L for

latching contacts

MODEL SLP-4M

Four Station

MODEL SLP-7M

Seven Station

• 4 DPDT momentary

contacts, 4A @ 28VDC

• 4 red LED’s operate on

12/24VAC or VDC

• lluminated switches

terminated with 8" colored

leads

• Order SLP-4L for

latching contacts

• 7 DPDT momentary contacts,

4A @ 28VDC

• 7 red LED’s operate on

12/24VAC or VDC

• lluminated switches

terminated with 8" colored

leads

• Order SLP-7L for

latching contacts

MODEL SLP-2M

Two Station

MODEL SLP-5M

Five Station

• 2 DPDT momentary

contact, 4A @ 28VDC

• 2 red LED’s operate on

12/24VAC or VDC

• Illuminated switches

terminated with 8" colored

leads

• Order SLP-2L for

latching contacts

• 5 DPDT momentary contacts,

4A @ 28VDC

• 5 red LED’s operate on

12/24VAC or VDC)

• lluminated switches

terminated with 8" colored

leads

• Order SLP-5L for

latching contacts

MODEL SLP-8M

Eight Station

• 8 DPDT momentary contacts,

4A @ 28VDC

• 8 red LED’s operate on

12/24VAC or VDC

• lluminated switches

terminated with 8" colored

leads

• Order SLP-8L for

latching contacts

MODEL SLP-3M

Three Station

• 3 DPDT momentary

contacts, 4A @ 28VDC

• 3 red LED’s operate on

12/24VAC or VDC

• lluminated switches

terminated with 8" colored

leads

• Order SLP-3L for

latching contacts

MODEL SLP-6M

Six Station

MODEL TS-56R

Single Gang Station

• 6 DPDT momentary contacts,

4A @ 28VDC

• 6 red LED’s operate on

12/24VAC or VDC

• lluminated switches

terminated with 8" colored

leads

• Order SLP-6L for

latching contacts

• 1 N/O and 1 N/C latching

contacts, 10A @ 35VDC

• 1-1/2" red LED illuminated

push button

• Internal LED available in

12/24VDC

• Red LED operates on

12/24VAC or VDC

• Weatherproof rated to IP65,

NEMA type 4

Limited Lifetime Warranty

14 www.alarmcontrols.com

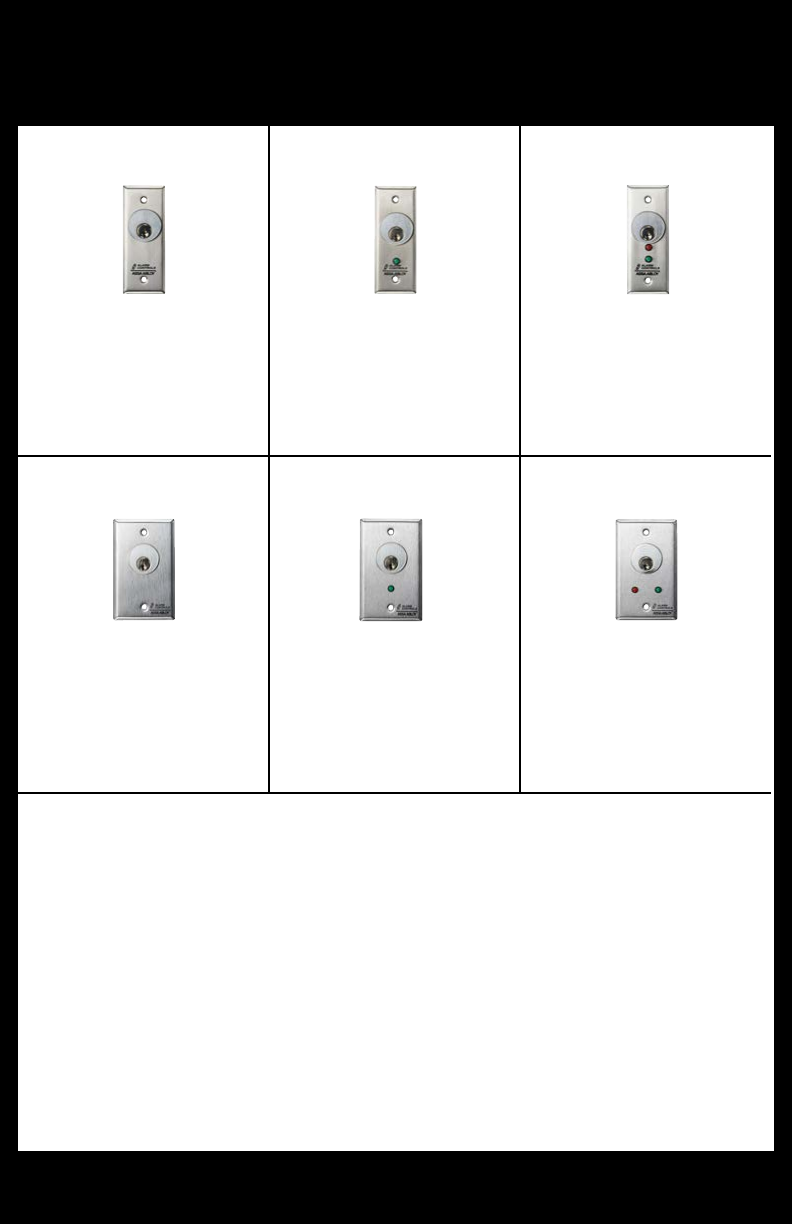

MORTISE CYLINDER KEY

SWITCH STATIONS

MODEL MCK-1

1-3/4" Wide Plate

MODEL MCK-4

Single Gang

MODEL MCK-2

1-3/4" Plate With One LED

MODEL MCK-5

Single Gang With One LED

ADDITIONAL MODELS

MODEL MCK-3

1-3/4" Plate With Two LED’s

MODEL MCK-6

Single Gang With Two LED’s

• SPDT momentary contacts 4A

@ 28VDC

• Switch terminated with 8"

colored leads

• Depth behind plate 1.25"

• Supplied with tamper-proof

and slotted head screws

• SPDT momentary contacts 4A

@ 28VDC

• Switch terminated with 8"

colored leads

• Depth behind plate 1.25"

• Supplied with tamper-proof

and slotted head screws

• MCK-1-2 SPDT, alternate action

• MCK-1-3 DPDT, momentary action

• MCK-1-4 DPDT alternate action

• MCK-2-2 SPDT, alternate action

• MCK-2-3 DPDT, momentary action

• MCK-2-4 DPDT, alternate action

• MCK-3-2 SPDT, alternate action

• MCK-3-3 DPDT, momentary action

• MCK-3-4 DPDT, alternate action

• MCK-4-2 SPDT, alternate action

• MCK-4-3 DPDT, momentary action

• MCK-4-4 DPDT, alternate action

• MCK-4-5 N/O and N/C pneumatic time delay

• MCK-5-2 SPDT, alternate action

• MCK-5-3 DPDT, momentary action

• MCK-5-4 DPDT, alternate action

• MCK-5-5 N/O and N/C pneumatic time delay

• MCK-6-2 SPDT, alternate action

• MCK-6-3 DPDT, momentary action

• MCK-6-4 DPDT, alternate action

• MCK-6-5 N/O and N/C pneumatic time delay

• Add suffix WP for weatherproof option. Available

for MCK-4, MCK-5 and MCK-6 models only.

Includes front cover and back box.

Mortise Cylinders Not Supplied

• Model CY-1 mortise cylinder, Keyed Different • Model CY-1A mortise cylinder, Keyed Alike

• SPDT momentary contacts 4A

@ 28VDC

• Green LED operates on

12/24VAC or VDC

• Switch terminated with 8"

colored leads

• Supplied with tamper-proof

and slotted head screws

• SPDT momentary contacts 4A

@ 28VDC

• Green LED operates on

12/24VAC or VDC

• Switch terminated with 8"

colored leads

• Supplied with tamper-proof

and slotted head screws

• SPDT momentary contacts 4A

@ 28VDC

• Green and red LED’s operate

on 12/24VAC or VDC

• Switch terminated with 8"

colored leads

• Supplied with tamper-proof

and slotted head screws

• SPDT momentary contacts 4A

@ 28VDC

• Green and red LED’s operate

on 12/24 VAC or VDC

• Switch terminated with 8"

colored leads

• Supplied with tamper-proof

and slotted head screws

Limited Lifetime Warranty – Mortise Cylinders Not Supplied

www.alarmcontrols.com 15

EGRESS/EMERGENCY/

PANIC STATIONS

MODEL EB-1

Egress Pushbutton

• 1-1/2" diameter red mushroom

button

• Momentary switch

• Contacts rated 10A @ 35VDC

or 120VAC

• One N/O and one N/C contact

• Mounted on single gang

stainless steel wall plate

MODEL KR-1

Key Reset Pushbutton

MODEL TS-40

Egress Station

• 1-1/2" diameter red

mushroom button

• Locking key reset switch

• Contacts rated 10A @

35VDC or 120VAC

• One N/O and one N/C

contact

• Mounted on single gang

stainless steel wall plate

• Meets BOCA code for access

controlled egress doors

• 2-60 second SPDT timed

contacts, rated 2A

• SPDT momentary contacts,

rated 10A

• Mounted on single gang

stainless steel wall plate

MODEL PBM-1

Momentary Pushbutton

MODEL TS-25

Emergency Door Release

• 1-1/2" diameter red

mushroom button

• Momentary switch

• Contacts rated 10A @

35VDC or 120VAC

• One N/O and one N/C

contact

• Mounted on single gang

stainless steel wall plate

Pressing the latching button

will turn on the buzzer and light

the switch. The contacts will

transfer providing a circuit to

release the door. Pressing the

pushbutton again will lock the

door and turn off the light and

buzzer.

• SPDT 3A contacts

• 12/24VDC operation

MODEL TS-17

Key Controlled

Door Release

• One N/O and one N/C

contact, rated 10A @ 35VDC

or 120VAC

• Black ABS plastic box with

mounting ears

MODEL PBL-1

Latching Pushbutton

• 1-1/2" diameter red

mushroom button

• Latching switch

• Contacts rated 10A @

35VDC or 120VAC

• One N/O and one N/C

• Mounted on single gang

stainless steel wall plate

MODEL TS-32

Emergency Door Release

MODEL TS-18

Door Release

• 1-1/2" diameter red

mushroom button

• Contacts rated 10A @

35VDC or 120VAC

• One N/O and one N/C

latching contacts

• Silkscreened with blue

epoxy ink

• Mounted on single gang

stainless steel wall plate

• Momentary action pushbutton

• SPDT contacts, 4A @ 28VDC

• Button protected with

guard ring

• Black ABS plastic box with

mounting ears

Limited Lifetime Warranty

16 www.alarmcontrols.com

VANDAL RESISTANT

PUSH PLATES

MODEL PN1-111

Mullion Mount

• SPDT momentary contacts,

4A @ 28VDC

• Machined from 6061 solid

aluminum

• “PUSH TO EXIT”

• Engraved legend

• Clear anodized with black fill

• Tamper resistant

• Size: 1-7/8" W x 4-1/2" L

MODEL PT1-111

T Style

MODEL PS1-111

Single Gang Style

• SPDT momentary contacts,

4A @ 28VDC

• Machined from 6061

solid aluminum

• “PUSH TO EXIT”

• Engraved legend

• Clear anodized with black fill

• Mounts on Single Gang box

• Size: 3" W x 4-1/2" L

• SPDT momentary contacts,

4A @ 28VDC

• Machined from 6061

solid aluminum

• “PUSH TO EXIT”

• Engraved legend

• Clear anodized with black fill

• Mounts on Single Gang box

• Size: 3" W x 4-1/2" L

MODEL PN5-513

Mullion Mount

MODEL PT2-443

T Style

• Pneumatic time delay, 1 N/O,

1 N/C 10A contacts

• Machined from 6061

solid aluminum

• “PUSH TO EXIT”

• Engraved legend

• Black anodized with white fill

• Tamper resistant

• Size: 1-7/8" W x 4-1/2" L

• DPDT momentary contacts,

4A @ 28VDC

• Machined from 6061

solid aluminum

• “ADA PUSH TO OPEN”

• Engraved legend

• Blue anodized with white fill

• Mounts on Single Gang box

• Size: 3" W x 4-1/2" L

MODEL PS1-443

Single Gang Style

• DPDT momentary contacts,

4A @ 28VDC

• Machined from 6061

solid aluminum

• “ADA PRESS TO OPEN”

• Engraved legend

• Blue anodized with white fill

• Mounts on Single Gang box

• Size: 3" W x 4-1/2" L

MODEL PN2-443

Mullion Mount

• DPDT momentary contacts,

4A @ 28VDC

• Machined from 6061 solid

aluminum

• “ADA PUSH TO OPEN”

• Engraved legend

• Blue anodized with white fill

• Tamper resistant

• Size: 1-7/8" W x 4-1/2" L

MODEL PT5-152

T Style

MODEL PS2-152

Single Gang Style

• Pneumatic time delay, 1 N/O,

1 N/C 10A contacts

• Machined from 6061

solid aluminum

• “EMERGENCY DOOR

RELEASE”

• Clear anodized with red fill

• Mounts on Single Gang box

• Size: 3" W x 4-1/2" L

• DPDT momentary contacts,

4A @ 28VDC

• Machined from 6061

solid aluminum

• “EMERGENCY DOOR

RELEASE”

• Clear anodized with red fill

• Mounts on Single Gang box

• Size: 3" W x 4-1/2" L

Limited Lifetime Warranty

17www.alarmcontrols.com

VANDAL RESISTANT DOUBLE

GANG PUSH PLATES

MODEL PD1-111

Double Gang Push Plate

• SPDT momentary contacts

• Contacts rated 4A @ 28VDC

• Tamper and vandal

resistant mounting

• Mounts on two gang

electrical box

• Machined from 6061 solid

aluminum with clear anodizing

• DPDT momentary contacts

• Contacts rated 4A @ 28VDC

• Tamper and vandal

resistant mounting

• Mounts on two gang

electrical box

• Machined from 6061 solid

aluminum with clear anodizing

MODEL PD5-433

Double Gang Push Plate

• Pneumatic time delay, time

range 2-60 seconds

• 1 N/O, 1 N/C 10A contacts

• Tamper and vandal

resistant mounting

• Mounts on two gang

electrical box

• Machined from 6061 solid

aluminum with blue anodizing

Model

PD1

PD2

PD5

Switch Description

SPDT momentary

DPDT momentary

Pneumatic time delay

2-60 seconds

Finish

1 Clear

2 Bronze

3 Brass

4 Blue

5 Black

6 Red

Engraving

1 PUSH TO EXIT

2 PRESS TO OPERATE DOOR

3 ADA PUSH TO OPEN

Fill

1 Black

2 Red

3 White

4 Blue

HOW TO ORDER

Select a model and substitute the option number to obtain the required part number. For example, DPDT

momentary contacts, bronze finish, “PRESS TO OPERATE DOOR”, white fill. The part number is PD2-223.

MODELS AND OPTIONS

Limited Lifetime Warranty

MODEL PD2-121

Double Gang Push Plate

VANDAL RESISTANT

PUSH PLATES

Narrow

PN1

PN2

PN5

Tee-Style

PT1

PT2

PT5

Single Gang

PS1

PS2

PS5

Switch Description

SPDT momentary

DPDT momentary

Pneumatic time delay

2-60 seconds

SPDT momentary

DPDT momentary

Pneumatic time delay

2-60 seconds

SPDT momentary

DPDT momentary

Pneumatic time delay

2-60 seconds

Finish

1 Clear

2 Bronze

3 Brass

4 Blue

5 Black

6 Red

Engraving

1 PUSH TO EXIT

2 PUSH TO OPERATE DOOR

3 PUSH TO OPEN

4 ADA PUSH TO OPEN

5 EMERGENCY DOOR RELEASE

Fill

1 Black

2 Red

3 White

4 Blue

HOW TO ORDER

Select a model and substitute the option number to obtain the required part number. For example, Single Gang,

DPDT momentary contacts, bronze finish, “PUSH TO OPEN”, white fill. The part number is PS2-223.

MODELS AND OPTIONS

18 www.alarmcontrols.com

Limited Lifetime Warranty

FOOT

SWITCHES

• SPDT

• Contacts rated 10A @ 125VAC

• Foot switch connected to a 5-1/2 foot

long cable

• 18 AWG stranded wire conductor

• UL and CSA listed

• Size: 2-3/4"W x 3-1/2"L x 1-1/4"D

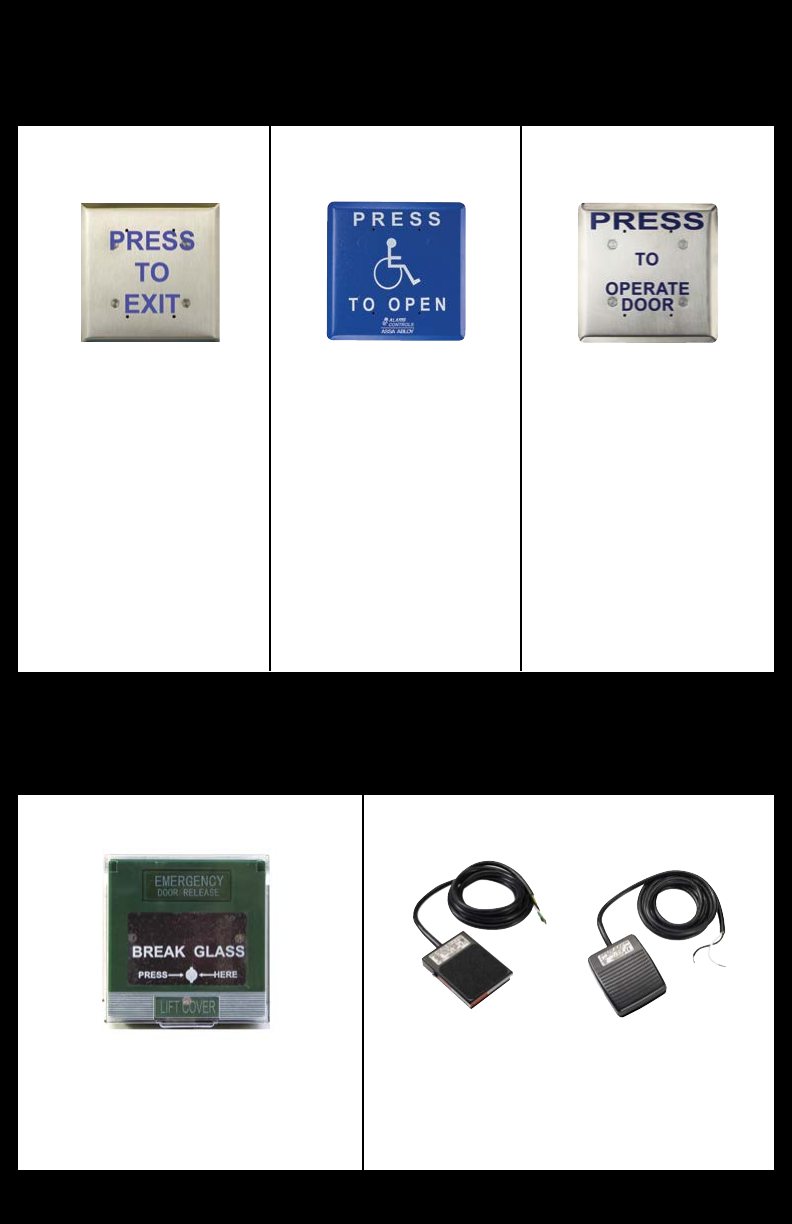

JUMBO PUSH PLATE

EXIT RELEASE STATIONS

MODEL JP1

Jumbo Push Plate

MODEL JP2

Jumbo ADA Push Plate

MODEL JP3

Jumbo Push Plate

• Large 5-1/2" square 302

stainless steel plate

• Mounts on two gang electrical

box

• Vandal resistant

• Silkscreened with blue

epoxy ink

• JP1-1 SPDT 2A

momentary contacts

• JP1-2 DPDT 2A

momentary contacts

• JP1-5 pneumatic time delay

1 N/O and 1 N/C 10A contact

time range 2-60 seconds

• Custom silkscreening

is available

• Large 5-1/2" square blue

push plate

• Mounts on two gang

electrical box

• Vandal resistant

• Silkscreened with white

epoxy ink

• JP2-1 SPDT 2A

momentary contacts

• JP2-2 DPDT 2A

momentary contacts

• JP2-5 pneumatic time delay

1 N/O and 1 N/C 10A contact

time range 2-60 seconds

• Custom silkscreening

is available

• Large 5-1/2" square 302

stainless steel push plate

• Mounts on two gang

electrical box

• Vandal resistant

• Silk screened with blue

epoxy ink

• JP3-1 SPDT 2A

momentary contacts

• JP3-2 DPDT 2A

momentary contacts

• JP3-5 pneumatic time delay

1 N/O and 1 N/C 10A contact

time range 2-60 seconds

• Custom silkscreening

is available

Limited Lifetime Warranty

MODEL FT-1, MOMENTARY ACTION

MODEL FT-2, ALTERNATE ACTION

FT-1

EMERGENCY

DOOR RELEASE

• ABS 757 plastic construction

• SPDT switch rated 10 A @ 24VDC

• 3-1/2” x 3-1/2” x 2-1/2” Deep

MODEL GBS-1

FT-2

19www.alarmcontrols.com

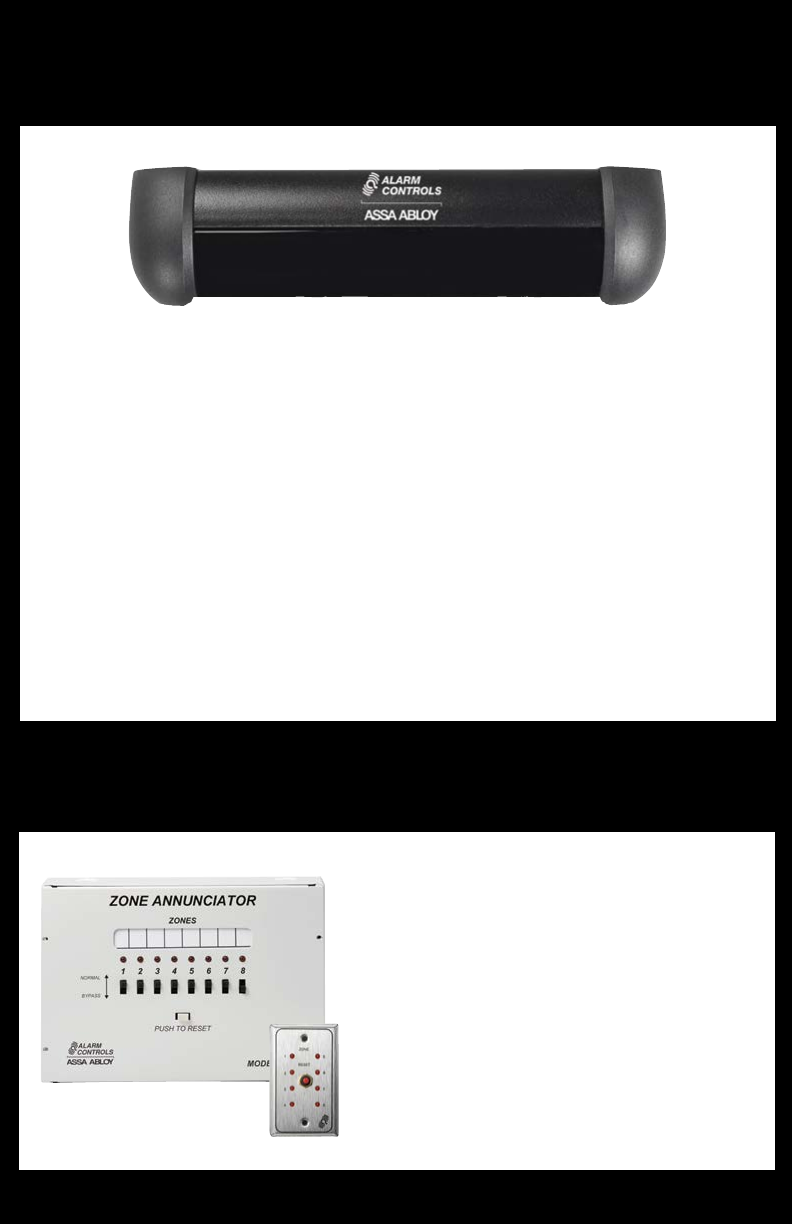

MODEL SREX-100 ACTIVE

FOCUSED INFRARED

MODEL ZA-8N

EIGHT ZONE ANNUNCIATOR

• UL 294 ULC-S319 listed as an access control device

• Narrow activation zone is limited to the door handle area

• Designed to eliminate cross traffic activation

• Cannot be deceived by placing objects under the door

• Easy installation and adjustable depth zone

• Operates on 12/24VAC or VDC auto sensing

• Maximum current draw is 155mA sounder off, 200mA sounder on

• Temperature range for UL installations is +32˚F to +120˚F, (0˚C to +49˚C)

• Double pole – double throw contacts (2 form C)

• Relay contact rating is 1.3A @ 30VDC or 24VAC

• Adjustable time delay from one to sixty seconds

• Built-in buzzer can be silenced if required

• REX input, keypad or card reader input and door position switch input

• 14 pin female connector with four feet of cable

• Three year warranty

• Independent zone annunciation

• Red LED’s indicate zone status

• Memory for each zone

• Individual zone bypass switches

• Individual zone outputs

• Remote annunciation capability

• Adjustable door ajar timer

• N/O, N/C and supervised zone loops

• Loop length up to 1000 feet

• Operates on 12VAC or VDC

• Two remote zone annunciators model ZP-8AN can be

connected to unit

• Cabinet size: 10" W x 7" H x 2" D

• Model ZA-8C provides SPDT outputs for lock control

ZA-8N

ZP-8AN

Three Year Warranty

20 www.alarmcontrols.com

ELECTRIC DOOR STRIKES

MODEL AES-100

BHMA Grade 1 Dual Voltage Electric Strike

MODEL AES-200

BHMA Grade 2 Dual Voltage Electric Strike

Designed for heavy-duty applications, the all-in-one AES-100 offers

dual voltage and field selectable fail secure/fail safe operation. Deep

latch cavity accommodates cylindrical locksets with a 5/8" to 3/4"

throw in steel, wood or aluminum frames.

• BHMA Grade 1

• UL 1034 Burglary Resistant, 1500 lbs static strength

• Static strength 70 ft-lbs. Dynamic strength endurance rating

500,000 UL tested, 1,500,000 factory tested

• Strike depth 1-1/2"

• Field selectable, fail secure/fail safe

• Dual voltage 12/24 VAC or VDC, continuous duty operation on DC

• Fully reversible for right or left hand doors

• Mounting kit includes two 4-7/8" stainless steel face plates

(one round corner and one square corner)

• Current draw 12VAC 130mA, 24VAC 70mA

• Current draw 12VDC 210mA, 24VDC 105mA

• 7-15/16" round corner strike plate available.

Model number STR00004

Designed for medium-duty applications, the all-in-one AES-200 offers

variable voltage and field selectable fail secure/fail safe operation.

Deep latch cavity accommodates cylindrical locksets with a 5/8" throw

in steel, wood or aluminum frames.Easy to install and connect.

• BHMA Grade 2

• 1000 lbs static strength

• Factory cycle tested to 500,000 cycles

• Strike depth 1-1/2"

• 5/8" throw

• Adjustable keeper

• Strike monitored with SPDT (1 form C), dry contacts

• Field selectable, fail secure/fail safe

• Universal 12 through 24VAC or VDC input

• Fully reversible for right or left hand doors

• Mounting kit includes two 4-7/8" stainless steel face plates

(one round corner and one square corner)

• Horizontally adjustable and pre-load capable

• Built-in buzzer, sounds when voltage is applied

• Current draw 12VAC 200mA, 24VAC 70mA

• Current draw 12VDC 130mA, 24VDC 70mA

• 7-15/16" round corner strike plate available.

Model number STR00004

Limited Lifetime Warranty

www.alarmcontrols.com 21

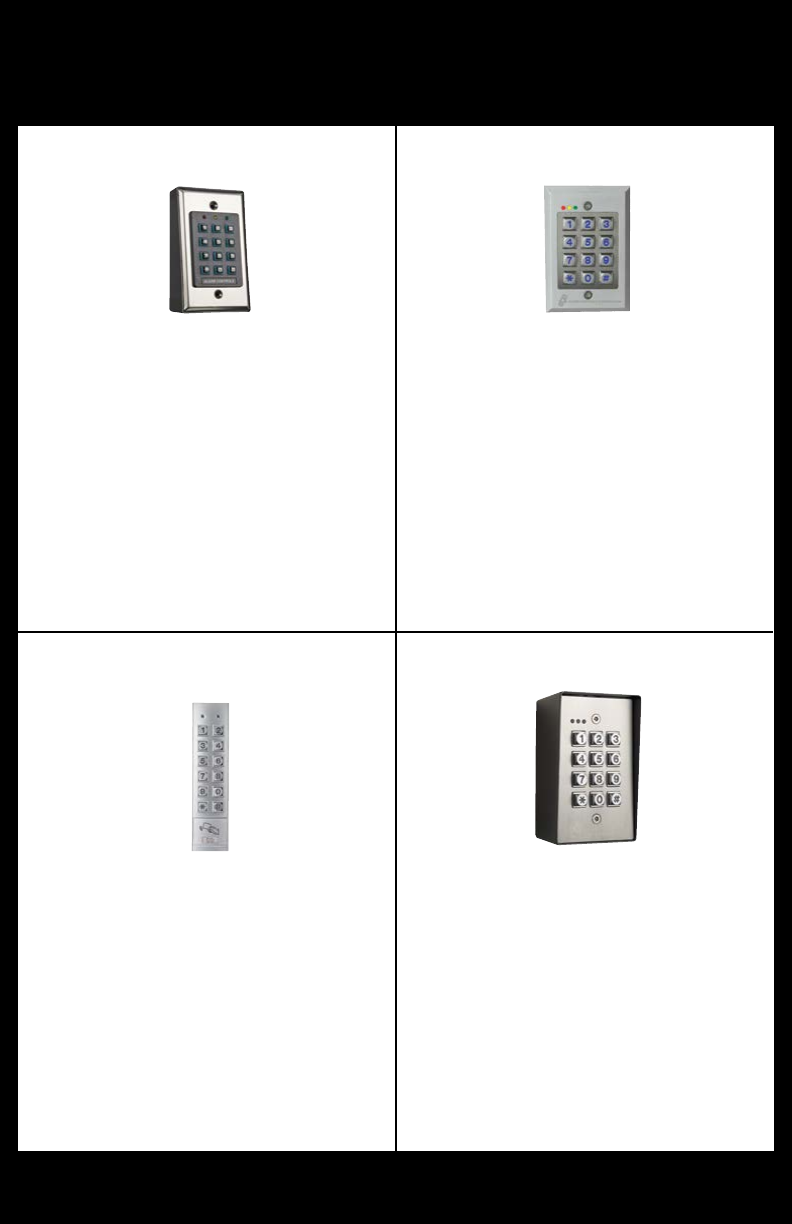

SELF-CONTAINED

DIGITAL KEYPADS

MODEL KP-100

Digital Keypad

MODEL KP-300

Mullion Mount Vandal Resistant Keypad

with Built-in Card reader

MODEL KP-200

Weatherproof Keypad

MODEL KP-400

Vandal Resistant Keypad

• Programmable from the keypad

• Operating voltage 12 or 24 VAC/VDC

• Backlit hard plastic keys

• SPDT 5A contacts

• 100 user codes

• Code length from 4 to 8 digits

• Request to exit input

• Audible and visual key press

• 302 stainless steel wall plate

• Can be surface or flush mounted

• LED status indicators

• False code lockout

• Keypad buzzer can be silenced

• Designed for indoor use only

• Many more additional features

• Programmable from the keypad

• Operate 12VDC nominal, 11-15VDC

• Die cast zinc alloy housing

• Two programmable SPDT relays

• Operate with user code, card or code & card

• Output 1: 1000 user codes & cards

• Output 2: 100 user codes & cards

• Die cast, backlit, metal keys

• LED status indicators

• 50 visitor codes, programmable for one time

use or with time limit

• False code lockout

• Built-in buzzer and tamper switch

• Can be used indoors or outdoors

• Model EM-10 is a package of 10

additional cards

• Programmable from the keypad

• Operating voltage 12/24VAC or VDC

• Backlit metal keys

• Two programmable relay outputs

• Output 1: 100 user codes code length

4 to 8 digits

• Output 2: 10 user codes code length

4 to 8 digits

• Request to exit input, duress output

• Audible and visual key press

• Die cast back box

• 302 stainless steel front plate

• LED status indicators

• False code lockout

• Built-in buzzer can be silenced

• Designed for indoors or outdoors

• Programmable from the keypad

• Operating voltage 12/24VAC or VDC

• Backlit metal keys

• SPDT 5A contacts

• Output 1: 100 user codes code length

4 to 8 digits

• Output 2: 10 user codes code length

4 to 8 digits

• Request to exit input, duress output

• Audible and visual key press

• Vandal resistant metal housing

• Can be flush mounted

• LED status indicators

• False code lockout

• Built-in buzzer and tamper switch

• Designed for indoor or outdoor use

• Many more additional features

Three Year Warranty

22 www.alarmcontrols.com

EXPLOSION-PROOF STATIONS

MOUNTING BOXES

MODEL EXP-1 MODEL EXP-15

DESIGNED FOR HAZARDOUS LOCATIONS

• Heavy cast NEMA type 7 enclosure

• Conforms to Class I, DIV. I and II, Group B, C, D, E, F and G

• 2" diameter pushbutton silkscreened with black epoxy ink

• One N/O and one N/C contact

• Contacts rated 5A @ 35VDC or 120VAC

• Pipe thread 1/2-14 NPT

• UL and ULC approved for hazardous locations

• Pushbutton can be customized

MODELS

• EXP-1, momentary action switch , “PUSH TO EXIT”

• EXP-15, momentary action switch, “PANIC”

• EXP-2, latching action switch, “PUSH TO EXIT”

• EXP-25, latching action switch, “PANIC”

MODEL 426 MODEL 30203 MODEL SMB-1 MODEL SMB-3

• Designed for

installation of narrow

remote stations

(RP-1, RP-3, RP-24

and RP-25 only)

• Galvanized 18

gauge C.R.S.

• Size: 1-1/4" W x

3-5/8" L x 1 -7/8" D

• Suitable for

wet locations

• Die cast zinc

painted gray

• Three 0.5" hole plugs

• O.D.: 4-1/2" L x

2-3/4" W x 2" D

• I.D.: 4-5/16" L x

2-9/16" W x 1-7/8" D

• Designed for single

gang stations

• Powder coated 18

gauge steel

• N/O front and back

tamper switches

• Size: 3" W x 4.5" L x

3" to 2.5" sloping front

• Designed for door

mullion mounting of

narrow push plates

• Machined from

6061 aluminum

• Clear anodized finish

• Duronic finish

available, model

SMB-3D

Limited Lifetime Warranty

Limited Lifetime Warranty

www.alarmcontrols.com 23

REMOTE STATION PLATES

MODEL RP-9

Single Gang Wall Plate

• Satin stainless steel

• 1/4" red and green LED’s

• Works on 12 or 24VDC

• Current 13mA on each LED

• Custom screening available

Model RP-9L

• 1/2" diameter LED’s

MODEL RP-28

Single Gang Wall Plate

MODEL MP-26

• Satin stainless steel

• 1/4" diameter red LED

• Works on 12 or 24VDC

• Current draw 13mA

• Custom screening available

Model RP-28L

• 1/2" diameter LED

• Chrome plated brass

• N/O red pushbutton with

guard ring

• Size: 1-1/4" W x 2-1/4" L

• Contacts rated 0.75A

Model MP-26A

• N/C black pushbutton with

guard ring

MODEL RP-20

Single Gang Wall Plate

MODEL RP-31

Single Gang Wall Plate

• Satin stainless steel

• “D" hole for ACE keyswitch

• Custom screening available

Model RP-21

• Double “D” hole for Medeco

keyswitch

• Satin stainless steel

• Four 1/4" diameter red LED’s

• Works on 12 or 24VDC

• Current 13mA on each LED

• Custom screening available

Model RP-32

• Four, 1/4" green LED’s

MODEL MP-44

• Chrome plated brass

• DPDT shunt switch

• Alternate action switch

• Size: 1-1/4" W x 2-1/4" L

• Contacts rated 2A

• Pushbutton changes from

black to orange when pushed

MODEL RP-26

Single Gang Wall Plate

• Satin stainless steel

• N/O red pushbutton with

guard ring

• Contacts rated 0.75A

• Custom screening available

Model RP-26A

• N/C black pushbutton with

guard ring

MODEL RP-44

Single Gang Wall Plate

MODEL WP-4

• Satin stainless steel

• DPDT shunt switch

• Contacts rated 2A

• Custom screening available

Model RP-45

• Two DPDT shunt switches

• Weather-proof station

• Self-closing cover

• 1/4" red and green LED’s

• Operates on 12/24VDC

• “D" hole for ACE keyswitch

Model WP-6

• Double “D” hole for

Medeco lock

Limited Lifetime Warranty

24 www.alarmcontrols.com

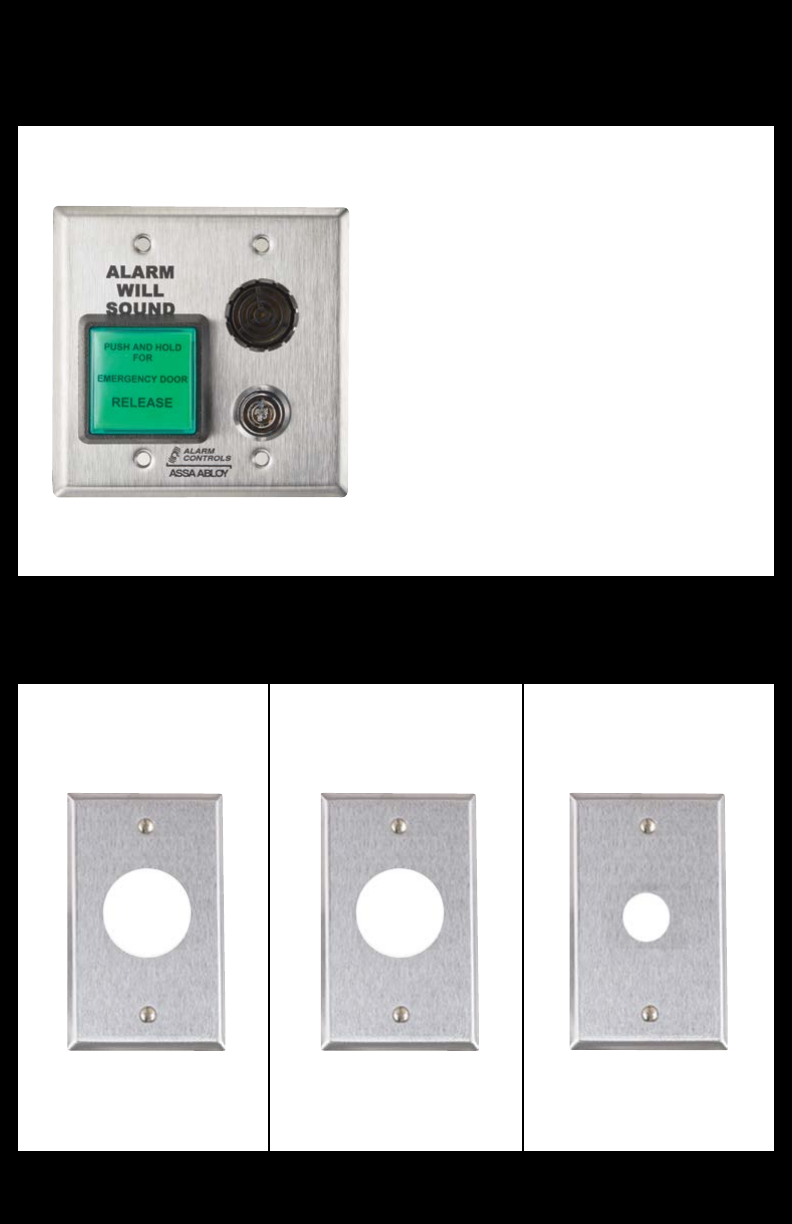

DELAYED EGRESS STATION

WALL PLATES

This micro-controller based unit will provide an

effective means of locking an exit door while still

providing egress during an emergency.

• Operates on 12/24VDC

• Two second nuisance delay

• Adjustable delay time (2-30 seconds)

• Key switch reset and re-lock

• SPDT instant contacts for remote alarm

• SPDT delayed contacts for un-locking door

• Countdown buzzer and flashing LED lamp

during timing mode

• Single gang satin stainless

steel

• Available in all standard

finishes

• Single gang satin stainless

steel

• Available in all standard

finishes

• Single gang satin stainless

steel

• Available in all standard

finishes

MODEL DE-1

Delayed Egress Station

Limited Lifetime Warranty

Limited Lifetime Warranty

RP-22

1-1/8" hole for

SC628 sonalert

RP-22E

1-1/4" hole for

PA-200 buzzer

RP-23

3/4" hole for PA-100 or

PA-300 Piezo buzzers

www.alarmcontrols.com 25

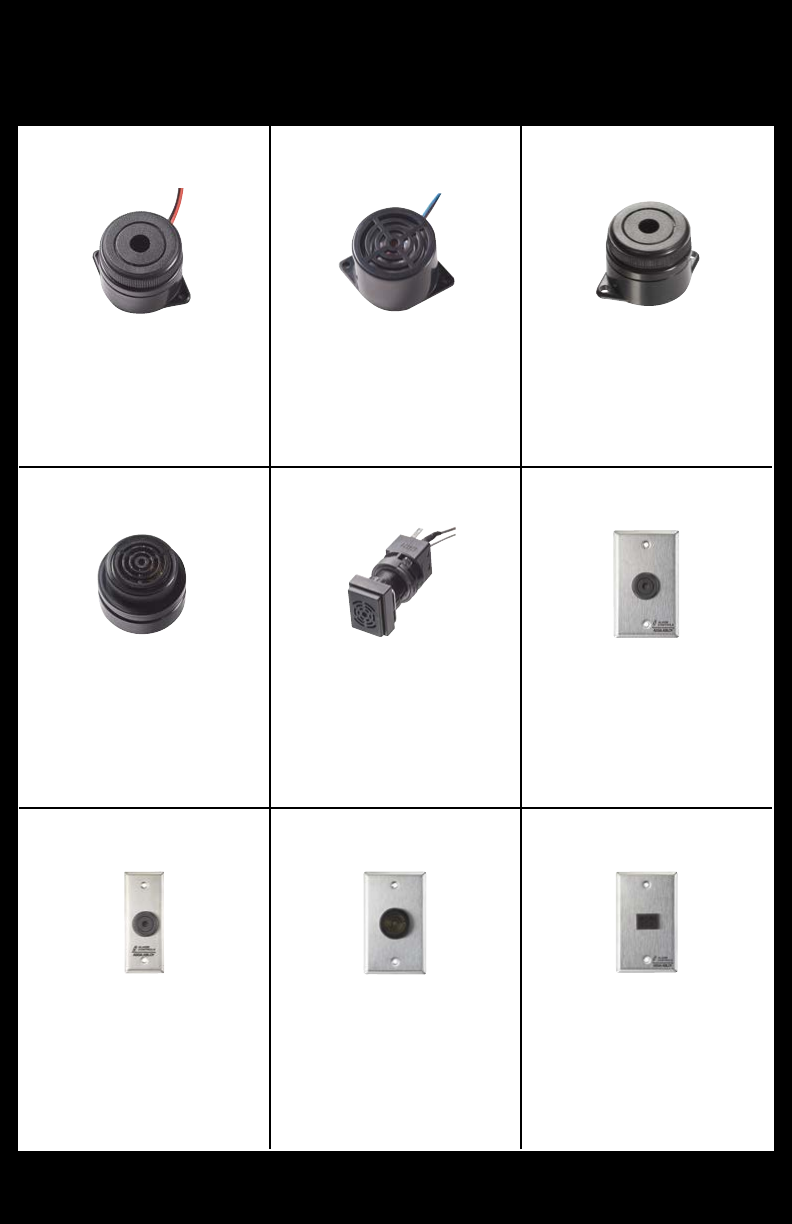

ELECTRONIC BUZZERS

PA-100

Piezo Buzzer

• Buzzer mounts in 3/4"

diameter hole

• Sound level 85dB @ 3 feet

• Voltage range 6VDC to 28VDC

• 6" red and black leads

MODEL SC628

Sonalert

MODEL TS-34N

Narrow Buzzer Station

• Buzzer mounts in 1-1/8"

diameter hole

• Sound level 85dB @ 3 feet

• Voltage range 6 to 28VDC

• Current draw 3mA @ 6VDC,

18mA @ 28VDC

• Screw terminals

• Buzzer is mounted on 1-3/4"

stainless steel plate

• Sound level 85dB @ 3 feet

• Operates on 6 to 28VDC

• Other plate finishes available

• Custom screening available

PA-200

Piezo Chime

MODEL LA32

Piezo Buzzer

• Piezo chime mounts in 1-1/4"

diameter hole

• Sound level 85dB @ 3 feet

• Voltage range 6VDC to 28VDC

• Current draw 95mA @ 12

VDC, 140mA @ 24VDC

• 6" red and black leads

• Buzzer mounts in 5/8"

diameter hole

• Sound level 85dB @ 3 feet

• Operates on 12 /24 VAC or VDC

• Current draw 5mA @ 12

VDC, 7mA @ 28VDC

• 3 adjustments: slow, steady

or fast

MODEL TS-41

Buzzer Station

• Buzzer is mounted on single

gang stainless steel plate

• Sound level 85dB @ 3 feet

• Operates on 6 to 28VDC

• Other plate finishes available

• Custom screening available

PA-300

Dual Tone Piezo Buzzer

• Continuous and pulsing tones

• Sound level 85dB @ 3 feet

• Buzzer mounts in 3/4"

diameter hole

• Voltage range 6VDC to 28VDC

• 6" red, yellow and black leads

MODEL TS-34

Piezo Buzzer Station

MODEL TS-42

Buzzer Station

• Buzzer is mounted on single

gang stainless steel plate

• Sound level 85dB @ 3 feet

• Operates on 6 to 28VDC

• Other standard plate finishes

are available

• Custom screening is available

• Buzzer is mounted on single

gang stainless steel plate

• Sound level 85dB @ 3 feet

• Operates on 12/24VAC or VDC

• 3 adjustments: slow, steady,

and fast

• Custom screening available

Limited Lifetime Warranty

26 www.alarmcontrols.com

KEY SWITCHES

ACE KEY SWITCHES FLAT KEY SWITCHES

• Model KA-105, ON/OFF switch

key removable in ON position,

keyed different

• Model KA-105A, same as

KA-105 except keyed alike

• Model KA-106, ON/OFF switch

key removable OFF position,

keyed different

• Model KA-106A, same as

KA-106 except keyed alike

• Model KA-107, momentary switch

key removable in OFF position,

keyed different

• Model K A-107A, same as KA-107

except keyed alike

• Model K A-107ANC, same as

KA-107A except key removable in

ON position

• Model KA-108, ON/OFF switch

key removable both positions,

keyed different

• Model KA-108A, same as K-108

except keyed alike

• Model KA-109, single bitted flat

key, ON/OFF keyswitch, key

removable in ON or OFF position,

keyed different

• Model KA-109A, same as

KA-109 except keyed alike

• Model KA-110, single bitted

flat key, momentary switch, key

removable in OFF position

• Model KA-110A, same as KA-110

except keyed alike

• Model KA-111, double bitted flat

key, removable in ON or OFF

position SPDT switch, eight inch

colored leads, keyed different

• Model KA-111A, same as KA-111

except keyed alike

Limited Lifetime Warranty

POWER SUPPLIES FOR MAGNETIC LOCKS

MODEL APS-300

UL Listed Access Control Power Supply

• Universal AC input 110 to 240 Volts

• 3 Amps at 12VDC, 1.5 Amps at 24VDC

• Sufficient power to support up to three

magnetic locks or electric strikes plus required

exit devices

• Quality manufactured in the USA with Limited

Lifetime Warranty

• Precise battery regulation for all sealed lead

acid batteries

• Operates under brownout conditions

• Outputs are power limited

• Form C relay contacts, (SPDT), indicates AC

power status

• Cabinet includes normally-open tamper switch

and camlock

• Cabinet size: 14" L x 8-1/2" W x 3-1/2" D

• UL listed to UL294 and UL603, ULC listed to

ULC-S318 (Canada), PD4C and PDFT also

ULC listed to ULC-S533 (1987)

• Additional Models Available

Model APS-3004C: APS-300 with one

PD4C, four output PTC protected

distribution board

Model APS-300FT: APS-300 with one

PDFT Fire Module

Limited Lifetime Warranty

27www.alarmcontrols.com

CUSTOMIZATION

EXAMPLES OF

CUSTOM DESIGNS

“IF YOU NEED IT, WE WILL MAKE IT”

If we don’t have what you’re looking for in our catalog or

on our website, alarmcontrols.com, we can make it

for you. We pride ourselves on our ability to supply

customized products with a short lead time. With the tools

and suppliers set up to handle almost anything, we can

turn around custom orders faster than any other supplier.

So, if you need a yellow push button or a keyswitch station

labeled in Spanish, we will create a customized product

for you to pick up at your local distributor. How about a

monitoring/controls station with custom labels or a desk

top console with custom button colors? And we can often

do it in a few days. Sometimes faster.

28 www.alarmcontrols.com

ASSA ABLOY is the global

leader in door opening solutions,

dedicated to satisfying

end-user needs for security,

safety and convenience

AC-200-0216

Access. Value. Today.

© 2016, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.

Follow us on Twitter at

@alarmcontrols

Connect with us on LinkedIn at

Alarm Controls

Like us on Facebook at

Alarm Controls
