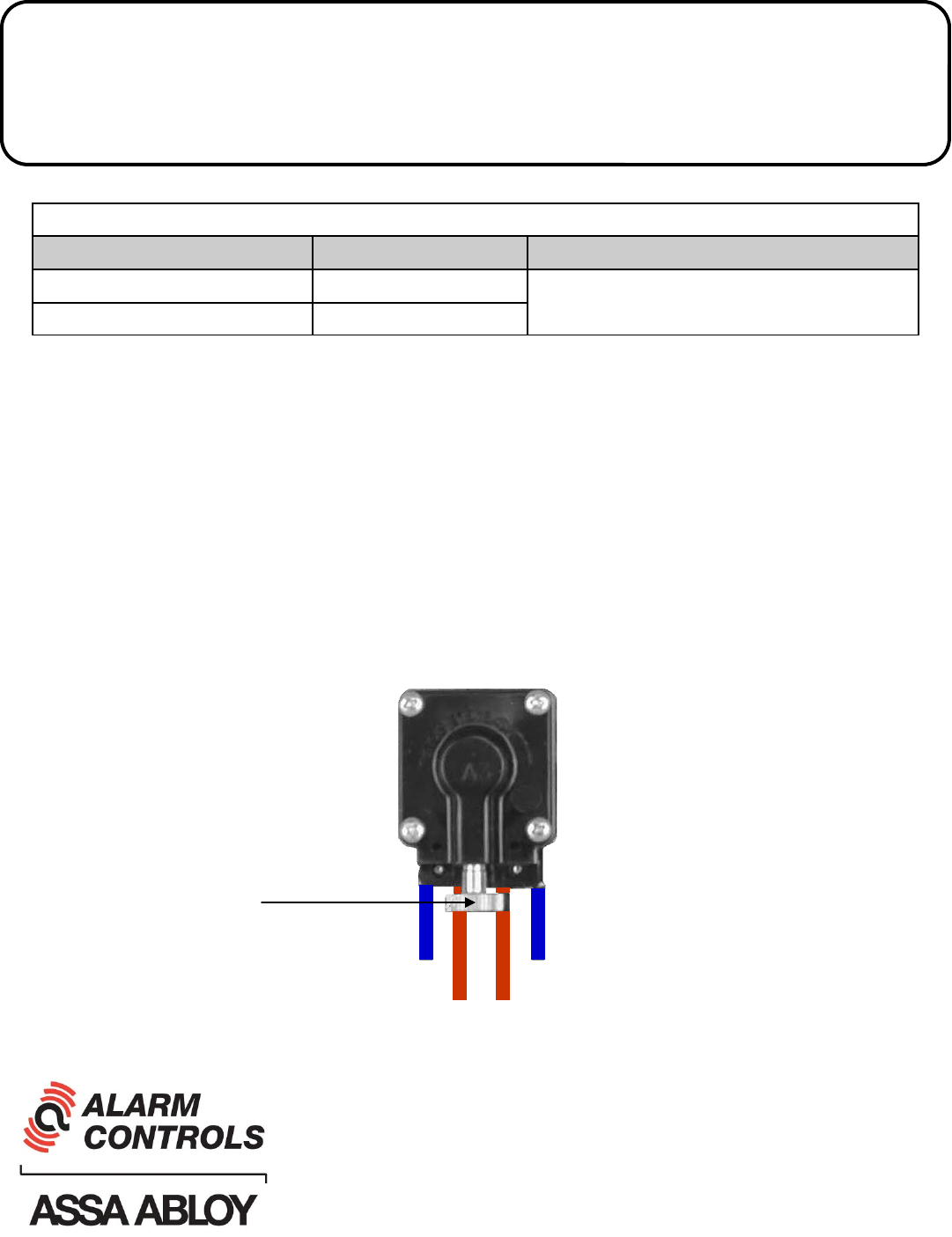

INSTALLATION INSTRUCTIONS

PNEUMATIC TIME DELAY SWITCH

MODELS

TS-14, TS-14N

TS-21RPN

TS-60

WIRING

Wire Color Designation Notes

Red N/C Contacts

Contacts rated 2A @ 28VDC

Blue N/O Contacts

Mounting -

Unit should be mounted in a vertical position.

Time Adjustment -

Rotate knob clockwise for maximum time (60 seconds).

Rotate knob counter clockwise for minimum time (2 seconds).

Note: Switch time repeatability is ±10%.

DOC. D-006 Rev. D 3/14

Alarm Controls

19 Brandywine Drive

Deer Park, New York 11729

(800) 645-5538

www.alarmcontrols.com

Time adjustment knob
