Alarm Controls TS 2 INST SHEET 2TD Installation Install

User Manual: Alarm Controls TS-2TD Installation Installation Instructions

Open the PDF directly: View PDF .
Page Count: 1

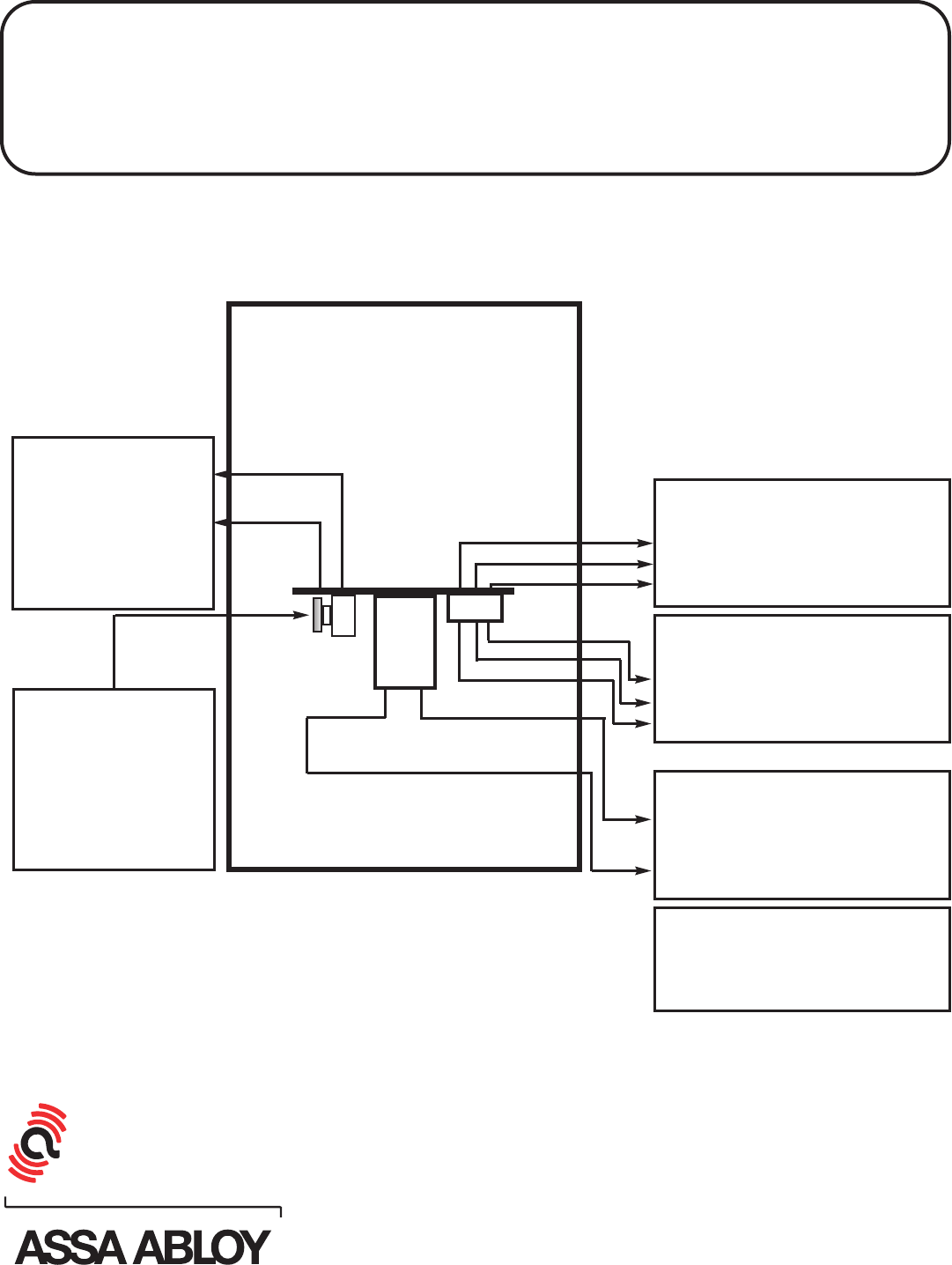

REAR VIEW OF PLATE

TIME ADJUSTMENT

MAXIMUM TIME TURN POT

TOWARD PLATE

MINIMUM TIME TURN POT

AWAY FROM PLATE

TIME RANGE: 2 TO 45

SECONDS

TIMER INPUT VOLTAGE

12 TO 24 VOLTS AC OR DC

NON-POLARIZED

CURRENT DRAW: 60 MA.

MAXIMUM

GRAY LEADS

INTERNAL LAMP

LED ( BLACK ) NEGATIVE LEAD

LED ( BROWN ) POSITIVE LEAD

TIMED OUTPUT CONTACTS #1

RATED 2 A, @ 35 VDC

VIOLET LEAD N/O CONTACT

GREEN LEAD COM CONTACT

BLUE LEAD N/C CONTACT

TIMED OUTPUT CONTACTS #2

RATED 2 A, @ 35 VDC

VIOLET LEAD N/O CONTACT

GREEN LEAD COM CONTACT

BLUE LEAD N/C CONTACT

NOTE: TIMER WILL ACTIVATE WHEN PUSH TO EXIT

SWITCH IS DEPRESSED. SUBSEQUENT

DEPRESSIONS OF THE SWITCH WILL

RE-START THE TIMER.

GRAY

VIOLET

GREEN

BLUE

VIOLET

GREEN

BLUE

BLACK

BROWN

GRAY

INSTALLATION INSTRUCTIONS

MODEL TS-2TD

DOUBLE TIMED CONTACTS

LED CURRENT DRAW

4 MA. @ 12 VDC

15 MA.@ 24 VDC

ALARM

CONTROLS

ALARM CONTROLS

19 BRANDYWINE DRIVE

DEER PARK, NY 11729

1 800 645-5538

WWW.ALARMCONTROLS.COM
