Table of Contents

DL1300 Series Lock Features ....................................3

Supported Products ....................................................4

Lock Design Overview ................................................5

Terminology Used in this Manual ..............................6

Programming Levels ...................................................8

Conventions Used in this Manual ..............................9

LED and Sounder Indicators ......................................9

Product Communication Examples ....................... 10

Wiring and Power Up ................................................ 11

Quick Start .................................................................. 12

Testing the Codes Entered .......................................13

Programming Functions Overview .........................14

Programming Functions ..................................... 15-26

Groups and Scheduled Group 1 Examples ...........27

Programming Record Sheet .....................................29

User Code Record Sheet .................................... 30-32

Schedule Record Sheet ...................................... 33-34

Glossary ......................................................................35

Limited Warranty ........................................................36

THE ALARM LOCK TRILOGY DL1300 SERIES STAND-ALONE ACCESS CONTROL SYSTEM IS A STATE-

OF-THE-ART MICROPROCESSOR-BASED PROGRAMMABLE KEYPAD-ENTRY SECURITY LOCK.

DL1300

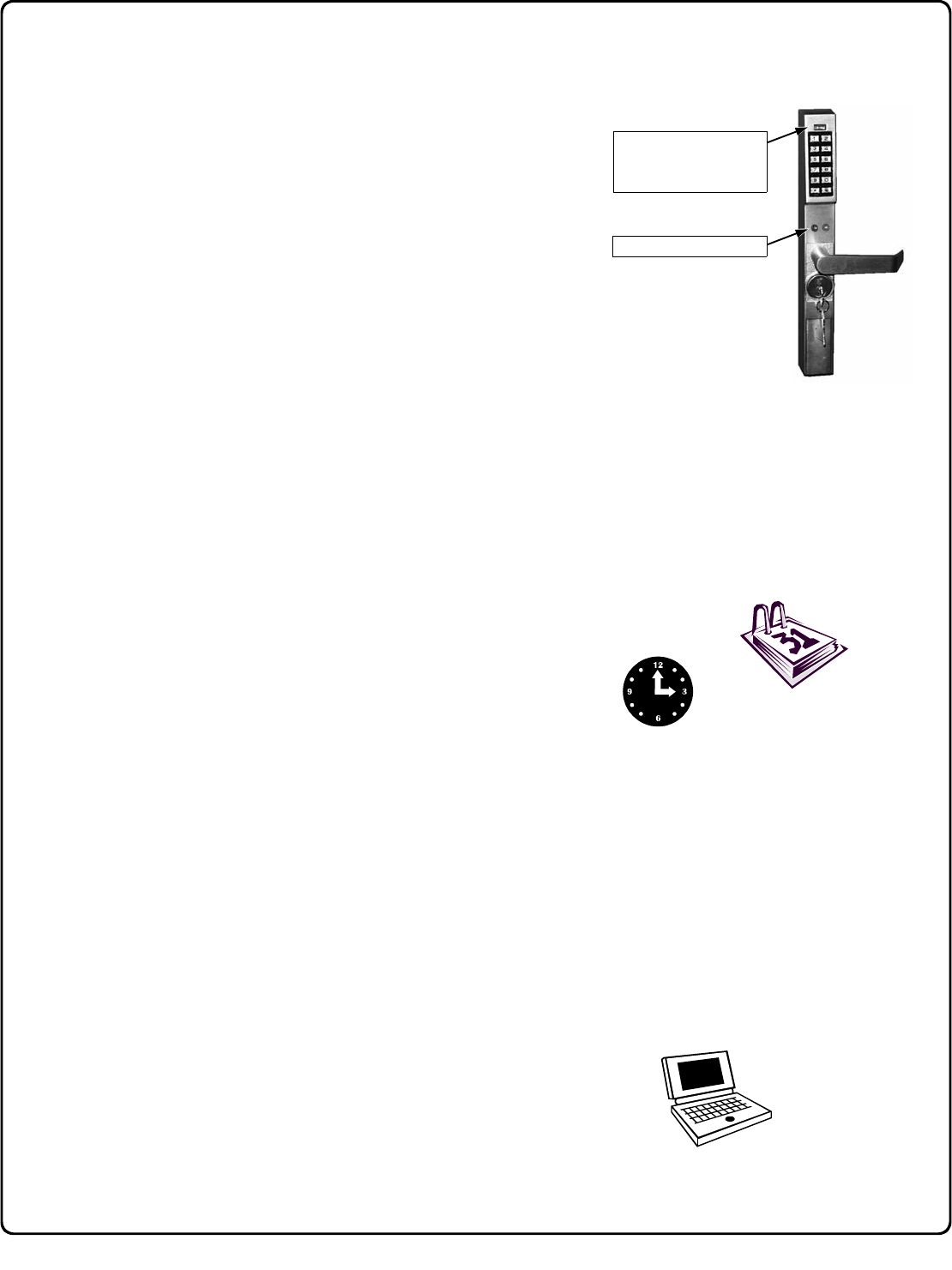

Your new DL1300 Alarm Lock Trilogy electronic digital lock is a mortise-

based manually programmable narrow stile entry trim for Adams Rite®

4710, 4730 and 4900 deadlatch locks, and 1850, 1950, 4070, MS1850S

and MS1950S series deadbolts for narrow stile aluminum doors*.

Features a real-time clock/calendar that automatically adjusts for Daylight

Saving Time and allows for automated programming of events. Features

three methods of programming: (1) all features can be programmed

manually through the keypad; (2) you can transfer programming instruc-

tions directly from your laptop or desktop PC using DL-Windows software

and a special AL-PCI cable; and (3) data can be transferred from your PC

to your DL1300 lock via the AL DTM handheld Data Transfer Module. In

addition, data can be retrieved from the lock in one of three ways (1)

through an infrared printer; (2) directly from the lock to the PC; or (3)

through an AL-DTM to your PC.

*Adams Rite Manufacturing Co., Pomona, CA. www.adamsrite.com

All products, product names and services described in this manual are for identification purposes only and may be trademarks of their respective companies.

DL1300 SERIES LOCK

DL1300

3

Audit Trail

•40,000 Event Capacity

•Entries Logged with Time and Date

•Critical Programming Events Logged

•Printable using the AL-IR1 Hand-Held Printer (see page 22,

Function 55)

•Uploadable using Alarm Lock's DL-Windows software (see

page 22, Function 58)

•Transferable to AL-DTMs

Lock Features

•Metal Key Override for all cylindrical locks

•Keypad Lockout (see page 23, Functions 60-61)

•Non-Volatile (Fixed) Memory

•Real-Time Clock (within one second accuracy)

(see page 20, Functions 43-44)

•Visual and Audible Keypad Feedback (see page 9)

•Battery Status Monitor (see page 9)

Scheduling

•500 Scheduled Events (see pages 24-28)

•Automated Unlock/Lock

•Enable/Disable Users (see page 16, Function 3)

•Enable/Disable Groups (see page 17)

•Four "Quick Schedules" (contains 4 most common schedules) (see page 25)

•Real-time clock and calendar (see page 19)

•Programmable Timeout Functions (see page 17-20)

User Access Methods

•Keypad Entered User Codes (see pages 12-13, 15)

•Metal Key Override

User Features

•2000 Users (see pages 12-13, 15)

•6 Pre-defined Administration User Levels including Master, Installer, Manager, Supervisor, Print-Only and

Basic User Codes (see page 8)

•User Code Lengths from 3-6 digits

•Service Code (“One-Time-Only” Code) (see page 7)

•User Lockout Mode (see page 16, Function 6)

•Users Assignable to 4 Groups (see page 27)

Keypad and Computer Programming

•All programming may be performed manually from the keypad, or from a PC using Alarm Lock's DL-

Windows Software (see page 5)

DL1300 Series Lock Features

Two-Color Status LED

& Infrared LED (for

Printer)

PC / AL-DTM Interface

4

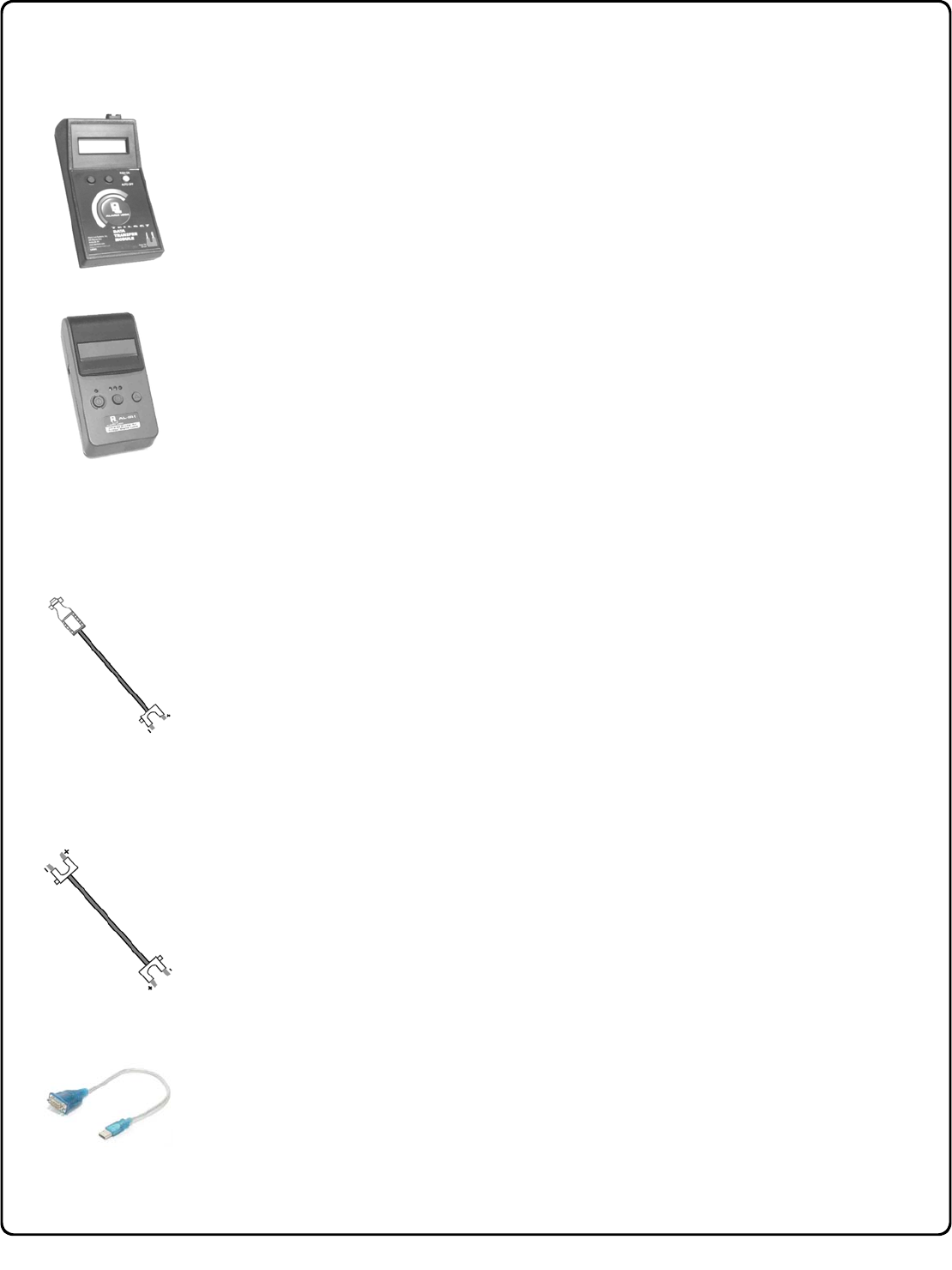

Data Transfer Module (AL-DTM)

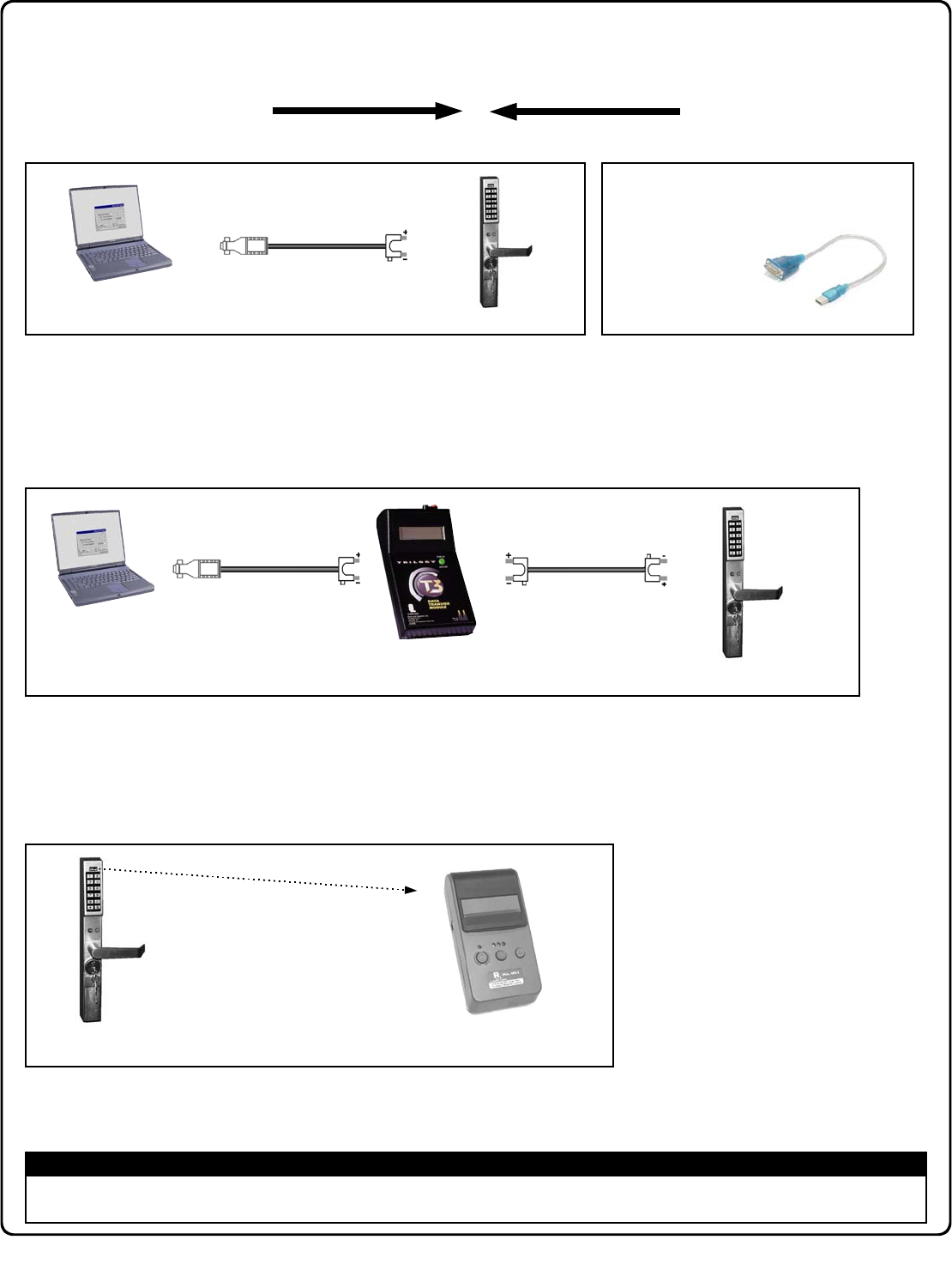

An AL-DTM is used to transfer Lock Programs (and other data) between DL-Windows and locks.

When computers cannot be transported or when electrical power is not available, the hand-held AL-

DTM device acts as a go-between--it allows the transfer of lock data from the computer (through the

AL-DTM) and to the lock, or in reverse (from the lock through the AL-DTM back to the computer).

Infrared Printer (AL-IR1)

An AL-IR1 printer is used to print Audit Trails and User Code lists without the need for a PC.

Its infrared reader means no cable connection to the lock is needed.

Double-ended Mini Banana Plug Connector

After you create the program in DL-Windows and transfer the program from your computer to an

AL-DTM, transfer the program from the AL-DTM to the lock(s) via a double-ended mini banana

plug.

AL-PCI Cable

An ALARM LOCK AL-PCI cable is required to communicate between your computer’s RS-232

serial communications port (COM 1-4) and the AL-DTM or lock. One end of the AL-PCI cable is

designed to be used on a 9-pin serial Com Port. If your computer has a 25-pin Com Port only, a

25-pin to 9-pin adapter must be used. The other end of the AL-PCI cable features a 2-pin ba-

nana plug connector which is polarity sensitive--the TAB (marked “GND”) side must be plugged

into the lock’s black (left) terminal.

Supported Products

USB to RS-232 Cable

If your computer does not have a serial COM port (DB-9 male) available, you can plug your AL-

PCI2 cable into a special USB to RS-232 cable. Order part MX1130 for the USB to RS-232 ca-

ble only, or ALPCI2-U for both the USB to RS-232 cable and an AL-PCI2 cable.

5

Lock Design Overview

Why Use Software inside a Lock?

With ordinary door locks, the need to make physical copies of metal keys and distributing them can be a huge organizational and

financial task -- and what will you do if someone causes a security breach by simply losing their key?

The answer lies in the advantage of software. Software (also called "firmware") is not "hard" or "fixed" like hardware is. Software

is "soft" -- flexible and changeable to your needs. Software exists inside your Alarm Lock™ series lock, and can be programmed

(and re-programmed again and again) to suit your changing requirements. No more metal keys to distribute...instead, distribute

User Codes -- and delete them from the software when needed. (A User Code is the software equivalent of a metal key--it is a

series of numbers the User enters into the door lock keypad to unlock the lock).

Preparing to Program your Lock

Notice that the keypad contains 12 buttons, numbers 1 through 9 plus zero, a star button (:) and a special "AL" button (;).

These 12 buttons are all you need to program your lock. In addition to manually programming your lock (using only the keypad),

you can also program your lock using a computer program named DL-Windows. DL-Windows is not required--but it makes pro-

gramming faster and easier. This guide will show you how to program your lock manually, without DL-Windows. (For information

about programming DL-Windows, see User Guide OI237).

Programming your lock begins after you unpack it from the box -- there is a specific procedure outlined in "Quick Start" (page 12)

in which you "wake up" the lock to prepare it for programming. This "Quick Start" procedure shows you all the steps required to

get your lock to start working. To begin programming, you must first enter something called "Program Mode".

What is Program Mode?

With hardware, hand tools can be used to make fixes or changes. With software, however, changes are made using the keypad.

The software has only two "modes"--"Normal Mode" and "Program Mode". When you want to make changes to the lock program,

you enter "Program Mode". When you finish programming and wish to put the lock into use, you exit Program Mode to enter

"Normal Mode".

You enter Program Mode using the keypad--by pressing the Master Code of the lock that was set at the factory. The Master Code

is basically a secret passcode that allows you to enter Program Mode. But since all locks are identical when leaving the factory

(all new locks have the same Master Code), this "factory Master Code" is therefore not very secret--and should be changed to

your own personal Master Code. This way, only YOU can enter Program Mode and make changes to the lock programming.

Once your new Master Code is set , then you can continue with the Quick Start procedure and set the weekday, date and time.

After this, you can start entering User Codes for people to use. All changes to the lock are organized by their Function Number.

Want to change the date? Use Function Number 38. Want to add a User Code? Use Function Number 2. Some Functions you

will use often, and others you may never need.

Notice that when you program your lock, programming tends to follow a consistent 5-step pattern: (1) Enter Program Mode

(2) Press ; followed by the Function # (3) Press ; and enter data (4) Press : to end (5) Exit Program Mode.

Turn the page and learn about the special terminology used with your lock. Once that is clear, use the Quick Start proce-

dure on page 12 to help you get up and running.

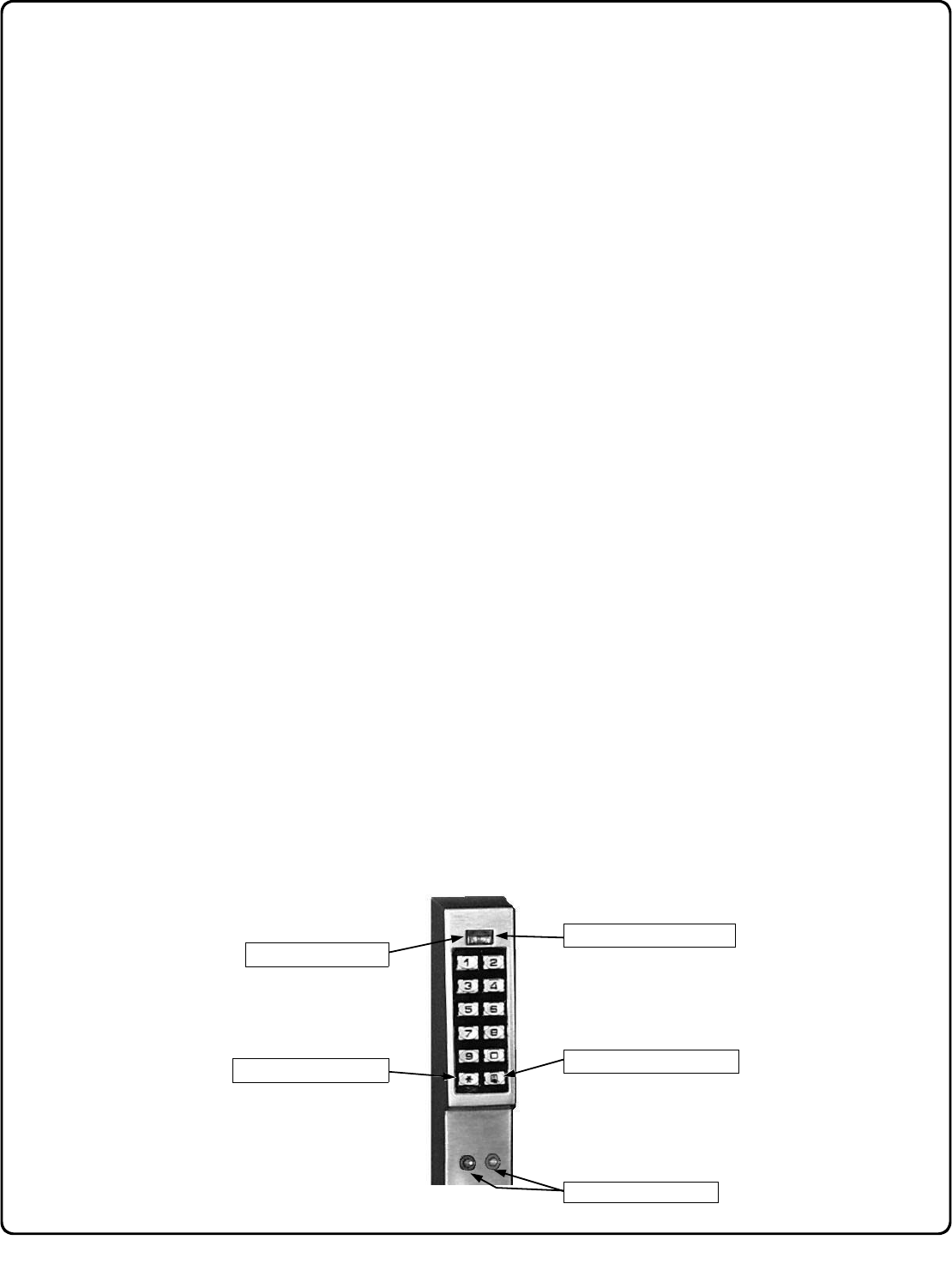

Infrared LED (for Printer)

PC / AL-DTM Interface

Two-Color Status LED

"STAR" (:) Key Special "AL" (;) Key

6

Terminology Used in this Manual

What is a Lock Program?

A Lock Program contains the instructions that a lock uses to

perform its various functions. You can use the keypad to cre-

ate a Lock Program stored within the lock. You can also use

DL-Windows (defined below) to create a Lock Program on

your computer, and then transfer and store the Program in the

circuitry contained inside the lock itself. The Lock Program is

essentially a computer database file that maintains feature

settings, schedules, audit trails, etc. Using DL-Windows, Lock

Programs can be created with default information, edited on

your PC, and then sent to (and even received from) locks.

The Lock Program consists of 4 areas: User Codes, Fea-

tures, Time Zones, and Schedules, all defined below:

What are User Codes?

Also called User Access Codes or PIN Codes, User Codes are

numbers the User enters into the lock keypad to unlock the

lock. The User Codes are part of the Lock Program, and the

Lock Program is stored in the lock circuitry awaiting the Users

to key in their User Codes.

What are Features?

Your lock is designed to support several options and functions.

Using the keypad or DL-Windows software, you can select the

features you wish to activate, such as if the lock will automati-

cally adjust for Daylight Saving Time in the spring and autumn,

or if the lock sounder should be disabled or enabled.

What is a TimeZone?

Events (recorded lock activities) can be programmed to occur

at certain times. It is these times (for example, “every Tues-

day at 5PM”) that are referred to as TimeZones. TimeZones

can be created manually through the keypad. You can use

DL-Windows to create these TimeZones, and once created,

you can link events to these TimeZones.

What is a Schedule?

Your lock can be programmed to maintain a schedule in which

certain events can occur automatically. For example, you can

program the lock to allow Groups of Users (with their User

Codes) access ONLY during specific business hours. With

another example, you can program another lock to UNLOCK

at 9am, LOCK at noon for lunch, UNLOCK at 1pm, and LOCK

again at 5pm--every weekday. As you can see, many different

combinations of Schedules can be created to suit the needs of

the Users. First you create TimeZones (see above). Next you

create events and link them to your TimeZones (also using

DL-Windows). When finished, you can view (in DL-Windows)

your schedule.

What is a User?

A User is a person who is authorized to simply use or make

certain programming changes to the lock. This User can be

anyone--from a one-time visitor (who will almost certainly have

no authority to make changes) to the owner of the building in

which the lock is installed (who will probably wish to have total

authority to make changes). The DL1300 Series lock can hold

up to 2000 Users in its programming memory, and each User

possesses a pre-defined level of authority--a Programming

Level--as to their ability to use or make changes to the lock.

What is a Programming Level?

The Programming Level defines the range of programming

tasks a User is allowed to perform. The higher the Level, the

more programming tasks the User is allowed (with Master al-

lowing ALL tasks).

Note: Since the Programming Level is closely associated with

the type of User and their abilities, a User who holds a certain

Programming Level is sometimes referred to by their “User

Type”.

For example, DL1300 Series locks can hold up to 2000 Users

in its programming memory, and each User is associated with

a User Number (see definition of "User Number" below) and

therefore a specific Programming Level, as follows:

Master: Always associated with User Number 1. Is always

enabled and can program all functions. (Abbreviated as

Programming Level = M).

Installer: Always associated with User Numbers 2 and 3.

Can program all functions except changing the Master

Code. (Abbreviated as Programming Level = 4).

Manager: Always associated with User Numbers 4, 5, and 6.

Can program all functions except functions relating to lock

configuration. (Abbreviated as Programming Level = 3).

Supervisor: Always associated with User Numbers 7, 8 and

9. Can only program functions relating to day to day

operation. (Abbreviated as Programming Level = 2).

Print Only Users: Always associated with User Numbers 10

& 11. Restricted to print event logs only. No other

programming ability allowed. (Abbreviated as

Programming Level = 1).

Basic Users: Always associated with User Number 12 and

higher (except 297-300). No programming ability allowed.

Most Users are Basic Users, who are given their own

personal User Codes and are only allowed to simply unlock

the lock when desired.

Programming Levels are hierarchical--higher levels are al-

lowed to do anything the levels below them can do. For exam-

ple, if you are a Manager, you are allowed to do anything that

Supervisors, Print-Only Users and Basic Users can do in addi-

tion to those tasks allowed for Managers (Level 3).

What is the Minimum Required Program Level?

This Programming Level abbreviation is the minimum pro-

gramming level required to access the particular Function.

(The higher the level number, the more programming tasks the

User is allowed, with Master allowing all tasks).

In this manual, Programming Levels for the DL1300 are abbre-

viated as follows: M = Master, 4 = Installer, 3 = Manager, 2 =

Supervisor, 1 = Print Only Users

See page 8 for more information, and see page 6 for the loca-

tion of these "Minimum Required Program Level" numbers.

What is a User Number?

(User Number = Location Number = User Location = Slot in

Lock)

User Numbers are used and are significant within each individ-

ual lock only. The User Number determines the Programming

Level for each User. For example, DL1300 Series locks can

hold up to 2000 Users in its programming memory. This mem-

7

ory can be thought of as simply a numbered list from 1

through 2000. Each entry in the list is represented by a User

Number. Therefore, where a User is located in this list--their

User Location--is a commonly used description of their User

Number. Because of their similarities, a User Number, User

Location and Location Number can be used interchangeably.

In some DL-Windows screens, the word "Slot" is also used.

They all mean the same thing.

Since User Numbers are fixed, knowing a User Number will

specify the associated Programming Level, and will in turn

indicate a User’s programming abilities. For example, User

Number 1 is always the Master, who can perform all program-

ming tasks.

Programming Levels are hierarchical--higher levels are al-

lowed to do anything the levels below them can do. For ex-

ample, if you are User 2, you are allowed to do anything that

Users 3 through 2000 can do.

What is a Group?

With many lock applications, it is convenient for large num-

bers of similar Users to be grouped together. Placing Users

into Groups (by assigning them specific User Numbers) al-

lows large numbers of Users to be controlled all at once

rather than individually--saving time and effort. Groups can

be controlled via schedules, and a typical example involves

enabling or disabling a Group at a certain time. Default

Group associations are specified in the tables on page 8. For

example, if you wish to add a User to Group 1, assign this

User a User Number between 51 and 100. These default

Group associations can be changed if needed to allow

Groups larger than the default number of 50 (by using keypad

Function 35). See page 18 for some Group function exam-

ples.

Who are Users 297-300?

Users assigned to User Numbers 297, 298, 299 and 300

have special abilities, as follows:

User 297: Quick Enable User 300

User 297 possesses the unique ability to enable the User

Code associated with User 300. User 297 does this by first

entering their own User 297 User Code into the lock keypad.

When User 300 subsequently enters their User 300 User

Code, the lock allows access (for one time) and then the

User 300 User Code becomes disabled.

For example, you wish to allow one-time access to a tempo-

rary worker. Simply enter the User 297 User Code into the

lock keypad. Later, when the temporary worker enters the

User 300 User Code into the lock keypad, the User 300

User Code allows access (for one time only) and then be-

comes disabled. Later, if you wish to grant the temporary

worker re-access, simply re-enter the User 297 User Code

and the User 300 User Code will be re-enabled (again for

one time only).

User 298: Quick PC Access Code

Entering the User Code for User 298 enables that User to

send data to or from the lock. Therefore, User 298 can acti-

vate what is the equivalent of Function 58 in Program Mode

(see page 22), without the need to enter Program Mode nor

the need to know the Master Code of the lock. An AL-PCI

cable with a PC is required.

User 299: AL-DTM Code

This is the only User Code that will initiate data transfer with

the AL-DTM--and without allowing unlocking the lock (the

User Code for User 299 is not an access code). An AL-PCI

cable and an AL-DTM (first programmed by the computer in

DL-Windows) is required.

User 300: One-Time Only Service Code

This is a One-Time Only Service User Code enabled by

User 297. For example, User Code 300 is sometimes used

for guard tour duties. See User 297: Quick Enable User

300 above.

What is DL-Windows?

DL-Windows is a computer program that allows you to pro-

gram your ALARM LOCK security lock. You do not need DL-

Windows to program your lock, but it makes programming

much faster and easier. With DL-Windows, you can quickly

create Lock Programs (programs that make the lock perform

its many functions) add multiple Users (who have access),

retrieve event logs, and create Schedules. The benefit of DL-

Windows is that it allows you to set up all lock programming

in advance (on your computer), and then later send the infor-

mation to the locks at your convenience.

Terminology Used in this Manual (cont'd)

8

User 299 is a Non-Pass Code. This is the only code that will initiate data transfer with the AL-DTM.

NOTES:

The Programming Level defines the range of programming

tasks a User is allowed to perform. The higher the Level, the

more programming tasks the User is allowed (with Master al-

lowing ALL tasks).

Note: Since the Programming Level is closely associated with

the type of User and their abilities, a User who holds a certain

Programming Level is sometimes referred to by their “User

Type”.

For example, DL1300 Series locks can hold up to 2000 Users

in its programming memory, and each User is associated with

a User Number (see definition of "User Number" in the previ-

ous "Terminology" section) and therefore a specific Program-

ming Level, as follows:

Master: Always associated with User number 1. Is always

enabled and can program all functions. (Abbreviated as

Programming Level = M).

Installer: Always associated with Users 2 and 3. Can pro-

gram all functions except changing the Master Code.

(Abbreviated as Programming Level = 4).

Manager: Always associated with Users 4, 5, and 6. Can

program all functions except functions relating to lock

configuration. (Abbreviated as Programming Level = 3).

Supervisor: Always associated with Users 7, 8 and 9. Can

only program functions relating to day to day operation.

(Abbreviated as Programming Level = 2).

Print Only Users: Always associated with Users 10 & 11.

Restricted to print audit trails only. No other programming

ability allowed. (Abbreviated as Programming Level = 1).

Basic Users: Always associated with User number 12 and

higher (except 297-300). No programming ability allowed.

Programming Levels are hierarchical--higher levels are al-

lowed to do anything the levels below them can do. For exam-

ple, if you are a Manager, you are allowed to do anything that

Supervisors, Print-Only Users and Basic Users can do in addi-

tion to those tasks allowed for Managers (Level 3).

Programming Levels

USER TYPE USER NUMBER GROUP DEFAULT

ASSOCIATION

MINIMUM PROGRAM

LEVEL (See page 6)

Master Code 1 - M

Installer Codes 2 & 3 none 4

Manager Codes 4 - 6 none 3

Supervisor Codes 7 - 9 none 2

Print Only Codes 10 - 11 none 1

Basic User Codes 12 - 50 none none

Basic User Codes Group 1 51 - 100 1 none

Basic User Codes Group 2 101 - 150 2 none

Basic User Codes Group 3 151 - 200 3 none

Basic User Codes Group 4 201 - 250 4 none

Basic User Codes 251 - 296 none none

Quick Enable User 300 Code 297 none none

Quick PC Access Code 298 none none

AL-DTM Code 299 none none

Service Code 300 none none

Basic User Codes 301-2000 none none

Lock Defaults for DL1300

Users added will default to a Group association and a Programming Level as follows:

9

ACTIVITY LED SOUNDER COMMENTS

Keypress 1 RED Flash 1 Beep Normal Operation

Access Granted 3 GREEN Flashes 3 Beeps

Invalid Code 6 RED Flashes 6 Beeps Re-enter User Code

Successful Program Entry 2 GREEN Flashes 2 Beeps When in Program Mode

Unsuccessful Program Entry 7 RED Flashes 7 Beeps When in Program Mode

Exit Program Mode 2 Red, 2 Green Flashes 10 Beeps

Valid but Disabled Code 1 Green, 4 Red Flashes 1 long, 5 short beeps Code exists in memory, but disabled

Low Battery Red and Green Flash during

key presses

Long Beep See page 11 before changing batteries

Non-fatal memory or clock error

has been detected

Red and Green Flash Sequence of 7 Beeps

Repeated 4 Times

Under this condition, unexpected operation

is possible. Remove power and restart.

Programming Key Sequence.

Programming

Information

General Program Mode Information

If a wrong key is pressed during code entry, hold any key continuously until the error sound is heard (7 short beeps), this will clear the entry. Re-enter the key

sequence again.

All program sequences are followed by the : key; 2 short beeps indicate a successful program sequence.

Enabling/Disabling Users (By User Number)

3. Disable User ; 3 ; [ _ _ _ ] :

4. Enable User ; 4 ; [ _ _ _ ] :

User Number must be between 2 and 2000.

NOTE: Will Enable/Disable users even if the user is associated with an enabled group.

2

Conventions Used in this Manual

LED and Sounder Indicators

The DL1300 Series locks provide visual and audible keypad feedback. With a fully charged battery, the LED and sounder

feedback is as follows:

Minimum Required Program Level

Program Levels are abbreviated as follows:

M = Master

4 = Installer

3 = Manager

2 = Supervisor

1 = Print Only Users

This Program Level abbreviation is the

minimum program level required to

access the particular Function. (The

higher the level, the more programming

tasks the User is allowed, with Master

allowing all tasks).

Function

Description

Function

Number

Function Name

10

NOTE:

The AL-PCI cable is designed to be used on a 9 pin serial COM port. If your computer has a 25 pin COM port, a 25 pin to 9 pin adapter must be used.

Warning: Polarity MUST be observed when connecting cables to the lock. The tab (-) must plug into the negative (black) hole.

Scenario 3 Use the AL-IR1 Infrared printer to print your lock’s audit trail (event log), User Code list, clock settings and software

version. No cable required.

AL-IR1

INFRARED PRINTER

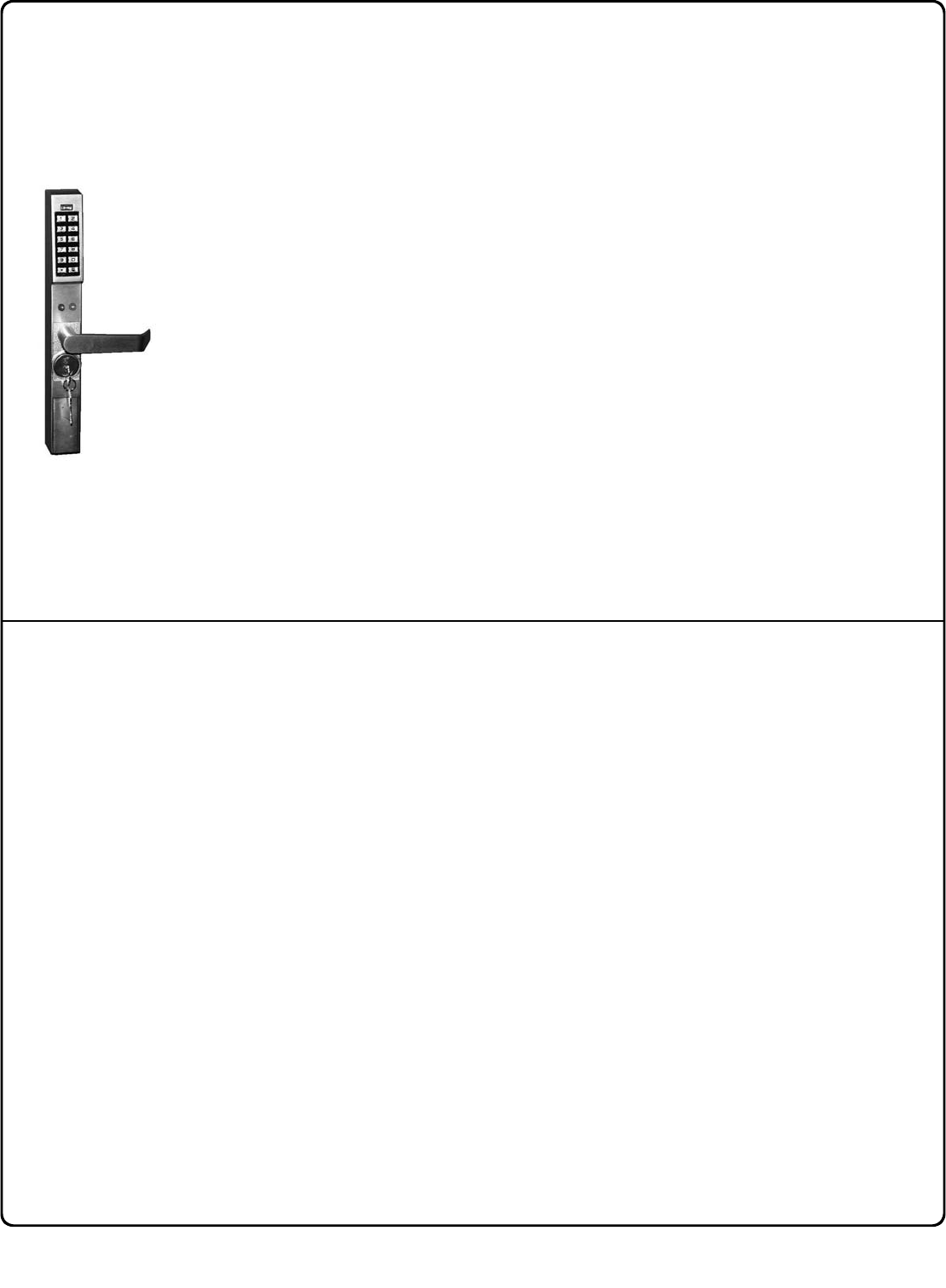

DL1300 LOCK

Scenario 1 Create the program in DL-Windows on your computer, then transfer the program from the computer directly to the lock via an AL-

PCI2 cable. Enter the User 298 User Code to send or receive data to of from DL-Windows. When no COM port exists, use a USB to RS-232

cable.

IBM COMPATABLE

LAPTOP OR DESKTOP PC

NOTE: OBSERVE TAB DIRECTION WHEN

INSERTING CABLE INTO LOCK

AL-PCI CABLE

CONNECT TO SERIAL PORT

(COM 1-4)

DL1300 LOCK

Send to lock Receive from lock

Scenario 2 Create the program in DL-Windows and transfer the program from your computer to an AL-DTM (via an AL-PCI cable)…

then transfer the program from the AL-DTM to the lock(s) (via a double-ended mini banana plug). The hand-held AL-DTM is useful

because you do not have to transport (or find electricity for) your computer. Data can also flow in reverse, from the lock, through

the AL-DTM, back to the computer for examination.

IBM COMPATABLE

LAPTOP OR DESKTOP PC

NOTE: OBSERVE TAB DIRECTION WHEN

INSERTING CABLE INTO LOCK

AL-PCI CABLE

CONNECT TO SERIAL PORT

(COM 1-4)

AL-DTM DATA

TRANSFER

MODULE

NOTE: OBSERVE TAB DIREC-

TION WHEN INSERTING CABLE

INTO AL-DTM AND LOCK

DOUBLE-ENDED MINI BANANA

PLUG CONNECTOR

DL1300 LOCK

If your computer does not have a serial COM port

(DB-9 male) available, you can plug your AL-PCI2

cable into a special USB to RS-232 cable. Order

part MX1130 for the

USB to RS-232 cable

only, or ALPCI2-U for

both the USB to RS-232

cable and an AL-PCI2

cable.

Product Communication Examples

11

WIRING

See the Installation Manual for more information.

Batteries:

Use only 3.0 volt Lithium Type 123 batteries (or equiva-

lent). Two (2) batteries of this type are needed.

BATTERY REPLACEMENT

When a valid code is entered and the batteries are weak, the

red & green LED's will light and the sounder will sound for 4

seconds. Replace with two (2) 3.0 volt Lithium Type 123

batteries. Always replace weak batteries as soon as

possible.

CAUTION: Do not press any keys while batteries are

disconnected or you may erase the real-time clock

settings.

1. Insert key in cylinder and turn counterclockwise to allow

access to the battery compartment screw. With the sup-

plied 5/64" Allen wrench, loosen the battery cover

screw only until the battery cover is able to slide off.

2. Pull out the battery pack and quickly replace both

batteries - within 1 minute.

3. If you do not hear the 3 beeps when power is re-applied,

all programming and settings have been retained, and the

lock is ready for use. Go to step 5.

4. If you do hear 3 beeps when power is re-applied, do not

press any keys for 15 seconds. After the 15 second

period, the LED will flash red 6 times and 6 beeps will

sound. Reset the clock using functions 38, 39 and 40.

5. Slide the battery cover back in place and tighten the

screw.

POWER UP

•When applying power to the lock for the first time, stop

and follow the procedure outlined in "Quick Start, First

Time Start Up" on page 12.

•When power is re-applied to a lock that was already op-

erational, proceed as follows:

1. Disconnect battery pack connector.

2. With battery power disconnected, press and hold

down ; for 10 seconds to ensure discharge of all

capacitors.

3. Re-connect battery pack (lock will sound 3 short beeps).

If beeps are not heard, then restart at step 1.

4. Do not press any keys for 15 seconds.

5. After 15 seconds, the LED will flash red 6 times and 6

beeps will sound.

The lock is now ready for use. The pre-existing program is

loaded from fixed memory. Reset the clock using functions

38, 39 and 40 if necessary.

ERASE ALL PROGRAMMING

RESTORE FACTORY DEFAULT (original "out of box" set-

tings that were set at the factory will be loaded).

1. Enter the current Master Code (if not known, proceed

directly to ALTERNATIVE METHOD, below). Wait for

the green light and press ; until multiple beeps are

heard. You are now in Program Mode.

2. Press ; 99 ; 000 :.

3. Listen for 6 beeps. The lock will re-lock. All settings and

programming have been erased. Proceed directly to

page 12, Quick Start, and follow the procedure "Enter

Program Mode and Change Factory Master Code".

ALTERNATIVE METHOD

Note: This method requires the lock first be removed from

the door.

1. Insert key in cylinder and turn counterclockwise to allow

access to the battery compartment screw. With the sup-

plied 5/64" Allen wrench, loosen the battery cover

screw only until the battery cover is able to slide off.

2. Disconnect the battery pack.

3. Remove the back plate by unscrewing the two Phillips

head screws. Note: Some models have four Phillips

head screws. Be careful not to damage the motor drive

wires.

4. Locate jumper header JP1 near the top of the printed

circuit board and install the jumper (provided) across pins

1 and 2 of JP1.

5. Press and hold down ; for 10 seconds (to ensure

all power is drained from the lock) and release.

6. Connect the batteries and--within 5 seconds--press and

hold ;. After hearing 6 additional beeps, re-

lease ;. If you do not hear these 6 additional

beeps, you must start over at step 2. Failure to follow

this exact procedure can result in erratic lock behavior.

7. Test by pressing the default Master Code of

123456 (a beep will sound

and the lock will unlock).

8. Remove the jumper from JP1 pins 1 and 2 and place

jumper on 1 pin for storage.

9. Carefully reinstall the back plate STRAIGHT onto the

lock body. Be careful not to pinch or damage the motor

drive wires. While inserting the back plate, be sure the

rear pin of the tailpiece inserts into the spindle hole--

check this alignment after installation by pushing on the

spring-loaded tailpiece to verify that it smoothly moves

up and down. Replace the two (or four) Phillips head

screws to secure the back plate. Note: It may be nec-

essary to tighten the battery screw previously loosened

in step 1.

10. Re-mount the lock on the door. With the battery back

inside its compartment, slide the battery cover back in

place and tighten the screw.

All settings and programming have been erased. Pro-

ceed directly to page 12, Quick Start, and follow the

procedure "Enter Program Mode and Change Factory

Master Code".

Wiring and Power Up

12

Quick Start

First Time Start Up

1. Unpack the lock.

2. With the batteries disconnected, hold down the ; key for 10 seconds and release.

3. Connect the batteries and listen for 3 beeps.

4. Wait 15 seconds, and listen for 6 additional beeps (LED will flash twice). The lock is ready to program when it

unlocks. Important Note: When entering any key sequence below, do not pause more than 25 seconds between

any key presses--otherwise you must start again.

Enter Program Mode and Change Factory Master Code

1. Press the default Master Code: 1 2 3 4 5 6.

If the lock should fail to unlock using this Master Code, proceed directly to ERASE ALL PROGRAMMING--

RESTORE FACTORY DEFAULT on the previous page and then perform this Quick Start procedure again.

2. Wait for the green light and press ; until multiple beeps are heard. You are now in Program Mode.

Note: The lock will beep every 6 seconds as a reminder that you are in Program Mode.

3. Enter a new personal 6-digit Master Code number by pressing the following keys:

; 1 ; [new Master Code] ; [new Master Code] : (the second set of digits must be exactly the same).

(For example, if you want your new Master Code to be “664433”. Press:

; 1 ; 664433 ; 664433 :).

Now that the Master Code has been changed, there is no need to change it again (unless you want to). Since you

are still in Program Mode, you can now proceed directly below and program various functions. Note: Program-

ming any Function, such as setting the clock, follows a consistent 5-step pattern: (1) Enter Program Mode (2)

Press ; [Function #] (3) Press ; and enter data (4) Press : to end (5) Exit Program Mode.

Note: There is a 3 minute Program Mode timeout if no keys are pressed when in Program Mode. A steady tone

will sound for the final 15 seconds of the 3 minute timeout period as a warning. To remain in Program Mode, press

any key.

Set the Weekday

1. Enter Program Mode (if not in already).

2. Press ; 40 ; [number of weekday] :. (Use 1= Sunday, 7 = Saturday).

(For example - Friday - press ; 40 ; 6 :).

Set the Date

1. Enter Program Mode (if not in already).

2. Press ; 38 ; [MMDDYY] :.

(For example - May 10, 2006 - press ; 38 ; 051006 :).

Set the Time

1. Enter Program Mode (if not in already. If you just finished the above procedure, you are still in Program Mode).

2. Press ; 39 ; [HHMM] :. (Use 24-hour military format, where PM adds 12 hours).

(For example - 2:30pm - press ; 39 ; 1430 :).

Enter User Codes

1. Enter Program Mode (if not in already).

2. Press ; 2 ; [User Number] ; [new User Code] :.

(For example, John Smith is designated as User 21. You want him to use the code of “232323” to unlock the door.

Program the lock by pressing: ; 2 ; 21 ; 232323 :).

3. Repeat step 2 for each new user.

13

Quick Start (cont’d)

Delete a User Code

1. Enter Program Mode (if not in already).

2. Press ; 2 ; [User Number] :.

The lock will flash a green LED and beep continuously for 6 seconds. When the red LED flashes, the User Code is

deleted.

3. Repeat step 2 for each new User.

User Code Conflicts

Care should be taken not to program a new User Code which matches the first digits of any other User Code (only the

User Code with the least number of digits will be recognized). Example: If User Codes 123 and 123456 are both

entered in the system, only code 123 would be recognized, unless the ENTER Key has been enabled (see Function 69,

see page 24). In addition, an error will sound if you try to program a new User Code that matches the first digits of the

Master Code.

WARNING: When attempting to change an existing Master Code, it is HIGHLY recommended that you enable all

Groups (see Function 23 on page 17), exit Program Mode, and enter the new anticipated Master Code to verify

that the anticipated sequence does not currently open the lock. If the lock does not open, the anticipated Mas-

ter Code can be used as the new Master Code; if the lock opens, the anticipated Master Code already exists in

the lock (as a User Code), and the anticipated Master Code should NOT be used. Always repeat this procedure

with any new anticipated Master Codes.

Exit Program Mode

Hold Down any key for 3 seconds. Program Mode exit is confirmed by several beeps. You are now in normal operation.

Re-enter Program Mode

If you wish to re-enter Program Mode, key-in your new 6-digit Master Code, and press ;.

You are now ready to mount and install your DL1300 series lock and give out your User Codes. Before installation, it is

suggested you test and verify that all User Codes entered are active (see below).

Verifying Basic Keypad User Codes

Test a valid User Code:

VALID CODE - The Green LED will flash momentarily and the sounder will beep a few times after a valid code is entered.

INVALID CODE - The RED LED will flash several times and the sounder will beep several times after an invalid code is entered.

Use Function 2 to re-program the code.

Testing the Codes Entered

14

Function 1 Change Master Code See page 15

Function 2 Add/Delete/Change User Codes See page 15

Function 3 User Disable (By User Number) See page 16

Function 4 User Enable (By User Number) See page 16

Function 5 User Enable with Timeout See page 16

Function 6 Enable Total User Lockout See page 16

Function 7 Disable Total User Lockout See page 16

Function 8 Reserved --

Function 9 Enable User 300 (Service Code) See page 16

Function 10 Erase All Users Except the

Master Code

See page 16

Function 11 Reserved --

Function 12 Clear All Schedules and Timeout

Functions

See page 17

Function 13 Clear All Timeout Functions See page 17

Function 14 - 17 Group 1-4 Disable See page 17

Function 18 Disable All Groups See page 17

Function 19 - 22 Group 1-4 Enable See page 17

Function 23 Enable All Groups See page 17

Function 24 Reserved --

Function 25 - 28 Group Disable with Timeout See page 18

Function 29 Disable All Groups with Timeout See page 18

Function 30 - 33 Group Enable with Timeout See page 18

Function 34 Disable All Groups with Timeout See page 18

Function 35 Group Add/Delete Association See page 18

Function 36 - 37 Reserved --

Function 38 Set Date See page 19

Function 39 Set Time See page 190

Function 40 Set Weekday See page 19

Function 41 Daylight Saving Time Start Date See page 19

Function 42 Daylight Saving Time End Date See page 19

Function 43 Speed Up Clock See page 20

Function 44 Slow Down Clock See page 20

Function 45 - 46 Passage Mode Enable/Disable See page 20

Function 47 Timed Passage Mode See page 20

Programming Functions--Overview

Function 48 Enable Passage Mode See page 21

Function 49 Disable Passage Mode See page 21

Function 50 Return Lock to Normal Passage

Mode Schedule

See page 21

Function 51 Passage Mode Configuration See page 21

Function 52 - 54 Pass Time See page 21

Function 55 Print Audit Trail See page 22

Function 56 Print User Code List See page 22

Function 57 Print Clock Settings and Software

Version

See page 22

Function 58 Upload/Download PC Data See page 22

Function 59 Reserved --

Function 60 Number of Attempt Before

Lockout

See page 23

Function 61 Set the Attempts Lockout Time See page 23

Function 62 - 66 Reserved --

Function 69 - 70 Enable/Disable Enter Key See page 24

Function 71 Reserved --

Function 72 - 73 Scheduled Enable/Disable

Passage Mode

See page 24

Function 74 - 77 Schedule Enable Group 1 - 4 See page 24

Function 78 Schedule Enable All Groups See page 24

Function 79 - 82 Schedule Disable Group 1 - 4 See page 24

Function 83 Schedule Disable All Groups See page 24

Function 84 - 87 Quick Schedules - Enable Group See page 25

Function 88 Passage Mode

(Open Time Window)

See page 25

Function 89 Passage Mode

(Close Time Window)

See page 25

Function 92 Enable Group 4

(Open Time Window)

See page 26

Function 93 Enable Group 4

(Close Time Window)

See page 26

Function 94 - 98 Reserved --

Function 99 Clear All Lock Programming See page 26

Function 90-91 Reserved --

Function 67 Add System Options See page 23

Function 68 Delete All System Options added

by Function 67

See page 23

15

1. New Master Code (User Number 1)

2. Add/Delete/Change User Codes 2-2000

; 1 ; [ _ _ _ _ _ _ ] ; [ _ _ _ _ _ _ ] :

(New Master Code) (Confirm New Master Code)

; 2 ; [ _ _ _ _ ] * ; [ _ _ _ _ _ _ ] :

(User Number) (User Code)

•User Number must be between 2 and 2000.

•To delete a code/card, leave the User Code blank and wait for the rapid beeping to stop, then

to avoid erroneously enrolling Proximity Cards, press and hold : for three seconds to exit

Programming Mode. If more programming is desired, re-enter Programming Mode.

•User Code must be 3-6 digits.

•Each User Code can be thought of as a person. As long as each person possesses their own

unique User Code, you can control access to the lock by adding or deleting User Codes. See

"Terminology Used in this Manual" on page 6 for more information.

•Master Code must be 6 digits-only.

•Master Code is Keypad Code Access only.

•Factory Default = 123456

•See "Lock Design Overview" on page 5 for more information about Master Codes.

3

M

USERS

Lock Defaults for DL1300

See page 8. Users added will default to a Group association and a Programming Level as follows:

USER TYPE USER NUMBER GROUP DEFAULT MINIMUM PROGRAM

Master 1 - M (All Programming Abilities)

Installers 2 & 3 none 4 (Also 3, 2, 1)

Managers 4 - 6 none 3 (Also 2, 1)

Supervisors 7 - 9 none 2 (Also 1)

Print Only Users 10 - 11 none 1

Basic Users 12 - 50 none none

Basic Users in Group 1 51 - 100 1 none

Basic Users in Group 2 101 - 150 2 none

Basic Users in Group 3 151 - 200 3 none

Basic Users in Group 4 201 - 250 4 none

Basic Users 251 - 296 none none

Quick Enable User 300 297 none none

Quick PC Access 298 none none

AL-DTM Code 299 none none

Service User 300 none none

Basic Users 301-2000 none none

Programming Functions

User 299 is a Non-Pass Code. This is the only code that will initiate data transfer with the AL-DTM.

16

USERS (Continued)

; 6 :

6. Enable Total User Lockout Mode

(This Function enabled through keypad only)

7. Disable Total User Lockout Mode

(This Function enabled through keypad only)

; 7 :

User Lockout Mode

Prevents all User Codes (Except User 1 Code) from operating the lock. Note: No other programming

functions or schedules will re-enable Users. Users must be re-enabled with Function 7.

Note: Does not change the User enable/disable status. Note: If the lock is currently in Passage Mode

(door "unlocked") and Function 6 is programmed, the lock will remain in Passage Mode.

M

5. User Enable with Timeout

(Enter Timeout, XXX Hours)

(This Function enabled through keypad only)

; 5 ; [ _ _ _ _ ] ; [ _ _ _ _ ] :

(User Number) (XXX Hours)

•With Function 5, User Numbers must be between 2-2000, hours must be between 1-999.

•Function 5 can temporarily override a disabled User (disabled using Function 3 above).

•Since this is a temporary feature, Function 5 can only be enabled using the keypad.

•Example: Brian, User Number 1157, rarely works at the office, but when he does, enable him for his 8 hour work day by entering

Program Mode and pressing: ; 5 ; 1157 ; 008 :.

•NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting to program more

than 4 Timeout Functions.

2

Service Code is a One-Time-Only Code. Once it is used, it is disabled until enabled again.

NOTE: User Number 297 is used to reset Service Code Use. See "Terminology Used in

this Manual" on page 7 for more information and examples regarding special Users 297-300.

; 9 :

9. Enable User 300 (Service Code)

2 2

; 1 0 ; 0 0 0 :

10. Erase All Users Except the Master Code (User 1)

(This Function enabled through keypad only)

Erases all User Codes except the Master Code (User 1).

•Function 10 can only be performed using the keypad.

M

11. Reserved

3. Disable User ; 3 ; [ _ _ _ _ ] :

(User Number)

4. Enable User ; 4 ; [ _ _ _ _ ] :

(User Number)

User Enable/Disable (By User Number)

•User Number must be between 2 and 2000.

NOTE: Will Enable/Disable Users even if the User is associated with an enabled Group. Use Feature 3 to disable a specific User

Number and their associated User Code. If the disabled User Code is entered, the lock will flash 1 Green and 4 Red Flashes

(with 1 long and 5 short beeps) indicating that the User Code exists in memory, but is disabled. Function 4 will "undo" Function 3.

2

8. Reserved

Programming Functions (cont'd)

17

CLEAR FUNCTIONS

Group Enable/Disable

Enter the functions below to Enable/Disable Groups. Functions 14 - 23 will each override

existing scheduled events. Therefore, Functions 14 - 23 are temporary, take effect im-

mediately, and are always overridden by future scheduled events that already exist within

the lock programming.

2

GROUPS

24. Reserved

; 1 4 :

; 1 5 :

16. Disable Group 3 ; 1 6 :

17. Disable Group 4 ; 1 7 :

18. Disable All Groups ; 1 8 :

19. Enable Group 1 ; 1 9 :

20. Enable Group 2 ; 2 0 :

21. Enable Group 3 ; 2 1 :

22. Enable Group 4 ; 2 2 :

23. Enable All Groups ; 2 3 :

14. Disable Group 1

15. Disable Group 2

Programming Functions (cont'd)

PRIORITY ORDER

1. Disabled Users

2. Enabled Groups

3. Disabled Groups

4. Enabled Users

The Priority Order details which Function will

take effect before ("have priority over") others.

For example, as per the list above, Enabled

Users have the lowest priority, and other Func-

tions can affect the status of these Users. Dis-

abling a Group (Functions 14-18) will take pri-

ority over the enabled Users in that Group,

disabling them. Enabling Groups (Functions

19-23) will take priority over those tasks lower

in the list, and finally disabling a User (Function

3) takes priority over all other tasks listed.

; 1 2 ; 0 0 0 :

12. Clear All Schedules and Timeout Functions

Function 12 clears all programmed Schedules and all Timeout Functions. (To clear All Timeout Functions only, see

Function 13 below). Function 12 will clear all of the following: All Schedule Functions 72 through 93, Timeout Functions

5, 25 through 34 and Function 47. Note: Function 12 also resets Passage Mode and any disabled Groups. After using

Function 12, your Scheduled/Timeout features must be manually re-programmed.

NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting to

program more than 4 Timeout Functions. This Function only disables the timeout; the event associated with the timeout

will remain

3

; 1 3 ; 0 0 0 :

Function 13 clears all Timeout Functions. (To clear All Schedules and Timeout Functions, see Function 12 above).

Function 13 will clear all of the following: All Timeout Functions 5, 25-34 and Function 47. After using Function 12, your

Scheduled/Timeout features must be manually re-programmed.

NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting to

program more than 4 Timeout Functions. This Function only disables the timeout; the event associated with the timeout

will remain

3

13. Clear All Timeout Functions

(This Function enabled through keypad only)

Important: It is the responsibility of the lock programmer to verify the proper lock/unlock conditions and Group conditions

after programming the lock with Function 12 and 13.

18

GROUPS

Group Enable/Disable with Timeout (Enter Timeout, XXX Hours)

(Functions 25-34 are enabled through the keypad only)

•Hours must be between 1-999. Enter the functions below to Enable/Disable Groups for the amount of time entered in hours.

NOTE: Only 4 Timeout Functions are allowed at any one time. An error beep will sound when attempting to program more than

4 Timeout Functions. Functions 25 - 34 will each override existing scheduled events. Therefore, Functions 25 - 34 are tem-

porary, take effect immediately, and are always overridden by future scheduled events that already exist within the lock

programming. NOTE: Functions 25-34 are enabled through the keypad only.

•Example: All 15 members of the Accounting Department are members of Group 4, and a schedule programmed in the

department's door lock reflects their normal working hours of 9 AM through 5 PM, Monday through Friday. But one day a

special event occurs, and all Accounting Department members are requested to stay an extra hour until 6 PM. Therefore,

at 5 PM, the manager (wishing to temporarily enable Group 4 users for an extra hour) enters Program Mode and

presses: ; 33 ; 001 :. Likewise, if the manager wished to send his department home

early at 3 PM, the manager could enter ; 28 ; 002 :.

2

; 3 5 ; [ _ _ _ ] ; [ _ _ _ _ ] :

(User Number) (Groups)

35. Group Add/Delete Association

As per the chart on page 8, the lock's default programming from the factory associates certain User Numbers with certain

Groups. To override these default Group associations, Function 35 manually associates (or disassociates) a selected

User with a selected Group. During programming, Groups not selected are then disassociated from the User. Function

35 is helpful when the number of Users you wish to add to a Group outgrows the number of User Numbers defaulted to a

Group (50); or if an existing User joins a department and you wish to simply add them to a Group.

•User Number must be between 2 and 2000; Groups 1-4 (to associate with User) may be selected.

Add Example: To associate User 67 with Groups 1, 2 and 4;

Enter: ; 3 5 ; 6 7 ; 1 2 4 :

Delete Example: To remove all Group associations for User 67;

Enter: ; 3 5 ; 6 7 :

NOTE: If a User is associated with more than one Group, all associated Groups would have to be disabled before the User is disabled.

; 2 5 ; [ _ _ _ ] :

(XXX Hours)

25. Timed Disable Group 1

; 2 6 ; [ _ _ _ ] :

(XXX Hours)

26. Timed Disable Group 2

; 2 7 ; [ _ _ _ ] :

(XXX Hours)

27. Timed Disable Group 3

; 2 8 ; [ _ _ _ ] :

(XXX Hours)

28. Timed Disable Group 4

; 2 9 ; [ _ _ _ ] :

(XXX Hours)

29. Timed Disable All Groups

; 3 0 ; [ _ _ _ ] :

(XXX Hours)

30. Timed Enable Group 1

; 3 1 ; [ _ _ _ ] :

(XXX Hours)

31. Timed Enable Group 2

; 3 2 ; [ _ _ _ ] :

(XXX Hours)

32. Timed Enable Group 3

; 3 3 ; [ _ _ _ ] :

(XXX Hours)

33. Timed Enable Group 4

; 3 4 ; [ _ _ _ ] :

(XXX Hours)

34. Timed Enable All Groups

3

36 - 37. Reserved

Clear All Timeout Functions by entering Function 13.

NOTE:

Programming Functions (cont'd)

19

; 3 8 ; [ _ _ _ _ _ _ ] :

(Date)

38. Set Date

•Use Month Day Year format - MMDDYY - Single digit months and days are entered with a preceding zero.

•Enter ONLY the last two digits of the year.

For Example: March 8, 2002; Enter:

; 3 8 ; 0 3 0 8 0 2 :

3

39. Set Time ; 3 9 ; [ _ _ _ _ ] :

(Time)

•Time must be 4 digits

•Use 24 Hour Format (add 12 hours to program PM time)

For Example: To set time to 8:25PM;

Enter: ; 3 9 ; 2 0 2 5 :

For Example: To set time to 8:25AM;

Enter: ; 3 9 ; 0 8 2 5 :

3

; 4 0 ; [ _ ] :

(Day)

40. Set Weekday

•For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday and 7 for Saturday.

For Example: To set day to Sunday;

Enter: ; 4 0 ; 1 :

3

41. Daylight Saving Time Start Date ; 4 1 ; [ M M W D ] :

(DST Starting Month, Month, Week, Day)

The manner in which Daylight Saving Time (DST) is observed varies with location, therefore the DST adjustment is fully flexible to

accommodate these regional differences. Function 41 allows the entry of a DST Start Date (month, day and week), and Function 42

allows the entry of a DST End Date (month, day and week). DST begins and ends at 2AM on the programmed date. Enter ;

4 1 ; 0 0 0 : to disable DST. All locks leave the factory with DST enabled and pre-programmed to the

following start and end dates (for the USA beginning 2007):

•Default DST Start Date: March, Week 2, Sunday ("Second Sunday in March")

•Default DST End Date: November, Week 1, Sunday ("First Sunday in November")

To program the DST start date using the keypad, press: ; 4 1 ; [ M M W D ] : where "M M W D" represents:

•"M M" = Two digits of the month (01 through 12 = January through December. Single digit months are entered with a

preceding zero).

•"W" = Single digit for "week of the month" (valid entries are 1-5 where "1" is the first week, "2" is the second week, "3" is the

third week, "4" is the fourth week and "5" is the last week of the month.

•"D" = Day of the week (valid entries are 1-7: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6

for Friday and 7 for Saturday).

Example: To set the default start date of "second Sunday in March", press:

; 4 1 ; [ 0 3 2 1 ] : (03 = "March", 2 = "2nd week", 1 = Sunday).

4

CLOCK SETTINGS

Programming Functions (cont'd)

42. Daylight Saving Time End Date ; 4 2 ; [ M M W D ] :

(DST Ending Month, Month, Week, Day)

End date of Daylight Saving Time (month, week, day). Enter ; 4 2 ; 0 0 0 : to disable DST.

See Function 41 for full explanation.

4

20

CLOCK ADJUST

; 4 3 ; [ _ _ ] :

(seconds)

43. Speed Up Clock

(This Function enabled through keypad only)

; 4 4 ; [ _ _ ] :

(seconds)

44. Slow Down Clock

(This Function enabled through keypad only)

Number of seconds to adjust (speed up/slow down) the clock each day must be

between 0-55 seconds.

Note: Repeated use of these Functions are not "cumulative" (this means, for example,

if the clock has already been set to speed up 10 seconds per day, and then is found to

need an additional 10 seconds, then program 20 seconds using Function 43).

Example 1: Clock is losing 13 seconds every day, enter:

; 4 3 ; 1 3 :.

This example assumes that the Clock Adjust setting was at the factory default of zero.

Function 57 can be used to print the current Clock Adjust setting.

Example 2: Clock is gaining 13 seconds every day, enter:

; 4 4 ; 1 3 :.

This example assumes that the Clock Adjust setting was at the factory default of zero.

Function 57 can be used to print the current Clock Adjust setting.

Example 3: To set the clock adjust setting back to the factory default of zero, enter:

; 4 3 : or ; 4 4 :.

Clock Adjust

4

; 4 5 :

45. Enable Passage Mode

(This Function enabled through keypad only)

; 4 6 :

46. Disable Passage Mode

(This Function enabled through keypad only)

47. Timed Passage Mode

(This Function enabled through keypad only)

; 4 7 ; [ _ _ _ ] :

(XXX Hours)

•Function 45 allows passage through the door without the need for a User Code. Re-Lock using Function 46.

•Programmed Schedules will override the state of the lock when Functions 45 and 46 are used. If it is required that

programmed schedules do not override Passage Mode, enable/disable Passage Mode using Functions 48/49. Note: Be-

cause of the temporary nature of these features, Functions 45-47 can only be enabled using the keypad.

Passage Mode Enable/Disable - Schedule will Override

2

•Hours must be between 1 - 999.

Function 47 allows passage through the door without the need for a User Code for the programmed amount of time.

•For example, if you wish your office door lock to be unlocked (unlocked = "Passage Mode") for the next 3 hours,

enter Program Mode and press: ; 47 ; 003 :

2

PASSAGE MODE

Programming Functions (cont'd)

Clock Accuracy

The internal oscillator is factory calibrated to an accu-

racy of ±5 minutes/year. Changes in ambient tem-

perature may affect accuracy. If necessary, the ac-

curacy of the internal clock may be adjusted by first up-

dating the correct time via Function 39. After an interval

of about 1 month, re-set the correct time via Function 39

and then print an Audit Log via Function 55. Because

the Audit Log displays both the "New Clock Time" and

the "Old Clock Time", a daily accuracy (in seconds) can

be determined by taking the difference in seconds be-

tween the "Old" and "New" times divided by the number

of days between the two Function 39 entries. Note:

Because the minimum available adjustment is 1 second

per day, the inaccuracy of the clock must exceed about 6

minutes per year before adjustment is necessary.

21

49. Disable Permanent Passage Mode

(This Function enabled through keypad only)

50. Return Lock to Normal Passage

Mode Schedule

(This Function enabled through keypad only)

(Locks will lock or unlock depending on the current schedule). Use Function 50 to "undo" Functions 48 and/

or 49, and therefore return the lock to all pre-existing scheduled functions.

•Function 48 allows passage through the door without the need for a User Code. Re-Lock using Function 49.

•Programmed Schedules will not override the state of the lock using functions 48 and 49. If it is required that programmed

schedules override Passage Mode, Enable/Disable Passage Mode using Functions 45/46. Use Function 50 to "undo" Func-

tions 48 and/or 49, and therefore return the lock to all pre-existing scheduled functions. Note: Functions 48-50 can only be

enabled using the keypad. Warning: Function 49 will inhibit all scheduled Passage Mode events.

Passage Mode Enable/Disable - Schedule will not Override

2

PERMANENT PASSAGE MODE

; 4 9 :

48. Enable Permanent Passage Mode

(This Function enabled through keypad only)

; 4 8 :

; 5 0 :

; 5 2 :

52. Set Pass Time to 3 Sec.

; 5 3 :

; 5 4 :

The Pass Time is the length of time the lock stays unlocked after a valid User Code is

entered. When the Pass Time expires, the lock will re-lock automatically. Use the

functions below to change the Pass Time to 3, 10 or 15 seconds. The Pass Time is

defaulted to 3 seconds.

Pass Time

4

53. Set Pass Time to 10 Sec.

54. Set Pass Time to 15 Sec.

PASS TIME

See Scheduled functions 72 and 73 for Scheduled Passage Mode.

NOTE:

51. Passage Mode Configuration ; 5 1 ; [ _ ] :

(Mode)

•Mode 1 (Normal): Passage Mode must be enabled/disabled using Function 45 and 46. Mode 1 (Normal) is the factory de-

fault.

•Mode 2: Group 2 toggles Passage Mode.

•Mode 3: Group 2 enables, Group 3 disables Passage Mode. Disable Passage Mode has priority if User is a member of both

Groups 2 and 3.

With Mode 2, each time any member of Group 2 enters their User Code, they will toggle Passage Mode. For example, if Pas-

sage Mode is enabled, and a Group 2 User enters their User Code, Passage Mode will be disabled. If a few seconds later they

enter their User Code again, Passage Mode will be enabled. With Mode 3, Group 2 members will always enable Passage Mode,

and Group 3 members will always disable Passage Mode. For example, if Passage Mode is already enabled, and a Group 2

User enters their User Code, the Passage Mode status will not be changed due to the Function 51 Mode 3 configuration. If Pas-

sage Mode is already enabled, and a Group 3 User enters their User Code, Passage Mode will become disabled.

Programming Functions (cont'd)

4

22

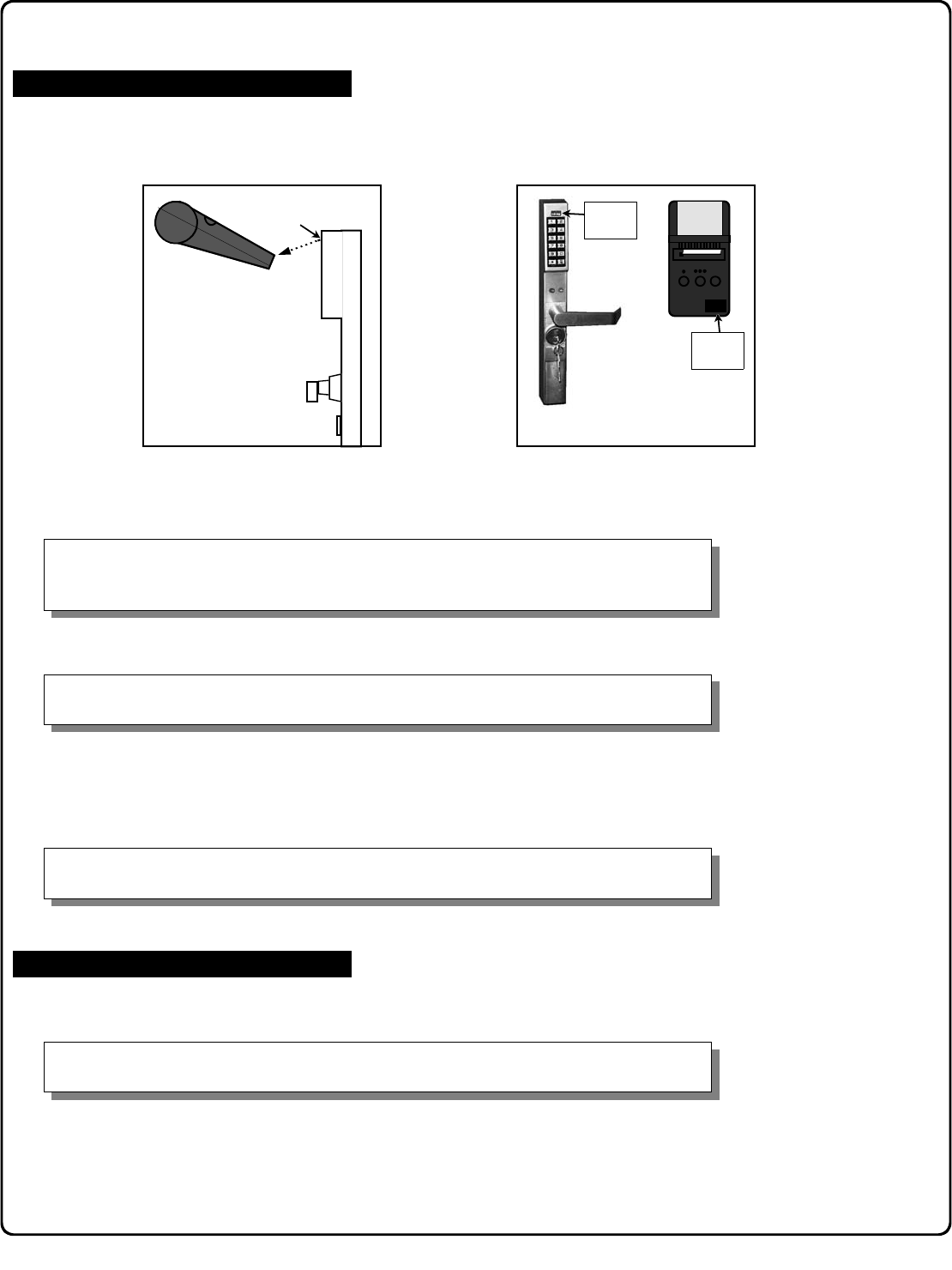

; 5 5 :

; 5 7 :

57. Print Clock Settings, Software

Version and Door Number

55. Print Audit Trail

; 5 6 :

56. Print User Code List

; 5 8 :

58. Upload/Download PC Data

Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2 above.

Twenty (20) events will print at a time; press 1 for more events, or 9 to quit. To abort

printing, press any key for 3 seconds (three short beeps will sound).

Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2 above.

To abort printing, press any key for 3 seconds (three short beeps will sound).

Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2 above.

For use with DL-WINDOWS software, refer to OI237. AL-PCI interface cable is needed.

1

3

3

PRINTER

DOWNLOADING

Hold the printer's infrared reader in front of the lock’s infrared LED as shown in Figure 1 and Figure 2 below.

If the printer has been idle for some time, press the paper feed button to wake up the printer.

1

Figure 2 Figure 1

59. Reserved

Programming Functions (cont'd)

DL1300 to Printer

- Side View

Infrared

LED Infrared

LED

Infrared

Reader

Place Infrared Reader (on

printer) in front of the In-

frared LED (on the lock)

23

60. Number of Attempts Before Lockout

61. Set the Attempts Lockout Time

•Number of attempts before lockout must be 1-9 attempts.

•The number of attempts is reduced by half every time the keypad is locked out without a

successful code entry (default is 6 attempts).

•The attempt count is reset each time a valid code is entered.

•Lockout Time must be 1-60 seconds.

How long the keypad is locked-out after a series of unsuccessful attempts

(default is 18 seconds).

4

4

LOCKOUT

; 6 0 ; [ _ ] :

(Number of Attempts)

; 6 1 ; [ _ _ ] :

(Lockout Time)

Programming Functions (cont'd)

Use Function 67 to program one or more System Options numbered 24-28, detailed below:

; 6 7 ; [ _ _ ] :

(Option Number)

67. Add System Options

SYSTEM OPTIONS

68. Delete All System Options added by Function 67. ; 6 8 ; 0 0 0 :

4

• 24. ONE TIME ACCESS FOR GROUP 3 USERS - Allows the creation of multiple 'one time only' User Codes. When this feature is

activated, an entry by a Group 3 User will allow entry only once, then the User will become disabled. Note: When the User

Code is entered for the first time and access is granted, the Event Log will read "Entry" followed by "User Disabled". If the User

Code is entered a second time, access will be denied, and the Event Log will read "User Denied Access".

To use this new feature, proceed as follows:

1. Enable the Feature. Enter Program Mode and enter the key sequence ; 6 7 ; 2 4 : .

2. Assign the selected User Codes to Group 3. For example, to assign User Number 15 to Group 3, press: ; 3

5 ; 1 5 ; 3 :.

As with all Function 67 System Options, this feature can be disabled by entering the following key sequence: ; 6

7 ; 0 0 0 :

• 25. DISABLE SOUNDER - Program to turn off the lock sounder. The lock will not sound under any circumstances.

• 26. FIVE (5) SECOND DELAYED ENTRY - Program to add a 5-second pause before unlocking with a valid User Code. Note: This

feature delays User Codes 12 and higher only (except 297, 298 and 299).

• 27. FIFTEEN (15) SECOND DELAYED ENTRY - Program to add a 15-second pause before unlocking with a valid User Code.

Note: This feature delays User Codes 12 and higher only (except 297, 298 and 299).

• 28. FORTY-FIVE (45) SECOND DELAYED ENTRY - Program to add a 45-second pause before unlocking with a valid User Code.

Note: This feature delays User Codes 12 and higher only (except 297, 298 and 299).

NOTE: Enter ; 6 7 ; 0 0 0 : to delete all Features added by Function 67 (identical to Function 68).

Enter ; 6 8 ; 0 0 0 : to delete all System Options added by Function 67. 4

62-66. Reserved

24

Scheduled Passage and Group

Use the functions below to enable Passage Mode and enable/disable Groups at the time programmed.

•For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for

Friday, 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

SCHEDULES

74. Schedule Enable Group 1 ; 7 4 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

75. Schedule Enable Group 2 ; 7 5 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

76. Schedule Enable Group 3 ; 7 6 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

77. Schedule Enable Group 4 ; 7 7 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

78. Schedule Enable All Groups ; 7 8 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

79. Schedule Disable Group 1 ; 7 9 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

80. Schedule Disable Group 2 ; 8 0 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

81. Schedule Disable Group 3 ; 8 1 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

82. Schedule Disable Group 4 ; 8 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

83. Schedule Disable All Groups ; 8 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

3

Clear All Schedule and Timeout Functions by entering Function 12.

To set the time, see Function 39.

NOTE:

72. Schedule Enable Passage

Mode ("Unlock")

; 7 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

73. Schedule Disable Passage

Mode ("Lock")

; 7 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Groups

ENTER KEY

•When this function is enabled, the User must press : after any valid User Code entry. Therefore,

this Function allows User Codes to be subsets of other User Codes.

Examples:

1 2 3 : can be a valid user code;

1 2 3 4 : can be a valid user code within the same lock.

1 2 3 4 5 6 : (Hold ;) for Master User Code to enter Program Mode.

Enter Key

4

71. Reserved

Passage

Mode

69. Enable : as Enter Key

70. Disable : as Enter Key

Programming Functions (cont'd)

; 6 9 :

; 7 0 :

25

QUICK SCHEDULES

84. Business Quick Schedule

7AM-5PM, Monday - Friday

(This Function enabled through keypad only)

; 8 4 ; [ _ ] :

(Group)

; 8 5 ; [ _ ] :

(Group)

85. Day Quick Schedule

7AM-5PM, All days

(This Function enabled through keypad only)

; 8 6 ; [ _ ] :

(Group)

86. Evening Quick Schedule

3PM-1AM, All days

(This Function enabled through keypad only)

; 8 7 ; [ _ ] :

(Group)

87. Night Quick Schedule

11PM-9AM, All days

(This Function enabled through keypad only)

88. Passage Mode

(Open Time Window)

(This Function enabled through keypad only)

; 8 8 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Functions 88 and 89 allow you to set up a window of time where if any Group 1 User Code is entered within this window,

Passage Mode will be activated, allowing anyone to enter. Note: This feature can only be programmed using the lock key-

pad. For additional information, see Group 1 Activated Features on page 27.

•For the day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday, 7 for

Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

•Enter time of day in 24 hour format (for example, for 2:15 PM, enter 14:15).

Note: Use Function 49 to disable Scheduled Passage Mode.

Scheduled Passage Mode (Group 1 Activated)

89. Passage Mode

(Close Time Window)

(This Function enabled through keypad only)

; 8 9 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

SCHEDULES GROUP 1 ACTIVATED

3

For your convenience, your lock comes pre-programmed with Quick Schedules, which, when programmed, enable Groups for

popular blocks of time. Group members will be enabled during the blocks of time defined below, but will still need to enter their

User Codes into the keypad to unlock the lock.

•Group number must be 1-4; enter the number of the Group that is to be enabled for the time specified by the Quick

Schedules below.

Note: These Quick Schedules can only be programmed through the keypad (not through DL-Windows), and existing Quick

Schedules will be over-written by schedules downloaded from DL-Windows. Therefore, after downloading any DL-Windows

schedules, be sure to re-program your Quick Schedules into your Lock Program.

3

Quick Schedules - Enable Group

Programming Functions (cont'd)

90-91. Reserved

26

; 9 9 ; 0 0 0 :

99. Clear All Lock Programming

(This Function enabled through keypad only)

Clears all programming, and returns lock to factory default settings. Audit Trail contents

are maintained. M

CLEAR ALL PROGRAMMING

94 - 98. Reserved

92. Enable Group 4

(Open Time Window)

(This Function enabled through keypad only)

; 9 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Functions 92 and 93 allow you to set up a window of time where if any Group 1 User Code is entered within this window,

Group 4 members will be enabled. (Group 4 members will still need to enter their User Codes to enter). For additional

information, see Group 1 Activated Features on page 27.

•For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday, 7 for Saturday, 8

for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

•Enter time of day in 24 hour format (for example, for 2:15 PM, enter 14:15).

Scheduled Group 4 Enable (Group 1 Activated)

93. Enable Group 4

(Close Time Window)

(This Function enabled through keypad only)

; 9 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

3

Programming Functions (cont'd)

27

Groups and Scheduled Group 1 Examples

The following examples detail the more advanced features of the DL1300 series locks. Although all features and device functions can be pro-

grammed using the lock keypad, when programming becomes more complex you may find it easier to use DL-Windows software to program your

Alarm Lock security lock. For more information, contact your Alarm Lock security professional.

Assign a User to Two Groups

Create a User 101 (all Users 101-150 are members of Group 2 by default) and include User 101 in Group 3 (as well as the default Group 2).

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 101 with a User Code of "789":

Press ; 2 ; 1 0 1 ; 7 8 9 :.

3. Using Function 35, make User 101 a member of Group 2 and 3:

Press ; 3 5 ; 1 0 1 ; 2 3 :.

4. Exit Program Mode.

Note: See step 3 above--although User 101 is by default a member of Group 2, you must include Group 2 when using Function 35 or the

Group 2 association will be removed.

The example to add Users to Group 2 and Group 3 has been selected due to the fact that Group 1 Activated Functions require that a member

of Group 1 enter their User Code to activate the Function, and it may become necessary to assign Users to Groups.

Group 1 Activated Features: Functions 88/89 and 92/93

•Function 88 and 89 allow for a window of time to be created where if any Group 1 User Code is entered within the programmed window,

Passage Mode will be activated (the device physically unlocks, allowing passage for all). If a Group 1 User does not enter their User Code

during the specified window, Functions 88/89 remain inactive.

•Function 92 and 93 allow for a window of time to be created where if any Group 1 User Code is entered within the programmed window, the

User Codes in Group 4 will be enabled. If a Group 1 User does not enter their User Code during the specified window, Functions 92/93 re-

main inactive. Companies typically use this feature to allow Group 1 Managers the ability to enable all Group 4 staff members during a cer-

tain window of time. Note: Disabling Group 1 will not prevent this function from executing if any Group 1 member is also a member of Group

2 or 3.

The following examples illustrate how Functions 88-93 (see pages 25-26) can be programmed into your DL1300 Series lock via the keypad:

Functions 88/89: Use Function 88 to set an Open Time Window (during which the Group 1 User must enter their User Code), and then use

Function 89 to set the time to close the Window. Re-lock the door at night manually (Function 46).

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 4 with a User Code of "456789":

Press ; 2 ; 4 ; 4 5 6 7 8 9 :.

3. Because User 4 does not have a default Group association, make User 4 a member of Group 1 using Function 35:

Press ; 3 5 ; 4 ; 1 :.

4. Use Function 88 and Function 89 (see page 25) to designate Passage Mode as being between the hours of 8:30 A.M. and 10 A.M. for all

days of the week:

Function 88 (Open Window Time) = 8:30 A.M.: Press ; 8 8 ; 0 ; 0 8 3 0 :

Function 89 (Close Window Time) = 10:00 A.M.: Press ; 8 9 ; 0 ; 1 0 0 0 :

5. Exit Program Mode (hold down any key for 3 seconds).

The lock will now be put in Passage Mode (device physically unlocked) if User 4 (or any Group 1 member) enters their User Code between

8:30 A.M. and 10 A.M. If a Group 1 User does not enter their User Code during the specified window, Functions 88/89 remain inactive

•The device will have to be manually locked each night by entering the following command using Function 46:

; 4 6 :

•The device can also be programmed to automatically lock (disable Passage Mode) each night at 5 P.M. by using Function 73:

; 7 3 ; 0 ; 1 7 0 0 :

•Remember to exit Function Mode when programming is complete.

28

Groups and Scheduled Group 1 Examples (cont'd.)

Functions 92/93: Use Function 92 and 93 (see page 26) to create a window of time where if any Group 1 User Code is entered within the

programmed window, Group 4 Users will be enabled. Note: Disabling Group 1 will not prevent this function from executing if any Group 1 mem-

ber is also a member of Group 2 or 3.

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 4 with a User Code of "456789":

Press ; 2 ; 4 ; 4 5 6 7 8 9 :.

3. Because User 4 does not have a default Group association, make User 4 a member of Group 1 using Function 35:

Press ; 3 5 ; 4 ; 1 :.

4. Using Function 17, disable Group 4. (Group 4 will need to be "disabled" before it can be "enabled" later).

Press ; 1 7 :.

5. Use Function 92 to set the time to open the window (8:30 A.M. all days of the week) allowing any Group 1 member to enable Group 4. Use

Function 93 to set the time to close the window (10:00 A.M. all days of the week).

Function 92 (Open Window Time) = 8:30 A.M.: Press ; 9 2 ; 0 ; 0 8 3 0 :

Function 93 (Close Window Time) = 10:00 A.M.: Press ; 9 3 ; 0 ; 1 0 0 0 :

6. Exit Program Mode (hold down any key for 3 seconds).

The lock will now enable Group 4 User Codes if User 4 (or any Group 1 member) enters their User Code between 8:30 A.M. and 10 A.M.

If no Group 1 member arrives to enter their User Code between 8:30 A.M. and 10 A.M., Group 4 User Codes will not be enabled and will

remain disabled all day.

•The device will have to be manually locked each night by entering the following command using Function 82:

; 4 6 :

•The device can also be programmed to automatically disable Group 4 members each night at 5 P.M. by using Function 82:

; 8 2 ; 0 ; 1 7 0 0 :

•Test the device by creating User 222 (with User Code 466466) and adding User 222 to Group 4:

; 2 ; 2 2 2 ; 4 6 6 4 6 6 :

; 3 5 ; 2 2 2 ; 4 :

•Remember to exit Function Mode when programming is complete.

29

Function Number(s) Function Name Programming

43/44 Clock Adjust

52/53/54 Pass Time (3 sec)  10 sec  15 sec 

60 Set Lockout Attempts

61 Set Lockout Time

69/70 Enter Key Enable  (Disable) 

+/- 0-55

(0) (0) Seconds

1-9 Attempts

(6)

1-60 seconds

(1) (8)

Default Values are shown in parentheses.

30

User Number

(1-2000)

User Code

(3-6 digits)

User Name

1 2 3 4

Group

Association

For a complete list of user codes, obtain a printout from either the remote printer

(Program Function 56) or using the DL-WINDOWS Software.

Note:

31

User Number

(1-2000)

User Code

(3-6 digits)

User Name

1 2 3 4

Group

Association

For a complete list of user codes, obtain a printout from either the remote printer

(Program Function 56) or using the DL-WINDOWS Software.

Note:

32

User Number

(1-2000)

User Code

(3-6 digits)

User Name

1 2 3 4

Group

Association

For a complete list of user codes, obtain a printout from either the remote printer

(Program Function 56) or using the DL-WINDOWS Software.

Note:

33

Day(s)

Function Number

Up to 500 scheduled functions can be programmed.

For Day Enter:

1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday

5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through

Friday, 9 = Saturday and Sunday, 0 = All days of the week

Enter Time of Day in 24-hour format (00:00- 23:59)

Time

Function Name

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

34

Day(s)

Function Number

Up to 500 scheduled functions can be programmed.

For Day Enter:

1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday

5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through

Friday, 9 = Saturday and Sunday, 0 = All days of the week

Enter Time of Day in 24-hour format (00:00- 23:59)

Time

Function Name

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

35

ACCESS = Entry into a restricted area.

AUDIT TRAIL = A date/time stamped log of previous lock events.

CLOCK

•REAL TIME CLOCK = An accurate built-in clock that allows

date/time stamping of events. The clock can be slowed or

speeded up to fine tune long term accuracy to within three

minutes per year.

•CLOCK SETTINGS = Printout includes date, time, weekday,

and clock speed.

•CLOCK SPEED = The clock can be adjusted to allow faster/

slower speeds and therefore increasing clock accuracy.

CODE = Numeric sequence of numbers (such as: 1234) entered at

the keypad. If Star-Enter-Key is required, must be followed by a

[:] key.

•BASIC USER CODE = User Codes assigned to User Num-

bers 12+ (except Users 297-300). (Does not allow

programming)

•INSTALLER CODE = User Codes assigned to User Numbers

2 and 3. (Allows all programming except Master functions).

•INVALID CODE = A User Code that has not been

programmed in the lock.

•MANAGER CODE = User Codes assigned to User Numbers 4

through 6. (Allows most of the programming functions).

•MASTER CODE = User Code assigned to User Number 1.

Default (factory) Master Code is 123456. The User with the

Master Code has complete control of the lock.

•PRINT ONLY USER CODE = User Code assigned to Users

10 and 11. (Allows no programming except print functions).

•QUICK ENABLE USER 300 CODE = Refers to the User Code

entered by User 297 which (when entered at the keypad)

enables the User Code assigned to User 300 for one time

only.

•QUICK PC ACCESS CODE = Permits upload/download to

DL-Windows Software on a PC running Microsoft Windows.

Refers to the User Code for User 298.

•SERVICE CODE = User 300 User Code. Allows only one

entry, then needs to be re-enabled by the User 297 User

Code to regain access.

•SUPERVISOR CODE = User Codes assigned to Users 7, 8

and 9. Can only program day-to-day operation.

•USER CODE = Code used by Users. Code is 3 to 6 numeric

digits long, allowing controlled entry.

•VALID CODE = An entered User Code that has been

programmed in the device.

COM PORT = A computer serial communications port used to

communicate with the Lock and/or Data Transfer Module.

DATA TRANSFER MODULE (AL-DTM) = A device that permits

transfer of program/data between a computer and the lock.

DATE = Month, Day and Year entered as MMDDYY.

DAY OF WEEK = Sunday through Saturday (where 1 = Sunday and

7 = Saturday).

DEFAULT = Default settings are the original settings that were set

at the factory; in other words, it is the lock's original factory con-

dition when the lock was first taken out of its box. The default

settings are permanently encoded within the lock's fixed mem-

ory, and when the lock is first started, or when power is removed

and re-applied (see Wiring and Power-Up, page 11), the original

factory default settings are re-loaded and take effect.

DISABLE = Turn off.

DOOR NUMBER = Identification of each door with a specific

number. (Used with AL-DTM Transfer Module)

DOWNLOAD = Send data to lock or AL-DTM.

ENABLE = Turn on.

EVENTS = Recorded lock activity.

FUNCTION (also called Programming Functions) = are the

numbers used to program lock features (enabling/disabling

Users, User Groups, Passage Mode, Schedules, etc.).

GROUP

•USER GROUP = Defining a User to specific Groups, allows

User entry when the Group is allowed entry.

•GROUP 1 ENABLES GROUP 4 USERS = A Group 1 USER

CODE entry during a predefined schedule will allow access

to Group 4 Users.

•GROUP 1 PUTS UNIT IN PASSAGE = A Group 1 USER

CODE entry during a pre-defined schedule will unlock unit.

INSTALLER = See.... CODE, INSTALLER CODE.

KEYPAD = 10-numeric keys, : and special ; key.

•KEYPAD LOCKOUT = Keypad is programmed to lockout Us-

ers, for a specified period of time, when a specified number

of invalid User Codes are entered.

•KEYPAD PROGRAMMING = Ability to program the lock

through the keypad.

KEYPRESS = Pressing a button on the Lock’s Keypad.

LEVEL ABILITY = Predefined User Types (such as Master,

Installer, Manager, Supervisor, and Print Only User) have

specific abilities to program and/or control the lock.

LOCKOUT ATTEMPTS = A specified number of invalid User Code

entries (1-9), that will disable the keypad for a predefined period

of time. See… LOCKOUT TIME.

LOCKOUT TIME = A predefined time (1-60) seconds that the lock

will stop accepting User Codes, after a specified number of

invalid User Code entries. See… LOCKOUT ATTEMPTS.

LOG = See... AUDIT TRAIL.

MANAGER = See... CODE, MANAGER CODE.

MASTER = See... CODE, MASTER CODE.

PASSAGE = Allow anyone to pass through the door without USER

CODES (door is unlocked).

PRINTER (AL-IR1) = A printout device such as an infrared printer or

computer printer.

PROGRAM MODE = A mode allowing program/data to be entered

through the keypad. Only specific Users can program a lock

manually, by entering their USER CODE, followed by the [;]

key. To exit program mode, hold any key until repeated beeps

are heard.

SCHEDULE = A programmed operation (enable/disable, lock/

unlock, etc.) on a specific day (Sunday through Saturday) and

time.

SCHEDULES, QUICK = Any one of four most common types of

schedules can be programmed.

TIME = Hours and Minutes in the HHMM format.

TIME/DATE STAMP = A recorded date and time that an event

occurred.

TIMEOUT = Immediate operation for a specified number of hours.

UPLOAD = Receive data from the lock or AL-DTM.

USER = A person who has been provided with a USER CODE for

access through the door.

USER LOCKOUT, TOTAL = All Users (except for Master Code)

have been locked out.

Glossary

36

ALARM LOCK LIMITED WARRANTY

ALARM LOCK SYSTEMS, INC. (ALARM LOCK) warrants its products to be free from manufacturing defects in

materials and workmanship for 24 months following the date of manufacture. ALARM LOCK will, within said period, at

its option, repair or replace any product failing to operate correctly without charge to the original purchaser or user.

This warranty shall not apply to any equipment, or any part thereof, which has been repaired by others, improperly

installed, improperly used, abused, altered, damaged, subjected to acts of God, or on which any serial numbers have

been altered, defaced or removed. Seller will not be responsible for any dismantling or reinstallation charges.

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION ON

THE FACE HEREOF. THERE IS NO EXPRESS OR IMPLIED WARRANTY OF MERCHANTABILITY OR A

WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. ADDITIONALLY, THIS WARRANTY IS IN LIEU OF

ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF ALARM LOCK.

Any action for breach of warranty, including but not limited to any implied warranty of merchantability, must be

brought within the six months following the end of the warranty period. IN NO CASE SHALL ALARM LOCK BE

LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY

OTHER WARRANTY, EXPRESS OR IMPLIED, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE SELLER'S

OWN NEGLIGENCE OR FAULT.

In case of defect, contact the security professional who installed and maintains your security system. In order to

exercise the warranty, the product must be returned by the security professional, shipping costs prepaid and insured

to ALARM LOCK. After repair or replacement, ALARM LOCK assumes the cost of returning products under warranty.

ALARM LOCK shall have no obligation under this warranty, or otherwise, if the product has been repaired by others,

improperly installed, improperly used, abused, altered, damaged, subjected to accident, nuisance, flood, fire or acts

of God, or on which any serial numbers have been altered, defaced or removed. ALARM LOCK will not be

responsible for any dismantling, reassembly or reinstallation charges.

This warranty contains the entire warranty. It is the sole warranty and any prior agreements or representations,

whether oral or written, are either merged herein or are expressly canceled. ALARM LOCK neither assumes, nor

authorizes any other person purporting to act on its behalf to modify, to change, or to assume for it, any other

warranty or liability concerning its products.

In no event shall ALARM LOCK be liable for an amount in excess of ALARM LOCK's original selling price of the

product, for any loss or damage, whether direct, indirect, incidental, consequential, or otherwise arising out of any

failure of the product. Seller's warranty, as hereinabove set forth, shall not be enlarged, diminished or affected by and

no obligation or liability shall arise or grow out of Seller's rendering of technical advice or service in connection with

Buyer's order of the goods furnished hereunder.

ALARM LOCK RECOMMENDS THAT THE ENTIRE SYSTEM BE COMPLETELY TESTED WEEKLY.

Warning: Despite frequent testing, and due to, but not limited to, any or all of the following; criminal tampering,

electrical or communications disruption, it is possible for the system to fail to perform as expected. ALARM LOCK

does not represent that the product/system may not be compromised or circumvented; or that the product or system

will prevent any personal injury or property loss by burglary, robbery, fire or otherwise; nor that the product or system

will in all cases provide adequate warning or protection. A properly installed and maintained alarm may only reduce

risk of burglary, robbery, fire or otherwise but it is not insurance or a guarantee that these events will not occur.

CONSEQUENTLY, SELLER SHALL HAVE NO LIABILITY FOR ANY PERSONAL INJURY, PROPERTY DAMAGE,

OR OTHER LOSS BASED ON A CLAIM THE PRODUCT FAILED TO GIVE WARNING. Therefore, the installer

should in turn advise the consumer to take any and all precautions for his or her safety including, but not limited to,

fleeing the premises and allege police or fire department, in order to mitigate the possibilities of harm and/or damage.

ALARM LOCK is not an insurer of either the property or safety of the user's family or employees, and limits its liability

for any loss or damage including incidental or consequential damages to ALARM LOCK's original selling price of the

product regardless of the cause of such loss or damage.

Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation

of incidental or consequential damages, or differentiate in their treatment of limitations of liability for ordinary or gross

negligence, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights

and you may also have other rights which vary from state to state.
