OI246C 8/09

Trilogy

DL2800 Programming Instructions

DL2800 Trilogy Series

Standalone Access Control System

345 Bayview Avenue

Amityville, New York 11701

For Sales and Repairs 1-800-ALA-LOCK

For Technical Service 1-800-645-9440

Publicly traded on NASDAQ Symbol: NSSC

Table of Contents

THE ALARM LOCK TRILOGY DL-SERIES STAND-ALONE ACCESS CONTROL SYSTEM IS A SERIES OF STATE-OF-

THE-ART MICROPROCESSOR-BASED PROGRAMMABLE KEYPAD-ENTRY AND PROXIMITY SECURITY LOCKS.

DL2800

Features a real-time clock/calendar that automatically adjusts for Daylight

Saving Time and allows for automated programming of events. Features

three methods of programming:

(1) All features can be programmed manually through the keypad;

(2) You can transfer programming instructions directly from your lap-

top or desktop PC using DL Windows software and a special AL-

PCI cable; and

(3) data can be transferred from your PC to your DL lock via the AL

DTM handheld Data Transfer Module.

In addition, data can be retrieved from the lock in one of three ways (1)

through an infrared printer; (2) directly from the lock to the PC; or (3)

through an AL-DTM to your PC.

DL2800 SERIES LOCK

DL2800 Lock Features .................................................3

Supported Products .....................................................4

Lock Design Overview .................................................5

Quick Start ....................................................................6

Terminology Used in this Manual ................................7

Conventions Used in this Manual ................................8

Programming Levels ....................................................9

Wiring, Power Up & Battery Replacement ............... 10

LED and Sounder Indicators ..................................... 11

Product Communication Examples .......................... 12

Programming Functions--Overview .......................... 13

Programming Functions .......................................14-26

Groups and Scheduled Group 1 Examples ....... 27-28

Programming Record Sheet ..................................... 29

User Code Record Sheet .......................................... 30

Schedule Record Sheet ............................................ 31

Glossary ................................................................ 32-33

ALARM LOCK LIMITED WARRANTY ..................... 36

------- AUDIT LOG -------

09/23/05 13:06:35 Fri

13:01:59 001 PROGRAM 56

13:01:29 001 PROGRAM 57

13:00:53 001 ENTRY

13:00:26 013 ENTRY

13:00:03 012 ENTRY

12:56:27 001 PROGRAM 2

12:56:27 001 PROGRAM 40

12:56:04 001 PROGRAM 39

12:55:00 NEW CLCK TIME

12:01:39 OLD CLCK TIME

12:00:45 RAM TEST:PASS

12:00:45 POWER UP

-------------------------

End of Audit Log

DL2800 Lock Features

User Features

•200 Users

•Pre-defined Administration User Levels including Master, Manager and Supervisor

User Codes (see page 9)

•User Code Lengths from 3-6 digits

•Service Code (“One-Time-Only” Code) (see page 8)

•User Lockout Mode (see page 15, Function 6)

•Users Assignable to 4 Groups (see page 17)

Lock Features

•Metal Key Override

•Keypad Lockout (see page 22, Functions 60-61)

•Non-Volatile (Fixed) Memory

•Real-Time Clock adjustable to within 1 second (see page 19, Functions 43-44)

•Visual and Audible Keypad Feedback (see page 11)

•Battery Status Monitor (see page 10-11)

Scheduling

•150 Scheduled Events (see page 24)

•Automated Unlock/Lock

•Enable/Disable Users (see page 14, Function 3)

•Enable/Disable Groups (see page 16)

•Four "Quick Schedules" (contains 4 most common schedules) (see page 25)

•Real-time clock and calendar (see page 18)

•Programmable Timeout Functions (see page 17)

User Access Methods

•Keypad Entered User Codes (see page 14)

•Metal Key Override

Keypad and Computer Programming

•All programming may be performed manually from the keypad, or from a PC using

Alarm Lock's DL-Windows Software (see page 8. "What is DL-Windows?")

Audit Trail

•1000 Event Capacity

•Entries Logged with Time and Date

•Critical Programming Events Logged

•Printable using the AL-IR1 Hand-Held Printer (see page 21, Function 55)

•Transferable using Alarm Lock's DL-Windows software (see page 21, Function 58)

•Transferable to AL-DTM

AL-DTM Data Transfer Module

•Use Alarm Lock’s AL-DTM to easily transfer program data between locks and a PC

running DL-WINDOWS software. Easily transfer Audit Trail from multiple locks and

then view or print each Audit Trail from a computer.

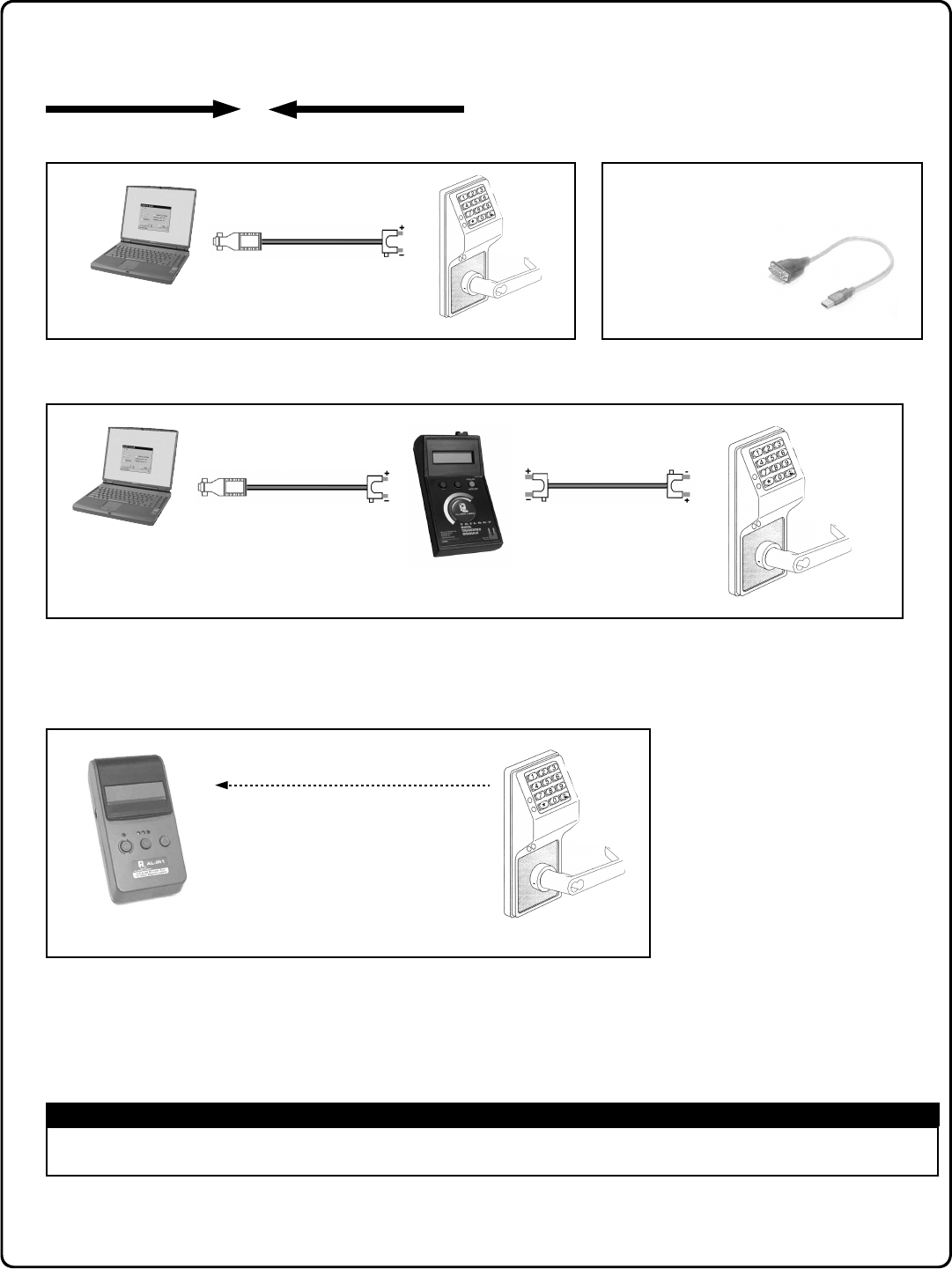

Supported Products

Data Transfer Module (AL-DTM)

An AL-DTM can be used to transfer Lock Programs (and other data) between DL-Windows and locks. When

computers cannot be transported or when electrical power is not available, the hand-held AL-DTM device acts as

a go-between--it allows the transfer of lock data from the computer (through the AL-DTM) and to the lock, or in

reverse (from the lock through the AL-DTM back to the computer). Use of the older AL-DTM model 1 is not

recommended. Note: The latest model, the AL-DTM-III, is supported in DL-Windows version 3.5.1 or

later.

Infrared Printer (AL-IR1)

An AL-IR1 printer is used to print Audit Trails and User Code lists without the need for a PC. Its infrared

reader means no cable connection to the lock is needed.

Double-ended Mini Banana Plug Connector

After you create the program in DL-Windows and transfer the program from your computer to an AL-DTM,

transfer the program from the AL-DTM to the lock(s) via a double-ended mini banana plug.

DB9 to DB9 Serial Cable

Enroll User Codes into DL-Windows, then transfer this new User Code data from the computer to the AL-

PRE via this 9-pin DB9 to DB9 serial cable. Once the data is in the AL-PRE, you can transfer the data to

the lock via the double-ended mini banana plug (see above), thus avoiding the need to use an AL-PCI

cable for this process.

AL-PCI Cable

An ALARM LOCK AL-PCI cable is required to communicate between your computer’s RS-232 serial com-

munications port (COM 1-4) and the AL-DTM or lock. One end of the AL-PCI cable is designed to be used

on a 9-pin serial Com Port. If your computer has a 25-pin Com Port only, a 25-pin to 9-pin adapter must be

used. The other end of the AL-PCI cable features a 2-pin banana plug connector which is polarity sensitive-

-the TAB (marked “GND”) side must be plugged into the lock’s black (left) terminal.

USB to RS-232 Cable

If your computer does not have a serial COM port (DB-9 male) available, you can plug your

AL-PCI2 cable into a special USB to RS-232 cable. Order part MX1130 for the USB to RS-

232 cable only, or ALPCI2-U for both the USB to RS-232 cable and an AL-PCI2 cable.

Lock Design Overview

Why Use Software inside a Lock?

With ordinary door locks, the need to make physical copies of metal keys and distributing them can be a huge organizational and

financial task -- and what will you do if someone causes a security breach by losing their key?

The answer lies in the advantage of software. Software (also called "firmware") is not "hard" or "fixed" like hardware--software is

flexible and changeable to your needs. Software can be programmed (and re-programmed again and again) to suit your changing

requirements. Rather than copy and distribute metal keys, distribute User Codes -- and delete them from the Lock Program soft-

ware when required. (A User Code is the software equivalent of a metal key--it is a series of numbers the User enters into the

keypad to unlock the lock).

Preparing to Program your Lock

The DL2800 lock keypad contains 12 buttons, numbers 1 through 9 plus zero, a star button (:) and a special "AL" button

(;). You can either use these 12 buttons to program your lock--or--you can program your lock using a computer program

called DL-Windows. DL-Windows is not needed--but it makes programming faster and easier. This guide will show you how to

program your lock manually (using only the keypad), without DL-Windows. (For more information about DL-Windows, see User

Guide OI237).

Programming your lock begins after you unpack it from the box -- there is a specific procedure outlined on page 6 ("Quick Start") in

which you "wake up" the lock to prepare it for use. To begin programming the lock, you must first enter something called "Program

Mode".

What is Program Mode?

The software inside the lock has two "modes": "Normal Mode" and "Program Mode". When you want to make changes to the lock

program (add User Codes for example), enter "Program Mode". When you finish programming and wish to put the lock into use,

exit "Program Mode" to enter "Normal Mode".

You enter Program Mode using the keypad--by pressing the Master Code of the lock that was set at the factory. The Master Code

is basically a secret passcode that allows you to enter Program Mode. But since all locks are identical and leave the factory with

the same Master Code, the factory Master Code is therefore not very secret--and should be changed to your own personal Master

Code. This is to ensure that only YOU can enter Program Mode and make changes to the lock programming.

Once the new Master Code is set , then you can continue with the Quick Start procedure and set the weekday, date and time. Af-

ter this, you can start entering User Codes for people to use. All changes to the lock are organized by their "Function Number".

Want to change the date? Use Function Number 38. Want to add a User Code? Use Function Number 2. There are 99 Func-

tions in total, some that you will use often, and others that you may never need.

Notice that when you program your lock, programming tends to follow a consistent 5-step pattern: (1) Enter Program Mode

(2) Press ; followed by the Function Number (3) Press ; and enter data (4) Press : to end (5) Exit Program

Mode.

Turn to page 7 and learn about the special terminology used with your lock. The Quick Start procedure (on page 6) will

help you get up and running quickly.

Lock Operation

•While the lever may be rotated at any time, the latch will not be

engaged to unlock the lock unless a valid User Code has been

entered into the keypad.

•When a valid User Code is entered, the lock will unlock imme-

diately and remain unlocked for 5 seconds (this 5 second

"Pass Time" can be changed--see page 20, functions 51-53).

PC / AL-DTM Interface

Tri-Color Status LED

Infrared LED (for Printer)

Lever

Keypad

Special "AL" (;) Key

"STAR" (:) Key

First Time Start Up

IMPORTANT: Failure to follow this exact procedure can result in erratic lock behavior.

The DL2800 lock uses five (5) AA-size 1.5 volt alkaline batteries. Remove the back cover, install batteries into the battery

pack. Connect the battery pack plugs and the lock will beep 3 times. To load the default program press any key within 5 sec-

onds, the lock will beep slowly while the default values are loaded and beep rapidly upon completion.

Enter Program Mode and Change Factory Master Code

1. Press the default Master Code: 1 2 3 4 5 6.

2. Wait for the green light and press ; until multiple beeps are heard. You are now in Program Mode.

(Note: The lock will beep every 6 seconds as a reminder that you are in Program Mode).

3. Enter a new personal 6-digit Master Code number by pressing the following keys:

; 1 ; [new Master Code] ; [new Master Code] : (the second set of digits must be exactly the same).

(For example, if you want your new Master Code to be “664433”. Press:

; 1 ; 664433 ; 664433 :).

Now that the Master Code has been changed, there is no need to change it again (unless you want to). Since you

are still in Program Mode, you can now proceed directly below and program various functions. Note: Program-

ming any Function, such as setting the time, follows a consistent 5-step pattern: (1) Enter Program Mode (2)

Press ; [Function #]

(3) Press ; and enter data (4) Press : to end (5) Exit Program Mode (if desired).

Set the Weekday

1. Enter Program Mode (if not in already).

2. Press ; 40 ; [number of weekday] :. (Use 1= Sunday, 7 = Saturday).

(For example - Friday - press ; 40 ; 6 :).

Set the Date

1. Enter Program Mode (if not in already).

2. Press ; 38 ; [MMDDYY] :.

(For example - May 10, 2002 - press ; 38 ; 051002 :).

Set the Time

1. Enter Program Mode (if not in already. If you just finished the above procedure, you are still in Program Mode).

2. Press ; 39 ; [HHMM] :. (Use 24-hour military (HHMM) format, where PM adds 12 hours).

(For example - 2:30pm - press ; 39 ; 1430 :).

Enter User Codes

1. Enter Program Mode (if not in already).

2. Press ; 2 ; [User Number] ; [User Code] :.

(For example, John Smith is designated as User 21. You want him to use the User Code of “232323” to unlock the

lock. Program the lock by pressing: ; 2 ; 21 ; 232323 :).

3. Repeat step 2 for each new User.

Exit Program Mode

Hold Down any key for 3 seconds. Program Mode exit is confirmed by several beeps. You are now in "normal" operation.

Re-enter Program Mode

If you wish to re-enter Program Mode, key-in your new 6-digit Master Code, and press ;.

You are now ready to mount and install your DL2800 series lock and give out your User Codes. Before installation, it is sug-

gested you test and verify that all User Codes entered are active. Use the IR1 infrared printer (available separately) to print your

own audit logs and User Codes list.

Quick Start

Terminology Used in this Manual

The Lock Program

A Lock Program is stored within the lock's circuitry and contains

the instructions that the lock uses to perform its various func-

tions. You can use the keypad to change the Lock Program,

and you can also use DL-Windows (defined below) to create a

Lock Program on your computer, and then transfer and store

the Lock Program within the lock circuitry.

The Lock Program consists of 4 areas: User Codes, Func-

tions, Time Zones, and Schedules, all defined below:

User Codes

Also called "User Access Codes", "Passcode numbers" or "PIN

Number Codes", a User Code is a 3 to 6 digit number the User

enters into the keypad (using the keypad buttons) to unlock the

lock. The DL2800 can store hundreds of different User Codes

in its Lock Program, and the Lock Program is stored in the lock

circuitry awaiting the Users to key in their individual User

Codes. Each User Code is associated with a User Number,

defined below.

The User

A User is defined as a person who is authorized to operate or

perform programming changes to the Lock Program. The

DL2800 lock can hold hundreds of "Users" (in the form of User

Codes) in its Lock Program, and each User possesses a pre-

defined level of authority--a Programming Level--as to their

ability to use or make changes to the Lock Program. Some

Users may be able to unlock the lock only; others may also be

able to make changes to the Lock Program.

User Numbers

(User Number = Location Number = User Location = Slot)

User Numbers are used and are significant within each individ-

ual lock only. The DL2800 Series locks can hold up to 200

User Numbers in its Lock Program, which can be thought of as

simply a numbered list from 1 through 200 (with number 1 at

the top). Each User Number can be programmed with a User

Code. In addition, each User Number possesses a pre-defined

level of authority--a Programming Level--as to the User's abil-

ity make changes to the Lock Program. Where a User is lo-

cated in this list--their User Location--is a commonly used de-

scription of their User Number. Because of their similarities,

the terms User Number, User Location and Location Number

can be used interchangeably. In some DL-Windows screens,

the word "Slot" is also used. They all mean the same thing.

Since User Numbers are fixed, knowing the location of a User

Number will specify its associated Programming Level, and will

in turn indicate a User’s programming abilities (if any). For ex-

ample, User Number 1 is always the Master, who can perform

all programming tasks. Lower down the list, User Number 189

is a Basic User and although this User is assigned a User Code

to unlock the lock, because they are a "Basic User" they are

unable to perform any programming changes.

Programming Functions

Your lock is designed to support many different features that

can be programmed to suit each installation. Using the keypad

(or DL-Windows software), authorized Users can activate these

features and make other changes to the Lock Program. Each

of these features is called a Programming Function. In addi-

tion, each Function possesses its own pre-defined Program-

ming Level to access that Function. Each User must possess

a Programming Level EQUAL to the Programming Level

assigned to the Function in order to access that Function.

When programming via the keypad, see page 13 for a list of all

Functions 1 through 99. For example, you can enable Daylight

Saving Time via Function number 41. Each Programming

Function is described on pages 14-26.

Programming Levels

The Programming Level defines which Programming Functions

a User is allowed to perform. Each User Number is associated

with a defined level of ability--a Programming Level--as to

which Functions the assigned User can access. The highest

level--Master--allows access to ALL Functions.

In addition, each Function (see pages 14-26) has its own fixed

Programming Level.

A User must possess a Programming Level equal to the

Programming Level of the Function in order to access that

Function.

Programming Levels can have a value of "1", "2", "3", "4" or

"M". Note: Having a Programming Level of "3" does not allow

access to Functions with Programming Levels of 1, 2 or 4.

The following defaults apply when adding User Codes via Pro-

gramming Function 2:

Master: The highest level User, and always associated with

User Number 1 and its Master Code only. Master is always

enabled and can program ALL Functions. (Abbreviated as

the Programming Level = "M").

Manager: Always associated with User Numbers 2-6. Can

program all Functions except Functions relating to lock con-

figuration. (Abbreviated as Programming Level = "1", "2" or

"3").

Supervisor: Always associated with User Numbers 7-11. Can

only program Functions relating to certain day to day opera-

tions. (Abbreviated as Programming Level = "1" or "2").

Basic Users: Always associated with User Numbers 12

through 200. When adding User Codes for Basic Users via

Programming Function 2, Programming Levels are not as-

signed by default. Note: Programming Levels for Users 2-

200 can be assigned via Function 8. For Users 299 and

300, see below for entries.

See chart on page 9 for a summary.

Groups

It is convenient for large numbers of similar Users to be

grouped together. By placing Users into Groups (assigning

them to a specific range of User Numbers), large numbers of

Users can be controlled all at once rather than individually--

saving time and effort. Groups are controlled via schedules,

and a typical example involves enabling or disabling a Group at

a certain time. The DL2800 lock has factory-programmed De-

fault Group Associations that are specified in the table on page

9. For example, if you wish to add a User to Group 1, assign

this User to a User Number between 51 and 100. These De-

fault Group Associations can be changed if needed to allow

Groups larger than the default quantity of 50 (by using keypad

Function 35). (See page 25 for some Group function exam-

ples).

Schedules and TimeZones

You can use the keypad to add simple "Schedules" to your

lock. Schedules are events (recorded lock activities) that are

assigned to occur automatically at specific times. For example,

you can program the lock to allow Group 1 Users access ONLY

on Wednesdays.

DL-Windows multiplies your flexibility, allowing the creation of

many different combinations of Scheduled events to suit the

needs of your various installations. For example, you can pro-

gram the lock to allow Group 1 Users access ONLY during spe-

cific business hours (unlock at 9AM, lock at noon for lunch,

unlock at 1PM, and lock again at 5PM--every weekday).

In addition, DL-Windows makes Schedule creation much eas-

ier. Use the Schedule - TimeZone screen to first create an

individual block of time called a "TimeZone" (for example, "9AM

to noon weekdays"). A TimeZone is then linked to an event to

make a Schedule (for example, "unlock between 9AM and

noon weekdays"). To make Scheduling easier, DL-Windows

allows TimeZones to be created, named and saved for the fu-

ture, to be easily assigned to different events and added to

multiple locks as needed.

Users 299 & 300

User Codes added to locations 299 and 300 have special abili-

ties, as follows:

User 299: AL-DTM Code

This is the only User Code that will initiate data transfer with

the AL-DTM--and without allowing the lock to unlock (the

User Code for User Number 299 does NOT allow access).

An AL-PCI cable and an AL-DTM (pre-programmed by a

computer with DL-Windows) are required.

User 300: One-Time Only Service Code

This is a one-time-only service User Code designed to be

used for access by temporary workers. When enabled, en-

tering User Code 300 into the keypad will allow the DL2800

lock to unlock only once (re-entering User Code 300 will not

operate). User Number 300 is enabled by Function 9.

(Note: Function 9 can only be enabled by Users with a Pro-

gram Authority Level of 2).

User Code 300 can also be used for guard tour duties.

DL-Windows

DL-Windows is a computer program that allows you to program

your ALARM LOCK Security Lock. You do not need DL-

Windows to program your lock, but it makes programming

much faster and easier. With DL-Windows, you can quickly

create Lock Programs, add multiple Users, retrieve event logs,

and create Schedules. The benefit of DL-Windows is that it

allows you to set up all lock programming in advance (on your

computer), and then later transfer the information into the in-

stalled locks at your convenience.

Terminology Used in this Manual (cont'd)

Programming Key

Sequence.

Programming

Information

General Program Mode Information

If a wrong key is pressed during code entry, hold any key continuously until the error sound is heard (7 short beeps), this will clear the entry. Re-enter the key

sequence again.

All program sequences are followed by the : key; 2 short beeps indicate a successful program sequence.

Enabling/Disabling Users (By User Number)

3. Disable User ; 3 ; [ _ _ _ ] :

4. Enable User ; 4 ; [ _ _ _ ] :

User Number must be between 2 and 200. (DL2800 Series locks allow up to 200 Users).

NOTE: Will Enable/Disable users even if the user is associated with an enabled group.

Conventions Used in this Manual

Required Programming Level

This is the Programming Level

required to access the Function.

Possible Programming Levels are

"1", "2", "3", "4" and "M", where

"M" = Master Code.

The Programming Level of the

User must be equal to the Func-

tion that is to be accessed.

Function

Description

Function

Number

Function

Name

The Programming Level defines which Programming Func-

tions a User is allowed to perform. Each User Number is as-

sociated with a defined level of ability--a Programming Level-

-as to which Functions the assigned User can access. The

highest level--Master--allows access to ALL Functions.

In addition, each Function (see pages 14-26) has its own fixed

Programming Level.

A User must possess a Programming Level equal to the

Programming Level of the Function in order to access that

Function.

Programming Levels can have a value of "1", "2", "3", "4" or

"M". Note: Having a Programming Level of "3" does not allow

access to Functions with Programming Levels of 1, 2 or 4.

The following defaults apply when adding User Codes via Pro-

gramming Function 2:

Master: The highest level User, and always associated with

User Number 1 and its Master Code only. Master is al-

ways enabled and can program ALL Functions.

(Abbreviated as the Programming Level = "M").

Manager: Always associated with User Numbers 2-6. Can

program all Functions except Functions relating to lock

configuration. (Abbreviated as Programming Level = "1",

"2" or "3").

Supervisor: Always associated with User Numbers 7-11.

Can only program Functions relating to certain day to day

operations. (Abbreviated as Programming Level = "1" or

"2").

Basic Users: Always associated with User Numbers 12

through 200. When adding User Codes for Basic Users via

Programming Function 2, Programming Levels are not as-

signed by default. Note: Programming Levels for Users 2-

200 can be assigned via Function 8.

Programming Levels

Users programmed with Function 2 will default to a Group

Association and a Programming Level Ability as follows:

USER TYPE USER NUMBER DEFAULT

GROUP ASSOCIATION

DEFAULT

PROGRAMMING LEVEL

Master Code 1 none M, 4, 3, 2, 1

Manager Codes 2 - 6 none 3, 2, 1

Supervisor 7 - 11 none 2, 1

Basic User Codes 12 - 50 none none

Basic User Codes Group 1 51 - 100 1 none

Basic User Codes Group 2 101 - 150 2 none

Basic User Codes Group 3 151 - 200 3 none

Initiate DTM (Non-Pass Code) 299 none none

Service Code 300 none none

User 299 is a Non-Pass Code. This is the only code that will initiate data transfer with the AL-DTM.

NOTE:

WIRING

See the Installation Manual for more information.

Batteries:

Use only 1.5 volt Alkaline size-AA batteries. With aver-

age use, batteries last about 5 years.

Terminals (Standard Models Only)

Red & Black Wires (Operation without Batteries) -

Optional 7.5 VDC Voltage for operation without batter-

ies.

White & White Wires (Remote Input) - Wire a Nor-

mally Open Contact to Terminals 3 & 4. Momentarily

close to allow person to pass through door. NOTE: Re-

mote Input is enabled from the factory.

PC Interface - Connect to Serial Port on Computer us-

ing A-PCI interface cable.

Wire Leads for DL2800WP Models

Note: On all WP (waterproof) models, be sure to use

provided dielectric grease on the battery connector to

ensure a waterproof connection.

POWER DOWN

--RETAIN LOCK PROGRAMMING

•When applying power to the lock for the first time,

stop here and follow the procedure outlined in "QUICK

START" on page 6.

•When power is re-applied to a lock that was already

operational and you wish to retain the lock program-

ming (such as when transferring the lock from one door

to another door), proceed as follows:

1. Unplug battery pack.

2. Press any key to ensure the lock's capacitor is fully dis-

charged.

3. Re-connect battery pack (lock will give 3 short beeps).

4. Do not press any keys for 10 seconds.

5. After the 10 second period the LED will flash red 6

times and 6 beeps will sound.

The lock is now ready for use. Program is loaded from

non-volatile (fixed) memory. Note: Audit Trail and Clock

Settings are lost. Re-set the clock using functions 38, 39

and 40.

ERASE ALL PROGRAMMING

•The "out of box" factory default will be loaded.

1. Unplug battery pack.

2. Press any key to ensure lock's capacitor is fully dis-

charged.

3. Re-connect battery pack (lock will give 3 short beeps).

4. Press any key within 5 sec after hearing the 3

beeps.

5. A series of beeps will be heard.

All settings and programming have been erased and the

lock is now ready for use. Note: All lock programming can

also be erased (without need to disconnect the batteries)

by entering Function 99.

BATTERY REPLACEMENT

•When applying power to the lock for the first time,

stop here and follow the procedure outlined in "QUICK

START" on page 6.

You will know the batteries are weak when a valid

code is entered and the following occurs: the light

amber LED lights and the sounder sounds for 4 sec-

onds. The DL2800 lock uses five (5) AA-size 1.5 volt

alkaline batteries. Always replace weak batteries as

soon as possible.

CAUTION: Do not press any keys while batteries are

disconnected or you may erase the real-time clock

settings. Pressing any key will remove the voltage that

is required to keep the system clock and Audit Trail in

memory.

1. At the back of the lock, remove the screw at the bottom

of the lock housing and remove the cover.

2. Pull out the battery pack and quickly replace all 5 bat-

teries - within 2 minutes.

3. If you do not hear the 3 beeps when power is re-

applied, all programming and settings have been re-

tained, and the lock is ready for use. Go to step 5.

4. If you do hear 3 beeps when power is re-applied, do

not press any keys for 15 seconds. After the 15 sec-

ond period, the LED will flash red 6 times and 6 beeps

will sound. Reset the clock using functions 38, 39 and

40.

5. Replace the cover and tighten the screw.

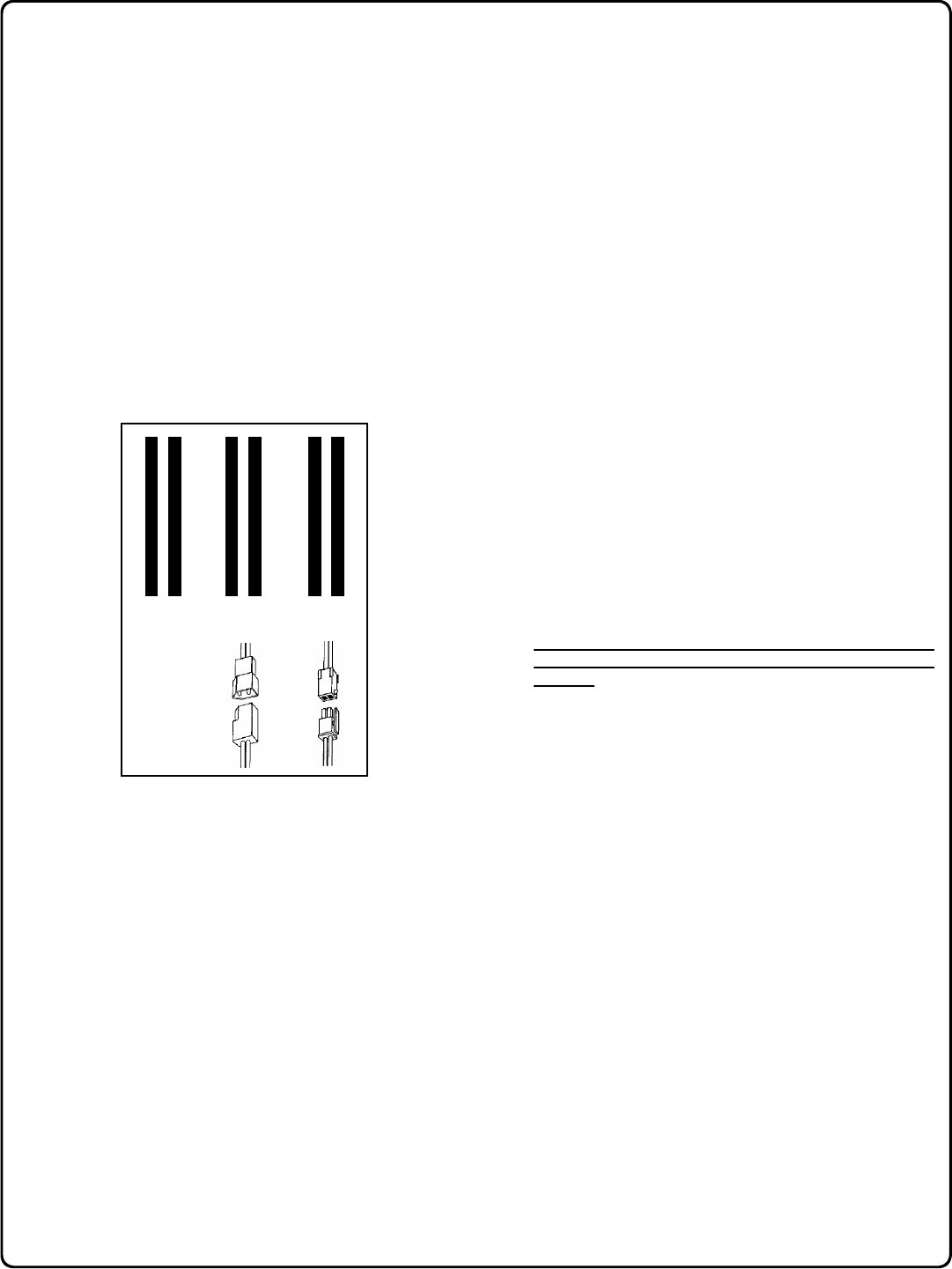

Wiring, Power Up & Battery Replacement

WHITE

BLACK

RED

BLACK

RED

Remote

Release

Battery

Connector

Motor

Connector

ACTIVITY LED SOUNDER COMMENTS

Keypress 1 RED Flash 1 Beep Normal Operation

Access Granted or Remote Input 2 GREEN Flashes 2 Beeps For Remote Input, wire a normally

open contact to these two white

wires. Momentarily close to

unlock. See page 10 for more in-

formation.

Valid Code 1 Momentary GREEN

Flash

Invalid Code 6 RED Flashes 6 Beeps Re-enter User Code

Successful Program Entry 1+2 GREEN Flashes 1+2 Beeps When in Program Mode

Unsuccessful Program Entry 7 RED Flashes 7 Beeps When in Program Mode

Enter Program Mode 2 YELLOW & 1 GREEN

LED Flash

Exit Program Mode 1 RED, 2 GREEN,

1 RED Flashes

2 Groups of 5

Beeps

Valid but Disabled Code 1 RED, 1 GREEN, 4

RED Flashes

1 long, 5 short

Beeps

Code exists in memory, but dis-

abled

Low Battery upon User Code En-

try or upon closing of Remote Re-

lease switch

YELLOW Flash during

key presses

Steady 4-Second

Tone

LED and sounder indications occur

only when a valid code is entered.

See page 10 before changing bat-

teries

User Code Entered YELLOW Flash Sequence of 7

Beeps Repeated 4

Times

Non-fatal memory or clock error

has been detected. Under this

condition, unexpected operation is

possible. Remove power and re-

start. Do not mistake the low bat-

tery indication as a memory or

clock error

Button Press Continuous Series

of Beeps

System Fault. Ensure batteries

are fresh

LED and Sounder Indicators

The DL Series locks provide visual and audible keypad feedback. With a fully charged battery, the LED and sounder feedback

is as follows:

Product Communication Examples

NOTE:

The AL-PCI cable is designed to be used on a 9 pin serial COM port. If your computer has a 25 pin COM port, a 25 pin to 9 pin adapter must be used.

Warning: Polarity MUST be observed when connecting cables to the lock. The tab (-) must plug into the negative (black) hole.

Scenario 3 Use the AL-IR1 Infrared printer to print your lock’s audit trail (event log), User Code list, clock settings and software

version. No cable required.

Scenario 1 Create the program in DL-Windows on your computer, then transfer the program from the computer directly to the lock via an

AL-PCI cable.

IBM COMPATABLE

LAPTOP OR DESKTOP PC

NOTE: OBSERVE TAB DIRECTION WHEN

INSERTING CABLE INTO LOCK

AL-PCI CABLE

CONNECT TO SERIAL PORT

(COM 1-4)

Scenario 2 Create the program in DL-Windows and transfer the program from your computer to an AL-DTM (via an AL-PCI cable)…

then transfer the program from the AL-DTM to the lock(s) (via a double-ended mini banana plug). The hand-held AL-DTM is useful

because you do not have to transport (or find electricity for) your computer. Data can also flow in reverse, from the lock, through

the AL-DTM, back to the computer for examination.

IBM COMPATABLE

LAPTOP OR DESKTOP PC

NOTE: OBSERVE TAB DIRECTION WHEN

INSERTING CABLE INTO LOCK

AL-PCI CABLE

CONNECT TO SERIAL PORT

(COM 1-4)

AL-DTM DATA

TRANSFER

MODULE

NOTE: OBSERVE TAB DIREC-

TION WHEN INSERTING CABLE

INTO AL-DTM AND LOCK

DOUBLE-ENDED MINI BANANA

PLUG CONNECTOR

Send to lock Receive from lock

AL-IR1

INFRARED PRINTER

If your computer does not have a serial COM port

(DB-9 male) available, you can plug your AL-PCI2

cable into a special USB to RS-232 cable. Order

part MX1130 for the

USB to RS-232 cable

only, or ALPCI2-U for

both the USB to RS-232

cable and an AL-PCI2

cable.

Programming Functions--Overview

Function 1 New Master Code 14

Function 2 Add/Delete/Change User Codes

2-200

Function 3 Disabling Users (By User Num-

ber)

Function 4 Enabling Users (By User Number) 14

Function 5 User Enable with Timeout 15

Function 6 Enable Total User Lockout Mode 15

Function 7 Disable Total User Lockout Mode 15

Function 8 Change User Programming Level

Ability

Function 9 Enable User 300 (Service Code) 15

Function 10 Erase All Users Except the Mas-

ter Code (User 1)

Function 11 Reserved 15

Function 12 Clear All Schedules and Timeout

Functions

Function 13 Clear All Timeout Functions 16

Function 14 - 17 Group 1-4 Disable 16

Function 18 Disable All Groups 16

Function 19 - 22 Group 1-4 Enable 16

Function 23 Enable All Groups 16

Function 24 Reserved 16

Function 25 - 28 Timed Disable Groups 1-4 17

Function 29 Timed Disable All Groups 17

Function 30 - 33 Timed Enable Groups 1-4 17

Function 34 Timed Enable All Groups 17

Function 35 Group Add/Delete Association 17

Function 36 - 37 Reserved 17

Function 38 Set Date 18

Function 39 Set Time 18

Function 40 Set Weekday 18

Function 41 Daylight Saving Time Start Date 18

Function 42 Daylight Saving Time End Date 18

Function 43 Speed Up Clock 19

Function 44 Slow Down Clock 19

Function 45 Enable Passage Mode 19

Function 46 Disable Passage Mode 19

Function 47 Timed Passage Mode 19

Function 48 Enable Permanent Passage Mode 20

Function 49 Disable Permanent Passage

Mode

Function 50 Return Lock to Normal Passage

Mode Schedule

Function 51 Set Pass Time 3 to 5 Seconds 20

FUNCTION

NUMBER

DESCRIPTION PAGE

NUMBER

Function 52 Set Pass Time to 10 Seconds 20

Function 53 Set Pass Time to 15 Seconds 20

Function 54 Reserved 20

Function 55 Print Audit Trail 21

Function 56 Print User Code List 21

Function 57 Print Clock Settings and Software

Version

Function 58 Upload/Download PC Data 21

Function 59 Reserved 22

Function 60 Number of Attempts Before Lock-

out

Function 61 Set the Attempts Lockout Time 22

Function 62 - 63 Reserved 22

Function 64 Disable Remote Input 22

Function 65 Enable Remote Input 22

Function 66 Reserved 22

Function 67 Reserved 23

Function 68 Reserved 23

Function 69 Enable Enter Key 23

Function 70 Disable Enter Key 23

Function 71 Reserved 23

Function 72 Schedule Enable Passage Mode

(Unlock)

Function 73 Schedule Disable Passage Mode

(Lock)

Function 74 - 77 Schedule Enable Groups 1-4 24

Function 78 Schedule Enable All Groups 24

Function 79 - 82 Schedule Disable Groups 1-4 24

Function 83 Schedule Disable All Groups 24

Function 84 - 87 Quick Schedules - Enable Group 25

Function 88 Passage Mode

(Open Time Window)

Function 89 Passage Mode

(Close Time Window)

Function 90 Reserved 26

Function 91 Reserved 26

Function 92 Enable Group 4

(Open Time Window)

Function 93 Enable Group 4

(Close Time Window)

Function 94 - 98 Reserved 26

Function 99 Clear All Lock Programming 26

FUNCTION

NUMBER

DESCRIPTION PAGE

NUMBER

Enabling/Disabling Users (By User Number)

USERS

Programming Functions

1. New Master Code (User Number 1) ; 1 ; [ _ _ _ _ _ _ ] ; [ _ _ _ _ _ _ ] :

(New Master Code) (Confirm New Master Code)

•Master Code must be 6 digits-only.

•Factory Default = 123456

•NOTE: Following a power up, it is highly recommended that Function 1 (New Master

Code), be accessed and the factory default Master Code changed before programming

any other functions.

•See "Lock Design Overview" on page 5 and "Quick Start" on page 6 for more informa-

tion about the Master Code.

2. Add/Delete/Change User Codes 2-200 ; 2 ; [ _ _ _ _ ] : ; [ _ _ _ _ _ _ ] :

(User Number) (User Code)

User Number must be between 2 and 200.

•To delete a code, leave the User Code blank

•User Code must be 3-6 digits

•Each User Code can be thought of as a "User" or a person. As long as each person possesses

their own unique User Code, you can control access to the lock by adding or deleting User

Codes. See "Terminology Used in this Manual" on page 7 for more information.

User Code Conflicts

Care should be taken not to program a new User Code which matches the first digits of any other

User Code--by default, only the code with the least number of digits would be recognized.

For example: If User Codes 123 and 123456 are both entered in the lock, only code 123 would

be recognized.

If you wish to program User Codes that match the first digits of other codes, see program Func-

tion 69.

NOTE: An error will sound if you try to program a new User Code that matches the first digits of

the Master User Code (User Number 1).

3. Disable User ; 3 ; [ _ _ _ _ ] :

(User Number)

4. Enable User ; 4 ; [ _ _ _ _ ] :

(User Number)

•User Number must be between 2 and 200.

NOTE: Will Enable/Disable Users even if the User is associated with an enabled Group. Use Feature 3 to disable a specific User

Number and their associated User Code. If the disabled User Code is entered, the lock will flash 1 Green and 4 Red Flashes

(with 1 long and 5 short beeps) indicating that the User Code exists in memory, but is disabled. Function 4 will "undo" Function 3.

USERS (Continued)

8. Change User Programming Level Ability ; 8 ; [ _ _ _ ] ; [ _ _ _ _ ] :

(User Number) (Programming Levels)

Service Code is a "One-Time-Only" code. Once it is used, it is disabled until enabled again.

; 9 :

9. Enable User 300 (Service Code)

User Number must be between 2 and 200. The ability to program one or more Programming

Levels may be selected.

Example 1: Allow "Basic" User 67 to program levels 1, 2 and 4. Enter:

; 8 ; 6 7 ; 1 2 4 :

NOTE: User 67 does not have access to Programming Functions with a Program Level

Ability of 3.

Example 2: Prevent User 67 from programming any programming levels. Enter:

; 8 ; 6 7 :

NOTE: Having a Program Level Ability of 4 does not allow access to functions requiring

a Program Level Ability of 3, 2 or 1. If multiple levels are required, program for each

level that is required.

2 2

11. Reserved

Programming Functions (cont'd)

5. User Enable with Timeout

(Enter Timeout, XXX Hours)

(This Function enabled through keypad only)

; 5 ; [ _ _ _ _ ] ; [ _ _ _ _ ] :

(User Number) (XXX Hours)

•With Function 5, User Numbers must be between 2-200, 299 or 300. Hours must be between 1-999.

•Function 5 can temporarily override a disabled User (disabled using Function 3 above).

•Since this is a temporary feature, Function 5 can only be enabled using the keypad.

•Example: Brian, User Number 157, rarely works at the office, but when he does, enable him for his 8 hour work day

("008") by entering Program Mode and pressing: ; 5 ; 157 ; 008 :.

•NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting to

program more than 4 Timeout Functions.

; 6 :

6. Enable Total User Lockout Mode

(This Function enabled through keypad only)

7. Disable Total User Lockout Mode

(This Function enabled through keypad only)

; 7 :

User Lockout Mode

Prevents all User Codes (Except User 1 Master Code) from operating the lock. Note: Other program-

ming functions or schedules will NOT re-enable Users. Users must be re-enabled with Function 7.

Note: Does not change the User enable/disable status. Note: If the lock is currently in Passage Mode

("door unlocked") and Function 6 is programmed, the lock will remain in Passage Mode.

; 1 0 ; 0 0 0 :

10. Erase All Users Except the Master Code (User 1)

(This Function enabled through keypad only)

Erases all User Codes except the Master Code (User 1). M

CLEAR FUNCTIONS

GROUPS

24. Reserved

Programming Functions (cont'd)

Group Enable/Disable

Enter the functions below to Enable/Disable Groups. Functions 14 - 23 will each override

existing scheduled events. Therefore, Functions 14 - 23 are temporary, take effect im-

mediately, and are always overridden by future scheduled events that already exist within

the lock programming.

; 1 4 :

; 1 5 :

16. Disable Group 3 ; 1 6 :

17. Disable Group 4 ; 1 7 :

18. Disable All Groups ; 1 8 :

19. Enable Group 1 ; 1 9 :

20. Enable Group 2 ; 2 0 :

21. Enable Group 3 ; 2 1 :

22. Enable Group 4 ; 2 2 :

23. Enable All Groups ; 2 3 :

14. Disable Group 1

15. Disable Group 2 PRIORITY ORDER

1. Disabled Users

2. Enabled Groups

3. Disabled Groups

4. Enabled Users

The "Priority Order" details which Function will

take effect before ("have priority over") others.

For example, as per the list above, Enabled

Users have the lowest priority, and other Func-

tions can affect the status of these Users. Dis-

abling a Group (Functions 14-18) will take pri-

ority over the enabled Users in that Group,

disabling them. Enabling Groups (Functions

19-23) will take priority over those tasks lower

in the list, and finally disabling a User (Function

3) takes priority over all other tasks listed.

; 1 2 ; 0 0 0 :

12. Clear All Schedules and Timeout Functions

Function 12 clears all programmed Schedules and all Timeout Functions. (To clear All Timeout Functions only, see

Function 13 below). Function 12 will clear all of the following: All Schedule Functions 72 through 93, Timeout Functions

5, 25 through 34 and Function 47. Note: Function 12 also resets Passage Mode and any disabled Groups. After using

Function 12, your Scheduled/Timeout features must be manually re-programmed.

NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting to pro-

gram more than 4 Timeout Functions. This Function only disables the timeout; the event associated with the timeout will

remain

; 1 3 ; 0 0 0 :

Function 13 clears all Timeout Functions. (To clear All Schedules and Timeout Functions, see Function 12 above).

Function 13 will clear all of the following: All Timeout Functions 5, 25-34 and Function 47. After using Function 12, your

Scheduled/Timeout features must be manually re-programmed.

NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting to pro-

gram more than 4 Timeout Functions. This Function only disables the timeout; the event associated with the timeout will

remain

13. Clear All Timeout Functions

(This Function enabled through keypad only)

Important: It is the responsibility of the lock programmer to verify the proper lock/unlock conditions and Group conditions

after programming the lock with Function 12 and 13.

GROUPS

36 - 37. Reserved

Clear All Timeout Functions by entering Function 13.

NOTE:

Programming Functions (cont'd)

Group Enable/Disable with Timeout (Enter Timeout, XXX Hours)

(Functions 25-34 are enabled through the keypad only)

•Hours must be between 1-999. Enter the functions below to Enable/Disable Groups for the amount of time entered in hours.

NOTE: Only 4 Timeout Functions are allowed at any one time. An error beep will sound when attempting to program more

than 4 Timeout Functions. Functions 25 - 34 will each override existing scheduled events. Therefore, Functions 25 - 34

are temporary, take effect immediately, and are always overridden by future scheduled events that already exist within

the lock programming.

•Example: All 15 members of the Accounting Department are members of Group 4, and a schedule programmed in the

department's door lock reflects their normal working hours of 9 AM through 5 PM, Monday through Friday. But one day a

special event occurs, and all Accounting Department members are requested to stay an extra hour until 6 PM. There-

fore, at 5 PM, the manager (wishing to temporarily enable Group 4 users for an extra hour) enters Program Mode and

presses: ; 33 ; 001 :. Likewise, if the manager wished to send his department home

early at 3 PM, the manager could enter ; 28 ; 002 :.

; 2 5 ; [ _ _ _ ] :

(XXX Hours)

25. Timed Disable Group 1

; 2 6 ; [ _ _ _ ] :

(XXX Hours)

26. Timed Disable Group 2

; 2 7 ; [ _ _ _ ] :

(XXX Hours)

27. Timed Disable Group 3

; 2 8 ; [ _ _ _ ] :

(XXX Hours)

28. Timed Disable Group 4

; 2 9 ; [ _ _ _ ] :

(XXX Hours)

29. Timed Disable All Groups

; 3 0 ; [ _ _ _ ] :

(XXX Hours)

30. Timed Enable Group 1

; 3 1 ; [ _ _ _ ] :

(XXX Hours)

31. Timed Enable Group 2

; 3 2 ; [ _ _ _ ] :

(XXX Hours)

32. Timed Enable Group 3

; 3 3 ; [ _ _ _ ] :

(XXX Hours)

33. Timed Enable Group 4

; 3 4 ; [ _ _ _ ] :

(XXX Hours)

34. Timed Enable All Groups

; 3 5 ; [ _ _ _ ] ; [ _ _ _ _ ] :

(User Number) (Groups)

35. Group Add/Delete Association

As per the table on page 9, the lock's default programming from the factory associates certain User Numbers with certain

Groups. To override these default Group associations, Function 35 manually associates (or disassociates) a selected User

with a selected Group. During programming, Groups not selected are then disassociated from the User. Function 35 is

helpful when the number of Users you wish to add to a Group outgrows the number of User Numbers defaulted to a Group

(50); or if an existing User joins a department and you wish to simply add them to a Group.

•User Number must be between 2 and 200; Groups 1-4 (to associate with User) may be selected.

Add Example: To associate User 67 with Groups 1, 2 and 4;

Enter: ; 3 5 ; 6 7 ; 1 2 4 :

Delete Example: To remove all Group associations for User 67;

Enter: ; 3 5 ; 6 7 :

NOTE: If a User is associated with more than one Group, all associated Groups would have to be disabled before the User is dis-

abled.

CLOCK SETTINGS

Programming Functions (cont'd)

; 3 8 ; [ _ _ _ _ _ _ ] :

(Date)

38. Set Date

•Use Month Day Year format - MMDDYY - Single digit months and days are entered with a preceding zero.

•Enter ONLY the last two digits of the year.

For Example: March 8, 2005;

Enter: ; 3 8 ; 0 3 0 8 0 5 :

39. Set Time ; 3 9 ; [ _ _ _ _ ] :

(Time)

•Time must be 4 digits

•Use 24 Hour Format (add 12 hours to program PM time)

For Example: To set time to 8:25 PM;

Enter: ; 3 9 ; 2 0 2 5 :

For Example: To set time to 8:25 AM;

Enter: ; 3 9 ; 0 8 2 5 :

; 4 0 ; [ _ ] :

(Day)

40. Set Weekday

•For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday,

5 for Thursday, 6 for Friday and 7 for Saturday.

For Example: To set day to Sunday;

Enter: ; 4 0 ; 1 :

41. Daylight Saving Time Start Date ; 4 1 ; [ M M W D ] :

(DST Starting Month, Month, Week, Day)

The manner in which Daylight Saving Time (DST) is observed varies with location, therefore the DST adjustment is fully flexible to

accommodate these regional differences. Function 41 allows the entry of a DST Start Date (month, day and week), and Function 42

allows the entry of a DST End Date (month, day and week). DST begins and ends at 2AM on the programmed date. Enter ;

4 1 ; 0 0 0 : to disable DST. All locks leave the factory with DST enabled and pre-programmed to the

following start and end dates (for the USA beginning 2007):

•Default DST Start Date: March, Week 2, Sunday ("Second Sunday in March")

•Default DST End Date: November, Week 1, Sunday ("First Sunday in November")

To program the DST start date using the keypad, press: ; 4 1 ; [ M M W D ] : where "M M W D" represents:

•"M M" = Two digits of the month (01 through 12 = January through December. Single digit months are entered with a

preceding zero).

•"W" = Single digit for "week of the month" (valid entries are 1-5 where "1" is the first week, "2" is the second week, "3" is the

third week, "4" is the fourth week and "5" is the last week of the month.

•"D" = Day of the week (valid entries are 1-7: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6

for Friday and 7 for Saturday).

Example: To set the default start date of "second Sunday in March", press:

; 4 1 ; [ 0 3 2 1 ] : (03 = "March", 2 = "2nd week", 1 = Sunday).

42. Daylight Saving Time End Date ; 4 2 ; [ M M W D ] :

(DST Ending Month, Month, Week, Day)

End date of Daylight Saving Time (month, week, day). Enter ; 4 2 ; 0 0 0 : to disable DST.

See Function 41 for full explanation.

CLOCK ADJUST

PASSAGE MODE

Programming Functions (cont'd)

; 4 5 :

45. Enable Passage Mode

(This Function enabled through keypad only)

; 4 6 :

46. Disable Passage Mode

(This Function enabled through keypad only)

47. Timed Passage Mode

(This Function enabled through keypad only)

; 4 7 ; [ _ _ _ ] :

(XXX Hours)

•Function 45 allows passage through the door without the need for a User Code. Re-Lock using Function 46.

•Programmed Schedules will override the state of the lock when Functions 45 and 46 are used. If it is required that pro-

grammed schedules do not override Passage Mode, enable/disable Passage Mode using Functions 48/49. Note: Because

of the temporary nature of these features, Functions 45-47 can only be enabled using the keypad.

Passage Mode Enable/Disable - Schedule will Override

•Hours must be between 1 - 999.

Function 47 allows passage through the door without the need for a User Code for the programmed amount of time.

•For example, if you wish your office door lock to be unlocked (unlocked = "Passage Mode") for the next 3 hours,

enter Program Mode and press: ; 47 ; 003 :

; 4 3 ; [ _ _ ] :

(seconds)

43. Speed Up Clock

(This Function enabled through keypad only)

; 4 4 ; [ _ _ ] :

(seconds)

44. Slow Down Clock

(This Function enabled through keypad only)

Number of seconds to adjust (speed up/slow down) the clock each day must be be-

tween 0-55 seconds.

Note: Repeated use of these Functions are not "cumulative" (this means, for example,

if the clock has already been set to speed up 10 seconds per day, and then is found to

need an additional 10 seconds, then program 20 seconds using Function 43).

Example 1: Clock is losing 13 seconds every day, enter:

; 4 3 ; 1 3 :.

This example assumes that the Clock Adjust setting was at the factory default of zero.

Function 57 can be used to print the current Clock Adjust setting.

Example 2: Clock is gaining 13 seconds every day, enter:

; 4 4 ; 1 3 :.

This example assumes that the Clock Adjust setting was at the factory default of zero.

Function 57 can be used to print the current Clock Adjust setting.

Example 3: To set the clock adjust setting back to the factory default of zero, enter:

; 4 3 : or ; 4 4 :

Clock Adjust

Clock Accuracy

The internal oscillator is factory calibrated to an accu-

racy of ±5 minutes/year. Changes in ambient tem-

perature may affect accuracy. If necessary, the ac-

curacy of the internal clock may be adjusted by first up-

dating the correct time via Function 39. After an interval

of about 1 month, re-set the correct time via Function 39

and then print an Audit Log via Function 55. Because

the Audit Log displays both the "New Clock Time" and

the "Old Clock Time", a daily accuracy (in seconds) can

be determined by taking the difference in seconds be-

tween the "Old" and "New" times divided by the number

of days between the two Function 39 entries. Note:

Because the minimum available adjustment is 1 second

per day, the inaccuracy of the clock must exceed about 6

minutes per year before adjustment is necessary.

; 5 1 :

51. Set Pass Time 3 to 5 Sec.

; 5 2 :

; 5 3 :

Pass Time

52. Set Pass Time to 10 Sec.

53. Set Pass Time to 15 Sec.

54. Reserved

PASS TIME

Programming Functions (cont'd)

49. Disable Permanent Passage Mode

(This Function enabled through keypad only)

50. Return Lock to Normal Passage

Mode Schedule

(This Function enabled through keypad only)

(Locks will lock or unlock depending on the current schedule). Use Function 50 to "undo"

Functions 48 and/or 49, and therefore return the lock to all pre-existing scheduled functions.

•Function 48 allows passage through the door without the need for a User Code. Re-Lock using Function

49.

•Programmed Schedules will not override the state of the lock using functions 48 and 49. If it is required

that programmed schedules override Passage Mode, Enable/Disable Passage Mode using Functions

45/46. Use Function 50 to "undo" Functions 48 and/or 49, and therefore return the lock to all pre-existing

scheduled functions. Note: Functions 48-50 can only be enabled using the keypad. Warning: Function

49 will inhibit all scheduled Passage Mode events.

Passage Mode Enable/Disable - Schedule will not Override

PERMANENT PASSAGE MODE

; 4 9 :

48. Enable Permanent Passage Mode

(This Function enabled through keypad only)

; 4 8 :

; 5 0 :

See Scheduled functions 72 and 73 for Scheduled Passage Mode.

NOTE:

The Pass Time is the length of time the lock stays unlocked after a valid User Code is en-

tered. When the Pass Time expires, the lock will re-lock automatically. Use the functions

below to change the Pass Time to 3-5, 10 or 15 seconds. The Pass Time is defaulted to

3-5 seconds.

ALARM LOCK SYSTEMS, INC

VERSION DL26 org REC

04/07/06 13:11:28 Tue

Clock adjust setting +0

Cycle count hex 00000E

F39 day ct hex 00

04/07/06 13:06:35 Tue

USER

ENABLED ?

USER|USER | |GROUP|PROG

NUM |CODE | | |SETS

1 123456 E .... 46525

12 987 E .... ....

13 246 E .... ....

; 5 5 :

; 5 7 :

57. Print Clock Settings and Software

Version

55. Print Audit Trail

; 5 6 :

56. Print User Code List

; 5 8 :

58. Upload/Download PC Data

Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2. 20

events will print at a time; press 1 for more events, or 9 to quit. To abort printing, press

any key for 3 Sec (Three short beeps will sound).

Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2. To

abort printing, press any key for 3 Sec (Three short beeps will sound).

Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2.

For use with DL-WINDOWS software, refer to OI237; an AL-PCI interface cable is needed.

PRINTER

DOWNLOADING

Hold the printer’s tab perpendicular to the Lock’s infrared LED as shown in Figure 1 and Figure 2. If the printer

has been idle for some time, press the paper feed button to "wake up" the printer.

Programming Functions (cont'd)

------- AUDIT LOG -------

04/07/06 13:06:35 Tue

13:01:59 001 PROGRAM 56

13:01:29 001 PROGRAM 57

13:00:53 001 ENTRY

13:00:26 013 ENTRY

13:00:03 012 ENTRY

12:56:27 001 PROGRAM 2

12:56:27 001 PROGRAM 40

12:56:04 001 PROGRAM 39

12:55:00 NEW CLCK TIME

12:01:39 OLD CLCK TIME

12:01:30 001 PROGRAM 38

12:01:30 DATE CHANGED

12:01:07 001 ENTRY

12:00:48 CLK TEST:PASS

12:00:45 RAM TEST:PASS

12:00:45 POWER UP

-------------------------

End of Audit Log

Figure 2

Infrared

LED

Infrared Reader

window

Place the Infrared Reader window

(on printer) in front of the Infrared

LED (on lock)

Figure 1

PDL2800 to Printer

- Side View

Infrared

LED

60. Number of Attempts Before Lockout

61. Set the Attempts Lockout Time

•Number of attempts before lockout must be 1-9 attempts.

•The number of attempts is reduced by half every time the keypad is locked out without a

successful code entry (default is 6 attempts).

•The attempt count is reset each time a valid code is entered.

•Lockout Time must be 1-60 seconds. This functions defines how long the keypad is

locked out after a series of unsuccessful attempts (default is 15 seconds).

LOCKOUT

; 6 4 :

64. Disable Remote Input

•Wire a Normally Open Contact to Terminals 3 & 4. Momentarily close to allow person to

pass through door.

•Enter the functions below to Disable/Enable the Remote Input.

NOTE: The Remote Input is enabled as part of the default program.

Remote Input Disable/Enable

; 6 5 :

65. Enable Remote Input

66. Reserved

REMOTE INPUT

; 6 0 ; [ _ ] :

(Number of Attempts)

; 6 1 ; [ _ _ ] :

(Lockout Time)

62-63. Reserved

59. Reserved

AL-DTM

Programming Functions (cont'd)

; 6 9 :

69. Enable : as Enter Key

Enter Key Enable/Disable (Allows Programming of Codes that Match the 1st digits of other Codes)

; 7 0 :

70. Disable : as Enter Key

•When enabled, the user must press : after a User Code entry, allowing User Codes

to be subsets of other User Codes. For example:

1 2 3 : is a valid User Code;

1 2 3 4 : is also a valid User Code

ENTER KEY

71. Reserved

Programming Functions (cont'd)

67. Reserved

72. Schedule Enable Passage

Mode (Unlock)

; 7 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Use the functions below to Enable/Disable Schedule Passage Mode.

For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thurs-

day, 6 for Friday, 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, 0 for

all days of week.

Scheduled Passage Mode Enable/Disable

73. Schedule Disable Passage

Mode (Lock)

; 7 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

SCHEDULES

74. Schedule Enable Group 1 ; 7 4 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Scheduled Group Enable/Disable

Use the functions below to Enable/Disable Groups at the time programmed.

For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thurs-

day, 6 for Friday, 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, 0 for

all days of week.

SCHEDULES

75. Schedule Enable Group 2 ; 7 5 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

76. Schedule Enable Group 3 ; 7 6 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

77. Schedule Enable Group 4 ; 7 7 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

78. Schedule Enable All Groups ; 7 8 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

79. Schedule Disable Group 1 ; 7 9 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

80. Schedule Disable Group 2 ; 8 0 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

81. Schedule Disable Group 3 ; 8 1 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

82. Schedule Disable Group 4 ; 8 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

83. Schedule Disable All Groups ; 8 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Clear All Schedule and Timeout Functions by entering Function 12.

NOTE:

Programming Functions (cont'd)

; 8 5 ; [ _ ] :

(Group)

; 8 7 ; [ _ ] :

(Group)

; 8 6 ; [ _ ] :

(Group)

84. Business Quick Schedule

7AM-5PM, Monday - Friday

; 8 4 ; [ _ ] :

(Group)

QUICK SCHEDULES

85. Day Quick Schedule

7AM-5PM, All days

86. Evening Quick Schedule

3PM-1AM, All days

87. Night Quick Schedule

11PM-9AM, All days

88. Passage Mode

(Open Time Window)

; 8 8 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

89. Passage Mode

(Close Time Window)

; 8 9 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

SCHEDULES GROUP 1 ACTIVATED

Programming Functions (cont'd)

For your convenience, your lock comes pre-programmed with Quick Schedules, which, when programmed, enable

Groups for popular blocks of time. Group members will be enabled during the blocks of time defined below, but will still

need to enter their User Codes into the keypad to unlock the lock.

•Group number must be 1-4; enter the number of the Group that is to be enabled for the time specified by the Quick

Schedules below.

Note: These Quick Schedules can only be programmed through the keypad (not through DL-Windows), and existing

Quick Schedules will be over-written by schedules downloaded from DL-Windows. Therefore, after downloading any

DL-Windows schedules, be sure to re-program your Quick Schedules into your Lock Program.

Quick Schedules - Enable Group

Functions 88 and 89 allow you to set up a window of time where if any Group 1 User Code is entered

within this window, Passage Mode will be activated, allowing anyone to enter. Note: This feature can

only be programmed using the lock keypad. For additional information, see Group 1 Activated Features

on page 27.

•For the day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for

Friday, 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

•Enter time of day in 24 hour format (for example, for 2:15 PM, enter 14:15).

Scheduled Passage Mode (Group 1 Activated)

90. Reserved

92. Enable Group 4

(Open Time Window)

; 9 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Scheduled Group 4 Enable (Group 1 Activated)

93. Enable Group 4

(Close Time Window)

; 9 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

91. Reserved

; 9 9 ; 0 0 0 :

99. Clear All Lock Programming

Clears all programming and returns lock to factory default settings. Audit Trail contents

are maintained. M

CLEAR ALL PROGRAMMING

94 - 98. Reserved

Programming Functions (cont'd)

Functions 92 and 93 allow you to set up a window of time where if any Group 1 User Code is entered

within this window, Group 4 members will be enabled. (Group 4 members will still need to enter their

User Codes to enter). For additional information, see Group 1 Activated Features on page 27.

•For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for

Friday, 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of

week.

•Enter time of day in 24 hour format (for example, for 2:15 PM, enter 14:15).

Groups and Scheduled Group 1 Examples

The following examples detail the more advanced features of the DL2800 lock. Although all features and device functions can be programmed

using the lock keypad, when programming becomes more complex you may find it easier to use DL-Windows software to program your Alarm Lock

security lock. For more information, contact your Alarm Lock security professional.

Assign a User to Two Groups

Create a User 101 (all Users 101-150 are members of Group 2 by default) and include User 101 in Group 3 (as well as the default Group 2).

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 101 with a User Code of "789":

Press ; 2 ; 1 0 1 ; 7 8 9 :.

3. Using Function 35, make User 101 a member of Group 2 and 3:

Press ; 3 5 ; 1 0 1 ; 2 3 :.

4. Exit Program Mode.

Note: See step 3 above--although User 101 is by default a member of Group 2, you must include Group 2 when using Function 35 or the

Group 2 association will be removed.

The example to add Users to Group 2 and Group 3 has been selected due to the fact that Group 1 Activated Functions require that a member

of Group 1 enter their User Code to activate the Function, and it may become necessary to assign Users to Groups.

Group 1 Activated Features: Functions 88/89 and 92/93

•Function 88 and 89 allow for a window of time to be created where if any Group 1 User Code is entered within the programmed window,

Passage Mode will be activated (the device physically unlocks, allowing passage for all). If a Group 1 User does not enter their User Code

during the specified window, Functions 88/89 remain inactive.

•Function 92 and 93 allow for a window of time to be created where if any Group 1 User Code is entered within the programmed window, the

User Codes in Group 4 will be enabled. If a Group 1 User does not enter their User Code during the specified window, Functions 92/93 re-

main inactive. Companies typically use this feature to allow Group 1 Managers the ability to enable all Group 4 staff members during a cer-

tain window of time.

The following examples illustrate how Functions 88-93 can be programmed into your DL Series lock via the keypad:

Functions 88/89: Use Function 88 to set an Open Time Window (during which the Group 1 User must enter their User Code), and then use

Function 89 to set the time to close the Window. Re-lock the door at night manually (Function 46).

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 4 with a User Code of "456789":

Press ; 2 ; 4 ; 4 5 6 7 8 9 :.

3. Because User 4 does not have a default Group association, make User 4 a member of Group 1 using Function 35:

Press ; 3 5 ; 4 ; 1 :.

4. Use Function 88 and Function 89 (see page 25) to designate Passage Mode as being between the hours of 8:30 A.M. and 10 A.M. for all

days of the week:

Function 88 (Open Window Time) = 8:30 A.M.: Press ; 8 8 ; 0 ; 0 8 3 0 :

Function 89 (Close Window Time) = 10:00 A.M.: Press ; 8 9 ; 0 ; 1 0 0 0 :

5. Exit Program Mode (hold down any key for 3 seconds).

The lock will now be put in Passage Mode (device physically unlocked) if User 4 (or any Group 1 member) enters their User Code between

8:30 A.M. and 10 A.M. If a Group 1 User does not enter their User Code during the specified window, Functions 88/89 remain inactive

•The device will have to be manually locked each night by entering the following command using Function 46:

; 4 6 :

•The device can also be programmed to automatically lock (disable Passage Mode) each night at 5 P.M. by using Function 73:

; 7 3 ; 0 ; 1 7 0 0 :

•Remember to exit Function Mode when programming is complete.

Groups and Scheduled Group 1 Examples (cont'd.)

Functions 92/93: Use Function 92 and 93 (see page 26) to create a window of time where if any Group 1 User Code is entered within the

programmed window, Group 4 Users will be enabled.

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 4 with a User Code of "456789":

Press ; 2 ; 4 ; 4 5 6 7 8 9 :.

3. Because User 4 does not have a default Group association, make User 4 a member of Group 1 using Function 35:

Press ; 3 5 ; 4 ; 1 :.

4. Using Function 17, disable Group 4. (Group 4 will need to be "disabled" before it can be "enabled" later).

Press ; 1 7 :.

5. Use Function 92 to set the time to open the window (8:30 A.M. all days of the week) allowing any Group 1 member to enable Group 4. Use

Function 93 to set the time to close the window (10:00 A.M. all days of the week).

Function 92 (Open Window Time) = 8:30 A.M.: Press ; 9 2 ; 0 ; 0 8 3 0 :

Function 93 (Close Window Time) = 10:00 A.M.: Press ; 9 3 ; 0 ; 1 0 0 0 :

6. Exit Program Mode (hold down any key for 3 seconds).

The lock will now enable Group 4 User Codes if User 4 (or any Group 1 member) enters their User Code between 8:30 A.M. and 10 A.M.

If no Group 1 member arrives to enter their User Code between 8:30 A.M. and 10 A.M., Group 4 User Codes will not be enabled and will

remain disabled all day.

•The device will have to be manually locked each night by entering the following command using Function 82:

; 4 6 :

•The device can also be programmed to automatically disable Group 4 members each night at 5 P.M. by using Function 82:

; 8 2 ; 0 ; 1 7 0 0 :

•Test the device by creating User 222 (with User Code 466466) and adding User 222 to Group 4:

; 2 ; 2 2 2 ; 4 6 6 4 6 6 :

; 3 5 ; 2 2 2 ; 4 :

•Remember to exit Function Mode when programming is complete.

Function

Number(s)

Function Name Programming

40/41 Daylight Savings Time Enable/

Disable

Enable [ ] Disable [ ]

(Enable)

43/44 Clock Adjust

51/52/53 Pass Time 3-5 sec [ ] 10 sec [ ] 15 sec [ ]

(3-5 sec)

60 Number of Attempt Before Lockout

61 Set the Attempts Lockout Time

64/65 Remote Input Disable/Enable Enable [ ] Disable [ ]

(Enable)

69/70 Enter Key Enable/Disable Enable [ ] Disable [ ]

(Disable)

+/- 0-55 seconds

(0) (0) Seconds

1-9 attempts

(6) Attempts

1-60 seconds

(1) (5) Seconds

Default Values are shown in parentheses.

Programming Record Sheet

User Number

(1-200)

User Code

(3-6 digits)

Group

Association Full Name

1 2 3 4 1 2 3 4

Programming

Level

To obtain a complete list of User Codes, use either the remote printer (see Program Function 56) or use DL-WINDOWS download

software.

Note:

User Code Record Sheet Page_____

Day(s)

Function Number

Up to 150 scheduled functions can be programmed. For

Day Enter :

1 = Sunday, 2 = Monday, 3=Tuesday, 4 Wednesday

5 = Thursday, 6 = Friday, 7=Saturday, 8 = Monday - Fri-

day

9 = Saturday and Sunday, 0=All days of the week

Enter time of day in 24 hour format (00:00- 23:59)

Time

Function Name

Schedule Record Sheet

ACCESS = Entry into a restricted area.

AUDIT TRAIL = A date/time stamped log of previous lock events.

BURGLARY CONTROL PANEL = Provides local alarm and remote

communication to request security for burglary/break-in.

CLOCK

•REAL TIME CLOCK = An accurate built-in clock that allows date/

time stamping of events. The clock can be slowed or speeded up

to fine tune long term accuracy to within three minutes per year.

•CLOCK SETTINGS = Printout includes date, time, weekday, and

clock speed.

•CLOCK SPEED = The clock can be adjusted to allow faster/slower

speeds and therefore increasing clock accuracy.

CODE = Numeric sequence of numbers (such as: 1234) entered at the

keypad. If Star-Enter-Key is required, must be followed by a [:]

key.

•BASIC USER CODE = User Codes assigned to User Numbers

12+ (except Users 299-300). (Basic User Codes do not allow pro-

gramming)

•INVALID CODE = A User Code that has not been programmed in

the lock.

•MANAGER CODE = User Codes assigned to User Numbers 2

through 6. (Allows most programming functions).

•MASTER CODE = The User Code assigned to User Number 1.

The Default (factory) Master Code is 123456. The User with the

Master Code has complete control of the lock (no programming

restrictions).

•SERVICE CODE = User 300 User Code. Allows only one use,

then must be re-enabled by Function 9.

•SUPERVISOR CODE = User Codes assigned to Users 7 through

11. Can only program certain day-to-day operational functions.

•USER CODE = Code used by Users. A User Code is 3 to 6 nu-

meric digits long, pressed into the keypad buttons, allowing con-

trolled entry by Users.

•VALID CODE = An entered User Code that has been programmed

in the Lock Program.

COM PORT = A computer serial communications port used to commu-

nicate with the Lock and/or Data Transfer Module.

DATA TRANSFER MODULE = A device that permits transfer of pro-

gram/data between a computer and the lock.

DATE = Month, Day and Year entered as MMDDYY.

DAY OF WEEK = Sunday through Saturday (where 1 = Sunday and 7

= Saturday).

DEFAULT = Default settings are the original settings that were set at

the factory; in other words, it is the lock's original factory condition

when the lock was first taken out of its original box. The default

settings are permanently encoded within the lock's fixed memory,

and when the lock is first started, or when power is removed and

re-applied (see Wiring, Power-Up & Battery Replacement, page

10), the original factory default settings are re-loaded and take ef-

fect.

DISABLE = Turn off.

DOOR NUMBER = Identification of each door lock with a specific num-

ber in order to ensure that the correct lock is associated with the

correct lock programming within DL-Windows or the AL-DTM.

Note: "Door Number" is a term used with AL-DTM versions 1 and

2 and with DL-Windows versions 3.5.0 and earlier. Later versions

of the AL-DTM and DL-Windows monitor door numbers automati-

cally, therefore there is no need to manually change door numbers

via the keypad. Therefore, Function 59 is no longer used with the

later versions of the AL-DTM and DL-Windows.

DOWNLOAD = To receive data from the lock into the AL-DTM or DL-

Windows.

ENABLE = Turn on.

EVENTS = Recorded lock activity.

FUNCTION (also called Programming Functions) = are the numbers

used to program lock features (enabling/disabling Users, User

Groups, Passage Mode, Schedules, etc.).

GROUP

•USER GROUP = Defining a User to specific Groups, allows

User entry when the Group is allowed entry.

•GROUP 1 ENABLES GROUP 4 USERS = A Group 1 USER

CODE entry during a predefined schedule will allow access to

Group 4 Users. See page 26.

•GROUP 1 PUTS UNIT IN PASSAGE = A Group 1 USER CODE

entry during a pre-defined schedule will unlock unit. See page

25.

INSTALLER = See.... CODE, INSTALLER CODE.

KEYPAD = 10-numeric keys, : and special ; key.

•KEYPAD LOCKOUT = Keypad is programmed to lockout Us-

ers, for a specified period of time, when a specified number of

invalid User Codes are entered.

•KEYPAD PROGRAMMING = Ability to program the lock

through the keypad.

KEYPRESS = Pressing a button on the lock’s keypad.

LEVEL ABILITY = Predefined User Types (such as Master, Manager

and Supervisor) each having specific abilities to program and/or

control the lock.

Glossary

LOCK PROGRAM = A Lock Program is stored within the lock's circuitry

and contains the instructions that the lock uses to perform its various

functions. You can use the keypad to change the Lock Program, and

you can also use DL-Windows to create a Lock Program on your com-

puter, and then transfer and store the Lock Program within the lock.

LOCKOUT ATTEMPTS = A specified number of invalid User Code

entries (1-9), that will disable the keypad for a predefined period of

time (1-60 seconds).

LOCKOUT TIME = A predefined time (1-60) seconds that the lock will

stop accepting User Codes, after a specified number of invalid User

Code entries (1-9).

LOG = See... AUDIT TRAIL.

MANAGER = See... CODE, MANAGER CODE.

MASTER = See... CODE, MASTER CODE.

PASSAGE = Allow anyone to pass through the door without USER

CODES (lock remains unlocked thus allowing passage).

PRINTER = A printout device such as an infrared printer or computer

printer.

PROGRAM MODE = A mode allowing program/data to be entered

through the keypad. Only specific Users (Master, Managers and

Supervisors) can program a lock manually, by entering their USER

CODE, followed by the [;] key.

REMOTE INPUT = Entry into a restricted area, by pressing a button

connected to the REMOTE INPUT WIRES (White and White) by

someone on the other side of the door.

SCHEDULE = A programmed operation (enable/disable, lock/unlock,

etc.) on a specific day (Sunday through Saturday) and time.

SCHEDULES, QUICK = Any one of four most common types of sched-

ules can be programmed.

TIME = Hours and Minutes in the HHMM format.

TIME/DATE STAMP = A recorded date and time that an event oc-

curred.

TIMEOUT = Immediate operation for a specified number of hours.

UPLOAD = To send data from the AL-DTM or DL-Windows to the lock .

USER = A person who has been provided with a USER CODE for ac-

cess through the door.

USER LOCKOUT, TOTAL = All User Codes have been disabled, thus

"locking out" all Users (except for Master Code).

Glossary (cont'd)

NOTES

ALARM LOCK SYSTEMS, INC. (ALARM LOCK) war-

rants its products to be free from manufacturing defects

in materials and workmanship for 24 months following

the date of manufacture. ALARM LOCK will, within said

period, at its option, repair or replace any product failing

to operate correctly without charge to the original pur-

chaser or user.

This warranty shall not apply to any equipment, or any

part thereof, which has been repaired by others, im-

properly installed, improperly used, abused, altered,

damaged, subjected to acts of God, or on which any

serial numbers have been altered, defaced or removed.

Seller will not be responsible for any dismantling or rein-

stallation charges.

THERE ARE NO WARRANTIES, EXPRESS OR IM-

PLIED, WHICH EXTEND BEYOND THE DESCRIP-

TION ON THE FACE HEREOF. THERE IS NO EX-

PRESS OR IMPLIED WARRANTY OF MERCHANT-

ABILITY OR A WARRANTY OF FITNESS FOR A PAR-

TICULAR PURPOSE. ADDITIONALLY, THIS WAR-

RANTY IS IN LIEU OF ALL OTHER OBLIGATIONS

OR LIABILITIES ON THE PART OF ALARM LOCK.

Any action for breach of warranty, including but not lim-

ited to any implied warranty of merchantability, must be

brought within the six months following the end of the

warranty period. IN NO CASE SHALL ALARM LOCK

BE LIABLE TO ANYONE FOR ANY CONSEQUEN-

TIAL OR INCIDENTAL DAMAGES FOR BREACH OF

THIS OR ANY OTHER WARRANTY, EXPRESS OR

IMPLIED, EVEN IF THE LOSS OR DAMAGE IS

CAUSED BY THE SELLER'S OWN NEGLIGENCE OR

FAULT.

In case of defect, contact the security professional who

installed and maintains your security system. In order to

exercise the warranty, the product must be returned by

the security professional, shipping costs prepaid and

insured to ALARM LOCK. After repair or replacement,

ALARM LOCK assumes the cost of returning products

under warranty. ALARM LOCK shall have no obligation

under this warranty, or otherwise, if the product has

been repaired by others, improperly installed, improp-

erly used, abused, altered, damaged, subjected to acci-

dent, nuisance, flood, fire or acts of God, or on which

any serial numbers have been altered, defaced or re-

moved. ALARM LOCK will not be responsible for any

dismantling, reassembly or reinstallation charges.

This warranty contains the entire warranty. It is the sole

warranty and any prior agreements or representations,

whether oral or written, are either merged herein or are

expressly cancelled. ALARM LOCK neither assumes,

nor authorizes any other person purporting to act on its

behalf to modify, to change, or to assume for it, any

other warranty or liability concerning its products.

In no event shall ALARM LOCK be liable for an amount

in excess of ALARM LOCK's original selling price of the

product, for any loss or damage, whether direct, indi-

rect, incidental, consequential, or otherwise arising out

of any failure of the product. Seller's warranty, as here-

inabove set forth, shall not be enlarged, diminished or

affected by and no obligation or liability shall arise or

grow out of Seller's rendering of technical advice or ser-

vice in connection with Buyer's order of the goods fur-

nished hereunder.

ALARM LOCK RECOMMENDS THAT THE ENTIRE

SYSTEM BE COMPLETELY TESTED WEEKLY.

Warning: Despite frequent testing, and due to, but not

limited to, any or all of the following; criminal tampering,

electrical or communications disruption, it is possible for

the system to fail to perform as expected. ALARM

LOCK does not represent that the product/system may

not be compromised or circumvented; or that the prod-

uct or system will prevent any personal injury or prop-

erty loss by burglary, robbery, fire or otherwise; nor that

the product or system will in all cases provide adequate

warning or protection. A properly installed and main-

tained alarm may only reduce risk of burglary, robbery,

fire or otherwise but it is not insurance or a guarantee

that these events will not occur. CONSEQUENTLY,

SELLER SHALL HAVE NO LIABILITY FOR ANY PER-

SONAL INJURY, PROPERTY DAMAGE, OR OTHER

LOSS BASED ON A CLAIM THE PRODUCT FAILED

TO GIVE WARNING. Therefore, the installer should in

turn advise the consumer to take any and all precau-

tions for his or her safety including, but not limited to,

fleeing the premises and allig police or fire department,

in order to mitigate the possibilities of harm and/or dam-

age.

ALARM LOCK is not an insurer of either the property or

safety of the user's family or employees, and limits its

liability for any loss or damage including incidental or

consequential damages to ALARM LOCK's original sell-

ing price of the product regardless of the cause of such

loss or damage.

Some states do not allow limitations on how long an im-

plied warranty lasts or do not allow the exclusion or limi-

tation of incidental or consequential damages, or differ-

entiate in their treatment of limitations of liability for ordi-

nary or gross negligence, so the above limitations or

exclusions may not apply to you. This Warranty gives

you specific legal rights and you may also have other

rights which vary from state to state.

ALARM LOCK LIMITED WARRANTY

Alarm Lock DL2800a_OI246C.04_PROG DL2800 Programming Instructions DL2800a OI246C.04 PROG

Navigation menu

Versions of this User Manual:

Views

Navigation
