Trilogy

ETPDL PANIC EXIT DEVICE TRIM

Programming Instructions

HID

HID CORPORATION

PROXCARD®

PROXKEY®

KEYFOB

PDL Trilogy Series

Stand-Alone Access Control Systems

with ProxCard® Access

WI1671 1/08

345 Bayview Avenue

Amityville, New York 11701

For Sales and Repairs 1-800-ALA-LOCK

For Technical Service 1-800-645-9440

Publicly traded on NASDAQ Symbol: NSSC

ETPDL--Panic Exit Device Trim

AL-DTM

DATA TRANSFER

MODULE

AL-PRE PROXCARD®

READER / ENROLLER

AL-IR1 PRINTER

DL-WINDOWS PROGRAMMING

SOFTWARE

Table of Contents

PDL Series Lock Features ................................. 3

Supported Products ........................................... 4

Lock Design Overview ....................................... 5

Terminology Used in this Manual ..................... 6

Programming Levels .......................................... 8

Conventions Used in this Manual ..................... 9

LED and Sounder Indicators ............................. 9

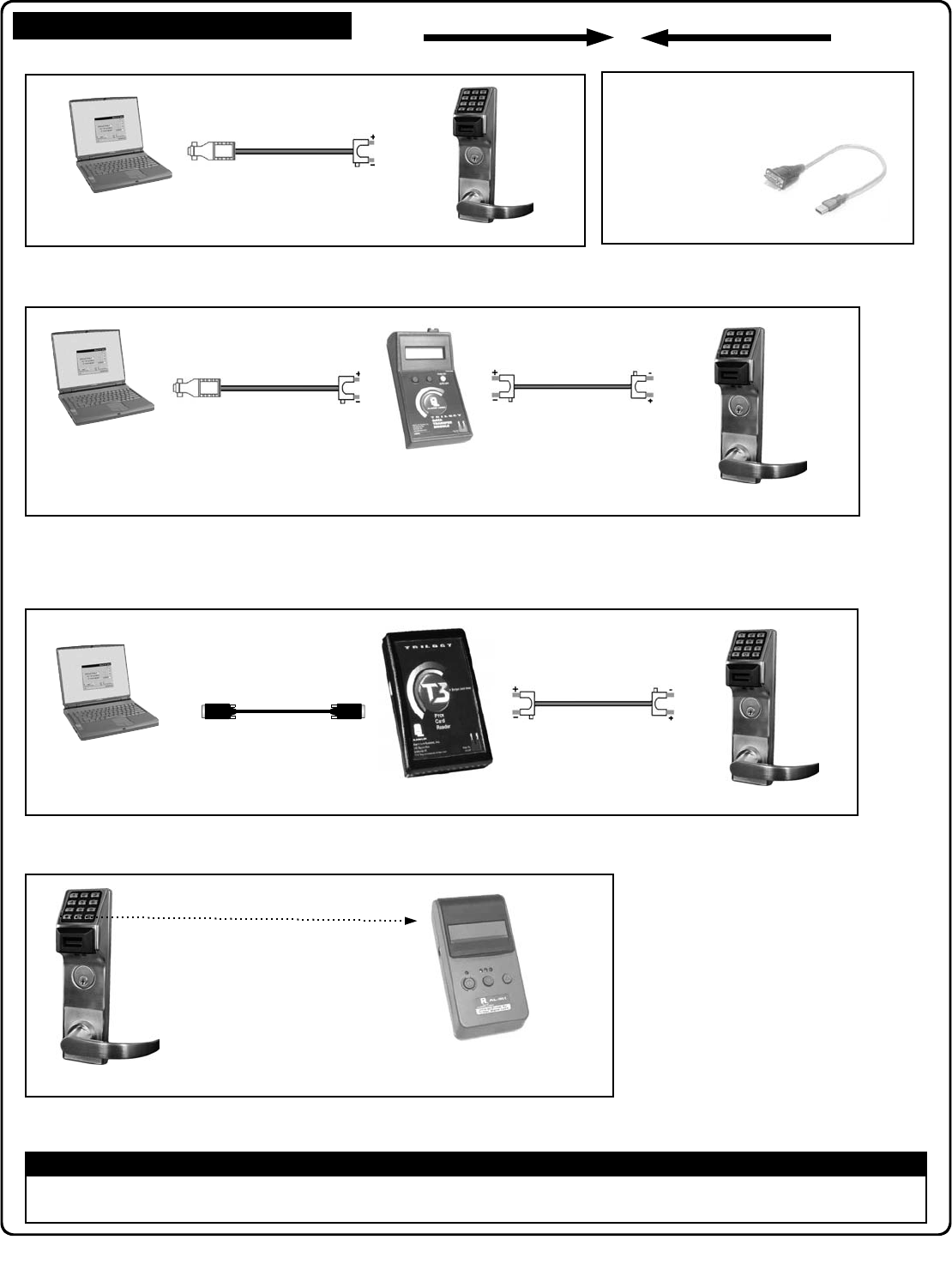

Product Communication Examples ................. 10

Wiring and Power Up .......................................... 11

Quick Start ............................................................ 12

Testing the Codes Entered ................................ 14

Programming Functions Overview ...................15

Programming Functions .....................................16-29

Groups and Scheduled Group 1 Examples .....30

Programming Record Sheet ...............................32

User Code Record Sheet ....................................33

Schedule Record Sheet ......................................34

Glossary ................................................................35-36

Warranty ................................................................36

THE ALARM LOCK TRILOGY PDL-SERIES STAND-ALONE ACCESS CONTROL SYSTEM IS A SERIES OF STATE-OF-

THE-ART MICROPROCESSOR-BASED PROGRAMMABLE KEYPAD-ENTRY AND PROXIMITY SECURITY LOCKS.

ETPDL

Features an HID compatible ProxCard® reader, and a real-time clock/calendar

that automatically adjusts for Daylight Saving Time and allows for automated pro-

gramming of events. Features three methods of programming: (1) all features

can be programmed manually through the keypad; (2) you can transfer program-

ming instructions directly from your laptop or desktop PC using DL Windows soft-

ware and a special AL-PCI cable; and (3) data can be transferred from your PC

to your PDL lock via the AL DTM2 handheld Data Transfer Module. In addition,

data can be retrieved from the lock in one of three ways (1) through an infrared

printer; (2) directly from the lock to the PC; or (3) through an AL-DTM2 to your

PC.

The ETPDL lock is a mortise-based lock for use with push bar applications

(ETPDL).

Programming is identical for all locks.

Note: ProxCard® and ProxKey® are trademarks of the HID© Corporation.

ETPDL SERIES LOCKS

ETPDL

Audit Trail

•40,000 Event Capacity*

•Entries Logged with Time and Date

•Critical Programming Events Logged

•Printable using the AL-IR1 Hand-Held Printer (see page 23, Function 55)

•Uploadable using Alarm Lock's DL-Windows software (see page 23, Function 58)

•Transferable to AL-DTMs*

Lock Features

•Metal Key Override for all cylindrical locks

•Keypad Lockout (see page 24, Functions 60-61)

•Non-Volatile (Fixed) Memory

•Real-Time Clock (within one second accuracy)

(see page 21, Functions 43-44)

•Programmable Relay (see page 25)

•Visual and Audible Keypad Feedback (see page 9)

•Battery Status Monitor (see page 9)

Scheduling

•500 Scheduled Events (see pages 26-29)

•Automated Unlock/Lock

•Enable/Disable Users (see page 17, Function 3)

•Enable/Disable Groups (see page 18)

•Four "Quick Schedules" (contains 4 most common schedules) (see page 27)

•Real-time clock and calendar (see page 20)

•Programmable Timeout Functions (see page 17-21)

User Access Methods

•Keypad Entered User Codes (see pages 12-13, 16)

•ProxCard® and ProxKey® Keyfob (see page 13)

•User Code and ProxCard® (For highest security) (see page 13)

•Batch Enroll - Quickly and easily enroll multiple ProxCards® and ProxKey® keyfobs

without the use of a PC. (see page 13)

Note: ProxCards® and ProxKey® Keyfobs both function identically. Keyfobs can be substituted for all

references to the ProxCard® in this manual.

User Features

•2000 Users (see pages 12-13, 16)

•6 Pre-defined Administration User Levels including Master, Installer, Manager, Supervisor, Print-Only and

Basic User Codes (see page 9)

•User Code Lengths from 3-6 digits

•Service Code (“One-Time-Only” Code) (see page 7)

•User Lockout Mode (see page 17, Function 6)

•Users Assignable to 4 Groups (see page 30)

•Ambush Function (see page 24, Function 66)

Keypad and Computer Programming

•All programming may be performed manually from the keypad, or from a PC using Alarm Lock's

DL-Windows Software (see page 5)

ETPDL Series Lock Features

* Only 5000 of the most recent events are transferred using the AL-DTM.

Supported Products

Data Transfer Module (AL-DTM)

An AL-DTM can be used to transfer Lock Programs (and other data) between DL-Windows and locks. When

computers cannot be transported or when electrical power is not available, the hand-held AL-DTM device acts as

a go-between--it allows the transfer of lock data from the computer (through the AL-DTM) and to the lock, or in

reverse (from the lock through the AL-DTM back to the computer). Note: Only 5000 events are transferred

using the AL-DTM.

Infrared Printer (AL-IR1)

An AL-IR1 printer is used to print Audit Trails and User Code lists without the need for a PC. Its infrared

reader means no cable connection to the lock is needed.

Prox Card Reader/Enroller (AL-PRE)

An AL-PRE is used to quickly enroll multiple ProxCards® and ProxKey® keyfobs into DL-Windows without the

need to manually type User Codes. Use the supplied 9-pin DB9 to DB9 serial cable to connect the AL-PRE to

your computer’s serial COM port. Compatible with most HID ProxCards® and ProxKey® keyfobs (37 bits or

less). For PDL series locks only.

HID

HID CORPORATION

ProxCard® / ProxKey® Keyfob

Compatible with most HID ProxCards®

and ProxKey® keyfobs (37 bits or less).

Note: ProxCard® and ProxKey® are trademarks of the

HID© Corporation.

Double-ended Mini Banana Plug Connector

After you create the program in DL-Windows and transfer the program from your computer to an AL-DTM,

transfer the program from the AL-DTM to the lock(s) via a double-ended mini banana plug.

DB9 to DB9 Serial Cable

Enroll ProxCards quickly into DL-Windows, then transfer this new ProxCard® data from the computer to

the AL-PRE via this 9-pin DB9 to DB9 serial cable. Once the data is in the AL-PRE, you can transfer the

data to the lock via the double-ended mini banana plug (see above), thus avoiding the need to use an AL-

PCI cable for this process.

AL-PCI Cable

An ALARM LOCK AL-PCI cable is required to communicate between your computer’s RS-232 serial com-

munications port (COM 1-4) and the AL-DTM or lock. One end of the AL-PCI cable is designed to be used

on a 9-pin serial Com Port. If your computer has a 25-pin Com Port only, a 25-pin to 9-pin adapter must be

used. The other end of the AL-PCI cable features a 2-pin banana plug connector which is polarity sensitive-

-the TAB (marked “GND”) side must be plugged into the lock’s black (left) terminal.

USB to RS-232 Cable

If your computer does not have a serial COM port (DB-9 male) available, you can plug your AL-

PCI2 cable into a special USB to RS-232 cable. Order part MX1130 for the USB to RS-232 ca-

ble only, or ALPCI2-U for both the USB to RS-232 cable and an AL-PCI2 cable.

Lock Design Overview

Why Use Software inside a Lock?

With ordinary door locks, the need to make physical copies of metal keys and distributing them can be a huge organizational and finan-

cial task -- and what will you do if someone causes a security breach by losing their key?

The answer lies in the advantage of SOFTWARE. Software (also called "firmware") is not "hard" or "fixed" like hardware is. Software is

"soft" -- flexible and changeable to your needs. Software exists inside your Alarm Lock™ series lock, and can be programmed (and re-

programmed again and again) to suit your changing requirements. No more metal keys to distribute...instead, distribute User Codes --

and delete them from the software when needed. (A User Code is the software equivalent of a metal key--it is a series of numbers the

User enters into the door lock keypad to unlock the lock).

Preparing to Program your Lock

At first glance, your new PDL series lock may look complicated, but it is in fact designed in a very straightforward way. The keypad

contains 12 buttons, numbers 1 through 9 plus zero, a star button (:) and a special "AL" button (;). These 12 buttons are all

you need to program your lock. In addition to manually programming your lock (using only the keypad), you can also program your

lock using a computer program called DL-Windows. DL-Windows is not needed--but it makes programming faster and easier. This

guide will show you how to program your lock manually, without DL-Windows. (For more information about DL-Windows, see User Guide

OI237).

Programming your lock begins after you unpack it from the box -- there is a specific procedure outlined in "Quick Start" (page 12)

in which you "wake up" the lock to prepare it for programming. This "Quick Start" procedure shows you all the steps required to

get your lock to start working. To begin programming, you must first enter something called "Program Mode".

What is Program Mode?

Most technical people find working with "hardware" easy--they use tools to make fixes or changes to hardware. But with the soft-

ware inside the lock, you enact changes (you "interface") through the keypad. The software has only two "modes"--"Normal

Mode" and "Program Mode". When you want to make changes to the lock program, you enter "Program Mode". When you finish

programming and wish to put the lock into use, you exit Program Mode to enter "Normal Mode".

You enter Program Mode using the keypad--by pressing the Master Code of the lock that was set at the factory. The Master Code

is basically a secret passcode that allows you to enter Program Mode. But since all locks are identical and leave the factory with

the same Master Code, the factory Master Code is therefore not very secret--and should be changed to your own personal Master

Code. This way, only YOU can enter Program Mode and make changes to the lock programming.

Once the new Master Code is set , then you can continue with the Quick Start procedure and set the weekday, date and time. Af-

ter this, you can start entering User Codes for people to use. All changes to the lock are organized by their Function Number.

Want to change the date? Use Function Number 38. Want to add a User Code? Use Function Number 2. There are 99 Func-

tions in total, some that you will use often, and others that you may never need.

Notice that when you program your lock, programming tends to follow a consistent 5-step pattern: (1) Enter Program Mode

(2) Press ; followed by the Function # (3) Press ; and enter data (4) Press : to end (5) Exit Program Mode.

Turn the page and learn about the special terminology used with your lock. Once that is clear, use the Quick Start proce-

dure on page 12 to help you get up and running.

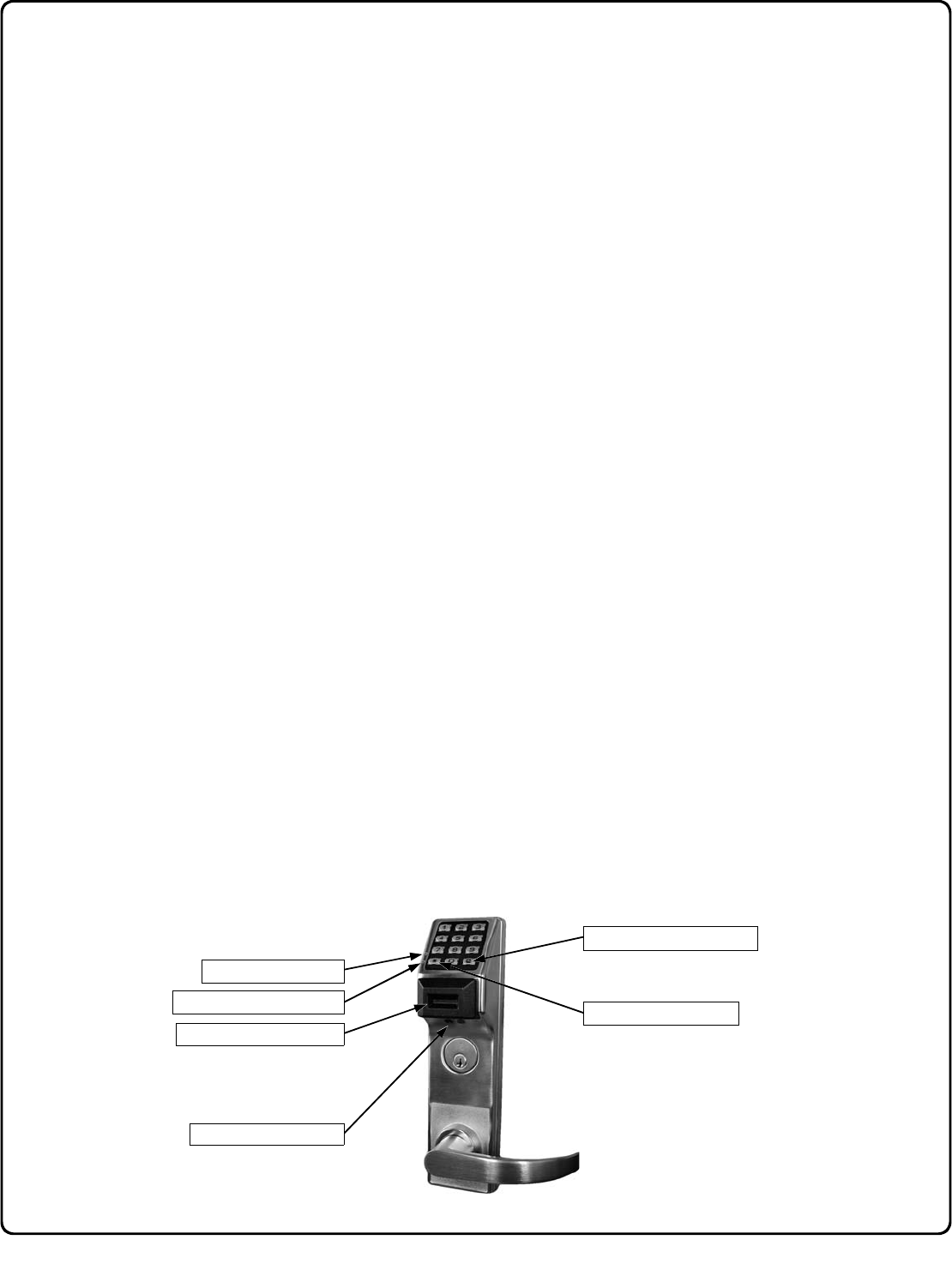

Special "AL" (;) Key

"STAR" (:) Key

PC / AL-DTM2 Interface

ProxCard / Keyfob Reader

Infrared LED (for Printer)

Two-Color Status LED

Terminology Used in this Manual

What is a Lock Program?

A Lock Program contains the instructions that a lock uses to per-

form its various functions. You can use the keypad to create a

Lock Program stored within the lock. You can also use DL-

Windows (defined below) to create a Lock Program on your com-

puter, and then transfer and store the Program in the circuitry con-

tained inside the lock itself. The Lock Program is essentially a

computer database file that maintains feature settings, schedules,

audit trails, etc. Using DL-Windows, Lock Programs can be cre-

ated with default information, edited on your PC, and then sent to

(and even received from) locks.

The Lock Program consists of 4 areas: User Codes, Features,

Time Zones, and Schedules, all defined below:

What are User Codes?

Also called User Access Codes or PIN No. Codes, User Codes

are numbers the User enters into the lock keypad to unlock the

lock. The User Codes are part of the Lock Program, and the Lock

Program is stored in the lock circuitry awaiting the Users to key in

their User Codes.

What are Features?

Your lock is designed to support several options and functions.

Using the keypad or DL-Windows software (the Programmable

Features window), you can select the features you wish to acti-

vate, such as if the lock will automatically adjust for Daylight Sav-

ing Time in the spring and autumn, or if the lock sounder should be

disabled or enabled.

What is a TimeZone?

Events (recorded lock activities) can be programmed to occur at

certain times. It is these times (for example, “every Tuesday at

5PM”) that are referred to as TimeZones. TimeZones can be cre-

ated manually through the keypad. In DL-Windows, you can use

the Schedule-TimeZone screen to create these TimeZones, and

once created, you can link events to these TimeZones.

What is a Schedule?

Your lock can be programmed to maintain a schedule in which

certain events can occur automatically. For example, you can pro-

gram the lock to allow Groups of Users (with their User Codes)

access ONLY during specific business hours. With another exam-

ple, you can program another lock to UNLOCK at 9AM, LOCK at

noon for lunch, UNLOCK at 1PM, and LOCK again at 5PM--every

weekday. As you can see, many different combinations of Sched-

ules can be created to suit the needs of the Users. First you cre-

ate TimeZones (see above). Next you create events and link them

to your TimeZones (also using the Schedule-TimeZone screen in

DL-Windows). When finished, you can view (in DL-Windows) your

schedule in the Schedule View screen.

What is a User?

A User is a person who is authorized to simply use or make certain

programming changes to the lock. This User can be anyone--from

a one-time visitor (who will almost certainly have no authority to

make changes) to the owner of the building in which the lock is

installed (who will probably wish to have total authority to make

changes). The PDL Series locks can hold up to 2000 Users in its

programming memory, and each User possesses a pre-defined

level of authority--a Programming Level--as to their ability to use

or make changes to the lock.

What is a Programming Level?

The Programming Level defines the range of programming tasks a

User is allowed to perform. The higher the Level, the more pro-

gramming tasks the User is allowed (with Master allowing ALL

tasks).

Note: Since the Programming Level is closely associated with the

type of User and their abilities, a User who holds a certain Pro-

gramming Level is sometimes referred to by their “User Type”.

For example, PDL Series locks can hold up to 2000 Users in its

programming memory, and each User is associated with a User

Number (see definition of "User Number" below) and therefore a

specific Programming Level, as follows:

Master: Always associated with User Number 1. Is always en-

abled and can program all functions. (Abbreviated as

Programming Level = M).

Installer: Always associated with User Numbers 2 and 3. Can

program all functions except changing the Master Code.

(Abbreviated as Programming Level = 4).

Manager: Always associated with User Numbers 4, 5, and 6.

Can program all functions except functions relating to lock

configuration. (Abbreviated as Programming Level = 3).

Supervisor: Always associated with User Numbers 7, 8 and 9.

Can only program functions relating to day to day operation.

(Abbreviated as Programming Level = 2).

Print Only Users: Always associated with User Numbers 10 &

11. Restricted to print event logs only. No other programming

ability allowed. (Abbreviated as Programming Level = 1).

Basic Users: Always associated with User Number 12 and higher

(except 297-300). No programming ability allowed. Most

Users are Basic Users, who are given their own personal User

Codes and are only allowed to simply unlock the lock when

desired.

Programming Levels are hierarchical--higher levels are allowed to

do anything the levels below them can do. For example, if you are

a Manager, you are allowed to do anything that Supervisors, Print-

Only Users and Basic Users can do in addition to those tasks al-

lowed for Managers (Level 3).

What is the Minimum Required Program Level?

This Programming Level abbreviation is the minimum program-

ming level required to access the particular Function. (The higher

the level number, the more programming tasks the User is al-

lowed, with Master allowing all tasks).

In this manual, Programming Levels are abbreviated as follows: M

= Master, 4 = Installer, 3 = Manager, 2 = Supervisor, 1 = Print Only

Users

What is a User Number?

(User Number = Location Number = User Location = Slot in Lock)

User Numbers are used and are significant within each individual

lock only. The User Number determines the Programming Level

for each User. For example, PDL Series locks can hold up to

2000 Users in its programming memory. This memory can be

thought of as simply a numbered list from 1 through 2000. Each

entry in the list is represented by a User Number. Therefore,

where a User is located in this list--their User Location--is a com-

monly used description of their User Number. Because of their

similarities, a User Number, User Location and Location Number

can be used interchangeably. In some DL-Windows screens, the

word "Slot" is also used. They all mean the same thing.

Since User Numbers are fixed, knowing a User Number will spec-

ify the associated Programming Level, and will in turn indicate a

User’s programming abilities. For example, User Number 1 is

always the Master, who can perform all programming tasks.

Programming Levels are hierarchical--higher levels are allowed to

do anything the levels below them can do. For example, if you

are User 2, you are allowed to do anything that Users 3 through

11 can do.

What is a Group?

With many lock applications, it is convenient for large numbers of

similar Users to be grouped together. Placing Users into Groups

(by assigning them specific User Numbers) allows large numbers

of Users to be controlled all at once rather than individually--

saving time and effort. Groups are controlled via schedules, and

a typical example involves enabling or disabling a Group at a cer-

tain time. Default Group associations are specified in the tables

on page 8. For example, if you wish to add a User to Group 1,

assign this User a User Number between 51 and 100. These

default Group associations can be changed if needed to allow

Groups larger than the default number of 50 (by using keypad

Function 35). (See page 18 for some Group function examples).

Who are Users 297-300?

Users assigned to User Numbers 297, 298, 299 and 300 have

special abilities, as follows:

User 297: Quick Enable User 300

User 297 possesses the unique ability to enable the User Code

associated with User 300. User 297 does this by first entering

their own User 297 User Code into the lock keypad. When User

300 subsequently enters their User 300 User Code, the lock al-

lows access (for one time) and then the User 300 User Code

becomes disabled.

For example, you wish to allow one-time access to a temporary

worker. Simply enter the User 297 User Code into the lock key-

pad. Later, when the temporary worker enters the User 300

User Code into the lock keypad, the User 300 User Code allows

access (for one time only) and then becomes disabled. Later, if

you wish to grant the temporary worker re-access, simply re-

enter the User 297 User Code and the User 300 User Code will

be re-enabled (again for one time only).

User 298: Quick PC Access Code

Entering the User Code for User 298 enables that User to send

data to or from the lock. Therefore, User 298 can activate what

is the equivalent of Function 58 in Program Mode (see page 23),

without the need to enter Program Mode nor the need to know

the Master Code of the lock. An AL-PCI cable with a PC is re-

quired.

User 299: AL-DTM Code

This is the only User Code that will initiate data transfer with the

AL-DTM--and without allowing the User to pass through the door

(the User Code for User 299 is not an Access Code). An AL-

PCI cable and an AL-DTM (first programmed by the computer

via the DTM or DTM2 screen in DL-Windows) is required.

User 300: One-Time Only Service Code

This is a One-Time Only Service User Code enabled by User

297. For example, User Code 300 is sometimes used for guard

tour duties. See User 297: Quick Enable User 300 above.

What is DL-Windows?

DL-Windows is a computer program that allows you to program

your ALARM LOCK T3 Security Lock. You do not need DL-

Windows to program your lock, but it makes programming much

faster and easier. With DL-Windows, you can quickly create Lock

Programs (programs that make the lock perform its many func-

tions) add multiple Users (who have access), add ProxCards® and

ProxKey® keyfobs, retrieve event logs, and create Schedules. The

benefit of DL-Windows is that it allows you to set up all lock pro-

gramming in advance (on your computer), and then later send the

information to the locks at your convenience.

Terminology Used in this Manual (cont'd)

USER TYPE USER NUMBER GROUP DEFAULT

ASSOCIATION

MINIMUM PROGRAM

LEVEL (See page 6)

Master Code 1 - M

Installer Codes 2 & 3 none 4

Manager Codes 4 - 6 none 3

Supervisor Codes 7 - 9 none 2

Print Only Codes 10 - 11 none 1

Basic User Codes 12 - 50 none none

Basic User Codes Group 1 51 - 100 1 none

Basic User Codes Group 2 101 - 150 2 none

Basic User Codes Group 3 151 - 200 3 none

Basic User Codes Group 4 201 - 250 4 none

Basic User Codes 251 - 296 none none

Quick Enable User 300 Code 297 none none

Quick PC Access Code 298 none none

AL-DTM Code 299 none none

Service Code 300 none none

Basic User Codes 301-2000 none none

Lock Defaults for ETPDL

Users added will default to a Group Association and a Program Level Ability as follows:

User 299 is a Non-Pass Code. This is the only code that will initiate data transfer with the AL-DTM.

NOTES:

The Programming Level defines the range of programming tasks

a User is allowed to perform. The higher the Level, the more pro-

gramming tasks the User is allowed (with Master allowing ALL

tasks).

Note: Since the Programming Level is closely associated with

the type of User and their abilities, a User who holds a certain

Programming Level is sometimes referred to by their “User

Type”.

For example, PDL Series locks can hold up to 2000 Users in its

programming memory, and each User is associated with a User

Number (see definition of "User Number" in the previous

"Terminology" section) and therefore a specific Programming

Level, as follows:

Master: Always associated with User number 1. Is always en-

abled and can program all functions. (Abbreviated as

Programming Level = M).

Installer: Always associated with Users 2 and 3. Can program

all functions except changing the Master Code. (Abbreviated

as Programming Level = 4).

Manager: Always associated with Users 4, 5, and 6. Can pro-

gram all functions except functions relating to lock

configuration. (Abbreviated as Programming Level = 3).

Supervisor: Always associated with Users 7, 8 and 9. Can only

program functions relating to day to day operation.

(Abbreviated as Programming Level = 2).

Print Only Users: Always associated with Users 10 & 11.

Restricted to print audit trails only. No other programming

ability allowed. (Abbreviated as Programming Level = 1).

Basic Users: Always associated with User number 12 and

higher (except 297-300). No programming ability allowed.

Programming Levels are hierarchical--higher levels are allowed to

do anything the levels below them can do. For example, if you

are a Manager, you are allowed to do anything that Supervisors,

Print-Only Users and Basic Users can do in addition to those

tasks allowed for Managers (Level 3).

Programming Levels

ACTIVITY LED SOUNDER COMMENTS

Keypress 1 RED Flash 1 Beep Normal Operation

Access Granted or Remote Release 3 GREEN Flashes 3 Beeps Remote release enabled through activa-

tion of relay

Invalid Code 6 RED Flashes 6 Beeps Re-enter User Code

Successful Program Entry 2 GREEN Flashes 2 Beeps When in Program Mode

Unsuccessful Program Entry 7 RED Flashes 7 Beeps When in Program Mode

Exit Program Mode 1 RED, 2 GREEN Flashes 10 Beeps

Valid but Disabled Code 1 GREEN, 4 RED Flashes 1 long, 5 short beeps Code exists in memory, but disabled

Low Battery YELLOW Flash during key

presses

Long Beep See page 11 before changing batteries

User Code Entered YELLOW Flash Sequence of 7 Beeps

Repeated 4 Times

Non-fatal memory or clock error has been

detected. Under this condition,

unexpected operation is possible. Re-

move power and restart.

Programming Key Sequence.

Programming

Information

General Program Mode Information

If a wrong key is pressed during code entry, hold any key continuously until the error sound is heard (7 short beeps), this will clear the entry. Re-enter the key

sequence again.

All program sequences are followed by the : key; 2 short beeps indicate a successful program sequence.

Enabling/Disabling Users (By User Number)

3. Disable User ; 3 ; [ _ _ _ ] :

4. Enable User ; 4 ; [ _ _ _ ] :

User Number must be between 2 and 2000.

NOTE: Will Enable/Disable users even if the user is associated with an enabled group.

Conventions Used in this Manual

LED and Sounder Indicators

The PDL Series locks provide visual and audible keypad feedback. With a fully charged battery, the LED and sounder feed-

back is as follows:

Minimum Required Program Level

Program Levels are abbreviated as follows:

M = Master

4 = Installer

3 = Manager

2 = Supervisor

1 = Print Only Users

This Program Level abbreviation is the

minimum program level required to

access the particular Function. (The

higher the level, the more programming

tasks the User is allowed, with Master

allowing all tasks).

Function

Description

Function

Number

Function Name

NOTE:

The AL-PCI cable is designed to be used on a 9 pin serial COM port. If your computer has a 25 pin COM port, a 25 pin to 9 pin adapter must be used.

Warning: Polarity MUST be observed when connecting cables to the lock. The tab (-) must plug into the negative (black) hole.

DB9 to DB9 Serial

Cable (supplied)

Scenario 3 Enroll ProxCards® quickly into DL-Windows, then transfer this new ProxCard® data from the computer through the AL-PRE

to the lock (thus avoiding the need to use an AL-PCI cable). For PDL series locks only.

IBM COMPATABLE

LAPTOP OR DESKTOP PC

CONNECT DB9 CABLE

TO COMPUTER SERIAL

PORT (COM 1-4)

NOTE: OBSERVE TAB DIREC-

TION WHEN INSERTING CABLE

INTO AL-PRE AND LOCK

DOUBLE-ENDED MINI BANANA

PLUG CONNECTOR

Scenario 4 Use the AL-IR1 Infrared printer to print your lock’s audit trail (event log), User Code list, clock settings and software

version. No cable required.

Scenario 1 Create the program in DL-Windows on your computer, then transfer the program from the computer directly to the lock via an

AL-PCI cable. You must always enter the User 298 User Code to send or receive data Using DL-Windows.

IBM COMPATABLE

LAPTOP OR DESKTOP PC

NOTE: OBSERVE TAB DIRECTION WHEN

INSERTING CABLE INTO LOCK

AL-PCI CABLE

CONNECT TO SERIAL PORT

(COM 1-4)

Scenario 2 Create the program in DL-Windows and transfer the program from your computer to an AL-DTM (via an AL-PCI cable)…

then transfer the program from the AL-DTM to the lock(s) (via a double-ended mini banana plug). The hand-held AL-DTM is useful

because you do not have to transport (or find electricity for) your computer. Data can also flow in reverse, from the lock, through

the AL-DTM, back to the computer for examination.

IBM COMPATABLE

LAPTOP OR DESKTOP PC

NOTE: OBSERVE TAB DIRECTION WHEN

INSERTING CABLE INTO LOCK

AL-PCI CABLE

CONNECT TO SERIAL PORT

(COM 1-4)

NOTE: OBSERVE TAB DIREC-

TION WHEN INSERTING CABLE

INTO AL-DTM AND LOCK

DOUBLE-ENDED MINI BANANA

PLUG CONNECTOR

Product Communication Examples

Send to lock Receive from lock

If your computer does not have a serial COM port

(DB-9 male) available, you can plug your AL-PCI2

cable into a special USB

to RS-232 cable. Order

part MX1130 for the

USB to RS-232 cable

only, or ALPCI2-U for

both the USB to RS-232

cable and an AL-PCI2

cable.

AL-DTM DATA

TRANSFER

MODULE

AL-PRE PROXCARD READER/

ENROLLER

AL-IR1

INFRARED PRINTER

ETPDL

WIRING

See the Installation Manual for more information.

Batteries:

Use only 1.5 volt Alkaline size-AA batteries.

External Power:

Red / Black wires - External 7.5 VDC Power Source

must be used for operation without batteries.

Remote Input:

White / White wires - Wire a Normally Open Contact

to wires (white and white). Momentarily close to allow

person to pass through door. NOTE: Remote Input

is enabled from the factory. (See page 24)

Relay:

COM-Blue / NO-Yellow / NC-Green - See page 25

(Function 67) for programming options for the Relay.

Wiring to Disarm a Burglary Control Panel

Burglary Control Panel wiring. See page 28.

POWER UP

•When applying power to the lock for the first time, stop

and follow the procedure outlined in "Quick Start, First time

Power Up" further in this manual.

•When power is re-applied to a lock that was already op-

erational, proceed as follows:

1. Disconnect battery pack connector.

2. With battery power disconnected, press and hold

down ; for 10 seconds to insure discharge of all ca-

pacitors.

3. Re-connect battery pack (lock will sound 3 short beeps). If

beeps are not heard, then restart at step 1.

4. Do not press any keys for 15 seconds.

5. After 15 seconds, the LED will flash red 6 times and 6

beeps will sound.

The lock is now ready for use. The pre-existing program is

loaded from fixed memory. Set the clock using functions 38,

39 and 40.

ERASE ALL PROGRAMMING

(The "out of box" factory default will be loaded)

1. Remove the battery pack.

2. With battery power disconnected, press and hold

down ; for 10 seconds to ensure discharge of all ca-

pacitors.

3. Re-install the battery pack (lock will sound 3 short beeps).

If beeps are not heard, then restart at step 1.

4. Within 5 seconds after hearing the 3 short beeps, press

and hold ; until the lock begins to beep, then release.

5. A series of 5 RED LED and 5 beeps will be heard followed

by 10 seconds of silence, then 3 GREEN LEDs and 3 fast

beeps.

All settings and programming have been erased and the lock

is now ready for use. Note: All lock programming can also be

erased (without need to disconnect the batteries) by entering

Function 99.

BATTERY REPLACEMENT

When a valid code is entered and the batteries are weak, the

yellow LED will light and the sounder will sound for 4 seconds.

Replace with five (5) AA-size 1.5 volt alkaline batteries. Al-

ways replace weak batteries as soon as possible.

CAUTION: Do not press any keys while batteries are dis-

connected or you may erase the real-time clock settings.

1. At the back of the lock, remove the screw at the bottom of

the lock housing and remove the cover.

2. Pull out the battery pack and quickly replace all 5 batteries -

within 1 minute.

3. If you do not hear the 3 beeps when power is re-applied,

all programming and settings have been retained, and the

lock is ready for use. Go to step 5.

4. If you do hear 3 beeps when power is re-applied, do not

press any keys for 15 seconds. After the 15 second

period, the LED will flash red 6 times and 6 beeps will

sound. Reset the clock using functions 38, 39 and 40.

5. Replace the cover and tighten the screw.

Wiring and Power Up

Quick Start

First Time Start Up

1. Unpack the lock.

2. With the batteries disconnected, hold down the ; key for 10 seconds and release.

3. Connect the batteries and listen for 3 beeps. Within 5 seconds of hearing the 3 beeps, press and hold ; until beeping

starts. This will clear the lock of all programmed data. Important: If you do not hear these 3 beeps, you must start over at

step 2.

4. Listen for another series of beeps and LED flashes followed by 10 seconds of silence. The lock is now ready to program.

Failure to follow this exact procedure can result in erratic lock behavior. Important Note: When entering any key se-

quence below, do not pause more than 25 seconds between any key presses--otherwise you must start again.

Enter Program Mode and Change Factory Master Code

1. Press the default Master Code: 1 2 3 4 5 6.

2. Wait for the green light and press ; until multiple beeps are heard. You are now in Program Mode.

Note: The lock will beep every 6 seconds as a reminder that you are in Program Mode.

3. Enter a new personal 6-digit Master Code number by pressing the following keys:

; 1 ; [new Master Code] ; [new Master Code] : (the second set of digits must be exactly the same).

(For example, if you want your new Master Code to be “664433”. Press:

; 1 ; 664433 ; 664433 :).

Now that the Master Code has been changed, there is no need to change it again (unless you want to). Since you are

still in Program Mode, you can now proceed directly below and program various functions. Note: Programming any

Function, such as setting the clock, follows a consistent 5-step pattern: (1) Enter Program Mode (2) Press ;

[Function #] (3) Press ; and enter data (4) Press : to end (5) Exit Program Mode.

Note: There is a 3 minute Program Mode timeout if no keys are pressed when in Program Mode. A steady tone will sound

for the final 15 seconds of the 3 minute timeout period as a warning. To remain in Program Mode, press any key.

Set the Weekday

1. Enter Program Mode (if not in already).

2. Press ; 40 ; [number of weekday] :. (Use 1= Sunday, 7 = Saturday).

(For example - Friday - press ; 40 ; 6 :).

Set the Date

1. Enter Program Mode (if not in already).

2. Press ; 38 ; [MMDDYY] :.

(For example - May 10, 2002 - press ; 38 ; 051002 :).

Set the Time

1. Enter Program Mode (if not in already. If you just finished the above procedure, you are still in Program Mode).

2. Press ; 39 ; [HHMM] :. (Use 24-hour military format, where PM adds 12 hours).

(For example - 2:30pm - press ; 39 ; 1430 :).

Enter User Codes

1. Enter Program Mode (if not in already).

2. Press ; 2 ; [User Number] ; [new User Code] :.

(For example, John Smith is designated as User 21. You want him to use the code of “232323” to unlock the door.

Program the lock by pressing: ; 2 ; 21 ; 232323 :).

3. Repeat step 2 for each new user.

Quick Start (cont’d)

Delete a User Code

1. Enter Program Mode (if not in already).

2. Press ; 2 ; [User Number] :.

The lock will flash a green LED and beep continuously for 6 seconds. When the red LED flashes, the User Code is deleted.

3. Repeat step 2 for each new User.

User Code Conflicts

Care should be taken not to program a new User Code which matches the first digits of any other User Code (only the User

Code with the least number of digits will be recognized). Example: If User Codes 123 and 123456 are both entered in the

system, only code 123 would be recognized, unless the ENTER Key has been enabled (see Function 69, see page 26). In ad-

dition, an error will sound if you try to program a new User Code that matches the first digits of the Master Code.

WARNING: When attempting to change an existing Master Code, it is HIGHLY recommended that you enable all

Groups (see Function 23 on page 18), exit Program Mode, and enter the new anticipated Master Code to verify that the

anticipated sequence does not currently open the lock. If the lock does not open, the anticipated Master Code can be

used as the new Master Code; if the lock opens, the anticipated Master Code already exists in the lock (as a User

Code), and the anticipated Mater Code should NOT be used. Always repeat this procedure with any new anticipated

Master Codes.

Enroll ProxCards at the Lock

If you wish to enroll only one ProxCard (“Single Enrolling”) or many (“Batch Enrolling”), the process is basically the

same.

1. Enter Program Mode (if not in already).

2. Press ; 2 ; [User Number] :. (Enter the User Number you wish to match with the first ProxCard).

3. Lock will beep continuously. Place a new Prox Card in front of the Prox reader (under the lock keypad). When the

lock beeps three times, the card has been enrolled.

4. Press ; to end the process. To return to normal operation, exit Program Mode (see below).

(For example, you wish to enroll two ProxCards for User 14 and User 15 respectively. Press ; 2 ; 1

4 :. and place the first card in front of the reader (hear 3 beeps) and then within 10 seconds, place the sec-

ond card in front of the reader (hear 3 beeps)).

You can continue entering cards in this way, automatically incrementing the User number with each presentation of a

ProxCard. When finished, press ;.

Note: Batch Enrolling will not program Users 297 through 300, as these are Special Function User Codes. After a

ProxCard for User 296 has been Batch Enrolled, the next card presented will enroll as User 301.

High Security Access (ProxCard & User Code Access)

Program the lock for High Security Access for User Number 15, with a ProxCard and a User Code of 7452 required for access:

1. Enter Program Mode (if not in already).

2. Press ; 2 ; 1 5 :.

3. Lock will beep continuously. Place a new Prox Card in front of the Prox reader (under the lock keypad). When the lock

beeps three times, the card has been enrolled.

4. Press ; 2 ; 1 5 ; 7 4 5 2 :.

In order for User 15 to open the Lock, a User Code must be entered and a ProxCard must be presented to the ETPDL Lock. User

may enter code or present card in either order to open the lock. The sounder will beep for up to 10 seconds, waiting for the User

to enter their User Code and present their card.

Delete a High Security Access Code

Note: Deleting a ProxCard associated with a User number will also delete the User Code programmed for that User Number.

Delete the ProxCard by not presenting any card for enrollment, as follows:

1. Enter Program Mode (if not in already).

2. Press ; 2 ; _ :. (Enter the User Number matched to the ProxCard you want to delete).

3. Lock will beep continuously. Do not present ANY card during this step. Wait until lock stops beeping, about 10 seconds.

4. Press ; to end.

Verifying Basic Keypad User Codes

Test a valid User Code:

VALID CODE - The Green LED will flash momentarily and the sounder will beep a few times after a valid code is entered.

INVALID CODE - The RED LED will flash several times and the sounder will beep several times after an invalid code is entered.

Use Function 2 to re-program the code.

Verifying Prox Card and Keyfob Access

Test a programmed ProxCard® or ProxKey® Keyfob:

Present the Programmed ProxCard® (or Keyfob ) to the Prox reader in front of the lock.

VALID CARD - The Green LED will flash momentarily and the sounder will beep a few times after a valid card or keyfob has

been presented to the lock.

INVALID CARD - The RED LED will flash several times and the sounder will beep several times after an invalid ProxCard® or

Keyfob has been presented to the lock. Use Function 2 to re-program the code.

Verifying High Security Access (ProxCard + User Code)

Test ProxCard® programmed for High Security Access. A ProxCard® and User Code are both required for access.

1. Enter the User Code for the User Number programmed for High Security Access. The sounder will beep slowly for up to 10

seconds.

2. Present the ProxCard® programmed for the same User Number.

User may enter User Code or present the ProxCard® in either order to open the lock. The sounder will beep for up to 10

seconds, waiting for the User to enter User Code or to present the ProxCard® / Keyfob.

Note: Do not present the ProxCard® / Keyfob and enter the User Code simultaneously.

Exit Program Mode

Hold Down any key for 3 seconds. Program Mode exit is confirmed by several beeps. You are now in normal operation.

Re-enter Program Mode

If you wish to re-enter Program Mode, key-in your new 6-digit Master Code, and press ;.

You are now ready to mount and install your PDL series lock and give out your User Codes. Before installation, it is suggested

you test and verify that all User Codes entered are active (see below).

Testing the Codes Entered

Function 1 Change Master Code See page 16

Function 2 Add/Delete/Change User Codes See page 16

Function 3 User Disable (By User Number) See page 17

Function 4 User Enable (By User Number) See page 17

Function 5 User Enable with Timeout See page 17

Function 6 Enable Total User Lockout See page 17

Function 7 Disable Total User Lockout See page 17

Function 8 Reserved --

Function 9 Enable User 300 (Service Code) See page 17

Function 10 Erase All Users Except the

Master Code

See page 17

Function 11 Reserved --

Function 12 Clear All Schedules and Timeout

Functions

See page 18

Function 13 Clear All Timeout Functions See page 18

Function 14 - 17 Group 1-4 Disable See page 18

Function 18 Disable All Groups See page 18

Function 19 - 22 Group 1-4 Enable See page 18

Function 23 Enable All Groups See page 18

Function 24 Reserved --

Function 25 - 28 Group Disable with Timeout See page 19

Function 29 Disable All Groups with Timeout See page 19

Function 30 - 33 Group Enable with Timeout See page 19

Function 34 Disable All Groups with Timeout See page 19

Function 35 Group Add/Delete Association See page 19

Function 36 - 37 Reserved --

Function 38 Set Date See page 20

Function 39 Set Time See page 20

Function 40 Set Weekday See page 20

Function 41 Daylight Saving Time Start Date See page 20

Function 42 Daylight Saving Time End Date See page 20

Function 43 Speed Up Clock See page 21

Function 44 Slow Down Clock See page 21

Function 45 - 46 Passage Mode Enable/Disable See page 21

Function 47 Timed Passage Mode See page 21

Programming Functions--Overview

Function 48 Enable Passage Mode See page 22

Function 49 Disable Passage Mode See page 22

Function 50 Return Lock to Normal Passage

Mode Schedule

See page 22

Function 51 Passage Mode Configuration See page 22

Function 52 - 54 Pass Time See page 22

Function 55 Print Audit Trail See page 23

Function 56 Print User Code List See page 23

Function 57 Print Clock Settings and Software

Version

See page 23

Function 58 Upload/Download PC Data See page 23

Function 59 Reserved -

Function 60 Number of Attempt Before

Lockout

See page 24

Function 61 Set the Attempts Lockout Time See page 24

Function 62 - 63 Reserved --

Function 64 - 65 Disable/Enable Remote Input See page 24

Function 66 Ambush Code See page 24

Function 67 Add Relay/System Features See page 25

Function 68 Delete All Relay Functions and

System Options added by

Function 67

See page 25

Function 69 - 70 Enable/Disable Enter Key See page 26

Function 71 Reserved --

Function 72 - 73 Scheduled Enable/Disable

Passage Mode

See page 26

Function 74 - 77 Schedule Enable Group 1 - 4 See page 26

Function 78 Schedule Enable All Groups See page 26

Function 79 - 82 Schedule Disable Group 1 - 4 See page 26

Function 83 Schedule Disable All Groups See page 26

Function 84 - 87 Quick Schedules - Enable Group See page 27

Function 88 Passage Mode

(Open Time Window)

See page 27

Function 89 Passage Mode

(Close Time Window)

See page 27

Function 90 Relay Activation

(Open Time Window)

See page 28

Function 91 Relay Activation

(Close Time Window)

See page 28

Function 92 Enable Group 4

(Open Time Window)

See page 29

Function 93 Enable Group 4

(Close Time Window)

See page 29

Function 94 - 98 Reserved --

Function 99 Clear All Lock Programming See page 29

1. New Master Code (User Number 1)

2. Add/Delete/Change User Codes 2-2000

; 1 ; [ _ _ _ _ _ _ ] ; [ _ _ _ _ _ _ ] :

(New Master Code) (Confirm New Master Code)

; 2 ; [ _ _ _ _ ] * ; [ _ _ _ _ _ _ ] :

(User Number) (User Code)

•User Number must be between 2 and 2000.

•To delete a code/card, leave the User Code blank and wait for the rapid beeping to stop, then

to avoid erroneously enrolling Proximity Cards, press and hold : for three seconds to exit

Programming Mode. If more programming is desired, re-enter Programming Mode.

•User Code must be 3-6 digits.

•Each User Code can be thought of as a person. As long as each person possesses their own

unique User Code, you can control access to the lock by adding or deleting User Codes. See

"Terminology Used in this Manual" on page 6 for more information.

•Master Code must be 6 digits-only.

•Master Code is Keypad Code Access only.

•Factory Default = 123456

•See "Lock Design Overview" on page 5 for more information about Master Codes.

USERS

Lock Defaults for ETPDL

See page 8. Users added will default to a Group Association and a Program Level Ability as follows:

USER TYPE USER NUMBER GROUP DEFAULT

ASSOCIATION

MINIMUM PROGRAM

LEVEL (see page 6)

Master 1 - M (All Programming Abilities)

Installers 2 & 3 none 4 (Also 3, 2, 1)

Managers 4 - 6 none 3 (Also 2, 1)

Supervisors 7 - 9 none 2 (Also 1)

Print Only Users 10 - 11 none 1

Basic Users 12 - 50 none none

Basic Users in Group 1 51 - 100 1 none

Basic Users in Group 2 101 - 150 2 none

Basic Users in Group 3 151 - 200 3 none

Basic Users in Group 4 201 - 250 4 none

Basic Users 251 - 296 none none

Quick Enable User 300 297 none none

Quick PC Access 298 none none

AL-DTM2 Code 299 none none

Service User 300 none none

Basic Users 301-2000 none none

Programming Functions

User 299 is a Non-Pass Code. This is the only code that will initiate data transfer with the AL-DTM.

USERS (Continued)

; 6 :

6. Enable Total User Lockout Mode

(This Function enabled through keypad only)

7. Disable Total User Lockout Mode

(This Function enabled through keypad only)

; 7 :

User Lockout Mode

Prevents all User Codes (Except User 1 Code) from operating the lock. Note: No other programming

functions or schedules will re-enable Users. Users must be re-enabled with Function 7.

Note: Does not change the User enable/disable status. Note: If the lock is currently in Passage Mode

(door "unlocked") and Function 6 is programmed, the lock will remain in Passage Mode.

5. User Enable with Timeout

(Enter Timeout, XXX Hours)

(This Function enabled through keypad only)

; 5 ; [ _ _ _ _ ] ; [ _ _ _ _ ] :

(User Number) (XXX Hours)

•With Function 5, User Numbers must be between 2-2000, hours must be between 1-999.

•Function 5 can temporarily override a disabled User (disabled using Function 3 above).

•Since this is a temporary feature, Function 5 can only be enabled using the keypad.

•Example: Brian, User Number 1157, rarely works at the office, but when he does, enable him for his 8 hour work day by entering

Program Mode and pressing: ; 5 ; 1157 ; 008 :.

•NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting to program more

than 4 Timeout Functions.

Service Code is a One-Time-Only Code. Once it is used, it is disabled until enabled again.

NOTE: User Number 297 is used to reset Service Code Use. See "Terminology Used in

this Manual" on page 7 for more information and examples regarding special Users 297-300.

; 9 :

9. Enable User 300 (Service Code)

2 2

; 1 0 ; 0 0 0 :

10. Erase All Users Except the Master Code (User 1)

(This Function enabled through keypad only)

Erases all User Codes except the Master Code (User 1).

•Function 10 can only be performed using the keypad.

11. Reserved

3. Disable User ; 3 ; [ _ _ _ _ ] :

(User Number)

4. Enable User ; 4 ; [ _ _ _ _ ] :

(User Number)

User Enable/Disable (By User Number)

•User Number must be between 2 and 2000.

NOTE: Will Enable/Disable Users even if the User is associated with an enabled Group. Use Feature 3 to disable a specific User

Number and their associated User Code. If the disabled User Code is entered, the lock will flash 1 Green and 4 Red Flashes

(with 1 long and 5 short beeps) indicating that the User Code exists in memory, but is disabled. Function 4 will "undo" Function 3.

8. Reserved

Programming Functions (cont'd)

; 1 2 ; 0 0 0 :

12. Clear All Schedules and Timeout Functions

Function 12 clears all programmed Schedules and all Timeout Functions. (To clear All Timeout Functions only, see

Function 13 below). Function 12 will clear all of the following: All Schedule Functions 72 through 93, Timeout Functions

5, 25 through 34 and Function 47. Note: Function 12 also resets Passage Mode and any disabled Groups. After using

Function 12, your Scheduled/Timeout features must be manually re-programmed.

NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting to

program more than 4 Timeout Functions. This Function only disables the timeout; the event associated with the timeout

will remain.

; 1 3 ; 0 0 0 :

Function 13 clears all Timeout Functions. (To clear All Schedules and Timeout Functions, see Function 12 above).

Function 13 will clear all of the following: All Timeout Functions 5, 25-34 and Function 47. After using Function 12, your

Scheduled/Timeout features must be manually re-programmed.

NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting to

program more than 4 Timeout Functions. This Function only disables the timeout; the event associated with the timeout

will remain.

13. Clear All Timeout Functions

(This Function enabled through keypad only)

CLEAR FUNCTIONS

Group Enable/Disable

Enter the functions below to Enable/Disable Groups. Functions 14 - 23 will each override

existing scheduled events. Therefore, Functions 14 - 23 are temporary, take effect im-

mediately, and are always overridden by future scheduled events that already exist within

the lock programming.

GROUPS

24. Reserved

; 1 4 :

; 1 5 :

16. Disable Group 3 ; 1 6 :

17. Disable Group 4 ; 1 7 :

18. Disable All Groups ; 1 8 :

19. Enable Group 1 ; 1 9 :

20. Enable Group 2 ; 2 0 :

21. Enable Group 3 ; 2 1 :

22. Enable Group 4 ; 2 2 :

23. Enable All Groups ; 2 3 :

14. Disable Group 1

15. Disable Group 2

Programming Functions (cont'd)

Important: It is the responsibility of the lock programmer to verify the proper lock/unlock conditions and Group conditions

after programming the lock with Function 12 and 13.

PRIORITY ORDER

1. Disabled Users

2. Enabled Groups

3. Disabled Groups

4. Enabled Users

The Priority Order details which Function will

take effect before ("have priority over") others.

For example, as per the list above, Enabled

Users have the lowest priority, and other Func-

tions can affect the status of these Users. Dis-

abling a Group (Functions 14-18) will take pri-

ority over the enabled Users in that Group,

disabling them. Enabling Groups (Functions

19-23) will take priority over those tasks lower

in the list, and finally disabling a User (Function

3) takes priority over all other tasks listed.

GROUPS

Group Enable/Disable with Timeout (Enter Timeout, XXX Hours)

(Functions 25-34 are enabled through the keypad only)

•Hours must be between 1-999. Enter the functions below to Enable/Disable Groups for the amount of time entered in hours.

NOTE: Only 4 Timeout Functions are allowed at any one time. An error beep will sound when attempting to program more than

4 Timeout Functions. Functions 25 - 34 will each override existing scheduled events. Therefore, Functions 25 - 34 are tem-

porary, take effect immediately, and are always overridden by future scheduled events that already exist within the lock

programming. NOTE: Functions 25-34 are enabled through the keypad only.

•Example: All 15 members of the Accounting Department are members of Group 4, and a schedule programmed in the

department's door lock reflects their normal working hours of 9 AM through 5 PM, Monday through Friday. But one day a

special event occurs, and all Accounting Department members are requested to stay an extra hour until 6 PM. Therefore,

at 5 PM, the manager (wishing to temporarily enable Group 4 users for an extra hour) enters Program Mode and

presses: ; 33 ; 001 :. Likewise, if the manager wished to send his department home

early at 3 PM, the manager could enter ; 28 ; 002 :.

; 3 5 ; [ _ _ _ ] ; [ _ _ _ _ ] :

(User Number) (Groups)

35. Group Add/Delete Association

As per the chart on page 8, the lock's default programming from the factory associates certain User Numbers with certain

Groups. To override these default Group associations, Function 35 manually associates (or disassociates) a selected

User with a selected Group. During programming, Groups not selected are then disassociated from the User. Function

35 is helpful when the number of Users you wish to add to a Group outgrows the number of User Numbers defaulted to a

Group (50); or if an existing User joins a department and you wish to simply add them to a Group.

•User Number must be between 2 and 2000; Groups 1-4 (to associate with User) may be selected.

Add Example: To associate User 67 with Groups 1, 2 and 4;

Enter: ; 3 5 ; 6 7 ; 1 2 4 :

Delete Example: To remove all Group associations for User 67;

Enter: ; 3 5 ; 6 7 :

NOTE: If a User is associated with more than one Group, all associated Groups would have to be disabled before the User is disabled.

; 2 5 ; [ _ _ _ ] :

(XXX Hours)

25. Timed Disable Group 1

; 2 6 ; [ _ _ _ ] :

(XXX Hours)

26. Timed Disable Group 2

; 2 7 ; [ _ _ _ ] :

(XXX Hours)

27. Timed Disable Group 3

; 2 8 ; [ _ _ _ ] :

(XXX Hours)

28. Timed Disable Group 4

; 2 9 ; [ _ _ _ ] :

(XXX Hours)

29. Timed Disable All Groups

; 3 0 ; [ _ _ _ ] :

(XXX Hours)

30. Timed Enable Group 1

; 3 1 ; [ _ _ _ ] :

(XXX Hours)

31. Timed Enable Group 2

; 3 2 ; [ _ _ _ ] :

(XXX Hours)

32. Timed Enable Group 3

; 3 3 ; [ _ _ _ ] :

(XXX Hours)

33. Timed Enable Group 4

; 3 4 ; [ _ _ _ ] :

(XXX Hours)

34. Timed Enable All Groups

36 - 37. Reserved

Clear All Timeout Functions by entering Function 13.

NOTE:

Programming Functions (cont'd)

; 3 8 ; [ _ _ _ _ _ _ ] :

(Date)

38. Set Date

•Use Month Day Year format - MMDDYY - Single digit months and days are entered with a preceding zero.

•Enter ONLY the last two digits of the year.

For Example: March 8, 2002; Enter:

; 3 8 ; 0 3 0 8 0 2 :

39. Set Time ; 3 9 ; [ _ _ _ _ ] :

(Time)

•Time must be 4 digits

•Use 24 Hour Format (add 12 hours to program PM time)

For Example: To set time to 8:25PM;

Enter: ; 3 9 ; 2 0 2 5 :

For Example: To set time to 8:25AM;

Enter: ; 3 9 ; 0 8 2 5 :

; 4 0 ; [ _ ] :

(Day)

40. Set Weekday

•For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday and 7 for Saturday.

For Example: To set day to Sunday;

Enter: ; 4 0 ; 1 :

41. Daylight Saving Time Start Date ; 4 1 ; [ M M W D ] :

(DST Starting Month, Month, Week, Day)

The manner in which Daylight Saving Time (DST) is observed varies with location, therefore the DST adjustment is fully flexible to

accommodate these regional differences. Function 41 allows the entry of a DST Start Date (month, day and week), and Function 42

allows the entry of a DST End Date (month, day and week). DST begins and ends at 2AM on the programmed date. Enter ;

4 1 ; 0 0 0 : to disable DST. All locks leave the factory with DST enabled and pre-programmed to the

following start and end dates (for the USA beginning 2007):

•Default DST Start Date: March, Week 2, Sunday ("Second Sunday in March")

•Default DST End Date: November, Week 1, Sunday ("First Sunday in November")

To program the DST start date using the keypad, press: ; 4 1 ; [ M M W D ] : where "M M W D" represents:

•"M M" = Two digits of the month (01 through 12 = January through December. Single digit months are entered with a

preceding zero).

•"W" = Single digit for "week of the month" (valid entries are 1-5 where "1" is the first week, "2" is the second week, "3" is the

third week, "4" is the fourth week and "5" is the last week of the month.

•"D" = Day of the week (valid entries are 1-7: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6

for Friday and 7 for Saturday).

Example: To set the default start date of "second Sunday in March", press:

; 4 1 ; [ 0 3 2 1 ] : (03 = "March", 2 = "2nd week", 1 = Sunday).

CLOCK SETTINGS

Programming Functions (cont'd)

42. Daylight Saving Time End Date ; 4 2 ; [ M M W D ] :

(DST Ending Month, Month, Week, Day)

End date of Daylight Saving Time (month, week, day). Enter ; 4 2 ; 0 0 0 : to disable DST.

See Function 41 for full explanation.

; 4 5 :

45. Enable Passage Mode

(This Function enabled through keypad only)

; 4 6 :

46. Disable Passage Mode

(This Function enabled through keypad only)

47. Timed Passage Mode

(This Function enabled through keypad only)

; 4 7 ; [ _ _ _ ] :

(XXX Hours)

•Function 45 allows passage through the door without the need for a User Code. Re-Lock using Function 46.

•Programmed Schedules will override the state of the lock when Functions 45 and 46 are used. If it is required that

programmed schedules do not override Passage Mode, enable/disable Passage Mode using Functions 48/49. Note: Be-

cause of the temporary nature of these features, Functions 45-47 can only be enabled using the keypad.

Passage Mode Enable/Disable - Schedule will Override

•Hours must be between 1 - 999.

Function 47 allows passage through the door without the need for a User Code for the programmed amount of time.

•For example, if you wish your office door lock to be unlocked (unlocked = "Passage Mode") for the next 3 hours,

enter Program Mode and press: ; 47 ; 003 :

PASSAGE MODE

CLOCK ADJUST

; 4 3 ; [ _ _ ] :

(seconds)

43. Speed Up Clock

(This Function enabled through keypad only)

; 4 4 ; [ _ _ ] :

(seconds)

44. Slow Down Clock

(This Function enabled through keypad only)

Number of seconds to adjust (speed up/slow down) the clock each day must be be-

tween 0-55 seconds.

Note: Repeated use of these Functions are not "cumulative" (this means, for example,

if the clock has already been set to speed up 10 seconds per day, and then is found to

need an additional 10 seconds, then program 20 seconds using Function 43).

Example 1: Clock is losing 13 seconds every day, enter:

; 4 3 ; 1 3 :.

This example assumes that the Clock Adjust setting was at the factory default of zero.

Function 57 can be used to print the current Clock Adjust setting.

Example 2: Clock is gaining 13 seconds every day, enter:

; 4 4 ; 1 3 :.

This example assumes that the Clock Adjust setting was at the factory default of zero.

Function 57 can be used to print the current Clock Adjust setting.

Example 3: To set the clock adjust setting back to the factory default of zero, enter:

; 4 3 : or ; 4 4 :

Clock Adjust

Programming Functions (cont'd)

Clock Accuracy

The internal oscillator is factory calibrated to an accu-

racy of ±5 minutes/year. Changes in ambient tem-

perature may affect accuracy. If necessary, the ac-

curacy of the internal clock may be adjusted by first up-

dating the correct time via Function 39. After an interval

of about 1 month, re-set the correct time via Function 39

and then print an Audit Log via Function 55. Because

the Audit Log displays both the "New Clock Time" and

the "Old Clock Time", a daily accuracy (in seconds) can

be determined by taking the difference in seconds be-

tween the "Old" and "New" times divided by the number

of days between the two Function 39 entries. Note:

Because the minimum available adjustment is 1 second

per day, the inaccuracy of the clock must exceed about 6

minutes per year before adjustment is necessary.

49. Disable Permanent Passage Mode

(This Function enabled through keypad only)

50. Return Lock to Normal Passage

Mode Schedule

(This Function enabled through keypad only)

(Locks will lock or unlock depending on the current schedule). Use Function 50 to "undo" Functions 48 and/

or 49, and therefore return the lock to all pre-existing scheduled functions.

•Function 48 allows passage through the door without the need for a User Code. Re-Lock using Function 49.

•Programmed Schedules will not override the state of the lock using functions 48 and 49. If it is required that programmed

schedules override Passage Mode, Enable/Disable Passage Mode using Functions 45/46. Use Function 50 to "undo" Func-

tions 48 and/or 49, and therefore return the lock to all pre-existing scheduled functions. Note: Functions 48-50 can only be

enabled using the keypad. Warning: Function 49 will inhibit all scheduled Passage Mode events.

Passage Mode Enable/Disable - Schedule will not Override

PERMANENT PASSAGE MODE

; 4 9 :

48. Enable Permanent Passage Mode

(This Function enabled through keypad only)

; 4 8 :

; 5 0 :

; 5 2 :

52. Set Pass Time to 3 Sec.

; 5 3 :

; 5 4 :

The Pass Time is the length of time the lock stays unlocked after a valid User Code is

entered. When the Pass Time expires, the lock will re-lock automatically. Use the

functions below to change the Pass Time to 3, 10 or 15 seconds. The Pass Time is

defaulted to 3 seconds.

Pass Time

53. Set Pass Time to 10 Sec.

54. Set Pass Time to 15 Sec.

PASS TIME

See Scheduled functions 72 and 73 for Scheduled Passage Mode.

NOTE:

51. Passage Mode Configuration ; 5 1 ; [ _ ] :

(Mode)

•Mode 1 (Normal): Passage Mode must be enabled/disabled using Function 45 and 46. Mode 1 (Normal) is the factory de-

fault.

•Mode 2: Group 2 toggles Passage Mode.

•Mode 3: Group 2 enables, Group 3 disables Passage Mode. Disable Passage Mode has priority if User is a member of both

Groups 2 and 3.

With Mode 2, each time any member of Group 2 enters their User Code, they will toggle Passage Mode. For example, if Pas-

sage Mode is enabled, and a Group 2 User enters their User Code, Passage Mode will be disabled. If a few seconds later they

enter their User Code again, Passage Mode will be enabled. With Mode 3, Group 2 members will always enable Passage Mode,

and Group 3 members will always disable Passage Mode. For example, if Passage Mode is already enabled, and a Group 2

User enters their User Code, the Passage Mode status will not be changed due to the Function 51 Mode 3 configuration. If Pas-

sage Mode is already enabled, and a Group 3 User enters their User Code, Passage Mode will become disabled.

Programming Functions (cont'd)

ETPDL

; 5 5 :

; 5 7 :

57. Print Clock Settings, Software

Version and Door Number

55. Print Audit Trail

; 5 6 :

56. Print User Code List

; 5 8 :

58. Upload/Download PC Data

Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2 above.

Twenty (20) events will print at a time; press 1 for more events, or 9 to quit. To abort

printing, press any key for 3 seconds (three short beeps will sound).

Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2 above.

To abort printing, press any key for 3 seconds (three short beeps will sound).

Hold the printer over the lock's infrared sensor as shown in Figure 1 and Figure 2 above.

For use with DL-WINDOWS software, refer to OI237. AL-PCI interface cable is needed.

PRINTER

DOWNLOADING

Hold the printer perpendicular to the Lock’s infrared LED as shown in Figure 1 and Figure 2. If the

printer has been idle for some time, press the paper feed button to wake up the printer.

Programming Functions (cont'd)

Figure 2

Infrared

Reader

Place Infrared Reader (on printer) in

front of the Infrared LED (on lock)

Figure 1

ETPDL to Printer

- Side View

Infrared

LED

Infrared

LED

60. Number of Attempts Before Lockout

61. Set the Attempts Lockout Time

•Number of attempts before lockout must be 1-9 attempts.

•The number of attempts is reduced by half every time the keypad is locked out without a

successful code entry (default is 6 attempts).

•The attempt count is reset each time a valid code is entered.

•Lockout Time must be 1-60 seconds.

How long the keypad is locked-out after a series of unsuccessful attempts

(default is 18 seconds).

LOCKOUT

; 6 4 :

64. Disable Remote Input

•Wire a Normally Open Contact to Wires (White & White). Momentarily close switch to unlock door

to allow person to pass through door.

•Enter the functions below to Disable/Enable the Remote Input.

NOTE: The Remote Input is enabled as part of the default program.

Remote Input

; 6 5 :

65. Enable Remote Input

; 6 6 ; [ _ _ ] :

(Ambush Code)

66. Ambush Code

•Ambush code must be 2 digits.

•An error will sound if the Ambush Code matches the 1st two digits of any User Code.

See Function 67 for more information about the Ambush Function.

REMOTE INPUT

AMBUSH

; 6 0 ; [ _ ] :

(Number of Attempts)

; 6 1 ; [ _ _ ] :

(Lockout Time)

62-63. Reserved

Programming Functions (cont'd)

59. Reserved

; 6 7 ; [ _ _ ] :

(Event Number)

67. Add System Features

SYSTEM FEATURES

68. Delete All Relay Features added by Function 67. ; 6 8 ; 0 0 0 :

•Relay Features (12-24. Reserved)

Use Function 67 to program one or more lock events and the Relay will energize when the programmed event(s) listed below oc-

curs. For example, program ; 6 7 ; 3 : and when an attempted entry fails (such as a User who enters an

incorrect or un-programmed User Code), the Relay will energize for 2 seconds. Note: For more information about the Remote In-

put, see page 11 (Wiring, Remote Input) and page 26 (Function 65).

1. Remote Input switch closed and Function 65 Remote Input en-

abled. Because the Remote Input is enabled by factory default, the

Relay will energize when the Remote Input switch is closed.

9. Lock Out. Relay energizes for 2 seconds when a Lock Out occurs (i.e.

number of attempts is exceeded, see Function 60).

2. Remote Input switch closed and Function 64 Remote Input dis-

abled. If the Remote Input is disabled with Function 64, the Relay will

energize when the Remote Input Switch is closed.

10. Ambush. Relay energizes for 2 seconds when Ambush is tripped.

See Function 66, page 26.

3. Failed attempted entry. Relay energizes for 2 seconds when an at-

tempted User Code entry (or ProxCard/Keyfob) fails.

11. First Key Press. Relay energizes for 2 seconds at the first key press

of any sequence.

4. Disabled User or Group. Relay energizes for 2 seconds when a dis-

abled User or disabled Group member enters a User Code (or

ProxCard/Keyfob).

5. Follow Access Granted. When a valid User Code is entered into the

keypad and the lock unlocks, the Relay energizes for 2 seconds. Com-

pare with Event 31.

6. Group 1 User Code. Relay energizes for 2 seconds when a scheduled

Group 1 User Code (or ProxCard/Keyfob) is entered. See Function

90, page 30.

7. Scheduled Lock Event. Relay energizes for 2 seconds when lock is

locked by a Schedule.

8. Scheduled Unlock Event. Relay energizes for 2 seconds when lock is

unlocked by a schedule

31. Follow Access Granted--No Time Limit.** When a valid User Code

is entered into the keypad and the lock unlocks, the Relay energizes for

the same amount of time as the programmed Pass Time. (The Pass

Time is the length of time the lock stays unlocked after a valid

User Code is entered. See functions 52-54). Use this feature for

remote monitoring or other activation as this feature works independ-

ently of all other relay options. Programming this feature will supersede

all other programmed relay features. Subsequent relay feature pro-

gramming will not take effect while this feature is active. Before pro-

gramming any other relay features, press ; 6 8 ; 0

0 0 : to delete this feature.

•System Options

24. One Time Access for Group 3 Users***

25. Disable Sounder

26. 5 sec. Delayed Entry *

27. 15 sec. Delayed Entry *

28. 45 sec. Delayed Entry *

•Remote Input Functions

29. Toggle Passage Mode. Remote Input toggles Passage Mode.

30. Forced Unlock Follows Remote Input.** When Remote Input switch

is closed, regardless of the current state of the lock, the lock unlocks

for the duration of the Remote Input switch closure.

32. Remote Input Disables Unit.** Regardless of the current state, that

state will remain unchanged (and keypad will be disabled) for the du-

ration of Remote Input switch closure.

34. Forced Lock Follows Remote Input ** When Remote Input switch is

closed, regardless of the current state of the lock, the lock will lock for

the duration of the Remote Input switch closure.

* Features 26, 27 & 28 will delay User Codes 12 and higher only (except 297, 298 and 299).

** Features 30, 31 & 32 should be used with External DC Power unless feature is used for short a duration and infrequently (sustained closure of remote

input or Relay will drain batteries, and scheduled events will not occur during sustained closure of remote input). Sustained closure of remote input may

affect proper audit trail operation. NOTE: Enter ; 6 7 ; 0 0 0 : to delete all Relay Features added by Function 67 (identical

to Function 68).

*** Feature 24, "One Time Access for Group 3 Users", allows the creation of multiple 'one time only' User Codes. When activated, an entry by a Group 3 User

allows entry only once, then user becomes disabled. Note: When the User Code is entered for the first time and access is granted, the Event Log will read

"Entry" followed by "User Disabled". If the User Code is entered a second time, access will be denied, and the Event Log will read "User Denied Access".

To Enable the Feature: Enter Program Mode and enter the key sequence ; 6 7 ; 2 4 :. To assign the selected User Codes

to Group 3: For example, to assign User Number 15 to Group 3, press: ; 3 5 ; 1 5 ; 3 :.

•PC Communication Functions

33. Remote Input Puts Unit in PC Communication Mode

Enter ; 6 8 ; 0 0 0 : to delete all Relay Features added by Function 67. 4

Programming Functions (cont'd)

Ambush Function

1. Connect relay to a device able to properly monitor dry contacts for an Ambush condition.

2. Program the Relay for Ambush Tripped using Program Function 67(10) above.

3. Set the Ambush Code using Program Function 66.

4. When the Ambush Code is entered followed by a valid User Code, the relay will close for 2 seconds.

Notes: The Ambush Code defaults to 99. An error will sound if you try to program a new User Code starting with the Ambush Code.

Scheduled Passage and Group

Use the functions below to enable Passage Mode and enable/disable Groups at the time programmed.

•For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for

Friday, 7 for Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

SCHEDULES

74. Schedule Enable Group 1 ; 7 4 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

75. Schedule Enable Group 2 ; 7 5 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

76. Schedule Enable Group 3 ; 7 6 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

77. Schedule Enable Group 4 ; 7 7 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

78. Schedule Enable All Groups ; 7 8 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

79. Schedule Disable Group 1 ; 7 9 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

80. Schedule Disable Group 2 ; 8 0 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

81. Schedule Disable Group 3 ; 8 1 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

82. Schedule Disable Group 4 ; 8 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

83. Schedule Disable All Groups ; 8 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Clear All Schedule and Timeout Functions by entering Function 12.

To set the time, see Function 39.

NOTE:

72. Schedule Enable Passage

Mode ("Unlock")

; 7 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

73. Schedule Disable Passage

Mode ("Lock")

; 7 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Groups

ENTER KEY

•When this function is enabled, the User must press : after any valid User Code entry. Therefore,

this Function allows User Codes to be subsets of other User Codes.

Examples:

1 2 3 : can be a valid user code;

1 2 3 4 : can be a valid user code within the same lock.

1 2 3 4 5 6 : (Hold ;) for Master User Code to enter Program Mode.

Enter Key

71. Reserved

Passage

Mode

69. Enable : as Enter Key

70. Disable : as Enter Key

Programming Functions (cont'd)

; 6 9 :

; 7 0 :

QUICK SCHEDULES

84. Business Quick Schedule

7AM-5PM, Monday - Friday

(This Function enabled through keypad only)

; 8 4 ; [ _ ] :

(Group)

; 8 5 ; [ _ ] :

(Group)

85. Day Quick Schedule

7AM-5PM, All days

(This Function enabled through keypad only)

; 8 6 ; [ _ ] :

(Group)

86. Evening Quick Schedule

3PM-1AM, All days

(This Function enabled through keypad only)

; 8 7 ; [ _ ] :

(Group)

87. Night Quick Schedule

11PM-9AM, All days

(This Function enabled through keypad only)

88. Passage Mode

(Open Time Window)

(This Function enabled through keypad only)

; 8 8 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Functions 88 and 89 allow you to set up a window of time where if any Group 1 User Code is entered within this window,

Passage Mode will be activated, allowing anyone to enter. Note: This feature can only be programmed using the lock key-

pad. For additional information, see Group 1 Activated Features on page 30.

•For the day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday, 7 for

Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

•Enter time of day in 24 hour format (for example, for 2:15 PM, enter 14:15).

Note: Do not use this feature in "Residency" mode.

Scheduled Passage Mode (Group 1 Activated)

89. Passage Mode

(Close Time Window)

(This Function enabled through keypad only)

; 8 9 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

SCHEDULES GROUP 1 ACTIVATED

For your convenience, your lock comes pre-programmed with Quick Schedules, which, when programmed, enable Groups for

popular blocks of time. Group members will be enabled during the blocks of time defined below, but will still need to enter their

User Codes into the keypad to unlock the lock.

•Group number must be 1-4; enter the number of the Group that is to be enabled for the time specified by the Quick

Schedules below.

Note: These Quick Schedules can only be programmed through the keypad (not through DL-Windows), and existing Quick

Schedules will be over-written by schedules downloaded from DL-Windows. Therefore, after downloading any DL-Windows

schedules, be sure to re-program your Quick Schedules into your Lock Program.

Quick Schedules - Enable Group

Programming Functions (cont'd)

To Disarm a Burglary Control Panel

90. Relay Activation

(Open Time Window)

; 9 0 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Functions 90 and 91 allow you to set up a window of time where if any Group 1 User Code is entered within this window,

the relay will be activated for 2 seconds. This relay is for use with a Control Panel that has a key switch disarm option. For

additional information, see Group 1 Activated Features on page 30.

•Also program Relay Function 6 using Function 67 (; 6 7 ; 6 :).

•For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday, 7 for Saturday,

8 for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

•Enter time of day in 24 hour format (for example, for 2:15 PM, enter 14:15).

Scheduled Relay Activation (Group 1 Activated)

; 9 1 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

91. Relay Activation

(Close Time Window)

SCHEDULES GROUP 1 ACTIVATED

NOTES

1. Group 1 Disarms a Burglary Control

Panel will always disarm an alarm

system. Arming should be performed

by other means (such as Alarm Panel

Keypad/Schedule).

2. Use a qualified electrical/alarm

specialist to review your current alarm

system and add additional components

as needed (such as a relay, wire,

resistors, connectors and/or diodes) and

re-program the operation of your alarm

system as needed.

Programming Functions (cont'd)

Alarm Panel with Switched Input for Toggled Arm/Disarm

Alarm Panel with Switched Input for Disarming

Relay

Output

Switch

Input Burglary

Control

Panel

Relay

Output

Switch

Input Burglary

Control

Panel

External

Relay

Armed

Lug Power

; 9 9 ; 0 0 0 :

99. Clear All Lock Programming

(This Function enabled through keypad only)

Clears all programming, and returns lock to factory default settings. Audit Trail contents

are maintained. M

CLEAR ALL PROGRAMMING

94 - 98. Reserved

92. Enable Group 4

(Open Time Window)

(This Function enabled through keypad only)

; 9 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Functions 92 and 93 allow you to set up a window of time where if any Group 1 User Code is entered within this window,

Group 4 members will be enabled. (Group 4 members will still need to enter their User Codes to enter). For additional

information, see Group 1 Activated Features on page 30.

•For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday, 7 for Saturday, 8

for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

•Enter time of day in 24 hour format (for example, for 2:15 PM, enter 14:15).

Scheduled Group 4 Enable (Group 1 Activated)

93. Enable Group 4

(Close Time Window)

(This Function enabled through keypad only)

; 9 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Programming Functions (cont'd)

Groups and Scheduled Group 1 Examples

The following examples detail the more advanced features of the PDL series locks. Although all features and device functions can be programmed

using the lock keypad, when programming becomes more complex you may find it easier to use DL-Windows software to program your Alarm Lock

security lock. For more information, contact your Alarm Lock security professional.

Assign a User to Two Groups

Create a User 101 (all Users 101-150 are members of Group 2 by default) and include User 101 in Group 3 (as well as the default Group 2).

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 101 with a User Code of "789":

Press ; 2 ; 1 0 1 ; 7 8 9 :.

3. Using Function 35, make User 101 a member of Group 2 and 3:

Press ; 3 5 ; 1 0 1 ; 2 3 :.

4. Exit Program Mode.

Note: See step 3 above--although User 101 is by default a member of Group 2, you must include Group 2 when using Function 35 or the

Group 2 association will be removed.

The example to add Users to Group 2 and Group 3 has been selected due to the fact that Group 1 Activated Functions require that a member

of Group 1 enter their User Code to activate the Function, and it may become necessary to assign Users to Groups.

Group 1 Activated Features: Functions 88/89, 90/91 and 92/93

•Function 88 and 89 allow for a window of time to be created where if any Group 1 User Code is entered within the programmed window,

Passage Mode will be activated (the device physically unlocks, allowing passage for all). If a Group 1 User does not enter their User Code

during the specified window, Functions 88/89 remain inactive.

•Function 90 and 91 allow for a window of time to be created where if any Group 1 User Code is entered within the programmed window, an

internal Relay will be activated for 2 seconds. This Relay can be used with a burglar alarm control panel that has a key switch disarm option.

See To Disarm a Burglary Control Panel on page 28. If a Group 1 User does not enter their User Code during the specified window, Func-

tions 90/91 remain inactive.

•Function 92 and 93 allow for a window of time to be created where if any Group 1 User Code is entered within the programmed window, the

User Codes in Group 4 will be enabled. If a Group 1 User does not enter their User Code during the specified window, Functions 92/93 re-

main inactive. Companies typically use this feature to allow Group 1 Managers the ability to enable all Group 4 staff members during a cer-

tain window of time.

The following examples illustrate how Functions 88-93 (see pages 27-29) can be programmed into your PDL Series lock via the keypad:

Functions 88/89: Use Function 88 to set an Open Time Window (during which the Group 1 User must enter their User Code), and then use

Function 89 to set the time to close the Window. Re-lock the door at night manually (Function 46).

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 4 with a User Code of "456789":

Press ; 2 ; 4 ; 4 5 6 7 8 9 :.

3. Because User 4 does not have a default Group association, make User 4 a member of Group 1 using Function 35:

Press ; 3 5 ; 4 ; 1 :.

4. Use Function 88 and Function 89 (see page 27) to designate Passage Mode as being between the hours of 8:30 A.M. and 10 A.M. for all

days of the week:

Function 88 (Open Window Time) = 8:30 A.M.: Press ; 8 8 ; 0 ; 0 8 3 0 :

Function 89 (Close Window Time) = 10:00 A.M.: Press ; 8 9 ; 0 ; 1 0 0 0 :

5. Exit Program Mode (hold down any key for 3 seconds).

The lock will now be put in Passage Mode (device physically unlocked) if User 4 (or any Group 1 member) enters their User Code between

8:30 A.M. and 10 A.M. If a Group 1 User does not enter their User Code during the specified window, Functions 88/89 remain inactive

•The device will have to be manually locked each night by entering the following command using Function 46:

; 4 6 :

•The device can also be programmed to automatically lock (disable Passage Mode) each night at 5 P.M. by using Function 73:

; 7 3 ; 0 ; 1 7 0 0 :

•Remember to exit Function Mode when programming is complete.

Groups and Scheduled Group 1 Examples (cont'd.)

Functions 90/91: Use Function 90 and 91 (see page 28) to create a window of time where if any Group 1 User Code is entered within the

programmed window, a Relay will be activated for 2 seconds. The Relay can be configured to disarm a burglary control panel. See page 28.

1. Enter Program Mode (if not in already).

2. Connect Relay to a burglar control panel with switch input for disarming.

3. Using Function 2, create User 4 with a User Code of "456789":

Press ; 2 ; 4 ; 4 5 6 7 8 9 :.

4. Because User 4 does not have a default Group association, make User 4 a member of Group 1 using Function 35:

Press ; 3 5 ; 4 ; 1 :.

5. Use Function 90 to set the time to open the window (8:30 A.M. all days of the week) allowing any Group 1 member to close the Relay for 2

seconds. Note: Only 1 Relay closure will occur even if another member of Group 1 enters their User Code. Use Function 91 to set the

time to close the window (10 A.M. for all days of the week):

Function 90 (Open Window Time) = 8:30 A.M.: Press ; 9 0 ; 0 ; 0 8 3 0 :

Function 91 (Close Window Time) = 10:00 A.M.: Press ; 9 1 ; 0 ; 1 0 0 0 :

6. Exit Program Mode (hold down any key for 3 seconds).

The Relay will close, one time only, when a member of Group 1 enters their User Code between 8:30AM and 10:00AM. If a Group 1 User

does not enter their User Code during the specified window, Functions 90/91 remain inactive

•The alarm panel will have to be armed at night by the User or by an automatic schedule function of the alarm panel.

Functions 92/93: Use Function 92 and 93 (see page 29) to create a window of time where if any Group 1 User Code is entered within the

programmed window, Group 4 Users will be enabled.

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 4 with a User Code of "456789":

Press ; 2 ; 4 ; 4 5 6 7 8 9 :.

3. Because User 4 does not have a default Group association, make User 4 a member of Group 1 using Function 35:

Press ; 3 5 ; 4 ; 1 :.

4. Using Function 17, disable Group 4. (Group 4 will need to be "disabled" before it can be "enabled" later).

Press ; 1 7 :.

5. Use Function 92 to set the time to open the window (8:30 A.M. all days of the week) allowing any Group 1 member to enable Group 4. Use

Function 93 to set the time to close the window (10:00 A.M. all days of the week).

Function 92 (Open Window Time) = 8:30 A.M.: Press ; 9 2 ; 0 ; 0 8 3 0 :

Function 93 (Close Window Time) = 10:00 A.M.: Press ; 9 3 ; 0 ; 1 0 0 0 :

6. Exit Program Mode (hold down any key for 3 seconds).

The lock will now enable Group 4 User Codes if User 4 (or any Group 1 member) enters their User Code between 8:30 A.M. and 10 A.M.

If no Group 1 member arrives to enter their User Code between 8:30 A.M. and 10 A.M., Group 4 User Codes will not be enabled and will

remain disabled all day.

•The device will have to be manually locked each night by entering the following command using Function 82:

; 4 6 :

•The device can also be programmed to automatically disable Group 4 members each night at 5 P.M. by using Function 82:

; 8 2 ; 0 ; 1 7 0 0 :

•Test the device by creating User 222 (with User Code 466466) and adding User 222 to Group 4:

; 2 ; 2 2 2 ; 4 6 6 4 6 6 :

; 3 5 ; 2 2 2 ; 4 :

•Remember to exit Function Mode when programming is complete.

Function

Number(s)

Function Name Programming

43/44 Clock Adjust

52/53/54 Pass Time (3 sec)  10 sec  15 sec 

60 Set Lockout Attempts

61 Set Lockout Time

64/65 Remote Input Momentary (Enable)  Disable 

66 Ambush Code

67 Add Relay/System Features

69/70 Enter Key Enable  (Disable) 

+/- 0-55

(0) (0) Seconds

1-9 Attempts

(6)

1-60 seconds

(1) (8)

Default Values are shown in parentheses.

00-99

(9) (9) Ambush Code

Check all that apply

1. Remote Input switch closed and Function 65 Remote Input

enabled



2. Remote Input switch closed and Function 64 Remote Input

disabled



3. Failed attempted entry 

4. Disabled User or Group 

5. Follow Access Granted 

6. Group 1 User Code 

7. Scheduled Lock Event 

8. Scheduled Unlock Event 

9. Lock Out 

10. Ambush 

11. First Key Press 

25. Disable Sounder 

26. 5 sec. Delayed Entry 

27. 15 sec. Delayed Entry 

28. 45 sec. Delayed Entry 

29. Toggle Passage Mode 

30. Forced Unlock Follows Remote Input 

31. Follow Access Granted--No Time Limit 

32. Remote Input Disables Unit 

33. Remote Input Puts Unit in PC Communication Mode 

24. One Time Access for Group 3 Users 

User Number

(1-2000)

User Code

(3-6 digits)

User Name

1 2 3 4

Group

Association

For a complete list of user codes, obtain a printout from either the remote printer

(Program Function 56) or using the DL-WINDOWS Software.

Note:

Day(s)

Function Number

Up to 500 scheduled functions can be programmed (Up to

only 150 using AL-DTM2). For Day Enter :

1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday

5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through

Friday, 9 = Saturday and Sunday, 0 = All days of the week

Enter time of day in 24-hour format (00:00- 23:59)

Time

Function Name

ACCESS = Entry into a restricted area.

AMBUSH = A special Code entered at the keypad when the User is

forced to unlock a device. The device unlocks but sends a silent

alarm with no indication at the keypad. Can be used to trip a

relay, to alert security, or trip a silent alarm on a Burglary Control

Panel.

AUDIT TRAIL = A date/time stamped log of previous lock events.

BURGLARY CONTROL PANEL = Provides local alarm and remote

communication to request security for burglary/break-in. An

ETPDL relay output used for Ambush can provide a silent alarm

and call-for-help.

CLOCK

•REAL TIME CLOCK = An accurate built-in clock that allows

date/time stamping of events. The clock can be slowed or

speeded up to fine tune long term accuracy to within three

minutes per year.

•CLOCK SETTINGS = Printout includes date, time, weekday,

and clock speed.

•CLOCK SPEED = The clock can be adjusted to allow faster/

slower speeds and therefore increasing clock accuracy.

CODE = Numeric sequence of numbers (such as: 1234) entered at

the keypad. If Star-Enter-Key is required, must be followed by a

[:] key.

•AMBUSH CODE = See Ambush.

•BASIC USER CODE = User Codes assigned to User Num-

bers 12+ (except Users 297-300). (Does not allow

programming)

•INSTALLER CODE = User Codes assigned to User Numbers

2 and 3. (Allows all programming except Master functions).

•INVALID CODE = A User Code that has not been

programmed in the lock.

•MANAGER CODE = User Codes assigned to User Numbers 4

through 6. (Allows most of the programming functions).

•MASTER CODE = User Code assigned to User Number 1.

Default (factory) Master Code is 123456. The User with the

Master Code has complete control of the lock.

•PRINT ONLY USER CODE = User Code assigned to Users

10 and 11. (Allows no programming except print functions).

•QUICK ENABLE USER 300 CODE = Refers to the User Code

entered by User 297 which (when entered at the keypad)

enables the User Code assigned to User 300 for one time

only.

•QUICK PC ACCESS CODE = Permits upload/download to

DL-Windows Software on IBM/compatible computer running

Microsoft Windows 95, 98, or NT 4.0. Refers to the User

Code for User 298.

•SERVICE CODE = User 300 User Code. Allows only one

entry, then needs to be re-enabled by the User 297 User

Code to regain access.

•SUPERVISOR CODE = User Codes assigned to Users 7, 8

and 9. Can only program day-to-day operation.

•USER CODE = Code used by Users. Code is 3 to 6 numeric

digits long, allowing controlled entry.

•VALID CODE = An entered User Code that has been

programmed in the device.

COM PORT = A computer serial communications port used to

communicate with the Lock and/or Data Transfer Module.

DATA TRANSFER MODULE = A device that permits transfer of

program/data between a computer and the lock.

DATE = Month, Day and Year entered as MMDDYY.

DAY OF WEEK = Sunday through Saturday (where 1 = Sunday and

7 = Saturday).

DEFAULT = Default settings are the original settings that were set

at the factory; in other words, it is the lock's original factory con-

dition when the lock was first taken out of its box. The default

settings are permanently encoded within the lock's fixed mem-

ory, and when the lock is first started, or when power is removed

and re-applied (see Wiring and Power-Up, page 11), the original

factory default settings are re-loaded and take effect.

DISABLE = Turn off.

DOOR NUMBER = Identification of each door with a specific

number (1-96). (Used with AL-DTM2 Transfer Module)

DOWNLOAD = Send data to lock or AL-DTM.

ENABLE = Turn on.

EVENTS = Recorded lock activity.

FUNCTION (also called Programming Functions) = are the

numbers used to program lock features (enabling/disabling

Users, User Groups, Passage Mode, Schedules, etc.).

GROUP

•USER GROUP = Defining a User to specific Groups, allows

User entry when the Group is allowed entry.

•GROUP 1 DISARMS BURGLAR CONTROL = A Group 1

USER CODE entry can disarm an alarm panel during a

predefined schedule. Should the Group 1 enter the lock

outside of the scheduled time, the alarm will not disarm. The

alarm panel must be armed through other means (such as

an Alarm Panel Keypad). The Burglary Alarm Panel must be

programmed to disarm from an Armed State Only and the

zone input must be programmed for input disarming.

•GROUP 1 ENABLES GROUP 4 USERS = A Group 1 USER

CODE entry during a predefined schedule will allow access

to Group 4 Users.

•GROUP 1 PUTS UNIT IN PASSAGE = A Group 1 USER

CODE entry during a pre-defined schedule will unlock unit.

INSTALLER = See.... CODE, INSTALLER CODE.

KEYPAD = 10-numeric keys, : and special ; key.

•KEYPAD LOCKOUT = Keypad is programmed to lockout Us-

ers, for a specified period of time, when a specified number

of invalid User Codes are entered.

•KEYPAD PROGRAMMING = Ability to program the lock

through the keypad.

KEYPRESS = Pressing a button on the Lock’s Keypad.

LEVEL ABILITY = Predefined User Types (such as Master,

Installer, Manager, Supervisor, and Print Only User) have

specific abilities to program and/or control the lock.

LOCKOUT ATTEMPTS = A specified number of invalid User Code

entries (1-9), that will disable the keypad for a predefined period

of time (1-60 seconds).

LOCKOUT TIME = A predefined time (1-60) seconds that the lock

will stop accepting User Codes, after a specified number of

invalid User Code entries (1-9).

LOG = See... AUDIT TRAIL.

MANAGER = See... CODE, MANAGER CODE.

MASTER = See... CODE, MASTER CODE.

PASSAGE = Allow anyone to pass through the door without USER

CODES (door is unlocked).

PRINTER = A printout device such as an infrared printer or

computer printer.

Glossary

PROGRAM MODE = A mode allowing program/data to be entered

through the keypad. Only specific Users can program a lock

manually, by entering their USER CODE, followed by the [;]

key. To exit program mode, hold any key until repeated beeps are

heard.

PROGRAMMABLE RELAY FUNCTIONS = The relay can be

programmed for one or more functions.

RELAY = Switched output allowing remote control of other devices.

For an explanation of all relay features, see Function 67 on page

25.

REMOTE INPUT = Entry into a restricted area, by pressing a button

connected to the REMOTE INPUT WIRES (White and White) by

someone on the other side of the door.

SCHEDULE = A programmed operation (enable/disable, lock/unlock,

etc.) on a specific day (Sunday through Saturday) and time.

SCHEDULES, QUICK = Any one of four most common types of

schedules can be programmed.

TIME = Hours and Minutes in the HHMM format.

TIME/DATE STAMP = A recorded date and time that an event

occurred.

TIMEOUT = Immediate operation for a specified number of hours.

UPLOAD = Receive data from the lock or AL-DTM.

USER = A person who has been provided with a USER CODE for

access through the door.

USER LOCKOUT, TOTAL = All Users (except for Master Code) have

been locked out.

Glossary (cont'd)

ALARM LOCK LIMITED WARRANTY

ALARM LOCK SYSTEMS, INC. (ALARM LOCK) warrants its products to be free from manufacturing defects in materials and workmanship for 24

months following the date of manufacture. ALARM LOCK will, within said period, at its option, repair or replace any product failing to operate

correctly without charge to the original purchaser or user.

This warranty shall not apply to any equipment, or any part thereof, which has been repaired by others, improperly installed, improperly used,

abused, altered, damaged, subjected to acts of God, or on which any serial numbers have been altered, defaced or removed. Seller will not be

responsible for any dismantling or reinstallation charges.

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. THERE IS

NO EXPRESS OR IMPLIED WARRANTY OF MERCHANTABILITY OR A WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

ADDITIONALLY, THIS WARRANTY IS IN LIEU OF ALL OTHER OBLIGATIONS OR LIABILITIES ON THE PART OF ALARM LOCK.

Any action for breach of warranty, including but not limited to any implied warranty of merchantability, must be brought within the six months

following the end of the warranty period. IN NO CASE SHALL ALARM LOCK BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR

INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, EVEN IF THE LOSS OR DAMAGE IS

CAUSED BY THE SELLER'S OWN NEGLIGENCE OR FAULT.

In case of defect, contact the security professional who installed and maintains your security system. In order to exercise the warranty, the product

must be returned by the security professional, shipping costs prepaid and insured to ALARM LOCK. After repair or replacement, ALARM LOCK

assumes the cost of returning products under warranty. ALARM LOCK shall have no obligation under this warranty, or otherwise, if the product has

been repaired by others, improperly installed, improperly used, abused, altered, damaged, subjected to accident, nuisance, flood, fire or acts of

God, or on which any serial numbers have been altered, defaced or removed. ALARM LOCK will not be responsible for any dismantling,

reassembly or reinstallation charges.

This warranty contains the entire warranty. It is the sole warranty and any prior agreements or representations, whether oral or written, are either

merged herein or are expressly canceled. ALARM LOCK neither assumes, nor authorizes any other person purporting to act on its behalf to

modify, to change, or to assume for it, any other warranty or liability concerning its products.

In no event shall ALARM LOCK be liable for an amount in excess of ALARM LOCK's original selling price of the product, for any loss or damage,

whether direct, indirect, incidental, consequential, or otherwise arising out of any failure of the product. Seller's warranty, as hereinabove set forth,

shall not be enlarged, diminished or affected by and no obligation or liability shall arise or grow out of Seller's rendering of technical advice or

service in connection with Buyer's order of the goods furnished hereunder.

ALARM LOCK RECOMMENDS THAT THE ENTIRE SYSTEM BE COMPLETELY TESTED WEEKLY.

Warning: Despite frequent testing, and due to, but not limited to, any or all of the following; criminal tampering, electrical or communications

disruption, it is possible for the system to fail to perform as expected. ALARM LOCK does not represent that the product/system may not be

compromised or circumvented; or that the product or system will prevent any personal injury or property loss by burglary, robbery, fire or otherwise;

nor that the product or system will in all cases provide adequate warning or protection. A properly installed and maintained alarm may only reduce

risk of burglary, robbery, fire or otherwise but it is not insurance or a guarantee that these events will not occur. CONSEQUENTLY, SELLER

SHALL HAVE NO LIABILITY FOR ANY PERSONAL INJURY, PROPERTY DAMAGE, OR OTHER LOSS BASED ON A CLAIM THE PRODUCT

FAILED TO GIVE WARNING. Therefore, the installer should in turn advise the consumer to take any and all precautions for his or her safety

including, but not limited to, fleeing the premises and allege police or fire department, in order to mitigate the possibilities of harm and/or damage.

ALARM LOCK is not an insurer of either the property or safety of the user's family or employees, and limits its liability for any loss or damage

including incidental or consequential damages to ALARM LOCK's original selling price of the product regardless of the cause of such loss or

damage.

Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of incidental or consequential

damages, or differentiate in their treatment of limitations of liability for ordinary or gross negligence, so the above limitations or exclusions may not

apply to you. This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Alarm Lock ETPDL_WI1671.05_PROG ETPDL Programming Instructions WI1671.05 PROG

Navigation menu

Versions of this User Manual:

Views

Navigation
