Trilogy Networx: Advanced wireless networking locks

Used with Continental CardAccess,

Trilogy Networx Wireless Prox Locks are a

Realtime Intelli-Edge™ Solution,

including power, door position contact

& request-to-exit button, all in a wireless

lock that communicates over any size

network eliminating door-to-door

operations

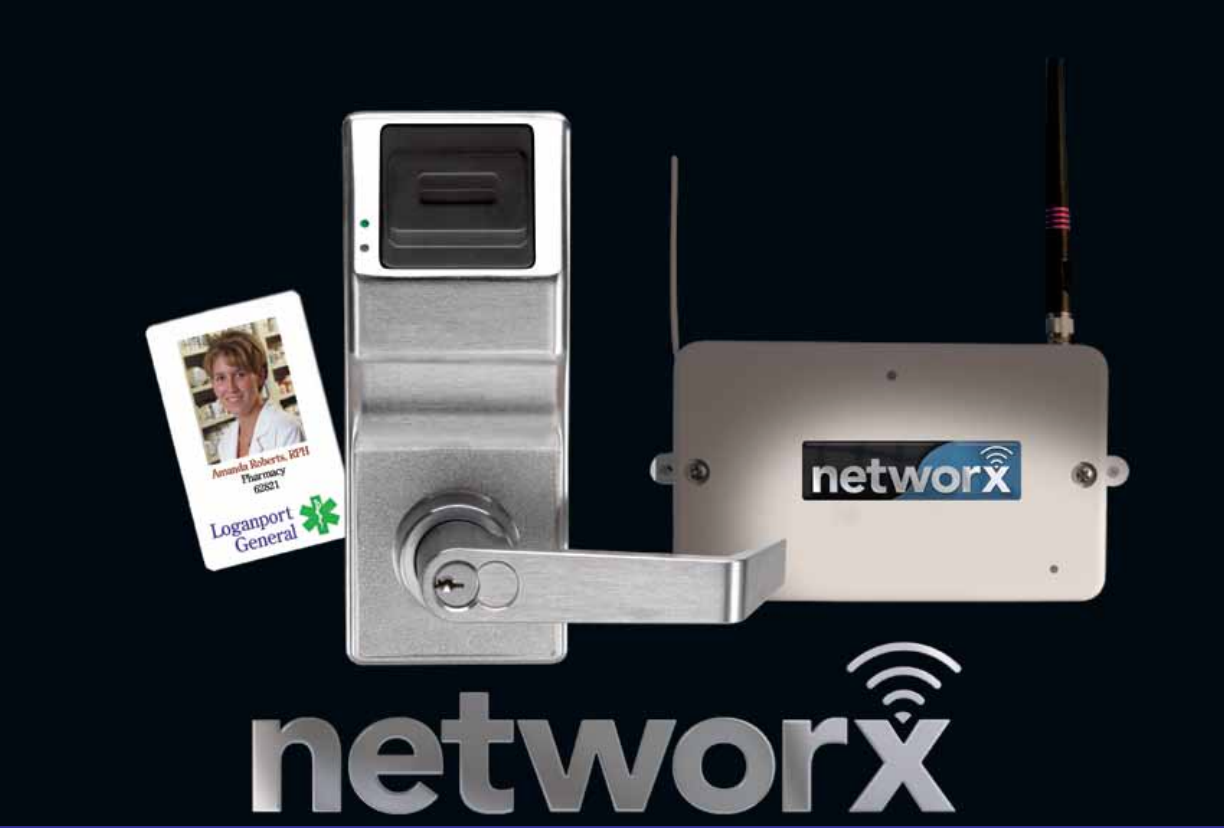

PL/PDL6200 Intelli-Edge with built in HID® Prox Reader

Trilogy® Networx™ Locks eliminate door-to-door programming

and audit trail retrieval by communicating wirelessly via Ethernet

or 802.11B/G, while providing all original Trilogy standalone lock’s

functionality. They provide quick, easy, economical door access with

advanced features & functions, like automatic schedules, event logs

and support for 2000 doors and 5000 existing Prox. HID® ID Cards/

Badges, but with no wires to run, and no extra power supplies to buy

or install. At its simplest, it’s one Grade 1 durable cylindrical wireless

battery-powered lock per door (prox-only or prox & keypad model),

installed in about an hour, communicating to a single Gateway (each

gateway controls up to 63 locks) simply networked to a PC. Or, for

realtime solutions, using Continental CardAccess 3000, the locks

also deliver Intelli-Edge door status (open, close or held) and forced-

door events. In addition to Wireless Trilogy Networx’ unsurpassed

battery-life, exceeding 5 years, the cylindrical and mortise (6600

Series) models have new network-wide capabilities, executed from

any lock or the network server, including emergency priority global

lockdown or unlock deployed in seconds, and you can activate

(non-priority) system-wide free-passage or locking modes globally

or locally.

Features:

• Trilogy Networx Locks communicate wirelessly via Ethernet or

802.11B/G for a comprehensive wireless networked door access

control system, eliminating door-to-door programming and audit trail

retrieval and providing all standalone Trilogy lock functionality plus

new network-wide global emergency lockdown/unlock commands

• Built in Power - Unsurpassed 5-year+ battery life, typical, using 4

C-cell batteries (supplied)**. (Automatic battery status reports at the

PC; visual and audible low-battery status indicators at lock(s).

• Trilogy Networx and gateway modules have an integral

transceiver for highly-efficient 900MHz bidirectional

communications, for longer range and less interference than with

more common 2.4GHz spread spectrum devices. Alarm Lock devices

require NO wiring; NO splitters or repeaters; NO hardwiring to the

host/server; NO extra power supplies.

• In seconds, activate emergency global lockdown/unlock from

any Networx lock or the server (with or without the PC online),

by any authorized user with global permissions (If desired, locks

may be selectively programmed to be excluded from emergency

global functions, i.e., they will ignore the lock/unlock command. )

• System-wide free-passage enable or disable, can likewise be

activated from the network

• Built in HID® Reader - Networx Locks support up to 5000 HID®

proximity ID cards, fobs, credentials (Ideal for access doors where

wiring a conventional HID reader is problematic.)

•Instantly, in real time, wirelessly change

users, schedules, lock features or retrieve

audit trails of up to 10,000 events/lock from

any networked PC.

• Realtime daily, weekly, monthly

unattended programming updates or

event log retrievals can be scheduled to

run automatically, saving manpower and

productive time.

• Secure 128bit AES PC encryption and

proprietary RF-link lock-to-Gateway

communication encryption protects the

system from interference or tampering (WEP

or WPA compatible with wireless modem).

• Remote System Management: Web interface

or VPN-connection /remote capability for

accessing the Networx System and controlling

up to all 2000 locks per account, with all the

security and peace-of-mind of your IT network.

• Minimizing hardware & installation costs,

a single gateway module can be placed

anywhere on any size network and

interface between the PC network and

up to 63 Networx locks. At its maximum, a

Trilogy Networx system can comprise up to

53 gateways for the networking of up to 2000

locks or access controlled doors per account.

• Networx Gateways’ wireless coverage

performance equals or surpasses that of

802.11, with each Gateway spanning up to

900’ clear field range or 50,000 square feet of

indoor coverage, typical***.

• Up to 53 wall- or ceiling-mountable,

compact gateway modules can be used

per account and are available in wireless/

hardwired and wired-only versions (with

Power Over Ethernet (POE) option). The

hybrid model connects using either 802.11 or

standard Ethernet cable; the wired versions

use an RJ-45 Ethernet cable. Networx

communications support both wired Ethernet

and wireless 802.11.

• For the fastest most reliable networked

system, in discovery setup mode, the

system will locate and CardAccess 3000

will display each lock’s signal strength at

each installed gateway, so you can select it

and optimize reliable communications and

eliminate guesswork.

• Lock programming, user- and usage-data

are also stored locally at the battery-powered

lock for uninterrupted door access usage in a

power outage or server offline situation.

Trilogy Networx 6200 Series Specifications:

Weatherproof locks for indoor/outdoor use with

wide operating temperature range (-31 to 151

degrees F). Industrial strength BHMA Grade 1

durability and vandal-resistant all-metal chasis

with built in HID prox reader. ADA-compliant

leversets. Easy-to-install modified ANSI A115

Series door prep; easily/neatly retrofit standard

cylindrical knobsets and mechanical standalone

locks, in under an hour. Non-handed. 3 hour

UL fire-rated deadlatch. Supports 1-5/8 to

1-7/8” door thickness; 2-3/4” backset (2-3/8”

available.) Manual key override standard; most

IC cores alos supported on interchangeable

core models. Wide choice of seven architectural

finishes and IC core preps (6-7 pin). 26D Satin

Chrome finish is standard.

Ordering Information for Networx Locks

with Intelli-Edge Functions & Accessories:

PL6200 (shown on side 1) Cylindrical Trilogy

Networx™ Wireless Access Control Lock with

built in HID proximity reader, Intelli-Edge

Door position feature and contact, integral

bi-directional radio, 4-C cell battery-operated

(batts. supplied), serial number ID card, standard

format SCI keyway for manual key override,

4-7/8” ASA Strike (incldd).

PL6100IC Model as above, but with

interchangeable core prep. (Core not supplied)

PDL6200 Similar to PL6100, but also including

full-metal digital keypad for digital code entry

(or HID prox); integral bi-directional radio, 4-C

cell battery-operated (batts. supplied), serial

number ID card, standard format SCI keyway for

manual key override, 4-7/8” ASA Strike (incldd).

PL6200IC Model as above, but with

interchangeable core prep. (Core not supplied)

PL6600 Mortise lock version of PL6200, specify

left or right handed; field-reversible. Classroom

function features stainless steel latchbolt, 3/4”

(1.91cm) projection and deadlocking latch. 1

3/8” (3.5cm) mortise cylinder supplied. Will

Accept 1 3/8” to 1 1/2” (3.5 – 3.82cm) mortise

Cylinder. Classroom function supplied with

straight Cam.

PDL6600 Mortise lock version, of PDL6200, with

Digital Keypad and built in HID prox reader.

Mechanical specifications see PL6600.

Networx Gateways:

AL-IM80211 Hardwire/Wireless Gateway

Interface Module, with integral bi-directional

radio, interfaces Networx locks with PC network

with hardwired Ethernet and wireless 802.11.

Powered with Class 2, 6VAC transformer

(supplied). Supports up to 63 Networx Locks.

Two antennas. Ceiling or wall mountable.

AL-IME Hardwire Gateway Interface Module,

supports up to 63 Networx Locks, similar to

above, but using hardwired connection to the

network via RJ45 Ethernet cable. One antenna.

Powered with Class 2, 6VAC transformer

(supplied). Ceiling or wall mountable.

AL-IMEPOE Hardwire Gateway Interface

Module + POE, supports up to 63 Networx

Locks, as above, but using hardwired Ethernet

and Power Over Ethernet (P.O.E.). Connects

directly to a network via Ethernet cable. One

antenna. Ceiling or wall mountable.

** Note: Battery life is directly proportionate to lock

activations: users, door usage, program updates

and audit trail downloads. Expected 5 year+ battery

consumption estimate assumes 2000 authorized users,

100 passes per day, 365 days per year; daily updates

changing one user and downloading 200 logged

events every day.

*** Note: Actual coverage is dependent upon building construction

and mounting location of Gateway.

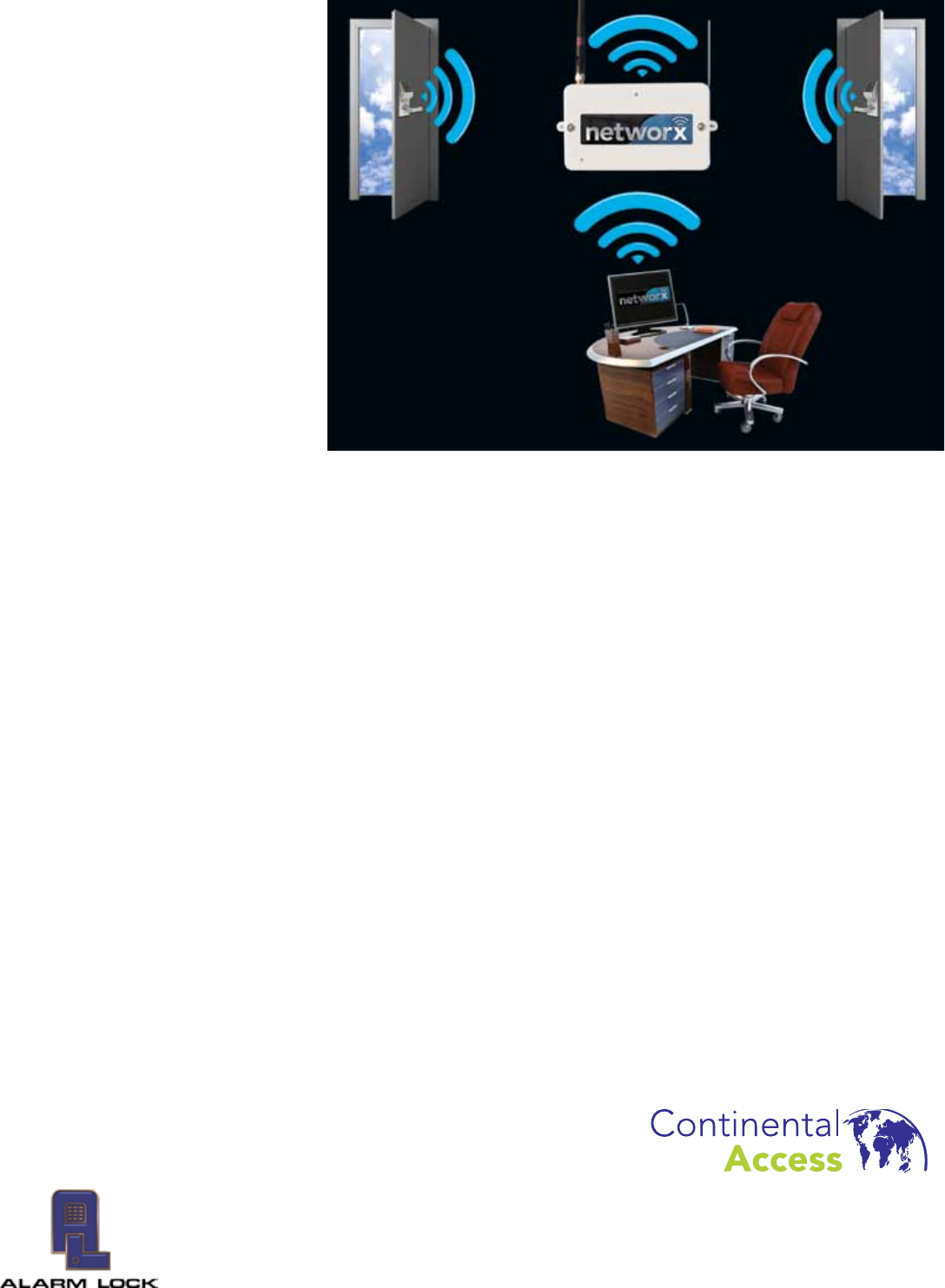

Up to 2000 locks and a computer

communicate wirelessly through

bidirectional Gateways – eliminating

the need for door-to-door

programming and audit trail

retrieval.

In seconds, global lockdown or

unlock can be implemented from

any Trilogy lock, even if the server/

computer is inaccessible or offline!

355 Bayview Ave, Amityville, New York 11701

CardAccess, Trilogy & Networx are trademarks of the Continental Access and

Alarm Lock Divisons of NAPCO Security Technologies. © Napco 2012.3

Call 631-842-9400
