Wireless Trilogy®

PDL8600 & ETPDNIRX

With Door Monitoring and 13.56MHz Smart Card Support

Programming Instructions

WI2126A 02/15

HID

HID CORPORATIO N

PROXIMITY

CARD

PDL8600 & ETPDNIRX

PROXIMITY KEYFOB

AL-IM SERIES

GATEWAY MODULE

AL-IM80211

AL-IME

AL-IMEPOE

DL-WINDOWS PROGRAMMING

SOFTWARE

345 Bayview Avenue

Amityville, New York 11701

For Sales and Repairs 1-800-ALA-LOCK

For Technical Service 1-800-645-9440

or visit us at http://tech.napcosecurity.com/

(Note: Technical Service is for security professionals only)

Publicly traded on NASDAQ Symbol: NSSC

© ALARM LOCK 2015

AL-IME-USB

2

Table of Contents

Lock Features ............................................................. 3

Supported Products .................................................. 4

Lock Design Overview .............................................. 5

Terminology Used in this Manual ............................ 6

Programming Levels ................................................. 8

Conventions Used in this Manual............................ 9

LED and Sounder Indicators .................................... 9

Emergency Commands .......................................... 10

Wireless Remote Releases ..................................... 12

Wiring and Power Up .............................................. 13

Quick Start ................................................................. 14

Testing the Codes Entered ..................................... 16

Programming Functions Overview ........................ 17

Programming Functions ................................... 18-31

Groups and Scheduled Group 1 Examples .... 32-33

Programming Record Sheet ................................... 34

User Code Record Sheet ......................................... 35

Schedule Record Sheet ..................................... 36-37

Glossary ............................................................... 38-39

Warranty .................................................................... 40

THE ALARM LOCK TRILOGY SERIES STAND-ALONE AND NETWORK PROGRAMMABLE ACCESS CONTROL SYSTEM

IS A SERIES OF STATE-OF-THE-ART WIRELESS AND KEYPAD-ENTRY PROGRAMMABLE SECURITY LOCKS.

PDL8600 & ETPDNIRX LOCKS

PDL8600

&

ETPDNIRX

PDL8600 & ETPDNIRX Features

The Trilogy Networx™ PDL8600 and ETPDNIRX series door locks are essentially the same as the 6600 se-

ries and ETPDLNRX series wireless door locks, but with a 13.56MHz proximity Smart Card reader.

In addition, these locks include the door monitoring features as described below.

 Entry Logged: A valid credential entered;

 Exit Logged: Inside (protected) lever turned;

 Door Ajar: A valid credential entered and the door opened but not closed within the programmed

time specified;

 Forced Door: Door opens without a valid credential entered or door opened without the inside lever

being turned.

For Door Ajar and Forced Door, the internal relay (where equipped) can be programmed to engage, and for

Door Ajar an Alert Sounder can be programmed to sound (Forced Door always sounds the Alert Sounder). In

addition, the PDL8600 and ETPDNIRX mortise locks are designed to allow all features to be programmed either

at the keypad or through its radio link to a DL-Windows equipped computer. For example, audit log data may be

transmitted through the radio link back to the DL-Windows computer.

These locks both feature a real-time clock/calendar that automatically adjusts for Daylight Saving Time and al-

lows for automated programming of events. Up to 5000 unique user codes can be added to the lock, from 3-6

digits in length.

The PDL8600 Series mortise-based lock provides additional hardware security compared with standard cylindri-

cal door locks; the ETPDNIRX Series is also a mortise-based lock, but is used for exit door push bar applica-

tions. Keypad programming is identical for both locks.

Wireless Network, DL-Windows and Keypad Programming

If your Networx wireless network is not yet set up, you can add Users and program other features using the

PDL8600 / ETPDNIRX keypad as a temporary convenience to allow the lock to be put into use before installing

the wireless network. Be aware that all programming added using the keypad cannot be retrieved into DL-

Windows, so if you decide to start programming using the lock keypad, we recommend you keep hardcopy rec-

ords (in a secure location) of all Users, User Codes, and any proximity cards that may have been programmed.

Keeping these hardcopy records will save time because after the wireless network is set up, all programming

added via the lock keypad can easily be re-added to DL-Windows and downloaded back to the lock(s).

These instructions include manual keypad programming. For DL-Windows user instructions, see the DL-

Windows User's Guide (OI382); for configuring your wireless system, see the DL-Windows for Networx User's

Guide (OI383).

Note: The word "credential", used throughout this manual, is a generic word used to describe a User Code, a proximity card, proximi-

ty keyfob (such as a ProxKey® keyfob), a hardwired Remote Input momentary contact, a Wireless Remote Release, or any future device or de-

sign that allows the lock to unlock, allowing passage through the door.

3

Trilogy® is a registered trademark of Alarm Lock. ProxCard® and ProxKey® are trademarks of the HID© Corporation.. Microsoft® and Windows® are trademarks of their the Microsoft Corporation.

Audit Trail

 40,000 Event Capacity

 Entries Logged with Time and Date

 Critical Programming Events Logged

 Uploadable using Alarm Lock's DL-Windows software (see page 4)

 Door position logging capability (see "Features" Screen in OI382)

Lock Features

 Metal Key Override for all cylindrical locks

 Keypad Lockout (see page 25, Functions 60-61)

 Non-Volatile (Fixed) Memory

 Real-Time Clock, adjustable accuracy to within one second (see page 23, Functions 43-44)

 Programmable Relay (see page 26, where equipped)

 Visual and Audible Keypad Feedback (see "LED and Sounder Indicators", page 9)

 Inside Emergency Indicator LED (see page 11)

 Battery Status Monitor (see "LED and Sounder Indicators", page 9)

 Door Status Monitoring (see page 26, Function 67, Options 12, 14, 40-42)

Scheduling

 500 Scheduled Events (see pages 28-30)

 Automated Unlock/Lock (see page 29 "Quick Schedules" and "Scheduled Passage Mode"

 Enable/Disable Users (see page 19, Function 3)

 Group Enable/Disable (see Functions 14-23 on page 20)

 Four "Quick Schedules" (contains 4 most common schedules) (see page 29)

 Real-time clock and calendar (see page 22)

 Programmable Timeout Functions (see pages 19-23)

User Access Methods

 Keypad Entered User Codes (see pages 14-15, 18)

 ProxCard® and ProxKey® Keyfob (see page 15)

 Both User Code and ProxCard® Required, for highest security (see page 15)

 Batch Enroll - Quickly and easily enroll multiple ProxCards® and ProxKey® keyfobs without

the use of a PC (see "Enroll Proximity Cards at the Lock" page 15). Note: ProxCards® and

ProxKey® Keyfobs both function identically. Keyfobs can be substituted for all references to

the ProxCard® in this manual.

User Features

 5000 Users (see pages 14-15, 18)

 6 Pre-defined Administration User Levels including Master, Installer, Manager, Supervisor and Basic User Codes (see page

8)

 User Code Lengths from 3-6 digits (see page 18)

 Service Code (see "User 300: One-Time Only Service Code" on page 7)

 User Lockout Mode (see page 19, Function 6)

 Users Assignable to 4 Groups (see Function 35 "Group Add/Delete Association" on page 21)

 Ambush Function (see page 25, Function 66)

 Guard Tour Code (see "User 299: Guard Tour Code" page 7)

 Global Lock-Down / Unlock in emergency; activated from Wireless Remote Release Transmitters, DL-Windows or initiated

from another Networx lock in the system (see "How do the Emergency Commands work?" on page 7)

Computer Programming

 Full Administrative programming from a PC using Alarm Lock's DL-Windows Software. For a description of all features, see

the DL-Windows User's Guide (OI382) and the DL-Windows for Networx User's Guide (OI383)

 Networked mode: PC running DL-Windows is connected to (wirelessly or wired) a network, either using an Ethernet or

802.11 connection. Communications are accomplished through networked Gateway module(s). See page 4 for supported

products.

 Non-networked mode: PC running DL-Windows does not require a network. Communications are

accomplished using an AL-IME-USB Gateway inserted into a USB port on your Windows laptop

or PC. Note: Only "Local" Emergency Commands are supported when using an AL-IME-USB Gate-

way. See page 4 for supported products.

Wireless programming range: Up to 200 feet, depending on building construction materials

Lock Features

HID

HID CORPORATION

4

Supported Products

Supported Products

Proximity Credentials

Works with most 13.56MHz proximity credentials (Smart Card Format). Note: The word "credential" is a

generic word used to indicate a proximity card or proximity keyfob (such as a ProxKey® keyfob).

DL-Windows Software Application

Alarm Lock Trilogy Microsoft Windows-based software application, v4.0 or higher, supports Trilogy Networx

and Trilogy stand alone locks, with single database (PDL8600 and ETPDNIRX series door locks require v5.2

or higher). For use with Free of charge and downloadable online at www.alarmlock.com. DL-Windows soft-

ware is the basis for the wireless lock programming interface. For those unfamiliar with using DL-

Windows software, stop here and review the DL-Windows User's Guide (OI382) and the DL-Windows for Net-

worx User's Guide (OI383).

AL-IM80211

AL-IME

AL-IMEPOE

AL-IMEPOEP

AL-IM SERIES WI-FI Gateway Module

The PDL8600 and ETPDNIRX series door locks contain a radio that transmits and receives data--via a private

wireless signal--to an intermediate device called a Gateway module. In turn, this Interface Module is connected

(either wirelessly or wired) to a computer network such as a LAN or corporate Intranet. A Windows PC

connected to this network can control and program all 8600 / ETPDNIRX series door locks by the use of the DL

-Windows software (see OI382 and OI383). With access rights to the software, one computer--or several--can

control the software and consequently can control the devices in the system. Several Gateway device models

are available:

 "Wireless / Wired" AL-IM80211 Hardwired / Wireless Gateway Interface Module. Supplied with its

own class 2 transformer to supply power and supports connection to a network either using 802.11 or a

standard Ethernet cable. This "Wireless / Wired" Gateway module has two antennas, one for the

proprietary radio connection to the PDL8600 and ETPDNIRX series door lock and the other for 802.11

network transmissions. Ensure adequate 802.11 coverage in the area where the "Wireless / Wired"

Gateway is mounted. Supports up to 63 Networx Locks. Ceiling- or wall-mountable.

 "Wired" AL-IME Hardwired Gateway Interface Module, supports up to 63 Networx Locks, connects

directly to a network using a standard RJ-45 Ethernet cable. This model has one antenna used to transmit

to the PDL8600 and ETPDNIRX series door lock via an Alarm Lock proprietary radio connection.. Ceiling-

or wall-mountable. Powered with Class 2, 6VAC transformer (supplied).

 "Power over Ethernet" AL-IMEPOE Hardwired Gateway Interface Module + POE (Power Over

Ethernet), supports up to 63 Networx Locks, connects directly to a network using a standard RJ-45

Ethernet cable and POE. This model has one antenna used to transmit to the PDL8600 and ETPDNIRX

series door lock via an Alarm Lock proprietary radio connection. Ceiling- or wall-mountable.

 Gateway "Plenum Rated POE" AL-IMEPOEP - Same as above "AL-IMEPOE", with added enclosure

protections and installation hardware for mounting above "drop-ceiling" tiles or other locations subject to air

pressure changes (HVAC air-filled spaces, etc.).

 AL-IME-USB - USB Portable Gateway Interface Module, virtually the same functionality of the Gateways listed

above, however this highly portable and compact module connects to a standard USB 2.0 socket or greater

in your Windows laptop or PC, quickly and effortlessly creating a wireless connection to your PDL8600 and

ETPDNIRX series door locks. Requires DL-Windows v5.2 or higher. Note: Only "Local" Emergency

Commands are supported when using an AL-IME-USB Gateway (see page 10 for more information).

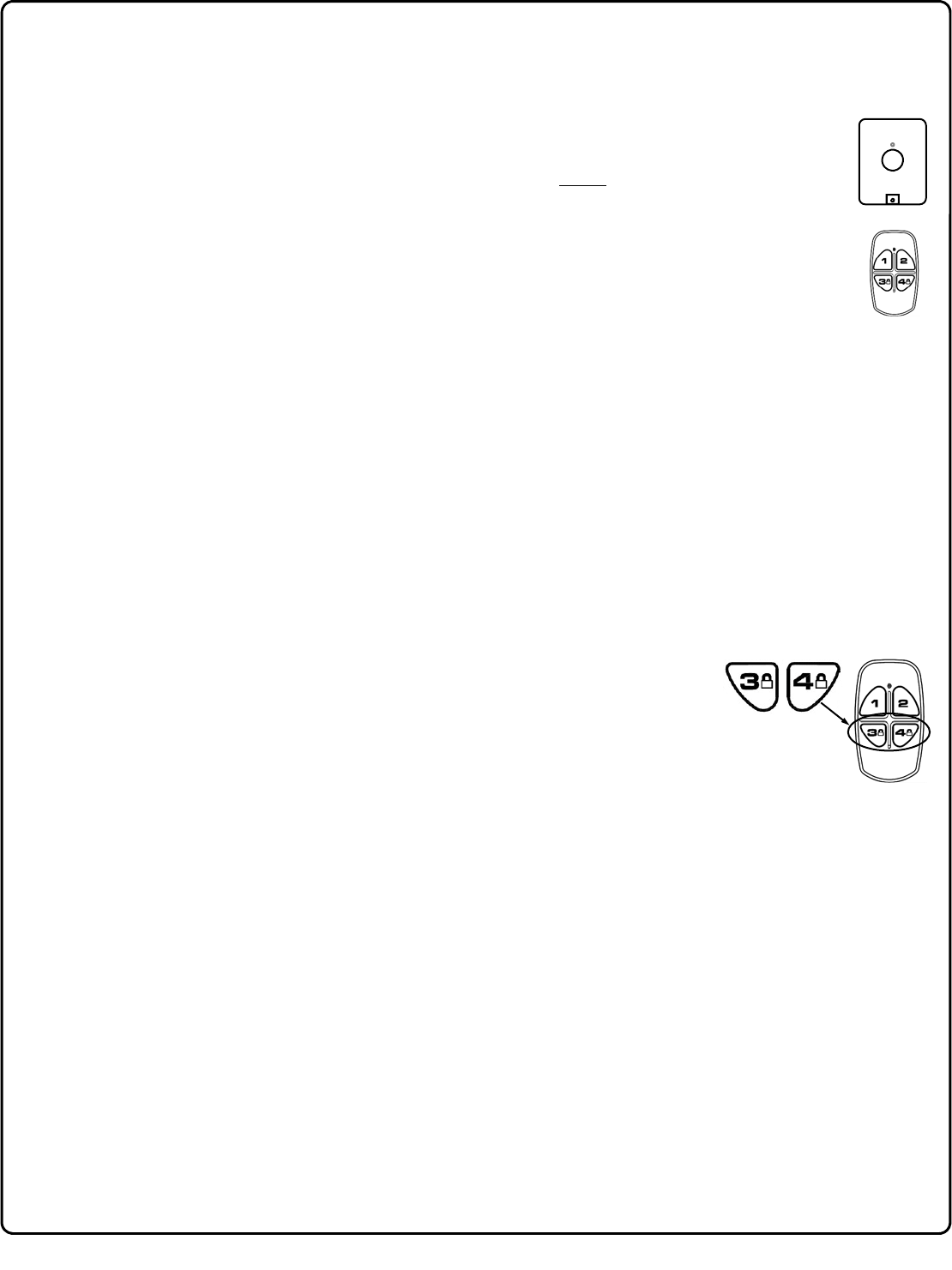

RR-4BKEYFOB RR-1BUTTON

RR-1BUTTON and RR-4BKEYFOB

The PDL8600 and ETPDNIRX series door locks are compatible with the RR-1BUTTON Wireless Remote

Release Button (see WI1999) and RR-4BKEYFOB Wireless Remote Release Keyfob (see WI2004). Both can

wirelessly unlock all PDL8600 and ETPDNIRX Networx™ series door locks. The RR-4BKEYFOB is a portable

pocket-size remote release, and the 1-button RR-1BUTTON is intended for fixed mounting at a hidden

location. Each requires one battery (service life of up to 12,000 openings). During normal operation, the lock

typically opens within 2 seconds of the button press.

AL-IME-USB

5

Lock Design Overview

Why use User Codes?

With ordinary door locks, the need to make physical copies of metal keys and distributing them can be a huge organizational and

financial task -- and what will you do if someone causes a security breach by accidentally losing their key?

The answer lies in the advantage of "firmware". The firmware inside the PDL8600 / ETPDNIRX can be programmed (and re-

programmed again and again) to suit your changing requirements. No more metal keys to distribute...instead, distribute User

Codes -- and delete them from the firmware when needed. A User Code is the firmware equivalent of a metal key--it is a series of

numeric button-presses at the PDL8600 / ETPDNIRX keypad to allow (for example) passage through a door.

Preparing to Program User Codes

The PDL8600 / ETPDNIRX keypad contains 12 buttons, numbers 1 through 9 plus zero, a star button (:) and a special "AL"

button (;). You can use the PDL8600 / ETPDNIRX keypad to program your system, or you can use a computer program

called DL-Windows that can be configured to program your system wirelessly. This guide will show you how to program your

PDL8600 / ETPDNIRX using the keypad, without DL-Windows. (For more information about DL-Windows, see User Guides

OI382; for information about using DL-Windows within the Networx wireless system, see OI383).

Before you can program your PDL8600 / ETPDNIRX using the keypad, you must first enter something called "Program Mode".

What is Program Mode?

The software has only two "modes"--"Normal Mode" and "Program Mode". When you want to make changes to the lock program,

you enter "Program Mode". When you finish programming and wish to put the lock into use, you exit "Program Mode" to enter

"Normal Mode".

You can enter Program Mode using the keypad by pressing the Master Code of the lock that was set at the factory (then wait for

the green light and press ; until multiple beeps are heard). The Master Code is basically a secret 6-digit "passcode" that al-

lows you to enter Program Mode. But since all locks are identical and leave the factory with the same Master Code, this factory

Master Code is therefore not very secret--and should be changed to your own personal Master Code. This way, only YOU can

enter Program Mode and make changes to the lock programming.

Once the new Master Code is set , then you can continue with the Quick Start procedure and set the weekday, date and time.

After this, you can start entering User Codes for people to use. All changes to the lock are organized by their Function Number.

Want to change the date? Use Function Number 38. Want to add a User Code? Use Function Number 2. There are 99 Func-

tions in total, some that you will use often, and others that you may never need.

Notice that when you program your lock, programming tends to follow a consistent 5-step pattern: (1) Enter Program Mode

(2) Press ; followed by the Function # (3) Press ; and enter data (4) Press : to end (5) Exit Program Mode to

put the lock into use.

Turn the page and learn about the special terminology used with your lock. Once that is clear, use the Quick Start proce-

dure on page 14 to help you get up and running.

Green LED

Red LED

Proximity Reader

Special "AL" (;) Key

"STAR" (:) Key

6

Terminology Used in this Manual

What is a Lock Program?

A Lock Program contains the instructions that the lock uses to per-

form its various functions. You can also use DL-Windows (defined

below) to create a Lock Program on your computer, and then trans-

fer and store the Program in the circuitry contained inside the lock

itself. The Lock Program is essentially a computer database file that

maintains feature settings, schedules, audit trails, etc. Using DL-

Windows, a Lock Program (called a "Lock Profile" in DL-Windows)

can be created with default information, edited on your PC, and then

sent to (and even received from) the lock.

The Lock Program consists of 4 areas: User Codes, Features,

Time Zones, and Schedules, all defined below:

What are User Codes?

Also called User Access Codes, passcodes, or PIN No. Codes,

User Codes are digits the User enters (presses) into the lock key-

pad to unlock the lock. The User Codes are part of the Lock Pro-

gram, and the Lock Program is stored in the lock circuitry awaiting

the Users to key in their User Codes.

What are Features?

Your lock is designed to support many options and functions. Using

the keypad or DL-Windows software, you can select the features

you wish to activate, such as if the lock will automatically adjust for

Daylight Saving Time in the spring and autumn, or if the lock sound-

er should be disabled or enabled.

What is a TimeZone?

Events (recorded lock activities) can be programmed to occur at

certain times. It is these times (for example, “every Tuesday at

5PM”) that are referred to as TimeZones. TimeZones can be creat-

ed manually through the keypad. In DL-Windows, you can use the

Schedule-TimeZone screen to create these TimeZones, and

once created, you can link events to these TimeZones.

What is a Schedule?

Your lock can be programmed to maintain a schedule in which cer-

tain events can occur automatically. For example, you can program

the lock to allow Groups of Users (with their User Codes) access

ONLY during specific business hours. With another example, you

can program another lock to UNLOCK at 9AM, LOCK at noon for

lunch, UNLOCK at 1PM, and LOCK again at 5PM--every weekday.

As you can see, many different combinations of Schedules can be

created to suit the needs of the Users. First you create TimeZones

(see above). Next you create events and link them to your Time-

Zones (also using the Schedule-TimeZone screen in DL-

Windows). When finished, you can view (in DL-Windows) your

schedule in the Schedule View screen.

What is a User?

A User is a person who is authorized to operate or make certain

programming changes to the lock. This User can be anyone--from

a one-time visitor (who will almost certainly have no authority to

make programming changes) to the owner of the building in which

the lock is installed (who may wish to have total authority to make

changes). The PDL8600 and ETPDNIRX locks can hold up to

5000 Users (each with their own User Code) in its programming

memory, and each User possesses a pre-defined level of authority--

a Programming Level--as to their ability to use or make changes to

the lock.

What is a Programming Level?

The Programming Level defines the range of programming tasks a

User is allowed to perform. The higher the Level, the more pro-

gramming tasks the User is allowed (with Master allowing ALL

tasks).

Note: Since the Programming Level is closely associated with

the type of User and their abilities, a User who holds a certain Pro-

gramming Level is sometimes referred to by their “User Type”.

For example, PDL8600 and ETPDNIRX locks can hold up to 5000

Users in its programming memory, and each User is associated with

a User Number (see definition of "User Number" below) and there-

fore a specific Programming Level, as follows:

Master: Always associated with User Number 1. Is always

enabled and can program all functions. (Abbreviated as

Programming Level = M).

Installer: Always associated with User Numbers 2 and 3.

Can program all functions except changing the Master Code.

(Abbreviated as Programming Level = 4).

Manager: Always associated with User Numbers 4, 5, and 6.

Can program all functions except functions relating to lock

configuration. (Abbreviated as Programming Level = 3).

Supervisor: Always associated with User Numbers 7, 8 and

9. Can only program functions relating to day to day operation.

(Abbreviated as Programming Level = 2).

Print Only Users: In previous versions of the ALARM LOCK

Trilogy series locks, Print Only Users were always associated

with User Numbers 10 & 11 and were restricted to printing

event logs only, using a special AL-IR1 handheld printer. With

the PDL8600 and ETPDNIRX locks no longer requiring (or

allowing) the use of this AL-IR1 printer, Print Only Users are

also no longer required. Although the attributes of User Num-

bers 10 and 11 have been changed to replicate those of "Basic

Users", to ensure compatibility with previous lock model ver-

sions we do not recommend the use of User Numbers 10 and

11.

Basic Users: Always associated with User Number 12 and

higher (except 297-300). No programming ability allowed.

Most Users are Basic Users, who are given their own personal

User Codes and are only allowed to simply unlock the lock

when desired.

Programming Levels are hierarchical--higher levels are allowed to

do anything the levels below them can do. For example, if you are a

Manager, you are allowed to do anything that Supervisors and Basic

Users can do in addition to those tasks allowed for Managers (Level

3).

What is the Minimum Required Program Level?

This Programming Level abbreviation is the minimum programming

level required to access the particular Function. (The higher the

level number, the more programming tasks the User is allowed, with

Master allowing all tasks).

In this manual, Programming Levels are abbreviated as follows: M

= Master, 4 = Installer, 3 = Manager, 2 = Supervisor.

All other Levels are hierarchical, with higher levels being allowed to

do anything the levels below them can do. Therefore Level 4 is

"higher" than level 3. See the chart on page 8.

What is a User Number?

(User Number = Location Number = User Location = Slot in Lock)

User Numbers are used and are significant within each individual

lock only. The User Number determines the Programming Level for

each User. For example, PDL8600 and ETPDNIRX locks can

hold up to 5000 Users in its programming memory. This memory

can be thought of as simply a numbered list from 1 through 5000.

Each entry in the list is represented by a User Number. Therefore,

7

where a User is located in this list--their User Location--is a com-

monly used description of their User Number. Because of their

similarities, a User Number, User Location and Location Number

can be used interchangeably. In some DL-Windows screens, the

word "Slot" is also used. They all mean the same thing.

Since User Numbers are fixed, knowing a User Number will specify

the associated Programming Level, and will in turn indicate a Us-

er’s programming abilities. For example, User Number 1 is always

the Master, who can perform all programming tasks.

Programming Levels are hierarchical--higher levels are allowed to

do anything the levels below them can do. For example, if you are

User 2, you are allowed to do anything that Users 3 through 11 can

do.

What is a Group?

With many lock applications, it is convenient for large numbers of

similar Users to be grouped together. Placing Users into Groups

(by assigning them specific User Numbers) allows large numbers of

Users to be controlled all at once rather than individually--saving

time and effort. Groups are controlled via schedules, and a typical

example involves enabling or disabling a Group at a certain time.

Default Group associations are specified in the table on page 8.

For example, if you wish to add a User to Group 1, assign this User

a User Number between 51 and 100. These default Group associ-

ations can be changed if needed to allow Groups larger than the

default number of 50 (by using keypad Function 35). (See page 20

for some Group function examples).

What is DL-Windows?

DL-Windows is a computer program that allows you to program

your ALARM LOCK Security Lock. You do not need DL-Windows

to program your lock, but it makes programming much faster and

easier. With DL-Windows, you can quickly create Lock Programs

(programs that make the lock perform its many functions) add multi-

ple Users (who have access), add proximity cards and keyfobs,

retrieve event logs, and create Schedules. The benefit of DL-

Windows is that it allows you to set up all lock programming in ad-

vance (on your computer), and then later send the information to

the locks at your convenience.

DL-Windows version 4.0.1 software (or later) allows you to upload

and download programming features wirelessly using the Trilogy

Networx™ series door locks and a computer network. See OI382

for more information.

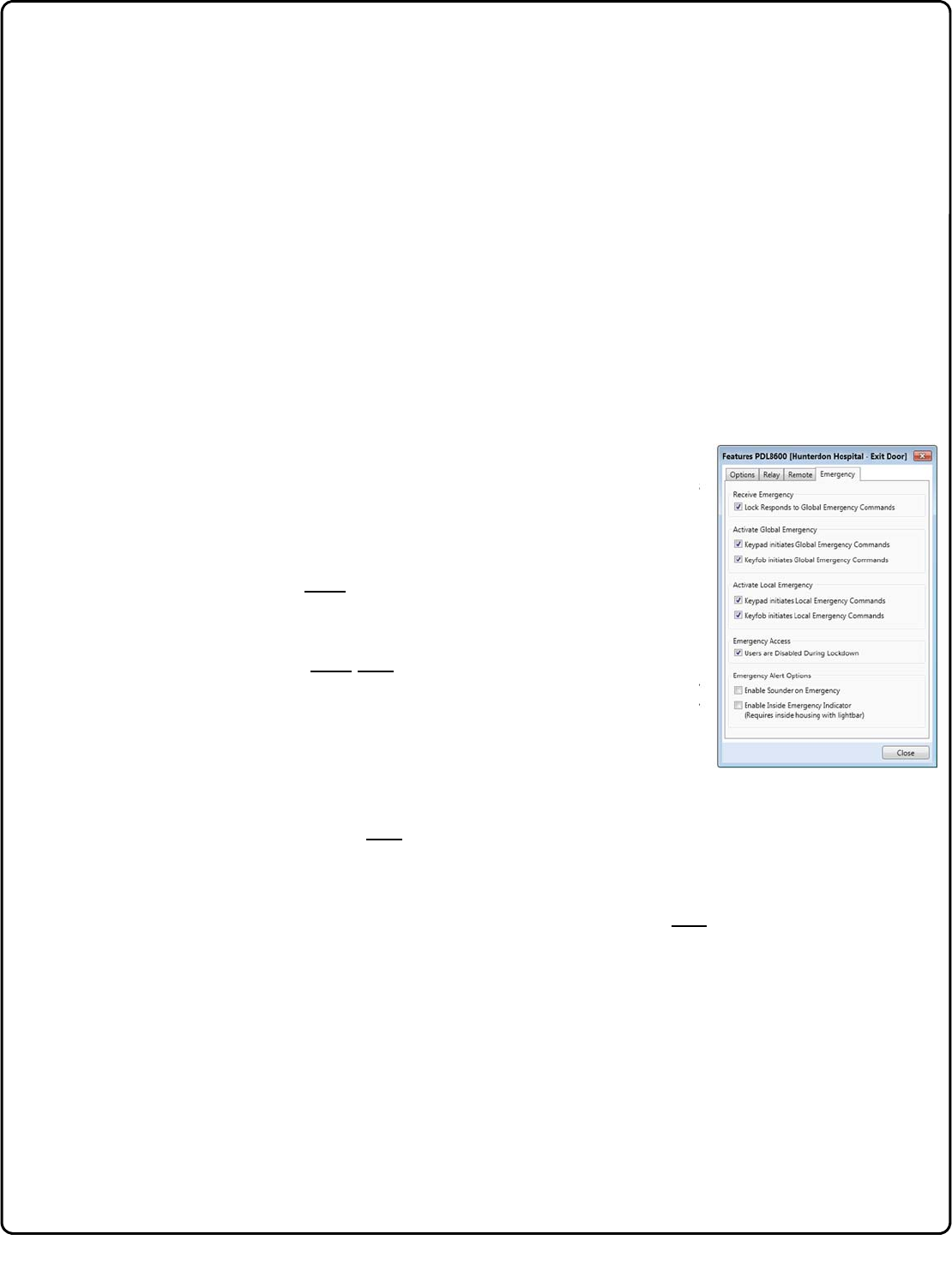

How do the Emergency Commands work?

For use with all PDL8600 and ETPDNIRX series locks enrolled

into the Trilogy Networx™ radio network, these wireless com-

mands can be sent to all locks in an Account during a crisis or

other urgent situation.

By default, Administrative Users (Users 1-11) can send an Emer-

gency command. In addition, any User Code can be programmed

to allow the use of these Emergency Commands by simply adding

that User Code to an "Emergency Users" list within DL-Windows.

When an enabled User Code is pressed at any lock keypad, first

the lock unlocks, then the lock permits the use of these emergen-

cy commands to be sent to all locks in the network, as follows:

 ...press 911 to issue "Emergency Lock Down", to

indefinitely lock all doors;

 ...press 000 to issue "Emergency Passage", to

indefinitely unlock all doors;

 ...press 123 to issue "Return to Normal" returning

all doors to "normal" (non-emergency) operation.

In addition, emergency commands may be sent via an RR-

4BKEYFOB. Note: 3 chirps sound after each emergency com-

mand entry. See page 10 and the DL-Windows User Guide

OI383, "Emergency Commands" for more information. Note: DL-

Windows does not need to be running to allow these "Emergency"

commands to be initiated; any PDL8600 or ETPDNIRX series

lock keypad can be used to disseminate these commands

throughout the system.

Who are Users 297-300?

Users assigned to User Numbers 297, 298, 299 and 300 have spe-

cial abilities, as follows:

User 297: Quick Enable User 300

User 297 possesses the unique ability to enable the User Code

associated with User 300. User 297 does this by first entering

their own User 297 User Code into the lock keypad. When

User 300 subsequently enters their User 300 User Code, the

lock allows access (for one time) and then the User 300 User

Code becomes disabled.

For example, you wish to allow one-time access to a temporary

worker. Simply enter the User 297 User Code into the lock

keypad. Later, when the temporary worker enters the User 300

User Code into the lock keypad, the User 300 User Code allows

access (for one time only) and then becomes disabled. Later, if

you wish to grant the temporary worker re-access, simply re-

enter the User 297 User Code and the User 300 User Code will

be re-enabled (again for one time only). Note: From the facto-

ry, the User 300 User Code is blank; when the User 300 User

Code is added, it is automatically enabled by default. In addi-

tion, each time Features or Users are uploaded to the lock, the

User 300 User Code is re-enabled in ALL the locks in the Ac-

count.

User 298: Reserved

In previous versions of the ALARM LOCK Trilogy series locks,

User Number 298 initiated the sending of data to or from the

lock, and a special "AL-PCI" cable was used to physically con-

nect the lock to a PC running DL-Windows. With the PDL8600

and ETPDNIRX locks no longer requiring a wired connection,

User Number 298 is also no longer required and has been re-

moved as an active code. Note that the User 298 code does

provide a "Guard Tour" type function (logging the code entry

with a time and date stamp in the Event Log / Audit Trail), but to

ensure compatibility with previous lock model versions, the use

of User 298 is not recommended. Note: User 298 is not an

access code (it is a "non-pass" code) and therefore does not

allow passage through the door. See "User 299: Guard Tour

Code" below.

User 299: Guard Tour Code

A Guard Tour Code is used to log the movement of a security

guard as he or she makes rounds from one assigned guard tour

station to the next. Entering the User 299 code provides pre-

cise verification and accountability of a guard's movement by

logging the location with a time and date stamp in the Event Log

(Audit Trail).

Note: User 299 is not an access code (it is a "non-pass"

code) and therefore does not allow the security guard to pass

through the door.

User 300: One-Time Only Service Code

This is a One-Time Only Service User Code enabled by User

297. For example, User Code 300 is sometimes used for guard

tour duties. See User 297: Quick Enable User 300 above.

Terminology Used in this Manual (cont'd)

8

Lock Defaults for PDL8600 and ETPDNIRX Locks

Users added will default to a Group Association and a Programming Level ability as follows:

USER TYPE USER NUMBER GROUP DEFAULT

ASSOCIATION

MINIMUM PROGRAM

LEVEL (See page 6)

Master Code 1 - M

Installer Codes 2 & 3 none 4

Manager Codes 4 - 6 none 3

Supervisor Codes 7 - 9 none 2

(Reserved--see above) 10 - 11 none --

Basic User Codes 12 - 50 none none

Basic User Codes Group 1 51 - 100 1 none

Basic User Codes Group 2 101 - 150 2 none

Basic User Codes Group 3 151 - 200 3 none

Basic User Codes Group 4 201 - 250 4 none

Basic User Codes 251 - 296 none none

Quick Enable User 300 Code 297 none none

(Reserved--see page 7) 298 none none

Guard Tour Code* 299 none none

Service Code 300 none none

Basic User Codes 301-5000 none none

*This code is a Non-Pass code and therefore does not allow passage through the door.

The Programming Level defines the range of programming

tasks a User is allowed to perform. The higher the Level, the

more programming tasks the User is allowed (with Master

allowing ALL tasks).

Note: Since the Programming Level is closely associated

with the type of User and their abilities, a User who holds a

certain Programming Level is sometimes referred to by their

“User Type”.

For example, PDL8600 and ETPDNIRX locks can hold up to

5000 Users in its programming memory, and each User is

associated with a User Number (see definition of "User Num-

ber" in the previous "Terminology" section) and therefore a

specific Programming Level, as follows:

Master: Always associated with User number 1. Is al-

ways enabled and can program all functions. (Abbreviated

as Programming Level = M).

Installer: Always associated with Users 2 and 3. Can pro-

gram all functions except changing the Master Code.

(Abbreviated as Programming Level = 4).

Manager: Always associated with Users 4, 5, and 6. Can

program all functions except functions relating to lock

configuration. (Abbreviated as Programming Level = 3).

Supervisor: Always associated with Users 7, 8 and 9.

Can only program functions relating to day to day

operation. (Abbreviated as Programming Level = 2).

Print Only Users: In previous versions of the ALARM

LOCK Trilogy series locks, Print Only Users were always

associated with User Numbers 10 & 11 and were restricted

to printing event logs only, using a special AL-IR1

handheld printer. With the PDL8600 and ETPDNIRX locks

no longer requiring (or allowing) the use of this AL-IR1

printer, Print Only Users are also no longer required. Alt-

hough the attributes of User Numbers 10 and 11 have

been changed to replicate those of "Basic Users", to en-

sure compatibility with previous lock model versions we do

not recommend the use of User Numbers 10 and 11.

Basic Users: Always associated with User number 12 and

higher (except 297-300). No programming ability allowed.

Programming Levels are hierarchical--higher levels are al-

lowed to do anything the levels below them can do. For exam-

ple, if you are a Manager, you are allowed to do anything that

Supervisors and Basic Users can do in addition to those tasks

allowed for Managers (Level 3).

Programming Levels

9

ACTIVITY LED SOUNDER COMMENTS

Keypress 1 Red Flash 1 Beep Normal Operation

Access Granted or Remote Release 2 Green Flashes 2 Beeps Valid credential (proximity credential,

User Code, Remote Input or Wireless

Remote Release)

Invalid Credential 7 Red Flashes 7 Beeps

Successful Program Entry 2 Green Flashes 2 Beeps When in Program Mode

Unsuccessful Program Entry 7 Red Flashes 7 Beeps When in Program Mode

Exit Program Mode 1 Red , 2 Green Flashes 10 Beeps

Valid but Disabled Credential 1 Green , 4 Red Flashes 1 long, 5 short beeps Credential exists in memory, but disabled

Emergency Commands are in effect 1 Red Flash every

two seconds

Optional: Pulsing beep

(once per second) for

30 seconds

See page 10; also see OI382 and OI383

for more information.

Low Battery Red LED and Sounder turn on steady for the duration

of the Pass Time

See page 13 before changing batteries.

See Functions 52-54 for the definition of

"Pass Time".

Programming Key Sequence.

Programming

Information

General Program Mode Information

If a wrong key is pressed during code entry, press the ; key until the error sound is heard (7 short beeps), this will clear the entry. Re-

enter the key sequence again.

All program sequences are followed by the : key; 2 short beeps indicate a successful program sequence.

Enabling/Disabling Users (By User Number)

3. Disable User ; 3 ; [ _ _ _ ] :

4. Enable User ; 4 ; [ _ _ _ ] :

User Number must be between 2 and 5000.

NOTE: Will Enable/Disable users even if the user is associated with an enabled group.

2

Conventions Used in this Manual

LED and Sounder Indicators

The PDL8600 and ETPDNIRX locks provide visual and audible keypad feedback. With a fully charged battery, the LED and

sounder feedback is as follows:

Minimum Required Program Level

Program Levels are abbreviated as follows:

M = Master

4 = Installer

3 = Manager

2 = Supervisor

This Program Level abbreviation is the

minimum program level required to

access the particular Function. (The

higher the level, the more programming

tasks the User is allowed, with Master

allowing all tasks).

Function

Description

Function

Number Function Name

10

Emergency Commands

The PDL8600 and ETPDNIRX series locks can be programmed to send and/or respond to Emergency Commands

("Emergency Lock Down", "Emergency Passage" and "Return to Normal"). Emergency Commands can be initiated

directly from the lock's keypad, initiated from an RR-4BKEYFOB Wireless Remote Release or initiated from the Networx

server running DL-Windows. (Note: "Emergency Passage" is not available with the Wireless Remote Release).

Emergency Commands are available in two types: "Global" or "Local".

 With "Global Emergency Commands", activating the Emergency Command changes the state of all locks in the entire

system.

 With "Local Emergency Commands", only the lock that initiates the Emergency Command will change state; activating

the Emergency Command does NOT change the state of all locks in the entire system.

For more information about how Emergency Commands work with your ENTIRE system, see the DL-Windows for Networx

User's Guide (OI383).

Understanding "Global" vs. "Local"

The following features should be understood before using Emergency Commands with your PDL8600 or ETPDNIRX.

Below describes the various features available for Global Emergency Commands or Local Emergency Commands, or

combinations of both.

TIP: If using an RR-4BKEYFOB Wireless Remote Release, before reading this page,

we recommend that you read the documentation that came with it, and also the "Wireless

Remote Releases" section on page 12.

Receiving Emergency Commands

Lock Responds to Global Emergency Commands

 When enabled: The lock WILL accept and adhere to Emergency Commands

that disseminate from another lock or from DL-Windows. Note: This feature does

not need to be enabled (checked) for the lock to accept commands from an RR-

4BKEYFOB Wireless Remote Release.

 When disabled: The lock WILL NOT accept nor adhere to Emergency Com-

mands that disseminate from another lock or from DL-Windows. CAUTION: Dis-

abling (un-checking) this feature could be of great consequence for the safe ad-

ministration of your Networx system.

Activating Global Emergency Commands

Keypad initiates Global Emergency Commands: When enabled (checked), if an Emergency Command is ini-

tiated from the keypad, the lock will first inform the Gateway to broadcast the Emergency Command to all locks as-

signed to the same "Gateway Group", then the lock will respond to that Emergency Command accordingly (if

the above "Lock Responds to Global Emergency Commands" is enabled).

Keyfob initiates Global Emergency Commands: When enabled (checked), if an Emergency Command is initi-

ated from an RR-4BKEYFOB Wireless Remote Release, the "paired" lock will first inform the Gateway to broadcast

the Emergency Command to all locks assigned to the same "Gateway Group", then the paired lock will respond

to that Emergency Command accordingly (if the above "Lock Responds to Global Emergency Commands" is ena-

bled).

Note: See OI383 for more information about Gateway Emergency Groups.

Activating Local Emergency Commands

Keypad initiates Local Emergency Commands: When enabled (checked), if an Emergency Command is initi-

ated from the keypad, the lock will immediately change state accordingly. The Emergency Command will NOT be

sent to the Gateway and therefore will NOT be sent to other locks in the system.

Keyfob initiates Local Emergency Commands: When enabled (checked), if an Emergency Command is initi-

ated from an RR-4BKEYFOB Wireless Remote Release, the paired lock will immediately change state accordingly.

The Emergency Command will NOT be sent to the Gateway and therefore will NOT be sent to other locks in the

system.

TIP: Combining Global and Local Features: You can combine the various Global and Local Emergency fea-

Emergency Commands

11

tures to customize your system.

Example #1: DL-Windows by default enables (checks) all of the features, as shown above in the Features dialog.

What will happen when all features are enabled and an "Emergency Lock Down" command is initiated at the keypad?

Because the Activate Local Emergency commands are enabled, the lock that initiates the Emergency Command will

lock down, then the lock will inform the Gateway to broadcast the Emergency Command to all locks assigned to the

same "Gateway Group".

Example #2: This example is known as the "pull station option", where one of the Activate Global Emergency

commands is checked, none of the Activating Local Emergency commands are checked, and the "Lock Responds to

Global Emergency Commands" is unchecked. If an "Emergency Lock Down" command is initiated at a lock

keypad, the lock will first inform the Gateway to broadcast the Emergency Command to all locks assigned to the same

"Gateway Group", then the lock will ignore the broadcast when received.

Emergency Users

Activating Emergency Commands

By default, Administrative Users (Users 1 through 11) automatically have the ability to initiate Emergency Commands

from the keypad. In addition, "Basic Users" (Users 12+) may be granted the ability to initiate Emergency Commands

from the keypad by adding them as Emergency Users in DL-Windows (for more information about adding Emergency

Users in DL-Windows, see OI383). Note: All paired Wireless Remote Releases have the ability to initiate Emergency

Commands (see page 12 for more information).

Access During an Emergency

 When enabled: If the feature Users are Disabled During Lockdown is enabled (checked) for a specific

lock, and when the Networx system is in an Emergency Lock Down state, "Basic Users" (Users 12+) are denied

the ability to unlock the physical lock (User Codes / proximity credentials for these Basic Users are ignored). The

User Codes / proximity credentials added to Administrative Users (Users 1 through 11) as well as all "Emergency

Users" remain enabled, retaining the ability to unlock a secured lock.

 When disabled: If the feature Users are Disabled During Lockdown is disabled (unchecked) for a specif-

ic lock, and when the Networx system is in an Emergency Lock Down state, ANY valid User Code or proximity

credential that exists in the lock's internal memory will be allowed to unlock the secured lock, regardless of User

Number.

Emergency Alert Options

Sounder

If Enable Sounder on Emergency is enabled (checked), upon receiving an Emergency Command, the integral sounder

will beep once per second for 30 seconds.

Emergency Indicator

When the feature Enable Inside Emergency Indicator is enabled (checked), upon receiving the Emergency Command,

the lightbar (located on the inside housing) flashes a red LED once per second for the duration of the Emergency. For

locks equipped without the lightbar, the internal relay will activate once per second.

Tip: Only "Local" Emergency Commands are supported when using an AL-IME-USB Gateway . See page 4 for

Gateway model descriptions.

Emergency Commands (cont'd)

When a User Code from an Administrative or Emergency User is pressed at any lock keypad, first the

lock unlocks, then the lock permits the use of the following Emergency Commands:

...press 911 to issue "Emergency Lock Down"

...press 000 to issue "Emergency Passage"

...press 123 to issue "Return to Normal"

[ _ _ _ _ ]

Administrative

or

Emergency User

Code

12

Overview

Two types of "Wireless Remote Release" devices are compatible with the PDL8600 and ETPDNIRX se-

ries door locks: The RR-1BUTTON Wireless Remote Release Button (see WI1999) and RR-4BKEYFOB

Wireless Remote Release Keyfob (see WI2004). Whether the Wireless Remote Release contains a sin-

gle button (RR-1BUTTON) or four buttons (RR-4BKEYFOB), each button can be "paired" (connected)

with one PDL8600 and ETPDNIRX series lock. This means, for example, the four buttons on the RR-

4BKEYFOB can each be paired with four separate PDL8600 and ETPDNIRX series locks. In addition,

each individual PDL8600 or ETPDNIRX series lock contains ten (10) "slots" ("User Numbers"), and each

"slot" is available to accommodate one paired Wireless Remote Release button. Therefore, each individ-

ual PDL8600 or ETPDNIRX series lock can ultimately be paired with up to ten Wireless Remote Release

buttons on multiple Wireless Remote Release devices.

Note: Since each button can ONLY be paired with one specific PDL8600 or ETPDNIRX lock at a

time, when a previously paired button is later paired with a second locking device, the first pairing is

erased.

Before you "pair" (connect) your Wireless Remote Release buttons, be sure to consider the following:

 Wireless Remote Releases can be paired before a lock is enrolled into a Networx system. However, to allow for

lock discovery, the lock must be defaulted and re-initialized (see ERASE ALL PROGRAMMING on page 13),

clearing all previously programmed Users and/or paired Wireless Remote Releases.

Pairing Wireless Remote Release Buttons

Refer to the programming instructions included with the model RR-1BUTTON Wireless Remote Release Button (see

WI1999) and/or the model RR-4BKEYFOB Wireless Remote Release Keyfob (see WI2004).

Emergency Lock Down (via Wireless Remote Release)

The PDL8600 or ETPDNIRX series locks have the added ability to accept Emergency Lock Down commands from a

Wireless Remote Release (model RR-4BKEYFOB only). Using the RR-4BKEYFOB,

when buttons 3 and 4 are pressed simultaneously, within seconds an Emergency Lock

Down command is sent to all locks to which the RR-4BKEYFOB is currently paired (up

to 4). Conversely, pressing buttons 1 and 2 simultaneously will send a Return to Nor-

mal command, returning the paired locks back to the state they were in prior to receiving

the Emergency Lock Down command.

See page 10 for the two different modes (see the section "Global" vs. "Local") to which

the PDL8600 or ETPDNIRX series locks respond when an Emergency Command when

sent from a Wireless Remote Release.

Wireless Remote Releases

RR-4BKEYFOB

RR-1BUTTON

RR-4BKEYFOB

13

WIRING

See the Installation Manual for more information.

Batteries:

Use only four 1.5 volt Alkaline size-C batteries or an

Alarm Lock pre-wired battery pack assembly.

External Power:

Red / Black wires - External 7.5 VDC Power Source

must be used for operation without batteries.

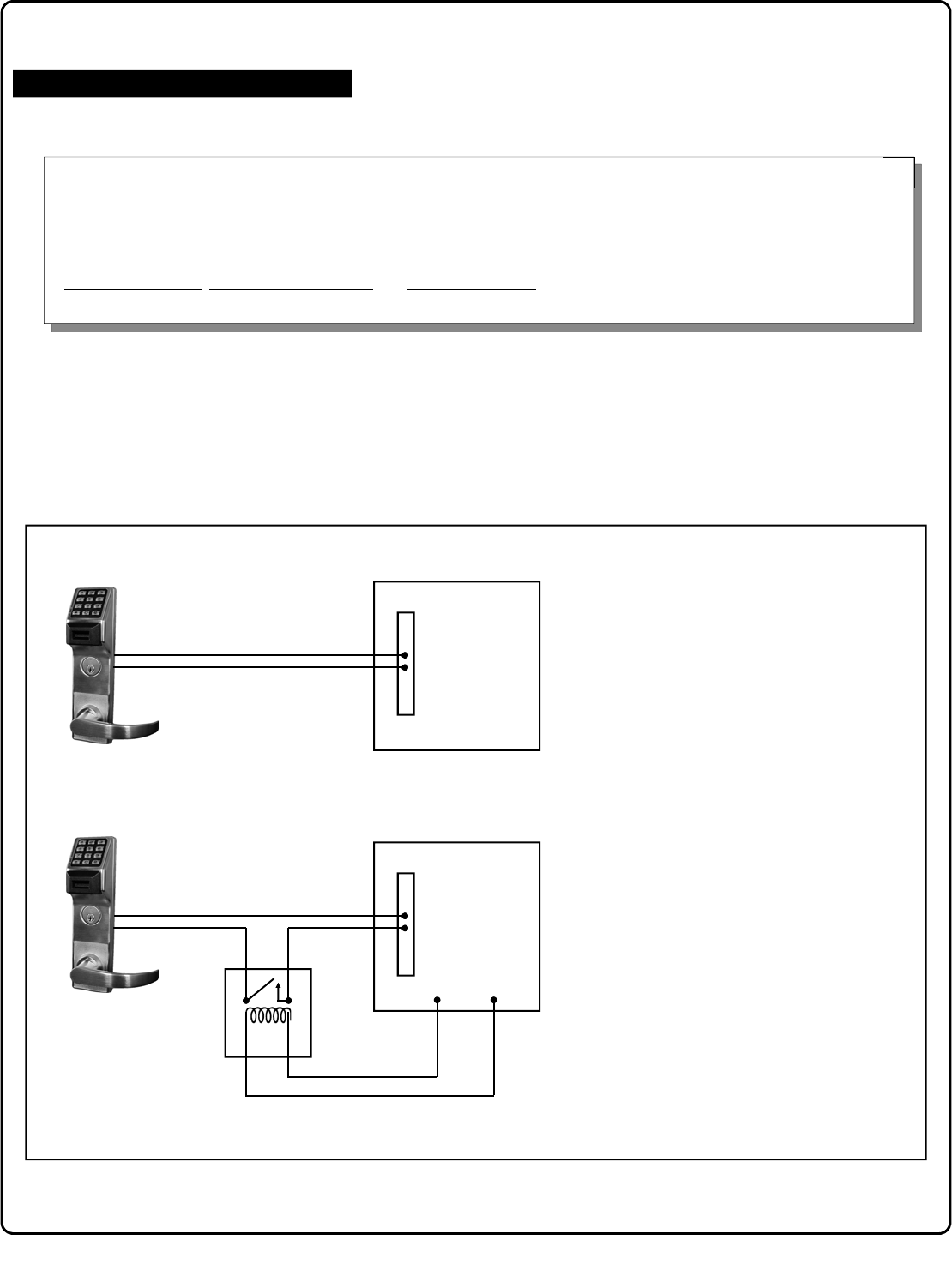

Remote Input:

White / White wires - For Remote Release functionali-

ty, wire a Normally Open Contact to wires.

Momentarily close the contact to allow person to pass

through door.

Conversely, for Door Monitoring functionality, wire a

"normally closed" Door Contact Sensor (wires shunt-

ed by magnet when door is closed).

NOTE: Remote Input is enabled from the factory.

(See Functions 64 and 65)

Relay (where equipped):

COM-Orange / NO-Green / NC-Yellow - See Function

67 for programming options for the relay.

Wiring to Disarm a Burglary Control Panel

Burglary Control Panel wiring. See page 30.

POWER UP

FIRST TIME

 When applying power to the lock for the first time,

stop and follow the procedure outlined in "Quick Start,

First time Power Up" further in this manual.

POWER RE-APPLIED

 When power is re-applied to a lock that was already

operational, proceed as follows:

1. Disconnect battery pack connector.

2. With battery power disconnected, press and hold

down ; for 10 seconds to insure discharge of all

capacitors.

3. Re-connect battery pack (lock will sound 3 short

beeps). If beeps are not heard, then restart at step 1.

4. Do not press any keys for 15 seconds.

5. After 15 seconds, the LED will flash red 6 times and 6

beeps will sound.

The lock is now ready for use. The pre-existing program

is loaded from fixed memory. Set the clock using

Functions 38, 39 and 40.

ERASE ALL PROGRAMMING

(The "out of box" factory default will be loaded)

1. Remove the battery pack.

2. With battery power disconnected, press and hold

down ; for 10 seconds to ensure discharge of all

capacitors.

3. Re-install the battery pack (lock will sound 3 short

beeps). If beeps are not heard, then restart at step 1.

4. Within 5 seconds after hearing the 3 short beeps,

press and hold ; until the lock begins to beep, then

release.

5. A series of 5 RED LED and 5 beeps will be heard

followed by 10 seconds of silence, then 3 GREEN

LEDs and 3 fast beeps.

All settings and programming have been erased and the

lock is now ready for use. Note: All lock programming can

also be erased (without need to disconnect the batteries)

by entering Function 99.

BATTERY REPLACEMENT

When a valid code (or other type of credential) is entered

and the batteries are weak, the red LED will light when the

keys are pressed and the sounder will sound steady for

the duration of the Pass Time. For models with a replaca-

ble battery pack, use four (4) C-size 1.5 volt alkaline

batteries. For models with a sealed battery pack, contact

your Alarm Lock dealer for a replacement battery pack.

Always replace weak batteries as soon as possible.

CAUTION: Do not press any keys while batteries are

disconnected or you may erase the real-time clock

settings.

1. At the back of the lock, remove the screw at the

bottom of the lock housing and remove the cover.

2. Pull out the battery pack and quickly replace all 4

batteries - within 1 minute. For models with the sealed

battery pack, simply unplug the old battery pack and

plug in the new battery pack.

3. If you do not hear the 3 beeps when power is re-

applied, all programming and settings have been re-

tained, and the lock is ready for use. Go to step 5.

4. If you do hear 3 beeps when power is re-applied, do

not press any keys for 15 seconds. After the 15

second period, the LED will flash red 6 times and 6

beeps will sound. Reset the clock using Functions 38,

39 and 40.

5. Replace the cover and tighten the screw.

Wiring and Power Up

14

Quick Start

First Time Start Up

1. Unpack the lock.

2. With the batteries disconnected, hold down the ; key for 10 seconds and release.

3. Connect the batteries and listen for 3 beeps. Within 5 seconds of hearing the 3 beeps, press and hold ; until beeping

starts. This will clear the lock of all programmed data. Important: If you do not hear these 3 beeps, you must start over at

step 2.

4. Listen for another series of beeps and LED flashes followed by 10 seconds of silence. The lock is now ready to program.

Failure to follow this exact procedure can result in erratic lock behavior. Important Note: When entering any key sequence

below, do not pause more than 25 seconds between any key presses--otherwise you must start again.

Enter Program Mode and Change Factory Master Code

1. Press the default Master Code: 1 2 3 4 5 6.

2. Wait for the green light and press ; until multiple beeps are heard. You are now in Program Mode.

Note: The lock will beep every 6 seconds as a reminder that you are in Program Mode.

3. Enter a new personal 6-digit Master Code number by pressing the following keys:

; 1 ; [new Master Code] ; [new Master Code] : (the second set of digits must be exactly the same).

(For example, if you want your new Master Code to be "664433". Press:

; 1 ; 664433 ; 664433 :).

Now that the Master Code has been changed, there is no need to change it again (unless you want to). Since you are

still in Program Mode, you can now proceed directly below and program various functions. Note: Programming any

Function, such as setting the clock, follows a consistent 5-step pattern: (1) Enter Program Mode (2) Press ;

[Function #] (3) Press ; and enter data (4) Press : to end (5) Exit Program Mode.

Note: There is a 3 minute Program Mode timeout if no keys are pressed when in Program Mode. A steady tone will

sound for the final 15 seconds of the 3 minute timeout period as a warning. To remain in Program Mode, press any key.

Set the Weekday

1. Enter Program Mode (if not in already).

2. Press ; 40 ; [number of weekday] :. (Use 1= Sunday, 7 = Saturday).

(For example - Friday - press ; 40 ; 6 :).

Set the Date

1. Enter Program Mode (if not in already).

2. Press ; 38 ; [MMDDYY] :.

(For example - May 10, 2002 - press ; 38 ; 051002 :).

Set the Time

1. Enter Program Mode (if not in already. If you just finished the above procedure, you are still in Program Mode).

2. Press ; 39 ; [HHMM] :. (Use 24-hour military format, where PM adds 12 hours).

(For example - 2:30pm - press ; 39 ; 1430 :).

Enter User Codes

1. Enter Program Mode (if not in already).

2. Press ; 2 ; [User Number] ; [new User Code] :.

(For example, John Smith is designated as User 21. You want him to use the code of "232323" to unlock the door.

Program the lock by pressing: ; 2 ; 21 ; 232323 :).

3. Repeat step 2 for each new user.

15

Quick Start (cont’d)

Delete a User Code

1. Enter Program Mode (if not in already).

2. Press ; 2 ; [User Number] :.

The sounder beeps for 10 seconds with green (and then red) LED flashes. At this point the lock expects a presentation of a

proximity card; but do nothing -- simply wait for the beeping to time-out (10 seconds). When beeping stops, the proximity and

User Code data will be erased.

3. Repeat step 2 for each new User.

User Code Conflicts

Care should be taken not to program a new User Code which matches the first digits of any other User Code (only the User

Code with the least number of digits will be recognized). Example: If User Codes 123 and 123456 are both entered in the

system, only code 123 would be recognized, unless the ENTER Key has been enabled (see Function 69). In addition, an error

will sound if you try to program a new User Code that matches the first digits of the Master Code.

WARNING: When attempting to change an existing Master Code, it is HIGHLY recommended that you enable all

Groups (see Function 23 on page 20), exit Program Mode, and enter the new anticipated Master Code to verify that the

anticipated sequence does not currently open the lock. If the lock does not open, the anticipated Master Code can be

used as the new Master Code; if the lock opens, the anticipated Master Code already exists in the lock (as a User

Code), and the anticipated Mater Code should NOT be used. Always repeat this procedure with any new anticipated

Master Codes.

Enroll Proximity Credentials at the Lock

If you wish to enroll only one proximity credential ("Single Enrolling") or many ("Batch Enrolling"), the process is basically

the same.

1. Enter Program Mode (if not in already).

2. Press ; 2 ; [User Number] :. (Enter the User Number you wish to match with the first proximity cre-

dential).

3. Lock will beep continuously. Place a new proximity credential in front of the reader (under the lock keypad). When

the lock beeps three times, the credential has been enrolled.

4. Press ; to end the process. To return to normal operation, exit Program Mode (see below).

(Example: You wish to enroll two proximity credentials for User 14 and User 15 respectively. Press ;

2 ; 1 4 :. and place the first credential in front of the reader (hear 3 beeps) and then within 10

seconds, place the second credential in front of the reader (hear 3 beeps)).

You can continue entering credentials in this way, automatically incrementing the User number with each presenta-

tion of a proximity credential. When finished, press ;.

Note: Batch Enrolling will not program Users 297 through 300, as these are Special Function User Codes.

After User 296 has been Batch Enrolled, the next credential presented will enroll as User 301.

High Security Access (ProxCard & User Code Access)

Program the lock for High Security Access for User Number 15, with a proximity credential and a User Code of 7452 required

for access:

1. Enter Program Mode (if not in already).

2. Press ; 2 ; 1 5 :.

3. Lock will beep continuously. Place a new proximity credential in front of the reader (under the lock keypad). When the

lock beeps three times, the credential has been enrolled.

4. Press ; 2 ; 1 5 ; 7 4 5 2 :.

In order for User 15 to open the Lock, a User Code must be entered and a proximity credential must be presented to the

lock. User may enter code or present credential in either order to open the lock. The sounder will beep for up to 10

seconds, waiting for the User to enter their User Code and present their credential.

Delete a High Security Access Code

Note: Deleting a proximity credential associated with a User Number will also delete the User Code programmed for that

User Number. Delete the proximity credential by not presenting any credential for enrollment, as follows:

1. Enter Program Mode (if not in already).

16

Verifying Basic Keypad User Codes

Test a valid User Code:

VALID CODE - The Green LED will flash momentarily and the sounder will beep a few times after a valid code is entered.

INVALID CODE - The RED LED will flash several times and the sounder will beep several times after an invalid code is

entered. Use Function 2 to re-program the code.

Verifying Proximity Card and Keyfob Access

Test a programmed proximity card or keyfob:

 Present the Programmed proximity card (or keyfob ) to the proximity reader in front of the lock.

VALID CARD - The Green LED will flash momentarily and the sounder will beep a few times after a valid card or keyfob

has been presented to the lock.

INVALID CARD - The RED LED will flash several times and the sounder will beep several times after an invalid valid card or

keyfob has been presented to the lock. Use Function 2 to re-program the code.

Verifying High Security Access (Proximity Card and User Code)

Test proximity card programmed for High Security Access. The proximity card (or keyfob) and a User Code are both required

for access.

1. Enter the User Code for the User Number programmed for High Security Access. The sounder will beep slowly for up to 10

seconds.

2. Present the proximity card programmed for the same User Number.

User may enter User Code or present the proximity card in either order to open the lock. The sounder will beep for up to 10

seconds, waiting for the User to enter User Code or to present the proximity card / keyfob. Note: Do not present the proximity

card / keyfob and enter the User Code simultaneously.

2. Press ; 2 ; _ :. (Enter the User Number matched to the proximity credential you want to delete).

3. Lock will beep continuously. Do not present ANY credential during this step. Wait until lock stops beeping, about 10 sec-

onds.

4. Press ; to end.

Exit Program Mode

Hold Down any key for 3 seconds. Program Mode exit is confirmed by several beeps. You are now in normal operation.

Re-enter Program Mode

If you wish to re-enter Program Mode, key-in your new 6-digit Master Code, and press ;.

You are now ready to mount and install your PDL series lock and give out your User Codes. Before installation, it is suggested

you test and verify that all User Codes entered are active (see below).

Testing the Codes Entered

17

Function 1 Change Master Code See page 18

Function 2 Add/Delete/Change User Codes See page 18

Function 3 User Disable (By User Number) See page 19

Function 4 User Enable (By User Number) See page 19

Function 5 User Enable with Timeout See page 19

Function 6 Enable Total User Lockout See page 19

Function 7 Disable Total User Lockout See page 19

Function 8 Reserved --

Function 9 Enable User 300 (Service Code) See page 19

Function 10 Erase All Users Except the

Master Code See page 19

Function 11 Reserved --

Function 12 Clear All Schedules and Timeout

Functions See page 20

Function 13 Clear All Timeout Functions See page 20

Function 14 - 17 Group 1-4 Disable See page 20

Function 18 Disable All Groups See page 20

Function 19 - 22 Group 1-4 Enable See page 20

Function 23 Enable All Groups See page 20

Function 24 Reserved --

Function 25 - 28 Group Disable with Timeout See page 21

Function 29 Disable All Groups with Timeout See page 21

Function 30 - 33 Group Enable with Timeout See page 21

Function 34 Disable All Groups with Timeout See page 21

Function 35 Group Add/Delete Association See page 21

Function 36 - 37 Reserved --

Function 38 Set Date See page 22

Function 39 Set Time See page 22

Function 40 Set Weekday See page 22

Function 41 Daylight Saving Time Start Date See page 22

Function 42 Daylight Saving Time End Date See page 22

Function 43 Speed Up Clock See page 23

Function 44 Slow Down Clock See page 23

Function 45 - 46 Passage Mode Enable/Disable See page 23

Function 47 Timed Passage Mode See page 23

Programming Functions--Overview

Function 48 Enable Passage Mode See page 24

Function 49 Disable Passage Mode See page 24

Function 50 Return Lock to Normal Passage

Mode Schedule See page 24

Function 51 Passage Mode Configuration See page 24

Function 52 - 54 Pass Time See page 24

Function 55 Reserved --

Function 56 Reserved --

Function 57 Reserved --

Function 58 Reserved --

Function 59 Reserved --

Function 60 Number of Attempt Before

Lockout See page 25

Function 61 Set the Attempts Lockout Time See page 25

Function 62 - 63 Reserved --

Function 64 - 65 Disable/Enable Remote Input

Pair Wireless Remote Release See page 25

Function 66 Ambush Code See page 25

Function 67 Add Relay/System Features See page 26

Function 68

Delete All Relay Functions and

System Options added by

Function 67

Door Ajar Trip Time

See page 28

Function 69 - 70 Enable/Disable Enter Key See page 28

Function 71 Reserved --

Function 72 - 73 Scheduled Enable/Disable

Passage Mode See page 28

Function 74 - 77 Schedule Enable Group 1 - 4 See page 28

Function 78 Schedule Enable All Groups See page 28

Function 79 - 82 Schedule Disable Group 1 - 4 See page 28

Function 83 Schedule Disable All Groups See page 28

Function 84 - 87 Quick Schedules - Enable Group See page 29

Function 88 Passage Mode

(Open Time Window) See page 29

Function 89 Passage Mode

(Close Time Window) See page 29

Function 90 Relay Activation

(Open Time Window) See page 30

Function 91 Relay Activation

(Close Time Window) See page 30

Function 92 Enable Group 4

(Open Time Window) See page 31

Function 93 Enable Group 4

(Close Time Window) See page 31

Function 95 - 98 Reserved --

Function 99 Clear All Lock Programming See page 31

Function 94 Disable Radio See page 31

18

Lock Defaults for PDL8600 and ETPDNIRX Locks

Users added will default to a Group Association and a Programming Level ability as follows:

USER TYPE USER NUMBER GROUP DEFAULT

ASSOCIATION

MINIMUM PROGRAM

LEVEL (See page 6)

Master Code 1 - M

Installer Codes 2 & 3 none 4

Manager Codes 4 - 6 none 3

Supervisor Codes 7 - 9 none 2

Reserved 10 - 11 none --

Basic User Codes 12 - 50 none none

Basic User Codes Group 1 51 - 100 1 none

Basic User Codes Group 2 101 - 150 2 none

Basic User Codes Group 3 151 - 200 3 none

Basic User Codes Group 4 201 - 250 4 none

Basic User Codes 251 - 296 none none

Quick Enable User 300 Code 297 none none

(Reserved--see page 7) 298 none none

Guard Tour Code* 299 none none

Service Code 300 none none

Basic User Codes 301-5000 none none

*This code is a Non-Pass code and therefore does not allow passage through the door.

1. New Master Code (User Number 1) ; 1 ; [ _ _ _ _ _ _ ] ; [ _ _ _ _ _ _ ] :

(New Master Code) (Confirm New Master Code)

2. Adding and Deleting User Codes and/or Proximity

Cards (for User Numbers 2-5000)

; 2 ; [ _ _ _ _ ] ; [ _ _ _ _ _ _ ] :

(User Number) (User Code)

 Master Code must be 6 digits-only.

 Master Code is Keypad Code Access only.

 Factory Default = 123456

 See "What is Program Mode" on page 5 for more information about Master Codes.

M

USERS

Programming Functions

 User Number must be between 2 and 5000.

 User Code must be 3-6 digits.

 Each User Code can be thought of as a person. As long as each person possesses their own

unique User Code, you can control access to the lock by adding or deleting User Codes. See

"Terminology Used in this Manual" on page 6 for more information.

3

(Deleting Entire User) ; 2 ; [ _ _ _ _ ] : [Beep Beep Beep]

(Wait 10 seconds for

beeping to end)

(User Number)

(Entering a Proximity Card) ; 2 ; [ _ _ _ _ ] : [Beep Beep Beep]

(Present card to reader

within 10 seconds)

(User Number)

(Entering a "User Code" / "PIN No. Code" into the lock programming)

19

USERS (Continued)

; 6 :

6. Enable Total User Lockout Mode

(This Function enabled through keypad only)

7. Disable Total User Lockout Mode

(This Function enabled through keypad only)

; 7 :

User Lockout Mode

Prevents all User Codes (Except User 1 Code) from operating the lock. Note: No other programming

functions or schedules (including a DL-Windows data transfer) will re-enable Users. Users must be re-

enabled with Function 7. Note: Does not change the User enable/disable status. Note: If the lock

is currently in Passage Mode (door "unlocked") and Function 6 is programmed, the lock will remain in

Passage Mode.

M

5. User Enable with Timeout

(Enter Timeout, XXX Hours)

(This Function enabled through keypad only)

; 5 ; [ _ _ _ _ ] ; [ _ _ _ _ ] :

(User Number) (XXX Hours)

 With Function 5, User Numbers must be between 2-5000, hours must be between 001-999.

 Function 5 can temporarily override a disabled User (disabled using Function 3 above).

 Since this is a temporary feature, Function 5 can only be enabled using the keypad.

 Example: Brian, User Number 1157, rarely works at the office, but when he does, enable him for his 8 hour work day by

entering Program Mode and pressing: ; 5 ; 1157 ; 008 :.

 NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting to program more

than 4 Timeout Functions.

2

Service Code is a One-Time-Only Code. Once it is used, it is disabled until enabled again.

NOTE: User Number 297 is used to reset Service Code Use. See "Terminology Used in

this Manual" on page 7 for more information and examples regarding special Users 297-300.

; 9 :

9. Enable User 300 (Service Code)

2 2

; 1 0 ; 0 0 0 :

10. Erase All Users Except the Master Code (User 1)

(This Function enabled through keypad only)

Erases all User Codes except the Master Code (User 1).

 Function 10 can only be performed using the keypad. M

11. Reserved

3. Disable User ; 3 ; [ _ _ _ _ ] :

(User Number)

4. Enable User ; 4 ; [ _ _ _ _ ] :

(User Number)

User Enable/Disable (By User Number)

 User Number must be between 2 and 5000.

NOTE: Will Enable/Disable Users even if the User is associated with an enabled Group. Use Function 3 to disable a specific User

Number and their associated User Code. If the disabled User Code is entered, the lock will flash 1 Green and 4 Red Flashes (with

1 long and 5 short beeps) indicating that the User Code exists in memory, but is disabled. Function 4 will "undo" Function 3.

2

8. Reserved

Programming Functions (cont'd)

20

; 1 2 ; 0 0 0 :

12. Clear All Schedules and Timeout Functions

Function 12 clears all programmed Schedules and all Timeout Functions. (To clear All Timeout Functions only, see

Function 13 below). Function 12 will clear all of the following: All Schedule Functions 72 through 93, Timeout Functions

5, 25 through 34 and Function 47. Note: Function 12 also resets Passage Mode and any disabled Groups. After

using Function 12, your Scheduled/Timeout features must be manually re-programmed.

NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting

to program more than 4 Timeout Functions. This Function only disables the timeout; the event associated with the

timeout will remain.

3

; 1 3 ; 0 0 0 :

Function 13 clears all Timeout Functions. (To clear All Schedules and Timeout Functions, see Function 12 above).

Function 13 will clear all of the following: All Timeout Functions 5, 25-34 and Function 47. After using Function 12, your

Scheduled/Timeout features must be manually re-programmed.

NOTE: Up to 4 Timeout Functions may be pending at any one time. An error beep will sound when attempting

to program more than 4 Timeout Functions. This Function only disables the timeout; the event associated with the

timeout will remain.

3

13. Clear All Timeout Functions

(This Function enabled through keypad only)

CLEAR FUNCTIONS

Group Enable/Disable

Enter the functions below to Enable/Disable Groups. Functions 14 - 23 will each override

existing scheduled events. Therefore, Functions 14 - 23 are temporary, take effect im-

mediately, and are always overridden by future scheduled events that already exist within

the lock programming.

2

GROUPS

24. Reserved

; 1 4 :

; 1 5 :

16. Disable Group 3 ; 1 6 :

17. Disable Group 4 ; 1 7 :

18. Disable All Groups ; 1 8 :

19. Enable Group 1 ; 1 9 :

20. Enable Group 2 ; 2 0 :

21. Enable Group 3 ; 2 1 :

22. Enable Group 4 ; 2 2 :

23. Enable All Groups ; 2 3 :

14. Disable Group 1

15. Disable Group 2

Programming Functions (cont'd)

Important: It is the responsibility of the lock programmer to verify the proper lock/unlock conditions and Group

conditions after programming the lock with Function 12 and 13.

PRIORITY ORDER

1. Disabled Users

2. Enabled Groups

3. Disabled Groups

4. Enabled Users

The Priority Order details which Function will

take effect before ("have priority over") others.

For example, as per the list above, Enabled

Users have the lowest priority, and other Func-

tions can affect the status of these Users.

Disabling a Group (Functions 14-18) will take

priority over the enabled Users in that Group,

disabling them. Enabling Groups (Functions

19-23) will take priority over those tasks lower

in the list, and finally disabling a User (Function

3) takes priority over all other tasks listed.

21

GROUPS

Group Enable/Disable with Timeout (Enter Timeout, XXX Hours)

(Functions 25-34 are enabled through the keypad only)

 Hours must be between 001-999. Enter the functions below to Enable/Disable Groups for the amount of time entered in hours.

NOTE: Only 4 Timeout Functions are allowed at any one time. An error beep will sound when attempting to program

more than 4 Timeout Functions. Functions 25 - 34 will each override existing scheduled events. Therefore, Functions 25 -

34 are temporary, take effect immediately, and are always overridden by future scheduled events that already exist within

the lock programming. NOTE: Functions 25-34 are enabled through the keypad only.

 Example: All 15 members of the Accounting Department are members of Group 4, and a schedule programmed in

the department's door lock reflects their normal working hours of 9 AM through 5 PM, Monday through Friday. But one day

a special event occurs, and all Accounting Department members are requested to stay an extra hour until 6 PM. There-

fore, at 5 PM, the manager (wishing to temporarily enable Group 4 users for an extra hour) enters Program Mode and

presses: ; 33 ; 001 :. Likewise, if the manager wished to send his department home

early at 3 PM, the manager could enter ; 28 ; 002 :.

2

; 3 5 ; [ _ _ _ ] ; [ _ _ _ _ ] :

(User Number) (Groups)

35. Group Add/Delete Association

As per the chart on page 8, the lock's default programming from the factory associates certain User Numbers with certain

Groups. To override these default Group associations, Function 35 manually associates (or disassociates) a selected

User with a selected Group. During programming, Groups not selected are then disassociated from the User. Function

35 is helpful when the number of Users you wish to add to a Group outgrows the number of User Numbers defaulted to a

Group (50); or if an existing User joins a department and you wish to simply add them to a Group.

 User Number must be between 2 and 5000; Groups 1-4 (to associate with User) may be selected.

Add Example: To associate User 67 with Groups 1, 2 and 4;

Enter: ; 3 5 ; 6 7 ; 1 2 4 :

Delete Example: To remove all Group associations for User 67;

Enter: ; 3 5 ; 6 7 :

NOTE: If a User is associated with more than one Group, all associated Groups would have to be disabled before the User is disabled.

; 2 5 ; [ _ _ _ ] :

(XXX Hours)

25. Timed Disable Group 1

; 2 6 ; [ _ _ _ ] :

(XXX Hours)

26. Timed Disable Group 2

; 2 7 ; [ _ _ _ ] :

(XXX Hours)

27. Timed Disable Group 3

; 2 8 ; [ _ _ _ ] :

(XXX Hours)

28. Timed Disable Group 4

; 2 9 ; [ _ _ _ ] :

(XXX Hours)

29. Timed Disable All Groups

; 3 0 ; [ _ _ _ ] :

(XXX Hours)

30. Timed Enable Group 1

; 3 1 ; [ _ _ _ ] :

(XXX Hours)

31. Timed Enable Group 2

; 3 2 ; [ _ _ _ ] :

(XXX Hours)

32. Timed Enable Group 3

; 3 3 ; [ _ _ _ ] :

(XXX Hours)

33. Timed Enable Group 4

; 3 4 ; [ _ _ _ ] :

(XXX Hours)

34. Timed Enable All Groups

3

36 - 37. Reserved

Clear All Timeout Functions by entering Function 13. NOTE:

Programming Functions (cont'd)

22

; 3 8 ; [ _ _ _ _ _ _ ] :

(Date)

38. Set Date

 Use Month Day Year format - MMDDYY - Single digit months and days are entered with a preceding zero.

 Enter ONLY the last two digits of the year.

For Example: March 8, 2015; Enter:

; 3 8 ; 0 3 0 8 1 5 :

3

39. Set Time ; 3 9 ; [ _ _ _ _ ] :

(Time)

 Time must be 4 digits

 Use 24 Hour Format (add 12 hours to program PM time)

For Example: To set time to 8:25PM;

Enter: ; 3 9 ; 2 0 2 5 :

For Example: To set time to 8:25AM;

Enter: ; 3 9 ; 0 8 2 5 :

3

; 4 0 ; [ _ ] :

(Day)

40. Set Weekday

 For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday and 7 for Saturday.

For Example: To set day to Sunday;

Enter: ; 4 0 ; 1 :

3

41. Daylight Saving Time Start Date ; 4 1 ; [ M M W D ] :

(DST Starting Month, Month, Week, Day)

The manner in which Daylight Saving Time (DST) is observed varies with location, therefore the DST adjustment is fully flexible to

accommodate these regional differences. Function 41 allows the entry of a DST Start Date (month, day and week), and Function 42

allows the entry of a DST End Date (month, day and week). DST begins and ends at 2AM on the programmed date. Enter ;

4 1 ; 0 0 0 : to disable DST. All locks leave the factory with DST enabled and pre-programmed to

the following start and end dates (for the USA beginning 2007):

 Default DST Start Date: March, Week 2, Sunday ("Second Sunday in March")

 Default DST End Date: November, Week 1, Sunday ("First Sunday in November")

To program the DST start date using the keypad, press: ; 4 1 ; [ M M W D ] : where "M M W D" represents:

 "M M" = Two digits of the month (01 through 12 = January through December. Single digit months are entered with a

preceding zero).

 "W" = Single digit for "week of the month" (valid entries are 1-5 where "1" is the first week, "2" is the second week, "3" is

the third week, "4" is the fourth week and "5" is the last week of the month.

 "D" = Day of the week (valid entries are 1-7: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6

for Friday and 7 for Saturday).

Example: To set the default start date of "second Sunday in March", press:

; 4 1 ; [ 0 3 2 1 ] : (03 = "March", 2 = "2nd week", 1 = Sunday).

4

CLOCK SETTINGS

Programming Functions (cont'd)

42. Daylight Saving Time End Date ; 4 2 ; [ M M W D ] :

(DST Ending Month, Month, Week, Day)

End date of Daylight Saving Time (month, week, day). Enter ; 4 2 ; 0 0 0 : to disable DST.

See Function 41 for full explanation.

4

23

; 4 5 :

45. Enable Passage Mode

(This Function enabled through keypad only)

; 4 6 :

46. Disable Passage Mode

(This Function enabled through keypad only)

47. Timed Passage Mode

(This Function enabled through keypad only)

; 4 7 ; [ _ _ _ ] :

(XXX Hours)

Function 45 allows passage through the door without the need for a credential. Re-Lock using Function 46.

Programmed Schedules will override the state of the lock when Functions 45 and 46 are used. If it is required that

programmed schedules do not override Passage Mode, enable/disable Passage Mode using Functions 48/49. Note: Be-

cause of the temporary nature of these features, Functions 45-47 can only be enabled using the keypad.

Passage Mode Enable/Disable - Schedule will Override

2

 Hours must be between 1 - 999.

Function 47 allows passage through the door without the need for a credential for the programmed amount of time.

For example, if you wish your office door lock to be unlocked (unlocked = "Passage Mode") for the next 3 hours,

enter Program Mode and press: ; 47 ; 003 :

2

PASSAGE MODE

CLOCK ADJUST

; 4 3 ; [ _ _ ] :

(seconds)

43. Speed Up Clock

(This Function enabled through keypad only)

; 4 4 ; [ _ _ ] :

(seconds)

44. Slow Down Clock

(This Function enabled through keypad only)

Number of seconds to adjust (speed up/slow down) the clock each day must be be-

tween 0-55 seconds.

Note: Repeated use of these Functions are not "cumulative" (this means, for exam-

ple, if the clock has already been set to speed up 10 seconds per day, and then is

found to need an additional 10 seconds, then program 20 seconds using Function 43).

Example 1: Clock is losing 13 seconds every day, enter:

; 4 3 ; 1 3 :.

This example assumes that the Clock Adjust setting was at the factory default of zero.

Example 2: Clock is gaining 13 seconds every day, enter:

; 4 4 ; 1 3 :.

This example assumes that the Clock Adjust setting was at the factory default of zero.

Example 3: To set the clock adjust setting back to the factory default of zero, enter:

; 4 3 : or ; 4 4 :

Clock Adjust

4

Programming Functions (cont'd)

Clock Accuracy

The internal oscillator is factory calibrated to an accu-

racy of ±5 minutes/year. Changes in ambient tem-

perature may affect accuracy. If necessary, the

accuracy of the internal clock may be adjusted by first

updating the correct time via Function 39. After an inter-

val of about 1 month, re-set the correct time via Function

39 and then view the Audit Log. Because the Audit Log

displays both the "New Clock Time" and the "Old Clock

Time", a daily accuracy (in seconds) can be determined

by taking the difference in seconds between the "Old"

and "New" times divided by the number of days between

the two Function 39 entries. Note: Because the mini-

mum available adjustment is 1 second per day, the inac-

curacy of the clock must exceed about 6 minutes per

year before adjustment is necessary.

24

49. Disable Permanent Passage Mode

(This Function enabled through keypad only)

50. Return Lock to Normal Passage

Mode Schedule

(This Function enabled through keypad only)

(Locks will lock or unlock depending on the current schedule). Use Function 50 to "undo" Functions 48 and/

or 49, and therefore return the lock to all pre-existing scheduled functions.

 Function 48 allows passage through the door without the need for a credential. Re-Lock using Function 49.

 Programmed Schedules will not override the state of the lock using Functions 48 and 49. If it is required that programmed

schedules override Passage Mode, Enable/Disable Passage Mode using Functions 45/46. Use Function 50 to "undo" Func-

tions 48 and/or 49, and therefore return the lock to all pre-existing scheduled functions. Note: Functions 48-50 can only be

enabled using the keypad. Warning: Function 49 will inhibit all scheduled Passage Mode events.

Passage Mode Enable/Disable - Schedule will not Override

2

PERMANENT PASSAGE MODE

; 4 9 :

48. Enable Permanent Passage Mode

(This Function enabled through keypad only)

; 4 8 :

; 5 0 :

; 5 2 :

52. Set Pass Time to 3 Sec.

; 5 3 :

; 5 4 :

The Pass Time is the length of time the lock stays unlocked after a valid User Code is

entered (or proximity credential presented). When the Pass Time expires, the lock will re-

lock automatically. Use the functions below to change the Pass Time to 3, 10 or 15

seconds. The Pass Time is defaulted to 3 seconds.

Pass Time

4

53. Set Pass Time to 10 Sec.

54. Set Pass Time to 15 Sec.

PASS TIME

See Scheduled Functions 72 and 73 for Scheduled Passage Mode.

NOTE:

51. Passage Mode Configuration ; 5 1 ; [ _ ] :

(Mode)

 Mode 1 (Normal): Passage Mode must be enabled/disabled using Function 45 and 46. Mode 1 (Normal) is the factory de-

fault.

 Mode 2: Group 2 toggles Passage Mode.

 Mode 3: Group 2 enables, Group 3 disables Passage Mode. Disable Passage Mode has priority if User is a member of both

Groups 2 and 3.

With Mode 2, each time any member of Group 2 enters their User Code, they will toggle Passage Mode. For example, if Pas-

sage Mode is enabled, and a Group 2 User enters their User Code, Passage Mode will be disabled. If a few seconds later they

enter their User Code again, Passage Mode will be enabled. With Mode 3, Group 2 members will always enable Passage Mode,

and Group 3 members will always disable Passage Mode. For example, if Passage Mode is already enabled, and a Group 2

User enters their User Code, the Passage Mode status will not be changed due to the Function 51 Mode 3 configuration. If Pas-

sage Mode is already enabled, and a Group 3 User enters their User Code, Passage Mode will become disabled.

Programming Functions (cont'd)

4

25

60. Number of Attempts Before Lockout

61. Set the Attempts Lockout Time

 Number of attempts before lockout must be 1-9 attempts.

 The number of attempts is reduced by half every time the keypad is locked out without a

successful code entry (default is 6 attempts).

 The attempt count is reset each time a valid code is entered.

 Lockout Time must be 1-60 seconds.

How long the keypad is locked-out after a series of unsuccessful attempts

(default is 18 seconds).

4

4

LOCKOUT

; 6 4 :

64. Disable Remote Input

 Wire a Normally Open Contact to Wires (White & White). Momentarily close switch to unlock door

to allow person to pass through door.

 Enter the functions below to Disable/Enable the Remote Input.

 Changes made with Function 64 or 65 are ignored when Door Monitoring features are enabled

(Function 67, feature 40, 41 or 42).

NOTE: The Remote Input is enabled as part of the default program.

Function 65 is also used to pair a wireless remote release. See the instructions included with your

wireless remote release for the full pairing procedure.

Remote Input / Wireless Remote Release Pairing

; 6 5 :

65. Enable Remote Input

; 6 6 ; [ _ _ ] :

(Ambush Code)

66. Ambush Code

 Ambush code must be 2 digits.

 An error will sound if the Ambush Code matches the 1st two digits of any User Code.

See Function 67 for more information about the Ambush Function.

2

3

REMOTE INPUT

AMBUSH

; 6 0 ; [ _ ] :

(Number of Attempts)

; 6 1 ; [ _ _ ] :

(Lockout Time)

62-63. Reserved

Programming Functions (cont'd)

55 - 59. Reserved

; 6 5 ; [ ____ ] :

Slot Number

(1-10)

65. Pair Wireless Remote Release

26

Programming Functions (cont'd)

; 6 7 ; [ _ _ ] :

(Event Number)

67. Add System Features 4

Relay Features (For locks equipped with an internal relay)

Use Function 67 to program one or more lock events and the relay will energize when the programmed event(s) listed

below occurs. For example, program ; 6 7 ; 3 : and when an attempted entry fails (such as a

User who enters an incorrect or un-programmed User Code), the relay will energize for 2 seconds. Note: For more infor-

mation about the Remote Input, see page 13 (WIRING, Remote Input) and page 25 (Function 65).

1. Remote Input switch closed and Function 65 Remote Input enabled. Because the Remote Input is enabled by facto-

ry default, the relay will energize when the Remote Input switch is closed.

2. Remote Input switch closed and Function 64 Remote Input disabled. If the Remote Input is disabled with Function

64, the relay will energize when the Remote Input Switch is closed.

3. Failed attempted entry. Relay energizes for 2 seconds when an attempted User Code entry (or proximity card)

fails.

4. Disabled User or Group. Relay energizes for 2 seconds when a disabled User or disabled Group member enters a

User Code (or proximity card).

5. Follow Access Granted. When a valid User Code is entered into the keypad and the lock unlocks, the relay energiz-

es for 2 seconds. Compare with Event 31.

6. Group 1 User Code. Relay energizes for 2 seconds when a scheduled Group 1 User Code (or proximity card) is entered.

See Function 90, page 31.

7. Scheduled Lock Event. Relay energizes for 2 seconds when lock is locked by a Schedule.

8. Scheduled Unlock Event. Relay energizes for 2 seconds when lock is unlocked by a schedule

9. Lock Out. Relay energizes for 2 seconds when a Lock Out occurs (i.e. number of attempts is exceeded, see Func-

tion 60).

10. Ambush. Relay energizes for 2 seconds when Ambush is tripped. See Function 66, page 25.

11. First Key Press. Relay energizes for 2 seconds at the first key press of any sequence.

12. Activate Relay On Door Ajar. If the door is held open for longer than the allowed Door Ajar Trip Time

(programmed at Function 68) the relay will engage for 2 seconds. See "Door Ajar" in glossary.

14. Activate Relay On Forced Door. If the Door Position Contacts detect the door was opened without first a

valid credential unlocking the PDL8600, or the door was opened without first the inside lever turned (to activate the

Lever Monitor Switch), the relay will engage for 2 seconds. See "Forced Door" in glossary.

31. Follow Access Granted--No Time Limit.** When a valid User Code is entered into the keypad and the lock unlocks,

the relay energizes for the same amount of time as the programmed Pass Time. (The Pass Time is the length of time the

lock stays unlocked after a valid User Code is entered. See functions 52-54). Use this feature for remote monitoring or

other activation as this feature works independently of all other relay options. Programming this feature will supersede all

other programmed relay features. Subsequent relay feature programming will not take effect while this feature is active. Be-

fore programming any other relay features, press ; 6 8 ; 0 0 0 : to delete this feature.

System Options

24. One Time Access for Group 3 Users***

25. Disable Sounder

26. 5 sec. Delayed Entry *

27. 15 sec. Delayed Entry *

28. 45 sec. Delayed Entry *

Remote Input Functions

29. Toggle Passage Mode. Remote Input toggles Passage Mode.

30. Forced Unlock Follows Remote Input.** When Remote Input switch is closed, regardless of the current state of

the lock, the lock unlocks for the duration of the Remote Input switch closure.

32. Remote Input Disables Unit.** Regardless of the current state, that state will remain unchanged (and keypad will

be disabled) for the duration of Remote Input switch closure.

34. Forced Lock Follows Remote Input ** When Remote Input switch is closed, regardless of the current state

of the lock, the lock will lock for the duration of the Remote Input switch closure.

Enable Emergency Commands†

38. Lock responds to "Global" Emergency Commands. (Default = OFF, thus default = Lock responds to "Local"

Emergency Commands only). Allows lock to respond to lock down requests initiated by Networx server running DL-

Windows or another lock (as opposed to directly from a Wireless Remote Release).† †

27

* Features 26, 27 & 28 will delay User Codes 12 and higher only (except 297, 298 and 299, and any Emergency Command enabled User).

** Features 30, 31 & 32 should be used with External DC Power unless feature is used for short a duration or infrequently. Sustained closure of

remote input or relay will drain batteries. Scheduled events and their associated audit trail entries will not occur during sustained closure of

remote input. NOTE: Enter ; 6 7 ; 0 0 0 : to delete all Relay Features added by Function 67 (identical to

Function 68).

*** Feature 24, "One Time Access for Group 3 Users", allows the creation of multiple 'one time only' User Codes. When activated, an entry by a

Group 3 User allows entry only once, then user becomes disabled. Note: When the User Code is entered for the first time and access is grant-

ed, the Event Log will read "Entry" followed by "User Disabled". If the User Code is entered a second time, access will be denied, and the Event

Log will read "User Denied Access".

To Enable the Feature: Enter Program Mode and enter the key sequence ; 6 7 ; 2 4 :. To assign the se-

lected User Codes to Group 3: For example, to assign User Number 15 to Group 3, press: ; 3 5 ; 1 5 ;

3 :.

† Emergency Commands are disabled until a download from DL-Windows is performed. If a Function 67 or 68 (Clear Relay) is performed,

Emergency Commands are turned off.

† † Upon initial power up of the lock, options 39, 45 and 47 are enabled. A subsequent profile download from DL-Windows will enable 38, 39, and

45 through 48.

Ambush Function

1. Connect relay to a device able to properly monitor dry contacts for an Ambush condition.

2. Program the relay for Ambush Tripped using Program Function 67(10) above.

3. Set the Ambush Code using Program Function 66.

4. When the Ambush Code is entered followed by a valid User Code, the relay will close for 2 seconds.

Notes: The Ambush Code defaults to 99. An error will sound if you try to program a new User Code starting with the Ambush Code.

Programming Functions (cont'd)

; 6 7 ; [ _ _ ] :

(Event Number)

67. Add System Features (cont'd) 4

39. Users are Disabled During Lockdown. (Default = ON)† † Basic Users (User Numbers 12 - 5000) are denied ac-

cess (passage through the door) during an Emergency.

43 Enable Sounder on Emergency. (Default = OFF) Integral sounder beeps for 30 seconds while in Emergency.

44 Enable Inside Emergency Indicator. (Requires inside housing with light bar). Pulses inside red LED while in

Emergency. Note: Enabling this option deletes all other relay outputs.

45 Activate Local Emergency: Keypad initiates Local Emergency Commands. (Default = ON). Initiating an

Emergency command directly from the lock's keypad places only that lock into an Emergency state; the Emergency

command is not sent to other locks in the system.

46 Activate Global Emergency: Keypad initiates Global Emergency Commands. (Default = OFF). Initiating an

Emergency command directly from the lock's keypad immediately sends the Emergency command to all other locks

in the system, then places the local lock into an Emergency state† †.

47 Activate Local Emergency: Keyfob initiates Local Emergency Commands. (Default = ON). Initiating an

Emergency command from a Wireless Remote Release (for example model RR-4BKEYFOB Wireless Remote Re-

lease) places only the paired lock into an Emergency state; the Emergency command is not sent to other locks in the

system. † †.

48 Activate Global Emergency: Keyfob initiates Global Emergency. (Default = OFF). Initiating an Emergency

command from a Wireless Remote Release (for example model RR-4BKEYFOB Wireless Remote Release) immedi-

ately sends the Emergency command to all other locks in the system, then places the paired lock into an Emergency

state† †.

Door Status Monitoring

40. Enable Door Monitoring. (Default = OFF). If the Door Position Contacts remain open past the time set at

Function 68 "Door Ajar Trip Time" (default is 20 seconds), a Door Ajar event will be logged. The relay can also be

programmed for a Door Ajar event (see above feature 12). See "Door Ajar" in glossary.

41. Sounder Alert on Door Ajar. (Default = OFF). The integral sounder beeps when the Function 68 "Door Ajar

Trip Time" expires. Feature 40 must be set ("ON") for this sounder to operate (follows default Door Ajar Trip Time of

20 seconds unless programmed otherwise using Function 68).

42. Forced Door Detection. (Default = OFF). If a Forced Door is detected, i.e. the Door Position Contacts detect

the door was opened without first a valid credential unlocking the PDL8600, or the door was opened without first the

inside lever turned (to activate an internal Lever Monitor Switch), a Forced Door event will be logged, the sounder will

beep for 3 seconds, and the red LED will turn on. The relay can be programmed for a Forced Door event (see above

feature 14). See "Forced Door" in glossary. Feature 40 must be set ("ON") to enable Forced Door Detection.

28

Scheduled Passage and Group

Use the functions below to enable Passage Mode and enable/disable Groups at the time programmed.

 For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday, 7 for Saturday,

8 for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

3

72. Schedule Enable Passage

Mode ("Unlock")

; 7 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

73. Schedule Disable Passage

Mode ("Lock") ; 7 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

 When this Function is enabled, the User must press : after any valid User Code entry. Therefore, this Function allows User

Codes to be subsets of other User Codes. Examples:

1 2 3 : can be a valid user code;

1 2 3 4 : can be a valid user code within the same lock.

1 2 3 4 5 6 : (Hold ;) for Master User Code to enter Program Mode.

Enter Key

4

Passage

Mode

69. Enable : as Enter Key

70. Disable : as Enter Key

; 6 9 :

; 7 0 :

Note: Clear All Schedule and Timeout Functions by entering

Function 12. To set the time, see Function 39.

68. Delete All Relay Features

Function 68 has two functions:

 Delete all Relay Features added by Function 67: Enter ; 6 8 ; 0 0 0 :.

 Door Ajar Trip Time: Program the number of seconds the Door Contacts may remain open without logging a Door Ajar

event. Default time is 20 seconds; allowed values are between 2 and 250 seconds. Enable Door Monitoring (Function 67 Fea-

ture 40) must also be set. To enable Sounder Alert on Door Ajar, see Function 67, Feature 41.

4

68. Door Ajar Trip Time

; 68 ; 0 0 0 :

; 68 ; [ _ _ _ ] :

(Seconds)

Delete Relay Features and Door Ajar Trip Time

74. Schedule Enable Group 1

75. Schedule Enable Group 2

76. Schedule Enable Group 3

77. Schedule Enable Group 4

78. Schedule Enable All Groups

79. Schedule Disable Group 1

80. Schedule Disable Group 2

81. Schedule Disable Group 3

82. Schedule Disable Group 4

83. Schedule Disable All Groups

Groups ; 7 4 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

; 7 5 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

; 7 6 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

; 7 7 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

; 7 8 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

; 7 9 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

; 8 0 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

; 8 1 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

; 8 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

; 8 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Programming Functions (cont'd)

29

QUICK SCHEDULES

84. Business Quick Schedule

7AM-5PM, Monday - Friday

(This Function enabled through keypad only)

; 8 4 ; [ _ ] :

(Group)

85. Day Quick Schedule

7AM-5PM, All days, Sunday - Saturday

(This Function enabled through keypad only)

; 8 6 ; [ _ ] :

(Group)

86. Evening Quick Schedule

3PM-1AM, All days

(This Function enabled through keypad only)

; 8 7 ; [ _ ] :

(Group)

87. Night Quick Schedule

11PM-9AM, All days

(This Function enabled through keypad only)

88. Passage Mode

(Open Time Window)

(This Function enabled through keypad only)

; 8 8 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Functions 88 and 89 allow you to set up a window of time where if any Group 1 User Code is entered within this window,

Passage Mode will be activated, allowing anyone to enter. Note: This feature can only be programmed using the lock

keypad. For additional information, see "Group 1 Activated Features" on page 32.

 For the day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday, 7 for

Saturday, 8 for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

 Enter time of day in 24 hour format (for example, for 2:15 PM, enter 14:15).

Scheduled Passage Mode (Group 1 Activated)

89. Passage Mode

(Close Time Window)

(This Function enabled through keypad only)

; 8 9 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

SCHEDULES GROUP 1 ACTIVATED

3

For your convenience, your lock comes pre-programmed with Quick Schedules, which, when programmed, enable Groups for

popular blocks of time. Group members will be enabled during the blocks of time defined below, but will still need to enter their

User Codes into the keypad to unlock the lock.

 Group number must be 1-4; enter the number of the Group that is to be enabled for the time specified by the Quick

Schedules below.

Note: These Quick Schedules can only be programmed through the keypad (not through DL-Windows), and existing

Quick Schedules will be over-written by schedules downloaded from DL-Windows. Therefore, after downloading any DL-

Windows schedules, be sure to re-program your Quick Schedules into your Lock Program.

3

Quick Schedules - Enable Group

Programming Functions (cont'd)

; 8 5 ; [ _ ] :

(Group)

30

To Disarm a Burglary Control Panel (for locks equipped with an internal relay)

90. Relay Activation

(Open Time Window)

; 9 0 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Functions 90 and 91 allow you to set up a window of time where if any Group 1 User Code is entered within this window, the

relay will be activated for 2 seconds. This relay can be used with a Control Panel that has a key switch disarm option. For

additional information, see "Group 1 Activated Features" on page 31. This Function only applies to locks equipped with an

internal relay.

 Also program relay option 6 using Function 67 (; 6 7 ; 6 :).

 For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday, 7 for Saturday,

8 for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

 Enter time of day in 24 hour format (for example, for 2:15 PM, enter 14:15).

Scheduled Relay Activation (Group 1 Activated)

; 9 1 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

91. Relay Activation

(Close Time Window)

SCHEDULES GROUP 1 ACTIVATED

3

NOTES

1. Group 1 Disarms a Burglary Control

Panel will always disarm an alarm

system. Arming should be performed

by other means (such as Alarm Panel

Keypad/Schedule).

2. Use a qualified electrical/alarm

specialist to review your current alarm

system and add additional components

as needed (such as a relay, wire,

resistors, connectors and/or diodes) and

re-program the operation of your alarm

system as needed.

Programming Functions (cont'd)

Alarm Panel with Switched Input for Disarming

Burglary

Control

Panel

Switch

Output

Relay

Output

Alarm Panel with Switched Input for Toggled Arm/Disarm

Burglary

Control

Panel

Switch

Output

Relay

Output

31

; 9 9 ; 0 0 0 :

99. Clear All Lock Programming

(This Function enabled through keypad only)

Clears all programming, and returns lock to factory default settings. Audit Trail contents

are maintained. M

CLEAR ALL PROGRAMMING

95 - 98. Reserved

92. Enable Group 4

(Open Time Window)

(This Function enabled through keypad only)

; 9 2 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Functions 92 and 93 allow you to set up a window of time where if any Group 1 User Code is entered within this

window, Group 4 members will be enabled. (Group 4 members will still need to enter their User Codes to enter). For addi-

tional information, see "Group 1 Activated Features" on page 31.

 For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday, 7 for Saturday, 8

for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.

 Enter time of day in 24 hour format (for example, for 2:15 PM, enter 14:15).

3

Programming Functions (cont'd)

93. Enable Group 4

(Close Time Window)

(This Function enabled through keypad only)

; 9 3 ; [ _ ] ; [ _ _ _ _ ] :

(Day) (Time)

Scheduled Group 4 Enable (Group 1 Activated)

Disable Radio Signal

94. Disable Radio

(This Function enabled through keypad only) ; 9 4 ; 0 0 0 :

Disables the radio signal (RF) link inside the lock, rendering all wireless communication with the selected lock inoperative.

When using a lock without the DL-Windows RF link, it is highly recommended to enter this command to disable all radio access to the

lock. If enrollment in a wireless system should be desired later, simply restart the lock either through the power up "ERASE ALL

PROGRAMMING" procedure (see page 13) or through the use of the ;99; 000: command, then

enroll and reprogram the lock through the DL-Windows interface.

3

32

Groups and Scheduled Group 1 Examples

The following examples detail the more advanced features of the PDL series locks. Although all features and device functions can be programmed

using the lock keypad, when programming becomes more complex you may find it easier to use DL-Windows software to program your Alarm Lock

security lock. For more information, contact your Alarm Lock security professional.

Assign a User to Two Groups

Create a User 101 (all Users 101-150 are members of Group 2 by default) and include User 101 in Group 3 (as well as the default Group 2).

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 101 with a User Code of "789":

Press ; 2 ; 1 0 1 ; 7 8 9 :.

3. Using Function 35, make User 101 a member of Group 2 and 3:

Press ; 3 5 ; 1 0 1 ; 2 3 :.

4. Exit Program Mode.

Note: See step 3 above--although User 101 is by default a member of Group 2, you must include Group 2 when using Function 35 or the

Group 2 association will be removed.

The example to add Users to Group 2 and Group 3 has been selected due to the fact that Group 1 Activated Functions require that a member

of Group 1 enter their User Code to activate the Function, and it may become necessary to assign Users to Groups.

Group 1 Activated Features: Functions 88/89, 90/91 and 92/93

 Function 88 and 89 allow for a window of time to be created where if any Group 1 User Code is entered within the programmed

window, Passage Mode will be activated (the device physically unlocks, allowing passage for all). If a Group 1 User does not enter their User

Code during the specified window, Functions 88/89 remain inactive.

 Function 90 and 91 allow for a window of time to be created where if any Group 1 User Code is entered within the programmed

window, the internal relay (where equipped) will be activated for 2 seconds. This relay can be used with a burglar alarm control panel that

has a key switch disarm option. See To Disarm a Burglary Control Panel on page 30. If a Group 1 User does not enter their User Code dur-

ing the specified window, Functions 90/91 remain inactive.

 Function 92 and 93 allow for a window of time to be created where if any Group 1 User Code is entered within the programmed

window, the User Codes in Group 4 will be enabled. If a Group 1 User does not enter their User Code during the specified window, Functions

92/93 remain inactive. Companies typically use this feature to allow Group 1 Managers the ability to enable all Group 4 staff members during

a certain window of time.

The following examples illustrate how Functions 88-93 can be programmed into your PDL Series lock via the keypad:

Functions 88/89: Use Function 88 to set an Open Time Window (during which the Group 1 User must enter their User Code), and then use

Function 89 to set the time to close the Window. Re-lock the door at night manually (Function 46).

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 4 with a User Code of "456789":

Press ; 2 ; 4 ; 4 5 6 7 8 9 :.

3. Because User 4 does not have a default Group association, make User 4 a member of Group 1 using Function 35:

Press ; 3 5 ; 4 ; 1 :.

4. Use Function 88 and Function 89 (see page 30) to designate Passage Mode as being between the hours of 8:30 A.M. and 10 A.M. for all

days of the week:

Function 88 (Open Window Time) = 8:30 A.M.: Press ; 8 8 ; 0 ; 0 8 3 0 :

Function 89 (Close Window Time) = 10:00 A.M.: Press ; 8 9 ; 0 ; 1 0 0 0 :

5. Exit Program Mode (hold down any key for 3 seconds).

The lock will now be put in Passage Mode (device physically unlocked) if User 4 (or any Group 1 member) enters their User Code between

8:30 A.M. and 10 A.M. If a Group 1 User does not enter their User Code during the specified window, Functions 88/89 remain inactive

 The device will have to be manually locked each night by entering the following command using Function 46:

; 4 6 :

 The device can also be programmed to automatically lock (disable Passage Mode) each night at 5 P.M. by using Function 73:

; 7 3 ; 0 ; 1 7 0 0 :

 Remember to exit Function Mode when programming is complete.

33

Groups and Scheduled Group 1 Examples (cont'd.)

Functions 90/91: Use Function 90 and 91 (see page 30) to create a window of time where if any Group 1 User Code is entered within the

programmed window, the relay (where equipped) will be activated for 2 seconds. The relay can be configured to disarm a burglary control panel.

See page 30.

1. Enter Program Mode (if not in already).

2. Connect relay to a burglar control panel with switch input for disarming.

3. Using Function 2, create User 4 with a User Code of "456789":

Press ; 2 ; 4 ; 4 5 6 7 8 9 :.

4. Because User 4 does not have a default Group association, make User 4 a member of Group 1 using Function 35:

Press ; 3 5 ; 4 ; 1 :.

5. Use Function 90 to set the time to open the window (8:30 A.M. all days of the week) allowing any Group 1 member to close the relay for 2

seconds. Note: Only 1 relay closure will occur even if another member of Group 1 enters their User Code. Use Function 91 to set the time

to close the window (10 A.M. for all days of the week):

Function 90 (Open Window Time) = 8:30 A.M.: Press ; 9 0 ; 0 ; 0 8 3 0 :

Function 91 (Close Window Time) = 10:00 A.M.: Press ; 9 1 ; 0 ; 1 0 0 0 :

6. Exit Program Mode (hold down any key for 3 seconds).

The relay will close, one time only, when a member of Group 1 enters their User Code between 8:30AM and 10:00AM. If a Group 1 User

does not enter their User Code during the specified window, Functions 90/91 remain inactive

 The alarm panel will have to be armed at night by the User or by an automatic schedule function of the alarm panel.

Functions 92/93: Use Function 92 and 93 (see page 30) to create a window of time where if any Group 1 User Code is entered within the

programmed window, Group 4 Users will be enabled.

1. Enter Program Mode (if not in already).

2. Using Function 2, create User 4 with a User Code of "456789":

Press ; 2 ; 4 ; 4 5 6 7 8 9 :.

3. Because User 4 does not have a default Group association, make User 4 a member of Group 1 using Function 35:

Press ; 3 5 ; 4 ; 1 :.

4. Using Function 17, disable Group 4. (Group 4 will need to be "disabled" before it can be "enabled" later).

Press ; 1 7 :.

5. Use Function 92 to set the time to open the window (8:30 A.M. all days of the week) allowing any Group 1 member to enable Group 4. Use

Function 93 to set the time to close the window (10:00 A.M. all days of the week).

Function 92 (Open Window Time) = 8:30 A.M.: Press ; 9 2 ; 0 ; 0 8 3 0 :

Function 93 (Close Window Time) = 10:00 A.M.: Press ; 9 3 ; 0 ; 1 0 0 0 :

6. Exit Program Mode (hold down any key for 3 seconds).

The lock will now enable Group 4 User Codes if User 4 (or any Group 1 member) enters their User Code between 8:30 A.M. and 10 A.M.

If no Group 1 member arrives to enter their User Code between 8:30 A.M. and 10 A.M., Group 4 User Codes will not be enabled and will

remain disabled all day.

 The device will have to be manually locked each night by entering the following command using Function 82:

; 4 6 :

 The device can also be programmed to automatically disable Group 4 members each night at 5 P.M. by using Function 82:

; 8 2 ; 0 ; 1 7 0 0 :

 Test the device by creating User 222 (with User Code 466466) and adding User 222 to Group 4:

; 2 ; 2 2 2 ; 4 6 6 4 6 6 :

; 3 5 ; 2 2 2 ; 4 :

 Remember to exit Function Mode when programming is complete.

34

Function

Number(s) Function Name Programming

43/44 Clock Adjust

52/53/54 Pass Time (3 sec)  10 sec  15 sec 

60 Set Lockout Attempts

61 Set Lockout Time

64/65 Remote Input Momentary (Enable)  Disable 

66 Ambush Code

67 Add Relay/System Features

(for locks equipped with an internal

relay)

69/70 Enter Key Enable  (Disable) 

+/- 0-55

(0) (0) Seconds

1-9 Attempts

(6)

1-60 seconds

(1) (8)

Default Values are shown in parentheses.

00-99

(9) (9) Ambush Code

1. Remote Input switch closed and Function 65 Remote Input enabled 

2. Remote Input switch closed and Function 64 Remote Input disabled 

3. Failed attempted entry 

4. Disabled User or Group 

5. Follow Access Granted 

6. Group 1 User Code 

7. Scheduled Lock Event 

8. Scheduled Unlock Event 

9. Lock Out 

10. Ambush 

11. First Key Press 

12. Activate Relay on Door Ajar 

14. Activate Relay on Forced Door 

24. One Time Access for Group 3 Users 

25. Disable Sounder 

26. 5 sec. Delayed Entry 

27. 15 sec. Delayed Entry 

28. 45 sec. Delayed Entry 

29. Toggle Passage Mode 

30. Forced Unlock Follows Remote Input 

31. Follow Access Granted--No Time Limit 

32. Remote Input Disables Unit 

33. Remote Input Puts Unit in PC Communication Mode 

38. Lock responds to "Global" Emergency Commands (default = OFF) 

39. Users are Disabled During Lockdown (default = ON) 

40. Enable Door Monitoring (default = OFF) 

41. Sounder Alert on Door Ajar (default = OFF) 

42. Forced Door Detection (default = OFF) 

43 Enable Sounder on Emergency 

44 Enable Inside Emergency Indicator 

45 Activate Local Emergency: Keypad initiates Local Emergency Commands 

46 Activate Global Emergency: Keypad initiates Global Emergency Commands 

47 Activate Local Emergency: Keyfob initiates Local Emergency Commands 

48 Activate Global Emergency: Keyfob initiates Global Emergency 

Check all that apply:

35

User Number

(1-5000) User Code

(3-6 digits) User Name

1 2 3 4

Group

Association

For a complete list of user codes, obtain a printout from the DL-WINDOWS software.

Note:

36

Day(s)

Function Number

Up to 500 scheduled functions can be programmed. For

Day Enter :

1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday

5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through

Friday, 9 = Saturday and Sunday, 0 = All days of the week

Enter time of day in 24-hour format (00:00- 23:59)

Time

Function Name

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

37

Day(s)

Function Number

Up to 500 scheduled functions can be programmed. For

Day Enter :

1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday

5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through

Friday, 9 = Saturday and Sunday, 0 = All days of the week

Enter time of day in 24-hour format (00:00- 23:59)

Time

Function Name

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

38

ACCESS = Entry into a restricted area.

AMBUSH = A special Code entered at the keypad when

the User is forced to unlock a security device. The device

unlocks but sends a silent alarm with no indication at the

keypad. Can be used to trip a relay, to alert security, or

trip a silent alarm on a burglary control panel.

AUDIT TRAIL = A date/time stamped log of previous lock

events.

BURGLARY CONTROL PANEL = Provides local alarm and

remote communication to request security for burglary/

break-in. An internal lock relay output used for Ambush

can provide a silent alarm and call-for-help (for locks

equipped with an internal relay).

CLOCK

 REAL TIME CLOCK = An accurate built-in clock that

allows date/time stamping of events. The clock can be

slowed or speeded up to fine tune long term accuracy

to within three minutes per year (see Functions 43 and

44).

 CLOCK SPEED = The clock can be adjusted to

allow faster/slower speeds and therefore increasing

clock accuracy (see Functions 43 and 44).

CODE = Numeric sequence of numbers (such as: 1234)

entered at the keypad. If Star-Enter key is required, must

be followed by a : key.

 AMBUSH CODE = See Ambush.

 BASIC USER CODE = User Codes assigned to User

Numbers 12+ (except Users 297-300). (Does not allow

programming)

 INSTALLER CODE = User Codes assigned to User

Numbers 2 and 3. (Allows all programming except

Master functions).

 INVALID CODE = A numeric sequence of numbers

entered via the keypad buttons that have not been pro-

grammed in the lock.

 MANAGER CODE = User Codes assigned to User

Numbers 4 through 6. (Allows most of the

programming functions).

 MASTER CODE = User Code assigned to User

Number 1. Default (factory) Master Code is 123456.

The User with the Master Code has complete control of

the lock.

 QUICK ENABLE USER 300 CODE = Refers to the

User Code entered by User 297 which (when entered

at the keypad) enables the User Code assigned to User

300 for one time only.

 SERVICE CODE = User 300 User Code. Allows only

one entry, then needs to be re-enabled by the User 297

User Code to regain access.

 SUPERVISOR CODE = User Codes assigned to Us-

ers 7, 8 and 9. Can only program day-to-day operation.

 USER CODE = Code used by Users. Code is 3 to 6

numeric digits long, allowing controlled entry.

 VALID CODE = A numeric sequence of numbers

entered via the keypad buttons that have been pro-

grammed in the lock and identified by the lock as a

User Code.

CREDENTIAL = A generic word used to indicate User

Code, a proximity card, proximity keyfob (such as a

ProxKey® keyfob), a hardwired Remote Input momentary

contact, a Wireless Remote Release, or any future device

or design that allows the lock to unlock, allowing passage

through the door.

DATE = Month, Day and Year entered as MMDDYY.

DAY OF WEEK = Sunday through Saturday (where 1 =

Sunday and 7 = Saturday).

DEFAULT = Default settings are the original settings that

were set at the factory; in other words, it is the lock's origi-

nal factory condition when the lock was first taken out of its

box. The default settings are permanently encoded within

the lock's fixed memory, and when the lock is first started,

or when power is removed and re-applied (see Wiring and

Power-Up, page 13), the original factory default settings

are re-loaded and take effect.

DISABLE = Turn off.

DOWNLOAD = Send data to the lock.

DOOR AJAR = The controlled door was unlocked and is held

open for a certain duration. If the duration is longer than

the allowed Door Ajar Trip Time (programmed at Function

68), first a log entry is recorded, then, if programmed, the

relay engages for 2 seconds (Function 67 #12) and/or the

Alert Sounder (Function 67 #41) triggers. Note: The pro-

grammed Door Ajar Trip Time begins after the pro-

grammed Pass Time ends (Pass Time settings are con-

trolled by Functions 52-54). For locks equipped with an

internal relay.

EMERGENCY COMMANDS = For use with the Trilogy Net-

worx™ wireless network only. Wireless commands can be

sent to all wireless locking devices in an Account during a

crisis or other urgent situation. "Global Lock Down" locks

all doors in the Account; "Global Passage" unlocks all

doors in the Account; Return all devices in the Account to

"normal" discontinues all emergency commands, reverting

to "normal" non-emergency operation. Note: DL-Windows

does not need to be running to allow these "Emergency"

commands to be initiated; any wireless keypad can be

used to disseminate these commands throughout the wire-

less system.

EMERGENCY GROUP = Upon the addition of each Gate-

way (see page 4) into an Account, the Gateway is auto-

matically placed into an Emergency Group ("GROUP A" by

default). This is done so that upon the initiation of an

Emergency Command, ALL Gateways in the Emergency

Group (and their assigned locks) will respond to Emergen-

cy Commands issued from DL-Windows. In addition, the

automatic placement of a new Gateway into an Emergency

Group allows for keypad-initiated Emergency Commands

Glossary

39

Glossary (cont'd)

to lock down an entire system from a single wireless lock.

See OI383 for more information.

ENABLE = Turn on.

EVENTS = Recorded lock activity.

FORCED DOOR = The Door Position Contacts detect the

door was opened without first a valid credential unlocking

the unit, or the door was opened without first the inside

lever turned (to activate the Lever Monitor Switch).

FUNCTION (also called Programming Functions) = are the

numbers used to program lock features (enabling/disabling

Users, User Groups, Passage Mode, Schedules, etc.).

GATEWAY GROUP = See...EMERGENCY GROUP

GROUP

 USER GROUP = Defining a User to specific Groups,

allows User entry when the Group is allowed entry.

 GROUP 1 DISARMS BURGLAR CONTROL = A

Group 1 USER CODE entry can disarm an alarm panel

during a predefined schedule. Should the Group 1

enter the lock outside of the scheduled time, the alarm

will not disarm. The alarm panel must be armed

through other means (such as an alarm control panel

keypad). The burglary alarm control panel must be

programmed to disarm from an armed state only and

the zone input must be programmed for input

disarming.

 GROUP 1 ENABLES GROUP 4 USERS = A Group 1

USER CODE entry during a predefined schedule will

allow access to Group 4 Users.

 GROUP 1 PUTS UNIT IN PASSAGE = A Group 1

USER CODE entry during a pre-defined schedule will

unlock unit.

GUARD TOUR = A Guard Tour Code is used to log the move-

ment of a security guard as he or she makes rounds from

one assigned guard tour station to the next. See "User

299: Guard Tour Code" on page 7 for more infor-

mation.

INSTALLER = See.... CODE, INSTALLER CODE.

KEYPAD = 10-numeric keys, : and special ; key.

 KEYPAD LOCKOUT = Keypad is programmed to

lockout Users, for a specified period of time, when a

specified number of invalid User Codes are entered.

 KEYPAD PROGRAMMING = Ability to program the

lock through the keypad.

KEYPRESS = Pressing a button on the Lock's Keypad.

LEVEL ABILITY = Predefined User types (such as Master,

Installer, Manager and Supervisor) have specific abilities to

program and /or control the lock.

LOCKOUT ATTEMPTS = A specified number of invalid

User Code entries (1-9), that will disable the keypad for a

predefined period of time (1-60 seconds).

LOCKOUT TIME = A predefined time (1-60) seconds that

the lock will stop accepting User Codes, after a specified

number of invalid User Code entries (1-9).

LOG = See... AUDIT TRAIL.

MANAGER = See... CODE, MANAGER CODE.

MASTER = See... CODE, MASTER CODE.

PAIR = To connect a button (located on the RR-1BUTTON

Wireless Remote Release Button or the RR-4BKEYFOB

Wireless Remote Release Keyfob) with a PDL8600 or

ETPDNIRX series locking device for the purpose of locking

or unlocking the lock, or initiating Emergency Commands.

Each button on the Wireless Remote Release can be

"paired" (connected) with one locking device (four buttons

on the RR-4BKEYFOB can be paired with four separate

locking devices).

PASSAGE = Allow anyone to pass through the door

without USER CODES (door is unlocked).

PROGRAM MODE = A mode allowing program / data to be

entered through the keypad. Only specific Users can

program a lock manually, by entering their USER CODE,

followed by the ; key. To exit program mode, hold any

key until repeated beeps are heard.

PROGRAMMABLE RELAY FUNCTIONS = The relay (where

equipped) can be programmed for one or more functions.

RELAY = Switched output allowing remote control of

other devices (where equipped). For an explanation of all

relay features, see Function 67 on page 26.

REMOTE INPUT = Entry into a restricted area, by pressing

a button connected to the REMOTE INPUT WIRES (white

and white) by someone on the other side of the door.

SCHEDULE = A programmed operation (enable/disable,

lock/unlock, etc.) on a specific day (Sunday through

Saturday) and time.

SCHEDULES, QUICK = Any one of four most common

types of schedules can be programmed.

TIME = Hours and Minutes in the HHMM format.

TIME/DATE STAMP = A recorded date and time that an

event occurred.

TIMEOUT = Immediate operation for a specified number of

hours.

UPLOAD = Receive data from the lock.

USER = A person who has been provided with a USER

CODE for access through the door.

USER LOCKOUT, TOTAL = All Users (except for Master

Code) have been locked out.

Trilogy® is a registered trademark of Alarm Lock. ProxCard® and ProxKey® are trademarks of the HID© Corporation.. Microsoft® and Windows® are trademarks of their the Microsoft Corporation.

40

ALARM LOCK SYSTEMS, INC. (ALARM LOCK) warrants

its products to be free from manufacturing defects in mate-

rials and workmanship for twenty four months following the

date of manufacture. ALARM LOCK will, within said peri-

od, at its option, repair or replace any product failing to

operate correctly without charge to the original purchaser

or user.

This warranty shall not apply to any equipment, or any part

thereof, which has been repaired by others, improperly

installed, improperly used, abused, altered, damaged, sub-

jected to acts of God, or on which any serial numbers have

been altered, defaced or removed. Seller will not be re-

sponsible for any dismantling or reinstallation charges,

environmental wear and tear, normal maintenance ex-

penses, or shipping and freight expenses required to re-

turn products to ALARM LOCK. Additionally, this warranty

shall not cover scratches, abrasions or deterioration due to

the use of paints, solvents or other chemicals.

THERE ARE NO WARRANTIES, EXPRESS OR IM-

PLIED, WHICH EXTEND BEYOND THE DESCRIPTION

ON THE FACE HEREOF. THERE IS NO EXPRESS OR

IMPLIED WARRANTY OF MERCHANTABILITY OR A

WARRANTY OF FITNESS FOR A PARTICULAR PUR-

POSE. ADDITIONALLY, THIS WARRANTY IS IN LIEU

OF ALL OTHER OBLIGATIONS OR LIABILITIES ON THE

PART OF ALARM LOCK.

Any action for breach of warranty, including but not limited

to any implied warranty of merchantability, must be

brought within the six months following the end of the war-

ranty period.

IN NO CASE SHALL ALARM LOCK BE LIABLE TO ANY-

ONE FOR ANY CONSEQUENTIAL OR INCIDENTAL

DAMAGES FOR BREACH OF THIS OR ANY OTHER

WARRANTY, EXPRESS OR IMPLIED, EVEN IF THE

LOSS OR DAMAGE IS CAUSED BY THE SELLER'S

OWN NEGLIGENCE OR FAULT.

In case of defect, contact the security professional who

installed and maintains your security system. In order to

exercise the warranty, the product must be returned by the

security professional, shipping costs prepaid and insured

to ALARM LOCK. After repair or replacement, ALARM

LOCK assumes the cost of returning products under war-

ranty. ALARM LOCK shall have no obligation under this

warranty, or otherwise, if the product has been repaired by

others, improperly installed, improperly used, abused, al-

tered, damaged, subjected to accident, nuisance, flood,

fire or acts of God, or on which any serial numbers have

been altered, defaced or removed. ALARM LOCK will not

be responsible for any dismantling, reassembly or reinstal-

lation charges, environmental wear and tear, normal

maintenance expenses, or shipping and freight expenses

required to return products to ALARM LOCK. Additionally,

this warranty shall not cover scratches, abrasions or dete-

rioration due to the use of paints, solvents or other chemi-

cals.

This warranty contains the entire warranty. It is the sole

warranty and any prior agreements or representations,

whether oral or written, are either merged herein or are

expressly cancelled. ALARM LOCK neither assumes, nor

authorizes any other person purporting to act on its behalf

to modify, to change, or to assume for it, any other warran-

ty or liability concerning its products.

In no event shall ALARM LOCK be liable for an amount in

excess of ALARM LOCK's original selling price of the

product, for any loss or damage, whether direct, indirect,

incidental, consequential, or otherwise arising out of any

failure of the product. Seller's warranty, as hereinabove set

forth, shall not be enlarged, diminished or affected by and

no obligation or liability shall arise or grow out of Seller's

rendering of technical advice or service in connection with

Buyer's order of the goods furnished hereunder.

ALARM LOCK RECOMMENDS THAT THE ENTIRE SYS-

TEM BE COMPLETELY TESTED WEEKLY.

Warning: Despite frequent testing, and due to, but not

limited to, any or all of the following; criminal tampering,

electrical or communications disruption, it is possible for

the system to fail to perform as expected. ALARM LOCK

does not represent that the product/system may not be

compromised or circumvented; or that the product or sys-

tem will prevent any personal injury or property loss by

burglary, robbery, fire or otherwise; nor that the product or

system will in all cases provide adequate warning or pro-

tection. A properly installed and maintained alarm may

only reduce risk of burglary, robbery, fire or otherwise but

it is not insurance or a guarantee that these events will not

occur. CONSEQUENTLY, SELLER SHALL HAVE NO LIA-

BILITY FOR ANY PERSONAL INJURY, PROPERTY

DAMAGE, OR OTHER LOSS BASED ON A CLAIM THE

PRODUCT FAILED TO GIVE WARNING. Therefore, the

installer should in turn advise the consumer to take any

and all precautions for his or her safety including, but not

limited to, fleeing the premises and calling police or fire

department, in order to mitigate the possibilities of harm

and/or damage.

ALARM LOCK is not an insurer of either the property or

safety of the user's family or employees, and limits its lia-

bility for any loss or damage including incidental or conse-

quential damages to ALARM LOCK's original selling price

of the product regardless of the cause of such loss or

damage.

Some states do not allow limitations on how long an im-

plied warranty lasts or do not allow the exclusion or limita-

tion of incidental or consequential damages, or differenti-

ate in their treatment of limitations of liability for ordinary or

gross negligence, so the above limitations or exclusions

may not apply to you. This Warranty gives you specific

legal rights and you may also have other rights which vary

from state to state.

ALARM LOCK LIMITED WARRANTY
