Subject: What's in the Box: DL3500CR
Models: DL3500CR Mortise Lock

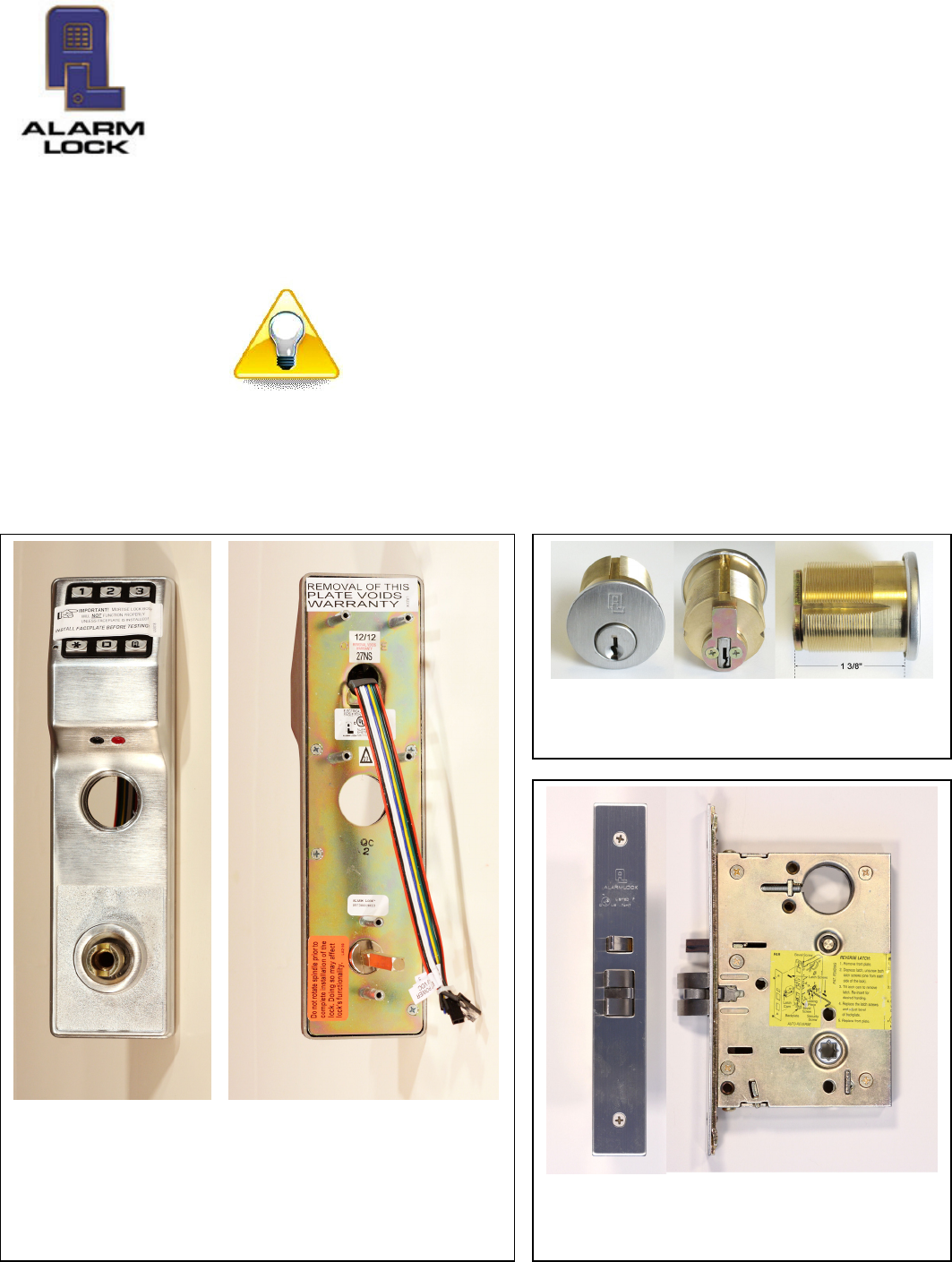

1 3/8" Mortise Cylinder / Standard Cam.
# HW850-26D-KD
Outside Housing (Front and Rear View)
Dimensions: (H x W) 11-1/16" x 3"
# S6123-26D (Keypad)
# S6165-26D (Keypad + Prox Reader)
Lock Body
# HW875CR (Hand) 26D
ALARM LOCK
345 Bayview Avenue, Amityville, New York, U.S.A. 11701
For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440
Fax: 631-789-3383 • info@alarmlock.com
Note: Technical Service is for security professionals only

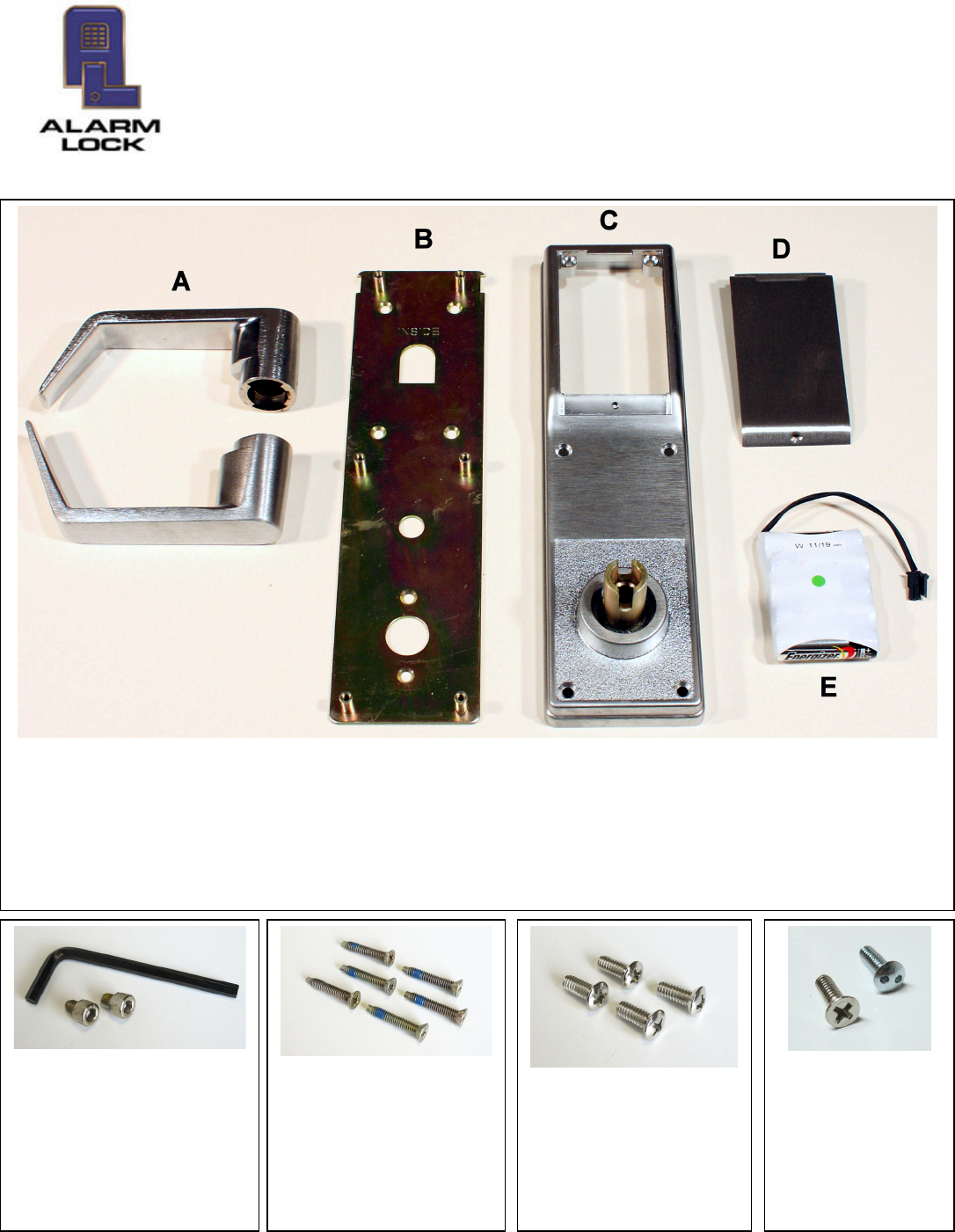

A Levers: HW819C-26D
B Inside Mounting Plate: S6136
C Inside Housing Assembly: S6131-26D
D Battery Cover: HW844C-26D
E Battery Pack: S6065
Lever Set Screws
(1/4" x 10/32) Inside Mounting Plate
Through Bolt Screws
(1" x 8/32)
Inside Housing
Assembly Screws
(3/8" x 8/32)
2 Additional Screws Installed
under the Battery cover, and
4 Optional Spanner Head
Screws (not shown)
Battery Cover
Screw
(3/8" x 4/40)
Optional
Spanner
Head Screw
