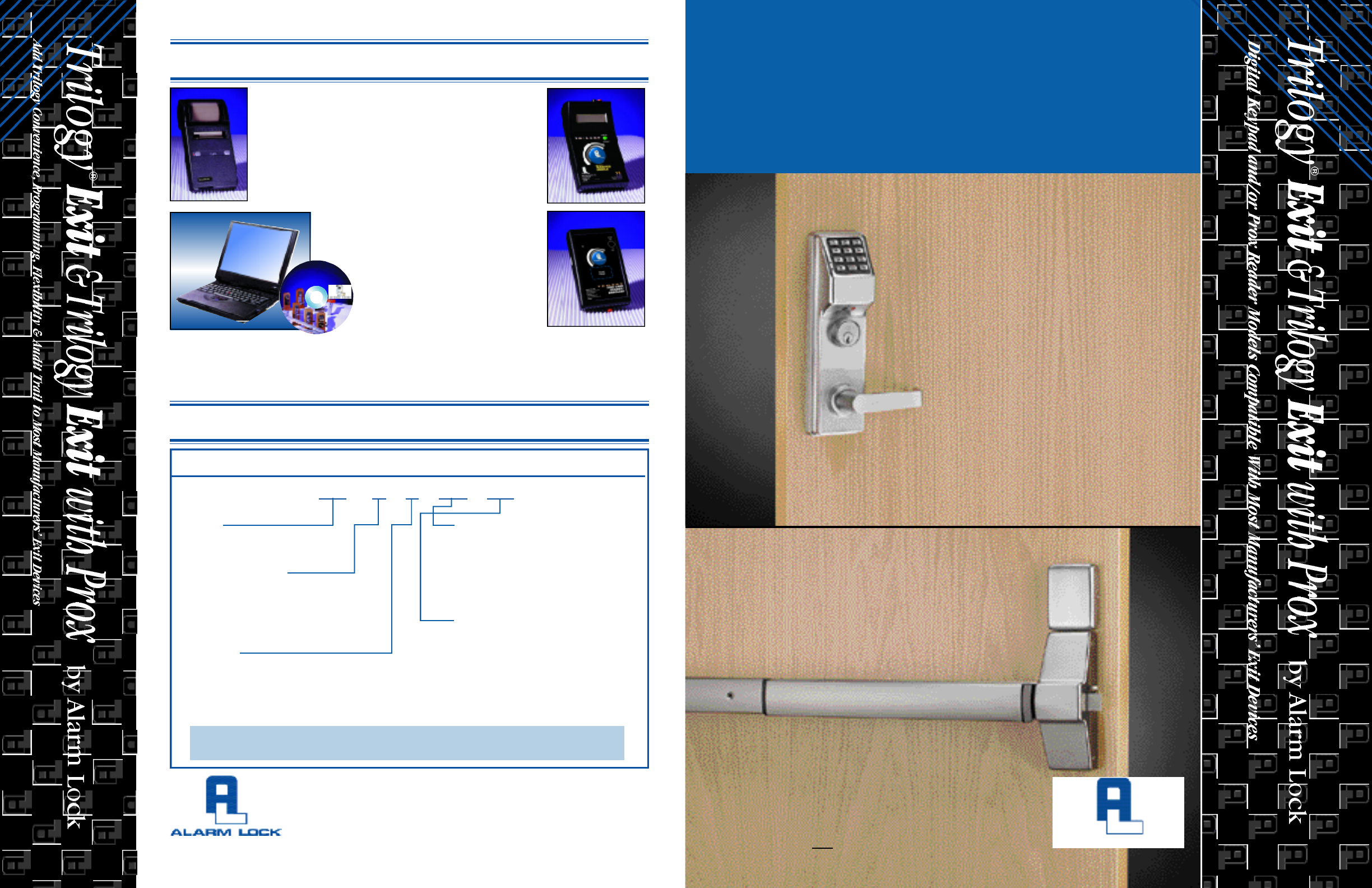

(Panic Exit Device Not Included)

Add Proven Trilogy Convenience,

Programming, Flexibilty

and Audit Trail To Most Maufacturers’

Panic Exit Devices

ALARM LOCK SYSTEMS, Inc. •A Division of the NAPCO Security Group

345 Bayview Avenue •Amityville, NY •11701 •USA

1-800-ALA-LOCK •631-789-4871 •Fax: 631-789-3383 •www.alarmlock.com

Sweets File# 08710 /ALA Buy Line 3425

Trilogy®is a registered trademark of Alarm Lock. ©Alarm Lock, 2002 Specifications subject to change. Patents Pending

All other brands trademarks are of their respective companies.

ORDERING INFORMATION

ALA169

EXIT TRIM ORDERING INFORMATION

ETPDL- 1/ S/ 26D V99

TYPE:

DL = Digital Only

PDL = Digital with Prox

DOOR THICKNESS:

1 = 1 3/4” Standard

2 = 2”, Special Order

3 = 2 1/4”, Special Order

4 = 2 1/2”, Special Order

HANDLE:

R = Regal

S = Straight (ADA Compliant;

Meets Titles 19 & 24, C.S.F.M.)

Finish:

26D = US26D Satin Chrome

10B = Duronodic

26 = US26 Polished Chrome

3 = US3 Polished Brass

5 = US5 Antique Brass

PANIC EXIT DEVICE BRANDS

V99 = Von Duprin 99

C50 = Corbin ED5000 & Yale

D93 = Dorma 9300

A38 = Arrow 3800

S88 = Sargent 8800

For other Exit Devices call the factory.

AUDIT TRAIL ACCESS OPTIONS

DL-WINDOWS SOFTWARE: Version 2.94 or higher

Windows-format software used to create programming, manager users

and schedules, receive Audit Trail from lock, program

the lock using PC or laptop, program the AL-DTMII to

program multiple locks and configure the AL-DTMII to

transfer data. DL-WINDOWSis packed with AL-PCI2

AL-IR1 Infrared Printer:

Prints the event log and

user code with hand-held

convenience.

AL-DTMII Data Transfer Module:

Module used to transfer program data

from the PC to the lock and receive Audit

Trail from the lock. Can send program

data for up to 96 locks.

For Prox Models, AL-PRE:

Prox Card Reader/Enroller Enables instant,

automatic enrollment of Prox Cards into

DL-Windows (just tap the prox Card/fob device to the unit’s faceplate to enroll)!

Supports all Prox Cards and Prox Keyfobs. Simultaneous card enrollment,

downloading or lock polling – all on just one serial port.

(Replaces AL-PCI2.) 9V Battery operation.

DL-WINDOWS

ALARM LOCK SYSTEMS INC.

A Division of the NAPCOSecurity Group

345 Bayview Avenue, Amityville, NY 11701

1-800-ALA-LOCK• (631) 789-4871 • www.alarmlock.com

MX993

Version 2.5.3

INTERIOR DOOR

EXTERIOR DOOR

IMPORTANT: See separately ordered Cylinder Adapter Kits Pg.3

NOTE: All ETPDL & ETDL Series Models are dependably Weather-Resistant.

•Accepts most HID Proximity cards and keyfobs

•Users are individually programmed to use a card only,

code only, or for the highest security – both card

and code

•2000 User Codes: Master, manager, supervisor

and users

•Real Time Clock for up to 40,000 Event Time/

Date-Stamped Audit Trail

•Up to 500 Lock/Unlock Schedules (with Time

Zone Support)

•Prox Card data can be added to software by uploading

from lock, by using AL-PRE or entering directly from

computer using DL-Windows software.

•Field-proven clutch Mechanism ensures long life

and durability

•Fingertip and/or Windows Programmable

•Rugged 12-Button Weather-Resistant Metal Keypad

•Non-Handed; Fully Field Reversible

•Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders

(See separately ordered Cylinder Adapter Kit, pg.3)

•Battery operated; uses 5 AA batteries

•Battery pack mounts to interior door. Located over or under panic bar (position dependent upon

exit device manufacturer).

Operation: Clutch mechanism permits turning lever without retracting latch and reduces stress on the spindle.

Entering access code, presenting prox card or key bypass, or remote bypass will allow lever to retract latch.

Inside panic bar always provides instant egress. (Temperature Range: +150°F to -20° F.)

Door Thickness: 13/4” standard. Other thickness please see ordering information and/or consult factory.

Keypad: Vandal-resistant all metal, weather-resistant 12-button programmable for multi-level access functions including group

or individual user codes, master and management codes, passage and emergency or service code, lockout and remote over-

ride capability and allowable entry time for 5 to 15 seconds. (Completely encapsulated circuit board hermetically sealed from

weather and elements.)

Audit Trail: Locks’ entry activity log can be polled to the Data Transfer Module (AL-DTMII), any PC using Alarm Lock’s

DL-WINDOWS Software (Vsn.2.94 or higher), and/or can be on-site printed using the hand-held infrared printer (AL-IR1).

Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco, Keymark & KabaPeaks.

Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm lock tailpiece is supplied;

IC Core is not included.

Cylinder: Requires separately available Cylinder Adapter Kit, see below.

Handing: Non-handed, field reversible

Compliances: Use of the Alarm Lock TrilogyExit does not alter or invalidate the UL Safety or Fire Ratings of the Panic Exit

Device you are using (when properly installed per Alarm Lock’s instruction sheet).

Finishes: US3 polished brass, US26D satin chrome, US26 polished chrome, 10B Duronodic, US5 Antique Brass.

Power: 5 AA alkaline batteries, (supplied) installed in Battery Pack (see below). Audible low battery alert, visual and audible

entry indicators

SPECIFICATIONS

•Field-proven clutch Mechanism ensures long life

and durability

•Fingertip and/or Windows Programmable

•2000 User Codes: Master, manager, supervisor and users

•Real Time Clock for up to 40,000 Event Time/Date-

Stamped Audit Trail

•Up to 500 Lock/Unlock Schedules (with Time Zone

Support)

•Rugged 12-Button Weather-Resistant Metal Keypad

•Non-Handed; Fully Field Reversible

•Adaptable to most major manufacturers of standard

RIM and IC RIM Cylinders (See separately ordered

Cylinder Adapter Kit, pg.3)

•Battery operated; uses 5 AA batteries

•Battery pack mounts to interior door. Located over or under panic bar (position dependent upon

exit device manufacturer).

TRILOGY EXIT FEATURES

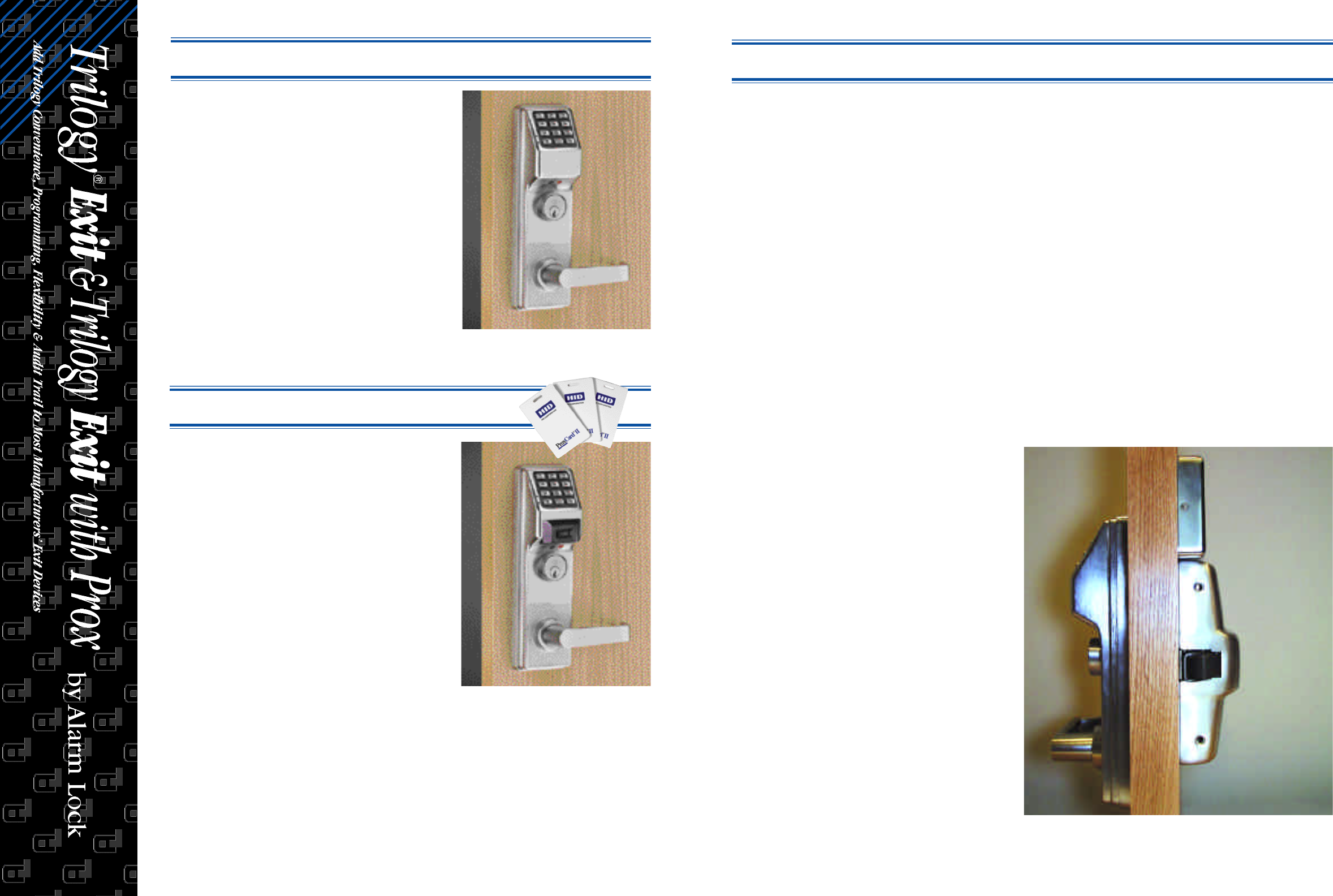

TrilogyExit with Von Duprin Panic Exit Device

shown in profile on 1 3/4” thick door.

TRILOGY EXIT WITH PROX

BATTERY PACK

(Positioned above

or below panic exit

trim, depending

upon brand.)

EXIT TRIM MANUFACTURERS

The Trilogy Exit will work with the following Panic Bars:

•Von Duprin 99 Series

•Corbin ED5000 Series

•Yale 7100 Series

•Dorma 9300 Series

•Arrow 3800 Series

•Sargent 8800 Series

CYLINDER ADAPTER KITS

Select a Cylinder Adapter Kit when ordering:

•Arrow 6 & 7 Pin IC Kit = ETARIC KIT

•Arrow Rim Kit = ETAR KIT

•Assa Rim Kit = ETAS KIT

•Alarm Lock Rim Kit = ETAL KIT

•Best 6 & 7 Pin IC Kit = ETBIC KIT

•Corbin IC Kit = ETCIC KIT

•Corbin Rim Kit = ETC KIT

•Medeco 6 & 7 Pin IC Kit = ETMIC KIT

•Medeco Rim Kit = ETM KIT

•Sargent IC Kit = ETRIC KIT

•Sargent Rim Kit = ETR KIT

•Schlage IC Kit = ETSIS KIT

•Schlage Rim Kit = ETS KIT

•Yale 6 & 7 Pin IC Kit = ETYIC KIT

•Yale Rim Kit = ETY KIT
