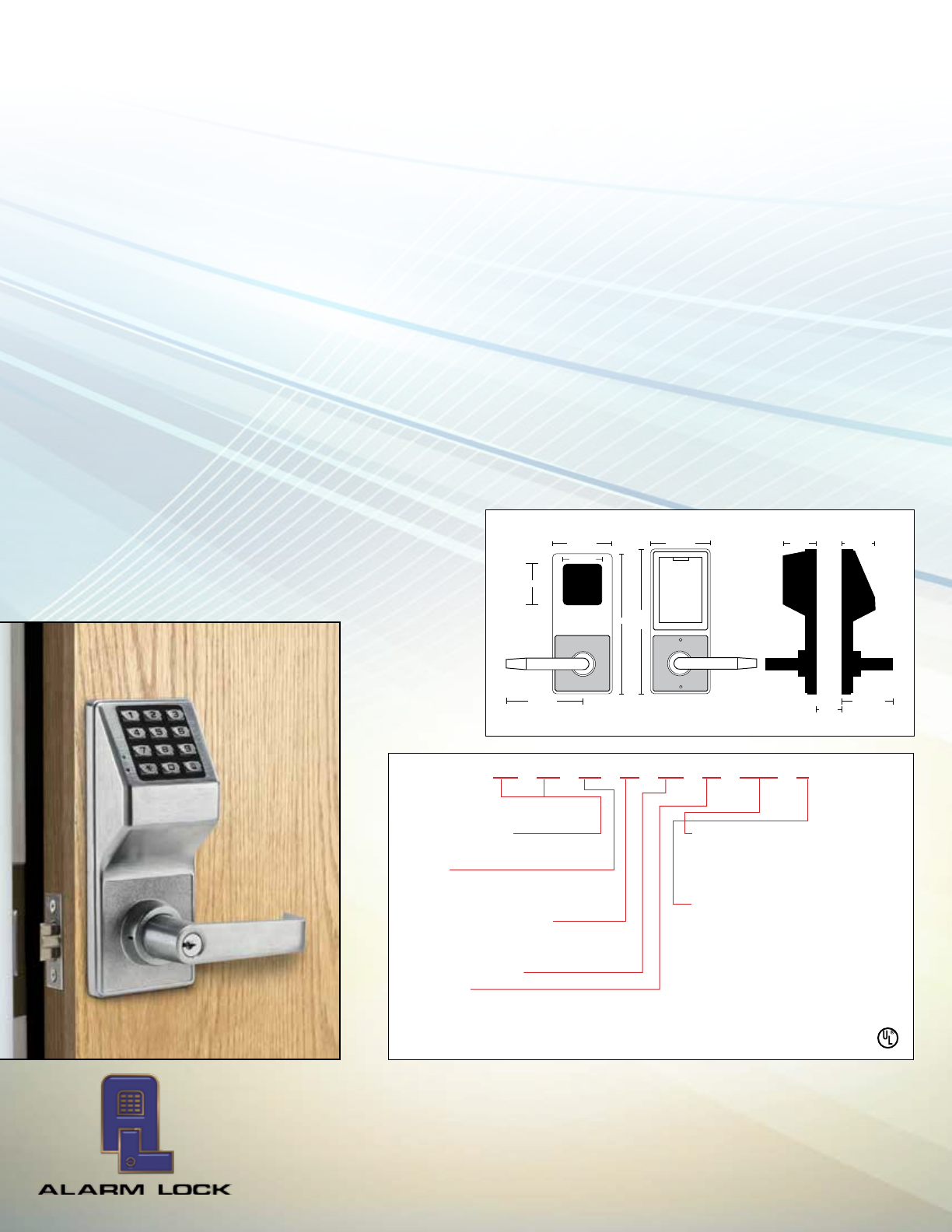

Lockdown up to
four locks with one
compact remote
keyfob (Actual size)
• Lockdown up to four locks with one compact remote keyfob – Pocket-sized, just
over 2” (one included with DL2700LD)
• Bright visual lockdown indicator bar on inner door conrms security activation to
occupants; Outside small indicator light ashes and/or optionally beeps when
in lockdown
• Grade 1 Durability. Grade 1 Lockset , rugged all metal keypad
• Up to 100 different user codes (3-5 digits). Master, manager and emergency, plus 3
service codes
• 100% ngertip programmable, easy installation in less than an hour (Modied ANSI
115 Prep simply retrots standard locksets.)
• Individual, group or total user code enable/disable. Passage mode, too
• Long-life battery operated; uses 5 standard AA batteries
• Non-handed for easy installation and versatility
• “W” Weatherproof Models available for exterior use,
-31°F to +151°F (-35°C to +66°C )
Trilogy® T2 Digital Lock with LocDown™ Features:
Keyfob-Activation & Lockdown Indicator Bar Inside
DL2700LD Series – New! Ideal for School & Campus Security:
Features Lockdown Indicator & Includes Compact Lockdown Keyfob

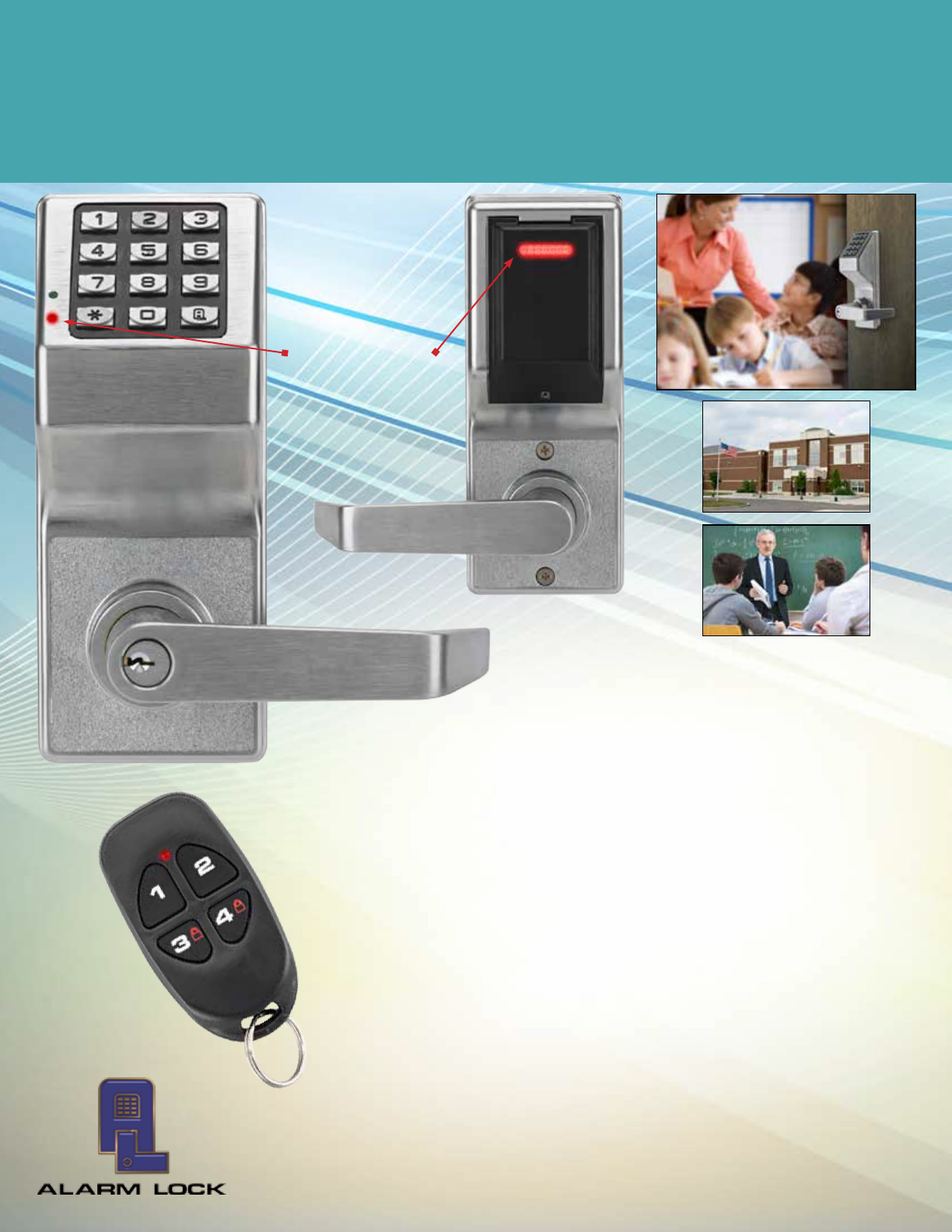

Bright visual lockdown
indicator bar on inner
door conrms security
activation to occupants
At the rst sign of trouble, faculty & staff can remotely press their pocket-sized keyfob’s button
to lock out unauthorized access, instantly locking-down a classroom or area, while remaining
safely within the room. (Keyfob activation up to 100’ away, depending on building construction.) For
multi-classroom users, up to 50 keyfobs can be supported on each lock and each keyfob can control up
to four locks.
With Trilogy’s lockdown function, only users with a security level of Master or Manager are allowed
access and can unlock the lock. All other basic user codes are denied access during emergency
lock down. Instantly, a return to normal command, however, can be sent from a keyfob, re-enabling
authorized teachers/staff and rst responders outside the classroom, thus disabling emergency
lockdown at any time.
For More on Alarm Lock’s Tiered School
Security Solutions and to Find Out How
Safe Your School is, see S.A.V.I. evaluator
www.savischool.com
DL 27 00 W LD IC 26D Y
Model & Series:
DL27 = Trilogy T2 Series
Trim:
00 = Lever
75 = Regal Trim Lever
Exterior / Interior Use:
W = Weatherproof for exterior use
(Note: No “W” indicates standard, interior use.)
Lockdown Feature:
Cylinder:
IC = Standard Interchangeable Core Prep for
Best, Falcon, Arrow, KSP
(Note: No “IC” indicates standard K.O. cylinder.)
Finish:
3 = US3 Polished Brass
26D = US26D Satin Chrome
10B = Duronodic
Special Order IC Prep:
-Y = Yale
-M = Medeco
-R = Sargent
-C = Corbin/Russwin
-S = Schlage
REMOTE KEYFOB FOR LOCKDOWN: 4-Button Keyfob (2 3/8” x
1 1/4” x 1/2”), controls up to 4 locks and uses replaceable battery.
One included with DL2700LD Lock; up to 50 can be supported
on each lock. Additional keyfobs, order part no. RR-4KEYFOB.
Portable keyfob range up to 100’, depending on building
construction constraints.
INDICATORS: Activating LocDown mode via keyfob illuminates a
large,red super-bright indicator bar on lock back, & red indicator
light, on front. Additional, audible lock-down indicator tone is a
programmable option. Routine momentary green visual/audible
entry indicator activated with authorized lock usage; visual indicator
warns of low battery condition.
OPERATION: Clutch mechanism permits turning lever without
retracting latch and reduces stress on lock bodies and spindle.
Outside lever free turning in locked position. Entering access code,
key bypass, or remote bypass will allow lever to retract latch. Inside
lever always instant egress.
DOOR THICKNESS: 1 5/8” to 1 7/8.” Other thicknesses. Please
consult Alarm Lock.
BACKSET: 2 3/4” Standard. 2 3/8” backset also available.
KEYPAD: All metal, 12 button programmable for multi-level access
functions including group or individual user codes, master and
management codes, passage and emergency or service codes,
lockout and remote override capability and allowable entry time
from 5 to 20 seconds. 4 Different keypad tones and keypad may be
silenced.
STANDARD KEY OVERRIDE CYLINDERS: Solid brass 6 pin tumbler
cylinder pinned 5, SC1 keyway, furnished in all locks. Additional
tailpieces included: HW580 ts Schlage®, Corbin/ Russwin® CL,
Sargent® 480 Series, ASSA®65-611. Model HW620 ts Ilco® and
Lori® cylinders.
INTERCHANGEABLE CORE MODELS: Accepts 6 & 7 Pin Cylinders
from: Best®, Arrow®, KSP®, Medeco Keymark® & Kaba Peaks®. Also
available IC Core models for Yale®, Medeco®, Sargent, Corbin/
Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is
not included.
LATCHBOLT: UL Listed, re rated, 3 hours, 1/2” throw, solid brass,
deadlocking. Reversible. Adjustable front for at or beveled doors.
STRIKE: 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike
included. With screws for wood or metal jambs.
LATCH FRONT: 1 1/8” x 2 1/4” wrought brass or stainless steel.
HANDING: Non-handed.
FINISHES: US3 polished brass, US26D satin chrome, 10B duronodic.
POWER: 5 AA alkaline batteries (supplied), provide up to 5 years
long battery life &/or approximately 75,000 cycles, typ., engaging
Trilogy’s unique Flex Drive™ motor, depending on actual lock
usage. Audible low battery alert.
DOOR PREP: Standard ANSI A115 Series Prep, modied by adding
additional through-bolt holes. Cleanly, simply retrots standard
locksets.
COMPLIANCES: Grade 1, heavy duty cylindrical lockset, UL listed
and FCC certied. ADA compliant leversets.
1 7/8 in.
1 11/16
in.
3 1/4 in.
3 1/4 in.
2 1/8 in.
8 in. 8 1/4
in.
1 3/4
in.
2 9/16 in.
4 3/4 in.
2 1/4 in.
OUTSIDE
INSIDE
OUTSIDE INSIDE
Alarm Lock Systems, LLC (A Divsion of NAPCO Security Technologies, Inc.)
333 Bayview Ave, Amityville, New York 11701
1-800-ALA-LOCK • ++ 631.842.9400 • Fax 631-789-3383
www.alarmlock.com • salesinfo@alarmlock.com
Trilogy and LocDown are trademarks of NAPCO Security Technologies. Other trademarks listed are those of their respective companies.
Preliminary specications subject to change without prior notice. © 2015.11 ALA506
