40-68F

Full HD LCD TV with Freeview & USB Media Player

Model No

User Guide

3

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Congratulations on purchasing this television. We hope you have many years of trouble free

enjoyment from your purchase.

Your product is covered under the manufacturers guarantee for 12 months from date of

purchase.

In the event of a fault being diagnosed, please refer to the frequently asked questions/

troubleshooting section at the rear of this user guide.

If you are still unable to remedy the fault, try resetting the TV to factory settings, (details in this

user guide) or contact the helpline.

In the event that a fault is diagnosed, the helpline will arrange to collect the TV from your home

or work address, return it to our service centre, repair the item and then return it to you.

If we believe we cannot offer a permanent repair, we will replace the item.

Sky Media UK LTD – Helpline Information

Telephone UK 0871 2000 463, ROI 01443 3940

Web support: www.skymediauk.co.uk

The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.

You must retain all packaging materials, in addition to your proof of purchase/receipt, as you will need

these in the event of warranty/service support.

This guarantee is in addition to and does not affect your statutory rights.

If you need to call the helpline, you will need the following information.

1) Model Ref

_____________________________________ (You can ¿ nd this on the rear of the TV)

2) Date of purchase

______________________________________ (You can ¿ nd this on your sales receipt)

3) Serial Number

_______________________________________ (You can ¿ nd this on the rear of the TV)

Important Guarantee Information

Serial No.

Example Only

Model Ref

4For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Important Safety Instructions

• To reduce the risk of ¿ re, electric shock or

damage to the television, do not expose it to dust,

rain or moisture, or place any objects ¿ lled with

liquids on or near the television.

• Do not place the television in a con¿ ned space,

ensure that nothing can obstruct the ventilation

openings at the rear of the television.

• Dispose of this television and any components

including batteries in an environmentally friendly

manner. If in doubt, please contact your local

authority for details of recycling.

• For your safety, this appliance is ¿ tted with a

fused moulded 3 pin mains plug. Should the

fuse need to be replaced, ensure that any

replacement is of the same amperage and

approved with the BSI mark.

• The television should be connected to a

main socket outlet with a protective earthing

connection.

• Never try and replace the mains plug unless

you have adequate quali¿ cations and are

legally authorised to do so. In the event that a

replacement Mains cable is required, contact the

manufacturer for a suitable replacement.

• Never use the television if it is damaged in any

way.

• Always place the television on a À at level surface

avoiding anywhere which may be subject to

strong vibration.

• Ensure the television is not placed on top of the

power cable as the weight of the television may

damage the cable and cause a safety hazard.

• Never place mobile phones, speakers or any

other device which may cause magnetic or radio

interference with the television. If interference

is apparent, move the device causing the

interference away from the television.

• To disconnect the apparatus from the mains,

please use the all pole mains switch located on

the side, underside or rear of the TV. The switch

shall remain readily operable.

• Batteries (battery pack or batteries installed)

shall not be exposed to excessive heat such as

sunshine, ¿ re or the like.

• Install the product at least 5cm from the wall for

ventilation.

• To clean this unit, wipe with a soft, dry cloth. If

the surfaces are extremely dirty, use a soft cloth

dipped in a soap and water solution or a mild

detergent solution.

• Use eyeglass cleaner to remove stubborn dirt

from the LCD/LED Screen.

• Never use alcohol, paint thinner or benzene to

clean this unit.

• Before using a chemically treated

cloth, read the instructions that

came with the cloth carefully.

CAUTION: If water or other liquid enters the television

through the display panel surface or back cover a

malfunction may occur.

• The safest way to transport your item is in

the original box/packaging - please save your

packaging for this.

• You will need original box/packaging in the event

of warranty/service repair or support. We are

unable to carry out warranty/service if you are

unable to package it correctly.

To prevent the spread of ¿ re, keep

candles or other open À ames away

from this product at all times

IMPORTANT - Please read these instructions. All the safety and operating instructions

should be read before the appliance is operated.

Warnings

Safety

Maintenance

Packaging

5

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Batteries

How do I dispose of this product?

Important Safety Instructions

Important Information - Regarding Use of

Video Games, Computers, Captions or Other

Fixed Image Displays

The extended use of ¿ xed image program material

can cause a permanent “shadow image” on the LCD

panel.

This background image is viewable on normal

programs in the form of a stationary ¿ xed image. This

type of irreversible LCD/LED panel deterioration can

be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a

minimum viewing level.

2. Do not display the ¿ xed image for extended

periods of time.

3. Turn the power off when not in actual use.

Examples of images that you need to watch out for

are as follows (this is not an exhaustive list):

• TV Channel Logos: e.g. Shopping channel logos

and pricing displays-especially if they are bright

and stationary. Moving or low-contrast graphics

are less likely to cause ageing of the screen.

• Time Displays

• Teletext: Do not view a stationary page for long

period of time

• TV/DVD Menus: e.g. Listings of DVD disk content

• Pause Mode: Do not leave the TV in pause mode

for long periods of time, e.g. When watching

DVDs or videos.

Important - Once ‘shadow image/screen burn’

occurs, it will never disappear and is not

repairable under warranty.

UK: Waste electrical products should not be disposed

of with household waste. Separate disposal facilities

exist. For your nearest facilities, please see www.

recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be

disposed of with household waste. Separate disposal

facilities exist. Check with your Local Authority or

retailer for recycling advice.

Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or

mix old and new batteries.

• Dispose of batteries in an environmentally

friendly way.

• Certain regions may regulate the disposal of

batteries.

Please consult your local authority.

Cd

IMPORTANT - Please read these instructions. All the safety and operating instructions

should be read before the appliance is operated.

7

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Contents

Manufacturers Guarantee Information 3

Important Safety Instructions 4-5

What is included in the box 8

Attaching the stand 9

Detaching the stand and wall mounting 10

Getting Started - Initial Set Up 11

TV Buttons and Input Source Menu 12

Remote Control 13

Connections 14-15

TV Menu Operation 16-21

Channel Menu 16

Picture Menu 17

Sound Menu 18

Time Menu 19

Feature Menu 20

Setup Menu 21

PC Operation 23-24

7 Day TV Guide 25

USB Mode / Media Player 26

General Information 27-31

Using your TV with a Sky digital set top box 27

Frequently Asked Questions 28-29

Technical Speci¿ cations 30

Index 31

8For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Please save your packaging as you will need this in the event of warranty/service repair or support. We are

unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your

item in the event of warranty/service repair is in it’s original box/packaging.

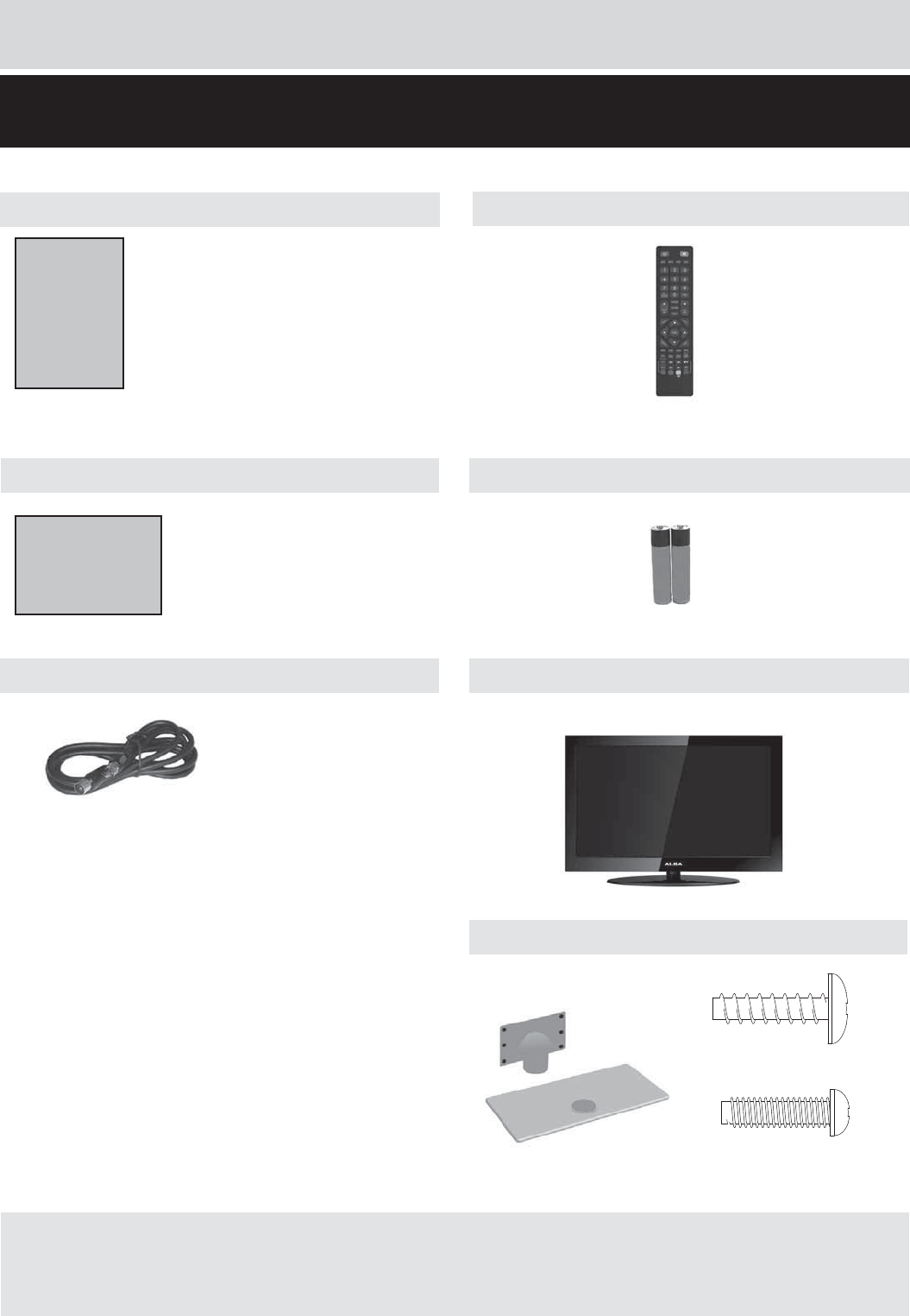

1 x User Guide

1 x Quick Start Guide 2 x AAA Batteries

1 x TV

1 x Stand Installation Pack

1 x RF Cable

1 x Remote Control

User Guide

What Is Included In The Box

Accessories

Included with this TV are the following accessories:

4 x M (4x12)

8 x ST (4x16)

9

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

To complete the stand installation you will require a Phillips screw driver.

Attaching The Stand

M (4x12)ST (4x16)

11 /2

6 x ST(4x16)

1

3

4

A

A

B

B

BB

2

4 x B

M (4x12)

2 x A

ST (4x16)

4 x B

M (4x12)

2 x A

ST (4x16)

The Stand Installation pack comes with two sets

of screws.

¿ g 1) Attach the stand neck to the rear of

the TV set.

¿ g 2) Secure the neck to the TV using the

(A) 2 x ST(4x16) and (B) 4 x M(4x12) screws

provided

¿ g 3) Attach the neck to the stand base.

¿ g 4) Secure the base to the neck using the

6 x ST(4x16) screws provided.

10 For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

For optimum viewing, if wall mounting the TV higher

than eye level, the TV should be tilted downwards so

that the TV’s screen is ‘face on’. See ¿ g 1 and 2

IMPORTANT - Before drilling any holes in the wall ensure

you are not drilling where there could be any electric wires,

water or gas pipes.

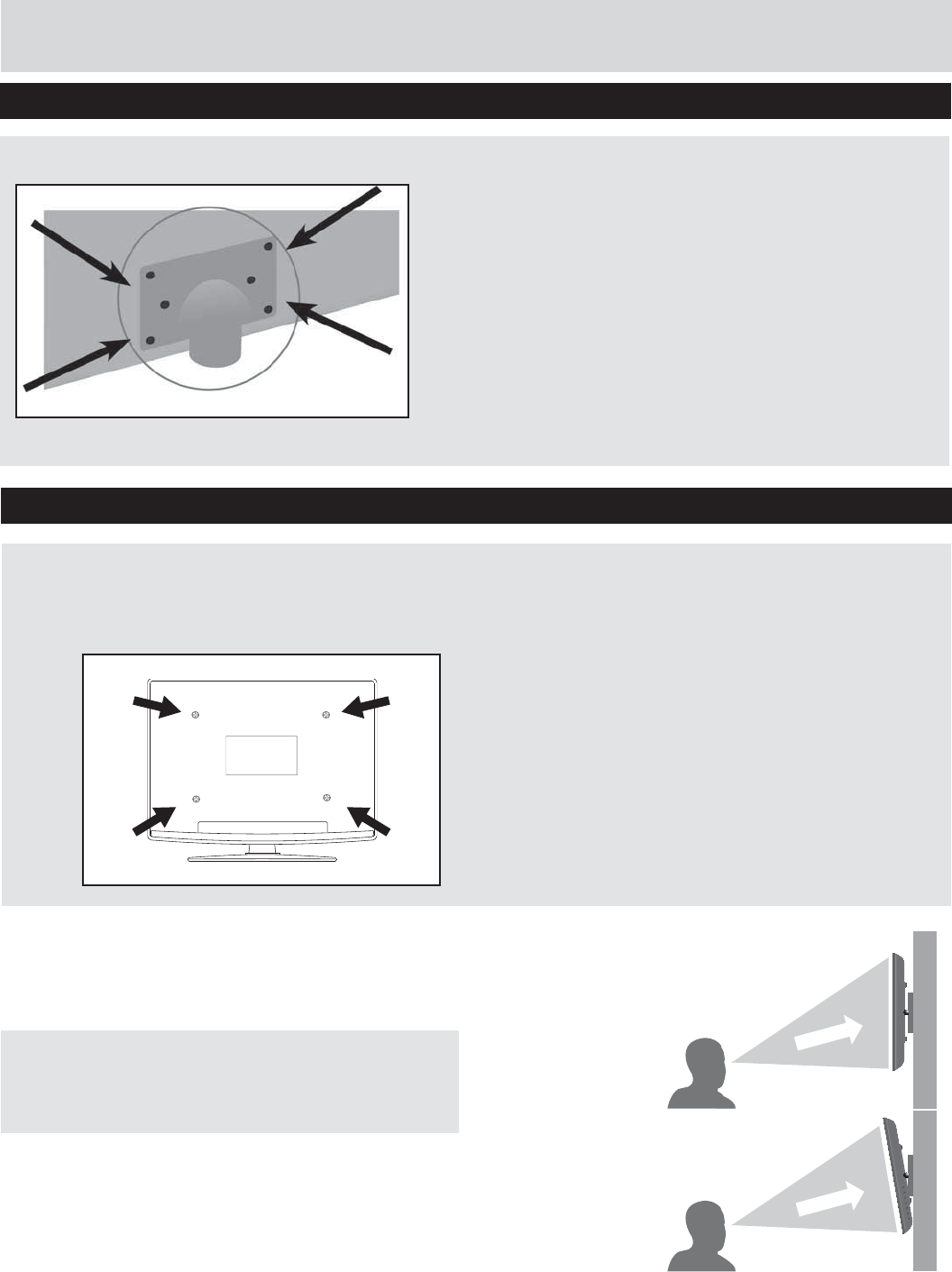

1) Remove the four screws highlighted below.

2) The wall mount can now be easily attached to the

mounting holes on the rear of the TV. These holes

are indicated in the picture below.

IMPORTANT – If wall mounting this TV, only use the

screws already provided in the wall mounting holes.

Using other screws which are longer could cause

irreparable damage to internal parts.

Detaching The Stand And Wall Mounting

Detaching the Stand

Wall Mounting the TV

TV

To detach the stand please remove the 6 screws

highlighted then remove the stand neck and base

from the rear of the TV set.

¿ g 1

¿ g 2

Viewing angle

Viewing angle

INCORRECT

CORRECT

TV

11

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

1) Using the RF cable supplied, connect the TV to the

TV Aerial wall socket (Fig A)

Connect the power cable to the Electrical outlet

(Fig B)

2) Switch on the television using the power on/off

switch located on the side of the TV.

3) Insert the batteries supplied into the Remote

control and press the Standby button to power on the

TV

4) You will now be welcomed with the initial set-up

screen. If it does not appear, on the remote control,

please press [MENU] then 8-8-8-8 and the menu will

appear. Press OK on the remote control and tuning

will start.

5) After tuning the following screen will appear.

If you are missing channels, the reason for this is

likely to be signal strength, you should consider

connecting signal booster and re-tuning the TV.

2

Power on/off

Getting Started - Intial Set Up

Important

3

1

Fig A

Fig B

4

5

As part of our ongoing development to reduce power

consumption, we have added an extra function to this

Television called ‘Ecohome’ (you will see this during

the ¿ rst time installation set up). Power consumption

using the Ecohome function is approximately 15%

lower than some other modes. The picture brightness

is reduced using the Ecohome function. If this

function is not suitable for your viewing environment,

you can select other modes as necessary.

(Please note, ‘Demo’ mode is for optimum default

picture settings, however, power consumption is

approximately 15% higher than ‘Ecohome’ mode)

Please refer to the user guide section ‘Picture

settings’ in order to change the mode to one that

maybe more suitable for your environment. There is

also a shortcut button on the remote control called

‘P-Mode’ should you wish to change to another mode.

12 For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

To switch between the different input/connections.

A) Using the buttons on the remote control:

1) Press [SOURCE/ AV] - The source menu will

appear

2) Press [\/] or [/\] to select the input you require.

3) Press [OK]

B) Using the buttons on the Television:

1) Press [SOURCE]

2) Scroll up / down using CH+/ CH- buttons to the

input/source you require

3) Press Vol+ to change input/source to the one

selected.

DVD source is only available on models with DVD

Player

1. Volume up and menu right

2. Volume down and menu left

3. Programme/Channel up and menu up

4. Programme/Channel down and menu down

5. Displays Menu/OSD

6. Displays the input source menu

7. Standby Power On/Off

1

2

3

4

5

6

7

TV Buttons & Source Menu

Choosing Mode Input/Source

13

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

1. STANDBY

2. MUTE

3. DTV

4. RADIO

5. DVD

6. USB

7. NUMBER BUTTONS

8. TV GUIDE

9. - To return to the previous channel viewed

10. P.MODE - Scrolls through picture mode options

11. VOL

12. CH

13. S.MODE - Scrolls through sound mode options

14. FAV - To display favourites menu

15. MENU

16. EXIT

17. - Allows you to navigate the

on-screen menus and adjust the system settings

to your preference

18. SOURCE/AV

19. INFO - Press once for now/next channel

information

Press twice for programme information about

current programme

20. ASPECT

21. SLEEP

22. SUBTITLE

23. AUDIO

24. TEXT

25. TEXT HOLD

26. DISPLAY

27. TEXT/DVD ZOOM -

DVD Zoom

TEXT

28. DVD Menu

- To restart the current chapter

- To advance forward to the next chapter

- To stop the playback/Eject Disc

- To play in fast rewind mode

- To play in fast forward mode

- To play/pause

29. REC LIST

30. GOTO

31. A-B

32. REPEAT

33. ANGLE

3D - Change to 3D mode

For Models with Integrated DVD players

For Models with PVR Function

For Models with USB Playback

For Models with 3D Feature

Remote Control

Viewing remote control - TV

1

35

4

7

8

10

11 12

13

15

17

18

20 22

24 26

28

29

21 23

25 27

30

31

32

33

19

16

14

9

6

2

14 For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Connections

TVs Input/Source should be set to SCART

RF I N

SCART

TV Aerial

Wall Socket SCART

OUT RF

IN RF

OUT

DVD or VCR

USB USB port

HDMI 1 HDMI input

HDMI 2 HDMI input

HDMI 3 HDMI input

VGA(PC) VGA-PC input

VGA(PC) Audio In 3.5mm PC audio input

CI CARD IN Common Interface module

SCART SCART input

COAX Audio Out Digital Coax output

Video Video Input

R/L Audio in Component Audio input

COMPONENT (HD) Component input (YPbPr)

RF IN RF / TV Aerial Input

EARPHONE Earphone Socket

1

2

3

4

5

6

7

8

9

10

11

12

13

14

Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box

12 34567 91314

810 11

12

15

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Connections

Source should be set to Video

A HDMI cable can output both video and audio and

enables you to enjoy digital-quality video and audio

with minimal loss of quality.

TVs Input/Source should be set to HDMI.

If you are supplied with a cable from the device which

has RED, GREEN, BLUE, RED & WHITE connectors

you must connect via Component (for picture) and by

phono cable (for sound).

TV Source should be set to Component.

Component (HD)

Component

Green

Blue

Red

Audio L/R

White

Red

Audio

In L/R

Ca mera or

Camcorder Yellow

White

Red Audio

In L/R

Video

HDMI OUT

HDMI

Connecting a High De¿ nition (HD) Device

Option 2 - via Component cable

Connecting a Camcorder, Camera or Games Console

Connecting a High De¿ nition (HD) Device

Option 1 - via HDMI to HDMI cable

16 For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Tip: If you do not press any buttons for 10 seconds,

the menu will automatically exit. You can change the

length of time before the menu exits automatically -

see ‘Menu Duration’ section.

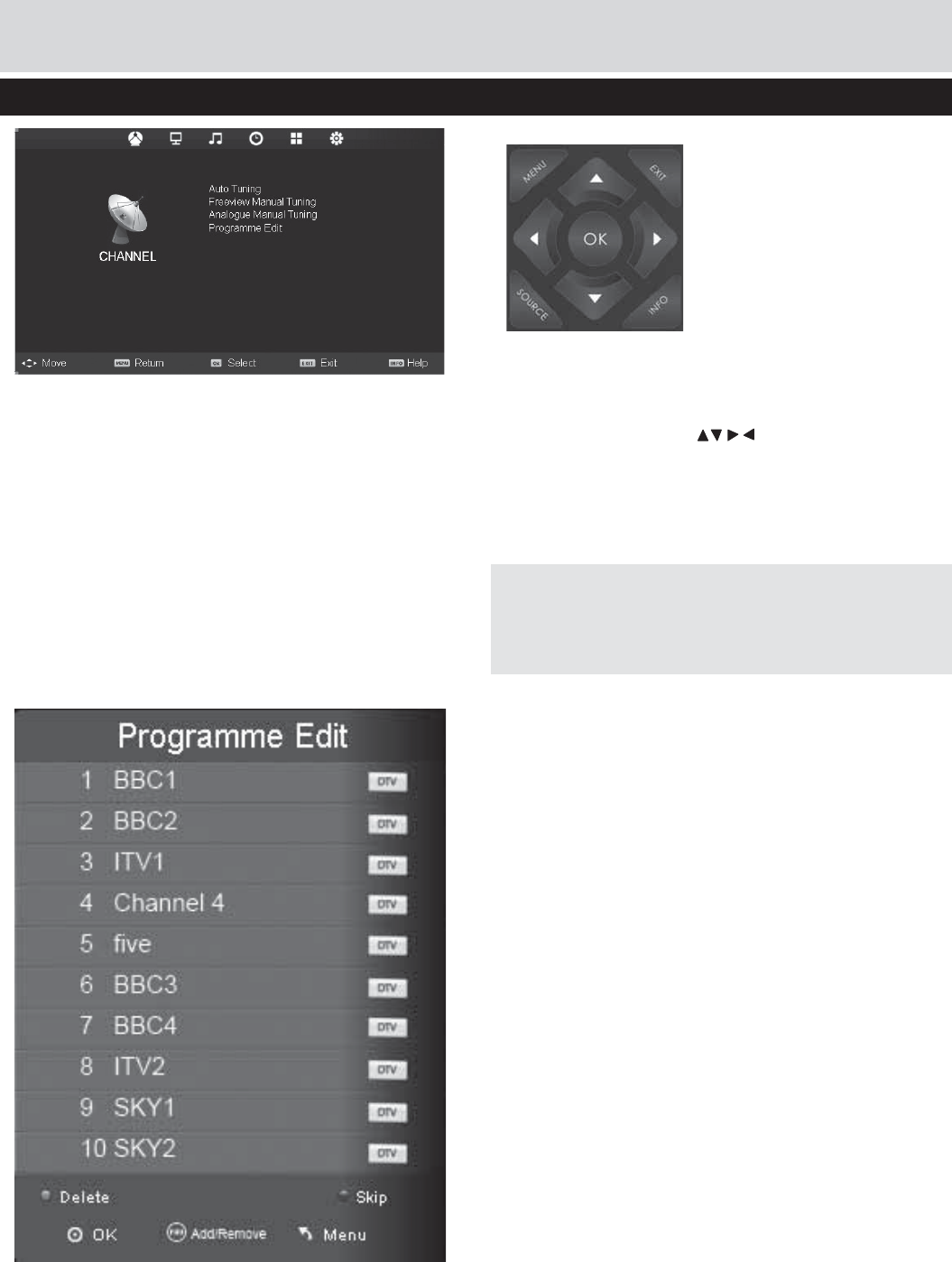

Auto Tuning

Allows you to retune the television for all digital

channels, digital radio stations and analogue

channels.

Freeview Manual Tuning

Allows you to manually tune your digital signal

Analogue Manual Tuning

Allows you to manually tune your analogue signal

Programme Edit

Allows you to delete, skip and add favourite channels.

To access this menu, press [MENU] button on the

remote control. To enter a menu press [OK]

If you wish to make changes to any of the default

settings, use the scroll buttons. To con¿ rm

any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Channel Menu

17

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Picture Mode

• Standard - Default settings

• Dynamic - Recommended settings for fast

moving pictures

• Mild - Set to be lighter in colour and less

bright

• Personal - Lets you manually alter all the

settings

• Ecohome - Power saving mode which reduces

the energy used by up to 25% (by reducing the

power to the LED/LCD panel).in Ecohome mode,

the TV will switch itself to Standby mode after 4-5

hours in the event that the TV buttons or remote

control buttons are not pressed (see the time

menu to de-activate this function).

Contrast

Switch the balance between black and white

Brightness

Increase or decrease the brightness of the picture

Colour

Increases the colour from black and white

Tint

Lets you increase or decrease the level of tint within

the picture

Sharpness

Increase or decrease the sharpness of the picture

Colour Temperature

• Normal - Default settings

• Warm - Increases red within the picture

• Cool - Increases blue within the picture

Noise Reduction

• Off - Turns noise reduction off

• Low - Minor system adjustment

• Middle - Medium system adjustments

• High - Maximum system adjustments

• Default - Default settings

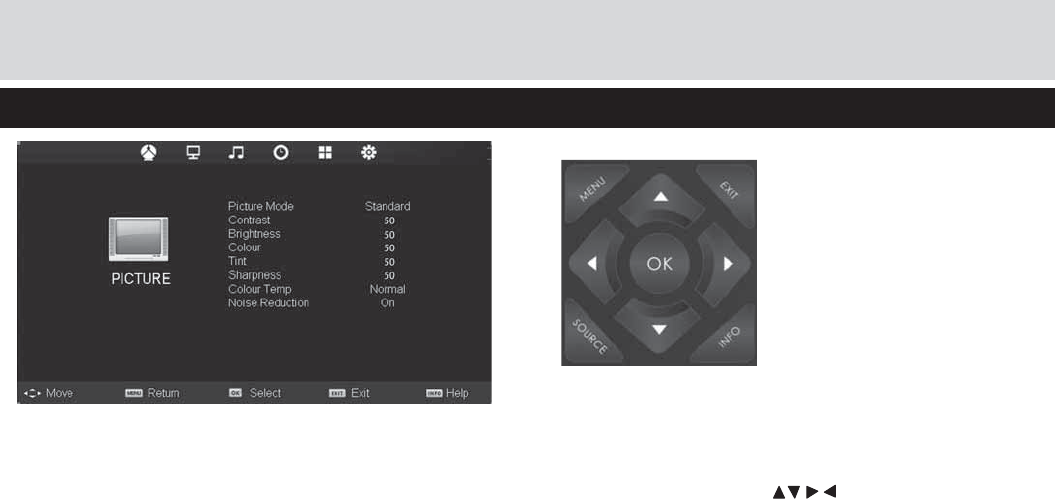

Picture Menu

To access this menu, press [MENU] button on the

remote control. To enter a menu press [OK]

If you wish to make changes to any of the default

settings, use the scroll buttons. To con¿ rm

any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

AV

AV

AV

AV

AV

AV

A

18 For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Sound Mode

• Standard - Default settings

• Music - Emphasises music over voices

• Movie - Provides live and full sound for movies

• Personal - Selects your personal sound settings

• Sports - Emphasises sound for sports

Treble

To adjust the amount of high frequency within the

sound

Bass

To adjust the amount of low frequency within the

sound

Balance

To switch the sound between the left and right

speakers

Auto Volume Level (AVL)

When ‘on’ is selected, the volume will stay at a

constant level regardless of input/source

Digital Output

• Off - Off

• Auto - Selects the best settings automatically

• PCM - Select this option if you are connecting

to a Stereo Hi-¿ via coax cable (Pulse-code

modulation (PCM) is a digital representation of an

analogue signal)

AD Volume

This allows the user to increase and decrease the AD

(Audio Description) volume level.

(Audio Description is a service available on certain

programmes. It provides a description of what is

happening during the selected programme for a

person who is visually impaired)

Tip: Treble and bass levels can only be adjusted

when the sound mode ‘Personal’ is selected.

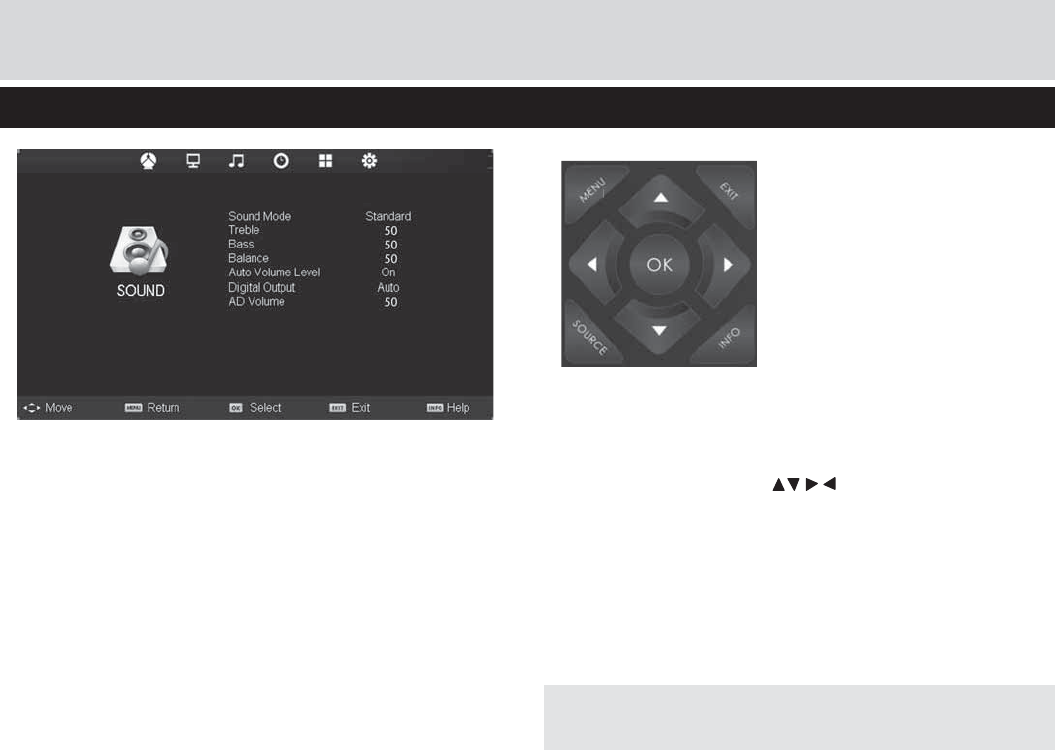

Sound Menu

To access this menu, press [MENU] button on the

remote control. To enter a menu press [OK]

If you wish to make changes to any of the default

settings, use the scroll buttons. To con¿ rm

any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

AV

A

AV

AVAV

AV

A

A

AV

AV

AV

AV

A

A

AV

19

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

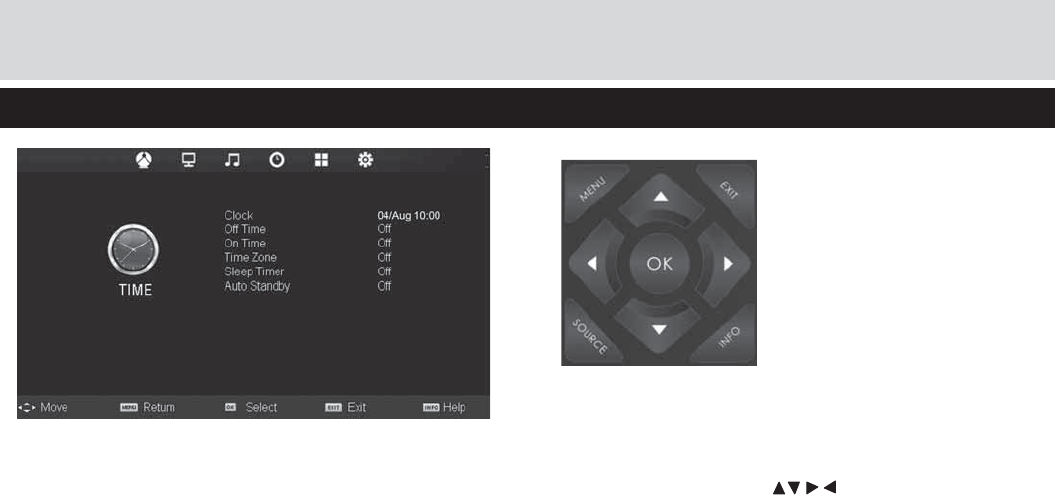

Clock

Shows the date and time

Off Time

Allows you to set a speci¿ c time for your TV to turn off

On Time

Allows you to set a speci¿ c time for your TV to turn

on, the channel it will then display, the source it will

be on and also the volume. This function can then be

toggled to repeat every day or a certain day.

Time Zone

Change your current time zone

Sleep Timer

Lets you set the sleep timer so the television

automatically switches off after a set amount of time.

Off -> 10min -> 20min -> 30min -> 60min -> 90min ->

120min -> 180min -> 240min

Auto standby

Switches the TV to standby when not receiving a

signal. Toggle the Function on and off.

Time Menu

To access this menu, press [MENU] button on the

remote control. To enter a menu press [OK]

If you wish to make changes to any of the default

settings, use the scroll buttons. To con¿ rm

any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

AV

AV

AV

AV

AV

AV

A

20 For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Schedule List

Lists your programme reminders

CI Information

Pay per view services require a “smartcard” to be

inserted into the TV.

If you subscribe to a pay per view service the provider

will issue you with a ‘CAM’ and a “smartcard”.

The CAM can then be inserted into the COMMON

INTERFACE PORT (CI Card In).

System Lock

Allows you to lock or unlock the menu. You will be

asked to enter a 4 digit password use the button to

quit the password input. Use the button to clear.

Default password is 0000

Feature

To access this menu, press [MENU] button on the

remote control. To enter a menu press [OK]

If you wish to make changes to any of the default

settings, use the scroll buttons. To con¿ rm

any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

AV

A

AV

AVAV

AV

A

A

AV

AV

AV

AV

A

A

AV

21

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Menu language

Allows you to change the language of the menu

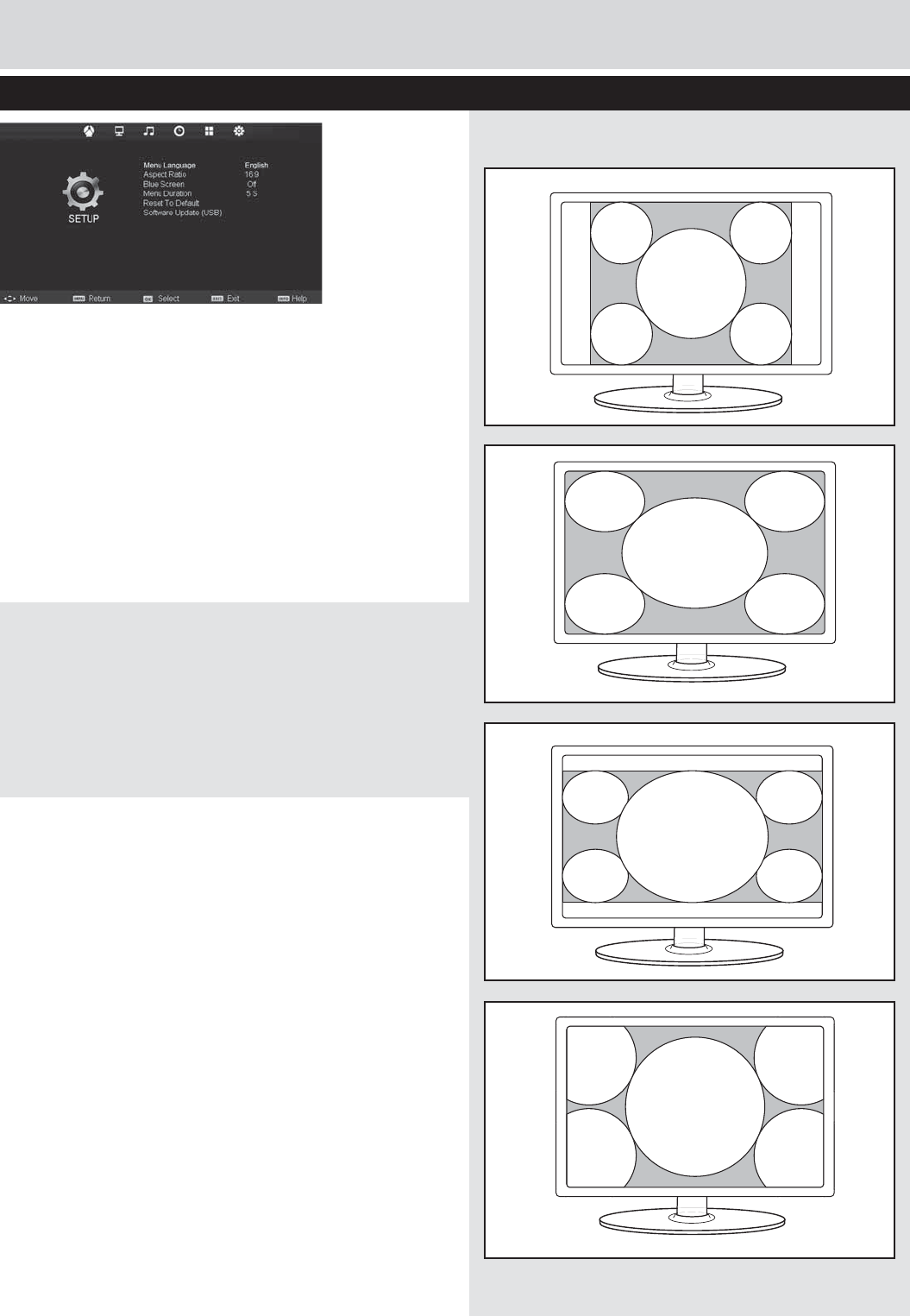

Aspect Ratio

Within the UK the picture format varies depending

on the channel/broadcast. There are a number of

different options to best meet your needs

• Auto - Automatically displays the best picture

format. So the picture is in the correct position.

May have black lines At the top/bottom and/or

sides.

• Original - Will display the picture from the

broadcaster without any change

• 4:3 - Displays the 4:3 picture in its original size.

Side bars are shown to ¿ ll the 16:9 screen

• 16:9 - Fills the screen with a regular 16:9 signal

and 4:3 will stretch to ¿ ll the screen

• 14:9 - Displays the 14:9 picture in the correct

proportion. As a result side bars are shown on the

screen

• Zoom - The picture is the correct proportion but

zoomed in to ¿ ll the screen

Blue Screen

Changes the background when there is no input

between clear and a blue background (Only available

on some sources)

Menu Duration

Lets you adjust the amount of time the On Screen

Menu stays on the screen before disappearing

Reset to default

• Reset Menu System - This resets the menus to

factory settings.

• Reset TV Channels - This clears all the TV

channels from the television.

Software Update (USB)

From time to time we may release new ¿ rmware to

improve the operation of the television (available

to download). This menu lets you install the new

software/¿ rmware onto the television. Further details

of how to do this will be issued with the ¿ rmware.

Contact the helpline or refer to the ‘product support’

section of the website.

4:3

Setup

Zoom

14:9

16:9

23

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct

for the television. You MUST do this using your old monitor.

1) Switch on your computer

2) When ¿ nished booting up right click your

mouse anywhere on the screen

4) Left click your mouse on Setting/Display Settings.

Ensure the screen resolution is set to what is shown

in the technical speci¿ cations section toward the rear

of this user guide. To correct the resolution to that of

the television move the slider.

6) Left click on the drop down for Screen refresh rate and select 60 Hertz, if you experience picture noise or

‘À ickering’, select 50 hertz or 70 hertz.

7) Click on Apply, then click Yes and the settings will be saved.

8) Now switch off your computer and connect

the television (as shown)

9) Switch on the TV, select the input/source

to VGA/PC and re-start your PC.

Connecting a Laptop

In addition to the above if you are connecting a laptop to the television you will also need to activate the VGA

connection on the laptop. This can vary based on the brand of laptop you have, on many brands/models, it is as

per below.

1) Connect the laptop to the television

2) On the Laptop push buttons

The screen will now switch to the television.

3) Left click your mouse on Properties/Personalise

5) Left click your mouse on Advance/Advanced

Settings and left click on Monitor

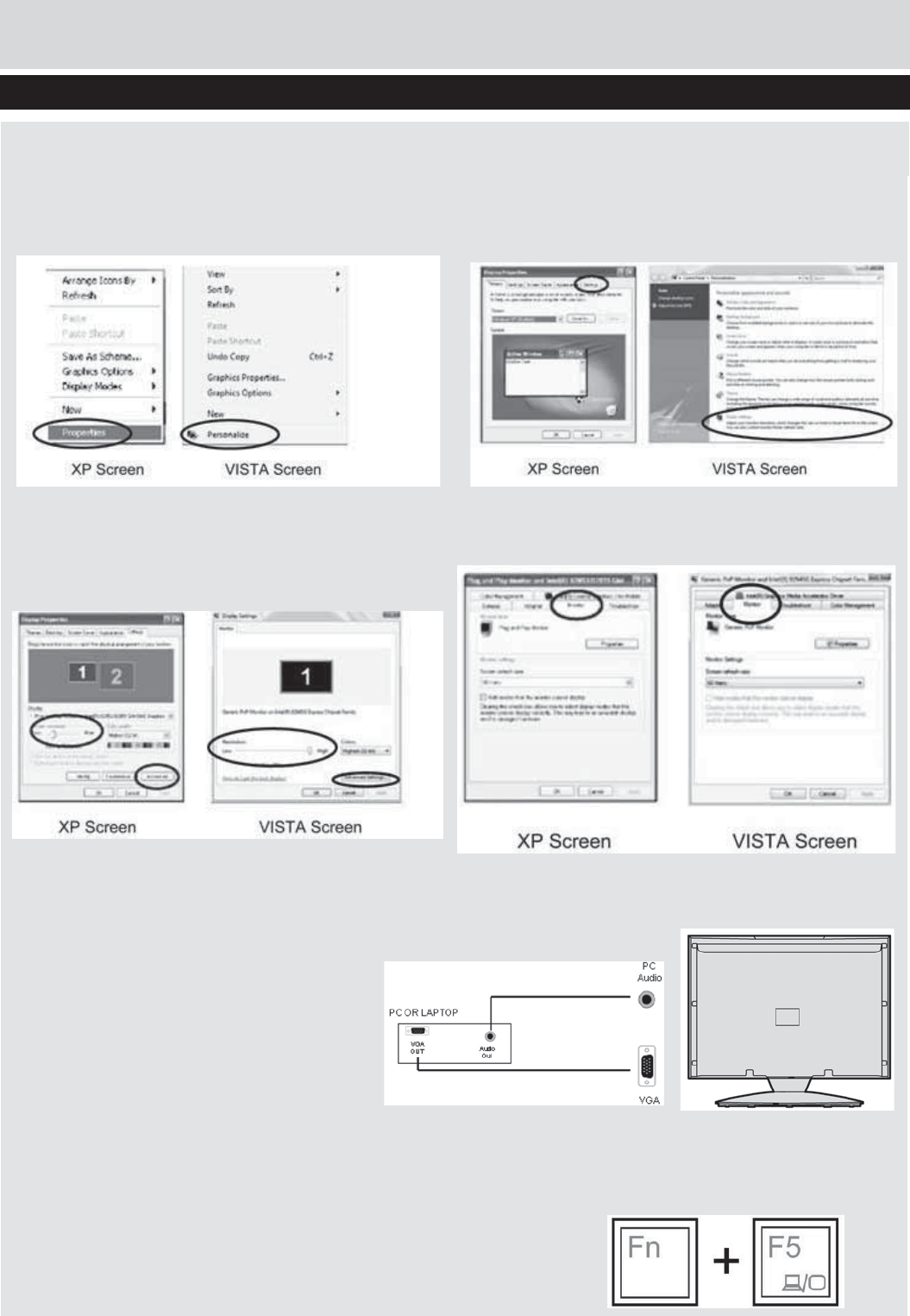

Using The Television As A Computer Monitor

How to set up for Windows XP & Windows Vista (connecting via VGA cable to the TV)

24 For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

To access this menu, press [MENU] button on the

remote control. To enter a menu press [OK]

If you wish to make changes to any of the default

settings, use the scroll buttons. To con¿ rm

any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Auto Adjust

Lets you automatically con¿ gure the television to be

used as a computer monitor

H Offset

Changes the horizontal position of the picture

V Offset

Changes the vertical position of the picture

Size

Increase picture size

Phase

To adjust delay time of phase in order to reduce the

noise of picture

Position Reset

Changes back to the original settings

Tip: If the computer is left in-active for a period of

time, the television will switch into a ‘sleep’ state (the

screen will power off to save power). To switch back

on press the standby button.

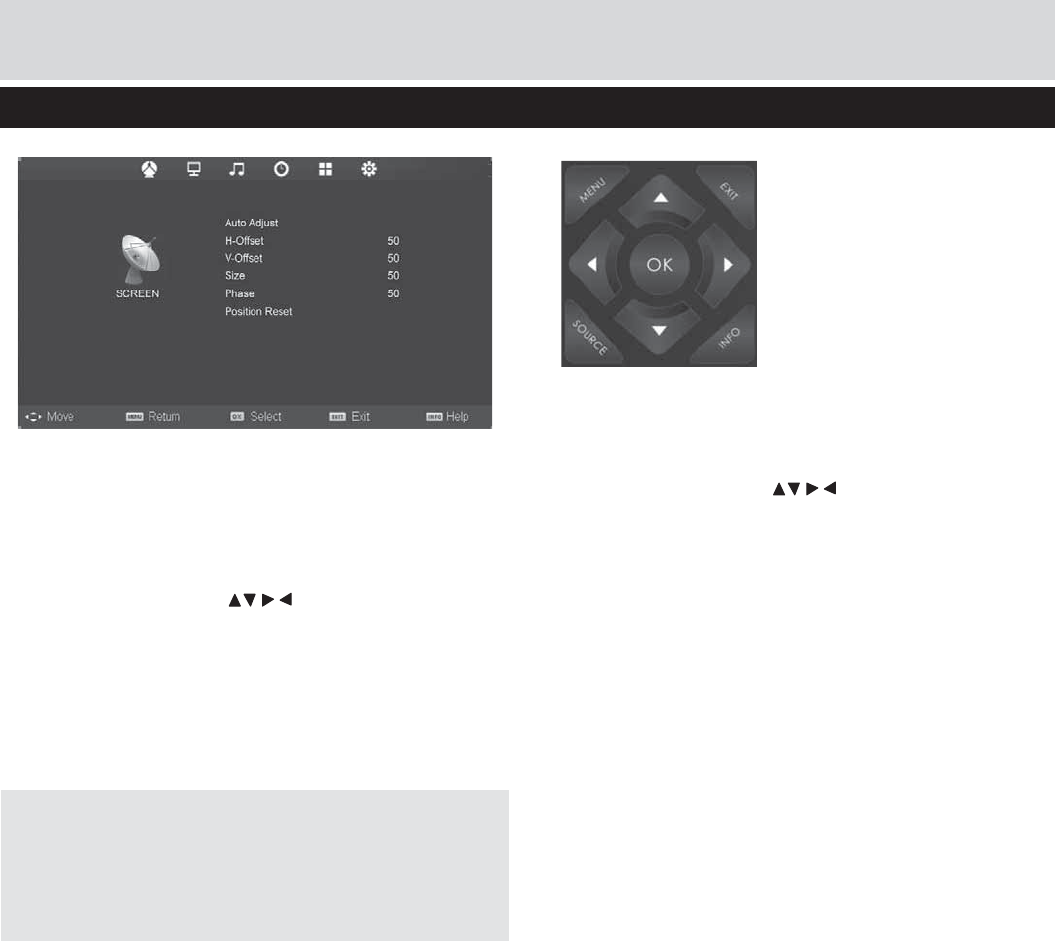

PC Settings

To access this menu, press [MENU] button on the

remote control. To enter a menu press [OK]

If you wish to make changes to any of the default

settings, use the scroll buttons. To con¿ rm

any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

AV

AV

AV

AV

AV

AV

A

25

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

TV Guide is available in Digital TV mode. It provides

information about forthcoming programmes (where

supported by the freeview channel). You can view

the start and end time of all programmes and on all

channels for the next 7 days and set reminders.

1) Press [TV GUIDE]. The following 7 Day TV Guide

will appear.

2) Navigate through the menu using

You can now:

Set a reminder by pressing GREEN

View a previous day by pressing YELLOW

View the next day by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide.

7 Day TV Guide

26 For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

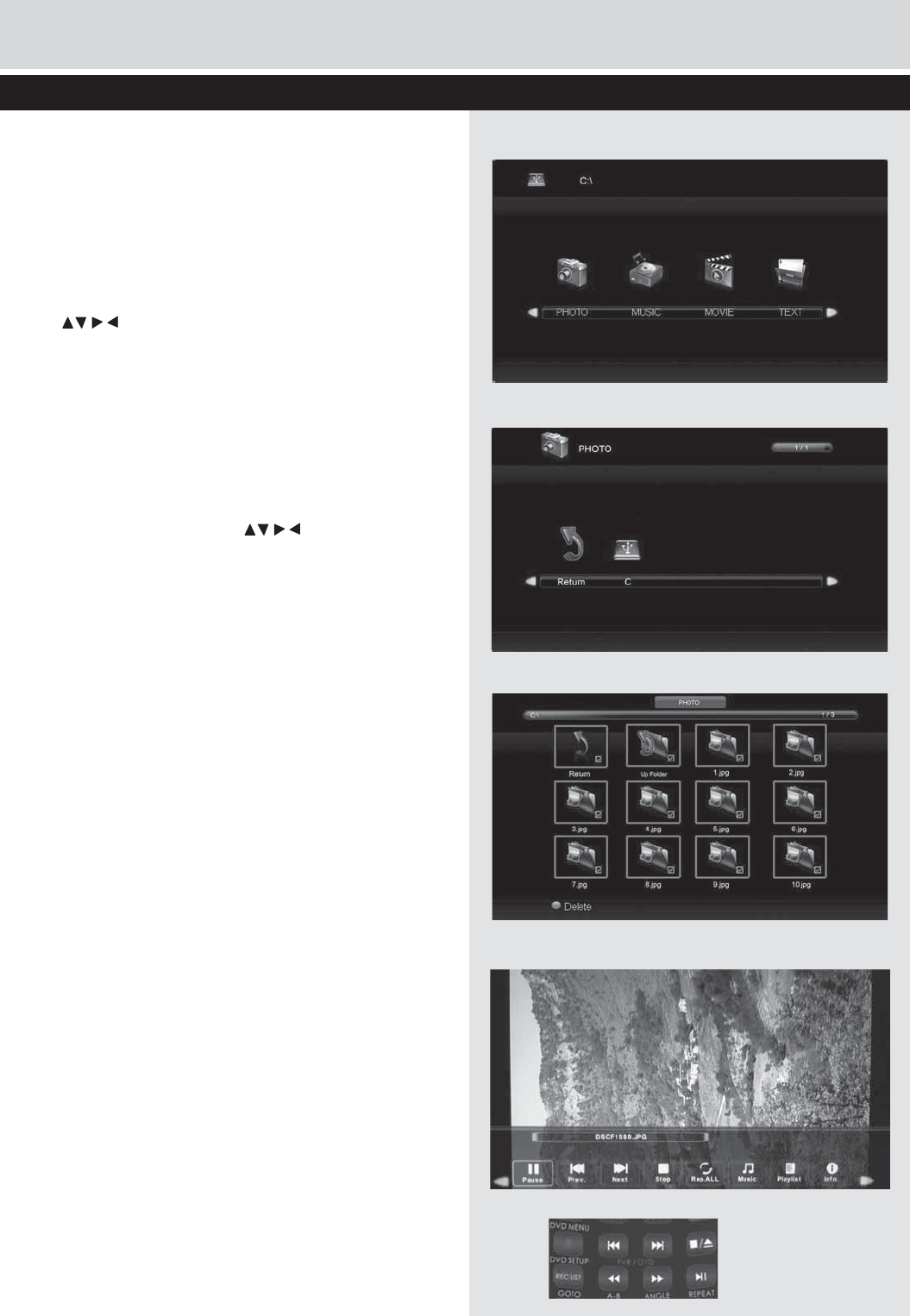

USB mode offers playback of various different types

of content that you have saved on your USB Memory

Stick.

On switching to USB source the above menu screen

will appear. The content will be divided into Photo,

Music, Movie and Text based on ¿ le type.

1) You can navigate through the menus using the

scroll buttons. To con¿ rm the item you wish

to play/view press [OK] button.

2) Select the drive you require.

(If your drive only has 1 partition you will only see

1 item).

3) You can now access the item. Press OK to view.

4) While viewing you control the item using (Fig A)

or by pressing ( i ) and using and (OK)

USB Mode / Media Player

Fig A

4)

3)

2)

1)

27

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

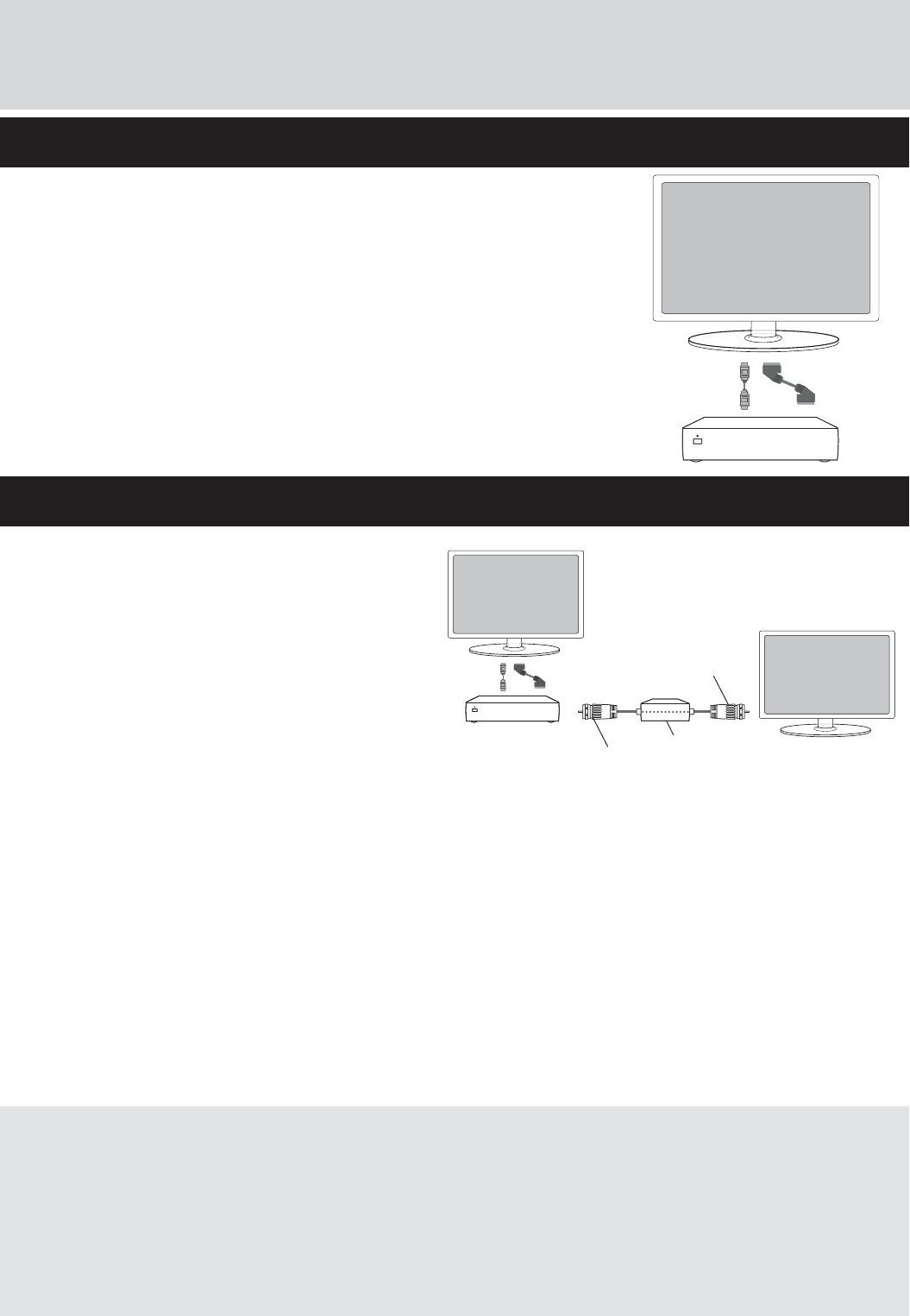

Option 1) Connecting your TV to your Sky box

(when both the TV and Sky Box are located in the same room)

Option 2) Connecting your TV to your Sky box (when your Sky box is located in a different room to the TV)

Depending on your Sky Box & TV model, connect either by SCART or HDMI

cables (available separately)

If connecting by SCART, select the ‘Input source’ on the TV as SCART.

If connecting by HDMI, select the ‘Input source’ on the TV as HDMI (if the TV has

more than 1 HDMI port, ensure you select the input source to match the HDMI

numbered port on the rear of the TV)

If you wish to use your Sky remote to operate the TV’s functions, you will need a

Sky remote control (Revision 9 or later) and you will need to programme a 4 digit

code into it. See bottom of this page.

Sky Box

SCART or HDMI

cable

RF/COAX cable from

Sky Box to 2nd TV

Connect to RF

or RF2 output

on the Sky box

Connect to the

Aerial/RF input

on the 2nd TV

TV Link/Magic Eye

(optional)

2nd TV in

another room

Sky Box

SCART

or HDMI

cable

Using a Sky Remote or a Universal Remote to operate your TV - Sky Remote Control, If you wish to use your

Sky remote to operate the basic functions of your TV, you need to programme a 4 digit code into it. Please note.

you will need the latest Sky Revision 9 remote control as this is the only version that includes the latest software/

¿ rmware necessary to operate this model of TV. All codes can be found on our website. If you wish to upgrade/

replace your existing Sky remote control to the latest version, you can do so on our web site.

Universal Remote Control, If you wish to use a Universal remote control to operate your TV, please refer to the web

site for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you have an

alternative brand of Universal remote, please refer to the manufacturer for the code.)

Using Your TV With a Sky Digital Set

Top Box

Please note, if you are adding a ‘Magic Eye/TV Link’

to your system so that you can use your Sky remote

control to change the Sky channel in the room where

the 2nd TV is located, please refer to the instructions

included with the TV link/magic eye in order to

ensure the RF or RF2 output on your Sky box is

powered on. (The red LED light on the TV link/magic

eye will light up if the RF / RF2 output is correctly

set up) If you do not have the instructions that came

with the TV link/magic eye, instructions on how to do

it can be found on our web site.

1) To tune the TV to the Sky box, on the 2nd TV, select the ‘Analogue’ input source.

2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you

no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store

the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is

the best option for you)

3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per

point 2 above.

4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue

Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)

5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the

Sky box/channel is found, press ‘OK’ to store it.

If you wish to use your Sky remote to operate the TV’s functions, you will need a Sky remote control

(Revision 9 or later) and you will need to programme a 4 digit code into it. Please see below.

28 For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

General I would like to have

louder sound by

connecting additional

speakers

Subject to the TV model and connections, it is possible to connect the TV

to an external ampli¿ er or surround sound (subject to connections/inputs on

the device) as follows:-

1) Connect a COAX cable* from the TV’s COAX output to your ampli¿ er/

surround systems COAX input

2) Connect a 3.5mm jack to L/R phono cable* from the TV’s headphone

socket (where ¿ tted) to your ampli¿ er/surround sound L/R input. Please

note sound to the TV’s speakers will be disabled.

3) On selected models, it maybe possible to connect a SCART input/

output* switch with an additional L/R Phono cable* to the TV’s SCART

socket and to the L/R Phono Input of your ampli¿ er/surround sound. Please

note due to copyright laws it is not possible to output video/sound from the

TV on certain sources, i.e. HDMi, DVD etc.

*cables and switches mentioned are available to purchase separately from

your retailer.

General Why are some

options in the menu

unavailable and

greyed out

Some options are only available in certain sources, i.e. HDMI, PC/VGA.

They are unavailable in the other sources where they have no affect.

General Can I stop my TV

turning off after

4hrs?

Yes

1) In the picture settings menu, de-select Eco-home

2) In the time settings menu, scroll down to Auto standby and select OFF

TV I have tuned in

Digital TV but I am

not receiving any or

all of the channels

and/or the channels I

receive are breaking

up

1) Check you are in an area that can receive Freeview. Visit

www.freeview.co.uk

2) Check you are using an aerial that is able to receive a good digital

signal. In most cases, you will need an outdoor digital hi-gain/wideband

aerial. In areas that have excellent Freeview coverage, you may be able to

use a loft type aerial but it is highly likely that you will also need to connect

a booster between the back of the TV and the TV aerial wall socket.

Unfortunately, to receive a good enough digital signal, it is not possible

to use a portable/indoor type aerial. This may change once the analogue

signal is switched off in 2012 and the Digital signal strength is increased.

TV I have re-tuned my

television but when

I switch it off it is not

storing the channels

Complete a ¿ rst time installation, please refer to the set-up menu section of

the manual of how to do this

VCR/DVD

Recorder I have connected

the TV to my VCR or

DVD Recorder via

SCART but it is not

recording

In addition to connecting via SCART, you should connect the aerial cable

from the wall socket to your VCR/DVD Recorder and another aerial cable

from the VCR/DVD Recorder to the TV

Frequently Asked Questions

29

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Note:

Supplier may change TV software and on screen

graphics without warning

Frequently Asked Questions

Game

Consoles I have connected

my PS3 to the TV

via HDMI, but I am

not receiving any

pictures or sound on

my TV

1) Ensure the TVs source is on HDMI

2) Check your settings on your PS3 are as per the PS3 instruction manual

Game

Consoles I have connected

my Xbox 360 to the

TV via Component

Cables (Red, Green

& Blue) but I am not

receiving any sound

Component cables only provide HD Pictures. For the sound you will need

to connect the Red & White audio cables on the Xbox to the Red & White

phono inputs on the rear of the TV. Please refer to the ‘Connections’ pages.

USB

Mode I have inserted a

USB Memory Key,

but the TV does not

recognise it

Ensure the USB Memory Key is formatted to type FAT32.

USB

Mode Using a USB

portable hard drive If you wish to use a portable hard drive larger than 32GB, please note that

it must be formatted to the FAT32 ¿ le system in order to operate on this TV.

Windows XP/Vista computers are only capable of formatting up to 32GB,

therefore, you will need a software programme/utility to format larger hard

drives. Please refer to the web site for more information.

System

Lock I have changed the

password on the

television and now

forgotten it

There is a master password of 4711, to gain access to the TV menu and

reset the normal password

30 For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Model 40/68F

Screen size (diagonal) 40” (101cm)

Resolution 1920 x 1080

PC RGB Yes

RF 75 ohm Antenna / PAL-SECAM

Video Inputs 1 x SCART, 1 x Composite Video/CVBS, 1 x Component (YPbPr - 1080p),

3 x HDMI (up to 1080p)

Sound Inputs 1 x 3.5mm jack for PC audio input, 1 x pair RCA Audio input shared for Video and YPbPr (component)

Sound Outputs 1 x Coax Audio output , 1 x 3.5mm headphone jack

Sound power,

watts (RMS) 2 x 9W

Dimensions including stand (mm) 979W x 665H x 286D

Net weight 15 kgs

Energy Consumption Info

Voltage and power consumption 110-240v 50/60Hz

120W/220W(Ecohome/Max)

EEI - C (Energy Rating)

(in standby less than 0.5w)

Technical Specification

31

For any help concerning set up and use of your TV please call the Customer Helpline: 0871 2000 463

Attaching the stand 9

Aspect Ratio 21

Auto Con¿ guration of screen (PC) 23

Auto Tuning 16

Auto Volume Level 18

Balance 18

Bass 18

Blue Screen 21

Brightness 17

Clock 19

Colour 17

Colour Temperature 17

Common Interface 20

Connections 14-15

Contrast 17

Detaching the base/stand 10

Digital Output 18

First Time Installation 11

Frequently Asked Questions 28-29

Getting Started 11

Horizontal Position (PC) 24

Important installation instructions 10

Language 21

Manual Search 16

Noise Reduction 17

Phase (PC) 24

Picture Mode 17

Remote control 13

Reset to default 21

Sharpness 17

Sleep Timer 20

Sound Mode 18

Source Menu 12

System Lock 20

Technical Speci¿ cations 30

Treble 18

TV buttons 12

TV Guide 25

USB Mode / Media Player 26

Using the television as a computer monitor 23

Using your TV with a Sky digital set top box 27

Vertical Position (PC) 24

Wall mounting 10

What is included in the box 8

Index
