Title page

Alcatel-Lucent 9768

Compact Metro Radio Outdoor

Site Preparation

3MN-01582-0001-RJZZA

Issue 0.03 | November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

D

RAFT

D

RAFT

Legal notice

Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective

owners.

The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.

Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside

Alcatel-Lucent without its written authorization.

Not to be used or disclosed except in accordance with applicable agreements.

Use pursuant to applicable agreements

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

D

RAFT

D

RAFT

Contents

About this document

Purpose ............................................................................................................................................................................................. xixi

Intended audience ......................................................................................................................................................................... xixi

Supported systems ........................................................................................................................................................................ xixi

How to use this document ......................................................................................................................................................... xixi

Safety information ...................................................................................................................................................................... xiixii

Prerequisites .................................................................................................................................................................................. xiixii

Site preparation checklists ....................................................................................................................................................... xiixii

Conventions used ........................................................................................................................................................................ xiixii

Related information ................................................................................................................................................................... xivxiv

Document support ...................................................................................................................................................................... xivxiv

Technical support ....................................................................................................................................................................... xivxiv

How to order .................................................................................................................................................................................. xvxv

How to comment .......................................................................................................................................................................... xvxv

1Safety statements

Overview ...................................................................................................................................................................................... 1-11-1

Structure of safety statements ............................................................................................................................................... 1-21-2

General safety considerations ............................................................................................................................................... 1-31-3

Safety ........................................................................................................................................................................................... 1-41-4

Safety - specific hazards ......................................................................................................................................................... 1-51-5

Product safety ............................................................................................................................................................................. 1-91-9

2Hardware architecture and functionality

Overview ...................................................................................................................................................................................... 2-12-1

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements iii

D

RAFT

D

RAFT

Functional description ............................................................................................................................................................. 2-12-1

Physical description ................................................................................................................................................................. 2-32-3

7705 SAR-O hardware overview and ancillary ............................................................................................................. 2-92-9

Supported installation options ........................................................................................................................................... 2-152-15

Hardware and ancillary items ............................................................................................................................................ 2-252-25

3Site selection

Overview ...................................................................................................................................................................................... 3-13-1

Environmental and mechanical specifications ............................................................................................................... 3-23-2

Spectrum analysis of RF neighborhood ............................................................................................................................ 3-33-3

Site requirements ...................................................................................................................................................................... 3-43-4

Site power requirements (AC) ............................................................................................................................................. 3-53-5

Site power requirements (DC) ............................................................................................................................................. 3-73-7

9768 CMRO power requirements ....................................................................................................................................... 3-93-9

Grounding and lightning protection ................................................................................................................................ 3-103-10

9768 CMRO product grounding ....................................................................................................................................... 3-113-11

General antenna cable requirements ................................................................................................................................ 3-133-13

Site requirements for link to baseband processing unit ............................................................................................ 3-143-14

Site requirements for a wall mount installation ........................................................................................................... 3-143-14

Site requirements for a pole mount installation ........................................................................................................... 3-143-14

Site requirements for strand-mount installation .......................................................................................................... 3-153-15

ASite survey checklists

Overview ..................................................................................................................................................................................... A-1A-1

SS-1 Venue survey checklist ................................................................................................................................................ A-1A-1

SS-2 Site survey general checklist .................................................................................................................................... A-3A-3

SS-3 Site survey access checklist ...................................................................................................................................... A-6A-6

SS-4 Site survey conclusion ................................................................................................................................................ A-7A-7

Contents

....................................................................................................................................................................................................................................

iv Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

BSite preparation checklists

Overview ..................................................................................................................................................................................... B-1B-1

SP-1 Site preparation general checklist ........................................................................................................................... B-2B-2

SP-2 Site preparation power source checklist ............................................................................................................... B-3B-3

SP-3 Site preparation grounding checklist ...................................................................................................................... B-4B-4

SP-4 Site preparation RF antenna checklist ................................................................................................................... B-5B-5

SP-5 Site preparation GPS antenna checklist ................................................................................................................ B-6B-6

Site preparation punch list sheet ......................................................................................................................................... B-8B-8

Site preparation punchlist sheet .......................................................................................................................................... B-9B-9

CProduct conformance statements

Overview ..................................................................................................................................................................................... C-1C-1

United States compliance

Introduction ................................................................................................................................................................................ C-2C-2

Federal Communications Commission ............................................................................................................................ C-2C-2

Product safety conformance statements ........................................................................................................................... C-4C-4

Antenna exposure statements .............................................................................................................................................. C-5C-5

FDA/IEC optical transmitter product compliance statements ................................................................................. C-5C-5

Eco-environmental statements ............................................................................................................................................ C-6C-6

Canadian compliance

Introduction ................................................................................................................................................................................ C-8C-8

Industry Canada ........................................................................................................................................................................ C-8C-8

Product safety and exposure ................................................................................................................................................ C-8C-8

Antenna exposure statements .............................................................................................................................................. C-9C-9

IEC optical transmitter product compliance statements .......................................................................................... C-10C-10

Eco-environmental statements .......................................................................................................................................... C-11C-11

Contents

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements v

D

RAFT

D

RAFT

DRelated information

Overview ..................................................................................................................................................................................... D-1D-1

9768 CMRO documentation ................................................................................................................................................ D-1D-1

7705 SAR-O documentation ............................................................................................................................................... D-2D-2

LTE End-to-End Solution and LTE RAN documentation ........................................................................................ D-3D-3

Surge, Grounding, and Lightning documentation ........................................................................................................ D-5D-5

Glossary

Index

Contents

....................................................................................................................................................................................................................................

vi Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

List of tables

1Terminology ................................................................................................................................................................... xixi

2-1 9768 CMRO ................................................................................................................................................................ 2-42-4

2-2 Certifications and standards ................................................................................................................................... 2-52-5

2-3 Environmental parameters ...................................................................................................................................... 2-52-5

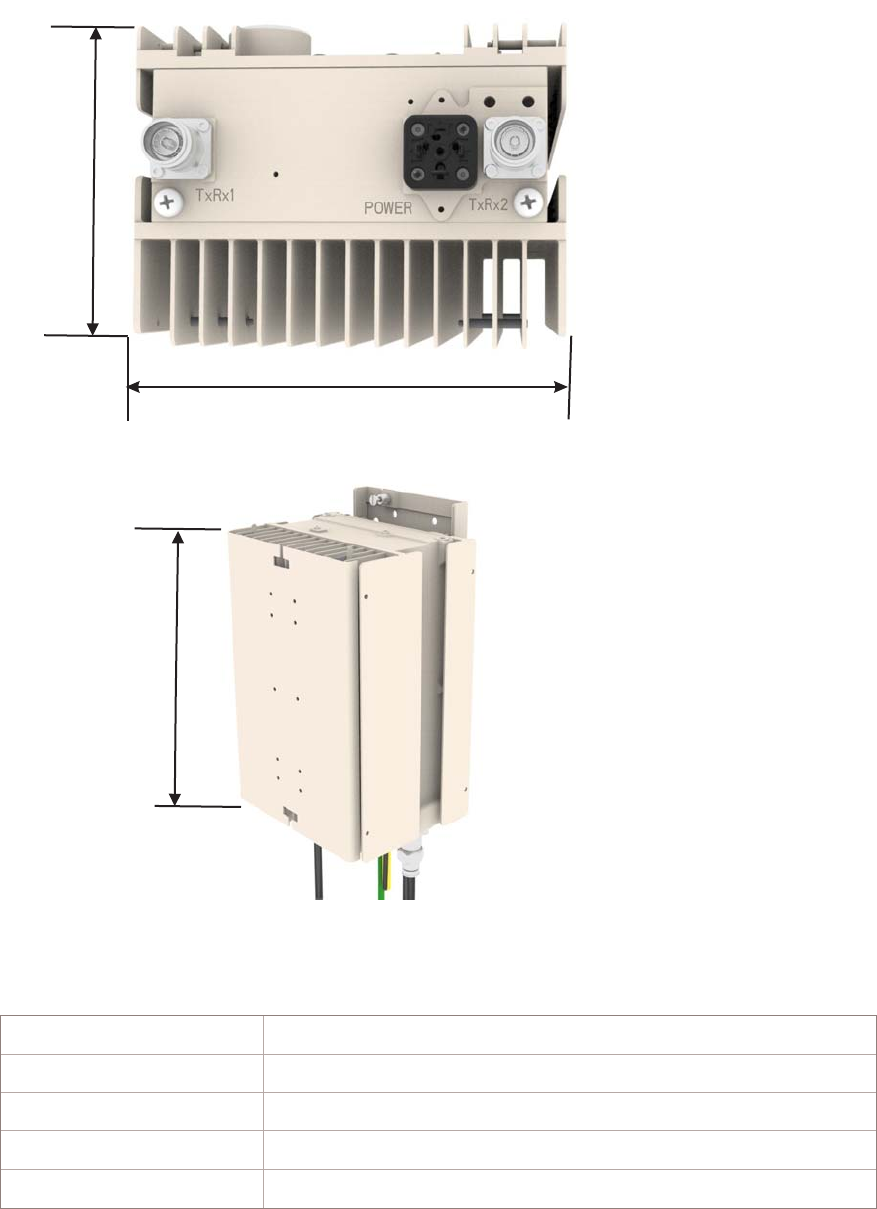

2-4 7705 SAR-O dimensions ...................................................................................................................................... 2-112-11

2-5 Single mode dual LC to LC ................................................................................................................................. 2-122-12

2-6 Single mode dual LC to FullAXS ..................................................................................................................... 2-132-13

2-7 Kit SAR-O - For channels 1471-1511 ............................................................................................................. 2-142-14

2-8 Kit SAR-O - For channels 1551-1591 ............................................................................................................. 2-142-14

2-9 SFP code for the fourth 7705 SAR-O connector ......................................................................................... 2-142-14

2-10 FULLAXS fiber field install kit ........................................................................................................................ 2-152-15

2-11 Pole-mount installation ......................................................................................................................................... 2-262-26

2-12 Wall-mount installation ......................................................................................................................................... 2-262-26

2-13 Pair-mount installation on a pole ....................................................................................................................... 2-262-26

2-14 Pair-mount installation on a wall ....................................................................................................................... 2-272-27

2-15 Strand-mount installation kit ............................................................................................................................... 2-272-27

3-1 Power materials .......................................................................................................................................................... 3-93-9

3-2 Grounding materials ............................................................................................................................................... 3-113-11

D-1 Related Information - 9768 CMRO ................................................................................................................... D-1D-1

D-2 Related information - 7705 SAR-O ................................................................................................................... D-2D-2

D-3 Related Information - LTE RAN and E2E LTE Solution .......................................................................... D-3D-3

D-4 Related Information - Grounding, Lightning, and Surge ........................................................................... D-5D-5

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements vii

D

RAFT

D

RAFT

List of tables

....................................................................................................................................................................................................................................

viii Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

List of figures

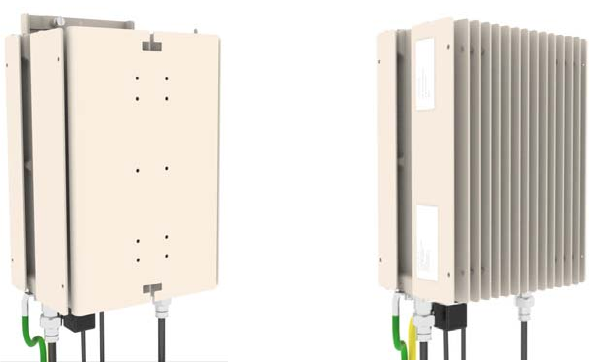

2-1 Alcatel-Lucent 9768 CMRO ................................................................................................................................. 2-32-3

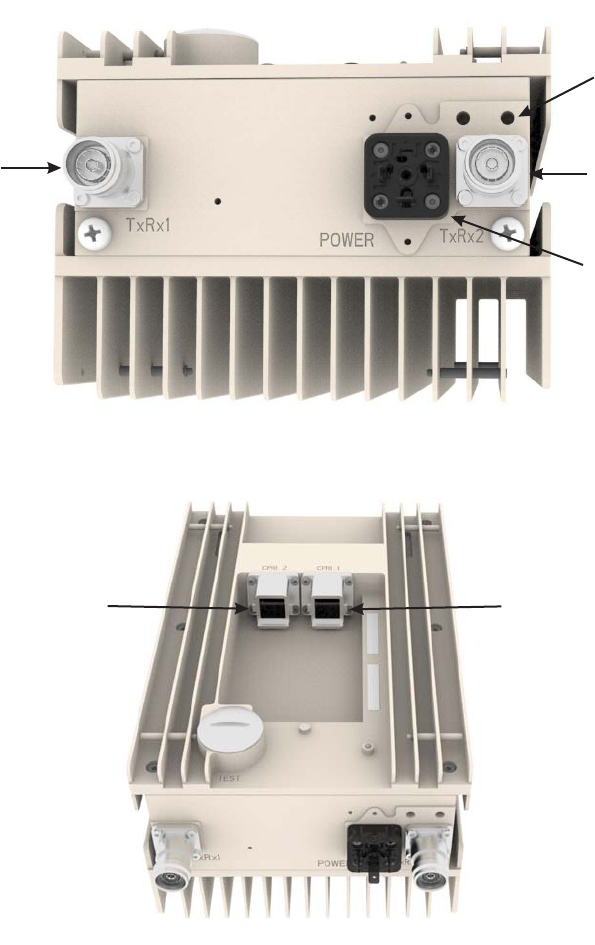

2-2 Alcatel-Lucent 9768 CMRO connection interfaces ...................................................................................... 2-62-6

2-3 Alcatel-Lucent 7705 Service Aggregation Router-Optical ...................................................................... 2-102-10

2-4 4-Wavelength CWDM Dual-Fiber models .................................................................................................... 2-112-11

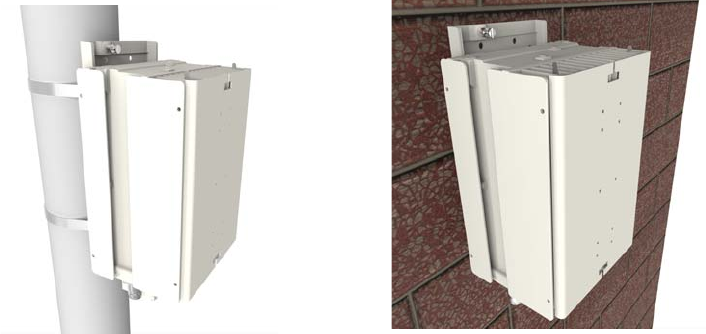

2-5 9768 CMRO pole and wall-mount installation ............................................................................................ 2-162-16

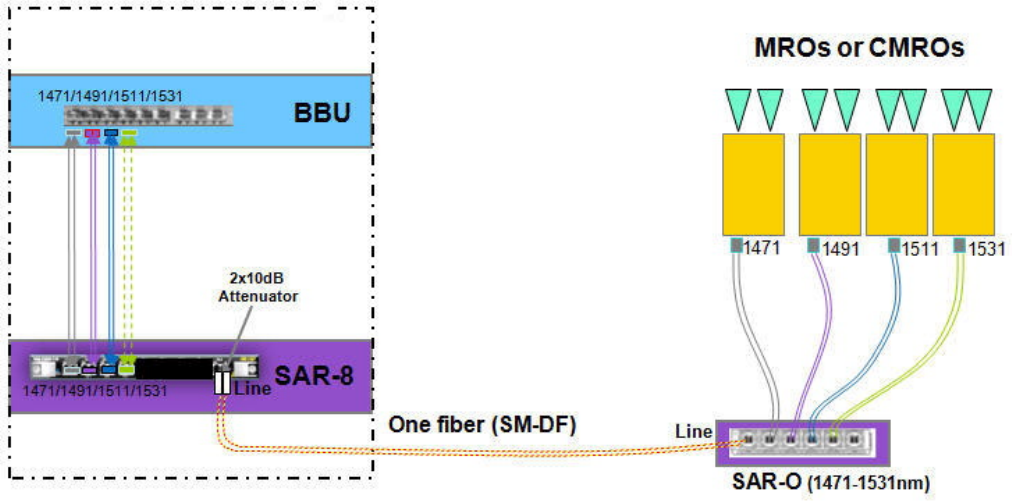

2-6 Four 9768 CMROs served by a single mode dual fiber ............................................................................ 2-172-17

2-7 Six 9768 CMROs served by two single mode dual fibers with different wavelengths ................. 2-182-18

2-8 Six 9768 CMROs served by two single mode dual fibers with same wavelength .......................... 2-182-18

2-9 Six 9768 CMROs served by a single mode dual fiber ............................................................................. 2-192-19

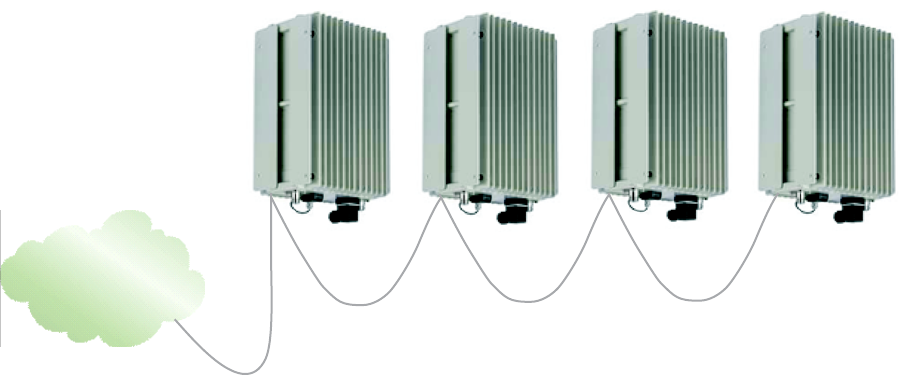

2-10 9768 CMRO daisy chaining installation example ...................................................................................... 2-232-23

2-11 Two 9768 CMROs pair-mounted on a pole ................................................................................................... 2-242-24

2-12 Two 9768 CMROs pair-mounted on a wall ................................................................................................... 2-242-24

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements ix

D

RAFT

D

RAFT

List of figures

....................................................................................................................................................................................................................................

xAlcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

About this documentAbout this document

Purpose

This document covers the basic site preparation guidelines that should be used to plan an

Alcatel-Lucent 9768 Compact Metro Radio Outdoor site. Specific tasks are outlined that

should be completed at the job site before an installation can begin.

Intended audience

The audience for this document is Site Preparation personnel relating to the

Alcatel-Lucent 9768 Compact Metro Radio Outdoor (9768 CMRO).

Supported systems

This document applies to the following Alcatel-Lucent 9768 Compact Metro Radio

Outdoor models:

•Alcatel-Lucent 9768 Compact Metro Radio Outdoor B66 (AWS1-3) 2x5W v2

How to use this document

Start with the first chapter and work through the manual to the end. Prior to installing the

product, the installer should be familiar with the safety precautions, warnings, and

product conformance statements.

Listed are terminology and naming conventions that may appear in the 9768 CMRO

documentation.

Table 1 Terminology

The full product name, Alcatel-Lucent 9768 Compact Metro Radio Outdoor B66 (AWS1-3)

2x5W v2, is also referred to as:

•Alcatel-Lucent 9768 CMRO

•9768 CMRO

...................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements xi

D

RAFT

D

RAFT

Table 1 Terminology (continued)

The full product name, Alcatel-Lucent 7705 Service Aggregation Router-Optical (SAR-O), is

also referred to as:

•Alcatel-Lucent 7705 SAR-O

•7705 SAR-O

The full product name, Alcatel-Lucent 5620 Service Aware Manager (SAM), is also referred to

as:

•Alcatel-Lucent 5620 SAM

•5620 SAM

The terms eNodeB Network Element Manager (NEM), eNodeB NEM, and NEM are used to

describe the eNodeB local maintenance applications.

Safety information

For your safety, this document contains safety statements. Safety statements are given at

points where risks of damage to personnel, equipment, and operation may exist. Failure to

follow the directions in a safety statement may result in serious consequences.

Prerequisites

None

Site preparation checklists

All site preparation activities, as well as adherence to the guidelines, should be verified

prior to the installation of the cell site equipment.

Various checklists and punchlist sheets have been provided in Appendix A of this

document to aid customers and Alcatel-Lucent personnel during a base station site

Method of Procedure (MOP) walk-through prior to the equipment installation.

Utilization of the checklists helps ensure a quality installation and provides a base station

site history file for later reference. The punchlist sheets are used to track completion of

any outstanding site preparation items, and to aid in the project management of

installation resources.

Conventions used

The following typographical conventions are used in this manual:

Appearance Description

emphasis Text that is emphasized

About this document

....................................................................................................................................................................................................................................

xii Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Appearance Description

document titles Titles of books or other documents

file or directory names The names of files or directories

graphical user interface text Text that is displayed in a graphical user

interface or in a hardware label

keyboard keys The name of a key on the keyboard

system input Text that the user types as input to a system

Command names and text that the user types

or selects as input to a system

system output Text that a system displays or prints

variables

A value or command-line parameter that the

user provides

[ ] Text or a value that is optional

{value1 |value2}

{

variable1

|

variable2

}

A choice of values or variables from which

one value or variable is used

<delimited text> Specifies:

•Text that is time-dependent (such as

release, version, date, or time stamp)

displayed in file and directory names

•A value that the user supplies

Examples:

“The ATM and IP rules files are stored in the

<User-home-directory>\<WPS-version>\

data\user\ samples\rules directory.”

“The list of parameters you must fill in is

provided in a template zip file:

wps-lte-templates-<version>.zip ”

>Indicates access to a function through a menu

sequence. The “ >” (greater than) symbol is

used to represent the succession of menus or

commands selected from the graphical user

interface (GUI) or a PC or Citrix server menu

or task bar item.1

Example:

“Select the Import command of the Template

menu (submenu of Interfaces)…” is indicated

by:

“Select Interfaces > Template > Import…”

About this document

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements xiii

D

RAFT

D

RAFT

Appearance Description

+The +(plus) symbol is used to form key

combinations that are pressed simultaneously,

such as SHIFT+ALT+L.

>Use the “ >” (greater than) symbol to form

key combinations that are pressed and then

released in sequence, such as ESC>ALT>A.2

Notes:

1. Spaces are included on either side of the “ >” (greater than) symbol when used to represent

the succession of menus or commands from the graphical user interface (GUI) or a PC menu

or task bar item.

2. Spaces are not included on either side of the “ >” symbol when used to represent keyboard

key combination that are pressed and then released in sequence.

Related information

For information on subjects related to this product, refer to the documents listed in

Appendix D, “Related information”

Document support

For support in using this or any other Alcatel-Lucent document, contact Alcatel-Lucent at

the following telephone numbers.

From United States

•If you are using a landline, a cellular phone or VoIP, dial this number: 1-888-582-3688

From other countries

•If you are using a cellular phone or VoIP, dial this number: +1-630-224-2485

•If you are using a landline (phone without a plus [+] character), replace the plus sign

with the corresponding exit code. Dial this number: Exit code for the country of

origin:1-630-224-2485. See the country-specific exit codes listed here.

These numbers apply for document support only. For details about product hardware,

software, and technical support, see the section “Technical support”.

Technical support

For technical support, contact your local Alcatel-Lucent customer support team. See the

Alcatel-Lucent Support web site (http://www.alcatel-lucent.com/support/) for contact

information.

About this document

....................................................................................................................................................................................................................................

xiv Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

How to order

To order Alcatel-Lucent documents, contact your local sales representative or use Online

Customer Support (OLCS) (http://support.alcatel-lucent.com).

How to comment

Note to reviewers: The following "How to comment" text will appear in the final

document when it is published. However, the feedback method described below is for use

only on final documents. Please send your review comments to the author using the

process you were given when you received this draft document.

To comment on this document, go to the Online Comment Form (http://infodoc.alcatel-

lucent.com/comments/) or e-mail your comments to the Comments Hotline

(comments@alcatel-lucent.com).

About this document

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements xv

D

RAFT

D

RAFT

About this document

....................................................................................................................................................................................................................................

xvi Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

11Safety statements

Overview

Purpose

This chapter provides general information on the structure of safety instructions and

summarizes general safety requirements.

General safety and residual risk

The equipment has been developed in line with state-of-the-art technology and conforms

with current national and international safety requirements.

The equipment is considered safe during normal operation when safe working practices

are complied with. However, hazards may arise if procedures are not followed correctly

or safe working practices are not complied with.

Contents

Structure of safety statements 1-2

General safety considerations 1-3

Safety 1-4

Safety - specific hazards 1-5

Product safety 1-9

...................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-1

D

RAFT

D

RAFT

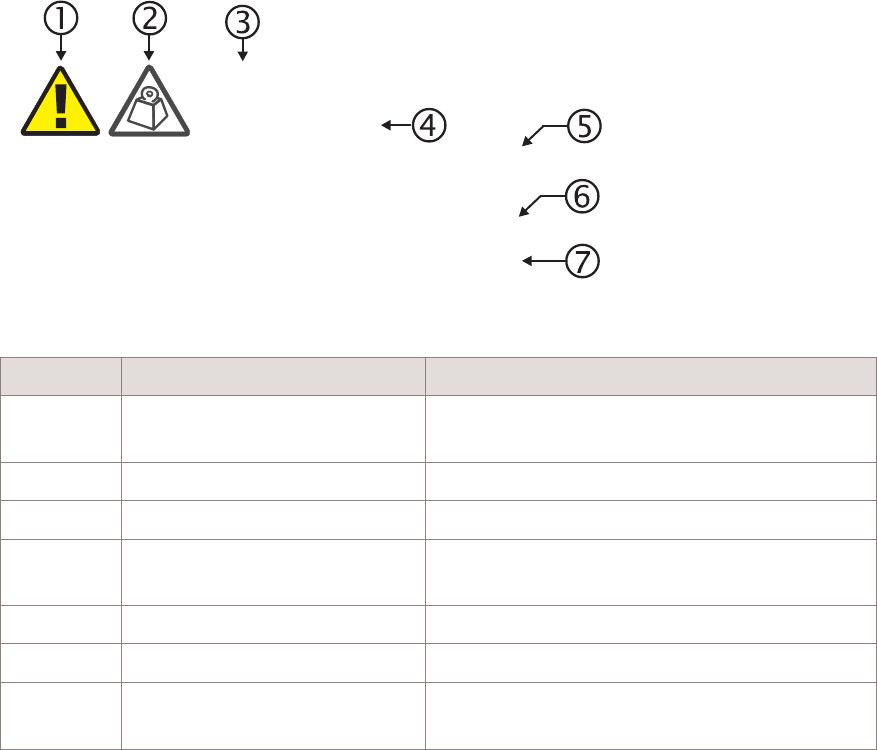

Structure of safety statements

Overview

This topic describes the components of safety statements that appear in this document.

General structure

Safety statements include the following structural elements:

Item Structure element Purpose

1 Safety alert symbol Indicates the potential for personal injury

(optional)

2 Safety symbol Indicates hazard type (optional)

3 Signal word Indicates the severity of the hazard

4 Hazard type Describes the source of the risk of damage or

injury

5 Safety message Consequences if protective measures fail

6 Avoidance message Protective measures to take to avoid the hazard

7 Identifier The reference ID of the safety statement

(optional)

SAMPLE

Lifting this equipment by yourself can result in injury

due to the size and weight of the equipment.

Always use three people or a lifting device to transport

and position this equipment. [ABC123]

CAUTION

Lifting hazard

Safety statements Structure of safety statements

....................................................................................................................................................................................................................................

1-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Signal words

The signal words identify the hazard severity levels as follows:

Signal word Meaning

DANGER Indicates an extremely hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE Indicates a hazardous situation not related to personal injury.

General safety considerations

Shock hazards

WARNING

Electric-shock hazard

Some parts of all electrical installations are energized. Failure to follow safe work

practices and the safety warnings may lead to bodily injury and property damage.

For this reason, only trained and qualified personnel (electrical workers as defined in

IEC 60215 or EN 60215 + A1 or in the National Electrical Code or in ANSI/NFPA No.

10) may install or service the installation.

WARNING

Electric-shock hazard

There is a danger of electric shock if the grounding system is inadequate.

You must comply with the grounding requirements for the grounding system.

Safety statements Structure of safety statements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-3

D

RAFT

D

RAFT

Safety

General precautions for installation procedures

WARNING

Failure to observe these safety precautions may result in personal

injury or damage to equipment.

•Read and understand all instructions.

•Follow all warnings and instructions marked on this product.

•Installation and maintenance procedures must be followed and performed by

trained personnel only.

•The equipment must be provided with a readily accessible disconnect device

as part of site preparation.

•Grounding and circuit continuity is vital for safe operation of the equipment.

Never operate the equipment with grounding/bonding conductor

disconnected.

•Install only equipment identified in the product's installation manual. Use of

other equipment may result in an improper connection which could lead to

fire or injury.

•Use caution when installing or modifying telecommunications equipment.

•Before servicing, disconnect power input to reduce the risk of energy

hazards.

•For continued protection against risk of fire, all fuses used in this product

must be replaced only with fuses of the same type and rating.

•Never install telecommunications equipment during a lightning storm or

when conditions are wet.

•Never touch uninsulated wiring or terminals carrying direct current or

ringing current, and never leave this wiring exposed. Protect and tape

uninsulated wiring and terminals to avoid risk of fire, electrical shock, and

injury to personnel.

•Never spill liquids of any kind on the product.

•To reduce the risk of an electrical shock, do not disassemble the product.

Opening and removing covers and/or circuit boards may expose you to

dangerous voltages or other risks. Incorrect reassembly can cause electrical

shock when the unit is subsequently used.

•for PERMANENTLY CONNECTED EQUIPMENT, a readily accessible

disconnect device must be incorporated external to the equipment.

Safety statements Safety

....................................................................................................................................................................................................................................

1-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Safety - specific hazards

Danger

DANGER

Electric-shock hazard

Working in severe weather can result in personal injury or death and damage to the

equipment.

Never install or perform maintenance during severe weather (high winds, lightning,

blizzards, hurricane etc.).

DANGER

Noxious-substance hazard

Use of unspecified cleaning agents can result in personal injury.

Use only specified cleaning agents. Never use flammable solvents.

Always ensure that there is adequate ventilation in the work area and wear the

appropriate personal protective equipment.

Warning

WARNING

Laser hazard

Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser radiation exposure.

Do not view directly into the laser beam with optical instruments such as a fiber

microscope because viewing of laser emission in excess of Class 1 limits significantly

increases the risk of eye damage.

Never look into the end of an exposed fiber or an open connector as long as the optical

source is switched on.

Ensure that the optical source is switched off before disconnecting optical fiber

connectors.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-5

D

RAFT

D

RAFT

WARNING

Electric-shock hazard

Some parts of all electrical installations are energized. Failure to observe this fact and

the safety warnings may lead to bodily injury and property damage.

For this reason, only trained and qualified personnel (electrical workers as defined in

IEC 60215 + A1 or EN 60215) may install or service the installation.

WARNING

Electric-shock hazard

The power supply lines to the equipment are energized. Contact with parts carrying

current can cause serious injury, possibly including death, even hours after the event.

Turn off and lock out the system power at the disconnect device before working on or

servicing the equipment.

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Caution

CAUTION

RF hazard

RF exposure in excess of applicable limits can result in personal injury.

Metro Cells are designed and installed in order that they are compliant with the exposure

guidelines laid down by 47 CFR 1.1307 -1.1310.

For all staff that are required to work in close proximity to the equipment, for example

maintenance personnel, contact with the antenna should be avoided. No such persons

shall stay in front of the product at a distance of less than 8 cm.

No other persons shall stay in front of the product at a distance of less than 22 cm.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

1-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

CAUTION

Electric-shock hazard

DOUBLE POLE/NEUTRAL FUSING

A fuse is used in the neutral of single-phase equipment either permanently connected or

provided with a non-reversible plug. After operation of the fuse, parts of the equipment

that remain energized might represent a hazard during servicing.

Failure to observe this fact and the safety warnings may lead to bodily injury and

property damage.

CAUTION

Hot-surface hazard

The surfaces of the CMRO can become hot enough to cause burns on unprotected skin.

On the product label, the universal symbol for Hot Surface (shown here) emphasizes this

hazard.

Before handling the unit, wait until its surfaces have cooled and, where the following

conditions apply, ensure that it is mounted out of the public's reach.

For installations in ambient temperatures exceeding 46° C, surface temperature may

exceed 70° C. In these situations, this equipment is intended for installation where access

is restricted to only qualified service personnel.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-7

D

RAFT

D

RAFT

Notices

NOTICE

ESD hazard

Semiconductor devices can be damaged by electrostatic discharges (ESD)

The following rules must be complied with when handling any module containing

semiconductor components:

•Wear conductive or antistatic working clothes (for example, coat made of 100%

cotton).

•Wear a grounded wrist strap.

•Wear shoes with conductive soles on a conductive floor surface or conductive work

mat.

•Leave the modules in their original packaging until ready for use.

•Make sure there is no difference in potential between yourself, the workplace, and the

packaging before removing, unpacking, or packing a module.

•Whenever handling ESD-sensitive components, do not touch any connection pins or

tracks.

•Place modules removed from the equipment on a conductive surface.

•Test or handle the module only with grounded tools on grounded equipment.

•Handle defective modules exactly like new ones to avoid causing further damage.

NOTICE

Condensation

Sudden changes in the weather may lead to the formation of condensation on

components. Operating the unit when condensation moisture is present can destroy the

unit.

Units which show signs of condensation must be dried before installation.

NOTICE

Tools

Tools left in the working area can cause short circuits during operation which can lead to

the destruction of units.

Make sure after finishing your work that no tools, testing equipment, flashlights, etc.,

have been left in or on the equipment.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

1-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Product safety

Equipment safety

Safety information for this equipment can be found on various Caution, Warning, Danger,

information labels or instructions affixed to or included with the product or included

within this document. Informational and cautionary labels may appear near the item they

address or may be grouped in a single location on the equipment. Warnings are typically

adjacent to the hazard that is noted on the label. The instructions, cautions and warnings

found on these labels must be understood and observed by all personnel involved with the

equipment installation and maintenance.

Safety statements Product safety

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-9

D

RAFT

D

RAFT

Safety statements Product safety

....................................................................................................................................................................................................................................

1-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

22Hardware architecture

and functionality

Overview

Purpose

This chapter provides a high-level overview of the Alcatel-Lucent 9768 Compact Metro

Radio Outdoor (9768 CMRO) product and functionality.

Contents

Functional description 2-1

Physical description 2-3

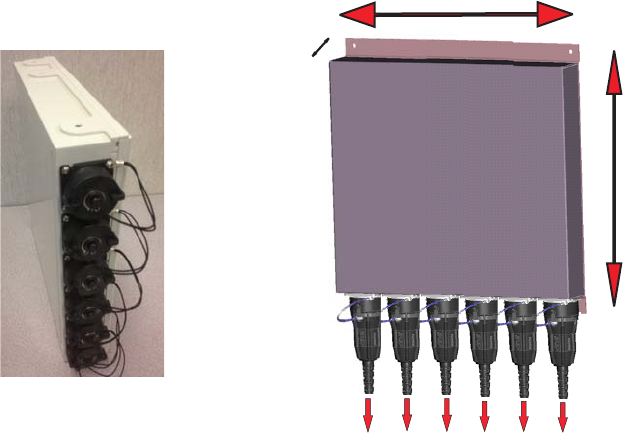

7705 SAR-O hardware overview and ancillary 2-9

Supported installation options 2-15

Hardware and ancillary items 2-25

Functional description

Overview

The Alcatel-Lucent 9768 Compact Metro Radio Outdoor product is a next-generation

Metro Radio Outdoor product with 10x the output power at half the size when compared

with the Alcatel-Lucent 9768 Metro Radio Outdoor (9768 MRO), that enables mobile

service providers (MSPs) to deliver cost-effective capacity to urban hotspots, for

example, stadiums, campuses, train stations, bus stops and other urban environments, as

well as affordable coverage to rural locations. It is designed to be deployed as an overlay

in an existing macro coverage area to provide increased coverage in public open spaces.

...................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-1

D

RAFT

D

RAFT

Product features and capabilities

The product features and capabilities in this release are:

•Supports band 66 (B66) with a reduced high-end (WRHE) of 2180 MHz and a

10-MHz guard band instead of a 2200 MHz high-end

•Supports LTE FDD

•Supports the following LTE carriers:

– 5 MHz

– 10 MHz

– 15 MHz

– 20 MHz

•Supports the AWS-1 frequency range (AWS-4 frequency range is not supported)

Note: The 9768 CMRO is hardware ready to support the entire AWS-1/3 frequency

range. In the LR15.1.L release, only AWS-1 is fully supported.

•Supports UL of 1710 to 1780 MHz (70 MHz), and DL of 2110 to 2180 MHz (70

MHz)

•2x5W total power at antenna connector

•Standard 2x2 MIMO configurations, 2-Tx and 2-Rx diversity

•Supports plug-and-play (PnP) to connect automatically to the network

•Supports CPRI fronthaul and daisy chaining of up to four 9768 CMROs

•CSA, FCC, and IP65 certifications

9768 CMRO

with Solar Shield

9768 CMRO

without Solar Shield

Hardware architecture and functionality Functional description

....................................................................................................................................................................................................................................

2-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Physical description

Overview

The Alcatel-Lucent 9768 Compact Metro Radio Outdoor is housed in an Alcatel-Lucent

designed metallic case, adhering to NEMA Type 4 enclosure standard. The product is

designed to be deployed close to users, usually in outdoor environments, such as on light

poles or building walls, with a vertical profile that hides cable connectors and mounting

kit for a smooth integration into the surrounding environment.

The 9768 CMRO product is shown in the following figure.

Weights and dimensions

The physical dimensions of the Alcatel-Lucent 9768 CMRO are:

Figure 2-1 Alcatel-Lucent 9768 CMRO

9768 CMRO

(Front view with

Solar Shield)

9768 CMRO

(Rear view)

Hardware architecture and functionality Physical description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-3

D

RAFT

D

RAFT

Table 2-1 9768 CMRO

Width 180 mm (7.1 in)

Height 265 mm (10.4 in)

Depth 135 mm (5.3 in), including Solar Shield

Volume 6.5 L

Weight 6.8 kg (15 lb)

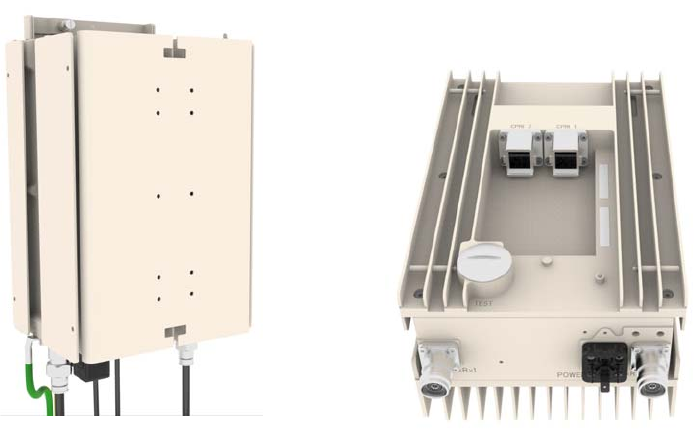

Height

Width

Depth

9768 CMRO

front view with

Solar Shield

9768 CMRO

bottom view

Hardware architecture and functionality Physical description

....................................................................................................................................................................................................................................

2-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Environmental and regulatory specifications

Table 2-2 Certifications and standards

Safety CSA

Radio FCC

Environmental IP65

Table 2-3 Environmental parameters

Temperature range - 40°C to +50°C (+55°C with Solar Shield)

Relative humidity 5% to 100%

Main units

The 9768 CMRO is made up of four main units, which are responsible for radio, RF

filtering, fronthaul and power supply functions.

Unit Function

MOAD2 board SFP modules and power forwarding:

•Two CPRI SFP ports

•5.3-V to 3.3-V power convertor

Radio board Radio:

•LTE Band 66

•Two mini-DIN 4.3-10 external RF antenna connectors

RF filter RF antenna filter that supports:

•B66 (WRHE) UL frequency range from 1710 MHz to 1780

MHz

•B66 (WRHE) DL frequency range from 2110 MHz TO 2180

MHz

Power Supply Unit

(PSU)

•PSU AC variant - Internal power module unit provides

AC-to-DC conversion (5.3 V output) to the MOAD2 board.

•PSU DC variant - Internal power module unit provides

DC-to-DC conversion (5.3 V output) to the MOAD2 board.

The MOAD2 board distributes 5.3 V output and provides secondary

DC-to-DC conversion to generate all other (lower) voltages needed

within the board.

Hardware architecture and functionality Physical description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-5

D

RAFT

D

RAFT

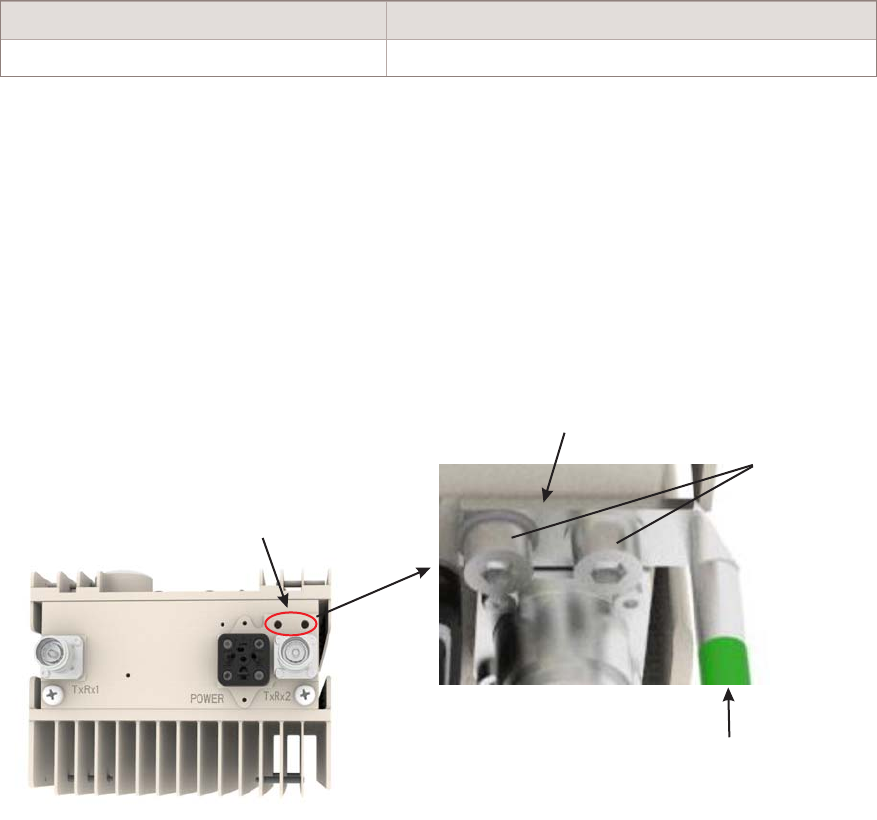

Connection interfaces

The following figure shows the connection interfaces of the 9768 CMRO.

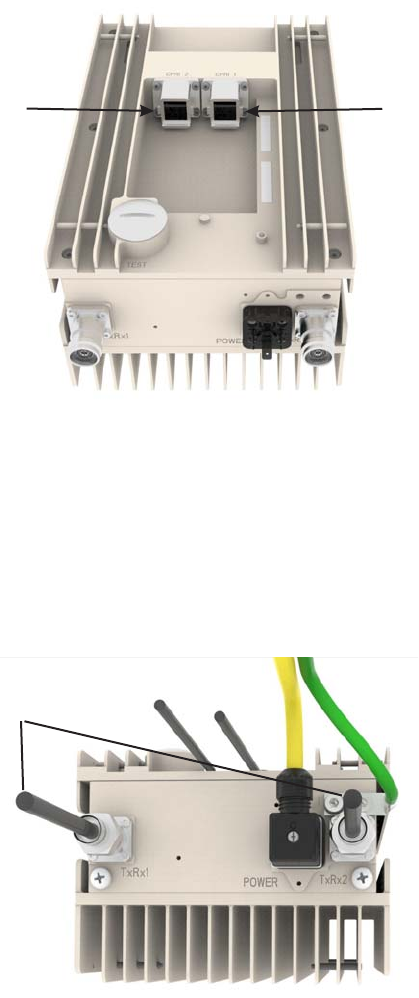

Figure 2-2 Alcatel-Lucent 9768 CMRO connection interfaces

RF antenna

connector RF antenna

connector

Power

connector

Grounding

point

9768 CMRO (bottom view)

9768 CMRO (rear view)

CPRI 2 for

daisy chaining

CPRI 1 for

fronthaul

Hardware architecture and functionality Physical description

....................................................................................................................................................................................................................................

2-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Connection location Description

9768 CMRO (bottom) Power supply connector (AC or DC)

Two mini-DIN 4.3-10 RF antenna connectors

Grounding point

9768 CMRO (rear) Two CPRI SFP ports; “CPRI 1” and “CPRI 2”

“CPRI 1” is used to connect to the BBU or to daisy-chain with

another 9768 CMRO and “CPRI 2” is used to daisy chain to the

next 9768 CMRO

Power supply

The Alcatel-Lucent 9768 CMRO product supports either AC or DC external power input.

9768 CMRO Power supply details

AC variant AC power supply that operates from a single phase, three wire voltage

source in the 95 to 265 Volt range.

The AC power is surge protected internally, and conforms to IEC

60364-1 and GR-1089-Core, Issue 6, Section 4.6.2, Table 4-2 Surge

Test #20.

Fully configured and operating at maximum levels, the product

consumes 100 W. Typical power consumption is 85 W.

DC variant -48 V DC power supply that operates over the voltage range from -40 V

DC to -57 V DC.

The DC power is surge protected internally, and conforms to GR-1089,

Issue 6, Appendix B for Port Type 8a.

Fully configured and operating at maximum levels, the product

consumes 100 W. Typical power consumption is 85 W.

Fronthaul interface

The fronthaul interface is at the back of the 9768 CMRO supporting two optical CPRI

SFP ports:

•The “CPRI 1” SFP port (CPRI input port) is used to connect to the BBU or to the

daisy chaining port of another 9768 CMRO.

•The “CPRI 2” SFP port (Daisy chaining output port) is used for daisy chaining to

another 9768 CMRO.

Hardware architecture and functionality Physical description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-7

D

RAFT

D

RAFT

RF antenna

The Alcatel-Lucent 9768 CMRO supports two external antenna connectors (type

mini-DIN) at the bottom of the enclosure supporting external RF antennas. The external

RF antennas are customer supplied.

Status indicators

The 9768 CMRO supports a single multi-color LED which is located on the rear lower

portion of the casing. The LED is not intended for use during normal operation of the

equipment. However, it can provide a visual status of the unit during initial installation

and commissioning.

9768 CMRO (rear view)

CPRI 2 for

daisy chaining

CPRI 1 for

fronthaul

External RF antennas

Hardware architecture and functionality Physical description

....................................................................................................................................................................................................................................

2-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Product labeling

The Alcatel-Lucent 9768 CMRO product label provides the following information:

•Model name

•Part number

•Serial number

•Power input range

•Environmental marking (WEEE/RoHS) applicable to the device

7705 SAR-O hardware overview and ancillary

Product overview

The Alcatel-Lucent 7705 Service Aggregation Router-Optical (7705 SAR-O) is a passive

optical unit used to multiplex (add) and de-multiplex (drop) up to eight Coarse

Wavelength Division Multiplex (CWDM) wavelengths from an optical network. The

primary function of 7705 SAR-O is to provide front-haul and back-haul support to the

9768 CMRO.

The 7705 SAR-O is designed for outdoor installations, such as on a pole, wall or side of a

building in an extended temperature environment.

LED indicator

9768 CMRO

(rear view)

Hardware architecture and functionality Physical description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-9

D

RAFT

D

RAFT

Legend:

1 Line port

2 Add/drop port 1

3 Add/drop port 2

4 Add/drop port 3

5 Add/drop port 4

6 Expansion port

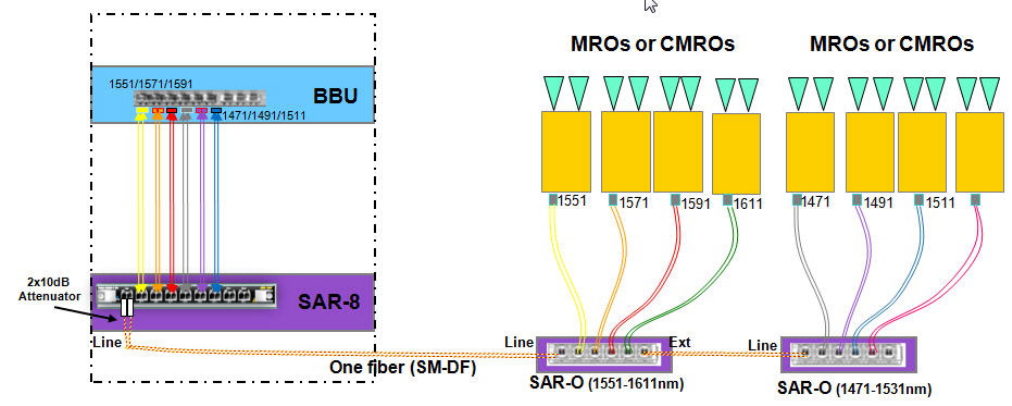

Using 7705 SAR-O, the number of fibers required to connect multiple 9768 CMROs can

be significantly reduced. The 7705 SAR-O supports up to six 9768 CMROs to be

connected using either one or two single mode dual fibers depending on the

configuration. Optionally, this configuration can be extended to connect a fourth 9768

CMRO on each 7705 SAR-O unit by ordering additional SFPs for the fourth port of each

7705 SAR-O unit. To support eight CPRI connections, customer orderable 9926 BBU

equipped with eCCM2 controller card (support up to nine CPRI connections) is used.

For repair and replacement instructions, refer to the installation instructions provided with

the 7705 SAR-O installation kit or contact your local Alcatel-Lucent customer support

team.

Figure 2-3 Alcatel-Lucent 7705 Service Aggregation Router-Optical

Line Ch1 Ch2 Ch3 Ch4 Exp

10.5”

10”

2”

123456

Hardware architecture and functionality 7705 SAR-O hardware overview and ancillary

....................................................................................................................................................................................................................................

2-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Power supply

The 7705 SAR-O does not require an external power supply (a passive unit).

Dimensions

The following table provides the dimensions of only the 7705 SAR-O.

Table 2-4 7705 SAR-O dimensions

7705 SAR-O (H x W x D) 10.24 x 10.05 x 2.17 inches

7705 SAR-O 4.0 lbs (1.8 kg)

Chassis

The 4-Wavelength CWDM Dual-Fiber variant of 7705 SAR-O is used for installation

with the 9768 CMRO.

4-Wavelength CWDM Dual-Fiber

The 4-wavelength CWDM dual-fiber is used to drop and add four specific wavelengths

from the network. However, other wavelengths are allowed to pass through. This variant

can also add other wavelengths and allow a 1310 nm signal to pass through in the case of

a CWDM OADM linear 1310 nm application.

This variant is available in the following two models:

•3HE07939AA - Used to add and drop 1471/1491/1511/1531 nm wavelengths

•3HE07939BA - Used to add and drop 1551/1571/1591/1611 nm wavelengths.

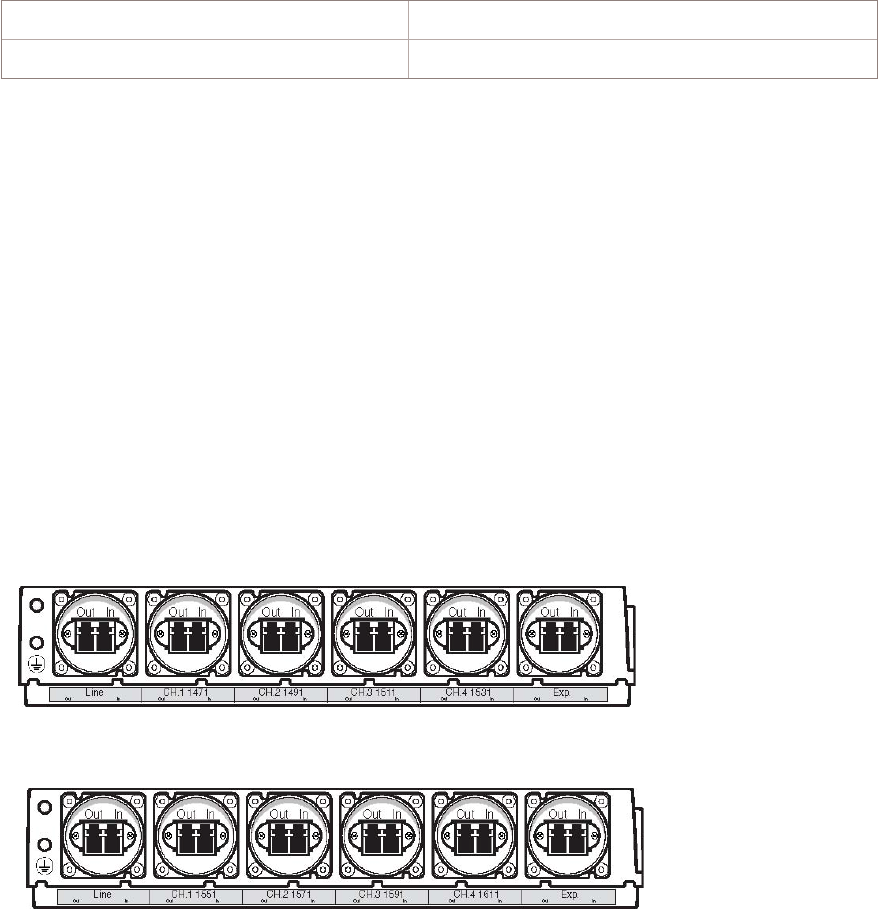

Figure 2-4 4-Wavelength CWDM Dual-Fiber models

3HE07939AA - Add and drop 1471/1491/1511/1531 nm wavelengths

3HE07939BA - Add and drop 1551/1571/1591/1611 nm wavelengths

Hardware architecture and functionality 7705 SAR-O hardware overview and ancillary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-11

D

RAFT

D

RAFT

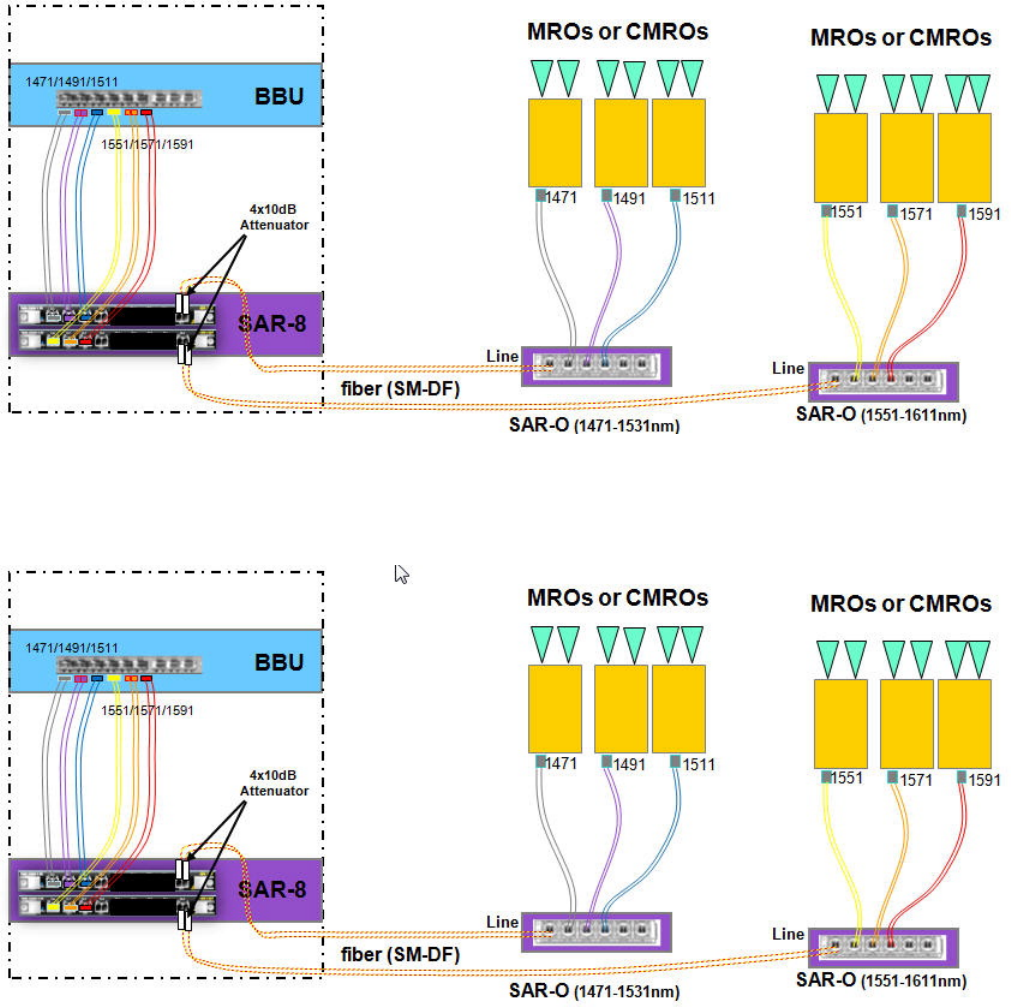

7705 SAR-O installation with 9768 CMRO

For installation configuration of 7705 SAR-O with 9768 CMRO, refer to the 7705 SAR-O

Quick Start Guide provided within the “Kit SAR-O” (p. 2-13).

The following table provides the ordering codes for the 7705 SAR-O and 7705 SAR-8

OADM adapter card:

Comcode Description

3HE07939AA 7705 SAR-O Dual-Fiber CWDM 4 color 1471-1531

3HE07939BA 7705 SAR-O Dual-Fiber CWDM 4 color 1551-1611

3HE06584AA 4-channel CWDM OADM adapter card 1471/1491/1511/1531 nm

3HE06585AB 4-channel CWDM OADM adapter card 1551/1571/1591/1611 nm

3HE06585AA 7705 SAR-8/18 8 COLOR MUX/DEMUX 1471- 1611 (for

configuration - C)

Cable and ancillary items

Single mode dual LC to LC

The following table provides the ordering codes for the Single mode dual LC to LC fibers

used for the connection between 9926 BBU and 7705 SAR-8:

Table 2-5 Single mode dual LC to LC

Comcode Description

849147590 OPTICAL FIBER SMDF DUAL LC TO LC 2,5m

849134879 OPTICAL FIBER SMDF DUAL LC TO LC 5M

849157912 OPTICAL FIBER SMDF DUAL LC TO LC 10M

849122239 OPTICAL FIBER SMDF DUAL LC TO LC 15M

849125380 OPTICAL FIBER SMDF DUAL LC TO LC 30M

849122247 OPTICAL FIBER SMDF DUAL LC TO LC 50M

849123591 OPTICAL FIBER SMDF DUAL LC TO LC 70M

849125398 OPTICAL FIBER SMDF DUAL LC TO LC 85M

849123609 OPTICAL FIBER SMDF DUAL LC TO LC 100M

849125406 OPTICAL FIBER SMDF DUAL LC TO LC 150M

849125414 OPTICAL FIBER SMDF DUAL LC TO LC 200M

849125422 OPTICAL FIBER SMDF DUAL LC TO LC 250M

849125430 OPTICAL FIBER SMDF DUAL LC TO LC 300M

Hardware architecture and functionality 7705 SAR-O hardware overview and ancillary

....................................................................................................................................................................................................................................

2-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

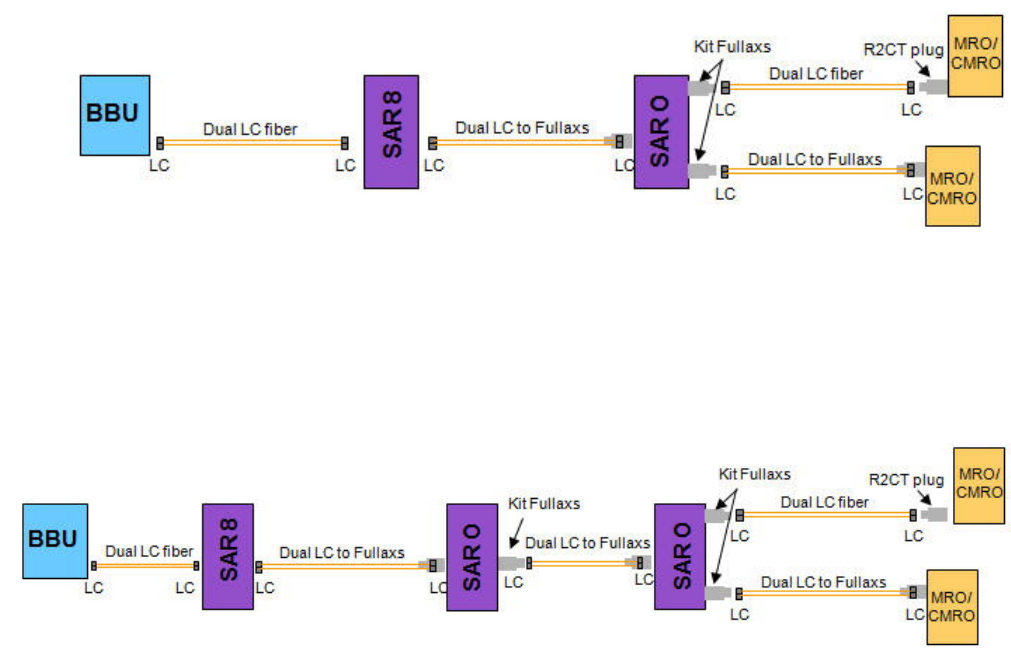

Single mode dual LC to FullAXS

The Single mode dual LC to FullAXS fiber is used for the connection between:

•9768 CMRO and 7705 SAR-O

•7705 SAR-O and 7705 SAR-8

•7705 SAR-O and 7705 SAR-O

The following table provides the ordering code for the Single mode dual optical fibers:

Table 2-6 Single mode dual LC to FullAXS

Comcode Description

849175641 Optical FBR SMDF Dual LC TO FULLAXS 1 m

849174453 Optical FBR SMDF Dual LC TO FULLAXS 5 m

849174461 Optical FBR SMDF Dual LC TO FULLAXS 15 m

849174479 Optical FBR SMDF Dual LC TO FULLAXS 30 m

849174487 Optical FBR SMDF Dual LC TO FULLAXS 50 m

849174495 Optical FBR SMDF Dual LC TO FULLAXS 70 m

849174503 Optical FBR SMDF Dual LC TO FULLAXS 85 m

849174511 Optical FBR SMDF Dual LC TO FULLAXS 100 m

849174529 Optical FBR SMDF Dual LC TO FULLAXS 150 m

849174537 Optical FBR SMDF Dual LC TO FULLAXS 200 m

849174545 Optical FBR SMDF Dual LC TO FULLAXS 250 m

849174552 Optical FBR SMDF Dual LC TO FULLAXS 300 m

Kit SAR-O

The Kit SAR-O contains:

•SFP (Qty 6)

•10dB Attenuator (Qty 2)

•7705 SAR-O Quick Start Guide

The SFPs are used for the connection of first three channels between 9768 CMRO and

7705 SAR-O. The 10dB Attenuator is required for the installation on 7705 SAR-O, on

each Line port of the 4-Channel OADM adapter card.

Hardware architecture and functionality 7705 SAR-O hardware overview and ancillary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-13

D

RAFT

D

RAFT

The following tables provide the ordering codes for the Kit SAR-O:

Table 2-7 Kit SAR-O - For channels 1471-1511

Comcode Description

301094298 KIT, SAR-O CHANNELS 1471-1511

KIT, SAR-O CHANNELS 1471-1511 contents

1AB402160002 SFP CKT MODULE,CWDM,OC-48/STM16,1471 NM (Qty 2)

1AB402160003 SFP CKT MODULE,CWDM,OC-48/STM16,1491 NM (Qty 2)

1AB402160004 SFP CKT MODULE,CWDM,OC-48/STM16,1511 NM (Qty 2)

1AB252030001 10dB Attenuator (Qty 2)

109812974 SAR-O QUICK START GUIDE

Table 2-8 Kit SAR-O - For channels 1551-1591

Comcode Description

301094306 KIT, SAR-O CHANNELS 1551-1591

KIT, SAR-O CHANNELS 1551-1591 contents

1AB402160006 SFP CKT MODULE,CWDM,OC-48/STM16,1551 NM (Qty 2)

1AB402160007 SFP CKT MODULE,CWDM,OC-48/STM16,1571 NM (Qty 2)

1AB402160008 SFP CKT MODULE,CWDM,OC-48/STM16,1591 NM (Qty 2)

1AB252030001 10dB Attenuator (Qty 2)

109812974 SAR-O QUICK START GUIDE

SFPs for the fourth 7705 SAR-O connector

The following table provides the ordering codes for SFPs that are used only for the fourth

7705 SAR-O connector:

Table 2-9 SFP code for the fourth 7705 SAR-O connector

Comcode Description

1AB402160005 SFP CKT MODULE, CWDM, OC-48/STM16, 1531 NM

1AB402160009 SFP CKT MODULE, CWDM, OC-48/STM16 ,1611 NM

FULLAXS fiber field install kit

The FullAXS connector (FULLAXS field install kit (0.3 m), Fiber 4.8-6.5 mm OD) is

used as an assembly on the 7705 SAR-O to connect the 9768 CMRO.

Hardware architecture and functionality 7705 SAR-O hardware overview and ancillary

....................................................................................................................................................................................................................................

2-14 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

The following table provides the ordering code for the FULLAXS field install kit (0.3 m),

Fiber 4.8-6.5 mm OD:

Table 2-10 FULLAXS fiber field install kit

Comcode Description

1AB431220004 FULLAXS Fiber Field Install Kit (0.3m), FIBER 4.8-6.5 mm OD

Supported installation options

Overview

The following section describes the supported installation options for the Alcatel-Lucent

9768 CMRO product. These include:

•Standard installation options for 9768 CMRO (pole and wall-mount installation).

•9768 CMRO (AC or DC variant) with 7705 SAR-O, separate mount installation

options

•Strand-mount installation option, where one or two DC powered 9768 CMROs, an

90v AC Coax to -48v DC converter and the RF antennas are mounted on a cable

strand.

•Daisy chain installation options, where up to four 9768 CMROs can be daisy-chained

together and share the same fronthaul port.

•Pair-mounted installation options, where two 9768 CMROs are mounted side-by-side

using a double Metro plate.

•Other co-located installation options, where two 9768 CMROs are mounted

side-by-side or one on top of another, without using a double Metro plate.

Standard installation options

The standard installation options include pole (light poles, lamp posts and so on) and

wall-mount (building walls) installations.

Hardware architecture and functionality 7705 SAR-O hardware overview and ancillary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-15

D

RAFT

D

RAFT

9768 CMRO (AC or DC variant) with 7705 SAR-O, separate mount installation options

The following three separate mount installation options are supported for the 9768

CMRO with 7705 SAR-O:

•Four 9768 CMROs served by a single mode dual fiber

•Six 9768 CMROs served by two single mode dual fibers

•Six 9768 CMROs served by a single mode dual fiber

For installation configuration of 7705 SAR-O with 9768 CMRO, see “7705 SAR-O

installation with 9768 CMRO ” (p. 2-12).

Four 9768 CMROs served by a single mode dual fiber configuration

In this configuration, four 9768 CMROs are connected to a single 7705 SAR-O unit. The

7705 SAR-O is served by a Single mode dual fiber that connects to the 7705 SAR-8 unit,

equipped with a 4-Channel OADM adapter card to support four 9926 BBU CPRI

connections.

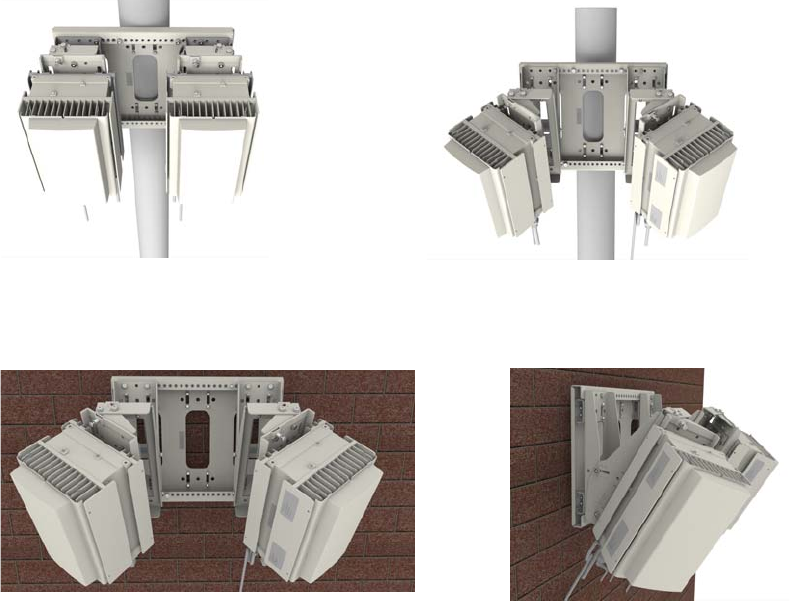

Figure 2-5 9768 CMRO pole and wall-mount installation

Pole-mount installation Wall-mount installation

Hardware architecture and functionality Supported installation options

....................................................................................................................................................................................................................................

2-16 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Six 9768 CMROs served by two single mode dual fibers configuration

In this configuration, six 9768 CMROs are connected to two 7705 SAR-O units, by

connecting three 9768 CMROs to each 7705 SAR-O unit. The two 7705 SAR-O units are

each served by a Single mode dual fiber that connects to a single 7705 SAR-8 unit,

equipped with two 4-Channel OADM adapter cards to support six 9926 BBU CPRI

connections.

Figure 2-6 Four 9768 CMROs served by a single mode dual fiber

Hardware architecture and functionality Supported installation options

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-17

D

RAFT

D

RAFT

Figure 2-7 Six 9768 CMROs served by two single mode dual fibers with different

wavelengths

Figure 2-8 Six 9768 CMROs served by two single mode dual fibers with same

wavelength

Hardware architecture and functionality Supported installation options

....................................................................................................................................................................................................................................

2-18 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Six 9768 CMROs served by a single mode dual fiber configuration (Daisy-chained

7705 SAR-Os)

This configuration is same as six 9768 CMROs served by two single mode dual fibers,

except both 7705 SAR-O units are served by a single mode dual fiber. The first 7705

SAR-O unit’s Extension port is connected to the Line port of the second 7705 SAR-O

unit. The single mode dual fiber then connects the second 7705 SAR-O unit to a single

7705 SAR-8 unit, equipped with an 8-Channel OADM adapter card to support six 9926

BBU CPRI connections.

Note: If required, this configuration can be extended to connect a fourth 9768 CMRO

on each 7705 SAR-O unit by ordering additional SFPs for the fourth port of each

7705 SAR-O unit. See “SFPs for the fourth 7705 SAR-O connector” (p. 2-14).To

support eight CPRI connections, either customer orderable 9926 BBU equipped with

eCCM2 controller card (supports up to nine CPRI connections) or multiple 9926

BBUs can be used.

Figure 2-9 Six 9768 CMROs served by a single mode dual fiber

Hardware architecture and functionality Supported installation options

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-19

D

RAFT

D

RAFT

Schematic of 9768 CMRO (AC or DC variant) with 7705 SAR-O, separate mount

installation options

The following schematic shows 9768 CMRO installation with a single 7705 SAR-O that

applies to “Four 9768 CMROs served by a single mode dual fiber configuration”

(p. 2-16).

The following schematic shows 9768 CMRO installation with two 7705 SAR-Os that

applies to “Six 9768 CMROs served by two single mode dual fibers configuration”

(p. 2-17) and “Six 9768 CMROs served by a single mode dual fiber configuration

(Daisy-chained 7705 SAR-Os)” (p. 2-19).

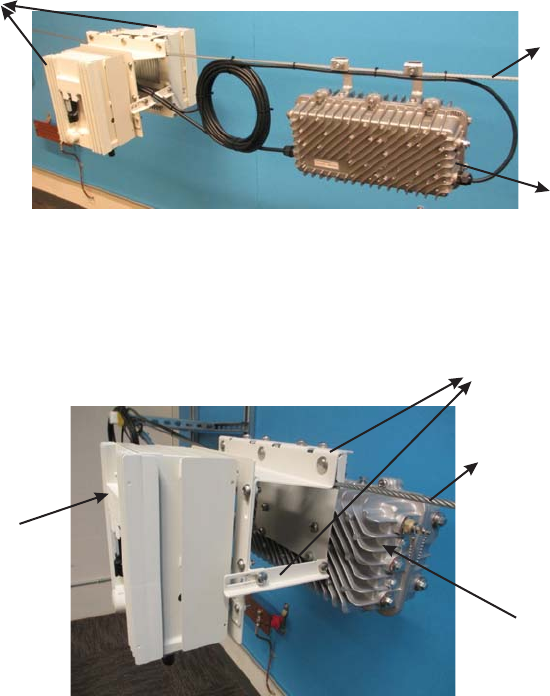

Strand-mount installation option

The strand-mount installation supports mounting one or two DC powered 9768 CMROs,

an AC-to-DC converter and RF antennas (attached or external) on a strand cable. The two

9768 CMROs and the 90v AC Coax to -48v DC converter are first assembled onto a

saddle-bag bracket on a table prior to mounting the saddle-bag assembly onto a strand.

The external RF antennas must be separately mounted onto the strand and connected to

the 9768 CMRO. The external RF antennas and the strand-mount kit for external RF

antennas must be supplied by the customer.

Note: The strand-mount installation is supported only for the 9768 CMRO DC

variant.

Hardware architecture and functionality Supported installation options

....................................................................................................................................................................................................................................

2-20 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

The saddle-bag bracket can be used to assemble any two units, as described below:

•9768 CMRO + 9768 CMRO (90v AC Coax to -48v DC converter is mounted directly

on the strand)

•9768 CMRO + an 90v AC Coax to -48v DC converter (when only one 9768 CMRO is

used in the strand-mount installation)

•9768 CMRO + a counterbalance weight (when only one 9768 CMRO is used in the

strand-mount installation and the 90v AC Coax to -48v DC converter is mounted

directly on the strand)

Daisy chain installation options

In a daisy chain installation option, up to four 9768 CMROs can be daisy chained

together, where they share the same fronthaul port, thus reducing the investment cost

needed to connect the 9768 CMROs to the fronthaul network and aggregating the uplink

and downlink traffic.

9768 CMROs

in a saddle-bag

assembly

AC-to-DC converter

directly mounted

on a strand

Strand

9768 CMRO in a

saddle-bag

assembly

AC-to-DC converter in

a saddle-bag assembly

Saddle-bag bracket

Strand

Hardware architecture and functionality Supported installation options

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-21

D

RAFT

D

RAFT

Daisy chaining of 9768 CMRO units is supported only with macro eNodeB BBUs (not

with 976x Metro Cells). The following table provides the supported 9768 CMRO daisy

chaining configurations for a BBU hardware configuration and CPRI rate:

CPRI

rate/BBU

HW

configura-

tion

CPRI rate 3 CPRI rate 5 CPRI rate 7

eCCM2-HR

+ bCEM

P1.1

Up to four 9768 CMROs can be daisy chained at 5, 10, 15 or 20 MHz carrier

bandwidth

eCCM2 +

bCEM

P1.1

•Up to four 9768 CMROs can be daisy chained at

5 or 10 MHz carrier bandwidth

•Up to two 9768 CMROs can be daisy chained at

15 or 20 MHz carrier bandwidth

Not supported

bCAM2 +

bCEM2

Up to four 9768 CMROs can be daisy chained at 5, 10, 15 or 20 MHz carrier

bandwidth

Note: Mixed BBU configurations do not support daisy chaining.

The BBU and all of the RFMs on the daisy chain, including 9768 CMROs, auto-negotiate

to use the same CPRI rate when the system starts. CPRI line rates along a daisy chain are

uniform and determined by the rate on the first segment. If the BBU wants to change the

CPRI line rate for the daisy chain, each RFM starts its master interface only if the slave

interface is up and uses only the line rate of the slave interface.

The daisy-chained 9768 CMROs can be co-located or separated by some distance. The

actual distance depends upon the BBU, SFP and fiber optic cable configuration used for

the daisy chain. Refer to, “Hardware and ancillary items” (p. 2-25) for supported SFPs

and fiber optic cable types and lengths.

The 9768 CMRO supports two optical CPRI SFP ports at the back; one for fronthaul

(“CPRI 1” port) and the other for daisy chaining (“CPRI 2” port).

Hardware architecture and functionality Supported installation options

....................................................................................................................................................................................................................................

2-22 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Pair-mount installation options

The 9768 CMROs can be pair-mounted on a double-Metro plate with or without daisy

chaining.

Pair-mount installation without daisy chaining

For the pair-mount installation option without daisy chaining, a 9768 CMRO is

pair-mounted with another 9768 CMRO, where each 9768 CMRO has its own separate

fronthaul connection. The 9768 CMROs have to use different carriers for the pair-mount

configuration to be valid.

Pair-mount installation with daisy chaining

When pair-mounted, the 9768 CMROs can either each have a separate fronthaul

connection, or they can be daisy chained to share the same fronthaul port, as described in

“Daisy chain installation options” (p. 2-21). The 9768 CMROs have to use different

carriers for the pair-mount configuration to be valid.

Figure 2-10 9768 CMRO daisy chaining installation example

BBU

Hardware architecture and functionality Supported installation options

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-23

D

RAFT

D

RAFT

Examples of pair-mount installation

Co-located installation option

Two 9768 CMROs can be mounted in a co-located configuration, either in the same

plane, or one above the other.

If the 9768 CMROs are mounted one above the other, a certain distance between them is

required in order to prevent the bottom 9768 CMROs from overheating the top 9768

CMROs. The minimum separation distance between the two 9768 CMROs must be 2 m.

If the minimum separation distance is less than 2 m, then an air baffle must be used.

Figure 2-11 Two 9768 CMROs pair-mounted on a pole

Figure 2-12 Two 9768 CMROs pair-mounted on a wall

Hardware architecture and functionality Supported installation options

....................................................................................................................................................................................................................................

2-24 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

The following table describes the deployment scenarios and whether or not an air baffle is

required:

If... Then...

The minimum separation

distance between the two 9768

CMROs is less than 2 m

An air baffle is required. Mount the air baffle between the two

9768 CMROs.

A minimum separation distance of 50 cm is required between

the two 9768 CMROs to use an air baffle.

Note: The air baffle is customer supplied.

The minimum separation

distance between the 9768

CMROs is2morgreater

An air baffle is not required.

Hardware and ancillary items

Overview

The following section lists the Alcatel-Lucent 9768 CMRO base hardware equipment, the

installation kits and ancillary items that can be ordered from Alcatel-Lucent.

9768 CMRO base items

The product packaging contains the following base items:

•9768 CMRO

•9768 CMRO mounting frame

•9768 CMRO basic installation kit

Ancillary items

The following tables list the ancillary items that are available for order from

Alcatel-Lucent in support of the defined equipment installation and configuration options.

Hardware architecture and functionality Supported installation options

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-25

D

RAFT

D

RAFT

Required installation items

The following table lists the installation items required and available for order from

Alcatel-Lucent in support of the equipment installation options. Each item must be

ordered separately.

Table 2-11 Pole-mount installation

Item Description Use

9768 CMRO base items 9768 CMRO

9768 CMRO mounting frame

9768 CMRO basic installation kit

Mandatory

Tool for metal band Standard BAND-IT®Banding Tool

(CR00169), including operating

instructions

Mandatory for pole-mount only

Tighten the bracket metal band around the

pole

Bracket metal band kit Stainless steel bands

Band buckles (Ear-Lokt)

Mandatory

Attach the9768 CMRO or vertical tilt

bracket to a pole (diameter 50 to 300 mm)

using stainless steel bands.

Table 2-12 Wall-mount installation

Installation kit Description Use

9768 CMRO base items 9768 CMRO

9768 CMRO mounting frame

9768 CMRO basic installation kit

Mandatory

Table 2-13 Pair-mount installation on a pole

Installation kit Description Use

9768 CMRO base items 9768 CMRO

9768 CMRO mounting frame

9768 CMRO basic installation kit

Mandatory

Order two numbers if two 9768 CMROs

are pair-mounted.

Tool for metal band Standard BAND-IT®Banding Tool

(CR00169), including operating

instructions

Mandatory for pole-mount only

Tighten the bracket metal band around the

pole

Bracket metal band kit Stainless steel bands

Band buckles (Ear-Lokt)

Mandatory

Pole-mount 9768 CMROs in pair-mount

installation

Double Metro plate kit Double Metro plate Mandatory

Pole-mount 9768 CMROs in pair-mount

installation

Hardware architecture and functionality Hardware and ancillary items

....................................................................................................................................................................................................................................

2-26 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Table 2-14 Pair-mount installation on a wall

Installation kit Description Use

9768 CMRO base items 9768 CMRO

9768 CMRO mounting frame

9768 CMRO basic installation kit

Mandatory

Order two numbers if two 9768 CMROs

are pair-mounted.

Double Metro plate kit Double Metro plate Mandatory

Wall-mount 9768 CMROs in pair-mount

installation

Table 2-15 Strand-mount installation kit

Installation kit Description Use

Strand-mount kit Saddle-bag mounting bracket (for

mounting 9768 CMRO, 90v AC Coax

to -48v DC converter or

counterbalance weight), including

90v AC Coax to -48v DC kit for

strand-mount

Mandatory

For mounting 9768 CMROs, 90v AC

Coax to -48v DC converter and

counterbalance weight on to a strand.

Docking stand assembly tool Facilitates mounting units to saddle

bag mounting bracket on the ground

prior to mounting the assembly on the

strand

Mandatory

For assembling 9768 CMROs, 90v AC

Coax to -48v DC and counterbalance

weight on to the saddle-bag mounting

bracket.

Counterbalance weight Counterbalance weight for the 9768

CMRO in saddle-bag mounting

bracket

Optional

Applicable if only one 9768 CMRO is

used in the strand-mount installation and

the 90v AC Coax to -48v DC is directly

strand-mounted.

90v AC Coax to -48v DC Converts the AC supply from the 90v

AC Coax power to -48v DC input for

the 9768 CMRO

Mandatory

To be supplied by the customer

External RF antenna

strand-mount kit

Strand-mount kit for external RF

antenna

Optional

Applicable only if customer supplied

external RF antennas are used.

To be supplied by the customer or by the

customer’s strand-mount provider.

7705 SAR-O installation kit

For 7705 SAR-O installation kit, see “7705 SAR-O hardware overview and ancillary”

(p. 2-9).

Hardware architecture and functionality Hardware and ancillary items

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-27

D

RAFT

D

RAFT

Power

Item Description Use

Cable assembly (AC) for

NAR market

3x16AWG

Power connector assembled with the

power cable. Available in four

lengths: 2m, 4.5m, 9m and 12m

Mandatory for 9768 CMRO module with

AC power

Applicable to NAR market only

Cable assembly (DC) for

NAR market

3x16AWG

Power connector assembled with the

power cable. Available in four

lengths: 2m, 4.5m, 9m and 12m

Required for 9768 CMRO module with

DC power

Applicable to NAR market only

Power connector (AC) for

non-NAR market

AC power connector Mandatory for 9768 CMRO module with

AC power

Applicable to non-NAR market only

Power connector (DC) for

non-NAR market

DC power connector Mandatory for 9768 CMRO module with

DC power

Applicable to non-NAR market only

Power cable for non-NAR

market

Power cable IN/OUT 3x1,5mm²

Available in 100m roll or per meter

Mandatory for 9768 CMRO module with

both AC or DC power

Applicable to non-NAR market only

Grounding cable

Item Description Use

Ground cable for NAR market Ground cable Y/G, NAR 8AWG

LSZH

Available in any length (in meters)

Mandatory

Applicable to NAR market only

Ground cable for non-NAR

market

Ground cable Y/G 10mm² in 100m

roll

Mandatory

Applicable to non-NAR market only

SFP modules

Item Description Use

SFP module SFP CPRI Rate 3-7 - 1310nm -

SMDF (1,4 km)

Optical fronthaul, Daisy chaining

SFP module SFP CPRI Rate 3-7 - 1310nm -

SMDF (10 km)

Optical fronthaul, Daisy chaining

Hardware architecture and functionality Hardware and ancillary items

....................................................................................................................................................................................................................................

2-28 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

OCTIS connector

Item Description Use

OCTIS plug kit for SFP

transceiver

OCTIS connector Mandatory

One each for fronthaul and daisy chaining

ports

Protects SFP and cabling from

environmental damage.

External RF antenna

Item Description Use

External RF antenna External RF antenna for the 9768

CMRO.

Mandatory

To be supplied by the customer.

Fiber optic cable for fronthaul

Item Description Use

Fiber Optic cable SMDF LC-LC 2SM 1m Mandatory

Single mode fiber duplex. 67mm/250mm

Breakout, Outer diameter: 5-7mm,

OFNR-LS

Use for Single Mode link (select cable

length)

Fiber Optic cable SMDF LC-LC 2SM 2.5m

Fiber Optic cable SMDF LC-LC 2SM 5m

Fiber Optic cable SMDF LC-LC 2SM 15m

Fiber Optic cable SMDF LC-LC 2SM 30m

Fiber Optic cable SMDF LC-LC 2SM 50m

Fiber Optic cable SMDF LC-LC 2SM 70m

Fiber Optic cable SMDF LC-LC 2SM 85m

Fiber Optic cable SMDF LC-LC 2SM 100m

Fiber Optic cable SMDF LC-LC 2SM 150m

Fiber Optic cable SMDF LC-LC 2SM 200m

Fiber Optic cable SMDF LC-LC 2SM 250m

Fiber Optic cable SMDF LC-LC 2SM 300m

Hardware architecture and functionality Hardware and ancillary items

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-29

D

RAFT

D

RAFT

Fiber optic cable for daisy chaining

Item Description Use

Fiber Optic cable SMDF LC-LC 2SM 1m Optional

Single mode fiber duplex. 67mm/67mm

Breakout, Outer diameter: 5-7mm,

OFNR-LS

Use for Single Mode link (select cable

length)

Fiber Optic cable SMDF LC-LC 2SM 2.5m

Fiber Optic cable SMDF LC-LC 2SM 5m

Fiber Optic cable SMDF LC-LC 2SM 15m

Fiber Optic cable SMDF LC-LC 2SM 30m

Fiber Optic cable SMDF LC-LC 2SM 50m

Fiber Optic cable SMDF LC-LC 2SM 70m

Fiber Optic cable SMDF LC-LC 2SM 85m

Fiber Optic cable SMDF LC-LC 2SM 100m

Fiber Optic cable SMDF LC-LC 2SM 150m

Fiber Optic cable SMDF LC-LC 2SM 200m

Fiber Optic cable SMDF LC-LC 2SM 250m

Fiber Optic cable SMDF LC-LC 2SM 300m

Solar Shield

Item Description Use

Solar Shield Solar Shield for 9768 CMRO Mandatory unless the 9768 CMRO is

installed indoors or protected in an

enclosure.

Hardware architecture and functionality Hardware and ancillary items

....................................................................................................................................................................................................................................

2-30 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

33Site selection

Overview

Purpose

This chapter describes basic site preparation requirements for Alcatel-Lucent 9768

Compact Metro Radio Outdoor installation

Contents

Environmental and mechanical specifications 3-2

Spectrum analysis of RF neighborhood 3-3

Site requirements 3-4

Site power requirements (AC) 3-5

Site power requirements (DC) 3-7

9768 CMRO power requirements 3-9

Grounding and lightning protection 3-10

9768 CMRO product grounding 3-11

General antenna cable requirements 3-13

Site requirements for link to baseband processing unit 3-14

Site requirements for a wall mount installation 3-14

Site requirements for a pole mount installation 3-14

Site requirements for strand-mount installation 3-15

...................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-1

D

RAFT

D

RAFT

Environmental and mechanical specifications

Temperature range:

Normal operation -40°C to +55°C

Cold start-up -40°C

Temperature must remain higher than -40 °F (-40 °C)

at all times.

Humidity:

Condensing 5% to 100%

Altitude:

Altitude range 1798 m (5900 ft) above sea level, solar load not greater

than 1120 W/m2, normal operation against sustained

temperatures of up to 131°F (55 °C) is assured.

Vibration:

North American Region (NAR) GR-63-CORE Sections 4.4.4 & 5.4.2

GR-487-CORE Section 3.35

European Union (EU) ETS 300-019-1.4 class 4.1E

Earthquake GR-63-CORE, Earthquake Zone 4: Sections 4.41 &

5.4.1

Enclosure rating:

Ingress protection NEMA Type 4

IEC 60529 – IP65

Moisture GR-487, Section 3.33

Dust and water ingress IEC 60529, Section 5.2 (IP65)

Wind resistance GR-487, Section 3.30

Infestation and debris

The operator of the 9768 CMRO has the responsibility to keep animal infestation and

other impediments, such as birds nests, from wedging into and blocking the cooling fins

of the 9768 CMRO enclosure.

Site selection Environmental and mechanical specifications

....................................................................................................................................................................................................................................

3-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Security

The typical deployment of an 9768 CMRO is intended to be up out of human reach.

Nevertheless and especially where this elevation is not achievable, some form of

watchfulness and enforcement to prevent tampering is advised. These considerations may

affect product placement.

Similarly advised is a pre-installation and thereafter occasional spectrum analysis, which

can detect rogue or incidental threats of RF interference that may degrade the 9768

CMRO's communications.

Spectrum analysis of RF neighborhood

Interference

The 9768 CMRO complies with FCC Part 15 Subpart A Class B for immunity to radiated

interference. However, deployments in its unregulated frequency band can be susceptible

to interference from neighboring devices of another carrier or a rogue who is intent on

disrupting the service that 9768 CMROs provide.

Typically, the sector exists within the physical span and secure control of the management

of the venue, but this extent of isolation may not guarantee unimpeded secure

communications. Spectrum analysis during site selection and repeated at intervals during

the deployed service of the 9768 CMRO is recommended.

Another consideration is the extent to which non-radio sources may emit scattered RF

waves that enter the band. Some examples are

•diodes in nearby electronic equipment such as scoreboards, video screens, or flight

tables

•fluorescent lighting.

Site selection Environmental and mechanical specifications

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-3

D

RAFT

D

RAFT

Site requirements

Device placement

Before installing the 9768 CMRO, you should perform a site survey to determine the

optimum use of the equipment and to maximize range, coverage, and network

performance.

The 9768 CMRO is designed to be mounted on poles or walls in a central location within

the public spaces. Clear or open areas (where structures, trees, or hills do not obstruct

radio signals to and from the equipment) will provide better performance than closed or

filled areas.

General requirements

The following general site requirements must be met before the installation of the 9768

CMRO can begin:

•Adequate clearance must be provided for service access

•Power service must be installed

•Back haul facilities must be installed

•Grounding electrode system must be installed

•The environment must comply with stated environment requirements

•Mounting bracket holes must be drilled

•Any necessary cable support structure must be installed

•Where local regulations dictate, cable conduits must be prepared.

Structural requirements

Various building materials and construction methods dictate that equipment must be

fastened to a wall/pole with appropriate mounting hardware. It is the responsibility of the

customer to provide any necessary support material and structures and ensure that the

installation support structure is adequate and compliant with ICC IBC (2012):

International Building Code, and all other national and local codes

Site selection Site requirements

....................................................................................................................................................................................................................................

3-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Site power requirements (AC)

Purpose

This section describes the power and grounding requirements that must be considered

when planning site facilities for Alcatel-Lucent installed equipment and products.

General requirements

All power and grounding system wiring, short-circuit (over-current) protection and surge

protection devices must be installed by the appropriately licensed personnel. Installation

must be performed in accordance with national and local electrical codes, for example:

•In the United States:

National Electrical Code, NFPA 70

•In Canada:

Canadian Electrical Code, part I, CSA C22.1

•In other countries:

International Electrotechnical Commission (IEC) 60364, parts 1 through 7

In addition, adherence to all additional requirements mandated by the “country of use” is

the customer's responsibility.

The appropriate power supply ground connections and site equipment ground connections

must be in place before commercial AC power service can be connected to the equipment

installed at the site.

Customer AC power supply

The equipment installed on site must be supported with a customer supplied AC power

service. The AC connection point should be easily accessible by the service team and be

marked as the disconnect device of the equipment.

Note:

•The service board (or load center), circuit breakers and surge protectors devices

are not supplied with the product. They must be ordered and installed as part of

site preparation by the customer.

•All wiring (including grounding) and over-current protection must be installed at

the service panel by suitably trained and licensed personnel and in accordance

with the national and local electrical codes.

•An appropriate earth ground connection is required before commercial power

service can be connected to any equipment at the site.

In the United States and Canada, the branch circuit breaker shall be installed in

accordance with the National Electrical Code, or the Canadian Electrical Code, Part I.

Site selection Site power requirements (AC)

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-5

D

RAFT

D

RAFT

The branch circuit breaker should always be situated upstream of the equipment and must

be a double pole 20A Type C disconnect device.

Line surge protection

A surge protection device is not supplied with the product. It must be ordered and

installed as part of site preparation by the customer.

The equipment can be connected to an AC mains distribution system classified as CAT II

(equipment dedicated for connection to the mains distributed within a building). If the

category of the AC mains is higher than CAT II (III or IV), then upstream surge protection

must be installed by the customer to reduce the voltage range of transients in accordance

with CAT II.

Power source Over-voltage category

Equipment connected to building mains CAT II

Equipment connected directly to low voltage mains CAT III or CAT IV

The installation wiring for all outdoor AC units must be provided with a Listed/Approved

surge protection device. In the United States and Canada the installation must be in

accordance with the National Electrical Code or the Canadian Electrical Code, Part I.

Power junction box

For outdoor installations, in countries where local regulations dictate, a customer-supplied

power junction box, or a mating plug and receptacle, may need to be installed as part of

site preparation. As part of site preparation, the customer must provide the appropriate

junction box and associated fittings.

In the United States and Canada, outdoor cord pendants, if used, shall comply with NEC

Article 400 or Canadian Electrical Code, Part I Rule 4-012

Conduit requirements

For outdoor installations, in countries where local regulations dictate, the power cables

are required to be routed to the equipment within rigid metal conduit (RMC) or

liquid-tight flexible metal (LTFMC) conduit. As part of site preparation, the customer

must provide the metal conduit and associated fittings for cable routes and connecting

conduit to the outdoor equipment.

For the US and Canada market alternatively allowable outdoor armored cable described

in the National Electrical Code and Canadian Electrical Code, Part I, may be used without

a conduit.

Site selection Site power requirements (AC)

....................................................................................................................................................................................................................................

3-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Examples:

•Type MC cable, such as Hybriflex cable

•Outdoor tray cable Type TC-ER

Site power requirements (DC)

Purpose

This section describes the power and grounding requirements that must be considered

when planning site facilities for Alcatel-Lucent installed equipment and products.

General requirements

All power and grounding system wiring, short-circuit (over-current) protection and surge

protection devices must be installed by the appropriately licensed personnel. Installation

must be performed in accordance with national and local electrical codes, for example:

•In the United States:

United States National Fire Protection Association (NFPA) 70 and United States

National Electrical Code (NEC)

•In Canada:

Canadian Electrical Code, part I, CSA C22.1

•In other countries:

International Electrotechnical Commission (IEC) 60364, parts 1 through 7

In addition, adherence to all additional requirements mandated by the “country of use” is

the customer's responsibility.

The appropriate power supply ground connections and site equipment ground connections

must be in place before commercial AC power service can be connected to the equipment

installed at the site.

Customer DC power supply

The equipment installed on site must be supported with a customer supplied nominal

-48V DC power service. The DC connection point should be easily accessible by the

service team and be marked as the disconnect device of the equipment.

Site selection Site power requirements (AC)

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-7

D

RAFT

D

RAFT

Note:

•The service board (or load center), circuit breakers and surge protectors devices

are not supplied with the product. They must be ordered and installed as part of

site preparation by the customer.

•All wiring (including grounding) and over-current protection must be installed at

the service panel by suitably trained and licensed personnel and in accordance

with the national and local electrical codes.

•An appropriate earth ground connection is required before commercial power

service can be connected to any equipment at the site.

The branch circuit breaker should always be situated upstream of the equipment and must

be a double pole 20A Type C disconnect device.

Line surge protection

A surge protection device is not supplied with the product. It must be ordered and

installed as part of site preparation by the customer.

Power junction box

For outdoor installations, in countries where local regulations dictate, a customer supplied

power junction box may need to be installed as part of site preparation. As part of site

preparation, the customer must provide the appropriate junction box and associated

fittings.

In the United States and Canada, outdoor cord pendants, if used, shall comply with NEC

Article 400 or Canadian Electrical Code, Part I Rule 4-012.

Conduit requirements

For outdoor installations, in countries where local regulations dictate, the power cables

are required to be routed to the equipment within rigid metal conduit (RMC) or

liquid-tight flexible metal (LTFMC) conduit. As part of site preparation, the customer

must provide the metal conduit and associated fittings for cable routes and connecting

conduit to the outdoor equipment.

For the US and Canada market alternatively allowable outdoor armored cable described

in the National Electrical Code and Canadian Electrical Code, Part I, may be used without

a conduit.

Examples:

•Type MC cable, such as Hybriflex cable

•Outdoor tray cable Type TC-ER

Site selection Site power requirements (DC)

....................................................................................................................................................................................................................................

3-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

9768 CMRO power requirements

AC required power source

The 9768 CMRO requires a single phase, three-wire power source in the 95 to 265 Volt

range (measured at the input), line to neutral, at a frequency of 47 Hz to 63 Hz. To avoid

service interruptions from power outages, the customer can set up an uninterruptible

power supply (UPS).

The AC junction box equipped with a receptacle that is suitable for the particular site. For

example, if located in an uncontrolled environment subject to the weather elements, a

suitable weatherized receptacle outlet must be installed.

A mating plug must be provided by the customer to terminate to the ALU provided AC

power cord.

DC required power source

-48 V DC power supply that operates over the voltage range from -40 V DC to -57 V DC.

The DC power is surge protected internally, and conforms to GR-1089, Issue 6, Appendix

B for Port Type 8a.

Typical power consumption

Fully configured and operating at maximum levels, the product consumes 100W. Typical

power consumption is 85W, 1 Amp at maximum draw.

Surge protection devices

For cases where the CMRO is connected to power sources susceptible to surges

exceeding the first-level surge (that is, outdoor environments), additional external surge

protection devices are required and must be provided by the customer.

Power ancillary items

The following Alcatel-Lucent power related ancillary items must be used.

Table 3-1 Power materials

Item Description Use

Power connector (AC) AC power connector Required for 9768 CMRO module with

AC power

Power cable Power cable IN/OUT 3G1,5mm²,

100m roll or multiples of 1m length

(as needed)

Required for both AC and DC powered

9768 CMRO module

Power connector (DC) DC power connector DC power connector

Site selection 9768 CMRO power requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-9

D

RAFT

D

RAFT

Grounding and lightning protection

Overview

The primary goal of an earthing system is to assure personnel safety and protection of

installations against damage. Two important phenomena are lightning and power system

faults. These can cause circulation of large currents, which may create hazardous voltages

in the installation.

•For lightning, the task of the earthing system is to provide a path to the soil for

dangerous currents, while maintaining potential differences between any two points of

an installation as low as possible.

•For power system faults, it provides a safe path for fault currents, while also

maintaining potential differences between any two points of an installation as low as

possible.

Codes and standards

Regulatory grounding codes and standards may differ from region to region and country

to country. The grounding/bonding of the installation site and Alcatel-Lucent 9764 Metro

Cell Outdoor must follow national and/or local regulatory codes and standards in

countries and localities where these exist.

Examples of these regulatory codes and standards are:

•National Electric Code (NFPA 70), USA

•Canadian Electrical Code, Part I (CSA C22.1)

•BS 7671 (UK IEE Wiring Regulations, BS 7671

•VDE 0100, Germany

•International Electrotechnical Commission's international standard, 60364

Grounding requirements

The Alcatel-Lucent 9764 Metro Cell Outdoor can be susceptible to lightning surges due to

its association with elevated installation locations. It is therefore imperative that the

equipment and installation site be properly grounded to a reliable and effective grounding

electrode system such that a low impedance path to earth is provided.

For Alcatel-Lucent 9764 Metro Cell Outdoor installations the following grounding system

types are supported:

•TN

In a TN earthing system, one of the points in the generator or transformer is connected

with earth, usually the star point in a three-phase system. The body of the electrical

device is connected with earth via this earth connection at the transformer.

•TT

Site selection Grounding and lightning protection

....................................................................................................................................................................................................................................

3-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

In a TT earthing system, the protective earth connection of the consumer is provided

by a local connection to earth, independent of any earth connection at the generator.

Important! Where uncertainty exists around the reliability and/or effectiveness of the

main grounding system contact Alcatel-Lucent Technical Support or the appropriate

electrical inspection authority.

In addition the following document can also be used as a general reference for

installation site grounding requirements, Grounding and Lightning Protection

Guidelines for Wireless System Cell Sites, 401-200-115.

Surge protection requirements

Having a good ground alone is not enough to minimize damage due to energy surges.

Commercial power and data facilities are susceptible to lightning surges, switching

transients of power and switching of circuit breakers in the power system under fault

conditions. Therefore power and data facilities must be also be properly protected.

A surge protection device capable of discharging the surge waveforms as defined in IEEE

C62.41 (1991), Recommended Practice on Surge Voltage in Low-Voltage AC Power

Circuits, for Location Category “C3” and “High System Exposure” must be installed in

the power panel board or load center supplying power to the installation site and must be

connected directly to the grounding electrode system. The power panel board or load

center, circuit breakers and surge protector are not supplied with the product. They must

be ordered and installed as part of site preparation by the customer.

It is also strongly recommended that surge protection devices are installed on electrical

data facilities cabling in order to protect against electrical surges that may potentially

cause damage to equipment and the cables if they were not adequately protected.

9768 CMRO product grounding

Overview

This section details the grounding ancillary items and grounding connection points on the

9768 CMRO.

Grounding ancillary items

The following grounding related ancillary items can be ordered from Alcatel-Lucent.

Table 3-2 Grounding materials

Item Description

Grounding cable Green and yellow insulation (100 meter roll)

Site selection Grounding and lightning protection

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-11

D

RAFT

D

RAFT

Table 3-2 Grounding materials (continued)

Item Description

Basic installation kit Cable lugs, screws and washers

Note: Where grounding materials are locally supplied it is important that all

grounding system material (cable, connectors, buses, etc.) are of high quality, that

resist deterioration and require little or no maintenance.

9768 CMRO grounding point

The following figure shows the grounding point on the 9768 CMRO. The ground cable

can be connected directly to the 9768 CMRO via a double hole grounding lug crimped

onto the cable. M5 screws are used to attach the ground cable to the grounding point on

the 9768 CMRO.

Double lug grounding point

at the bottom of the CMRO

Grounding lug

M6 screws

Ground cable

Site selection 9768 CMRO product grounding

....................................................................................................................................................................................................................................

3-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

General antenna cable requirements

General requirements

The appropriate antenna type, cable length and type, and number of antenna jumper

cables should be available at the site for the start of the installation.

The following are general antenna requirements:

•The appropriate Alcatel-Lucent recommended antenna should be used.

•The appropriate Alcatel-Lucent recommended antenna cables should be used.

•All antenna cable runs must be appropriately supported in accordance with the

connector and cable manufacturer's instructions.

•Grounding of the antenna feeder cable outer shield must be performed in accordance

with the ground kit manufacturer's instructions.

•All antenna cable connectors must be at least IP67 rated (IP67 rating requirement, as

defined by IEC 60529, calls for total protection against dust and protection against

submersion in water).

•Antenna and cable sweeps must be performed prior to the start of the installation.

Antenna installation

Antenna installations shall be performed in accordance with all applicable manufacturer's

recommendations, and national laws and regulations.

To ensure correct antenna installation, all necessary calculations and/or field

measurements shall be evaluated for compliance with applicable national laws or

regulations regarding exposure to electromagnetic fields. The antenna manufacturer or

supplier shall deliver all technical data necessary to perform this compliance evaluation

(e.g., antenna gain pattern, antenna dimensions, etc.). Information on the methodology

and results of the compliance evaluation shall be available for inspection by officials of

the governing authorities.

Antenna cable grounding

Grounding of the antenna cable outer shield must be performed in accordance with the

ground kit manufacturer's instructions and as outlined in Grounding and Lightning

Protection Guidelines for Wireless System Cell Sites, 401-200-115.

Site selection General antenna cable requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-13

D

RAFT

D

RAFT

Site requirements for link to baseband processing unit

Distance from 9768 CMRO

The uplink and downlink to the 9768 CMRO are supported for fiber optic cable runs of

not greater than

•300 m (984 ft) incase of multi-mode

•15 km (32,810 ft) incase of single-mode

The cable used must support the CPRI Line Bit Rate Option 3.

Site requirements for a wall mount installation

Bracket

The wall-mount bracket that the 9768 CMRO product includes provides sufficient

standoff to dissipate heat and ensure thermal protection of the radio components and the

facility wall or façade.

Weight bearing

The wall or façade and any nonstandard fasteners must be able to sustain at least the 21-lb

(9.53-kg) radio and its 5-lb (2.27-kg) wall-mount hardware, for a total weight of 26 lb

(11.8 kg).

A safety factor of 4 must be observed.

Site requirements for a pole mount installation

Overview

The 9768 CMRO can be easily mounted onto a wooden or metal pole.

The pole-mount bracket to use depends on the diameter of the pole. However, any bracket

used for pole mounting must attach to the pole and to the wall-mount bracket of the 9768

CMRO. The bracket metal band pole-mount kit meets this requirement and is available to

accommodate various diameters (diameter 50 to 300 mm).

The following pole-mount installations are supported:

•The 9768 CMRO banded onto a pole (without the tilt option).

The 9768 CMRO mounting bracket and pole band installation kit is used.

•• The 9768 CMRO attached to the vertical tilt bracket. Vertical tilt bracket is banded

onto a pole.

Site selection Site requirements for link to baseband processing unit

....................................................................................................................................................................................................................................

3-14 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

The vertical tilt bracket, 9768 CMRO mounting bracket and pole band installation kit

is used.

Requirements

Attention: The 9768 CMRO must be mounted with the appropriate mounting hardware

suitable for the various supporting structures, building materials and construction

methods. Following a site survey, it is the responsibility of the customer to ensure that:

•The installation support structure is adequate and compliant with ICC IBC (2012):

International Building Code, and all other national and local codes

•The appropriate mounting hardware and any necessary recommended supporting

anchor fixings are used.

Site requirements for strand-mount installation

Overview

The strand-mount installation supports mounting one or two DC powered 9768 CMROs,

an AC-to-DC converter and RF antennas (attached or external) on a strand cable. The two

9768 CMROs and the 90v AC Coax to -48v DC converter are first assembled onto a

saddle-bag bracket on a table prior to mounting the saddle-bag assembly onto a strand.

The external RF antennas must be separately mounted onto the strand and connected to

the 9768 CMRO. The external RF antennas and the strand-mount kit for external RF

antennas must be supplied by the customer.

Note: The strand-mount installation is supported only for the 9768 CMRO DC

variant.

Requirements

To strand-mount the 9768 CMRO DC variant, the following installation items are

required depending on the installation options:

•Strand-mount kit: Saddle-bag mounting bracket (for mounting 9768 CMRO, 90v AC

Coax to -48v DC converter or counterbalance weight), including 90v AC Coax to

-48v DC kit for strand-mount (Mandatory).

•Docking stand and assembly tool: Facilitates mounting units to saddle bag mounting

bracket on the ground prior to mounting the assembly on the strand (Mandatory).

•Counterbalance weight: Counterbalance weight for the 9768 CMRO in saddle-bag

mounting bracket (Optional)

•90v AC Coax to -48v DC: Converts the AC supply from the 90v AC Coax power to

-48v DC input for the 9768 CMRO (Mandatory).

•External RF antenna strand-mount kit: strand-mount kit for external RF antenna

(Optional).

Site selection Site requirements for a pole mount installation

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-15

D

RAFT

D

RAFT

Prepare site for the strand-mount installation

The following are required to prepare a site for mounting the Alcatel-Lucent 9768

Compact Metro Radio Outdoor onto a strand cable:

•A site survey has been conducted and a location for the device has been selected

•Install backhaul cable runs

•Install power cable runs

•Install RF runs (if antenna connection to remote site)

•Ensure site specific fixing materials are available for strand cable mounting the 9768

CMRO

•Ensure strand cable is adequately grounded

Site selection Site requirements for strand-mount installation

....................................................................................................................................................................................................................................

3-16 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Appendix A: Site survey

checklists

Overview

Purpose

In the following checklists, venue refers to the general area, such as a stadium, enterprise

campus, or airport terminal, at which the equipment will be located, and specific site

refers to the exact position at which the equipment will be installed in that venue.

Contents

SS-1 Venue survey checklist A-1

SS-2 Site survey general checklist A-3

SS-3 Site survey access checklist A-6

SS-4 Site survey conclusion A-7

SS-1 Venue survey checklist

Venue address

Venue

Name

Street address

City, State

...................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-1

D

RAFT

D

RAFT

Venue details

The following items must be completed prior to the installation of site equipment. Circle

the correct letter for the corresponding item descriptions.

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

1. The altitude of the venue relative to sea

level is between −197 ft and +5900 ft.

Y N N/A

2. Ambient temperatures at the venue are

expected to remain above −40 °F (-40 °C)

and below 131°F (55 °C).

Y N N/A

3. Temperature swings at the venue are

expected to be always less than 86 °F (30

°C).

Y N N/A

4. Humidity at the venue is expected to be

always 5% or greater.

Y N N/A

5. RF spectrum analysis has been performed

in the venue at various times of day on

various days of the week and has shown

no activity that is likely to cause

interference with the transmission or

reception of the Metro Cells.

Y N N/A

6. The power factor of 0.92 meets the

approval of the company that supplies

power to the venue.

Y N N/A

7. Dust at the venue is expected to be below

the limit for a NEMA Type 4 enclosure.

Y N N/A

8. Corrosive salt fog at the venue is

expected to be below the limit for a

NEMA Type 4 enclosure.

Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

Site survey checklists SS-1 Venue survey checklist

....................................................................................................................................................................................................................................

A-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

SS-2 Site survey general checklist

Name, address and location

Specific site

Site name:

Site code:

GPS Location:

Latitude:

Longitude:

Altitude:

Elevation:

Accuracy:

Type of site

The following items must be completed prior to the installation of site equipment. Circle

the correct letter for the corresponding item descriptions.

Item # Type of site Yes

(Y)

No

(N)

N/A Height

1. Indoor / stadium Y N N/A

2. Outdoor pole Y N N/A

3. Outdoor building façade Y N N/A

4.` Outdoor short post Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

Site environment

The following items must be completed prior to the installation of site equipment. Circle

the correct letter for the corresponding item descriptions.

Site survey checklists SS-2 Site survey general checklist

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-3

D

RAFT

D

RAFT

Item # Site environment Yes

(Y)

No

(N)

N/A Comments

1. Wind-driven rain at the specific

site is expected to be beneath the

limit for a NEMAType 4

enclosure.

Y N N/A

2. The minimum distance between

the installed equipment and the

general public conforms with

that specified in the“ Product

safety and RF exposure” section

of the Product Conformance

Appendix

Y N N/A

3. The mounting location is large

enough to accommodate the

Metro Cell with its mounting

bracket(s).

Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

Existing equipment type

The following items must be completed prior to the installation of site equipment. Circle

the correct letter for the corresponding item descriptions.

Item # Equipment type Yes

(Y)

No

(N)

N/A Comments

1. Metro Cell Y N N/A

2. 7705 SAR-W Y N N/A

3. Other Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

Site survey checklists SS-2 Site survey general checklist

....................................................................................................................................................................................................................................

A-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Existing power type

The following items must be completed prior to the installation of site equipment. Circle

the correct letter for the corresponding item descriptions.

Item # Power Yes

(Y)

No

(N)

N/A Comments

1. AC Y N N/A

1(a). AC power voltage is:

110 V or 220 V nominal

Y N N/A

1(b). AC power frequency range:

from 47 Hz to 63 Hz

Y N N/A

2. DC Y N N/A

2(a). DC power voltage is:

-48 VDC

Y N N/A

3. Battery Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

Existing transmission type

The following items must be completed prior to the installation of site equipment. Circle

the correct letter for the corresponding item descriptions.

Item # Transmission type Yes

(Y)

No

(N)

N/A Comments

1. IP/MPLS Y N N/A

2. xDSL Y N N/A

3. GPON Y N N/A

4. WiFi Y N N/A

5. Wireless (MPR, etc.) Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

Site survey checklists SS-2 Site survey general checklist

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-5

D

RAFT

D

RAFT

SS-3 Site survey access checklist

Persons to contact

Responsible for site Name:

Phone:

Fax:

Email:

Necessary Authorization Name:

Phone:

Fax:

Email:

Subcontractor Name:

Phone:

Fax:

Email:

Other persons Name:

Phone:

Fax:

Email:

Notes:

1. Completed by: ______________________

2. Date: _______

Lock and key information

Any

locked

boxes

Y N N/A Key

provided

by

Name:

Phone:

Fax:

Email:

Notes:

1. Completed by: ______________________

2. Date: _______

Site survey checklists SS-3 Site survey access checklist

....................................................................................................................................................................................................................................

A-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Site location access

Ladder

required

Y N N/A Height of ladder

Crane

required

Y N N/A Height of crane

Parking

available

Y N N/A Distance to site

Bucket truck

required

Y N N/A Height

Notes:

1. Completed by: ______________________

2. Date: _______

SS-4 Site survey conclusion

Site acceptance

OK

OK, action required

NOK

Action items

Severity Description

Blocking Major Minor

1

2

3

4

Resolution

Date Representative Representative Description

Name Initials Name Initials

Site survey checklists SS-3 Site survey access checklist

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-7

D

RAFT

D

RAFT

1

2

3

4

Survey approval

Date of site survey:

Name Signature

Site survey checklists SS-4 Site survey conclusion

....................................................................................................................................................................................................................................

A-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Appendix B: Site preparation

checklists

Overview

Purpose

This section is for use by authorized personnel to verify completion of cell site

preparation activities prior to installation of Metro Cell equipment.

SP-GEN cell site general information

Complete the following information about the cell site.

•Cell Site Name: ______________________

•Cell Site Address: ______________________

•Cell Site Access Contact Name: ______________________

•Market Name: ______________________

•Cell Site number: ______________________

•Contact Phone number: ______________________.

Contents

SP-1 Site preparation general checklist B-2

SP-2 Site preparation power source checklist B-3

SP-3 Site preparation grounding checklist B-4

SP-4 Site preparation RF antenna checklist B-5

SP-5 Site preparation GPS antenna checklist B-6

Site preparation punch list sheet B-8

Site preparation punchlist sheet B-9

...................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-1

D

RAFT

D

RAFT

SP-1 Site preparation general checklist

Purpose

Where applicable, the following items must be completed prior to the installation of site

equipment. Circle the correct letter for the corresponding item descriptions.

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

1. Are site environmental conditions within

equipment specified operating range?

Y N N/A

2. Has the required space been provided

around equipment [i.e., maintenance

access, heat dissipation, safety]?

Y N N/A

3. Has a Method of Procedure (MOP) been

developed with the installation

supervisor?

Y N N/A

4. Has installer site equipment parameter

sheet been completed and reviewed with

the installation supervisor?

Y N N/A

5. Has all equipment been ordered and has

delivery to site been scheduled?

Y N N/A

6. Have all necessary arrangements been

made for access to the site?

Y N N/A

7. Have all necessary arrangements been

made to get equipment onto the site

(crane, etc.)?

Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

Site preparation checklists SP-1 Site preparation general checklist

....................................................................................................................................................................................................................................

B-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

SP-2 Site preparation power source checklist

Purpose

Where applicable, the following items must be completed prior to the installation of the

site equipment. Circle the correct letter for the corresponding item descriptions.

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

1. Is power service available? Y N N/A

2. Have power service and conduits been

approved by local code?

Y N N/A

3. Is power service equipped with surge

protection at service entry point?

Y N N/A

4. Is the power source appropriate for

equipment being installed?

Y N N/A

5. Does power service have proper circuit

breaker rating(s) and labeling?

Y N N/A

6. Is power circuit breaker(s) available and

labeled for power system?

Y N N/A

7. Is power circuit breaker(s) available and

labeled for listed ancillary equipment?

Y N N/A

A. Y N N/A

B. Y N N/A

C. Y N N/A

8. Do elevated lighting, intrusion lighting,

etc. feeds have proper lightning

protection?

Y N N/A

9. If not supplied with the product, have at

least two AC duplex convenience outlets

been provided within 1.5 meters (5 feet)

of the product?

NOTE: A Ground Fault Circuit Interrupt

(GFCI) type is recommended, and must

be used when required by code.

Y N N/A

10. Is each outlet protected by a UL/CSA

listed, or approved 15 A circuit breaker?

Y N N/A

Site preparation checklists SP-2 Site preparation power source checklist

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-3

D

RAFT

D

RAFT

SP-3 Site preparation grounding checklist

Purpose

Where applicable, the following items must be completed prior to the installation of the

site equipment. Circle the correct letter for the corresponding description items.

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

1. Is soil resistivity and site resistance test

on file?

Y N N/A

2. Has connection been provided to

grounding electrode system?

If yes, circle all that apply:

A. Via a buried ring ground and driven

rod(s)

B. Via a buried metallic and electrically

continuous water pipe

C. Via driven ground rod(s) and/or

plate(s)

D. Via electrolytic ground rod(s)

E. Via grounded building steel

F. Via grounded grid or radial

Y N N/A

3. Is antenna support structure(s) grounded? Y N N/A

4. Is antenna tower bonded to grounding

electrode system?

Y N N/A

5. Are any guy wires bonded to grounding

electrode system?

Y N N/A

6. Are antenna cable shields grounded at

both ends?

Y N N/A

7. Are all ground connections in compliance

with Alcatel-Lucent requirements

(exothermic weld, compression type with

2-hole lugs; properly secured;

anti-oxidant used on contact surface

area)?

Y N N/A

8. Are all grounding conductors routed as

straight as possible with no loops or sharp

bends?

Y N N/A

9. Is equipment support structure grounded? Y N N/A

Site preparation checklists SP-3 Site preparation grounding checklist

....................................................................................................................................................................................................................................

B-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

10. Are metallic conduits bonded at both ends

and 7.62-meters (25-foot) intervals?

Y N N/A

11. Is power supply equipped with a surge

protection device and is the device

properly connected to the ground system?

Y N N/A

12. Are the additional surge protection

devices properly connected to the ground

system?

Y N N/A

13. Is strand cable adequately grounded? Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

SP-4 Site preparation RF antenna checklist

Purpose

Where applicable, the following items must be completed prior to the installation of the

RF cell site equipment. Circle the correct letter for the corresponding item descriptions.

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

1. Are all antenna cable runs installed? Y N N/A

2. Are all antenna cable runs properly

terminated with the appropriate

connectors on the equipment side?

Y N N/A

3. Are all cable connections torqued to the

appropriate value?

Y N N/A

4. If required, are the optional RF antenna

cables equipped with surge protection

devices?

Y N N/A

5. Are all external cables UV rated? Y N N/A

6. Are antenna cable runs' demarcation

points in proper location?

Y N N/A

Site preparation checklists SP-3 Site preparation grounding checklist

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-5

D

RAFT

D

RAFT

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

7. Are antenna cable runs marked and in

proper sequence per applicable equipment

drawings?

Y N N/A

8. Are appropriate type, length and number

of antenna cable jumpers available?

Y N N/A

9. Are appropriate drip loops provided for

antenna cable runs at turns and

demarcation point?

Y N N/A

10. Have antenna and cable sweeps been

performed?

Y N N/A

11. Are antennas properly installed and

secured?

Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

SP-5 Site preparation GPS antenna checklist

Purpose

Where applicable, the following items must be completed prior to the installation of the

site equipment. Circle the correct letter for the corresponding item descriptions.

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

1. Is antenna installed with base level within

two degrees?

Y N N/A

2. Is antenna installed with less than 25% of

the sky masked by obstruction?

Y N N/A

3. Is GPS antenna located at least 3.05 m

(10 ft.) vertically and horizontally from

any active transmit antenna?

Y N N/A

4. Are aggregate cable loss, cable VSWR,

total cable length, cable type, GPS

antenna gain, KS list and serial numbers

recorded in the site installation records?

Y N N/A

Site preparation checklists SP-4 Site preparation RF antenna checklist

....................................................................................................................................................................................................................................

B-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

5. Is proper gain antenna installed for the

total aggregate cable loss and length?

Y N N/A

6. Is measured cable VSWR within its

specified value?

Y N N/A

7. If required, is the GPS antenna cable

properly grounded and equipped with a

proper surge protection device?

Y N N/A

8. Are proper service loops provided near

antenna?

Y N N/A

9. Is proper drip loop provided for the

outdoor antenna jumper cables?

Y N N/A

10. Are cable connections torqued to the

appropriate value?

Y N N/A

12. Are all external cables UV rated? Y N N/A

13. Are antenna bracket, pipes, and antenna

properly secured?

Y N N/A

14. If required, has weatherproof protection

tape been applied to GPS antenna cable

connector joints?

Y N N/A

15. Was GPS antenna location verified for

line of sight using a GPS test unit or

equivalent?

Y N N/A

16. Is GPS antenna location free of external

interference (i.e., radio stations,

collocated equipment, etc.)?

Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

Site preparation checklists SP-5 Site preparation GPS antenna checklist

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-7

D

RAFT

D

RAFT

Site preparation punch list sheet

Purpose

The following punch list is used to track any outstanding site preparation items.

Item # Comment/Description Severity (1/2/3) Corrective Action Required

(Y/N) Completed Date

Notes:

1. Equipment installation cannot occur until outage is rectified and will void warranty or potentially cause

personal injury.

2. Equipment installation can occur but issue must be rectified prior to handoff to customer or service turn-up

so that the warranty is not voided.

3. Equipment installation, handoff to customer, or service turn-up can occur but not per Alcatel-Lucent

recommendations.

4. Inspection Checklist Completion Sign-Off (complete below)

5. Was the punchlist continuation sheet on the next page used? Yes or No

6. Inspector's Name: ______________________

7. Inspector's Signature: _____________________ Date: _________

Site preparation checklists Site preparation punch list sheet

....................................................................................................................................................................................................................................

B-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Site preparation punchlist sheet

Purpose

The following punchlist is used to track any outstanding site preparation items.

Item # Comment/Description Severity

(1/2/3)

Corrective Action

Required

(Y/N) Completed

Date

Site preparation checklists Site preparation punchlist sheet

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-9

D

RAFT

D

RAFT

Site preparation checklists Site preparation punchlist sheet

....................................................................................................................................................................................................................................

B-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Appendix C: Product

conformance statements

Overview

Purpose

This section presents the product conformance statements that apply to the Alcatel-Lucent

9768 Metro Radio Outdoor product.

The statements that are required are determined primarily by national or multi-national

regulations. However, in some regions, contract terms determine which statements are

required.

The presence of the statement indicates that the product does comply with that statement

wherever it is required to do so.

Contents

United States compliance C-2

Federal Communications Commission C-2

Product safety conformance statements C-4

Antenna exposure statements C-5

FDA/IEC optical transmitter product compliance statements C-5

Eco-environmental statements C-6

Canadian compliance C-8

Industry Canada C-8

Product safety and exposure C-8

Antenna exposure statements C-9

IEC optical transmitter product compliance statements C-10

Eco-environmental statements C-11

...................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements C-1

D

RAFT

D

RAFT

United States compliance

Introduction

Purpose

The statements that follow are the product conformance statements that apply to the

Alcatel-Lucent 9768 Metro Radio Outdoor Product when deployed in the United States.

Contents

Federal Communications Commission C-2

Product safety conformance statements C-4

Antenna exposure statements C-5

FDA/IEC optical transmitter product compliance statements C-5

Eco-environmental statements C-6

Federal Communications Commission

Important! Changes or modifications not expressly approved by Alcatel-Lucent, Inc.

could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

FCC Part 15 Class B

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

Product conformance statements

United States compliance

Introduction

....................................................................................................................................................................................................................................

C-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the equipment and receiver

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

•Consult the dealer or an experienced radio/TV technician for help.

FCC Part 68

This equipment complies with Part 68 of the FCC rules and the requirements adopted by

the ACTA. At the upper-right-hand corner inside the cabinet assembly of this equipment

is a label that contains, among other information, a product identifier in the format of

AAAEQ##TXXXX. If requested, this number must be provided to the telephone

company.

FIC 04DU9-1SN.

SOC 6.0N

The T1 network interface on this equipment is hardwired to a punchdown block, which

meets the FCC specifications.

If this equipment causes harm to the telephone network, the telephone company will

notify you in advance that temporary discontinuance of service may be required.

However, if advance notice is not practical, the telephone company will notify the

customer as soon as possible. Also, you will be advised of your right to file a complaint

with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or

procedures that could affect the operation of the equipment. If this happens, the telephone

company will provide advance notice in order for you to make necessary modifications to

maintain uninterrupted service.

FCC regulations prohibit the connection of customer-provided equipment to central office

implemented systems. Connection to party lines is subject to tariffs; users should contact

their state public utility commission, public service commission, or corporation

commission for information.

Product conformance statements

United States compliance

Federal Communications Commission

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements C-3

D

RAFT

D

RAFT

If the equipment is causing harm to the telephone network, the telephone company may

request that you disconnect the equipment until the problem is resolved.

If trouble is experienced with this equipment repair or warranty information may be

obtained by contacting:

Technical Support Services, within the United States: +1 630 224 4762, prompt 2

Product safety conformance statements

Product safety conformance

The Alcatel-Lucent 9768 Metro Radio Outdoor is Safety Certified ITE by CSA

International.

This Certification is marked on the equipment main nameplate label. Should the local

Authority Having Jurisdiction (AHJ) require prior or additional verification of this

Certification, a Product Certificate of Compliance can be obtained from the specific

Certification Body by the Business/Product Unit Applicant for the product or by

contacting:

Technical Support Services, within the United States: +1 630 224 4762, prompt 2

Any modifications to this equipment are not permitted without review and official written

authorization from the specific Certification Body. Unauthorized changes may violate the

Product Safety Certification. Modifications or changes authorized by official CN/CNN

are assumed to have received prior approval from this Lab.

Indoor applications

This equipment is intended for installation in restricted access locations where access is

controlled or where access can only be gained by service personnel with a key or tool.

Access to this equipment is restricted to qualified service personnel only.

Product conformance statements

United States compliance

Federal Communications Commission

....................................................................................................................................................................................................................................

C-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Antenna exposure statements

Antenna exposure

Antenna installations for the Alcatel-Lucent 9768 Metro Radio Outdoor product will be

performed in accordance with all applicable manufacturer's recommendations, and

national laws and regulations. To ensure correct antenna installation, the antenna installer

will perform all necessary calculations and/or field measurements to evaluate compliance

with applicable national laws or regulations regarding exposure to electromagnetic fields.

The supplier of radio equipment, the supplier of antenna equipment and the integrator and

builder of the site must provide sufficient information so that the limits of the exclusion

zones can be determined. Any changes to the antenna or other equipment in the transmit

path may require re-evaluation of the exposures to electromagnetic fields.

Pursuant to 47 CFR Part 1, Subpart I, subject to the provisions of section 1.1307, all

installations must be evaluated for requirements contained in Table 1, “Limits for

maximum permissible exposure,” in section 1.1310.

FDA/IEC optical transmitter product compliance statements

FDA/IEC optical transmitter product compliance

Alcatel-Lucent declares that this equipment complies with the Food and Drug

Administration’s Center for Devices and Radiological Health (FDA/CDRH) regulations

21 CFR 1040.10 and 1040.11. It is a Class I/1 laser optical fiber communication systems

“product” under the FDA.

This Product is designed to ensure that personnel operating the product are not

endangered by laser radiation during normal operation and fault conditions. This product

does not present a risk of eye injury because it is fully enclosed and does not contain

embedded lasers greater than Class I/1 unless otherwise noted.

Product conformance statements

United States compliance

Antenna exposure statements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements C-5

D

RAFT

D

RAFT

Laser warning

Eco-environmental statements

Packaging collection and recovery requirements

Countries, states, localities, or other jurisdictions may require that systems be established

for the return and/or collection of packaging waste from the consumer, or other end user,

or from the waste stream. Additionally, reuse, recovery, and/or recycling targets for the

return and/or collection of the packaging waste may be established.

For more information regarding collection and recovery of packaging and packaging

waste within specific jurisdictions, contact the Alcatel-Lucent Environment, Health and

Safety organization or Alcatel-Lucent Hazardous Waste Center technical support at (888)

539-2783.

For installations not performed by Alcatel-Lucent, please contact the Alcatel-Lucent

Customer Support Center at:

Technical Support Services, within the United States: +1 630 224 4762, prompt 2

Material content compliance

The following notification applies to Alcatel-Lucent products distributed for sale, resale,

or use.

This product, part, or both may include a lithium-manganese dioxide battery, which

contains very small amounts of a perchlorate substance. Special handling may apply.

WARNING

Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser radiation exposure.

Do not view directly into the laser beam with optical instruments such as a fiber

microscope because viewing of laser emission in excess of Class 1 limits significantly

increases the riskof eye damage.

Never lookinto the end of an exposed fiber or an open connector as long as the optical

source is switched on.

Ensure that the optical source is switched off before disconnecting optical fiber

connectors.

Laser hazard

Product conformance statements

United States compliance

FDA/IEC optical transmitter product compliance statements

....................................................................................................................................................................................................................................

C-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

For California:

Perchlorate Material - special handling may apply.

See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/.

Product conformance statements

United States compliance

Eco-environmental statements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements C-7

D

RAFT

D

RAFT

Canadian compliance

Introduction

Purpose

The statements that follow are the product conformance statement that apply to the

Alcatel-Lucent 9768 Compact Metro Radio Outdoor when deployed in Canada.

Contents

Industry Canada C-8

Product safety and exposure C-8

Antenna exposure statements C-9

IEC optical transmitter product compliance statements C-10

Eco-environmental statements C-11

Industry Canada

EMC approval

ICES-003: Interference-Causing Equipment Standard Digital Apparatus

The Alcatel-Lucent Metro Radio product complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Product safety and exposure

Product safety conformance

This equipment is safety certified to C22.2 No. 60950-1 for Canada by a laboratory

accredited by the Standards Council of Canada (SCC), such as CSA, UL, or others. The

product bears this certification mark of this certification laboratory on its main nameplate

label. Should the local authority having jurisdiction (AHJ) require prior or additional

verification of this certification, a product certificate of compliance can be obtained from

the specific certification laboratory by the business/product unit Applicant for the product.

Any modifications to this equipment are not permitted without review and written official

Product conformance statements

Canadian compliance

Overview

....................................................................................................................................................................................................................................

C-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

authorization from the specific certification laboratory. Unauthorized changes may violate

the product safety certification. Modifications or changes authorized by official CN/CNN

are assumed to have received prior approval from this Lab.

Human exposure

Pursuant to Health Canada Safety Code 6, Limits of Human Exposure to Radio frequency

Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, all installations

must be evaluated against the Maximum Exposure Limits as described in Health Canada

99-EHD-237.

Antenna exposure statements

Antenna exposure

Antenna installations for this equipment shall be performed in accordance with all

applicable manufacturer's recommendations, and national laws and regulations. To ensure

correct antenna installation, the antenna installer shall perform all necessary calculations

and/or field measurements to evaluate compliance with applicable national laws or

regulations regarding exposure to electromagnetic fields.

The supplier of radio equipment, the supplier of antenna equipment and the integrator and

builder of the site must provide sufficient information so that the limits of the exclusion

zones can be determined. Any changes to the antenna or other equipment in the transmit

path may require re-evaluation of the exposures to electromagnetic fields.

The antenna(s) used for this transmitter must be installed to provide a separation distance

of at least 1.8 m from all persons.

Les antennes utilisées pour cet émetteur doivent être installées de façon à respecter une

distance de sécurité d'au moins 1.8 m.

Product conformance statements

Canadian compliance

Product safety and exposure

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements C-9

D

RAFT

D

RAFT

IEC optical transmitter product compliance statements

IEC optical transmitter product compliance

Alcatel-Lucent declares that this equipment complies with the International

Electrotechnical Commission (IEC) standards IEC 60825-1 Edition 2.0 (2007) and IEC

60825-2 Edition 3.1 (2007). It is a Class I/1 laser optical fiber communication systems

“product” under the IEC classifications.

This product is designed to ensure that personnel operating the product are not

endangered by laser radiation during normal operation and fault conditions. This product

does not present a risk of eye injury because it is fully enclosed and does not contain

embedded lasers greater than Class I/1 unless otherwise noted.

Laser warning

WARNING

Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser radiation exposure.

Do not view directly into the laser beam with optical instruments such as a fiber

microscope because viewing of laser emission in excess of Class 1 limits significantly

increases the riskof eye damage.

Never lookinto the end of an exposed fiber or an open connector as long as the optical

source is switched on.

Ensure that the optical source is switched off before disconnecting optical fiber

connectors.

Laser hazard

Product conformance statements

Canadian compliance

IEC optical transmitter product compliance statements

....................................................................................................................................................................................................................................

C-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Eco-environmental statements

Packaging collection and recovery requirements

Countries, states, localities, or other jurisdictions may require that systems be established

for the return and/or collection of packaging waste from the consumer, or other end user,

or from the waste stream. Additionally, reuse, recovery, and/or recycling targets for the

return and/or collection of the packaging waste may be established.

For more information regarding collection and recovery of packaging and packaging

waste within specific jurisdictions, contact the Alcatel-Lucent Environment, Health and

Safety organization or Alcatel-Lucent Hazardous Waste Center technical support at (888)

539-2783.

For installations not performed by Alcatel-Lucent, please contact the Alcatel-Lucent

Customer Support Center at:

Technical Support Services, within Canada: +1 630 224 4672, prompt 2

Product conformance statements

Canadian compliance

Eco-environmental statements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements C-11

D

RAFT

D

RAFT

Product conformance statements Eco-environmental statements

....................................................................................................................................................................................................................................

C-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Appendix D: Related

information

Overview

Purpose

For information on subjects related to this product, refer to the documents listed in this

appendix.

Contents

9768 CMRO documentation D-1

7705 SAR-O documentation D-2

LTE End-to-End Solution and LTE RAN documentation D-3

Surge, Grounding, and Lightning documentation D-5

9768 CMRO documentation

Applicable 9768 CMRO documents

For information on subjects related to this product, refer to the documents listed in the

following table. Where applicable, click the “At this location” link. On the resulting

Online Customer Support (OLCS) product or solution page, select “Manuals and Guides”

to access the document.

Table D-1 Related Information - 9768 CMRO

Refer to this document At this location For more information on

Alcatel-Lucent 9768 Compact

Metro Radio Outdoor Site

Preparation

9926 DBS-LTE (Distributed

Base Station for LTE)

(https://support.alcatel-lucent.

com/portal/productContent.do?

entryId=1-0000000003822)

9768 CMRO site

preparation.

...................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements D-1

D

RAFT

D

RAFT

Table D-1 Related Information - 9768 CMRO (continued)

Refer to this document At this location For more information on

Alcatel-Lucent 9768 Compact

Metro Radio Outdoor

Technical Description

9926 DBS-LTE (Distributed

Base Station for LTE)

(https://support.alcatel-lucent.

com/portal/productContent.do?

entryId=1-0000000003822)

9768 CMRO technical

description.

Alcatel-Lucent 9768 Compact

Metro Radio Outdoor

Maintenance and

Troubleshooting

9926 DBS-LTE (Distributed

Base Station for LTE)

(https://support.alcatel-lucent.

com/portal/productContent.do?

entryId=1-0000000003822)

9768 CMRO maintenance

and troubleshooting

(including hardware

replacement).

976x Compact Metro Model

Offer Provisioning Guide,

LTE/IRC/APP/044619

Subject to non-disclosure

agreement and available from

Alcatel-Lucent representatives.

Describes the different 9768

CMRO hardware

configurations, related

provisioning rules, and SLI

codes.

7705 SAR-O documentation

Applicable 7705 SAR-O documents

For information on subjects related to this product, refer to the documents listed in the

following table. Where applicable, click the “At this location” link. On the resulting

Online Customer Support (OLCS) product or solution page, select “Manuals and Guides”

to access the document.

Table D-2 Related information - 7705 SAR-O

Refer to this document At this location For more information on

CPRI CWDM Application of

Optical OADM in eNodeB -

Model Offer Provisioning

Guide (MOPG)

subject to non-disclosure

agreement and available from

Alcatel-Lucent representatives

Provides the Alcatel-Lucent

7705 Service Aggregation

Router-Optical (7705

SAR-O) product overview

and CPRI Multiplexing

topologies and ordering

codes.

Related information 9768 CMRO documentation

....................................................................................................................................................................................................................................

D-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Table D-2 Related information - 7705 SAR-O (continued)

Refer to this document At this location For more information on

Alcatel-Lucent 7705 SAR-O

Chassis Installation Guide

R7.0.R1

subject to non-disclosure

agreement and available from

Alcatel-Lucent representatives

Provides an overview of the

Alcatel-Lucent 7705 Service

Aggregation Router-Optical

(7705 SAR-O) chassis,

procedures for installing and

grounding the unit for a pole

mount or wall mount, and

procedures for cabling the

unit.

LTE End-to-End Solution and LTE RAN documentation

Applicable LTE End-to-End Solution and LTE RAN documents

For information on subjects related to this product, refer to the documents listed in the

following table. Where applicable, click the “At this location” link. On the resulting

Online Customer Support (OLCS) product or solution page, select “Manuals and Guides”

to access the document.

Table D-3 Related Information - LTE RAN and E2E LTE Solution

Refer to this document At this location For more information on

Library for LTE End-to-End

Solution

LTE End-to-End Solution

(https://support.alcatel-

lucent.com/portal/

productContent.do?entryId=

1-0000000001078)

The full collection of

documents in the LTE

collection.

Alcatel-Lucent LTE eNodeB

Macro and Metro Products

FDD Release Notes

LTE End-to-End Solution

(https://support.alcatel-

lucent.com/portal/

productContent.do?entryId=

1-0000000001078)

Provides software and feature

status information.

Alcatel-Lucent 9400 LTE

Radio Access Network

Terminology Overview

LTE End-to-End Solution

(https://support.alcatel-

lucent.com/portal/

productContent.do?entryId=

1-0000000001078)

Describes the terms and

abbreviations of network

elements, interfaces, network

channels, protocols, services,

and other entities used in Long

Term Evolution (LTE) Radio

Access Network (RAN).

Related information 7705 SAR-O documentation

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements D-3

D

RAFT

D

RAFT

Table D-3 Related Information - LTE RAN and E2E LTE Solution (continued)

Refer to this document At this location For more information on

FDD eNodeB Product

Engineering Guide

LTE End-to-End Solution

(https://support.alcatel-

lucent.com/portal/

productContent.do?entryId=

1-0000000001078)

Describes the different

Alcatel-Lucent LTE eNodeB

Macro and Metro hardware

configurations, and the related

engineering rules and

guidelines.

LTE Small Cells RF

Guideline, LTE-DCL-APP-

037536

LTE End-to-End Solution

(https://support.alcatel-

lucent.com/portal/

productContent.do?entryId=

1-0000000001078)

This document describes the

process of dimensioning and

designing the radio system of

an LTE small cells network,

including Small cells RF

Design solutions and

Macro-Metro cell interference

scenarios in outdoor and

indoor conditions.

LTE Indoor RF Design

Guidelines,

LTE-DCL-APP-035537

LTE End-to-End Solution

(https://support.alcatel-

lucent.com/portal/

productContent.do?entryId=

1-0000000001078)

This document describes the

process of dimensioning and

designing the radio system of

an LTE small cells network,

including the LTE radio design

process and design solutions

for coverage and capacity

problems pertaining to indoor

Metro Cells.

LTE Outdoor RF Design

Guidelines,

LTE-DCL-APP-035538

LTE End-to-End Solution

(https://support.alcatel-

lucent.com/portal/

productContent.do?entryId=

1-0000000001078)

This document describes the

process of dimensioning and

designing the radio system of

an LTE small cells network,

including the LTE radio design

process and design solutions

for coverage and capacity

problems pertaining to outdoor

Metro Cells.

Related information LTE End-to-End Solution and LTE RAN documentation

....................................................................................................................................................................................................................................

D-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Surge, Grounding, and Lightning documentation

Applicable Surge, Grounding, and Lightning documents

For information on subjects related to this product, refer to the documents listed in the

following table.

Table D-4 Related Information - Grounding, Lightning, and Surge

Refer to this document At this location For more

information on

Grounding and Lightning

Protection Guidelines for

Lucent Technologies Network

Wireless System Cell Sites,

401-200-115

LTE End-to-End Solution

(https://support.alcatel-lucent.com/

portal/productContent.do?entryId=

1-0000000001078)

Grounding and

Lightning protection

systems

Standard for Installation of

Lightning Protection Systems,

NFPA 780

IEEE Xplore Digital Library

(http://ieeexplore.ieee.org/Xplore/

home.jsp)

Lightning protection

systems

Recommended Practices on

Surge Voltages in Low Voltage

AC Power Circuits, IEEE

C62.41 (Latest Edition)

IEEE Xplore Digital Library

(http://ieeexplore.ieee.org/Xplore/

home.jsp)

Power

Related information Surge, Grounding, and Lightning documentation

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements D-5

D

RAFT

D

RAFT

Related information Surge, Grounding, and Lightning documentation

....................................................................................................................................................................................................................................

D-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Glossary

This glossary provides a quick reference to the terms, acronyms, and abbreviations commonly

used in the Alcatel-Lucent Metro product documentation.

...................................................................................................................................................................................................................................

Numerics

3G

Third Generation

3GPP

3rd Generation Partnership Project

A collaboration between groups of telecommunications associations for the promotion and

standardization of high-speed cellular services.

5620 SAM

5620 Service Aware Manager

9952 WPS

9952 Wireless Provisioning System

...................................................................................................................................................................................................................................

A A (Ampere)

Base SI unit of electrical current.

SI is the International System of Units (abbreviated SI from French: Le Système international

d'units).

A-GPS

Assisted Global Positioning System

AAA

Authentication, Authorization, and Accounting

AC

Access Class

AC (Alternating Current)

Continuously variable current, rising to a maximum in one direction, falling to zero, then

reversing direction and repeating the cycle in the other direction.

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements GL-1

D

RAFT

D

RAFT

AC convenience outlet

Sites must be equipped with at least two duplex outlets for installation and maintenance

procedures. The outlets are required to power test equipment and installation tools.

ACF (AC Fail)

The AC Fail (ACF) alarm indicates that AC input to one or more rectifiers in the power plant is

absent or outside of the operating range of the equipment

ACLR

Adjacent Channel Leakage power Ratio

AHJ

The agency or authority having jurisdiction. Article 100 of the National Electrical Code (NEC) for

the United States defines AHJ with greater specificity, stating that it may be a federal, state, local

government, or individual such as a fire chief, fire marshal, chief of a fire prevention bureau,

labor department or health department, building official or electrical inspector, or others having

statutory authority. In some circumstances, the property owner or his/her agent assumes the roles,

and at government installations, the commanding officer or departmental official may be the AHJ.

Ambient temperature

The temperature of air or other media in a designated area, particularly the area

ANR

Automatic Neighbor Relation

ANSI (American National Standards Institute)

An organization chartered to accredit standards developed by a wide variety of industry groups,

without influence from any one company or organization. Does not develop standards, but

reviews and implements standards developed by other organizations. ANSI is a member of the

International Standards Organization (ISO).

Antenna

An elevated device for radiating or receiving radio waves. It changes electrical currents into

electromagnetic waves, and conversely, electromagnetic waves into electrical currents.

AP

Access Point

AP (Application Processor)

Network element located at the MSC which provides the radio control logic for managing calls.

The AP is a general-purpose computer that can host a number of RCS virtual machines.

AWG (American Wire Gauge)

American standard for classifying wire diameter.

...................................................................................................................................................................................................................................

B backhaul

The portion of the network connecting the base band unit (BBU) to the mobile core network.

Glossary

....................................................................................................................................................................................................................................

GL-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Backup

Facility used to replace an element which has failed.

Base station

The equipment that provides the air interface that allows mobile terminals to communicate with

the telecommunications network.

BBU

BaseBand Unit

BD (Battery on Discharge, first stage)

The Batteries on Discharge (BD) alarm indicates the power system output voltage has decreased

below the “batteries on discharge” threshold set point. The “batteries on discharge” threshold is

set for 50.0 volts (for -48-VDC systems) or 25.0 volts (for +24-VDC systems).

BD-2 (Battery on Discharge-2)

The Batteries on Discharge (BD-2) alarm indicates the power system output voltage has decreased

below the “batteries on a second discharge” threshold set point. The “batteries on a second

discharge” threshold is set for 44.0 volts (for -48-VDC systems) or 22.0 volts (for +24-VDC

systems).

BOCA

Building Officials and Code Administrators

Bonding

Permanent connection of metallic parts to form an electrically conductive path that assures

electrical continuity and has the capability to safely conduct any current likely to be imposed.

Branch circuit

The circuit conductors between the final overcurrent device protecting the circuit and the outlet.

Breaker, circuit

A cut-out device which breaks a circuit when preset limits of current are exceeded.

Buried cable

A communication cable manufactured or produced for the purpose of burial in direct contact with

the earth.

Buried ring ground

A buried, bare, tinned, solid copper cable encircling the site building and/or tower foundation.

Bus bar

One or more conductors that serves as a common connection for a group of related devices.

Busy hour

The uninterrupted period of 60 minutes for which the average intensity of traffic is at maximum.

Glossary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements GL-3

D

RAFT

D

RAFT

BW

Bandwidth

...................................................................................................................................................................................................................................

C Cable run

Referring to cable routing.

Cable sweep

(See Sweep)

CAN/CSA

Canadian Standards Association. See http://www.csa.ca (http://www.csa.ca).

CDRH

Center for Devices and Radiological Health

CE

Conformité Européene

A CE Marking on a product is a manufacturer's declaration that the product complies with the

essential requirements of the relevant European health, safety and environmental protection

legislation.

Cell site

An installation located within a cell that houses the equipment needed to set up and complete calls

on a cellular telephone.

CFR

Code of Federal Regulations.

Among these regulations, Title 47, “Telecommunication,” conveys the rules of the FCC

companies operating networks in the USA. See also FCC.

CIC (Customer Information Center)

Source for locating and obtaining delivery of Alcatel-Lucent customer documents.

Circuit

1. The complete path between two terminals over which one-way or two-way communications

may be provided. 2. An electronic path between two or more points, capable of providing a

number of channels. 3. A number of conductors connected together for the purpose of carrying an

electrical current. 4. An electronic closed-loop path among two or more points used for signal

transfer. 5. A number of electrical components, such as resistors, inductances, capacitors,

transistors, and power sources connected together in one or more closed loops.

CISPR

The [special] international committee on radio interference. Its publication CISPR 22, Information

Technology Equipment—Radio Disturbance Characteristics—Limits and Methods of

Measurement addresses any device that emits RF outside the scope of its intended purpose.

Glossary

....................................................................................................................................................................................................................................

GL-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

CLI

Command Line Interface

CMAS

Commercial Mobile Alert System

CMS

Certificate Management System

CN/CNN

Arcane term for changes notices that affect Alcatel-Lucent products.

Coaxial cable

A cable with one or more coaxial pairs under one outer sheath. The cable consists of a center

conductor surrounded by an insulating material and a concentric outer conductor.

Configuration

An arrangement of functional units according to their nature, number, and chief characteristics.

Controlled environment

An indoor location in which temperature, humidity, and ventilation are maintained at specific

levels.

Core

A subset of generic requirements published by Telcordia Technologies. See also GR. The Core

requirements that affect the Metro product (Radio/Cell) concern spurious emissions, surges from

lightning, and resistance to wind, wind-driven rain, salt fog, and extreme ambient temperature.

CPC

Circular Plastic Connector

CPRI

Common Public Radio Interface

CS

Circuit Switched

CSA

Convergent Security Asset

CSA (Canadian Standards Association)

An independent, non-government, not-for-profit association for the development, by consensus,

of Canadian standards and product certifications.

CSC (Cell Site Configuration)

Sheets provided in this document for documenting cell site configuration, conditions, and other

pertinent information for reference during product deployment, and future additions.

Glossary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements GL-5

D

RAFT

D

RAFT

...................................................................................................................................................................................................................................

D d2U

digital 2U-height box.

The BBU system supporting two controller and two modems. See also BBU.

dB (decibel)

A unit which expresses the ratio of two voltages, currents, or powers. Decibel (dB) is used to

specify transmission loss, gain, or relative level. Decibel (dB) equal to 20 times the common

logarithm of the ratio of two voltages or two currents, or 10 times the common logarithm of the

ratio of two powers.

dBi (decibels (dB) relative to isotropic)

Decibels relative to an isotropic antenna gain at radio frequencies.

Antenna gain is usually defined as the ratio of the power produced by the antenna from a far-field

source on the antenna's beam axis to the power produced by a hypothetical lossless isotropic

antenna, which is equally sensitive to signals from all directions. Usually this ratio is expressed in

decibels, and these units are referred to as "decibels-isotropic" (dBi).

DC (Direct Current)

Current flow in one direction.

DFS

Dynamic Frequency Selection

DHCP

Dynamic Host Configuration Protocol

Diversity

A method of radio transmission and/or reception, which counteracts the effects of fading by

combining several signals all bearing the same information.

DL

Downlink

DNS

Domain Name System

DoS

Denial of Service

Down conductor

A vertical conductor of low impedance that connects the cell site grounding electrode system to

the grounding electrode system.

Driven ground rod

A copper-clad steel or stainless steel rod, a minimum of 2.4 meters (8 feet) long and 5/8 inch in

diameter.

Glossary

....................................................................................................................................................................................................................................

GL-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

DRX

Discontinuous Reception

DSCP

Differentiated Services Code Point

...................................................................................................................................................................................................................................

EE1

A four-wire voice and data trunking facility that carries 30 duplex channels in 64-kbps time slices.

E1 facilities are commonly used in countries outside of North America.

Earthquake zone

Seismic ratings ranging from zone 1 (relatively low central office operational shock and vibration

levels) to the most severe zone 4 levels. Equipment must be able to withstand earthquake zone

requirements under both operational and non-operational conditions.

ECID

Enhanced Cell ID

EEC directive

A law enacted by the European Union for enforcement by its Common Market. The terms of such

a law have been used as a point of reference against which to compare the intentional RF

emissions of the MRO.

EIRP

Effective Isotropic Radiated Power

Electrolytic ground electrode (rods)

A low resistance grounding rod (pipe) using low resistivity materials.

EMS

Element Management System

ESD

Electrostatic discharge.

A hazard that electronic equipment such as the Metro Cell or Metro Radio can suffer by way of

exposure to static electricity or proximity to something that has no connection to ground.

ETSI

European Telecommunications Standards Institute

EU

European Union

Exothermic weld

A method of making electrical connections of copper to copper or copper to steel using high

temperature fusion. The molten copper flows over conductors in a mold, melting, and welding

them together.

Glossary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements GL-7

D

RAFT

D

RAFT

...................................................................................................................................................................................................................................

F FA (Fuse Alarm)

The fuse alarm (FA) indicates that the power system battery and load protection fuse opens.

Facility

Any element of physical telephone equipment needed to provide service, such as cables,

switching systems, and microwave radio transmission systems.

FCC (Federal Communications Commission)

A group founded in 1934 to regulate all types of communications in the United States.

FDA

Food and Drug Administration

FDD

Frequency Division Duplex

Float

To operate a power load on a main-driven rectifier in parallel with a low impedance storage

battery, which is kept fully charged by the rectifier and is itself only called upon to provide power

during temporary and short-duration peaks for which the rectifier output is insufficient.

FM

Fault Management

FQDN

Fully Qualified Domain Name

Frequency

For a periodic wave, such as alternating current, the number of complete cycles per unit of time.

The unit of frequency is cycles per second, or hertz.

fronthaul

The common public radio interface (CPRI) connection between a standalone remote radio head

(for example: 9768 MRO, 9768 CMRO) and the base band unit (BBU).

FRU

Field Replaceable Unit

Full AXS

Cable connector used for CPRI connection to the Metro product (Radio/Cell).

Fuse

An overcurrent protective device that has as its critical component a metal wire or strip that will

melt when heated by a prescribed (design) amperage, creating an open in the circuit of which it is

a part, thereby protecting the circuit from an overcurrent condition.

Glossary

....................................................................................................................................................................................................................................

GL-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

...................................................................................................................................................................................................................................

GGA

General Availability

Gain

The ratio of output current, voltage, or power to input current, voltage, or power, respectively.

Gain is usually expressed in dB. If the ratio is less than unity, the gain, expressed in dB, will be

negative, in which case there is a loss between input and output.

Garmin 45XLS

A handheld GPS receiver that can be used to verify GPS reception at a cell site. It has a removable

antenna and provides +5 VDC on the center pin of the RF connection to power external active

antennas. If poor GPS reception is suspected, the Garmin 45XLS can be used to verify that the

GPS antenna and cable system is working acceptably. It will also verify that the GPS antenna

location is acceptable.

GE (Gig-E, GBE)

Gigabit Ethernet

GFCI (Ground Fault Circuit Interrupter)

A device intended for protection of personnel that functions to de-energize a circuit or portion

thereof within an established period of time when a current to ground exceeds some

predetermined value that is less than that required to operate the overcurrent protective device of

the supply circuit.

GHz

GigaHertz

GLONASS

GLONASS is an acronym, which stands for Globalnaya Navigazionnaya Sputnikovaya Sistema,

or Global Navigation Satellite System. GLONASS is a satellite navigation system operated by the

Russia.

GNSS

Global Navigation Satellite System

GPON

Gigabit Passive Optical Network

GPRS

General Packet Radio Services

GPS (Global Positioning System)

A system of 24 satellites that provides, among other things, extremely accurate timing information

to the cell sites.

GR

Generic requirements published by Telcordia Technologies. See also Core.

Glossary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements GL-9

D

RAFT

D

RAFT

Ground

A conducting connection between equipment or an electrical circuit and earth, or conductive body

that is used in place of earth

Grounding conductor

A conductor used to connect equipment or a grounded electrical circuit to the grounding electrode

system.

Grounding electrode system

The conductive objects that are intentionally bonded to furnish connection to earth (that is, buried

ring ground with ground rods, electrically continuous buried metallic water pipe, electrolytic

ground electrode, and so on).

GTP

GPRS Tunneling Protocol

GUI

Graphical User Interface

Guy

Steel wire or rope used to hold a pole upright.

...................................................................................................................................................................................................................................

H Handoff

A automatic transfer of a cellular telephone call from one cell to another, maintaining call quality

as the mobile user moves through the coverage area.

HDM

Home Device Manager

Heat dissipation

The heat generated by cabinets during operation.

HPBW

Half Power Beamwidth

HSDPA

High-Speed Downlink Packet Access

HSPA

High-Speed Packet Access

HSUPA

High-Speed Uplink Packet Access

HTTP

Hypertext Transfer Protocol

Glossary

....................................................................................................................................................................................................................................

GL-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

HV

High Voltage

HVAC (Heating, Ventilation, Air Conditioning)

Hz (hertz)

A unit of frequency of a periodic process equal to one cycle per second.

...................................................................................................................................................................................................................................

II

2C

Inter-integrated Circuit

ICNIRP

International Commission for Non-Ionizing Radiation Protection

IEC

International Electrotechnical Commission. The Metro products comply with numerous standards

that this independent body has propagated.

IEEE

Institute of Electrical and Electronics Engineers

Indoor site

Installation site in a controlled environment, allowing the use of indoor cabinets.

INTR (Intrusion Alarm)

The Intrusion (INTR) alarm indicates a door or access panel to the power system is open.

IP

Internet Protocol

IPsec

Internet Protocol Security

IPx5

The subset of the standard IEC 60529 to which the Metro product (Radio/Cell) conforms in its

resistance to intrusion by water. Conformance to this subset means that the Metro product

(Radio/Cell) withstands a 3 minutes test of 12.5 liters/minute at 30 kN/m2 from 3 meters away.

IRC

Interference Rejection Combining

ISM

Industrial, Scientific, and Medical

IT

In an IT earthing system, the electrical distribution system has no connection to earth at all, or it

has only a high impedance connection. In such systems, an insulation monitoring device is used to

Glossary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements GL-11

D

RAFT

D

RAFT

monitor the impedance.

...................................................................................................................................................................................................................................

L LAN

Local Area Network

LC

A small connector that terminates a fiber optic cable and snaps into its mate.

LED

light emitting diode

LMT

Local Maintenance Terminal

Load

The power consumed by a device or circuit in performing its function.

Loss

The diminution, usually expressed in dB, of signal level in a communications medium. The

power, usually expressed in watts, consumed by a circuit or component. The energy dissipated

without accomplishing useful work or purpose.

lR / LR (lightRadio™)

The Alcatel-Lucent lightRadio™family of wireless products.

LTE

Long Term Evolution

LV

Low Voltage

...................................................................................................................................................................................................................................

M MAC (address)

Media Access Control Address

A MAC address is a hardware identification number that uniquely identifies each device on a

network.

MAC (protocol)

Medium Access Control Protocol

The media access control (MAC) data communication protocol is a sublayer of the data link layer.

MAC protocol provides addressing and channel access control mechanisms that make it possible

for multiple terminals or network nodes to communicate within a multiple access network that

incorporates a shared medium, for example, Ethernet.

MCI

Metro Cell Indoor

Glossary

....................................................................................................................................................................................................................................

GL-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

MCO

Metro Cell Outdoor

MFBI

Multiple Frequency Band Indicators

MGB (Main Ground Bus)

A copper bus bar used to provide the electrical interfaces for connection of the isolated ground

plane to the integrated ground system.

MHz (Megahertz)

Reference of radio frequency spectrum of one-million cycles.

MIMO

multiple input, multiple output

An antenna technology for wireless communications in which multiple antennas are used at both

the source (transmitter) and the destination (receiver).

MME

Mobility Management Entity

MOP (Method of Procedure)

Cell site walk-through where site preparation activities are verified prior to installing the 9412

eNodeB Compact equipment.

MRO

Metro Radio Outdoor

MSC (Mobile Switching Center)

In an automatic cellular mobile system, the interface between the radio system and the public

switched telephone network. The MSC performs all signaling functions that are necessary to

establish calls to and from mobile stations.

MSP

Mobile Service Provider

MSP

mobile service provider

MTBF

Mean Time Between Failure

mW

milliWatt

Glossary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements GL-13

D

RAFT

D

RAFT

...................................................................................................................................................................................................................................

N NAR

North American Region

NEC (National Electric Code)

Standard that governs the use of electric wire, cable, and fixtures, and electrical and optical

communication cable installed in buildings.

NEM

Network Element Manager

NEMA

National Electrical Manufacturers Association. The Metro product (Radio/Cell) qualifies as a

NEMA 250-2008 standard Type 4 enclosure with respect to intrusion of dust and wind-driven

rain.

Network

A set of terminals, the communications link that joins them, and the protocols that allow them to

function together and communicate with each other.

NFPA (National Fire Protection Association)

Standards and code writing organization made up of volunteer industrial and institutional

subject-matter-expert committees.

NG-SEC

Next Generation Security

NIU (Network Interface Unit)

A device that performs interface functions, such as code conversion, protocol conversion, and

buffering, required for communications to and from a network. The device is used primarily

within a local area network to allow a number of independent devices, with varying protocols, to

communicate with each other. An NIU converts each device protocol into a common transmission

protocol. The transmission protocol may be chosen to accommodate directly a number of the

devices used within the network without the need for protocol conversion for those devices by the

NIU.

Nominal

Specified value or intended value independent to any uncertainty in its realization. In a device that

realizes a physical quantity, it is the value of such a quantity specified by the manufacturer.

Non-Alcatel-Lucent power

3rd- party power systems, or power systems other than Alcatel-Lucent.

NSP

Network Services Platform

Glossary

....................................................................................................................................................................................................................................

GL-14 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

...................................................................................................................................................................................................................................

O OAM (OA&M)

Operations, Administration, and Maintenance

OFDM

Orthogonal frequency-division multiplexing, the multi-carrier modulation scheme that overcomes

many commonly experienced wireless communications problems, such as multipath and signal

attenuation.

OLCS

Online Customer Support

OOT

Out Of Time alignment

OPS

On-Path Support

OSP

Outside Plant

OSS

Operation Support System

OTDOA

Observed Time Difference Of Arrival

...................................................................................................................................................................................................................................

P P-GW

Packet Data Network Gateway

Pair cable

Cable made up of one or more separately insulated wire pairs, none of which is arranged with

another quads.

PCI

Physical Cell ID

PD

Powered Device

PDCP

Packet Data Convergence Protocol, which provides security to both the air interface and the fiber

optic interface of the MRO by compressing and decompressing the IP headers, as specified in the

UMTS protocol stack.

Glossary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements GL-15

D

RAFT

D

RAFT

PDU

Power Distribution Unit

Phase

The number of separate voltage waves in commercial alternating current, designated as "single

phase", "three-phase", and so on.

Pigtail

A short length of electrical conductor permanently affixed to a component, used to connect the

component to another.

PM

Performance Management

PMJ

Conditions that affect service of the power system and/or require immediate attention are

classified as major alarms and designated as Power Major (PMJ) alarms.

PMN

Conditions requiring service, but having no immediate affect on the power system output are

classified as minor alarms and designated as Power Minor (PMN) alarms.

PnP

Plug and Play

PoE

Power over Ethernet

PVC (Polyvinyl Chloride)

A thermoplastic made of polymers, which is tough, nonflammable, and water resistant and is used

as an insulation.

...................................................................................................................................................................................................................................

Q QAM

Quadrature Amplitude Modulation

QoE

Quality Of Experience

QoS

quality of service

...................................................................................................................................................................................................................................

R Radiall

The proprietary name of an enterprise that produces components for device interconnections.

These components include the R2CT weatherized connector kit by which the Metro Radio

installer retrofits the LC fiber optic connector on the fronthaul cable to the SFP port module of the

Glossary

....................................................................................................................................................................................................................................

GL-16 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Metro Radio. The proper name of this company is Radiall USA, Inc. See also SFP.

RAN

Radio Access Network

RDC

Residual Current Device

Receive-only

Pertaining to a device or a mode of operation capable of receiving messages, but not transmitting

messages.

RF

Radio Frequency

RFOA

Ready for First Office Application

RMS (Root Mean Square)

Effective value of an alternative wave. For AC, this is numerically equal to DC value of the

current with the same heating affect.

RoHS

Restriction of Hazardous Substances regulation

RoW

Rest of World

RRH

Remote RF head consisting of a radio, a receive filter, a transmit amplifier, and a CPRI link to a

BBU. The MRO is an RRH. See also BBU and CPRI.

Rx/RX

Receive

...................................................................................................................................................................................................................................

S S-GW

Serving Gateway

SAR (Specific Absorption Rate)

A measure of the rate at which energy is absorbed by the body when exposed to radio frequency

energy.

SCMS

Small Cell Management System

Sector

The coverage area within the degree of directionality of the antennas.

Glossary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements GL-17

D

RAFT

D

RAFT

SeGW

Security Gateway

Service provider

Customer who purchases switching and Site equipment from system vendors, which, in turn, is

provided to end-user subscribers through resellers and distribution channels.

SFP (Small Form-Factor Pluggable)

A compact, hot-pluggable transceiver that interfaces a network device motherboard to a

fiber-optic or copper networking cable to support telecommunication and data communications.

SGMII

Serial Gigabit Media Independent Interface

Shield

A housing, screen, sheath, or cover that substantially reduces the coupling of electric, magnetic, or

electromagnetic fields into or out of circuits or transmission lines.

Short-term

No more than 96 consecutive hours or 15 days per year.

SIMO

Single input, multiple output. Its transmitter function uses a one antenna, and its receiver function

uses two. This scheme reduces the instance of multipath and fading, in particular. Antonyms are

MISO (multiple input, single output) and MIMO (multiple input, multiple output).

Single-phase

A circuit in which there is only one sinusoidal voltage variation.

Site

An installation that houses the equipment needed to set up and complete calls on a cellular

telephone.

Site preparation

To perform the requirements necessary at the site before installation can begin.

SLA

Service Level Agreement

SMG

System Management Solution

SON

Self-Organizing Network

Specific site

The very spot at which the Metro product will be installed in the venue. See also Venue.

Glossary

....................................................................................................................................................................................................................................

GL-18 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

SSID

Service Set Identifier

Stranded

Wires twisted together to form a strong flexible cable.

Surge protector

Protective device used to limit surge voltages by discharging or bypassing any unwanted surge

current that may enter a building or equipment.

SW

Software

Sweep

To vary the frequency of a signal over a whole band as a means of checking the response of

equipment under test.

...................................................................................................................................................................................................................................

TT1

A four-wire voice and data trunking facility that carries 24 duplex channels over 56-kbps time

slots.

TCO

Total Cost of Ownership

THHN (Thermoplastic high-heat resistant nylon-coated)

Three-phase

An alternating current supply with three sinusoidal voltages differing in phase by 120°.

THWN (Thermoplastic heat and water resistant nylon-coated)

TN

In a TN earthing system, one of the points in the generator or transformer is connected with earth,

usually the star point in a three-phase system. The body of the electrical device is connected with

earth by means of this earth connection at the transformer.

TPC

Transmit Power Control

TRDU (Transmit Receive Duplex Unit)

TT

In a TT earthing system, the protective earth connection of the consumer is provided by a local

connection to earth, independent of any earth connection at the generator.

Glossary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements GL-19

D

RAFT

D

RAFT

Twisted pair cable

Cable made up of one or more separately insulated twisted-wire pairs, none of which is arranged

with another to form quads.

Tx / TX

Transmit

TYP (Typical)

...................................................................................................................................................................................................................................

U U-NII

Unlicensed National Information Infrastructure

UBC

Uniform Building Code

UE

User Equipment

UL

Uplink

UL® (Underwriters Laboratories)

Laboratories that test and approve materials and equipment against predetermined performance

standards.

UMTS

Universal Mobile Telecommunications System

UV (Ultraviolet)

The portion of the electromagnetic spectrum in which the longest wavelength is just below the

visible spectrum, extending from approximately 4 nm to approximately 400 nm. Some authorities

place the lower limit of uv at values between 1 and 40 nm, 1 nm being the upper wavelength limit

of x-rays. The 400-nm limit is the lowest visible wavelength, that is, the highest visible frequency,

violet.

...................................................................................................................................................................................................................................

V V (Volt)

The derived SI unit of electrical potential difference. It is the difference in potential between two

points of a conducting wire carrying a constant current of 1 ampere when the power dissipated

between these two points is equal to 1 watt.

Vac (Volts Alternating Current)

VCC

An electronics designation that refers to voltage from a power supply connected to the "collector"

terminal of a bipolar transistor. Double letters “cc” refer to power supply voltages.

Glossary

....................................................................................................................................................................................................................................

GL-20 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

VDC (Volts Direct Current)

Venue

The general area, such as a stadium, enterprise campus, or airport terminal.

VLAN

Virtual Local Area Networks

VoLTE

Voice over LTE

VPN

Virtual Private Network

Vrms (Volts Root Mean Square)

VSWR (Voltage Standing Wave Ratio)

In a transmission line, the ratio of maximum to minimum voltage in a standing wave pattern. The

VSWR is a measure of impedance mismatch between the transmission line and its load. The

higher the VSWR, the greater the mismatch. The minimum VSWR, that is, that which

corresponds to a perfect impedance match, is unity.

...................................................................................................................................................................................................................................

W W (watts)

The derived SI unit of power. It is equivalent to 1 joule per second, or 1 volt-ampere.

W-CDMA / WCDMA

Wideband Code Division Multiple Access

Walk-through

A critical examination of a design or product undertaken to ensure that it is of adequate quality.

Waveform

The characteristic shape of a periodic wave, determined by the frequencies present and their

amplitudes and relative phases.

WEEE

Waste Electrical and Electronic Equipment regulation

Wi-Fi

Wireless local area network (WLAN) products that are based on the Institute of Electrical and

Electronics Engineers' (IEEE) 802.11 standards. Wi-Fi is a registered trademark of the Wi-Fi

Alliance.

WICL

Wireless Internet Command Language

Glossary

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements GL-21

D

RAFT

D

RAFT

WLAN

Wireless local area network (WLAN) products that are based on the Institute of Electrical and

Electronics Engineers' (IEEE) 802.11 standards. Wi-Fi is a registered trademark of the Wi-Fi

Alliance.

WMM (9471 WMM)

The Alcatel-Lucent 9471 Wireless Mobility Manager (WMM) is the Serving GPRS Support Node

and Mobility Management Entity (SGSN/MME) in the converged wireless packet core network. It

performs mobility and session management signaling and packet data switching for GSM,

WCDMA, and LTE access networks.

WMM®

Wi-Fi Multimedia™ (WMM®) is a Wi-Fi Alliance® interoperability certification, based on the

IEEE 802.11e standard, providing basic QoS features to 802.11 networks.

WMM, is a registered trademark of the Wi-Fi Alliance.

WMS

Wireless Management System

WPS

Wireless Provisioning System

...................................................................................................................................................................................................................................

X x-pol

Cross polarization

Glossary

....................................................................................................................................................................................................................................

GL-22 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

Index

Numerics

7705 SAR-O

Ancillary, 2-9

Hardware overview, 2-9

................................................................................................

AAC Power

requirements, 3-9

Animal infestation, 3-2

Antenna

RF antenna, 2-8

Antenna requirements

antenna installation, 3-13

cable grounding, 3-13

cables, 3-13

Authority having jurisdiction (AHJ)

definition of, GL-2

................................................................................................

BBracket

pole-mount, 3-14

wall-mount, 3-14

................................................................................................

CCable

requirements on antennas, 3-13

Cell site general information, B-1

Checklist

general, B-2

GPS antenna, B-6

grounding, B-4

power source, B-3

punch list, B-8,B-9

RF antenna, B-5

checklist

site survey, A-3,A-8

venue, A-2

venue survey, A-1

Checklists, xii

Compact Metro Radio Outdoor

connectors, 2-6

Fronthaul, 2-7

physical description, 2-3

power supply, 2-7

product labeling, 2-9

RF antenna, 2-8

status indicators, 2-8

weights and dimensions, 2-3

Connectors, 2-6

Cooling fins, 3-2

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements IN-1

D

RAFT

D

RAFT

................................................................................................

DDC Power

requirements, 3-9

Debris, 3-2

Diodes, 3-3

Distance

CMRO from 9926 BBU, 3-14

document support, xiv

................................................................................................

FFCC Part 15, 3-3

Fins, 3-2

Flight tables as source of interference, 3-3

Florescent lighting as source of interference, 3-3

Fronthaul, 2-7

................................................................................................

GGlossary

Terms, acronyms, and abbreviations, GL-1

Grounding

antenna cable requirements, 3-13

Grounding - product

9768 CMRO module grounding point, 3-12

ancillary items, 3-11

Grounding and lightning protection

codes and standards, 3-10

grounding requirements, 3-10

surge protection requirements, 3-11

................................................................................................

HHardware and ancillary items

9768 CMRO ancillary items, 2-25

9768 CMRO base items, 2-25

Fiber optic cable for daisy chaining, 2-30

Fiber optic cable for fronthaul, 2-29

Grounding, 2-28

Installation kits, 2-26

Power, 2-28

RF antenna, 2-29

SFP modules, 2-28

Solar Shield, 2-30

................................................................................................

IInfestation, 3-2

Installation option

Co-located installation, 2-24

Intended audience, xi

Interference, 3-3,3-3

................................................................................................

LLighting as source of interference, 3-3

................................................................................................

PPair-mount

requirements, 2-23

with daisy chaining, 2-23

without daisy chaining, 2-23

phone numbers

for document support, xiv

Physical description, 2-3

Pole-mount bracket

requirements, 3-14

Power - product

ancillary items, 3-9

Power requirements (AC)

AC power supply, 3-5

Conduit, 3-6

General, 3-5

Line surge protection, 3-6

Power junction box, 3-6

Power requirements (DC)

Conduit, 3-8

Index

....................................................................................................................................................................................................................................

IN-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT

DC power supply, 3-7

General, 3-7

Line surge protection, 3-8

Power Junction box, 3-8

Power supply, 2-7

product conformance statements, C-1

Product features and attributes, 2-2

product labeling, 2-9

................................................................................................

RRadiated interference, 3-3

Requirements

AC power, 3-9

DC power, 3-9

fiber optic cable run, 3-14

pole mount, 3-14

wall mount, 3-14

................................................................................................

SScattered RF waves, 3-3

Scoreboards as source of interference, 3-3

Security

against rogue RF intrusion, 3-3

against tampering, 3-3

Single mode optical fibers OI codes, 2-13

Site requirements

device placement, 3-4

general requirements, 3-4

Spectrum analysis, 3-3,3-3

status indicators, 2-8

Supported installation options

9768 CMRO with 7705 SAR-O, 2-16

Daisy chain, 2-21

Standard, 2-15

................................................................................................

Ttypographical conventions

describing, xii

................................................................................................

VVideo screens as source of interference, 3-3

................................................................................................

WWall-mount bracket

standoff distance, 3-14

Weights and dimensions, 2-3

Index

....................................................................................................................................................................................................................................

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements IN-3

D

RAFT

D

RAFT

Index

....................................................................................................................................................................................................................................

IN-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Alcatel-Lucent 9768 CMRO

3MN-01582-0001-RJZZA

Issue 0.03 November 2015

D

RAFT

D

RAFT
