Alcatel Lucent France 9764MCOV1B23G Base Transceiver Station User Manual Installation Manual

Title page

Alcatel-Lucent 9764

Metro Cell Outdoor V1.0 B2 WCDMA 1W

Hardware Installation

3MN-01703-0002-RJZZA

Issue 0.06 | February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Proprietary Use pursuant to Company instruction

D

RAFT

D

RAFT

Legal notice

Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective

owners.

The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.

Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside

Alcatel-Lucent without its written authorization.

Proprietary Use pursuant to Company instruction

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

D

RAFT

D

RAFT

Contents

About this document

Purpose .......................................................................................................................................................................................... xiiixiii

Reason for reissue ...................................................................................................................................................................... xiiixiii

New in this release .................................................................................................................................................................... xiiixiii

Intended audience ...................................................................................................................................................................... xiiixiii

Supported systems ..................................................................................................................................................................... xivxiv

How to use this document ....................................................................................................................................................... xivxiv

Safety information ..................................................................................................................................................................... xivxiv

Prerequisites ................................................................................................................................................................................. xivxiv

Conventions used ....................................................................................................................................................................... xivxiv

Related information ................................................................................................................................................................. xviixvii

Document support .................................................................................................................................................................... xviixvii

Technical support ...................................................................................................................................................................... xviixvii

How to order ............................................................................................................................................................................... xviixvii

How to comment ..................................................................................................................................................................... xviiixviii

1Safety statements

Overview ...................................................................................................................................................................................... 1-11-1

Structure of safety statements ............................................................................................................................................... 1-21-2

Safety ........................................................................................................................................................................................... 1-41-4

Safety - specific hazards ......................................................................................................................................................... 1-51-5

Product safety ............................................................................................................................................................................. 1-81-8

2Product overview

Overview ...................................................................................................................................................................................... 2-12-1

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction iii

D

RAFT

D

RAFT

Functional description ............................................................................................................................................................. 2-22-2

Physical description ................................................................................................................................................................. 2-32-3

Hardware and ancillary items ............................................................................................................................................... 2-82-8

3Installation of the 9764 Metro Dock

Overview ...................................................................................................................................................................................... 3-13-1

9764 Metro Dock pre-installation

Overview ...................................................................................................................................................................................... 3-23-2

9764 Metro Dock Pre-installation information .............................................................................................................. 3-33-3

9764 Metro Dock installation

Overview ...................................................................................................................................................................................... 3-53-5

Procedure 3-1: Mount 9764 Metro Dock onto pole ..................................................................................................... 3-63-6

Procedure 3-2: Mount the 9764 Metro Dock onto pole using optional tilt brackets ...................................... 3-113-11

Procedure 3-3: Mount the 9764 Metro Dock onto a wall ........................................................................................ 3-203-20

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using vertical tilt bracket ..................................... 3-253-25

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using horizontal tilt bracket ................................ 3-333-33

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using combined horizontal and vertical

tilt brackets ....................................................................................................................................................................... 3-413-41

9764 Metro Dock cabling

Overview ................................................................................................................................................................................... 3-513-51

Procedure 3-7: 9764 Metro Dock ground cabling ...................................................................................................... 3-523-52

Procedure 3-8: 9764 Metro Dock Ethernet cabling - fiber optic .......................................................................... 3-543-54

Procedure 3-9: 9764 Metro Dock Ethernet cabling - electrical ............................................................................. 3-593-59

9764 Metro Dock post-installation

Overview ................................................................................................................................................................................... 3-663-66

Procedure 3-10: Final installation activities and checks .......................................................................................... 3-673-67

Contents

....................................................................................................................................................................................................................................

iv Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

4Installation of the 9764 MCO module

Overview ...................................................................................................................................................................................... 4-14-1

9764 MCO pre-installation

Overview ...................................................................................................................................................................................... 4-24-2

Pre-installation information .................................................................................................................................................. 4-34-3

9764 MCO cabling

Overview ...................................................................................................................................................................................... 4-44-4

Site power requirements (DC) ............................................................................................................................................. 4-54-5

Product power requirements ................................................................................................................................................. 4-84-8

Procedure 4-1: Connect power cable .............................................................................................................................. 4-104-10

9764 MCO installation

Overview ................................................................................................................................................................................... 4-134-13

Procedure 4-2: Attach 9764 MCO module to 9764 Metro Dock .......................................................................... 4-144-14

Procedure 4-3: Orient 9764 MCO module ................................................................................................................... 4-174-17

9764 MCO post-installation

Overview ................................................................................................................................................................................... 4-194-19

Procedure 4-4: Post installation activities ..................................................................................................................... 4-204-20

Procedure 4-5: Perform commissioning of the 9764 MCO .................................................................................... 4-214-21

AProduct conformance statements

Overview ..................................................................................................................................................................................... A-1A-1

United States compliance

Introduction ................................................................................................................................................................................ A-2A-2

Federal Communications Commission ............................................................................................................................ A-3A-3

Product safety and RF exposure ......................................................................................................................................... A-5A-5

FDA/IEC optical transmitter product compliance statements ................................................................................. A-8A-8

Contents

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction v

D

RAFT

D

RAFT

Eco-environmental statements ............................................................................................................................................ A-9A-9

Glossary

Index

Contents

....................................................................................................................................................................................................................................

vi Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

List of tables

1Terminology ................................................................................................................................................................. xivxiv

4-1 Power materials .......................................................................................................................................................... 4-84-8

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction vii

D

RAFT

D

RAFT

List of tables

....................................................................................................................................................................................................................................

viii Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

List of figures

2-1 9764 MCO V1.0 B2 WCDMA 1W ..................................................................................................................... 2-32-3

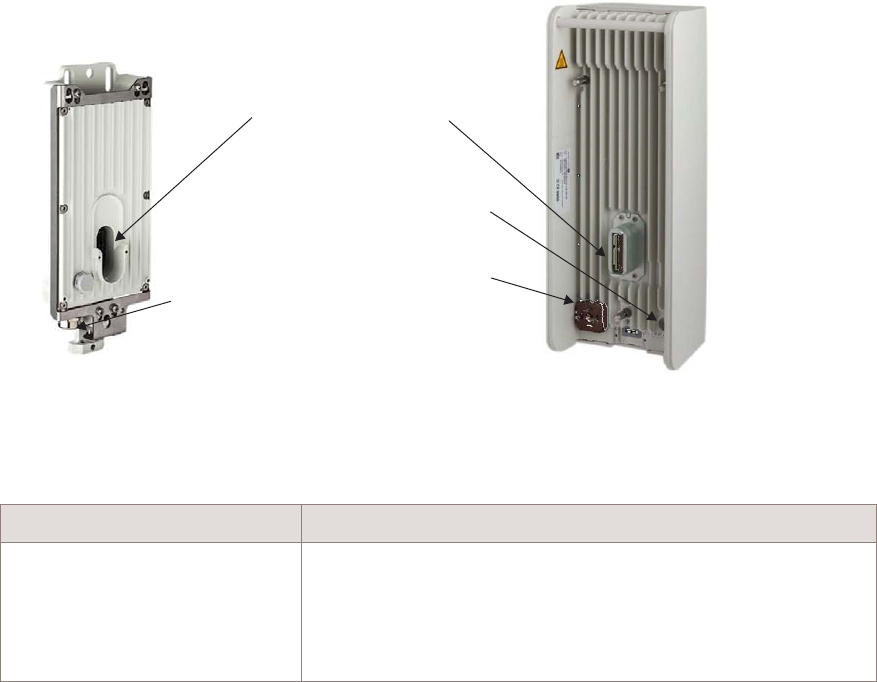

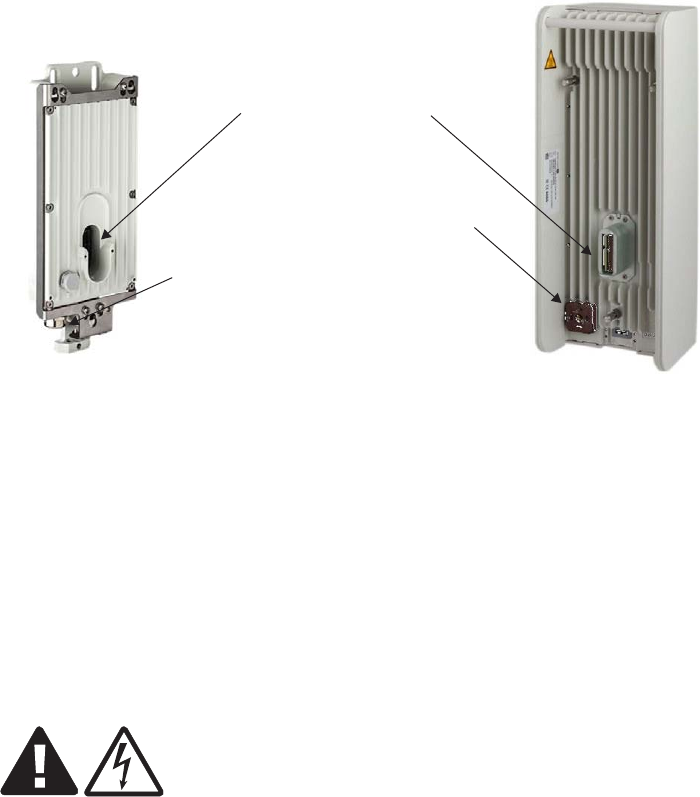

2-2 9764 MCO WCDMA module and 9764 Metro Dock module connectors ........................................... 2-62-6

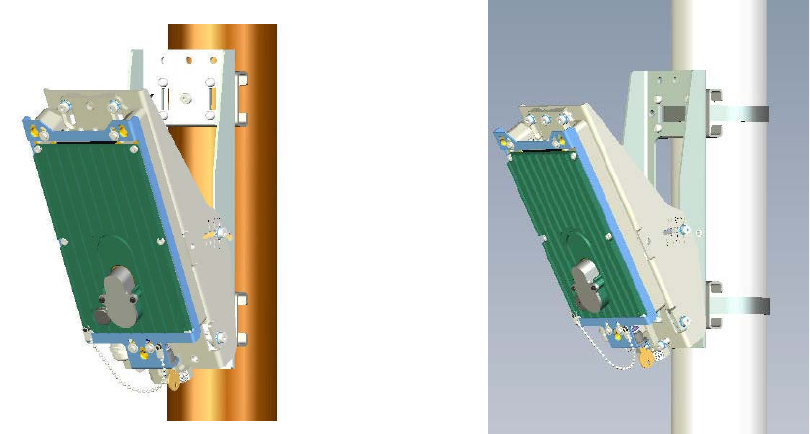

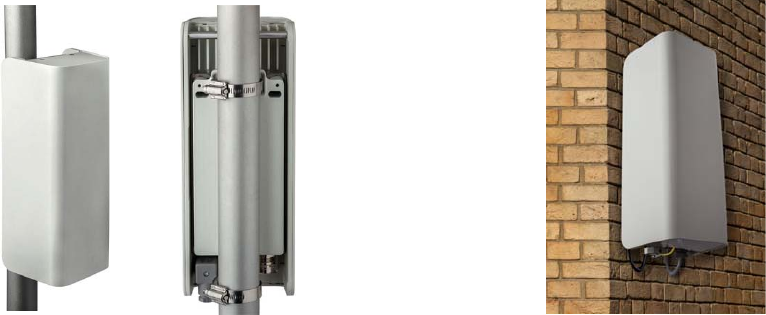

2-3 9764 MCO installation examples ........................................................................................................................ 2-82-8

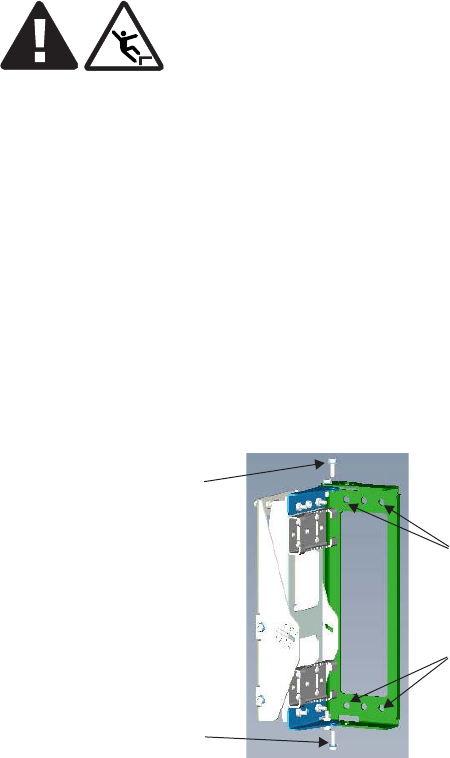

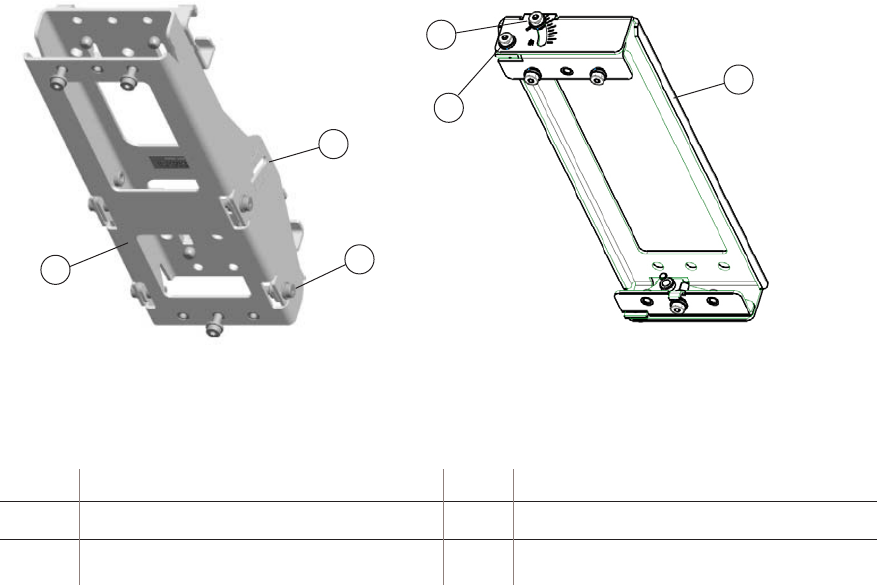

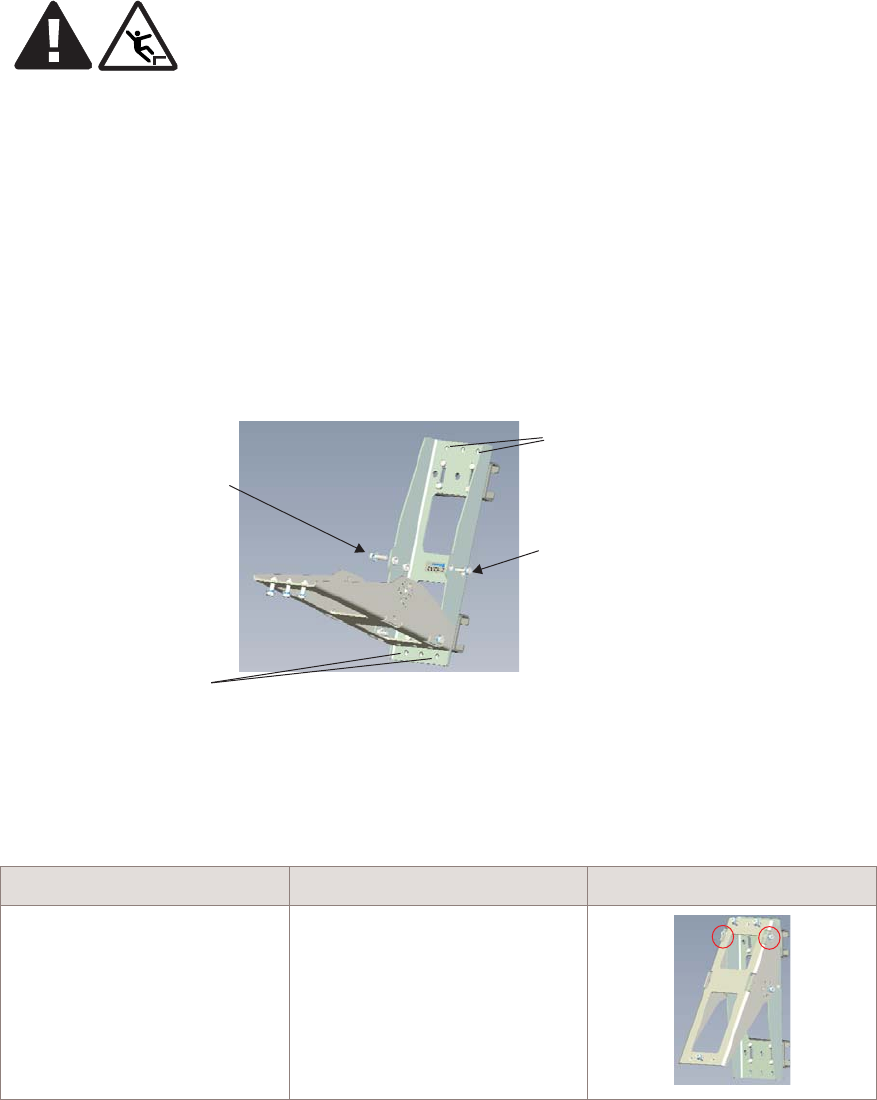

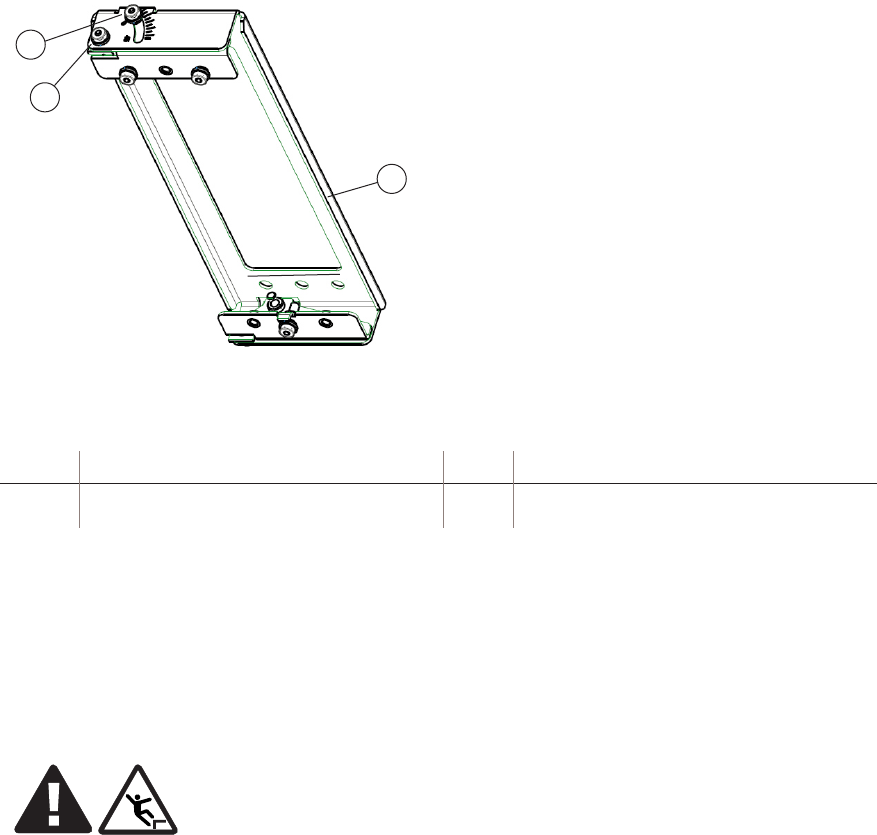

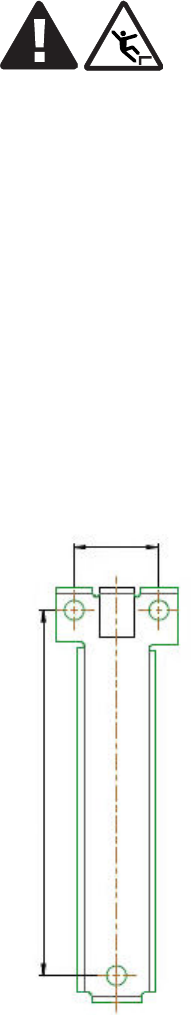

3-1 Vertical tilt bracket .................................................................................................................................................. 3-123-12

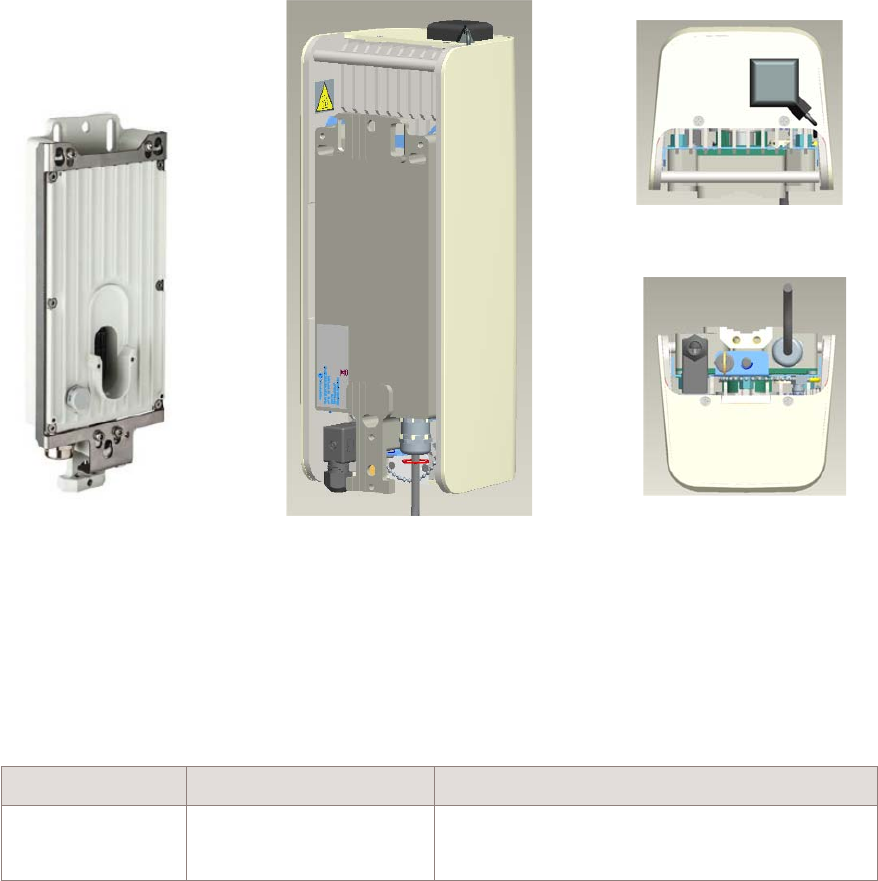

4-1 9764 MCO connection interfaces ...................................................................................................................... 4-104-10

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction ix

D

RAFT

D

RAFT

List of figures

....................................................................................................................................................................................................................................

xAlcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

List of procedures

3 Installation of the 9764 Metro Dock

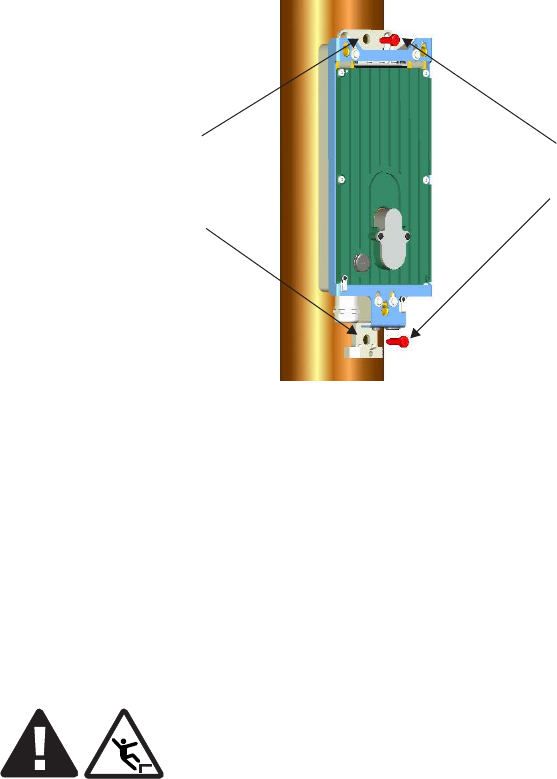

3-1 Mount 9764 Metro Dock onto pole .................................................................................................................... 3-63-6

3-2 Mount the 9764 Metro Dock onto pole using optional tilt brackets ..................................................... 3-113-11

3-3 Mount the 9764 Metro Dock onto a wall ....................................................................................................... 3-203-20

3-4 Mount the 9764 Metro Dock onto a wall using vertical tilt bracket ..................................................... 3-253-25

3-5 Mount the 9764 Metro Dock onto a wall using horizontal tilt bracket ............................................... 3-333-33

3-6 Mount the 9764 Metro Dock onto a wall using combined horizontal and vertical tilt brackets

............................................................................................................................................................................ 3-413-413-41

3-7 9764 Metro Dock ground cabling ..................................................................................................................... 3-523-52

3-8 9764 Metro Dock Ethernet cabling - fiber optic .......................................................................................... 3-543-54

3-9 9764 Metro Dock Ethernet cabling - electrical ............................................................................................ 3-593-59

3-10 Final installation activities and checks ............................................................................................................ 3-673-67

4 Installation of the 9764 MCO module

4-1 Connect power cable .............................................................................................................................................. 4-104-10

4-2 Attach 9764 MCO module to 9764 Metro Dock ......................................................................................... 4-144-14

4-3 Orient 9764 MCO module .................................................................................................................................. 4-174-17

4-4 Post installation activities ..................................................................................................................................... 4-204-20

4-5 Perform commissioning of the 9764 MCO ................................................................................................... 4-214-21

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction xi

D

RAFT

D

RAFT

List of procedures

....................................................................................................................................................................................................................................

xii Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

About this documentAbout this document

Purpose

The purpose of this document is to provide hardware installation instructions for an

Alcatel-Lucent 9764 Metro Cell Outdoor V1.0 B2 WCDMA 1W.

Procedures are provided for mounting, grounding, powering, and cabling the Metro Cell.

Reason for reissue

The reissue reasons are:

Issue number Issue Date Reason for reissue

0.06 February 2013 Preliminary issue

0.05 December 2012 Preliminary issue

0.04 December 2012 Preliminary issue

0.03 November 2012 Preliminary issue

0.02 November 2012 Draft

RF exposure safety and conformance

statements updated, Metro Dock and

MCO chapters updated.

0.01 November 2012 Draft

New in this release

This is a new document.

Intended audience

The audience for this document is Installation personnel.

...................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction xiii

D

RAFT

D

RAFT

Supported systems

This document applies to the following:

•Alcatel-Lucent 9764 Metro Cell Outdoor V1.0 B2 WCDMA 1W (1900 MHz)

•Alcatel-Lucent 9764 Metro Dock.

How to use this document

Start with the first chapter and work through the manual to the end. Once you have done

this, you will have carried out the hardware installation completely and in the proper

sequence.

Prior to installing the equipment, the installer should be familiar with the safety

precautions, warnings, and product conformance statements. Required tools and materials

recommended for installation, and a process checklist, are listed in topic “Pre-installation

information” .

Safety information

For your safety, this document contains safety statements. Safety statements are given at

points where risks of damage to personnel, equipment, and operation may exist. Failure to

follow the directions in a safety statement may result in serious consequences.

Prerequisites

None

Conventions used

Vocabulary conventions

In this document the Alcatel-Lucent 9764 Metro Cell Outdoor V1.0 B2 WCDMA 1W

product is referred to as the “Alcatel-Lucent 9764 MCO V1.0 B2 WCDMA 1W” or the

“9764 MCO V1.0 B2 WCDMA 1W”.

The following vocabulary conventions are also used when referring to Alcatel-Lucent

products:

Table 1 Terminology

Term Description/Meaning

9764 MCO The 9764 MCO consists of the following modules: 9764 Metro

Dock module, and the 9764 MCO WCDMA module.

9764 Metro Dock Refers to the Alcatel-Lucent 9764 Metro Dock, a module supporting

backhaul for the 9764 MCO.

About this document

....................................................................................................................................................................................................................................

xiv Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Table 1 Terminology (continued)

Term Description/Meaning

9764 MCO WCDMA Refers to the module that contains the complete base station,

including baseband unit, radio unit and antenna. It is attached to the

front of the 9764 Metro Dock to form the 9764 MCO.

9764 MCO V1.0 B2

WCDMA 1W

Refers to the specific model of the 9764 MCO WCDMA module

that is the focus of this document.

Typographical conventions

The typographical conventions used in this document are described in the following table.

Appearance Description

emphasis Text that is emphasized

document titles Titles of books or other documents

graphical user interface text Text that is displayed in a graphical user

interface

variables

A value or command-line parameter that the

user provides

Technical conventions

Lengths and other measurements are given in metric units, with non-metric units given as

equivalents for use in non-metric markets.

For manufactured parts, the following system of conventions is used:

•Metric sizes of nuts, bolts, flat washers, and lock washers are identified by an

uppercase letter M followed immediately by a size in millimeters (example: M10)

•American fractional sizes of nuts, bolts, anchor bolts, and washers are identified by a

number followed immediately by a double apostrophe (example: 3/8"). In the case of

lengths measured in feet, “2 feet” is used rather than “2'” so that the single apostrophe

is not overlooked.

The illustrations in this document do not contain all details and exceptions, but are

intended to highlight main points. Dimensions are usually shown in millimeters, with

inches in parenthesis. As an example, 680.0 (26.77) equals 680 millimeters or 26.77

inches.

Wire gauges are specified in metric units. Equivalent sizes in the American Wire Gauge

(AWG) system are given in the following table:

Standard cross-sections and wire diameter of round copper conductors

About this document

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction xv

D

RAFT

D

RAFT

The following table is from CEI/IEC 60947-1:2004, Table 1, Standard cross-sections of

round copper conductors and approximate relationship between mm2and AWG/kcmil

sizes for reference. Additional wire sizes are included in this document as appropriate for

the topic.

ISO rated cross-sectional area (mm2) AWG/kcmil size

0.2 24

0.34 22

0.5 20

0.75 18

1-

1.5 16

2.5 14

412

610

10 8

16 6

25 4

35 2

-1

50 0 (1/0)

70 00 (2/0)

95 000 (3/0)

- 0000 (4/0)

120 250 kcmil

150 300 kcmil

185 350 kcmil

- 400 kcmil

240 500 kcmil

300 600 kcmil

NOTE: The dash, when it appears, counts as a size when considering connecting capacity (see

7.1.7.2 in the standard).

About this document

....................................................................................................................................................................................................................................

xvi Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Related information

For information on subjects related to the content of this document, refer to the

documents listed in the following table:

Refer to this document At this location For more information on

Alcatel-Lucent 9764 Metro

Cell Outdoor V1.0 B2

WCDMA 1W Technical

Description,

9YZ-04190-0001-DEZZA

http://support.alcatel-

lucent.com

Technical Description

Alcatel-Lucent 9764 Metro

Cell Outdoor V1.0 B2

WCDMA 1W Site

Preparation,

3MN-01703-0001-RJZZA

http://support.alcatel-

lucent.com

Site preparation

Standard for Installation of

Lightning Protection Systems,

NFPA

http://webstore.ansi.org/

default.aspx

Lightning protection systems

Recommended Practices on

Surge Voltages in Low Voltage

AC Power Circuits, IEEE

C62.41 (Latest Edition)

http://www.ieee.org/index.

html

Power

Document support

For support in using this or any other Alcatel-Lucent document, contact Alcatel-Lucent at

one of the following telephone numbers:

•+1-888-582-3688 (for the United States)

•+1-630-224-2485 (for all other countries)

Technical support

For technical support, contact your local Alcatel-Lucent customer support team. See the

Alcatel-Lucent Support web site (http://www.alcatel-lucent.com/support/) for contact

information.

How to order

To order Alcatel-Lucent documents, contact your local sales representative or use Online

Customer Support (OLCS) (http://support.alcatel-lucent.com).

About this document

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction xvii

D

RAFT

D

RAFT

How to comment

To comment on this document, go to the Online Comment Form (http://infodoc.alcatel-

lucent.com/comments/) or e-mail your comments to the Comments Hotline

(comments@alcatel-lucent.com).

About this document

....................................................................................................................................................................................................................................

xviii Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

11Safety statements

Overview

Purpose

This chapter provides general information on the structure of safety instructions and

summarizes general safety requirements.

General safety and residual risk

The equipment has been developed in line with state-of-the-art technology and conforms

with current national and international safety requirements.

The equipment is considered safe during normal operation when safe working practices

are complied with. However, hazards may arise if procedures are not followed correctly

or safe working practices are not complied with.

Contents

Structure of safety statements 1-2

Safety 1-4

Safety - specific hazards 1-5

Product safety 1-8

...................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-1

D

RAFT

D

RAFT

Structure of safety statements

Overview

This topic describes the components of safety statements that appear in this document.

General structure

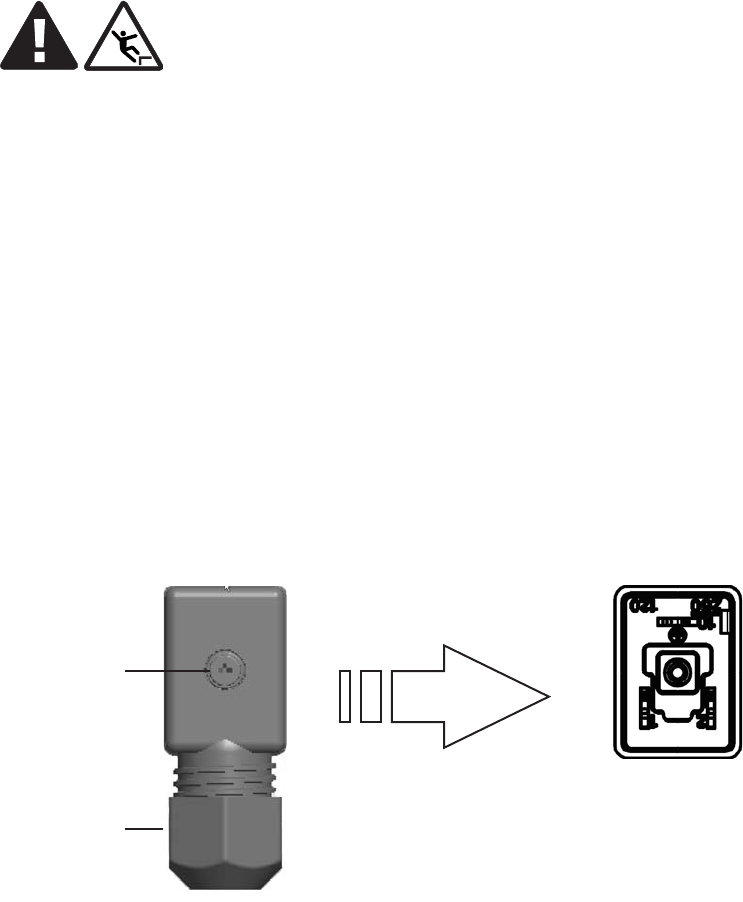

Safety statements include the following structural elements:

Item Structure element Purpose

1 Safety alert symbol Indicates the potential for personal injury

(optional)

2 Safety symbol Indicates hazard type (optional)

3 Signal word Indicates the severity of the hazard

4 Hazard type Describes the source of the risk of damage or

injury

5 Safety message Consequences if protective measures fail

6 Avoidance message Protective measures to take to avoid the hazard

7 Identifier The reference ID of the safety statement

(optional)

SAMPLE

BC D

EF

G

H

Lifting this equipment by yourself can result in injury

due to the size and weight of the equipment.

Always use three people or a lifting device to transport

and position this equipment. [ABC123]

CAUTION

Lifting hazard

Safety statements Structure of safety statements

....................................................................................................................................................................................................................................

1-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Signal words

The signal words identify the hazard severity levels as follows:

Signal word Meaning

DANGER Indicates an extremely hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE Indicates a hazardous situation not related to personal injury.

Safety statements Structure of safety statements

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-3

D

RAFT

D

RAFT

Safety

General precautions for installation procedures

WARNING

Failure to observe these safety precautions may result in personal

injury or damage to equipment.

•Read and understand all instructions.

•Follow all warnings and instructions marked on this product.

•Installation and maintenance procedures must be followed and performed by

trained personnel only.

•The equipment must be provided with a readily accessible disconnect device

as part of site preparation.

•Grounding and circuit continuity is vital for safe operation of the equipment.

Never operate the equipment with grounding/bonding conductor

disconnected.

•Install only equipment identified in the product's installation manual. Use of

other equipment may result in an improper connection which could lead to

fire or injury.

•Use caution when installing or modifying telecommunications equipment.

•Before servicing, disconnect power input to reduce the risk of energy

hazards.

•For continued protection against risk of fire, all fuses used in this product

must be replaced only with fuses of the same type and rating.

•Never install telecommunications equipment during a lightning storm or

when conditions are wet.

•Never touch uninsulated wiring or terminals carrying direct current or

ringing current, and never leave this wiring exposed. Protect and tape

uninsulated wiring and terminals to avoid risk of fire, electrical shock, and

injury to personnel.

•Never spill liquids of any kind on the product.

•To reduce the risk of an electrical shock, do not disassemble the product.

Opening and removing covers and/or circuit boards may expose you to

dangerous voltages or other risks. Incorrect reassembly can cause electrical

shock when the unit is subsequently used.

Safety statements Safety

....................................................................................................................................................................................................................................

1-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Safety - specific hazards

DANGER

Electric-shock hazard

Working in severe weather can result in personal injury or death and damage to the

equipment.

Never install or perform maintenance during severe weather (high winds, lightning,

blizzards, hurricane etc.).

DANGER

Noxious-substance hazard

Use of unspecified cleaning agents can result in personal injury.

Use only specified cleaning agents. Never use flammable solvents.

Always ensure there is adequate ventilation in the work area and wear the appropriate

personal protective equipment.

CAUTION

RF hazard

RF exposure in excess of applicable limits can result adverse health effects.

Metro Cells are designed and installed in order to comply with the international exposure

guidelines laid down by the International Commission on Non-Ionizing Radiation

Protection (ICNIRP) and/or the Institute of Electrical & Electronics Engineers (IEEE)

C95.1. ICNIRP guidelines have been implemented by the European Commission and a

number of other countries. IEEE guidelines have been implemented in North America and

some other countries.

Workers that are required to work in close proximity to the equipment, for example

maintenance personnel, should strictly follow instructions provided by their employer.

Workers equipped with personal medical electronic devices, such as pacemakers and

hearing aids, shall consult the manufacturer's instructions and consult their occupational

health practitioner.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-5

D

RAFT

D

RAFT

WARNING

Electric-shock hazard

Some parts of all electrical installations are energized. Failure to observe this fact and

the safety warnings may lead to bodily injury and property damage.

For this reason, only trained and qualified personnel (electrical workers as defined in

IEC 60215 + A1 or EN 60215) may install or service the installation.

WARNING

Electric-shock hazard

The power supply lines to the network element are energized. Contact with parts carrying

voltage can cause health problems, possibly including death, even hours after the event.

Open and lockout the load disconnect switch in the distribution box to completely

de-energize the network element.

WARNING

Electric-shock hazard

This product may be connected to an DC main power supply and may contain an internal

battery supply. Disconnecting one power source may not de-energize the system, and can

lead to serious injury.

Disconnect and lock out the DC main power supply, if present, and the internal battery

supply, if present, before servicing the equipment.

WARNING

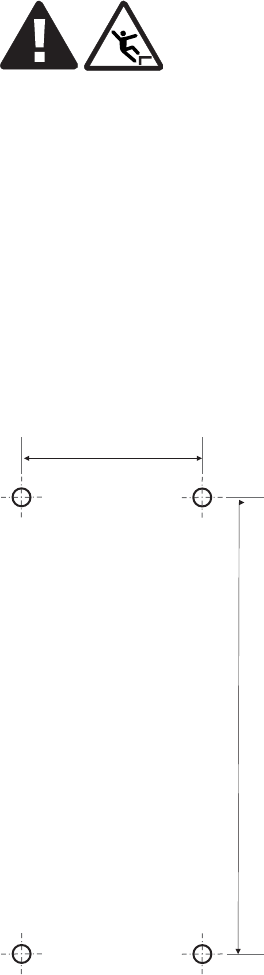

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

1-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

NOTICE

Condensation

Sudden changes in the weather may lead to the formation of condensation on

components. Operating the unit when condensation moisture is present can destroy the

unit.

Units which show signs of condensation must be dried before installation.

NOTICE

Tools

Tools left in the working area can cause short circuits during operation which can lead to

the destruction of units.

Make sure after finishing your work that no tools, testing equipment, flashlights, etc.,

have been left in or on the equipment.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-7

D

RAFT

D

RAFT

Product safety

Equipment safety

Safety information for this equipment can be found on various Caution, Warning, Danger,

information labels or instructions affixed to or included with the product or included

within this document. Informational and cautionary labels may appear near the item they

address or may be grouped in a single location on the equipment. Warnings are typically

adjacent to the hazard that is noted on the label. The instructions, cautions and warnings

found on these labels must be understood and observed by all personnel involved with the

equipment installation and maintenance.

Safety statements Product safety

....................................................................................................................................................................................................................................

1-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

22Product overview

Overview

Purpose

This chapter provides an overview of the Alcatel-Lucent 9764 Metro Cell Outdoor V1.0

B2 WCDMA 1W product.

Note:

1. CE certification for electrical backhaul will be completed by RFOA.

2. UL/FCC certification will be complete and product labels that include the UL/FCC

marking will be available when the product reaches RFOA.

Contents

Functional description 2-2

Physical description 2-3

Hardware and ancillary items 2-8

...................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-1

D

RAFT

D

RAFT

Functional description

General description

As a key component of the Alcatel-Lucent lightRadio™ network, Alcatel-Lucent Metro

Cells enable mobile service providers (MSPs) to deliver cost-effective capacity to urban

spots, as well as affordable coverage to rural locations. They also enhance the quality of

experience (QoE) for end users by enabling faster, more reliable data connections and

higher data throughput on 3G networks.

The Alcatel-Lucent 9764 Metro Cell Outdoor V1.0 B2 WCDMA 1W product specified

here is targeted for high user density locations where additional capacity is required or

even in areas where cell phone coverage is needed on short notice. The product can be

deployed by mobile operators to provide a transparent outdoor capacity layer to

complement the macro cell “umbrella” coverage layer.

Product features and capabilities

The product features and capabilities in this release are:

•Integrated BBU, lightRadio™ cube enabled, 1900 MHz

•Supports up to 32 HSPA users simultaneously

•High transmit power: 1W at the internal antenna connector

•Capable of supporting a 21 Mbit/s HSDPA radio bearer (with the 64 QAM feature)

and a 5.7 Mbit/s HSUPA radio bearer

•Integrated 8dBi minimum gain directional “Cube-based” antennas

•Supports Rx space diversity, improving the signal quality and accommodating more

users

•The modular metro dock comes in different variants depending on backhaul options

(including Gigabit Ethernet)

•Supports a A-GPS receiver to provide localization of the unit.

Deployment scenarios

The Alcatel-Lucent 9764 MCO V1.0 B2 WCDMA 1W is located outdoor in public places

and can be mounted on walls, lamp posts, poles or even on the side of a building in a

vertical orientation.

Product overview Functional description

....................................................................................................................................................................................................................................

2-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Physical description

Product overview

The Alcatel-Lucent 9764 Metro Cell Outdoor V1.0 B2 WCDMA 1W is housed in an

Alcatel-Lucent generic metallic case. The product is designed to be deployed close to the

users, usually in streets on light poles or on walls of buildings, with a vertical profile that

hides cable connectors and mounting kit for a smooth integration into the surrounding

environment.

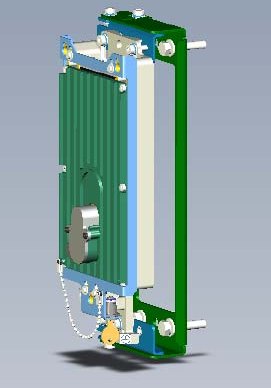

The 9764 MCO V1.0 B2 WCDMA 1W product is shown in the following figure.

In order to simplify configurations the backhaul access function and the radio part

functions are separated, with a common interface is defined:

Unit Function Description

9764 Metro Dock Backhaul access function Supports backhaul options

Holds the 9764 MCO module in place

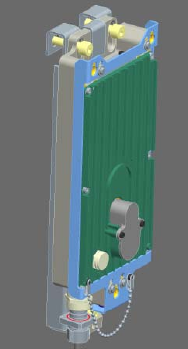

Figure 2-1 9764 MCO V1.0 B2 WCDMA 1W

9764 Metro Dock

Top view

Bottom view

9764 Metro Dock

and

9764 MCO B2 WCDMA 1W module

(reverse view)

Product overview Physical description

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-3

D

RAFT

D

RAFT

Unit Function Description

9764 MCO

module

Radio part function Radio functions

Digital processing functions

Power supply functions

Weights and dimensions

The physical dimensions of the Alcatel-Lucent 9764 MCO are:

Dimensions (9764 MCO WCDMA

module + 9764 Metro Dock module)

(Height x Width x Depth)

363 x 138 x 124 mm (with GPS antenna)

Volume (9764 MCO WCDMA

module + 9764 Metro Dock module)

5.5L

Weight (9764 MCO WCDMA

module only)

3.5 kg

Weight (9764 MCO WCDMA

module + 9764 Metro Dock module)

4.47 kg

Product overview Physical description

....................................................................................................................................................................................................................................

2-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Alcatel-Lucent 9764 Metro Cell Outdoor WCDMA overview

The 9764 MCO WCDMA module is made up of three main units which are responsible

for radio, digital processing and power supply functions.

Unit Function

9764 MCO WCDMA board Digital part:

•Giga Ethernet switch

•PicoChip PC333 + memories (MoDem and control

function)

•9764 Metro Dock interface (Data, control and power

supply)

Radio part:

•WCDMA Band 2

•Single TX 1W at antenna connector

•Dual RX for diversity management

•2G/3G sniffing supported on both band 2 (1900MHz) and

band 5 (850MHz)

Power supply part:

•DC/DC converter for digital and radio

•DC/DC converter for 9764 Metro Dock

Antennas •Dual coupled TX RX antennas for main and diversity

management

•2G/3G sniffing supported on both band 2 (1900MHz) and

band 5 (850MHz)

Power supply •DC/DC converter (Input -48V ; Output 12V)

9764 MCO WCDMA module connection interfaces

The following figure shows the connection interfaces for the 9764 MCO WCDMA

module.

Product overview Physical description

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-5

D

RAFT

D

RAFT

Connection location Description

9764 MCO WCDMA module

(back)

A -48V DC power supply connector

A blind mate connector for connecting the 9764 MCO

WCDMA module and the 9764 Metro Dock module

QMA GPS antenna connector

Power supply

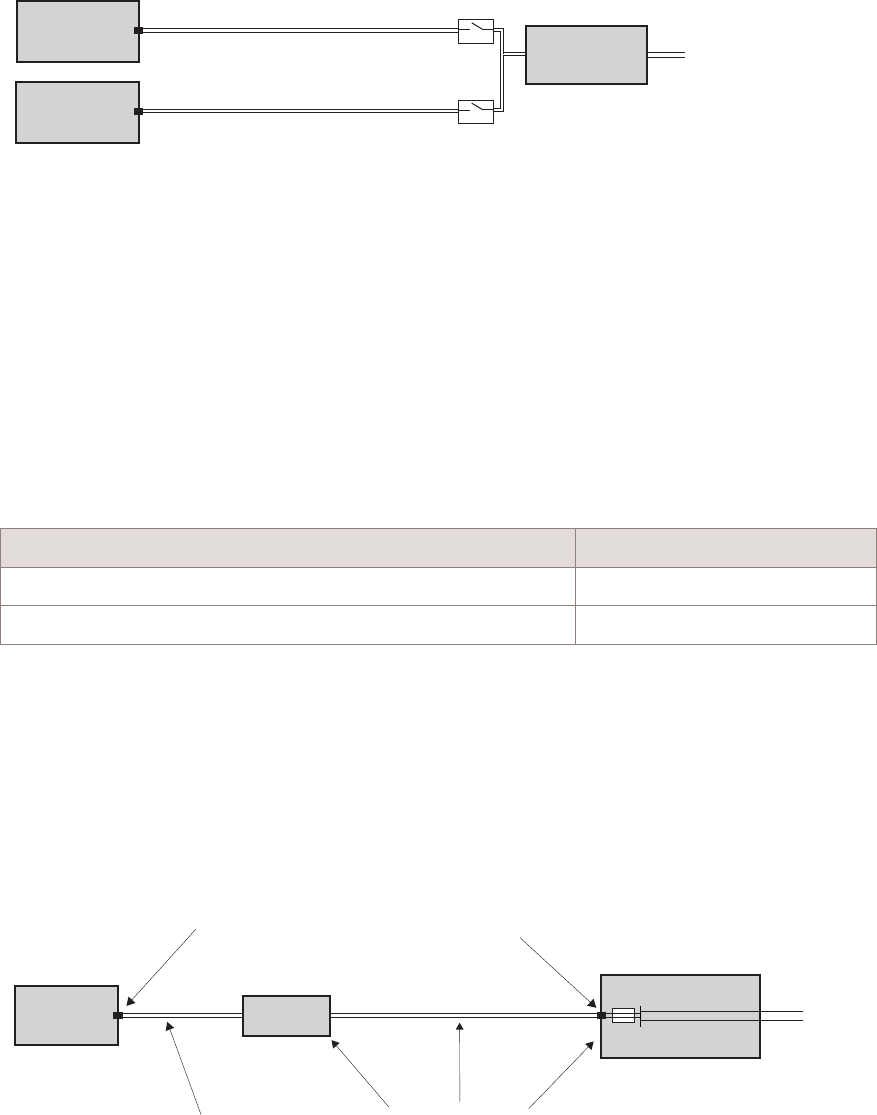

The 9764 MCO V1.0 B2 WCDMA 1W is powered by -48V DC (a DC/DC converter is

integrated inside the 9764 MCO WCDMA module). This DC connector supplies power

for the 9764 MCO WCDMA module, and the 9764 Metro Dock module.

RF Antenna

Two directional cross polarized main antennas are included witha>8dBigain, antenna

beam is 45° +/-5° vertical and 75° +/-5° horizontal half power beam width.

GPS Antenna

GPS antenna mounted on top of the 9764 MCO WCDMA module providing assisted GPS

capability for localization of the unit.

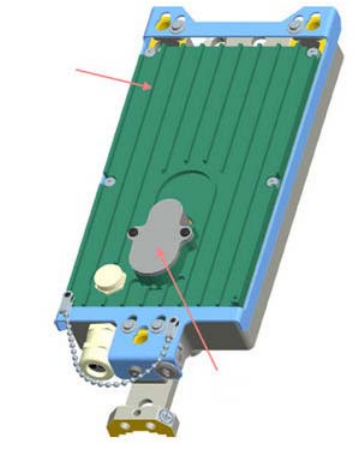

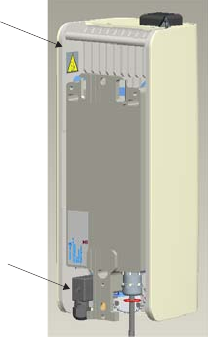

Figure 2-2 9764 MCO WCDMA module and 9764 Metro Dock module connectors

Power connector

Blind mate connector

between Metro Cell Module

and the Metro Dock

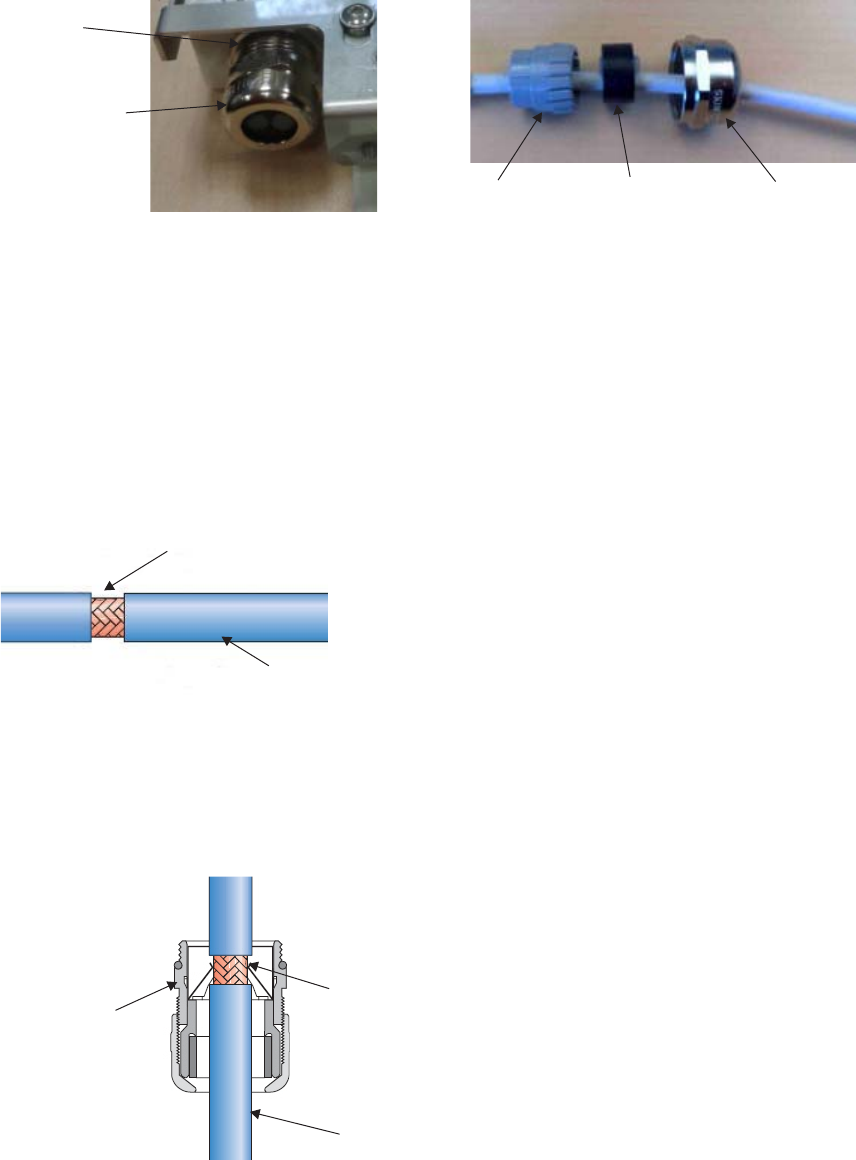

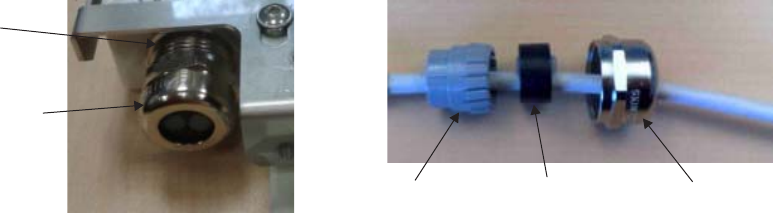

Cable gland

9764 MCO B2

W-CDMA module

9764 Metro Dock

module

GPS connector

Product overview Physical description

....................................................................................................................................................................................................................................

2-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Debug interface

The Alcatel-Lucent 9764 MCO V1.0 B2 WCDMA 1W supports four LEDs.

Note: LEDs can be used for debugging purposes during installation and

commissioning. They are not intended for use during normal operation of the

equipment.

LED LED Icon LED description

LED1 Power

LED2 System

LED3 Phone

LED4

GPS

Product labelling

A product label provides the following information:

•Model name

•Part number

•Serial number

•MAC address

•Power input range

•FCC, CSA and IC marking

Product overview Physical description

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-7

D

RAFT

D

RAFT

Hardware and ancillary items

Overview

The following section lists the Alcatel-Lucent 9764 Metro Cell Outdoor base hardware

equipment, the installation kits and ancillary items that can be ordered from

Alcatel-Lucent.

Supported installation options

The Alcatel-Lucent 9764 Metro Cell Outdoor is designed to be installed outdoors and can

be mounted either on:

•Poles, lamp posts, or

•Walls, sides of buildings

9764 MCO base items

The Alcatel-Lucent 9764 Metro Cell Outdoor V1.0 B2 WCDMA 1W packaging contains

the following base items:

•9764 MCO V1.0 B2 WCDMA 1W module

9764 Metro Dock base items

The Alcatel-Lucent 9764 Metro Dock packaging contains the following base items:

•9764 Metro Dock (including lock and key)

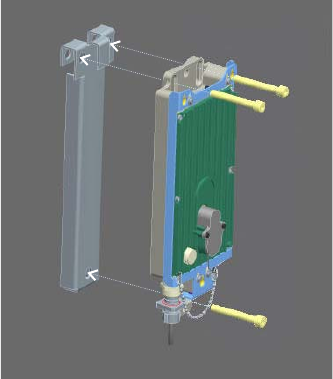

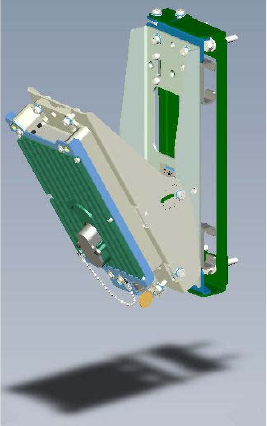

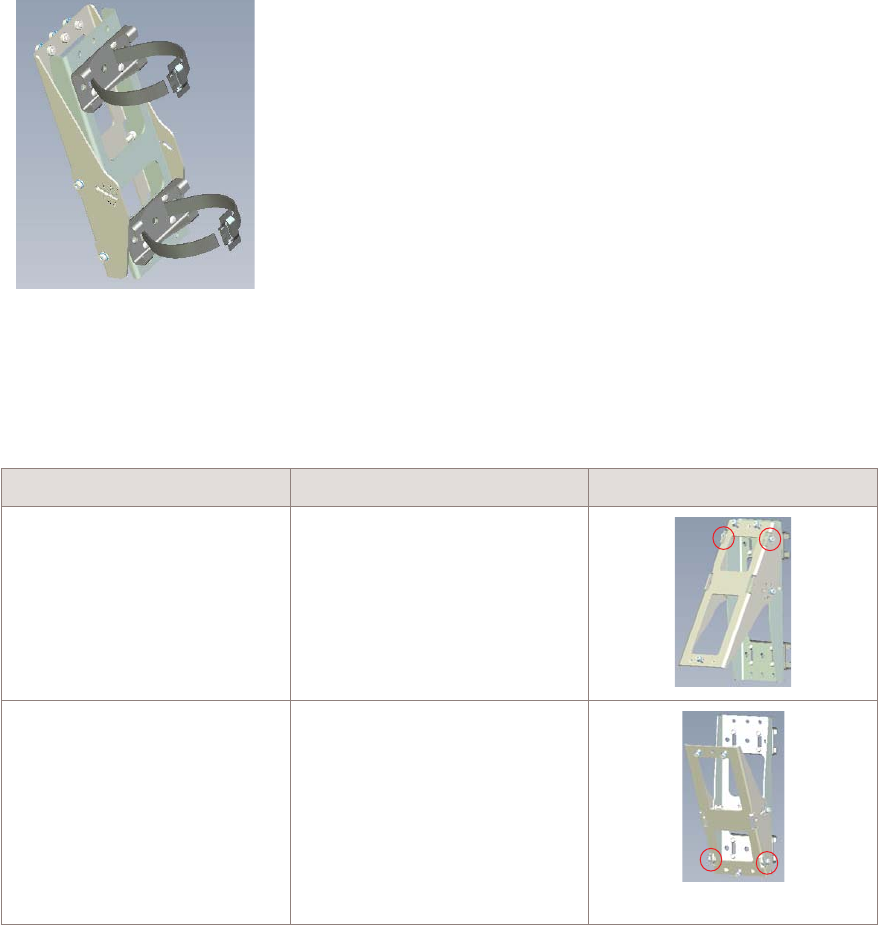

Figure 2-3 9764 MCO installation examples

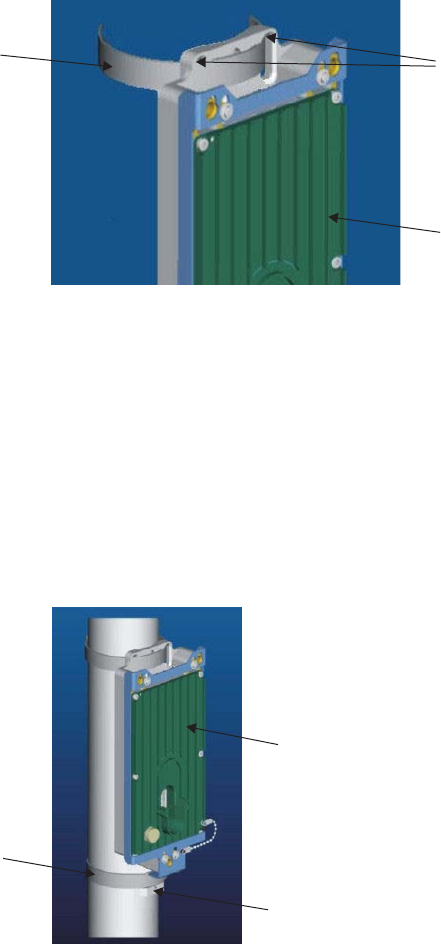

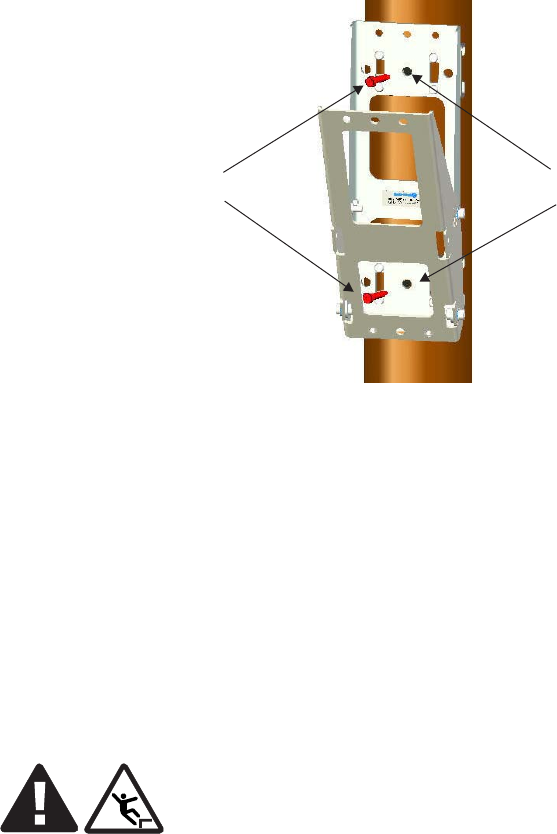

Pole mount installation Wall mount installation

Product overview Hardware and ancillary items

....................................................................................................................................................................................................................................

2-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Installation kits

The following table list the installation kits that are available for order from

Alcatel-Lucent in support of the equipment installation options.

Code Installation kit Description Use

3JR30046AA Banding kit Stainless steel bands

Band buckles (Ear-Lokt)

Mandatory:

•pole mount only

1AD150180001 Banding tool Standard BAND-IT®

Banding Tool (CR00169),

including operating

instructions

Mandatory:

•use with the Banding kit for

pole mount only

3BK60980AA Wall spacer kit 9764 Metro Dock wall spacer Mandatory:

•wall mount without tilt

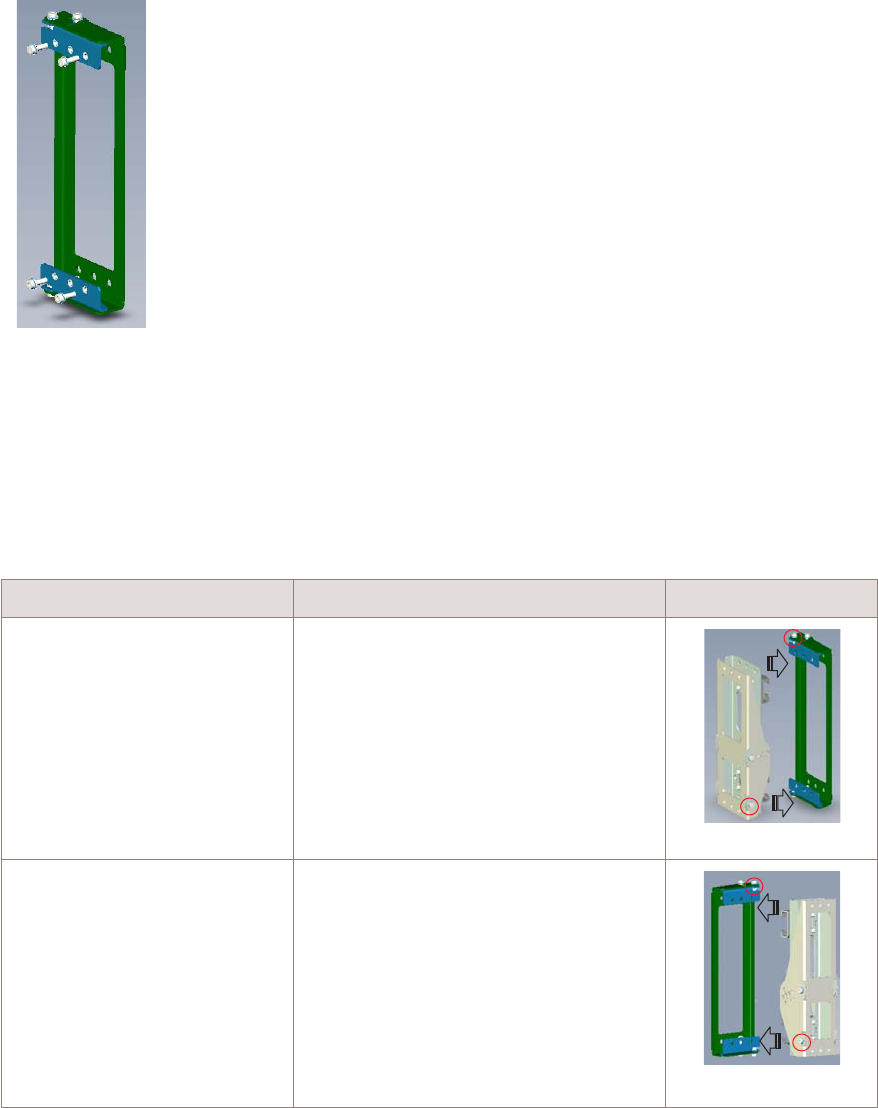

3BK61036AB Vertical tilt installation

kit

Vertical tilt bracket Mandatory:

•pole mount with tilt

•wall mount: with vertical

only

•wall mount: with vertical and

horizontal tilt

3BK61037AA Horizontal tilt

installation kit

Horizontal tilt bracket Mandatory:

•wall mount: with horizontal

tilt only

•wall mount: with horizontal

and vertical tilt

3JR30045AA Basic installation kit Ground cable lugs and

screws, tie wraps

Mandatory

All installation scenarios

1AB328430001 Surge arrestor Ethernet surge arrestor Optional

Electrical Ethernet backhaul

configuration only

tbd Surge arrestor mounting

kit

Surge arrestor bracket (pole

and wall)

Metal bands and buckles

Ethernet cable (0.6m

outdoor), spare RJ45

connectors

Optional

Electrical Ethernet backhaul

configuration only

Ancillary items

The following tables list the ancillary items that are available for order from

Alcatel-Lucent in support of the defined equipment installation and configuration options.

Product overview Hardware and ancillary items

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-9

D

RAFT

D

RAFT

Power

Code Item Description Use

tbd Power cable tbd Mandatory

100m cable roll

1AB418220002 Power connector DC power connector (Molex) Mandatory

All installation scenarios

Grounding

Code Item Description Use

tbd Ground cable tbd Mandatory

100m cable roll

SFP modules

Code Item Description Use

1AB413590001 SFP module SFP GBE 10/100/1000BaseT

(copper)

Optional

Dependant on backhaul interface

configuration

1AB187280029 SFP module SFP GBE 1000BaseLX

(Single mode)

Optional

Dependant on backhaul interface

configuration

1AB187280063 SFP module SFP GBE 1000BaseSX

(Multi mode)

Optional

Dependant on backhaul interface

configuration

Ethernet cable - Electrical

Code Item Description Use

tbd Electrical Ethernet cable 2m outdoor, 4 pairs, 2 RJ45 Optional

Use with SFP GBE

10/100/1000BaseT

tbd Electrical Ethernet cable 25m outdoor, 4 pairs, 2 RJ45 Optional

Use with SFP GBE

10/100/1000BaseT

tbd Electrical Ethernet cable 100m outdoor, 4 pairs, 2

RJ45

Optional

Use with SFP GBE

10/100/1000BaseT

Product overview Hardware and ancillary items

....................................................................................................................................................................................................................................

2-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Ethernet cable - Optical

Code Item Description Use

849147590 Fiber Optic cable LC-LC 2SM 2.5m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849134879 Fiber Optic cable LC-LC 2SM 5m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849122239 Fiber Optic cable LC-LC 2SM 15m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849125380 Fiber Optic cable LC-LC 2SM 30m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849122247 Fiber Optic cable LC-LC 2SM 50m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849123591 Fiber Optic cable LC-LC 2SM 70m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849125398 Fiber Optic cable LC-LC 2SM 85m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849123609 Fiber Optic cable LC-LC 2SM 100m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849125406 Fiber Optic cable LC-LC 2SM 150m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849125414 Fiber Optic cable LC-LC 2SM 200m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849125422 Fiber Optic cable LC-LC 2SM 250m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849125430 Fiber Optic cable LC-LC 2SM 300m Optional

Use with SFP GBE 1000BaseLX

(Single mode)

849147608 Fiber Optic cable LC-LC 2MM 2.5m Optional

SFP GBE 1000BaseSX (Multi

mode)

Product overview Hardware and ancillary items

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-11

D

RAFT

D

RAFT

Code Item Description Use

849125513 Fiber Optic cable LC-LC 2MM 5m Optional

SFP GBE 1000BaseSX (Multi

mode)

849122270 Fiber Optic cable LC-LC 2MM 15m Optional

SFP GBE 1000BaseSX (Multi

mode)

849125521 Fiber Optic cable LC-LC 2MM 30m Optional

SFP GBE 1000BaseSX (Multi

mode)

849122288 Fiber Optic cable LC-LC 2MM 50m Optional

SFP GBE 1000BaseSX (Multi

mode)

849123633 Fiber Optic cable LC-LC 2MM 70m Optional

SFP GBE 1000BaseSX (Multi

mode)

849125539 Fiber Optic cable LC-LC 2MM 85m Optional

SFP GBE 1000BaseSX (Multi

mode)

849123641 Fiber Optic cable LC-LC 2MM 100m Optional

SFP GBE 1000BaseSX (Multi

mode)

849125547 Fiber Optic cable LC-LC 2MM 150m Optional

SFP GBE 1000BaseSX (Multi

mode)

Product overview Hardware and ancillary items

....................................................................................................................................................................................................................................

2-12 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

33Installation of the 9764

Metro Dock

Overview

Purpose

This chapter provides the information and procedures for mounting the 9764 Metro Dock

onto a pole or wall, with or without the optional tilt mechanism.

Contents

9764 Metro Dock pre-installation 3-2

9764 Metro Dock Pre-installation information 3-3

9764 Metro Dock installation 3-5

Procedure 3-1: Mount 9764 Metro Dock onto pole 3-6

Procedure 3-2: Mount the 9764 Metro Dock onto pole using optional tilt

brackets

3-11

Procedure 3-3: Mount the 9764 Metro Dock onto a wall 3-20

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using vertical tilt

bracket

3-25

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using horizontal tilt

bracket

3-33

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using combined

horizontal and vertical tilt brackets

3-41

9764 Metro Dock cabling 3-51

Procedure 3-7: 9764 Metro Dock ground cabling 3-52

Procedure 3-8: 9764 Metro Dock Ethernet cabling - fiber optic 3-54

Procedure 3-9: 9764 Metro Dock Ethernet cabling - electrical 3-59

9764 Metro Dock post-installation 3-66

Procedure 3-10: Final installation activities and checks 3-67

...................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-1

D

RAFT

D

RAFT

9764 Metro Dock pre-installation

Overview

Purpose

This section provides pre-installation information as well as listing tools and materials

required for Alcatel-Lucent 9764 Metro Dock mounting.

Contents

9764 Metro Dock Pre-installation information 3-3

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Overview

....................................................................................................................................................................................................................................

3-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

9764 Metro Dock Pre-installation information

Verify site preparation

The following site preparation requirements should be checked and met before the

installation of the equipment can begin. If some of the requirements are not met, the

installer must do so now:

•Ensure equipment is planned to be installed as high as possible to avoid obstructions

•Consider nearby sources of interference. Also check possibility of future obstructions

such as plans to erect buildings and trees that may grow tall enough to obstruct the

wireless path

•Ensure adequate clearance is provided for service access

•Ground, power and backhaul cabling has been routed and is in place

•Ensure any site specific fixing materials (screws, washers, wall plugs) for pole/wall

mounting the equipment are available.

Product delivery contents

Unpack and examine the product packaging contents. If you notice any damage, or

missing items as listed in the Packing List, immediately notify the carrier that delivered

the unit and contact your Alcatel-Lucent representative.

The Alcatel-Lucent 9764 Metro Dock product packaging contains the following items:

•The 9764 Metro Dock module (including lock and key)

Installation kits

In addition to the standard product deliverable ensure the appropriate installation kits and

ancillary items are available to support the product mounting options.

Installation Kits Pole mount Wall mount

No tilt With tilt No tilt Vertical tilt

only

Horizontal

tilt only

Combined

horiz./vert. tilt

Banding kit Yes Yes

Banding tool Yes Yes

Vertical tilt kit Yes Yes Yes

Horizontal tilt kit Yes Yes

Wall spacer kit Yes

Basic kit Yes Yes Yes Yes Yes Yes

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

9764 Metro Dock Pre-installation information

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-3

D

RAFT

D

RAFT

Tools required for installation

The following tools may be used during installation:

•Drill (pneumatic hammer) and assorted drill bits

•Pliers

•Adjustable spanners

•M17 socket wrench

•Screwdrivers (power and/or manual):

– Phillips (flat blade)

– Torx (T-25 and T-40)

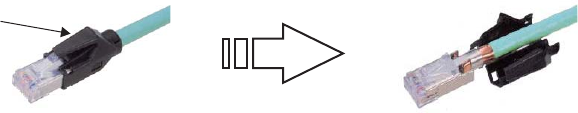

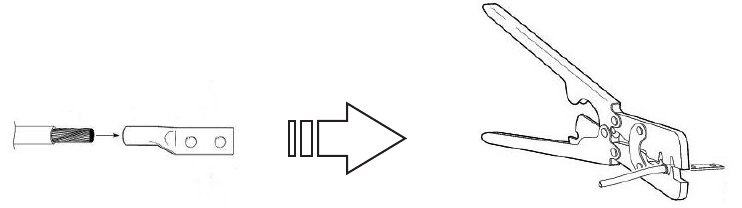

•HRS (Hirose) HT206/TM21p-88p crimping tool (for RJ45 cable)

•Data cable tester for shielded RJ45 (optional)

•Measuring tape

•Digital compass (to aid establishing product orientation)

•Marker, to mark wall mounting holes

•Vacuum cleaner or equivalent (required for clearing debris from wall mounting holes)

•Spirit level

•Hammer

•PIB (self-amalgamating) tape and 3M Super 33+ vinyl tape

•Ear protectors and safety goggles/glasses

•Assorted cable ties

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

9764 Metro Dock Pre-installation information

....................................................................................................................................................................................................................................

3-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

9764 Metro Dock installation

Overview

Purpose

This section provides the installation instructions for mounting the Alcatel-Lucent 9764

Metro Dock onto a pole or wall with or without the optional tilt mechanism.

Contents

Procedure 3-1: Mount 9764 Metro Dock onto pole 3-6

Procedure 3-2: Mount the 9764 Metro Dock onto pole using optional tilt

brackets

3-11

Procedure 3-3: Mount the 9764 Metro Dock onto a wall 3-20

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using vertical tilt

bracket

3-25

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using horizontal tilt

bracket

3-33

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using combined

horizontal and vertical tilt brackets

3-41

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Overview

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-5

D

RAFT

D

RAFT

Procedure 3-1: Mount 9764 Metro Dock onto pole

Purpose

This topic describes the procedures to be followed when installing the Alcatel-Lucent

9764 Metro Dock onto a pole (wooden or metal).

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated in order to maximize coverage. Before

installation begins you should ensure the following are in place:

•Ensure adequate clearance is provided for service access

•Ground cable has been routed and the site grounding system is in place

•Backhaul cable has been routed and is in place

•Any site specific mounting and anchor materials are available.

Attention: The 9764 Metro Dock must be mounted with the appropriate mounting

hardware suitable for the various supporting structures, building materials and

construction methods. Following a site survey, it is the responsibility of the customer

to ensure that:

•the installation support structure is adequate and compliant with Building Officials

and Code Administrators (BOCA), Uniform Building Code (UBC), and all other

national and local codes

•the appropriate mounting hardware and any necessary supporting material is used.

Pole mount installation

The 9764 Metro Dock is less than 1 kg (2.2 lbs) and can be easily mounted onto a pole

(wooden or metal) using the following installation kits, anchor materials and tools:

Anchor

method

Pole type Required materials and installation kits

“Metro Dock

pole mount

using screws”

(p. 3-7)

Wood Mounting screws and washers have to be locally supplied. Two

M8x50 stainless steel hex head screws (DIN 571 V2A) and two

M8x16x1.6 plain washers are recommended

“Metro Dock

pole mount

using bands”

(p. 3-8)

Wood or

metal

Pole banding kit (3JR30046AA)

Pole banding tool (1AD150180001)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-1: Mount 9764 Metro Dock onto pole

....................................................................................................................................................................................................................................

3-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

For a list of standard tools that may be required to support the installation, see “Tools

required for installation” (p. 3-4)

Before you begin

Record the 9764 Metro Dock 18 digit serial number before mounting onto a pole.

Metro Dock pole mount using screws

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to mount the 9764 Metro Dock onto a wooden pole

using screws.

...................................................................................................................................................................................................

1Measure the height at which the 9764 Metro Dock is to be positioned on the pole. Mark

this point.

...................................................................................................................................................................................................

2Using a digital compass determine the planned horizontal (left/right) orientation of the

9764 Metro Dock around the pole. Mark this position.

...................................................................................................................................................................................................

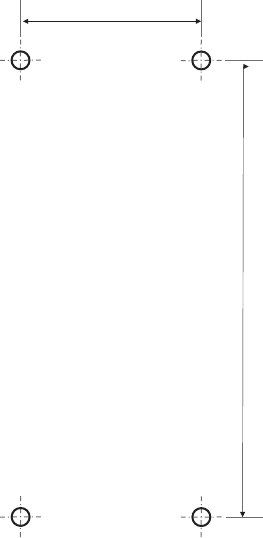

3At the identified 9764 Metro Dock position on the pole, mark the upper and lower screw

anchor holes. The distance between the upper and lower screw anchor holes should be

270 mm (10.63 inches).

Tip: The 9764 Metro Dock can be placed against the pole and used as a template to

mark the position of the upper and lower screw anchor holes.

...................................................................................................................................................................................................

4Place the 9764 Metro Dock against the pole aligning the upper and lower anchor holes on

the 9764 Metro Dock with the marked anchor hole positions on the pole.

...................................................................................................................................................................................................

5Place a washer on each of the anchor screws. Using socket wrench (M8) screw the 9764

Metro Dock onto the pole.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-1: Mount 9764 Metro Dock onto pole

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-7

D

RAFT

D

RAFT

...................................................................................................................................................................................................

6Finally, check the 9764 Metro Dock is secure and there is no movement of the equipment

on the pole.

Metro Dock pole mount using bands

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to mount the 9764 Metro Dock onto a pole (wooden or

metal) using standard pole bands.

...................................................................................................................................................................................................

1Measure the height at which the 9764 Metro Dock is to be positioned on the pole. Mark

this point.

...................................................................................................................................................................................................

2Using a digital compass determine the planned horizontal (left/right) orientation of the

9764 Metro Dock around the pole. Mark this position.

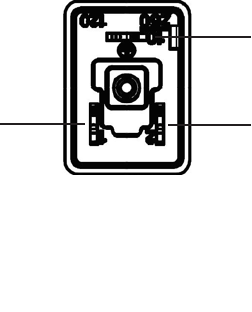

Upper and lower

Metro Dock anchor holes

(9 mm diameter)

M8x50 stainless steel

hex head screw and

M8x16x1.6 plain washer

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-1: Mount 9764 Metro Dock onto pole

....................................................................................................................................................................................................................................

3-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

3From the banding installation kit, take a steel pole band and thread the open end into the

upper two slots on the 9764 Metro Dock.

...................................................................................................................................................................................................

4At the marked installation point on the pole place the upper pole band around the pole at

the determined height. Carry out any required adjustment of the 9764 Metro Dock around

the pole so that it is pointing in the desired direction.

...................................................................................................................................................................................................

5Taking the other steel band, place the band around the lower lug on the 9764 Metro Dock

and the pole.

...................................................................................................................................................................................................

6Once the 9764 Metro Dock is in the correct position and orientation tighten and secure

the bands around the pole. Refer to BAND-IT®C00169 Hand Tool Operation

Instructions, PO5886.

Metro Dock

Upper Metro Dock

band slots

Upper band

Metro Dock

Lower band lug

Lower band

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-1: Mount 9764 Metro Dock onto pole

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-9

D

RAFT

D

RAFT

...................................................................................................................................................................................................

7Finally, check the banding is secure, there is no movement of the 9764 Metro Dock

around the pole and that the banding stubs (cut ends) are flattened down with a hammer.

Standard pole mount example

The following figure shows the 9764 Metro Dock mounted onto a wooden pole using

screws and a metal pole using bands.

How to continue

After mounting the 9764 Metro Dock onto a pole the cables need to be connected.

Continue with the, “9764 Metro Dock cabling” (p. 3-51) chapter.

Metro Dock banded

onto metal pole

Metro Dock screwed

onto wooden pole

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-1: Mount 9764 Metro Dock onto pole

....................................................................................................................................................................................................................................

3-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Procedure 3-2: Mount the 9764 Metro Dock onto pole using

optional tilt brackets

Purpose

This topic describes the procedures to be followed when installing the Alcatel-Lucent

9764 Metro Dock onto a pole (wooden or metal) using optional vertical tilt brackets.

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated in order to maximize coverage. Before

installation begins you should ensure the following are in place:

•Ensure adequate clearance is provided for service access

•Ground cable has been routed and the site grounding system is in place

•Backhaul cable has been routed and is in place

•Any site specific mounting and anchor materials are available.

Attention: The 9764 Metro Dock must be mounted with the appropriate mounting

hardware suitable for the various supporting structures, building materials and

construction methods. Following a site survey, it is the responsibility of the customer

to ensure that:

•the installation support structure is adequate and compliant with Building Officials

and Code Administrators (BOCA), Uniform Building Code (UBC), and all other

national and local codes

•the appropriate mounting hardware and any necessary supporting material is used.

Pole mount installation

The 9764 Metro Dock is less than 1 kg (2.2 lbs) and can be easily mounted onto a pole

(wooden or metal) using the following installation kits, anchor materials and tools:

Anchor

method

Pole

type

Required materials and installation kits

“Bracket pole

mount using

screws”

(p. 3-12)

Wood Vertical tilt installation kit (3BK61036AB)

Mounting screws and washers have to be locally supplied. Two

M8x50 stainless steel hex head screws (DIN 571 V2A) and two

M8x16x1.6 plain washers are recommended

“Bracket pole

mount using

bands”

(p. 3-14)

Wood

or metal

Vertical tilt installation kit (3BK61036AB)

Pole banding kit (3JR30046AA)

Pole banding tool (1AD150180001)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Mount the 9764 Metro Dock onto pole using

optional tilt brackets

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-11

D

RAFT

D

RAFT

For a list of standard tools that may be required to support the installation, see “Tools

required for installation” (p. 3-4)

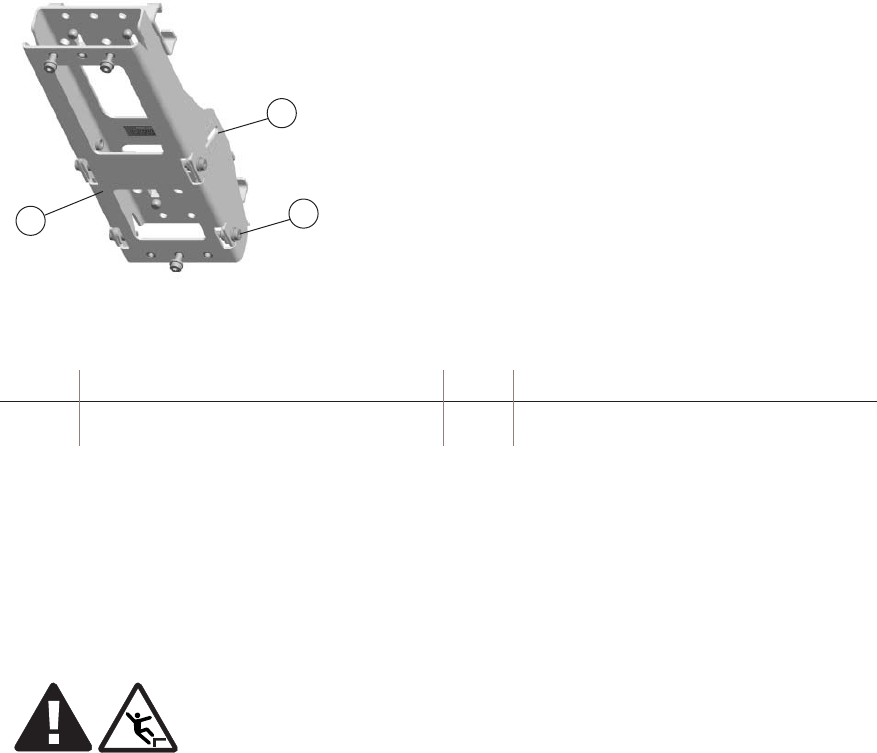

Legend:

1 Vertical tilt bracket 3 Bracket pivot point

2 Tilt angle positioning gauge

Before you begin

Record the 9764 Metro Dock 18 digit serial number before mounting onto a pole.

Bracket pole mount using screws

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure attach the vertical tilt bracket a wooden pole using

screws.

...................................................................................................................................................................................................

1Measure the height at which the 9764 Metro Dock is to be positioned on the pole. Mark

this point.

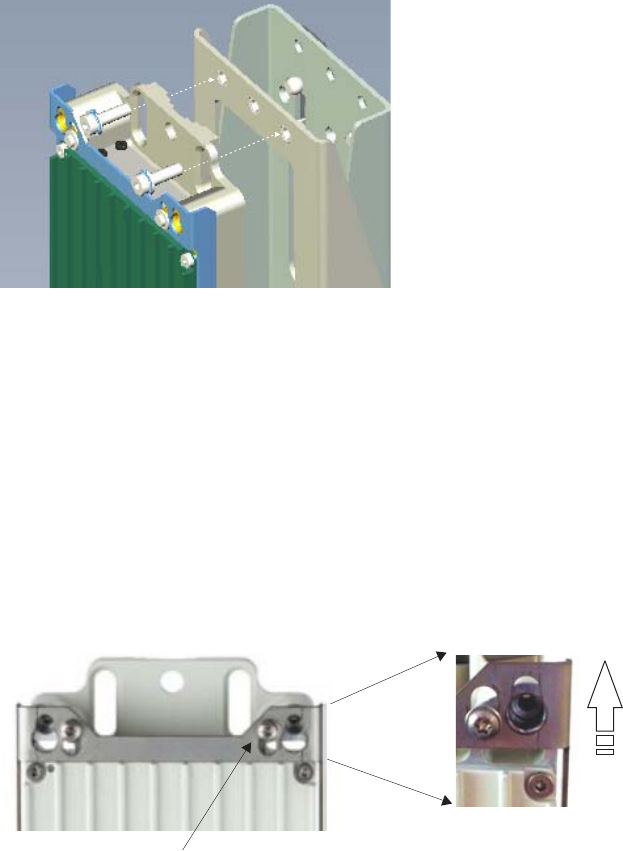

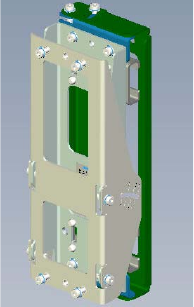

Figure 3-1 Vertical tilt bracket

1

2

3

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Mount the 9764 Metro Dock onto pole using

optional tilt brackets

....................................................................................................................................................................................................................................

3-12 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................

2Using a digital compass determine the planned horizontal (left/right) orientation of the

9764 Metro Dock around the pole. Mark this position.

...................................................................................................................................................................................................

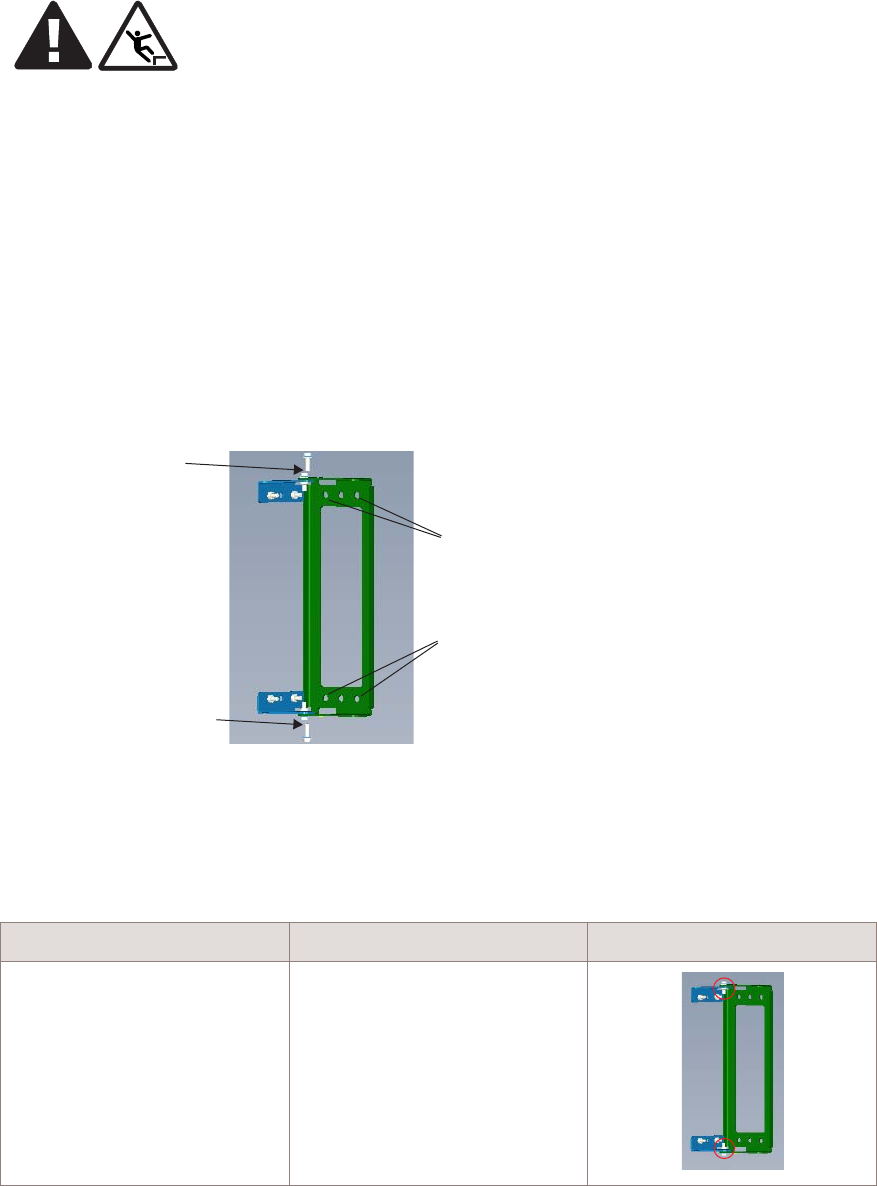

3At the identified 9764 Metro Dock position on the pole, mark the upper and lower screw

anchor holes for the tilt bracket. The distance between the upper and lower screw anchor

holes should be 200 mm (7.87 inches).

Tip: The vertical tilt bracket can be placed against the pole and used as a template to

mark the position of the upper and lower screw holes.

...................................................................................................................................................................................................

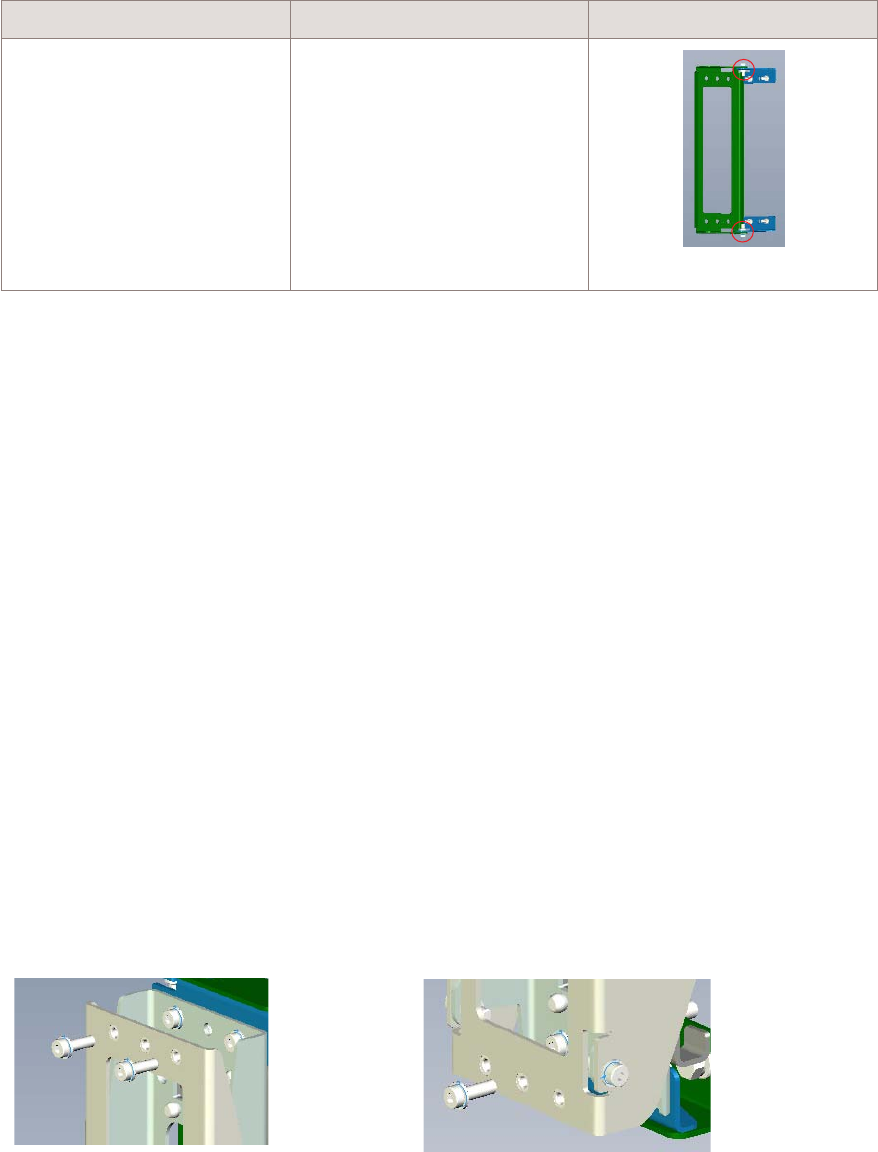

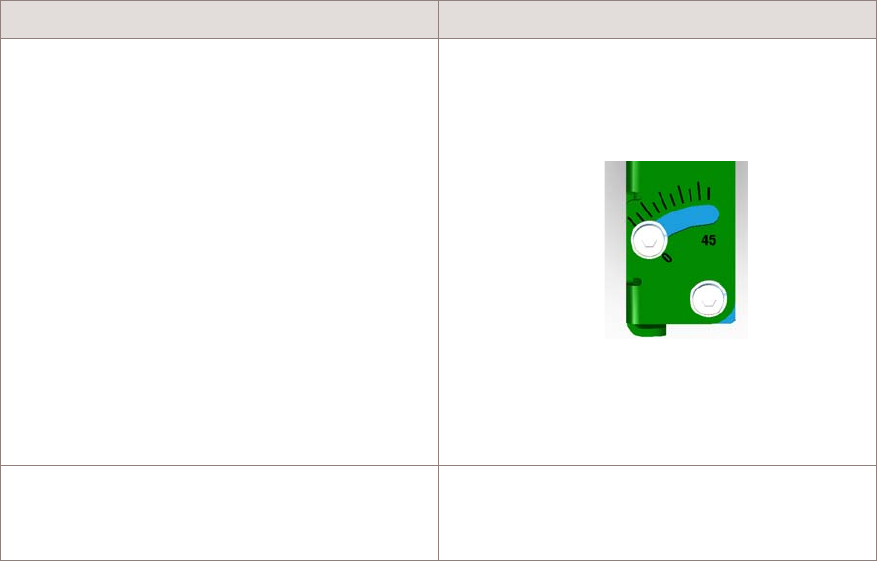

4Depending on the required vertical tilt orientation ensure the bracket is positioned the

correct way up before placing on the pole:

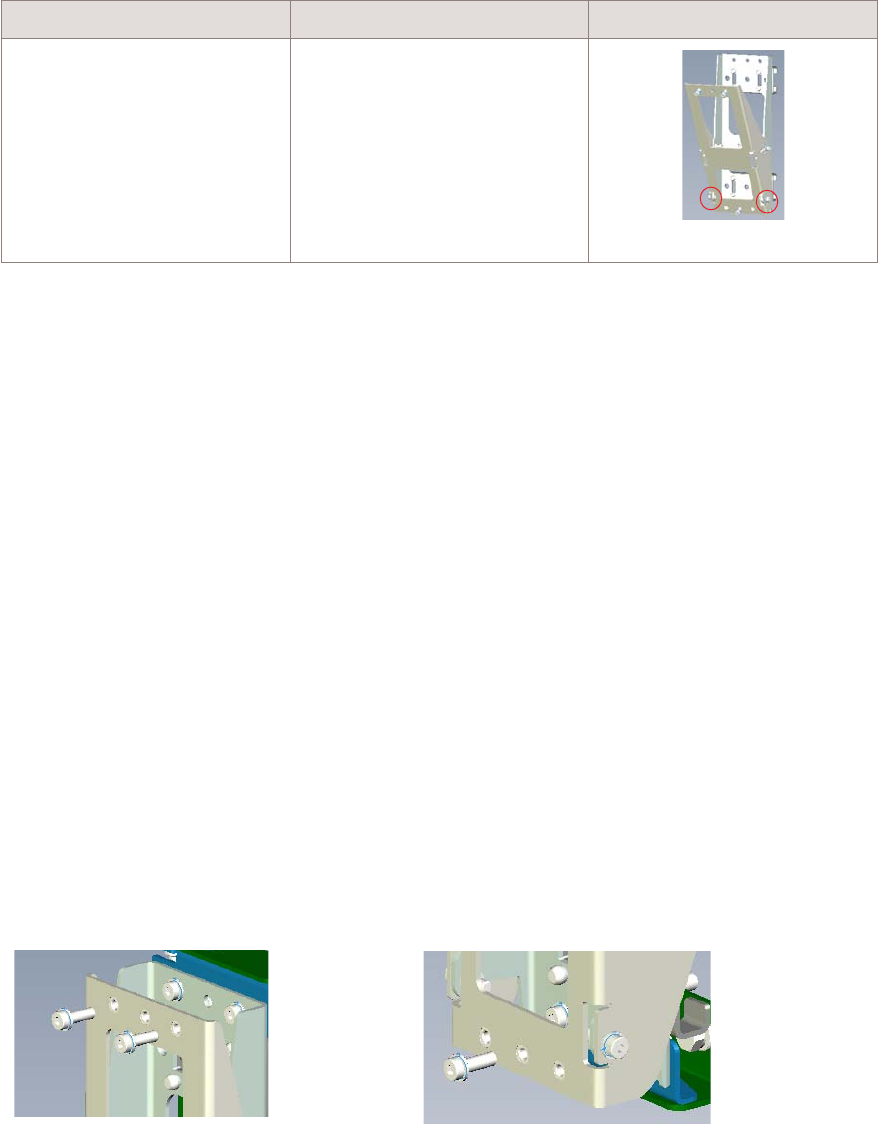

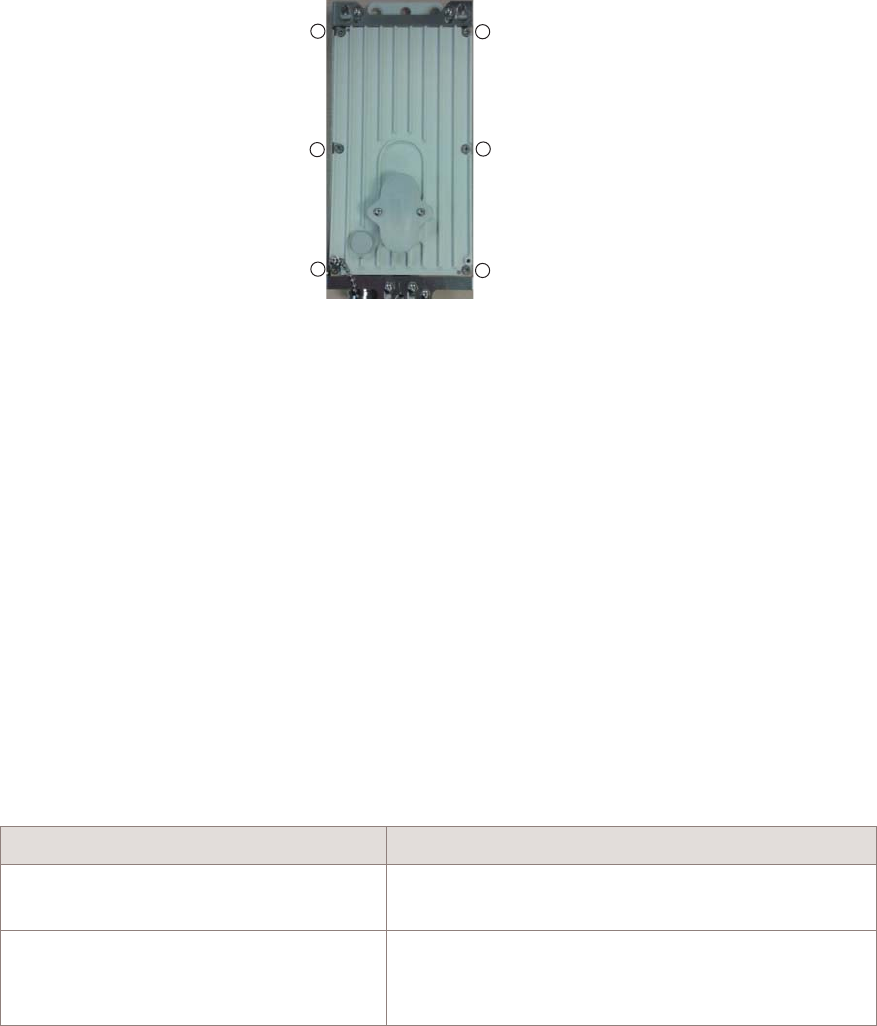

If... Then... View...

upward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the top

downward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the bottom

...................................................................................................................................................................................................

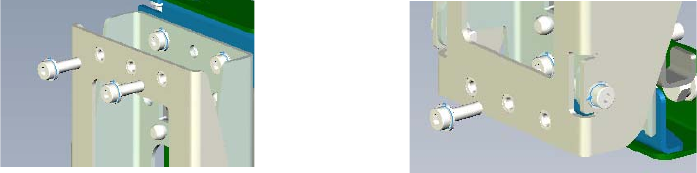

5Place the vertical tilt bracket against the pole aligning the upper and lower anchor holes

on the bracket with the marked screw positions on the pole.

...................................................................................................................................................................................................

6Place a washer on each of the anchor screws. Using a socket wrench (M8) screw the

vertical tilt bracket onto the pole.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Mount the 9764 Metro Dock onto pole using

optional tilt brackets

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-13

D

RAFT

D

RAFT

...................................................................................................................................................................................................

7Finally, check the screws are secure and there is no movement of the bracket on the pole.

...................................................................................................................................................................................................

8Continue onto “Attach 9764 Metro Dock to the tilt bracket” (p. 3-16)

Bracket pole mount using bands

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to mount the vertical tilt bracket onto a pole (wooden or

metal) using standard pole bands.

...................................................................................................................................................................................................

1Measure the height at which the 9764 Metro Dock is to be positioned on the pole. Mark

this point.

Upper and lower

Metro Dock anchor holes

(9 mm diameter)

M8x50 stainless steel

hex head screw and

M8x16x1.6 plain washer

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Mount the 9764 Metro Dock onto pole using

optional tilt brackets

....................................................................................................................................................................................................................................

3-14 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

2Using a digital compass determine the planned horizontal (left/right) orientation of the

9764 Metro Dock around the pole. Mark this position.

...................................................................................................................................................................................................

3From the banding installation kit, take a steel pole band and thread the open end into the

upper two slots on the tilt bracket.

Taking the other steel band insert and thread the open end into the lower two slots on the

tilt bracket.

...................................................................................................................................................................................................

4Depending on the required vertical tilt orientation ensure the bracket is positioned the

correct way up before placing on the pole:

If... Then... View...

upward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the top

downward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the bottom

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Mount the 9764 Metro Dock onto pole using

optional tilt brackets

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-15

D

RAFT

D

RAFT

...................................................................................................................................................................................................

5At the marked installation position on the pole wrap the upper and lower pole bands

around the pole at the determined height. Carry out any required adjustment of the 9764

Metro Dock around the pole so that it is pointing in the planned direction.

...................................................................................................................................................................................................

6Once the 9764 Metro Dock is in the correct position and orientation tighten and secure

the bands around the pole. Refer to BAND-IT®C00169 Hand Tool Operation

Instructions, PO5886.

...................................................................................................................................................................................................

7Finally, check the banding is secure, there is no movement of the bracket around the pole

and that the banding stubs (cut ends) are flattened down with a hammer.

...................................................................................................................................................................................................

8Continue onto “Attach 9764 Metro Dock to the tilt bracket” (p. 3-16)

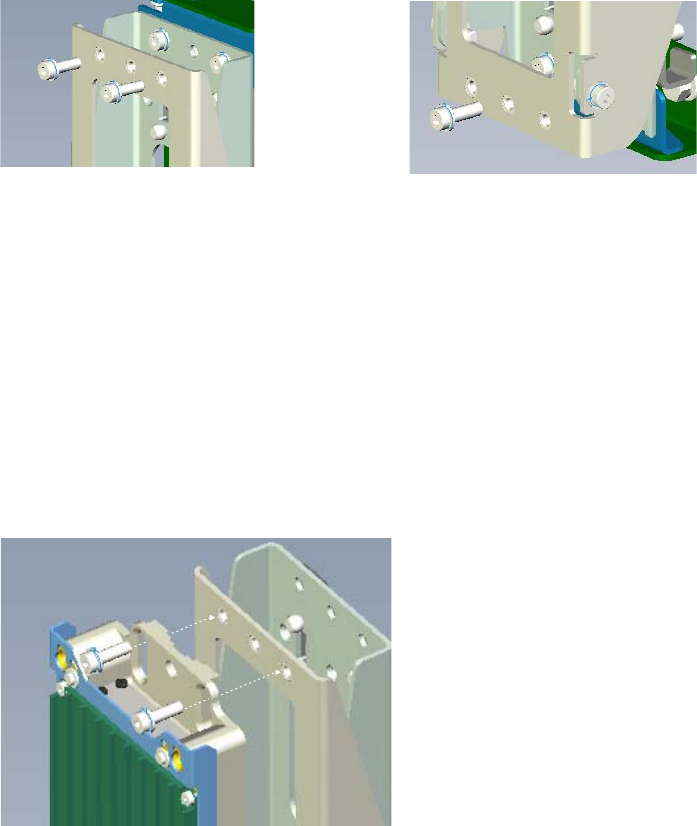

Attach 9764 Metro Dock to the tilt bracket

Perform the following procedure to attach the 9764 Metro Dock to the tilt bracket.

...................................................................................................................................................................................................

1Unscrew and remove the two upper M6 bolts and the one lower M6 bolt from the tilt

bracket.

Banding stubs

(cut ends)

Rear view

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Mount the 9764 Metro Dock onto pole using

optional tilt brackets

....................................................................................................................................................................................................................................

3-16 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

2Position the 9764 Metro Dock against the front of the tilt bracket so that the two upper

bolt holes and the single lower bolt hole on the 9764 Metro Dock are aligned with the

bolts holes on the tilt bracket.

...................................................................................................................................................................................................

3From the 9764 Metro Dock side, insert the two M6 bolts back through the upper bolt

holes on the 9764 Metro Dock and through the upper tilt bracket bolt holes.

...................................................................................................................................................................................................

4For each M6 bolt, screw on the retaining nut and finger tighten.

...................................................................................................................................................................................................

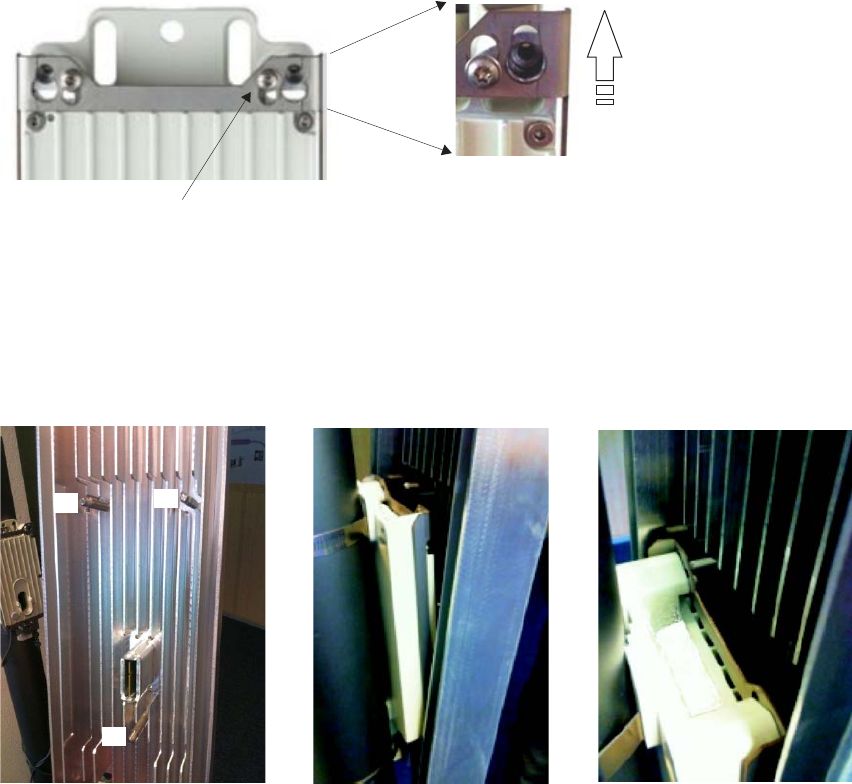

5Move the 9764 Metro Dock metal slider to the “up” position as this allows easier access

to the lower attachment bolt hole:

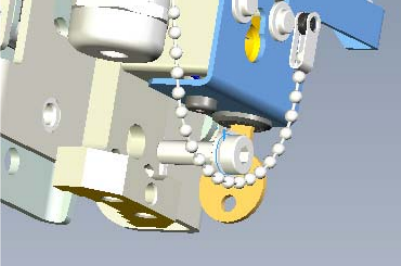

1. insert supplied key into lock and turn 90ocounterclockwise to unlock the slider.

2. move the slider into the “up” position and turn key 30oclockwise to lock the slider in

the up position.

Lower M6 bolt x 1

Upper M6 bolts x 2

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Mount the 9764 Metro Dock onto pole using

optional tilt brackets

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-17

D

RAFT

D

RAFT

...................................................................................................................................................................................................

6From the 9764 Metro Dock side, insert the single M6 bolts back through the lower bolt

hole on the 9764 Metro Dock and through the lower tilt bracket bolt hole.

...................................................................................................................................................................................................

7Screw the retaining nut onto the lower M6 bolt and finger tighten.

...................................................................................................................................................................................................

8Using a 10 mm ratchet wrench, tighten the two upper and one lower M6 retaining bolts.

Recommended screw torque; 7.0 N.m (62.0 lb.in).

...................................................................................................................................................................................................

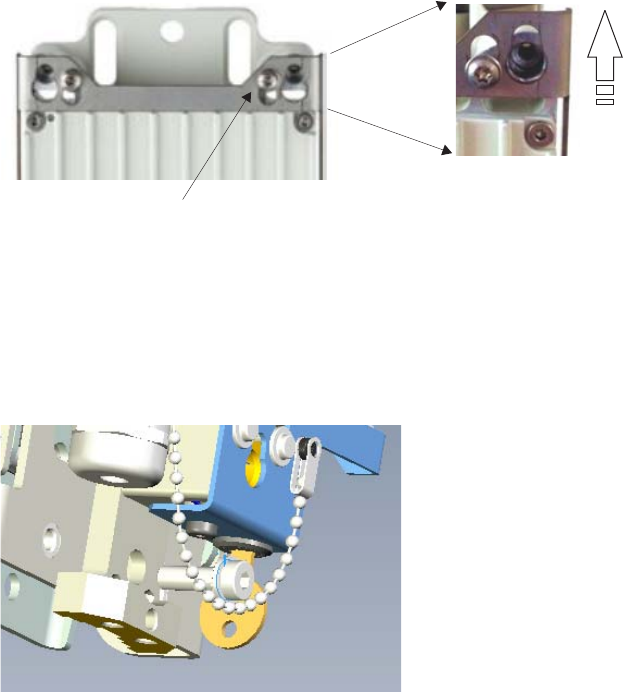

9Finally move the 9764 Metro Dock metal slider to the “down” position:

1. turn the key 30ocounterclockwise to unlock the slider. The slider will automatically

move to the “down” position.

2. turn the key 90oclockwise to lock the slider in the “down” position and remove the

key.

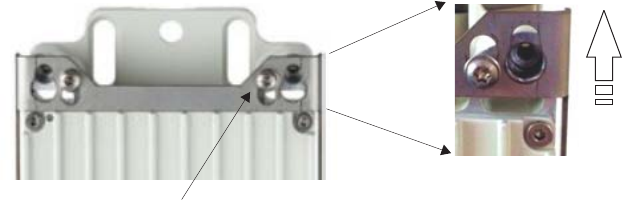

Slider moves upwards

Metro Dock Slider

(in down position)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Mount the 9764 Metro Dock onto pole using

optional tilt brackets

....................................................................................................................................................................................................................................

3-18 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

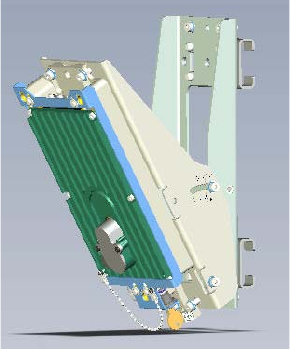

Pole mount example (with vertical tilt)

The following figure shows the 9764 Metro Dock, with vertical tilt, mounted onto a

wooden pole using screws and a metal pole using bands.

How to continue

After mounting the 9764 Metro Dock onto a pole the cables need to be connected.

Continue with the, “9764 Metro Dock cabling” (p. 3-51) chapter.

Metro Dock mounted on

wooden pole with vertical tilt

Metro Dock mounted on

metal pole with vertical tilt

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Mount the 9764 Metro Dock onto pole using

optional tilt brackets

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-19

D

RAFT

D

RAFT

Procedure 3-3: Mount the 9764 Metro Dock onto a wall

Purpose

This topic describes the procedures to be followed when installing the Alcatel-Lucent

9764 Metro Dock onto a wall or solid flat surface.

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated in order to maximize coverage. Before

installation begins you should ensure the following are in place:

•Ensure adequate clearance is provided for service access

•Ground cable has been routed and the site grounding system is in place

•Backhaul cable has been routed and is in place

•Any site specific fixing materials are available (for example, bolts, washers and wall

plug materials).

Attention: The 9764 Metro Dock must be mounted with the appropriate mounting

hardware suitable for the various supporting structures, building materials and

construction methods. Following a site survey, it is the responsibility of the customer

to ensure that:

•the installation support structure is adequate and compliant with Building Officials

and Code Administrators (BOCA), Uniform Building Code (UBC), and all other

national and local codes

•the appropriate mounting hardware and any necessary supporting anchor fixings

are used.

Wall mount installation

The 9764 Metro Dock is less than 1 kg (2.2 lbs) and can be easily mounted on a wall or

solid flat surface using the following installation kits and tools:

•Wall spacer kit

•For a list of installation tools, see “Tools required for installation” (p. 3-4)

Before you begin

Record the 9764 Metro Dock 18 digit serial number before mounting onto a pole.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-3: Mount the 9764 Metro Dock onto a wall

....................................................................................................................................................................................................................................

3-20 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Perform standard wall mount installation

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to mount the 9764 Metro Dock directly onto a wall.

...................................................................................................................................................................................................

1Measure the height at which the 9764 Metro Dock is to be positioned on the wall. Mark

this point.

...................................................................................................................................................................................................

2At the selected installation location, mark the points on the wall for the anchor holes. See

drill hole pattern below to use as a guide:

Tip: The wall spacer bracket can placed against the wall and used as a template to

mark the position of the upper and lower anchor holes.

Check the horizontal position of the planned holes with a level.

267mm

(10.51 inches)

52mm

(2.05 inches)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-3: Mount the 9764 Metro Dock onto a wall

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-21

D

RAFT

D

RAFT

...................................................................................................................................................................................................

3Drill two upper holes and one lower hole at the marked points to the appropriate depth.

...................................................................................................................................................................................................

4Insert screw anchor plugs into the drilled holes and, using a hammer, tap home until the

plugs are flush with the wall.

Important! Ensure the appropriate screw anchor plug size and type are used for the

wall construction material.

...................................................................................................................................................................................................

5Move the 9764 Metro Dock metal slider to the “up” position as this allows easier access

to the lower attachment bolt hole:

1. insert supplied key into lock and turn 90ocounterclockwise to unlock the slider.

2. move the slider into the “up” position and turn key 30oclockwise to lock the slider in

the up position.

...................................................................................................................................................................................................

6Align the 9764 Metro Dock bolt holes with the wall spacer bolt holes and thread bolts

through the corresponding set of holes.

Slider moves upwards

Metro Dock Slider

(in down position)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-3: Mount the 9764 Metro Dock onto a wall

....................................................................................................................................................................................................................................

3-22 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................

7Screw in the 2 upper bolts and one lower bolt into the wall anchor holes to the appropriate

depth so that the wall spacer and 9764 Metro Dock are securely attached to the wall.

...................................................................................................................................................................................................

8Finally move the 9764 Metro Dock metal slider to the “down” position:

1. turn the key 30ocounterclockwise to unlock the slider. The slider will automatically

move to the “down” position.

2. turn the key 90oclockwise to lock the slider in the “down” position and remove the

key.

Standard wall mount example

The following figure depicts a standard wall mount.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-3: Mount the 9764 Metro Dock onto a wall

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-23

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

How to continue

After mounting the 9764 Metro Dock onto a pole, the cables need to be connected.

Continue with the, “9764 Metro Dock cabling” (p. 3-51) chapter.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-3: Mount the 9764 Metro Dock onto a wall

....................................................................................................................................................................................................................................

3-24 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using

vertical tilt bracket

Purpose

This topic describes the procedures to be followed when the Alcatel-Lucent 9764 Metro

Dock is required to be mounted onto a wall or solid flat surface with vertical tilt.

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated in order to maximize coverage. Before

installation begins you should ensure the following are in place:

•Ensure adequate clearance is provided for service access

•Ground cable has been routed and the site grounding system is in place

•Backhaul cable has been routed and is in place

•Any site specific fixing materials are available (for example, bolts, washers and wall

plug materials).

Attention: The 9764 Metro Dock must be mounted with the appropriate mounting

hardware suitable for the various supporting structures, building materials and

construction methods. Following a site survey, it is the responsibility of the customer

to ensure that:

•the installation support structure is adequate and compliant with Building Officials

and Code Administrators (BOCA), Uniform Building Code (UBC), and all other

national and local codes

•the appropriate mounting hardware and any necessary supporting anchor fixings

are used.

Wall mount installation

The 9764 Metro Dock is less than 1 kg (2.2 lbs) and can be easily mounted onto a wall or

flat surface with the following installation kits and tools:

•Vertical tilt installation kit (provides +- 30° tilting (up-/downward) adjustment)

•For a list of installation tools, see “Tools required for installation” (p. 3-4)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using

vertical tilt bracket

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-25

D

RAFT

D

RAFT

Legend:

1 Vertical tilt bracket 3 Bracket pivot point

2 Vertical tilt angle positioning gauge

Before you begin

Record the 9764 Metro Dock 18 digit serial number before mounting onto a wall.

Prepare surface for bracket mounting

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to prepare a wall or solid flat surface for mounting the

vertical tilt bracket.

...................................................................................................................................................................................................

1At the selected installation location, mark the points on the wall for the bracket anchor

holes. See drill hole pattern below to use as a guide:

1

2

3

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using

vertical tilt bracket

....................................................................................................................................................................................................................................

3-26 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Tip: The vertical tilt bracket can be placed against the wall and be used as a template

to mark the points on the wall for the bracket anchor holes.

Check the horizontal marked position of the holes with a level.

...................................................................................................................................................................................................

2Drill the two upper holes and two lower holes at the marked points to the appropriate

depth.

...................................................................................................................................................................................................

3Insert screw anchor plugs into the drilled holes and, using a hammer, tap home until the

plugs are flush with the wall.

Important! Ensure the appropriate screw anchor plug size and type are used for the

wall construction material.

52 mm

(2.05 inches)

200 mm

(7.87 inches)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using

vertical tilt bracket

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-27

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Mount the vertical tilt bracket

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to attach vertical tilt bracket onto a flat surface or wall.

...................................................................................................................................................................................................

1Remove the two tilt angle positioning gauge bolts on either side of the vertical tilt bracket

and allow the front part of the bracket to pivot away allowing access to the bracket anchor

holes.

...................................................................................................................................................................................................

2Depending on the required vertical tilt orientation ensure the bracket is positioned the

correct way up before placing on the wall:

If... Then... View...

upward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the top

Tilt angle positioning

gauge bolt

Tilt angle positioning

gauge bolt

Bracket anchor holes

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using

vertical tilt bracket

....................................................................................................................................................................................................................................

3-28 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

If... Then... View...

downward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the bottom

...................................................................................................................................................................................................

3At the selected installation location, position the vertical tilt bracket so the anchor holes

on the bracket align with the anchor holes drilled on the wall.

...................................................................................................................................................................................................

4For each drilled anchor hole (upper and lower), either use the bolts from the wall fixing

kit or appropriate locally sourced bolts, and insert through the vertical tilt bracket anchor

holes and into the drilled holes.

...................................................................................................................................................................................................

5Tighten bolts so that the bracket is firmly secured to the wall or flat surface.

Attach 9764 Metro Dock to the tilt bracket

Perform the following procedure to attach the 9764 Metro Dock to the tilt bracket.

...................................................................................................................................................................................................

1Unscrew and remove the two upper M6 bolts and the one lower M6 bolt from the tilt

bracket.

Lower M6 bolt x 1

Upper M6 bolts x 2

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using

vertical tilt bracket

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-29

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

2Position the 9764 Metro Dock against the front of the tilt bracket so that the two upper

bolt holes and the single lower bolt hole on the 9764 Metro Dock are aligned with the

bolts holes on the tilt bracket.

...................................................................................................................................................................................................

3From the 9764 Metro Dock side, insert the two M6 bolts back through the upper bolt

holes on the 9764 Metro Dock and through the upper tilt bracket bolt holes.

...................................................................................................................................................................................................

4For each M6 bolt, screw on the retaining nut and finger tighten.

...................................................................................................................................................................................................

5Move the 9764 Metro Dock metal slider to the “up” position as this allows easier access

to the lower attachment bolt hole:

1. insert supplied key into lock and turn 90ocounterclockwise to unlock the slider.

2. move the slider into the “up” position and turn key 30oclockwise to lock the slider in

the up position.

Slider moves upwards

Metro Dock Slider

(in down position)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using

vertical tilt bracket

....................................................................................................................................................................................................................................

3-30 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................

6From the 9764 Metro Dock side, insert the single M6 bolts back through the lower bolt

hole on the 9764 Metro Dock and through the lower tilt bracket bolt hole.

...................................................................................................................................................................................................

7Screw the retaining nut onto the lower M6 bolt and finger tighten.

...................................................................................................................................................................................................

8Using a 10 mm ratchet wrench, tighten the two upper and one lower M6 retaining bolts.

Recommended screw torque; 7.0 N.m (62.0 lb.in).

...................................................................................................................................................................................................

9Finally move the 9764 Metro Dock metal slider to the “down” position:

1. turn the key 30ocounterclockwise to unlock the slider. The slider will automatically

move to the “down” position.

2. turn the key 90oclockwise to lock the slider in the “down” position and remove the

key.

Wall mount example (with vertical tilt)

The following figure depicts a wall mount installation with vertical tilt

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using

vertical tilt bracket

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-31

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

How to continue

After mounting the 9764 Metro Dock onto a wall the cables need to be connected.

Continue with the, “9764 Metro Dock cabling” (p. 3-51) chapter.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Mount the 9764 Metro Dock onto a wall using

vertical tilt bracket

....................................................................................................................................................................................................................................

3-32 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using

horizontal tilt bracket

Purpose

This topic describes the procedures to be followed when the Alcatel-Lucent 9764 Metro

Dock is required to be mounted onto a wall or solid flat surface with horizontal tilt.

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated in order to maximize coverage. Before

installation begins you should ensure the following are in place:

•Ensure adequate clearance is provided for service access

•Ground cable has been routed and the site grounding system is in place

•Backhaul cable has been routed and is in place

•Any site specific fixing materials are available (for example, bolts, washers and wall

plug materials).

Attention: The 9764 Metro Dock must be mounted with the appropriate mounting

hardware suitable for the various supporting structures, building materials and

construction methods. Following a site survey, it is the responsibility of the customer

to ensure that:

•the installation support structure is adequate and compliant with Building Officials

and Code Administrators (BOCA), Uniform Building Code (UBC), and all other

national and local codes

•the appropriate mounting hardware and any necessary supporting anchor fixings

are used.

Wall mount installation

The 9764 Metro Dock is less than 1 kg (2.2 lbs) and can be easily mounted onto a wall or

flat surface using the following installation kits and tools:

•Horizontal tilt installation kit (provides +-45° horizontal (left/right) adjustment)

•For a list of installation tools, see “Tools required for installation” (p. 3-4)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using

horizontal tilt bracket

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-33

D

RAFT

D

RAFT

Legend:

1 Horizontal tilt bracket 3 Bracket pivot point

2 Horizontal tilt angle positioning gauge

Before you begin

Record the 9764 Metro Dock 18 digit serial number before mounting onto a wall.

Prepare surface for bracket mounting

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to prepare a wall or solid flat surface for mounting the

horizontal tilt bracket.

...................................................................................................................................................................................................

1At the selected installation location, mark the points on the wall for the bracket anchor

holes. See drill hole pattern below to use as a guide:

1

2

3

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using

horizontal tilt bracket

....................................................................................................................................................................................................................................

3-34 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Tip: The horizontal tilt bracket can be placed against the wall and be used as a

template to mark the points on the wall for the bracket anchor holes.

Check the horizontal marked position of the holes with a level.

...................................................................................................................................................................................................

2Drill the two upper holes and two lower holes at the marked points to the appropriate

depth.

...................................................................................................................................................................................................

3Insert screw anchor plugs into the drilled holes and, using a hammer, tap home until the

plugs are flush with the wall.

Important! Ensure the appropriate screw anchor plug size and type are used for the

wall construction material.

52 mm

(2.05 inches)

270 mm

(10.63 inches)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using

horizontal tilt bracket

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-35

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Mount the horizontal tilt bracket

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to attach the horizontal tilt bracket onto a flat surface or

wall.

...................................................................................................................................................................................................

1Remove the two tilt angle positioning gauge bolts from the top and bottom of the

horizontal tilt bracket and allow the front part of the bracket to pivot away allowing

access to the bracket anchor holes.

...................................................................................................................................................................................................

2Depending on the required horizontal tilt orientation ensure the bracket is the correct way

up before securing the bracket onto the wall:

If... Then... View...

left horizontal tilt is required the tilt bracket must be

positioned with the pivot point

on the left

Tilt angle

positioning gauge bolt

Tilt angle

positioning gauge bolt

Bracket anchor holes

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using

horizontal tilt bracket

....................................................................................................................................................................................................................................

3-36 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

If... Then... View...

right horizontal tilt is required the tilt bracket must be

positioned with the pivot point

on the right

...................................................................................................................................................................................................

3At the selected installation location, position the horizontal tilt bracket so the anchor holes

on the bracket align with the anchor holes drilled in the wall.

...................................................................................................................................................................................................

4For each drilled anchor hole (upper and lower), either use the bolts from the wall fixing

kit or appropriate locally sourced bolts, and insert through the horizontal tilt bracket

anchor holes and into the drilled holes.

...................................................................................................................................................................................................

5Tighten bolts so that the bracket is firmly secured to the wall or flat surface.

Attach 9764 Metro Dock to the tilt bracket

Perform the following procedure to attach the 9764 Metro Dock to the tilt bracket.

...................................................................................................................................................................................................

1Unscrew and remove the two upper M6 bolts and the one lower M6 bolt from the tilt

bracket.

Lower M6 bolt x 1

Upper M6 bolts x 2

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using

horizontal tilt bracket

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-37

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

2Position the 9764 Metro Dock against the front of the tilt bracket so that the two upper

bolt holes and the single lower bolt hole on the 9764 Metro Dock are aligned with the

bolts holes on the tilt bracket.

...................................................................................................................................................................................................

3From the 9764 Metro Dock side, insert the two M6 bolts back through the upper bolt

holes on the 9764 Metro Dock and through the upper tilt bracket bolt holes.

...................................................................................................................................................................................................

4For each M6 bolt, screw on the retaining nut and finger tighten.

...................................................................................................................................................................................................

5Move the 9764 Metro Dock metal slider to the “up” position as this allows easier access

to the lower attachment bolt hole:

1. insert supplied key into lock and turn 90ocounterclockwise to unlock the slider.

2. move the slider into the “up” position and turn key 30oclockwise to lock the slider in

the up position.

Slider moves upwards

Metro Dock Slider

(in down position)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using

horizontal tilt bracket

....................................................................................................................................................................................................................................

3-38 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................

6From the 9764 Metro Dock side, insert the single M6 bolts back through the lower bolt

hole on the 9764 Metro Dock and through the lower tilt bracket bolt hole.

...................................................................................................................................................................................................

7Screw the retaining nut onto the lower M6 bolt and finger tighten.

...................................................................................................................................................................................................

8Using a 10 mm ratchet wrench, tighten the two upper and one lower M6 retaining bolts.

Recommended screw torque; 7.0 N.m (62.0 lb.in).

...................................................................................................................................................................................................

9Finally move the 9764 Metro Dock metal slider to the “down” position:

1. turn the key 30ocounterclockwise to unlock the slider. The slider will automatically

move to the “down” position.

2. turn the key 90oclockwise to lock the slider in the “down” position and remove the

key.

Wall mount example (with horizontal tilt)

The following figure depicts a wall mount installation with horizontal tilt.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using

horizontal tilt bracket

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-39

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

How to continue

After mounting the 9764 Metro Dock onto a wall the cables need to be connected.

Continue with the, “9764 Metro Dock cabling” (p. 3-51) chapter.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-5: Mount the 9764 Metro Dock onto a wall using

horizontal tilt bracket

....................................................................................................................................................................................................................................

3-40 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using

combined horizontal and vertical tilt brackets

Purpose

This topic describes the procedures to be followed when the Alcatel-Lucent 9764 Metro

Dock is required to be mounted onto a wall or solid flat surface with horizontal and

vertical tilt.

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated in order to maximize coverage. Before

installation begins you should ensure the following are in place:

•Ensure adequate clearance is provided for service access

•Ground cable has been routed and the site grounding system is in place

•Backhaul cable has been routed and is in place

•Any site specific fixing materials are available (for example, bolts, washers and wall

plug materials).

Attention: The 9764 Metro Dock must be mounted with the appropriate mounting

hardware suitable for the various supporting structures, building materials and

construction methods. Following a site survey, it is the responsibility of the customer

to ensure that:

•the installation support structure is adequate and compliant with Building Officials

and Code Administrators (BOCA), Uniform Building Code (UBC), and all other

national and local codes

•the appropriate mounting hardware and any necessary supporting anchor fixings

are used.

Wall mount installation

The 9764 Metro Dock is less than 1 kg (2.2 lbs) and can be easily mounted onto a wall or

flat surface with horizontal and vertical tilt using the orderable installation kits:

•Vertical tilt installation kit (provides +- 30° tilting (up-/downward) adjustment)

•Horizontal tilt installation kit (provides +-45° azimuth (left/right) adjustment)

•For a list of installation tools, see “Tools required for installation” (p. 3-4)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using

combined horizontal and vertical tilt brackets

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-41

D

RAFT

D

RAFT

Legend:

1 Vertical tilt bracket 4 Horizontal tilt bracket

2 Vertical tilt angle positioning gauge 5 Horizontal tilt angle positioning gauge

3 Vertical tilt pivot point 6 Horizontal tilt pivot point

Before you begin

Record the 9764 Metro Dock 18 digit serial number before mounting onto a wall.

Combine the horizontal and vertical tilt brackets

Note: For combined horizontal and vertical tilt, the horizontal tilt bracket is attached

to the wall or flat surface. The vertical tilt bracket is attached to the horizontal tilt

bracket.

Perform the following procedure to combine the tilt brackets.

...................................................................................................................................................................................................

1Unscrew and remove the two upper and two lower M6 bolts on the front of the horizontal

tilt bracket.

Horizontal tilt bracket

Vertical tilt bracket

1

2

3

4

5

6

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using

combined horizontal and vertical tilt brackets

....................................................................................................................................................................................................................................

3-42 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................

2Align the attachment holes on the vertical tilt bracket with the attachments holes on the

horizontal tilt bracket.

Important! Ensure the brackets are combined in the correct way based on the planned

horizontal and vertical tilt orientation of the equipment.

If... Then... View...

left horizontal tilt and

downward vertical tilt is

required

or

right horizontal tilt and

upward vertical tilt is required

the brackets should be attached with

the horizontal bracket pivot point on

the left and the vertical bracket pivot

point at the bottom

Note: when positioning on a wall the

bracket assembly can be turned

through 1800for right horizontal tilt

and upward vertical tilt

right horizontal tilt and

downward vertical tilt is

required

or

left horizontal tilt and upward

vertical tilt is required

the brackets should be attached with

the horizontal bracket pivot point on

the right and the vertical bracket pivot

point at the bottom

Note: when positioning on a wall the

bracket assembly can be turned

through 1800for left horizontal tilt and

upward vertical tilt

...................................................................................................................................................................................................

3Insert the two upper and two lower bolts through the attachment holes on the vertical tilt

bracket and through the attachment holes on the horizontal tilt bracket.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using

combined horizontal and vertical tilt brackets

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-43

D

RAFT

D

RAFT

...................................................................................................................................................................................................

4For each bolt, screw on the retaining nut. Using a 10 mm ratchet wrench, tighten the two

upper and two lower M6 retaining bolts so that the brackets are securely attached.

Recommended screw torque; 7.0 N.m (62.0 lb.in).

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using

combined horizontal and vertical tilt brackets

....................................................................................................................................................................................................................................

3-44 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Prepare surface for bracket mounting

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to prepare a wall or solid flat surface for mounting the

combined horizontal/vertical tilt bracket.

...................................................................................................................................................................................................

1At the selected installation location, mark the points on the wall for the bracket anchor

holes. See drill hole pattern below to use as a guide:

Tip: The combined horizontal/vertical tilt bracket can be placed against the wall and

be used as a template to mark the points on the wall for the bracket anchor holes.

Check the horizontal marked position of the holes with a level.

52 mm

(2.05 inches)

270 mm

(10.63 inches)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using

combined horizontal and vertical tilt brackets

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-45

D

RAFT

D

RAFT

...................................................................................................................................................................................................

2Drill the two upper holes and two lower holes at the marked points to the appropriate

depth.

...................................................................................................................................................................................................

3Insert screw anchor plugs into the drilled holes and, using a hammer, tap home until the

plugs are flush with the wall.

Important! Ensure the appropriate screw anchor plug size and type are used for the

wall construction material.

Mount combined horizontal/vertical tilt brackets

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to attach the combined horizontal/vertical tilt bracket

onto a flat surface or wall.

...................................................................................................................................................................................................

1Remove the two tilt angle positioning gauge bolts from the top and bottom of the

horizontal tilt bracket and allow the front part of the bracket to pivot away allowing

access to the bracket anchor holes.

Tilt angle

positioning gauge bolt

Tilt angle

positioning gauge bolt

Bracket anchor holes

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using

combined horizontal and vertical tilt brackets

....................................................................................................................................................................................................................................

3-46 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

2At the selected installation location, position the combined horizontal/vertical tilt bracket

so the anchor holes on the bracket align with the anchor holes drilled in the wall.

Important! Ensure the combined brackets are positioned on the wall correctly based

on the planned horizontal and vertical tilt orientation of the equipment.

...................................................................................................................................................................................................

3For each drilled anchor hole (upper and lower), either use the bolts from the wall fixing

kit or appropriate locally sourced bolts, and insert through the vertical tilt bracket anchor

holes and into the drilled holes.

...................................................................................................................................................................................................

4Tighten bolts so that the bracket is firmly secured to the wall or flat surface.

Attach 9764 Metro Dock to the tilt bracket

Perform the following procedure to attach the 9764 Metro Dock to the tilt bracket.

...................................................................................................................................................................................................

1Unscrew and remove the two upper M6 bolts and the one lower M6 bolt from the tilt

bracket.

...................................................................................................................................................................................................

2Position the 9764 Metro Dock against the front of the tilt bracket so that the two upper

bolt holes and the single lower bolt hole on the 9764 Metro Dock are aligned with the

bolts holes on the tilt bracket.

...................................................................................................................................................................................................

3From the 9764 Metro Dock side, insert the two M6 bolts back through the upper bolt

holes on the 9764 Metro Dock and through the upper tilt bracket bolt holes.

Lower M6 bolt x 1

Upper M6 bolts x 2

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using

combined horizontal and vertical tilt brackets

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-47

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

4For each M6 bolt, screw on the retaining nut and finger tighten.

...................................................................................................................................................................................................

5Move the 9764 Metro Dock metal slider to the “up” position as this allows easier access

to the lower attachment bolt hole:

1. insert supplied key into lock and turn 90ocounterclockwise to unlock the slider.

2. move the slider into the “up” position and turn key 30oclockwise to lock the slider in

the up position.

...................................................................................................................................................................................................

6From the 9764 Metro Dock side, insert the single M6 bolts back through the lower bolt

hole on the 9764 Metro Dock and through the lower tilt bracket bolt hole.

Slider moves upwards

Metro Dock Slider

(in down position)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using

combined horizontal and vertical tilt brackets

....................................................................................................................................................................................................................................

3-48 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................

7Screw the retaining nut onto the lower M6 bolt and finger tighten.

...................................................................................................................................................................................................

8Using a 10 mm ratchet wrench, tighten the two upper and one lower M6 retaining bolts.

Recommended screw torque; 7.0 N.m (62.0 lb.in).

...................................................................................................................................................................................................

9Finally move the 9764 Metro Dock metal slider to the “down” position:

1. turn the key 30ocounterclockwise to unlock the slider. The slider will automatically

move to the “down” position.

2. turn the key 90oclockwise to lock the slider in the “down” position and remove the

key.

Wall mount with horizontal/vertical tilt example

The following figure depicts a wall mount installation with horizontal/vertical tilt.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using

combined horizontal and vertical tilt brackets

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-49

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

How to continue

After mounting the 9764 Metro Dock onto a wall the cables need to be connected.

Continue with the, “9764 Metro Dock cabling” (p. 3-51) chapter.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-6: Mount the 9764 Metro Dock onto a wall using

combined horizontal and vertical tilt brackets

....................................................................................................................................................................................................................................

3-50 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

9764 Metro Dock cabling

Overview

Purpose

This section provides instructions for routing and connecting the following cables to the

9764 Metro Dock module:

•Grounding cable

•Ethernet cable

Note: For outdoor NAR installations, or where local regulations dictate, the facility and

power cables are required to be routed to the equipment within rigid-steel or liquid-tight

flexible metal conduit. As part of site preparation, the customer must provide the metal

conduit and associated fittings for cable routes and connecting conduit to the outdoor

equipment.

Contents

Procedure 3-7: 9764 Metro Dock ground cabling 3-52

Procedure 3-8: 9764 Metro Dock Ethernet cabling - fiber optic 3-54

Procedure 3-9: 9764 Metro Dock Ethernet cabling - electrical 3-59

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Overview

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-51

D

RAFT

D

RAFT

Procedure 3-7: 9764 Metro Dock ground cabling

Purpose

This topic describes the procedures to be followed when connecting the grounding cable

to the 9764 Metro Dock.

Important! The following must be observed:

•This equipment must be externally grounded to an appropriate grounding system

using Yellow/Green 10 mm2insulated ground cable. Grounding cable can be

ordered from Alcatel-Lucent or be locally supplied.

•All grounding system material (cable, connectors, etc.) must be of high quality,

that resist deterioration and require little or no maintenance.

•Installation of the equipment must comply with local and national electrical codes

and guidelines. If there is uncertainty that suitable grounding is available contact

the appropriate site preparation contact or electrical inspection authority.

Connect the ground cable

To attach the ground cable to the 9764 Metro Dock perform the following steps.

...................................................................................................................................................................................................

1Route the ground cable from the site grounding system to the 9764 Metro Dock.

...................................................................................................................................................................................................

2At the 9764 Metro Dock cut the ground cable to a proper length and strip the cable end to

expose approximately 20 mm (0.75 in).

...................................................................................................................................................................................................

3Place a double hole cable lug (with a holes suitable for M6 screws) onto the end of the

cable. Using an appropriate crimping tool, crimp the lug onto the cable.

...................................................................................................................................................................................................

4Clean the contact surface area of the cable lug and earthing point on the 9764 Metro Dock

and use antioxidant to avoid oxidation.

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-7: 9764 Metro Dock ground cabling

....................................................................................................................................................................................................................................

3-52 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................

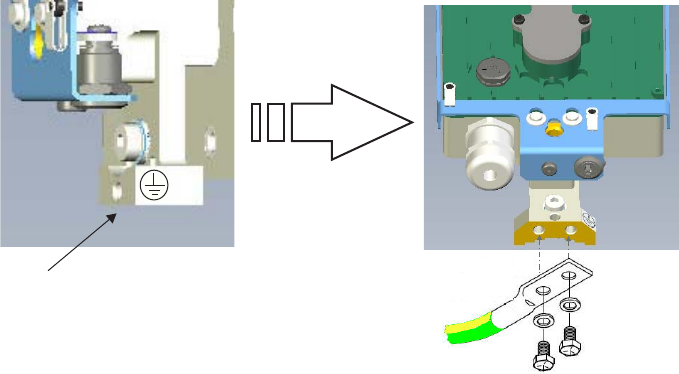

5Place one washer (wave spring washer) on each terminal screw, align the grounding cable

lug holes with the earthing terminal holes on the 9764 Metro Dock, and secure the cable

to the grounding point using the terminal screws.

...................................................................................................................................................................................................

6Secure grounding cable to the wall/pole.

Important! The installation location (wall/pole) must be grounded in accordance

with local regulatory guidelines

...................................................................................................................................................................................................

7Finally, crimp on a double cable lug at the other end of the ground cable and attach to the

main grounding system.

10 mm Green/Yellow

ground cable

2

Bottom view

of Metro Dock

Grounding point

on Metro Dock

Side view

of Metro Dock

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-7: 9764 Metro Dock ground cabling

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-53

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Procedure 3-8: 9764 Metro Dock Ethernet cabling - fiber optic

Purpose

This topic describes the procedures to be followed when connecting the optical Ethernet

cable to the 9764 Metro Dock.

Cabling ancillary items

The following cabling related ancillary items can be ordered from Alcatel-Lucent when

the backhaul infrastructure is configured for optical Ethernet:

•SFP GBE 1000BaseLX SFP module (SM or MM). See “SFP modules” (p. 2-10)

•Fiber Optic Ethernet cable with LC connector to optical SFP module at the 9764

Metro Dock module. See “Ethernet cable - Optical” (p. 2-11)

Install SFP transceiver module

NOTICE

ESD hazard

Semiconductor devices can be damaged by electrostatic discharges (ESD)

Always observe the general ESD instructions for handling modules containing

semiconductor components.

Before the optical Ethernet cable can be connected the SFP port(s) have to be equipped

with the appropriate optical SFP transceiver (either 1000Base-SX Multi Mode or

1000Base-LX Single Mode) according to the network specifications.

To install an SFP transceiver module into the 9764 Metro Dock module SFP port:

...................................................................................................................................................................................................

1Firstly, in order to remove the 9764 Metro Dock protective plate, ensure the Metrodock

metal slider is in the default “down” position. This allows easier access to all six of the

plate retention screws.

...................................................................................................................................................................................................

2On the front of the protective plate unscrew and safely store the6xM4plate retention

screws (Hex wrench size, 2.5 mm).

Carefully lift off the 9764 Metro Dock protective plate.

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-8: 9764 Metro Dock Ethernet cabling - fiber

optic

....................................................................................................................................................................................................................................

3-54 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................

3Remove the SFP transceiver module from its protective packaging.

Important! Do not remove the SFP transceiver module dust plugs until directed to do

so later in the procedure.

...................................................................................................................................................................................................

4Check the label on the SFP transceiver module body to verify that you have the correct

model for your network.

...................................................................................................................................................................................................

5Align the optical SFP transceiver module with the 9764 Metro Dock SFP port labelled

“BH 1”) and insert the SFP module into the socket until you feel the connector latch into

place.

Attention: If the SFP module resists as you insert it, do not force it. Remove the

module, turn it over, and try reinserting.

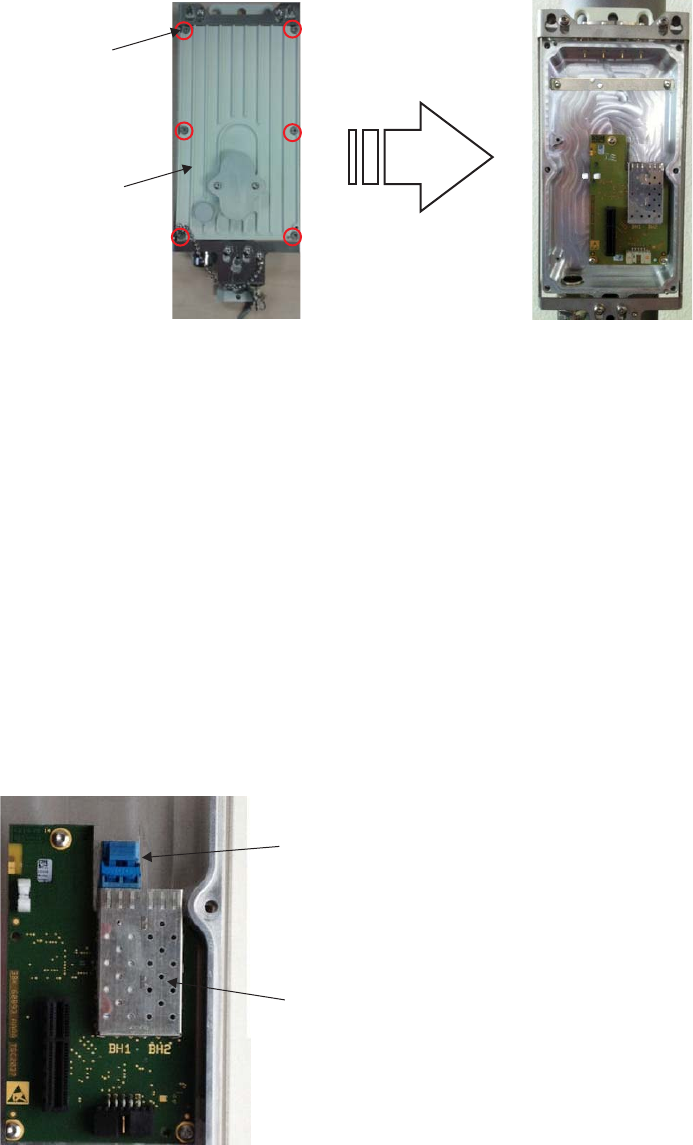

6xM4

screws

Metro Dock

protective plate

SFP cage

Optical SFP Transceiver

(in SFP Port “BH1”)

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-8: 9764 Metro Dock Ethernet cabling - fiber

optic

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-55

D

RAFT

D

RAFT

...................................................................................................................................................................................................

6Push up and latch the SFP module locking bar into position to secure SFP transceiver

module into the port.

...................................................................................................................................................................................................

7To check that the SFP transceiver module is seated and latched properly, grasp the SFP

module and try to remove it without releasing the latch.

If the SFP module cannot be removed, it is installed and seated properly. If the SFP

module can be removed, reinsert it until the module is latched securely into the socket.

Connect the Ethernet cable

To connect the optical Ethernet cable to the Alcatel-Lucent 9764 Metro Dock perform the

following steps.

...................................................................................................................................................................................................

1Route the optical Ethernet cable coming from the backhaul system to the9764 Metro

Dock.

...................................................................................................................................................................................................

2Unscrew and remove the rounded compression nut from the cable gland located on the

bottom of the 9764 Metro Dock casing. In the following order place the rounded

compression nut, the double slotted cable seal and the strain relief onto the cable, as

shown.

...................................................................................................................................................................................................

3Close off the unused slot in the cable seal by inserting a blind plug.

...................................................................................................................................................................................................

4Feed the Ethernet cable through the gland and, within the 9764 Metro Dock casing,

carefully route the cable to the port that houses the SFP transceiver module.

Compression

nut

Cable

gland

Compression

nut

Cable seal

Strain relief

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-8: 9764 Metro Dock Ethernet cabling - fiber

optic

....................................................................................................................................................................................................................................

3-56 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

5Remove dust plugs from the optical cable LC connectors and the SFP transceiver module.

Immediately insert the optical cable LC connectors into the SFP transceiver module.

...................................................................................................................................................................................................

6Screw the rounded compression nut back onto the main body of the gland. Use an

adjustable or open-end wrench to tighten the compression nut

Important! It is recommended that the compression nut is torqued to 2.5 N.m (1.8

lb.ft) in order to create a watertight seal and avoid a potential loose connection.

...................................................................................................................................................................................................

7Replace and reattach the 9764 Metro Dock protective plate via the six plate retention

screws.

Important! Ensure the plate gasket is seated correctly in the groove on the underside

of the plate. Tighten the six plate retention screws in the sequence shown.

Recommended torque, 2.0 N.m (1.5 lb.ft).

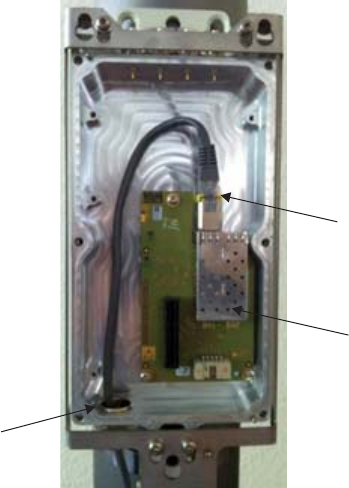

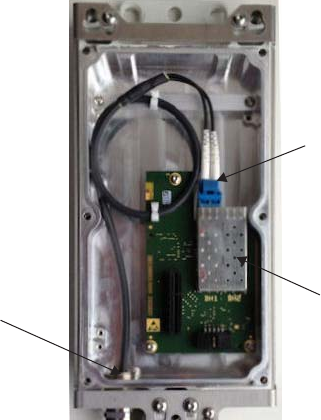

Ethernet cable

entry point

(Cable gland)

SFP cage

Ethernet cable

connection point

(SFP Module)

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-8: 9764 Metro Dock Ethernet cabling - fiber

optic

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-57

D

RAFT

D

RAFT

...................................................................................................................................................................................................

8Finally, secure the Ethernet cable to the wall/pole.

Important! When securing cables ensure the following to avoid cable damage:

•Secure cables with tie wraps. Use additional tie wraps wherever necessary for

neatness

•All cables should be run parallel with no twisting or tangled cables

•Avoid excessive tension on the cable.

How to continue

After the grounding and Ethernet cable connections are completed:

If... Then...

The 9764 MCO module is to be installed

at a later time

continue with Procedure 3-10: “Final installation

activities and checks” (p. 3-67)

Only the 9764 MCO module is to be

installed immediately after Metro Dock

installation

continue with Chapter 4, “Installation of the 9764

MCO module”

4

6

1

3

5

2

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-8: 9764 Metro Dock Ethernet cabling - fiber

optic

....................................................................................................................................................................................................................................

3-58 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Procedure 3-9: 9764 Metro Dock Ethernet cabling - electrical

Purpose

This topic describes the procedures to be followed when connecting the electrical

Ethernet cable to the 9764 Metro Dock.

Note: CE certification for electrical backhaul will be completed by RFOA.

Cabling ancillary items

The following Ethernet cabling related ancillary items are required when the backhaul

infrastructure is configured for electrical Ethernet:

•10/100/1000Base-T Electrical SFP module. See “SFP modules” (p. 2-10)

•Electrical Ethernet cable with RJ45 connector to electrical SFP module at the 9764

Metro Dock module. See “Ethernet cable - Electrical” (p. 2-10)

•Ethernet surge arrestor kit (optional)

Can be installed if additional surge protection is required.

Install SFP transceiver module

NOTICE

ESD hazard

Semiconductor devices can be damaged by electrostatic discharges (ESD)

Always observe the general ESD instructions for handling modules containing

semiconductor components.

Before the optical Ethernet cable can be connected the SFP port(s) have to be equipped

with the appropriate optical SFP transceiver (either 1000Base-SX Multi Mode or

1000Base-LX Single Mode) according to the network specifications.

To install an SFP transceiver module into the 9764 Metro Dock module SFP port:

...................................................................................................................................................................................................

1Firstly, in order to remove the 9764 Metro Dock protective plate, ensure the Metrodock

metal slider is in the default “down” position. This allows easier access to all six of the

plate retention screws.

...................................................................................................................................................................................................

2On the front of the protective plate unscrew and safely store the6xM4plate retention

screws (Hex wrench size, 2.5 mm).

Carefully lift off the 9764 Metro Dock protective plate.

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-9: 9764 Metro Dock Ethernet cabling -

electrical

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-59

D

RAFT

D

RAFT

...................................................................................................................................................................................................

3Remove the SFP transceiver module from its protective packaging.

Important! Do not remove the SFP transceiver module dust plugs until directed to do

so later in the procedure.

...................................................................................................................................................................................................

4Check the label on the SFP transceiver module body to verify that you have the correct

model for your network.

...................................................................................................................................................................................................

5Align the optical SFP transceiver module with the 9764 Metro Dock SFP port labelled

“BH 1”) and insert the SFP module into the socket until you feel the connector latch into

place.

Attention: If the SFP module resists as you insert it, do not force it. Remove the

module, turn it over, and try reinserting.

6xM4

screws

Metro Dock

protective plate

SFP cage

Optical SFP Transceiver

(in SFP Port “BH1”)

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-9: 9764 Metro Dock Ethernet cabling -

electrical

....................................................................................................................................................................................................................................

3-60 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................

6Push up and latch the SFP module locking bar into position to secure SFP transceiver

module into the port.

...................................................................................................................................................................................................

7To check that the SFP transceiver module is seated and latched properly, grasp the SFP

module and try to remove it without releasing the latch.

If the SFP module cannot be removed, it is installed and seated properly. If the SFP

module can be removed, reinsert it until the module is latched securely into the socket.

Connect the Ethernet cable

Follow these step in order to connect the electrical Ethernet cable to the SFP module in

the 9764 Metro Dock.

...................................................................................................................................................................................................

1Route the electrical Ethernet cable coming from the backhaul system to the 9764 Metro

Dock.

Note: If an additional external surge arrestor is used, route the Ethernet cable coming

from the backhaul system to the surge arrestor, and then use a short cable from the

surge arrestor to the 9764 Metro Dock.

...................................................................................................................................................................................................

2Remove the RJ45 connector cover before feeding the cable through the cable gland.

...................................................................................................................................................................................................

3Unscrew and remove the rounded compression nut from the cable gland located on the

bottom of the 9764 Metro Dock casing. In the following order place the rounded

compression nut, the double slotted cable seal and the strain relief onto the cable, as

shown.

RJ45 connector

cover

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-9: 9764 Metro Dock Ethernet cabling -

electrical

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-61

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

4Close off the unused slot in the cable seal by inserting a blind plug.

...................................................................................................................................................................................................

5Determine the point on the cable where the cable will be clamped inside the cable gland.

At this point expose the screen braid (approximately 10 mm ) by cutting through the cable

jacket.

...................................................................................................................................................................................................

6Feed the cable through the gland until a connection is made between the exposed cable

screen braid and the contact spring inside the gland.

Compression

nut

Cable

gland

Compression

nut

Cable seal

Strain relief

Ethernet cable

Exposed screen braid

(approx. 10 mm)

Ethernet cable

Contact springs

Cable gland

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-9: 9764 Metro Dock Ethernet cabling -

electrical

....................................................................................................................................................................................................................................

3-62 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................

7Reattach the RJ45 connector cover.

...................................................................................................................................................................................................

8Within the 9764 Metro Dock casing carefully route the cable to the port that houses the

SFP transceiver module. Insert the RJ45 connector into the SFP transceiver module.

...................................................................................................................................................................................................

9Screw the rounded compression nut back onto the main body of the gland. Use an

adjustable or open-end wrench to tighten the compression nut

Important! It is recommended that the compression nut is torqued to 2.5 N.m (1.8

lb.ft) in order to create a watertight seal and avoid a potential loose connection.

...................................................................................................................................................................................................

10 Replace and reattach the 9764 Metro Dock protective plate via the six plate retention

screws.

Important! Ensure the plate gasket is seated correctly in the groove on the underside

of the plate. Tighten the six plate retention screws in the sequence shown.

Recommended torque, 2.0 N.m (1.5 lb.ft).

Ethernet cable

entry point

(Cable gland)

SFP cage

Ethernet cable

connection point

(SFP Module)

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-9: 9764 Metro Dock Ethernet cabling -

electrical

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-63

D

RAFT

D

RAFT

...................................................................................................................................................................................................

11 Finally, secure the Ethernet cable to the wall/pole.

Important! When securing cables ensure the following to avoid cable damage:

•Secure cables with tie wraps. Use additional tie wraps wherever necessary for

neatness

•All cables should be run parallel with no twisting or tangled cables

•Avoid excessive tension on the cable.

Mount and cable the surge arrestor

Follow these step in order to mount (either pole or wall) the surge arrestor onto the surge

arrestor bracket and connect the Ethernet cables.

...................................................................................................................................................................................................

1On the surge arrestor, unscrew the lower weatherized strain relief connector and locking

nut from the surge arrestor.

...................................................................................................................................................................................................

2Site the surge arrestor onto the bracket so that the lower threaded Ethernet connection

point is positioned through the arrestor mounting hole.

...................................................................................................................................................................................................

3Screw the arrestor locking nut back onto the arrestor and tighten so that the arrestor is

securely attached to the bracket.

4

6

1

3

5

2

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-9: 9764 Metro Dock Ethernet cabling -

electrical

....................................................................................................................................................................................................................................

3-64 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

4Carefully feed the end of Ethernet cable coming from the Customer Network Interface

Device through the previously unscrewed lower strain relief connector.

...................................................................................................................................................................................................

5Plug the Ethernet cable RJ45 connector into the lower connector on the arrestor. Screw

the weatherized strain relief connector back onto the arrestor and tighten.

...................................................................................................................................................................................................

6At the top of the arrestor, unscrew the upper weatherized strain relief connector from the

surge arrestor.

...................................................................................................................................................................................................

7Carefully feed the end of Ethernet cable coming from the 9764 Metro Dock through the

upper strain relief connector.

...................................................................................................................................................................................................

8Plug the Ethernet cable RJ45 connector into the upper connector on the arrestor. Screw

the weatherized strain relief connector back onto the arrestor and tighten.

...................................................................................................................................................................................................

9Finally, secure the Ethernet cable to the wall/pole.

Important! When securing cables ensure the following to avoid cable damage:

•Secure cables with tie wraps. Use additional tie wraps wherever necessary for

neatness

•All cables should be run parallel with no twisting or tangled cables

•Avoid excessive tension on the cable.

How to continue

After the grounding and Ethernet cable connections are completed:

If... Then...

The 9764 MCO module is to be installed

at a later time

continue with Procedure 3-10: “Final installation

activities and checks” (p. 3-67)

Only the 9764 MCO module is to be

installed immediately after Metro Dock

installation

continue with Chapter 4, “Installation of the 9764

MCO module”

Installation of the 9764 Metro Dock

9764 Metro Dock cabling

Procedure 3-9: 9764 Metro Dock Ethernet cabling -

electrical

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-65

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

9764 Metro Dock post-installation

Overview

Purpose

This section provides post-installation information and activities that should be carried

out after the Alcatel-Lucent 9764 Metro Dock has been installed.

Contents

Procedure 3-10: Final installation activities and checks 3-67

Installation of the 9764 Metro Dock

9764 Metro Dock post-installation

Overview

....................................................................................................................................................................................................................................

3-66 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Procedure 3-10: Final installation activities and checks

Overview

This topic describes the final 9764 Metro Dock installation activities and checks to be

carried out if the 9764 MCO module is to be connected at a later time.

9764 Metro Dock plate and connection covers

If the 9764 MCO module is to be connected at a later time ensure that the following are in

place in order to protect the 9764 Metro Dock against the elements.

•The 9764 Metro Dock is fitted with its weatherized plate

•The 9764 MCO module connector is fitted with its gasket and blanking plate.

Final installation checks

Before leaving the installation site, check the following:

...................................................................................................................................................................................................

1Check the overall installation. Verify that mounted equipment is secure and that no

unintentional mechanical alteration has occurred to either the equipment itself or the

installation infrastructure.

...................................................................................................................................................................................................

2Ensure all the exterior connections are secure.

Metro Dock

weatherized plate

Metro Cell Module

connector gasket and

blanking plate

Installation of the 9764 Metro Dock

9764 Metro Dock post-installation

Procedure 3-10: Final installation activities and checks

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-67

D

RAFT

D

RAFT

...................................................................................................................................................................................................

3Ensure all cables are secured along their routes.

...................................................................................................................................................................................................

4Finally, inspect the site for loose tools, materials, and parts. Remove all such loose tools,

materials, and parts.

Installation of the 9764 Metro Dock

9764 Metro Dock post-installation

Procedure 3-10: Final installation activities and checks

....................................................................................................................................................................................................................................

3-68 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

44Installation of the 9764

MCO module

Overview

Purpose

This chapter provides instructions for installing the Alcatel-Lucent 9764 Metro Cell

Outdoor module.

Contents

9764 MCO pre-installation 4-2

Pre-installation information 4-3

9764 MCO cabling 4-4

Site power requirements (DC) 4-5

Product power requirements 4-8

Procedure 4-1: Connect power cable 4-10

9764 MCO installation 4-13

Procedure 4-2: Attach 9764 MCO module to 9764 Metro Dock 4-14

Procedure 4-3: Orient 9764 MCO module 4-17

9764 MCO post-installation 4-19

Procedure 4-4: Post installation activities 4-20

Procedure 4-5: Perform commissioning of the 9764 MCO 4-21

...................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-1

D

RAFT

D

RAFT

9764 MCO pre-installation

Overview

Purpose

This section provides pre-installation information and lists tools and materials required to

install the Alcatel-Lucent 9764 Metro Cell Outdoor.

Contents

Pre-installation information 4-3

Installation of the 9764 MCO module

9764 MCO pre-installation

Overview

....................................................................................................................................................................................................................................

4-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Pre-installation information

Product delivery contents

The following items are supplied with the 9764 MCO module:

•The 9764 MCO module

Variable parts and ancillary items

In addition to the standard delivered parts, the following variable and ancillary items are

available:

•Molex 1212020011 DC power connector

•Power supply cable (100 m roll)

Installation tools required

The following tools may be used during installation:

•Pliers

•Screwdrivers (power and/or manual):

– Phillips (flat blade)

– Torx (T-25 and T-40)

•Assorted cable ties

Installation of the 9764 MCO module

9764 MCO pre-installation

Pre-installation information

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-3

D

RAFT

D

RAFT

9764 MCO cabling

Overview

Purpose

This section provides instructions for routing and connecting the following cables to the

Alcatel-Lucent 9764 Metro Cell Outdoor module:

•Power cable

Note: For outdoor NAR installations, or where local regulations dictate, the facility and

power cables are required to be routed to the equipment within rigid steel or liquid-tight

flexible metal conduit. As part of site preparation, the customer must provide the metal

conduit and associated fittings for cable routes and connecting conduit to the outdoor

equipment.

Contents

Site power requirements (DC) 4-5

Product power requirements 4-8

Procedure 4-1: Connect power cable 4-10

Installation of the 9764 MCO module

9764 MCO cabling

Overview

....................................................................................................................................................................................................................................

4-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Site power requirements (DC)

Purpose

This section describes the power and grounding requirements that must be considered

when planning site facilities for Alcatel-Lucent installed equipment and products.

General requirements

All power and grounding system wiring, short-circuit (over-current) protection and surge

protection devices must be installed by the appropriately licensed personnel. Installation

must be performed in accordance with national and local electrical codes, for example:

•In the United States:

United States National Fire Protection Association (NFPA) 70 and United States

National Electrical Code (NEC)

•In Canada:

Canadian Electrical Code, part I, CSA C22.1

•In other countries:

International Electrotechnical Commission (IEC) 60364, parts 1 through 7

In addition, adherence to all additional requirements mandated by the “country of use” is

the customer's responsibility.

The appropriate power supply ground connections and site equipment ground connections

must be in place before commercial AC power service can be connected to the equipment

installed at the site.

Customer DC power supply

The equipment installed on site must be supported with a customer supplied nominal

-48V DC power service. The DC connection point should be easily accessible by the

service team and be marked as the disconnect device of the equipment.

Note:

•The service board (or load center), circuit breakers and surge protectors devices

are not supplied with the product. They must be ordered and installed as part of

site preparation by the customer.

•All wiring (including grounding) and over-current protection must be installed at

the service panel by suitably trained and licensed personnel and in accordance

with the national and local electrical codes.

•An appropriate earth ground connection is required before commercial power

service can be connected to any equipment at the site.

The branch circuit breaker should always be situated upstream of the equipment and must

be a “bipolar-based” 10A C-char disconnect device.

Installation of the 9764 MCO module

9764 MCO cabling

Site power requirements (DC)

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-5

D

RAFT

D

RAFT

Line surge protection

A surge protection device is not supplied with the product. It must be ordered and

installed as part of site preparation by the customer.

The equipment can be connected to a mains distribution system classified as CAT II

(equipment dedicated for connection to the mains distributed within a building). If the

category of the mains is higher than CAT II (III or IV), then upstream surge protection

must be installed by the customer to reduce the voltage range of transients in accordance

with CAT II.

Power source Over-voltage category

Equipment connected to building mains CAT II

Equipment connected directly to low voltage mains CAT III or CAT IV

Power junction box

For outdoor installations, in countries where local regulations dictate, a customer supplied

power junction box may need to be installed as part of site preparation. As part of site

preparation, the customer must provide the appropriate junction box and associated

fittings.

9764

Metro Cell

Outdoor

9764

Metro Cell

Outdoor Power cable 3G1.5mm 2

10A

Power cable 3G1.5mm 2

Main DC power

(-48V)

Circuit breaker

(bipolar C-char)

Circuit breaker

(bipolar C-char)

9764

Metro Cell

Outdoor

Panel

board

Power cable

Power connector at

the Metro Cell Outdoor

Power

junction box

Locally supplied

Power cable

3G1.5mm 2

Site power

outlet

Mains

supply

Installation of the 9764 MCO module

9764 MCO cabling

Site power requirements (DC)

....................................................................................................................................................................................................................................

4-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Conduit requirements

For outdoor installations, in countries where local regulations dictate, the power cables

are required to be routed to the equipment within rigid-steel or liquid-tight flexible metal

conduit. As part of site preparation, the customer must provide the metal conduit and

associated fittings for cable routes and connecting conduit to the outdoor equipment.

Installation of the 9764 MCO module

9764 MCO cabling

Site power requirements (DC)

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-7

D

RAFT

D

RAFT

Product power requirements

Product power data

The following table provides power related information applicable to the Alcatel-Lucent

9764 Metro Cell Outdoor V1.0 B2 WCDMA 1W

Power supply

Power mode DC power variant only

Power supply -48V DC

Earthing system

Supported earthing systems TT or TN

Unsupported earthing systems IT

Electrical rating

Electrical rating of product 1.5A

Power consumption

Gigabit Ethernet backhaul < 34W

Power ancillary items

The following power related ancillary items can be ordered from Alcatel-Lucent.

Table 4-1 Power materials

Order code Item Description

tbd Power cable In/Out 3G 1.5mm2on a 100m roll

1AB418220002 Power connector DC power connector (Molex)

Power connection point

Power is supplied to the 9764 MCO module and the 9764 Metro Dock module via a DC

connector on the reverse side of the 9764 MCO module.

Installation of the 9764 MCO module

9764 MCO cabling

Product power requirements

....................................................................................................................................................................................................................................

4-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Power connection

point

9764 MCO B2 module

(reverse view)

Installation of the 9764 MCO module

9764 MCO cabling

Product power requirements

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-9

D

RAFT

D

RAFT

Procedure 4-1: Connect power cable

Purpose

This topic describes the procedures to be followed when connecting the DC power cable

to the 9764 MCO module.

Connections

The following figure shows the connection interfaces of the 9764 MCO module:

Before you begin

You must connect the power cable to the 9764 MCO module before you attach the 9764

MCO module to the 9764 Metro Dock, otherwise you will not be able to access the DC

power connector on the 9764 MCO module.

Connect cable

DANGER

Electric-shock hazard

Since the 9764 MCO operates on DC power, the risk of serious injury or death from

electrocution exists throughout this procedure.

Follow the first step of this procedure carefully and completely.

Figure 4-1 9764 MCO connection interfaces

Power connector

Blind mate connector

between Metro Cell Module

and the Metro Dock

Cable gland

9764 MCO B1

W-CDMA module

9764 Metro Dock

module

Installation of the 9764 MCO module

9764 MCO cabling

Procedure 4-1: Connect power cable

....................................................................................................................................................................................................................................

4-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

To attach the DC power cable to the 9764 MCO module, perform the following steps:

...................................................................................................................................................................................................

1Ensure that the power that feeds the DC power cable to the 9764 MCO is OFF, and block

access so that no one can restore power to that cable during this procedure.

...................................................................................................................................................................................................

2Cut the DC power cable to the required length.

...................................................................................................................................................................................................

3Remove the cover of the DC power connector by unscrewing the 31 mm screw using a

screwdriver with a Phillips head. See the following figure:

...................................................................................................................................................................................................

4Attach the DC power connector to one end of the DC power cable. Do this by threading

the cable through the nut and connecting the wires to the pins. Ensure that you connect

the 0 V, -48 V, and ground wires to the correct pins as shown in the following figure:

Nut

31 mm screw

with gasket

Top view of connector

with cover removed

Installation of the 9764 MCO module

9764 MCO cabling

Procedure 4-1: Connect power cable

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-11

D

RAFT

D

RAFT

Torque the screws to 0.6 Nm (0.44 lb ft).

...................................................................................................................................................................................................

5Replace the cover on the DC power connector.

...................................................................................................................................................................................................

6Plug the DC power connector into the power connector on the bottom left of the 9764

MCO module.

...................................................................................................................................................................................................

7Fix the DC power connector in position by tightening the screw on the DC power

connector. Using a screwdriver with a Phillips head, torque to 0.4 Nm (0.295 lb ft).

How to continue

After connection of the DC power cable has been completed, continue with procedure

Procedure 4-2: “Attach 9764 MCO module to 9764 Metro Dock” (p. 4-14).

0V -48 V

Ground

Installation of the 9764 MCO module

9764 MCO cabling

Procedure 4-1: Connect power cable

....................................................................................................................................................................................................................................

4-12 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

9764 MCO installation

Overview

Purpose

This section provides the installation instructions for mounting the Alcatel-Lucent 9764

Metro Cell Outdoor onto a 9764 Metro Dock.

Contents

Procedure 4-2: Attach 9764 MCO module to 9764 Metro Dock 4-14

Procedure 4-3: Orient 9764 MCO module 4-17

Installation of the 9764 MCO module

9764 MCO installation

Overview

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-13

D

RAFT

D

RAFT

Procedure 4-2: Attach 9764 MCO module to 9764 Metro Dock

Purpose

This topic describes the procedures to attach the Alcatel-Lucent 9764 Metro Cell Outdoor

module to the 9764 Metro Dock.

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated to maximize coverage.

Before installation begins, ensure that the following are in place:

•Internet service is available for backhaul.

•The 9764 Metro Dock has been installed and is in place.

•The 9764 Metro Dock has been closed.

•The power cable has been connected to the 9764 MCO module.

•The key that was supplied with the 9764 Metro Dock is available.

Before you begin

Record the 18 digit serial number before mounting the 9764 MCO module.

Attach 9764 MCO module to 9764 Metro Dock

Perform the following steps to attach the 9764 MCO module to the 9764 Metro Dock:

...................................................................................................................................................................................................

1Remove the cover from the blind mate connector on the 9764 Metro Dock by unscrewing

the two M3x6 Torx screws that hold it in position.

...................................................................................................................................................................................................

2Move the 9764 Metro Dock metal slider to the “up” position:

1. Insert supplied key into lock and turn 90ocounterclockwise to unlock the slider.

2. Push slider upwards and turn key 30oclockwise to lock slider into the “up” position.

Installation of the 9764 MCO module

9764 MCO installation

Procedure 4-2: Attach 9764 MCO module to 9764 Metro Dock

....................................................................................................................................................................................................................................

4-14 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................

3Position the 9764 MCO module in front of the 9764 Metro Dock. Ensure that the three

metal lugs on the 9764 MCO module are in front of the holes on the 9764 Metro Dock.

...................................................................................................................................................................................................

4Push the 9764 MCO module into the 9764 Metro Dock.

...................................................................................................................................................................................................

5Finally, move the 9764 Metro Dock metal slider to the “down” position:

1. Turn the key 30ocounterclockwise to unlock the slider. The slider will automatically

move to the “down” position.

2. Turn the key 90oclockwise to lock the slider in the “down” position and remove the

key.

Slider moves upwards

Metro Dock Slider

(in down position)

Lug Lug

Lug

Align lugs to holes on

Metro Dock

Push MCO module onto

Metro Dock

Installation of the 9764 MCO module

9764 MCO installation

Procedure 4-2: Attach 9764 MCO module to 9764 Metro Dock

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-15

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

How to continue

After 9764 MCO module has been attached to the 9764 Metro Dock, continue with

procedure Procedure 4-3: “Orient 9764 MCO module ” (p. 4-17).

Installation of the 9764 MCO module

9764 MCO installation

Procedure 4-2: Attach 9764 MCO module to 9764 Metro Dock

....................................................................................................................................................................................................................................

4-16 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Procedure 4-3: Orient 9764 MCO module

Purpose

This topic describes the procedures to orient the Alcatel-Lucent 9764 Metro Cell Outdoor

module towards its target using tilt and/or azimuth brackets.

Prerequisites

Ensure that the following are in place:

•The 9764 Metro Dock has been installed and is in place.

•The 9764 MCO has been attached to the 9764 Metro Dock.

•You have the equipment orientation plan.

Orient 9764 MCO module

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following steps to angle the 9764 MCO module towards its target:

...................................................................................................................................................................................................

1Refer to the equipment orientation plan.

If... Then...

If the 9764 Metro Dock is installed on either a

pole or a wall, and a tilt bracket has been used 1. Using the tilt angle positioning gauge,

adjust the 9764 Metro Dock tilt (+- 20°

up/down) to the desired angle.

2. Using a ratchet wrench, tighten all the tilt

positioning gauge bolts and the bracket

assembly hex bolts to fix the orientation of

the 9764 Metro Dock.

Installation of the 9764 MCO module

9764 MCO installation

Procedure 4-3: Orient 9764 MCO module

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-17

D

RAFT

D

RAFT

If... Then...

If the 9764 Metro Dock is installed on a wall,

and an azimuth bracket has been used 1. Using the azimuth angle positioning

gauge, adjust the 9764 Metro Dock

azimuth (+- 45° left/right) to the desired

orientation.

2. Using a ratchet wrench, tighten all the

azimuth positioning gauge bolts and the

bracket assembly hex bolts to fix the

orientation of the 9764 Metro Dock.

If the 9764 Metro Dock is installed on a wall,

and both the tilt bracket the azimuth bracket

have been used

Perform both of the above procedures.

How to continue

After 9764 MCO module has been attached to the 9764 Metro Dock, continue with

procedure Procedure 4-4: “Post installation activities” (p. 4-20).

Installation of the 9764 MCO module

9764 MCO installation

Procedure 4-3: Orient 9764 MCO module

....................................................................................................................................................................................................................................

4-18 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

9764 MCO post-installation

Overview

Purpose

This section provides post-installation information and activities that should be carried

out after the Alcatel-Lucent 9764 Metro Cell Outdoor has been installed.

Contents

Procedure 4-4: Post installation activities 4-20

Procedure 4-5: Perform commissioning of the 9764 MCO 4-21

Installation of the 9764 MCO module

9764 MCO post-installation

Overview

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-19

D

RAFT

D

RAFT

Procedure 4-4: Post installation activities

Final installation checks

Before leaving the installation site, check the following:

...................................................................................................................................................................................................

1Secure all cables along their routes.

...................................................................................................................................................................................................

2Verify that all the exterior conduit and cable connections are secure.

...................................................................................................................................................................................................

3Inspect the site for loose tools, materials, and parts. Remove all such loose tools,

materials, and parts.

...................................................................................................................................................................................................

4Continue with procedure Procedure 4-5: “Perform commissioning of the 9764 MCO”

(p. 4-21)

Installation of the 9764 MCO module

9764 MCO post-installation

Procedure 4-4: Post installation activities

....................................................................................................................................................................................................................................

4-20 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Procedure 4-5: Perform commissioning of the 9764 MCO

Purpose

This topic describes the commissioning process for the 9764 MCO. For single device

deployments, the 9764 MCO is self-commissioning. For multiple device deployments, the

operator may complement zero-touch commissioning with appropriate cell planning.

Troubleshooting

If any problems occur during the commissioning process refer to the following document:

•Alcatel-Lucent 9764 Metro Cell Outdoor V1.0 B2 WCDMA 1W Maintenance and

Troubleshooting, 9YZ-04190-0002-REZZA .

Power on the 9764 MCO

Perform the following step to power on the 9764 MCO:

...................................................................................................................................................................................................

1Follow site-specific procedures to power on the 9764 MCO by to applying power to the

power cable. The 9764 MCO will then begin auto-configuration and auto-commissioning.

After 1-3 seconds the Power LED will light and the Backhaul Connectivity LED will

flash green.

Auto-configuration and auto-commissioning process

The following steps outline the zero-touch commissioning process:

...................................................................................................................................................................................................

1After approximately 2 minutes the 9764 MCO will initialize and establish connectivity.

During this operation the 3G Cell Status LED will blink slowly.

...................................................................................................................................................................................................

2After the 9764 MCO has established a network connection, the 9764 MCO will

automatically update its software. This process takes approximately 15 minutes. During

this operation both the 3G Cell Status LED and the Backhaul Connectivity LED will

blink.

...................................................................................................................................................................................................

3Once the software update has completed, the 9764 MCO will carry out an automatic

reboot. During reboot, the Power and 3G Cell Status LEDs will be lit.

Installation of the 9764 MCO module

9764 MCO post-installation

Procedure 4-5: Perform commissioning of the 9764 MCO

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 4-21

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

4After rebooting, the 9764 MCO will automatically auto-configure itself. During this

operation the System status LED will blink slowly.

...................................................................................................................................................................................................

5When the 9764 MCO is ready for use the Power, 3G Cell Status and Backhaul

Connectivity LEDs will all be lit.

Installation of the 9764 MCO module

9764 MCO post-installation

Procedure 4-5: Perform commissioning of the 9764 MCO

....................................................................................................................................................................................................................................

4-22 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Appendix A: Product

conformance statements

Overview

Purpose

This section presents the product conformance statements that apply to the 9764 MCO

Access Point equipment.

The statements that are required are determined primarily by national or multinational

regulations. However, in some regions, contract terms determine which statements are

required.

The presence of the statement indicates that the product does comply with that statement

wherever it is required to do so.

Note: Together, the 9764 MCO module and 9764 Metro Dock comprise the 9764 MCO.

Although the 9764 Metro Dock may be physically installed either prior to or at the same

time as 9764 MCO module, both components must be installed in order to activate

(power up and put into service) the 9764 MCO.

Note: UL/FCC certification will be complete and product labels that include the UL/FCC

marking will be available when the product reaches RFOA.

Contents

United States compliance A-2

Federal Communications Commission A-3

Product safety and RF exposure A-5

FDA/IEC optical transmitter product compliance statements A-8

Eco-environmental statements A-9

...................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction A-1

D

RAFT

D

RAFT

United States compliance

Introduction

Purpose

The statements that follow are the product conformance statements that apply to the 9764

MCO when deployed in the United States.

Contents

Federal Communications Commission A-3

Product safety and RF exposure A-5

FDA/IEC optical transmitter product compliance statements A-8

Eco-environmental statements A-9

Product conformance statements

United States compliance

Introduction

....................................................................................................................................................................................................................................

A-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Federal Communications Commission

Federal Communications Commission Interference Statement 47 CFR Section 15.21 – No

Unauthorized Modifications

Important! Changes or modifications not expressly approved by Alcatel-Lucent, Inc.

could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

FCC Part 15 Class B Statement 47 CFR Section 15.19 and 15.105(b)

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the equipment and receiver

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

•Consult the dealer or an experienced radio/TV technician for help.

Product conformance statements

United States compliance

Federal Communications Commission

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction A-3

D

RAFT

D

RAFT

FCC Part 68

This equipment complies with Part 68 of the FCC rules and the requirements adopted by

the ACTA. At the upper-right-hand corner inside the cabinet assembly of this equipment

is a label that contains, among other information, a product identifier in the format of

AAAEQ##TXXXX. If requested, this number must be provided to the telephone

company.

FIC 04DU9-1SN.

SOC 6.0N

The T1 network interface on this equipment is hardwired to a punchdown block, which

meets the FCC specifications.

If this equipment causes harm to the telephone network, the telephone company will

notify you in advance that temporary discontinuance of service may be required.

However, if advance notice is not practical, the telephone company will notify the

customer as soon as possible. Also, you will be advised of your right to file a complaint

with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or

procedures that could affect the operation of the equipment. If this happens, the telephone

company will provide advance notice in order for you to make necessary modifications to

maintain uninterrupted service.

FCC regulations prohibit the connection of customer-provided equipment to central office

implemented systems. Connection to party lines is subject to tariffs; users should contact

their state public utility commission, public service commission, or corporation

commission for information.

If the equipment is causing harm to the telephone network, the telephone company may

request that you disconnect the equipment until the problem is resolved.

If trouble is experienced with this equipment repair or warranty information may be

obtained by contacting:

Technical Support Services, within the United States: +1 630 224 4762, prompt 2

RF approval

This equipment complies with Part 2, Subpart J - Equipment Authorization Procedures, of

the FCC Rules.

This equipment complies with Part 24 - Personal Communications Services, Subpart E -

Broadband PCS.

Product conformance statements

United States compliance

Federal Communications Commission

....................................................................................................................................................................................................................................

A-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Product safety and RF exposure

The equipment complies with the following product safety and RF exposure

specifications:

Standard reference Title

UL 60950-1 (Ed 2 of 2007) + Amendment 1

(2011) & CSA C22.2 No 60950-1-07

Amendment 1 (2011)

Information Technology Equipment – Safety –

Part 1: General Requirements

UL 60950-22 (Ed 1 of 2007) Information Technology Equipment – Safety –

Part 22: Equipment to be installed outdoors

Canada RSS 102 Radio Frequency (RF) Exposure Compliance of

Radiocommunication Apparatus (All Frequency

Bands)

US FCC OET Bulletin 65 (incl. supplements) Evaluating Compliance with FCC Guidelines

for Human Exposure to Radiofrequency

Electromagnetic Fields and its supplements

RF exposure

Europe:

•European Council recommendation 1999/519/EC on the limitation of exposure of the

general public to electromagnetic fields (0 Hz to 300 GHz). This includes EN 50383,

EN 50384 and EN 50385.

•Directive 2004/40/EC of the European Parliament and of the Council on the minimum

health and safety requirements regarding the exposure of workers to the risks arising

from physical agents (electromagnetic fields). Together with its amendment

2012/11/EC.

Note: These standards are aligned with the Guidelines of 1998 from the International

Commission for Non-Ionizing Radiation Protection (ICNIRP). The recommendations

provided below may also be extended to other ICNIRP based regulations.

North America:

•Canada Safety Code 6 – Limits of Human Exposure to Radiofrequency

Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz. Together

with Canada RSS 102 for compliance of radio communication apparatus.

•USA FCC 47CFR 1.1310 – Radiofrequency radiation exposure limits. Together with

FCC OET Bulletin 65 and its supplements for evaluating compliance with FCC

guidelines for human exposure to RF fields.

Product conformance statements

United States compliance

Product safety and RF exposure

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction A-5

D

RAFT

D

RAFT

Note: These standards are aligned with IEEE C95.1 from the Institute of Electrical &

Electronics Engineers (IEEE). The recommendations provided below may also be

extended to other IEEE or FCC based regulations.

The Alcatel-Lucent 9764 MCO V1.0 B2 WCDMA 1W is basically a radio transmitter and

receiver. When it’s turned on, it receives and transmits radio frequency (RF) signals. The

system controls the transmitted power level within a range up to 1 W.

The Specific Absorption Rate (SAR) is a value that corresponds to the relative amount of

RF energy absorbed in the body of a person standing in the close vicinity of the

equipment. Measured SAR values result from an extensive assessment process defined by

international standards. Tests are performed in strict laboratory settings at the highest

transmitted power of the equipment. When in operation, the SAR resulting from of the

equipment emissions will most likely be substantially less than the measured values

because of a variety of factors including number and proximity of connected end users,

telecom traffic etc…

Installation for the Alcatel-Lucent 9764 MCO V1.0 B2 WCDMA 1W equipment shall be

performed in accordance with all applicable manufacturer's recommendations, and

national laws and regulations.

North America:

The product complies with FCC 47CFR1.1310 (US) and Safety Code 6 (Canada) RF

exposure limits for uncontrolled (general public) environments. The equipment must be

installed and operated with a minimum separation distance of 20 cm (8 inches) between

the radiator and user (see: USA – FCC OET Bulletin 65 and supplements and Canada –

RSS 102).

Europe and countries with ICNIRP based regulations:

According to the results of the SAR assessment of the equipment, the installation shall at

least adhere to the following recommendations:

•the equipment shall be installed in a location restricting access by the general public

to the area within 30 millimetres directly in front of the equipment shroud. One

practical implementation of this requirement is to ensure that the equipment is

mounted a minimum of 3 meters above local ground, this vertical distance being

measured from the local ground or closest walkway to the bottom of the equipment.

•the SAR value when touching the equipment complies with the ICNIRP/EU exposure

limits values for workers. The action levels (cf. table below) may be exceeded within

a distance of 100 millimetres from the shroud when the equipment is transmitting at

its maximum power.

For European Union countries, a standardized warning sign for non-ionizing radiations as

per Council Directive 92/58/ECC amended by Directive 2007/30/EC of 20 June 2007 is

provided together with the equipment in case the operator or any other entity putting the

Product conformance statements

United States compliance

Product safety and RF exposure

....................................................................................................................................................................................................................................

A-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

equipment into service or having access to it for other any reasons needs it for the

implementation of the European Directive 2004/40/EC regarding the exposure of workers

to electromagnetic fields.

For further information on RF exposure, the following table provides indicative values of

electromagnetic field reference levels in the main lobe in front of the antenna:

Electric field (V/m) Distance from the shroud

(m)

Comment

140 0.1 ICNIRP reference level and

EU action level for workers

61 0.3 EU/ICNIRP reference level

for public

Product conformance statements

United States compliance

Product safety and RF exposure

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction A-7

D

RAFT

D

RAFT

FDA/IEC optical transmitter product compliance statements

FDA/IEC optical transmitter product compliance

Alcatel-Lucent declares that this equipment complies with the Food and Drug

Administration’s Center for Devices and Radiological Health (FDA/CDRH) regulations

21 CFR 1040.10 and 1040.11. It is a Class I/1 laser optical fiber communication systems

“product” under the FDA.

This Product is designed to ensure that personnel operating the product are not

endangered by laser radiation during normal operation and fault conditions. This product

does not present a risk of eye injury because it is fully enclosed and does not contain

embedded lasers greater than Class I/1 unless otherwise noted.

Laser warning

WARNING

Laser hazard

Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser radiation exposure.

Do not view directly into the laser beam with optical instruments such as a fiber

microscope because viewing of laser emission in excess of Class 1 limits significantly

increases the risk of eye damage.

Never look into the end of an exposed fiber or an open connector as long as the optical

source is switched on.

Ensure that the optical source is switched off before disconnecting optical fiber

connectors.

Product conformance statements

United States compliance

FDA/IEC optical transmitter product compliance statements

....................................................................................................................................................................................................................................

A-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Eco-environmental statements

Packaging collection and recovery requirements

Countries, states, localities, or other jurisdictions may require that systems be established

for the return and/or collection of packaging waste from the consumer, or other end user,

or from the waste stream. Additionally, reuse, recovery, and/or recycling targets for the

return and/or collection of the packaging waste may be established.

For more information regarding collection and recovery of packaging and packaging

waste within specific jurisdictions, contact the Alcatel-Lucent Environment, Health and

Safety organization or Alcatel-Lucent Hazardous Waste Center technical support at (888)

539-2783.

For installations not performed by Alcatel-Lucent, please contact the Alcatel-Lucent

Customer Support Center at:

Technical Support Services, within the United States: +1 630 224 4762, prompt 2

Material content compliance

The following notification applies to Alcatel-Lucent products distributed for sale, resale,

or use.

This product, part, or both may include a lithium-manganese dioxide battery, which

contains very small amounts of a perchlorate substance. Special handling may apply.

For California:

Perchlorate Material - special handling may apply.

See http:\\www.dtsc.ca.gov/hazardouswaste/perchlorate/.

Product conformance statements

United States compliance

Eco-environmental statements

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction A-9

D

RAFT

D

RAFT

Product conformance statements Eco-environmental statements

....................................................................................................................................................................................................................................

A-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Glossary

...................................................................................................................................................................................................................................

Numerics

3GPP

3rd Generation Partnership Project

...................................................................................................................................................................................................................................

A A (Ampere)

Base SI unit of electrical current.

AC (Alternating Current)

Continuously variable current, rising to a maximum in one direction, falling to zero, then

reversing direction and repeating the cycle in the other direction.

AC convenience outlet

Sites must be equipped with at least two duplex outlets for installation and maintenance

procedures. The outlets are required to power test equipment and installation tools.

Ambient temperature

The temperature of air or other media in a designated area, particularly the area

ANSI (American National Standards Institute)

An organization chartered to accredit standards developed by a wide variety of industry groups,

without influence from any one company or organization. Does not develop standards, but

reviews and implements those developed by other organizations. ANSI is a member of the

International Standards Organization (ISO).

Antenna

An elevated device for radiating or receiving radio waves. It changes electrical currents into

electromagnetic waves, and vice versa.

AP

Access Point

AWG (American Wire Gauge)

American standard for classifying wire diameter.

...................................................................................................................................................................................................................................

B Backup

Facility used to replace an element which has failed.

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction GL-1

D

RAFT

D

RAFT

Base station

The equipment that provides the air interface that allows mobile terminals to communicate with

the telecommunications network.

BBU

BaseBand Unit

BOCA

Building Officials and Code Administrators

Bonding

Permanent connection of metallic parts to form an electrically conductive path that will assure

electrical continuity and have the capability to safely conduct any current likely to be imposed.

Branch circuit

The circuit conductors between the final overcurrent device protecting the circuit and the

outlet(s).

Breaker, circuit

A cut-out device which breaks a circuit when preset limits of current are exceeded.

Buried ring ground

A buried, bare, tinned, solid copper cable encircling the site building and/or tower foundation.

...................................................................................................................................................................................................................................

C CDRH

Center for Devices and Radiological Health

Cell site

An installation located within a cell that houses the equipment needed to set up and complete calls

on a cellular telephone.

CIC ((Customer Information Center))

Source for locating and obtaining delivery of Alcatel-Lucent customer documents.

Circuit

1. The complete path between two terminals over which one-way or two-way communications

may be provided. 2. An electronic path between two or more points, capable of providing a

number of channels. 3. A number of conductors connected together for the purpose of carrying an

electrical current. 4. An electronic closed-loop path among two or more points used for signal

transfer. 5. A number of electrical components, such as resistors, inductances, capacitors,

transistors, and power sources connected together in one or more closed loops.

Configuration

An arrangement of functional units according to their nature, number, and chief characteristics.

Glossary

....................................................................................................................................................................................................................................

GL-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Controlled environment

An indoor location in which temperature, humidity, and ventilation are maintained at specific

levels.

CSA (Canadian Standards Association)

An independent, non-government, not-for-profit association for the development, by consensus,

of Canadian standards and product certifications.

CSC (Cell Site Configuration)

Sheets provided in this document for documenting cell site configuration, conditions, and other

pertinent information for reference during product deployment, and future additions.

...................................................................................................................................................................................................................................

D dB (Decibel)

A unit which expresses the ratio of two voltages, currents, or powers. It is used to specify

transmission loss, gain, or relative level. It is equal to 20 times the common logarithm of the ratio

of two voltages or two currents, or 10 times the common logarithm of the ratio of two powers.

DC (Direct Current)

Current flow in one direction.

Diversity

A method of radio transmission and/or reception, which counteracts the effects of fading by

combining several signals all bearing the same information.

Driven ground rod

A copper-clad steel or stainless steel rod, a minimum of 2.4 meters (8 feet) long and 5/8 inch in

diameter.

...................................................................................................................................................................................................................................

E Earthquake zone

Seismic ratings ranging from zone 1 (relatively low central office operational shock and vibration

levels) to the most severe zone 4 levels. Equipment must be able to withstand earthquake zone

requirements under both operational and non-operational conditions.

Electrolytic ground rod

A low resistance grounding rod (pipe) using low resistivity materials.

EU

European Union

Exothermic weld

A method of making electrical connections of copper to copper or copper to steel using high

temperature fusion. The molten copper flows over conductors in a mold, melting and welding

them together.

Glossary

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction GL-3

D

RAFT

D

RAFT

...................................................................................................................................................................................................................................

F Facility

Any element of physical telephone equipment needed to provide service, such as cables,

switching systems, and microwave radio transmission systems.

FCC (Federal Communications Commission)

A group founded in 1934 to regulate all types of communications in the United States.

FDA

Food and Drug Administration

Frequency

For a periodic wave, such as alternating current, the number of complete cycles per unit of time.

The unit of frequency is cycles per second, or hertz.

Fuse

An overcurrent protective device that has as its critical component a metal wire or strip that will

melt when heated by a prescribed (design) amperage, creating an open in the circuit of which it is

a part, thereby protecting the circuit from an overcurrent condition.

...................................................................................................................................................................................................................................

G Gain

The ratio of output current, voltage, or power to input current, voltage, or power, respectively.

Gain is usually expressed in dB. If the ratio is less than unity, the gain, expressed in dB, will be

negative, in which case there is a loss between input and output.

GBE

GigaBit Ethernet

GFCI (Ground Fault Circuit Interrupter)

A device intended for protection of personnel that functions to de-energize a circuit or portion

thereof within an established period of time when a current to ground exceeds some

predetermined value that is less than that required to operate the overcurrent protective device of

the supply circuit.

GPS (Global Positioning System)

A system of 24 satellites that provides, among other things, extremely accurate timing information

to the cell sites.

Ground

A conducting connection between equipment or an electrical circuit and earth, or conductive body

that is used in place of earth.

Ground conductor

A conductor used to connect equipment or a grounded electrical circuit to the grounding electrode

system.

Glossary

....................................................................................................................................................................................................................................

GL-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Grounding electrode system

The conductive objects that are intentionally bonded to furnish connection to earth (i.e., buried

ring ground with ground rods, electrically continuous buried metallic water pipe, electrolytic

ground electrode, etc.).

Guy

Steel wire or rope used to hold a pole upright.

...................................................................................................................................................................................................................................

H Heat dissipation

The heat generated by equipment during operation.

HSDPA

High Speed Downlink Packet Access

HSUPA

High Speed Uplink Packet Access

HV

High Voltage

Hz (Hertz)

A unit of frequency of a periodic process equal to one cycle per second.

...................................................................................................................................................................................................................................

I ICNIRP

International Commission for Non-Ionizing Radiation Protection

IEEE

Institute of Electrical and Electronics Engineers

INTR (Intrusion Alarm)

The Intrusion (INTR) alarm indicates a door or access panel to the power system is open.

IT

In an IT earthing system, the electrical distribution system has no connection to earth at all, or it

has only a high impedance connection. In such systems, an insulation monitoring device is used to

monitor the impedance.

...................................................................................................................................................................................................................................

L LAN

Local Area Network

Load

The power consumed by a device or circuit in performing its function.

Glossary

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction GL-5

D

RAFT

D

RAFT

Loss

The diminution, usually expressed in dB, of signal level in a communications medium. The

power, usually expressed in watts, consumed by a circuit or component. The energy dissipated

without accomplishing useful work or purpose.

LV

Low Voltage

...................................................................................................................................................................................................................................

M MHz (Megahertz)

Reference of radio frequency spectrum of one-million cycles.

MOP (Method of Procedure)

Cell site walk-through where site preparation activities are verified prior to installing the 9412

eNodeB Compact equipment.

MSP

Mobile Service Provider

...................................................................................................................................................................................................................................

N NEC (National Electric Code)

Standard that governs the use of electric wire, cable, and fixtures, and electrical and optical

communication cable installed in buildings.

Network

A set of terminals, the communications link that joins them, and the protocols that allow them to

function together and communicate with each other.

NFPA (National Fire Protection Association)

Standards and code writing organization made up of volunteer industrial and institutional

subject-matter-expert committees.

NFPA

National Fire Protection Association

Nominal

Specified value or intended value independent to any uncertainty in its realization. In a device that

realizes a physical quantity, it is the value of such a quantity specified by the manufacturer.

Non Alcatel-Lucent power

3rd party power systems, or power systems other than Alcatel-Lucent.

...................................................................................................................................................................................................................................

P Phase

The number of separate voltage waves in commercial alternating current, designated as "single

phase", "three phase", etc.

Glossary

....................................................................................................................................................................................................................................

GL-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

...................................................................................................................................................................................................................................

Q QAM

Quadrature Amplitude Modulation

QoE

Quality Of Experience

...................................................................................................................................................................................................................................

R RCD

Residual Current Device

RF (Radio Frequency)

Electromagnetic wave used for, among other things, cellular voice and data communications.

RMS (Root Mean Square)

Effective value of an alternative wave. For AC, this is numerically equal to DC value of the

current with the same heating effect.

RoHS

Restriction of Hazardous Substances

Rx (Receive)

...................................................................................................................................................................................................................................

S SAR (Specific Absorption Rate)

A measure of the rate at which energy is absorbed by the body when exposed to radio frequency

energy.

Sector

The coverage area within the degree of directionality of the antennas.

SFP

Small Form-Factor Pluggable (a transceiver module)

Shield

A housing, screen, sheath, or cover that substantially reduces the coupling of electric, magnetic, or

electromagnetic fields into or out of circuits or transmission lines.

Site

An installation that houses the equipment needed to set up and complete calls on a cellular

telephone.

Site preparation

To perform the requirements necessary at the site before installation can begin.

Stranded

Wires twisted together to form a strong flexible cable.

Glossary

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction GL-7

D

RAFT

D

RAFT

Surge protector

Protective device used to limit surge voltages by discharging or bypassing any unwanted surge

current that may enter a building or equipment.

...................................................................................................................................................................................................................................

TT1

A four-wire voice and data trunking facility that carries 24 duplex channels over 56-kbps time

slots.

TN

In a TN earthing system, one of the points in the generator or transformer is connected with earth,

usually the star point in a three-phase system. The body of the electrical device is connected with

earth via this earth connection at the transformer.

TT

In a TT earthing system, the protective earth connection of the consumer is provided by a local

connection to earth, independent of any earth connection at the generator.

Twisted pair cable

Cable made up of one or more separately insulated twisted-wire pairs, none of which is arranged

with another to form quads.

Tx (Transmit)

...................................................................................................................................................................................................................................

U UBC

Uniform Building Code

UL (Underwriters Laboratories)

Laboratories that test and approve materials and equipment against pre-determined performance

standards.

...................................................................................................................................................................................................................................

V V (Volt)

The derived SI unit of electrical potential difference. It is the difference in potential between two

points of a conducting wire carrying a constant current of 1 ampere when the power dissipated

between these two points is equal to 1 watt.

V AC (Volts Alternating Current)

V DC (Volts Direct Current)

V rms (Volts Root Mean Square)

VSWR (Voltage Standing Wave Ratio)

In a transmission line, the ratio of maximum to minimum voltage in a standing wave pattern. The

VSWR is a measure of impedance mismatch between the transmission line and its load. The

Glossary

....................................................................................................................................................................................................................................

GL-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

higher the VSWR, the greater the mismatch. The minimum VSWR, i.e., that which corresponds to

a perfect impedance match, is unity.

...................................................................................................................................................................................................................................

W W (Watts)

The derived SI unit of power. It is equivalent to 1 joule per second, or 1 volt-ampere.

Walk-through

A critical examination of a design or product undertaken to ensure that it is of adequate quality.

Waveform

The characteristic shape of a periodic wave, determined by the frequencies present and their

amplitudes and relative phases.

WCDMA

Wideband Code Division Multiple Access

WEEE

Waste Electrical and Electronic Equipment

Glossary

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction GL-9

D

RAFT

D

RAFT

Glossary

....................................................................................................................................................................................................................................

GL-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT

Index

Numerics

9764 MCO module

additional optional items, 4-3

pre-installation, 4-3

product delivery contents, 4-3

tools, 4-3

.............................................................

Aadditional optional items

9764 MCO module, 4-3

Metro Dock, 3-3

Attach9764 MCO module

attach to 9764 Metro Dock,

4-14

auto-commissioning, 4-20,4-21

auto-configuration, 4-21

.............................................................

Ccabling, 4-10

power, 4-10

commissioning, 4-21

Connectors

Metro Cell Module, 2-5

.............................................................

DDebug interface

Metro Cell Modulex, 2-7

device placement

Metro Cell, 3-3

.............................................................

EElectrical Ethernet cabling, 3-59

.............................................................

FFinal installation activities and

checks, 3-67

.............................................................

Gglossary, GL-1

GPS antenna

Metro Cell Outdoor, 2-6

.............................................................

HHardware and ancillary items

9764 Metro Cell Module base

items, 2-8

9764 Metro Dock base items,

2-8

Ethernet cable (electrical),

2-10

Ethernet cable (optical), 2-11

Grounding, 2-10

Installation kits, 2-9

Power, 2-10

SFP modules, 2-10

supported installation options,

2-8

.............................................................

MMetro Cell

device placement, 3-3

pre-installation, 3-3

Metro Cell Module

connectors, 2-5

debug interface, 2-7

overview, 2-5

Metro Cell Outdoor

GPS antenna, 2-6

physical description, 2-3

power supply, 2-6

product labelling, 2-7

RF antenna, 2-6

weights and dimensions, 2-4

Metro Dock

additional optional items, 3-3

product delivery contents, 3-3

Standard wall mount, 3-21

tools, 3-4

wall mount - with optional tilt

brackets, 3-26,3-34

Metro Dock cabling

Connect the electrical Ethernet

cable, 3-61

Connect the ground cable, 3-52

....................................................................................................................................................................................................................................

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction IN-1

D

RAFT

D

RAFT

Connect the optical Ethernet

cable, 3-56

mount the surge arrestor, 3-64

Metro Dock Ethernet cabling, 3-54

Metro Dock ground cabling, 3-52

Metro Dock pole mount

using bands, 3-8

using screws, 3-7

Metro Dock pole mount using

bands, 3-8

Metro Dock pole mount using

screws, 3-7

.............................................................

OOrient 9764 MCO module, 4-17

.............................................................

PPhysical description

Metro Cell Outdoor, 2-3

post installation checks, 4-20

Power - product

ancillary items, 4-8

connection point, 4-8

power on, 4-21

Power requirements

Product power specification,

4-8

Power requirements (DC)

Conduit, 4-7

DC power supply, 4-5

General, 4-5

Line surge protection, 4-6

Power Junction box, 4-6

Power supply

Metro Cell Outdoor, 2-6

pre-installation

9764 MCO module, 4-3

Metro Cell, 3-3

product conformance statements,

A-1

product delivery contents

9764 MCO module, 4-3

Metro Dock, 3-3

Product features and attributes, 2-2

product labelling

Metro Cell Outdoor, 2-7

.............................................................

RRF antenna

Metro Cell Outdoor, 2-6

.............................................................

SStandard wall mount, 3-21

.............................................................

Ttools

9764 MCO module, 4-3

Metro Dock, 3-4

.............................................................

WWall mount, 3-26,3-34,3-41

Weights and dimensions

Metro Cell Outdoor, 2-4

with combined horizontal and

vertical tilt brackets, 3-41

with optional tilt brackets, 3-26,

3-34

Index

....................................................................................................................................................................................................................................

IN-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

9764 MCO WCDMA 1W

3MN-01703-0002-RJZZA

Issue 0.06 February 2013

D

RAFT

D

RAFT
